| Product Type | Indoor/Outdoor Network Security Camera |
| Model | WV-S1536LTN |
| Brand | i-PRO (Panasonic) |
| Image Sensor | 1/3-inch Progressive Scan CMOS |
| Resolution | 5 Megapixels (up to 2592 x 1944) |
| Frame Rate | Up to 30 fps at 5MP |
| Lens | Varifocal, 2.8–10mm, F1.3 |
| Angle of View | Horizontal: 105° (wide) to 28° (tele) |
| Night Vision | IR LEDs, up to 30m range |
| Compression | H.265 / H.264 / JPEG |
| Network Interface | 10/100/1000 Base-T Ethernet (RJ-45) |
| Power Supply | PoE (IEEE 802.3af) or DC 12V |
| Power Consumption | 15.2 W max (IR on) |
| Dimensions (W x H x D) | 160 x 130 x 120 mm (6.3 x 5.1 x 4.7 in) |
| Weight | 1.5 kg (3.3 lb) |
| Ingress Protection | IP66, IK10 |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |

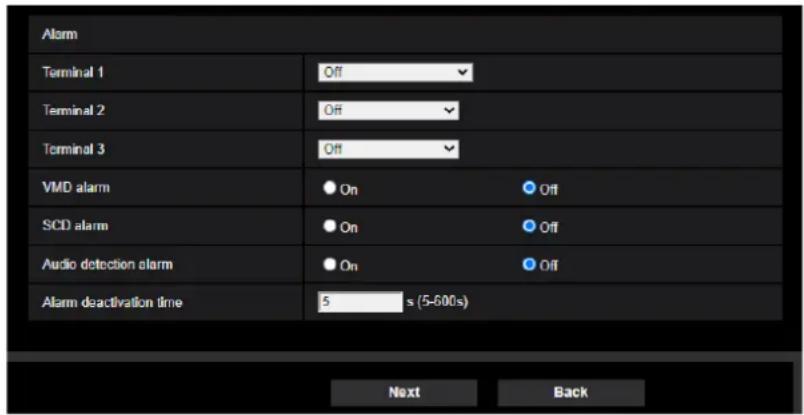

| Main Features | Smart analytics, motion detection, tamper alarm, edge recording |
| Audio | 2-way audio (mic input, line output) |
| Storage | MicroSD slot (up to 256 GB), NAS, NVR |
| Repairability / Spare Parts | Replaceable unit design, lens and IR board available |
| Maintenance | Clean lens with dry soft cloth; check cable seals |

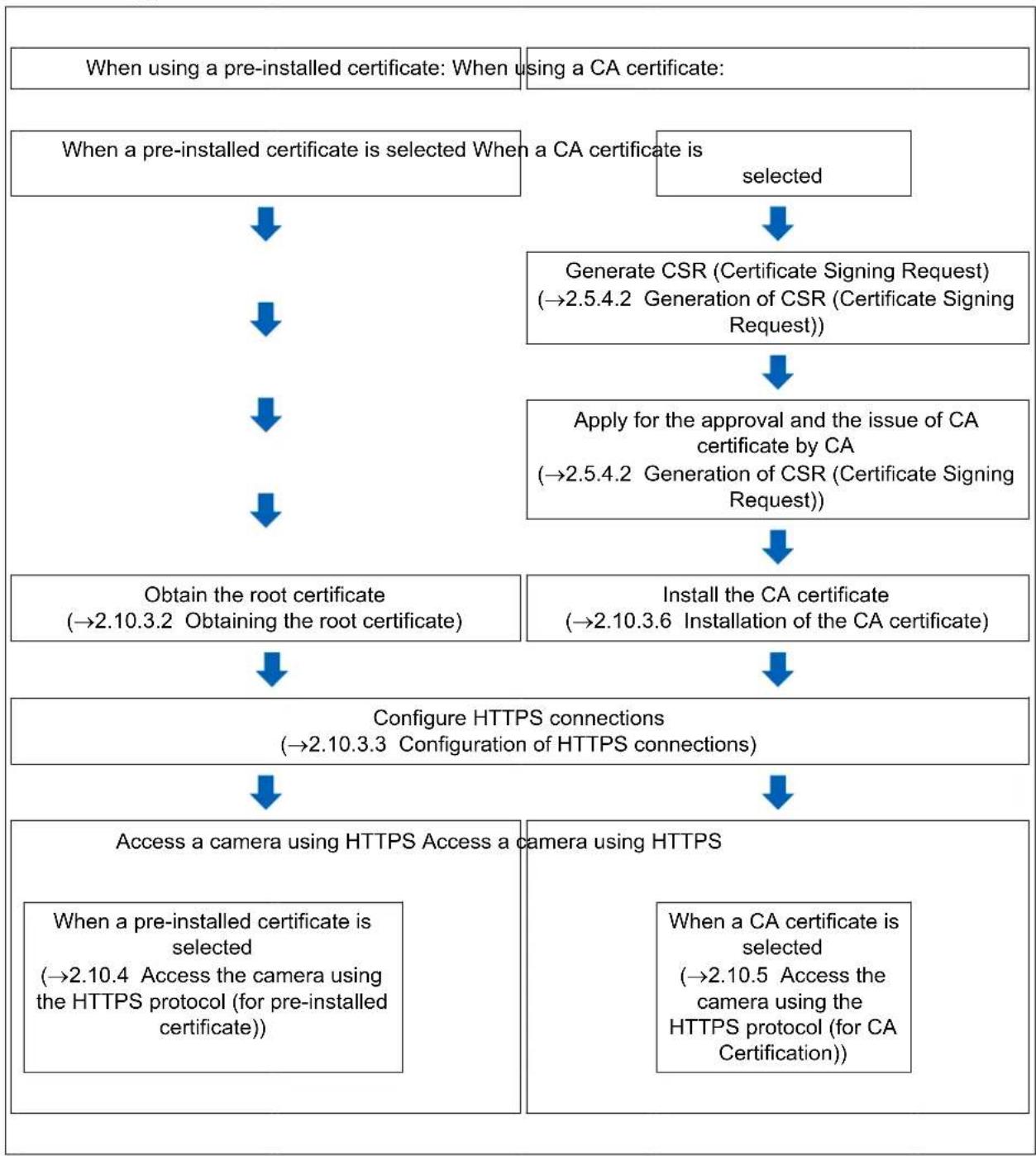

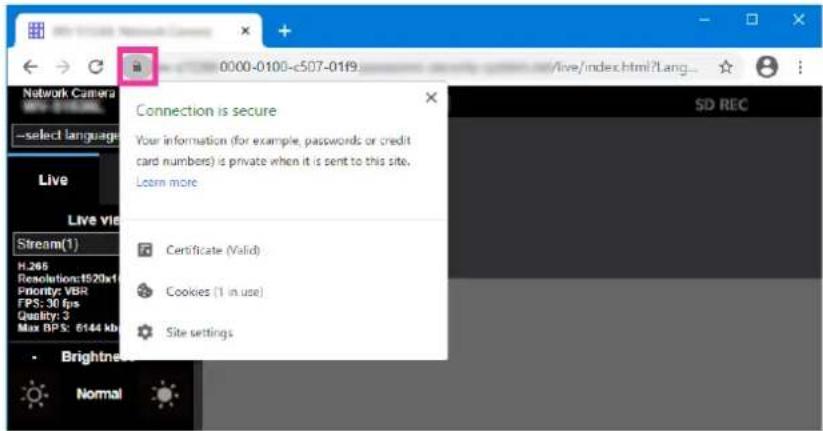

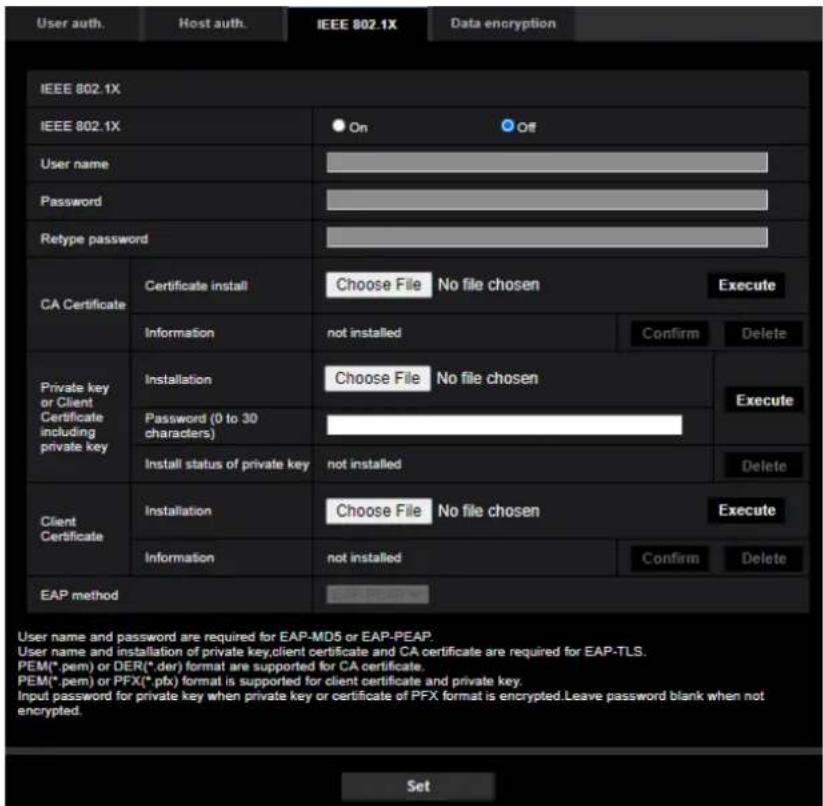

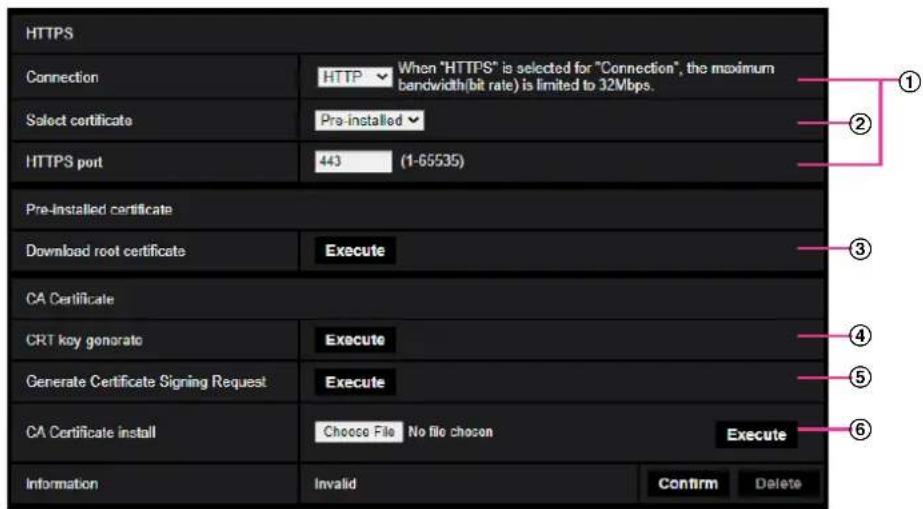

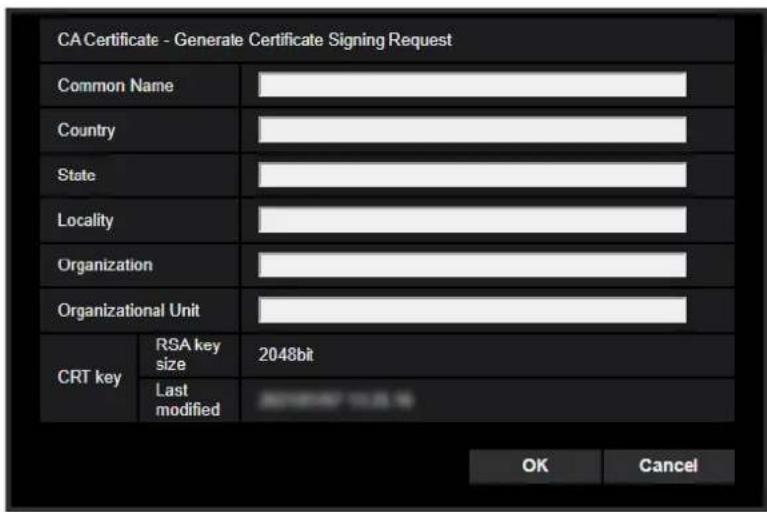

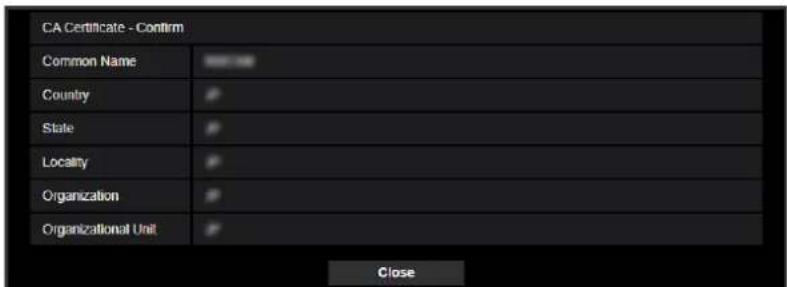

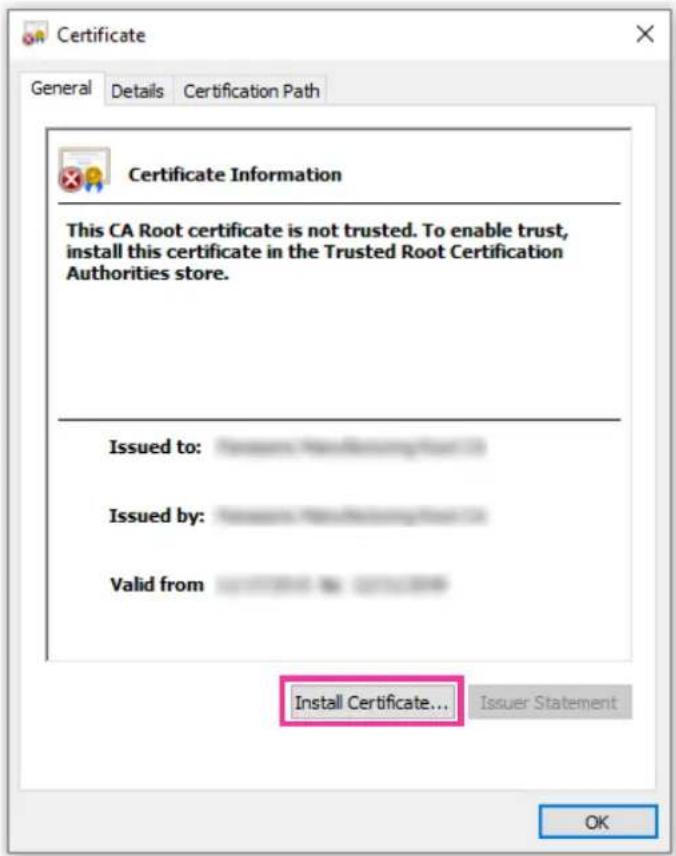

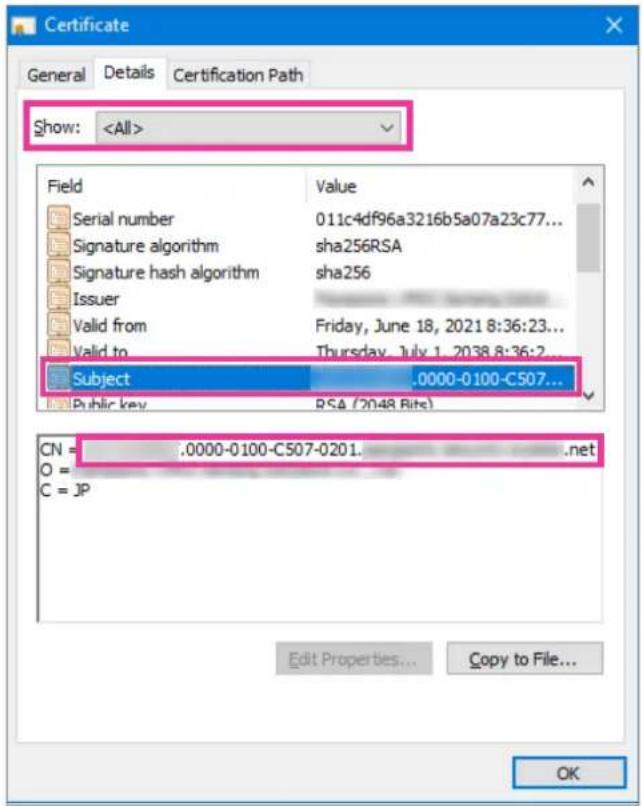

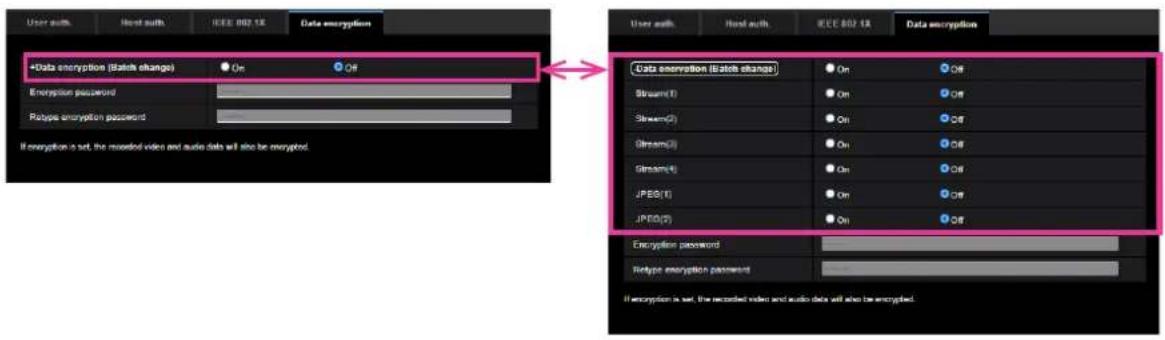

| Security | Encryption (HTTPS, 802.1x), password protection, firmware updates |
Frequently Asked Questions - WV-S1536LTN i-PRO
How do I reset the camera to factory defaults?
Press and hold the reset button (inside the camera housing) for 10 seconds using a paperclip. The camera will restart and all settings will be cleared.
What is the maximum resolution and frame rate?
The camera supports up to 5 megapixels (2592 x 1944) at 30 frames per second in H.265/H.264 mode.
Can I use the camera without an NVR?
Yes, the camera supports edge recording via a microSD card (up to 256 GB) and can stream to a PC using the i-PRO software.
Is the camera suitable for outdoor use?
Yes, it has IP66 weatherproof rating and IK10 vandal resistance, operating from -40°C to +60°C.
How do I connect the camera to power?
The camera supports Power over Ethernet (PoE) (IEEE 802.3af) with a PoE switch or injector, or you can use a 12V DC power adapter.

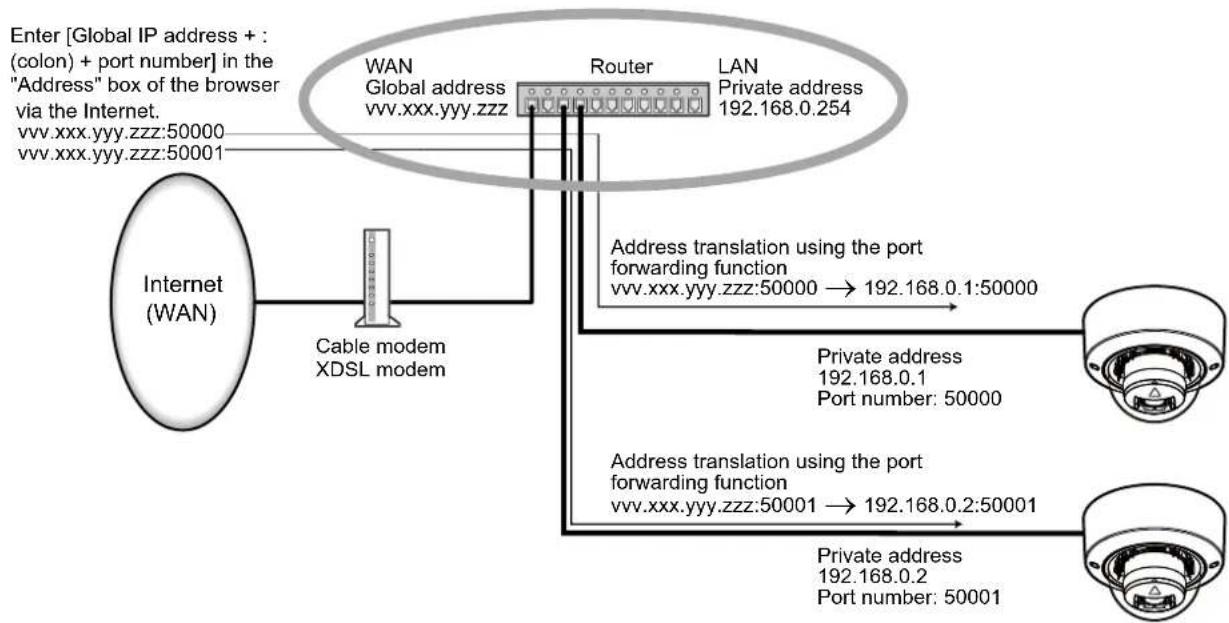

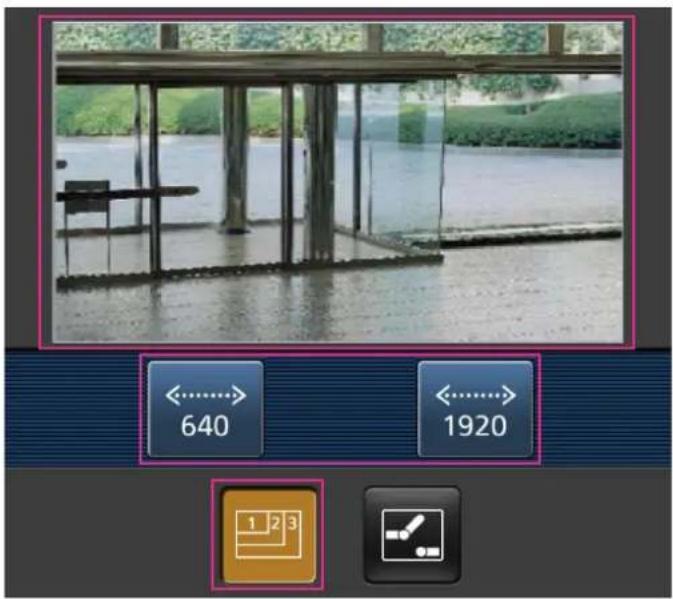

Can I view the camera remotely?

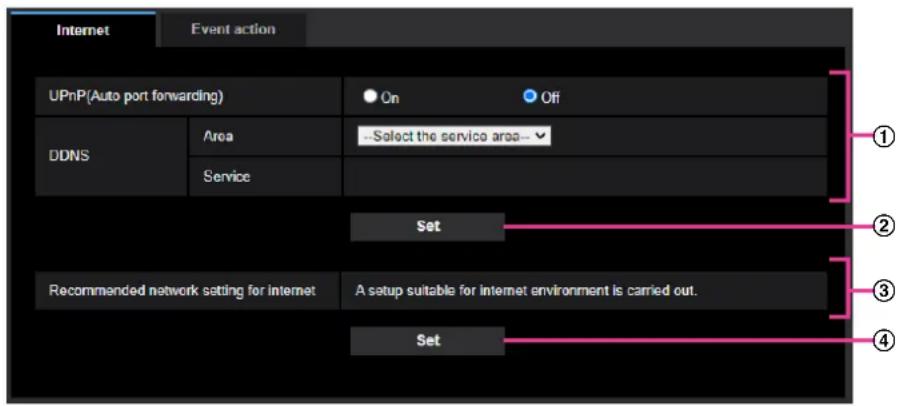

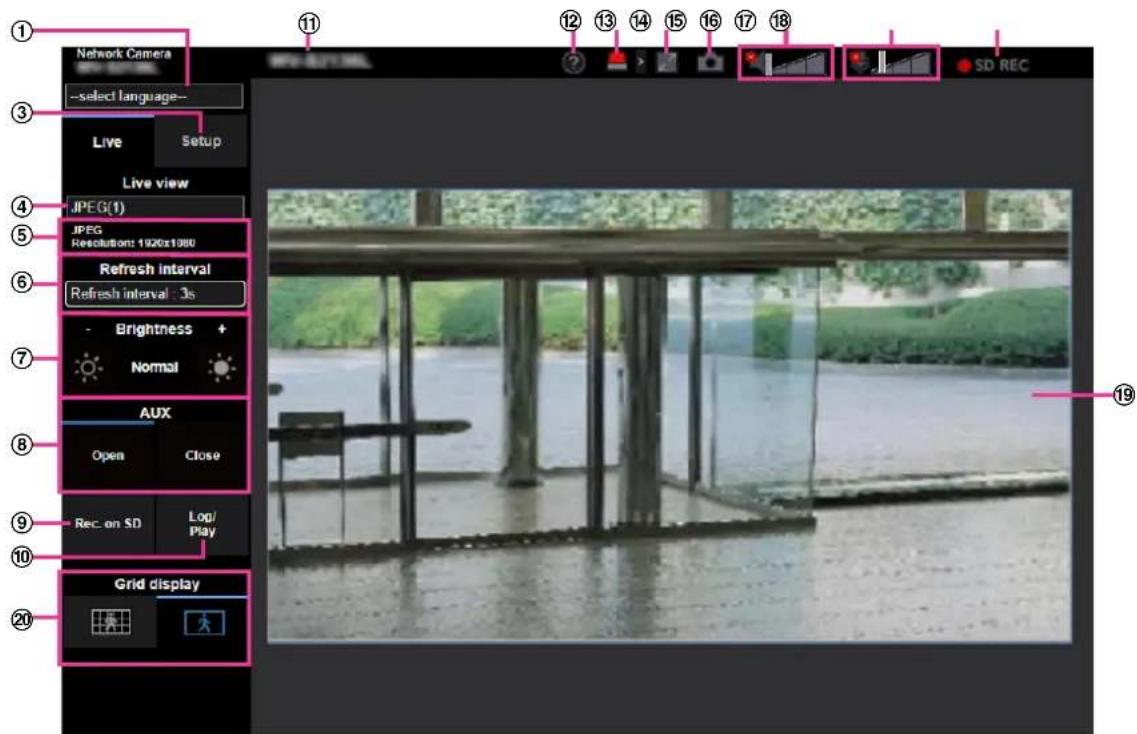

Yes, access the camera via web browser or the i-PRO mobile app (iOS/Android) after setting up port forwarding or using the i-PRO cloud service.

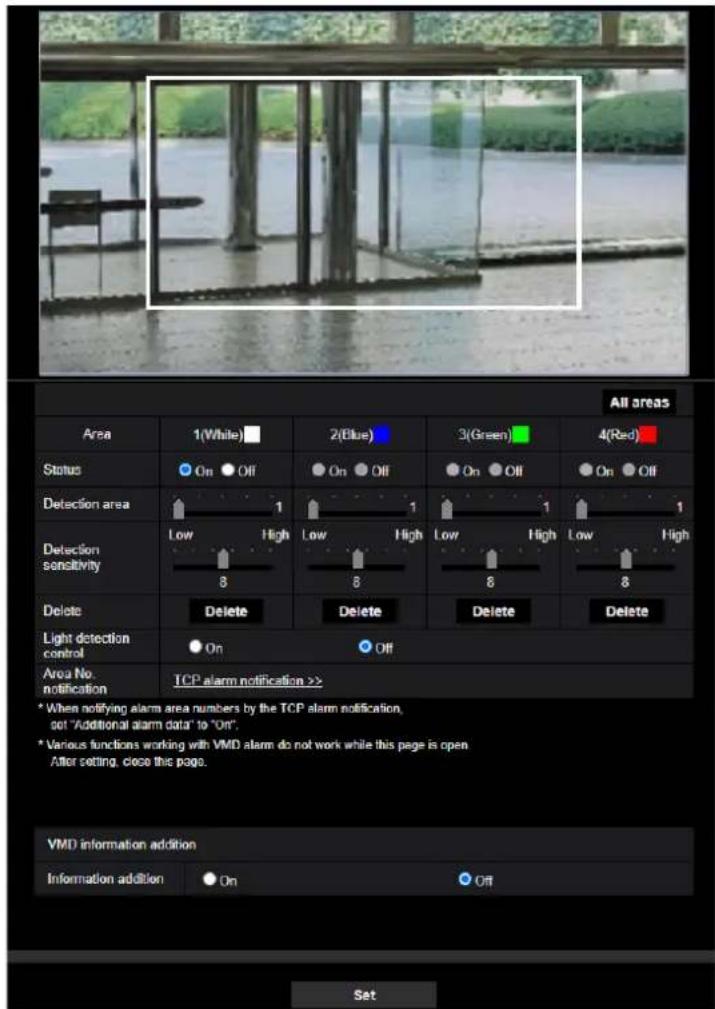

What analytics features does it have?

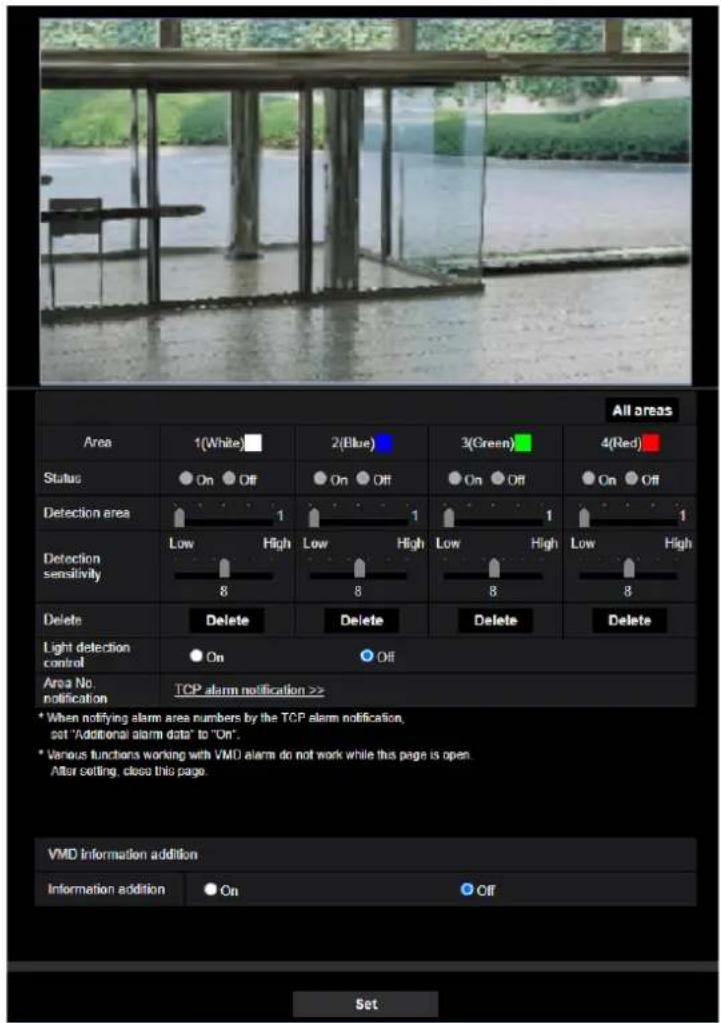

Built-in intelligent motion detection, tamper detection, line crossing, area intrusion, and face detection.
How do I clean the camera lens?
Use a soft, dry microfiber cloth to gently wipe the lens. Avoid using liquids or abrasives that could scratch the coating.
Does the camera support two-way audio?
Yes, it has a built-in microphone and a line output for an external speaker, enabling two-way audio communication.
Where can I find replacement parts?
Contact i-PRO authorized dealers or visit the official i-PRO website for spare parts including lens assemblies, IR boards, and housing covers.
