Product Type	Built-in Wine Conditioning Unit (Wine Cellar)
Brand	Wolkenstein
Model	EWTS85-36ED
Dimensions (H x W x D)	595 x 590 x 563 mm
Net Weight	33 kg
Gross Weight	36 kg
Power Supply	220-240 V AC, 50 Hz
Refrigerant	R600a (25 g)
Total Bottle Capacity	36 standard Bordeaux bottles (750 ml)
Temperature Zones	2 (Upper and Lower)
Adjustable Temperature Range	+5 °C to +22 °C (+41 °F to +72 °F)
Energy Efficiency Class	G
Annual Energy Consumption	140 kWh
Noise Emission	41 dB(A)
Climatic Class	SN/N/ST (ambient 10 °C to 38 °C)
Interior Light	LED (replaceable by professional)
Control Panel	Touch control with LED display
Automatic Door Opening	Yes (touch activated)
Child Safety Lock	Yes (touch button combination)
Defrosting	Automatic
Shelves	3 wooden shelves, partially pull-out
Installation Type	Built-in only
Guarantee	24 months (manufacturer)

Frequently Asked Questions - EWTS85-36ED Wolkenstein

How do I set the temperature for the upper and lower zones?

Press the STORAGE ZONE button (D) until the desired zone flashes on the display. Then use the INCREASE (E) or DECREASE (F) button to adjust the temperature. After 5 seconds, the setting is saved. The lower zone cannot be set colder than the upper zone.

What is the recommended storage arrangement for wines?

Store white wines in the upper zone (9-14 °C) and red wines in the lower zone (15-18 °C). Rosé and sparkling wines have specific ranges. Do not stack more than two layers of bottles per shelf to avoid damage.

How do I activate the child safety lock?

Touch and hold the ON/OFF button (A) and the ILLUMINATION button (B) simultaneously for 3 seconds. Repeat to deactivate.

Why is the compressor running continuously?

Possible causes: the appliance was just switched on, the door is opened frequently, the ambient temperature is high, or the temperature is set very low. Allow time for stabilization; avoid frequent door openings.

How do I clean the wine cellar?

Disconnect the appliance. Use a mild, non-abrasive detergent with a damp cloth for exterior and interior. For wooden shelves, use products suitable for wood. Clean door seals with warm water and mild detergent. Avoid steam cleaners.

What does error code E1 or E2 mean?

E1 indicates an open circuit in the upper zone temperature sensor; E2 indicates a short circuit. Contact aftersales service. Similar codes E3/E4 are for defrost sensor, E5/E6 for lower zone sensor.

How do I replace the LED light?

The LED illuminant must be replaced only by a qualified professional (electrician). Do not attempt yourself; contact aftersales service if damaged.

What should I do if the appliance does not cool properly?

Check if the temperature setting is too high, the door is opened too often, or the ambient temperature is outside the climatic class (10-38 °C). Ensure proper ventilation and that the door seals are clean.

Can I install this wine cellar as a freestanding unit?

No, this model is designed for built-in installation only. Follow the installation drawing for correct ventilation (minimum 200 cm² vent opening). Improper installation voids warranty.

What is the capacity per storage zone?

The upper zone can hold up to 24 bottles, the lower zone up to 12 bottles, for a total of 36 standard Bordeaux bottles (750 ml). Do not overload shelves.

USER MANUAL EWTS85-36ED Wolkenstein

WINE CONDITIONING UNIT

(built-in installation)

EWTS85-36ED

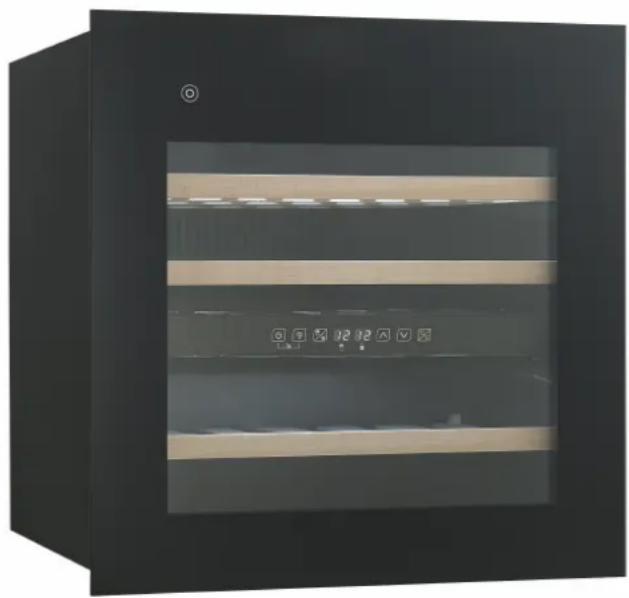

Exterior view of a black double-chamber refrigerator with visible shelves and control buttons (no text or symbols)

Deutsch

Seite

2

English

Page

42

1

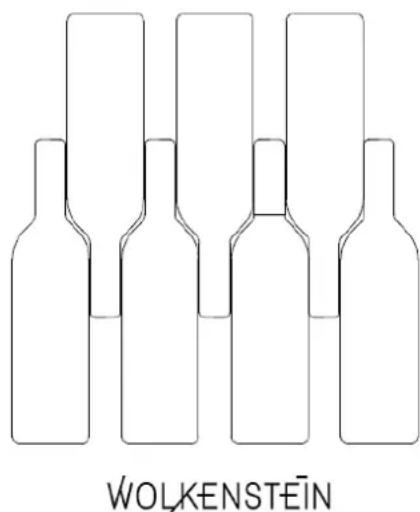

Line drawing of five bottles arranged in a row, labeled 'WOLKENSTEIN' below (no other text or symbols)

Line drawing of a cabinet with multiple circular components and a hanging hook (no text or symbols)

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety information....44

1.1 Abbreviation....45
1.2 Signal words 45
1.3 Safety instructions....45

1. Climatic classes ....50

2. Installation 50

3.1 Unpacking and positioning....50
3.2 Dimensions and installation drawing....52

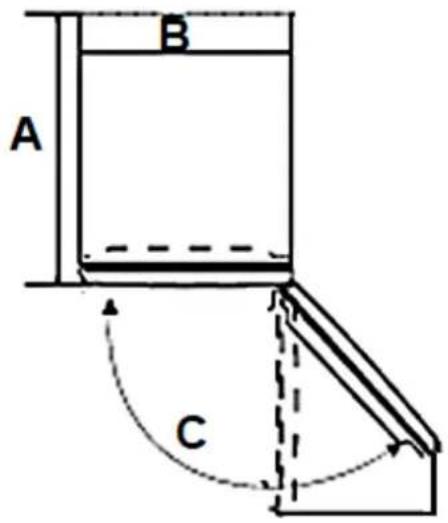

3.2.1 Dimensions of the appliance....52

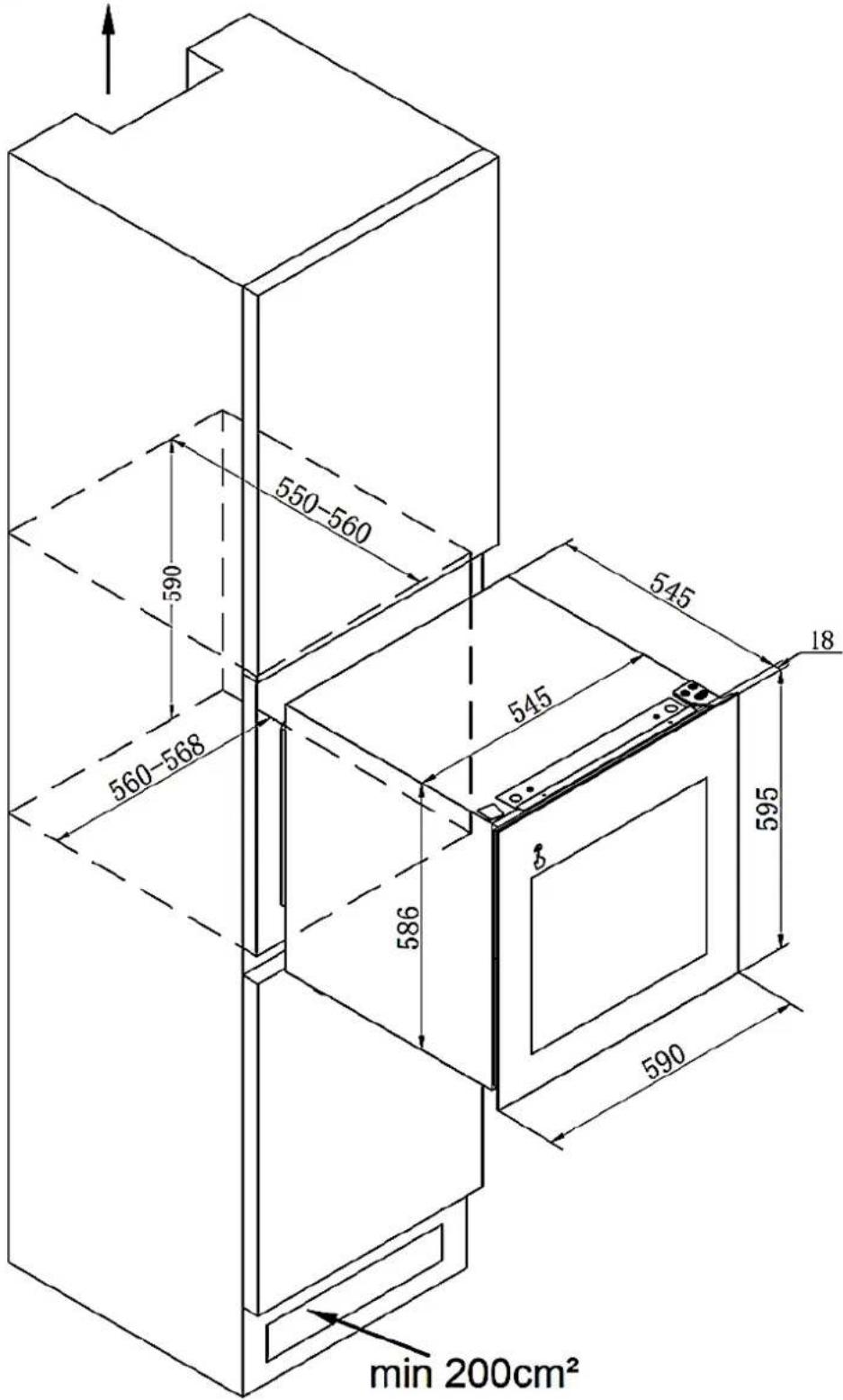

3.2.2 Installation drawing (built-in) 52

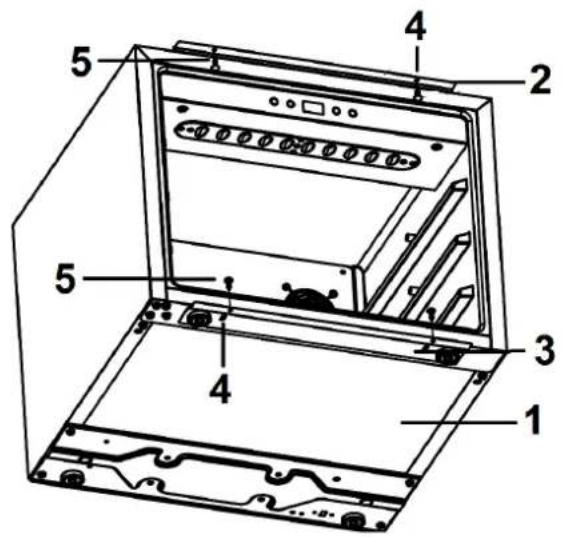

3.3 Use of the appliance brackets....54
3.4 Electrical connection....55

1. Description of the appliance / control panel....56

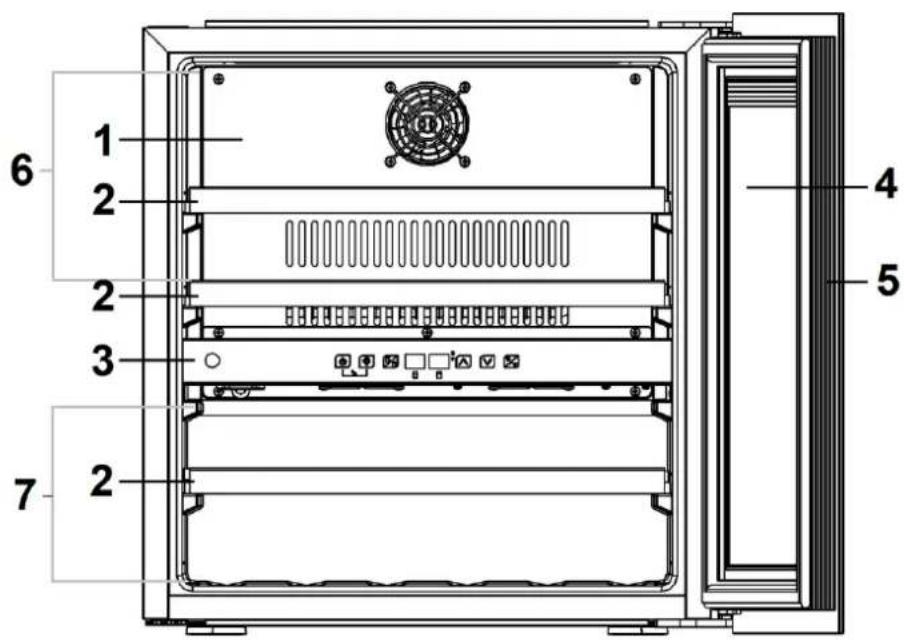

4.1 Description of the appliance ....56

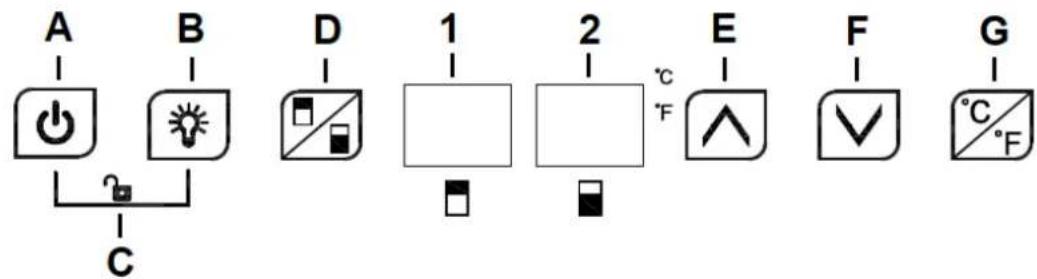

4.2 Control panel: operating buttons and indicators of the display....57

1. Operation....58

5.1 Before initial operation....59
5.2 «On / Off»-button 60

5.2.1 Automatic door opening....60

5.3 «Illumination»-button 61
5.4 Child safety lock....61
5.5 Setting of the temperatures....62

5.5.1 Selection of the temperature unit....63
5.5.2 Setting of the temperatures of the wine storage zones....64

5.6 Capacity of the appliance 65
5.7 Recommended storage / arrangement of wine bottles....65

WOLKENSTEIN

5.7.1 Recommended storage and drinking temperatures....66

5.8 Acoustic alarm signal....66

1. Environmental protection ....67

6.1 Environmental protection: disposal....67

6.2 Energy saving....67

6.3 Operational parameters....67

1. Cleaning and maintenance....68

7.1 Defrosting....69

7.2 Replacing of the illuminant....69

1. Troubleshooting....70

8.1 Error codes....72

1. Decommissioning....73

2. Technical data....74

3. Waste management 75

4. Guarantee conditions ......76

Do not dispose of this appliance together with your domestic waste. The appliance must be disposed of at a collecting centre for recyclable electric and electronic appliances. Do not remove the symbol from the appliance.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless, follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer.
i Please dispose of the packaging with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid.
i Technical modifications as well as misprints shall remain reserved.

★ The products, which are described in this instruction manual, comply with the harmonised regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

1. Safety information

READ THE SAFETY INFORMATION AND THE SAFETY INSTRUCTIONS CAREFULLY BEFORE YOU OPERATE THE APPLIANCE FOR THE FIRST TIME.

All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly-made connections must be done by an authorised professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
The appliance is intended for private use only as well as to be used (1) in staff kitchen areas of shops, offices and other working environments; (2) by clients in hotels, motels, B&B and other residential type environments; (3) for catering and similar non-retail applications.
i The appliance is intended for the cooling of wine bottles only.
i The appliance is intended for indoor-use only.
The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

MAKE SURE THAT THIS MANUAL IS AVAILABLE TO ANYONE USING THE APPLIANCE AND MAKE SURE THAT IT HAS BEEN READ AND UNDERSTOOD PRIOR TO USING THE DEVICE.

1.1 Abbreviation

SENSOR BUTTON(S)

▶ BUTTON(S)

1.2 Signal words

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or severe injury.

⚠ WARNING! indicates a hazardous situation which, if ignored, could result in death or severe injury.

⚠️ CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE! indicates possible damage to the appliance.

1.3 Safety instructions

DANGER!

To reduce the risk of electrocution.

1. Non-compliance of the orders of this instruction manual will endanger the life and health of the operator and/or can result in damages to the appliance.
2. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.
3. The technical data of your energy supplier must meet the data on the rating plate of the appliance.
4. Do not modify the plug provided with the appliance, if it will not fit the outlet, have a proper outlet installed by a qualified electrical technician (not covered by the guarantee).

5. Never try to repair the appliance yourself. If the appliance does not operate properly, please contact the aftersales service or the shop you purchased the appliance at. ^13 Original spare parts should be used only.

6. Always check that the power cord is not placed under the appliance or damaged by moving the appliance.

7. When the power cord is damaged, it must be replaced by the manufacturer or an authorised aftersales service or a qualified professional only.
8. Never pull the power supply cable to unplug the appliance. Always use the power plug itself to unplug the appliance. RISK OF ELECTRIC SHOCK!
9. Never touch the power plug, the power switch or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK!

WARNING!

To reduce the risk of burns, electrocution, fire or injury to persons.

1. This appliance is equipped with the environmental-friendly refrigerant R600a. The refrigerant R600a is inflammable. The components of the cooling circuit must neither be damaged during transport nor use.

2. If any part of the cooling circuit is damaged, the appliance must not stand near a fire, naked light or spark-generating devices. Contact the aftersales service or the shop you purchased the appliance at immediately. ^14

3. If gas is set free at the installation site:

a) open all windows.
b) do not unplug the appliance and do not use the control panel or thermostat.
c) do not touch the appliance until all the gas has gone.
d) otherwise, sparks can be generated which will ignite the gas.

1. Keep all components of the appliance away from fire and other sources of ignition when you dispose of or decommission the appliance.

2. Do not install the appliance near of volatile or combustible materials (e.g., gas, fuel, alcohol, paints) and in rooms which may have poor air circulation (e.g., garage).

3. EXPLOSION HAZARD! Do not store any explosive materials or sprays, which contain flammable propellants, in your appliance. Explosive mixtures can explode there.

4. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!

5. Always observe the required minimum distances for proper ventilation.

6. Do not connect the appliance to the electric supply unless all packaging and transit protectors have been removed.
7. Operate the appliance with 220\~240 V/50 Hz/AC only. All connections and energy-leading components must be replaced by an authorised professional.
8. Do not use a socket board or a multi socket when connecting the appliance to the mains.
9. Never place portable multiple sockets or portable power supplies behind the appliance. RISK OF FIRE!
10. Do not connect the appliance to an energy saving plug (e.g., Sava Plug) and to inverters which convert direct current (DC) into alternating current (AC), e.g., solar systems, power supply of ships.
11. A dedicated and properly grounded socket meeting the data of the plug is required to minimise any kind of hazard. The appliance must be grounded properly.
12. Always check that the power cord is not placed under the appliance or damaged by moving the appliance.
13. The technical data of your energy supplier must meet the data on the model plate of the appliance.
14. Your domestic circuit must be equipped with an automatic circuit breaker.
15. Do not modify the appliance.
16. Turn off the power before you install the appliance and before you connect it to the mains. RISK OF FATAL ELECTRIC SHOCK!
17. Disconnect the appliance from the mains before you clean or maintain it. RISK OF ELECTRIC SHOCK!
18. In the event of power failure disconnect the appliance from the mains.
19. Remove dust accumulation at the power plug, at the safety power socket and at all plug connectors regularly. RISK OF FIRE!
20. Keep the cord away from heated surfaces.
21. The power plug must always be accessible after installation.
22. Do not use any electric appliances inside your appliance unless they are recommended by the manufacturer of your appliance.
23. Do not put any heat-radiating appliances onto your appliance.
24. Do not install the appliance in a place where it may come in contact with water/rain; otherwise, the insulation of the electrical system will be damaged.

25. Do not put a water-boiler or vases onto your appliance. The electrical components of your appliance can be seriously damaged by water over-boiling or spilled water.

26. Do not use any steam cleaners to clean or defrost the appliance. The steam can get into contact with the electrical parts and cause an electrical short. RISK OF ELECTRIC SHOCK!

27. Never use mechanic devices, knives or other sharp-edged items to remove encrusted ice inside the appliance. RISK OF ELECTRIC SHOCK caused by damaging the interior of the appliance.
28. Children must never play with the appliance.
29. If you decommission your appliance (even temporarily), ensure that children cannot get into the appliance. Strictly observe the corresponding safety instructions numbers. 1 and 4, chapter DECOMMISSIONING, ultimate
30. Strictly observe the instructions in chapter « INSTALLATION ».

CAUTION!

1. The condenser and the compressor, located at the rear of the appliance, can reach high temperatures during ordinary operation. Carry out the installation according to this manual. An insufficient ventilation of the appliance will impair its operation and will damage the appliance. Do not cover or block the ventilation slats at any time.
2. Do not touch extremely cooled surfaces with wet or damp hands, because your skin may stick on these surfaces. RISK OF INJURY!
3. Always ensure that your fingers are not between the door and the housing of the appliance while closing the door. RISK OF CRUSHING!

NOTICE

1. Do not store dry ice in the appliance.
2. When you move the appliance, hold it at its base and lift it carefully. Keep the appliance in an upright position.
3. When you move the appliance using the rollers (depending on model), only move it forwards or backwards as the rollers are not pivotable and do not allow any lateral motion. Lateral motion can damage the appliance and floor seriously.
4. Do not tilt the appliance more than 45^ .
5. If the appliance is transported in a horizontal position, some oil may flow from the compressor into the refrigerant circuit.
6. Leave the appliance in an upright position for at least 2 hours before you switch it on to ensure, that the oil has flowed back into the compressor.
7. If you use the appliance for the first time or the appliance has been disconnected from the mains for a longer period of time, allow the

appliance to cool down for approx. 1 hour before you store wine bottles in the appliance.

1. Never use the door for moving the appliance as you will damage the hinges.

2. The appliance must be transported and installed by at least two persons.

3. When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later point of time.

4. Do not operate the appliance unless all components are installed properly.

5. Do not stand or lean on the base, the drawers, the doors etc of the appliance.

6. Never close the doors of the appliance while shelves or drawers are extended, otherwise you will damage the shelves / drawers and the appliance.

7. Do not put hot liquids or hot foodstuff into the appliance.

8. The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.

9. Do not place the wine bottles directly against the air outlet on the rear wall ^15 .

10. Do not overfill the shelves to protect them from damage.

11. The appliance has a capacity of 36 wine bottles (standard Bordeaux bottles / 750 ml).

12. Never store more than 2 layers of wine bottles on one shelf. RISK OF DAMAGE!

13. Clean the appliance at least once a month (s. chapter CLEANING AND MAINTENANCE).

14. If you do not use the appliance for a longer period of time, switch it off, disconnect it from the mains, clean it carefully and open the door to ventilate the interior of the appliance.

15. The rating plate must not be removed or made illegible, otherwise all terms of the warranty become invalid!

SAVE THESE INSTRUCTIONS.

★ The manufacturer and distributor are not responsible for any damage or injury in the event of failure to comply with these instructions.

2. Climatic classes

Look at chap. « TECHNICAL DATA » for information about the CLIMATIC CLASS of your appliance. Your appliance can be operated in rooms with relevant room temperatures as named below.

CLIMATIC CLASS	AMBIENT TEMPERATURE
SN	+10 °C → +32 °C	e.g., unheated cellar
N	+16 °C → +32 °C	inner home temperature
ST	+16 °C → +38 °C	inner home temperature
T	+16 °C → +43 °C	inner home temperature

3. Installation

The customer is responsible for the installation of the appliance. We recommend carrying out the built-in-installation of the wine conditioning unit by qualified personnel. Damages caused by improper installation of the appliance are not subject to the guarantee or warranty!
i All dimensions in these chapters are given in millimetres.
i Please photograph the rating plate of the appliance before installation and save the photo for possible later use!

NOTICE! Any damage caused by an appliance that is improperly installed and/or improperly connected to the mains is not covered by the warranty or guarantee.

3.1 Unpacking and positioning

WARNING! While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!

1. This appliance is intended for built-in installation only!
2. Unpack the appliance carefully. Dispose of the packaging as described in chapter waste management.

3. Remove all packaging materials.

4. The accessories of your appliance can be protected from damage due to transportation (adhesive tapes etc.). Remove such tapes very carefully. Remove remains of such tapes with a damp cloth using lukewarm water and a mild detergent (see also chapter CLEANING AND MAINTENANCE). Never remove any components of the back of the appliance!

5. Install the appliance in a suitable position with an adequate distance from sources of heat and cold.

6. If installation near a heat source is unavoidable, use a suitable insulation plate or keep the following minimum distances to the heat source:

To electric cookers	at least 30 mm
To radiators or ovens	at least 300 mm
To another refrigerators	at least 20 mm

1. Install the appliance in a dry and well-ventilated place.

2. Protect the appliance from direct sunlight.

3. The door(s) must open completely and without hindrance.

4. Install the appliance on a level, dry and solid floor. Check the correct installation with a bubble level.

5. Check that the appliance and the power cord are not damaged.

6. Connect the appliance to the mains properly.

7. The rating plate is inside the appliance or at the back.

3.2 Dimensions and installation drawing

3.2.1 Dimensions of the appliance

DIMENSIONS OF THE APPLIANCE

A = DEPTH / B = WIDTH / C = DOOR OPENING ANGLE
A	B	Height
563 mm	590 mm	595 mm

i Please observe the additional front and lateral space requirement of the open door(s) relevant to the door opening angle (C) of your appliance.

3.2.2 Installation drawing (built-in)

i Always observe the required minimum distances for proper ventilation (s. fig. below, ventilation opening in cm ^2 ).
i All dimensions are given in millimetres.

NOTICE! Damages to the appliance caused by improper ventilation are not subject to the guarantee or the warranty!

min 200 ~cm^2

WOLKENSTEIN

3.3 Use of the appliance brackets

The appliance is equipped with a bracket at the top and bottom respectively (s. fig. below). These brackets are required if the installation recess is larger than the appliance (i.e., the appliance does not fit the installation recess exactly and firmly and can be moved back and forth, for example). Depending on the current installation situation, it is at the discretion of the installer of the appliance whether the brackets are required or can be removed.

HOW TO USE THE APPLIANCE BRACKETS

If the opening of the built-in recess is larger than the appliance, you must fix the appliance to the built-in furniture using the appliance brackets and the supplied screws (2 / 3 / 5 / s. fig. below).

1. Take the corresponding 4 screws (5 / ST 4.0*13) from the accessory bag supplied.

2. Screw the top and bottom of the appliance to the built-in furniture using the prepared screw holes (4) in the appliance brackets (2 / 3 / s. fig. below).

i Ensure that the appliance is positioned horizontally in the built-in recess before you finally screw the appliance brackets firmly to the built-in furniture. The appliance must not stand at an angle.

1	BOTTOM OF THE APPLIANCE
2	TOP APPLIANCE BRACKET
3	BOTTOM APPLIANCE BRACKET

WOLKENSTEIN

4	PREPARED SCREW HOLES IN THE APPLIANCE BRACKETS(2 per bracket)
5	SCREWS (ST 4,0*13 / 4 in total)

1. By screwing the appliance brackets to the built-in furniture properly, the appliance is fixed securely and properly.

NOTICE! Any damage caused by an improperly installed appliance or by failure to follow the fixing instructions described in this chapter is not covered by the warranty or guarantee!

NOTICE! Non-use of the appliance brackets is the sole responsibility of the customer! Any damage caused by improper non-use of the appliance brackets is not covered by the guarantee or warranty!

3.4 Electrical connection

⚠️ DANGER! Switch off the power supply (fuse box of your household power supply) before you connect the appliance to the mains. RISK OF ELECTRIC SHOCK!

⚠ WARNING! Do not use an extension cord, socket strips or a multiple socket. RISK OF FIRE!

Check that the voltage indicated on the rating plate matches the mains voltage of your home before you connect the appliance to the mains.
❖ Check that the appliance is installed properly before you connect it to the mains.
❖ Only use the power supply cable provided with the appliance.
- Your household power supply must meet the power consumption of the appliance.
When connecting do not use adapters, reducers and branching devices as they cause overheating. RISK OF FIRE!
Do not modify the plug provided with the appliance, if it will not fit the outlet, have a proper outlet installed by a qualified electrician (not covered by the guarantee).
When the power supply cable is damaged, it must be replaced by the manufacturer or an authorised aftersales service or a qualified professional only.
The power supply cable must not touch hot areas and its temperature must not exceed 75 °C.
- After the installation of the appliance, the socket must be always accessible to the user.

i If you are in any doubt as to whether the appliance is connected to the mains properly, have the electrical connection checked by a qualified professional (electrical technician): not covered by the warranty or guarantee.

NOTICE! Any damage caused by an appliance that is improperly connected to the mains is not covered by the warranty or guarantee.

4. Description of the appliance/control panel

4.1 Description of the appliance

Fig. similar: modifications are possible.

1	COVER PLATE
2	WOODEN SHELVES (3 pcs.)
3	CONTROL PANEL
4	DOOR OF THE APPLIANCE
5	SEAL OF THE DOOR
6	UPPER WINE STORAGE ZONE
7	LOWER WINE STORAGE ZONE

4.2 Control panel: operating buttons and indicators of the display

Fig. similar: modifications are possible.

OPERATING BUTTONS OF THE CONTROL PANEL
A	«ON/OFF»-BUTTON➢ Use this button to switch ON/OFF the appliance (OFF = STANDBY MODE).➢ See chapter 5.2 «ON/OFF»-BUTTON.
B	«ILLUMINATION»-BUTTON➢ Use this button to switch on/off the INTERIOR ILLUMINATION of the appliance.➢ See chapter 5.3 «ILLUMINATION»-BUTTON.
C	«LOCK»-BUTTON➢ BUTTON COMBINATION «A+B» (touch these buttons simultaneously).➢ Use these buttons to activate the CHILD SAFETY LOCK.➢ See chapter 5.4 CHILD SAFETY LOCK.
D	«STORAGE ZONE»-BUTTON➢ SELECTION OF THE WINE STORAGE ZONE for the setting of the temperature.➢ Use this button to select the upper or lower wine storage zone.➢ See chapter 5.5 SETTING OF THE TEMPERATURES.
E	« INCREASE » - BUTTON➢ Use this button to INCREASE the temperature in the upper and / or lower wine storage zone.➢ See chapter 5.5 SETTING OF THE TEMPERATURES.
F	« DECREASE » - BUTTON➢ Use this button to DECREASE the temperature in the upper and / or lower wine storage zone.➢ See chapter 5.5 SETTING OF THE TEMPERATURES.
G	« CELSIUS / FAHRENHEIT » - BUTTON➢ Use this button to change between the TEMPERATURE UNITS degree Celsius and degree Fahrenheit.➢ See chapter 5.5 SETTING OF THE TEMPERATURES.

INDICATORS OF THE DISPLAY
1	Indicator of the temperature of the UPPER wine storage zone in °C or °F.
2	Indicator of the temperature of the LOWER wine storage zone in °C or °F.

5. Operation

⚠ WARNING! To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.

NOTICE! When you connect the appliance to the mains for the first time, it is switched on immediately and ready for operation.

◆ Operate the appliance according to the instructions about the control of the functions described in the following chapters.

WHEN YOU OPERATE THE APPLIANCE FOR THE FIRST TIME, THE DEFAULT TEMPERATURES ARE:
IN THE UPPER WINE STORAGE ZONE	+ 12 °C (+ 54 °F)
IN THE LOWER WINE STORAGE ZONE	+ 12 °C (+ 54 °F)

If required, the setting of the temperatures of the upper and lower wine storage zone (s. chapter 4.1 DESCRIPTION OF THE APPLIANCE) can be adjusted manually (s. chapter 5.5 SETTING OF THE TEMPERATURES).

5.1 Before initial operation

⚠ WARNING! While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!

NOTICE! Leave the appliance in an upright position for at least 2 hours before you connect it to the mains to ensure, that the oil has flowed back into the compressor.

NOTICE! If you use the appliance for the first time or the appliance has been disconnected from the mains for a longer period of time, allow the appliance to cool down for 1 hour before you store wine bottles in the appliance.

1. Remove all packaging materials.
2. Adjust the feet and clean the appliance (see chapter CLEANING AND MAINTENANCE).
3. Do not start the appliance immediately after installation. Wait at least 2 hours to ensure proper operation.
4. The setting of the temperatures of both the upper and lower wine storage zone can be adjusted manually by touching the relevant buttons until the desired values will be indicated (s. chapter 5.5 SETTING OF THE TEMPERATURES).
5. If operation was interrupted, wait at least 5 minutes before restart.
6. The appliance needs some time to balance temperatures when you have changed the settings before or when you have stored additional wine bottles in the appliance. The duration of this period of time depends on the range of the change, the ambient temperature, the amount of wine bottles and the frequency of door-openings. When you set the temperatures, these aspects should be taken into account.
7. Operate the appliance according to the instructions described in the following chapters.

⚠ WARNING! To disconnect the appliance from the mains completely, you must unplug the appliance or use a cut-off device.

NOTICE! When you connect the appliance to the mains for the first time, it is switched on immediately and ready for operation. ^16

NOTICE! In standby mode (appliance is switched off), the appliance is supplied with power, but it does not operate and you cannot carry out any settings.

The appliance is equipped with an «ON/OFF»-BUTTON.

HOW TO SWITCH OFF THE APPLIANCE (STANDBY MODE)

1. The child safety lock must be deactivated (s. chapter 5.4 CHILD SAFETY LOCK).
2. Touch and hold the «ON / OFF ⏻»- BUTTON (A) for 3 seconds to switch off the appliance. The appliance switches to STANDBY MODE.

HOW TO SWITCH ON THE APPLIANCE (WORKING MODE)

1. The child safety lock must be deactivated.
2. Touch and hold the «ON/OFF»-BUTTON (A) for 3 seconds again to switch on the appliance. The appliance switches to WORKING MODE.

5.2.1 Automatic door opening

❖ The appliance is equipped with an automatic door opening.

NOTICE! When the appliance is switched off (standby mode), you cannot operate the automatic door. If necessary, you can open the door manually.

HOW TO USE THE AUTOMATIC DOOR OPENING

1. Touch the marked button « 🍎 » on the door of the appliance.

2. The backlight of the button flashes and the door automatically opens a gap.

3. You can now open the door by hand completely.

HOW TO CLOSE THE DOOR

▶ Close the door by hand carefully.

Before you close the door, ensure that all shelves are retracted, otherwise you may damage the door.
i Always ensure that the door of the appliance is closed properly.

- The appliance is equipped with an interior illumination (LED) which can be switched on or off manually.

NOTICE! In standby mode (appliance is switched off), this function is not available.

HOW TO SWITCH ON THE INTERIOR ILLUMINATION

1. The child safety lock must be deactivated (s. chapter 5.4 CHILD SAFETY LOCK).
2. Touch the «ILLUMINATION»-BUTTON (B) once briefly to switch on the interior illumination of the appliance.

HOW TO SWITCH OFF THE INTERIOR ILLUMINATION

1. The child safety lock must be deactivated.
2. Touch the «ILLUMINATION»-BUTTON (B) once briefly again to switch off the interior illumination of the appliance.

5.4 Child safety lock

The appliance is equipped with a CHILD SAFETY LOCK.
The CHILD SAFETY LOCK serves to protect your children and disables all operating buttons.

NOTICE! When the child safety lock is activated, all operating buttons of the control panel are locked. Before you can carry out further settings you must always unlock the buttons first.

HOW TO ACTIVATE THE CHILD SAFETY LOCK

1. Touch and hold the «ON/OFF»-BUTTON (A) and the «ILLUMINATION»-BUTTON (B) simultaneously for 3 seconds to activate the child safety lock.
2. The corresponding operational status indicator goes on. ^17
3. All operating buttons are locked.

HOW TO DEACTIVATE THE CHILD SAFETY LOCK

1. Touch and hold the «ON/OFF»-BUTTON (A) and the «ILLUMINATION»-BUTTON (B) simultaneously for 3 seconds again to deactivate the child safety lock.
2. The corresponding operational status indicator goes off. ^18
3. All operating buttons are released again.

5.5 Setting of the temperatures

⚠ WARNING! To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.

NOTICE! If you want to switch off the appliance for a longer period of time, disconnect it from the mains (unplug!). S. also chapter DECOMMISSIONING, TEMPORARILY.

The setting of the temperatures of both the upper and lower wine storage zone can be adjusted manually by touching the relevant buttons (button «D» for the selection of the upper or lower wine storage zone / buttons «E» and «F» to increase or decrease the temperature in the respective zone) until the desired temperature value is indicated on the display (s. chapter 4.2 CONTROL PANEL: OPERATING BUTTONS AND INDICATORS OF THE DISPLAY).

When you set a temperature, you set an average temperature for the respective wine storage zone. Temperatures inside each wine storage zone may vary from the set temperature, depending on how many wine bottles you store and where you place them. Ambient temperature may also affect the set temperatures. When you set the temperatures, these aspects should be taken into account.

WHEN YOU OPERATE THE APPLIANCE FOR THE FIRST TIME, THE DEFAULT TEMPERATURES ARE:
IN THE UPPER WINE STORAGE ZONE	+ 12 °C (+ 54 °F).
IN THE LOWER WINE STORAGE ZONE	+ 12 °C (+ 54 °F).

i These settings can be changed as needed.
When the ambient temperature is very high, it is recommended to set the temperature of the upper and / or lower wine storage zone to a colder setting if needed. If the colder setting should cause formation of encrusted ice, please select a warmer setting.
i High ambient temperatures and simultaneously operating at the coldest setting may make the compressor operate permanently to keep the temperature constant inside the appliance.

5.5.1 Selection of the temperature unit

The temperature of the appliance can be indicated in ^0 C (degree Celsius) or in ^0 F (degree Fahrenheit).

HOW TO SELECT THE TEMPERATURE UNIT

1. Touch and hold the «CELSIUS/FAHRENHEIT C F»-BUTTON (G) for 3 seconds respectively to change between the temperature units (s. fig. below).

1. According to the pre-set temperature unit, the temperature indicator of the upper or lower wine storage zone (1 / 2) displays °C or °F.
2. The corresponding operational status indicator goes on. ^19

5.5.2 Setting of the temperatures of the wine storage zones

The default temperature of the upper wine storage zone is +12 °C (+54 °F).
The default temperature of the lower wine storage zone is +12 °C (+54 °F).
The adjustable temperature range of both the upper and lower wine storage zone is from +5 °C to +22 °C (+41 - +72 °F).

NOTICE! The lower wine storage zone must be set to the same temperature as the upper wine storage zone or to a higher (warmer) temperature than the upper wine storage zone. The lower wine storage zone cannot be set colder than the upper wine storage zone.

HOW TO SET THE TEMPERATURES OF THE WINE STORAGE ZONES

1. If the operating buttons of the display are locked, touch and hold the «ON/OFF»-BUTTON (A) and the «ILLUMINATION»-BUTTON (B) simultaneously for 3 seconds. The corresponding operational status indicator goes off. ^20 All operating buttons are released.
2. Touch the «STORAGE ZONE»-BUTTON (D) repeatedly until the temperature indicator of the desired wine storage zone flashes (1 = upper wine storage zone or 2 = lower wine storage zone / s. fig. in chapter 4.2 CONTROL PANEL: OPERATING BUTTONS AND INDICATORS OF THE DISPLAY).
3. Then touch the «INCREASE ▲»-BUTTON (E) or the «DECREASE √»-BUTTON (F) repeatedly until the desired temperature of the selected wine storage zone is displayed (1 = upper wine storage zone or 2 = lower wine storage zone).
4. After 5 seconds without using any operating buttons, the set temperature is activated.
5. The temperature indicator of the selected wine storage zone displays the current temperature.
   i If you touch the « INCREASE ▲ »- BUTTON (E) or the « DECREASE ▼ »- BUTTON (F) once, the temperature indicator on the display flashes and indicates the current temperature of the selected wine storage zone (upper or lower wine storage zone). If you touch the respective button repeatedly, you set the temperature of the respective wine storage zone.
   i Each time you touch the «INCREASE ▲»-BUTTON (E) the temperature in the respective wine storage zone increases by 1 °C.
   i Each time you touch the «DECREASE △»-BUTTON (F) the temperature in the respective wine storage zone decreases by 1 °C.

5.6 Capacity of the appliance

The appliance is equipped with 3 wooden shelves and has a total storage capacity of 36 wine bottles (standard Bordeaux bottles / 750 ml).
The storage capacity of the shelves and the total storage capacity of the appliance depend on several factors: e.g., on the arrangement or size of the wine bottles, etc.
Max. 24 wine bottles (standard Bordeaux bottles / 750 ml) can be stored in the upper wine storage zone and max. 12 wine bottles (standard Bordeaux bottles / 750 ml) can be stored in the lower wine storage zone.

NOTICE! Do not overfill the shelves to protect them from damage. Never store more than 2 layers of wine bottles on one shelf. RISK OF DAMAGE!

5.7 Recommended storage / arrangement of wine bottles

To simplify the storage of the wine bottles, each shelf can be pulled out partially.
Open the door of the appliance wide enough before you pull out the shelves; otherwise, the shelves and / or the door can be damaged seriously.
The lower wine storage zone must be set to the same temperature as the upper wine storage zone or to a higher (warmer) temperature than the upper wine storage zone. The lower wine storage zone cannot be set colder than the upper wine storage zone! Therefore, we recommend storing white wines in the upper wine storage zone and red wines in the lower wine storage zone.

RECOMMENDED ARRANGEMENT OF WINE BOTTLES IN THE UPPER WINE STORAGE ZONE

Line drawing of five bottles arranged in a row, labeled 'WOLKENSTEIN' below (no other text or symbols)

WINE BOTTLES CAN BE STORED AS FOLLOWS:
NUMBER OF BOTTLES
16
8
6
6
36 BOTTLES MAX.

NOTICE! Do not overfill the shelves to protect them from damage. Never store more than 2 layers of wine bottles on one shelf. RISK OF DAMAGE!

NOTICE! If you do not use the appliance for a longer period of time, switch it off, disconnect it from the mains, clean it carefully and open the door to ventilate the interior of the appliance.

5.7.1 Recommended storage and drinking temperatures

WINE VARIETIES	RECOMMENDED TEMPERATURES IN °C	RECOMMENDED TEMPERATURES IN °F
RED WINE	15 - 18 °C	59 - 64 °F
WHITE WINE	9 - 14 °C	48 - 57 °F
ROSÉ WINE	10 - 11 °C	50 - 52 °F
CHAMPAGNE SPARKLING WINE	5 - 8 °C	41 - 47 °F

5.8 Acoustic alarm signal

The appliance is equipped with an acoustic alarm signal which indicates a malfunction of the appliance (s. chapter 8.1 ERROR CODES).

WOLKENSTEIN

➢ Touch any operating button on the control panel to stop the acoustic alarm signal.
➢ Check the appliance as described in chapter 8. TROUBLESHOOTING et seq.

6. Environmental protection

6.1 Environmental protection: disposal

Appliances bearing this symbol « 📄 » must not be disposed of together with household waste throughout the EU. To prevent potential damage to the environment or human health from uncontrolled waste disposal and to promote the sustainable reuse of material resources, responsibly supply the appliance to a recycling centre.

6.2 Energy saving

◆ Install the appliance in a dry and well-ventilated place.
- Install the appliance in a suitable position with an adequate distance from sources of heat and cold.
◆ Protect the appliance from direct sunlight.
Do not overfill your appliance.
❖ Try opening the door as little as possible, especially when the weather is warm and humid. If you open the door, close it as fast as possible.
- Permanently check, that the appliance is well-ventilated. The appliance must be well-ventilated from all sides.

NOTICE! In order to save energy a prolonged opening of the door(s) should be avoided.

6.3 Operational parameters

The appliance can only reach the relevant temperatures when:

1. the ambient temperature meets the climatic class.
2. the doors close properly.
3. you do not open the doors too often or too long.
4. the door seals are in proper condition.
5. the appliance is positioned properly.
6. you have not overfilled the appliance.

⚠️ DANGER! Never touch the power plug, the power switch or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK!

⚠ WARNING! Disconnect the appliance from the mains before you clean or maintain it. RISK OF ELECTRIC SHOCK!
⚠ WARNING! To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.
⚠ WARNING! Remove dust accumulation at the power plug, safety power socket and all plug connectors regularly. RISK OF FIRE!

NOTICE! Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise, you will damage the surface of the appliance.

NOTICE! Clean the appliance at least once a month.

NOTICE! Any damage caused to your appliance by a cleaning product will not be fixed free of charge, even if the guarantee period of the appliance is still valid.

1. Always keep the appliance clean so that unpleasant odours do not occur.
2. Dust deposits on the condenser will increase the energy consumption. Clean the condenser twice a year with a vacuum cleaner or a soft brush.
3. Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise, you will damage the surface of the appliance.

DETERGENT

➢ Do not use any harsh, abrasive or aggressive detergents.
Do not use any solvents.
Do not use any abrasive detergents!
Do not use any organic detergents! ^21
Do not use essential oils!
➢ These instructions are valid for all surfaces of your appliance.

EXTERNAL CLEANING

1. Use a moist cloth and a mild, non-acidic detergent. Use a suitable detergent for stubborn stains.
2. Use clear water to rinse.
3. Dry the cleaned surfaces with a cloth.

INTERNAL CLEANING

1. Clean shelves and the inside with warm water and a mild detergent.
2. To clean wooden shelves, use a cleaning detergent suitable for wood only.
3. Use clear water to rinse.
4. Dry the cleaned surfaces with a cloth.
5. Check the water drain and clean it if needed.

DOOR SEALS

Clean with warm water and a mild, non-acidic detergent. Do not restart the appliance until the door seals have dried completely.

DRAIN HOLE (depending on model)

Clean the drain hole at the back of the cooling compartment periodically; otherwise defrost water can get into the cooling compartment. Use a suitable device such as a pipe cleaner.

7.1 Defrosting

1. The appliance is equipped with an automatic defrost-system.
2. The water is drained at the back inside the appliance. ^22
3. The water is collected in a container underneath the compressor. The water evaporates in this container
4. The drain must not be blocked.
5. Clean the drain carefully with a pipe cleaner.

7.2 Replacing of the illuminant

⚠ WARNING! The LED-illuminant must be replaced by a qualified professional (electrical technician) only. If the LED-illuminant is damaged, please contact a qualified professional (not covered by the guarantee).

8. Troubleshooting

WARNING! Before you start troubleshooting, disconnect the appliance from the mains. Any work not described in this instruction manual must be carried out by a qualified professional only.

MALFUNCTION
POSSIBLE CAUSE(S)	MEASURE(S)
THE APPLIANCE DOES NOT WORK AT ALL.
1. The plug of the appliance is not connected to the socket.2. The plug has become loose.3. The socket is not supplied with energy.4. The fuse is switched off.5. The voltage is too low.	1. Connect the appliance to the mains properly.2. Check the plug.3. Check the corresponding socket by connecting it with another appliance.4. Check the fuse box.5. Compare the data on the model plate with the data of your energy supplier.
THE COMPRESSOR DOES NOT WORK AT ALL.
1. Incorrect energy supply.	1. Check the energy supply.
THE COMPRESSOR OPERATES FOR TOO LONG.
1. The appliance has been switched off for a while.2. The door(s) is / arc opened too often or too long.	1. The appliance needs some time to reach the set temperature.2. Do not open the door(s) too often or too long.
THE DOOR MAKES A STRANGE SOUND WHEN OPENED.
1. The door seals are soiled.	1. Clean the door seals.
UNCOMMON NOISE.
1. The appliance is not installed on a flat and level ground. The appliance touches a wall or another object.2. Items have dropped behind the appliance.	1. Install the appliance properly.2. Remove the items.
CONDENSATE ON THE GLASS DOOR.
1. The door(s) is / are opened too often or too long.2. The temperature is set too low.	1. Do not open the door(s) too often or too long.2. Increase the temperature (warmer).
THE APPLIANCE DOES NOT COOL PROPERLY.
1. The temperature is set too high.2. The environment is too warm.3. The door(s) is / arc opened too often or too long.	1. Decrease the temperature (colder).2. Keep the appliance away from direct sunlight and other sources of heat. Always observe the climatic class of your appliance in chapter «TECHNICAL DATA».3. Do not open the door(s) too often or too long.
THE ILLUMINATION IS NOT WORKING.
1. The illuminant may be damaged.2. Incorrect energy supply.	1. Refer to chapter «REPLACING OF THE ILLUMINANT».2. Check the energy supply.

i If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact the aftersales service.

THE OPERATING CONDITIONS DESCRIBED BELOW ARE NORMAL AND DO NOT INDICATE A MALFUNCTION.

The refrigerant generates a sound similar to flowing water.
Sometimes you may hear a sound which is generated by the injection process of the cooling circuit.
The sides of the appliance may get warm while the appliance is running.

DISTINCT NOISE

When you operate the appliance for the first time or the temperature falls below a certain level, the appliance will operate with high power to reach the preset temperature.

CONDENSED WATER IN / ON THE APPLIANCE

may be generated inside or outside the appliance by high humidity or very warm ambient temperatures.

CLICKING

You will hear the compressor click if it is activated or deactivated.

HUM

is caused by the compressor while running.

KNOCKING / SNAPPING

may be generated by sequential expansion and shrinkage of the components of the cooling system. It is caused by variation of temperature before and after the compressor is activated or deactivated.

8.1 Error codes

ERROR CODE	DESCRIPTION	MEASURE
E 1	Failure of the temperature sensor of the upper wine storage zone: open circuit.	Please contact the aftersales service.
E 2	Failure of the temperature sensor of the upper wine storage zone: short circuit.	Please contact the aftersales service.
E 3	Failure of the defrost sensor: open circuit.	Please contact the aftersales service.
E 4	Failure of the defrost sensor: short circuit.	Please contact the aftersales service.
E 5	Failure of the temperature sensor of the lower wine storage zone: open circuit.	Please contact the aftersales service.
E 6	Failure of the temperature sensor of the lower wine storage zone: short circuit.	Please contact the aftersales service.

DECOMMISSIONING, TEMPORARILY

IF THE APPLIANCE IS NOT USED FOR A LONGER PERIOD OF TIME

1. disconnect the appliance from the mains. To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.
2. remove all stored wine bottles in the appliance.
3. dry the inside of the appliance with a cloth and leave the door open for a few days.

WHILE AWAY ON AN AVERAGE VACATION / HOLIDAY (14-21 DAYS):

1. do the same as described above or
2. let the appliance operate.

IF YOU WANT TO MOVE THE APPLIANCE:

1. secure all removable parts and the content of the appliance. Pack them separately if necessary.
2. transport the appliance in an upright position only. All other positions can cause damage to the compressor.
3. do not damage the adjustable feet of the appliance.

DECOMMISSIONING, ULTIMATE

1. Disconnect the appliance from the mains. To disconnect the appliance from the mains, you must unplug the appliance or use a cut-off device.
2. Cut off the power cord at the appliance.
3. Completely remove every door of the appliance.
4. Leave the shelves in their position so that children are not able to get into the appliance.
5. Follow the advice for the disposal of the appliance in chapter WASTE MANAGEMENT.

10. Technical data

TECHNICAL DATA*
Model	Wine conditioning unit (built-in)
Household refrigerator model category	2-Fridge with cellar zone, cellar compartment fridge and wine cabinet.
Front colour	Black
Colour of the side panels	Black
Climatic class	SN / N / ST(ambient temperature 10 - 38 °C)
Temperature zones	2
Energy efficiency class**	G
Annual energy consumption in kW/h***	140.00
Voltage / frequency	220 - 240 V AC / 50 Hz
Total net volume in l	85
Net volume: cooling in l	85
Wine storage in l	85
Total storage capacity(standard Bordeaux bottles / 750 ml)	36
Temperature adjustable / from - to	✓ / 5 - 22 °C / 41 - 72 °F
Indicator of the temperature	✓ / LED display
Temperature control	✓ / electronic
Max. storage time / malfunction	-
Noise emission	41 dB/A re 1 pW
Noise emission class****	C
Adjustable thermostat	✓
Compressor	1
Refrigerant / total quantity	R600a / 25 g
External handle	-
Control panel	Touch Control
Internal light	✓ / LED
Shelves / material	3 / wood
Door incl. tempered safety glass	✓
Automatic door opening by touch	✓
Changeable hinge position	-
Defrosting cooling comp.	automatic
Dimensions appliance H*W*D in cm	59.50*59.00*56.30
Weight net / gross in kg	33.00 / 36.00

◆ Technical modifications reserved.

*	According to regulation (EU) No. 2019/2016
**	On a scale from A (highest efficiency) to G (lowest efficiency) according to the new EU standard.
***	Based on standard measurement results within 24 hours. The actual energy consumption depends on the type of use as well as the installation location of the appliance.
****	On a scale from A (highest) to D (lowest).

11. Waste management

1. Dispose of the appliance relevant to the current legislation in view of explosive gases. The cooling systems and insulation of refrigerators and freezers contain refrigerants and gases which must be deposed of properly. Do not damage the cooling fins and tubes. If refrigerants escape, there is FIRE HAZARD!
2. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!
3. Old and unused appliances must be sent for disposal to the responsible recycling centre. Never expose to open flames.
4. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately. Remove the door completely so children are not able to get into the appliance as this endangers their lives!
5. Dispose of any paper and cardboard into the corresponding containers.
6. Dispose of any plastics into the corresponding containers.
7. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
8. Receive more detailed information from your retailer or your municipal facilities.

REFRIGERANT

1. The refrigerant circuit of the appliance contains the refrigerant R600a, a natural gas of high environmental compatibility.

2. ⚠ WARNING! Do not damage any components of the refrigerant circuit while transporting the appliance. FIRE HAZARD!

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

The refrigerant R600a is flammable!

12. Guarantee conditions

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee.

Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the WOLKENSTEIN-products concerning their authorised condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a WOLKENSTEIN-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeure or natural disasters, including, but with not being limited to fires or explosions.

WOLKENSTEIN

Please provide the following information for the registration of your guarantee claim:

1. the complete address of the location of the appliance.
2. phone number(s) and e-mail contact.
3. model name.
4. serial number/photo of the rating plate.
5. type of malfunction.

i If you do not provide the above data, your guarantee claim cannot be handled immediately.

SPECIAL NOTE

Please photograph the rating plate of the appliance before installation and save the photo for possible later use.

You find the rating plate on the following locations.

1. Fridges/freezer: inside or on the back side.
2. Dishwasher/washer/dryer: on the door area or the back side.
3. Hobs: on the bottom side.
4. Ovens: on the door area.
5. Hob/oven combinations have 2 rating plates (oven and hob).
6. Extractor hoods: inside near the motor.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

WOLKENSTEIN

August 2014

WOLKENSTEIN

SERVICE INFORMATION

Aftersales service information on the leaflet inside this instruction manual.
