Product Type	Under-cabinet cooker hood (convertible)
Model Numbers	UBH600B, UBH600S, UBH600W
Dimensions (W × D × H)	595 × 470 × 100 mm
Weight	4.5 kg
Power Supply	220–240 V / 50 Hz, 45 W
Cable Length	1 m
Number of Power Levels	3
Maximum Airflow (max power)	174 m³/h
Airflow in Most Efficient Mode	96 m³/h
Maximum Noise Level	69 dB
Energy Efficiency Class	B
Lighting	LED, 1 × 4 W, E14, replaceable
Lighting Efficiency Class	C
Grease Filter	1 metal mesh filter, dishwasher safe
Odour Filter	Activated carbon fleece filter (pre-installed), replaceable
Exhaust Outlet Diameter	120 mm
Operating Modes	Exhaust air or recirculation
Installation Types	Under-cabinet or wall-mounted
Recommended Distance to Hob	65–70 cm (electric/ceramic), 70 cm (gas)
Power Consumption Off Mode	0 W
Fluid Dynamic Efficiency Class	E
Grease Filter Efficiency Class	D
Average Illuminance on Cooking Surface	78 lx
Included Accessories	Metal filter, carbon fleece filter, exhaust connection piece, screws, dowels, manual
Customer Service	KKT KOLBE, Tel: [phone], Email: [e-mail]

Frequently Asked Questions - UBH600W KKT Kolbe

What should I do if the hood does not turn on?

Check that the appliance is properly connected to a working power supply. Ensure the plug is fully inserted into a suitable socket. If the problem persists, contact customer service.

How often should I clean the metal grease filter?

Clean the metal filter every 2–3 weeks, depending on usage. You can soak it in hot water with detergent or clean it in a dishwasher. Always ensure it is completely dry before reinstalling.

How do I replace the activated carbon fleece filter?

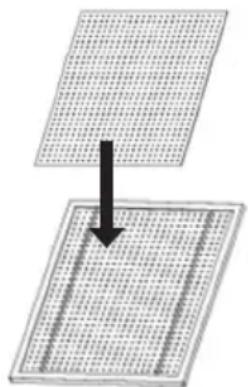

Remove the filter plate from the underside, take out the old fleece filter, cut a new one to size if needed, place it in the holder, secure it, and reattach the plate. Replace every 3–12 months or after 120 hours of use.

Why is there poor suction performance?

Possible causes include: distance too large between hood and hob, draughts, clogged filters, blocked air duct, or insufficient fresh air supply. Clean filters and ensure proper installation as per manual.

Can I use the hood in recirculation mode without a carbon filter?

No. For recirculation mode, the activated carbon fleece filter is essential to absorb odours. Operating without it may cause poor odour removal and increased grease buildup.

How do I replace the LED bulb?

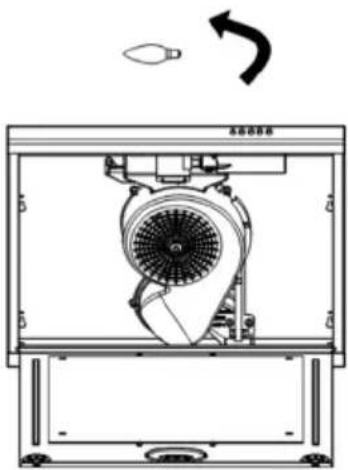

Disconnect power, remove the filter plate, unscrew the old bulb (E14, 4W) counterclockwise, screw in the new one clockwise, and reattach the filter plate. Use only the specified bulb type.

What is the minimum distance between the hood and a gas hob?

For gas hobs, the minimum distance is 70 cm. For electric/ceramic hobs, it is 65–70 cm. Always follow the larger distance if your hob manufacturer specifies a different value.

Can I install the hood in exhaust air mode if I have a fireplace?

Only if there is sufficient fresh air supply to prevent backdraft of combustion gases. A negative pressure of more than 4 Pa must be avoided. Consult a chimney sweep for advice.

What should I do if the hood makes unusual noises?

Check for loose parts, ensure the appliance is securely mounted, and inspect the fan for blockages. If noise persists, contact customer service.

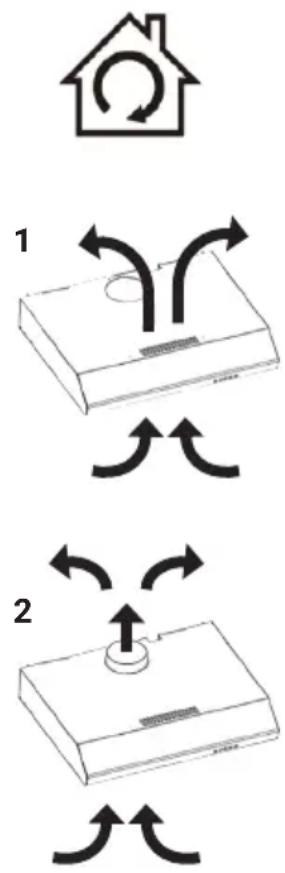

How do I switch between exhaust air and recirculation mode?

For recirculation via front slots, remove the deflector. For rear exhaust, cut open the rear cover, attach the exhaust connection piece, and keep the deflector in place. Follow detailed instructions in the installation section.

USER MANUAL UBH600W KKT Kolbe

User's manual → English language

Modelle: UBH600B, UBH600S, UBH600W

Three variants of a KKT KOLBE air purifier unit, shown from top to bottom (no text or symbols on the panels themselves)

KKT Kolbe Customer Service 51

Diagram showing a cylindrical object with upward arrows and curved arrows below, no text or symbols present.

WARNUNG!

Lebensgefahr!

Simple diagram of a rectangular block with two curved arrows indicating rotation or flow, no text or symbols present.

Simple line drawing of a device with directional arrows indicating rotation or movement (no text or symbols)

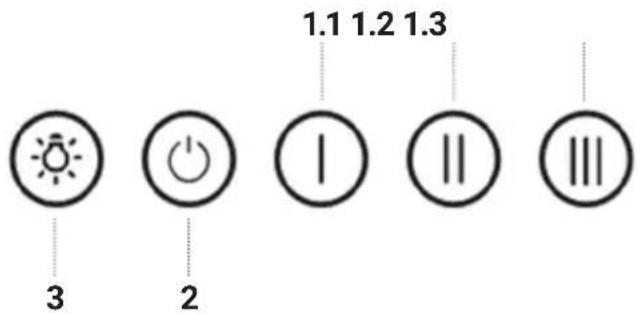

Bedientasten

Diagram of a computer monitor with ventilation slots and a close-up view of the front panel (no text or symbols)

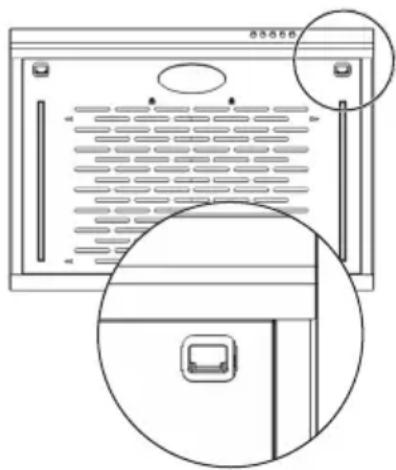

Reinigung des Metall-Filters

Diagram showing a grid-patterned surface being lifted by an arrow, with no text or symbols present.

Technical line drawing of a mechanical device with fan and base plate (no text or symbols)

7. Problemlösung

WARNUNG!

Diagram showing a cylindrical object above a rectangular block with an upward arrow, and a curved arrow below (no text or symbols)

Kochfeldart Abstand (a)

Glaskeramik-Kochfeld / Gusskochplatten 65-70 cm

Gaskochfeld 70 cm

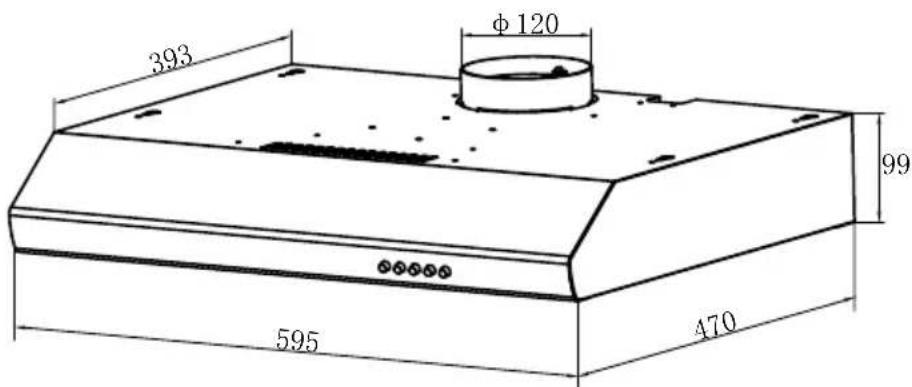

Geräteabmessungen

Angaben in mm

Isometric diagram of a device casing with a circular component and a downward arrow indicating direction (no text or symbols)

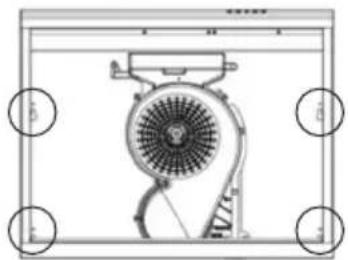

8.5 Montage des Geräts

Technical line drawing of a mechanical fan or pump assembly (no text or symbols)

Isometric line drawing of a two-tiered rectangular box with circular holes (no text or symbols)

Technical line drawing of a mechanical fan assembly with mounting holes (no text or symbols)

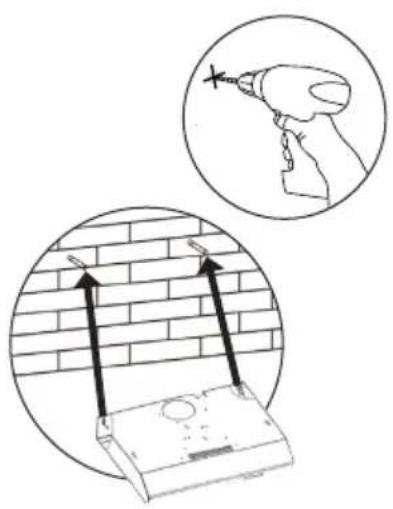

Wandmontage

Illustration showing a hand using a power tool to lift a brick wall, with an inset close-up of the tool (no text or symbols present)

∅ 120 mm

KKT Kolbe Customer Service

KKT KOLBE Kundenservice

Tel. [phone]

Mail: [e-mail]

www: www.kolbe.de

for your under-cabinet cooker hood

Models: UBH600B, UBH600S, UBH600W

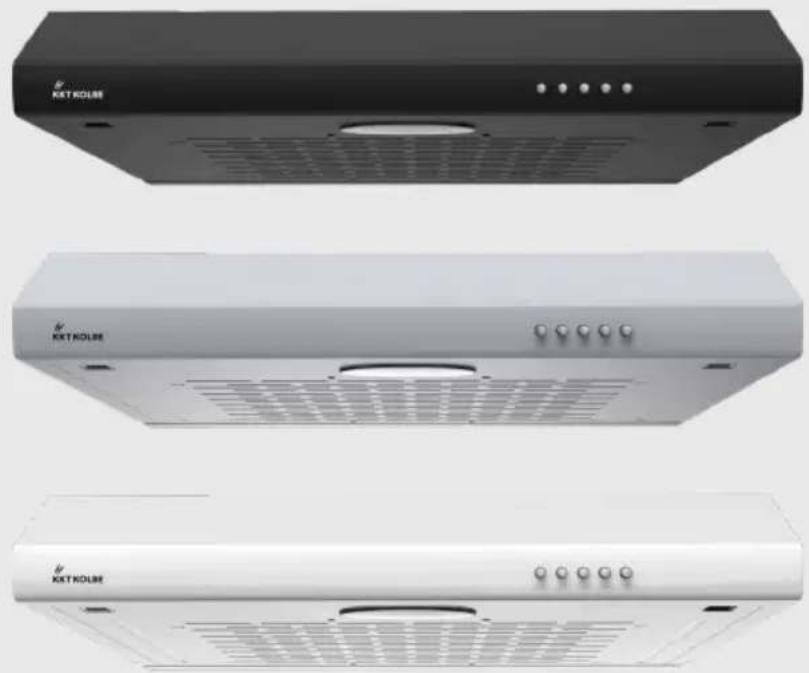

Three variants of a KKT KOLBE air conditioner unit, shown from different angles (top, middle, bottom) with no visible text or symbols on the covers.

Thank you for your confidence and congratulations on the purchase of your new cooker hood!

Read this manual carefully and thoroughly before unpacking the appliance.

It contains important information about safe installation, maintenance and use, as well as important warnings about the use of your appliance.

Mark the passages that are important to you, keep the manual so that you can refer to it at any time and also pass it on to other users, as well as the installer of the appli- ance.

In view of the continuous development, we reserve the right to make any necessary modifications to the appliance and / or the manual in order to better meet the requirements of user-friendliness, user protection and current technical standards.

You can find the latest version of your user manual as well as further data, documents and information on the corresponding product page or in the "Questions & Answers" section of our online shop at www.kolbe.de.

You have chosen a good appliance that will serve you for many years with proper operation and care.

Should you have any complaints despite our thorough quality control, please contact our in-house customer service.

They will be happy to help you.

To ensure a smooth process in the event of any queries, we recommend that you note the respective 20-digit serial number of your appliance in the corresponding field below.

This can be found on the rating label of your appliance or on its packaging.

Your KKT KOLBE - Team

Serial number of my appliance:

KKT KOLBE

User's manual

Built-in cooker hood, models: UBH600B, UBH600S, UBH600W Version 1.2

© KKT KOLBE Küchentechnik GmbH & Co. KG KKT KOLBE is a registered trademark.

Table of contents

Important Safety Instructions .... 4

Further Notes and Icons 14

1. Product Overview ...... 18

1.1 Packing list

1.2 Construction and properties of the appliance

2. Operating Principle and Use of the Appliance 20

2.1 Intended use and functional principle

2.2 Operating modes

3. Notes Before Use 23

3.1 Unpacking and preparing the appliance

3.2 Commissioning the cooker hood

4. Operation, Setting and Use 24

4.1 Control panel - brief overview

4.3 Button operation and setting

4.2 Suitability of the power levels

5. Recommendations for Use, Guidelines and Tips 26

5.1 Efficient use of the cooker hood

6. Cleaning and Maintenance 28

6.1 Cleaning the appliance components

6.2 Removing and cleaning the metal grease filter

6.3 Replacing or fitting/removing the fleece filter

6.4 Replacing the LED lighting

7. Troubleshooting 34

8. Installation of the cooker hood .... 36

8.1 Important notes and installation requirements

8.2 Choice of the mounting surface

8.3 Installation dimensions / alignment

8.4 Installation preparation and instructions

8.5 Mounting the appliance

8.6 Connection to the power supply

9. Technical Data 49

KKT Kolbe Customer Service 51

Important Safety Instructions

This manual is the basis for the safe use of your appliance.

Read and follow the instructions carefully before installing and operating the energy storage system!

The manufacturer is not responsible for any damage or problems caused by failure to follow the instructions, incorrect installation or improper handling.

Intended use

WARNING!

Dangers to life and limb and risks of damage!

This appliance may present a potential hazard to persons and the environment due to lack of prerequisites or knowledge for its handling! To avoid this, observe the following instructions.

• Keep children under 8 years and pets at a safe distance from the appliance!
• Children aged from 8 years and above or persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge must not use, clean or generally maintain this appliance unless they are supervised or have been given instruction concerning use of the appliance in a safe way by a person responsible for their safety and understand the hazards involved!
• Do not allow children to play with the appliance, its components or near the appliance.
• The appliance is designed for private use in a domestic environment and is intended for extracting cooking vapours produced during food preparation. Use it only for its intended purpose.

• The appliance is designed for installation in a wall cabinet and for use in combination with a standard household hob. It is not suitable for grills, solid fuel fires or for commercial use.

• The appliance is intended for use up to a maximum altitude of 2000 metres above sea level.

• The appliance is not intended for remote control or operation via an external timer.
• Unused electrical equipment is a safety hazard. Do not leave the appliance switched on unused and disconnect it from the power supply if you are not going to use it for a long period of time!

General warnings

WARNING! Danger to life and injury!

• This appliance should be installed and commissioned by a suitably qualified professional in compliance with the applicable regulations and standards, as well as the relevant instructions in this manual! To do this, the appliance must be disconnected from the power supply!
• Keep all packaging materials, assembly accessories and small parts out of reach of children and pets! These can be very dangerous if, for example, they are pulled over the head or swallowed!

- Using defective or damaged equipment can be very dangerous! Before use, make sure that the product and its components are in complete and perfect condition!

In the event of malfunction or damage, do not use the appliance, immediately disconnect it from the power supply and contact customer service or appropriately qualified personnel!

- There is a risk of electric shock, fire and injury if the appliance is repaired, modified or serviced by unqualified persons!

These may only be carried out by a suitably qualified specialist in compliance with all applicable safety regulations, including the instructions in this manual and the appliance must be disconnected from the power supply for this purpose!

Never attempt to make changes to appliance components, cables or plugs by yourself and do not disassemble any parts of the appliance if this is not expressly instructed in this manual!

Only open the housing if this is described in the context of assembly and cleaning!

- If the cooker hood and room air-dependent fireplaces or appliances are operated simultaneously with exhaust air, insufficient supply air can cause a negative pressure, drawing smoke and toxic combustion gases from chimneys or exhaust air shafts back into the living rooms!

In this case there is a danger to life!

Always ensure that there is a sufficient supply of fresh air when the cooker bonnet is in exhaust air mode! Follow the notes and instructions in the installation chapter!

- Edges and components can be sharp-edged and cause injuries! Exercise appropriate caution during any handling and protect yourself if necessary, e.g. with work gloves!

- If not installed properly, the appliance may be unstable and fall down! Follow all the instructions in the installation chapter carefully and make sure the mounting is solid and secure!

- Note that the appliance can heat up considerably due to rising heat during cooking!

Be careful and do not touch the housing and the grease filter(s) until they have cooled down!

- The light from LED lamps is very intense and can damage the eyes!

Avoid looking directly into the switched-on lamps, especially for babies!

- Do not place any objects on the appliance or its components!

These may fall and cause injury or damage!

WARNING!

Risk of electric shock / Dangers from electricity!

• To avoid electric shock and damage, disconnect the appliance from the power supply during installation, maintenance, cleaning or other work on it!
• Before use, check whether the technical data on the appliance's rating plate (especially voltage in V and frequency in Hz) are compatible with the local conditions!

If this is not the case, return the appliance to the point of sale! If anything is unclear, contact your electricity supplier!

- The appliance is fitted with a standard plug and must be connected to a socket outlet installed in accordance with all applicable regulations and away from heat sources!

If you are unsure, consult a qualified electrician!

- Modifications to the power supply system may only be carried out by a certified electrician!

There is a risk of life-threatening electric shock for unqualified persons!

- Do not use multiple sockets or extension cables to connect the appliance!

These do not provide the necessary safety!

- To avoid damage to the power cable and associated hazards, make sure that it is not bent or crushed and cannot come into contact with hot surfaces, sharp edges or similar!

Do not pull the plug out of the socket by the cable, but grasp it directly!

• Always avoid contact of liquids or moisture with live parts!

This can cause a short circuit or electric shock! In particular, always keep the cable dry!

Do not use pressure washers or steam cleaners to clean the appliance!

- To avoid possible electric shock due to creeping current, do not operate the appliance with wet or damp hands and wear footwear during operation!

WARNING!

Fire hazard!

- If an exhaust air hose is connected, it must be made of heat- and fire-resistant material and, if necessary, be routed outside in a separate exhaust air shaft leading outside or connected to it!

It must not be routed through any other shafts or chimneys in order to avoid fire hazards!

- Deposits of oil or grease, especially in the filters and inside the appliance, can quickly ignite when heated!

Clean the appliance and filter regularly and never operate the appliance without the filters!

- Do not use an open fire under the cooker hood (e.g. for flambéing)!

Open flames and the resulting rising heat can set fire to the appliance!

Do not operate gas burners under the appliance without cookware that matches their size and regulate the flame so that it does not pass over the bottom of the cookware! Do not operate high-power burners or wok burners with more than 5kW or two gas cooking zones at the same time with the highest flame for more than 15 minutes!

• Flying sparks near the cooker hood can cause a fire! The appliance may only be installed near a fireplace for solid fuels (e.g. wood or coal) if there is a closed, non-removable cover on the fireplace!
• In particular when frying or heating oils and fats, never leave your cooking food unattended because of the risk of fire! Note that the risk of spontaneous combustion increases if oil or fat is used repeatedly!
• In case of fire, cut off the electricity supply and carefully smother the flames with a fire blanket or similar!
  Never extinguish burning oil or grease with water! After extinguishing, have the appliance checked by a suitably qualified professional!

WARNING!

Causes for damage and functional impairments with possible consequential dangers to life and limb!

• During installation, strictly observe the safety distances and other instructions given in this manual to avoid damage, e.g. due to heat exposure.
  • Always keep the appliance in a clean condition, clean the metal filter and, if applicable, change the fleece filter at the recommended intervals to avoid hazards, damage and functional impairments due to deposits of grease and dirt!

Observe the notes and instructions in the corresponding section of this manual for this!

• To avoid damaging the surfaces, do not use aggressive or abrasive cleaning agents or utensils and follow the instructions in the relevant chapter for cleaning and maintenance!
• During cooking, moisture is produced, which can cause long-term damage to surfaces! To avoid this, always switch the appliance on when cooking!

Further Notes and Icons

In this manual

Symbols for hazards and information

Warning of danger to persons and of damage

Read the safety instructions marked with this symbol particularly carefully and act in accordance with the instructions in order to avoid danger!

Also pass on these instructions to other users and the installer!

Danger grading by combined signal words:

WARNING!

Indication of a hazardous situation which, if not avoided, may result in death or serious injury

CAUTION!

Indication of a hazardous situation which, if not avoided, may result in minor or moderate injury

ATTENTION!

Indication of a situation which, if not avoided, may result in damage to the product or on objects in its surroundings

Information and tips

Following the instructions marked with this symbol will provide you with useful information, make the respective procedure easier and may save you some problems.

Note on illustrations

The figures in this manual are for illustrative purposes and may occasionally differ slightly from the appearance.

Appliance, components and accessories

Symbols on appliance parts, accessories, etc.

The following symbols attached to the appliance, its components and accessories (if applicable) indicate important information for the safe operation of the appliance. Do not remove or damage them, always ensure good visibility and replace damaged symbols!

General danger warning!

There is a potential hazard! Behave with appropriate caution.

Warning of electrical voltage!

Some components of the product are live during and also after operation! Take care not to come into contact with them and take appropriate protective measures if necessary.

Warning of flammable substances!

Contained or emerging substances, liquids or gases easily self-ignite! Avoid contact with ignition sources or sources of danger, e.g. also water or air!

Warning of hot surface!

The product may become hot during operation and cause injury and damage. Do not touch it until it has cooled down and keep the clearances around the appliance recommended in this manual.

Follow these instructions for use

Read this manual carefully, before using the product and pass on the relevant information to other users and the installer.

EU conformity

The product complies with the applicable EU requirements regarding safety, environmental protection and health protection.

Disposal and environmental protection

Note icons for disposal

No disposal in household waste (WEEE marking)

Do not dispose of the product as unsorted waste! Take it to a collection point for the recycling of electrical and electronic equipment for reuse and recovery. To do this, have a qualified electrician remove the cable.

Recyclable material (Möbius strip)

Separate the relevant components of the product by type from the residual waste and dispose of them in accordance with local regulations.

Recyclable material (Triman symbol)

Separate the product from residual waste for disposal according to the accompanying sorting instructions.

General notes on disposal

• Improper disposal may endanger the environment and human health! By ensuring that the product and its packaging are disposed of properly, you will help to avoid possible hazards. This also applies to the disposal of old appliances, if applicable.

- The packaging materials used have been carefully selected and should be recycled to reduce raw material consumption and waste. Separate their components by type and dispose of them accordingly.

- For information on current disposal methods and recycling, contact your local authorities, your waste disposal company or the vendor.

Note on environmental protection by saving energy

- Follow the recommendations for use in this manual to save energy by using the appliance efficiently and thus help to protect the environment!

Notes on transporting the appliance

If you need to transport the appliance after unpacking / at a later time, observe the following instructions to avoid damage:

- Keep the original packaging of the product and always transport the appliance packed in it in the same way as when it was delivered. Observe the markings on it.

If the original packaging is not present:

- Secure all loose / detachable parts so that they cannot touch each other.

- Avoid any impact on the product and its components and take appropriate protective measures if necessary.

- Ensure a horizontal position during transport and when putting down.

Storage instructions

If you need to store the product for a certain period of time, observe the following instructions to avoid damage:

- Pack the appliance together with desiccant bags if possible in the original carton or similar packaging and seal it with adhesive tape.

- Choose a dry and clean storage place.

- Make sure to keep it in an horizontal position.

- Do not load the packaging.

- Only store the appliance for as long as absolutely necessary.

- Do not store the product near chemically aggressive or corrosive substances to avoid possible corrosion.

- Check the appliance regularly for visible damage during the storage period and replace the packaging if necessary.

1. Product Overview

1.1 Packing list

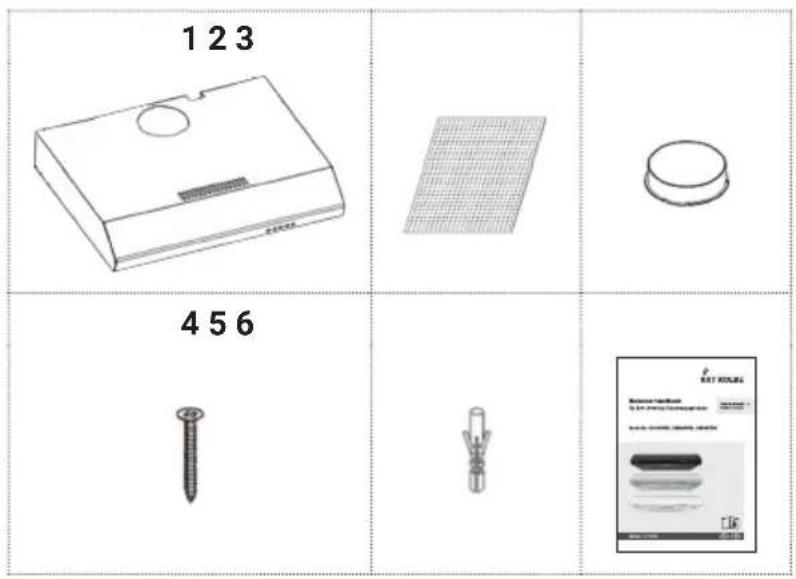

Open the packaging and take out the contents as described under "Unpacking and preparing the appliance", and check the contents according to the following list:

1 1× Under cabinet cooker hood, model UBH600B/S/W including metal filter, lighting, connection cable and plug
2 1× Activated carbon fleece filter (already pre-installed on the filter plate)
3 1× Exhaust air connection piece
4 6× ST 4 × 30 mm screws
5 6×∅ 8 × 35 mm plastic dowels
6 1× User's manual

1.2 Construction and properties of the appliance

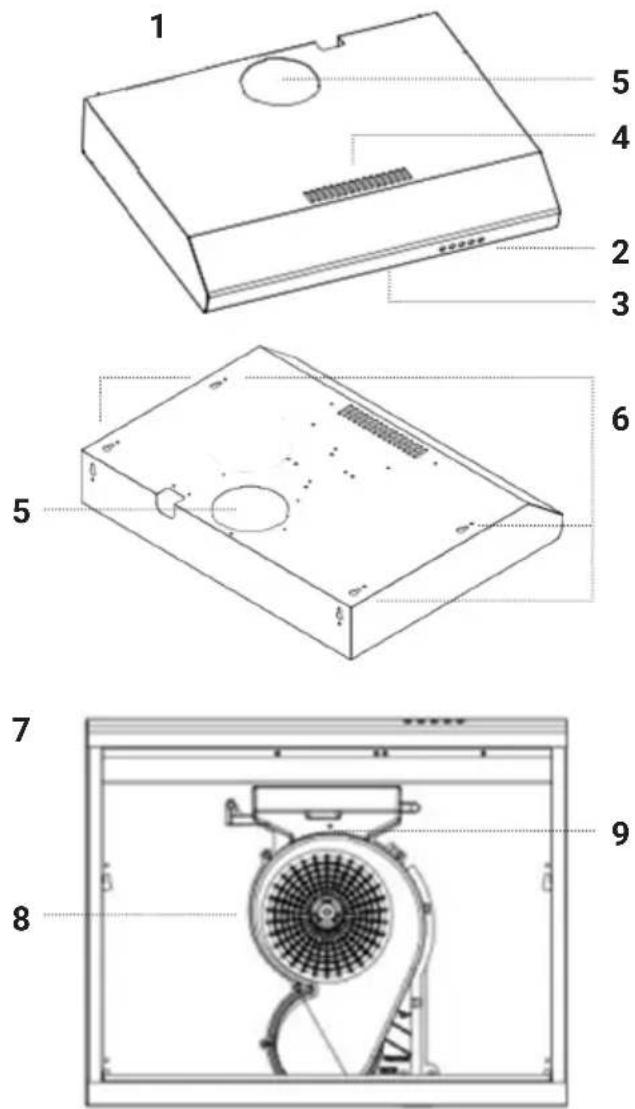

Appliance components

1 Hood body
2 Control panel
3 Lighting and suction opening with metal filter cover plate and fleece filter, on the underside
4 Front exhaust air slots for recirculation mode
5 Rear exhaust air opening for exhaust or recirculation mode / Mounting point of the exhaust air connection piece (closed on delivery)
6 Screw holes
7 View from below with filter cover plate removed / Access to the inside of the appliance
8 Fan motor

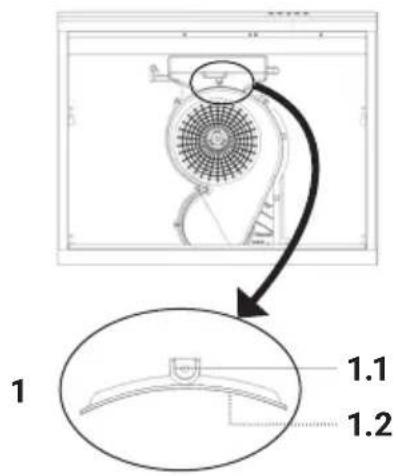

9 Deflector (pre-assembled); to be removed for recirculation operation with exhaust air via the front exhaust air slots (see "Installation preparation...")

Features and further properties

• 3 power levels
• LED lighting
• Metal grease filter
  • Pre-installed activated carbon fleece filter

Dimensions

Width: 595 mm

Depth: 470 mm

Height: 100 mm

2. Operating Principle and Use of the Appliance

2.1 Intended use and functional principle

Your cooker hood draws off fumes and odours produced during cooking and creates fresh room air.

The appliance can be used in both exhaust air and recirculation mode.

The air is sucked in by a radial fan, depending on the type of exhaust air duct selected, it is blown either through the front exhaust air slots or the rear exhaust air opening of the hood body and, depending on the operating mode used and the corresponding installation, passed on (see the following sections and "Installation...").

Particles of grease and dirt, fumes and, to a certain extent, moisture are absorbed by the metal filter; however, additional ventilation may be necessary, especially in recirculation mode.

CAUTION!

Health risks and risk of damage!

Moisture remaining in living spaces can lead to harmful mould growth and damage to surfaces!

Do not rely entirely on the extractor fan's suction power to ensure sufficient air exchange during and after cooking!

The pre-installed activated charcoal fleece filter additionally filters the intake air and binds odours generated during cooking, particularly in recirculation mode.

2.2 Operating modes

Exhaust air mode

In the version with exhaust air to the outside, the air drawn in is cleaned of grease and vapours by the metal and fleece filter and led outdoors through an exhaust air duct.

A backflow or inflow of outside air can be prevented by installing a non-return valve.

For exhaust air operation, the preconditions mentioned in the installation chapter must be fulfilled and the corresponding instructions must be followed exactly!

If implementation is not possible as described, use the extractor fan only in recirculation mode!

WARNING! Danger to life!

If the cooker hood and room air-dependent fireplaces or appliances are operated at the same time, insufficient supply air can cause a negative pressure, which draws smoke and toxic combustion gases back into the living spaces!

In this case there is a danger to life!

Inadequate installation can additionally result in fire and health risks as well as operational malfunctions!

For exhaust air operation, observe and follow the corresponding notes and instructions in the installation chapter exactly!

Recirculation mode

In recirculation mode, the metal and fleece filters remove grease and vapours from the intake air and return it to the room. The pre-installed activated carbon filter fleece is also used for odour control, particularly in recirculation mode.

Operation with active carbon filter

The activated carbon fleece filter cleans the air pre-filtered by the metal filter even more thoroughly and removes odour particles produced during cooking. Follow the recommendations for use in this manual for optimum odour absorption.

Depending on the technical measures taken to convert the appliance (see "Preparing the appliance..." under "Installation preparation..."), the filtered exhaust air is either fed back into the room via the exhaust air slots on the front edge of the top of the appliance (1), or via the exhaust air opening with exhaust air connection piece on the rear edge of the top of the appliance (2), if necessary via the interior of the furniture above / through an exhaust air hose.

The connection to an exhaust air duct is not required during installation.

If the cooker hood is used in recirculation mode, the amount of room air remains unchanged and there is no negative pressure in the room. Simultaneous operation of a room-air dependent fireplace or appliances is harmless.

3. Notes Before Use

3.1 Unpacking and preparing the appliance

Smell perception during unpacking

A slight odour may be noticeable when unpacking the appliance.

This is normal and harmless and will soon disappear.

- When unpacking the appliance, make sure that it has not been damaged during transport.

WARNING!

Risk of injury and electric shock!

If you notice any damage to the appliance, its cable or other components, do not connect it and do not put it into operation!

This can be very dangerous!

Contact the customer service.

- We recommend writing down the 20-digit serial number on the inner cover of this manual for possible queries.

- If the appliance has been properly installed (see relevant sections), before using it, ensure that all packaging materials, stickers, protective films and transport protection materials have been removed from the product and properly disposed of and that any remaining small parts such as assembly materials are safely maintained.

WARNING!

Danger of suffocation!

Small parts, foils etc. can be very dangerous if they are swallowed or pulled over the head, for example! Always keep them out of reach of children and pets.

- Before installing and operating the appliance, clean it as described in the relevant chapter.

- For commissioning, observe the corresponding section!

3.2 Commissioning the cooker hood

• Only operate the appliance if it is in perfect condition and has been properly installed, ideally by a suitably qualified specialist.
  • Make sure that the appliance and its surroundings are completely clean so that no dirt such as dust, residues from installation or residues of transport protection agents can be sucked in!
• Ensure that both the metal filter and the fleece filter are inserted correctly as described under "Cleaning and Maintenance".
  • To operate the appliance, proceed as described in the following chapter.

4. Operation, Setting and Use

4.1 Control panel - brief overview

Control buttons

1.1	I	Power control	Power level 1
1.2	II		Power level 2
1.3	III		Power level 3
2	O	Operational stop	Switching off the fan operation

3 Light Switching the lighting on / off

4.3 Button operation and setting

Starting operation and setting the power levels

• To start fan operation at the first, second or third power level, press the corresponding power control button ,①on⑪ ⑬ respectively.
• Proceed in the same way to change the power level from level 1 to 3 as required during operation.
• If required, the table in the following section can be used as a guide for the suitability of the power levels.
• To stop the fan operation, press the Ⓞbutton .

Adjusting the lighting

- To switch the lighting on or off, use the ⏻ button in each case.

4.2 Suitability of the power levels

Power levels Suitability
1	• Simmering• Cooking with little vapour development
2	• Suitable for most cooking processes• Cooking with medium vapour development
3 • Cooking with high vapour development

Note:

The above information is for guidance only and may vary depending on vapour and odour development.

In order to determine the optimum setting in case of ambiguity, we recommend that you first select the next lower of the correspondingly indicated power level and then adjust it.

5. Recommendations for Use, Guidelines and Tips

WARNING!

Danger to life!

Simultaneous exhaust air operation of the cooker hood and room air-dependent fireplaces or appliances can result in life-threatening hazards!

Always follow the corresponding notes and instructions under "Operating modes" and "Installation"!

WARNING!

Fire hazard!

Open flames and intense heat can set the appliance or grease accumulations in filters on fire!

Do not use an open fire under the cooker hood (e.g. for flambéing), do not use gas hobs without suitably sized cookware and regulate the flames so that they do not reach above the base of the cookware!

Clean the appliance regularly as described to avoid hazards caused by fat deposits!

Never operate the appliance without the filters in place!

Especially oils, fats, alcohol or food containing them heat up quickly and can easily self-ignite at very high temperatures!

Food can burn, cause harmful smoke or catch fire!

Do not leave it unattended!

In the event of a fire, switch off the power supply by tripping the fuse and carefully smother the flames with a fire blanket or similar!

Never extinguish burning oil or grease with water!

CAUTION!

Risk of burns!

The appliance or certain components may be hot during operation and for some time afterwards!

Be careful when using the appliance!

5.1 Efficient use of the cooker hood

Your appliance complies with the latest standards and its energy consumption has already been optimised to a large extent technically.

However, please also observe the following instructions, in order to optimise the effective performance of the cooker hood and keep its energy consumption as low as possible:

• For efficient and trouble-free operation, always ensure sufficient supply air and avoid draughts.
  Note: Supply air from above and opposite the cooking area generally increases efficiency.
• Switch on the appliance early to create a stable air circulation and to avoid the distribution of cooking vapours in the room even before switching on.
• Also ensure stable air circulation during operation.
  For example, avoid turbulence of cooking vapours due to air blasts, draughts or similar.
• Always adjust the power level to the amount of cooking vapours produced so that they can be completely removed.
• However, for recirculation operation, note that a slow air flow better ensures the time needed for odour absorption.
• If possible, use a lid for your cookware to keep cooking fumes low and thus avoid increased power demand and condensation.
• Leave the cooker hood running on a low power setting after cooking, until the room air has been cleared of any remaining steams and odours.
• As soon as the cooker hood is no longer needed, switch it off.
• Switch off the lighting when it is not needed.
• Clean or change the filters at the recommended intervals to avoid build-up of impurities, increased energy consumption and functional impairment.

6. Cleaning and Maintenance

WARNING! Fire hazard!

If the cleaning instructions are not followed, there is a risk of grease deposits that can ignite when exposed to heat! Clean the appliance regularly, especially the metal filter, and replace the fleece filter at the recommended intervals! Ensure that the filters are always in place during operation to avoid grease deposits inside the appliance!

WARNING! Risk of electric shock!

Before cleaning and maintenance work, disconnect the cooker hood from the power supply by pulling out the mains plug of the appliance or switching off or unscrewing the fuse of the domestic installation!

Contact of moisture with live components can cause an electric shock and/or short circuit! Do not use excessive amounts of liquid for cleaning and do not use high-pressure or steam jet cleaners!

CAUTION! Risk of burns!

The appliance can become hot during operation! Allow all components to cool down before you start cleaning!

The lighting may be hot after operation! Before replacing the LED bulb, allow it to cool down!

CAUTION! Risk of injury!

Internal components can be sharp-edged! Protect yourself accordingly against injuries, e.g. when installing the appliance or removing the filter!

ATTENTION! Risk of damage!

Do not use any aggressive or acidic or alcoholic cleaning agents, scouring agents or abrasive, sharp or pointed utensils for cleaning!

These can damage or discolour the appliance's surfaces and the control panel!

Before use, check the manufacturer's instructions of your cleaning agents and utensils for appropriate suitability!

Cleaning residues can damage the appliance's surfaces!

Always remove them immediately and completely!

ATTENTION! Possible functional impairment!

Filters clogged with grease and/or dirt particles can severely impair the function of the cooker hood and spread unpleasant odours.

Clean the metal filter and change the fleece filter at the recommended intervals!

6.1 Cleaning the appliance components

To ensure that the appliance retains its appearance and remains fully functional, take good care of it!

Always keep all parts of the appliance clean and remove any soiling immediately, as described in the following sections

and in compliance with all previous instructions!

We recommend regular basic cleaning at least every 2 months.

Cleaning the appliance surfaces

• Use a soft cloth moistened with lukewarm water and a mild household cleaner or mild soapy water for cleaning.
• Clean all surfaces until all dirt has been completely removed.
• Then dry the appliance thoroughly with a soft cloth.

6.2 Removing and cleaning the metal grease filter

ATTENTION! Risk of damage!

To avoid damaging the filter, do not use any sharp or pointed cleaning utensils or aggressive or acidic cleaning agents! Avoid alkaline cleaning agents (pH value above 7)!

Make sure you use a sufficient but appropriate amount of cleaning agent so that the grease can dissolve! If the amount of cleaning agent is not sufficient, the grease will saponify, which means that the filter can only be degreased with aggressive special cleaning agents or must be replaced!

Metal discolouration due to cleaning

Frequent cleaning, especially in the dishwasher, or the use of aggressive cleaning agents can cause changes in the colour of the metal surface.

These have no influence on the function of the metal components and are not grounds for complaint.

Removing the metal filter (filter plate on the underside of the appliance)

• Press the locking buttons on both sides of the filter plate on the underside of the appliance to release it (see illustration).
• Tilt the filter plate slightly out of the holder opening and secure it with your second hand so that it cannot fall down and cause damage.
• Remove the filter plate from the appliance.
• To clean the metal filter, remove the fleece filter from its holder.

Diagram of a computer monitor with a close-up view showing internal components (no text or symbols)

Cleaning the metal filter

Clean the metal filter every 2-3 weeks, depending on the frequency of use of the cooker hood, as described in the following sections, repeating the process if necessary.

Manual cleaning

• Soak the metal filter in hot water with detergent for approx. 1 hour.
• Then clean it with a soft brush.
• Rinse it well with hot water afterwards.

Inserting the metal filter

• After cleaning, allow the metal filter to dry thoroughly.
- Carefully re-insert the metal filter into the cooker hood in the reverse order to that in which it was removed.
- Make sure that the lock is engaged and the filter is correctly positioned so that it cannot come loose, fall down and cause damage!

6.3 Replacing or fitting/removing the fleece filter

Replacing the fleece filter

Both the pre-installed carbon filter fleece supplied and other types of activated carbon and fleece filters cannot be washed or regenerated

and must be replaced every 3-12 months, depending on the frequency of use of your cooker hood (in individual cases also at shorter intervals), but at least after 120 hours of use.

For exhaust air operation, you can purchase a simple filter fleece of a similar thickness to the one supplied, but for recirculating air operation you should use an activated carbon fleece due to its odour-binding properties (both types are available in DIY stores, for example).

Note: In general, ensure that the fleece filter is adequately protected from high heat!

3-12 M.

Disassembling and reinserting the fleece filter

• To remove a used fleece filter, remove the filter plate from the bottom of the appliance as described in the corresponding section of this chapter.
• Remove the fleece filter from the holder on the inside of the filter plate.
• Dispose of the used activated carbon filter properly.

Fitting the fleece filter

• If necessary, cut the new filter fleece to the appropriate size.
• Place the fleece filter on the inside of the filter plate removed from the appliance in the holder frame and secure it with the filter clamps.
• Make sure that the fleece filter is stable and correctly positioned so that it cannot come loose!
• Reinsert the filter plate with the now attached fleece filter as described in the corresponding section of this chapter.

Diagram showing a grid-patterned surface being lifted by an arrow, no text or symbols present

6.4 Replacing the LED lighting

WARNING! Risk of electric shock!

To avoid the associated dangers, all work involving the LED lighting may only be carried out by a suitably qualified person!

For this purpose, the appliance must be disconnected from the power supply!

CAUTION! Risk of injury!

The light of LED lighting is very bright and can damage your eyes! Avoid looking directly into the light when it is switched on! Pay also attention to children in this regard, especially babies!

Proceed as follows to replace the lighting:

- Obtain a new LED bulb of the same type as that already installed in your model.

Properties of the LED bulb

• Type: E14
• Wattage: 4 W
  • Voltage: AC 110 - 240V

• Make sure that the appliance is completely disconnected from the power supply and that all components have cooled down before you start replacing the bulb!
- Remove the filter plate from the underside of the appliance as described in the relevant section under "Cleaning...".
- Unscrew the bulb from the socket counterclockwise.
- Screw the new bulb in clockwise and reattach the filter plate to the underside of the appliance.

Technical line drawing of a mechanical device with fan and vent, showing internal components and a curved arrow indicating rotation (no text or symbols)

7. Troubleshooting

WARNING!

Risk of electric shock, injury and damage!

Do not use the appliance in case of damage or defect!

This can be dangerous!

Disconnect it from the power supply immediately.

Repairs and modifications are very dangerous

for unqualified persons and can cause damage!

Never carry out repairs or modifications to the appliance your-

self and do not disassemble it!

The following table may help you to find your own solutions to possible problems with the appliance.

If the suggested solutions mentioned above do not solve a problem, contact the customer service or a suitably qualified specialist!

Problem Possible cause Possible solution

The appliance cannot be switched on.	No power supply Make sure that the appliance is fully and properly connected to an intact power supply (see corresponding section).
The lighting does not work.	The LED bulb must be replaced.	Replace the LED bulb with new a one as described in the corresponding section.
	Incorrect installation of the lighting	Check the installation of the lighting and correct it if necessary. If you are unsure, contact a qualified person.

Problem Possible cause Possible solution

Insufficient extraction performance	Too great distance between the appliance and the cooktop	Install the appliance at a lower height. Follow the installation instructions!
	Draughts Close doors and windows.
	Negative pressure in the room due to insufficient air supply	Always ensure a sufficient supply of fresh air in compliance with the relevant the relevant sections!
	Clogged / soiled filters	Clean the metal filter or replace the fleece filter as described in the relevant section.
	Too small air duct cross-section	Observe the notes and instructions regarding the air ducting!
	Blocked airways Check the air duct for blockages (e.g. fly screen, blocked flap of the non-return valve, immovable louvres on the outer cover plate, etc.) and remove any foreign objects.
Droplet formation Design-related condensation		If possible, use the front cooking zones of your hob for cooking with a lid and only the rear zones without a lid.
		Clogged / soiled filters
		Unfavourable exhaust air duct
Increased noise development during operation	Insufficient fixing of the appliance or its components	Check the appliance for loose parts.
	Fan speed increase due to insufficient air supply	Check the fan and air duct for blockages (e.g. blocking cable or similar) and follow the instructions for the exhaust air ducting.

Problem Possible cause Possible solution

The appliance vibrates during operation.	Insufficient fixing Check that the appliance is installed correctly and stably.If necessary, tighten any loose screws or fix any loose mounting parts.
Abnormal noise / odour	Technical defect Contact customer serviceor an appropriately qualified specialist.
The lighting works, but fan operation does not start.

8. Installation of the cooker hood

8.1 Important notes and installation requirements

WARNING!

Risk of electric shock, injury and risk of damage!!

Incorrect installation may result in hazards and the appliance may be unstable and fall down, which can cause damage! Follow all instructions in this manual carefully and ensure that the appliance is mounted securely and safely!

We recommend that the appliance is installed by suitably qualified personnel!

CAUTION!

Risk of injury!

Some parts of the unit can be sharp-edged! Protect yourself accordingly when handling the appliance, e.g. with work gloves!

- For installation, all applicable regulations, including the instructions, dimensions and spacing regulations in this manual, must be observed and complied with!

Requirements according to the operating modes

The installation requirements with regard to the structural conditions depend on the desired operating mode.

The appliance can be used in one of the following operating modes:

• Recirculation mode with return of the exhaust air into the room
• Exhaust air operation with air ducting to the outside through an air duct or a permanently installed exhaust air pipe

Also refer to the corresponding sections under "Functionality ..."

Notes for recirculation mode

If you use the appliance as a recirculation hood, no special structural measures or requirements are necessary.

However, please note the following:

• Make sure that the supplied and pre-assembled activated carbon fleece filter is inserted or replace it if necessary, as described in the corresponding section under "Cleaning and maintenance".
  Note: Be aware that a carbon filter is basically used to bind odours in recirculation mode, but the filter fleece also supplements the metal filter in terms of filter performance!
  Do not use the appliance without the filters in place to avoid the risk of fire, damage and malfunctions as a result of grease deposits!

- For the exhaust air duct via the ventilation slots on the front edge of the top of the appliance (1), the deflector pre-installed on delivery must be removed from the fan motor; for the exhaust air duct via the exhaust air opening on the rear edge of the top of the appliance (2), the deflector must be inserted and the exhaust air connection piece must be fitted to the rear air outlet, as described in the relevant section under "Installation preparation ...".

- The exhaust air should be able to flow away from the appliance upwards (for under-cabinet installation, in front of or through the interior of the furniture above).

When mounting, make sure that the corresponding ventilation slots are not covered and that the exhaust air ducts are not blocked.

1

↑

2

Requirements for exhaust air operation

WARNING! Danger to life!

If the cooker hood and room air-dependent fireplaces or appliances are operated at the same time, insufficient supply air may cause a negative pressure, drawing smoke and toxic combustion gases back into the living spaces!

In this case there is a danger to life!

Ensure sufficient fresh air supply, as described below!

If you use the appliance in exhaust air mode, make sure that the following requirements are met!

If this is not the case, use the cooker hood in recirculation mode!

- For exhaust air operation, it must be ensured that sufficient fresh air flows into the room at all times while the cooker hood is in operation so that no negative pressure of more than 4 Pa (4 x 10-5 bar) can occur! This can be achieved e.g. by non-closable openings in doors, windows, in connection with a supply air / exhaust air wall box or by other technical measures.

A supply/exhaust air wall box alone does not guarantee compliance with the limit value!

Ask your chimney sweep to advise you on the ventilation system for the house and the appropriate ventilation measures!

The regulations issued by the local authorities must be strictly observed!

- For the exhaust air ducting, there must be an exhaust air shaft in your house intended exclusively for the cooker hood, a permanently installed exhaust air pipe or an exhaust air wall box with an outlet to the outside (for further information on the exhaust air ducting, see the following section).

- The extracted air must not be routed through any ducts through which vapours produced by the combustion of gas or other fuels are discharged! If the exhaust air is to be led into a flue or exhaust chimney that is not in use, the consent of the responsible master chimney sweep must be obtained.

• To direct the exhaust air flow of the appliance into the exhaust air duct selected for this purpose, the air outlet of the hood body must be connected with the opening of your exhaust air duct.
  To do this, procure an exhaust air hose with a diameter of 120 mm made of heat-resistant material and attach it to the air outlet of the hood body as described in the relevant section under "Mounting...".

- For operation with exhaust air via the opening at the rear edge of the top of the appliance, always ensure that the deflector is inserted at the front curve of the fan motor, as described in the relevant sections under "Installation preparation...".

Diagram showing a cylindrical object above a base with an upward arrow, and a curved arrow below (no text or symbols)

Filter use in exhaust air mode:

A carbon filter is generally only useful if the hood is used in re circulation mode (for odour control).

To replace the pre-installed activated carbon fleece filter supplied, you can therefore choose to purchase a simple filter fleece of comparable thickness.

However, even in exhaust air mode, make sure that both the metal filter and the fleece filter are inserted correctly, as described under "Cleaning and maintenance", to avoid the risk of fire, damage and malfunctions due to grease deposits!

Information on non-return valves:

Installing non-return valves in the exhaust air system prevents incorrect air flow, i.e. an unfavourable exchange of air between the room air and the returning outside air. This also prevents malfunctions of the extractor fan, such as reduced suction power.

If no such device is integrated in the exhaust air system of your kitchen, we recommend installing one.

Note: In apartment buildings with a shared air shaft, a non-return valve is required for each kitchen.

Notes on the exhaust air ducting to the air outlet

ATTENTION!

Risk of malfunction!

An inadequately constructed, unfavourably routed or shaped exhaust air line can significantly impair the function of the appliance! Follow the instructions in this section carefully, to avoid problems such as reduced extraction performance, noise development or increased running noise, grease deposits or condensate formation!

Make sure that the following conditions for proper exhaust air ducting up to the air outlet can be guaranteed:

• The entire exhaust air pipe must be made of non-combustible material and must not be routed through a duct together with gas or hot air pipes or similar.

• The exhaust air duct should have the following properties:

• As short and straight route as possible with few bends and large radii (max. bend 120°)

• Inner diameter or inner cross-section min. 150 mm (if applicable incl. wall box)
• Round or rounded cross-section (e.g. round ducts or flat ducts with rounded corners)
• Smooth surfaces on the inside
• Even course without constrictions or blockages (e.g. fly screens, rigid blades at the air outlet)

- If the exhaust air duct is laid horizontally, a minimum gradient of 1 cm per meter or an angle of inclination of 2^ must be maintained in order to avoid the return of condensation water (see illustration).

• If the exhaust air duct is routed through unheated or cool rooms (e.g. attics), it must be insulated to prevent additional condensation.
• An additional condensation water barrier may be necessary (available in leading DIY stores).
• For the roof version, a double-walled roof hood with condensate drainage to the outside should be used.
• All connections must be sealed.
• When installing a non-return valve, make sure that it can open and close freely after the exhaust air duct has been installed.

Installation location and environment

This appliance is designed for private use in a domestic environment and can be installed in a kitchen above a standard household hob, for example.

The following restrictions must be observed:

• The appliance is not suitable for use above barbecues or open fireplaces for solid fuels.
• The appliance is not intended for commercial use.
• Observe the manufacturer's instructions for cooking appliances that are to be used in combination with the cooker hood, in particular whether the operation of a cooker hood above it is permitted.
• Your model is suitable for wall mounting, but is preferably intended for installation under a wall unit or similar. Please refer to the following section!

8.2 Choice of the mounting surface

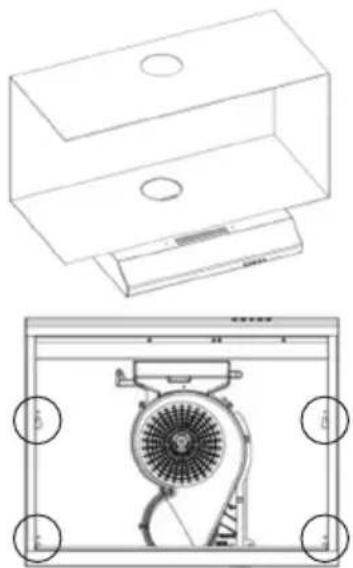

Your cooker hood model is intended for installation under a wall cabinet or a comparable piece of furniture or it can also be mounted on a wall.

Note the following information for this:

• For optimum extraction performance, make sure that the appliance can be installed in a position centred above the cooktop.
• Check the dimensions of the furniture or the mounting surface, taking into account the relevant information in this chapter (dimensions in the following section, any necessary cut-outs, drill holes, etc.), to ensure that the appliance can be installed.
• Check the material of the mounting surface to which the appliance is to be attached for load-bearing capacity and strength with regard to the weight of the appliance and the required preparation and only use suitable mounting material.

Notes:

• The screws and plastic dowels supplied are intended for solid masonry or for standard kitchen furniture or comparable furniture. If necessary, replace them according to the substrate!

• For wall mounting, make sure that the required drill hole depth (dowel length + 10 mm) is possible at the selected location in order to ensure a firm hold of the dowels.

• Check the mounting surface for unevenness and level it out if necessary.
  The mounting surface must be level and vertical (for wall mounting) or horizontal (for under-cabinet mounting).

• If possible, ensure that the appliance is easily accessible during and after installation, e.g. for cleaning and maintenance.

8.3 Installation dimensions / alignment

ATTENTION!

Risk of damage and malfunction!

If the distance between the cooktop and the cooker hood

is too small, the appliance may be damaged!

If the distance is too great, the suction power can be

severely restricted!

Observe the following distance specifications

or adapt them to the safety distances of the cooking appliance(s)

used, if these are specified larger by the manufacturer!

To ensure optimum extraction performance, the cooker hood should be installed at a distance of 65-70 cm above the cooktop.

However, observe the following guidelines according to your hob type:

Cooktops with coal / oil / wood firing 85 cm

Appliance dimensions

Specifications in mm

8.4 Installation preparation and instructions

CAUTION! Risk of injury!

Some components of the unit can be sharp-edged!

Protect yourself from injury during installation,

e.g. by wearing work gloves!

Notes before installation

• Follow the instructions given in the chapter "Notes before use" before installing the cooker hood!
• Clean the appliance and the area around the installation position thoroughly before and after installation so that no dust, residues of transport protection materials or installation residues can be sucked in during commissioning!

- Have the following ready for the fitting of the appliance:

• Cooker hood
• Supplied accessories including this manual
• Procured accessories according to the desired operating mode (see corresponding sections of this chapter)
• Pencil or similar for markings
  • Measuring tool and spirit level
• Screwdriver
• Drilling machine, powered screwdriver or similar
• Jigsaw or similar

- Use only the fixing screws supplied with the product for installation, or those of the same type, as specified under "Packing list"!

- Do not install the appliance alone, but with at least one other person.

Preparing the appliance for installation

...for recirculation mode with exhaust air via the front ventilation slots

- Remove the deflector (1) pre-installed on delivery from the fan motor by loosening the screw on the front rounding of the fan motor (1.1), grasping its socket or the angled upper edge of the curved deflector (1.2) and pulling the deflector component (1) out of the gap between the fan and the air duct so that the exhaust air can flow into it and is channelled to the ventilation slots on the front edge of the top of the appliance.

...for recirculation or exhaust air operation with exhaust air via the rear air outlet

• Remove the round cover from the pre-punched opening at the rear edge of the top of the appliance, e.g. by carefully pushing a flat-blade screwdriver into the edge joint, separating the disc and then levering it out.
• Attach the supplied exhaust air connection piece to the opening created in this way (2).
• Ensure that the deflector (1) is inserted at the front curve of the fan motor.

Isometric line drawing of a mechanical component with a circular knob and a downward arrow, no text or symbols present.

8.5 Mounting the appliance

- Remove the filter / cover plate from the underside of the appliance.

- Then proceed as described in the section corresponding to your desired installation type.

Under-cabinet mounting

- Determine the desired mounting position for installing the appliance in the centre above your hob in accordance with the instructions and dimensions mentioned before and hold the appliance against the underside of the selected piece of furniture in this position with the help of another person.

Note: For operation with exhaust air via the front ventilation slots, make sure that the appliance protrudes far enough from the front of the furniture so that the exhaust air can flow freely upwards away from the appliance.

- Mark the position of the 4 screw holes on the top of the appliance and, for operation with exhaust air via the rear exhaust air opening, also mark the position of the exhaust air socket on the underside of the furniture base via the open underside of the appliance / from the inside of the appliance and put the appliance down again.

- Drill a hole with a diameter of 6 mm at each of the corresponding markings.

- For operation with exhaust air via the rear exhaust air opening saw out the cut-out for the exhaust air connection additionally, using a jigsaw or similar.

- Position the appliance accordingly on the furniture and screw it to the pre-drilled points using the ST4×30 screws supplied.

Technical line drawing of a mechanical fan or pump assembly (no text or symbols)

Technical line drawing of a mechanical component with top and front views (no text or symbols)

Wall mounting

• Determine the desired position for the installation of the appliance in the centre above your hob according to the instructions and dimensions mentioned before and hold the appliance against the wall in this position with the help of another person. Also check the horizontal alignment using a spirit level or similar.
• Mark the position of the two screw holes on the back of the appliance on the wall via the open underside of the appliance / from the inside of the appliance and put the appliance back down.
• Drill a hole of length + 10 mm and diameter corresponding to the supplied wall plugs at the markings.
• Using a hammer, carefully tap a plastic dowel into each drill hole and screw one of the ST4×30 screws supplied into each one.
• Hang the cooker hood on the screws using the screw holes in the back of the appliance and tighten the safety screws, to secure the appliance.

Installation of an exhaust air hose for exhaust air operation or for recirculation operation with exhaust air duct

• After you have attached the exhaust air connection piece as described before, attach the exhaust air hose you have purchased (see "... installation requirements") to the air outlet on the rear edge of the top of the appliance if necessary.
• Connect this to the further exhaust air duct or, for the exhaust air duct through a piece of kitchen furniture for recirculation mode, to the exhaust air opening of the piece of furniture.

Make sure that the hose part near the connection to cooker hood is fully extended!

Illustration showing a hand using a power tool to lift a brick wall, with an inset close-up of the tool (no text or symbols present)

∅ 120 mm

8.6 Connection to the power supply

The appliance cable is fitted with a standard plug. To connect it to a socket, follow the instructions below:

• Do not connect the appliance to the mains until it has been properly installed!
• Before connecting the appliance, make sure that the local mains voltage (V) and frequency (Hz) match the specifications on the rating plate!
• If the plug is no longer accessible after installation, ensure that an easily accessible all-pole circuit breaker (fuse) with a contact gap of at least 3 mm is integrated into the appliance's circuit, which complies with the applicable regulations and ensures complete disconnection of the appliance from the power supply in an emergency!
• Connect the plug of the mains cable directly to a properly earthed socket outlet near the appliance!
• Do not use multiple sockets or extension cables to connect the appliance to the mains! These do not guarantee the necessary safety!
• Make sure that the cable cannot be kinked or twisted during and after installation and that its temperature never exceeds 75°C.

9. Technical Data

Model designations UBH600B, UBH600S, UBH600W
Type Under-cabinet cooker hood
Venting type Convertible
Number of power levels 3
Lighting type LED
Lighting energy consumption 1 x 4 W
Number of grease filters 1
Activated carbon filter type Filter mat / fleece filter
Energy efficiency class B
Lighting energy efficiency class C
Fluid dynamic efficiency class E
Grease filter efficiency class D
Maximum sound power level	69 dB
Air flow volume in most energy efficient mode	96 m^3/h
Air flow volume at maximum power	174 m^3/h
Average lighting intensity onto cooking surface	78 lx
Power	45 W
Measured power consumption in standby mode	-
Measured power consumption in off mode	0 W
Electrical power in most energy efficient mode	36.7 W
Voltage / Frequency	220 - 240 V / 50 Hz
Dimensions (W × D × H)	595 × 470 × 100 mm
Exhaust outlet diameter	120 mm
Cable length 1 m
Weight	4.5 kg

Note on product conformity

Model designations:

UBH600B, UBH600S, UBH600W

Under-cabinet cooker hoods

Manufacturer / Distributor:

For the above-mentioned products, the corresponding EC Declarations of Conformity are available.

Some of the relevant documents can be viewed and downloaded from our website under the corresponding product page.

You are welcome to obtain the complete documents upon written request via the above contact address.

Jan Kolbe

Head of Product Management

KKT Kolbe Customer Service

We are happy to help if you have technical questions or problems with appliance, or if something should break down.

You can contact our customer service at:

KKT KOLBE customer service

Tel. [phone]

Mail: [e-mail]

www: www.kolbe.de

→ Further data and documents can be found on our website under "Questions & Answers".

Please have the following information ready:

• Customer number
  • Date of the invoice or delivery note
  • Appliance type (Model number)
• Serial number

Note:

You will find the 20-digit serial number on the rating label of your appliance or on the outside of the packaging box. If noted, you will also find it on the inner cover of this manual.

Thanks for reading. We wish you lots of fun with your appliance.
