Coachbuilt (2020) - Motorhome Swift - Free user manual and instructions

Type	Coachbuilt Motorhome
Brand	Swift
Model	Coachbuilt (2020)
Base Vehicle	Fiat (flat bed chassis)
Fuel (Base Vehicle)	Diesel
Gas System	LPG (1x10kg cylinder)
Electrical System	230V mains hook-up, 12V DC leisure battery
Water System	Fresh water tank (underfloor/internal), waste water tank, pump, water heater

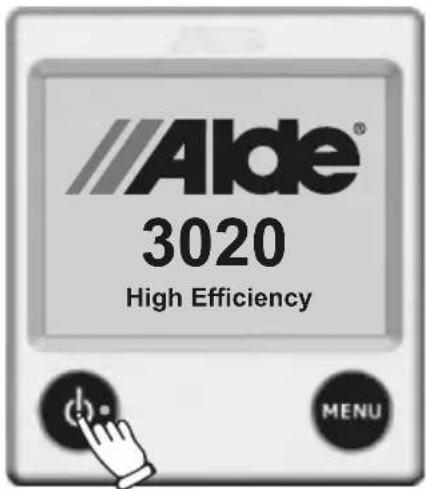

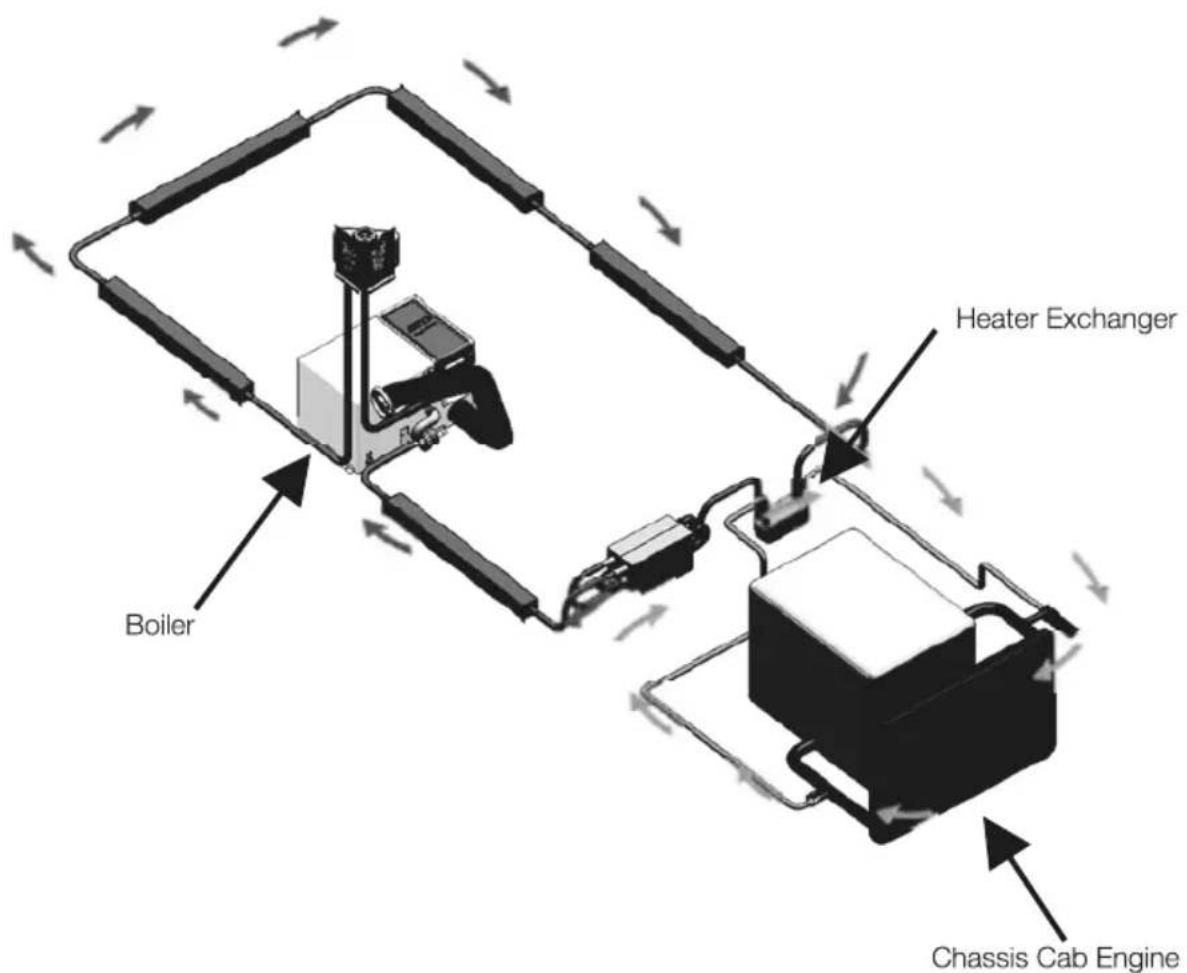

Heating System	Truma Combi Boiler or Alde Compact 3020HE (depending on model)
Air Conditioning	Truma Aventa (optional)
Toilet	Thetford C260CS/C260S cassette toilet
Refrigerator	Dometic absorption refrigerator
Cooker	Thetford hob, grill, oven
Bike Rack (Rear Wall-mounted)	Thule Elite G2
Satellite System	Oyster V (with GPS, 3D compass, level sensor)
Battery (Leisure)	Yuasa YBX Active Leisure (recommended)
Tracker / Security	Swift Command Tracker by Sargent (Thatcham Cat 6), VIN CHIP marking
Connectivity	Swift Connect Direct online system, Swift Command App
Warranty (SuperSure)	3 years on parts and fittings
Warranty (Body Shell)	6 years (transferable)
Warranty (Extended Body Shell)	10 years (non-transferable, first owner only)
Annual Service Required	Yes (habitation area inspection at Swift Group approved centre)
Tyre Type	Camper tyres (CP standard)
Spare Wheel	Underfloor carrier (AL-KO conversion) or Fiat chassis carrier

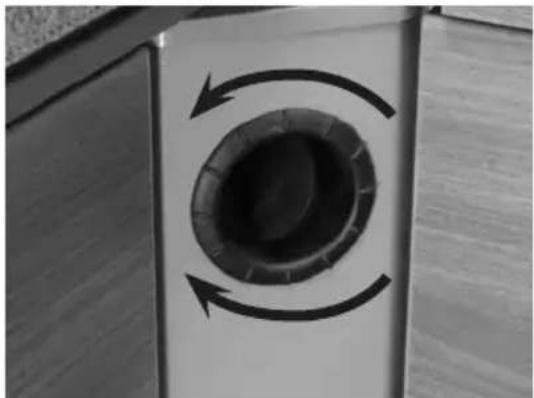

Ventilation	Complies with BS EN 721 (fixed high and low level vents)

Frequently Asked Questions - Coachbuilt (2020) Swift

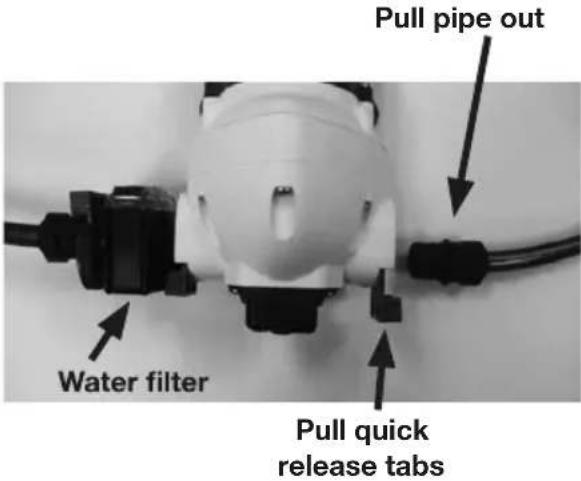

How do I prime the water system after winter storage?

Connect the water pump pipe connectors, open all taps, and turn on the pump. Run water through each tap until a steady flow appears, then close taps. Check for air locks and refer to the pump manufacturer's instructions if needed.

What should I do in case of a fire?

Get everyone out immediately using the nearest exit (including windows). Do not stop to collect personal items. Raise the alarm and call the Fire Brigade. If safe, turn off the gas supply at the bottle and switch off the electricity at the mains hook-up point.

How do I level the motorhome on site?

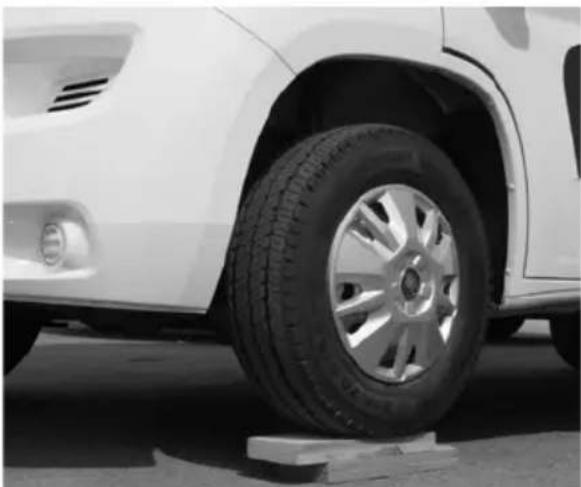

Use stepped levelling boards or proprietary ramps under the wheels. Level both side-to-side and front-to-back to ensure correct refrigerator and equipment operation. Place levelling pads under the corner steadies if the ground is soft.

How do I operate the Thetford cassette toilet?

Ensure the cassette is properly inserted and locked. To flush, use the flush knob (turn anticlockwise to open the blade, clockwise to close). Add Thetford holding tank deodorant to the waste tank. For emptying, remove the cassette via the external access door and empty at a designated disposal point.

How do I winterise the motorhome?

Drain the water system completely. Remove batteries and store charged. Lubricate toilet seals with an acid-free lubricant. Clean and ventilate the interior. Ensure gas is isolated. Check tyres and wheels. Use a breathable cover if storing outdoors.

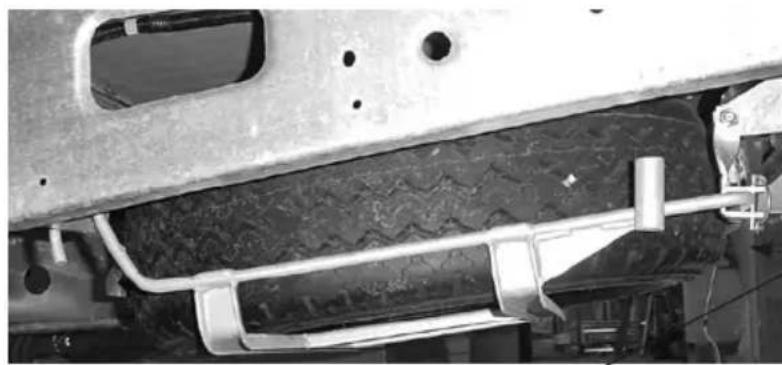

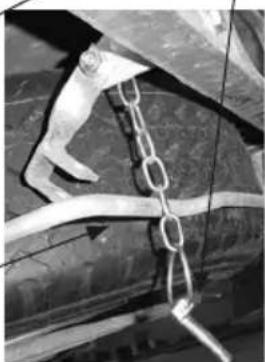

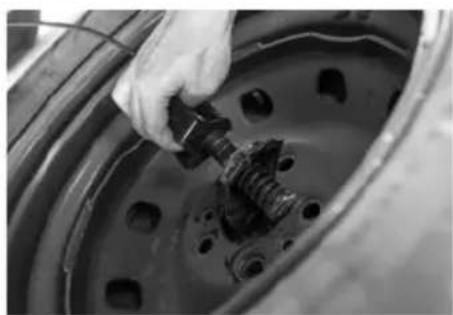

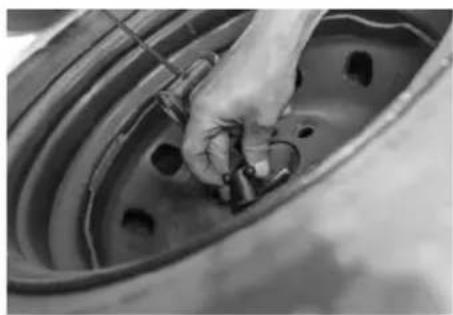

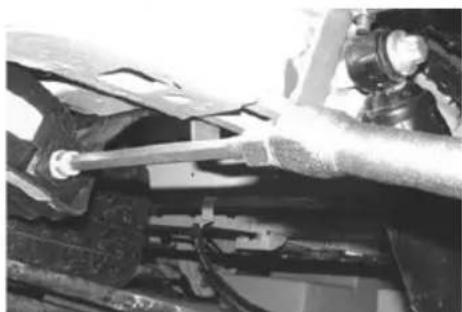

How do I remove the spare wheel on an AL-KO conversion?

Remove the securing pins on both sides of the carrier frame. Lift the frame slightly and slide the supports forward. Lower the carrier to the ground. Remove the wheel. Reverse the process for replacement, ensuring pins are securely located.

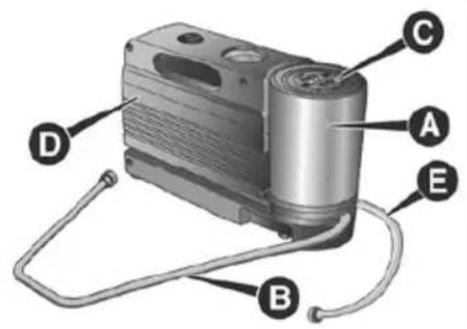

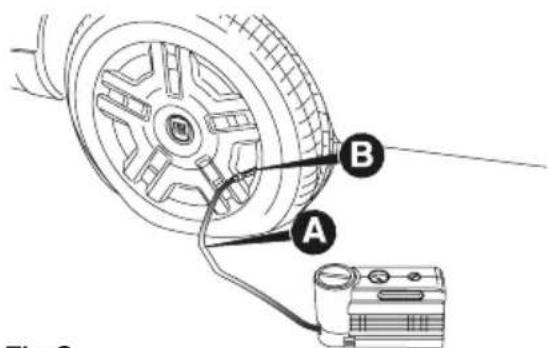

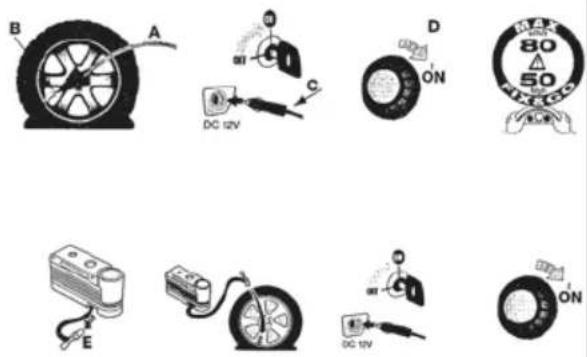

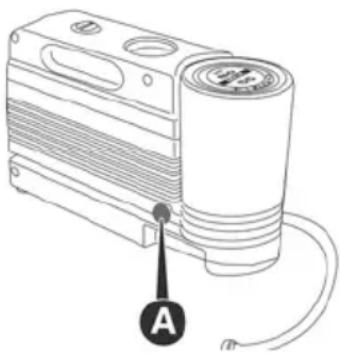

How do I use the Fix & Go tyre repair kit?

Pull the handbrake, unscrew the tyre valve cap, and attach the filler hose from the sealant bottle. Insert the compressor plug into a 12V socket and start the engine. Turn the selector to repair position and press the on/off switch. Inflate to the recommended pressure (min 3 bar). If pressure cannot be reached after 10 minutes, do not drive; contact a Fiat dealership.

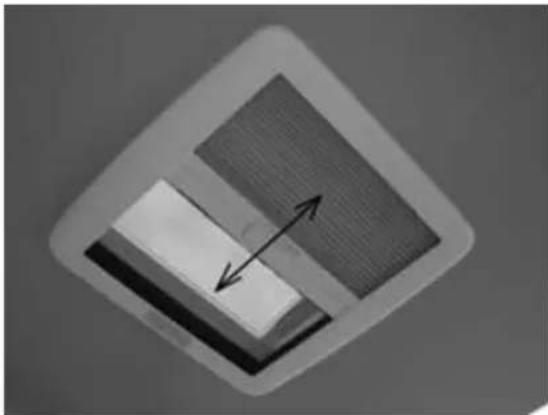

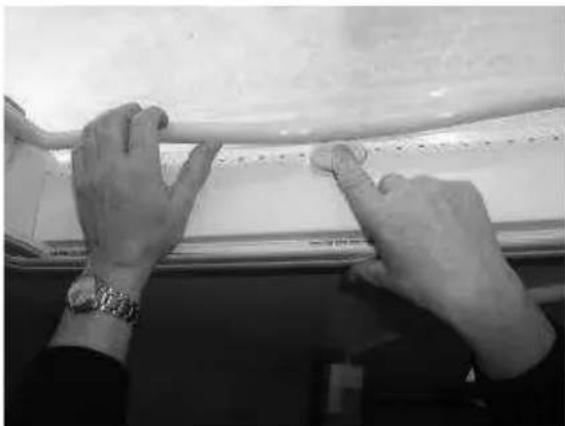

What are the ventilation requirements?

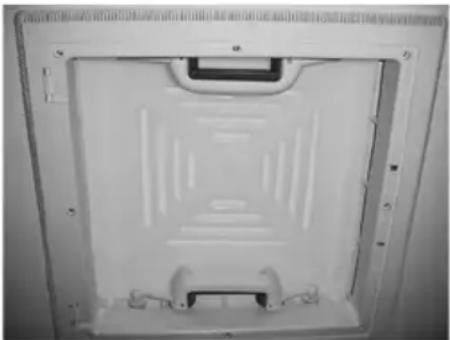

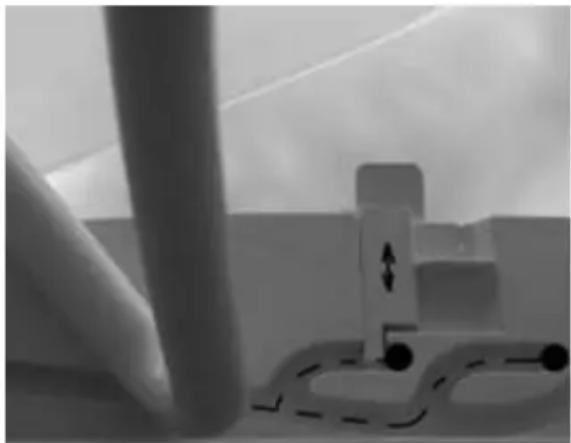

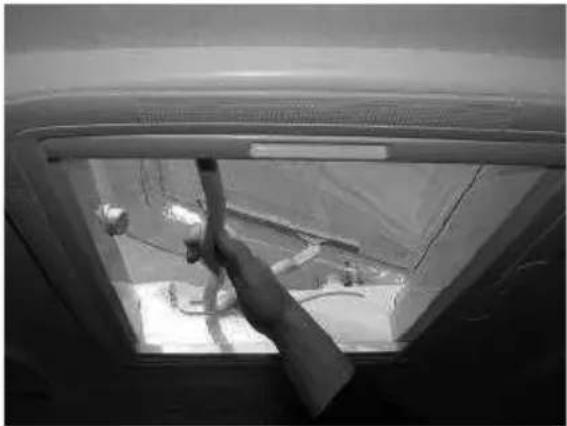

Fixed high-level vents (rooflights) and low-level vents (under sinks) must never be blocked. Extra night ventilation can be achieved by setting window catches to the second groove (not rain-proof). Check and clean vents regularly with a brush and vacuum.

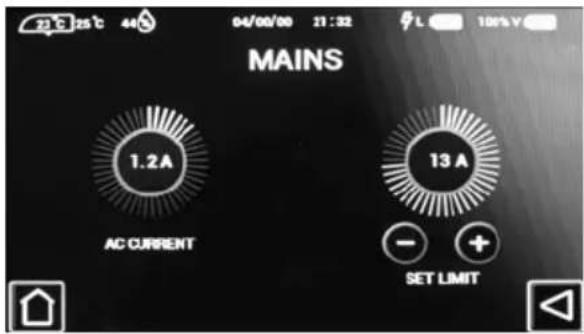

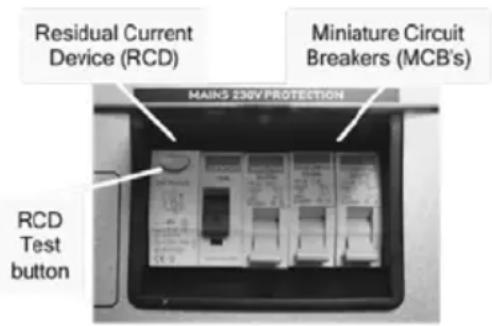

How do I connect to 230V mains hook-up?

Use a suitable outdoor-rated extension cable (minimum 2.5mm² cross-section) with a weatherproof connection. Connect to the motorhome's mains inlet socket, then to the site's hook-up point. Ensure the cable is not a trip hazard and the connector is dry.

How do I use the Swift Command Tracker?

The tracker is armed when the ignition is off and disarmed when on. Purchase a subscription at www.swiftcommand.co.uk. In case of theft, the monitoring centre will contact you. If theft is confirmed, they liaise with the police. Do not attempt to locate the vehicle manually during a theft event.

USER MANUAL Coachbuilt (2020) Swift

Swift Group Owner's Handbook

Coachbuilt Motorhomes

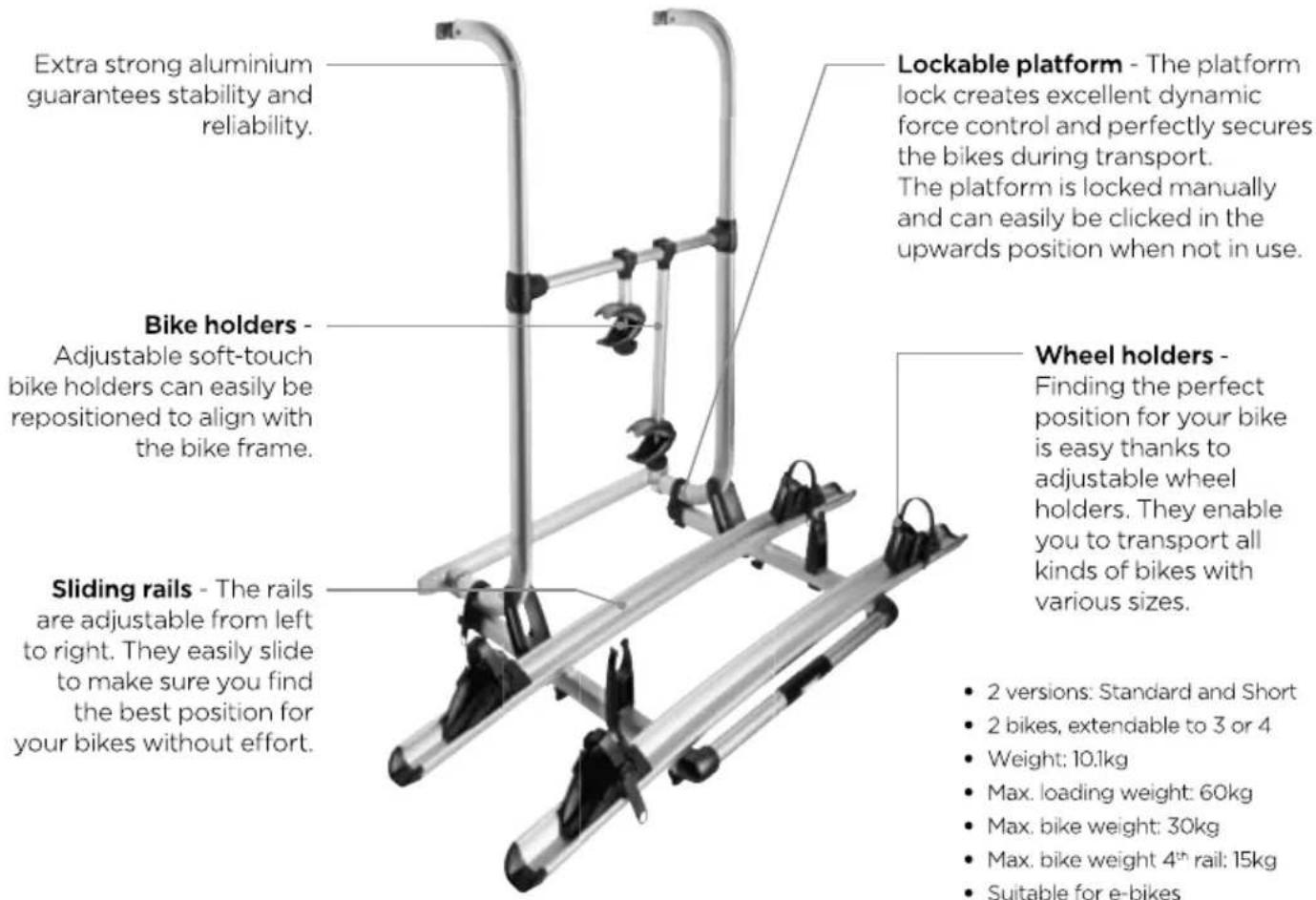

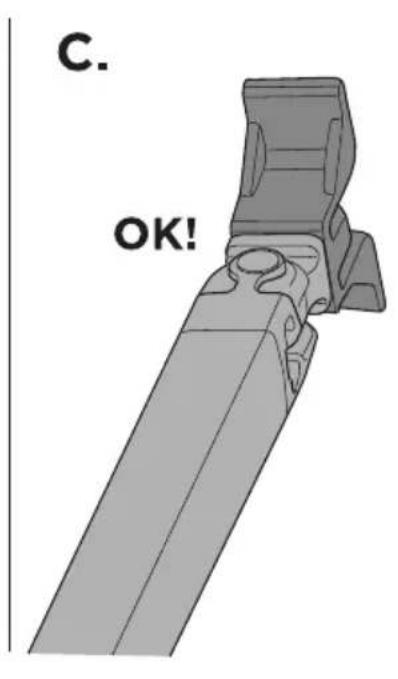

Rear Wall-mounted Bike Rack

>Thule Elite G2 The perfect all-round bike rack

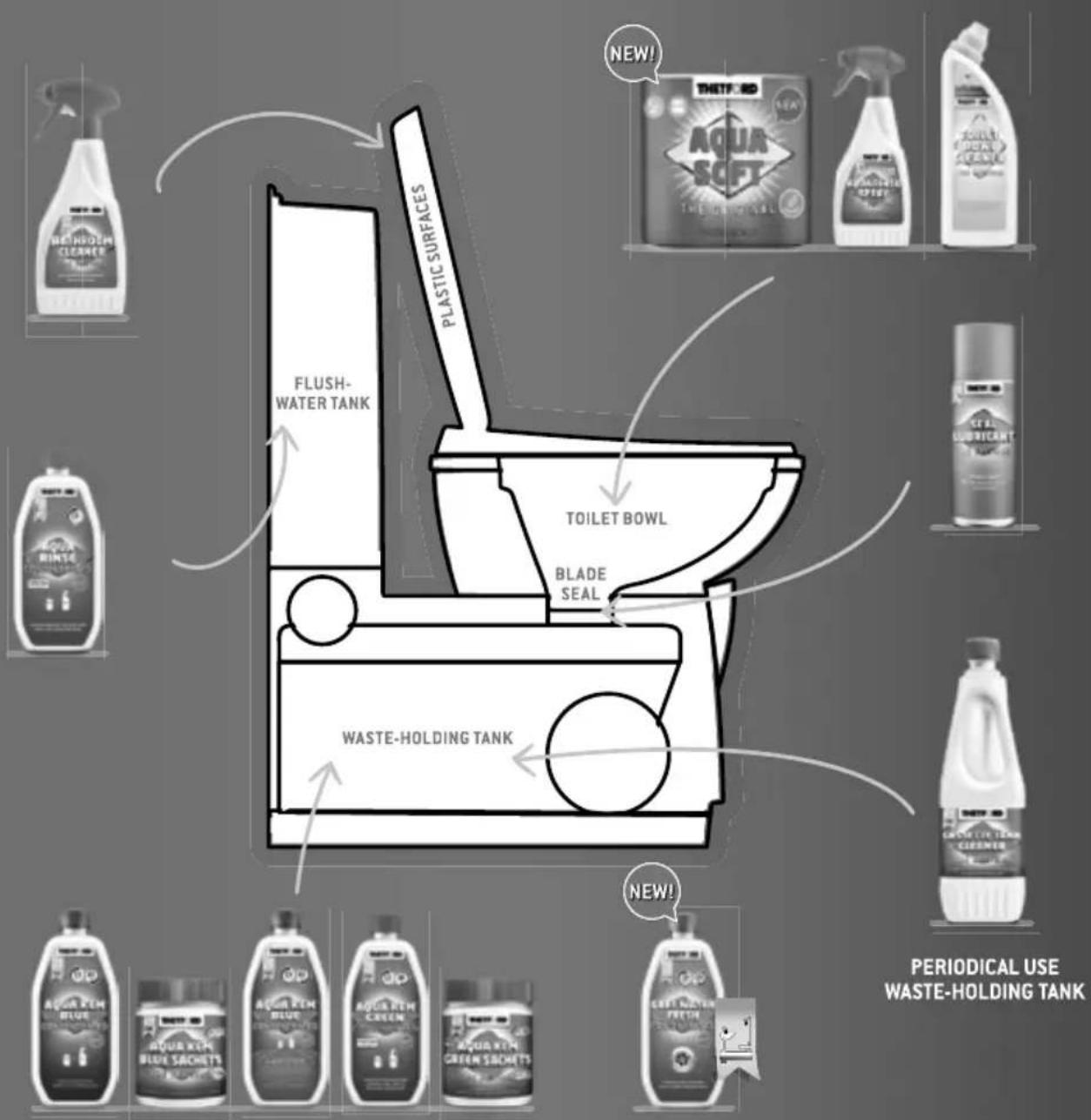

THETFORD

WORLD'S NO. 1

IN TOILET ADDITIVES!

    subgraph New Products
        G["TBEF-50"] --> H["AQUA SOFT"]
        I["PO Box"] --> J["SOILIN GREEN"]
        K["RINCE"] --> L["CRAVE SURRICANT"]
    end

    subgraph Periodical Use
        M["Blue Blue"] --> N["AQUA REN BLUE SACKETS"]
        O["Blue Blue"] --> P["AQUA REN GREEN"]
        Q["Green SACKETS"] --> R["AQUA REN GREEN SACKETS"]
        S["Green"] --> T["CRAVE SURRICANT"]
    end

DAILY USE WASTE-HOLDING TANK

The only Swift Partner for Paint and Upholstery Protection

Front view of a white minivan with open rearview and side mirror (no visible text or symbols)

Paint Protection

Upholstery and Carpet Protection

From the Makers of Diamondbrite Diamondbrite Leisure

The ultimate Paint and Upholstery Protection for your Swift Motorhome

Diamondbrite Leisure is a two-step protection system for your Swift Motorhome with a Lifetime Guarantee*

1. EXTERIOR

• Nano-Ceramic Technology
- Fade Resistant
• Never Polish Again!

2. INTERIOR

• Easy to Clean
• Stain Resistant
  • Lifetime Guarantee

HOW DOES IT WORK?

1 If your paintwork was magnified it would reveal small pores in the surface.

Close-up of a corrugated metal sheet with uniform ridges and small square cutouts (no text or symbols)

2 Road traffic dirt gathers in the pores and attacks paintwork.

3D rendered image of a corrugated metal sheet with vertical grooves (no text or symbols)

3 Your first Paint Protection application cleanses and fills pores in the vehicles paintwork leaving a smooth finish that cannot be penetrated.

Blank white sheet with a dark textured edge, no visible text or symbols

4 Your second application bonds with the first to create a hard protective skin. It leaves a high lustre finish that rain and dirt cannot penetrate.

Abstract grayscale illustration of a curved, layered structure with scattered light spots (no text or symbols)

You will also receive a complimentary After Care pack including the fabulous Waterless Wash, plus a range of other professional cleaning products.

Jewelultra Ltd. Diamondbrite House, Ewell Lane, West Farleigh, MAIDSTONE. ME15 ONG.

Tel [phone]

Email [e-mail]

www.jewelultra.com

MADE IN UK

Diamondbrite LEISURE

*Lifetime Guarantee applies for the length of time that the purchaser owns the vehicle and is non-transferable.

Refreshed. Relaxed. Recovered.

Stay cool with our Truma Aventa air conditioning range for more comfort

www.trumauk.com/aventa

Two sets of electronic devices with black and white surfaces, one with a screen icon, no visible text or symbols.

truma iNet ready

luxury

Luxury Comfort

ON THE MOVE

Black-and-white photo collage showing a woman handling a bed near a train, with no visible text or symbols.

Duvalay are true pioneers – inventing the world's lightest bespoke caravan mattress, as well as innovative sleeping bags and portable toppers which have sold to more than one million customers globally.

To experience affordable bedtime luxury in every place you call 'home', choose Duvalay.

duvalay™ BEDTIME LUXURY

Order online or by phone

duvalay.co.uk

01274 877 200

SATELLITE REVOLUTION!

THE NEW OYSTER® V PACKED WITH SPECIAL FEATURES.

With inbuilt GPS, 3D Compass and Level Sensor, the Oyster® V always knows exactly where the satellites are. On activation, the new Oyster® V points straight to your selected satellite with no more tiresome searching.

With the very latest technology, the Oyster® V can also be operated on any smartphone or tablet via the ten Haaft App. Software updates are sent automatically to the App and can be easily uploaded to the Oyster® V so your satellite system is always right up to date.

For further information please visit www.ten-haaft.com

Made in Germany

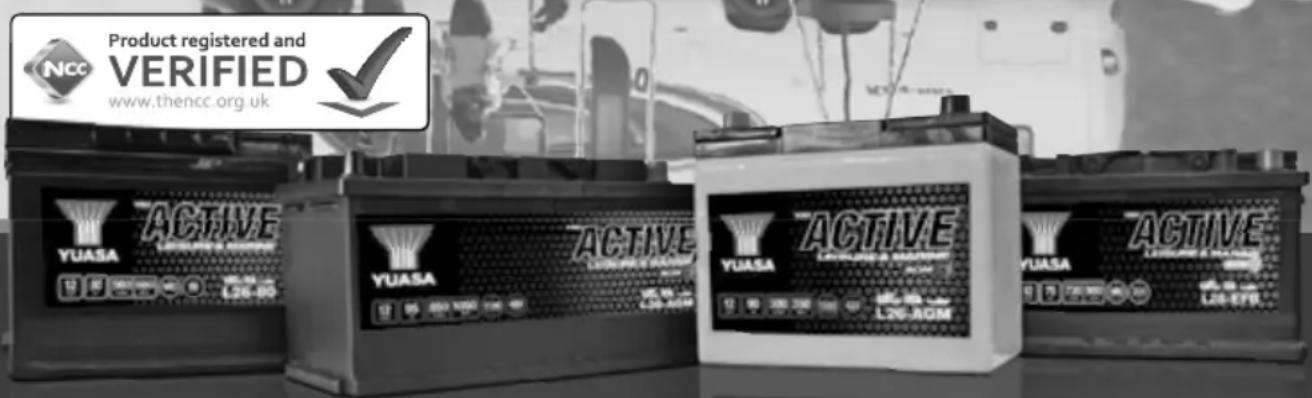

The Active leisure range... long life batteries for life long memories

Whether you camAp with full electric hook-up or use no mains supply, YBX Active batteries give you the freedom to go anywhere.

Recommended by Swift, Yuasa YBX Active Leisure & Marine batteries are specially designed to provide dependable, stress-free power & long life.

Power your getaway at

www.yuasa.com

YUASA BATTERY

Abstract metallic circular logo with a stylized bird or wing-like shape (no text or symbols)

SWIFT

CONNECT DIRECT

WHAT IS CONNECT DIRECT?

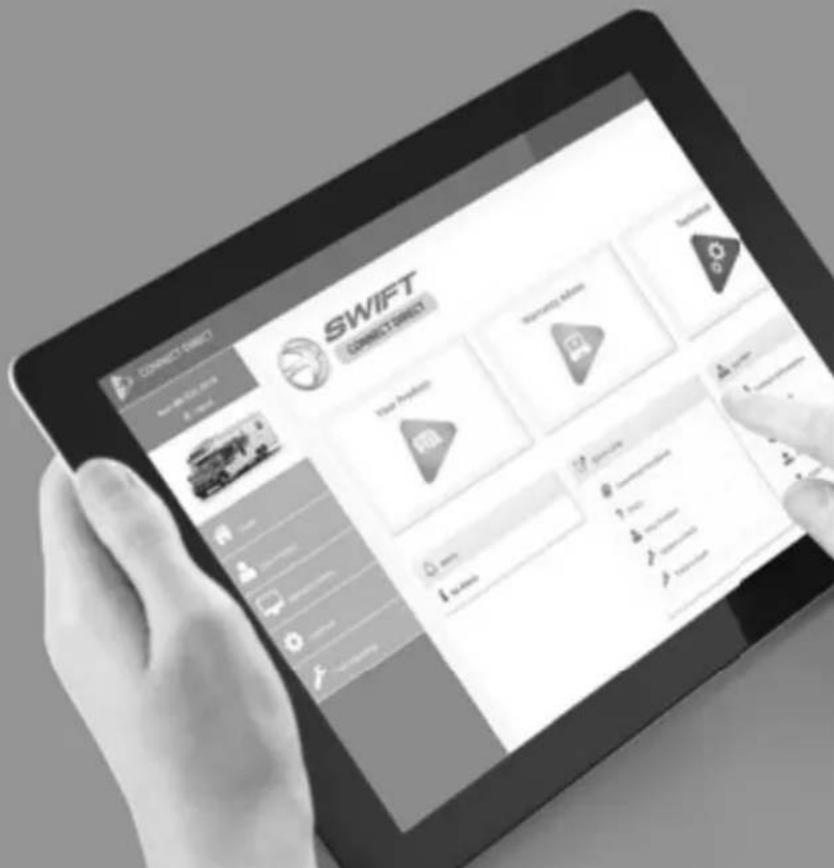

Connect Direct is an online system which personalises each customers experience of owning their motorhome. The system is now available across the entire range.

HOW DOES IT WORK?

Once you have logged on and created your profile, you will be able to access a whole host of information, specific to your motorhome. In addition you will be able to have a direct line into the retail team, with the launch of a live chat facility.

Should a problem occur, you will be able to report a fault to us directly, enabling us to react

quickly and work together with your dealer to take the problem away from you the owner and resolve the issue as quickly as possible.

Product upgrades and notifications will be sent via Connect Direct keeping you up to date over the coming years. This online system provides a direct route for you into the Swift Group, and enables us to provide you with proactive Customer Service support, enhancing your experience.

Connect Direct is in addition to the traditional methods of contacting us.

The key benefits of Connect Direct are:

• Access to information 24/7
- Ability to report faults directly to us
• Product upgrades and notifications
• Live chat direct into our experienced retail team
- Upload service history records
• Service history reminders

Gray triangular play button icon with a white headset symbol (no text or numbers)

CUSTOMER SERVICE

Gray triangular play button icon with two white gear symbols (no text or numbers)

TECHNICAL

Gray triangular play button with a white delivery truck icon (no text or symbols)

REPAIRS

Gray triangular play button icon with a white speech bubble containing three dots (no text or symbols)

CUSTOMER CHAT

INTRODUCTION

Dear owner

Thank you for deciding to buy one of our new motorhomes.

We are sure you will enjoy many happy hours in it and we hope the information and hints in this handbook will heighten your enjoyment.

The handbook has been designed to give you a general guide to the care, use and maintenance of your motorhome. Whether you are a new or an experienced motorhomer the hints will help to protect your investment.

The information contained will answer most of your queries, but if there are any aspects which are not covered please consult your appointed dealer. We would suggest you make a note of your dealers name and contact information below.

Throughout the season, specifications and equipment details contained within this handbook may change. Please refer to our online handbooks (www.swiftgroup.co.uk) for the most up-to-date version of your handbook.

Customers should note that this handbook, contains general information for the use and care of your product and the technical handbook contains the technical information, weights and dimensions of all products.

Dealer Name:

Sales Tel:

Telephone Number:

Service Centre Tel:

E-mail:

Parts Tel:

VIN:

First Service Due:

Swift Talk

Swift Talk is the new central forum for the Swift community online. A place for all those united in their love of caravanning, motorhomes, holiday homes and touring in general, to share their experiences, meet new friends and find out a world of information on how to enjoy their touring lifestyle.

The site is packed full of features that actively encourage members, not only to liaise with the Swift Group via the forums, but also interact with each other through publishing their own content, uploading and sharing photos and video, and even posting their own blogs for the community to follow.

Swift Talk is the first place to learn about new product launches, events and Swift Group news, it's also the first place customers can go to as a quick reference to frequently asked questions or to actively take part in the forums; providing valuable feedback on Swift Group products and customer service.

The new online community can even be used to create your own groups, perfect for Owners' Clubs, dealers and exhibitors to attract new members, publicise and build awareness for upcoming events, rallies and shows.

Anyone who owns, uses, or is thinking of buying a Swift Group caravan, motorhome or holiday home, or would just like to be part of the growing Swift community is actively encouraged to sign up, create their own content, and start talking!

Just visit www.swift-talk.co.uk and become part of a unique online experience.

Abstract black bird-like symbol enclosed in a circle (no text or symbols)

SWIFT

TALK

CONTENTS

Warranty____

Motorhome code 15

Preparing for the road 19

En-route....

Safety & security 35

Arrival at site 41

Services 43

Electrics 65

Fitted equipment 107

Maintenance.... 151

Fault Finding 167

Useful information 171

Index 174

WARRANTY INFORMATION

Warranty____
Change of ownership ... 9
Swift Connect Direct 9
What to do if you require assistance....
Motorhome - annual service/inspection record 10
Annual service / inspection record stamps....
Supplier contacts....

13

WARRANTY

Motorhome Warranty

All the illustrations and descriptive matter in this handbook are intended to give a general idea of the motorhome. Changing market and supply situations and our policy of continuous product development may prevent us from maintaining the exact specifications detailed in this handbook. We therefore reserve the right to alter specifications as materials and conditions demand.

Dealers are not agents of Swift Group Limited ("Swift") and have absolutely no authority to bind the manufacturer by any express or implied undertaking or representation.

Your Coach-built motorhome has four warranties:

Base Vehicle Warranty – provided by Fiat Your vehicle is a coach-built motorhome which utilises a Fiat base vehicle. Swift takes a flat bed chassis supplied by Fiat and adds the coach-built habitation part of the motorhome. Fiat provide a manufacturer's warranty for the base vehicle as supplied to Swift by them. For any issues with the base vehicle warranty please contact your local Fiat dealer. This Motorhome Warranty does not cover any parts of your motorhome that are covered by the Fiat manufacturer's warranty. Your base vehicle warranty is subject to the terms and conditions contained in the Fiat handbook supplied with the base vehicle and the vehicle must be serviced in accordance with Fiat's requirements.

SuperSure Warranty – provided by Swift

For all parts or fittings of your coach-built motorhome other than the habitation body shell and the Fiat base vehicle, Swift will repair (or at it's option, replace) any defective parts or fittings for 3 years from the date of purchase (or hire purchase) subject to conditions, terms and exclusions below.

Body Shell Warranty – provided by Swift

Swift will repair (or at its option, replace) any defects with the habitation body shell for 6 years from the date of purchase (or hire purchase), subject to the conditions, terms and exclusions below.

Extended Body Shell Warranty – provided by Swift

For the first owner, Swift will repair (or at its option, replace) any defects with the habitation body shell for 10 years from the date of purchase (or hire purchase), subject to the conditions, terms and exclusions below. The SuperSure Warranty, the Body Shell warranty and/or the Extended Body Shell Warranty provided by Swift do not cover any parts of the motorhome that are covered by the Fiat warranty.

Conditions for the SuperSure, Body Shell and Extended Body Shell Warranties

1. You must ensure that the habitation part of your coach-built motorhome has an Annual Service (see clause 2 below) within 90 days before or 60 days after each anniversary of the original date of purchase. In order to preserve your SuperSure Warranty the third Annual Service must, however, be carried out before the expiry of the 36 month period from the original date of purchase. In order to preserve your Body Shell Warranty, the sixth Annual Service must be carried out before the expiry of the 72 month period from the original date of purchase. In order to preserve your Extended Body Shell Warranty, the tenth Annual Service must be carried out before the expiry of the 120 month period from the original date of purchase. If you have not performed an Annual Service then Swift will not be obliged to perform any work under the applicable warranty. Original VAT invoices must be retained as proof that Annual Service have been carried out.

2. The Annual Service on the body shell and habitation area must be carried out in accordance with the requirements in this handbook. You will be responsible for any charges made for an Annual Service. If the Annual Service is performed by an authorised Swift Group Service Centre then Swift warrants that the Annual Service has been performed correctly. If the Annual Service is performed by an unauthorised repairer or service centre then if the Annual Service has not been performed in accordance with the requirements in this

WARRANTY

handbook and/or work has been performed on your motorhome that is defective or faulty, then Swift will not be obliged to perform any work under this Warranty (insofar as it relates to defective or faulty work or defective Annual Service).

1. All new motorhomes must be registered with Swift within 6 weeks of purchase as new.

2. The benefit of the SuperSure and Body Shell Warranties may be transferred to a new owner if the motorhome is re-sold, provided that the motorhome has been serviced in accordance with the requirements of this handbook, and details of the change of ownership have been supplied to Swift using the change of ownership form set out in this handbook as soon as reasonably practicable after the change.

3. The benefit of the Extended Body Shell Warranty is non transferable to new owners and applies only to the original registered keeper of the vehicle.

4. If any repairs are identified as being necessary to the body shell or habitation areas during an Annual Service or otherwise, Swift will only pay for Warranty work performed by an authorised Swift Group Service Centre. The motorhome must be made available to an authorised Swift Group Service Centre within 6 weeks of the date the repair need was identified for the work to be carried out. The cost of transporting, towing or moving the motorhome by any means to or from the place of repair is the responsibility of the owner.

5. The SuperSure, Body Shell and Extended Body Shell Warranties only apply to motorhomes purchased and used primarily within the UK. Please refer to the Fiat handbook for use

Terms

1. The Body Shell Warranty and Extended Body Shell Warranty covers any defect with the panels and seams of the coachbuilt habitation part of the motorhome. This includes body leaks, delamination of panels or floor, water ingress through any permanently sealed seam joints. NB: The Extended Body Shell Warranty is non transferable and only applies to the original registered owner.

2. In the first 12 months the SuperSure Warranty will cover any defect other than those specified in the Exclusions below.

3. In the years 2 and 3 the SuperSure Warranty will only cover any defect with the following components:

- Electrical System: PSU, battery charger, Smart Command and interior lighting units (excluding bulbs).

• Water system: water heater, fresh water tank, water pump, water gauges, taps and shower head.

- Cooker: the cooker unit including grill, oven, burners, igniter and flame failure device.

- Refrigerator: gas igniter, flame failure device, door seal condenser, gas control valve, 12V and 230V heater elements, gas thermostat, 230V thermostat and 230V temperature control switch.

- Cassette toilet: the casstte toilet (excluding seals, valves and glands)

• Heating system: thermostat, motor, switches, control unit, gas heater, flame failure device and igniter (excluding ducting and fittings)

- Windows: the functionality of the opening and closing sytem (stays, handles and catches) and a warranty against the cracking of the acrylic. Excludes fading.

• Upholstery: zips, seams and colour fastness.

WARRANTY

In years 2 and 3, any defect specified in the Exclusions will not be covered.

1. Swift shall not be liable under the SuperSure, Body Shell and Extended Body Shell Warranties for any defect related to or arising from the following:

- The failure of a component for reasons of fair wear and tear; - Damage resulting from freezing, fire, overheating or accidents (whether caused by the user or a third party);

- Misuse of any component;

- Normal deterioration, corrosion, intrusion of foreign or harmful bodies, lack of servicing or negligence of any person other than Swift which causes stoppage of or impairment to the function of any component of the motorhome;

- Replacement of parts which have reached the end of their effective working life because of age and/or usage; Cleaning or adjustment of any assemblies;

- Cosmetic finishes to kitchen sinks, cooker tops, vanity units, shower trays; and/or

- Routine maintenance items which are part of the annual service including lubricants, rubber gas hose, the cleaning of the heater and fridge flues, the replacement of gas jets, the resealing and/or replacement of shower room sealant, and the adjustment and lubrication of locks.

- Damage caused by any abrasive cleaners

1. In addition to the exclusions above, in years 2 and 3 of the SuperSure Warranty Period, Swift Group Limited shall not be liable under this Warranty for any defects related to:

2. Any audio equipment

3. Any microwave
   • Wall and Roof GRP sheeting material: after 24 months from date of purchase

4. Plastoform window system (Edge, Escape Compact, Escape): after 24 months from date of purchase
   • Factory fitted leisure battery: after 12 months from date of purchase
   • Factory fitted Thule awning (where fitted): after 24 months from date of purchase

5. Swift shall also not be liable under the SuperSure, Body Shell and Extended Body Shell Warranties if the Motorhome has been neglected, misused, modified or used for hire or reward or if the identification marks (chassis/VIN numbers) have been removed or defaced. The motorhome will be deemed to have been neglected if it has not been serviced and maintained as stated in this handbook or any repairs being identified as necessary at an Annual Service or by a Swift Group Service Centre have not been carried out in a reasonable time.

You have legal rights under UK law governing the sale of consumer goods. This Warranty does not affect your legal rights.

The name and address of the Warranty provider is:

Swift Group Limited, Dunswell Road, Cottingham, East Yorkshire, HU16 4JX

To make a claim under this Warranty, contact the Swift Group Dealer which supplied your motorhome. Alternatively, details of your nearest authorised Swift Group Service Centre can be obtained by contacting the Swift Group Customer Service Department on 01482 875740, or enquiring on the website www.swiftgroup.co.uk

Change of ownership

You can transfer the remainder of any 3 year 'Supersure' warranty' and the 6 year 'Body Shell' warranty, details of how to do this can be found at the rear of this handbook. The 'Extended 10 Year Body Shell Warranty' is non transferable.

Swift Connect Direct

You have access to an online system which is for all Swift models. A password will be issued to you, to enable you to interact with us.

To access the system, called 'Swift Connect Direct', your initial log in details will be emailed to you once your supplying dealer has registered your ownership with us.

Please log in and create your own profile. Should you have issues with accessing Swift Connect Direct, please contact our Customer Services Team.

Note: You will need to inform Fiat UK of any change of ownership relating to the warranty.

What to do if you require assistance

Should you have an enquiry or require assistance with a problem, we hope that this guide will be of assistance to you.

Please follow these steps:

1. Check the Owners Handbook, paying particular attention to the fault finding advice at the back of the book.
2. Contact your supplying dealer for assistance.

If you need to contact the Swift Group, please be aware of the following:

1. When contacting Swift Customer Service, please quote your name, postcode and VIN (Vehicle Identification Number). This can be found at the bottom of the front windscreen, on the plate on the front cross member within the engine compartment and on the Swift manufacturers plate situated on the bulkhead directly behind the front driver/ passenger seat.
2. In most instances, the Customer Service Team will involve your dealer in resolving the issue you are experiencing.
3. Check our website www.swiftgroup.co.uk and enter the Owners section which provides answers to frequently asked questions and how to contact us.
4. If you are contacting the company by email, letter or fax, the Customer Service Team will respond to you within five working days from the date of receiving the correspondence.
5. Please be aware that the Swift Group cannot send parts direct from the factory. In all cases, without exception, your dealer must place the order for you.

WARRANTY

Motorhomes - annual service/inspection record

In order to comply with the warranty, you must have the habitation area of your motorhome inspected and serviced at least once per year.

Note: The base vehicle servicing requirements are found in the Fiat handbook.

We highly recommend that you have your Motorhome serviced by a Swift Group Approved Service Centre who have direct access to our online Customer Service system, Connect. This system provides them with the ability to order approved parts and ensure that any product upgrades which may be available for your Motorhome can be offered to you and carried out as part of the service. In the unfortunate event that an issue requires attention under warranty then Swift Group Approved Service Centres are able to submit a warranty claim to the Swift Group for processing, and deal with the issue for you from start to finish. All of our Swift Group Approved Service Centres are provided with up to date technical information and have access to current repair methods giving you peace of mind that any defect has been repaired effectively.

It is important that the Owner's Handbook is stamped on the appropriate page by the authorised Swift Group Service Centre. Failure to do this will invalidate the warranty and the transfer of the warranty on the change of ownership.

The inspection should take approximately two to four hours and will cover the areas dealt with in the annual service check list. Any areas requiring service and/or maintenance will be highlighted by your dealer and we recommend that you authorise any necessary work to be carried out.

Note: It is essential, to validate the warranty, that an annual inspection be carried out by an authorised Swift Group Service Centre covering the items listed.

1. Damp and lamination test.
2. Chassis and chassis to body security.
3. Motorhome step.
4. Road lights, wiring and reflectors.
5. Internal lights and 12V DC system.
6. Water heater - gas and 230V AC (if fitted).
7. Hob, grill and oven.
8. Refrigerator 230V AC, 12V DC and gas.
9. Gas system.
10. Water pump, taps and water system.
11. Mains 230V AC system.
12. Windows and fittings.

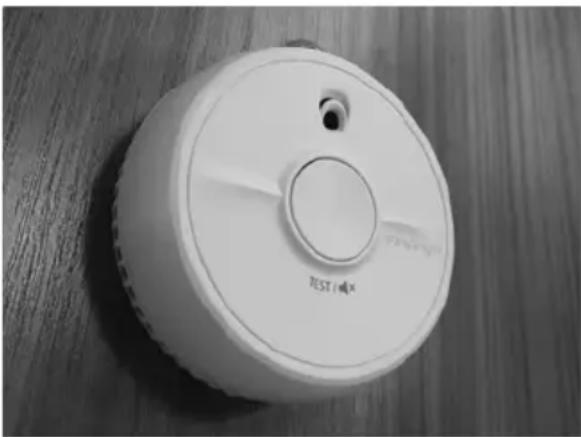

13. Smoke alarm and battery.
14. Carbon Monoxide detector and Battery
15. Roof lights.
16. Furniture hinges/stays etc.
17. Exterior locks and hinges.
18. All internal vents.
19. Seals.

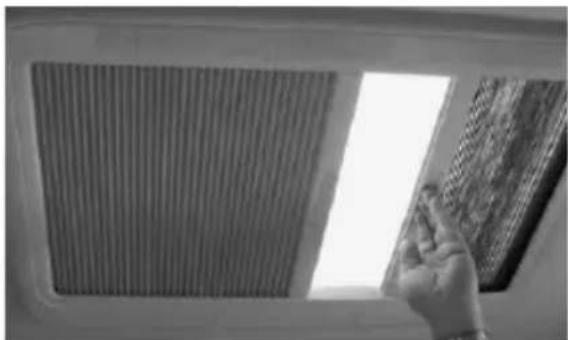

20. Blinds and fly screens (if fitted).
21. Blown air heating and gas fire systems
22. Drop down bed operation

Annual service / inspection record stampsMotorhome model:Year:Chassis VIN:	1st serviceDATE DEALER'S STAMPWe certify that an annual service has been carried out in accordance with the handbook.
2nd serviceDATE DEALER'S STAMPWe certify that an annual service has been carried out in accordance with the handbook.	3rd serviceDATE DEALER'S STAMPWe certify that an annual service has been carried out in accordance with the handbook.
4th serviceDate:Dealer's StampWe certify that an annual service has been carried out in accordance with the handbook.	5th serviceDate:Dealer's StampWe certify that an annual service has been carried out in accordance with the handbook.
6th serviceDATE DEALER'S STAMPWe certify that an annual service has been carried out in accordance with the handbook.	7th serviceDATE DEALER'S STAMPWe certify that an annual service has been carried out in accordance with the handbook.

INSPECTION RECORD STAMPS

8th serviceDATEDEALER’S STAMPWe certify that an annual service has been carried out in accordance with the handbook.	9th serviceDATEDEALER’S STAMPWe certify that an annual service has been carried out in accordance with the handbook.
10th serviceDATEDEALER’S STAMPWe certify that an annual service has been carried out in accordance with the handbook.	11th serviceDATEDEALER’S STAMPWe certify that an annual service has been carried out in accordance with the handbook.

Supplier contacts

A number of Swift Group suppliers manage their own Technical and Warranty related queries. Where a customer has a question relating to a product manufactured by a company listed below, we would advise that the first contact should be directly with them.

Sargent Electrical Services

Unit 39, Tokenspire Business Park, Beverley,

East Yorkshire, HU17 0TB

Phone: [phone]

Fax: [phone]

E-mail: [e-mail]

https://sargentltd.co.uk

AL-KO Kober Limited

South Warwickshire Business Park

Kineton Road, Southam,

Warwickshire, CV47 0AL

Fax: [phone]

Email: [e-mail]

http://www.al-ko.co.uk

Truma UK Ltd.

Park lane, Dove Valley Park,

South Derbyshire, DE65 5BG

Phone: [phone]

Fax: [phone]

[e-mail]

https://www.truma.com/uk/en/home/index.php

Thetford Ltd.

Unit 6, Brookfields Way, Manvers,

Dearne Valley, Rotherham,

South Yorkshire, S63 5DL

Phone - 0844 997 1960

Fax - 0844 997 1961

Email - [e-mail]

https://www.thetford-europe.com

Alde International (UK) Ltd

Huxley Close, Park Farm South,

Wellingborough, Northants, NN8 6AB

Phone: [phone]

Fax: [phone]

Email: [e-mail]

https://www.alde.co.uk/

Dometic (UK) Ltd

Dometic House, The Brewery,

Blandford St Mary, Dorset, DT11 9LS

Phone: [phone]

Email: [e-mail]

https://www.dometic.com/en-gb/uk

Whale

2 Enterprise Road, Bangor, Co. Down,

Northern Ireland BT19 7TA Phone: 0845

217 2933

Email: [e-mail]

http://whalepumps.com/rv

MOTORHOME CODE

Code of conduct....

The Country code 18

The Coastal code....18

CODE OF CONDUCT

Code of conduct

Camp sites

Arrivals

Report to reception immediately on arrival.

Vehicle Movement

Keep to roadways unless otherwise directed. Adhere to speed limits. Note that these are generally 10 mph. (Remember that the stopping distance on grass is considerably greater than on tarmac.)

Only a person in possession of a current driving licence may drive on the site.

Park correctly as advised on your pitch. Where possible leave 20 feet of free space around your vehicle.

Use of Site Appliances

Use the electrical mains hook-up in the correct manner and with caution. Ensure that all fresh water taps/connections are turned off after use. Have care and consideration when using all facilities (toilets and showers etc) and leave clean and tidy. Young children should be supervised.

Waste Disposal

If the vehicle is not fitted with a waste water tank, a suitable receptacle should be placed below all waste water outlet pipes. Do not let these containers overflow. Dispose of all waste water where instructed. Empty effluent from chemical toilets where instructed.

To avoid possible damage to sewage purification works, only approved chemical fluids must be used. Under no circumstances should coal tar, phenol or caustic-based fluids be used.

Disposable nappies and similar bulky items must not be put into chemical closet emptying points but should be wrapped in a polythene bag and placed in the container provided. Place all litter in containers marked for the purpose.

Noise

Do not make excessive noise.

Children should be restrained from making excessive noise.

Flying kites and model aircraft/drones and the use of items like catapults or air-guns, as well as ball games, should not be permitted among, or close to other vehicles.

Musical instruments, record players, radios and televisions should not be used to the inconvenience of other people on the site.

Open and close doors quietly.

Power generators must be adequately silenced and used with consideration.

Dogs and other Pets

All dogs and other pets should be kept under control. Unless permission has been granted, no animal should be allowed loose on the site and leads must not exceed 10ft.

No animals should be allowed in the shower/toilet blocks.

Do not let dogs foul the site.

Fire Precautions

Adhere to and take note of fire precautions noting the whereabouts of the fire points.

WARNING: Provide one dry powder fire extinguisher of an approved type or complying with EN3-7 or ISO 7165, of at least 1kg capacity, by the main exterior door and a fire blanket next to the cooker. Familiarise yourself with the operating instructions on your fire extinguisher and the local fire precaution arrangements.

When using a dry powder extinguisher it is suggested that the motorhome be evacuated until the powder has settled, to avoid inhalation.

Unless permission has been granted, barbecues should not be used. If permission is given, consideration should be given to the annoyance that can be caused to other users of the site.

Open fires are not allowed.

Awnings and Tents

Awnings and tents should only be used when permission has been obtained. When on grass and staying for more than a few days, the ground sheet and/or side flaps of awnings should be periodically raised in order to avoid damage to the ground.

Departure

Leave the pitch clean and tidy.

On leaving, check out with reception paying the required fees.

Wild camping

Camping away from licensed sites, without the permission from the land owner or his agents, is not allowed in the United Kingdom.

When permission has been granted, all aspects of this Code should be adhered to.

On no account should:

a. Litter be disposed of other than in the receptacles provided.
a. Water be allowed to escape from the vehicle.
a. Chemical toilets be emptied except into the disposal places agreed with the land owner.
a. Washing or similar be hung outside the vehicle.

Parking

Motorhomes should only be parked in approved places.

When using the facilities of a motorhome, care and consideration should be given to those around them.

Driving

Before moving off, elevated rooflights and aerials should be lowered and correctly secured, and top hinged windows closed. Likewise all doors and access lockers for gas containers and chemical toilets must be properly secured.

Exterior steps should be properly retracted and secured. When the vehicle is in motion it is compulsory for all front seat passengers and rear seat passengers to wear seat belts, where fitted.

When using a motorhome on either the public highway or private roads the Highway Code should be complied with and full consideration given to other road users. In the event of a motorhome travelling slowly the driver of the motorhome should, where possible, pull over in order to let other traffic pass.

WARNING: When refuelling or on a ferry ensure the gas system is fully isolated at source.

Handbooks (chassis & converter)

Before using a motorhome all aspects of the handbooks, produced by the chassis manufacturer and the converter, must be read and adhered to.

The separate chassis manufacturer handbook refers to your motorhome chassis and base vehicle including care and maintenance.

Fiat handbook

If you are unable to view the documents on line, please contact the supplier, your dealer or Swift for an electronic or paper copy.

COUNTRY/COASTAL CODE

Environment

Care and consideration should be taken to protect the environment. Observe the Country and Coastal Codes.

The Country code

Enjoy the countryside but respect its life and work.

More people than ever before are exploring the countryside, interested in farming, plant life, bird watching or just observing the general wildlife. Whatever your interest, there is a lot to learn, but please observe the following code:

1. Guard against all risk of fires. Hay and heathland catch alight easily and once ablaze are very difficult to put out. Remember: fire spreads quickly.
2. Fasten all gates.
3. Keep your dog under proper control.
4. Keep to the paths across farm land.
5. Avoid damaging fences, hedges and walls.
6. Leave no litter.
7. Safeguard water supplies.
8. Protect wildlife, wild plants and trees.
9. Go carefully on country roads.
10. Respect the life of the countryside. The

Coastal code

As our coastlines are increasingly used for recreation and education, the following suggestions are made to enable us to enjoy our inheritance and preserve it for posterity.

Disturbance may mean DEATH.

Do not trample about, or move rocks unnecessarily.

Do not frighten seals or seabirds.

Do not spill detergents, solvents or fuel from boats as these can kill marine life.

When sailing, moderate your speed - the wash from a fast boat can destroy banks and nests.

Live molluscs and crustaceans need not be collected as souvenirs - dead shells can usually be found.

Shellfish can take years to grow and fines can be imposed for not observing national regulations.

Do not pull up seaweeds unnecessarily. Make your visit instructive - not destructive.

Look at material - don't remove it. Take notes and photographs, not specimens.

Observe by-laws and be considerate to others.

National Trust property and Country Parks have regulations to protect the wildlife. Follow these and the Country and Coastal Codes.

PREPARING FOR THE ROAD

Before moving off.... 20

Motorhome terms 20

Loading of vehicle 21

Large storage areas....

Roof loading 22

Tyres 22

Dedicated travelling passenger seating 23

Child seats 23

Three point seat belts 25

Driving licence 25

Advice on towing 25

European Touring 27

BEFORE MOVING OFF

Before moving off

Check:

• Gas cylinders are correctly positioned, secured and turned off unless using en-route
• Heating. all gas operated appliances have been isolated, except the en-route heating system if fitted.
• Loose articles including bed and luton ladders are stowed securely. Do not stow tins, bottles or heavy items in overhead lockers.
• All lockers and cupboard doors are closed and secured.
• Tables are stored or locked in their transit position.
• Fridge is on 12V operation and door lock set.
• 230V mains input socket flap is securely closed.
• All drain valves are closed
• Tyre pressures and wheel nuts.
• Rear corner steadies (if fitted) are raised.
• Exterior roof rack ladder is raised and secured.
• All windows/doors/rooflights are closed and secured.
• TV aerial is lowered and locked into position (where fitted).
• Exterior step (where fitted) is retracted / folded in.
• Ensure exterior service locker is closed and locked (where fitted).
• Drop down bed is in upper stowed position.
  Special attention must be taken to ensure all top hinged windows as well as the Luton windows, Skyviews and rooflights are closed when in transit. All units should be fully closed and latched to prevent damage. The motorhome exterior door should also be locked.

WARNING: Large and/or voluminous items should be stored securely before travelling.

WARNING: Vehicles over 3m high have a maximum vehicle height label affixed to the drivers sunblind. When planning your route take your vehicle height into consideration.

Central locking (if fitted)

The central locking will not activate unless the cab doors are closed. It will however activate with the habitation door open. The habitation door lock will then engage when the door is closed leading to the possibility of being locked out of the vehicle, if the keys are left inside. It is therefore essential that the habitation door is closed before the central locking is activated. To open the habitation door when locked, pull the internal door handle twice.

Motorhome terms

Mass in Running Order:

The mass of the motorhome equipped to the motorhome manufacturers standard specification, as stated by the manufacturer.

The MRO comprises the ex-works weight of the motorhome, including the driver, 90% fuel capacity, 1 x LPG gas cylinder @10kg and standard fixtures & fittings in compliance with European Regulation No. 1230/2012 (Masses & Dimensions)

Note: The mass of the motorhome in running order contains provision for the masses of liquids, gas etc. (see Mass in Running Order in the Technical Section). Part of this provision can also be utilised as additional payload, if for example, you wish to travel with no gas cylinders.

Note: If you travel with water in the fresh water tank or waste tank, the payload will be reduced accordingly

Note: Quoted MRO is subject to tolerance, due to weight variation of materials used in Motorhome construction.

Maximum User Payload:

The maximum allowable weight to be put into the motorhome whilst it is being driven. This is made up of 4 sections:

Personal effects, conventional load, optional equipment and essential habitation equipment. The Maximum User Payload is the difference between the Maximum Technically Permissible Laden Mass and the Mass in Running Order.

Personal Effects:

Those items which a user can choose to carry in a motorhome and which are not included as Essential Habitation Equipment or Optional equipment.

Conventional Load:

A mass allowance for each designated passenger seat.

Optional Equipment:

Items made available by the manufacturer over and above the standard specification of the motorhome.

Essential Habitation:

A mass allowance for liquids in systems not accounted for within the MRO.

Maximum Technically Permissible Laden Mass:

The maximum weight for which the motorhome is designed for normal use when being driven on a road, laden.

This mass takes into account specific operating conditions including factors such as the strength of materials, loading capacity of tyres etc.

WARNING: Under no circumstances should the axle loadings or the Maximum technically Permissible Laden Mass of the Torhome be exceeded.

Nose weight of Towed Trailers:

The static mass of the trailer towing device on the rear of the towing vehicle.

Notes:

1. When measuring the noseweight it is important that the trailer is loaded.
2. The trailer is intended to be towed slightly nose heavy. The nose weight can be adjusted by distribution of the load. The nose weight should be approximately 7% of the actual laden weight (but not greater than the hitch capacity) and at the same time suit the motorhome requirements.

See 'Advice on Towing' page 25.

Loading of vehicle

WARNING: The driver is responsible for changing the loads so that they comply with the technical weight limits of the specific motorhome model.

Correct weight distribution is an important factor in ensuring your vehicle is well balanced and easy to drive. It is therefore necessary to load your motorhome carefully making sure all heavy articles are evenly distributed and are preferably placed in the lower lockers or bed boxes.

WARNING: The two longitudinal bars led to the roof are there for styling reposes and should not be used for load crying unless cross bars are fitted.

WARNING: Do not travel with televisions microwaves in overhead lockers unless the appliance was supplied fitted to your motorhome by the manufacturer.

Although it is essential to ensure that the total weight of your motorhome does not exceed the stipulated Maximum Technically Permissible Laden Mass, (MTPLM), it is important to remember that the front and rear axles also have individual maximum weights which must not be exceeded.

STORAGE / ROOF LOADING

See your Technical Handbook for MTPLM and maximum axle loads.

Note: To ensure adequate road holding the load on the front axle, under all conditions, must not be less than 40% or more than 70% of the total weight.

Ensure you distribute the payload equally on each side of the vehicle to avoid an imbalance.

These weights, together with the MTPLM, can be found on the Statutory plate adhered to the bulkhead behind the right hand cab seat.

Note: Please take care to ensure you have allowed for the masses of all the items you intend to carry in your motorhome e.g. passengers, optional equipment, essential habitual equipment and personal effects such as clothing, food, pets, bicycles, sailboards, sports equipment etc.

Large storage areas

The large storage areas provided in some motorhome layouts are designed solely for the purpose of carrying personal possessions, these areas must not be used;

• as a habitation area (eg living, sleeping or cooking).
  • to carry passengers, animals or livestock.
• for the installation (or use) of any LPG gas operated appliances, (unless supplied fitted by the manufacturer).
  • for carrying LPG gas bottle cylinders.
  • to carry any flammable liquids, unless properly stored, sealed and secured. for the operation of an electrical generator.
• in such a way that the load exceeds the MTPLM or maximum axle loads.

Care must be taken to ensure that exterior doors are closed, locked and that all possessions are properly stored and secured before setting off on any journey.

Roof loading

Some motorhome roofs can be fitted with a roof rack (optional).

A maximum load of 50kgs can be evenly distributed on the roof rack system.

This figure MUST NOT be exceeded.

Note: When loading the roof rack, make sure the load is spread evenly and do not allow sharp objects to come into contact with the roof surface.

Note: Ensure items loaded on the roof rack do not act as a sail (i.e. deck chairs).

⚠ WARNING: Do not apply excessive load to the rear suspension of your motorhome or allow the vehicle to reverse with the roof rack access ladder in the down position, touching the ground. This may cause excessive strain on the ladder fixing points.

The flat roof areas, up to the over cab section, are capable of withstanding an average person's weight (13 stone or 82.5kg).

Note: Do not walk on the over cab section.

⚠ WARNING: The roof may become slippery in adverse conditions, wipe dry before attempting to walk on roof section. Extreme care should be taken to avoid falling from the vehicle.

⚠ WARNING: When walking on the roof, deck type shoes should be worn – not leather sole

Tyres

If a wheel or tyre fitted to a vehicle is changed any replacement must be of the same type of construction and size.

The law requires that the tyres and pressures must be suitable for the use to which they are being put. The minimum tread depth must be 1.6mm throughout a continuous band

comprising the centre three-quarters of the breadth of the tread and around the circumference of the tyre.

Please refer to base vehicle manufacturer's handbook (Fiat or AL-KO AMC conversion handbook) for tyre pressure information.

This may also be displayed in the driver's or passenger's door aperture.

Motorhome Tyre Specifications

You should note that your Motorhome is fitted with "Camper Tyres". Camper tyres meet a specific "CP" (Camping Pneu) standard for tyres on Motorhomes. The Camper tyres on a Motorhome (unlike a commercial van) are designed to carry a significantly higher load for the majority of their life and even when stationery for greater periods of time unlike a van which typically loads and unloads. As a result Camper tyres have stiffened side walls to withstand the increased payloads and pressure on them, this extra reinforcement also gives better vehicle stability on the rear with the heavier rear axle loads typical on a Motorhome. The tyres are also designed to improve mileage (wear) and offer better grip off road.

When replacing your tyres we only recommend the fitment of CP or Camper Tyres.

Tyre Pressures

The motorhome tyre pressures noted in the Fiat handbook are the pressures stated by Fiat for your vehicle and are calculated in a fully laden condition. If you are not running fully laden, reduced pressures could be used but please seek clarification from the Tyre manufacturer.

Dedicated travelling passenger seating

Seat belts are fitted to all travelling seats.

Travelling seats are designated by the manufacturer and vary according to the layout you have purchased. Each seat is homologated i.e. tested to all relevant safety requirements. NEVER travel in or attempt to install a seatbelt to a non-designated seat.

WARNING: Side facing seats are designed for habitual use only, not for use when the vehicle is in motion.

Seat belts and legislation

Designated driver and passenger seats are fitted with seat belts and MUST be worn when travelling.

Children, aged up to 3 years of age, must wear an appropriate child restraint suitable for their age and weight. Children from 3 years of age and up to 135cm (4'5") in height, or 12 years of age, whichever is reached first must use a child car seat or booster seat suitable for their age.

Children over 135cm (4'5") in height or aged 12 years and over must wear a seat belt.

Note: It is the legal responsibility of the driver to ensure children aged up to 14 years old are suitably restrained. For passengers aged 14 and over, it is their responsibility (not the driver) that a seat belt is worn.

Seat belts are fitted for your safety and must be worn unless a 'Certificate of Exemption from Compulsory Seat Belt Wearing' is held. This Certificate must be produced if asked for by the Police – seat belt offences can result in a fine.

Child seats

Choosing/Buying

Go to a reputable retailer such as Halford's, Mothercare, John Lewis etc. Most reputable retailers will have trained child seat advisers on site and will offer a fitting service. Ask the advisor to fit various seats to the vehicle. Once a correctly fitting seat has been installed, satisfy yourself on its suitability for your child and the vehicle before buying as it is important to use a correctly fitting seat in your motorhome.

⚠ WARNING: The child seat you use in your car may not be suitable for mounting on a motorhome seat.

Choose the right seat for your child's height and weight.

SEAT BELTS

Height-based seats

Height-based seats are known as 'i-Size' seats. They must be rear-facing until your child is over 15 months old. Your child can use a forward-facing child car seat when they're over 15 months old.

You must check the seat to make sure it's suitable for the height of your child.

Only EU-approved height-based child car seats can be used in the UK. These have a label showing a capital 'E' in a circle and 'R129'.

Weight-based seats

The seat your child can use (and the way they must be restrained in it) depends on their weight.

Only EU-approved weight-based child car seats can be used in the UK. These have a label showing a capital 'E' in a circle and 'ECE R44'.

You may be able to choose from more than one type of seat in the group for your child's weight.

For more information visit www.gov.uk

Never fit or use a second hand car seat. It could have been damaged and may not meet modern standards. The fitting instructions may also be missing.

Positioning/ Fitting

Dependant upon the child seat type, the most suitable position for the child seat to be fitted may be the front passenger seat of the cab (NOTE airbag advice below) or the window seat of the forward facing rear seat, advice should always be taken from the retailer on the suitability and security of the seat in the motorhome. The aisle seat is not recommended unless an ISOFIX point is present (Kon-Tiki only).

Read and follow the child seat manufacturer's instructions for fitting the seat.

All Swift Motor homes are fitted with inertia reel seat belts, however, the child seat must be tight in the adult seat. Push all your weight into the child seat as you tighten the belt.

Keep a copy of the child seat fitting instruction in the motorhome for easy reference.

Any doubts, ask an advisor to show you how to correctly install the seat.

Airbag

Never fit a rear-facing child restraint in a seat with an active airbag in front of it.

Forward-facing child restraints should be positioned as far back from the airbag as possible. Check the base vehicle handbook.

ISOFix Child Seat Restraint - Kon-Tiki Vehicles Only (excludes Sport)

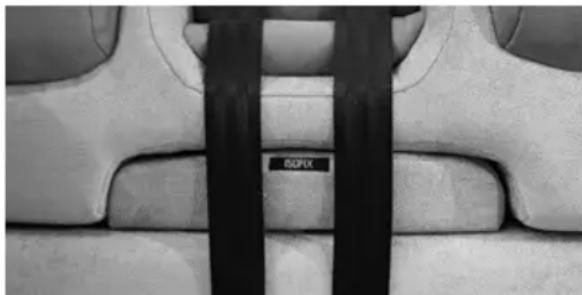

Your vehicle is fitted with ISOFIX anchor points that accommodate universally approved ISOFIX child seats. These points are located on the forward facing rear seats with 2x fixed positions provided.

The ISOFIX system comprises of two rigid attachment arms on the child seat that attach to anchor points on the rear seat frame, located where the cushion and backrest meet. Positions are marked on the cushions.

Close-up of a black plastic clip attached to a white surface, with a dashed line on the bottom (no text or symbols visible)

Top tether anchor points are fitted on the upper seatbelt stanchion and are accessed by removing an insert on the backrest cushion.

Close-up of a car seatbelt with black bands and a 'SOPEX' label on the side (no other text or symbols visible)

⚠ WARNING: Use an anti-rotation device when using the ISOFIX system. We recommend the use of a top tether position.

General Seat Installation Method:

1. Place the child seat on the seat cushion
2. Remove the top tether insert
3. Route the tether strap to the anchor point and secure
4. Push the child seat back firmly to engage the ISOFIX lower anchor points.
5. Tighten the tether strap in line with the child seat manufacturer's instructions

WARNING: Please consult with the child seat manufacturer's instructions for full installation instructions. If in doubt please consult the child seat manufacturers technical support team for further guidance on the installation.

Three point seat belts

This section refers to the seat belts located in the habitation area of your motorhome.

Fastening the seat belt:

Insert tongue into buckle; a positive 'click' indicates correct assembly.

Releasing the seat belt:

Press the red release button, the tongue will be ejected from the buckle.

• The belt is designed for use by one person and must not be put around a child seated on a person's lap.
• The belt is suitable for restraining most child seats and boosters.
• The belt should at all times be adjusted and used in accordance with the instructions. No excessive slackness should be present.
• Once installed the diagonal should pass across the centre of the shoulder and the buckle should lie just on or below the hip.
• Avoid twisting the webbing during use. Webbing must not be allowed to chafe against sharp edges.
• Do not make alterations or additions to the belt.

• Belts that have been cut, frayed, damaged or stressed through impact should be replaced. After impact the motorhome anchorage points should also be checked.

• To clean use warm soapy water only.

• Periodic inspection of the installation will ensure reliability of the seat belt.

Driving licence

Licences issued to drivers who passed their car driving test before 1st January 1997 include categories B+E and C1+E which gives them entitlement to drive motor vehicles up to 7500kg MTPLM.

Drivers who passed their test on or after this date have category B entitlement only, which restricts the entitlement to motor vehicles with up to 8 passenger seats and an MTPLM of up to 3500kg with trailers up to 750kg MTPLM (4250kg combined) or larger trailers providing the combination of the trailer and towing vehicle does not exceed 3500kg and the MTPLM of the trailer does not exceed the unladen weight of the towing vehicle.

Drivers who passed their test on or after the 1st January 1997 will need to take an additional test(s) to gain the B+E and C1+E entitlement.

A number of Swift Group motorhomes have an MTPLM greater than 3500kg, therefore you must check you have the correct driving licence entitlement for the vehicle you drive.

Advice on towing

The towing capability of each motorhome differs depending on the specific chassis and engine types, (see 'Towing Capabilities' in your specification handbook).

This takes account of the maximum front and rear axle loadings as well as the minimum front axle loading in two conditions, MRO and MTPLM condition.

Towing in these, and any other condition requires sensible loading and distribution of payloads to ensure the requirements of the towing capability table are met.

When towing, the demands on both the vehicle and driver increase. A trailer reduces manoeuvrability, the ability to climb hills, acceleration and braking capacity and makes the vehicle handle and corner differently.

It will also increase the fuel consumption of the vehicle.

TOWING ADVICE

Always brake in good time. Special care must be taken when descending gradients. Change down before going down a steep hill so the engine can act as a brake. Ensure that the towing vehicle tyre pressures are correct and adjusted for full load conditions and that the trailer tyre pressures are as recommended by the trailer manufacturer. Regularly check the operation of trailer brakes and lights.

For maximum stability, when loading the trailer ensure that the loads are properly secured during transit. Position loads so that most of the weight is placed close to the floor and, where possible, immediately above or close to the axle(s). Where the load can be divided between trailer and tow vehicle, loading more weight into the vehicle will generally improve the stability of the combination. After loading the trailer, check that the nose weight and axle loads are in accordance with the manufacturer's recommendations, also check the rear and front axle loads on the motorhome. When calculating the laden weight of the trailer, remember to include the weight of the trailer PLUS THE LOAD.

Note: Towing regulations vary from country to country. It is very important to ensure that national regulations governing towing weights and speed limits are observed (refer to the relevant national motoring organisation for information). The stated maximum permissible towing weights refer to the vehicle's design limitations and NOT to any specific territorial restrictions.

WARNING: The Al-Ko extensions fitted to the Edge vehicles are not suitable for supporting a tow bar. Any tow bar and supporting structure fitted must be connected directly to the Fiat chassis. If a tow bar is required we recommend that the Al-Ko tow bar assembly, designed specifically for these vehicles, is purchased and fitted by your Swift motor home dealer.

Notes:

1. Do not exceed the motorhome gross vehicle train weight.
2. Do not exceed the maximum front & rear axle loads on the motorhome.
3. Ensure the motorhome front axle load is never less than 40% or more than 70% of the total weight.
4. Motorhomes with an MTPLM up to 3500kg which have European Type approval can only be fitted with a type approved towbar complying to 94/20/EC or ECE R55.
5. The limit for towing an un-braked trailer is 750kg (based on VIN plate not actual weight), this applies to a towed car.

6. A car dolly with a car with a GVW over 750kg in place is considered as two trailers, these are legal for use for recovery but under the Road Traffic Regulations Act 1984 the combination is limited to 40 mph on motorways and dual carriageways and 20 mph elsewhere. A car dolly is not legal for transportation (there is a very specific difference between recovery and transportation. Recovery is defined as the removal of a broken down vehicle to a place of safety).

7. The maximum permitted vehicle combination length is 18.75m, however any combination must ensure compliance with the turning circle requirements of Construction and Use regulations 1986 & 97/27/EC.

European Touring

Please note there are a number of requirements placed on a driver when driving on European roads. Carrying a warning triangle, high visibility jacket, first aid kit and spare bulb is now compulsory in many EU states but some EU countries are now introducing further regulations such as carrying a breathalyser kit and not being able to use satellite navigation systems with speed camera warnings.

We would advise customers to check on the many web-sites available to ensure you are carrying the correct equipment when touring in those EU countries

EN ROUTE

Cruise Control 30

Removal of spare wheel on ALKO conversion 30

Removal of FIAT spare wheel 31

Fix & go repair kit....

Parking sensors....

CRUISE CONTROL / SPARE WHEEL

Cruise control

The driver of the vehicle should always remain seated and in control of the vehicle when cruise control has been engaged. Never leave the driving seat for any reason when the vehicle is underway.

Removal of spare wheel on ALKO conversion

WARNING: Exercise care when lowering wheel and frame due to its weight.

Removal

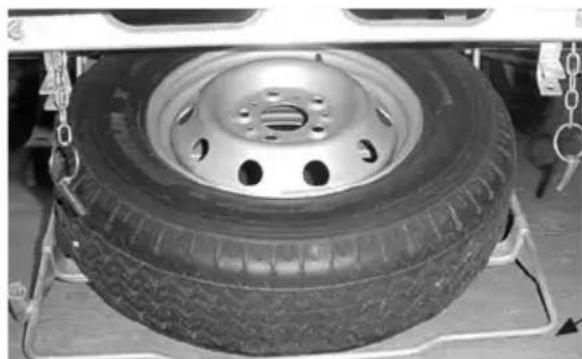

a. Spare wheel in the stowed position (Fig. 1).
b. Remove the securing pins (a) from the supports (b) at each side of the spare wheel carrier frame (c) (Fig. 2).
c. Lift the wheel carrier frame (c) slightly and move the frame supports (b) forward and clear of the carrier frame (Fig. 3).

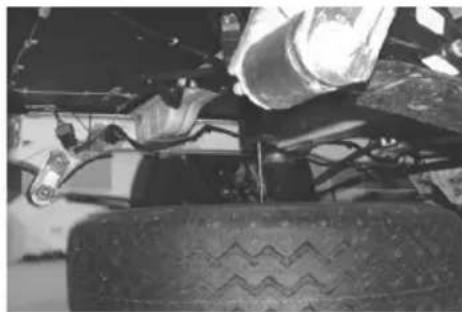

d. Lower the carrier frame and wheel to the ground (Fig. 4).
e. Remove the spare wheel.

Replacement

Replacement is a reversal of the removal procedure. Ensure the securing pins (a) are correctly located in the frame supports (b).

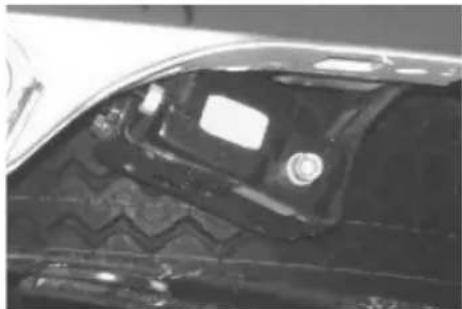

Fig.1

Close-up of a car's lower body and tire assembly with metal brackets (no visible text or symbols)

a

Close-up of a mechanical valve or clamp with a circular housing and chain link (no visible text or symbols)

b

Close-up of a metal chain securing a wooden frame (no text or symbols visible)

Fig.2 Fig.3

Close-up of a car tire mounted on a lift platform, showing tread pattern and mounting hardware (no text or symbols visible)

C
Fig. 4

Removal of Fiat spare wheel:

a. The ground should be flat and adequately firm.
b. Turn the engine off and engage the handbrake.
c. Engage first gear or reverse.

Removal

a. Wheel restraining device screw (fig 1) – rear right side of vehicle
b. Use the extension and wrench provided to operate the wheel restraining device screw (fig 2).
c. When the wheel is fully lowered (fig 3) and the restraining device screw can turn no more, use the wrench to pull the wheel out
d. (fig 4). Loosen the knob and remove the support to release the wheel (fig 5 & 6).

Fig. 1

Close-up of a car's front wheel and side panel, showing no visible text or symbols

Fig. 2

Mechanical assembly showing a shaft and mounting bracket (no visible text or symbols)

NOTE: It is possible that a transit zip tie may still be in place. If wheel does not drop freely check for zip tie.

Fig. 3

Close-up of a vehicle's wheel and tire assembly (no visible text or symbols)

Fig. 4

Close-up of a weathered, textured cylindrical object with a central hole and curved surface (no visible text or symbols)

Fig. 5

Close-up of a hand adjusting a car tire wheel rim (no visible text or symbols)

Fig. 6

Close-up of a hand adjusting a mechanical component on a car tire (no visible text or symbols)

Replacement

Replacement is a reversal of the removal procedure.

WARNING: Exercise care when handling the wheel due to its weight.

FIX & GO REPAIR KIT

Fix & Go Repair Kit (if fitted)

CAUTION: Before use please read the user instructions supplied with your Fix & Go repair kit.

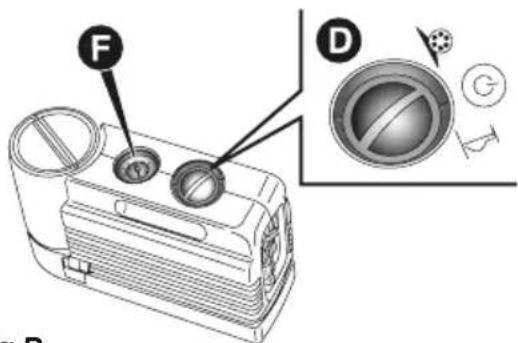

The Fix & Go automatic quick tyre repair kit is positioned at the front of the vehicle assenger compartment and includes Fig. A:

Fig.A

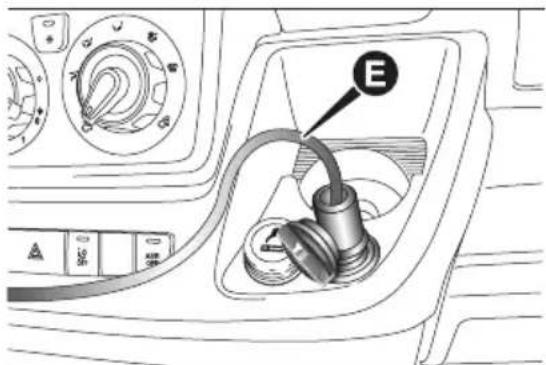

• Bottle A containing sealer and fitted with:
• a transparent filler pipe B;
• a black pressure restoring pipe E;
• sticker C bearing the notice "max. 80 km/h", to be placed in a position visible to the driver (on the instrument panel) after fixing the tyre;
• Instruction brochure (see fig. b), to be used for prompt and correct use of the quick tyre repair kit and then to be handed to the personnel charged with handling the tyre treated with the tyre repair kit;
• A compressor D complete with pressure gauge and connectors; a pair of protective gloves located in the side compartment of the compressor;
• Adaptors for inflating different elements

CAUTION: Give the instruction booklet to the tyre repair workshop personnel.

CAUTION: Punctures on the sides of the tyre cannot be repaired. Do not use the quick tyre repair kit if the damage is due to running with flat tyre.

CAUTION: If the wheel rim has been damaged (bent so as to cause air to leak), the wheel cannot be repaired. Do not remove the foreign body (screws or nails) from the tyre.

Note: Punctures caused by foreign bodies can be repaired if the damage does not exceed 4 mm on the tread and on the shoulder of the tyre.

Fig.B

Important Information:

The sealing fluid of the quick tyre repair kit is effective at external temperatures of between -20 °C and +50 °C. The sealant has an expiry date.

CAUTION: The bottle contains ethylene glycol. It contains latex that might cause allergic reactions. It is harmful if swallowed. It is irritant for the eyes. It may cause sensitisation if inhaled or on contact. Avoid contact with eyes, skin and clothes. In the event of contact, wash immediately with plenty of water. Do not induce vomiting if swallowed. Rinse your mouth and drink plenty of water. Call a doctor immediately. Keep out of the reach of children. The product must not be used by asthmatics. Do not breathe in the vapours during insertion and suction. Call a doctor immediately if allergic reactions are noted. Store the bottle in its proper compartment, away from sources of heat. The sealant has an expiry date on the base of the bottle. Replace the bottle.

Inflation Procedure

CAUTION: Wear the protective gloves provided together with the quick tyre repair kit.

CAUTION: Affix the adhesive label in an easy-to-see position for the driver as a reminder that the tyre has been treated with the quick tyre repair kit. Drive carefully, particularly on bends. Do not exceed 80 km/h. Do not accelerate or brake suddenly.

CAUTION: If the pressure falls below 3 bars, do not drive any further: the Fix & Go automatic quick tyre repair kit cannot guarantee proper hold because the tyre is too much damaged. Contact a Fiat Dealership.

CAUTION: You must inform the dealership that the tyre has been repaired using the quick tyre repair kit. Give the booklet to the personnel who will be handling the tyre treated with the repair kit.

CAUTION: If different tyres from the ones supplied with the vehicle are used, it may not be possible to carry out the repair. If the tyres are replaced, it is advisable to use those approved by the manufacturer. Consult a Fiat Dealership.

• Pull the handbrake. Unscrew the tyre valve cap, take out the filler hose A (Fig. C) and tighten the ring nut B on the tyre valve;
• Insert the plug E (Fig. E) in the nearest 12V power socket and start the engine. Turn the selector D (Fig. D) anti-clockwise to the repair position. Activate the kit by pressing the on/off switch. Inflate the tyre to the pressure specified in the "Inflation pressure" paragraph, in the "Technical Data" chapter;

For a more accurate reading, it is advisable to check the pressure reading on the pressure gauge F (Fig. D) with the compressor off and without moving the centre selector from the repair position

Fig C

Fig D

• If after 10 minutes it is still impossible to reach at least 3 bar, release the transparent filler pipe from the valve and take out the 12 V plug, then move the vehicle forwards by about 10 metres in order to distribute the sealing fluid inside the tyre evenly, then repeat the inflation operation;
• If after this operation you still cannot reach at least 3 bar after 10 minutes, do not resume driving because the tyre is too damaged and the quick tyre repair kit cannot guarantee suitable sealing. Contact a Fiat Dealership;
• If the tyre reaches the pressure specified in "Inflation pressure" paragraph in the "Technical Data" section of the Fiat user manual start driving immediately;

Fig E

FIX & GO REPAIR KIT

• After having driven for about 10 minutes, stop and recheck the tyre pressure; remember to apply the handbrake;
- If a pressure value of at least 3 bar is detected, inflate to the correct pressure, resume driving and drive with care to nearest Fiat Dealership.

Bottle Replacement Procedure

To replace the bottle, proceeds follows:

Line drawing of a mechanical device with a labeled component (A) and cable, no text or symbols present.

Fig. F

• Press button A (Fig. F) to release the part;
• Fit the new bottle and press until it is automatically engaged.

CAUTION: Replace the bottle containing the sealant after the expiry date. Expiry date is shown on the base of the bottle. Dispose of the bottle and the sealant properly. Have the sealing fluid and the bottle disposed of in compliance with national and local regulations.

Parking sensors

Parking sensors are fitted to some vehicles. Please use the information provided. Use the sensors as a guide only. It is the responsibility of the driver to ensure it is safe to reverse the vehicle.

SAFETY AND SECURITY

Fire 36

Smoke Alarm Operation 36

Fire extinguisher 36

Escape paths....

Children

Ventilation

CO alarm

Security

Swift Command Tracker by Sargent 38

VIN CHIP™

FIRE / SMOKE ALARM / ESCAPE PATHS

Fire

Note: Your attention is drawn to the notice affixed inside the wardrobe advising on fire precaution, ventilation and what to do in case of fire.

In case of fire

1. Get everyone out of the motorhome as quickly as possible using whichever exit is the quickest, including windows. Do not stop to collect any personal items.
2. Raise the Alarm. Call the Fire Brigade.
3. Turn off the gas supply valve if it is safe to do so.
4. Turn off the electricity supply at supply point.

Smoke Alarm Operation

Close-up of a white portable electronic device with a circular top and handle, placed on a wooden surface (no visible text or symbols)

Your motorhome is fitted with a Fire Angel SB1 smoke alarm. Please read the user instructions for the smoke alarm, which are available at the following location:

https://www.fireangel.co.uk/products/sb1-t

If you are unable to view the documents on line, please contact the supplier, your dealer or Swift for an electronic or paper copy.

WARNING: Never use portable cooking or heating equipment other than electric heaters that are not of the direct radiant type, as it is a fire and asphyxiation hazard.

⚠ WARNING: Appliances such as cookers must not be used for heating.

Fire Extinguisher

It is recommended that a dry powder fire extinguisher be carried inside your motorhome at all times.

When using a dry powder extinguisher it is suggested that the motorhome be evacuated until the powder has settled, to avoid inhalation.

A fat pan fire should not have a fire extinguisher aimed at it. It should be smothered with a fire blanket.

⚠ WARNING: Provide one dry powder fire extinguisher of an approved type or complying with EN3-7 or ISO 7165, of at least 1kg capacity, by the main exterior door and a fire blanket next to the cooker. Familiarise yourself with the instructions on your fire extinguisher and the local fire precaution arrangements.

Escape paths

It is important that you do not block escape paths to emergency exits with obstructions or hazards.

Children

Do not leave children alone in the motorhome in any event. Keep potentially dangerous items out of reach, as at home e.g. matches, medicine etc.

Ventilation

All motorhomes comply with BS EN 721. The ventilation points on your motorhome are fixed points of ventilation which are required by the European Standards.

All motorhomes have ventilation at high level and low level which have been calculated to suit the individual needs of your motorhome.

High level ventilation is achieved by means of the roof lights and washroom roof ventilators (where applicable). The low level ventilators are positioned under sink units.

Under no circumstances must these vents be blocked or obstructed in any manner as this could lead to insufficient fresh air. In this case the confined atmosphere becomes depleted of oxygen which could lead to dangerous levels of carbon dioxide (CO2) build up leading to the risk of asphyxiation.

The risks of carbon monoxide (CO) build up, which is a colourless, odourless and tasteless gas, will also be reduced with ventilation.

Carbon monoxide is produced from incomplete combustion and should the CO detector be activated the cause of the incomplete combustion must be investigated prior to reusing the appliance in question.

It is advised that fixed ventilation points are checked and cleaned (if necessary) on a regular basis using a small brush and a domestic vacuum cleaner.

Additional night time ventilation is obtained by releasing the window catches and placing them in the second groove. Note the windows are not sealed from rain in this position.

As the ventilation levels are calculated to suit each model requirements no modifications should be made which may result in reduced ventilation levels.

WARNING: Do not obstruct ventilation.

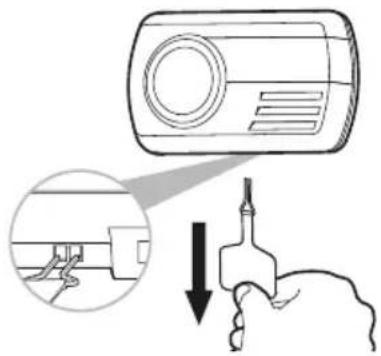

CO alarm

Your motorhome is fitted with a Fireangel CO-9D Carbon Monoxide Alarm. To activate the alarm, you will need to pull the disabling tab as shown in the above image. For further information, please read the instructions for the alarm, which are available at the following location:

http://fireangel.co.uk/wp-content/uploads/2015/07/CO-9D%20Manual.pdf

If you are unable to view the documents on line, please contact the supplier, your dealer or Swift for an electronic or paper copy.

Security

Motorhome theft:

The theft of a motorhome can occur in the most unlikely circumstances; from a motorway service area or even an owner's driveway. Secure all windows and doors when your motorhome is unoccupied even if only for a short length of time.

VIN (Vehicle identification Number)

Record your motorhome VIN which can be found on the lower edge of the base vehicle front windscreen and the plate located on the front cross member under the bonnet.

Make a note of these numbers in the space provided at the front of this handbook and make a separate note of the numbers to keep safe at home.

SWIFT COMMAND TRACKER BY SARGENT

Additional security

Consider fitting any device which might deter intrusion by thieves. Customers are advised to identify their motorhome with a method for subsequent identification if other forms of identification have been altered or removed.

Free crime prevention advice about securing your motorhome, protecting your valuables, property marking either at home or whilst on site, can be obtained from the Crime Prevention Officer through your local Police station.

Swift Command Tracker by Sargent

A Swift Command Tracker is built in to your vehicle and forms part of the Swift Command system.

The unit is Thatcham Category 6 certified and is monitored by an approved monitoring centre which operates 24 hours a day 7 days a week and provides European coverage and direct police liaison.

This system is ready for use, all you need to do is purchase a tracking subscription by visiting www.swiftcommand.co.uk or calling Sargent on 01482 881655.

The subscription cost is £95 per year including VAT.

For more information please visit www.swiftcommand.co.uk

Operation

The Swift Command Tracker is easy to operate as it is controlled by the vehicle systems.

In a motorhome the tracker is armed / disarmed by the ignition key.

When the ignition is turned off the tracker is armed. When the ignition is turned on the tracker is disarmed.

Event of a Theft

If the vehicle is moved whilst the tracker is armed the geo-fence monitoring will trigger a theft event.

The monitoring station will now contact you to confirm the theft or false alarm. You will be required to confirm your identity against the information you provided when you subscribed.

If a genuine theft is confirmed the monitoring station will liaise with the police and keep you informed of progress.

Note; during a theft event to comply with legislation you will not be able to manually locate your vehicle using the Swift Command locate feature.

Contact

Before contacting any of the following please ensure you know your caravan or motorhome serial number. For motorhomes this is the unique MH number (like MH01234).

The Swift Command Tracker monitoring station can be contacted on 0345 6027302. The stations operates 24 hours a day 7 days a week.

Sargent customer support can be contacted on 01482 678981 or via [e-mail]

Telephone lines are manned during normal office hours.

Swift customer support can be contacted on 01482 875740 during normal office hours.

Precautions

The Swift Command Tracker monitors the leisure battery supply and if the voltage falls below a set level or the battery is removed this will trigger a fault event.

If you plan to remove your battery for maintenance or external charging please contact the monitoring station BEFORE removing the battery.

If you lose an ignition key you will need to visit a Fiat dealer for key replacement and removal of the 'lost' key.

VIN CHIP™

Your motorhome has been securely marked and the VIN recorded with VIN CHIP™.

VIN CHIP ^™ is the industry standard security marking system for touring caravans and motorhomes.

Shortly after purchasing this motorhome. you will receive via email your VIN CHIP™ registration document. This document will include the 17 digit VIN (vehicle identification number) and other relevant details about your motorhome. If you sell your motorhome, please follow the instructions on the VIN CHIP motorhome document.

VIN CHIP identification

The motorhome's unique 17 character VIN will be incorporated into VIN CHIP tamper evident labels;

The master VIN CHIP label is situated on the front near side window to aid police checking, another in the gas locker and a maximum of 10 placed on the inside of the windows (with the exception of opaque windows).

Three electronic RFID chips containing the individual identity of your motorhome are concealed within the vehicle and can only be read by using a specially programmed RFID scanner.

Your local police can obtain the use of a VIN CHIP™ scanner by contacting VIN CHIP on tel: [phone].

For help, support and advice, contact:

VIN CHIP

PO Box 445

Aldershot

GU11 9SF

Tel [phone]

www.vinchip.co.uk

ARRIVAL AT SITE

Positioning the motorhome.

42

POSITIONING THE MOTORHOME

Positioning the motorhome

Note: Check and observe site regulations.

Keep to roadways unless otherwise directed. Adhere to speed limits. Note that these are generally 10mph.

(Remember that the stopping distance on grass is considerably greater than on tarmac.)

Only a person in possession of a current driving licence may drive on the site.

Selecting a pitch

Do not pitch in such a position that your motorhome will obstruct others coming in.

Try to choose an area which is dry, reasonably level and preferably with a hard base.

If you have no alternative but to pitch on a slope try to ensure that you are facing down the slope, for when you leave.

Levelling the motorhome

Levelling must be carried out in both directions for the refrigerator and other equipment to function correctly. Stepped levelling boards (Fig. A) or proprietary ramps are ideal for this purpose. Levelling pads or boards should be used under the steadies where the ground is soft or uneven.

Close-up of a white car's rear wheel and tire on a paved surface (no visible text or symbols)

Fig. A Stepped levelling board

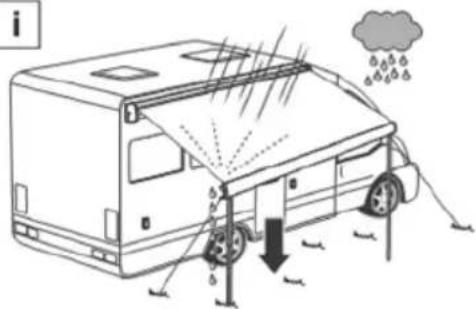

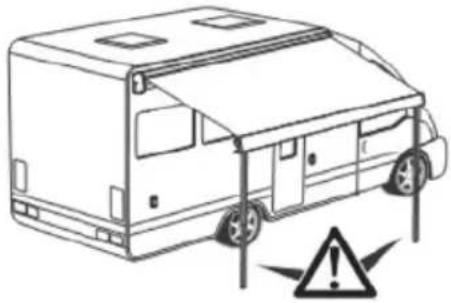

Awnings and Tents

Awnings and tents should only be used when permission has been obtained. When on grass and staying for more than a few days the ground sheet and/or side flaps of awnings should be periodically raised in order to avoid damage to the ground.

SERVICES

Water System 44

Tank heaters 46

Priming the water system 47

Cleaning the water system

Pressure switch....

Pressure switch adjustment

Water level sensor & cleaning

Water faults....

Gas schematic drawings 54

Gas

Types of gas

En-route heating....

Gas safety advice....

Gas Fault Finding....

Electrical system 61

Overseas connection

230V mains electrical equipment power consumption 62

Wiring of connecting cable and motorhome mains inlet 63

Typical appliance consumption figures 64

WATER SYSTEM

Water system - Introduction

All Swift Group motorhome water systems have been designed around a pump fitted within the motorhome. This pump draws water from an under floor or internal water tank, to provide water pressure within the water system, whenever it is switched on and water is available.

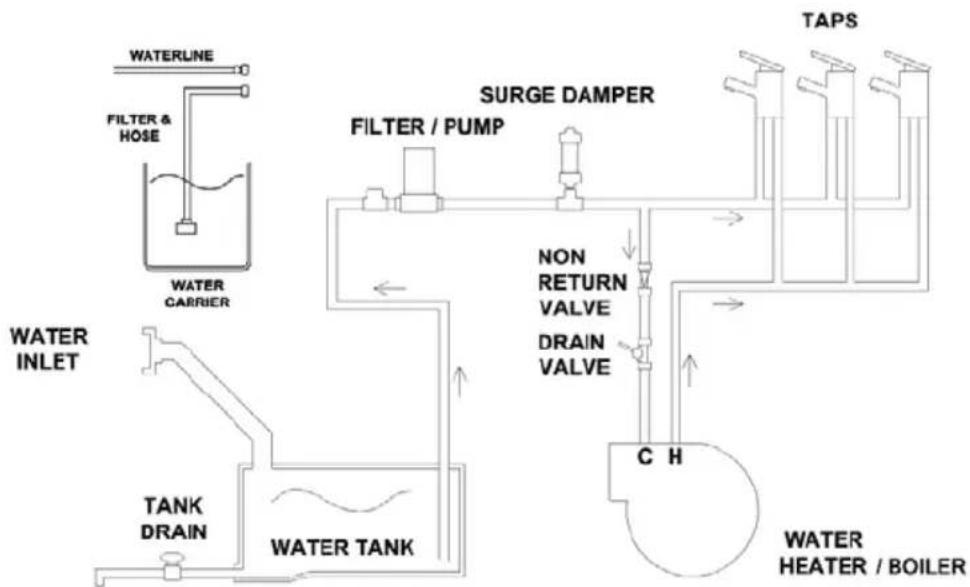

The schematic below shows the basic configuration of the water system:

When power is supplied to the pump, it will draw water from the water tank, and pump it to the motorhome taps, shower and water heater.

The pump is fitted with its own pressure switch, and will continue to pump water, until the pressure of water on the output of the pump reaches a pre-set level. For this pressure to be achieved, the taps must be closed.

When the taps are opened, water will leave the tap via the spout, and the pressure in the pipes between the pump and the taps will reduce.

Because of this reduction in pressure, the pressure switch on the pump will switch back on and the pump will again run to pump more water.

Close to the pump, the water under pressure is split into two paths:

1. Through blue water pipes routed directly to the cold connection of each tap.
2. To the water heater.

Water from the pump enters the bottom of the water heater. Once the water fills the water heater (typically 10 litres), water then leaves the water heater via a connection at the top of that water heater. This water, which is still under pressure, then routes to the hot connection of each tap via the red pipes.

To winterise the system please see separate details later in this handbook.

Fresh water system

1. All fittings, including the holding tank, water pipes, taps and connections are of food quality material (to BS6920) and therefore, should not affect the quality of the water used. It is recommended however, that the system is flushed through twice before it is used for the first time, and always cleaned/flushed after it has stood unused for a period of time (eg over the winter period). Care has been taken (using smooth bore pipes etc) to eliminate as many water traps as possible.

2. When filling the fresh water system remember to check that the water source is suitable for use as drinking water and, if you are using a hose pipe or water carrier, that it is also made from nontoxic materials (preferably food quality material).

3. Depending on specification, the fresh water tank will be fitted with either a bung in the bottom of the tank or an electrically operated drain valve. To remove the drain bung, remove the tank lid and carefully pull on the chain. Keep the bung clear of the drain hole until the tank is empty and replace before refilling the tank. The electrically operated valve is controlled using the control panel above the motorhome entrance door. Ensure the valve is closed before filling the fresh tank – for more details on controlling the electrically operated valve, see the Swift Command section of the handbook.

WATER SYSTEM

WARNING: The fresh water system is

pressurised by a pump which will continue to operate until it senses a pre-set pressure in the system.

If the fresh water tank is completely empty the pump will be unable to pressurise the system and will operate continuously. In this situation it is essential that, in order to avoid damage to the pump, it is switched off using the pump isolator switch on the distribution panel until such time as the water tank has been filled.

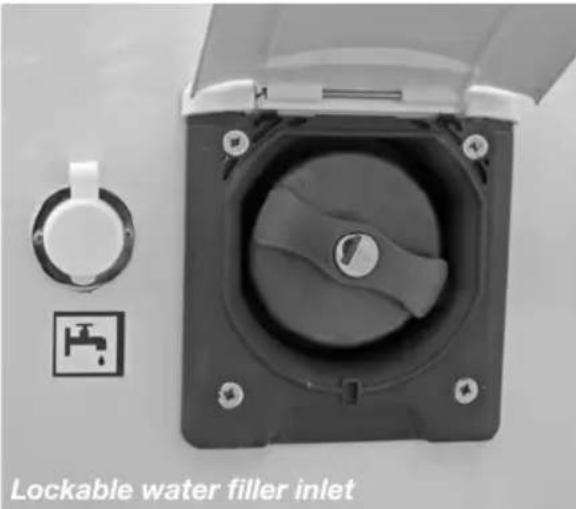

Close-up of a lockable water filler inlet device with a circular dial and faucet symbol (no text or labels on the main body)

Fresh Water Tank

Your motorhome is fitted with a water tank filled from the outside via a lockable water filler cap. When filling, use a hose manufactured from non toxic material, to prevent tainting of the water. Remember, if the water heater has been drained it will require 10 litre (0.2 gal) of water to fill it.

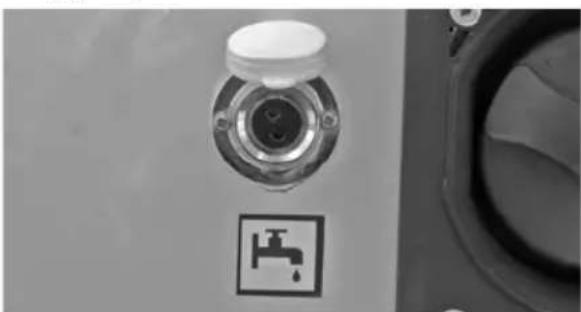

External 12v Fill Socket

Depending on specification your motorhome may be fitted with an external 12v socket which can be used to attach an external 12v tank filling pump.

Close-up of a mechanical valve with a water tap symbol, mounted on a control panel (no text or labels visible)

Tank heaters

Depending on specification, your motorhome may be fitted with 12v tank heaters, designed to prevent or reduce instances of freezing water in fitted water tanks.

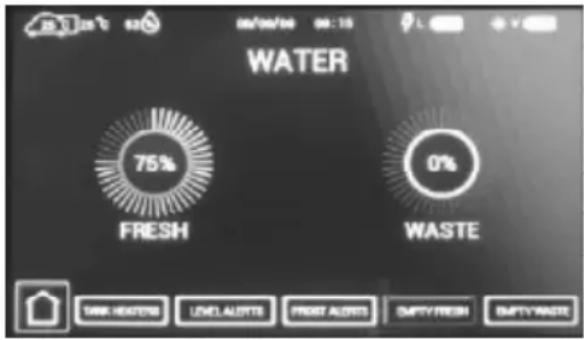

If tank heaters are fitted, they can be turned on via the control panel feature of the Swift Command panel above the entrance door (see page 76). Turn this feature on when the external temperatures are low, and the tank heaters will then turn on and off automatically.

Before heating each tank the system will check that the water level in each tank is at the 1/4 level or higher (the heaters will not operate if the tank is 'empty'). If the water level is appropriate, the heaters will then switch on and off depending on temperature.

As the tank heaters check the water level in each tank, the fresh and waste water tank heaters can operate independently, for instance use of frost protect feature while the fresh tank is full, but waste tank is empty, would only result in the operation of the fresh tank heater.

It is also possible to use the tank heaters en-route, i.e. while driving. With the control panel ON, turn on the tank heaters as described above. While the engine is running the control panel cannot be operated, however, the tank heater circuits will remain ON.

Please note that the heating elements use a 12V supply. With the engine off, and if used without a mains hook up and charger operating, then leisure battery power consumption will be increased (see consumption table on page 64 for more information).

Priming the Water System

1. Close the fresh water tank drain valve.
2. Fill the water tank with water.
3. Close the water heater drain valve (see boiler instructions in the fitted equipment section)
4. Open all the taps except the shower tap. Mixer taps should be opened in the central position so that both the hot and cold pipes are purged of air. Ensure the tap spouts are over the sinks.
5. Turn on the pump using the button on the control panel above the entrance door.
6. Turn each tap off in turn as and when the air is expelled and the water runs smoothly from each tap. Move the mixer taps to hot and then cold to check that the air is out of both the hot and cold pipes before turning them off.
7. Whilst holding the shower head down towards the shower drain, open the shower tap and shower head tap until all the air is expelled and the water runs smoothly. Turn the shower taps off.
8. Top up the fresh tank with water.

Please note that priming the system will automatically fill the water heater with water.

Please ensure all taps are fully turned off when not in use (except when winterising).

Note: All tanks are fitted with a breather which acts as an overflow. Overfilling a tank will result in water being expelled from the overflow outside the vehicle.

Cleaning water system

Clean the water system at the start and end of the season with sterilising fluid.

Sterilising

When cleaning the water system at the start or the end of the season it is advisable to use a suitable sterilising fluid available from your motorhome dealer. The fluid must be suitable for use with stainless steel components

Flush the system thoroughly to remove the effective fluid traces.

When water is first introduced, or the water supply in the internal tank, runs out, air will be present in the pipework. It is important that every tap is run to remove any air in the system before, for instance, the shower is used. Air left in pipework local to a tap can act as an accumulator and affect the ratio of hot and cold water flowing from other taps or shower mixers in the system.

Top-down view of a dark rectangular object on a wooden surface, possibly a device or container (no visible text or symbols)

Escape fresh water tank showing central cleaning hatch

CLEANING WATER SYSTEM

System care

Allowing water to freeze in the system may result in damage to the pump and plumbing system.

Non-Toxic antifreeze for potable water may be used with Truma pumps. Follow manufacturers recommendations.

Do not use automotive antifreeze to winterize potable water systems.

These solutions are highly toxic and may cause serious injury or death if ingested.

Sanitising

The water systems, and in particular storage tanks, in motorhomes are susceptible to contamination by bacteria if care is not taken with their use and cleaning. The symptoms caused by bacterial contamination are not purely limited to gastro-intestinal diseases, but may also manifest themselves as ear, nose, throat, eye or skin infections. It is therefore important that you carry out the following procedure prior to using the motorhome each time, even if you boil or filter all water you use for drinking.

Separate Water Containers

1. All water remaining in the container should be disposed of so that the container is empty.
2. The outside of the container should be thoroughly cleansed and washed down to remove any dirt, dust or other contaminant. Water at a suitably hot temperature containing an appropriate detergent is recommended for this purpose.
3. Water should be put in the container, swirled around, then emptied out.
4. The container should then be totally filled with water containing an appropriate sterilant solution and allowed to stand for the recommended contact time.
5. The solution should be emptied from the container.

6. The opening of the container should be cleaned thoroughly with an appropriate prepared wipe impregnated with a sterilant.

7. The container should be inverted whilst stored overnight (if possible).

8. The container must be filled with mains water only and mains water only should be used for the above cleaning procedure.
9. On no account should garden hoses be used to fill water tanks.

For Systems:

1. Drain down the system (open all taps to allow air in, enabling the system to drain quickly).
2. Remove any water filters fitted, and replace with a short length of hose or empty filter cartridge (this will ensure the filter is not affected by the disinfectant/sterilant solution).
3. Fill the water system with a disinfectant/sterilant solution (check that the solution at full strength appears at all taps/showers). Allow to stand for the recommended period of time.
4. Drain the system completely.
5. Thoroughly clean the outside of all taps/ connectors with a cloth soaked in the disinfectant/sterilant.
6. Flush the system through with clean drinking water until no traces of disinfectant/sterilant can be detected at any tap.

Suitable sterilising chemicals are available from your motorhome dealer, accessory shop, chemist or home-brew shops. It is not, however, recommended to use bleach or sodium metabisulphite.

Sterilising

Do not use products that contain aggressive agents for sterilising the water system. Always use products designed for stainless steel tanks available from your motorhome dealer.

Note: Never use the water heating system when disinfectant/sterilising fluid is present. Doing so may damage the system.

PRESSURE SWITCH

Waste water system

1. The waste water holding tank is secured below the floor of the motorhome, and is gravity fed.
2. In order to eliminate unpleasant odours as much as possible, only smooth bore pipes are used.

Note: Should the waste water tank be overfilled, it is possible that waste water will backfill the pipes until it eventually appears in the shower tray. In order to prevent this, please monitor the water level gauges on the motorhome control panel. It is also possible to enable a 'waste tank full' alarm, on the control panel.

1. Depending on specification, the waste water tank will be fitted with either a manual or electrically operated drain valve. The manual valve will be located externally close to the motorhome skirt, while the electrically operated valve is controlled using the control panel above the motorhome entrance door. For more details on controlling the electrically operated valve, see the Swift Command section of the handbook.

Pressure switch

The purpose of a pressure switch is to monitor the pressure on the outlet side of the pump. When a tap is closed, and the pump continues to run, there is an increase of pressure in the system, and when that pressure reaches a pre-set limit, the pressure switch will turn the pump off.

Pressure switch adjustment

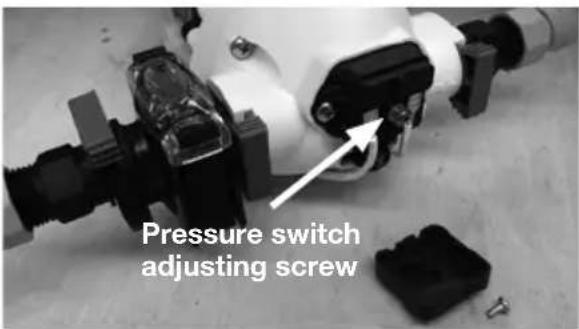

Pressure Switch Adjustment, Truma/Flo-Jet pump. (Normally Grey upper section with White lower section/valve housing)

• All of the Truma/Flo-Jet pumps used by Swift are pre-set at 25psi - 31psi.

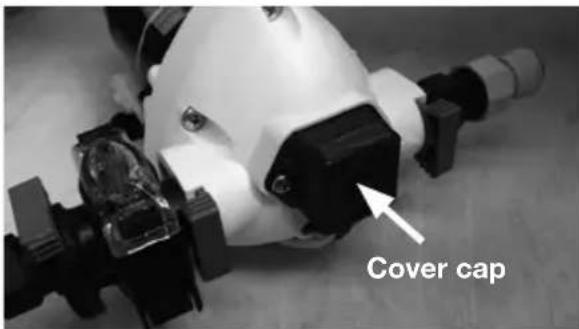

• To further adjust the pressure switch setting, a cover cap must be first be removed from the end of the pump to reveal a pressure adjusting screw, as shown in the photos. A maximum of 1/4 turn clockwise or anti-clockwise, from the factory setting, is advised. Turning the screw clockwise 1/4

turn will increase the pressure switch cut-out pressure, turning the screw anti-clockwise will reduce the pressure setting.

- Please note a second screw mounted below the cover cap is set in position with threadlock, this should not be disturbed.

The pump may have to be removed to gain access to the adjusting screw. Drain the water system before removing the pump.

To remove the pump pull the blue taps at right angles to the pipe work and lift the pump out.

PRESSURE SWITCH TROUBLESHOOTING

Troubleshooting

Pump will not start, when the tap is opened:

• Check fuse(s).
• Check power source(s), and ensure there is sufficient voltage to run the pump.
• Ensure 'pump' LED is illuminated.
• Using a multi-meter, ensure there is power at the pump. If not, refer to your dealer as there maybe damaged cabling or a fault with the fusebox.
• Is the pump hot? If so, allow to cool before retrying.
• Has the vehicle been stored over winter? Was it correctly winterised? If no, the pump may have frozen, causing permanent damage.
• The pressure switch may need adjusting. (See pressure switch paragraph in this section for how to do this)

Pump runs, but will not pressurise system (i.e. no or little water being discharged from taps) - Not Pulsing:

• Ensure that there is water in the fresh water tank.

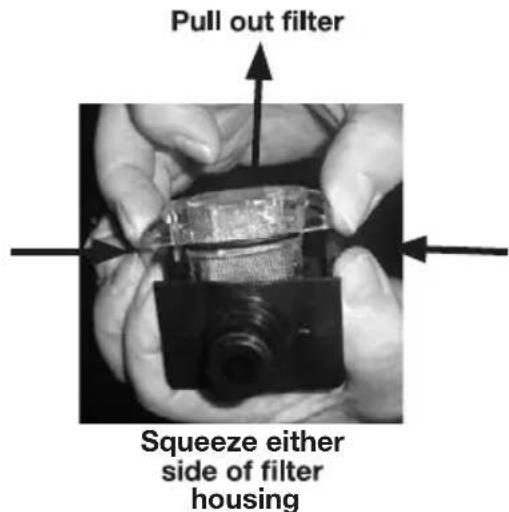

• Check in-line filter is free from debris and correctly fitted.
• Ensure water system has been primed correctly, (see priming the water system page 47), and there are no air-locks present.
• Ensure there are no restrictions in the plumbing.
• Using a multi-meter, ensure there is power at the pump. If not, refer to your dealer as there maybe damaged cabling or a fault with the fusebox.
• Ensure the inlet side of the pump is watertight and not allowing air into the system.
• Using a multimeter check that the voltage is between 10 and 14.5 volts. If it is, refer to your dealer.

Pump continues to run (for more than 5 seconds) after taps are closed or pump turns on for no reason:

• Check for leaks on the high pressure side of the pump.
• Ensure water system has been primed correctly, as per the handbook, and there are no air-locks present.
• Ensure the pump is securely mounted.
• Ensure the piping on the high pressure side of the pump is in good condition (not blowing or deforming).
• The pressure switch may need adjusting. (See pressure switch paragraph in this section for how to do this)

Noisy or rough operation

• Check for leaks on the high pressure and low pressure side of the pump.
• Ensure that all pipes (especially those within 150mm of the pump) are not touching any furniture.
• Ensure the pump is securey mounted

Pump rapidly cycles (switches on or off) or water pulses from taps, including temperature pulsing:

• Check for leaks on the high pressure and low pressure side of the pump.
• Ensure there are no restrictions in the plumbing
• The pressure switch may need adjusting. (See pressure switch paragraph in this section for how to do this)

Water level sensor & cleaning

Principle

The sensor, fitted to Swift Group motorhomes are pre-fitted to water tanks, and link to the control unit, via a pre-fitted wiring harness. The sensors, which consist of a number of stainless steel rods or probes, at different lengths, are immersed in the fresh or waste water, and use the conductivity of water, between the probes, to provide a reading to the control unit.

The sensors are 'digital', in that while the conductivity (resistance) value can vary, the fusebox will register any conductivity between the reference probe and the various different length probes, indicating water present.

Normally, even if the rods are dirty, and providing the rods have not bridged by a foreign object, a circuit will still be delivered back to the control unit and a water level displayed.

Sensor cleaning

The first step, in case of fault diagnosis, is to clean the sensor rods. False water level readings at the control unit can be caused by calcium build-up or foreign objects within the tank bridging the probes. (Especially with waste tanks).

To clean sensor:

WARNING: Only use food safe plastic sh scourers, which are suitable for mestic use, for cleaning the sensor studs.

1. Remove the sensor from the tank
2. Check the probes for build up of contamination
3. Use clean, soapy water
4. Place scourer in water to dampen
5. Apply scourer to the sensor probes with limited pressure
6. Rub sensor probes, removing contamination
7. Swill sensor probes with fresh, clean water
8. Replace sensor into tank.

Alternative water level sensors – Stud type

Depending on the water tank design, some models of motorhome are fitted with stud, instead of rod/probe type level sensors.

In this case the principle is as per the sensors described previously, however instead of rods/probes, stainless steel studs are fitted at different heights on the side wall of the water tank. The conductivity of water between these studs provides a reading to the control panel.

In the event of reading errors, it is not practical to remove the studs for cleaning. An access cap will allow the use of a hosepipe or similar within the tank, or a solution of cleaning agent, (suitable for use with stainless steel components and fresh water supplies) can be placed in the tank whilst the motorhome is driven, the movement of the solution in the water tank aiding the cleaning process.

Note: Tank levels are measured in increments of 25%

Water

Fault Cause Remedy
Water not flowing from any tap when operated but pump runs	Freshwater tank emptyPump wired in reverse Pipe inlet or outlet pipe disconnectedPump pipes restricted by kinkingBlockage in pump inlet or outlet pipeBlocked pump filterAir leak in suction line to pumpFrozen pipes	CheckCheck wiring, refer to pump manufacturers instructionsCheck connectionsCheck pipes runCheck, starting inside freshwater tankDismantle and clean filter. See pump manufactures instructions.Check condition of pipe and pipe joints between the water tank and the pump.
Pump does not run Pump	incorrectly wiredPump fuse blownBattery disconnectedPump seized or overheatedPressure pump sensing switch may have failedContacts may be faultyWiring connections may be faulty	Refer to pump manufacturers instructionsCheck wiring connection and then replace with fuse of correct ratingCheck connectionsRefer to pump manufacturers servicing instructionsRefer to pump manufacturers servicing instructionsCheck contacts in plug and socket are clean and making contactCheck wiring connections
Water flows from cold tap but not from hot	Blockage in hot pipelineHeater inlet or outlet pipes kinked preventing flowHot tap failed or blocked Heaternon-return valve jammed	Disconnect pipes and inspectCheck and re-route if necessary.Disconnect and inspectSeek service attention

Water

Fault Cause Remedy
Water flows from hot tap but has reduced flow from cold	Cold water pipe kinked preventing flowBlockage in cold pipe lineCold tap not connectedCold tap failed or blocked	Check and re-route if necessaryDisconnect pipes after 1st connector and check up to tapRefer to installation instructionsDisconnect and inspect
Reduced flow from both hot and cold taps	Battery condition low causing pump to run slowlyIf new taps have been fitted they may be restricting flowPump needs servicingPartially blocked pump filter or in-line filter, if fittedPump outlet pipe kinked restricting flowWater leak	Check battery state of charge, refer to electrical supply noteDisconnect and check that they have at least 1/4" (6.3mm) boreRefer to pump servicing instructionsDismantle and clean if necessaryCheck and re-route if necessaryCheck all water connections
Reduced flow from either tap	Pipe kinking restricting flowBore size difference in taps	Check and re-route if necessaryUse taps of equal bore size
If pump motor runs steadily and will not stop	Battery voltage may be too low (below 10.5 volts)	Check that there is water in the container Adjust switch and/or recharge battery. Check all connections in pipework

Typical gas schematic drawing with Combi or Alde Boiler

Gas

General information

Gas Cylinders

Bottled Liquified Petroleum Gas (LPG) is the most convenient portable source of fuel for your vehicle.

The gas cylinder, cooking and heating appliances should be isolated when travelling unless your motorhome is fitted with en-route heating.

Regularly check flexible gas hose, joints and connections for tightness. Finally make sure that each gas appliance is working efficiently to the recommendations of the appliance manufacturers.

The LPG system should be inspected annually by a competent person.

Only use gas cylinders that are located within their dedicated position within the gas bottle housing, never extend the hose - hose lengths must not exceed 400mm.

Your vehicle is supplied with a wall mounted gas regulator plumbed inside the gas bottle compartment. The regulator and all appliances work at a harmonised 30mb pressure, which work with Butane and Propane gas.

Pressure regulation system in this vehicle has a fixed working pressure of 30 mbar with a flow rate of 1.5 kg/H and complies with the requirements of EN 12864 annex D.

We do not recommend the use of an inline LPG BBQ with the 1.5kg/H regulator when other LPG appliances are in use.

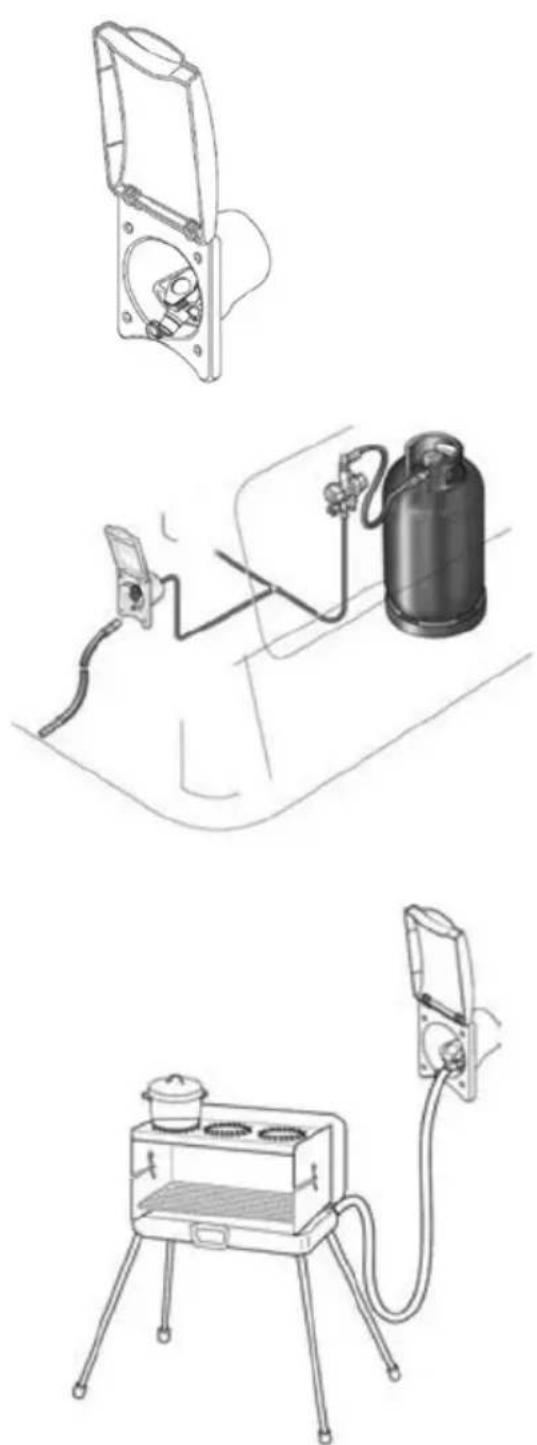

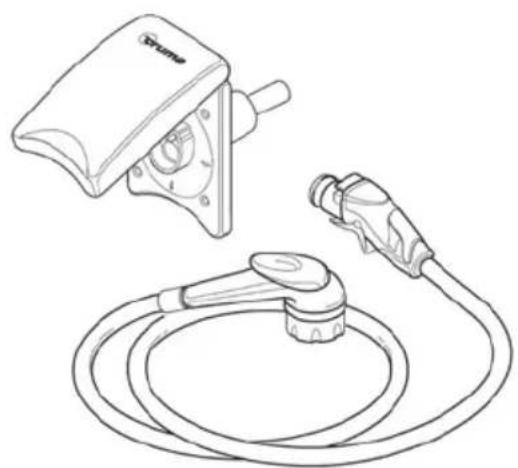

Motorhomes with external barbeque point

Models equipped with an external barbeque point can be used to power any gas appliance suitable for the gas used in the motorhome, at the working pressure shown on the label in the barbeque outlet box. Please note when using the outlet that the fitted regulator will allow a maximum of 1.5kg per hour of gas to be taken from the gas bottle. Therefore the consumption of gas from both the appliances within the motorhome and the appliance connected to the barbeque point cannot exceed a total of 1.5kg per hour at any one time. If you are in any doubt please consult your dealer for advice. To use the barbeque point proceed as follows:

1. Fit male tail connector from despatch kit to your barbeque or appliance ensuring a gas tight joint. The work should be carried out by a competent person; if in any doubt consult your dealer.
2. Open box lid by pulling tab on bottom edge and lifting, while pressing on centre of flap.
3. Insert tail connector on appliance into female coupling, twist to engage and lock.
4. Open gas locker on motorhome, ensure gas bottle tap is open and supply is connected to regulator.
5. Light and operate appliance to its instructions.

Please note that you cannot open the gas supply until the nozzle has been inserted. In the interest of safety all external hose lengths should be kept to a minimum and attachments secured correctly.

WARNING: Care should be taken when ng the external barbeque point. Never beque next to an awning or tent.

WARNING: The motorhome barbeque nt should only be used as an outlet point gas, never connect a gas bottle direct to outlet.

WARNING: Unless en-route heating is in the LPG cylinder valve should be closed when driving.

WARNING: Switch off all gas appliances en driving unless the motorhome has an route heating regulator fitted

Gas Hoses

High-pressure hoses or pigtails as they are called must be used with the new style regulator.

High-pressure hoses incorporate a safety shut off valve for the use of the en-route heating system.

LPG cylinder i.e. Propane, Butane, BP and Camping Gaz cylinders all have unique bottle adaptor connections.

GAS

It is important to check you have the correct hose and adaptor to suit your gas cylinders.

Push on hoses are no longer permitted under the latest regulations.

The new high-pressure hoses have threaded connections and must be securely attached to the regulator and to the gas cylinder.

The hose connection to the pressure regulator relies upon a sealing washer(s) to maintain a gas tight joint, and it is essential to check that the washer is present, sound and correctly positioned prior to making the connection. The gas cylinder connection relies on a metal seating or bull nose connection to obtain a gas tight joint, therefore it is essential that the mating surfaces are clean and undamaged. In no case should a damaged valve or connection be used.

Ensure that there is a constant rise in the flexible gas hose between the gas cylinder outlet and the regulator elbow.

⚠ WARNING: Inspect flexible gas hose(s) regularly for deterioration and renew as necessary with the approved type, in any case no later than 5 years after the date of manufacture marked on the hose. When replacing the en-route hose ensure the new hose incorporates a safety shut off valve (Hose rupture protection).

WARNING: Ensure that the high pressure hose is not excessively twisted or under stress when connected to the LPG cylinders and regulator.

⚠ WARNING: Always ensure the gas supply is isolated at the LPG cylinder (and not at the regulator) whilst the vehicle is in storage for any period. It is important to ensure that the high pressure gas hose has a continuous rise from the bottle cylinder to the regulation to allow any condensate to fall back into the gas bottle cylinder.

Cylinder compartment

All cylinder compartments have four plastic mouldings per cylinder position fitted to the floor of the compartment that are designed to fit both steel and BP Gas Light cylinders. Two

straps are provided for retaining the bodies of the cylinders at mid to high level.

Types of gas

Propane

Propane is supplied in red, or partly red cylinders which have a female left hand threaded connector.

Scandinavian countries use the same connector.

Germany and Austria supply propane with a male connection.

Propane will work at temperatures as low as -40^ and is therefore suitable for all winter motorhoming.

Note: Swift recommend that 6kg Calor propane cylinders are used. However the cylinder compartments can also house various cylinders dependant on model.

Escape / Edge 1 x 6kg + 1 x 13kg

Escape Compact 2 x 6kg

Kon Tiki Sport / Kon Tiki 2 x 13kg

Kon Tiki Sport 424 - 2 x 6kg

Butane

Butane is supplied in the U.K. in green or blue cylinders.

All these have a male left hand thread

EXCEPT for Camping Gaz which has a special female right hand thread and Calor 7kg and 15kg and aluminium bottles which have a special clip-on connection.

Continental cylinders usually have a male left hand thread similar to but not identical with U.K. butane.

Butane is only suitable for use at temperatures down to 2^ C and will not work below that.

Note: If an en-route heating regulator is fitted, a hose suitable for use with propane will have been supplied with your motorhome.

En-route heating (where fitted)

If your motorhome is equipped with an LPG en-route heating system, it comes installed with additional safety features.

WARNING: When re-fuelling your motorhome, switch off the heater and close the cylinder valve.

Safety features

• MonoControl CS regulator incorporating a crash sensor which stops the gas flow in the event of the motorhome being involved in a traffic collision.
  • Gas flow monitor
• Hose rupture protection is installed.
• The full system is Homologated in compliance with UN ECE regulation 122

Operating instructions

1. Open cylinder valve
2. Firmly press the hose rupture protection (green button) on the high pressure hose for about 5 seconds (fig 1 item 1)
3. If the Yellow reset button (fig 2, item 7) is not pressed ("not ready for operation" position), reset the crash sensor. To reset, press the Yellow reset button (fig 2, item 7) firmly turn it slightly clock-wise, hold it for 5 seconds and ensure that it stays in the "ready for operation" position (figure 2). If the re-set is not successful, use the Torx (T20) screw aid (fig 3, item 12) to support the clockwise rotation.

Note: The regulator should be replaced no more than ten years after manufacture.

Changing a gas cylinder

Please use the correct size spanner for the gas hose connectors as this will prevent damage to the screw fittings and ensure that the fitting is tightened sufficiently.

• Turn off all gas appliances
- Close the empty gas cylinder's valve
- Remove the high pressure hose from the gas cylinder.
- Attach the high pressure hose to the full gas cylinder.

- Open the full cylinder's valve. - Press the hose-break safety device Check the hose connection to the cylinder valve for leaks.

Fig. 1

Two identical line drawings of a mechanical component with a central pin (no text or symbols)

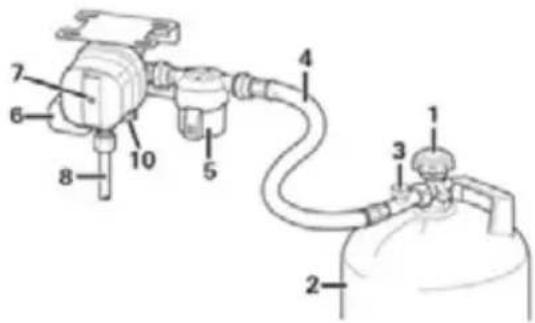

Fig. 2

Fig. 3

WARNING: To ensure the safe working of the en-route heating any replacement high pressure hoses must be of the same type as originally fitted. They must have the safety valve to ensure that the gas does not leak out in the event of damage to the gas pipe work in the event of a traffic collision.
⚠ WARNING: When travelling using the en-route system all other LPG appliance shut off valves must be in the closed position including the fridge, cooker, water heater etc.
Note: It is dangerous and illegal to operate other LPG appliances whilst travelling
⚠ WARNING: Never allow modifications or repairs of electrical or LPG systems and appliances except by qualified persons.
WARNING: When leaving the motorhome for any period of time or storage always turn off the gas at the gas cylinder.

GAS SAFETY ADVICE

Gas safety advice

WARNING: : If you smell gas or suspect a leak or in the event of a fire and if it is safe to do so, isolate the gas appliances and turn off the gas bottles at the regulator. Evacuate the motorhome and ventilate. Seek professional advice as to the cause of the leak.

Facts about LPG

LPG is not poisonous.

• Bi-products are harmless.
- There is danger if all air and oxygen were excluded.
- (Ventilation holes must be kept clear at all times).
- LPG has been given a smell by the manufacturers in order to identify leaks.

Awning Spaces LPG Appliance Exhaust

There is no danger of pollution of an enclosed awning space by the LPG exhaust from a refrigerator venting into it, as awning spaces are generally well ventilated.

Space heaters may produce sufficient exhaust to pollute the awning space, if it is totally enclosed, from a general comfort, smell and hygiene point of view. In the extreme case there could be a build up of carbon dioxide to a dangerous level.

Motorhome owners are advised to allow some fresh air circulation in the awning space when such appliances are in use.

General Safety Notes

In the event of leaks in the gas system or if there is a smell of gas:

• Extinguish all naked flames.
• Do not smoke.
• Switch off the appliance and gas cylinder.
• Open the windows.
• Do not operate any electrical switches.
• Have the entire system checked by an expert.

Precautions

a. Never look for a leak with a flame. Always use a soap solution or its equivalent when testing connections. Do not operate any electrical apparatus whatsoever, especially light switches. If the leak is not obvious, the motorhome should be evacuated and qualified personnel consulted.
b. Avoid naked lights when connecting or changing a cylinder.
c. Check the flexible hose frequently.
d. The gas is heavier than air and therefore sinks to the lowest point.
e. Keep bottle gas containers outside (and protected against frost). If they must be kept inside make sure they are well away from heat.

⚠ WARNING: Do not use appliances with a different working pressure to 30mbar.

WARNING: Maintain adequate spacing of combustible materials from sources of heat.

⚠ WARNING: Do not use independent portable gas appliances inside the vehicle. Cookers shall not be used as heaters.

⚠ WARNING: A BBQ point inlet valve, if fitted, must only be used for the connection of portable LPG appliances.

⚠ WARNING: Always read individual appliance instructions.

⚠ WARNING: If in doubt, ask!

Connection

Ensure that the gas regulator hose is correctly connected to the gas cylinder in gas bottle compartment and that the hose connection is tight.

Gas cylinders must be fully located, seated at the base of the bottles and restrained by the straps provided in the dedicated compartment position. Straps are positioned to suit 6kg, 7kg and 13kg bottles.

WARNING: If using cylinders other than those recommended, the user must ensure these are adequately supported, ventilation openings must not be obstructed and the cylinders must not cause damage to other fixtures and fittings located in the compartment.

Open ended gas hoses must always be protected from dirt and insects.

Before turning on the gas supply at the regulator, ensure that all gas operated equipment in the motorhome is turned off.

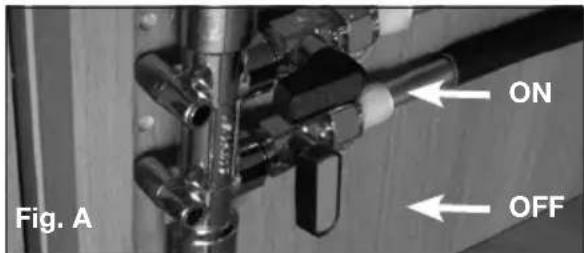

All gas equipment is supplied through a Gas Manifold System which has individual isolation taps for each appliance (Fig A), as follows:

RED - Water Heater / Combination boiler

WHITE - Heater / Heating system

BLUE - Fridge

GREEN - Oven

Flue installations

All flue installations should be inspected once a year throughout their length for corrosion. Flues should be replaced if any sign of perforation is found. Ensure that the replacement is of an approved type.

Thermal insulation heating

Your motorhome has been designed to achieve a thermal insulation and heating level for specific climatic conditions when tested according to the procedure in EN1646-1.

See the motorhome technical book for the classification of your motorhome. All Swift Group motorhomes achieve a Grade 3 classification.

The classifications are as follows:

Grade 1

A motorhome with an average thermal transmittance (u) that does not exceed 1.7w/(m2k).

Grade 2

A motorhome with an average thermal transmittance (u) that does not exceed 1.7w/(m2k) and which can achieve an average temperature difference of at least 20°C between inside and outside temperatures when the outside temperature is 0°C.

Grade 3

A motorhome with an average thermal transmittance (u) that does not exceed 1.2w/(m2k) and which can achieve an average temperature difference of at least 35°C between inside and outside temperatures when the outside temperature is -15°C.

Gas

Fault Cause Remedy
Hob does not light No	gas	Check level of gas in cylinder
		Check gas cylinder valve is on
	Air in pipe	Check gas taps are on
		Purge system
		Refer to hob manufacturers instructions
Oven does not light No	gas	Check level of gas in cylinder
		Check gas cylinder valve is on
	Air in pipe	Check gas taps are on
		Purge system
		Refer to oven manufacturers instructions
BBQ does not light No	gas	Check level of gas in cylinder
		Check gas cylinder valve is on
	Over gassed	Check gas taps are on
		Turn off appliance, wait 2 minutes and try again
	Air in pipe	Purge system
Fridge does not light No	gas	Check level of gas in cylinder
	Air in pipe	Check gas cylinder valve is on
		Check gas taps are on
		Purge system
		Refer to fridge manufacturers instructions
Combination Heater does not light	No gas	Check level of gas in cylinder
		Check gas cylinder valve is on
	Air in pipe	Check gas taps are on
		Purge system
		Refer to water heater manufacturers instructions

The electrical system

General Information

It is strongly advised that the mains installation is inspected periodically to ensure safe use. The IET (BS7671) wiring regulations recommend that mains installations in motorhomes are re-inspected every 3 years or annually if the van is used frequently. The National Caravan Council lists the qualifications necessary to perform this inspection, but an NICEIC approved contractor is probably the first choice.

On arrival at the campsite

• Check the suitability of the supply, is it AC or DC, is the voltage and frequency correct.
• Ensure that there is a proper earth (3 pin socket outlet).
• If in doubt consult site staff.
• Make sure that the supply from the site is switched off.
• Make sure that the charger switch on the PSU is switched off.
• Lift the cover on the electricity inlet on the motorhome, and insert the connector on the flexible supply cable.
• At the site supply point, connect the other end of the supply cable to this using the socket provided.
• Switch on the main switch at the site supply point.

Note: It is good practice to test the RCD (Residual Current Device) in the PSU before switching on. There is a test button on the RCD. To test the lever, put the lever in the up position (on) before testing.

Note: As with the RCD it is good practice to check the Miniture Circuit Breaker (MCB) in the PSU. Switch all to the on position (lever up). If any do not stay up then there is a fault.

On departure from the campsite

• Switch off supply from the site, disconnect the cable at both ends.
• Switch off RCD.

Note: Never use a mains supply lead whilst coiled. Always uncoil the full length before connecting to the supply and remember to protect the cable from traffic.

⚠ WARNING: Current consumption in the motorhome must not exceed 16 amps or the pitch permitted maximum if this is less than 16 amps.

Overseas connection

• Connection to a mains voltage overseas requires particular attention.
  • Overseas supplies can be of reverse polarity.
• Reverse polarity results in equipment not necessarily being isolated when turned off, reverse polarity indicator on the PSU will light in the event of reverse polarity.
• The only sure way to make equipment safe is to unplug it.
• It is useful to have a means of checking polarity when overseas.
• If it can be achieved then connect live to live, and neutral to neutral to achieve full electrical protection.

⚠ WARNING: Never allow modifications or repairs of electrical or LPG systems and appliances except by qualified persons.

230V ELECTRICAL EQUIPMENT

230V mains electrical equipment power consumption

Please note: It is possible that the 230v mains electrical equipment may not all operate simultaneously. A typical UK site mains hook up point provides a maximum output of 10 amps and on some continental sites the available output may be as low as 5 amps. If your loading exceeds the site supply it may trip the site circuit breaker. Please check the available mains supply with your site operator.

Similarly loadings on each circuit breaker within the motorhome should be observed. A label positioned close to the MCB's (Miniture Circuit Breakers will identify which appliances within the motorhome are fed from which MCB. Consulting the typical appliance consumption figures table in conjunction with this label, will give an indication of which appliances can, and cannot, (site supply allowing), be operated simultaneously.

Wiring of connecting cable and motorhome mains inlet

The legal length of the mains inlet cable is 25 ± 2 metres. When in use it must be fully uncoiled and protected from traffic.

Typical appliance consumption figures

Appliances	230V 12V LP GAS
	Watts Amperes	Watts Amperes gram/hour
Dometic Refrigerator 190W 0.8 amp Only when driving 16 g/h
Truma Combi 4kW Heating system	900/1800W	3.9/7.8 amp	13W	1.1 amp (avg)	320 g/h
Truma Combi 6kW Heating system	900/1800W	3.9/7.8 amp	13W	1.1 amp (avg)	480 g/h
Alde Heating System	1050 / 2100 / 3150W	4.6/9.1/13.7 amp	12W	1.0 amp	245-460 g/h
Microwave (factory fit)	1270W	5.5 amp	Not Applicable		Not Applicable
Cooker - Hob burners	Not Applicable		Not Applicable		70-161 g/h
Cooker - Electric Hotplate	800W - 850W	3.5-3.7 amp	Not Applicable		Not Applicable
Grill	Not Applicable		(cooling fan)0-14.4W	(cooling fan)0-1.2 amp	117 g/h
Oven	Not Applicable		(cooling fan)0-14.4W	(cooling fan)0-1.2 amp	125-146 g/h
Battery Charger	690W	3.0 amp	Not Applicable		Not Applicable
Omnivent	Not Applicable		2W-86W	0.2amp-7.2 amp	Not Applicable
Powered skylight	Not Applicable		Max 120W	Max 10 amp	Not Applicable
12v LED lights(each, depending on size of light)	Not Applicable		0.4 W-6.1W	0.05 amp-0.5 amp	Not Applicable
Water tank frost element (Winter pack)	Not Applicable		30 W	2.5 amp	Not Applicable
EBECO Floor Heating	575W	2.5 amp	Not Applicable		Not Applicable
Note: These are approximate figures for guidance only, and are subject to changes in specification. The figures show energy consumption when an item or appliance is operating - ie. a light is illuminated, or a heating system is providing space heating or water heating. Appliances which feature LCD or illuminated control panels can have a low current consumption when in stand by mode, or have a constant low current draw in the background to run their displays and electronics systems - these figures are typically 0.4 amps or less, for each applicable item. These electronic items can in most cases be switched off individually, or, use of the System Shutdown button on the power supply unit isolates all of these items.

ELECTRICS

Swift Command power control system.... 66

Control Panel System Operation 68

Swift Command Truma Combi CP+ controls 80

Swift Command Alde heating controls....

Swift Command system warnings....

Swift Command technical information 84

Swift Command remote access....

Motorhome Battery

Solar panel connection point 98

Accessory Harnessing

Generator usage....

Habitation relay....

Fault finding

Cab Radio - timer setting....105

SWIFT COMMAND POWER CONTROL SYSTEM

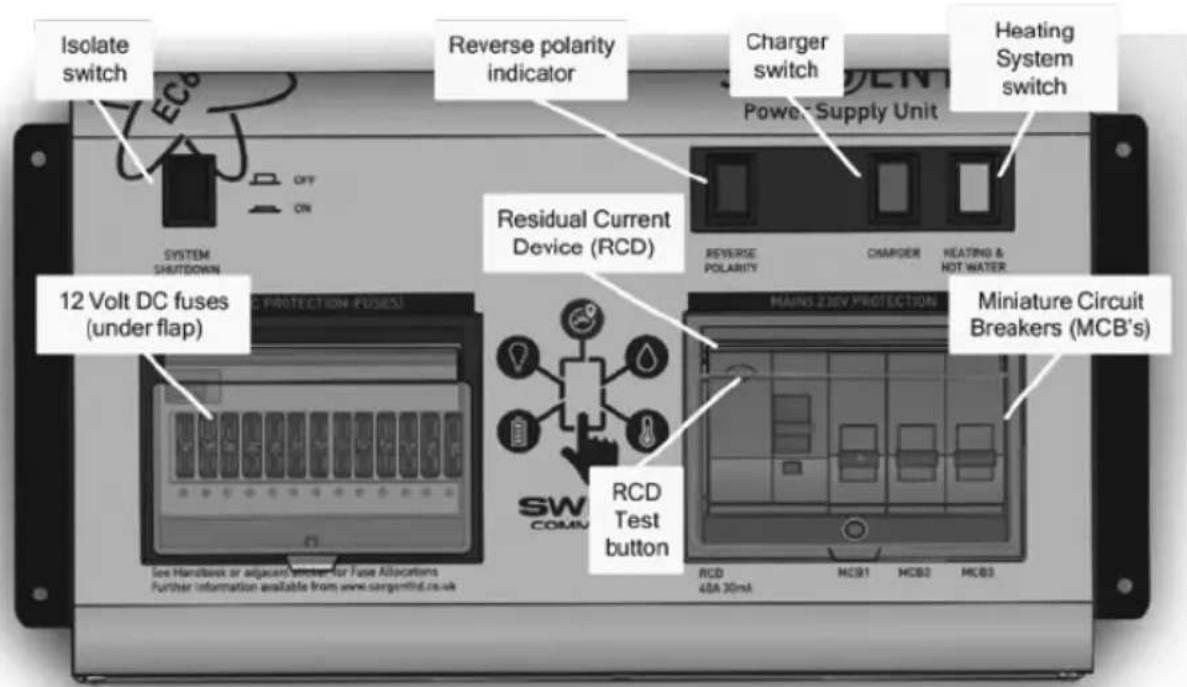

Fig 1

1. Introduction

This section of the handbook will guide you through the operation of the electrical system. All details are correct at the time of going to press. Please also see the online version which will include any later updates or amendments.

Further technical details are contained in section 3 or in the supporting technical manual available from www.sargentltd.co.uk

For the safe operation of all electrical equipment within your Leisure Vehicle it is important that you read and fully understand these instructions. If you are unsure of any point please contact your dealer / distributor for advice before use.

The system has a number of key components that you will need to be familiar with before attempting to use the system, these are:

- The EC652 or EC653 Power Supply Unit (PSU) is a combined mains consumer unit and 12V controller usually located in a storage area (lower bed box, wardrobe or similar). - The control panel (CP) will be an EC600 or EC800 model, depending on motorhome specification. The control panel is used to turn circuits on and off and to display battery, water tank and other system information.

• EC620 control panel uses and LCD screen with buttons at each side of the display.

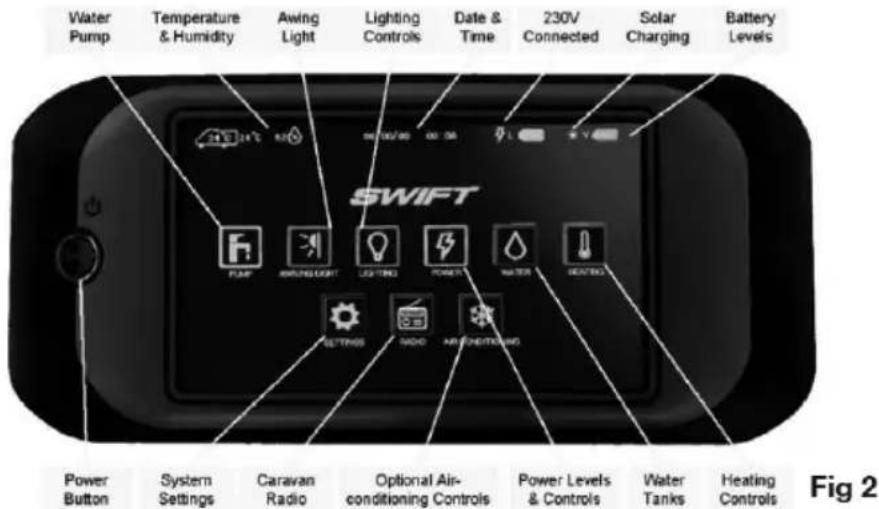

- The EC800 control panel uses a graphical touchscreen.

• The PX300 Intelligent Battery charger 300W.

2. Using the System

2.1 Power Supply Unit - Component Layout (see image above)

The PSU is located in the lower bed box, wardrobe or similar area.

2.2 Activating the System

The system has a shutdown feature that can be used when the vehicle is in storage. This allows the leisure electronics to be turned off when not required to save battery power. When in the off state the alarm and tracking system supplies are still active, all other supplies are turned off.

Before using the system please ensure the system shutdown switch is in the on position (button in) the system is now active.

Note: if you plan to use the Swift Command remote features the system needs to be active.

2.3 Connecting to the Mains 230V supply and Safety checks

For your safety it is IMPORTANT that you follow these connections instructions each time your Leisure Vehicle is connected to a mains supply. This section assumes that the system is complete and that a Leisure battery has been installed (see 3.4).

A) Ensure suitability of the Mains Supply.

Your Leisure Vehicle should only be connected to an approved supply that meets the requirements of BS7671 or relevant harmonised standards. In most cases the site warden will hold information regarding suitability of supply. If using a generator you also need to comply with the requirements / instructions supplied with the generator. Please note that some electronic generators may not be compatible with your leisure system. Further generator operational information is contained in section 4.2.

B) Switch the PSU Battery Charger / Power Converter OFF.

Locate the green 'Charger' power switch on the PSU and ensure the switch is in the off position (button out) before connection to the mains supply.

C) Connect the Hook-up Lead.

Firstly connect the supplied hook-up lead (orange cable with blue connectors) to the

Leisure Vehicle and then connect to the mains supply.

D) Check Residual Current Device operation.

Locate the RCD within the PSU and ensure the RCD is switched on (lever in up position). Press the 'Test' button and confirm that the RCD turns off (lever in down position). Switch the RCD back to the on position (lever in up position). If the test button failed to operate the RCD see section 3.1.

E) Check Miniature Circuit Breakers

Locate the MCB's within the PSU (adjacent to the RCD) and ensure they are all in the on (up) position. If any MCB's fail to 'latch' in the on position see section 3.1

F) Turn the PSU ON.

Locate the black 'Shutdown' button and ensure it is in the on position (press button in). Locate the green 'Charger' switch on the PSU and turn to the on position (press button in). The charger switch will illuminate when turned on.

G) Check correct Polarity.

Locate the 'Reverse polarity' indicator on the PSU and ensure that the indicator is NOT illuminated. If the indicator is illuminated see section 3.2.

H) Check operation of equipment. It is now safe to operate the 12V and 230V equipment.

2.4 Operation while driving

The power control system is designed to shutdown parts of the system while the engine is running. This is to meet Electro Magnetic Compatibility (EMC) regulations and to ensure the safe operation of the motorhome. With the engine running the screen will show a warning 'ENGINE RUNNING'.

Please ensure the system shutdown switch on the PSU is in the on (button in) position before driving (see 2.2). This will ensure the electronic system is active and will therefore be able to control the charging process, supply the refrigerator and monitor other system circuits.

If / when fitted, designated 12V sockets, enroute reading lights and en-route heating will remain operational while the engine is running.

SWIFT COMMAND POWER CONTROL SYSTEM

EC600 Control Panel - Component Layout (see image below)

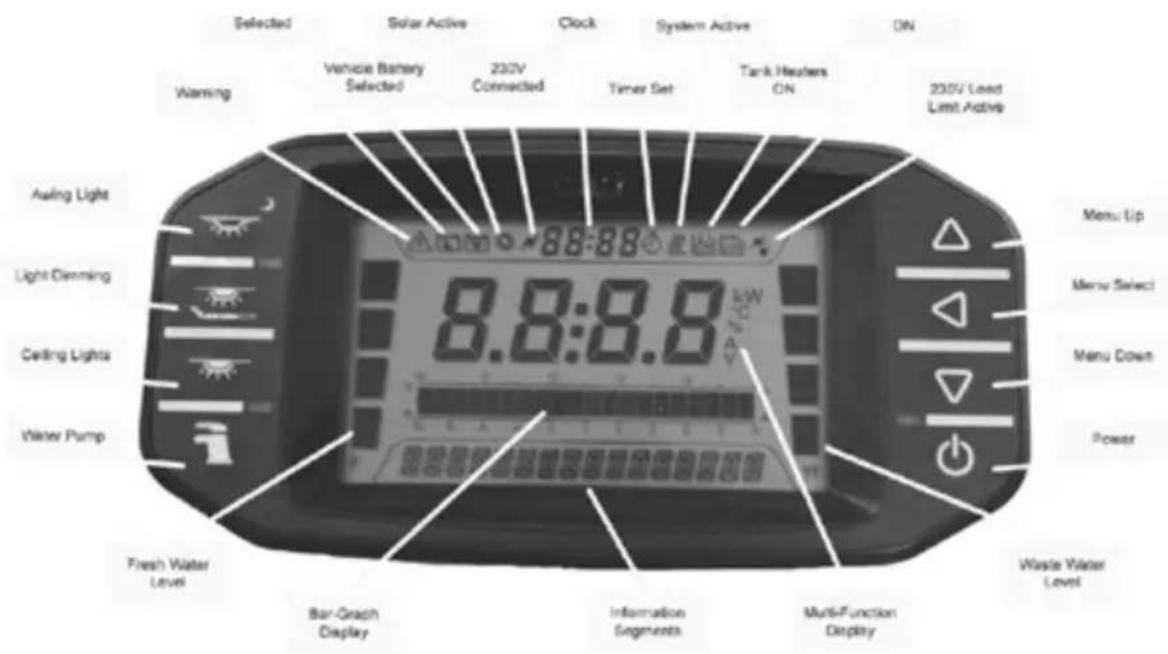

Your control panel will have an appearance as below, but depending on your vehicle specification the control panel features will vary. Not all features are present in all vehicles.

2.5 Control Panel Operation

	Power Button. Press the power button to turn the leisure power on. Press the button again to turn the power off. The adjacent LED will illuminate when the power is on, the screen backlight will turn on and system information will be shown on the LCD display. To avoid night time nuisance the LED and backlight will be turned off after a preset time, see note below.
	Menu Navigation Up Button. Use the menu up and down buttons to scroll through the various functions. The menu operates on a continuous loop arrangement so you can go up or down to reach all menu items. It is recommended to start in the down direction.
	Menu Navigation Select Button. Use the select button make a selection or to change a value or setting. This button is also used to select the display or toggle the display information on many menu items.
	Menu Navigation Down Button. Use the menu up and down buttons to scroll through the various functions. The menu operates on a continuous loop arrangement so you can go up or down to reach all menu items. It is recommended to start in the down direction.

SWIFT COMMAND POWER CONTROL SYSTEM

Menu Tree

• Leisure battery, the leisure battery voltage and charging or discharging current is displayed. Use the select button to toggle the display, with voltage on the main display whilst current (in or out of the battery is shown on the bar-graph and vice versa, current on the main display and voltage on the bar-graph.
• Vehicle battery, when connected the vehicle battery voltage and charging or discharging current is displayed. Use the select button to toggle the display, with voltage on the main display whilst current (in or out of the battery is shown on the bar-graph and vice-versa, current on the main display and voltage on the bar-graph.
• Solar Power, the charging current from the solar panel along with the voltage of the battery it is charging is displayed. Use the select button to toggle the display, with voltage on the main display whilst current is shown on the bar-graph and vice-versa, current on the main display and voltage on the bar-graph.
• Select Battery, press the select button toggles between the Leisure and Vehicle batteries as the power source (or battery to be charged). The selected battery is shown in the header area.
• Tank Heaters on/off, this feature enables or disables the automatic Fresh & Waste water tank frost protection system. Tank heating will start when the tank level is 25% or higher and the external temperature is under 2 degrees C.
• AC Limit, the AC current limiter, when enabled, will monitor the incoming AC current and if the set limit is reached the 230V heating element within the heating system will be temporarily turned off until the current falls below the set limit. Use the select button to set the limit or to turn the feature off. The AC Limit icon in the header indicated that a limit is set and will flash if the limiter is active. For this feature to work correctly the Heating setting must be set to Timer so that the EC600 system can control the heating system.
• Temperature & Humidity, Pressing the select button scrolls through the internal temperature, internal humidity & external temperature readings. Please note that due to the location of the internal temperature sensor there may be slight differences to the temperature shown on the heating system. Further details can be found in section 3.18.
• Dimmer %, this display shows the lighting dimming level and is adjusted in 5% increments. The display commences where the level was last set. Press the select button to increase the level up to 100% and then back down again to 5%. Pressing the dimming button on the control panel immediately shows this dimming value.
• Heater Settings, this sub menu allow the heater controls and associated settings to be adjusted. A full explanation of the controls can be found in the heater section.
• Fridge Settings, this sub menu allow the fridge controls and associated settings to be adjusted. A full explanation of the controls can be found in the fridge section.
• System Settings, this sub menu allows a number of system features to be configured like the Clock, Date, Key beep, Backlight time, LED time, Tank Alarms, Bluetooth Pairing etc.

SWIFT COMMAND POWER CONTROL SYSTEM

2.6 Control Panel - Key Features

	Pump Button. With the power on, press the pump button to turn the water pump on. Press the button again to turn the pump off. The adjacent LED will illuminate when the pump is on and the level of the water tank will be shown on the screen.
	Interior Lights Button. With the power on, press the lights button to turn the main lighting supply on or off.
	Light Dimming Button. With the power on, press the dimmer button to turn the dimmed lighting on or off. Press the select button to adjust the dimmer level (the menu automatically changes to the adjustment screen). The last setting is remembered.
	Awning Light Button. With the power on, press the awning light button to turn the awning light on or off. The Adjacent LED will illuminate when the awning light is on. The awning light may also be controlled by the caravan alarm system or the motorhome locking system.

Note, display illumination. The LCD back light will illuminate for the pre-set time (default time is 30 seconds) adjustable between 5 and 120 seconds. Setting the timer to 0 seconds will force the backlight to be permanently on. The illumination of the blue LED's adjacent to the power, pump & awning light buttons can be configured in the same way as the back-light. The screen will wake up if your hand is placed near the panel or if a button is pressed.

SWIFT COMMAND POWER CONTROL SYSTEM

2.7 Heating Controls

There are a number of heating systems that can be controlled by the EC600. The system will be preconfigured by the manufacturer or supplying dealer. The following menu items are only available in Timer control mode, the Alde and Truma Combi systems are shown below.

Scroll to the Heating Settings and press select to set or adjust the following items:

TRUMA Combi CP+
Menu Item Description
Control Set to MANUAL	AL to use the controls supplied by the heating appliance manufacturer. Set to TIMER to control the appliance by the control panel with the settings below. Set to APP control the appliance by the Smart Command app. To allow Swift Command control of the heating system, the Combi Controller must be initialised while Swift Command is active. This should already be set up for you on your motorhome or caravan. See Truma Combi CP Plus instructions for further details.
The following menu items are only available when in Timer control mode.
Energy Set the electric element to OFF, 1KW, 2KW or 3KW
Timer 1 Set the timer	1 event time. This setting adjusts in 15 minute increments and uses the 24 hour clock	Example 07:30
T1 Heating Set the timer	1 heating temperature. This setting can be off, or 5 through to 30 degrees C	Example 22 deg C
T1 H/Water Set the timer	1 hot water temperature. This setting can be OFF, ECO or HOT	Example Eco
The menu now repeats for timer 2 through to timer 4
Exit settings? When timer 4 is completed the exit settings item is reached. Press the select button to exit and save the settings.

The timer example above will set the heating to 22 degrees C and the hot water to eco at 7:30 in the morning.

SWIFT COMMAND POWER CONTROL SYSTEM

2.8 Refrigerator Controls

The main refrigerator settings can be set / controlled by the EC620 control panel or the Swift Command app. These controls work in parallel with the ones on the fridge control panel, so the settings can be changed by either method.

Scroll to the Fridge Settings and press select to set or adjust the following items:

Dometic Refrigerators / Fridge Freezers
Menu Item Description
Mode Set the required	operating mode. Available options are; OFFAUTOGAS12V DC230VACThe default setting when the system is first turned on is OFF.
Setting Set the required	cooling setting. Available options are;1 (minimum)23 (middle)45 (maximum)The default setting when the system is first turned on is 1.
Status Here you can view the cooling status. If you have just changed the above cooling setting then you should allow at least 15 minutes for the setting to take effect and update the reported status.The possible statuses are;Too Cold {suggest reducing the setting}Cold (--) {suggest reducing the setting}Cold (-)OptimalWarm (+)Warm (++){suggest increasing the setting}Too Warm {suggest increasing the setting}

When viewing the Fridge Settings menu item the large digit on the screen shows the current cooling setting (1 to 5).

3. EC800 Control Panel - Component Layout (see image below)

Your control panel will have an appearance as below, but depending on your specification of the vehicle the control panel features will vary. Not all features are present in all vehicles.

EC800 Control Panel - Key Features

	'Swift' Power Button. Press the 'Swift' power button to turn the leisure power on, the panel will beep twice and show the Swift start-up logo. The control panel screen will illuminate when the power is on, but the screen will go to sleep after a pre-determined time. Pressing the power button or touching the screen while the screen is asleep will wake the screen without turning the power on or off. To turn the power off press and hold the power button to turn the power off, the panel will beep once.
	Pump Button. Press the pump button to turn the water pump on. Press the button again to turn the pump off. The button border will illuminate when the pump is on. To view the water tank levels and other controls press the water button.
	Awning Light Button. Press the awning light button to turn the awning light on or off. The border of the button will illuminate when the awning light is on. Note the awning light may also be controlled by the motorhome locking system.
	Lighting Button. Press the lighting button to show the lighting control screen. Here you can turn on / off or adjust the dimmable lighting levels. Press the home button to return to the main screen.

SWIFT COMMAND POWER CONTROL SYSTEM

POWER	Power Button. Press the power button to show the power information and control screen. Here you can view battery levels, view charger and solar current and press the more button (right arrow) to view 230V current. Press the home button to return to the main screen.
WATER	Water Button. Press the water button to show the water tank information and control screen. Here you can view tank levels and control related features. Press the home button to return to the main screen.
HEATING	Heating Button. Press the heating button to show the heating control screen. Here you can control the heating system, select energy and temperature and by pressing the more button (right arrow) you can set related timers. Press the home button to return to the main screen.
AIR CONDITIONING	Air-Conditioning Button. Press the Aircon button to show the aircon control screen. Here you can select the operating mode, set the target temperature and adjust the fan speed. Press the home button to return to the main screen. Note: this button will only be visible if a CI-Bus equipped air conditioner is installed, connected and enabled within the system.
FRIDGE	Fridge Button. Press the fidge button to show the fridge control screen. Here you can select the operating mode, set the cooling setting and view the temperature status. Press the home button to return to the main screen.
SETTINGS	Settings Button. Press the settings button to show the general settings screen. Here you can set the date & time, screen brightness and screen on time. There are also buttons on this screen to pair a Bluetooth device, delete Bluetooth devices, or turn the key beep on / off. Press the home button to return to the main screen.

3.1 EC800 Control Panel 'Header' Information

At the top of the control panel screen there is a header or information bar which remains visible on all screens. This is designed to provide quick reference information available at all times

		00/00/00 00:08
Internal and external temperature in degrees CelsiusThe internal temperature is shown inside the vehicle symbol.	Relative humidityrange1 to 100%	Current date	Current time *Leisure battery statusGreen = good,Orange = fair, Red= poor. Lightning symbol indicates charging from the 230V battery charger. *Vehicle	*Vehicle battery statusGreen = good,Orange = fair,Red = poor. Sun symbol indicates charging from the solar panel.

* When a battery is not being charged a % remaining figure will be displayed. This figure is calculated from the battery voltage and therefore should be used for guidance only.

3.2 Temperature Readings

The system uses two sensors to measure internal temperature and humidity, and external temperature. The internal temperature and humidity sensor is furniture mounted within the motorhome, and the external sensor is mounted below the motorhome floor. The figures displayed are for information only, and it is hoped the information will be useful, for example when checking temperatures remotely during cold weather.

For vehicles fitted with Alde or Truma heating systems, this sensor is not used to control the heating temperature as it is measured above the door by the Alde or Truma room sensor. The readings on the heating system may vary relative to the one shown on the control panel.

3.3 Water System Operation

The control panel pump button operates the internal water pump drawing water from an onboard water tank.

The water tanks (fresh & waste) incorporate a level warning feature to warn the user when the fresh water level drops below 25% or when the waste water level reaches 100%. These warnings can be enabled / disabled on the control panel water screen.

If the water pump power is turned on and the fresh water level drops to below 25% a warning beep will be heard and a message will be displayed on the control panel. To cancel the warning, press the confirm button.

If the water pump power is turned on and the waste water level rises to full (100%) a warning beep will be heard and a message will be displayed on the control panel. To cancel the warning, press the confirm button.

These warnings will not be repeated unless the water pump power switch is turned off and on again. This is to ensure the warning does not become a nuisance.

SWIFT COMMAND POWER CONTROL SYSTEM

3.4 Water Tank Heaters (frost protection) Operation

The EC652/653 features the ability to switch on water tank heater to provide frost protection for the fresh and waste tanks. The tank heaters will only operate if there is over 25% in the relevant water tank and the external temperature sensor detects that the temperature falls below 2 degrees C. If the temperature rises above this level the heaters will be switched off but the feature will remain on.

If the tank heaters are turned on before starting a journey, when the engine is started the tank heaters will remain on for the duration of the journey. When the engine is stopped the tank heaters will remain on for a further 15 minutes. If the engine is restarted within this 15 minute period the tank heaters will remain on, again for the duration of the journey.

When the engine is stopped the tank heaters will turn off after a 15 minute period. To turn them back on you will need to turn the control panel on and then use the tank heaters button on the water screen.

EC800 Water Tank Screen

Here you can view the on-board water tank levels and control water tank related features.

Tank Heaters

Press the tank heaters button to turn on / off the water tank heaters.

Level Alerts

Press the level alerts button turn on / off the water tank empty / full warnings.

Frost Alerts

Press the frost alerts button turn on / off the frost warnings.

Empty Fresh

Press this button to empty the fresh water tank (the press is followed by a confirm button to avoid accidental operation)

Empty Waste

Press this button to empty the waste water tank (the press is followed by a confirm button to avoid accidental operation)

Note: Tank valves are normally closed and will automatically close if the power is switched off or if they have been open for more than 10 minutes.

Note: When either tank is emptying the level gauge and the related button will flash. Press the empty button again and confirm if you wish to cancel the emptying process.

Note: Tank levels are measured in increments of 25%

Note: For fault finding please refer to the water level sensor and cleaning page in the services section

3.5 Lighting & Dimming Operation

The system contains up to two dimming channels for groups of lights which can be dimmed, turned on and turned off by this screen, and can also be turned on and off by furniture mounted switches.

The awning light on a motorhome can again be controlled by a number of items, the control panel awning light button, the App and the lock and unlock system (dependant on system setting being set to do so). Each item can toggle the light on or off.

The Swift Command App can be used to both configure and adjust the lighting and dimming.

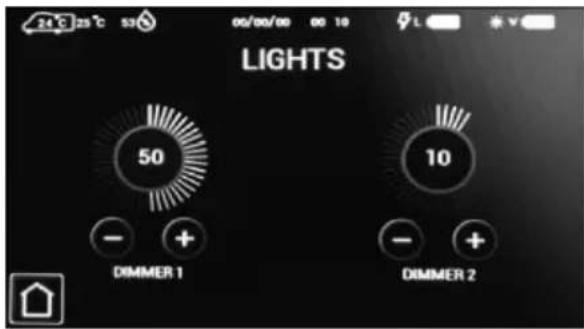

EC800 Lighting Screen

Here you can turn on / off or adjust the dimmable lighting levels.

On / Off

Press the centre of either dial to turn the dimmer channel on or off. In the off state the centre of the dial shows the word OFF. In the on state the level value is shown.

Up/Down

Press the (+) or (-) buttons to increase or decrease the dimming level.

SWIFT COMMAND POWER CONTROL SYSTEM

3.6 Solar Charge Management

The EC652/653 PSU incorporates a built-in solar charge management feature, which will monitor the input from a separate solar panel and regulator. The Solar Active symbol will be displayed on the control panel when there is an amount of energy available to charge the battery.

The voltage and current produced from the regulator can be viewed on the control panel display by selecting the Power menu item.

Depending on the charge state of the batteries, the solar power will be directed to the required battery and continuously monitored to ensure optimum operation.

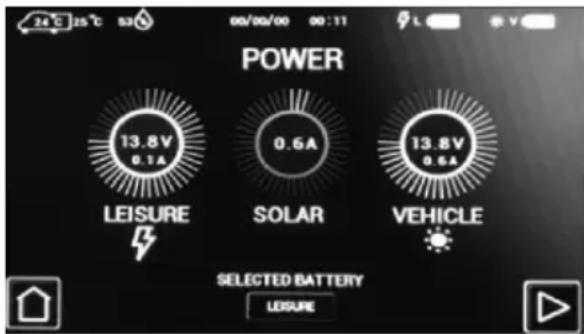

Power Screen (12V)

Here you can view battery levels, view charger and solar current and press the more button (right arrow) to view 230V current.

Selected Battery

Use the selected battery button to select which battery you wish to use or charge with the 230V charger.

230V Charging

If a battery is being charged by the 230V charger a 'lightning' symbol will be shown below the dial and adjacent to the relevant battery in the header area.

Solar Charging

If a battery is being charged by the solar panel a 'sun' symbol will be shown below the dial and adjacent to the relevant battery in the header area.

Leisure Dial

The leisure dial shows the voltage of the leisure battery. Press the centre of the dial to change to showing the leisure battery current (+ positive value is charging and - negative value is discharging)

Vehicle Dial

The leisure dial shows the voltage of the leisure battery. Press the centre of the dial to change to showing the leisure battery current (+ positive value is charging and - negative value is discharging)

Solar Dial

The solar dial shows the current being supplied to the system from the solar panel (if fitted).

3.7 Smart Charging

The EC653/653 PSU incorporates a smart charge feature, which monitors both leisure and vehicle batteries and automatically adjusts and directs the charger power (and solar power if a solar panel is installed) to maintain the leisure and vehicle batteries at an optimal level.

Note: If the vehicle battery is isolated using the Fiat ignition key isolator or similar, some smart charging functionality will be lost, and the available charge will be directed to the leisure battery.

3.8 AC Current Limiter Operation

The power control system features a 230V current monitoring system which allows the mains hook up current to be displayed on the control panel. The resolution of this reading is 0.5A. A current limit setting can be activated which if reached will switch off the electric elements in the heating system (and airconditioning if fitted and enabled), until such time as the current drops and the elements will be switched back on.

An example of this is if a kettle was to be operated whilst the heating was on and the current limit was reached then the heater electric element would be temporarily switched off, when the kettle had boiled then the heater element would be switched back on automatically.

This feature is particularly useful when abroad on a low current supply. Setting the value to OFF will disable this feature.

3.9 EC800 Power screen (230V)

Here you can view the 230V current and set the 230V current limiter.

AC Current

The dial on the left shows the 230V AC current being used by the vehicle (from the site hook-up).

Set Limit

Press the centre of the dial to turn the AC current limiter on or off. Press the (+) or (-) buttons to increase or decrease the limit level. When on, the system will monitor the incoming AC current and if the set limit is reached the 230V heating element within the heating system will be temporarily turned off until the current falls below the set limit.

Note: For this feature to work correctly the Heating mode must be set to Timer so that the system can control the heating appliance.

3.10 EC800 Heating Controls

There are a number of heating systems that can be controlled by the power control system. The system will be preconfigured by the manufacturer or supplying dealer. The related control panel screens are shown below.

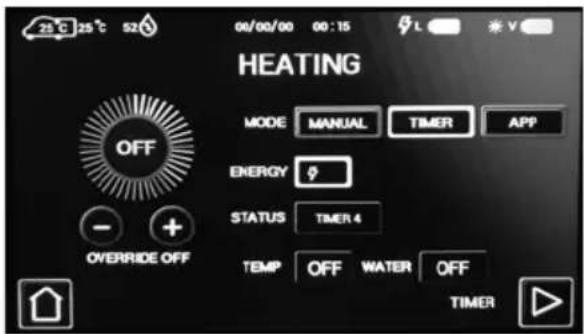

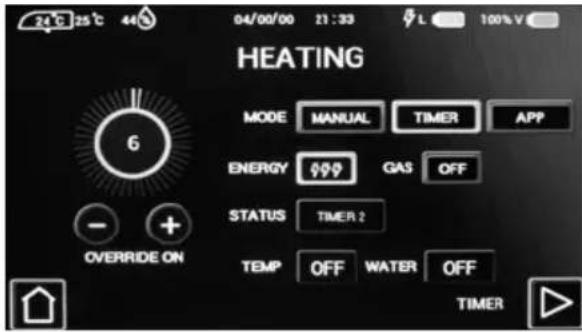

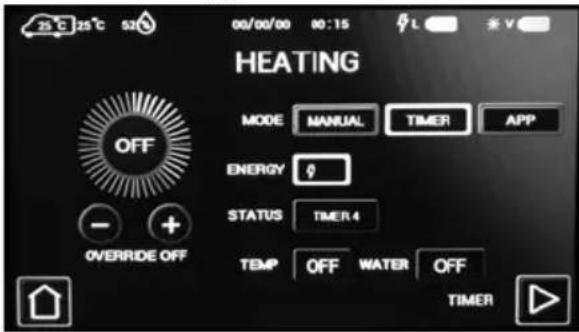

Heating screen

Here you can control the heating system, select energy and temperature and by pressing the more button (right arrow) you can set related timers.

Mode

Set the mode to Manual to use the controls supplied by the heating appliance manufacturer. Set the mode to Timer to control the appliance by the EC800 control panel.

Note: The mode will automatically change to App when you control the appliance by the Swift Command app.

Status Temp Water

The status box shows you which timer is currently active, and the temp and water boxes show the target room temperature and water heater setting for the active timer.

Override

When operating in timer mode you can temporarily 'override' the timer room temperature by using the override feature. Press the centre of the dial to turn the override on / off. Press the (+) or (-) buttons to increase or decrease the required emperature.

Note: You can also override the room temperature by making a change using the appliance control panel (Alde & Truma only). If you make a change the override will automatically activate. The override temperature will continue until the next timer event time.

SWIFT COMMAND POWER CONTROL SYSTEM

Truma CP+ Energy Alde 3020 Gas / Electric

Truma CP+ Energy

The energy, gas or electric setting will vary depending on the appliance type.

For Truma Combi+ heating press the energy button to step through the available settings. Gas is indicated by the flame symbol and electric indicated by the lightning symbol. Possible combinations are GAS, MIX1, MIX2, EL1 or EL2. One electric symbol=1KW and two=2KW.

Alde 3020 Gas / Electric

For Alde 3020 heating system press the gas button to enable or disable the use of gas. Press the electric button to step through the available electric settings. Gas is indicated by the flame symbol and electric indicated by the lightning symbol. Possible combinations are electric OFF, 1KW, 2KW or 3KW and gas ON or OFF. One electric symbol=1KW, two=2KW and three=3KW.

EC800 Refrigerator Controls

The main refrigerator settings can be set / controlled by the EC800 control panel or the Swift Command app. These controls work in parallel with the ones on the fridge control panel, so the settings cab be changed by either method.

The related control anel sceens are shown below.

For information in using the fridge from the Swift Command app, please see the Swift Command User Guide.

Fridge Screen. Here you can select the operating mode, set the cooling setting and view the temperature status.
	Mode Press mode button to select the required operating mode. Select off to turn the fridge off.
	Setting Use the setting (+) or (-) button to increase or decrease the cooling setting. 1 is low and 5 is maximum
	Temperature The temperature status display shows the temperature state of the fridge, with the optimal (central) position being the ideal. If the fridge is too warm, increase the cooling setting to reduce the temperature. If the fridge is too cold, reduce the cooling setting accordingly.
Note that the fridge will take time to react to a setting change so please allow sufficient time for the status to update after changing a setting or adding food.

3.11 Air-conditioning

If your vehicle has been fitted with a compatible air-conditioning unit then the settings can be set / controlled by the EC800 control panel, the air-conditioner infrared remote control or the Swift Command app.

The unit must be turned on with its power switch before it can be controlled. The related control panel screens are shown below. For information in using the airconditioning from the Swift Command app, please see the Swift Command User Guide.

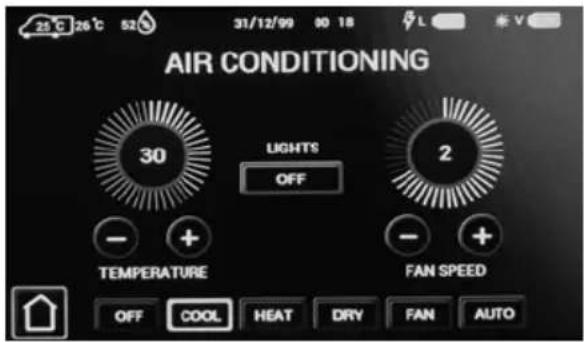

EC800 Air-conditioning screen

Here you can select the operating mode, set the target temperature and adjust the fan speed.

Lights

Press the lights button to control the LED light built into the air-conditioning unit. Select on or off to turn the light on or off, or select dimmed to allow the light to be controlled with other dimmable lighting in the vehicle.

Mode

Press mode button to select the required operating mode. Select off to turn the airconditioner off. Note that available modes vary according to the model of air-conditioner fitted.

Temperature

Use the temperature setting (+) or (-) buttons to increase or decrease the temperature setting. Available settings range from 5 degrees to 30 degrees Celsius.

Fan Speed

Use the fan speed setting (+) or (-) buttons to increase or decrease the fan setting.

Note that available settings vary according to the model of air-conditioner fitted.

3.12 EC800 Bluetooth Pairing & Other Controls

The EC800 control panel can display the software version number of the Control Panel, the PSU and the communicator / tracking unit. Press the settings button to view the setting screen which contains the related information.

The Bluetooth pairing process is covered below. Further help with Bluetooth pairing is available in the form of a help video which can be viewed on the Sargent website in the Support Information section.

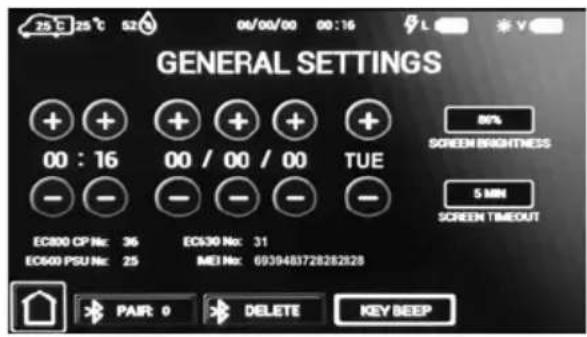

EC800 General settings screen

Here you can set the date & time, screen brightness and screen on time.

Time, Date & Day

Press the (+) or (-) buttons above or below each item to adjust the value. Note that the system uses the 24 hour clock.

Screen settings

Press on the screen brightness button to adjust the screen backlight level. Press on the screen timeout button to select the time that the screen will stay illuminated for after a press or touch.

Bluetooth Pair

Press the pair button to start pairing with your compatible Bluetooth device. The pair button border will illuminate when pairing is active. You can now pair your device to the system following the devices instructions. Pairing remains active for 1 minute and is then turned off automatically.

Bluetooth Delete

Press the delete button to delete any Bluetooth pairings from the system.

Key Beep

Use the key beep button to turn on / off the beep sound when a button is pressed.

Note: Setting changes are saved when you press the home button to return to the main screen.

3.13 Electric Step Operation

On vehicles fitted with an electric step, this is operated by a button near the entry door. Press and release the button to move the step in or out. One press of the button will move the step out; a further press will move the step in again.

If the engine is started the step will move in automatically, after a short warning buzzer. If this operation fails due to an obstacle a buzzer will sound continuously to warn that the step is still out, and therefore requires your attention.

SWIFT COMMAND POWER CONTROL SYSTEM

3.14 System Warnings

The system incorporates a number of warnings that are active at specific times. These are summarised below, and also covered by relevant sections of this manual.

When a warning is active a warning box will appear on the control panel screen containing a description of the warning along with an audible beeping sound.

Warning When Type
Fresh water level low	With pump turned on and fresh water level low (less than 25% full) Only available when an on-board tank is fitted.	Message on screen and 60 second audible beep
Waste water level full	With pump turned on and waste water level full. Only available when an on-board tank is fitted	Message on screen and 60 second audible beep
Leisure battery voltage low	with control panel power on and leisure battery selected (as active battery) and the voltage level falls below 10V	Message on screen and 60 second audible beep
	With control panel power on and leisure battery selected (as active battery) and the voltage level is below 9	Message on screen and 60 second audible beep. If no action taken after 30 seconds then the system will switch the power off to prevent severe discharge of the battery
	Note: This is an emergency cut off level to protect the battery from severe damage. You should not rely on this cut off level during normal operation, but manage your power consumption to a discharge level of 11.5V or above. This cut off only applies to power drawn from the battery by the leisure equipment that is controlled by the control panel power switch; it will not protect the battery from discharge by permanently connected equipment.
Leisure battery voltage high	With control panel power on or off and leisure battery is selected (as active battery) and the voltage level rises above 15V	Message on screen and repeated beeps from the control panel. The power is automatically turned off. The beeping will not stop until the fault is cleared.
Vehicle battery warnings	If the vehicle battery is selected instead of the leisure battery, then similar warnings to those described above are applied to the vehicle battery. The vehicle battery low warning level is 10.9V
Engine running W	When the engine is started the system power will be turned off	Message on screen stating 'engine running'.
Step extended	Step extended and engine started	Message on screen and warning buzzer
	Step jammed or obstructed

SWIFT COMMAND POWER CONTROL SYSTEM

Warning When Type
Mains lead (hook-up cable) still connected / plugged in	When the engine is started and the mains cable is still plugged in and the charger is switched on	Message on screen and repeated beeps from the control panel. The beeping will not stop until the hook-up lead is removed.
Heating system	When set to control the heating system, the EC800 control panel will show related heating system warnings, which will include the error number and error description	Message on screen and 60 second audible beep. Additional descriptive information is available when using the Swift Command App.
Refrigerator / Fridge Freezer	When set to control the refrigerator, the EC800 control panel will show related warnings which will include the error number and error description	Message on screen and 60 second audible beep. Additional descriptive information is available when using the Swift Command App.

SWIFT COMMAND POWER CONTROL SYSTEM

4 System Technical Information

The following section provides further technical information relating to the electrical system. You can also access the supporting technical manual from www.sargentltd.co.uk

4.1 Residual Current Device & Miniature Circuit Breakers

The Residual Current Device (RCD) is basically provided to protect the user from lethal electric shock. The RCD will turn off (trip) if the current flowing in the live conductor does not fully return down the neutral conductor, i.e. some current is passing through a person down to earth or through a faulty appliance.

To ensure the RCD is working correctly, the test button should be operated each time the vehicle is connected to the mains supply.

The Miniature Circuit Breakers (MCB's) operate in a similar way to traditional fuses and are provided to protect the wiring installation from overload or short circuit. If an overload occurs the MCB will switch off the supply. If this occurs you should investigate the cause of the fault before switching the MCB back on.

The following table shows the rating and circuit allocation for the three MCB's

4.2 Generator Usage

Caution should be used before connecting a generator to your motorhome.

⚠ WARNING: Never start or stop the generator while electrical loads are connected and switched on. Start the engine, let it stabilise and then connect the electrical load. When stopping the generator, disconnect the electrical load and let engine stabilise before switching off.

Whilst some generators use electronic inverter technology, others use a more basic principle to generate the 230V supply. Preference should be to choose a generator which produces a consistent sinusoidal wave form with accurate voltage control.

The Reverse Polarity warning light on the PSU may illuminate when using a Generator. This is a normal side effect when using some types of generator. Instead of connecting the neutral conductor to earth, some generators centre tap the earth connection making both neutral and live conductors 110V above earth. This 110V difference causes the neon polarity indicator to illuminate.

In most cases it is safe to use a generator, but please consult the generator handbook for further information.

MCB	Rating Output	Wire Colour Description
1 10	Amps White	230V Sockets
2 16	Amps White (Yellow for heater)	Extra 230V Sockets / Heating System
3 10	Amps Black (Blue for Whale water heater)		Fridge / Charger / Auxiliary devices / Whale Water Heater

4.3 Battery Charger

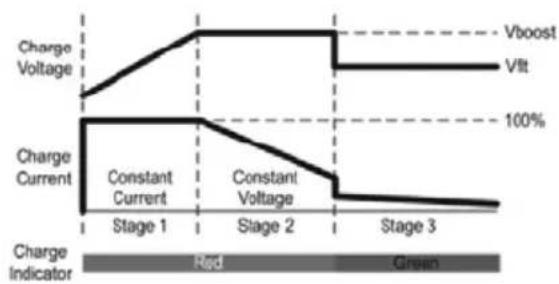

The system incorporates an intelligent threestage battery charger.

During stage 1 the battery voltage is increased gradually while the current is limited to start the charging process and protect the battery. At stage 2 the voltage rises to 14.4V to deliver the bulk charge to the battery. When the battery is charged, the voltage is decreased at stage 3 to 13.6V to deliver a float charge to maintain the battery in the fully charged state. The charger can be left switched on continuously as required.

The battery charger / power converter also provides power to the leisure equipment when the mains supply is connected. This module supplies DC to the leisure equipment up to a maximum of 25 Amps (300 Watts), therefore the available power is distributed between the leisure load and the battery, with the leisure load taking priority as per the following example:

Leisure Load	Available power for battery charging
5A 20A
10A 15A
15A 10A
20A 5A

WARNING: Under heavy loads the Battery Charger case may become hot. ALWAYS ensure the ventilation slots have a clear flow of air. Do not place combustible materials against / adjacent to the charger.

4.4 Leisure Battery

A) Type / Selection

For optimum performance and safety it is essential that only a proprietary brand LEISURE battery is used and it is suggested to select a battery from the NCC Verified Battery Scheme with a typical capacity of 75 to 120 Ah (Ampere / hours). Depending on the prospective use of the vehicle the correct type should be selected (A, B or C). A normal car battery is NOT suitable. This battery should always be connected when the system is in use.

The PSU is configured to work with standard lead acid leisure batteries, and in most cases is also compatible with the latest range of Absorbed Glass Matt (AGM) batteries. The system is also suitable for Lithium batteries with built-in Battery Management Systems BMS).

Before fitting non-standard batteries please check that the charging profile described in 3.3 is suitable for the type of battery by referring to the battery documentation or battery manufacturer.

Some vehicle installations can cater for two leisure batteries connected in parallel. In these cases it is recommended that two identical batteries are used.

The battery feed is fitted with an inline fuse between the battery and the electrical harness, and is usually located immediately outside the battery compartment or within 500mm of the battery. The maximum rating of this fuse is 20A per battery. If a single battery is fitted to a motorhome, this fuse could be up to 40A, however if two batteries are fitted each battery should be fused at a maximum of 20A.

SWIFT COMMAND POWER CONTROL SYSTEM

B) Installation & Removal

Always disconnect the 230V mains supply and turn the PSU green charger switch to the off position (button out) before removing or installing the battery.

When connecting the battery, ensure that the correct polarity is observed (black is negative [-] and red is positive [+] ) and that the terminals are securely fastened. Crocodile clips must not be used.

WARNING: Explosive gases may be present at the battery. Take care to prevent gases and sparks in the vicinity of the battery and do not smoke.

C) Operation / Servicing

Under normal circumstances it should not be necessary to remove the battery other than for routine inspection of the terminals and "topping up" of the battery fluid where applicable. Please see instructions supplied with the battery.

Note: Do not over discharge the battery. One of the most common causes of battery failure is when the battery is discharged below the recommended level of approximately 10V. Discharging a battery below this figure can cause permanent damage to one or more of the cells within the battery.

To prevent over discharge, the power control system incorporates a battery protect circuit that warns the users and then disconnects the batteries when they fall below set values.

If a warning is active a beep will be emitted by the control panel and information will be shown on the screen. To cancel the warning, press the select button. These warnings will not be repeated unless the power switch is turned off and on again. This is to ensure the warning does not become a nuisance.

Battery Voltage cut off	Action after cut off	Notes
Vehicle 10.9V Battery	selection is changed from Vehicle battery to Leisure battery. If the leisure battery is below 9V then a further warning will occur (see below).	This cut off level is designed to protect the vehicle battery from over discharge. The 10.9V level ensures there is sufficient power in the battery to run the vehicle electronics and start the vehicle. This cut off only applies to power drawn from the battery by theleisure equipment; it will not protect thebattery if you leave vehicle circuits switched on, such as the road lights.
Leisure 9V Power is turned off	This is an emergency cut off level toprotect the battery from severe damage. You should not rely on this cut off level during normal operation, but manage your power consumption to a discharge level of about 11.5V. This cut off only applies to power drawn from the battery by the leisure equipment that is controlled by the control panel power switch; it will not protect the battery from discharge by permanently connected equipment.

4.5 12 Volt DC Fuses

WARNING: When replacing fuses always replace a fuse with the correct value. NEVER replace with a higher value / rating as this could damage the wiring harness. If a replacement fuse 'blows' do not keep replacing the fuse as you could damage the wiring harness. Please investigate the fault and contact your dealer.

The following table shows the fuse allocation for the 13 fuses fitted to the PSU. Please note that fuses are dependant on PSU versions, so not all fuses may be present.

Fuse Rating Fuse		Colour	Description
1 25	Amps White	Charger
2	7.5 Amps	Brown	Permanent 12V / Alarm / Fridge Electronics
3	10 Amps	Red	12V Sockets / TV Amplifier
4 10	Amps Red Extractor Fans
5	5 Amps	Tan	Appliances / Hob Ignition / Toilet/ Whale Water Heater
6	10 Amps	Red	Water Pumps / Tank Heaters
7	7.5 Amps	Brown	Lighting, Main Lights & Dim Channel 1
8	7.5 Amps	Brown	Lighting, Entry Light & Dim Channel 2
9	10 Amps	Red	Alde Heating / Truma Heating / Whale Air Heater / Marker Lights / En-Route Sockets & Lights
10 10	Amps Red Auxiliary / Awning Light / Electric Step
11 20	Amps Yellow Fridge 12V
12 15	Amps Blue Towing 12V
13 15	Amps Blue Fridge D+

Note: Fuses (2-13) have a Red LED below them which provides indication that the fuse has blown. The charger fuse has a green LED which indicates that the charger is working.

The following table shows details of the fuse(s) located at the Leisure battery.

Fuse Rating Fuse		Colour	Description
Battery 1	40 Amps	White Fuse rem	otely located near battery
Battery 2	40 Amps	Brown	Fuse remotely located near battery 2 (where fitted)

SWIFT COMMAND POWER CONTROL SYSTEM

4.6 Common Fault Table

Fault Possible Cause Proposed Fix
No 230 volt output from PSU	Connecting lead between the site and Leisure Vehicle not connected	Check and connect lead
	RCD switched off Reset RCD
	RCD not operating correctly Reset MCB by switching OFF (down position) then back ON (up position), if the MCB continues to fail contact your Dealer as there is probably an equipment or wiring fault.
	No or deficient supply from site Contact site Warden for assistance.
	Other fault Contact your Dealer
Reverse Polarity light is illuminated on PSU	Mains Supply reversed? The reverse polarity light is designed to illuminate when the Live and Neutral supply has been reversed / crossed over. If the light illuminates there is a problem with the site supply or the cable connecting the supply to your vehicle. The light is designed to work on UK electrical supplies (where the neutral conductor is connected to earth at the sub station). If you are using your vehicle outside the UK this light may illuminate when no fault exists. In these cases consult the site warden for advice.
	Generator being used 'The Reverse Polarity warning light is on when using my Generator'. This is a normal side effect when using some types of generator. Instead of connecting the neutral conductor to earth, some generators centre tap the earth connection making both neutral and live conductors 110V above earth. This 110V difference causes the neon polarity indicator to illuminate. In most cases it is still safe to use the generator, but please consult the generator handbook for further information.

SWIFT COMMAND POWER CONTROL SYSTEM

Fault Possible Cause Proposed Fix
Control Panel Problems	Control Panel has no display Check	batteries and fuses, turn PSU isolate switch and charger switch on and ensure mains supply is connected.Check control panel connecting lead at PSU and behind Control Panel.Contact your Dealer.
	12V Power turns off Battery protect	feature has operated to protect the Vehicle battery and or the Leisure battery.Over voltage protection has been activated, the control panel will display a warning. A number of things can cause this but the most common is the solar panel, it is worth checking the regulator is connected correctly and operating within the correct parameters.Engine has been started, all equipment has been disconnected to meet EMC requirements.
	Control Panel locked / erratic function	Observe control panel handling instructions. Control panel software may have crashed. Reboot control panel by turning off the PSU isolate switch. Wait 30 seconds then turn the switch back on. Check with your dealer that your system has the latest software installed, as an update may be available.
No 12 volt output from PSU	No 230V supply Check all above
	Charger not switched on Turn charger switch on, switch will illuminate
	Battery not connected and / or charged	Install charged battery
	Power button on control panel not switched to on	Turn power on at control panel
	Battery flat / Battery fuse blown Recharge battery, check fuses, check charging voltage is present at battery.
	Fuse blown Check all fuses are intact and the correct value fuse is installed as per fuse table.
	Equipment switched off / unplugged	Check equipment is switched on and connected to the 12V supply
	Other fault Contact your Dealer

SWIFT COMMAND POWER CONTROL SYSTEM

Fault Possible Cause Proposed Fix
Pump not working	Fuse blown Replace fuse with correct value as per fuse table
	Pump turned off Turn pump on by pressing the pump button at the control panel
Comms not working	Fuse/s blown Replace fuse with correct value as per fuse table.
	Lights turned off Turn Lights on by pressing the lights button, use dimmer at the control panel.
Comms not working	Bluetooth not paired Using System Settings menu, select Bluetooth Pair option
	Bluetooth not active on Device Ensure that the handheld device has Bluetooth switched on and that the device supports the Bluetooth 4 standard (BLE)
	Bluetooth out of range Ensure the handheld device is within 7M of the middle of the motorhome

4.7 Contact details

Sargent Electrical Services Limited provide a technical help line during office hours. Please contact 01482 678981 if you require technical help.

For out of hour support please refer to the support section of the Sargent web site www.sargentltd.co.uk

5 Remote Access & Control

5.1 Swift Command App

The Swift Command app can be down loaded from the Apple App Store or the Android Play store.

A separate Swift Command User Guide is available which covers the operation of the app.

Before you can use the App with your motorhome you will need to create an account and sign up to the free communication service.

This is a simple process and will be explained further by your dealer at the vehicle handover. Additional information is available at www.swiftcommand.co.uk

5.2 Swift Command Web usage & Description

In addition to the mobile App, you can also use the same account and login details to access the Swift Command web site.

Here you can update and amend your details, look at location information and history, review system information and historical data as well as changing some system options and settings.

5.3 Swift Command SIM Coverage & Usage information

The EC600 system contains Mobile SIM with 36 month contract, which commences upon activation at the Dealership when your vehicle is linked to your account.

Below is a list of the countries covered by the SIM under a fair usage policy, a complete list is available at request.

Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Netherlands, Malta, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, United Kingdom.

For vehicles shipping direct to Australia or New Zealand a special world-wide SIM is fitted at the Swift factory.

Please note that if a UK specification vehicle is shipped to these countries the remote features will not operate.

5.4 Replacement parts

The Control panel contains a small lithium battery to maintain the clock when no other energy supplies are available this will last in excess of 5 years under normal conditions. The battery is a CR2032 3.0V

The EC630 Communication module contains a special backup battery pack which should last in excess of 3 years under normal conditions. The pack part number is 16308 available from Sargent.

5.5 Updates

From time to time there may be updates to the system firmware; these updates will be done at service intervals by your dealership.

6 Technical Data & Approvals

6.1 Equipment – EC652, EC653, EC800, EC635 & PX300

Outline Specification
INPUT 230V 230	Volts / 0 to 16 Amps +/- 10%
OUTPUT 230V	RCD protected, 2 x MCB outputs of 10A & 1 x MCB output of 16ASeparate switched channels for heating system and charger	Turn pump on by pressing the pump button at the control panel
INPUT 12V 2 x 20	A battery inputs via 2 x 4 way connectors
SOLAR INPUT	1 X Dedicated solar panel input capable of supporting 10A of solar power input (typically 180 to 200W) via a 2 way connector	Check the solar panel rating plate to ensure the maximum current is <= 10A
OUTPUT 12V	25A total output via multiple switched channels protected by 13 fused outputs
Integrated CHARGER	Input 220-240 Volts AC +/- 10%, Frequency 50 Hz +/- 6%, Current 3A max.DC Output 13.6 to 14.4 Volts nominal, Current 25 Amps max (300 Watts).
Signal INPUT	4 x Fresh water level, 4 x Waste water level, 1 x Engine running, plus multiple vehicle connections, sensor inputs for temperature & humidity	Fresh water negative sensed Waste water negative sensed
Data IN / OUT	CANBUS Data communication and power to Control Panel via 6 way connector CI-Bus Data communication to CI-Bus enabled devices via RJ11/12 connector
IP rating IP31
Operating temperature	Ambient 0 to 35°Celsius Charger case temperature with full load 65°C Max	Automatic shutdown and restart if overheated / overloaded
Dimensions
EC601, EC602, EC652 & EC653 PSU	Overall size (HxWxD) 180 x 305 x 135mm Clearances 75mm above, 50mm left & right	Weight 3.8 Kg
EC800 Control Panel	Overall size (HxWxD) 125 x 279 x 25mm Cut-out size (HxW) 108 x 173mm + switch area	Fixing centres 250mm X 74mm Weight 380g
EC635 Comms Module	Overall size (HxWxD) 55 x 116 x 85mm Weight 550g
EC840 Sensor O	overall size (HxWxD) 20 x 35 x 38mm Weight 10g

SWIFT COMMAND POWER CONTROL SYSTEM

6.2 Approvals

System: BSEN 1648-1, BSEN1648-2

compliant, BS7671: 2008 compliant

Residual Current Device: RCD 40A 30mA trip to BS EN 61008

Miniature Circuit Breakers: MCB's type C 6000A breaking capacity to BSEN 60898

Electro Magnetic Compatibility (EMC)

directive: 2004/108/EC Certificate CE20071224-1

Integrated Charger: BS EN 60335-1/2.29, 2006/95EC, IEC61000-3.2/3:1995, 1.

Low Voltage Directive: 2006/95EC TUV-014900-A1, EN55022, Class B, EN55024/Level 2

6.3 Declaration of Conformity

Equipment: Leisure Power Control System Model name: EC652, EC653, EC800, EC635 & PX300

I hereby declare that the equipment named above has been designed to comply with the relevant sections of the above referenced approvals. The unit complies with all essential requirements of the Directives.

Signed Name Position Manufacturer
	I L Sargent Technical Director Sargent Electrical Services LtdUnit 35, Tokenspire BusinessPark Woodmansey, Beverley EastYorkshire, United Kingdom

Whilst every effort has been made to ensure the accuracy and completeness of this document, no guarantee is given against errors or omissions. This document may be updated / improved over time therefore please check with your dealer / supplier for update information or visit www.sargentltd.co.uk

MOTORHOME BATTERY

Motorhome battery

WARNING: Use precaution when removing or replacing the battery, as batteries contain acid liquids which can cause severe injuries and damage when handled incorrectly. Refer to the cleaning and maintenance section. Please also take into consideration when manoeuvring a battery, that the weight may be in excess of 20kg.

Your motorhome has been fitted with one or two leisure batteries depending on size of vehicle and expected electrical loads. The battery will be housed in one of two ways: Within a floor mounted compartment

Interior view of a black electronic device with visible circuitry and wiring, placed on a wooden floor (no text or symbols)

Retained beneath the drivers seat or rear seating

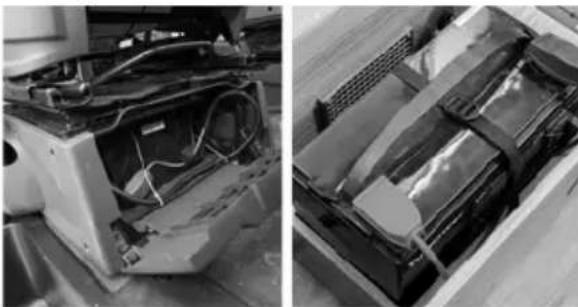

Two black-and-white photos showing internal components: one with exposed wiring and cable, the other with a battery pack (no visible text or symbols)

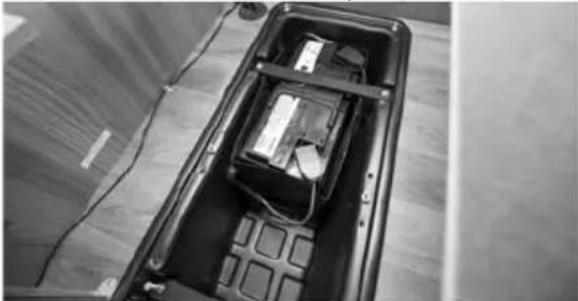

Floor mounted compartments are designed to hold the battery securely and to contain any electrolyte (acid) spillage. They are sealed from the habitation compartment and a breather pipe is fitted to ensure any build up of explosive gases (hydrogen) is vented to the outside. If a breather pipe is fitted it is important to ensure that any replacement batteries are also fitted with a breather pipe. The battery or batteries should only be positioned in the appropriate compartment, and be properly secured before travelling.

Note: The batteries fitted to your motorhome in floor mounted compartments must be kept upright.

When a leisure battery has been factory installed below the driver's seat or under a seat base, the battery type used is specific to that installation, and is of a type (Sealed AGM) that allows a battery to be installed in a vertical or horizontal orientation. Due to the construction of this type of battery, it is not necessary to vent the battery to the outside, and there is no requirement to check and maintain electrolyte levels.

⚠ WARNING: For your own safety, do not store anything other than the leisure battery in the battery compartment under the drivers seat

Battery removal

Step one

Remove the lower front seat fascia by pulling on the clip feature located centrally on the upper edge of the fascia. Using a small amount of the force the fascia can be pulled in upwards direction to fully detach it from the two lower clip positions.

Close-up of a person using a handheld device to adjust or install a black component (no visible text or symbols)

Close-up of a mechanical component with internal channels and mounting base (no visible text or symbols)

Step two

Release the battery harness by carefully cutting the zip ties which are securing it to the lower seat frame. Then disconnect the battery harness connector by pulling firmly on each of the large black connector plugs.

Close-up of a person adjusting a vehicle hood with a tool (no visible text or symbols)

Person assembling or adjusting mechanical components on a dark surface (no visible text or symbols)

Step three

Remove the two fabric straps by loosening the straps through the buckles.

Close-up of a hand holding a small object inside a vehicle hood (no visible text or symbols)

Step four

Pull the battery forward out from under the seat frame.

Person sitting on a vehicle surface with visible electrical components and a white box (no text or symbols)

Step five

Carefully cut through the zip ties which are securing the battery terminal covers in place and remove the covers. Demount the battery terminals using a 10mm spanner taking care not to short the terminals.

Close-up of a person wearing medical equipment with surgical tools (no visible text or symbols)

Close-up of hands assembling or adjusting a black mechanical component (no visible text or symbols)

Battery replacement

Step one

Place the new battery on the cab floor and remount the battery terminals using a 10mm spanner, taking care to observe the positive and negative terminals. Refit the terminal covers and secure in place using new zip ties.

Close-up of hands performing a manual task on a dark object (no visible text or symbols)

Step two

Ensuring that the buckle are face down. Feed the two fabric straps under the lower front and back bars. Hook the rear of the strap over the front top bar – this will prevent the strap being dragged backwards when sliding the battery into place.

Step three

Lie the battery on its side with the terminals closest to the floor. Slide the battery into position taking care not to drag the straps backward.

Close-up of hands operating a mechanical device with cables and components (no visible text or symbols)

Step four

Reach up above the battery and up through the centre of the seat base to draw the strap back from the top bar. Now the strap is located on top of the battery re-secure the straps through the buckles.

Close-up of a hand pressing down on a mechanical component (no visible text or symbols)

Close-up of hands holding a small object with visible wiring and components (no text or symbols)

MOTORHOME BATTERY

Step five

Tighten the strap as far as possible then slide the seat forward and passing the tails through the hole in the seat base. Then fully tighten the straps and place the tail straps under the seat when fully tightened. Ensure that the straps are located next to the battery terminals to limit movement of the battery.

Close-up of a hand pressing down on a dark surface with a circular object, possibly a gas stove or vent (no visible text or symbols)

Interior view of a vehicle showing internal components and wiring (no visible text or symbols)

Step six

Reattached the battery harness by firmly pushing the electrical connector back together, stow cable and secure using zip ties across the front the seat frame.

Step seven

Reattach the lower front seat fascia by pushing into lower clip positions first then rotating the fascia until the upper central clip engages.

Note: If an AGM battery is replaced, it must be replaced by an equivalent AGM battery which is suitable for a horizontal installation, and does not require venting to the outside.

It is recommended that a good quality leisure battery is always connected when the motor home electrical system is in use. Leisure batteries are a deep cycling rechargeable heavy duty 12v battery designed to provide power for lights and other electrical appliances. It should be remembered that batteries suitable for the electrical demands of a motorhome differ in design from those for use with a car, and whilst the system may operate with a car battery it is strongly recommended that only a rechargeable leisure type battery, maintained in good condition, is used. The battery should be kept topped up (charged) at all times. If two leisure batteries are fitted additional care is needed, as one battery deteriorates this can reduce the lifespan of the other.

Replacement batteries should be a proprietary brand leisure battery with a minimum 75Ah capacity. Replacement batteries should be checked dimensionally before purchasing, to ensure fitment within the battery compartment, as brands vary in size.

⚠ WARNING: When connecting the battery, ensure that the correct polarity is observed (black is negative and red/brown is positive) and that the terminals are securely fastened.

Note: Any replacement of an auxiliary battery shall be of the same type and specification as that originally fitted or specified by Swift.

WARNING: Your motorhome is fitted with Swift Command Tracker (by Sargent) which monitors battery voltage. If you plan to disconnect or remove your leisure battery for maintenance or external charging, then please contact the monitoring station before you remove or disconnect the battery. If a leisure battery is not fitted, please also contact the Tracker monitoring station before removing the mains hook up. The Swift Command Tracker monitoring station can be contacted on 0345 6027302.

Under normal circumstances it should not be necessary to remove the battery other than for routine inspection of terminals and (for non-AGM batteries) 'topping up'.

⚠ WARNING: Explosive gases may be present at the battery. Take care to prevent flames and sparks in the vicinity.

Your motorhome has been fitted with an in-line fuse between the battery terminal and the power supply unit. Do not use a higher rated fuse as this may cause damage to your motorhome.

⚠ WARNING: Switch off all appliances and lamps before connecting or disconnecting the battery. Open flames and smoking are prohibited around the battery compartment.

To preserve the life of your leisure battery and charger please observe the following:

1. Do not leave all 12v lights powered at the same time as this will drain your leisure battery more rapidly.
2. If all 12v lights must be powered together, ensure the battery is 'in-circuit' and that the battery charger is turned on.
3. For optimum performance use the transformer/charger unit with a leisure battery attached.
4. Please note the auxiliary battery or batteries supplied with your motorhome may not be fully charged and should be charged for a minimum of 24 hours before use. Battery performance may be affected by a number of things such as ambient temperature, age, state of charge etc.

Cleaning and maintenance (Driver and rear seating mounted batteries (AGM) and floor mounted battery components).

• Always remove the battery and the power cable before carrying out any maintenance of the product.
- Before removing the clamps switch off all electrical and gas appliances.
- Use a soft cloth or sponge and a non-acid/abrasive detergent when cleaning the battery tray and area.
- Before the camping season or extensive travelling, check the under seat area for wear on fitting and cables and replace if necessary.
- The cleaning of the battery area should only be done after all power sources have been switched off, in order to prevent a hazardous situations.

Solar panel connection point or Solar panel fitment

Depending on specification, a solar panel connection point, or a solar panel and regulator, may be installed in the motorhome.

Solar Panel Connection Point

If a connection point only has been included in the motorhome harness, a solar panel using the provision must provide a fused and regulated output. From the provided connection the supply is taken to the EC800 power supply unit. This facility is designed to be used with a maximum solar panel size of 150 watts – if a solar panel (or panels) of output greater than 150 watts are required, please contact Sargent Electrical Services or the Swift Group for further advice.

Solar charge directed to the power supply unit can then be distributed to the leisure battery, vehicle battery, or each battery in turn. For further details of selecting which battery receives the solar charge, please see the EC800 series instructions. Please note that solar charge can only be directed to both batteries in this way if the System Shutdown button is ON – if System Shutdown is OFF, any available solar charge will be directed to the vehicle battery only.

Solar panel installations should be undertaken by trained technicians who are familiar with the systems involved. Particular care should be taken when making connections to solar panels, which can generate high voltages ahead of a regulator when exposed to light.

Motorhomes without factory fit solar energy systems will have a two way connector present at a high level within furniture (i.e. within wardrobe, either visible or behind a

removable cover). The output from a regulator, rated to suit the chosen solar panel, should be connected to this point.

Factory fitted Solar Energy System

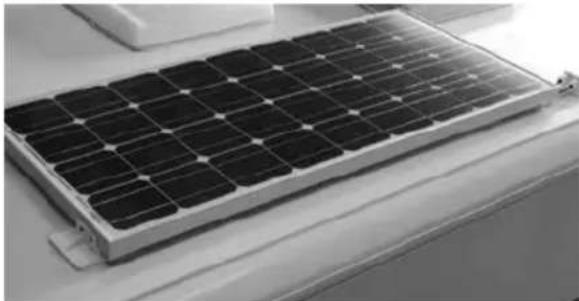

Close-up of a solar panel array on a white shelf (no visible text or symbols)

Depending on specification, your motorhome may be fitted with a solar panel of up to 120W, and if a solar panel is fitted then a suitable solar regulator will also be installed. This solar panel and regulator may provide additional 12v power whenever sunlight is available to the panel, and this will be directed to the EC800 power supply unit. Conditions allowing, and depending on the settings chosen in the EC800 power supply unit, the system can give the leisure battery a daily boost when camping without a mains 230V supply, or while the vehicle is in storage.

Regulator operation

The regulator operates automatically, turning on and off as required to charge and operate. When the solar panel is exposed to a source of sunlight the regulator starts to operate. When the voltage from the panel reaches a usable level, the Panel Output LED will flash indicating that the battery is being charged (see battery charging above). If insufficient power is being generated by the solar panel the regulator will turn off. The regulator checks the solar panel output every 30 seconds and turns on/off as required. On overcast days when the solar panel output is minimal the regulator can still deliver a small charge, and in this mode the LED's are not illuminated to conserve power.

Control Panel

When the solar panel is operating the leisure battery voltage display on the control panel will increase, however this does depend on the amount of load placed on the system and the amount of power being generated by the solar panel at that time.

Battery charging

If a leisure battery is fitted and requires charging the Charge Status LED will illuminate. Depending on the state of charge of the battery this LED will illuminate red for bulk charge (14.4V output) or green for float charge (13.6V output). It may take a few hours to several days to charge the battery depending on its state of charge. When the battery is fully charged the regulator will turn off to prevent overcharging of the battery. If the mains charger is also charging the same battery this can also cause the solar panel regulator to turn off.

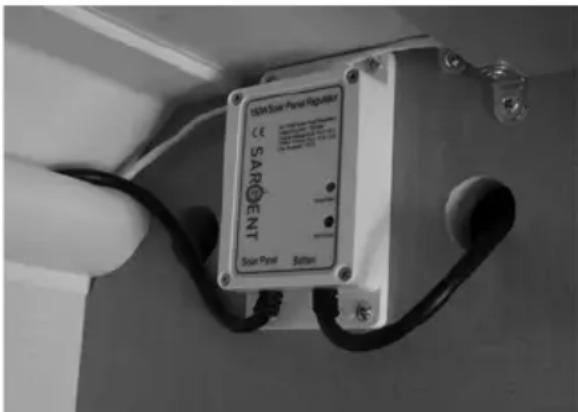

Note: This image is of a typical solar regulator, the appearance my vary

Maintenance and cleaning

The solar panel will require cleaning periodically in order to maintain the performance of the panel. A caravan, car shampoo or simple soap can be used, but do not use abrasive cleaners.

Accessory harnessing

Alarm Power Supply

A connection exists within the motorhome harness, which can be used as a power supply for an alarm or tracking system. For security reasons, information regarding this is not published; please contact your dealer for further information.

Satellite Power Supply

Dependant on specification, in many motorhomes a power supply harness is included for use with roof mounted satellite systems. This power supply is terminated in a 4-way connector marked 'SATELLITE', and carries 12v positive, 12v negative, and a signal which can be used to detect when the vehicle engine is running. (The engine run signal is required by some systems to automatically retract satellite dishes.

In addition, on Kon-Tiki models which have a decoder / receiver position. At this position an additional 230v socket is present for use with a decoder / receiver, and a 12v supply is present (2-way connector, 12v positive and 12v

negative), which can be used with an inverter (not supplied) to power a decoder/receiver when a mains supply is not available.

Tow Bar Connection

The addition of a tow bar requires an electronic interface to ensure compatibility between the combined road lighting on the motorhome and the trailer, and the road light monitoring system on the Fiat base vehicle.

Your motorhome already features an interface which enables the use of LED road lighting on the motorhome body, and there is connectivity on this device for the addition of a tow bar. It is important that the correct tow bar electrical harness is used, and your Swift Group dealer can order and fit this part for you. If a motorhome is fitted with reverse sensors and a tow bar, these reverse sensors will be disabled when a trailer is connected.

GENERATOR USAGE

Generator usage

Caution should be used before connecting a generator to your motorhome.

WARNING: Never start or stop the generator while electrical loads are connected and switched on. Start the engine, let it stabilise, then connect the electrical load. To stop engine, disconnect the electrical load and let engine stabilise before switching off.

Whilst some generators use invertor technology, others use a more basic principle to generate the 230v supply. Preference should be to choose a generator which produces a consistent sinusoidal wave form with accurate voltage control.

The reverse polarity warning light may illuminate when using a generator. This is a normal side effect when using some types of generator. Instead of connecting the neutral and live conductors 110v above earth. This 110v difference causes the neon polarity indicator to illuminate.

In most cases it is safe to use a generator, but please consult the generator handbook for further information.

Habitation relay

Habitation relays are fitted to motorhomes by manufacturers to comply with the following legislation:

1. The Road Vehicles (Construction and Use) Regulations 1986 Regulation 60 - Radio interference suppression
2. European Community Whole Vehicle Type Approval (ECWVTA) framework directive 2007/46/EC and EU Regulation 661/2009 (General Safety) mandates UNECE Regulation 10 (Vehicles with regard to Electromagnetic compatibility).

A habitation relay must be fitted by manufacturers, safe guarding the consumer, the purpose of the relay is to disable nonhomologated appliances/components whilst the vehicle is in transit.

Unintentional electromagnetic energy can be created by non-homologated devices within the habitation compartment, which could cause a malfunction of the base vehicles electronic systems/components, including safety critical items such as air bags, ABS braking etc.

In your motorhome the habitual relay is within the power supply unit.

ELECTRICAL FAULT FINDING

The Swift Group recommends that electrical fault finding is undertaken by a trained Technician familiar with the systems involved. The basic checks below are therefore limited to items that can be checked without the use of tools etc. If in any doubt please consult a Swift dealer.

Power Supply
Fault Remedy
No 230v output from PSU See Swift Command information
Reverse Polarity light illuminated See Swift Command information
Reverse Polarity light illuminated See Swift Command information
Control Panel Problems See Swift Command information

Appliance Not Operating
Fault Remedy
Error code or fault light displayed on appliance (eg fridge LCD display)	Check appliance specific information for next steps
No display at appliance controls Check power supplies are available (electric hook up, charger operating, battery in good state of charge). Majority of appliances will not be operational when engine is running.Ensure control panel is ON.Check appropriate fusing in Power Supply unit

Internal Lighting
Fault Remedy
Lighting not operational Check power supplies are available Check control panel is ONLocate furniture mounted switches, where appropriateCheck fuses on Power Supply UnitDetermine if light is LED or Tungsten / Halogen bulb, or Fluorescent tube – check and replace bulb, or entire fitting as appropriate

ELECTRICAL FAULT FINDING

Road Lighting
Fault Remedy
Dashboard warning light illuminated / groups of road lights inoperative	If Tow Bar fitted check trailer lighting / disconnect trailer to determine if this is the cause of the fault.Check fuses in Fiat dash for main road lighting (see Fiat handbook for details of which light groups are fused)Check fuse in Power Supply Unit for auxiliary marker lights (Amber side markers, Luton / upper rear markers)

VLM Fusebox

Your motorhome is fitted with a secondary VLM-5 interface, which is designed to work in conjunction with the Fiat base vehicle. The secondary VLM-5 allows the base vehicle to function with the LED rear lights and still inform the user if the directional indicators are functioning or not, via the base vehicle dash.

If a towed trailer is attached to this motorhome then the VLM-5 fusebox will still allow the status of the vehicle directional indicators to be relayed to the user along with informing the user if the directional indicator on the towed trailer are functioning correctly.

Electric Step Operation (When fitted)
Fault Remedy
Step will not automatically retract with engine start	Check fuses in Power Supply Unit.Check mechanical condition of step – clean / lubricate if appropriate.Check other functions that are linked to the running of the vehicle engine (i.e. fridge 12v operation). If these are also inoperative contact dealer.
Step does not respond to furniture switch	Check fuses in power supply unitCheck mechanical condition of step – clean / lubricate if appropriate.It is possible to link the operation of the step to the lock/unlock commands from the central locking keyfob. If this feature is enabled on your motorhome, check if operation of the step via the central locking keyfob is possible. To enable / disable the keyfob feature contact your dealer.
Power Supply
Fault Remedy
Fresh water level sensor gives incorrect readings	Use floor hatch within motorhome to access top of water tank, or top of tank in bed box if internal (Escape), remove sensor (4-screws) and clean probesIf problems persist, dealer assistance required for further fault finding.
Waste water level sensor gives incorrect readings	If possible, from below motorhome remove level sensor from top of waste tank, and clean probes. Alternatively, clean waste tank internal surfaces by flushing through with water or cleaning agent.If problems persist, dealer assistance required for further fault finding.

Battery Discharge
Fault Remedy
Leisure battery discharging earlier than anticipated	Have condition of leisure battery checked by dealer or tyre/ exhaust/battery specialistIf motorhome is not in use, ensure 'SYSTEM SHUTDOWN' button on Power Supply Unit is being used to isolate all circuitsIf motorhome is in use, see consumption table in handbook – are several items perating simultaneously / is total load likely to cause discharge.Check charger is operational when mains hook up is present, and that the charger is allowed sufficient time to replenish battery / batteries.
Vehicle battery discharging earlier than anticipated	If appropriate to battery, check condition and top-up battery fluid if requiredHave condition of leisure battery checked by dealer or tyre/ exhaust/battery specialistIf motorhome is not in use, see base vehicle handbook section headed 'periods of inactivity'. Consider use of vehicle battery isolatorIf motorhome is in use, check Power Supply Unit is configured to charge / maintain both leisure and vehicle batteries. (Contact dealer for further assistance if unsure)

ELECTRICAL FAULT FINDING

Audiovisual Equipment
Fault Remedy
Rear view camera system inoperative when reversing (if fitted)	Check if camera system can be switched on manually, using power button on rear view mirror.
	Check Reverse Lights are operational on rear of motorhome. (Check base vehicle fuses if reverse lights are inoperative.)
Rear view camera system inoperative whether moving forward or reversing (if fitted)	Check fuses in habitation area fusebox (Power Supply Unit)
	Radio will not remain on indefinitely when vehicle ignition is switched off. Please see below or the Fiat handbook.
Radio switches off intermittently

Cab Radio - Timer Settings

On all vehicles fitted with a Fiat entertainment system, the amount of time the entertainment system will stay ON, after the ignition is switched OFF, can be adjusted. To adjust the setting please follow the relevant method below:

Fiat U-Connect Radio 3.0 (without satellite navigation)

• Switch on Radio
• Press MENU to access the menu
• Turn Right hand dial and select SYSTEM SETTINGS
• Turn right hand dial to select POWER OFF 180MIN DELAY
• Press right hand dial to select (tick box fills)
• Press BACK to exit menu system
  Fiat U-Connect Radio Nav 5.0 (With satellite navigation)
• Press SETTINGS which is the top right button (symbol of two gear wheels)
• Using the dial to the right of the display, scroll to VEHICLE OFF OPTIONS
• Select RADIO OFF DELAY using either the touch screen or the right hand dial
• Choose the 180 MIN setting (alternative is 0 MIN) using the touch screen
• Press DONE on the touch screen, and exit the menu system

For further details of the features within the Fiat entertainment systems, please follow the links below, or see the paper copy supplied with the vehicle.

Fiat U-Connect Radio 3.0 (without satellite navigation)

http://aftersales.fiat.com/eLumData/EN/77/290_DUCATO/77_290_DUCATO_530.07.530_EN_01_03.14_SI_UCR5/77_290_DUCATO_530.07.530_EN_01_03.14_SI_UCR5.pdf

Fiat U-Connect Radio Nav 5.0 (With satellite navigation)

http://aftersales.fiat.com/eLumData/EN/77/290_DUCATO/77_290_DUCATO_530.08.170_EN_01_07.14_SI_UCRN5/77_290_DUCATO_530.08.170_EN_01_07.14_SI_UCRN5.pdf

If you are unable to view the documents on line, please contact the supplier, your dealer or Swift for an electronic or paper copy.

FITTED EQUIPMENT

Truma Combi 108

Truma CP Plus controller (when fitted) 110

Truma Combi 4E/6E boiler 110

ALDE Compact 3020 HE boiler ....

ALDE zonal control....

Ebeco Underfloor Heating 116

Dometic absorption refrigerators 116

Thetford Cooker 3 burner and hotplate 117

Thetford K1520 122

Microwave oven 124

Extractor hood Dometic CK500 126

Thetford cassette toilet 127

Windows and blinds 127

Skyview operating instructions 130

Roof lights 132

Omnistep single step 136

Awnings/Thule Omnistor 4900, 6200 and 8000 side awning....137

Kon-Tiki Sport 524 awning 139

Reverse camera system 140

Reverse sensor system 140

Cycle rack mounting bars 141

Seat swivel (Driver / Passenger) 142

Side Lockers 142

Bunk and luton bed safety 143

Alu-line Drop down bed mechanism....143

Tables and new table legs....144

Table storage 145

TV inlet 146

TV aerial 147

TV brackets 147

Motorhome WIFI 147

Trigger shower heads 148

External BBQ point 148

External shower 149

Colour reference 149

TRUMA COMBI BOILER

Note: The instructions covering fitted equipment to your motorhome were correct at the time of going to print, and where possible, hyperlinks and QR codes have been used, which provide links to online versions of user instructions. Owners handbooks are updated annually and we take great care to try and ensure their accuracy. However, the Swift Group Limited cannot accept responsibility for any changes that may be made in specification or operating instructions to the equipment described in this section after the time of going to press.

Every care is taken to ensure that the information provided in this handbook is correct and easy to understand.

Separate manufacturers' leaflets on many of the components are also included in the Owner's Pack provided with this motorhome and we recommend that you compare the instructions provided via the handbook with the component manufacturers literature, to ensure the information provided is as accurate as possible.

If you are in any doubt as to how to operate the equipment in your motorhome, please contact the component manufacturer's service department on the telephone number shown on their component leaflet. If you remain in any doubt, please contact your supplying dealer.

Notice: In the interest of safety, replacement parts for an appliance shall conform to the appliance manufacturer's specifications and should be fitted by them or their authorised agents.

Truma Combination Boiler

Exterior view of a cylindrical device with black and gray casing (no visible text or symbols)

The Truma Combination Boiler can be used in the following ways:

To provide combined room heating and water heating.

- Simultaneous heating of the room, and water contained within the appliance. Often referred to as Winter Mode.

To provide water heating only.

- Heating of the water within the appliance, without room heating. Often referred to as Summer Mode.

To provide room heating only, without water heating.

- If the water system has not been primed, meaning that there is no water within the appliance, it is still possible to use the Combination Boiler to heat the room.

Dual Fuel operation

The Truma Combination boiler has been designed to run on gas or electric power, and the optimum performance is obtained when used in dual fuel mode, that is running on gas and electric at the same time.

Running in dual mode has the following benefits:

- The fastest possible heat up time, as the gas burner combines with an electric element to provide energy to heat your hot water and warm your motorhome.

- The intelligent heat management system automatically senses when the water and room are nearing the required temperature and then automatically turns off your gas burner and operates solely on electric power, conserving your gas.

- As hot water is used or the room cools the Truma combination heater will continue to operate on electric only, until a point where the demands necessitate that additional gas power is also required. An example for such a demand could be for instance if the exterior door was left open and the room temperature dropped by 10 degrees in the space of a few minutes, in this case the intelligent heat management system would decide the best way to get the room back to the required temperature, would be to use both gas and electric at the same time.

Operating the Truma Combination system on electric or gas only will result in longer heat up times for hot water, and room temperature, in comparison to operating on dual fuel.

Operating on electric only may not in all cases maintain a comfortable room temperature especially in colder conditions.

Whilst taking energy consumption and the environment into account, consider using the Combi in Summer mode (water heating only) when room or space heating is not required, but may be needed in the near future. This ensures the appliance is held at the same temperature as the hot water setting chosen, and this can reduce the time taken to provide warm air into the living area, when room or space heating is then selected.

Truma Heating System and Air Flow

The Swift Group undertakes considerable testing of our products in cold chambers to ensure they meet the BS EN 1649 Grade 3 standard and are usable in cold temperatures.

Butterfly outlets

The majority of air ducting outlets on models equipped with Truma Combi heating systems, are of the butterfly type. These may be opened or closed by moving the flap within the fitting, to adjust the balance of the heating output throughout the motorhome. This can help offset differences in blown air output, between outlets close to the heating appliance, and those greater distance away from the heating appliance.

This can also help adjust the temperature of the bathroom, relative to the temperature of the main living area and/or bedroom.

When these butterflies are closed in conjunction with a high heating system output, and therefore a high fan speed, a slight whistling sound can occur. In this case, opening the outlet slightly will reduce or remove the noise.

Closing too many outlets when the heating system is producing a high output, can cause the appliance to reach high operating temperatures. This does not in general terms effect the appliance, but can cause the appliance to automatically shut down. This can cause an interruption of the heating of the motorhome, however heating will resume when the appliance temperatures have reduced to a lower level.

The output of the appliance, and therefore the output of the blown air outlets, will generally be higher when using Gas or Duel Fuel operation. Electric only operation of the heating is rated at up to 1.8kW, whereas Gas (or Dual Fuel) operation is rated up to 4kW (3.8kW) or 6kW (5.8kW), depending which model or Combi is fitted.

The blown air fittings can also be rotated to adjust the direction of air leaving the outlet, as shown in the photo.

Close-up of a circular mechanical component with bidirectional arrows indicating rotational motion (no text or symbols)

Truma Combination Boiler Control Panel and Appliance Instructions

Please read the user instructions before using the heating system. The instructions include warnings regarding the safe use of the system, and no liability whatsoever can be accepted for damage or injury resulting from failure to observe the instructions.

TRUMA DIGITAL TIMER CONTROLS

The heating system can be controlled by a Truma CP+ controller, or the Swift Command control panel, App., or remote control system.

For Swift Command functions please see the Swift Command literature and details within this handbook.

For use of the CP Plus controller, and general user instructions for the heating system appliance, please read the Truma information available at the following locations:

CP Plus Controller

https://www.truma.com/uk/en/products/truma-inet-system/truma-cp-plus.html

Combi 4 Gas/Electric and Combi 6 Gas/Electric appliances

https://www.truma.com/uk/en/products/truma-heater/truma-combi-4.html

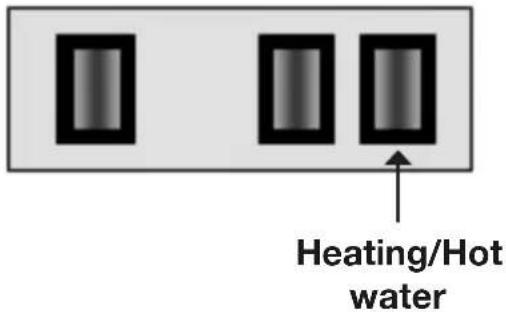

Electrical Operation of Truma Combination Boiler

Before the heating system is used for heating using electrical (230v) energy, the 230v isolation button on the Sargent Power Supply Unit must be switched ON, as shown in the image below. To confirm a supply is available, the button will be illuminated when a power supply (mains hook up) is connected and the button is ON.

Troubleshooting instructions (Combi heater)

In the event of a problem occurring, a warning or error code will be displayed on the Truma CP Plus control panel, along with a warning triangle. Further warning information will also be displayed on the Swift Command control panel.

The Truma combi boiler (heater and water) has two styles of error code warnings which are shown on the CP+ display panel. Depending on the nature of the fault, the boiler will require resetting in a slightly different manner, depending on the fault.

• Solid error warning code
• Flashing error warning code

Before trying to reset any faults please check that the 12v supply is on, and depending on which energy source is going to be used for heating, either mains electricity is available and switched on, and/or that the gas bottle is open and ready to dispense gas.

The following table on the next page describes causes and remedies to the various fault codes that may be displayed on the Truma control panel.

Once the fault has been rectified the fault can be reset via the control panel

SOLID CODE

Using the control dial on the cp+ panel scroll down to the bottom line where the triangle appears.

• Press this button to acknowledge the error
• The error code and triangle should disappear if the fault has been rectified

FLASHING CODE

• Scroll round (as above) to acknowledge the error on the panel
• Leave the panel UNTOUCHED for 15 minutes – This allows the user to check that fuel sources are available, and is a regulatory time frame
• After 15 minutes the triangle will become solid
• The panel can be reset as per the above process for SOLID

If the CP+ panel is reset 5 times, without the fault being rectified the fault will become a 'FLASHING' CODE and will be locked for 15

TROUBLE SHOOTING GUIDE (COMBI GAS HEATER)

minutes. If the control panel (cp+) is touched within 15 minutes, the 15 minute 'count' will restart. It is imperative that the panel is left untouched during this time.

Truma Customer Service can be contacted on 01283 587960 or [e-mail] if you require further assistance

Error code	Cause Remedy
#17 Summer mode with empty water container		Switch heater off and allow to cool. Fill boiler with water
#18 Warm air temperature exceeded:
#21 Room temperature sensor or cable faulty		Inspect the room temperature sensor cable, replace if faulty
		Check the resistance of the room temperature sensor. 15^ - 16.2 kOhm / 20^ - 12,6 kOhm / 25^ - 10.0 kOhm Replace room temperature sensor if faulty
#24 Risk	of low voltage. Battery voltage is too low < 10.4V	Charge battery
#29 Frost	Control heating element has a short circuit	Disconnect heating element plug from electronic control unit. Replace heating element
#42 Open window above cowl (window switch)		Clode window
#43 Over voltage > 16.4V Check battery		voltage / voltage sources such as the charger
#44 Low voltage. Battery voltage is too low <10.0V		Charge battery. If necessary replace old battery
#45 No 2	30 V operating voltage Restore	230 V operating voltage
	230 V fuse defective Replace	230 V fuse (see Combi operating instructions)
	Overheating protection has been triggered	Reset overheating protection (see Combi operating instructions)

TROUBLE SHOOTING GUIDE (COMBI GAS HEATER)

Error code	Cause Remedy
#112#121#122#202#211#212	Gas cylinder empty Replacing	a gas cylinder
	Gas cylinder or quick-acting valve in the gas supply line closed	Check gas supply and open valves
	Gas pressure regulation system iced up	Use regulator heater (EisEx)
	Butane content in the gas cylinder too high	Use propane. Butane is unsuitable for heating, particularly at temperatures lower than 10 °C.
	Combustion air infeed or exhaust outlet is sealed	Inspect openings for obstructions (slush, ice, leaves, etc.) and remove any obstructions
	Gas pressure regulation system faulty	Inspect / replace gas pressure regulation system
#255 Heater has no 12 V power supply		Ensure 12 V power supply
		No connection between heater and control panel
#301#417	Overvoltage > 16.4 V Check battery voltage / voltage sources such as the charger
#303#411	Risk of low voltage. Battery voltage is too low < 10.4V	Charge battery
#401 Summer mode with empty water container		Switch heater off and allow to cool. Fill boiler with water
#402 Open window above cowl (window switch)		Clode window
#407 Overvoltage > 16.4V Check battery voltage / voltage sources such as the charger
#408 Low voltage. Battery voltage is too low <10.0V		Charge battery. If necessary replace old battery
#412 No	230 V operating voltage Restore	230 V operating voltage
	230 V fuse defective Replace 230 V fuse (see Combi operating instructions)
	Overheating protection has been triggered	Reset overheating protection (see Combi operating instructions)
#419 Gas cylinder empty Wait 15 minutes		and reset fault
#507 Gas cylinder empty Replacing a gas cylinder
#514 The 12V supply has been interrupted		Ensure the control panel of caravan / motorhome is switched on. Ensure charger is switched on and / or battery is connected

TROUBLE SHOOTING GUIDE (COMBI GAS HEATER)

Error code	Cause Remedy
# 516 Gas	cylinder or quick-acting valve in the gas supply line closed	Check gas supply and open valves
# 517 Gas	pressure regulation system iced up	Use regulator heater (EisEx)
	Butane content in the gas cylinder too high	Use propane. Butane is unsuitable for heating, particularly at temperatures lower than 10°C.
	Gas pressure regulation system faulty	Inspect / replace gas pressure regulation system
	Gas pressure regulation system faulty	Inspect / replace gas pressure regulation system
# 607 Max. number of fault resets reached		Wait 15 minutes and reset fault
# 621 Room temperature sensor or cable faulty		temperature
		Check the resistance of the room temperature sensor.15 °C – 16.2 kOhm / 20 °C – 12.6 kOhm / 25 °C – 10.0 kOhmReplace room temperature sensor if faulty
# 624 FrostControl heating element has a short circuit		Disconnect heating element plug from electronic control unit. Replace heating element

If these measures do not remedy the fault or if fault codes are displayed that you cannot find in the troubleshooting guide, contact Truma Service.

ALDE BOILER

Alde Compact 3020HE Boiler

The Alde Boiler can be used in the following ways:

To provide combined room heating and water heating.

- Simultaneous heating of the room, and water contained within the appliance.

To provide water heating only.

• Heating of the water within the appliance, without room heating.

To provide room heating only, without water heating.

- If the water system has not been primed, meaning that there is no water within the appliance, it is still possible to use the Alde 3020HE to heat the room.

Alde 3020HE Control Panel and Appliance Instructions

Please read the user instructions before using the heating system. The instructions include warnings regarding the safe use of the system, and no liability whatsoever can be accepted for damage or injury resulting from failure to observe the instructions.

The heating system can be controlled by the Alde 3020 colour touch screen controller, or the Swift Command control panel, App., or remote control system.

For Swift Command functions please see the Swift Command literature and details within this handbook.

For use of the 3020 colour touch screen control panel, and the 3020HE system appliance, please read the information available at the following locations:

3020 Alde Heating System

http://www.alde.co.uk/downloads/alde_3020_user.pdf#page=17

Electrical Operation of Alde 3020HE Heating System

Before the heating system is used for heating using electrical (230v) energy, the 230v isolation button on the Sargent Power Supply Unit must be switched ON, as shown in the image below. To confirm a supply is available, the button will be illuminated when a power supply (mains hook up) is connected and the button is ON.

Alde Heat Exchanger

The Kon-Tiki range (excludes Sport) of motorhomes is fitted with an Alde heat exchanger, which transfers heat from the engine of the motorhome (when available) to the heating system in the habitation area of the motorhome.

The diagram below shows a typical heating circuit, with the heat exchanger highlighted. The heat exchanger provides a link, via a series of plates, between the engine coolant fluid from the base vehicle, and the glycol fluid in the Alde heating circuit: At no time though do these two fluids mix, so the levels of each fluid must be maintained separately.

To use the Heat Exchanger

The Alde heating system must be switched on, while the motorhome engine is running, to use the heat exchanger. The following settings on the Alde control panel are suggested:

Turn Alde heating system ON using power button at bottom left of panel

Press MENU button at bottom right of panel Using the MINUS (-) and PLUS (+) touch screen settings on the top row of the panel (Thermometer symbol) to select a desired room temperature.

During en-route use the water temperature setting on the second row of the touch screen (Shower symbol) is not relevant, and can be left in its previous setting.

Alde Zonal Control

The Kon-Tiki range (excludes Sport) of motorhomes is fitted with a second thermostat, which can be used to control the heating system.

In normal use (and on other ranges), the room temperature is measured by a sensor within the Alde touch screen control panel. With the Zonal control, it is possible to select room temperature measurement at this control panel position, or, via the secondary temperature sensor fitted in the rear lounge or sleeping area.

Exterior view of a cabinet or storage unit with two doors and a handle (no visible text or symbols)

Typical 2nd thermostat and switch installation

The 2nd sensor is a circular furniture mounted device, which has the word 'Alde' embossed on its surface. Next to the sensor, a Black round switch will feature '0' and '1' markings.

With the switch in the '0' position, the room temperature will be measured at the Alde touch screen control panel.

With the switch in the '1' position, the room temperature will be measured at the 2nd temperature sensor position.

EBECO Floor Heating

The Kon-Tiki range (excludes Sport) of motorhomes has an Ebeco floor heating system fitted, in layout specific areas of each motorhome. Typically this is in the front lounge area of the motorhome.

The floor heating is electrically operated, and is completely separate to the Alde heating system also installed. The motorhome must be connected to a mains (230v) supply, in order to operate the floor heating. An isolation switch normally located on a bed front close to the motorhome Power Supply Unit, with a Red illuminated indicator, is used to switch the floor heating ON or OFF. When the Red LED is on, the floor heating is ON.

The floor heating is not intended as a heat source for the entire motorhome; instead, the floor heating will raise the surface temperature of the motorhome floor, to increase comfort. The floor temperature will be automatically maintained at a pre-set level. If adding aftermarket equipment to the motorhome, do not drill through or screw into the floor in areas that are heated.

Dometic absorption refrigerator

Before you start using the refrigerator, please read the operating instructions carefully.

These instructions provide you with the necessary guidance for the proper use of your refrigerator. Observe in particular the safety instructions. Observation of the instructions and handling recommendations is important for dealing with the refrigerator safely and for protecting you from injury and the refrigerator from damage. You must understand what you have read before you carry out a task.

Keep these instructions in a safe place close to the refrigerator so they may be referred to at any time.

Your motorhome is fitted with an absorption refrigerator from the Dometic range. The exact model fitted varies, and the model fitted can be confirmed by the data label fixed within

the fridge compartment. This label will feature a model number in the format RM8406, RMS8556, RML9336L, RMD8556 or similar.

Using this model number, please read the user instructions for the refrigerator, which are available from the following location:

http://td.dometicgroup.com/swift.php

If you are unable to view the documents on line, please contact the supplier, your dealer or Swift for an electronic or paper copy.

Edge / Escape / Escape Compact Thetford Triplex Cooker

Cooker 3 burner with combined grill and oven / cooker 3 burner + electric hotplate with separate grill and oven

Burner operation

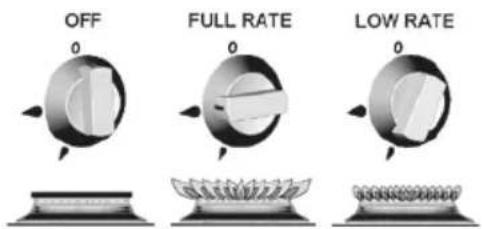

Fig. 1

Important

• Although each burner will support pans from 10 to 22cm , care should be taken not to overload the appliance as performance may be reduced.
  • The following pan sizes are the maximum:
• Auxiliary Burner:- ∅200mm Semi-Rapid Burner:- 2x ∅200mm or 1x ∅220mm with 1x ∅180mm

Electric Hotplate:- ∅180mm

• When using small pans the flames should not spread beyond the base of the pan as this will reduce the efficiency of the burner.
• Avoid old or misshapen pans as these may cause instability.
• The lid must be opened fully prior to using the hotplate burners.

Using the Hotplate Gas Burners

1. Ensure gas cylinder is connected and turned on and the shut off valve at the manifold is open. In the event of a gas smell turn off at gas cylinder and contact supplier.
2. Flame supervision: Each burner is controlled individually and is monitored by a thermocouple probe. In the event of the burner flames being accidentally extinguished, turn off the burner control and do not attempt to re-ignite the burner for at least one minute.
3. To light: Push in the control knob and turn to full rate – see Fig.1. Hold a lighted match or taper to the burner and push the control knob in and hold. It is necessary to hold the knob depressed after the burner has ignited for approximately 10 - 15 seconds, to allow the thermocouple probe to reach temperature, before releasing the knob. Should the flame go out when the knob is released, the procedure should be repeated holding the knob depressed for slightly longer.
4. For models fitted with Spark Ignition the procedure is similar except that the burner can be ignited by depressing the ignition button, which is located on the fascia. If the burner has not lit within 15 seconds the control knob should be released and the burner left for at least 1 minute before a further attempt to ignite the burner.
5. For simmering, turn the knob further anticlockwise to the low rate position.
6. To turn off: Turn the control knob until the line on the control knob is aligned with the dot on the control panel. Always make sure the control knob is in the off position when you have finished using the hotplate burners.

THETFORD COOKER

WARNING:

• Glass lids may shatter when heated. Turn off the hotplate and allow it to cool before closing the glass lid.
• Remove all spillage from the surface of the glass lid before opening.
• The glass lid has the tendency to snap shut towards the end of lowering.
• This is caused by the travel lock action of the hinges as it is activated.
• Make sure all fingers are removed from appliance when closing the lid.

WARNING: The use of the gas hobs will herate heat. We recommend, to avoid cess build-up of heat around the cooker, a, the window is left opened when cooking a allow for additional ventilation.

WARNING: (ESCAPE COMPACT):

Do not use the hob unless the bed is lifted to the highest stowage position.

IMPORTANT

• Depending on specification, your appliance may be fitted with a glass lid shut-off system, which cuts off the power to all hotplate burners (gas and electric) if the lid is closed.
• Ensure the glass lid is in the open and upright position before turning on the hotplate burners.
• Not all models are fitted with the shut-off system.

Note: The cooker has a glass lid safety shut off switch that turns off the gas hob burners and electrical hotplate, when the glass lid is placed down on the hob. The grill and oven functions will still operate as normal, with lid up or down.

Operation

WARNING:

• The grill must only be used with the door open.
• On combined grill and oven cookers the heat deflector below the fascia should be pulled out prior to lighting the grill. Never adjust the heat deflector position without using hand protection i.e. oven gloves. See Fig. 2

On separate grill and oven cookers the grill area can get hot when the oven is in use, even if the grill is switched off.

- Care should be taken when removing pans from the grill, i.e. use of oven gloves, and by making use of the removal grill pan handle.

Important

• The grill pan supplied is multi functional, for use in grill or oven.
• The handle design allows removal or insertion whilst the pan is in use.
• Always remove the handle when the pan is in use.
• The grill MUST only be used with the door open.

Using the Grill

Interior view of a kitchen appliance with wooden panels and a door, labeled Fig. 2 (no visible text or symbols on the main subject)

1. Ensure gas cylinder/supply is connected and turned on. In the event of a gas smell turn off at gas cylinder/mains and contact supplier.

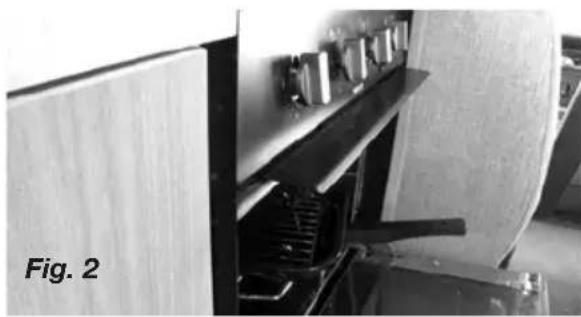

2. To light: Open door, oull out heat shield (Fig. 2) push in the control knob and turn to full rate – see Fig 1 (page 117). Hold a lighted match or taper to the burner and push the control knob in and hold. The burner should ignite and the control knob should be held in for 10 - 15 seconds before release.

If the burner goes out, repeat procedure holding control knob for slightly longer.

1. For models fitted with Spark Ignition the procedure is similar except that the burner can be ignited by depressing the ignition button, which is located on the fascia. Ignition must be carried out with the door open, and if the burner has not lit within 15 seconds the control knob should be released and the grill left for at least 1 minute before a further attempt to ignite the burner.

2. Note: the grill must only be used with the door open.

3. On first use of the grill, it should be heated for about 20 minutes to eliminate any residual factory lubricants that might impart unpleasant smells to the food being cooked. A non-toxic smoke may occur when using for the first time so open any windows and turn on mechanical ventilators to help remove the smoke.
4. Although the grill does heat up quickly, a few minutes preheat is recommended.
5. Flame Failure Device (FFD): the grill burner is fitted with a flame sensing probe, which will automatically cut off the gas supply

in the event of the flame going out. In the event of the burner flames being accidentally extinguished, turn off the burner control and do not attempt to re-ignite the burner for at least one minute.

1. It is normal for the flames on this burner to develop yellow tips as it heats up.
2. A reversible grill pan trivet enables the correct grilling height to be achieved.

Fast Toasting

trivet in high position

Grilling Sausages

trivet in high position

Grilling Steak/Bacon

trivet in high position

Grilling Chops, etc

trivet in low position

Slow Grilling

trivet removed

1. To turn off: turn the control knob until the line on the control knob is aligned with the dot on the control panel. Always make sure the control knob is in the off position when you have finished grilling.

Important:

• The pan supplied with the appliance is multi functional, for use either whilst grilling or when using the oven.
• The handle design allows removal or insertion whilst the pan is in use.

⚠ WARNING: Pans must not touch the glass lid.

Note: To avoid heat build up around the hob open the kitchen window slightly to allow the heat to dissipate.

Operation

Important

• If the appliance is fitted with a cooling system. The cooling fans should automatically switch on a couple of minutes after the grill and/or oven is turned on, and will remain on even after the appliance has been switched off.
• The fans should automatically switch off a few minutes after the appliance has been

THETFORD COOKER

switched off, when the front of the appliance has cooled sufficiently.

- A constant 12V supply is necessary at all times to ensure the cooling system operates correctly.

Using the Oven

1. Ensure gas cylinder/supply is connected and turned on. In the event of a gas smell turn off at gas cylinder/mains and contact supplier.
2. To light: Open door, push in the control knob and turn to full rate (240°C). Hold a lighted match or taper to the burner and push the control knob in and hold. The burner should ignite and the control knob should be held in for 10 - 15 seconds before release. If the burner goes out, repeat procedure holding control knob for slightly longer.
3. For models fitted with Spark Ignition the procedure is similar except that the burner can be ignited by depressing the ignition button, which is located on the fascia. Ignition must be carried out with the door open, and if the burner has not lit within 15 seconds the control knob should be released and the oven left for at least 1 minute before a further attempt to ignite the burner.
4. Place the oven shelf in the required position and close the door. Set control knob to approximately 200°C and heat the oven for about 30 minutes to eliminate any residual factory lubricants that might impart unpleasant smells to the meals being cooked. A non-toxic smoke may occur when using for the first time so open any windows and turn on mechanical ventilators to help remove the smoke.
5. Although the oven does heat up quickly, it is recommended that a 10 minute preheat be allowed. The oven should be up to full temperature in about 15-20mins.
6. To turn off: turn the control knob until the line on the control knob is aligned with the dot on the control panel.
7. Shelf: the shelf has been designed to allow good circulation at the rear of the oven and

is also fitted with a raised bar to prevent trays or dishes making contact with the back of the oven. To remove a shelf, pull forward until it stops, raise at front and remove.

WARNING: The pans and trays supplied with this appliance are the maximum sizes recommended for use. Larger pans and trays may restrict good circulation of heat, increasing cooking times.

Oven Temperature Control

The temperature in the oven is controlled by a thermostatic gas tap and is variable over the range 130°C to 240°C. Approximate temperatures for the settings on the control knob are shown in the table below. The temperatures indicated refer to the centre of the oven and at any particular setting the oven will be hotter at the top and cooler towards the base.

The variation between top and centre, and centre to bottom is approximately equivalent to one gas mark. Good use can be made of the temperature variation in several dishes requiring different temperatures may be cooked at the same time. In this way maximum benefit can be obtained from the gas used to heat the oven. Care should be taken not to overload the oven, adequate spacing being used to allow free circulation for heat.

Operation

Cooking Guidelines

Best results will be obtained by the shelf positions in this guide. It is not necessary to preheat the oven but advisable for a range of dishes. The oven is capable of full temperature in 15-20 minutes.

Most cookery books give details of the shelf positions and gas mark settings for each recipe. If in doubt about a recipe you intend to use, study the recipe carefully then find a similar dish in our guide and use our shelf position and gas mark setting recommendation.

When roasting with aluminium foil care must be taken that the foil does not impair circulation or block the oven flue outlet.

Gas Mark	Temperature(Centre - Shelf Pos. 2)
1/4 - 1/2 2	65 - 275°F 130-1	35°C
1 285	140
2 300	150
3 330	165
4 355	180
5 385	195
6 410	210
7 430	220
8 445	230
9 465	240

Note: Shelf positions are from the top down.

Do's and don'ts

Do read the user instructions carefully before using the appliance for the first time.

Do allow the oven to heat before using for the first time, in order to expel any smells before the introduction of food.

Do clean the appliance regularly.

Do remove spills as soon as they occur.

Do always use oven gloves when removing food shelves and trays from the oven.

Do check that controls are in the off position when finished.

Don't allow children near the cooker when in use. Turn pan handles away from the front so that they cannot be caught accidentally.

Don't allow fats or oils to build up in the oven trays or base.

Don't use abrasive cleaners or powders that will scratch the surfaces of the appliance.

Don't under any circumstances use the oven as a space heater.

Don't put heavy objects onto open grill and oven doors.

Leaks

If a smell of gas becomes apparent, the supply should be turned off at the cylinder

IMMEDIATELY. Extinguish naked lights including cigarettes and pipes. Do not operate electrical switches. Open all doors and windows to disperse any gas escape. LPG gas is heavier than air; any escaping gas will therefore collect at a low level. The strong unpleasant smell of gas will enable the general area of the leak to be detected. Check that the gas is not escaping from an unlighted appliance. Never check for leaks with a naked flame, leak investigation should be carried out using a leak detector spray.

Maintenance & servicing

Important

- Shut off gas supply at isolating valve, switch off electric supply and ensure all parts are cool before cleaning or servicing

- All servicing must be carried out by an approved competent person.

• After each service the appliance must be checked for gas soundness

- This appliance must not be modified or adjusted unless authorized and carried out by the manufacturer or his representative.

- No parts other than those supplied by the manufacturer should be used on this appliance.

- If the supply cord is damaged, it must only be replaced by the manufacturer or his representative in order to avoid a hazard.

This appliance needs little maintenance other than cleaning. All parts should be cleaned using warm soapy water. Do not use abrasive cleaners, steel wool or cleansing powders.

When cleaning the burner ring it is essential to ensure that the holes do not become blocked. The control knobs are a push fit and can be removed for cleaning. They are interchangeable without affecting the sense of operation.

THETFORD COOKER

Kon-Tiki Sport / Kon-Tiki Thetford K1520

① Note: Before using the Hob, Grill or Oven for the first time carefully read the cooking appliance manufacturer's operating instructions supplied with your motorhome.

These instructions provide you with the necessary guidance for the proper use of your Hob, Grill or Oven. Observe in particular the safety instructions. Observation of the instructions and handling recommendations is important for dealing with the appliance safely and for protecting you from injury and the appliance from damage. You must understand what you have read before you carry out a task. Keep these instructions in a safe place close to the appliance so they may be referred to at any time. For the latest version of the Thetford Manual, please visit https://www.thetford-europe.com/gb/products/cooking-appliances/cookers/k1520-dual-fuel

WARNING:

• Appliances and accessible parts become hot during use.
  • Always use hand protection, e.g. oven gloves, when loading items into or removing them from the oven or grill.
• Avoid touching heating elements.
  • Children less than 8 years of age shall be kept away unless continuously supervised.
  • Children shall not play with the appliances.
• Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
• Never extinguish a fire with water, switch off the appliance and cover flame with lid or fire blanket.
• Danger of Fire: Do not store items on the cooking surface.

CAUTION:

• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the hob glass lid or oven door glass since they can scratch the surface, which may result in shattering of the glass.
• Never use a steam cleaner to clean appliance.

WARNING: Before using the appliances for the first time, remove all accessories and packing in the grill and oven, including any surface protection film, i.e. plastic coating.

Gas Operation

Ensure the gas cylinder is turned on and the oven / hob gas isolation valve is open at the manifold. The burners on these appliances have fixed aeration and no adjustment is required. Depending on the gas being used, the burners should flame as follows:

Propane - The flames should burn quietly with a blue/green colour with no sign of yellow tips.

Butane - Normally on initial lighting, as small amount of yellow tipping will occur and then slightly increases as the burner heats up.

① Note: For safe use of gas see gas safety advice on page 55

⚠ WARNING: The grill must only be used with the door open.

Glass Lids

Depending on specification, your appliance may be fitted with a glass lid shut-off system, which cuts off the power to all hotplate burners (gas and electric) if the lid is closed.

- Ensure the glass lid is in the open and upright position before turning on the hotplate burners.

WARNING:

• Glass lids may shatter when heated. Turn off the hotplate and allow it to cool before closing the glass lid
• Remove all spillage from the surface of the glass lid before opening.
• The glass lid on some models has the tendency to snap shut towards the end of lowering. This is caused by the travel lock action of the hinges as it is activated. Make sure all fingers are removed from appliance when closing the lid.

Do's and Don'ts

Do read the user instructions carefully before using the appliance for the first time.

Do allow the oven to heat before using for the first time, in order to expel any smells before the introduction of food.

Do clean the appliance regularly.

Do remove spills as soon as they occur.

Do always use oven gloves when removing food shelves and trays from the oven.

Do check that controls are in the off position.

Don't allow children near the cooker when in use. Turn pan handles away from the front so that they cannot be caught accidentally.

Don't allow fats or oils to build up in the oven tray or base.

Don't use abrasive cleaners or powders that will scratch the surfaces of the appliance.

Don't under any circumstances use the oven as a space heater.

Don't put heavy objects onto open grill and oven doors.

WARNING: The use of the electric

hotplate and gas hobs will generate heat. We recommend, to avoid excess build-up of heat around the cooker area, the window is left opened when cooking to allow for additional ventilation.

MICROVAVE

Microwave oven general user instructions

Note: Always refer to the microwave operating instructions supplied with the vehicle.

Note: Take precautions to avoid possible exposure to excessive microwave energy

WARNING:

Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

WARNING:

Do not place any objects between the oven front face of the door or allow soil or cleaner residue to accumulate on sealing surfaces.

WARNING:

If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

WARNING:

It is hazardous for anyone other than a competent person to carry out a service or repair operation.

WARNING:

Liquids or other foods must not be heated in sealed containers since they are liable to explode.

WARNING:

Only allow children to use the oven without supervision when adequate instruction has been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

WARNING:

When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperature generated. (if provided)

Important safety guidance

⚠ WARNING: To prevent fire, burns, electric shock and other warnings. Listed below are, as with all appliances, certain rules to follow and safeguards to assure high performance from this oven.

Important instructions

1. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other non food items or for sterilizing purposes.
2. Do not use the oven when empty, this could damage the oven.
3. Do not use the oven cavity for any type of storage, such as papers, cookbook, cookware etc.
4. Do not operate the oven without the glass tray in place. Be sure it is sitting properly on the rotating base.
5. Make sure you remove caps or lids prior to cooking when you cook food sealed in bottles.
6. Do not put foreign material between the oven surface and door. It could result in excessive leakage of microwave energy.
7. Do not use recycled paper products for cooking. They may contain impurities which could cause sparks and/or fires when used during cooking.
8. Do not pop popcorn unless popped in a microwave approved popcorn popper or unless it's commercially packaged and recommended especially for microwave ovens. Microwave popped corn produces a lower yield than conventional popping; there will be a number of unpopped kernels. Do not use oil unless specified by the manufacturer.
9. Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc., without first piercing them several times with a fork.

MICROVAVE

1. Do not pop popcorn longer than the manufacturer's directions. (Popping time is generally below 3 minutes). Longer cooking does not yield more popped corn it can cause scorching and fire. Also, the cooking tray can become too hot to handle or may break.

2. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

3. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

4. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

5. Always test the temperature of food or drink which has been heated in a microwave oven before you give it to somebody, especially to children or elderly people. This is important because things which have been heated in a microwave oven carry on getting hotter even though the microwave oven cooking has stopped.

6. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

7. Keep the waveguide cover clean at all times. Wipe the oven interior with a soft damp cloth after each use. If you leave grease or fat anywhere in the cavity it may overheat, smoke or even catch fire when next using the oven.

8. Never heat oil or fat for deep frying as you cannot control the temperature and doing so may lead to overheating and fire.

9. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the microwave oven is not always present.

This could result in very hot liquid suddenly boiling over when a spoon or other utensil is inserted into the liquid.

To reduce the risk of Injury to persons:

a. Do not overheat the liquid.

b. Stir the liquid both before and halfway through heating it.

c. Do not use straight-sided containers with narrow necks.

d. After heating, allow the container to stand in the microwave oven for a short time before removing the container

e. Use extreme care when inserting a spoon or other utensil into the container.

EXTRACTOR HOOD

Care of the microwave

1. Turn the oven off before cleaning
2. Keep the inside of the oven clean. When food spatters or spilled liquids adhere to oven walls, wipe with a damp cloth.

3. Mild detergent may be used if the oven gets very dirty. The use of harsh detergent or abrasives is not recommended.

4. The outside oven surface should be cleaned with soap and water, rinsed and dried with a soft cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings. If the Control Panel becomes wet, clean with a soft dry cloth. Do not use harsh detergents or abrasives on the Control Panel.

5. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.

6. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.

7. The roller guide and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent water or window cleaner and dry. The roller guide may be washed in mild sudsy water.

8. The oven should be cleaned regularly and any food deposits removed;

9. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

Dometic CK500 Cooker Hood

Exterior view of a modern kitchen ventilation duct (no text or symbols visible)

The Dometic CK500 cooker hood is fitted to Kon-Tiki models (excludes Sport) and features a filter that is detachable and washable, LED lighting and two 12v fans.

For details of the operation and maintenance of the cooker hood, please read the information at the following locations:

https://www.dometic.com/en-gb/uk/products/food-and-beverage/mobile-kitchen/extractor-hoods/dometic-ck-500-_-153275

Thetford Toilet

White toilet with open lid and side panel, no visible text or symbols

Your motorhome is fitted with a Thetford C260 toilet, which is plumbed directly into the motorhome water system, and does not have its own flush tank. Using the C260 model number, please read the user instructions for the toilet, which are available from the following location:

https://thetford-europe.com/gb/products/toilets/cassette-toilets/c262-cwe-plastic-bowl

If you are unable to view the documents on line, please contact the supplier, your dealer or Swift for an electronic or paper copy.

Windows

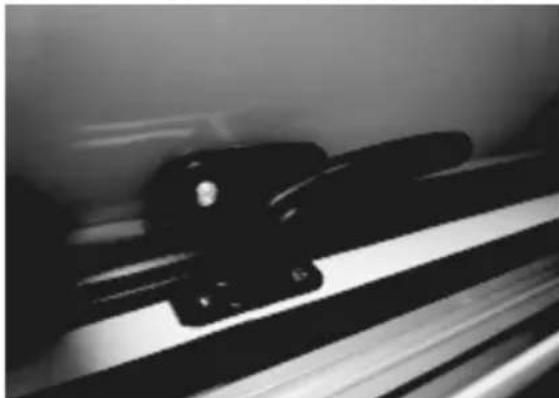

To open, depress the button on the handle and turn the handle, the majority rotate anti-clockwise with one handle on the right stay that will rotate clockwise.

Once all catches are open swivel the window pane open to the desired position.

These positions are set by a ratchet on the stay, it has 3 pre-set positions. To close, open the window all the way past the last position and it will then close.

All opening windows have two catch positions. The first position is for ventilation the second seals the window from ventilation and rain.

Black and white photo of a piano keyboard with blurred background (no text or symbols visible)

Window Friction Stays

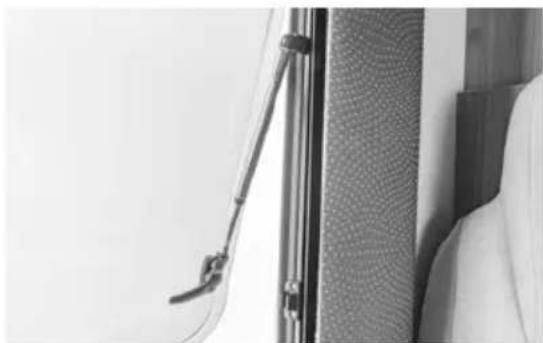

Friction stays allow for positioning of window at any point through its opening angle.

Close-up of a window handle with a metal strap and textured fabric, no visible text or symbols

Catcher enables three positions of the window. Open position is where the handle is open placed on the outer part of the catcher. If the handle is placed in the middle of the catcher, this is position for ventilating. Closed position is position where the handle is closed on the inner part of the catcher.

WINDOWS AND BLINDS

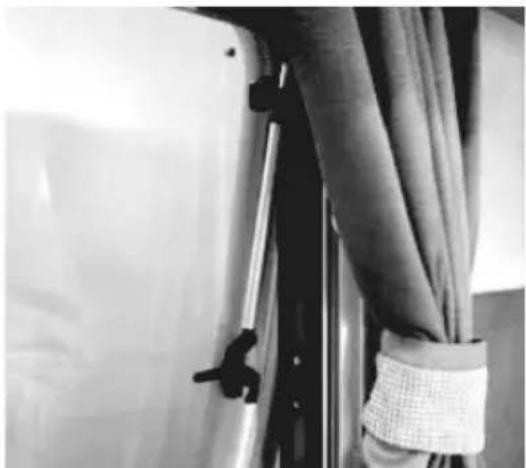

Window Condensation

Some windows are not vacuum sealed. Instead the double panes of acrylic plastic are fitted with a breathable plug on the inner pane.

It is possible, in weather where extremes in temperatures occur between night and day, that customer will notice condensation between the panes.

The same phenomenon may also occur when washing your vehicle on a hot day.

The condensation should clear itself when the ambient conditions return to normal and the air between the panes dries. However, if this is taking a longer time than required, the breathable plug (normally located in the top corner of the window) can be removed, with a pin or sharp object, and replaced when the panes are dry. Care should be taken when doing this.

Close-up of a person's arm holding a white curtain, with no visible text or symbols

Acrylic (Plastic) Window Cleaning

The material used to produce most motorhome windows is acrylic plastic. While the acrylic used is very durable, it is able to be scratched with relative ease and therefore,

care must be taken when cleaning your vehicle not to use aggressive cleaning products.

Equally, care should be taken when using a drying cloth that it is clean and free from grit.

Plastoform Window System

Within these instructions you will be able to find information to most common questions about correct usage of PLASTOFORM Blanca windows.

While Driving

When vehicle is in motion all windows must be fully closed.

Sun blinds

Never use blind on direct sunlight. If you use the blind on direct sunlight, also for a shorter period, heat will accumulate between window and blind and window may get damaged (will start bending, ballooning).

Cleaning

Never use abrasive and corrosive substances or solvents on windows, such as turpentine, spirit, dishwasher detergents, as they will damage acrylic and/or print. We recommend cleaning with generous amount of water or mild cleaner intended for use on acrylic. Even cleaning with dry cloth can damage the acrylic and leave scratches; always use moist sponge or moist soft cloth. Never clean windows with high pressure washer. Also carwash can damage windows and cause scratches or other damages.

Note: Acrylic material can get scratched very easily, please consider above instructions for cleaning, so that you will not cause scratches or other damages while cleaning.

Condensation

Condensation can appear on the window or between both panes. This is a normal

occurrence that appears because of different temperatures inside and outside and properties of acrylic itself. Condensation will disperse after some time. This doesn't mean that there is something wrong with the window or that it is leaking. With properly ventilating the vehicle, you can in most cases prevent also condensation.

Opening and closing the windows

Your windows are equipped with either handles with button or handles without button and stays. Consider the following instruction to avoid the most common damages that can occur:

Handles with button: Always push the button when opening/closing handle.

Stays with click stops: You will hear clicks when opening the window. Every click represents position in which a window can stay opened. When closing the window, you must open to it's widest opening and then close. Do not try to close it without first opening it as wide as it goes, as this will damage the stays.

Stays with knob screw: Always make sure to unscrew the knob before closing the window.

Mechanical clamp or lever device with black handle and metallic shaft (no text or symbols visible)

Close-up of a metallic handle and lever mechanism (no visible text or symbols)

1.1 Open position

Close-up of a metallic mechanical lever handle and mounting bracket (no visible text or symbols)

1.2 Ventilation

Close-up of a metallic mechanical lever handle and lever arm (no visible text or symbols)

1.3 closed position

Plastoform Blanca windows are top quality windows from acrylic material. If you consider above instructions, your windows can stay

in good shape for a long time. Windows also require periodic maintenance and check by your dealer at least once per year.

Horrex Window Blinds

To operate, pull down or up by holding the finger bar.

• The blind will come up from the bottom of the cassette to close and the flynet will come down from the top.
• Only operate by holding the fingergrip(s) - pulling on one side will cause uneven running and snagging.
• It is not recommended that blinds and/or flyscreens are left in the down position for long periods, or when travelling, as this can result in fatigue of the spring.
• Clean the cassette, side track and fabrics with mild detergent and water.
• Lubrication of mechanism or spring is not required or recommended.

For more detailed information, see manufacturer's instructions.

SKYVIEW OPERATION

Blind Advice

In case of prolonged exposure to the sun roller blinds should not be completely closed as this could cause excessive heat concentration at the top of the window, due to characteristics of the glazing material the windows could be adversely affected.

Blinds that shade from the bottom upwards it is necessary to leave a gap of a few

centimetres open at the top, this way the heat between window and blind can escape. A fly screen does not cause an obstruction.

Blinds that shade from the top downwards must be kept completely open, or be opened regularly to allow the heat to escape.

Keeping the windows in ventilation position allows heat to escape.

Never fully close a roller blind system when storing the vehicle or when not in use for longer periods!

For vehicles containing blinds from the top downwards or with other types of reflective blinds / curtains, please make sure that these blinds are also ventilated or not fully closed.

Ensure that all windows and roof vents are closed when the vehicle travels on the road.

To adjust the tension of the Horrex blind:

Close-up of a mechanical component with visible bolts and a mesh grille (no text or symbols)

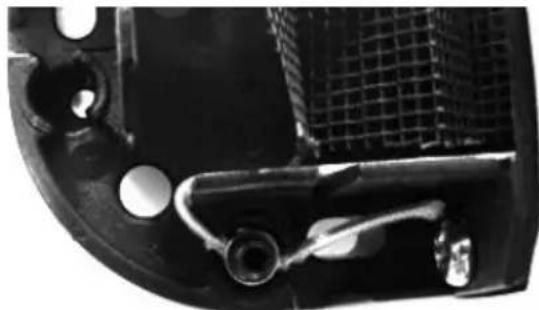

In each corner piece there is an cord tensioner (see photo). By unscrewing the hexagon screw, the cord can move through the cord tensioner. When you pull the cord, the tension will get higher, when you let it move back the tension will get less.

Care instructions: Clean the blind only with a damp sponge. Clean on a regular basis to avoid dirt particle build up as this can damage the blind material.

Use only water or with mild suds or a vacuum cleaner.

In order to avoid material fatigue, do not leave the flynet closed for a long time.

Skyview operating instructions

Safety and care instructions

Note: Before opening the dome please check if all handles are disengaged and no objects are in the opening area of the rooflight.

For Manual Skyviews

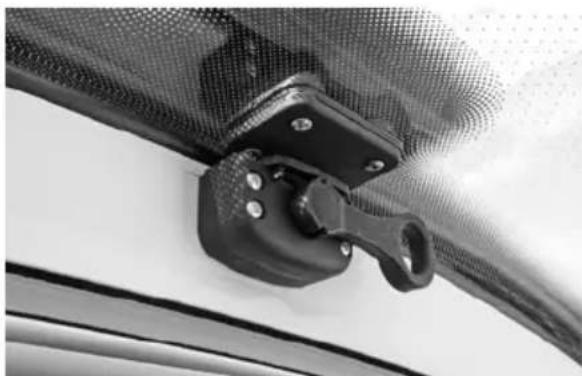

To open, turn the handle anti-clockwise to the required opening position.

Close-up of a black plastic latch attached to a textured white surface, no visible text or symbols

To close, turn the handle clockwise until the dome lies on the seal and a resistance is noticeable.

Note: Before you start your journey, close the rooflight by turning the handles to the closed position and engage catches.

Electric Skyviews

Release the retaining catches on either side of the skyview.

To open and close the window press the button positioned below the window in the centre of the moulded surround.

Keep the button depressed until the desired opening angle.

To close press the button until the window sits in the seals and engages catch.

Please make sure that no persons or objects are in the closing area of the rooflight.

Escape cab roof window

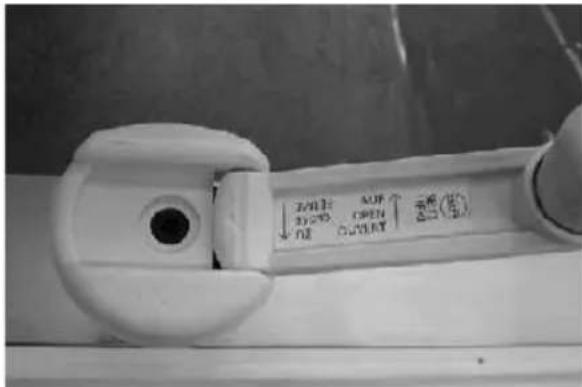

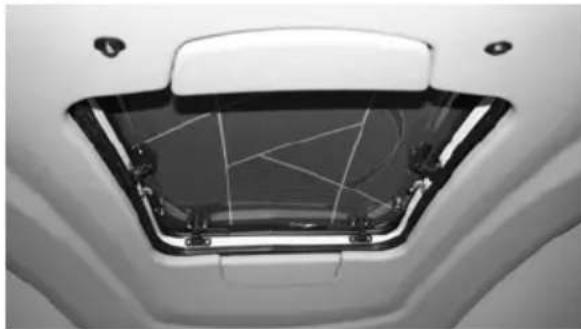

The roof window on the Escape is retained in position with window catches.

Close-up of a metallic mechanical lever handle and lever arm (no visible text or symbols)

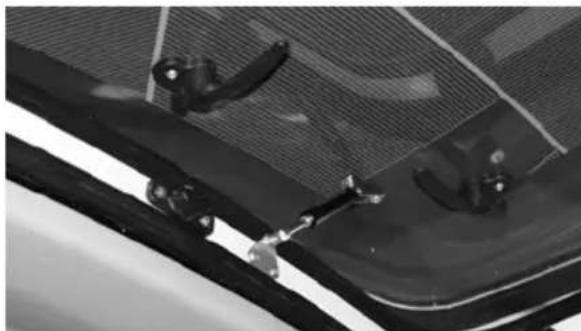

The retaining catches are as previously described on side window catches and can also be positioned to night vent.

To open the window fully, open all four window catches and push the window up to the required opening height. Tighten the knob screw on the arm of both stays. Close the window if the wind becomes strong or when travelling.

Pod Vent – Kon-Tiki Highline Vehicles Only (Excludes Sport)

Close-up of a car's front window with visible ceiling and window frame (no text or symbols)

A large opening vent is provided in the luton bed area for ventilation purposes. To open the vent, press the buttons on the handles and turn the handles to release the catches. Once all the catches are released the vent will open until the gas struts restrict any further travel. Please note that the vent is only designed to open through a small angle.

Close-up of a car's front window and roof structure, showing structural details and mounting brackets (no text or symbols visible)

⚠ WARNING: Before setting off, the vent must be shut and all catches engaged. To do this, pull the vent shut by the handles, press the buttons and turn them to engage the catches. Should the engine be started with the vent open, an audible warning will sound. Please be aware this warning will not alert the driver if the catches have not been properly engaged, only if the vent is left open when the engine is running.

White plastic electronic device with a grid screen and mesh panel (no visible text or symbols)

Opening/closing the blind and fly net

Pull the end rod from the recessed part and push it in a position you desire. You can adjust the incidence of light with the second operating bar.

Safety precautions Repairs should be carried out only by trained personnel.

Inform an approved dealer in case of defects and malfunctions.

All roof windows and Skyviews

Before starting off, check the roof light for damage in the dome (tension cracks) and the opening mechanism which could arise owing to, for example, branches and other natural causes. Do not put weight on the screen.

Do not leave the vehicle with the roof light open (danger of burglary and water penetration).

Do not open in strong wind, rain or snowfall. Before opening, remove snow, ice, dirt etc. from the dome.

ROOFLIGHTS

Malfunctions must be repaired by an approved dealer at once. Do not use caustic detergents (danger of tension cracks in the dome).

Before setting off close the glazed panel dome and check the locking mechanism.

Avoid high speed (maximum speed recommended is 130 km/h). Do not close the blind more than 2/3 during the day (danger of heat build up). Before starting off, open the blind.

Care instructions

Clean the dome with the Seitz acrylic cleaner.

Opaque spots and light scratches on the dome can be removed with the Seitz Acrylic Polish and the Seitz Special Polishing cloth.

Use talcum powder regular (4 times yearly) to care for the rubber seals.

Clean the blinds only with water and mild soap suds or a vacuum cleaner.

Note: The guarantee becomes null and void if the care and safety instructions are not followed.

Roof lights

When opening the roof lights, care must be taken to release the locking mechanism as the unit is raised.

Roof lights must be fully closed when driving. Roof lights provide essential fixed levels of ventilation.

Interior view of a white plastic enclosure or panel with internal structural details (no text or symbols visible)

Mini and Micro Heki rooflight (when fitted)

Close-up of hands installing or adjusting a ceiling panel (no visible text or symbols)

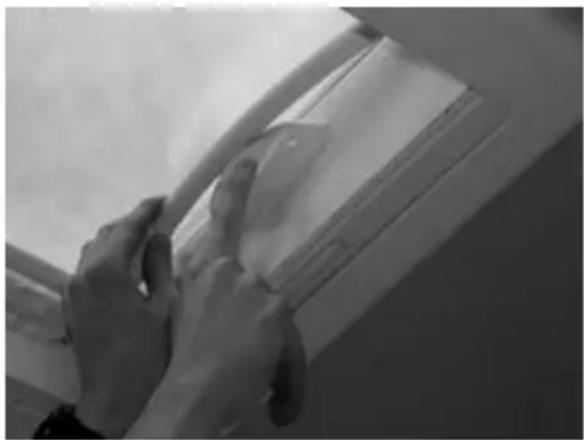

To open depress the button (Fig. A).

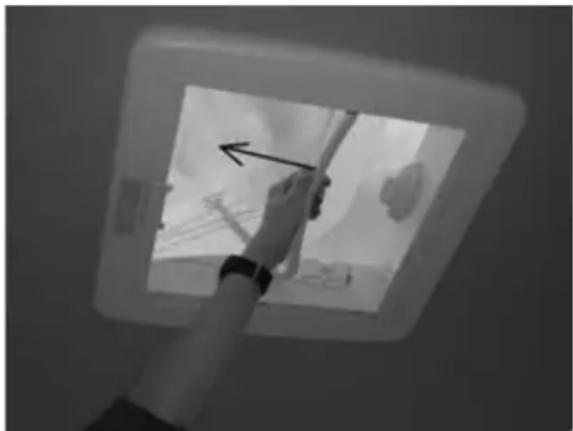

Hand pointing at a device mounted on a square ceiling, with a black arrow indicating the left side (no visible text or symbols)

Pull the bar down and forwards (Fig. B).

Interior view of a room with a wall-mounted device and directional arrows, no visible text or symbols

By pushing the bar in to the marked rest positions (Fig. C).

Close-up of a hand holding a small object, possibly a container or tool, with no visible text or symbols.

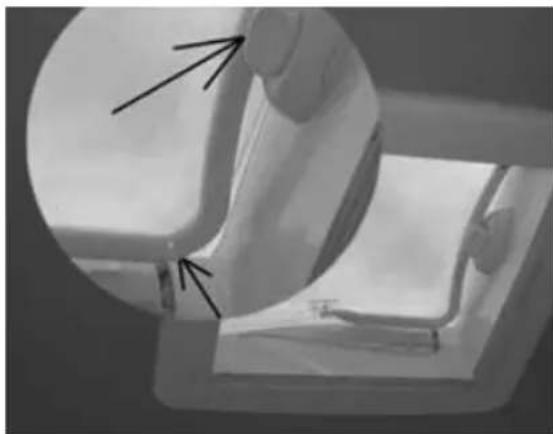

Two extra opening angles apart from the one in which the dome is fully opened can be chosen. The intermediate position can be fixed with a slide marked with the arrows. Care should be taken to ensure the dome is closed and locked for transit with the bar located behind the locking button (Fig. D).

Diagram of a microstrip device with two arrows indicating direction, no text or symbols present

The blind flynet operate together and engage via the clips in the bar, then slide to gain the desired blackout or ventilation (Fig. E).

Heki care instructions

Clean the blind only with a damp sponge. Clean on a regular basis to avoid dust/ dirt particle build up as this can damage the blind material. Use only water or with mild suds or a vacuum cleaner.

In order to avoid material fatigue, do not leave the flynet closed for a long time.

Roof light blind and flyscreen

Interior view of a vehicle showing a textured ceiling and light source, with a hand holding the blade (no text or symbols visible)

Interior view of a modern kitchen or appliance with a curved shelf and ventilation duct (no visible text or symbols)

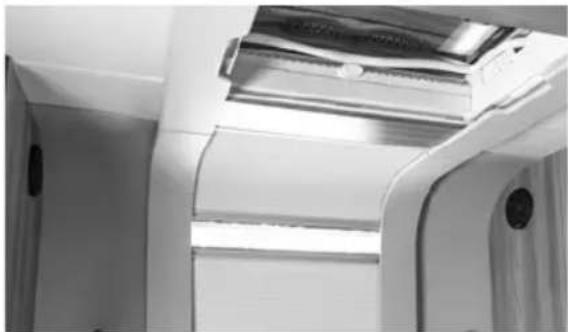

The blind and flyscreen operate independently of each other and are engaged by connecting to each other and sliding.

Safety precautions:

1. Repairs should be carried out only by trained personnel.
2. Inform an approved dealer in case of defects and malfunctions.
3. Before starting off, check the rooflight for damage in the acrylic dome (tension cracks) and the winding mechanism which could arise owing to, for example, branches and other natural causes.
4. Do not step on the acrylic dome.
5. Close the roof light before starting off (check whether it is locked).
6. Do not leave the vehicle with the rooflight open (danger of burglary or from rain).
7. Do not open in strong wind or rain.
8. Before opening, remove snow, ice, dirt, etc. from the acrylic dome.
9. Malfunctions are to be repaired by an approved dealer at once.
10. Do not use caustic detergents (danger of tension cracks in the acrylic dome).
11. Do not operate whilst the vehicle is moving.

ROOFLIGHTS

Midi-Heki rooflight Opening the Dome

Close-up of hands rolling out a white surface with a ruler, no visible text or symbols

Black-and-white photo of a hand opening a window with visible structural elements inside (no text or symbols)

Close-up of a wooden plank with a curved pipe inserted, no visible text or symbols

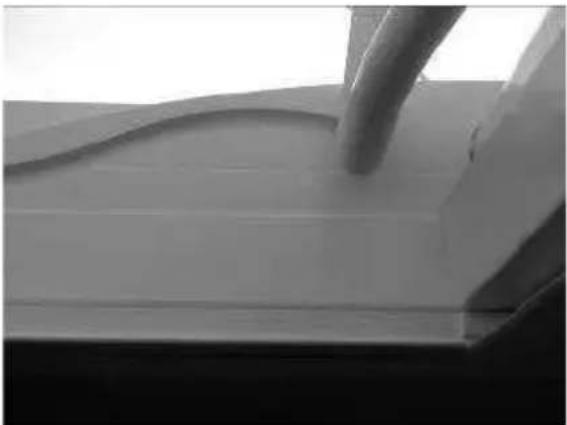

Intermediate position for the dome

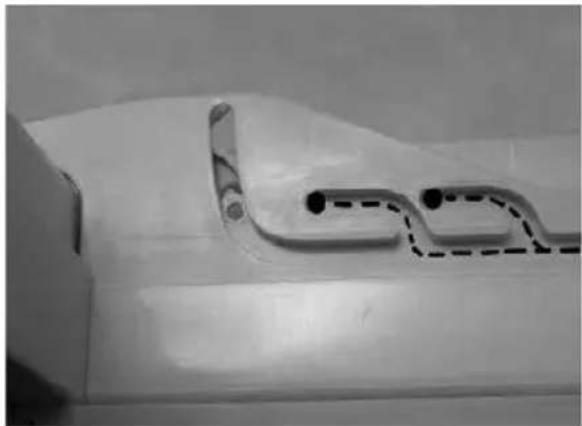

By pushing the bar into the marked rest position, two extra opening angles, apart from the one in which the dome is fully opened, can be chosen.

Close-up of a white mechanical component with a dashed outline and circular features (no visible text or symbols)

Closing the Dome (drive and rest position)

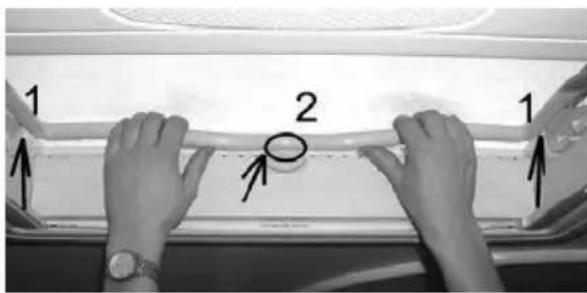

Push the bar with both hands on the right and the left side in such a way that the hook bolt

1. The dome on the left and the right side and the bar lies on the push button
2. Check if the dome is locked.

1

Close-up of a white mechanical component with a cylindrical part inserted, no visible text or symbols

2

Close-up of a perforated circular object mounted on a white surface, with two small protrusions and a cylindrical base (no text or symbols visible)

WARNING: The retaining catches are designed to hold the skylight open to the selected position. In gusty or windy conditions the Skylight should be closed to prevent it from being blown fully open or slamming shut.

Close-up of a hand holding a small object over a surface, possibly a device or tool, with no visible text or symbols.

With crank

To open, rotate the crank until a resistance is noticeable during the operation.

To close, reverse the operation and then check if locked into position

Close-up of a hand pointing at a small black square on a white surface, no text or symbols visible

Electric version

To open, push button until desired position is reached or the electric motor switches off.

To close, reverse the operation and then check if locked into position. Care instructions:

Care instructions:

• Please clean the acrylic panes with the Seitz Acrylic Cleaner.
  • Stains and light scratches on the acrylic pane can be removed by using the Seitz Acrylic Polish and the Seitz special polishing cloth.
• Use talcum powder (4 times yearly) to care for the rubber seals
• Clean the blinds only with water and mild soap suds
• The guarantee becomes null and void if these instructions are not followed.

OMNISTEP

Omnistep single step (where fitted)

Omni step single step (where fitted)

When an Omni step is present, depending on specification, your motorhome is fitted with either a manual or electrically operated step.

Manual operation

When a manual step is fitted, it is operated by manually pulling out or pushing in the step to the desired position.

Electric Operation

The OMNISTEP is operated by the lever switch. Important: when extending the step, hold the switch until the step is completely extended. Never mount the step if retracted of if not fully extended, because then the blocking is not working and the motor can be damaged.

Check if the step is retracted before departure.

Maintenance

Dirt and frost can prevent the step from operating properly. In this case the moving parts should be cleaned or defrosted.

All points of movement are layered in maintenance-free bearings.

In case of electrical failure

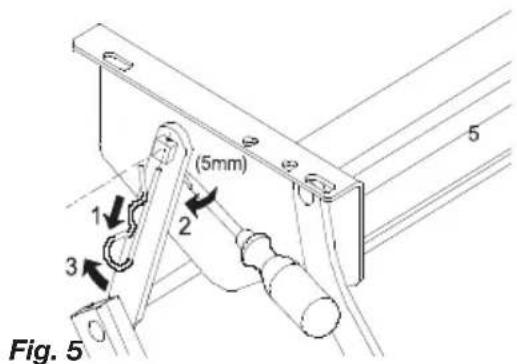

If the step does not retract by motor: Loosen the square connection according to fig. 5 (actions 1, 2 and 3), push the footboard in (4) and tie it to the frame.

Current drawn

5 A. When fully extended or retracted: 14-18 A

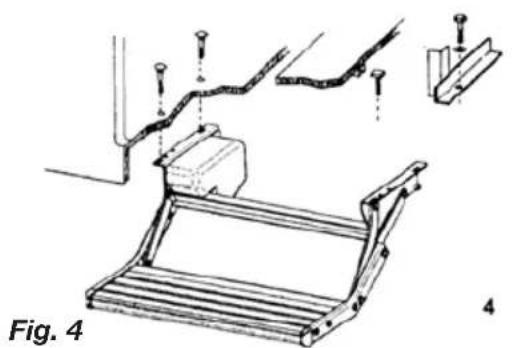

Technical line drawing of a mechanical assembly with no visible text or symbols

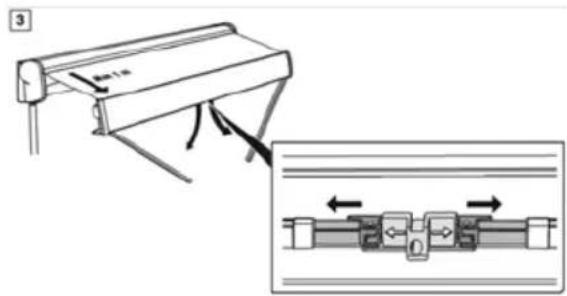

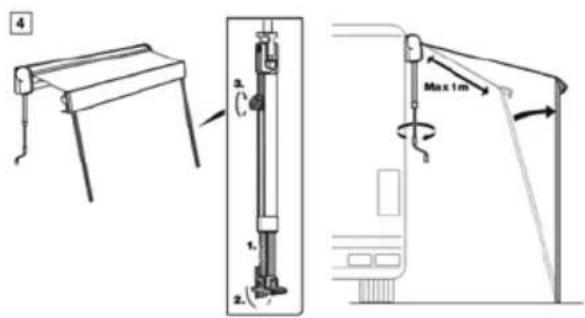

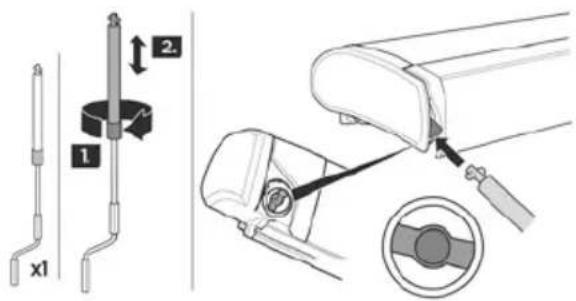

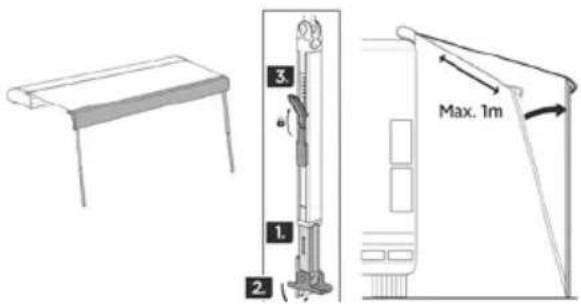

Thule 4900 Omnistor Awning

• For the mounting height of the bottom mounting brackets ask your dealer.
• An awning is a sun and not an all-weather protection. The awning should be closed in case of storm, snow or heavy rain fall (avoid formation of a water pocket)

Pure electrical circuit lines without any symbols

A

B

c

D

AWNINGS

i

Line drawing of a bus with a warning symbol (no text or labels)

Safari-Residence

Line drawing of a simple cabinet or enclosure with no text, numbers, or symbols

i

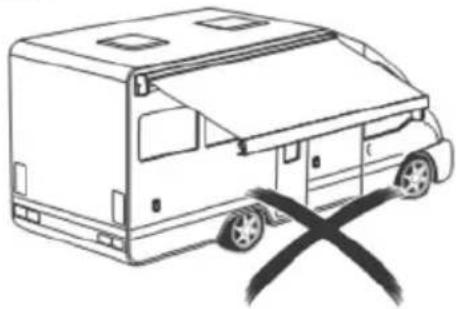

Line drawing of a van with a roof and parked wheels, marked with a black X symbol (no text or symbols present)

Joint

Pure technical line drawing of a mechanical bracket or bracket (no text or symbols)

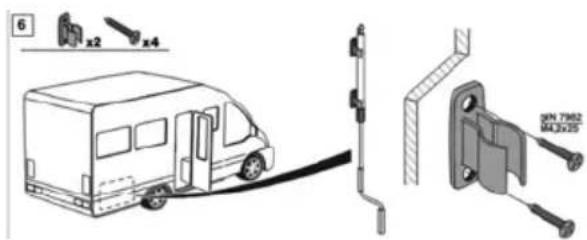

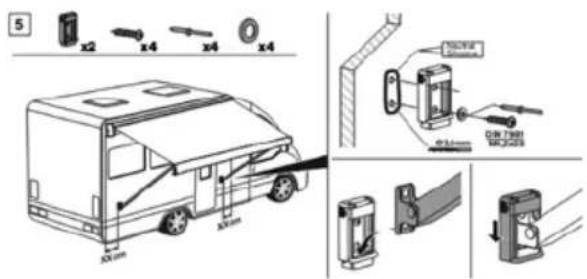

Hold Down Kit

Line drawing of a mechanical assembly with a lever and frame (no text or symbols)

i

Escape Awning

i

Technical line drawing of a mechanical device with a hook and lever (no text or symbols)

Kon-Tiki Sport 524 awning

The rear leg of the 2.6m awning fitted to the Kon-Tiki Sport 524 is an extended leg to ensure that it reaches the ground when the awning is deployed. This longer leg will not fold away into the awning housing and must be removed prior to retracting the awning canopy. Twist the leg through 45° to lock and unlock the leg as shown in the diagram below.

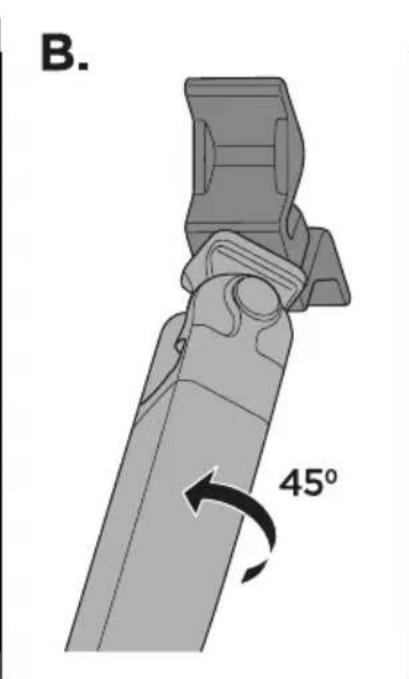

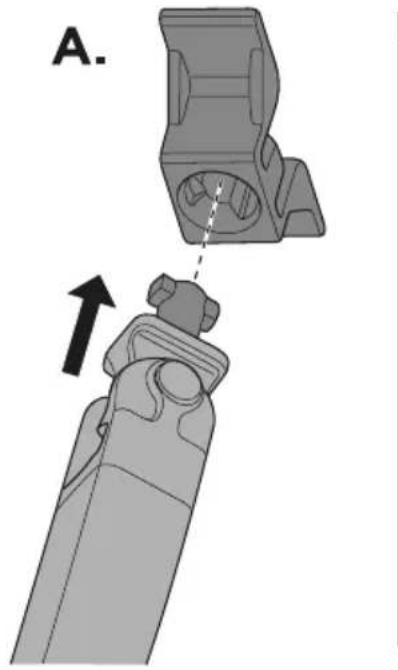

Mechanical assembly diagram showing a component being inserted into a housing, with an arrow indicating the direction (no text or symbols present)

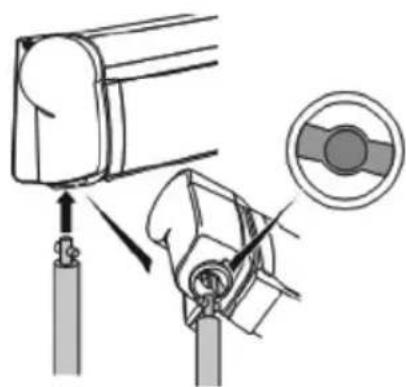

Assembly of awning extension leg into awning channel

WARNING: Do not install any blow-up or drive Away Awnings to the Lead Rail of the side mounted Thule Omnistor 4900 or 6300 model awning installed on some Swift Group Motorhomes as this may cause undue stress on the awning and its mountings causing permanent damage. The Thule warranty will be declared invalid if it is found to be as a result of using such an unapproved accessory.

REVERSING CAMERA / SENSORS

Reverse Camera System

Depending on the specification of your motorhome, a reverse camera system may be installed. This uses a single, twin or four lens camera system mounted at high level on the rear of the motorhome, connected to an LCD screen which forms part of the windscreen mounted rear view mirror.

The reverse camera system is powered whenever the vehicle engine is running.

Single lens camera system

The single lens camera is mounted at high level on the rear of the motorhome. While the engine is running, the LCD screen can be switched on at any time to view the image from the camera, using the power button on the screen/mirror. If Reverse gear is selected, the screen will automatically switch on to display the image from the camera.

Twin lens camera system.

While the engine is running, the LCD screen can be switched on at any time to view the image from the camera, using the power button on the screen/mirror. Pressing the V1/V2 then toggles between the images from the two rear cameras, which show a distance view, and a close range view. If Reverse gear is selected, the screen will automatically switch on and display the image from the close range camera.

Four lens camera system.

The four lens camera system consists of two cameras mounted at high level on the rear of the motorhome, and one camera mounted at high level on each side of the motorhome. The rear mounted cameras provide close range and distance views, and the side mounted cameras give views along each side of the motorhome.

Note: The rear view camera (or reverse sensor system) is a driving aid, it is not a supplement to, nor a replacement for, safe driving and good all-round driver observation. The driver is responsible for the safe manoeuvring and detection of pedestrians, objects and obstacles particularly when reversing.

The rear view camera image may be distracting or disorientating to some drivers and as such extra care and awareness must be observed at all times when using the camera. When reversing a responsible adult should assist in guiding the driver into confined spaces particularly where obstacles or pedestrians may be present or when visibility or lighting levels are reduced.

The mandatory required rear view door mirrors must be maintained and used as the primary rear visibility aid.

The image quality available from the cameras can be affected by dirt, road spray, rain droplets, snow and ice and as such the camera lens will require regular inspection and cleaning. Image quality will be reduced at night-time or by bright lights shone in low level lighting conditions.

Reverse Sensor System

If a reverse sensor system is fitted to your motorhome, this will use a row of sensors fitted at low level on the motorhome, to detect obstacles. The system will automatically switch on when Reverse gear is selected.

A buzzer located close to the driver's seat (within a bed base) will then sound when an obstacle has been detected and is close to the rear of the motorhome. An intermittent tone indicates an obstacle at the maximum distance of the sensors range, and the time interval between tones will reduce as the distance to the obstacle reduces, until a constant tone is heard.

Please consider that the distance is measured from the rear bumper of the motorhome – if an accessory such as a cycle rack is added, the driver must take into account the additional clearance required beyond the bumper, when reversing toward an obstacle.

Thule Bike carrier type Thule		Excellent standard version	Thule Elite G2 standard version	Thule Elite G2 short version	Thule Sport G2 standard version	Thule Sport G2 short version	Thule Velo Space XT 2bike	Thule Velo Space XT 3bike	Thule Easy-Fold XT 2bike	Thule Easy-Fold XT 3bike
6 Thule reference 309821 306		560 306561 3071	26 307127 938021	939021 933300 934300
Capacity (# bikes)		2+1+1	2+1+1	2+1+1	2+1	2+1	2+1	3+1	2	3
Max load (kg)		50	50	50	50	50 60		60	60	60
Max bike weight (kg)		30	30	30	19	19	30	30	30	30
Range	Models
Edge	All	√	√		√
Escape	All	√	√		√
Kon-tiki Sport	560,597			√		√
	524,562,596 599,574,584	√	√		√
Kon-tiki	All						√√	√	√

CYCLE RACKS / SEAT SWIVEL / HEATED SEATS / LOCKER

If a tow bar is installed, this should include a facility to disable the reverse sensor system when a trailer is connected. A tow bar installation featuring this facility can be installed by your Swift Group dealer.

There is a volume control on the buzzer with three settings ON, LOW and OFF.

Cycle racks

The Swift Group allows the fitment of a two cycle rack carrier and we have made provision for this pre positioned mounting rails fitted to the rear of your motorhome (except Kon-Tiki (Excludes Sport) which can only be fitted with a towbar mounted rack system).

These are spaced at various heights as shown on the table on the previous page.

The Swift Group only recommends a Thule cycle rack which will conveniently clip in to the pre installed mounting rail. The maximum weight which can be mounted on the carrier is 50kg.

Please be aware a cycle rack can not be fitted onto a model where there is a rear escape window. Contact your dealer for clarification if your van has a rear window.

Other lifting variants are also available. Please review with your dealer and Thule for the available options.

Seat swivel (Driver/Passenger)

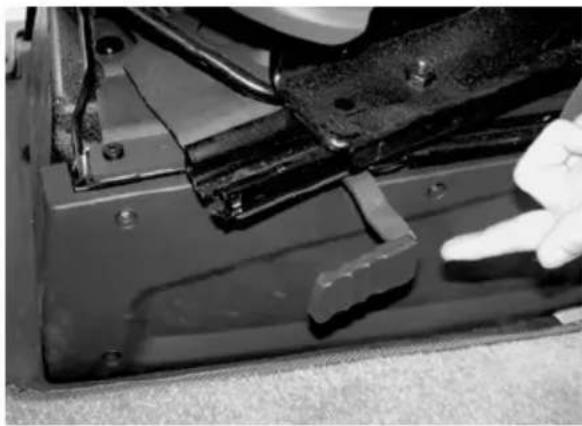

Close-up of a hand pointing at a damaged metal component with visible bolts and mounting brackets (no text or symbols)

To turn the swivel, slide the BLACK lever rearwards and adjust to the required angle. Before driving off ensure the locking mechanism is fully secure.

Heated seats

Your motorhome may be fitted with heated driver and passenger seats in the Fiat cab area. For further details of the operation of these seats, please see the Fiat base vehicle manual.

Side lockers

Some models are provided with exterior access locker doors. These are suitable for storing external equipment.

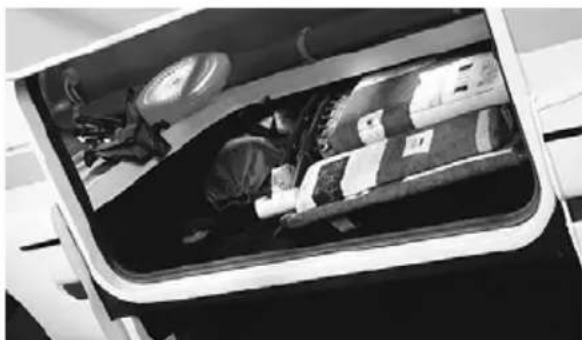

Interior view of a vehicle showing a person inside a vehicle cabin with visible seats and dashboard (no text or symbols)

Bunk and luton bed safety

Where the sleeping surface is over one metre above floor level the following notices apply.

WARNING: Always ensure safety boards located before entering the bunk.

WARNING: Use upper bunks for sleeping by, with the provided protection against fall in position.

WARNING: Care shall be taken against the risk of fall out when the upper bunks are being used by children, especially under 6 years of life, these bunks are not suitable for use by parents without supervision.

Layouts with an over-cab bed (luton bed), access may be restricted when the lower bed (model specific) is fully extended at night time.

Manual Alu-Line bed operation instructions

• When the vehicle is in motion, the bed must be in the stowed (up) position.
• When in the stowed position, the only item on top of the bed should be the mattress and bedding. Do not use the area on top of the bed as additional storage. Position bunk nets and ladders underneath the mattress.
• Before lowering the bed for use, ensure the area below is clear of people and obstructions.
• This is especially important in beds over garages.
• In order to lower the bed for use, push it up slightly whilst pressing the release button on the frame then pull the bed down to the desired height.

- Watch the bed as it comes down to ensure it remains level and free from obstructions. Please note - the bed is counter balanced to account for the weight of the mattress, bedding, lockers (where applicable) and locker contents. If the bed lockers are overloaded, this will cause the bed to fall more easily than rise and if they are empty, it may be difficult to pull the bed down. It may be desirable for users to add or remove contents from the lockers as necessary to achieve the required ease of movement.

WARNING: (ESCAPE COMPACT):

Do not use the hob unless the bed is lifted to the highest stowage position.

The maximum user payload (occupants and bedding plus locker contents is 250kg).

• Please ensure the bunk nets are properly fixed in place when using the bed at a height over 1m to prevent the possibility of falling from height. If the bed has been designed for use as a 'bunk' (i.e. over 1m from the floor of the vehicle), a label will show the height at which the bunk nets and ladder will work.
• To raise the bed back into its stowed position, press the release button and lift it back up. If the bed is difficult to raise, it may be that there is too much weight in the lockers. Remove some items and try again.

TABLES

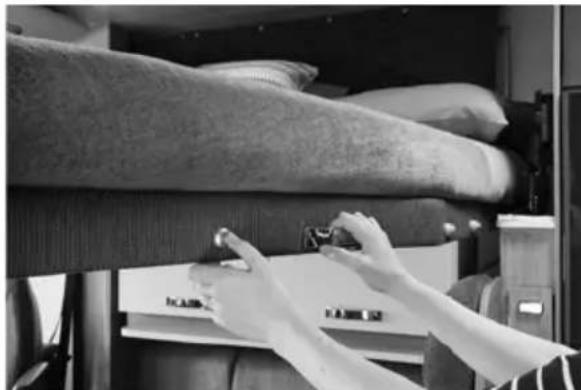

Person adjusting a bed on a rack, no visible text or symbols

- Please ensure the bed is fully returned to its 'up' position and that the release button has returned to its resting position before travelling.

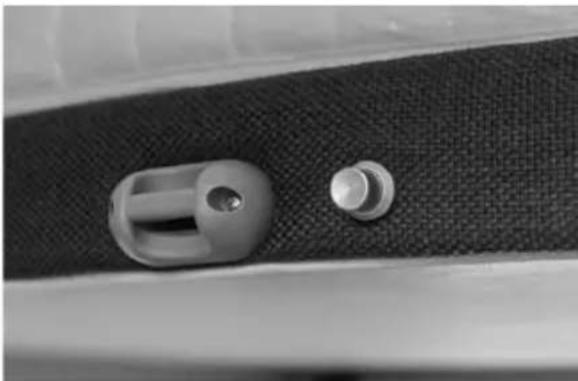

Close-up of a car seatbelt buckle with a metallic clip and socket (no text or symbols visible)

- Please do not attempt to lubricate the sytem this may damage the seals on the gas struts which give the counterbalanced action. If the bed remains difficult to operate after adjusting the locker weights as described above then please check for physical obstructions before contacting your dealer for further advice.

Care points

Care must be taken to remove obstructions which will restrict the full range of movement of the drop-down bed fitted to Motorhomes.

Tables

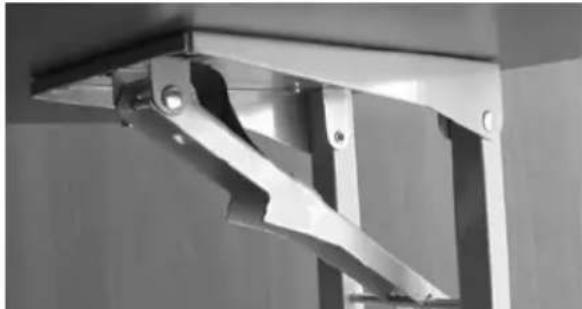

Note: The free standing table legs have a positive locking mechanism. Care must be taken to ensure that, when folded, the leg which is closed first locks into the second position.

When engaging legs in down position the mechanism must be positively locked down.

⚠ WARNING: When erecting the free standing table, be careful to avoid trapping fingers.

Close-up of a metallic mechanical bracket with mounting holes and structural supports (no text or symbols visible)

Telescopic table operating instructions (where fitted):

In addition to being height adjustable the telescopic table incorporates a sliding & rotation mechanism.

To adjust the height:

The table has two height positions. The higher position for dining and the lower position for sleeping.

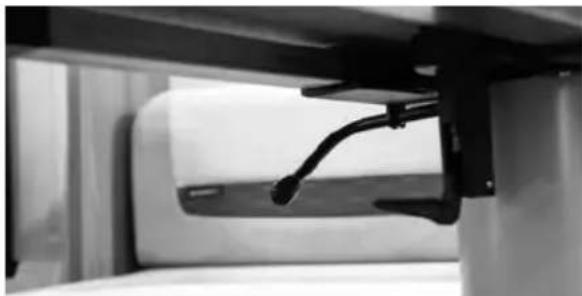

Close-up of a car interior showing a curved black object and a small blue object, with no visible text or symbols.

Turn the lever (below the table top) to the right in order to lock the table at its preferred height. If you wish to lower the table, pull the lever 180° so that it is to the left. You can then push the table down as the "brake" has been released. As soon as the table is in the lowest position turn the lever 180° again (to the right) in order to fix it in its lowest position.

TABLE STORAGE / CARE OF FURNITURE

Note: Make sure the table is in its lowest position, otherwise the "brake" will not operate correctly.

To place the table in its upper position, turn the lever 180° once more and it will move upwards. To fix it in its upper position turn the lever again 180° to lock it in place.

To rotate the table top:

The 360^ rotation mechanism is situated in the base of the table leg. Simply rotate the table to its desired orientation.

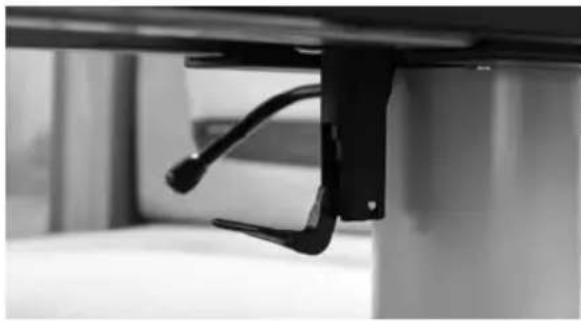

Close-up of a black mechanical clamp or bracket component against a blurred background (no text or symbols visible)

Note: Some layouts have a folding table that incorporates an extension leaf to support the table once extended. Slide the extension out before unfolding the table top in order to support it.

Table storage

Tables stored in the table storage compartment must be securely clipped into place whilst in transit.

To avoid damage care must be taken when removing tables from their stored position.

⚠ WARNING: All non-fixed tables must be stowed in the storage position when the vehicle is moving

Care of laminate tops, tables, furniture and doors

Do not use abrasives, chemically treated cloths or aggressive detergents as these may cause damage

Do not place hot objects on laminated surfaces i.e. tops, tables. Any temperatures 70°C and over will cause permanent damage.

Clean worktop surfaces, furniture and door fascias with a soft, slightly damp cloth, dry off with a soft cloth.

TV INLET

TV inlet

Depending on specification, the motorhome may be fitted with an external co-ax connection and/or a roof mounted TV aerial. When fitted, the external co-ax connection point will be within the mains inlet enclosure.

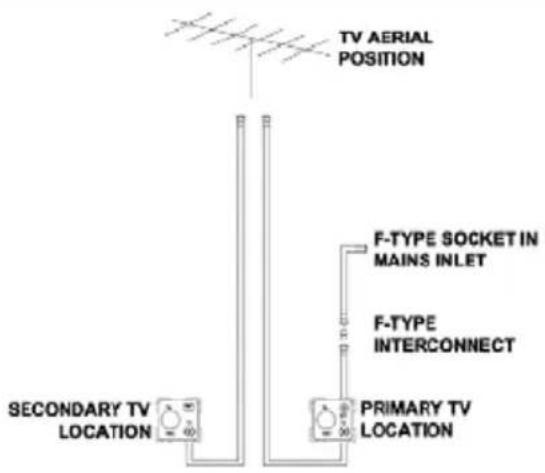

Co-ax connection point within the mains Inlet enclosure

A short co-ax lead featuring a screw on co-ax connection will be present behind the Blue mains inlet connector. A co-ax cable will be fitted and connected within the motorhome, from the back of this connection, to the primary TV position within the motorhome.

At the same time, further co-ax cable or cables will be fitted which route from the TV aerial position (i.e. within the wardrobe) to each of the TV positions within the motorhomes.

The primary TV position will feature a socket marked 12v, TV, and SAT. The co-ax from the external connection point will route to the socket output marked SAT, whilst the co-ax from the TV aerial will route to the socket output marked TV. At any secondary TV positions (if present) co-ax from the TV aerial will be fitted, and routed to the socket output marked TV.

An external TV aerial or site TV feed can be connected to the external connection point; signals from that connection will then be available at the primary TV position within the motorhome. As the connections are of the screw-on type, it is also possible to use this co-ax to route from an external satellite dish, for instance a tripod mounted dish, to a satellite receiver.

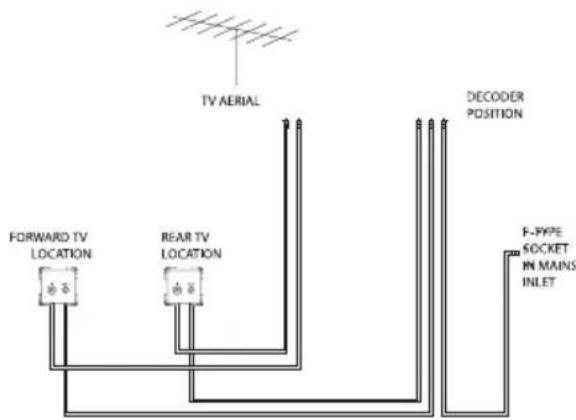

Co-ax connection point within the mains inlet enclosure, Satellite decoder position within motorhome. (Kon-Tiki)

A short co-ax lead featuring a screw on co-ax connection will be present behind the Blue mains inlet connector. A co-ax cable will be fitted and connected within the motorhome, from the back of this connection, to the location intended for the later fitment of a satellite decoder or similar receiver. The external connection can be used to link an external dish or signal, to the decoder / receiver position.

In addition to the co-ax cables fitted between the TV aerial and the TV sockets on the furniture within the motorhome, further

co-ax cables will be routed from the decoder position, to those same furniture mounted TV sockets. Each socket will be marked for aerial and 'sat' connections.

Depending on the type of decoder / receiver, and whether the TV used has an integral satellite receiver, it is possible that further equipment may be needed (a modulator), to convert the output from the decoder / receiver (SCART or HDMI) into a signal that can be sent through the co-ax cable to the furniture mounted TV sockets. Please ask your dealer or satellite system installer for more details, which are specific to the types of aftermarket equipment fitted.

Status 570 Digital antenna system

Travelling

Do not travel:

• with the antenna raised
• with the antenna set for vertical signals
To reduce the possibility of damage when travelling, point the antenna backwards.

The RED SPOT on the bottom of the mast indicates the front of the Antenna.

Your motorhome may be fitted with a Status 570 TV aerial. Please read the user instructions for the TV aerial, which are available from the following location:

https://www.visionplus.co.uk/assets/pdfs/2016/570%20RETAIL%20 Instructions%20A3%20Lilac%2018-08-15.pdf

If you are unable to view the documents on line, please contact the supplier, your dealer or Swift for an electronic or paper copy.

After performing any of the 'Actions' above you must re-tune your TV.

TV Brackets

In some models a bulkhead mounted bracket is supplied to mount the TV on. Whilst the bracket has a travel lock it is good practise to unclip the TV from the bracket and store securley for transit.

Motorhome Wifi (Kon-Tiki only) (excludes Sport)

For Kon-Tiki models only, a 3G/4G antenna is pre-fitted, which is connected to a MiFi (My Wifi) device. This system connects to the cellular network, and provides a Wifi connection inside your motorhome for up to 10 devices to connect to.

Please check with your dealer whether the MiFi device is fully installed in your motorhome, and whether the SIM card supplied with the device has been pre-installed. The position within the motorhome is layout specific, but typically in a wardrobe or in a cupboard above a fridge/freezer.

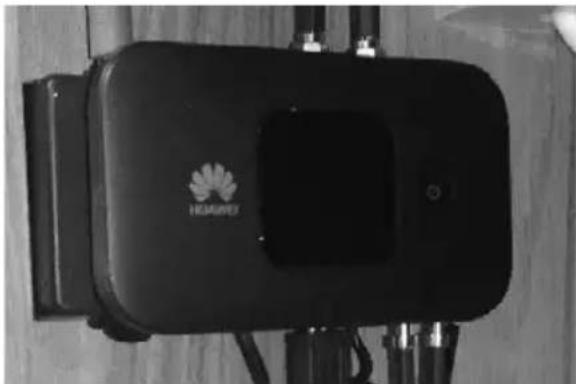

Black Huawei 3G device with visible logo and control knobs (no readable text or symbols beyond branding)

Once the SIM card is installed and components are connected, basic operation is as follows:

• Turn on the power to the device, using the switch on the base of the unit, at the left hand side. A red LED will illuminate, and a charging / battery symbol will appear in the display on the front of the unit.
• Press the power button on the front of the unit. The display will change while the device starts, and once the unit is ready, a network name and passkey will appear on that display.

SHOWER / EXTERNAL BBQ POINT

- Search for Wifi on your mobile phone / tablet / laptop, looking for the network name as displayed on the device. Connect, and when prompted for the passkey/password, use the code as displayed on the screen.

Complete user instructions, including how to fit the SIM card and mount and connect the MIFI device if still required, can be located at the address below. Please read these instructions before using the system.

http://www.motorhomewifi.com/swift/

If you are unable to view the documents on line, please contact the supplier, your dealer or Swift for an electronic or paper copy.

Shower

When using the shower, always ensure that the shower door is fully closed thus avoiding water spray on unprotected areas

Trigger head shower

• Squeeze trigger to release water. Release trigger to stop. Twist trigger up to gain permanent water flow, lower to stop.
• Orbit shower heads are also provided with a button at the side of the head to allow users to control the flow.
• Care should be taken as water may become hot temporarily when switched on until it mixes and regulates.
• Small children should be surpervised at all times when using the shower.
• We recommend unfastening the trigger shower head before travelling and storing safely to prevent it becoming detached whilst travelling.

Motorhomes with external BBQ point

Models equipped with an external barbeque point can be used to power any gas appliance suitable for the gas used in the motorhome, at the working pressure shown on the label in the barbeque outlet box. Please note when using the outlet that the fitted regulator will allow a maximum of 1.5kg per hour of gas to be taken from the gas bottle. Therefore the consumption of gas from both the appliances within the motorhome and the appliance connected to the barbeque point cannot exceed a total of 1.5kg per hour at any one time. If you are in any doubt please consult your dealer for advice. To use point proceed as follows.

When external gas equipment is being connected, the operating pressure of the gas supply of 30 or 50 mbar must correspond with the operating pressure of the equipment that is being connected (see data plate).

The plug-in connection can only be made if the quick-acting valve is closed. The safety locking mechanism can be released by sliding back the coupling sleeve.

The coupling K-valve is designed such that the quick-acting valve can only be opened if the connection is being made via the plug-in connection. The connection is made by inserting the plug-in connection into the safety coupling.

This operation can be carried out using one hand. After uncoupling the equipment, seal off the valve opening using the protection cap.

Note: The external gas socket is only suitable for removing gas, not for feeding gas into the gas system.

WARNING: Care should be taken when using the external barbeque point. Never barbeque next to an awning or tent.

⚠ WARNING: The barbeque point should only be used as an outlet point for gas, never connect a gas bottle direct to the outlet.

The External Shower Point,

Line drawing of a charging plug connected to a coiled cable (no text or symbols)

The external power point if fitted, will be supplied with a separate shower head and hose assembly.

To connect the shower, simply align the plug with the socket and push into position.

To remove, pull the lower trigger and pull the plug from the socket.

Colour reference

The colour code for touch ups or resprays for all white Fiat cabs and Swift coach built habitual body components is Fiat White 249. Colour reference for metallic black is 632. Some Dealer special cabs may have their own colour specified from the Fiat standard range. For Fiat cabs other than white, contact your Fiat dealer to obtain a colour match.

Please be aware that colours can fade over time, and therefore, if the vehicle is more than a few years old, it is suggested a colour match be obtained. If these are small areas that do not require a full respray of the entire panel you can use an over the counter polishing compound to return the original finish. We would always recommend that an inconspicuous area of the motorhome is tested beforehand.

MAINTENANCE

Vehicle Modifications & non-standard parts 152

Motorhome exterior

Condensation 152

Motorhome interior care 154

SwiftShield fabric

Corian® work surface 156

Fenix NTM® work surface 158

LED replacement 161

Winterisation 162

Chassis & rear axle 165

AL-KO exhaust system 165

Caring for the environment 165

Vehicle modifications & non-standard parts

As the owner of a Swift Group Product, you are able to make any modifications you wish, either by yourself or through a dealer, without affecting the Swift 3/6 Year Warranty.

However, please be aware that any issues, resulting directly or indirectly, from a modification or fitment of a non-standard part, will not be covered by The Swift Group Warranty.

WD40 is not recommended for external or internal use

WD40 attacks paintwork and sealants.

If a lubricant is required for Interior hinges, Sliding door tracks, Exterior door hinges, Plastic tracking etc. We recommend "Ambersil 40+" this is read-ily available from most DIY/ Automotive spare part retailers

Before carrying out any DIY work within the warranty period (3/6) years please check with your Swift Group dealer.

Motorhome exterior

Cleaning

1. Wash the motorhome regularly with mild detergent. Rinse with cold water and leather off.
2. For better protection a similar coloured good quality car wax may be applied.

For sealed areas a mild soap is the best way to clean without affecting the sealant.

Acid or alkaline based cleaners or solvents should not be used.

WARNING: Under no circumstances use any abrasive cleaning agents or solvents on the exterior. Do not wash your motorhome with a high pressure washer as these can permanently damage the seals of your motorhome. Care should be taken as the silicon in some polishes can attack the rubber used on the exterior for seals and gaskets.

Acrylic Windows

Wash windows carefully, as you would with the paintwork of your car, do not scrub windows prior to removing surface dirt and film with a hose pipe - trapped dirt could cause scratching.

Wash with a solution of warm soapy water, windows can then be dried off with a leather.

Small scratches can be removed, consult your dealer.

Catches and stays do not require any special attention or lubrication.

Acrylic (Plastic) Window Cleaning

The material used to produce most caravan and motorhome windows is acrylic plastic. While the acrylic used is very durable, it is able to be scratched with relative ease and therefore, care must be taken when clearing your vehicle not to use aggressive clearing products. Equally, care should be taken when using a drying cloth that it is clean and free from grit.

Condensation

What is condensation

Condensation is the process of change of water from its gaseous form (water vapour) into liquid water when it comes into contact with a surface that is cold. Condensation generally occurs when warm air cools quickly and looses its capacity to hold water vapour, and as a result water vapour condenses to form droplets.

Why condensation occurs

Condensation occurs when warm moist air meets a cold surface. The level of condensation will depend upon humidity levels, how moist the air is and how cold the surfaces are they come into contact with.

If the temperature falls below the dew point temperature, it is quite normal for condensation to occur on any material within the motorhome that is cold, for example the external walls, plastic windows etc.

When condensation occurs

Condensation occurs usually in winter months, because ambient temperatures are colder (leading to cold surfaces) and windows and roof vents are opened less so the moist air cannot escape.

Where condensation occurs

Condensation will occur where warm moist air is put into the atmosphere in areas such as in bathrooms (during showering) and in kitchen areas (during cooking).

In the enclosed space of a motorhome, the moist air from the kitchen or bathroom areas will inevitably transfer to the rest of the vehicle, which in turn condenses on cold surfaces leading to visible water droplets. This issue

is compounded by warm moist air being generated from normal breathing.

Condensation will also form in cold areas where air movement and ventilation is restricted (e.g. cupuboard, wardrobes, under beds, etc.)

What is important

It is important to provide ventilation and air flow, so that warm moist air can escape, or be externally cooled, and to use the heating reasonably by not making the motorhome too warm such that people perspire, as this will only serve to generate more moist air and therefore more condensation.

However, in particularly cold periods, where the external ambient temperatures are low, condensation may still form on external walls as the insulation levels may well not be thermally able to cope with the difference between the internal and external temperatures.

How can you prevent condensation

Provide ventilation so that moist air can escape.

a. Good ventilation of the vehicle when cooking or when drying clothes, footwear or pets is essential. Observe when windows begin to show signs of misting and increase ventilation by opening slightly by 1cm or opening a roof vent, as these will help, but keep the habitation door closed as much as possible to retain heat.
b. If drying damp clothes or towels, open a window to ventilate the area and allow the moist air to escape.
c. Try to make sure that the motorhome is partially heated. It can take a long time for a cold motorhome to warm up, so it is better to have a small amount of heat for a long period than a lot of heat for a short time.
d. After showering, keep the bathroom window or skylights open, and shut the bathroom door long enough to dry off the room.
e. In all other areas provide some ventilation. Fixed ventilation is provided in accordance with BS EN 721: 1998 this is through skylights and 'Heki roof lights' in the roofs and from ventilators through the floor under cookers, doors and in bed boxes. It is important not to block these.
f. Electrical heating is dryer than gas heating, and introduces less moisture into the atmosphere. Do not use additional portable paraffin or flue-less gas heaters at all.
g. If left unoccupied and unheated for long periods of time the temperatures can soak down thermally into the entire product and become very cold. Whenever possible, put the heating on at a low level before use by pre heating in cold weather.
h. Even with reasonable ventilation it is likely if the temperature is less than 5^ C and the humidity is high that condensation will occur. Ideally the temperature should be kept about 20^ C when occupied.

MOTORHOME INTERIOR

Too much ventilation in cold weather is uncomfortable and wastes heat. All that is needed is a very slightly opened window or skylights. Opening a skylight or 'Heki;

rooflights partially or windows opened to about 1cm will usually be sufficient.

Provide reasonable heating

a. Do not use portable paraffin or flueless gas heaters at all.
b. If drying damp clothes or towels, open a window enough to ventilate the area and turn on the electric element of the
c. space heater but do not hang items over the heater.
d. Try to make sure that all areas are at least partially heated. Condensation most often occurs in unheated areas.
e. To prevent condensation, the heat has to keep room surfaces reasonably warm. It can take a long time for a cold motorhome to warm up, so it is better to have a small amount of heat for a long period than a lot of heat for a short time.

Motorhomes use only carefully selected insulation materials but unlike most rooms at home all walls are exterior walls, so they lose heat through all walls as well as the roof and floor.

Even in a well insulated motorhome with reasonable ventilation, it is likely that during cold weather (less than 10^ C) condensation will occur. Ideally the temperature should be kept about 20^ C although this is not always possible.

Mould Growth

Any sign of mould growth is an indication of the presence of moisture and if caused by condensation gives warning that heating or ventilation may require improving.

New vehicles

New products take a long time before they are fully 'dried out' because of the moisture in the materials used during manufacture. While this is happening extra heat and ventilation will be required.

Corrosion

Your motorhome has been designed and built using the corrosion resistant materials (e.g. GRP (Glass Reinforced Plastic) panels, stainless steel fixings, hot dip galvanised chassis and powder coated extrusions), which if looked after will extend the life and aesthetics of the product in normal service. In certain conditions, for example, if sited for extended periods in close proximity to sea and sand spray, you may experience premature ageing and/or corrosion of the vehicle than under normal conditions.

To help prevent this, we advise regular cleaning and application of a good quality external car polish. For extended periods (where the vehicle is not in use), we recommend the use of well fitted breathable vehicle cover as protection from harsh coastal elements.

Changing Exterior Bulbs

Always replace like for like.

For individual replacement bulb specification, refer to your Service Handbook.

Motorhome interior

Follow these guidelines to ensure your investment is receiving the very best attention.

Side Walls, Roof Lining

A simple wipe over with a damp cloth and a very mild detergent is all that is needed.

Soft Furnishings

Should be vacuumed occasionally to remove grit and sand and help to keep its smart appearance over the lifetime of the upholstery. The upholstery can be cleaned with a mild, reputable upholstery cleaner. It is recommended that the curtains and pelmets are specialist cleaned only. The foam used in cushions is manufactured to meet fire regulations. It requires time to return to its normal position after prolonged use.

Cupboard Catches

It is advisable to lubricate all cupboard catches, sliding bolts and hinges from time to time. We recommend "Ambersil 40+" this is readily available from most DIY/ Automotive spare part retailers

Doors

In order to provide customers with the latest designs of door furniture it is possible, due to the use of natural wood, that warping may occur. This should not detract from the correct functioning of items fitted in the motorhome.

Information

During the normal travelling vehicle vibration and flexing may cause some of the furniture doors to become out of alignment.

For your convenience many hinges are adjustable.

Leather care

Leather furniture, in a normal contract and domestic environment, requires little maintenance, although obviously leather in lighter shades will need more attention.

Regular care of leather does ensure its lasting quality and some general rules for regular cleaning and maintenance are:

• Clean the leather with a soft damp cloth taking care not to soak the leather.
• For a more thorough clean, use the Bridge of Weir Leather Cleaning and Protection kit available directly from the distribution centre.
• Do not use saddle soap, wax polishes or spray polishes.
• Do not use any product or any method of cleaning not recommended by the manufacturer.
• Avoid letting any buckles, studs and zips come into direct contact with the furniture.
• Avoid drying out the leather by taking extra care where there is heating or an open fireplace.

Note: The above cleaning instructions DO NOT apply to Nubuck Suede or any other uncoated leather.

Swift Shield Fabric (model specific)

The Swift Shield fabric fitted to some Swift Group products is a luxury stain resistant durable fabric using Aquaclean® technology. This is a revolutionary fabric treatment that allows you to clean stains using water only. This provides you with simple fabric maintenance in the minimum amount of time.

Cleaning Instructions

Aquaclean® helps to remove the majority of household stains (wine, ink, sauce, fat, mud, chocolate, cream, etc.) in three simple steps:

1. Remove any excess residue on the upholstery

1. Apply water over the stain, either directly or using a damp cloth. Wait a few seconds.

1. Press down over the stain with a damp cloth and rub gently over the fabric in circular movements. If the stain does not come off completely, repeat the process as required.

For further details and stain cleaning demo videos visit the Cleaning Gallery on the Aquaclean® web site: http://www.aquaclean.com/ES_en/home.

Aquaclean fabrics cannot accept any responsibility for misuse of the fabric by allowing bleach or dissolvent substances coming into contact with it.

CORIAN® WORK SURFACE

Kon-Tiki kitchen work tops Corian® solid surface sork top maintenance (Excludes Sport)

Consumer Cleaning, Care & Repair

Corian® solid surfaces are stain resistant, easy to clean and hygienic, ideal for kitchen countertops, vanity tops, and other surfaces subject to the hazards of moisture and heavy wear.

Even the most used areas won't succumb to coffee, ink, or other stains.

No special cleaning products are needed to keep Corian® looking beautiful day in and day out.

While Corian ^® is extremely tough and durable, like any other fine material it can be damaged if abused or mistreated.

Reviewing this care and cleaning instructions can assist you in understanding how easy it is to care for your new Corian® surface and how you can prevent more severe damage that may require special repairs.

With a little knowledge, you can enjoy the elegance and beauty of Corian® for years to come.

Getting used to Corian®

On installation, a Corian® worktop will have an overall satin sheen finish. However, as you use it, Corian® eventually acquires a smoother, more silken finish. To ensure that this luster develops evenly, consult our cleaning guidelines included herein. You'll be pleased to see how Corian® maintains its beauty over time

How to clean Corian® kitchen tops & sinks

Although liquids cannot penetrate Corian ^® , it is best to wipe up spills as they occur. Just use a damp microfibre cloth with a standard household kitchen spray, such as Cif or Mr. Muscle.

Always clean using a circular motion. If a stain needs more attention, refer to our cleaning methods stated herein.

Dealing with resistant stains:

On any problem area, try the easy way first.

Common household spills, such as vinegar, coffee, tea, lemon juice, dyes, ketchup, red wine or vegetable spills

First, try the easy methods, then progress with an abrasive plastic scouring pad and a detergent or an ammonia based hard-surface cleaner.

Only with a really persistent stain such as lily pollen, or saffron, or with a light scratch, should you need to resort to an abrasive plastic scouring pad and rub over the stain with some bleach

Rinse several times with warm water and dry with a soft cloth.

Always restore the overall luster afterwards, using a damp cloth and a mild cream abrasive cleaner and blend the scrubbed area into the entire surface by rubbing in a circular motion.

If hard water scale has built up around the waste or taps, use an abrasive plastic scouring pad and rub over the stain with a standard household lime-scale remover and follow the manufacturer's instructions.

Rinse several times with warm water and dry with a soft cloth.

Restore the gloss level as described above.

Heat marks and scorching

Always use a heat protection pad, trivet (with rubber feet) or protective sink mat for hot cookware, or leave cookware to cool on the hob first. Never put hot pans, particularly cast iron, directly on a Corian® top or in a sink. Such heat can damage any surface!

• Pouring boiling liquids directly into sinks without turning on the cold tap may damage your Corian®.
• Always use the correct size pan on the burner and place it centrally. An overhanging pan scorches surrounding surfaces.

Scratches

• Like all materials DuPontTM Corian® will develop slight abrasion marks in normal daily use:
• Never cut or chop on Corian® - it will score the work surface! Use a chopping board instead

Chemical Spillage

Accidental spills of strong chemicals (e.g. paint stripper, brush cleaners, metal cleaners, oven cleaners, cleaners containing methylene chloride, acid drain cleaners, acetone based nail varnish removers etc.) should be flushed promptly with plenty of soapy water to avoid damaging worktops!

For nail varnish spills, non-acetone based remover can be used, and then flushed with water. Undetected or prolonged exposure to chemicals may damage the surface.

Corian® use & care - stain removal guidelines

Common household spills	Procedure
For everyday cleaning A-B-D
Vinegar, coffee, tea, lemon juice, vegetable, dyes, ketchup	A-B-C-E-I
Grease, fat and oil residues	A-B-C-D-I
Hard water scale, soap, minerals	A-B-F-I
Lily pollen, saffron, a light scratch, cigarette burns, shoe polish, ink, marker pen	A-B-C-E-I
Mercurochrome, blood, red wine, perfume	A-B-C-D-E-I
Nail varnish spills A-B-C-G-I
Iron or rust A-B-C-H-I
lodine, mildew A-B-C-E-I

Cleaning methods\*

A. Remove excess with a soft cloth;
B. Rinse surface with warm water and dry with a soft cloth;
C. Use a damp microfibre cloth and a mild abrasive cleaning product (e.g. Barkeeper's Friend,);
D. Use a microfibre cloth and rub over the stain with a detergent or a standard household kitchen spray (e.g. Flash, Mr. Muscle, Cif);
E. Use a microfibre cloth and rub over the stain with some diluted bleach**. Rinse several times with warm water and dry with a soft cloth;
F. Use a microfibre cloth and rub over the stain with a standard household limescale remover or vinegar (Viakal, Lime-lite). Rinse several times with warm water and dry with a soft cloth;
G. Use a microfibre cloth and rub over the stain with a non-acetone based Nail varnish remover. Rinse several times with warm water and dry with a soft cloth;
H. Use a microfibre cloth and rub over the stain with a metal cleaner or rust remover. Rinse several times with warm water and dry with a soft cloth;
I. If the stain persists, contact our Warranty Centre (see details inside)

* Always clean using circular motion.

** Bleach can discolour Corian® if not removed completely by rinsing with water afterwards.

Kon-Tiki Sport worktops (FENIX NTM)®

Ordinary maintenance

FENIX NTM surface should be cleaned regularly but does not require any special maintenance, just a damp cloth with warm water or mild detergents. Almost all normal household cleaning products or disinfectants are perfectly well tolerated. It is suggested to use a melamine foam sponge - also known as magic sponge - for the normal cleaning and maintenance of the surface.

Extraordinary maintenance

In case of dirt which cannot be cleaned with normal household detergents, due to the irregular topography and closed surface of FENIX NTM, the use of non-aggressive aromatic solvents (acetone) is suggested. In case of micro scratches, please refer to the specific surface thermal healing instructions.

Recommendations for cleaning the surface of FENIX NTM

The table below shows the cleaning products and methods best suited to different types of dirt.

Type of dirt Recommended cleaning products and met
Syrup, fruit juice, jam, spirits, milk, tea, coffee, wine, soap and ink	Water with a sponge
Animal and vegetable fats, sauces, dry blood, dry wine and spirits, eggs	Cold water with soap or household detergent with a sponge
Smoke, gelatine, vegetable and vinyl based glues, organic waste, gum arabic	Hot water with soap or household detergent with a sponge
Hair spray, vegetable oil, biro and felt tip, pens, wax foundations and greasy make-up, residual solvent marks	MEK, alcohol, acetone with a cotton cloth
Nail polish, spray lacquer, linseed oil	Acetone with a cotton cloth
Synthetic oil paints Triene	ene nitre based solvent with a cotton cloth
Neoprene glues Trichloroethane with a cotton cloth
Traces of silicone Wooden or plastic scraper, taking care not to scratch the surface
Lime deposits Detergents containing low percentages of citric or acetic acid (10% max.)

General precautions

For best results in cleaning FENIX NTM, it is important to remember certain precautions:

• Although very durable, the surface of FENIX NTM must still never be treated with products containing abrasive substances, abrasive sponges or unsuitable products, such as sandpaper or steel wool;
• Products with a high acid or very alkaline content should be avoided because they can stain the surface;
• When using solvents, the cloth used must be perfectly clean so as not to leave marks on the FENIX NTM surface. Any streaks can still be removed by rinsing with hot water and drying;
• Avoid furniture polishes and wax based cleaners in general, because they tend to form a sticky layer on the dense FENIX NTM surface, to which the dirt adheres.

Maintenance Instructions

Melamine foam Sponge

Simple diagram showing a circular object with diagonal lines inside a rectangular frame, no text or symbols present.

Simple diagram showing a V-shaped structure with cross symbols and a numbered circle (3), no text or labels present.

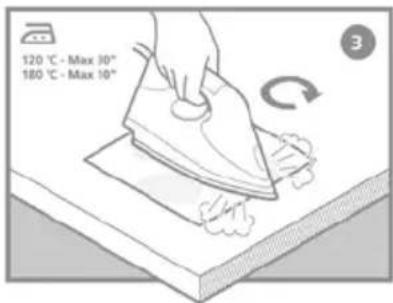

Maintenance Instructions Iron

Simple line drawing of a layered structure with a circular hole and diagonal lines, no text or symbols present.

Illustration of a hand pressing down on a textured surface with a circular arrow indicating rotation (no text or symbols)

Simple 3D diagram of a folded corner with cross marks, no text or symbols present

SINK BOWLS AND WORK SURFACES

Stainless Steel Bowl Care Instructions

After use always remove any plastic bowl or mat, rinse down the surface and dry with a soft cloth to prevent spotting. For more stubborn dirt or grease a non-abrasive multi-purpose cream cleaner, such as CIF, may be used. To preserve the appearance of your appliance we recommend plastic bowls or mats are not stored in the sink during transit.

The quality of water can affect your bowl's appearance. If the water has high iron content, a brown surface stain can form on the bowl giving the appearance of rust. Additionally, in areas with a high concentration of minerals, or with over-softened water, a white film may develop on the sink. To combat these problems, towel dry the sink after use, and clean at least once every week.

Surface scratching will be most noticeable on highly polished components. These marks are usually only superficial and can be removed with a proprietary stainless steel cleaner/polish. If the surface has a directional polished grain always clean along the grain and NOT across. Never use wire wool pads to clean the surface.

Cleaning agents containing bleach should NOT be left in contact with stainless steel. This includes many of the new "trigger-dispense" products and some multi purpose cream cleaners. Also leaving rubber mats or dishpans in the sink can lead to surface rust or pitting, always remove them after use.

Work Surfaces

You should not stand very hot items on any of the work surfaces, especially models with polycarbonate moulded sinks and drainers.

Kitchen Equipment

All the thermoplastic parts in these areas have easy clean surfaces. To ensure long life and to prevent damage you must not use any cleaning materials at all and ensure water temperatures do not exceed 70^ C (putting cold water in first is suggested). After every use it is essential that you rinse with clean water only and wipe with a soft damp cloth. Failure to follow these simple instructions may result in premature failure or cracking which will not be covered by any guarantees (including extended warranties).

Bathroom/Shower

These products should be cleaned immediately after use. Apply a warm, mild soapy water solution with a soft cloth and rinse with clean water immediately. Abrasive materials must never be used.

Washroom bi-fold doors

• Panels should be cleaned with warm soapy water and a non-abrasive cloth/sponge.
• An abrasive or aggressive cleaning agent is never to be used
• A proprietary plastic cleaner Vuplex®, can also be used. This can be obtained from outlets such as Amazon, ebay etc.

Furniture

A simple wipe over with a damp cloth should be all that is required. Polishing with a proprietary brand of wax polish enhances and maintains furniture in showroom condition.

It must be remembered that because the frames of the doors are made of ash, which is a natural product, they can be affected by temperature and humidity and may bow under certain conditions. As conditions change they should revert to their original positions.

Kitchen Drainer and Cutting Board

You should not stand hot items on to the removable plastic kitchen drainer. To wash use only warm soapy water, do not use chemicals and bleach.

Changing interior bulbs / LED Lights

For non LED lights remove the lens or lampshade to access the bulb.

Always replace like for like

LED Replacement

In many applications LED lights are fitted which contain no user serviceable parts. In the unlikely event of failure of one of the selamps, the entire lamp will need to be replaced – several types of LED light are intended for semi-permanent installations using self adhesive mounts etc, and dealer assistance may be required should damage or other need for replacement occur.

WINTERISATION

Winterisation

The Swift Group recommends the following winterisation points for customers:

Servicing

Arrange (in advance) the yearly service and habitation check, if the motorhome's next service is due while the vehicle is stored.

Plumbing

Water expands as it is frozen, and so trapped water, when it expands, can damage the tap

/ valve /pump or pipe it is trapped within. For this reason, (in addition to reasons of hygiene), the water system should be fully drained when not in use, particularly in colder weather.

• Use the control panel above the entrance door, to open both the fresh tank and water waste tank drain valves. Ensure that waste water drains into a designated waste water collection area, either directly or by collecting the water in a container for later disposal. For further detail see the Swift Command section of this handbook.
• Open the drain valve (yellow handle) next to water heater, and leave open.
• Fully open all the taps and shower mixer, move mixer position to the middle, and leave all taps in the open position.
• Unscrew the shower head and shower hose, shake out remaining water and allow water to drain. It is advised to leave the shower head and hose disconnected.
• Run pump for a short time, until all water is expelled.
• After a short while the majority of water will have left the plumbing system. At this point however it is still important to ensure that the pump itself is 'dry'. During this part of the winterisation, a suitable absorbent cloth or container should be used to catch a small amount of spilled water that will result.

Disconnect the pipe work from the pump by pulling the blue quick release tabs, at either side of the pump, at right angles to the pipe work, then pulling the pipe and connectors from the pump. See Fig.1 Run the pump for a short while to expel any remaining water within the pump.

Fig.1

This is a good time to de-assemble and clean the pump filter. Squeeze either side of the filter housing to release the retaining tabs and pull the filter cassette out of the housing. See Fig 2

Fig.2

Clean waste pipes and tanks using a sterilising fluid. See "Waste Tank" section under services Page 47.

Electrical

If vehicle is being stored while connected to 230v Mains Hook-up:

• Ensure that the leisure battery is connected and the 20A local fuse(s) is connected.
• The isolator switch on PSU should be in the 'ON' position, however. the control panel should be switched 'OFF'.
• If Alde system is installed, there is a frost protection setting, which can be used. See Alde user instruction manual.
• Vehicles can be left in this condition for extended periods, with the charger operating to maintain the battery. However, periodic maintenance and inspection is recommended, this should include the battery condition.

If vehicle is being stored not connected to 230v Mains Hook-up:

• Charge the leisure battery for 24 hours prior to placing motorhome in storage.
• Ensure the isolation button on PSU is in the 'OFF' position.
• The battery should not be adversely affected by winter temperatures but the level of charge should be maintained to maximise the life span of the battery. This can be achieved using an automotive type battery charger as and when required.
• Disconnect the vehicle battery negative terminal. Check the charge of the battery every three months. (See Vehicle Inactivity section in the Fiat handbook). Alternatively put the ignition into the 'Isolation Mode'

WARNING: Your motorhome is fitted with Swift Command Tracker (by Sargent) which monitors battery voltage. If you plan disconnect or remove your leisure battery maintenance or external charging, then lease contact the monitoring station before you remove or disconnect the battery. If leisure battery is not fitted, please also contact the Tracker monitoring station before moving the mains hook up. The Swift command Tracker monitoring station can be contacted on 0345 6027302 Gas system

Gas system

• Ensure the gas supply is isolated at the gas bottle, and ensure that the gas manifold taps are off.
• Check the age and condition of the high pressure gas hose and regulator, and replace if required.

Appliances

Check the battery expiry date on the smoke alarm and CO detector and replace or remove as required.

• Ensure the fridge is turned off.
• Clean the inside of the fridge.
• Prop the fridge door open, and if possible, the internal freezer compartment door for ventilation.
• Fit fridge vent winter covers (if available).
• Ensure all hob / oven / microwave surfaces are clean.
• If the motorhome is going to be left connected to 230v supply while not in use, ensure the microwave is unplugged.
• Clean the toilet and empty the cassette and lubricate the seals with an acid free lubricant such as Thetford High Grade Seal Lubricant. See Thetford toilet Users manual

Exterior (Body / Chassis)

• Ensure that all windows, skylights and access doors are closed and secured.
• Ensure all fixed ventilation points (high and low) are clear from debris and obstructions.
• Ensure the vehicle is not parked where falling debris (i.e. leaves, tree sap) could cause damage.
• Avoid leaving the vehicle parked in soft ground, long grass or a potential area where standing water may form.
• Lubricate relevant points on the chassis.

WINTERISATION

Wheels and Tyres

• Do not store in one position with partially deflated tyres. The tyre walls will suffer and do present a real danger of blow outs, especially when travelling at faster speeds than are allowed in the UK. The wheels should be turned every couple of weeks. If you are removing the wheels, follow the jacking procedure for changing a wheel. Check your tyres regularly for signs of age and deterioration, particularly wear, cracking and blistering. If in doubt consult a reputable tyre fitter.
• A purpose made cover maybe used, but please ensure the cover is a good fit, breathable and securely fitted

Note: A poorly fitted cover can rub and damage the bodywork. Non-breathable covers will encourage mould to grow.

Interior (Furniture / furnishings)

• Open all lockers and internal doors, to ensure good circulation.
• Remove cushions and store them in a dry location or ensure all cushions are placed in a well ventilated area.
• Close all blinds and curtains. Customers are reminded to check the tension on blinds after storage if left closed for long periods.
• Thoroughly ventilate the motorhome by opening doors or windows periodically.
• Placing water absorbent crystals in the van during the winter months, will help reduce moisture levels and mould growth.
• We do not recommend leaving portable heaters in the van unattended.

Recommissioning the water system

Re-connect the water pump by positioning the pipe connectors into the pump housing and pushing the blue tabs into position. It is advisable, after a period on non-use, to flush the water system with a sterilising fluid such as Milton 2. Fill the fresh water tank with water and sterilising fluid (refer to sterilising fluid instructions for the amount to use). Turn the pump on and open all the taps, ensuring that the water drains away safely to the waste tank.

When the waste tank is full empty the fluid into a designated waste water area. Re-fill the tank with fresh water and flush through the system as described above; repeat this until all traces of the sterilising fluid have been flushed out. (See "priming the Water System" and "Waste Tank" sections on page 47)

Prepare the toilet system by adding water and Thetford fluid to the toilet waste tank. See "Preparing the Thetford Cassette Toilet for Use" in the user instructions, link on page 127.

Appliances

Before starting motor caravanning after storage, check all gas appliances and electrical points.

Note: Preferably not less than once a year, the electrical installation should be inspected and tested by a qualified electrician.

After storage it is advisable to air the Motorhome and clean throughout, especially cooking appliances and the refrigerator.

Replace the bedding if they were removed for storage.

⚠ WARNING: Always follow the manufacturers recommended procedures after use of fitted equipment in the Motorhome, before storing for any length of time.

Chassis and rear axle

Some models are built on a Fiat base vehicle, the chassis of which has been converted by AL-KO. This conversion provides a hot dipped galvanised steel chassis coupled with a wide track rear axle utilising steel torsion bar suspension, imparting vastly improved stability and road holding.

AL-KO exhaust system

A standard Fiat exhaust system is fitted, utilising an AL-KO modified tail pipe, available through your approved dealer. A standard Fiat exhaust system is fitted to all other models, with the addition of a Swift Group tail pipe.

Caring for the environment

After many years of service you may decide that your motorhome has become beyond economic repair and should be disposed of. Please ensure that you comply with the end of life vehicle legislation and take it to an authorised treatment facility where it will be properly dealt with to minimise any negative environmental impact. The transaction will be logged at the DVLA, identifying that you are no longer the owner of the vehicle.

FAULT FINDING

Water 168

Gas 169

Cassette Toilet

170

Water

Fault Cause	Remedy
Water notflowing fromany tap whenoperated butpump runs	Freshwater tank empty	Check
	Pump wired in reverse	Check wiring, refer to pump manufacturersinstructions
	Pump not primed	Refer to pump manufacturers instructions
	Pipe inlet or outlet pipe disconnected	Check connections
	Pump pipes restricted by kinking	Check pipes run
	Blockage in pump inlet or outlet pipe	Check, starting inside freshwater tank
	Blocked in-line filter of pump filter	Dismantle and clean
	Air leak in suction line to pump	Check for bubbles & secure with clip
Pump doesnot run	Pump or tap incorrectly wired	Refer to pump/tap manufacturersinstructions
	Pump fuse blown	Check wiring connection and then replacewith fuse of correct rating
	Battery disconnected Pump seized oroverheated	Check connections
	Pressure pump sensing switch may havefailed	Refer to pump manufacturers servicinginstructions
	Pressure pump sensing	Refer to pump manufacturers servicinginstructions
	Contacts may be faulty	Check contacts in plug and socket are cleanand making contact
	Wiring connections may be faulty	Check wiring connections
Water flowsfrom cold tapbut not fromhot	Feed pipe to water heater incorrectlyconnected to the heater outletBlockage in hot pipeline	Refer to installation instructions
	Heater inlet or outlet pipes kinkedpreventing flow	Disconnect pipes and inspect
	Hot tap not connected Hot tap failed orblocked	Check and re-route if necessary. Ensure thathose is Carver recommended type
	Heater non-return valve jammed	Refer to installation manual Disconnect andinspect Seek service attention

Gas

Fault Cause	Remedy
Hob does not light	No gas	Check level of gas in bottle Check gas bottle valve is on Check gas taps are on
	Air in pipe	Purge systemRefer to hob manufacturers instructions
Oven does not light	No gas	Check level of gas in bottleCheck gas bottle valve is onCheck gas taps are on
	Air in pipe	Purge systemRefer to oven manufacturers instructions
Combi Boiler No	gas	Check level of gas in bottleCheck gas bottle valve is onCheck gas taps are onCheck exhaust outlet is clear
	Over gassed Air in pipe	Turn off appliance, wait 2 minutes and try againPurge systemRefer to space heater or boiler manufacturers instructions
Fridge does not light	No gas	Check level of gas in bottleCheck gas bottle valve is onCheck gas taps are on
	Air in pipe	Purge systemRefer to fridge manufacturers instructions

Cassete Toilet

Fault Remedy
Bowl does not drain when toilet is flushed. Cassette is overfilled	DO NOT REMOVE CASSETTE. While inside the motorhome turn flush knob anti-clockwise to open valve blade and leave it in the open position. Open access door on side of motorhome. Rotate pour-out spout outward. Place appropriate size container under spout cap. Remove cap carefully. Allow bowl contents to drain into container. This will lower the water level in the bowl.Replace cap and return pour-out spout to stored position. DO NOT REMOVE CASSETTE. Go inside the motorhome and turn the flush knob clockwise to close valve blade. Now, the cassette may be removed following the normal removal and emptying procedure.
Odours Use proper amount of holding tank deodorant specified on bottle.
Toilet tissue does not fit into compartment.	Since some tissues are supplied on larger rolls, it may be necessary to use some tissue before storing into compartment.
Soiled bowl after flushing	Partially fill bowl to cover soiled portion of bowl. Next flush will dissolve waste. Tip: Leave valve blade open during use.
No power to add water to toilet bowl	Check cassette safety sensor switch and fuse-holder for proper engagement and operation.Note: Cassette has to be removed to reach switch and fuse. Insert cassette and try adding water to toilet bowl.Toilet can be flushed manually. Add water. Add water to bowl from a separate container. Turn flush knob anti-clockwise to open valve blade. Turn clockwise to close valve blade.
Cassette cannot be removed	Check for obstacles under retaining clip. Depress retaining clip several times to check operation. Remove cassette. Flush knob and valve blade in partial open position. Close valve blade by moving knob clockwise.CAUTION: If valve blade is open during cassette removal, severe damage to system can occur. Never force insertion or removal of the cassette tank.
Valve blade mechanism sticks or is hard to open	Spray light film of silicone on blade.
Major unit malfunction	Contact your original Motorhome Dealer.

USEFUL INFORMATION

Owners Club 172

Spares and after sales customer service 172

Repair facilities 172

Caravan Clubs....173.

Motoring Associations....173

Trade Association....173

Index....174

Change of ownership 178

USEFUL INFORMATION

Owners club

The Owners Club is a completely independent organisation run for the benefit of the motorhome owners. They have numerous rallies during the year in various parts of the country. Apart from the friendliness and companionship the Club generates it is also actively engaged in charity work for those less fortunate than ourselves. The address of the Secretary of the Owners Club can be obtained from the Swift Group website.

Spares and after sales customer service

A catalogue of spare parts are available through our Swift Group Dealer Network, from door catches through to spare wheels. Please note, all parts enquiries must be directed through your dealer, as the Swift Group does not operate a direct retail service.

We endeavour to supply parts for vehicles up to 8 years old. If the original part is no longer available your dealer should be able to source a suitable alternative.

Note: Please remember to quote chassis VIN (Vehicle Identification Number) when ordering any items from your dealer. This can be found at the bottom of the front windscreen, on the plate on the front cross member within the engine compartment and on the Swift manufacturers plate situated on the bulkhead directly behind the front seat.

Repair facilities

Should you be unfortunate to encounter damage to your vehicle, we have a number of approved workshops and dealerships with workshop facilities to undertake such repairs.

Details of which can be found via our website: www.swiftgroup.co.uk/find-a-dealer

CLUBS AND TRADE BODIES

The enjoyment of motorhoming can be greatly enhanced by membership of one or more of the various motorhome/caravanning, motoring and holiday clubs. Here are some useful addresses:

Caravan Clubs

The Caravan Club,

East Grinstead House, East Grinstead

West Sussex, RH19 IUA

Tel: [phone]

www.caravanclub.co.uk

The Camping and Caravanning Club,

Greenfields House,

Westwood Way,

Coventry,

West Midlands.

Tel: [phone] or 024 7647 5448

www.campingandcaravanningclub.co.uk

Motoring Associations

Automobile Association (AA)

Fanum House,

Basingstoke,

Hants. RG1 2EA

Tel: [phone]

www.theaa.co.uk

e-mail: [e-mail]

RAC Motoring Services

RAC Motoring Services

8 Surrey St

Norwich Norfolk NR1 3NG

Tel: [phone]

www.rac.co.uk

The Society of Motor Manufacturers and Traders Limited (SMMT)

Forbes House,

Halkin Street,

London SW1X 7DS

Tel: [phone]

www.smmt.co.uk

Green Flag

Tel: [phone]

www.greenflag.com

RBS Insurance

Churchill Court

Westmoreland Road

Bromley

Kent BR1 1DP

Tel: [phone]

Trade Association

NCC

Catherine House,

Victoria Road,

Aldershot,

Hampshire, GU11 1SS

Tel: [phone]

www.thencc.org.uk

www.motorhomeinfo.co.uk e-mail: info@

thencc.org.uk

INDEX

Symbols

230V mains electrical equipment powerconsumption 62

A

Accessory harnessing....99....

Acrylic windows....

Airbag 24

Alde Compact 3020HE Boiler....114

Alde heat exchanger....115....

Alde Zonal Control....116

AL-KO exhaust system....165....

Annual service

Assistance....9

Awnings and Tents 42

B

Bathroom/shower care 161

Bulb Replacement 161

Bunk and luton bed safety 143

C

Cab radio 105

Caravan clubs 173

Care of laminate tops, tables, furniture and doors....145

Cassette toilet faults....170

Central Locking 20

Change of ownership 9,178

Chassis and rear axle 165

Children 36

Child seats 23

Cleaning water system.... 47

CO alarm....37

Coastal code 18

Code of conduct.... 16

Colour reference....149

Condensation....152

Connecting cable wiring 63

Corian kitchen work tops 156

Country code 18

Cruise control 30

Cycle racks 141

152

Dometic absorption refrigerator.... 116

Doors 155

Driving 17

Driving licence 25

E

Ebeco underfloor heating 116

Electrical fault finding.... 101

Electrical overseas connection....61

Electrical system....61

En-route heating....57

Environment....18

Escape paths 36

European touring 27

External 12v fill socket 46

External barbeque point 55

External BBQ point.... 148

External shower point.... 149

Extractor hood....126

F

Fault finding.... 167

FENIX NTM work surface....158

Fire.... 36

Fire extinguisher 36

Fix & Go Repair Kit 32

Fresh water system 45

Fresh water tank 46

G

Gas 55

INDEX

Gas bottles 55

Gas cylinder changing 57

Gas fault finding 60,169

Gas safety advice 58

Gas schematic 54

Gas types....56....

Generator usage....100....

H

Habitation relay....100....

Heated seats 142

Heki midi rooflight 134

Interior bulbs....161

ISOFix child seat restraint....

K

Kitchen care....160

Kon-Tiki Sport 524 awning 139

Kon-Tiki Sport worktops 158

L

Large storage areas.... 22

Levelling the motorhome 42

Loading of vehicle 21

M

Manual Alu-Line bed operation instructions.... 143

Microwave oven 124

Modifications.... 152

Motorhome battery 94

Motorhome exterior 152

Motorhome interior 154

Motorhome terms.... 20

Motorhome Wifi 147

Motoring associations.... 173

Moving off 20

0

Omnistep single step 136

Owners club 172

P

Parking 17

Parking sensors....34

Passenger seating 23

Positioning 42

Pressure switch 49

Pressure switch adjustment 49

Pressure switch troubleshooting 50

Priming the water system 47

R

Recommissioning the water system.... 164

Repair facilities 172

Reverse camera system 140

Reverse sensor system 140

Roof light blind and flyscreen 133

Roof lights 132

Roof loading 22

s

Seat belts 23,25

Seat swivel 142

Security 37

Shower 148

Side lockers....142

Skyview operating instructions....130

Smoke alarm operation 36

Solar panel connection point 98

Spares and after sales customer care 172

Spare wheel on ALKO conversion 30

Spare wheel removal Fiat chassis 31

Stainless steel bowl care 160

INDEX

Status 570 digital antenna....

Supplier contacts....13

Swift Command App 91

Swift Command - Bluetooth pairing...81

Swift Command - common fault table ...88

Swift Command power control panel - key features....68

Swift Command power control system....66....

Swift Command technical information....84

Swift Command Tracker by Sargent....38.....

Swift Connect Direct 9

SwiftShield fabric 155

Swift Talk....2....

T

Tables 144

Tank heaters....46

Thermal insulation heating 59

Thetford C260CS & C260S cassette toilet....127

Thetford cookers 117

Thetford electric hot plate 123

Thetford grill 119

Thetford hotplate gas burners.... 117

Thetford K1520 122

Thetford oven settings 120

Thule Omnistor 137

Tow bar connection....99

Towing 25

Trade association.... 173

Trigger head shower 148

Truma Combination Boiler 108

Truma CP Plus digital timer control.... 110

TV Brackets 147

TV inlet 146

Typical appliance consumption figures.... 64

Typical gas schematic drawing 54

Tyre pressures....23

Tyres 22

V

Vehicle identification number 37

Ventilation 37

VIN CHIP 39

W

Warranty 6

Waste water system 49

Water faults 52,168

Water level sensor & cleaning 51

Water system.... 44

Wild camping.... 17

Window blinds 129

Windows 127

Winterisation....162

Wiring of connecting cable and motorhome mains inlet....63

Work surfaces 160

All Swift Group models have been certified by the NCC for compliance with stringent European Standards, British Legislation and industry SET Codes of Practice specifically relating to health and safety issues.

The approval process covers the testing and inspection of critical areas of the product from fire safety, weights and dimensions, to gas, electrics and ventilation. Every motorhome carries the "NCC Approved Motorhome" badge.

The NCC also conduct unannounced inspections at the Swift factory to ensure continued compliance. NCC Approval gives you peace of mind that your motorhome is legal and safe.

All Swift Group motorhomes are European Whole Vehicle Type Approved.

This is your assurance that these motorhomes meet all European regulations, and have been constructed and conform to approved safety, environmental and manufacturing control standards.

CHANGE OF OWNERSHIP

Change of ownership

Notification of change of ownership

As the new second hand owner, please notify the Swift Group of the change of ownership by completing this page and sending it to:

Customer Services

Swift Group Limited,

Dunswell Road,

Cottingham,

East Yorkshire HU16 4JX.

Note: Warranties are only transferable providing the terms and conditions of the warranty have been met by the previous owner(s). Please see warranty information at the beginning of this handbook for full details. The 'Extended Body shell warranty' is a non-transferable warranty

Details of motorhome:	Model:
	Chassis No:
New owner:	Name:
	Address:
	Email:
	Telephone:
	Mobile:
	Date of purchase:
Previous Name: owner:	Name:
	Address:
	Email:
	Telephone:
	Mobile:
	Date of purchase:

NOTES

SWIFT GROUP

Dunswell Road

Cottingham

East Yorkshire

HU16 4JX

Tel: [phone]

Fax: [phone]

Email: [e-mail]

FIND OUT MORE AT SWIFTGROUP.CO.UK
