Product Type	2-Way Bookshelf Speaker
Brand	ELAC
Model	Debut 3.0 DB53
Frequency Response (-3 dB)	70 Hz - 34 kHz
Frequency Response (-6 dB)	42 Hz - 38 kHz
Nominal Impedance	6 Ω
Sensitivity	86.5 dB @ 2.83 V/1m
Crossover Frequency	1900 Hz
Recommended Amplifier Power	20 - 120 W
Power Handling (Nominal/Peak)	50 W / 70 W
Tweeter	1-inch Aluminum Dome
Woofer	5.25-inch Aramid Fiber
Enclosure Type	Bass Reflex with Dual Flared Port
Binding Posts	5-Way Metal
Dimensions (W x H x D)	6.8 x 12.2 x 10.5 in (172 x 311 x 267 mm)
Net Weight	13.34 lbs (6.05 kg)
Cabinet Material	CARB2 Rated 16mm MDF
Cabinet Finish	Black Ash Vinyl, Satin Black Vinyl Front
Cleaning Instructions	Occasional dusting with soft cloth; grilles cleaned with vacuum brush attachment
Safety Warning	Do not open cabinet; service by qualified personnel only
Warranty	3 years (North America) from original purchase date

Frequently Asked Questions - Debut 3.0 DB53 ELAC

How far should the speakers be placed from walls?

Place speakers approximately one to two feet away from walls and corners to avoid unnatural bass enhancement.

What gauge speaker wire should I use?

Use a minimum of 16 gauge wire for runs up to 25 feet.

How do I clean the speakers?

Dust occasionally with a soft cloth. For grilles, use a vacuum cleaner with a brush attachment. Avoid abrasive or solvent-based cleaners.

What is the recommended amplifier power?

Recommended amplifier power is 20 to 120 watts per channel.

How do I connect the speaker wires?

Strip about 12 inches of insulation, twist bare strands, and insert into the 5-way binding posts. Ensure correct polarity (red to red, black to black).

Can I use these speakers with a subwoofer?

Yes, they can be used as part of a 5.1 surround system. Set receiver crossover to 80 Hz and set center channel size to small for optimal integration.

What is the warranty period?

ELAC offers a 3-year limited warranty to the original purchaser for defects in materials or workmanship.

How should I position the speakers for best stereo imaging?

Form an equilateral triangle between the two speakers and your listening position. Toe-in the speakers slightly if they are too far apart.

Are the speakers magnetically shielded?

No, they are not magnetically shielded. Keep them away from CRT televisions and magnetic cards to avoid interference.

Can I place them in a closed cabinet?

No, do not install in a closed rack or cupboard. Ensure adequate ventilation and avoid blocking ventilation openings.

USER MANUAL Debut 3.0 DB53 ELAC

MODELS : DB53, DB63, DF53, DF63, DC53, DC63, DA43

Exterior view of a black electronic speaker with a circular head and textured body (no text or symbols visible)

OWNER'S MANUAL

ELAC

The life of sound.

Thank you, and Congratulations on bringing home an ELAC Debut speaker.

LEGENDARY SOUND

Begins With Passion and Innovation

Designing the new ELAC Debut 3.0 series wasn't merely about delivering exceptional sound; it was a testament to the art of merging legendary acoustics with elevated style at accessible prices. Achieving this feat demanded a blend of creativity, vigor, and a relentless pursuit of excellence. By seamlessly marrying superior audio performance with captivating aesthetics, the ELAC Debut 3.0 series redefines what's possible in the realm of affordable audio, proving that exceptional style and legendary sound are within reach for all enthusiasts.

Enjoy!

JOURNEY TOGETHER THROUGH - THE LIFE OF SOUND

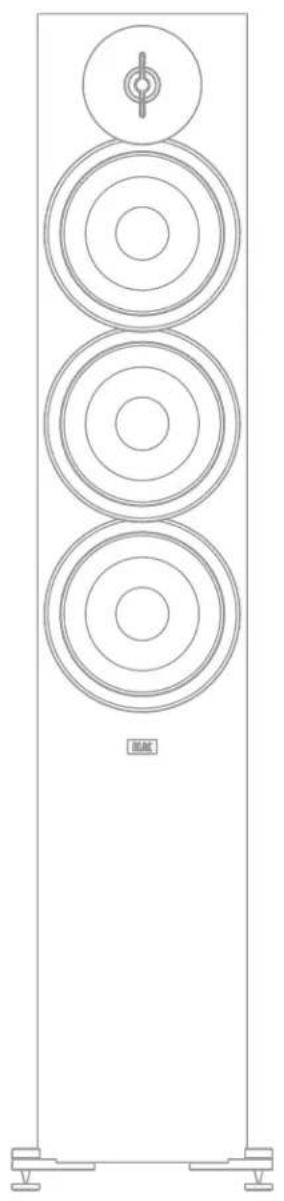

DEBUT SERIES

Line drawing of a three-tiered speaker tower with circular concentric rings and a central knob (no text or symbols)

DF63 DF53

Line drawing of a three-tiered speaker tower with no text or symbols

Simple line drawing of a speaker grille with a central hub and concentric rings (no text or symbols)

DA43

Line drawing of a speaker with concentric circles and a central knob (no text or symbols)

Line drawing of a speaker with concentric circles and a central knob (no text or symbols)

DB63 DB53

Three concentric circular rings with a central crosshair symbol, no text or labels present

DC53

Three concentric circles arranged horizontally with a central cross symbol, no text or labels present.

DC63

Avoid damage to the speakers and other components:

• Unbox the speakers carefully to avoid physically damaging your speakers.
• Use appropriate gauge wires (minimum of 16 gauge wire for runs up to 25 feet).
• Make sure wire polarity is connected correctly. Most speaker cables are coded for ease of use. Make sure positive (red) connection on the amplifier terminal is connected to the positive (red) on your speakers.

Follow the same instructions for the negative side.

Strip off approximately 12 " of the insulation from the ends of the speaker cable, twist the bare strands and insert into the binding post.

• Ensure your equipment is turned off before connecting speakers.
• Check to ensure positive and negative wires are not touching each other once they're connected to the speaker terminals.

DEBUT speakers have feet and other accessories that may need to be installed prior to use. Please refer to Figure 1, 2 and 3 for installation.

Line drawing of a box with two circular speakers and a hanging connector (no text or symbols)

Figure 1

Technical line drawing of a mechanical assembly with mounting brackets and a control panel (no text or symbols)

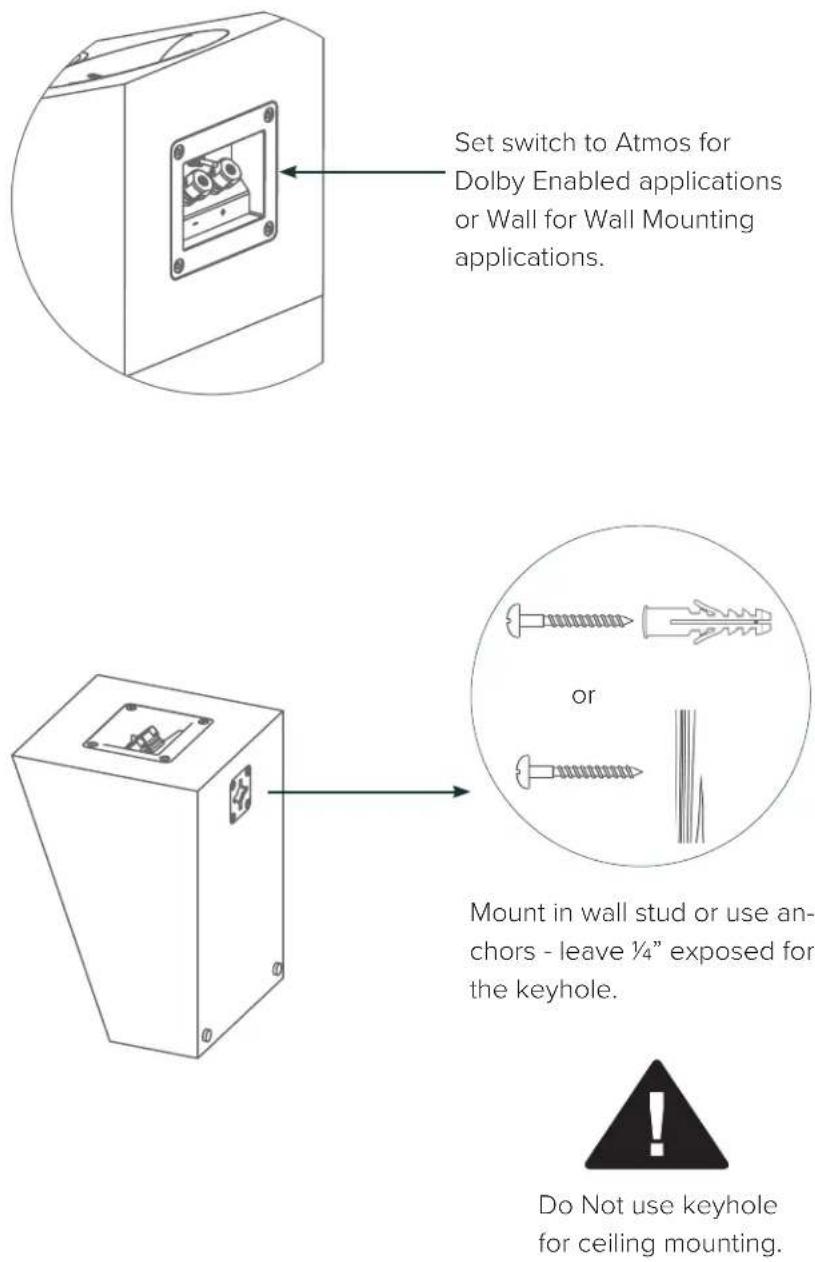

Figure 2 Figure 3

Line drawing of a box with speaker and circular components, connected to a base with four small circular components (no text or symbols)

Top of speaker mounting.

Line drawing of a multi-tiered speaker tower with circular speakers and mounting feet (no text or symbols)

Register your product online at www.elac.com/register

• Keep up-to-date on new products and promotions.
• Your personal information will never be resold.
• This registration information is not used for warranty purposes.

Please retain your receipt for warranty claims.

Care and Cleaning

The only thing you should ever need to do to your speakers is dust them occasionally. Never apply any abrasive or solvent-based cleaner or any harsh detergent.

You can clean the grilles with the brush attachment of a vacuum cleaner.

Achieve maximum performance and optimal sound quality from your ELAC Debut 3.0 speakers with proper speaker placement and set-up.

While not all rooms are the same, use the following guidelines to configure the speakers for your particular room. There are no “exact” rules or boundaries in setting up your speakers but the following suggestions will help optimize your desired results. Remember the best sound set-up is what sounds best for you so don’t be afraid to experiment and make adjustments to the placement and directivity of the speakers.

Place the speakers approximately one to two feet away (FIG. 1) from boundaries such as walls and especially corners. Close proximity to a side or rear wall will enhance bass performance (output), but being too close (particularly to a corner) may result in bass that is unnatural. If a corner location is unavoidable, try to position the loudspeaker so that the distance to the rear wall is not equal to the distance to the side wall.

• For the best results and the most realistic stereo image and lifelike sound, place the speakers so that an equilateral triangle (fig. 2) is created between the speakers and your favorite listening position. This set up creates the optimum imaging performance.
• If you find that your B5.3/B6.3 or F5.3/F6.3 left and right speakers are too far apart, angle (toe in) them towards the listening position to gain a more focused central image.

Whether you use the B5.3/B6.3 bookshelf or the F5.3/F6.3 floorstanding speakers for a 5.1-channel surround set-up, avoid placing the surround speakers forward of your listening position. The surround speakers should be spread apart wider than the front speakers. In addition, elevate the speakers to the same height or slightly higher as the front speakers for the most enveloping sound field. Like the front speakers, you may need to experiment with the positioning by pointing the rear surround speakers towards the listening area.

5.1-Channel Surround Set-Up

The ELAC C5.3/C6.3 center channel is designed to produce dialog sounds and should be positioned above or below (fig. 3) your television. Align it with the center of the television. As much as possible, try to keep the C5.3/C6.3 close to the same level (height) as your front speakers for a more even sound stage. Keeping the same height for the center channel can be very challenging so it might be necessary to tilt the center speaker up (if too low) or down (if too high), to aim it towards the listening area.

Simple line drawing of a room with a wall-mounted device and a curved armchair, connected by a dashed arrow indicating direction (no text or symbols)

Optimal results for the center are obtained by setting the receiver/processor center channel size to small. If you have a choice, set the crossover frequency to 80Hz.

1. Seating position
2. Left & right front Dolby Atmos enabled speakers
3. Center speaker
4. Subwoofer
5. Left & right rear Dolby Atmos enabled surround speakers

	DB53 DB63 DF53 DF63		DC53 DC63 DA43
SPEAKER TYPE 2-WAY, BASS REFLEX 3-WAY, BASS REFLEX 2-WAY, BASS REFLEX SEALED
FREQUENCY RESPONSE -3 dB:	70 TO 34KHZ	50 TO 34KHZ	58 TO 34KHZ 4	6 TO 34KHZ 73	TO 34KHZ 50	TO 34KHZ 60	TO 34KHZ
FREQUENCY RESPONSE -6 dB:	42 TO 38KHZ	42 TO 38KHZ	38 TO 38KHZ 3	1 TO 38KHZ 57	TO 38KHZ 50	TO 38KHZ 48	TO 38KHZ
NOMINAL IMPEDANCE	6 Ω	6 Ω	4 Ω	4 Ω	6 Ω	6 Ω	6 Ω
SENSITIVITY @2.83 V/1M	86.5 dB	87 dB	87.5 dB	87.5 dB	87.5 dB	87.5 dB	88 dB
CROSSOVER FREQUENCY	1900 Hz	2000 Hz	500 Hz, 2100 Hz	550 Hz, 2000 Hz	1900 Hz	2000 Hz	2200 Hz
RECOMMENDED AMPLIFIER POWER	20 - 120 W	20 - 140 W	30 - 150 W	30 - 180 W	30 - 120 W	30 - 140 W	20 - 120 W
NOMINAL/PEAK POWER HANDLING	50/70 W	60/80 W	80/130 W	100/150 W	60/100 W	70/120 W	60/80 W
TWEETER	1 - INCH ALUMINUM DOME
MIDRANGE (ARAMID-FIBER)	-	-	2 x 5 1⁄4 "	2 x 6 1⁄2 "	-	-	-
WOOFER (ARAMID-FIBER)	5 1⁄4 "	6 1⁄2 "	5 1⁄4 "	6 1⁄2 "	2 x 5 1⁄4 "	2 x 6 1⁄2 "	4.0 "
CABINET	CARB2 RATED 16MM MDF
CABINET FINISH	BLACK ASH VINYL, SATIN BLACK VINYL FRONT
PORT	DUAL FLARED
BINDING POST	5-WAY METAL
WIDTH (IN / MM)	6.8/172	7.7/195	6.8/172	7.7/195	19.0/482	21.0/533	6.8/172
HEIGHT (IN / MM)	12.2/311	13.3/339	40.6/1030	43.1/1094	6.8/172	7.7/195	6.7/170
DEPTH (IN / MM)	10.5/267	11.7/298	9.7/246	10.6/268	9.2/234	11.7/298	9.7/246
Net Weight (lbs / KG)	13.34/6.05	17.3/7.85	34.6/15.7	38.8/17.6	19.2/8.7	23.6/10.7	7.3/3.3

SAFETY INSTRUCTIONS

1. General information

• Please read and follow these safety instructions.
• Keep them safe for future reference.
• Observe all warnings on the speaker and in the manual. Please check the speaker for damage before use. The speaker must be in perfect working condition. Damaged parts may lead to personal injury.

2. Use only as directed

• Connect the speaker(s) according to the instructions in the manual.
• Many ELAC speakers are equipped with spikes and/or anti-slip feet. They are explicitly provided for leveling the speaker. For leveling on an uneven floor, unscrew the spikes or anti-slip feet by 2-3 turns of thread. The speaker should always be in perfect vertical alignment: the stability of the speaker must not be compromised by using spikes or anti-slip feet as the speaker may tip-over.

3. Location

• Install the speakers on a level surface only.
- When choosing the location of these speakers do not place them in locations that are:
- In direct sunlight
- Very humid
- Prone to vibrations
• Exceptionally hot or cold
- Near CRT Televisions (the speakers are not magnetically shielded and may cause color issues with a CRT based TV).sa
- Close to magnetic cards (Since the speakers are not magnetically shielded placing magnetic cards such as credit cards or commuter cards may cause them to fail).

4. Overload

Please ensure the product is perfectly stable to avoid injury from tip-over. Please note, that stability can be increased by using spikes on carpeted surfaces. However, the mounting of spikes must be carried out carefully due to their very sharp ends which may cause injuries. The stability on slippery floors can be increased by using Velcro fastening tape or double-sided adhesive tape. Do not install the speaker near any heat sources such as radiators, heating valves, stoves, or other apparatus (including amplifiers) that produce heat, or in areas where there is a risk of explosion.

• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install the speaker in a closed rack or in a closed cupboard.
• Do not put burning candles on or near the speaker.
• Do not install the speaker near transformers because electromagnetic stray fields can cause hum noise on woofers.
• In combination with certain materials / lacquers / material surfaces, anti-slip feet or spike washers may cause colored imprints on the surfaces.

5. Overload

Extreme overload of the device due to very high volume may cause individual components to blow. Because of the possible danger, you should never leave loudspeakers under extreme overload conditions unattended.

6. Service

DANGER! Do not open the cabinet because the components and conductors may carry dangerous levels of electricity! Servicing to be carried out by qualified service personnel only.

Servicing is required when the loudspeaker has been damaged in any way, such as damage to the power supply cord or the plug, or when liquid has been spilled or objects have fallen into the loudspeaker, the speaker has been exposed to rain or moisture, does not operate normally, or has been dropped. To reduce the risk of electric shock, do not open the loudspeaker. Servicing to be carried out by qualified service personnel only.

7. Fuse links

Various faults in subwoofers or active speakers may cause the fuse to blow. If the fuse blows, only replace it with the correct fuse type and rating as shown on the rear of the loudspeaker on the fuse holder. A second fuse is included with the device (in the fuse holder beneath the mains socket).

8. Cleaning

NOTE: Clean only with soft, smooth cloth or with dust brush. Do not use scouring agents, alcohol, benzene, furniture polish or other agents for cleaning! Modern furniture is often coated with multiple varnishes and plastics which can be treated with chemical agents. Some of these agents contain substances which degrade or soften the rubber feet. Therefore, we advise you to place an anti-slip mat underneath the loudspeaker.

9. Volume

CAUTION! Continuous high volume may cause severe damage to your hearing. Please listen responsibly.

10. Disposal

The packaging is made from recyclable materials. Dispose of this in an environmentally friendly manner. At end of product life do not dispose of the speaker(s) with standard household waste. The speaker must be recycled in accordance with local legislation. Ask your local government for further information on recycling as the device contains valuable raw materials. Disable the speaker before disposal.

11. Power

This subwoofer is only intended to be connected to voltages that are listed on the rear panel of the cabinet. Connection to any other voltage may cause irreversible damage to the subwoofer and will void the warranty. Use of plug adapters is not recommended because they may allow connection to voltages other than those printed on the back of this subwoofer.

ELAC Americas Inc.

North America Limited Liability Warranty

ELAC Americas Inc. warrants to the original purchaser that this product be free from defects and or workmanship for a period of 3 (Three) years from the original date of purchase. During this time period, repair or replacement of parts will be free of charge to the original owner (See below limitations). Shipping to and return from the repair center will be the responsibility of the original purchaser.

Limitations

• Warranty begins on the date of original purchase from an authorized ELAC Americas Inc. dealer.
• Product is warranted only if used in home applications within the max power rating specified in this manual. Commercial use of this product is not warranted.
• Product that has been modified or altered in anyway will not be warranted.
• Product that has been abused or subjected to faulty equipment will not be warranted.
• Products with defaced or removed serial numbers will not be warranted.

If service is required

In the event that service is required, please contact ELAC America at 888-541-0996 or at [e-mail] to arrange for service or replacement. You will be responsible to provide proof of purchase (Copy or original sales receipt). Shipping to and from our repair center will be the responsibility of the original purchaser.

Warranty Outside of North America

This warranty applies to products purchased in the United States and Canada. For warranty claims outside of North America please contact the local dealer/distributor in the country of purchase.

ELAC

The life of sound.

ELAC AMERICAS INC. 1938 N. BATAVIA St. SUITE K ORANGE, CA 92865

ELAC ELECTROACUSTIC GMBH FRAUNHOFERSTRAße 16 D-24118 KIEL, GERMANY
