LED2225 - TV Reflexion - Free user manual and instructions

Product Type	LED TV
Brand	Reflexion
Model	LED2225
Screen Size	22 inches (55.9 cm)
Resolution	1366 x 768 (HD)
Dimensions (with stand)	Approx. 505 x 320 x 140 mm
Weight (with stand)	Approx. 2.8 kg
Power Supply	AC 100-240V, 50/60Hz
Power Consumption (typical)	30 W
Standby Power Consumption	< 0.5 W
Inputs	HDMI, VGA, USB, Composite AV, Headphone out
VESA Mount	100 x 100 mm
Remote Control	Included
Sound	Built-in speakers (2 x 3W)
Key Features	Sleep timer, parental lock, auto channel search, aspect ratio adjustment
Cleaning Instructions	Use a soft, dry cloth; do not use liquid or abrasive cleaners
Safety Precautions	Do not block ventilation slots; keep away from heat sources; use only provided power cord
Spare Parts Available	Remote control, stand, power cord via customer service
Warranty	1 year
User Manual	Downloadable PDF from manufacturer website

Frequently Asked Questions - LED2225 Reflexion

How do I connect my Reflexion LED2225 TV to a cable box?

Use an HDMI cable to connect the cable box to the HDMI port on the TV. Alternatively, you can use the Composite AV input if your cable box uses component cables. Make sure to select the correct input source using the Source button on the remote.

Can I mount the LED2225 TV on a wall?

Yes, the TV supports VESA 100x100 mm wall mounts. Use a compatible mount and follow the instructions provided with the mount. Ensure the wall can support the TV's weight (approx. 2.8 kg).

Why is there no picture or sound from my Reflexion TV?

First, check that the TV is plugged in and the power cord is secure. Make sure the power outlet is working. Verify the input source is set correctly (e.g., HDMI, AV). If still no picture, try a factory reset via the menu: Settings > System > Factory Reset.

How do I perform a channel scan on the LED2225?

Press the Menu button on the remote. Navigate to Channel or Setup and select Auto Scan or Auto Tuning. Choose Antenna or Cable depending on your connection. The TV will automatically find and store available channels.

Can I connect my USB drive to the TV?

Yes, the TV has a USB port for playing media files such as photos, music, and videos. Insert the USB drive, then press Source and select USB. Use the remote to browse and play files. Supported formats include MP4, AVI, MP3, and JPEG.

What is the screen resolution of the Reflexion LED2225?

The TV has a resolution of 1366x768 pixels (HD). This provides a clear picture for standard HD content.

How do I clean the TV screen?

Turn off the TV and disconnect the power. Use a soft, dry microfiber cloth to gently wipe the screen. Do not use any liquid cleaners or abrasive materials as they may damage the screen.

Where can I find the user manual for the LED2225?

The user manual can be downloaded for free from the Reflexion website or from notice-facile.com. It is available in multiple languages, including English.

How do I activate the parental lock?

Press Menu on the remote, go to Settings or Lock, and enable Parental Control. You will need to set a 4-digit PIN (default often 0000). This allows you to block certain channels or limit viewing time.

What should I do if the remote control stops working?

First, replace the AAA batteries with fresh ones. Check for any obstructions between the remote and the TV sensor. If it still doesn't work, try resetting the remote by removing the batteries for a minute. If problems persist, contact customer support for a replacement.

USER MANUAL LED2225 Reflexion

Line drawing of a flat-screen monitor with no text or symbols on the screen or side

LED TV with DVB-S2 / DVB-T2HD / DVB-C and CI+Slot

English user manual: page 32

CI-INFORMATION....16

MEDIA MODUS (USB)....22

USB AUFNAHME....24

DATENBLATT LED2225 / LED2425....28

English	German
CI+ Slot	CI+ Steckplatz
CAM	CAM
Smart Card	Smart Card

Line drawing of a flat-screen monitor with no text or symbols on the screen or side

LED TV with DVB-S2 / DVB-T2HD / DVB-C and CI+Slot

English user manual: page 32

Read the operating instructions carefully before using the appliance for the first time and keep them in a safe place for future reference.

	The operating and maintenance instructions (service) in this manual must be followed. Any use of the appliance other than that described in this manual may result in damage to health, a defect in the appliance and invalidation of the warranty.
	To avoid the risk of electric shock, do not open the appliance. Opening the appliance will invalidate the warranty. Repairs may only be carried out by an authorised specialist workshop and qualified persons. There are no parts inside the appliance that can be repaired by the user.
	This device is designed for DC 12V mains voltage. If the appliance is not to be used for a longer period of time, disconnect the mains adapter from the appliance.
	The device is operated with an external power supply unit. To prevent damage to the device, only use original accessories that comply with the specifications in these instructions.
	Do not expose the appliance to splashing water or high humidity and do not place any objects filled with liquids, such as vases, on the appliance.
	Position the appliance in such a way that an undisturbed supply of fresh air is always ensured. Never place the appliance on carpets or near curtains and do not install the appliance in bookshelves.
	Do not expose the appliance to direct sunlight or heat sources such as heaters or ovens and do not place open flames such as candles on the appliance.

IMPORTANT SAFETY INSTRUCTIONS - PLEASE READ CAREFULLY BEFORE USE.

Observe the safety instructions on the back of the television.

	Warning to prevent electric shock. Do not remove any of the covers. There are no user-serviceable parts in the appliance. Have the appliance serviced by qualified personnel.
	This symbol indicates important operating/maintenance instructions for this appliance in the operating instructions.
	This symbol indicates the risk of electric shock due to life-threatening voltage in this appliance.

Follow the instructions below:

• Do not use this TV near water.
• Only use a dry cloth for cleaning.
• Do not cover any of the ventilation openings.
• Set up the appliance in accordance with the quick start guide supplied and these operating instructions.
• Ensure that the mains cable is not pinched or walked on, especially when plugging into the socket and DC input.
• Avoid running the mains cable over sharp edges.
• Disconnect the TV from the mains during thunderstorms or when it is not used for long periods.

Caution To reduce the risk of fire or electric shock, never expose the appliance to rain or moisture. Keep the TV away from splashing and dripping water and do not place any objects filled with liquid on the TV.

Note:

- Do not place any open heat sources (ovens, candles, etc.) near or on the TV.

IMPORTANT SAFETY INSTRUCTIONS

This appliance complies with all current safety regulations. The following safety tips are intended to protect the user from careless use and the resulting dangers.

• Although this appliance has been manufactured with the utmost care and has undergone a rigorous final inspection before leaving the factory, as with any other electrical appliance, problems may occur. In the event of smoke, excessive heat or any other abnormal occurrence, disconnect the appliance from the mains immediately.
• Ensure that the appliance is adequately ventilated! Never place the appliance near or under a curtain!
• The mains plug or appliance plug is used to disconnect the appliance from the mains and should be easily accessible at all times.
• The appliance may only be connected to a power supply that corresponds to the power supply specified on the rating plate on the back of the appliance. Never connect the appliance to any other type of power supply.
• The mains socket should be located near the appliance and must be easily accessible.
• To avoid overloading, do not connect too many other devices to the mains socket to which the TV is connected.
• Keep rodents away from the appliance. Rodents love to gnaw on the mains cable.
• Pull the mains cable out of the socket by the plug. Never pull on the mains cable itself as it could be damaged and cause a short circuit.
• Position the appliance so that nobody can trip over the power cable.
• Never place heavy objects on the power cable as this could damage it.
  • To prevent injury, make sure that the power cable cannot be reached or pulled out by small children.
• Do not place the appliance near heat sources. The housing and power cable could be damaged by heat.
• The screen is made of plastic and may chip if damaged.
  • To prevent the device from falling, only place it on firm and level surfaces.
• To protect the device from lightning strikes, disconnect it from the mains and remove the aerial. Warning: Do not touch the TV1 / TV2 antenna plug.
• For safety reasons, disconnect the appliance from the mains if you leave your home for a longer period of time.
• The appliance heats up when it is switched on. To avoid overheating, never place covers or blankets on the appliance. Never cover the ventilation holes. Never place the appliance near sources of heat.
• Avoid direct sunlight on the appliance. Keep a clearance of 5 cm (2") to the surroundings when placing the appliance on a shelf.

- Keep water or moisture away from the device. Do not use the appliance in a wet or damp environment such as the bathroom, a steam kitchen or near a swimming pool.

- Do not use the appliance if moisture condensation may occur.

• Any repairs may only be carried out by qualified specialists.

- Never open the appliance. Repairs that have not been carried out by qualified personnel can be the cause of fires.

- Liquids that have entered the appliance can cause serious damage. Switch the appliance OFF and disconnect it from the power supply. Contact your dealer or customer service.

- Never remove the safety covers. There are no serviceable or maintainable components inside the appliance. You would invalidate your warranty. The appliance may only be serviced by the manufacturer's service centre.

- Never hit or shake the screen as this could damage the internal circuitry. Handle the remote control with care and do not drop it.

• Never place hot objects or naked flames on or in the immediate vicinity of the TV.

Headphone warning

Set the volume of the device to minimum before using headphones. If the volume is set too high, this can lead to hearing impairment/damage over a long period of time. Therefore, to protect your hearing, use a comfortable room volume.

About the installation location

Set up the TV in a location without direct sunlight or strong light sources. Soft, indirect light is recommended for comfortable viewing. Use curtains or blinds to prevent sunlight from shining directly on the screen. Place the TV on a firm and level surface. This will prevent the set from falling. Position the TV so that objects cannot get into the set.

WHAT'S IN THE BOX?

- Main device

- Remote control

- 2x Batteries (AAA)

• Power adaptor (12V / 3A)

- User manual

• TV stand (left / right)

- 12V car cable

• DVB-T antenna (passive)

- 4x VESA screws

Note:

• The feet of the 24 inch model are plugged in.

- Screws are only included with the 22 inch model.

Bild 1:

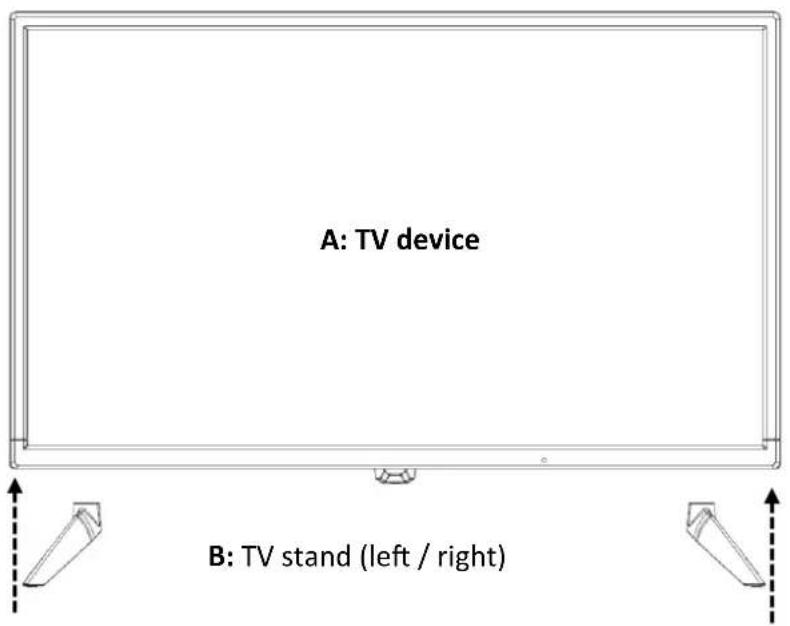

1. Place the TV set (A) on a level and lightly padded surface with the display facing downwards.

2. Insert the two feet into the device as shown in the illustration.

3. LED2225: The feet are attached to the TV set using the screws supplied.

4. LED2425: The feet are plugged in. No screws are included in the scope of delivery.

Note:

- Do not overtighten the screws. You could damage the screws or the thread.

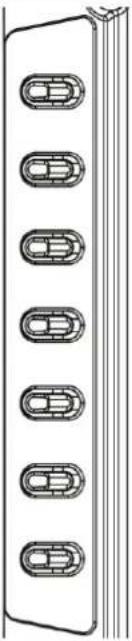

DESCRIPTION OF THE BUTTONS ON THE LED2225 DEVICE

		Vol+: Louder
		Vol-: Quieter
		CH+: Switch channel up
		CH-: Switch channel down
		Menu: Open / close device menu
		Input: Open / close input menu
		Power: Switch on device / Standby
Hinweis:The buttons are located on the back on the left-hand side.

View from the front

Description of the buttons and their function on the TV set:

POWER

Device On / Off (Standby)

CONNECTIONS

DC IN	DC input for the supplied 12V / 3A power supply unit.
VGA	Connect your PC here. Video transmission.
PC Audio	Connect your PC here. For audio transmission. Only in combination with VGA.
SCART	Connect your Scart device here.
TV1 (S2)	Connect your satellite system here.
TV2 (T2HD/C)	Connect your cable system or DVB-T aerial here.
COAX	Connect your external audio device here. Digital audio output.
HDMI (ARC)	Connect your external HMDI device here.
USB	Connect your USB device for media playback here.
Common Interface (CI)	Insert your CI module (not included) here to decode chargeable channels.
Headphone socket	Connection for 3.5mm headphones.
Mini AV	Connect your external AV devices here.
Mini YPbPr	Only in combination with mini AV.

Note:

- The maximum installation height of the appliance of 2 metres must not be exceeded. The appliance must be mounted on a solid surface.

This TV is equipped with a CI+ slot and supports the following digital standards: DVB-T/T2HD, DVB-S/S2 and DVB-C

Common Interface / Slot

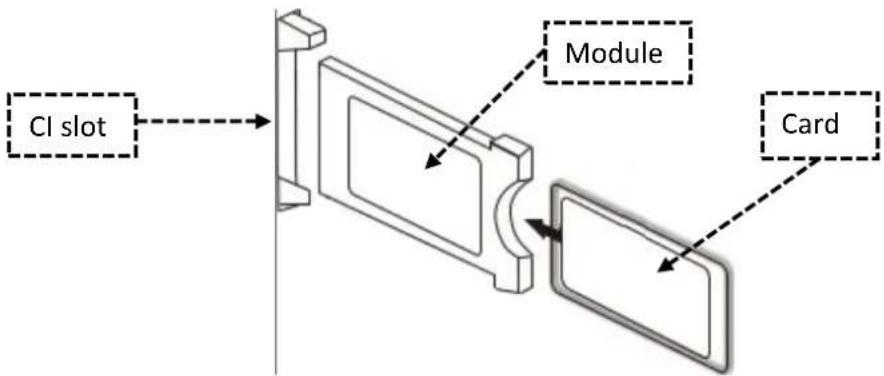

The CI slot (CI+) is designed to accept conditional access modules (CAM) and smart cards to access pay TV and other services. Contact your pay TV service provider for more information about modules and subscriptions.

Note:

• Conditional Access Modules and Smart Cards are sold separately.
• Switch off your TV before inserting CI+ modules into the CI slot.
• Then insert the Smart Card into the Cl+ module.

1. Switch on the TV and make sure that "Live TV" is selected as the source.

2. When the CAM is detected, the following message appears on the screen: "CI module has been detected". Wait a few seconds until the card is activated.

3. Now select the desired pay-TV programme.

4. Detailed information about the Smart Card used is displayed in the configuration menu under the following menu item: All settings > General > Transmitter > CI information.

5. Press the OK key to OK the CI menu. Refer to the manual of the module for details on the settings.

6. When the module is removed, the following text is displayed on the screen: "CI module has been removed".

REMOTE CONTROL

English	German
CI+ Slot	CI+ Steckplatz
CAM	CAM
Smart Card	Smart Card

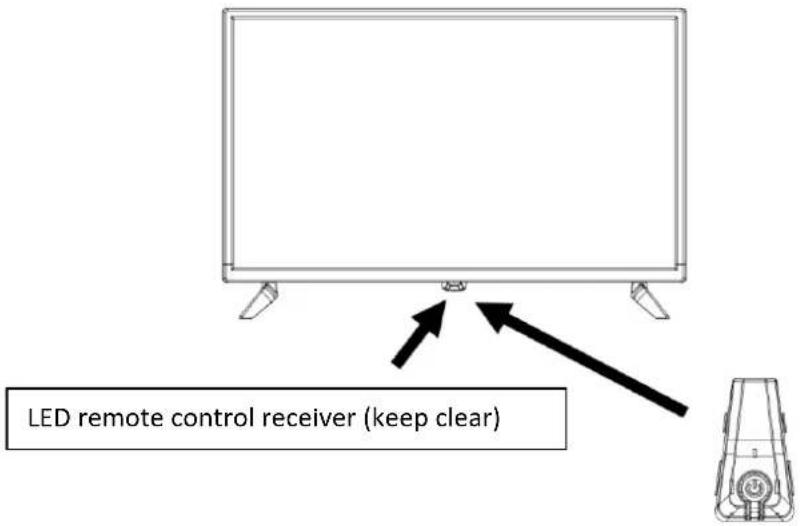

The remote control uses infrared waves (IR). Hold the remote control in the direction of the front of the LED TV. If the remote control is out of range or angle, the remote control may not work properly.

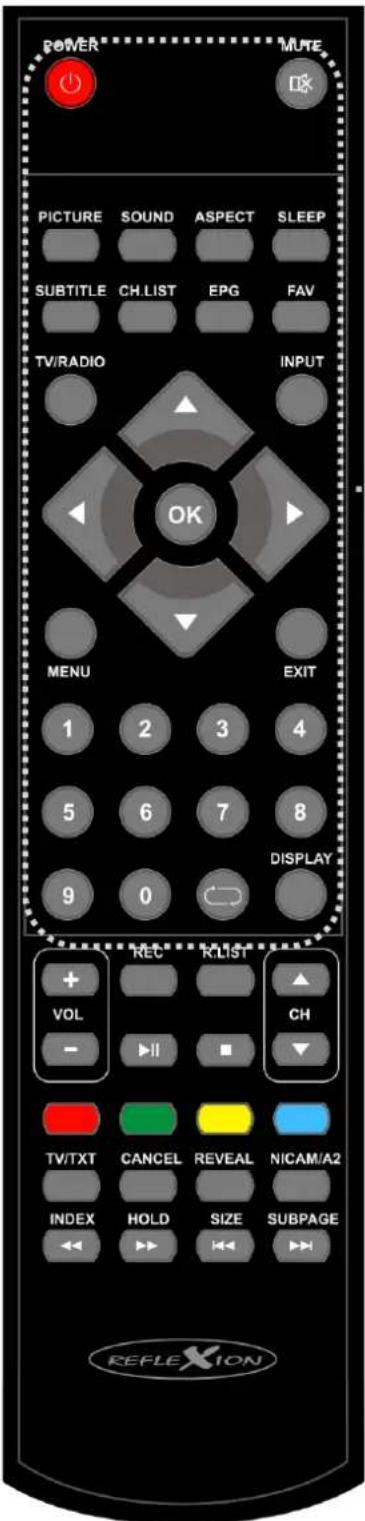

1. POWER: On / Off (standby)
2. MUTE: Mute On / Off
3. PICTURE: Change picture mode
4. SOUND: Change sound mode
5. ASPECT: Setting the aspect ratio
6. SLEEP: Switch SLEEP mode on / off
7. SUBTITLE: Switch on and select subtitles
8. CH.LIST: Open / close programme list
9. EPG: Programme and programme overview
10. FAV: Open / close favourites list
11. TV/RADIO: Switch between TV and radio programmes
12. INPUT: Select input source
13. ▲ ◀ ▶ ▼: Navigation keys for menu operation
14. OK: Confirm menu item
15. MENU: Open main menu
16. EXIT: Closing menu item
17. 0-9: Programme selection buttons
18. ⇌: Last channel
19. DISPLAY: Show information

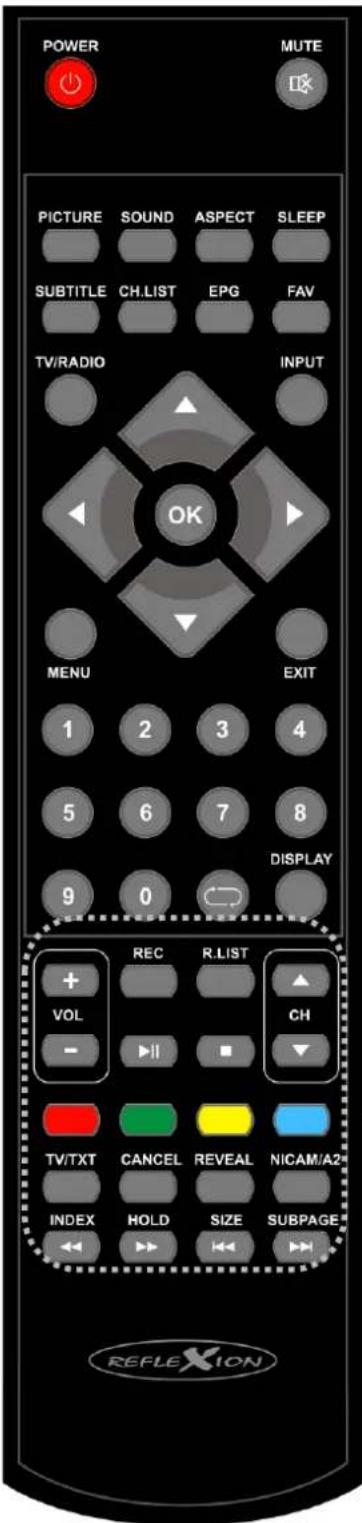

1. VOL +: Louder

2. VOL -: Quieter

3. CH ▲: Next Channel

4. CH ▼: Previous channel

5. ▶ / 11: Play / Pause

6. ■ / Stop: Stop playback

7. Colour buttons: Quick selection buttons for menu settings

8. TV/TXT: Open / close teletext

9. CANCEL: Hide display (teletext)

10. REVEAL: Show hidden texts (Teletext)

11. NICAM/A2: Open audio languages menu / close menu

12. INDEX: Homepage (Teletext)

13. ←: Fast rewind

14. HOLD: Do not turn the page (teletext)

15. ▶: Fast forward

16. SIZE: Enlarge display (teletext)

17. : Previous chapter / Title

18. SUBPAGE: Submenu selection (teletext)

19. ▶: Next chapter / title

20. REC: Start USB recording

21. R.LIST: Open recording list

22. Press the [INPUT] button to open the 'Input source' menu screen.

23. Use the [▲ / ▼] buttons to navigate in the menu.
24. Press the [OK] button to confirm the selection.
25. Press the [EXIT] button to close the menu.
26. The following 'Input sources' are available: Satellite / DTV (DVB-C/T) / ATV / AV / PC / SCART / COMPONENTS / HDMI / MEDIA

NAVIGATION IN THE MENU

To navigate in the menu, press the following buttons.

• MENU: Open menu / Previous menu
  • ▲ / ▼ / ◀ / ▶: Up / Down / Left / Right
  • OK: Confirm menu item
• EXIT: Close menu

SWITCH ON / SWITCH OFF TV

1. Connect the supplied mains adapter to your power socket and the [DC IN] input on the back of the device.
2. Press the [POWER] button to switch on the device.
3. To switch the device off (standby), press the [POWER] button again.

FIRST INSTALLATION

First installation:

1. Press the [POWER] button to switch on the device.
2. Use the [▲▼◀▶] buttons to select the Menu language and the Country.
3. Press the [OK] button to confirm the selection and move to the next menu item Channel search.

Channel search:

1. Use the [▲▼◀▶] buttons to select the setting for TV reception.
2. The following settings are available for TV reception.

Note:

• If you are receiving satellite / cable or terrestrial via an external device, press the [EXIT] button to skip the menu.
• Now select the appropriate Input source.

FIRST INSTALLATION DVB-C

Cable reception (DVB-C)

1. For cable reception, set the menu item 'DVB selection type' to 'DVB-C'.
2. In the normal case, nothing needs to be set in the menu.
3. Setting the 'Network ID', the 'Frequency' and the 'Symbol Rate' is only recommended for experienced users.
4. Once you have selected all settings accordingly, press the [OK] button to start the automatic scan.
5. Once the search is complete, TV playback starts with the first channel.

DVB-C menu items:

Tuning type	DTV+ATV / DTV / ATV
DVB selection type	DVB-T / DVB-C / Satellite
Search type	Full search / network search
Network ID	Auto / Manual (only if Search type is set to Network search)
Frequency	Auto / Manual (only if Search type is set to Network search)
Symbol rate	Auto / Manual (only if Search type is set to Network search)
LCN	On / Off (it is recommended to set the setting to Off).

FIRST INSTALLATION DVB-T

Terrestrial reception (DVB-T / indoor aerial)

1. For terrestrial reception, set the menu item 'DVB selection type' to 'DVB-T'.
2. The menu items 'Search mode', 'Network ID', 'Frequency' and 'Symbol rate' are fixed and cannot be adjusted.
3. Once you have selected all settings accordingly, press the [OK] button to start the automatic search.
4. Once the search is complete, TV playback starts with the first channel.

Note:

- It is recommended to set the 'LCN' setting to Off.

DVB-T menu items:

Tuning type	ATV (analogue) / DTV (digital) / ATV + DTV
DVB selection type	DVB-T / DVB-C / Satellite
Search type	Cannot be customised
Network ID	Cannot be customised
Frequency	Cannot be customised
Symbol rate	Cannot be customised
LCN	On / Off (it is recommended to set the setting to ‘Off’).

FIRST INSTALLATION DVB-S

Satellite reception (DVB-S)

1. For satellite reception, set the menu item 'DVB selection type' to 'Satellite'.
2. In the normal case, nothing needs to be set in the menu.
3. Confirm the entry with the [OK] button.
4. A query now appears asking whether the 'Standard transmitter list' should be loaded?

• Yes: The Standard channel list (Astra 19.2°E) is loaded.
• No: The Automatic channel search is started.

1. Once the 'Automatic search' or 'Loading the standard channel list' is complete, TV playback starts with the first channel.

DVB-S menu items:

Tuning type	Cannot be customised
DVB selection type	Satellite / DVB-T / DVB-C
Satellite	Select the desired satellite.Astra 19.2°E is preset as the default.
Search mode	Standard / Blind Scan / Network
Channel type	All channels / Free channels
Service type	All / DTV / Radio

MAIN MENU

1. Press the [MENU] button to access the main menu.
2. Use the [▲▼◀▶] buttons to navigate in the menu.
3. Confirm the entry with the [OK] button.
4. Use the [MENU] button to return to the previous menu item
5. Press the [EXIT] button to close the menu.
6. The following menu items are available for selection in the 'Main menu'.

CHANNEL / PICTURE / SOUND / TIME / LOCK / Set up

CHANNEL MENU SATELLITE

1. Several channel-related menu items are available in the channel menu.
2. The menu items available depend on whether Satellite or DTV has been selected as the 'Signal source.
3. The following menu items are available for the Satellite area.

Automatic search

Country	Set the installation location.
Satellite	Select the desired satellite. Astra 19.2°E is preset as the default.
Search mode	Standard / Blind Scan / Network
Channel type	All channels / FTA channels
Service type	All / DTV / Radio

Setting up the satellite antenna

1. The menu is divided into two areas. On the left is the satellite / transponder list.
2. On the right side you will find the LNB settings.

Transponder list / Satellite list

Transponder / Satellite list:	Press the [EPG] button to switch between the transponder or satellite list.
Selection:	Press the [OK] button to confirm the selection.
Edit:	Press the [Green] button to edit a satellite or transponder.edit a satellite or transponder.
New:	Press the [Yellow] button to add a new transponder or satellite.
Delete:	Press the [Yellow] button to add a new transponder or satellite.
Search:	Press the [Red] button to delete a satellite or transponder.
Exit:	Press the [Blue] button to start the search on a transponder or satellite marked with the [OK] button.

Edit / New:

1. Select a 'Transponder / Satellite' to be edited.
2. Press the [Green / Yellow] button.
3. The following settings can be adjusted.

• Satellite: Satellite name / Longitude Direction / Longitude Angle / Band
• Transponder: Frequency / SR (ks/s) Symbol rate / Polarity

LNB settings

1. Press the [▶] button to switch from the 'Transponder list' to the 'LNB settings'.
2. The following settings are available.

Note:

- The LNB settings are only recommended for experienced users.

LNB type	05150/05750, 09750/10600, 09750/10700, 10000/10450, 05150, 05750, 09750, 10200, 10600, 10750, 11250, 11300, 11475, User Single, User Dual, Unicable
LNB supply	13/18V, 13V, 18V, Off
22KHz	Auto, Off, On
Toneburst:	None, BurstA, BurstB
DiSEqC1.0	None, LNB1, LNB2, LNB3, LNB4
DiSEqC1.1	None, LNB1 ~ LNB16
Engine	None, DiSEqC1.2, DiSEqC1.3

Satellite Unicable setting

1. Press the [Menu] button.
2. Use the [▲▼◀▶] buttons to navigate to the 'Sat configuration' menu item.
3. Confirm the entry with the [OK] button
4. Press the [▶] button and select the [LNB type] menu item.
5. Press the [OK] button and navigate to Unicable.
6. Press the [OK] button to confirm the selection.
7. The following setting options are available.

CHANNEL MENU SATELLITE
UK

LNB low	Enter the lowest LNB frequency. The setting can be found on your LNB
LNB high	Enter the top LNB frequency. The setting can be found on your LNB.
Channel ID	Enter the channel ID. The setting can be found on your multiswitch or LNB.
Frequency	Enter the Unicable frequency. You can find the frequency on your multiswitch or LNB.

CHANNEL MENU DTV (DVB-C/T)

1. Several channel-related menu items are available in the channel menu.
2. The menu items available depend on whether "Satellite" or "DTV" has been selected as the "Signal source".
3. The following menu items are available for the "DTV" area.

Automatic search / ATV manual tuning / DTV manual search / Program editing / Signal information / CI information / 5V active antenna

Automatic search

The following settings are available for the "Auto search" menu item.

Country	Select the installation location.
Tuning type	ATV (Analog) / DTV (Digital) / ATV + DTV
DVB selection type	DVB-C/DVB-T2
Search type	Network Search / Full (Only for DVB-C)
Network ID	Auto / Manual (Only if “Search type” is set to “Network search”) For DVB-T, the value is fixed.
Frequency	Auto / Manual (Only if “Search type” is set to “Network search”) For DVB-T, the value is fixed.
Symbol Rate	Auto / Manual (Only if “Search type” is set to “Network search”) For DVB-T, the value is fixed.
LCN	On / Off (It is recommended to set the setting to “Off”)

ATV tuning manually

The following settings are available for the menu item "ATV tuning manual".

Current channel	Select the program number (1-99) for manual search.
Color System	Set the color system for searching.PAL / SECAM / AUTO
Sound system	Set the sound system for searching.BG / I / DK / L
fine tune	Manual fine-tuning
Search	Press [◀ / ▶] button to start manual search.

DTV manual search

The following menu items are available for the "DTV manual search".

• DVB-C: Frequency / SR (ks/s) / QAM type
• DVB-T: Frequency / Channel (+/-)

5V active antenna

In this menu, set the 5V voltage for active antennas to "On" or "Off".

• On: A 5V voltage for active DVB-T antennas is output at the "TV2" connection.
• Off: The 5V voltage is switched off.

SIGNAL INFORMATION

This menu displays information on signal reception for the selected reception type (satellite, DVB-C, DVB-T).

• Satellite: Satellite name / transponder / modulation / signal quality / signal
• DVB-C: Frequency / Network / Modulation / Quality / Signal
• DVB-T: Channel / Network / Modulation / Quality / Signal

CI-INFORMATION

This menu displays information about the inserted CI module and the corresponding card.

Note:

- For more information on the module or card, please contact the provider of the module and card.

EDIT PROGRAMS

EDIT PROGRAMMESIn this menu you can edit the (satellite / DVB-C / DVB-T) channel list and adapt it to the desired channel order.

1. Press the [MENU] button to open the "Main menu".
2. Navigate to the "Channel" menu item and press the [OK] button.
3. Navigate to the "Program editing" menu item and press the [OK] button.
4. The following setting options are available.

Move (yellow)

1. Select a transmitter to be moved.
2. Press the [Yellow] button to select the channel.
3. Navigate to the desired program position.
4. Press the [OK] button to confirm the entry.
5. The station has been moved.
6. Repeat steps "1-4" until the desired program sequence is reached.

Skip (Blue)

1. Select a station to be skipped.
2. Press the [Blue] button to mark the station with a skip symbol.
3. If the station is marked with the symbol, the station is skipped when switching.
4. Repeat steps 1-2 until all the stations to be skipped are marked.
5. To stop skipping a station, select a marked station and press the [Blue] button. The station is now no longer highlighted.

Delete (red)

1. select a station to be deleted.
2. Press the [Red] button to delete the selected station.
3. Repeat steps 1-2 until all desired channels have been deleted.

Adding favorites (FAV)

1. Select a station to be saved as a favorite.
2. Press the [FAV] button to mark the station with a heart symbol.
3. Repeat steps 1-2 until all desired channels are marked as favorites.

Opening the favorites list (FAV)

1. In TV mode, press the [FAV] button to open the favorites list.
2. Select the desired channel with the [▲▼] button and confirm the entry with the [OK] button to switch to the channel
3. Press the [EXIT] button to close the list.

Note:

• The list cannot be sorted separately and is sorted by the overall list.

PICTURE MENU

You can make various picture settings in this menu.

1. Press the [MENU] button to open the "Main menu".
2. Navigate to the "Picture" menu item and press the [OK] button.
3. The following setting options are available.
   Picture mode / Contrast / Brightness / Color / Tint / Sharpness / Color temperature / Noise reduction

Picture mode

1. Select one of the fixed picture settings.
2. To set the "Contrast / Brightness / Color / Tint / Sharpness" values manually, select the "Picture setting" "Personal".
3. The following settings are available for selection. Dynamic / Standard / Mild / Personal

Note:

- The set picture modes can be changed at any time in TV mode using the [PICTURE] button.

Contrast / Brightness / Color / Sharpness

• The values are fixed.
- Can only be adjusted if the "Picture mode" is set to "Personal".

Color tone

• The "Hue" is fixed.
• The “Hue” can only be adjusted if the “Picture mode” is set to “Personal” and if the device is connected to a PC via a “VGA” connection.

Color temperature

1. Set the "Color temperature" for the picture.
2. Ghe following settings are available.
   Normal / Warm / Cold

Noise reduction

1. Set the strength of the "Noise reduction" for the picture.
2. The following settings are available Low / Medium / High / Standard / Off

You can make various sound settings in this menu.

1. Press the [MENU] button to open the "Main menu".
2. Navigate to the "Sound" menu item and press the [OK] button.
3. The following settings are available.

Sound mode / Treble / Bass / Balance / Auto volume / SPDIF mode / AD switch Note:

- The set sound modes can be changed at any time in TV mode using the [SOUND] button.

Sound mode

1. Select one of the fixed sound settings.

2. To set the "Treble / Bass" values manually, select the "Sound mode" "Personal".

3. The following settings are available for selection. Standard / Music / Movie / Sport / Personal

Treble / Bass

• The values are fixed.
- Can only be adjusted if the "Sound mode" is set to "Personal".

Balance

Use this menu to set the speaker balance.

Example:

• If the value is set to “-50”, only the left speaker is active.
• If the value is set to "50", only the right speaker is active.

Auto volume

This menu item adjusts the volume differences between loud and quiet scenes.

Example:

- The difference in volume between TV programs and commercial breaks is adjusted.

SPDIF Mode

In this menu, you set the format for the digital audio output "COAX". The following setting options are available.

Off / PCM / Auto

AD switch

Set the menu item to "On" / "Off" to automatically activate or deactivate the audio version of TV programs for people with visual impairments.

• AD switch: On / Off
  • AD level: Set the level for the audio version.

Note:

- The audio version can only be played back if it is transmitted by the TV station.

TIME MENU

You can make various time-related settings in this menu.

1. Press the [MENU] button to open the "Main menu".
2. Navigate to the "Time" menu item and press the [OK] button.
3. The following settings are available.

Clock / Time zone / Sleep timer / Auto standby / OSD timer

Clock

The time is set automatically based on the data transmitted from satellite reception, terrestrial reception or cable reception. The setting cannot be adjusted manually.

Time zone

Set the time zone based on the installation location. Various selection options are available.

Sleep timer

Set the "Sleep timer" so that the appliance switches off automatically after the set time has elapsed. The following settings are available.

The appliance switches off automatically after the time has elapsed if the appliance has not been operated (standby). The following settings are available for selection.

Off / 2H / 2H / 4h (in hours)

OSD Timer

You can use this menu item to set the time after which the menu is automatically closed if no operation takes place. The following settings are available.

Off / 5s / 15s / 30s (in seconds)

LOCK MENU

You can make various settings in this menu.

1. Press the [MENU] button to open the "Main menu".
2. Navigate to the "LOCK" menu item and press the [OK] button.
3. The following settings are available.

System lock / Set password / Channel lock / Parental lock / Key lock / Hotel mode

System lock

Set this setting to "On" or "Off" to gain access to the "Channel lock / Parental lock / Key lock / Hotel mode" settings. The menu item also activates the password prompt for certain menu items.

Note:

• The default password is: 0000

Set password

You can change the password in this menu.

Please enter old password	Enter the current password.
Please enter new password	Enter the new password.
Confirm new password	Enter the new password again to confirm the password.
The password is now adjusted.

Note:

• Make a note of the new password.

Channel lock

You can lock channels in this menu. The locked channels are provided with a password prompt.

1. Navigate to the desired channel to be locked.
2. Press the [Green] button to lock the transmitter.
3. The selected transmitter is marked with a lock symbol.

4. Repeat steps "1-3" until the desired channels are locked.

5. If you no longer want to lock a transmitter, navigate to the transmitter and press the [Green] button again.

6. The transmitter is now no longer locked.

Parental control

In this menu, you can set the value for the parental control query. The following options are available.

Off / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 / 13 / 14 / 15 / 16 / 17 / 18

Key lock

In this menu, you can switch the lock for the operating buttons on the device "On" or "Off".

• On: The operating lock is activated and the operating buttons on the device have no function.
• Off: The operating lock is deactivated and the operating buttons on the device work.

HOTEL MODE

You can define and lock various settings in hotel mode. The following settings are available.

Hotel mode	On / Off
Lock source	You can use this menu item to lock the “Input sources”.
Start source	Select an “Input source” with which the device should start when it is switched on.
Start channel	Select a “Start channel” with which the device should start when it is switched on. The setting is only possible if “Satellite”, “DTV” or “ATV” has been selected as the “Start source”.”
Standard volume	Set the “Volume” that is set as the default when switching on.
Max. Volume	Set the maximum volume available for selection.
Import database	Import the exported data from a USB stick to restore the previously set settings.
Export database	Export the settings you have made and the channel list you have created as a backup to a USB stick.
Reset locks	Use this menu item to reset all settings made in hotel mode to the default setting.

CONFIGURATION MENU

You can make various settings in this menu.

1. Press the [MENU] button to open the "Main menu".
2. Navigate to the "Configuration" menu item and press the [OK] button.
3. The following setting options are available.

Language / Teletext character set / Audio language / Subtitle language / Hearing impaired / Picture format / Blue screen / Initial installation / Restore factory settings / Software update (USB) / HDMI CEC

Menu language

You can set the menu language in this menu item. Select one of eight languages.

English / German / Spanish / French / etc.

Teletext character set

In this menu item, you can adjust the character set for the teletext.

West / East / Russian / Arabic / Farsi

Audio language

You can set the preferred audio language in this menu item. You can set a primary and secondary audio language.

English / German / Spanish / French / etc.

Subtitle language

This menu item allows you to set the preferred subtitle language. You can set a Primary and Secondary subtitle language.

English / German / Spanish / French / etc.

Hearing impaired

Set this menu item On or Off to activate or deactivate the automatic display of subtitles.

• On: Subtitles are switched on automatically.
• Off: Subtitles are switched off.

Picture format

Use this menu item to set the picture format. The following settings are available for selection.

Auto / 4:3 / 16:9 / Zoom1 / Zoom2

Blue screen

You can use this menu item to set whether the device displays a black or blue screen when there is no signal.

• On: Blue screen
• Off: Black screen

Initial installation

You can use this menu item to repeat the initial installation.

Restore factory settings

Use this menu item to reset the device to the factory settings. All settings made are reset.

Note:

- The password is not reset.

Software update (USB)

You can carry out a software update with this menu item. The software can only be updated via USB. For more information, please contact the manufacturer's service department with the device type and serial number.

With this menu item, you can set various CEC settings for the automatic "On" and "Off" switching of the TV set. The following settings are available.

Note:

- Only if supported by the external HDMI device.

CEC Control:	When the TV set is switched on, the external device connected via HDMI also switches on.If the external device is switched on, the TV set switches on automatically.On / OFF
ARC:	This menu item allows you to transmit the TV sound via HDMI to other external playback devices.On / Off
Device Auto-Power Off:	ON: The function is switched on.If the TV set is switched off, the external device connected via HDMI is also switched off.If the TV set is switched on, the external device connected via HDMI is also switched on.OFF: The function is switched off.
TV Auto Power On	ON: The function is switched on.If the external device connected via HDMI is switched on, the TV set also switches on.OFF: The function is switched off.
Device list	Displays the device connected via HDMI.
Device control	Displays the device menu of the device connected via HDMI.

MEDIA MODE (USB)

1. Press the [INPUT] button to enter media mode.
2. Use the [▲▼] buttons to navigate to "Media".
3. Confirm the entry with the [OK] button.
4. Insert a USB stick into the USB socket of the device.
5. Select one of the following categories (Photo / Music / Movie / Text).

Playback function

The following buttons are important for media playback.

• ▶ / 11: Play / Pause
- ■ / Stop: Stop playback
• ◀: Next chapter / title
• ▶: Previous chapter / Title
• ←: Fast rewind
- : Fast forward

Photo / Music / Movie Text playback

1. To select a file, press the [▲▼◀▶] buttons.
2. To start the file in full screen view, press the [▶ / Play] button.
3. To select several files, mark the files with the [OK] button
4. Pause briefly on a file and a preview playback will start.
5. Press the [OK] button during playback to call up the menu bar.
6. Press the [▼] button to close the menu bar.

Photo menu bar

The following menu items are available in the photo menu bar:

Music menu bar

The following menu items are available in the music menu bar:

Play / Pause	Resume playback normally / Pause playback
FB	Fast rewind
FF	Fast forward
Previous	Previous title
Next	Next title
Stop	Stop playback
Repeat	Repeat1 / Repeat ALL / Repeat NONE
A-B playback	Set start and end point.
Mute	Mute mode On / Off
Playlist	Displays the playlist
Info	Displays file information
Go to time	Switch to a desired playback point.

Movie menu bar

The following menu items are available in the movie menu bar:

Play /Pause	Resume playback normally / Pause playback.
FB	Fast rewind
FF	Fast forward
Previous	Previous title
Next	Next title
Stop	Stop playback
CharSet	Select subtitle character set
Playback modeRepeat 1Repeat ALLRepeat NONE	Only the current file is repeated.All selected files are repeated.No file is repeated.
A-B playback	Set start and end point
Playlist	Displays the playlist
Info	Displays file information
Slowl	Activate slow playback
Step	Step-by-step playback
Go to time	Switch to a desired playback point
Zoom in	Zoom into the image

MEDIA MODE (USB)
UK

Zoom out	Zoom out of the image
Picture format	4:3 / 16:9 / Auto
Move view	Move zoom section

Text menu bar

The following menu items are available for selection in the text menu bar:

Previous page	Last page
Next page	Next page
Previous	Next file
Next	Previous file
Stop	Stop playback
CharSet	Select the character set
Music On / Off	Music playback when music is highlighted.
Playlist	Displays the playlist
Info	Displays file information

USB RECORDING

Instant recording

1. Press the [REC] button to start recording.
2. Press the [▶/ ] button to play back the recording and start time-shifted television.
3. Use the [ ] and [ ] buttons to fast forward and rewind the recording. Press the [▶/ ] button to pause playback. Press the [▶/ ] button again and playback will resume normally. The device continues to record.
4. Press the [■] button and the time-shifted TV will stop. The device continues to record.
5. Press the [■] button again to stop and save the recording. Press the [◀] button to confirm that the recording is finished and press the [▶] button to cancel the process.

EPG recording

1. Press the [EPG] button to open the EPG menu.
2. Press the [▲/▼] buttons to select the desired program.
3. Then press the [▶] button and select the desired program to be recorded using the [▲/▼] buttons
4. Press the [red] button on the remote control to program the recording. A red "R" symbol next to the time of the program indicates that the recording is programmed.
5. Press the [EXIT] button to close the EPG menu.
6. Press the [R.LIST] button to open the "Recording list / Planning list".
7. Press the [◀/▶] buttons to switch between the two lists (recording list / planning list)
8. Press the [EXIT] button to close the menu.

Recording list / Planning list

1. press the [REC.L] button to open the menu.
2. Use the [◀/▶] buttons to switch between the "Recording list" and the "Planning list" in the top line.
3. Press the [▼] button to go to the recording list or the planning list.
4. Use the following buttons to edit the recording list and planning list.

Planning list

• Navigate in the menu: [▲▼◀▶]
• Delete: [Red]
• Add: [Yellow]
• Edit: [Blue]
• Exit: [EXIT]

Recording list

• Navigate in the menu: [▲▼◀▶]
• Delete: [Red]
• Playback: [OK]
• Exit: [EXIT]

SIMPLE TROUBLESHOOTING

If the screen fails or there is a sharp drop in performance, check the TV using the following instructions: Also check connected devices to find the source of the fault. If the screen still does not work as expected, contact customer support.

No power

• Check that the mains adapter or the car adapter is connected to the TV set.
• Check that the toggle switch is in the on position.

No picture or no sound

• Check whether the mains adapter or the car adapter is connected to the TV set.
• Check the picture and sound settings.
• Check whether the antenna / cable system / satellite antenna is connected correctly.
• Change to another programme.
• Check that the connected devices (e.g. receiver) are connected correctly.

Poor picture quality

• Check that the antenna cable is connected correctly.
• Check the manual TV tuning of the TV channel.
• Change the picture settings: Brightness, colour, sharpness, contrast and hue. Make sure that the TV is not located near other electrical appliances that could cause radio frequency interference.

No colour

• Adjust the colour settings.
• Check that the selected programme is broadcast in colour.
  • Make sure that the channel is tuned correctly.

The TV does not respond to the remote control

• Make sure there are no obstacles between the remote control and the TV.
• Make sure the remote control is within reach.
• Make sure that the batteries in the remote control are not dead.

This TV is intended for household use and is classified as harmless with regard to electromagnetic waves. Therefore, you can use the unit in any location, including residential areas.

USB output voltage: 5V / 500mA (Smartphones are not be detected as storage, Devices that need to be installed are also not detected).

USB stick / HDD size: max. 1TB

Formatting: FAT and NTSF

MEDIA	FORMAT	CODEC		REMARK
		VIDEO	AUDIO
Movie	avi	Xvid, MPEG-2, MPGEG-4, H.264	MP3 WMA AAC MP2 PCM	Max. Resolution: 1080P Max. Frame rate: 30fps
	mp4	MPEG-2, MPEG-4, H.264
	mpg	MPEG-1, MPEG-2
	mkv mov	MPEG-1/2/4, H.264
	dat	MPEG-1	MP2	Max. Resolution: 352 x 288
	vob	MPEG-2		Max. Resolution: 720 x 576
	rm	RV8, RV9, RV10, RA8-LBR	COOK	Max. Resolution: 800 x 600 (RV30) Max. Resolution: 1280 x 720 (RV40)
	rmvb
MUSIC	ADPCM, LPCM
	MP3
	MPEG1 Layer1,2
	AC3
	AAC, HE-AAC
	WMA7, WMA8, WMA9 STD
	CDDA (wav)
	Real Audio8 LBR
	DD51
	DD Plus
PHOTO	JPEG			Max. Resolution:: 8192 x 8192
	Progressive JPEG			Max. Resolution: 1024 x 768
	BMP			Max. Resolution: 3000 x 3000
	PNG			Max. Resolution: 3000 x 3000
TEXT	txt	ANSI / UNICODE GB / UTF8		Max. File size: 1MB

Errors and technical modifications excepted.

Device type			LED2225	LED2425
Manufacturer			Reflexion	Reflexion
Energy efficiency class (standard SDR)			E	E
Power consumption ‘On’ (standard SDR)			15,1W	17,2W
Power consumption standby			< 0,5W	< 0,5W
Type of electrical display			DLED, LCD / LED (Pixel Class 1)
Aspect ratio			16:9	16:9
Screen resolution (pixels)			1920 x 1080	1920 x 1080
Screen diagonal (cm / inch)			55cm / 22 inch	60cm / 24 inch
Visible screen area			12,7dm2	15,3dm2
Refresh rate / response time			60Hz / 18ms	60Hz / 20ms
Input voltage power supply unit	Input		AC: 100 – 240V~50/60Hz	AC: 100 – 240V~50/60Hz
	Output		DC: 12V / 3A	DC: 12V / 3A
Input voltage device			DC 12V / 3A	DC 12V / 3A
Average annual consumption (kWh/1000h) Standard SDR			15,1kWh/1000h	17,2kWh/1000h
Contrast			3000:1	3000:1
Brightness (cd/m2)			180cd/m2	180cd/m2
Colours			16,7M colours	16.7M colours
Viewing angle			Horizontal: 178° / Vertical: 178°	Horizontal: 178° / Vertical: 178°
TV function	Colour system		PAL / SECAM	PAL / SECAM
	Channels		100 / 600 (T/C) / 3000 (S)	100 / 600 (T/C) / 3000 (S)
	Teletext (ATV / DTV)		1000 / 1000	1000 / 1000
Connections	Power input DC 12V		1	1
	VGA		1	1
	PC AUDIO		1	1
	SCART		1	1
	TV1 (S2)		1	1
	TV2 (T2HD/C)		1	1
	COAX		1	1
	HDMI (ACR)		1	1
	USB (DC 5V / 500mA)		1	1
	Headphones (3.5mm)		1	1
	Mini YPbPr (3,5mm)		1	1
OSD language			German, English etc.	German, English etc.
AUDIO output			2x 3W	2x 3W
Weight (incl. stand)			2,15Kg	2,15Kg
Complete weight			3,20Kg	3,40Kg
Maximum power consumption			<36W	<36W
Peak luminance ratio in %			<85%	<76%
Mercury content in mg / lead contained			0mg / No	0mg / No
VESA			100 x 100mm	100 x 100mm
Dimensions without base: (W/D/H) in mm			504 x 81 x 306 mm	550 x 88 x 336 mm
Dimensions with base: (W/D/H) in mm			526 x 153 x 327 mm	550 x 142 x 369 mm

NOTE: Design and specifications are subject to change without notice.

Hereby, UltraMedia GmbH & Co. Handels KG hereby declares that the radio equipment type LED2225 and LED2425 is in compliance with Directive 2014/53/EU.

The full text of the EU Declaration of Conformity is available at the following internet address.

We hope you enjoy using the device.

Your UltraMedia Team

DISPOSAL INSTRUCTIONS

This symbol on the product or in the instructions means that the appliance, electrical and electronic equipment and batteries must be disposed of separately from your household waste at the end of their working life. There are separate collection systems for recycling in the EU. For more information, please contact your local authority or your dealer.

BATTERY DISPOSAL INSTRUCTIONS

BATTERIES AND RECHARGEABLE BATTERIES MUST NOT BE DISPOSED OF WITH HOUSEHOLD WASTE! NON-PROFESSIONAL DISPOSAL OF BATTERIES AND ACCUMULATORS CAUSES ENVIRONMENTAL POLLUTION / DAMAGE.

EVERY CONSUMER IS LEGALLY OBLIGED TO DISPOSE OF BATTERIES AND ACCUMULATORS AT THE END OF THEIR LIFE CYCLE AT SUITABLE COLLECTION POINTS, FOR EXAMPLE, IN HIS OR HER MUNICIPALITY/BOROUGH OR AT RETAIL OUTLETS.

DROP-OFF AT COLLECTION POINTS IS FREE OF CHARGE. BY HANDING IN BATTERIES AND ACCUMULATORS AT COLLECTION POINTS, THEY ARE RECYCLED AND THUS DISPOSED OF IN AN ENVIRONMENTALLY FRIENDLY WAY.

DISPOSING OF BATTERIES AND ACCUMULATORS IN HOUSEHOLD WASTE DOES NOT ENSURE ENVIRONMENTALLY FRIENDLY DISPOSAL AND MAY CAUSE DAMAGE TO THE ENVIRONMENT.

BATTERIES AND RECHARGEABLE BATTERIES MUST BE REMOVED FROM THE APPLIANCE BEFORE DISPOSAL. PLEASE RETURN ONLY IN DISCHARGED CONDITION!

*) MARKED WITH:

CD = CADMIUM,

HG = MERCURY,

PB = LEAD

HDMI-INFORMATION

The terms HDMI and HDMI High-Definition Multimedia Interface and the HDMI logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

HIGH-DEFINITION MULTIMEDIA INTERFACE

ENERG

LED2225
Reflexion

A

B

C

D

E

F

G

15 kWh/1000h

2019/2013

ENERG

LED2425
Reflexion

A

B

C

D

E

F

G

E

17 kWh/1000h

2019/2013

Dear Customer,

Thank you for choosing one of our products. Our products undergo precise quality control in the course of production. If one of our devices gives you cause for complaint, or you have questions about one of our devices, please call our customer support.

We give a 36 month warranty on TV and SAT devices, and a 24 month warranty on portable DVD and audio devices from the date of purchase. Outside of the warranty, we offer you a paid repair based on a cost estimate. Please contact our customer support before submitting.

The warranty relates to material and production defects. Your device will be repaired or replaced during the warranty period. Unfortunately, UltraMedia cannot reimburse the purchase price. Damage caused by improper use, the use of third-party accessories, falls, dust, water damage and signs of wear (e.g. scratches, optical wear and tear) caused by the customer or external influences are excluded from the guarantee.

In order to assert the warranty claims, send the device with all accessories, a copy of the invoice and the description of the fault to the address given below. Devices that do not have a proof of purchase cannot be guaranteed. Please do not forget to include your full address and a telephone number / email address for any queries.

Shipping to us takes place at your own expense. Unpaid parcels cannot be accepted and are returned to the sender.

Please pack the device securely for transport. UltraMedia assumes no liability for damage in transit that occurs on the way to us. After receiving your submission, we will process your device as soon as possible and send it back to you.

Before sending your device in, please contact our customer support or your specialist dealer, as many problems can also be solved over the phone.

UltraMedia GmbH & Co. Handels KG	[e-mail]
Friedrich-Penseler-Str. 28	Tel.: +49 / (0) 4131/9239-20
D-21337 Lüneburg	Mon.-Thu.: 08:00-17:00
www.ultramedia.de	Fri.: 08:00-14:30
