Crest Max - Smartphone HMD - Free user manual and instructions

Product Type	Smartphone
Brand	HMD
Model	Crest Max
Dimensions	Approx. 165 × 76 × 8.5 mm
Weight	Approx. 190 g
Display	Touchscreen, 6.5-inch (estimated)
Operating System	Android (version not specified)
Processor	Octa-core (estimated)
RAM	4 GB (estimated), expandable with virtual RAM
Storage	64 GB internal (estimated), expandable via microSD up to 256 GB
Battery	Non-removable Li-ion, 4000 mAh (estimated)
Charging	USB-C, supports fast charging (charger model HHAD-033N, 15.0V/2.2A)
SIM	Dual nano-SIM (depending on variant, check IMEI count)
Memory Card	microSD, up to 256 GB
Rear Camera	Dual camera (estimated 48MP + 2MP), with flash
Front Camera	Single camera (estimated 8MP)
Connectivity	Wi-Fi, Bluetooth, GPS, NFC (assumed)
Sensors	Fingerprint sensor (side-mounted), Face unlock, accelerometer, proximity
Audio	Loudspeaker, 3.5 mm headphone jack, earpiece, microphones
Security	Screen lock (PIN, pattern, password), fingerprint, face unlock, Find My Device
Special Features	Virtual RAM extension, gesture navigation, audio boost mode
Water Resistance	Not specified (assume splash resistant)
Included Accessories	Charger (HHAD-033N), USB-C data cable, SIM tray ejector tool (assumed)
Compliance	SAR certified, RoHS compliant

Frequently Asked Questions - Crest Max HMD

How do I insert the SIM and memory cards?

Use the SIM tray ejector tool to open the tray. Place the nano-SIM in the SIM slot (contact area face down) and, if applicable, a microSD memory card (up to 256 GB) in the memory card slot. Slide the tray back into the phone. For dual-SIM models, you can use two SIMs but not a memory card simultaneously on a single tray.

How do I charge the phone?

Connect the USB-C cable to your phone and plug the charger (model HHAD-033N) into a wall outlet. The charger provides 15.0V/2.2A for optimal charging. If the battery is completely discharged, it may take several minutes before the charging indicator appears. You can also charge via a computer USB port, but it will be slower.

How do I unlock the phone with fingerprint or face?

To set up fingerprint unlock, go to Settings > Security & privacy > Device unlock > Face & Fingerprint unlock and follow the instructions. The fingerprint sensor is integrated into the power key. To unlock, place your registered finger on the power key. For face unlock, look at the front camera when the screen is on. Note: Face unlock is less secure than fingerprint or password.

How can I extend battery life?

You can extend battery life by: fully charging the battery, muting unnecessary sounds (Settings > Sound & vibration), using wired headphones instead of loudspeaker, reducing screen timeout (Settings > Display > Screen timeout), lowering brightness, stopping background apps, disabling location services when not needed, and switching off Bluetooth or Wi-Fi when not in use. You can also enable Airplane mode to save power.

How do I take a screenshot?

Press and hold the power key and volume down key simultaneously. The screenshot will be saved in your Photos app or Gallery. Alternatively, you can use gesture navigation or other methods depending on your Android version.

How do I reset my phone to factory settings?

Go to Settings > System > Reset options > Erase all data (factory reset). Follow the on-screen instructions. This will erase all personal data, including Google account settings, apps, and downloaded content. Make sure to back up important data before resetting.

How do I update the phone software?

Check for updates by going to Settings > System > System update > Check for update. If an update is available, follow the on-screen instructions to install it. Ensure your phone has sufficient battery and is connected to Wi-Fi, as update packages can be large. You can also set automatic updates.

How do I transfer data from my old phone?

You can transfer data from your old phone using your Google account. On your old phone, back up data to your Google account (refer to its user guide). On the new HMD Crest Max, during initial setup, sign in to the same Google account and choose to restore app settings, contacts, and other data. You can also use a direct cable transfer if supported.

How do I set an alarm?

Open the Clock app and go to the Alarm tab. Tap the + icon to add a new alarm, set the hour and minutes, and tap OK. You can also set the alarm to repeat on specific days. To turn off an alarm when it sounds, swipe the alarm right. You can delete an alarm by editing it and selecting delete.

What should I do if I lose my phone?

Use the Find My Device feature by signing into your Google account on android.com/find. Ensure the lost phone is turned on, signed into the same Google account, location enabled, and connected to mobile data or Wi-Fi. You can locate, lock, or erase the phone remotely. If the device cannot be found, you will see its last known location.

USER MANUAL Crest Max HMD

1 About this user guide 5

2 Get started 6

Keep your phone up to date . . . . . . . . . . . . . . . . . . . . . . . .

Keys and parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Insert the SIM and memory cards . . . . . . . . . . . . . . . . . . . .

Charge your phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Switch on and set up your phone . . . . . . . . . . . . . . . . . .

Use the touch screen 10

3 Protect your phone 14

Lock or unlock your phone 14

Protect your phone with a screen lock 14

Protect your phone with your fingerprint 14

Protect your phone with your face 15

Find your lost phone 15

4 Basics 17

Personalize your phone 17

Notifications 17

Control volume 18

Automatic text correction 19

Battery life 20

Extend the memory of your phone with virtual RAM 20

Accessibility 21

5 Connect with your friends and family

Calls 22

Contacts 22

Send messages 23

Mail 23

6 Camera 24

Camera basics

Your photos and videos . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7 Internet and connections 26

Activate Wi-Fi

Browse the web . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Bluetooth®

VPN

8 Organize your day 29

Date and time 29

Alarm clock

Calendar 30

9 Maps 31

Find places and get directions 31

10 Apps, updates, and backups 32

Get apps from Google Play 32

Update your phone software 32

Back up your data 32

Restore original settings and remove private content from your phone 33

11 Product and safety information 34

For your safety 34

Network services and costs 36

Emergency calls 37

Take care of your device 37

Recycle 38

Crossed-out wheelie bin symbol 39

Battery and charger information 39

HMD Crest Max User Guide

Small children . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Nickel

Medical devices

Implanted medical devices . . . . . . . . . . . . . . . . . . . . . . . . .

Hearing

Protect your device from harmful content . . . . . . . . . . . . . . . . .

Vehicles

Potentially explosive environments . . . . . . . . . . . . . . . . . . . . .

Certification information . . . . . . . . . . . . . . . . . . . . . . . . . . . .

About Digital Rights Management . . . . . . . . . . . . . . . . . . . . . .

Copyrights and other notices . . . . . . . . . . . . . . . . . . . . . . . .

1 About this user guide

Important: For important information on the safe use of your device and battery, "Product and safety information" before you take the device into use. To find out started with your new device, read the user guide.

2 Get started

KEEP YOUR PHONE UP TO DATE

Your phone software

Keep your phone up to date and accept available software updates to get new features for your phone. Updating the software may also improve your phone's p

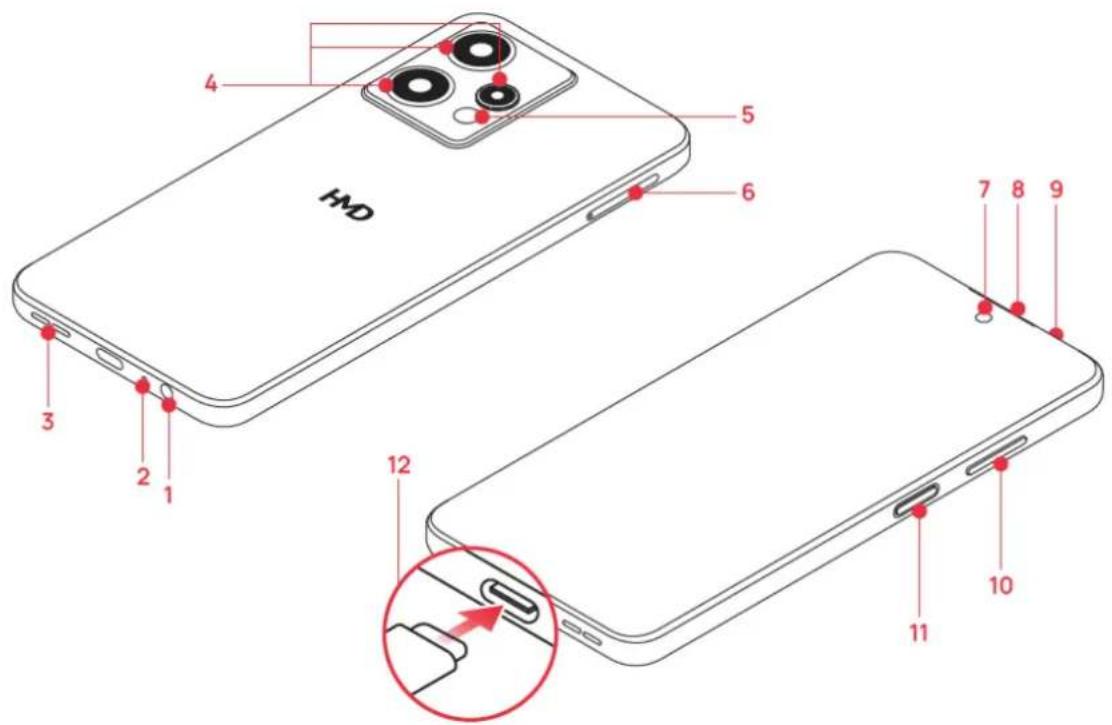

KEYS AND PARTS

Your phone

This user guide applies to the following models: TA-1641, TA-1645.

1. Headset connector
2. Front camera
3. Microphone
4. Earpiece
5. Loudspeaker
6. Microphone
7. Camera
8. Volume keys
9. Flash
10. Power/Lock key, Fingerprint sensor
11. SIM and memory card slot
12. USB connector

HMD Crest Max User Guide

Some of the accessories mentioned in this user guide, such as charger, headset cable, may be sold separately.

Parts and connectors, magnetism

Do not connect to products that create an output signal, as this may damage not connect any voltage source to the audio connector. If you connect an exter or headset, other than those approved for use with this device, to the audio of special attention to volume levels.

Parts of the device are magnetic. Metallic materials may be attracted to the de place credit cards or other magnetic stripe cards near the device for extended time, since the cards may be damaged.

INSERT THE SIM AND MEMORY CARDS

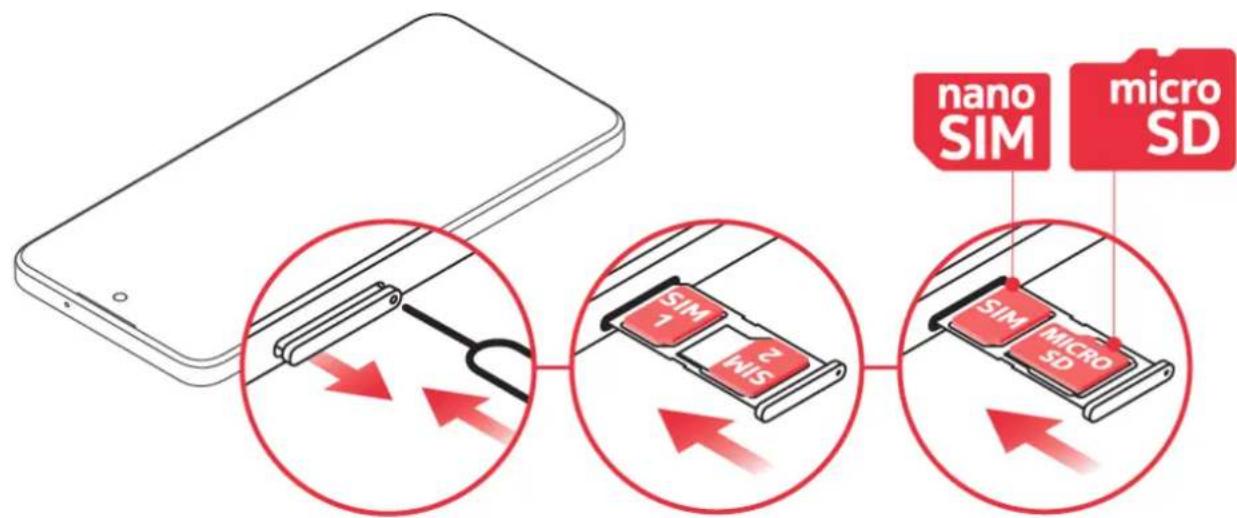

Insert the cards

1. Open the SIM and memory card tray: If you have a dual-SIM phone, put the tray opener pin in the tray hole second SIM in the SIM2 slot. slide the tray out.

2. Put the nano-SIM in the SIM slot on memory card slot.

tray with the contact area face down.

1. Slide the tray back in.

Use only original nano-SIM cards. Use of incompatible SIM cards may damage the device, and may corrupt data stored on the card.

Both SIM cards are available at the same time when the device is not beingone SIM card is active, for example, making a call, the other may be unavailab

TM and © 2024 HMD Global. All rights reserved. 7

Use only compatible memory cards approved for use with this device. Incompatible damage the card and the device and corrupt data stored on the card.

Tip: To find out if your phone can use 2 SIM cards, see the label on the sales box. If there are 2 IMEI codes on the label, you have a dual-SIM phone.

Note: If you have a dual SIM phone with only one SIM tray, you cannot use two a memory card at the same time.

Important: Do not remove the memory card when an app is using it. Doing so r the memory card and the device and corrupt data stored on the card.

Tip: Use a fast, up to 256 GB microSD memory card from a well-known manufact

Note: Pre-installed system software and apps use a significant part of memory spa

CHARGE YOUR PHONE

Charge the battery

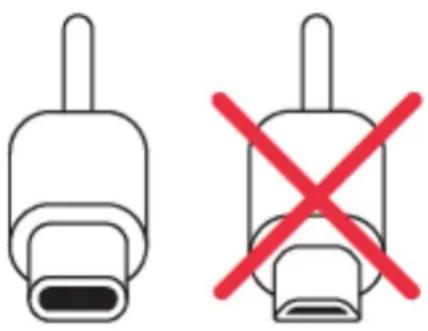

Two identical line drawings of plug connectors with a red X symbol indicating prohibition (no text or labels)

1. Plug a compatible charger into a wall outlet.
2. Connect the cable to your phone.

Your phone supports the USB-C cable. You can also charge your phone from a USB cable, but it may take a longer time.

If the battery is completely discharged, it may take several minutes before the indicator is displayed.

Charger model

Charge your device with the HHAD-033N charger. HMD Global may make addition or charger models available for this device. Charging time can vary depending on

capability. Some of the accessories mentioned in this user guide, such as charge or data cable, may be sold separately.

When charger is not included in the sales box, charge your device using the c (included) and a USB power adaptor (may be sold separately). You can charge with third-party cables and power adaptors that are compliant with USB 2.0 or with applicable country regulations and international and regional safety standards. adaptors may not meet applicable safety standards, and charging with such adapt pose a risk of property loss or personal injury. It is recommended to use a po an input of 100-240V\~50/60Hz 0.8A and output of 15.0V/2.2A to optimise the cha device.

SWITCH ON AND SET UP YOUR PHONE

Switch on your phone

When you switch your phone on for the first time, your phone guides you to network connections and phone settings.

1. Press and hold the power key.
2. Choose your language and region.
3. Follow the instructions shown on your phone.

Transfer data from your previous phone

You can transfer data from an old phone to your new phone using your Google. To back up data on your old phone to your Google account, refer to your old guide.

Restore app settings from your previous Android™ phone

If your previous phone was an Android, and you had set it to back up data account, you can restore your app settings and passwords.

1. Tap Settings > Passwords & accounts > Add account > Google .
2. Select which data you want to restore on your new phone. The sync starts once your phone is connected to the internet.

HMD Crest Max User Guide

Switch off your phone

To switch off your phone, press the power key and the volume up key at the select Power off.

Tip: If you want to switch off your phone by pressing and holding the power key Settings > System > Gestures > Press & hold power button and select Power menu

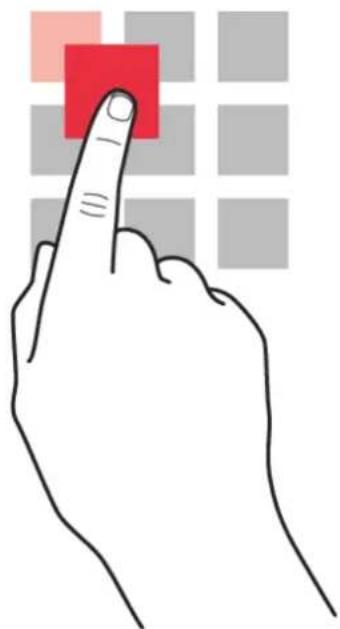

Tap and hold to drag an item

Hand pointing at a red square on a grid background (no text or symbols)

Place your finger on the item for a couple of seconds, and slide your finger a

HMD Crest Max User Guide

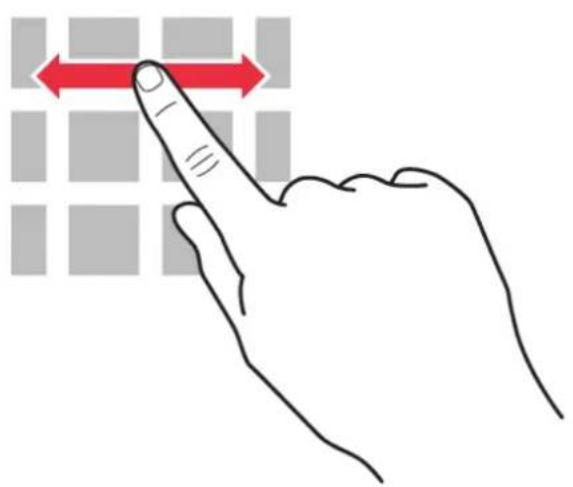

Swipe

Place your finger on the screen, and slide your finger in the direction you want

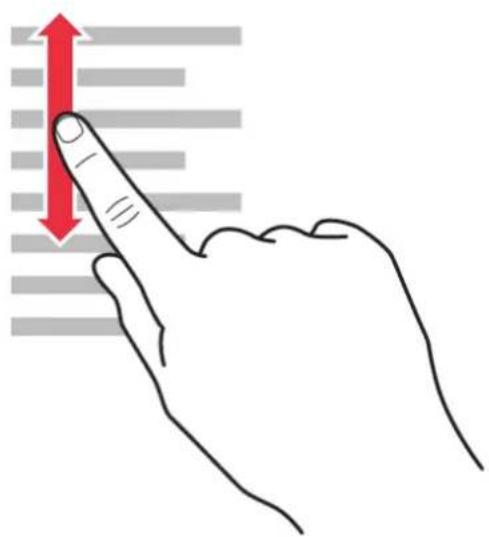

Scroll through a long list or menu

Slide your finger quickly in a flicking motion up or down the screen, and lift y the scrolling, tap the screen.

TM and © 2024 HMD Global. All rights reserved. 11

HMD Crest Max User Guide

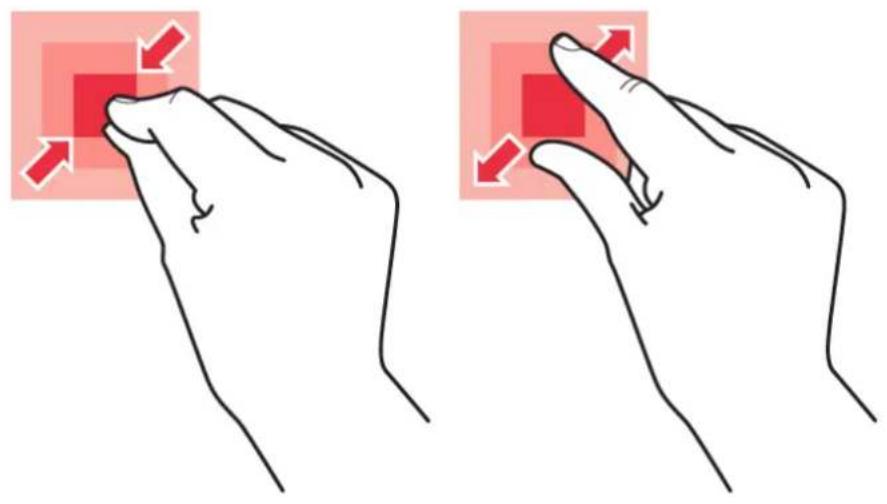

Zoom in or out

Illustration of two hands holding a red square object with directional arrows indicating movement or force (no text or symbols)

Place 2 fingers on an item, such as a map, photo, or web page, and slide your together.

Lock the screen orientation

The screen rotates automatically when you turn the phone 90 degrees.

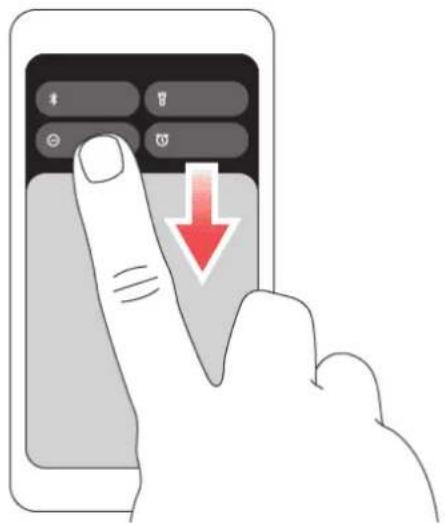

To lock the screen in portrait mode, swipe down from the top of the screen, Auto-rotate > Off .

Navigate with gestures

To switch on using gesture navigation, tap Settings > System > Gestures > Navigation mode > Gesture navigation .

• To see all your apps, on the home screen, swipe up on the screen.
- To go to the home screen, swipe up from the bottom of the screen. The stays open in the background.
- To see which apps you have open, swipe up from the bottom of the screenshot releasing your finger until you see the apps, and then release your finger. To another open app, tap the app. To close all the open apps, swipe right through and tap CLEAR ALL.

- To go back to the previous screen you were in, swipe from the right or left screen. Your phone remembers all the apps and websites you've visited since your screen was locked.

Navigate with keys

To switch on the navigation keys, tap Settings > System > Gestures > Navigation 3-button navigation.

• To see all your apps, on the home screen, swipe up from the bottom of
• To go to the home screen, tap ●. The app you were in stays open in tl
- To see which apps you have open, tap ■. To switch to another open app, and tap the app. To close all the open apps, swipe right through all the app CLEAR ALL .
- To go back to the previous screen you were in, tap ◀. Your phone remem and websites you've visited since the last time your screen was locked.

3 Protect your phone

LOCK OR UNLOCK YOUR PHONE

Lock your phone

If you want to avoid accidentally making a call when your phone is in your pc can lock your keys and screen.

To lock your keys and screen, press the power key.

Unlock the keys and screen

Press the power key, and swipe up across the screen. If asked, provide addition

PROTECT YOUR PHONE WITH A SCREEN LOCK

You can set your phone to require authentication when unlocking the screen.

Set a screen lock

1. Tap Settings > Security & privacy > Device unlock > Screen lock .
2. Choose the type of lock and follow the instructions on your phone.

PROTECT YOUR PHONE WITH YOUR FINGERPRINT

Add a fingerprint

1. Tap Settings > Security & privacy > Device unlock > Face & Fingerprint unlo

2. Select what backup unlocking method you want to use for the lock screen instructions shown on your phone.

Unlock your phone with your finger

Place your registered finger on the power key.

If there is a fingerprint sensor error, and you cannot use alternative sign-in met to recover or reset the phone in any way, your phone will require service by personnel. Additional charges may apply, and all the personal data on your phone deleted. For more info, contact the nearest care point for your phone, or your

HMD Crest Max User Guide

PROTECT YOUR PHONE WITH YOUR FACE

Set up face authentication

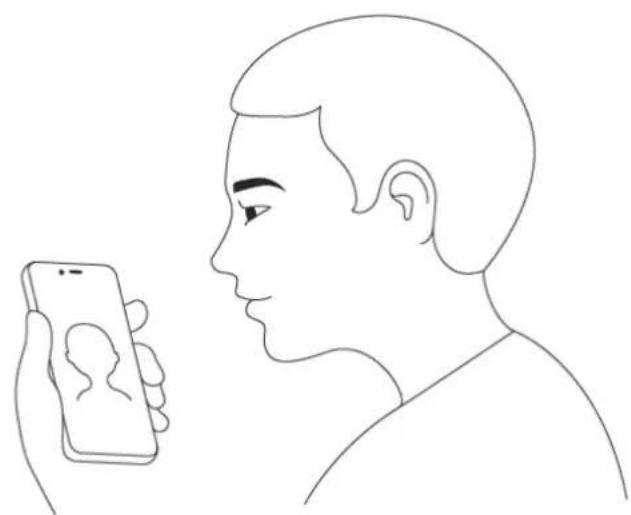

Line drawing of a person holding a smartphone, no text or symbols present

1. Tap Settings > Security & privacy > Device unlock > Face & Fingerprint unlo

2. Select what backup unlocking methods you want to use for the lock screen instructions shown on your phone.

Keep your eyes open and make sure your face is fully visible and not covered such as a hat or sunglasses.

Note: Using your face to unlock your phone is less secure than using a fingerprint password. Your phone may be unlocked by someone or something with similar appearance. Face unlock may not work properly in backlight or too dark or bright environment.

Unlock your phone with your face

To unlock your phone, just turn your screen on and look at the front camera. If there is a facial recognition error, and you cannot use alternative sign-in met or reset the phone in any way, your phone will require service. Additional charge and all the personal data on your phone may be deleted. For more info, contact authorized service facility for your phone, or your phone dealer.

FIND YOUR LOST PHONE

Locate or lock your phone

If you lose your phone, you may be able to find, lock, or erase it remotely if in to a Google Account. Find My Device is on by default for phones associated Account.

TM and © 2024 HMD Global. All rights reserved. 15

To use Find My Device, your lost phone must be:

• Turned on
  • Visible on Google Play
  • Signed in to a Google Account
• Location turned on
• Connected to mobile data or Wi-Fi
  • Find My Device turned on

When Find My Device connects with your phone, you see the phone's location, gets a notification.

1. Open android.com/find on a computer, tablet or phone connected to the inter in to your Google Account.
2. If you have more than one phone, click the lost phone at the top of the
3. On the map, see about where the phone is. The location is approximate and accurate.

If your device can't be found, Find My Device will show its last known location lock or erase your phone, follow the instructions on the web site.

4 Basics

PERSONALIZE YOUR PHONE

Change your wallpaper

Tap Settings > Wallpaper & icon > Wallpaper & style .

Change your phone ringtone

Tap Settings > Sound & vibration > Phone ringtone SIM1 or Phone ringtone SIM2 select the tone.

Change your message notification sound

Tap Settings > Sound & vibration > Default notification sound .

NOTIFICATIONS

Use the notification panel

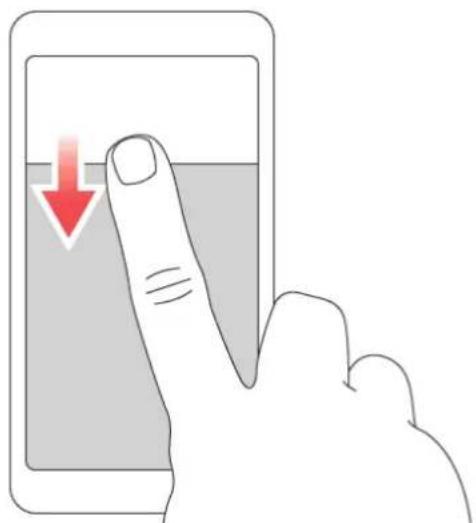

Illustration of a finger pressing down on a smartphone screen with a red downward arrow (no text or symbols)

When you receive new notifications, such as messages or missed calls, icons ap top of the screen.

To see more information about the notifications, swipe down from the top of the close the view, swipe up on the screen.

HMD Crest Max User Guide

To change the notification settings of an app, tap Settings > Notifications > App notifications > Most recent > All apps , and switch the app's notifications off.

Use the quick access items

To activate features, tap the corresponding quick access item on the notification see more items, drag the menu down. To rearrange or add new items, tap ↗, item, and then drag it to another location.

CONTROL VOLUME

Change the volume

If you have trouble hearing your phone ringing in noisy environments, or calls all can change the volume to your liking by using the volume keys on the side of

Do not connect to products that create an output signal, as this may damage not connect any voltage source to the audio connector. If you connect an exte or headset, other than those approved for use with this device, to the audio of special attention to volume levels.

Boost the volume

You can increase the loudspeaker volume with the boost mode.

1. Press the volume up key until you reach 100% volume level.

TM and © 2024 HMD Global. All rights reserved. 18

HMD Crest Max User Guide

1. Press the volume up key again to switch on the audio boost mode. You can audio boost mode with the loudspeaker.
2. To decrease the volume, press the volume down key.

Change the volume for media and apps

1. Press a volume key to see the volume level bar.
2. Tap ...
3. Drag the slider on the volume level bars left or right.
4. Tap DONE .

Set the phone to silent

1. Press a volume key.
2. Tap
3. Tap ☐ to set your phone to vibrate only, or tap ✏ to set it to silent.

AUTOMATIC TEXT CORRECTION

Use keyboard word suggestions

Your phone suggests words as you write, to help you write quickly and more a suggestions may not be available in all languages.

When you start writing a word, your phone suggests possible words. When the is shown in the suggestion bar, select the word. To see more suggestions, tap suggestion.

Tip: If the suggested word is marked in bold, your phone automatically uses it to word you wrote. If the word is wrong, tap and hold it to see a few other sug. If you do not want the keyboard to suggest words while typing, turn off the text Tap Settings > System > Keyboard > On-screen keyboard. Select the keyboard you normally use. Tap Text correction and switch off the text correction methods you want to use.

Correct a word

If you notice that you have misspelled a word, tap it to see suggestions for a word.

Switch spell checker off

Tap Settings > System > Keyboard > Spell checker, and switch Use spell check

BATTERY LIFE

Extend battery life

To save power:

1. Always charge the battery fully.
2. Mute unnecessary sounds, such as touch sounds. Tap Settings > Sound & vibration, and select which sounds to keep.
4. Use wired headphones, rather than the loudspeaker.
5. Set the phone screen to switch off a short time. Tap Settings > Display Screen timeout and select the time.
6. Tap Settings > Display > Brightness level. To adjust the brightness, drag the brightness level slider. Make sure that Adaptive brightness is switched off.

7. Stop apps from running in the background.

8. Use location services selectively: switch location services off when you don't need them. Tap Settings > Location, and switch off Use location.

9. Use network connections selectively: Switch Bluetooth on only when needed. Use a Wi-Fi connection to connect to the internet, rather than a mobile data connection. Stop your phone scanning for available wireless networks. Tap Settings > Network & internet > Internet, and switch off Wi-Fi. If you're listening to music or otherwise using your phone, b don't want to make or receive calls, sv the airplane mode on. Tap Settings > Network & internet, and switch on Airplane mode. Airplane mode closes connections to the mobile network and switches your device's wireless features off.

EXTEND THE MEMORY OF YOUR PHONE WITH VIRTUAL RAM

Switch on memory extension

If your phone supports the virtual RAM feature, you can have more apps open background and switch smoothly between them. To switch the feature on, tap S Memory, and switch on Memory extension. If asked, tap the memory size yo

Using the memory extension (virtual RAM) requires enough storage space. To protect storage, the memory extension is automatically and permanently disabled once 90% usage limit is reached. This can occur after 4 years of heavy usage.

Clean the memory

To clean the memory of your phone from unnecessary apps running in the back Settings > Memory , select the apps you want to close, and tap Boost . If I that you always want to keep running in the background, exclude them from the Settings > Memory > Excluded apps , and switch on the apps you want to k

ACCESSIBILITY

Make the text and items on the screen larger

1. Tap Settings > Accessibility > Display size and text .
2. Tap the font size slider until the text size is to your liking.
3. Tap the display size slider until the size is to your liking.

5 Connect with your friends and family

CALLS

Make a call

1. Tap
2. Tap ⚪ and type in a number, or tap ⚪ and select a contact you want to call.
3. Tap

Answer a call

If your phone rings when the screen is unlocked, tap ANSWER. If your phone screen is locked, swipe up to answer.

Reject a call

If your phone rings when the screen is unlocked, tap DECLINE. If your phone screen is locked, swipe down to reject the call.

CONTACTS

Add a contact

1. Tap Contacts > + .
2. Fill out the information.
3. Tap SAVE .

Save a contact from call history

1. Tap 📋 > Ⓤ to see your call history.
2. Tap the number you want to save.
3. Tap Add contact. If this is a new contact, type in the contact information. If this contact is already in your contacts list, tap Add to existing, select tap Save.

SEND MESSAGES

Send a message

1. Tap Messages.
2. Tap Start chat.
3. To add more recipients, tap 📋+. After choosing all the recipients, tap Next, the group a name, and tap Done.
4. To add a recipient, type their number in a recipients box, and tap √. To add a contact, start typing their name and 6.tap ▶. the contact.

MAIL

You can send mail with your phone when you're on the go.

Add a mail account

When you use the Gmail app for the first time, you are asked to set up you

1. Tap Gmail .
2. You can select the address connected with your Google account or tap Add an email address .
3. After adding all the accounts, tap TAKE ME TO GMAIL .

Send mail

1. Tap Gmail . : > Add from Contacts .
2. Tap ♦.
3. Type in the message subject and the
4. In the To box, type in an address5. ofTaptap

6 Camera

CAMERA BASICS

Take a photo

Shoot sharp and vibrant photos - capture the best moments in your photo album

1. Tap Camera .
2. Take aim and focus.
3. Tap O.

Keep a safe distance when using the flash. Do not use the flash on people or close range. Do not cover the flash while taking a photo.

Take a selfie

1. Tap Camera > to switch to the front camera.
2. Tap O.

Record a video

1. Tap Camera .
2. Tap ⊙ to start recording.
3. To switch to the video recording tap Video.
   modeTo stop recording, tap ☐.
4. To go back to camera mode, tap Pho

YOUR PHOTOS AND VIDEOS

View photos and videos on your phone

Tap Photos .

Share your photos and videos

1. Tap Photos, tap the photo you want to share and tap <.
2. Select how you want to share the photo or video.

TM and © 2024 HMD Global. All rights reserved. 24

HMD Crest Max User Guide

Copy your photos and videos to your computer

Connect your phone to your computer with a compatible USB cable. Use your c manager to copy or move your photos and videos to the computer.

7 Internet and connections

ACTIVATE WI-FI

Switch on Wi-Fi

1. Tap Settings > Network & internet > Internet .
2. Switch Wi-Fi on.
3. Select the network you want to use.

Your Wi-Fi connection is active when ▼ is shown at the top of the screen. If mobile data connections are available, your phone uses the Wi-Fi connection.

Important: Use encryption to increase the security of your Wi-Fi connection. Usin encryption reduces the risk of others accessing your data.

BROWSE THE WEB

Search the web

1. Tap Chrome .
2. Write a search word or a web address to the search field.
3. Tap →, or select from the proposed matches.

Tip: If your network service provider doesn't charge you a fixed fee for data tran on data costs, use a Wi-Fi network to connect to the internet.

Use your phone to connect your computer to the web

Use your mobile data connection to access the internet with your laptop or other

1. Tap Settings > Network & internet > Hotspot & tethering .
2. Switch on Wi-Fi hotspot to share your mobile data connection over Wi-Fi, US to use a USB connection, Bluetooth tethering to use Bluetooth, or Ethernet to use a USB Ethernet cable connection.

The other device uses data from your data plan, which may result in data traffic on availability and costs, contact your network service provider.

BLUETOOTH®

Connect to a Bluetooth device

1. Tap Settings > Connected devices Connection preferences > Bluetooth
2. Tap Pair new device and tap the devi you want to pair with from the list of discovered Bluetooth devices.
3. Switch Use Bluetooth on.
4. Make sure the other device is switched on. You may need to start the pairing process from the other device. For details, see the user guide for the other device.

Since devices with Bluetooth wireless technology communicate using radio waves, do not need to be in direct line-of-sight. Bluetooth devices must, however, be meters (33 feet) of each other, although the connection may be subject to interobstructions such as walls or from other electronic devices.

Paired devices can connect to your phone when Bluetooth is switched on. Other detect your phone only if the Bluetooth settings view is open.

Do not pair with or accept connection requests from an unknown device. This is your phone from harmful content.

Share your content using Bluetooth

If you want to share your photos or other content with a friend, send them to phone using Bluetooth.

You can use more than one Bluetooth connection at a time. For example, while Bluetooth headset, you can still send things to another phone.

1. Tap Settings > Connected devices > tap < > Bluetooth . Connection preferences > Bluetooth ? On the list of four

2. Make sure Bluetooth is switched on your friend's phone. both phones and the phones are visible

to each other. 5. If the other phone needs a passcode, in or accept the passcode, and tap PA 3. Go to the content you want to send, and

The passcode is only used when you connect to something for the first time.

Remove a pairing

If you no longer have the device with which you paired your phone, you can pairing.

1. Tap Settings > Connected devices > Saved devices .
2. Tap ✿ next to a device name.
3. Tap FORGET .

VPN

You may need a virtual private network (VPN) connection to access your comparison such as intranet or corporate mail, or you may use a VPN service for personal

Contact your company IT administrator for details of your VPN configuration, or cVPN service's website for additional info.

Use a secure VPN connection

1. Tap Settings > Network & internet > VPN .

2. To add a VPN profile, tap +.

3. Type in the profile info as instructed by your company IT administrator or V

Edit a VPN profile

1. Tap ✿ next to a profile name.
2. Change the info as required.

Delete a VPN profile

1. Tap ✿ next to a profile name.
2. Tap FORGET .

HMD Crest Max User Guide

8 Organize your day

DATE AND TIME

Set date and time

Tap Settings > System > Date & time .

Update the time and date automatically

You can set your phone to update the time, date, and time zone automatically. update is a network service and may not be available depending on your region service provider.

1. Tap Settings > System > Date & time .
2. Switch on Set time automatically .
3. Switch on Set automatically .

Change the clock to the 24-hour format

Tap Settings > System > Date & time , and switch Use 24-hour format on.

ALARM CLOCK

Set an alarm

1. Tap Clock > Alarm .
2. To add an alarm, tap +.
3. Select the hour and the minutes, and tap OK.
4. To set the alarm to repeat on specific days, tap the corresponding weekdays

Switch an alarm off

When the alarm sounds, swipe the alarm right.

CALENDAR

Select the calendar type

Tap Calendar > ≡, and select what type of calendar you want to see.

If you have signed into an account, such as your Google account, your calendar the phone.

Add an event

1. Tap Calendar > + . often the event should repeat.
2. Add the needed details.
3. To set a reminder, tap Add notification and set the time.
4. To make the event repeat on certain days, tap Does not repeat, and select how Tap Save.

Tip: To edit an event, tap the event and ↗, and edit the details.

Delete an appointment

1. Tap the event.
2. Tap : > Delete .

9 Maps

FIND PLACES AND GET DIRECTIONS

Find a spot

Google Maps helps you find specific locations and businesses.

1. Tap Maps .
2. Write search words, such as a street address or place name, in the search
3. Select an item from the list of proposed matches as you write, or tap 🔒 to

The location is shown on the map. If no search results are found, make sure your search words is correct.

See your current location

Tap Maps >

Get directions to a place

1. Tap Maps and enter your destination in the search bar.
2. Tap Directions. The highlighted icon shows the mode of transportation, for e change the mode, select the new mode under the search bar.
3. If you don't want the starting point to be your current location, tap Your I search for a new starting point.
4. Tap Start to start the navigation.

The route is shown on the map, along with an estimate of how long it takes see detailed directions, tap Steps.

10 Apps, updates, and backups

GET APPS FROM GOOGLE PLAY

Add a payment method

To use Google Play services, you need to have a Google account added to your phone. Charges may apply to some of the content available in Google Play. To payment method, tap Play Store, tap your Google logo in the search field, and Payments & subscriptions. Always be sure to have a permission from the payn owner when buying content from Google Play.

Download apps

1. Tap Play Store .
2. Tap the search bar to look for apps, or select apps from your recommendat
3. In the app description, tap Install to download and install the app.

To see your apps, go to the home screen and swipe up from the bottom of

UPDATE YOUR PHONE SOFTWARE

Install available updates

Tap Settings > System > System update > Check for update to check if updat available.

When your phone notifies you that an update is available, just follow the instru on your phone. If your phone is low on memory, you may need to move your stuff to the memory card.

Before starting the update, connect a charger or make sure the device battery power, and connect to Wi-Fi, as the update packages may use up a lot of m

BACK UP YOUR DATA

To ensure your data is safe, use the backup feature in your phone. Your device Wi-Fi passwords and call history) and app data (such as settings and files store be backed up remotely.

HMD Crest Max User Guide

Switch on automatic backup

Tap Settings > System > Backup, and switch back up on.

RESTORE ORIGINAL SETTINGS AND REMOVE PRIVATE CONTENT FROM YOUR PHONE

Reset your phone

1. Tap Settings > System > Reset options > Erase all data (factory reset).
2. Follow the instructions shown on your phone.

11 Product and safety information

FOR YOUR SAFETY

Read these simple guidelines. Not following them may be dangerous or against lo regulations. For further info, read the complete user guide.

SWITCH OFF IN RESTRICTED AREAS

Switch the device off when mobile device use is not allowed or when it may or danger, for example, in aircraft, in hospitals or near medical equipment, fuel, blasting areas. Obey all instructions in restricted areas.

ROAD SAFETY COMES FIRST

Warning sign depicting a car inside a triangle (no text or symbols)

Obey all local laws. Always keep your hands free to operate the vehicle while consideration while driving should be road safety.

INTERFERENCE

Warning sign depicting a funnel with lightning bolts, enclosed in a triangle (no text)

All wireless devices may be susceptible to interference, which could affect perfor

HMD Crest Max User Guide

AUTHORIZED SERVICE

Icon of a wrench inside a square frame (no text or symbols)

Only authorized personnel may install or repair this product.

BATTERIES, CHARGERS, AND OTHER ACCESSORIES

Icon of a white cable or plug on a dark background, enclosed in a rounded square border (no text or symbols)

Use only batteries, chargers, and other accessories approved by HMD Global Oy this device. Do not connect incompatible products.

KEEP YOUR DEVICE DRY

Simple icon of four white water droplets inside a dark rounded square (no text or symbols)

If your device is water-resistant, see its IP rating in the device's technical speci more detailed guidance.

HMD Crest Max User Guide

GLASS PARTS

The device and/or its screen is made of glass. This glass can break if the device on a hard surface or receives a substantial impact. If the glass breaks, do not parts of the device or attempt to remove the broken glass from the device. St device until the glass is replaced by authorized service personnel.

PROTECT YOUR HEARING

To prevent possible hearing damage, do not listen at high volume levels for long Exercise caution when holding your device near your ear while the loudspeaker is

NETWORK SERVICES AND COSTS

Using some features and services, or downloading content, including free items, in network connection. This may cause the transfer of large amounts of data, which in data costs. You may also need to subscribe to some features.

Important: The device's highest network connection speed might not be supported your network service provider or by the service provider you are using when travel these cases, you may not be able to make or receive calls, send or receive mes
! These cases, you may not be able to make or receive calls, send or receive that mobile data connections. To make sure your device works seamlessly when the high network connection speed is not available, it is recommended that you change the connection speed to the next highest connection speed. To do this, on the home tap Settings > Network & Internet > SIMs , and switch Preferred network type to connection speed. For more info, contact your network service provider.
Note: Using Wi-Fi may be restricted in some countries. For example, in the EU, y allowed to use 5150-5350 MHz Wi-Fi indoors, and in the USA and Canada, you are allowed to use 5.15-5.25 GHz Wi-Fi indoors. For more info, contact your local auth

EMERGENCY CALLS

Important: Connections in all conditions cannot be guaranteed. Never rely solely on wireless phone for essential communications like medical emergencies.

Before making the call:

• Switch the phone on.
  • If the phone screen and keys are locked, unlock them.
• Move to a place with adequate signal strength.

On the home screen, tap 📞.

1. Tap ⚪ and type in the official emergency number for your present location. numbers vary by location.
2. Tap
3. Give the necessary info as accurately as possible. Do not end the call until permission to do so.

You may also need to do the following:

• Put a SIM card in the phone. If you don't have a SIM card, on the lock Emergency .
  • If your phone asks for a PIN code, tap Emergency.
• Switch the call restrictions off in your phone, such as call barring, fixed dial user group.
• If the mobile network is not available, you may also try making an internet access the internet.

Handle your device, battery, charger and accessories with care. The following suggestion help you keep your device operational.

• Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can contain minerals that corrode electronic circuits.

• Do not use or store the device in du dirty areas.

• Do not store the device in high temperatures. High temperatures may

damage the device or battery.

the battery. Rough handling can break i

- Do not store the device in cold temperatures. When the device warms to its normal temperature, moisture of form inside the device and damage

- Only use a soft, clean, dry cloth to cut the surface of the device.

- Do not open the device other than instructed in the user guide.

It. Do not paint the device. Paint can pre proper operation.

- Unauthorized modifications may damage the device and violate regulations governing radio devices.

• Keep the device away from magnets or magnetic fields.

- Do not drop, knock, or shake the

• To keep your important data safe, storing in at least two separate places, such as your device, memory card, or computer,

dewichte otown important info.

During extended operation, the device may feel warm. In most cases, this is no getting too warm, the device may automatically slow down, dim display during a close apps, switch off charging, and if necessary, switch itself off. If the device properly, take it to the nearest authorized service facility.

RECYCLE

Recycling symbol with three arrows forming a triangle (no text or labels)

Always return your used electronic products, batteries, and packaging materials to collection points. This way you help prevent uncontrolled waste disposal and prom recycling of materials. Electrical and electronic products contain a lot of valuable including metals (such as copper, aluminum, steel, and magnesium) and precious (such as gold, silver, and palladium). All materials of the device can be recovered and energy.

HMD Crest Max User Guide

CROSSED-OUT WHEELIE BIN SYMBOL

Crossed-out wheelie bin symbol

Symbol of a trash bin with no text or labels

The crossed-out wheelie-bin symbol on your product, battery, literature, or packaging reminds you that all electrical and electronic products and batteries must be taken separate collection at the end of their working life. Remember to remove persons from the device first. Do not dispose of these products as unsorted municipal with them for recycling. For info on your nearest recycling point, check with your local authority, or read about HMD's take-back program and its availability in your country. www.hmd.com/support/topics/recycle.

BATTERY AND CHARGER INFORMATION

Battery and charger info

To check if your phone has a removable or non-removable battery, see the prin

Devices with a removable battery Use your device only with an original recharg The battery can be charged and discharged hundreds of times, but it will event When the talk and standby times are noticeably shorter than normal, replace the

Devices with a non-removable battery Do not attempt to remove the battery, a damage the device. The battery can be charged and discharged hundreds of time eventually wear out. When the talk and standby times are noticeably shorter than replace the battery, take the device to the nearest authorized service facility.

Charge your device with a compatible charger. Charger plug type may vary. Char vary depending on device capability.

Battery and charger safety info

Once charging of your device is complete, unplug the charger from the device outlet. Please note that continuous charging should not exceed 12 hours. If left fully charged battery will lose its charge over time.

Extreme temperatures reduce the capacity and lifetime of the battery. Always kee battery between 15^ and 25^ (59°F and 77°F) for optimal performance. A devic

hot or cold battery may not work temporarily. Note that the battery may drain temperatures and lose enough power to switch off the phone within minutes. With outdoors in cold temperatures, keep your phone warm.

Obey local regulations. Recycle when possible. Do not dispose as household waste

Do not expose the battery to extremely low air pressure or leave it to extreme temperature, for example dispose it in a fire, as that may cause the battery to flammable liquid or gas.

Do not dismantle, cut, crush, bend, puncture, or otherwise damage the battery ir If a battery leaks, do not let liquid touch skin or eyes. If this happens, immed affected areas with water, or seek medical help. Do not modify, attempt to inse objects into the battery, or immerse or expose it to water or other liquids. Bat explode if damaged.

Use the battery and charger for their intended purposes only. Improper use, or unapproved or incompatible batteries or chargers may present a risk of fire, explore other hazard, and may invalidate any approval or warranty. If you believe the battery is damaged, take it to a service centre or your phone dealer before continuing to use a damaged battery or charger. Only use the charger indoors. Do not charge during a lightning storm. When charger is not included in the sales pack, charger using the data cable (included) and a USB power adaptor (may be sold separate) charge your device with third-party cables and power adaptors that are compliant 2.0 or later and with applicable country regulations and international and regional standards. Other adaptors may not meet applicable safety standards, and charging adaptors could pose a risk of property loss or personal injury.

To unplug a charger or an accessory, hold and pull the plug, not the cord.

Additionally, the following applies if your device has a removable battery:

• Always switch the device off and unplug the charger before removing any cc battery.
• Accidental short-circuiting can happen when a metallic object touches the met the battery. This may damage the battery or the other object.

SMALL CHILDREN

Your device and its accessories are not toys. They may contain small parts. Keep the reach of small children.

NICKEL

The surface of this device is nickel-free.

MEDICAL DEVICES

Operation of radio transmitting equipment, including wireless phones, may interfere inadequately shielded medical devices' function. Consult a physician or the medical manufacturer to determine if it is adequately shielded from external radio energy.

IMPLANTED MEDICAL DEVICES

To avoid potential interference, manufacturers of implanted medical devices (such as pacemakers, insulin pumps, and neurostimulators) recommend a minimum separation centimeters (6 inches) between a wireless device and the medical device. Person such devices should:

• Always keep the wireless device more opposite the medical device.
than 15.3 centimeters (6 inches) from the
medical device.
- Switch the wireless device off if there any reason to suspect that interference
- Not carry the wireless device in a breaking place.
pocket.
- Follow the manufacturer directions for tl
- Hold the wireless device to the ear implanted medical device.

If you have any questions about using your wireless device with an implanted n consult your health care provider.

HEARING

Warning: When you use the headset, your ability to hear outside sounds may be. Do not use the headset where it can endanger your safety.

Some wireless devices may interfere with some hearing aids.

PROTECT YOUR DEVICE FROM HARMFUL CONTENT

Your device may be exposed to viruses and other harmful content. Take the fol precautions:

• Be cautious when opening messages. downloading content. Do not accept They may contain malicious software orBluetooth connections from sources you otherwise be harmful to your device odo not trust. computer.
  • Only install and use services and softw • Be cautious when accepting connectivity from sources that you trust and that of requests, browsing the internet, or adequate security and protection.

- Install antivirus and other security • If you access preinstalled bookmarks an software on your device and any links to third party internet sites, take connected computer. Only use one appropriate precautions. HMD Global antivirus app at a time. Using more may not endorse or assume liability for affect performance and operation of the such sites. device and/or computer.

VEHICLES

Radio signals may affect improperly installed or inadequately shielded electronic systems in vehicles. For more info, check with the manufacturer of your vehicle or its equipment. Only authorized personnel should install the device in a vehicle. Faulty installation is dangerous and invalidate your warranty. Check regularly that all wireless device ends for your vehicle is mounted and operating properly. Do not store or carry flammable materials in the same compartment as the device, its parts, or accessories. Do not store or accessories in the air bag deployment area.

POTENTIALLY EXPLOSIVE ENVIRONMENTS

Switch your device off in potentially explosive environments, such as near gasoline. Sparks may cause an explosion or fire resulting in injury or death. Note restricted areas with fuel; chemical plants; or where blasting operations are in progress. Are potentially explosive environment may not be clearly marked. These usually are and you are advised to switch your engine off, below deck on boats, chemical trans facilities, and where the air contains chemicals or particles. Check with the man of vehicles using liquefied petroleum gas (such as propane or butane) if this de safely used in their vicinity.

CERTIFICATION INFORMATION

This mobile device meets guidelines for exposure to radio waves.

Your mobile device is a radio transmitter and receiver. It is designed not to exceed limits for exposure to radio waves (radio frequency electromagnetic fields), recommended by international guidelines from the independent scientific organization ICNIRP. These guidelines incorporate substantial safety margins that are intended to assure the use of all persons regardless of age and health. The exposure guidelines are based on Specific Absorption Rate (SAR), which is an expression of the amount of radio power deposited in the head or body when the device is transmitting. The ICNIRP mobile devices is 2.0 W/kg averaged over 10 grams of tissue.

SAR tests are carried out with the device in standard operating positions, transm highest certified power level, in all its frequency bands.

This device meets RF exposure guidelines when used against the head or when at least 5/8 inch (1.5 centimetres) away from the body. When a carry case, be form of device holder is used for body-worn operation, it should not contain me provide at least the above stated separation distance from the body.

To send data or messages, a good connection to the network is needed. Send it delayed until such a connection is available. Follow the separation distance instruction, the sending is finished.

During general use, the SAR values are usually well below the values stated above because, for purposes of system efficiency and to minimize interference on the operating power of your mobile device is automatically decreased when full power needed for the call. The lower the power output, the lower the SAR value.

Device models may have different versions and more than one value. Component changes may occur over time and some changes could affect SAR values.

For more info, go to www.sar-tick.com. Note that mobile devices may be transmitting even if you are not making a voice call.

The World Health Organization (WHO) has stated that current scientific information not indicate the need for any special precautions when using mobile devices. If interested in reducing your exposure, they recommend you limit your usage or u hands-free kit to keep the device away from your head and body. For more inf explanations and discussions on RF exposure, go to the WHO website at www.wl topics/electromagnetic-fields#tab=tab_1.

Please refer to www.hmd.com/sar for the maximum SAR value of the device.

ABOUT DIGITAL RIGHTS MANAGEMENT

When using this device, obey all laws and respect local customs, privacy and le rights of others, including copyrights. Copyright protection may prevent you from modifying, or transferring photos, music, and other content.

COPYRIGHTS AND OTHER NOTICES

Copyrights and other notices

The availability of some products, features, applications and services described in may vary by region and require activation, sign up, network and/or internet conn and an appropriate service plan. For more info, contact your dealer or your serv This device may contain commodities, technology or software subject to export la regulations from the US and other countries. Diversion contrary to law is prohibit

The contents of this document are provided "as is". Except as required by appli warranties of any kind, either express or implied, including, but not limited to, tl

warranties of merchantability and fitness for a particular purpose, are made in re accuracy, reliability or contents of this document. HMD Global reserves the right document or withdraw it at any time without prior notice.

To the maximum extent permitted by applicable law, under no circumstances shall or any of its licensors be responsible for any loss of data or income or any consequential or indirect damages howsoever caused.

Reproduction, transfer or distribution of part or all of the contents in this document without the prior written permission of HMD Global is prohibited. HMD Global a policy of continuous development. HMD Global reserves the right to make char improvements to any of the products described in this document without prior

HMD Global does not make any representations, provide a warranty, or take any for the functionality, content, or end-user support of third-party apps provided with device. By using an app, you acknowledge that the app is provided as is.

Downloading of maps, games, music and videos and uploading of images and vid involve transferring large amounts of data. Your service provider may charge for transmission. The availability of particular products, services and features may vary Please check with your local dealer for further details and availability of language

Certain features, functionality and product specifications may be network dependent subject to additional terms, conditions, and charges.

All specifications, features and other product information provided are subject to without notice.

HMD Global Privacy Policy, available at https://www.hmd.com/privacy, applies to your use of the device.

TM and © 2024 HMD Global. All rights reserved.

Android, Google and other related marks and logos are trademarks of Google LLC

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and marks by HMD Global is under license.
