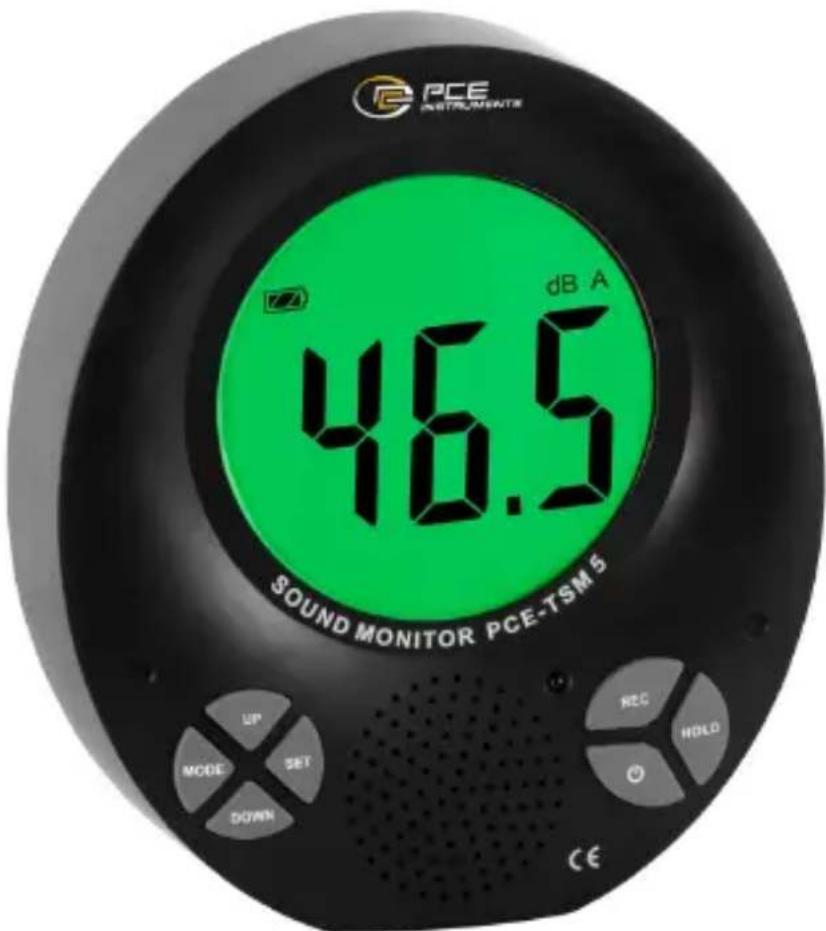

TSM 5 - Sound Level Meter PCE Instruments - Free user manual and instructions

Brand	PCE Instruments
Model	TSM 5
Product Type	Sound Level Meter
Measurement Range	35 dB to 135 dB
Accuracy	±2.0 dB
Frequency Response	31.5 Hz to 8 kHz
Frequency Weighting	A-weighted
Microphone	1/2 inch electret condenser
Display	Large HD color LCD
Alarm Functions	Yellow light, red light, and voice alarm with adjustable threshold
Recording Feature	Up to 15 seconds, self-defined broadcast
Screen Lock	Holds current display reading
Volume Adjustment	Yes, for audio output
Remote Control	Yes, with infrared remote
Audio Output	Yes (3.5mm jack)
Languages	English, Spanish, French, German, Japanese, Chinese + custom recording
Power Supply	DC 9V/1A adapter (center positive) or 6 x AA 1.5V batteries
Battery Life	Approximately 60 hours
Dimensions	197 x 176 x 49 mm
Weight	623 g (with batteries)
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Accessories Included	Meter, adapter, remote control, screwdriver, 6x AA batteries, user manual, mounting material
Maintenance	Wipe with dry soft cloth; do not use abrasives or solvents
Disposal	Follow EU directives (WEEE, battery) or local regulations

Frequently Asked Questions - TSM 5 PCE Instruments

How do I turn the TSM 5 on and off?

Press the power button (labeled with a circle) to turn on. Press and hold the same button for 3 seconds to turn off.

How do I set the alarm threshold?

In measurement mode, press the alarm setup button to enter yellow or red light alarm value adjustment. Use the + and - keys to increase or decrease the value. Press the alarm button again to exit.

Can I record a custom voice announcement?

Yes. In measurement mode, press and hold the record button. Release after the beep to stop. The recorded audio (up to 15 seconds) will automatically play and can be selected as the broadcast voice.

How do I change the broadcast language?

Press the language button to cycle through options: English, Spanish, French, German, Japanese, Chinese, or custom recording. Wait 3 seconds after the last press to confirm.

What type of batteries does the TSM 5 use?

It uses six AA (LR6) 1.5V batteries. It can also be powered via the included 9V/1A DC adapter (center positive, 5.5mm outer/2.0mm inner diameter).

How do I calibrate the sound level meter?

Use a standard sound source (94 dB @ 1 kHz). Place it over the microphone and adjust the calibration potentiometer on the right side until the display shows 94.0 dB. Only qualified personnel should perform this.

What does the screen lock do?

Pressing the hold key freezes the current reading on the display. The symbol HOLD appears. Press again to release.

Can I use the remote control from a distance?

Yes. The meter has an infrared receiver. The included remote allows operation from several meters away, depending on line-of-sight.

How do I clean the TSM 5?

Wipe the exterior with a dry, soft cloth. Do not use any abrasive cleaners or solvents, and avoid getting moisture into the microphone or openings.

What should I do if the meter shows LO or HI?

LO means the sound level is below 35 dB, HI means above 135 dB. Ensure you are within the measurement range for accurate readings.

USER MANUAL TSM 5 PCE Instruments

Sound Level Meter PCE-TSM 5 User's Manual

Please read this user manual thoroughly before using this unit and keep it properly for your future reference.

Catalogue

1、Safety....2
2、Applications.... 2
3、Features 3
4、Specifications 4
5、Meter Description......6
6、Display Description....7
7、Function Operation Description .... 7
8、Notes....11
9、Accessories.... 13
9、Disposal.... 13

1、Safety

Read the following safety information carefully before attempting to operate the meter.

▲ Environment conditions

1. RH≤90% (Non-Condensation)
2. Operating Temperature: -20\~60°C/-4\~140°F

▲ Maintenance

1. Repairs or servicing should only be performed by qualified personnel.
2. Wipe the unit with a dry soft cloth. Do not use abrasives or solvents on this instrument

CE

Comply with EMC

2、Applications

This instrument adopts the capacitive microphone as the sensor, and is equipped with high-configuration MCU

calculation, with high measurement accuracy and quick response. Suitable for noise engineering, quality control, health prevention and control and various environmental sound measurement, such as construction engineering, factory, school, hospital, library, office, home

3、Features

➢ large HD color LCD display
▶ Wide frequency response range and high accuracy
Light and voice alarm functions
▶ Alarm value can be set
➢ Preset six countries warning language optional
➢ 15S Self defined recording broadcast duration 15S
Screen locking function
Remote control and remote operation
▶ Audio output function

4、Specifications

Measuring range	35dB ~ 135dB
Dynamic range	50dB
Frequency response	31.5Hz ~ 8KHz
Accuracy	±2.0dB
Frequency weighting	A weighted network
Microphone	1/2 inch electret condenser microphone
Value update	500ms
six Languages	English, Spanish, French, German, Japanese, Chinese
Recording function	15S
Over range prompt	>135DB, "Hi" symbol is displayed; < 35 DB, "LO" symbol is displayed
High alarm value setting	√
Audio output function	√
Volume adjustment	√
Remote control	√
Battery life	60hours
Power	Adapter; DC 9V/1A, outer diameter 5.5mm, inner diameter 2.0mm, central positive pole
	AA LR6 1.5V × 6
Operating temperature and humidity	-20°C ~ 60°C/-4°F ~ 140°F,10%RH ~ 90%RH
Storage temperature and humidity	-20°C ~ 60°C/-4°F ~ 140°F,10%RH ~ 75%RH
Size	197*176*49mm
Weight	623g

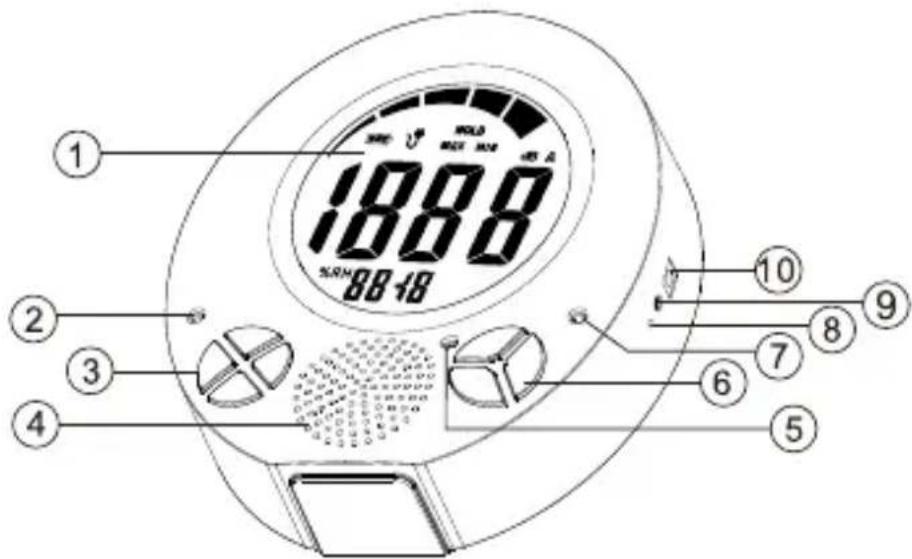

5、Meter Description

(1) Display screen
(2) Recording hole
(3) Function keys
(4) Horn
(5) Infrared receiving hole
(6) Function keys
(7) Noise detection sensor
(8) Noise correction fine adjustment hole
(9) Audio output hole
(10) Adapter jack
(11) Hanging hole
(12) Battery compartment

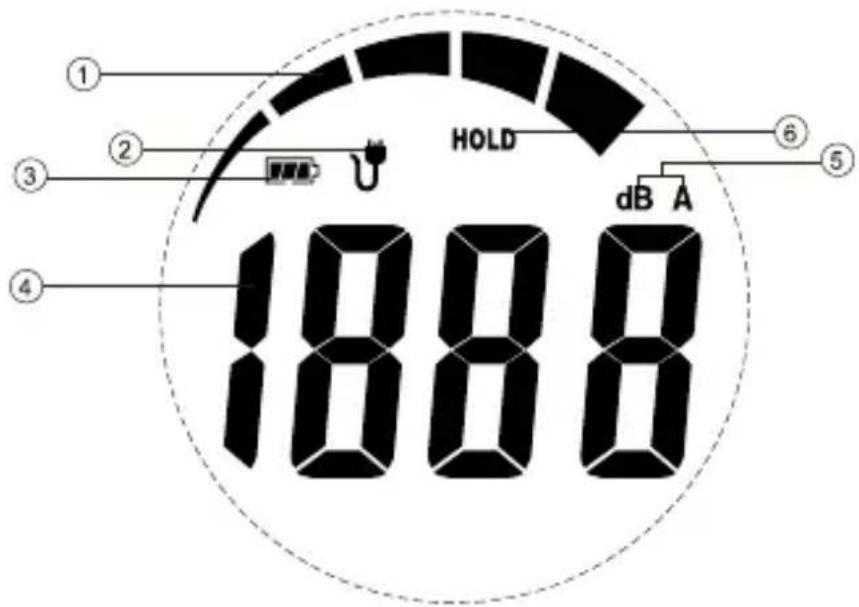

6、Display Description

(1) Volume identification symbol
(2) Adapter access prompt symbol
(3) Low voltage prompt symbol
(4) Noise value display area
(5) Noise unit symbol
(6) Screen lock symbol

7、Function Operation Description

1) On/off function;Press the " " button to start the meter, and press the " " button for 3 seconds to shut down the machine

2) Alarm function

a. Yellow light alarm, in the measurement mode, when the measurement value is greater than the reported value, the yellow light flashes continuously.

b. Red light alarm. in measurement mode, when the measurement value is greater than the alarm value set by the red light, the red light is continuously flashing and the voice is reported (please be quiet).

3) Screen lock function; in the measurement state,

press the " " key, the "HOLD" symbol appears at the top of the screen to indicate that the instrument locks the

current screen display, and again, the " " key to cancel the function

4) Recording function; in measurement mode, press

the "" button, and hear the "drop", indicating that the recording begins, release" "the key, and hear the two sounds of "drop" and "drop", indicating the end of the recording. The instrument will automatically broadcast a recording content.

5) Volume adjustment function; in measurement

mode, press " " to increase the volume and " " to reduce the volume.

6) Alarm value adjustment function; in the

measurement mode, press the " " button, the instrument can enter the "Yellow Light Alarm Value Adjustment", "Red Light Alarm Value Adjustment", "Green Light Self Test", "Yellow Light Self Test", "Red

Light" mode, and press the " " button again to return to the measurement mode. In the alarm value adjustment mode, press " " key to adjust the large value and

press " " key to adjust the small value.

7) Broadcast voice selection; in measurement mode,

press " " to select the required broadcast language, then select in English, Spanish, French, German, Japanese, Chinese, homemade recording content.

Note: After pressing the " " key, a voice will be broadcast. After the voice is played, press the " " key within 3 seconds to jump to the next voice play. If more than 3 seconds, play the selected voice

8) Correction method; Open the power switch of the standard sound source (94 dB @ 1 KHZ), close the standard source to the induction hole of the noise detection sensor, and rotate the potentiometer in the adjustment hole on the right side of the instrument to display the LCD as 94.0dB.

8、Notes

The instrument has been calibrated before leaving the factory. Without any professional equipment and personnel, please do not easily modify the calibration parameters

[Note] The instrument has been corrected before leaving the factory, and the recommended correction period is one year.

1) Repairs or servicing should only be performed by

qualified personnel.

2) Wipe the unit with a dry soft cloth. Do not use abrasives or solvents on this instrument

3) Remove the battery when the meter is to be stored for long periods of time to avoid battery leakage.

4) When the battery runs out, the LCD displays the " " symbol, and the new battery must be replaced.

5) Use adapters to power as much as possible

6) Do not use it in places with high temperature and high humidity

7) Do not tap the microphone head and remain dry.

9、Accessories

1 x PCE-TSM 5 sound level meter
1 x 9 V 1 A plug-in mains adaptor
1 x remote control
1 x screwdriver
6 x 1.5 V AA battery
1 x user manual
1 x mounting material

9、Disposal

For the disposal of batteries in the EU, the 2006/66/EC directive of the European Parliament applies. Due to the contained pollutants, batteries must not be disposed of as household waste. They must be given to collection points designed for that purpose.

In order to comply with the EU directive 2012/19/EU we take our devices back. We either re-use them or give them to a recycling company which disposes of the devices in line with law.

For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations.

If you have any questions, please contact PCE Instruments.
