LEDX22I+ - TV Reflexion - Free user manual and instructions

Product Type	LED Smart TV
Brand	Reflexion
Model	LEDX22I+
Screen Size (Diagonal)	22 inch (55 cm)
Resolution	1920 x 1080 pixels (Full HD)
Aspect Ratio	16:9
Refresh Rate	60 Hz
Response Time	5 ms
Contrast Ratio	4000:1 (Dynamic)
Brightness	200 cd/m²
Viewing Angle	178° (H) / 178° (V)
Smart TV Platform	Android 9.0
Digital Tuner	DVB-T/T2HD, DVB-S/S2, DVB-C
CI+ Slot	Yes, for CAM and Smart Card
Wi-Fi	802.11 b/g/n (2.4 GHz)
Bluetooth	V4.2
HDMI Inputs	2 (HDMI 1 with ARC)
USB Ports	2 (USB 2.0, max 1TB)
Audio Output	2 x 5W Speakers, 3.5mm Headphone Jack, Coaxial Digital Audio
Power Supply	AC 100-240V~50/60Hz (adapter), DC 12V/24V (car cable)
Power Consumption (On)	19W (Default SD mode)
Standby Power	< 0.5W
Energy Efficiency Class	F
VESA Mount	100 x 100 mm
Dimensions (W x H x D) without Stand	490 x 292 x 48 mm
Weight without Stand	2.25 kg

Frequently Asked Questions - LEDX22I+ Reflexion

Why is there no power?

Check that the power adapter or car adapter is securely connected to the DC IN 12/24V input and that the toggle switch on the unit is set to the ON position. Ensure the mains socket is functioning.

What should I do if there is no picture or sound?

Verify that the power adapter is connected and the unit is switched on. Check the picture and sound settings. Ensure the antenna or cable connection is correct. Try another channel. Also confirm that connected external devices (e.g., receiver) are properly connected and powered.

How can I improve poor picture quality?

Check the antenna cable connection. Use the Image menu to adjust brightness, contrast, color, and sharpness. Keep the TV away from other electrical devices that may cause interference. Ensure the channel is tuned correctly via the Auto Search function.

What if the remote control does not work?

Remove any obstacles between the remote and the TV’s infrared receiver. Ensure the remote is within range (about 5 meters). Replace the 2x AAA batteries with new ones, observing correct polarity.

How do I connect to the Internet?

During first installation or later via Smart TV Settings > General Settings > Network & Internet. For Wi-Fi, enable Wi-Fi, select your network, and enter the password. For wired, connect an Ethernet cable to the RJ45 port; the connection is automatic.

Why can't I play Internet content?

Check that the TV is connected to your router via Wi-Fi or Ethernet. Go to Network & Internet settings to verify connection status. Restart your router if necessary. Ensure no firewall or parental controls block the TV.

How do I pair a Bluetooth speaker?

Press the SMART button, go to Settings > Remote & Accessories (or Bluetooth menu). The TV will search automatically. Select your Bluetooth device from the list and press OK to pair. You can choose to output sound from TV and Bluetooth simultaneously.

Can I record TV programs?

Yes, with a USB storage device (FAT32 formatted, max 1 TB). Insert it into a USB port. Go to Menu > Function > PVR Option to select and format the disk. Use the EPG button to schedule recordings or press the REC button for instant recording.

How do I mount the TV on a wall?

This TV supports VESA 100x100 mm mounting points (M4 screws). The wall bracket is sold separately. Follow the bracket’s instructions. Do not use screws longer than needed to avoid damaging internal components. Consult a professional if unsure.

How do I search for channels?

Press INPUT to select the appropriate source (DVB-T, DVB-C, or DVB-S). Press MENU, go to Program, select Auto Search, choose your scanning mode, and confirm. For DVB-T, ensure 5V Antenna Feedback is set correctly. The TV will find and store channels automatically.

USER MANUAL LEDX22I+ Reflexion

22" (55cm) 24" (60cm)

TFT-LED-Smart TV mit DVB-T/T2HD, DVB-S/S2, DVB-C, Cl+ Slot & Bluetooth

Model-№: LEDX22I+ / LEDX24I+

Blank whiteboard with a small logo at the top-left corner (no text or symbols on the board)

English	German
CI+ Slot	CI+ Steckplatz
CAM	CAM
Smart Card	Smart Card

22" (55cm) 24" (60cm)

TFT-LED-Smart TV with DVB-T/T2HD, DVB-S/S2, DVB-C, CI+ Slot & Bluetooth

Model No.: LEDX22I+ / LEDX24I+

Blank whiteboard with a small white square marker at the bottom left corner (no text or symbols)

Read the entire manual for the TV carefully before using the unit. Keep the instructions in a safe place for future reference.

SAFETY INFORMATION

IMPORTANT SAFETY INSTRUCTIONS - PLEASE READ CAREFULLY BEFORE USE.

Observe the safety instructions on the back of the TV.

Electrical Shock Prevention Warning. Do not remove any of the covers. No user-serviceable parts inside the unit. Have the appliance serviced by qualified personnel.

This symbol indicates important operating/maintenance instructions from this unit in the operating instructions.

This symbol indicates the risk of electric shock due to life-threatening voltage in this appliance.

Follow these instructions:

• Do not use this television near water.
• Use only a slightly damp cloth for cleaning.

• Do not cover any of the ventilation openings.

• Set up the unit in accordance with the Quick Start Guide supplied and these operating instructions.

• Note that the power supply cable must not be crushed or kinked and avoid running the power cable over sharp edges.
• Unplug the TV during lightning storms or when it will not be used for long periods of time.

Keep the appliance away from splashing and dripping water. Do not place any objects filled with liquids on the appliance.

Note:

- Do not place any open heat sources (stoves, candles, etc.) near or on the TV set.

IMPORTANT SAFETY INSTRUCTIONS

This appliance complies with all current safety regulations. The following safety tips are intended to protect the user from careless use and the dangers that may develop as a result.

• This appliance has been manufactured with the utmost care and has undergone a rigorous final inspection. However, as with any other electrical appliance, there is a possibility that problems may arise. Immediately disconnect the appliance from the mains in the event of smoke, intense heat or any other unnatural phenomenon.
• The mains plug or appliance plug is used to disconnect the appliance from the mains and should be easily accessible at all times.
• Only connect the unit to power sources that comply with the specifications of the unit. These can be found on the back of the unit and in the operating instructions.
• The mains socket should be near the unit and must be easy to reach.
• Pull the mains cable out of the socket by the plug. Never pull on the mains cable itself, it could be damaged and cause a short circuit.

• When using a multiple socket, do not connect too many devices to the multiple socket to avoid overloading.

• Keep rodents away from the appliance to avoid damaging the cables.

• To prevent injury, make sure that the power cable cannot be reached by small children or pulled out of the socket.
• Do not place the appliance near heat sources. The casing and the power cable could be damaged by the influence of heat.
• The screen is made of plastic that may chip if damaged. To prevent injury, carefully pick up sharp-edged plastic splinters.
• When setting up the unit, make sure it is on a firm and level surface.
• To protect the unit from lightning, disconnect the unit from the mains and unplug the antenna. Warning: Do not touch the RF antenna connector.
• Disconnect the unit from the mains if you are not going to use it for a long period of time or if you leave it unattended.
• When setting up the unit, make sure that there is sufficient ventilation. Never place the unit near heat sources and do not cover any of the ventilation openings.
• Avoid direct sunlight on the unit. Keep a clearance of 5 cm (2") from the surroundings when placing on a shelf.
• Keep water or moisture away from the unit. Do not use the unit in wet or humid environments such as the bathroom, a steam kitchen or near a swimming pool.
• Do not use the appliance if moisture condensation may occur.
• Any repairs must only be carried out by qualified personnel.
• Never open the appliance. Repairs that are not carried out by qualified personnel can be a possible cause of fire.
• Liquids spilled into the unit may be a cause of serious damage. Switch the unit OFF and disconnect it from the mains. Contact your dealer or customer service.
• Never remove the safety covers. There are no usable or serviceable components inside the unit. You would lose your warranty claim. The appliance may only be repaired by the manufacturer's service department.
• Never hit or shake the screen as this could damage the internal circuitry. Handle the remote control carefully and do not drop it.
• Clean the unit with a soft cloth. Never use solvents or oil-based liquids. For stubborn stains, you can use a damp cloth with diluted detergent.
• Teach your children how to use the Internet and do not let them play with the device unsupervised. The company Ultramedia GmbH & Co. Handels KG is not responsible for the Internet content shown.
• All illustrations in these operating instructions serve exclusively as examples and do not necessarily correspond to the actual device.

Headphone warning

Set the volume of the unit to a minimum before using headphones. A volume that is set too high can lead to hearing impairment / damage over a long period of time. Therefore, to protect your hearing, use a comfortable medium volume.

Installation location

Place the TV set on a stable and level surface. Avoid locations with direct sunlight. Soft, indirect light is recommended for pleasant TV viewing. To avoid damage to the set, place the TV set so that no objects can swing into the set. Do not place any objects in front of the remote control receiver of the TV set. This can lead to the unit no longer being able to be operated with the remote control.

WHAT'S IN THE BOX?

- Smart TV

- Remote control

- 2x AAA batteries

• Power supply (230V)

- User manual

- 12V car cable

Note:

• The stand for the TV set can be purchased as an option.

MOUNTING WALL BRACKET & TV STAND (OPTIONAL)

Wall mount:

The TV set is equipped with mounting points (M4) for a wall bracket (wall bracket not included). The VESA hole spacing is 100x100 (Vesa100). Do not use screws that are too long, as you could damage components inside the unit.

Note:

• When mounting, follow the instructions for the wall bracket.
• The screws for wall bracket installation are not included.
• Consult a specialist for the installation of the wall bracket if you have any questions.

Mounting TV stand:

Please note that the unit is delivered without a TV stand. The stand can be purchased as an option.

Mounting TV stand: (TV stand is optionally available)

Picture 1

Picture 2

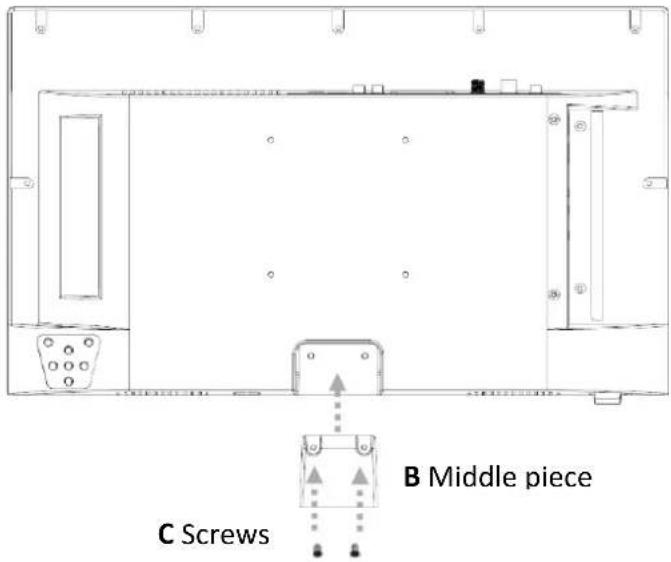

1. Place the TV device (A) on a flat and lightly padded surface with the display facing downwards.
2. Screw the middle piece (B) to the TV set with the screws (C).
3. Hold the TV stand (D) against the underside of the middle piece (B) and ensure that it is correctly aligned (see Picture 2).
4. Screw the TV stand (D) to the TV set with the screws (E).

OPERATING KEYS ON THE UNIT

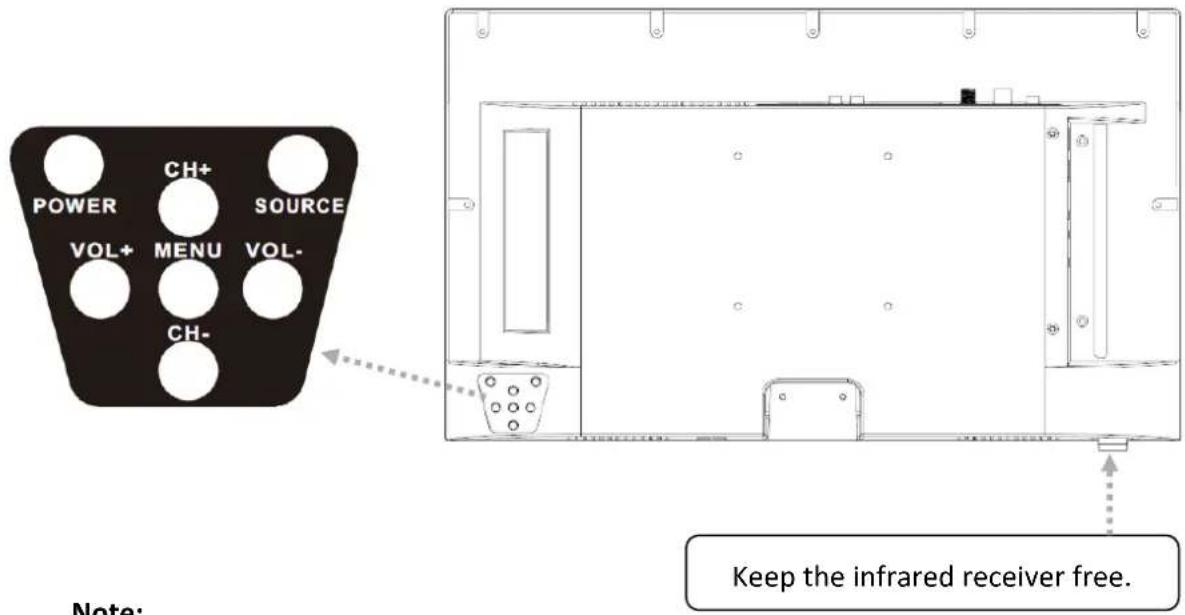

The keys for close-up operation are located on the back of the unit.

Note:

- Please keep the infrared receiver on the unit clear. Blocking the infrared receiver can lead to connection problems with the remote control.

INPUT	Open the input sources menu.
MENU	Device menu: Open / Close
CH+	CH+: Next programme
CH-	CH-: Previous programme
VOL+	VOL+: Louder
VOL-	VOL-: Quieter
POWER	Power: On / Off (Standby)

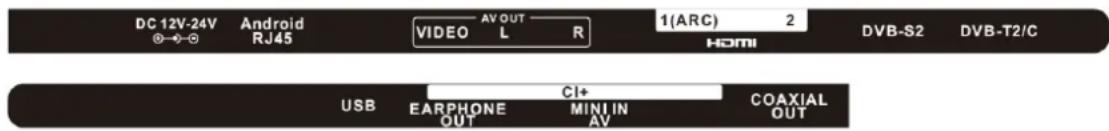

CONNECTIONS ON THE UNIT

DC IN 12/24V	Main connection for the power supply unit or the 12V car adapter.
RJ45	Connection for LAN cable.
AV OUT	Video: Mirrors only the TV picture (no sound) from the AV input.L / R: Cinch audio output. For connecting external audio devices.
HDMI 1 / HDMI 2	Connection for an external HDMI device.e.g. Blu Ray player / soundbar.HDMI 1 is ARC capable.
DVB-S2	Connection of the satellite antenna.
DVB-T2/C	Connection of the DVB-T antennas or the cable system.
USB	2x USB connection for USB sticks and hard disks (max. 1TB).
EARPHONE (OUT)	3.5mm headphone jack. When used, the internal speakers are muted.
MINI AV (IN)	Connection of external AV devices via adapter (not included)e.g. video recorder.
CI+	Slot for CI+ modules for decoding encrypted TV programmes (not included).
COAXIAL OUT	Digital audio output for external audio devices (e.g. amplifiers or soundbars).

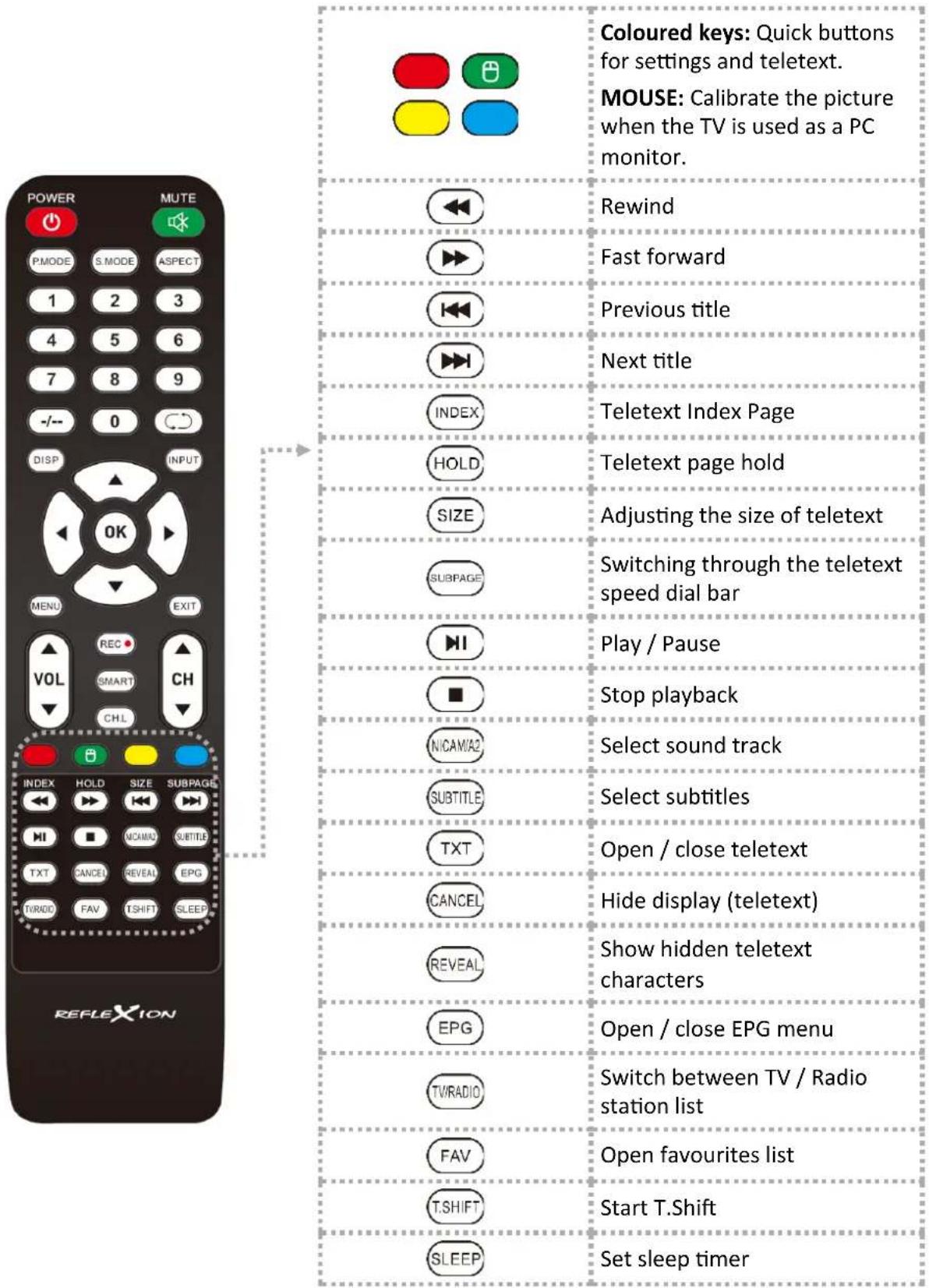

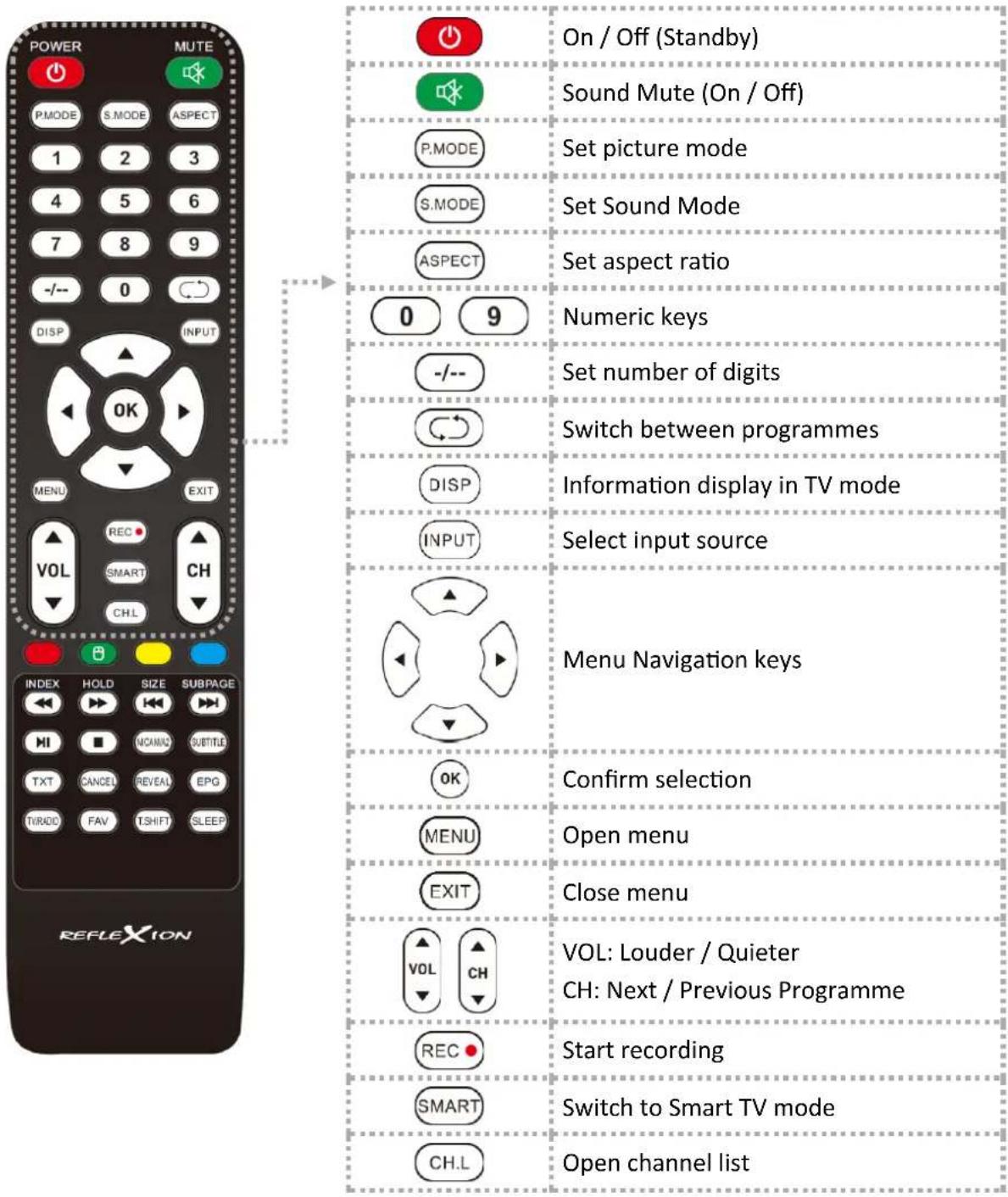

REMOTE CONTROL

The remote control uses infrared waves (IR). Hold the remote control in the direction of the TV set. If the remote control is out of range or angle, the remote control may not work properly.

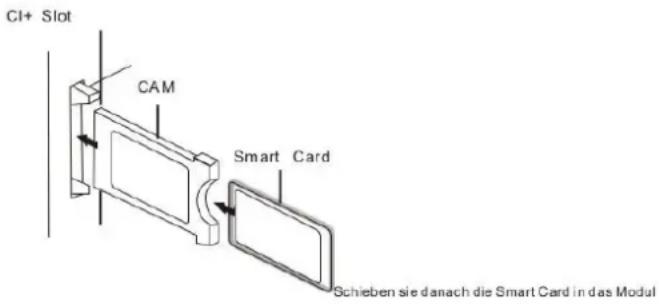

COMMON INTERFACE / CI - SLOT

This TV is equipped with a Cl+ slot and supports the following digital standards: DVB-T/T2HD, DVB-S/S2 and DVB-C

Common Interface / Slot

The CI slot (CI+) is designed to accept conditional access modules (CAM) and smart cards to access pay TV and other services. Contact your pay TV service provider for more information about modules and subscriptions.

Note:

• Conditional Access Modules and Smart Cards are sold separately.
• Switch off your TV before inserting Cl+ modules into the Cl slot.
• Then insert the Smart Card into the Cl+ module.

1. Switch on the TV and make sure that DTV is selected as the source.

2. When the CAM is recognised, the following text appears on the screen: "CI module inserted". Wait a few seconds until the card is activated.

3. Now select the desired pay TV channel.

4. Detailed information about the smart card being used is displayed.

5. Press the [OK] key to enter the CI menu. Refer to the manual of the module for details on the settings.

6. When the module is removed, the following text is displayed on the screen: "CI module removed".

English	German
CI+ Slot	CI+ Steckplatz
CAM	CAM
Smart Card	Smart Card

PREPARE DEVICE

Check that all the necessary cables and connections are ready.

1. Connect the power supply unit or car adapter included in the scope of delivery to the [DC IN 12/24V] input of the unit. Connect the other side of the power supply unit or car adapter to the appropriate power source.

2. Insert the two AAA batteries into the remote control. Make sure that the polarity is correct.

3. Connect your satellite system, cable system or DVB antenna to the [DVB-S2] or [DVB-T2/C] connections.

4. Connect all other external devices (e.g. Blu Ray player, etc.) to the appropriate connections on the TV set.

Note:

- Place the TV set on a flat and stable surface.

BASIC OPERATION

	Device On / Off (Standby)
[IMAGE]	Input Sources Menu Open / Close.
	Menu (Up / Down / Left / Right).
	Select or confirm a menu item. Open the channel list.
	Open or close the main menu.
	Menu item back.
	Switch to Smart TV mode
	VOL: Louder / QuieterCH: Next / Previous Programme
	Mute Sound (On / Off).

FIRST INSTALLATION

Once you have connected the unit and connected to all units, follow the next steps to perform the initial installation of the unit.

1. Operate the toggle switch on the unit so that it is in the on position.
2. Press the [ 🔊] key to switch on the unit.
3. A menu for setting up the Smart TV will appear on the screen.
4. Press the [OK] key to move to the next menu item.
5. Language: Now set the desired menu language. "German" is preset as the default language. Press the [] key to continue with the German menu language. Press the [] key to adjust the menu language. Then use the [] or [] key to select the desired menu language. Press the [] key to confirm the selection. Press the [] key again to move to the next menu item.
6. Network setting: Depending on the connection, you can make WLAN settings (wireless) or LAN settings (wired connection) to connect the unit to the Internet. If you

want to connect the unit to the Internet at a later time or not at all, you can simply press the [ ] key to skip the process.

1. Use the following buttons to make the menu settings.

2. Press the [] key to enter the selection.

3. Use the [▲, ▼, ▶, ▶] keys to navigate in the menu.

LAN connection: Connect the LAN cable from your router to the [RJ45] socket of the TV set. The network settings are made automatically (connection status: connected, the IP address is displayed here). Navigate to the menu item [Next] and press the [OK] key to go to the next menu item.

Wi-Fi connection: Navigate to the WLAN icon to connect the unit wirelessly to the Internet. The following settings can be made.

• WI-FI: In this menu you can switch the W-LAN function on/off.
• IP: The IP address is displayed here if the unit is connected to a network.
• Wi-Fi list: The Wi-Fi networks found are displayed here.

Set Wi-Fi

1) Select your wireless network from the Wi-Fi list and press the [OK] button.
2) The menu item [Password] is automatically selected.
3) Press the [OK] key to open the keyboard for password entry.
4) Enter your W-LAN password. Use the [▲, ▼, ▶, ▶] keys to select the letters/numbers/characters. Press the [OK] key to confirm the entry. Once you have entered the password, navigate to the [▶] symbol at the bottom right of the keyboard and press the [OK] key. Then navigate to the [◀] symbol and press the [OK] key.
5) After you have successfully entered the password, the unit is connected to the network.
6) Now press the [OK] key to confirm the network settings and to move to the next menu item.

1. Country: In this menu item you select the installation location of the unit. "Germany" is preset as the default country. Press the [] key to continue with Germany as the country. Press the [] key to adjust the country. Then use the [▲, ▼, ▶, ▶] keys to select the desired country. Press the [] key to confirm the selection. Press the [] key again to move to the next menu item.

2. Select the Done menu item and press the [OK] key to complete the initial installation.

3. You will now be taken to the Smart TV Home screen.

4. An overlay (tv-launcher-ru-toptech) appears. Confirm by navigating to "Allow" and pressing the [OK] key.

5. Next, you must accept the "Terms of Use", "Privacy Settings" and "Promotional Information". After reading them carefully, navigate to "Accept" and press the [OK] button.

INPUT SOURCES

1. Press the [INPUT] key to open the "Input Source Menu".
2. Use the [←, ▶] keys to select the different input sources.
3. Press the [OK] key to confirm the selection.
4. The following connections are available. ATV, DVB-T, DVB-C, DVB-S, AV, HDMI1 (ARC), HDMI2

ATV	Select this menu item if you have connected an analogue cable system or DVB-T antenna to the connection [DVB-T2/C].
DVB-T (T2HD)	Select this menu item if you have connected a digital DVB-T antenna to the connection [DVB-T2/C].
DVB-C	Select this menu item if you have connected a digital DVB-C cable system to the connection [DVB-T2/C].
DVB-S (S2)	Select this menu item if you have connected a digital DVB-S antenna to the [DVB-S2] connection.
AV	Select this menu item if you have connected an external device (e.g. video recorder) to the [AV OUT] connection.(Mini AV adapter not included).
HDMI 1 (ARC)	Select this menu item if you have connected an external HDMI device (e.g. Blu Ray player) to the [HDMI1 ARC] connection.
HDMI 2	Select this menu item if you have connected an external HDMI device (e.g. Blu Ray player) to the connection [HDMI2].

START STATION SEARCH

1. Press the [INPUT] button on the remote control.
2. Select the appropriate reception mode and confirm with the [OK] key.

• DVB-T
• DVB-C
• DVB-S

1. Now press the [MENU] key and select the menu item [Program]. Then press the [▶] key to enter the menu.

2. Navigate to the menu item [Auto Search] and press the [OK] key.

3. Select the settings according to your TV connection.

- Satellite system (DVB-S): The [Preset Scan] scan mode is recommended here).

• DVB-T Antenna (DVB-T): Please check that you have set the menu item [5V antenna Feedback] to [On]. Set the [Search Type] to [DTV] and the [LCN Option] to [Off].

• Cable system (DVB-C): Set the [Search Type] to [DTV] and the [LCN Option] to [Off].

• Navigate to [Confirm] and press the [OK] key.

• The search begins. The number of DTV / radio and data stations found during the search is displayed.
• When the search is complete, the TV set displays the first TV channel in the channel list.

Note:

- Switch the [LCN Option] setting to [Off]. Otherwise, the channel list cannot be edited (sorted).

TV-MENÜ

In the TV menu you can make various settings for picture / sound and programme settings. To open the TV menu, you must be in the ATV / DVB-T / DVB-C or DVB-S input source.

1. Press the [INPUT] key and select one of the following input sources: ATV / DVB-T / DVB-C / DVB-S
2. Now press the [] key to open the TV menu.
3. The following setting options are available in the TV menu. Image / Sound / Program / Function / Time / Lock


In the image menu you can adjust the picture settings to your needs and save them.

1. Press the [MENU] key to open the TV menu.
2. Select the Picture menu item with the [▲, ▼] keys.
3. Press the [ ] key to enter the picture menu.
4. The following menu items are available in the Menu screen:

Picture Mode	In picture mode, the following preset picture modes are available.Vivid(Fixed image settings.)Standard(Fixed image settings.)Movie(Fixed image settings.)User(Brightness, contrast and colour can be adjusted).
Brightness	Adjust the brightness. The menu item is only available in Picture Mode: User.
Contrast	Adjust the contrast. The menu item is only available in picture mode: User.
Colour	Adjust the colour saturation. The menu item is only available in Picture Mode: User.
Sharpness	Adjust the sharpness of the picture. The menu item is only available in picture mode: User.
Backlight	Adjust the backlight.
Aspect Ratio	Set the aspect ratio based on that of the image content.16:9Zoom 1Zoom 2Point to Point4:3
HDMI Mode	Set the HDMI mode.Video Mode: Recommended for video playback.PC-Mode: When a PC is connected and the complete picture is not displayed.
Colour Temperature	Set the colour temperature.Cool: The image is set to bluish.Normal: The picture is set to neutral.Warm: The image is set to reddish.
Noise Reduction	Adjust the intensity of the noise reduction.Off: Noise reduction is deactivated.Low: Smallest noise reduction settingMedium: Medium noise reduction settingHigh: Highest noise reduction settingAuto: Automatic noise reduction setting.

SOUND

In the sound menu you can adjust the sound settings to your needs and save them.

1. Press the [MENU] key to open the TV menu.
2. Select the Sound menu item with the [▲, ▼] keys.
3. Press the [▶] key to enter the Sound menu.
4. The following menu items are available in the Sound menu:

Sound Mode	In sound mode, the following preset sound modes are available.Standard(Fixed sound settings.)Sports(Fixed sound settings.)Movie(Fixed sound settings.)Music (Fixed sound settings).User (The equaliser can be adjusted manually).
Equaliser	Adjust the 5-band equaliser to your needs. The equaliser is only available in User sound mode.
Balance	Changes the balance between the left and right speakers.0: Neutral setting- 1 to -50: Shifts the sound to the left speaker until the right speaker is completely deactivated at -50.1 to 50: Shifts the sound to the right speaker until the left speaker is completely deactivated at 50.
Auto Volume	If the setting is "On", the TV set automatically adjusts different volume outputs to the same level.OnOff
Surround	If the setting is set to "On", the unit automatically outputs virtual surround sound.OfOff
SPDIF Mode	Sets the output format for the digital audio output [COAXIAL OUT] and "Bluetooth".OffPCMRAWAuto
Audio Only	Deactivates the picture to save power, e.g. when listening to a radio station without picture content.OnOffNote: The picture is switched off. The sound continues to play. The picture can be reactivated with all keys except the reactivate the picture.

PROGRAME

In the programme menu you can adjust the programme settings to your needs and save them.

1. Press the [INPUT] key and select between:

• DVB-S
• DVB-C

• DVB-T

1. Press the [MENU] key to open the TV menu.

2. Select the menu item Programmes with the [▲, ▼] keys.

3. Press the [ ] key to enter the programme menu.

1. The following menu items are available in the programmes menu:

DVB-S
Auto Search	Starts the automatic channel search.Country Select: Select the country according to the installation site.Scan Mode: Select the scan mode.Preset Scan (recommended)DefaultNetworkBlind ScanFast ScanOperator: Available for selection only for the Fast Scan function. Select the provider.Satellite: Select the satellite. For Germany Astra 1KR/1L/1M/1N (Astra 19.2°E).Channel Type: Select the channel type.AllScrambleFreeService Type: Select the service type.AllDTVRadioLCN Option: Set the LCN option "On" or "Off". If LCN is set to "On", the yellow button in the channel edit menu is disabled. It is recommended to set the option to "Off". Confirm: Starts the search.
DVBS Manual Search	Starts the manual channel search. The channels are automatically added to the channel list.Satellite: Select the satellite.Transponder: Select the transponder.Channel Type: Select the channel type.AllScrambleFreeService Type: Select the service type.AllDTVRadioSearch: Starts the search.Signal Quality: Displays the signal quality. Signal Strength Displays the signal strength.
5V Antenna Feedback	Set the 5V supply voltage for external antennas at the [DVB-T2/C] connection "On" or "Off".
Channel Edit	Edit the channel list.Red button: Delete a selected channel.Yellow button: Move a selected channel to the desired position.Blue button: Skips the marked station when switching through.[1]: Marks the selected station with a heart. Press the button again to stop favouring the channel.Press the [1]: key when the menu is closed to open the Favourites list.
DVB-S Channel Export (USB)	Export your configured satellite list as a backup to USB.
DVB-S Channel Import (USB)	Import your satellite list stored on USB.
Satellite Dish Setup(Satellite / Transponder)	Manage the transponders or satellites and adjust the LNB settings.[1]: Switch between the satellite and transponder list.Red button: Delete a selected transponder or satellite.Green button: Edit a selected transponder or satellite.Yellow button: Add a new transponder or satellite.Blue button: Start the search on a selected transponder or satellite. The existing channel list is deleted.
Satellite Dish Setup(LNB Settings)	Note:Normally, no adjustment needs to be made in the LNB settings. The setting is only recommended for experienced users.Select the desired satellite and press the [ ] key to enter the LNB setting.LNB Type: Adjust the setting based on your LNB.LNB Power: Set the LNB voltage for horizontal / vertical switching.13V/18V (Default)Off22Khz: Control signal for low / high switching.Auto (Default)OnOffUnicable Setting: Set the Unicable setting according to your Unicable satellite system.IF Freq:Press the [OK] key to open the frequency selection. Press the [OK] key again to edit the frequency. Select the IF (ID) corresponding to your LNB or multi-switch and enter the frequency.Sat Position:Select Satellite Position: SatA, SatBToneBurst:Set the toneburst "On" or "Off" according to your satellite system.DISEqC 1.0:Only active if DISEqC 1.1 is switched off.Adjust the setting according to your multi-switch configuration.DISEqC 1.1:Only active if DISEqC 1.0 is switched off.Adjust the setting according to your LNB / multiswitch configuration.DISEqC 1.2:Motor settings. Activates the Limit Settings menu item.Motor Setting:Only active if DISEqC 1.2 is set to "On".Set the position settings for the satellite.
CI Information	Displays information about the inserted CI module and card. Only active if a module is inserted. The module and card are not included in the scope of delivery and must be purchased separately from the reception provider.
Signal Information	Displays reception information of the selected station.Only active when a station has been found.

DVB-T
Auto Search	Starts the automatic channel search. The channels are automatically added to the channel list.Country Select: Select the country according to the installation site.Search Type: Select the search type.ATV+DTVDTV (Recommended)LCN Option: Set the LCN option "On" or "Off". It is recommended to set it to "Off", otherwise the yellow button in the "Edit Channel" menu is disabled.Search: Starts the search.Note:Please note that you must switch the option "5V antenna voltage" "On" or "Off" according to the antenna used before the search run.
DVBT Manual Search	Starts the manual channel search. The channels are automatically added to the channel list.Frequency: Displays the frequency of the transmitter.Current CH: Select the programme. At the same time, the frequency is adjusted.Search: Starts the search.Signal Quality: Displays the signal quality.Signal Strength: Displays the signal strength.
5V Antenna Feedback	Set the 5V supply voltage for external antennas at the [DVB-T2/C] connection "On" or "Off".Passive antenna = OffActive antennas = OnActive antennas with own supply = Off
Channel Edit	Edit the channel list.Red button: Delete a selected channel.Yellow button: Move a selected channel to the desired position.Blue button: Skips the marked station when switching through.[1]. Marks the selected station with a heart. Press the button again to stop favour ting the channel.Press the [1]. Key when the menu is closed to open the Favourites list.
CI Information	Displays information about the inserted CI module and card. Only active if a module is inserted. The module and card are not included in the scope of delivery and must be purchased separately from the reception provider.
Signal Information	Displays reception information of the selected station. Only active when a station has been found.

DVB-C
Auto Search	Starts the automatic channel search. The channels are automatically added to the channel list.Country Select:Select the country according to the installation site.Scan Mode:Select the scan mode.Full ScanNetworkAdvanceSearch Type:Select the search type.ATV+DTVDTVFrequency:Only available for Network and Advanced Scan.AutoManual selectionNetwork ID: Only available for Network and Advanced Scan.·Auto·Manual selectionLCN-Option: Set the LCN option "On" or "Off". It is recommended to set it to "Off", otherwise the yellow button in the "Edit Channel" menu is disabled.Search: Starts the search.
DVBC Manual Search	Starts the manual channel search. The channels are appended to the channel list.Frequency: Set the frequency.SymbolRate: Is fixed to Auto.Search: Starts the search.Signal Quality: Displays the signal quality.Signal Strength: Displays the signal strength.
5V Antenna Feedback	Set the 5V supply voltage for external antennas at the [DVB-T2/C] connection "On" or "Off".
Channel Edit	Edit the channel list.Red button: Delete a selected channel.Yellow button: Move a selected channel to the desired position.Blue button: Skips the marked station when switching through.[.]Marks the selected station with a heart. Press the button again to stop favouring the channel.Press the [.]key when the menu is closed to open the Favourites list.
CI Information	Displays information about the inserted CI module and card. Only active if a module is inserted. The module and card are not included in the scope of delivery and must be purchased separately from the reception provider.
Signal Information	Displays reception information of the selected station. Only active when a station has been found.

FUNCTION

In the function menu you can adjust and save various general settings to suit your needs.

1. Press the [MENU] key to open the TV menu.
2. Select the "Function" menu item with the [▲, ▼] keys.
3. Press the [ ] key to enter the "Function" menu.
4. The following menu items are available in the "Function" menu:

OSD Time	Set the time after which the menu display is closed when there is no operation.
CEC	Set the HDMI CEC settings. The option only applies to devices connected to the [HDMI1 ARC] and [HDMI2] connections.CEC: Activates the CEC setting and the operation of other compatible devices with the TV remote control.Auto Standby: Switches off the connected device when the TV set is switched off.Auto Power On: Switches on connected devices when the TV set is switched on.ARC: Transmits the audio signal to externally connected devices (e.g. sound bars) via the [HDMI1 ARC] connection.Device List: Displays the devices connected to [HDMI1] and [HDMI2].
PVR List	Manage the saved recordings.Red button: Deletes the selected recording.Playback window mode: Select a recording and press the []key to start playback.Full screen playback: Press the []key to start playback. Press the []key to select the window and then press the []key. The playback now changes to full screen playback. Press the []key to stop playback.
PVR Option	Set the settings for the recordings.Select Disk: Select the recording medium.Time Shift Size: Set the maximum size of the time shift file.Format Disk: Prepare the USB storage device for recording. Please note that when formatting the USB storage medium, all stored files will be deleted.Speed Check: Test the speed of the USB storage device.
Blue Screen	Set the background picture for the signal sources when there is no signal.On: Blue backgroundOff: Black background
Teletext Language	Select the teletext language.
Audio Language Setting	Select the audio language of the selected TV channel.Can also be selected via the []key. The selection depends on the available audio track from the TV programme.
Audio Language	Set the Preferred Audio Language to be selected automatically.
Second Audio Language	Set the Secondary Audio Language to be selected automatically.
Subtitle Language Setting	Select the subtitle of the selected TV channel. Can also be selected via the [] key. The selection depends on the available subtitles from the TV programme.
Subtitle Language	Set the Preferred Subtitle Language to be selected automatically.
Second Subtitle Language	Set the Secondary Subtitle Language to be selected automatically.
H.O.H	This option is for people with a hearing impairment. The subtitle is activated automatically.
Reset	This menu item resets all settings (picture/sound) to the factory settings and the set switches off and restarts. The channel list and LNB settings are not reset.

TIME

In the "Time" menu you can adjust and save time settings according to your needs.

1. Press the [MENU] key to open the TV menu.
2. Select the menu item "Time" with the [▲, ▼] keys.
3. Press the [ ] key to enter the "time" menu.
4. The following menu items are available in the "Time" menu:

Date	Displays the date. Cannot be set manually. Is set via the TV signal.
Current Time	Displays the time. Cannot be set manually. Is set via the TV signal.
Sleep Timer	Set a time after which the unit should automatically switch to standby mode. Can also be set via the [] key.
Auto Standby	Set the time after which the unit should automatically switch to standby mode when there is no operation.

LOCK

In the LOCK menu, you can adjust and save lock and hotel mode settings to suit your needs.

1. Press the [MENU] key to open the TV menu.

2. Select the menu item "LOCK" with the [▲, ▼] keys.

3. The following menu items are available in the "LOCK" menu:

System Lock	Set the system lock to "On" to gain access to the following menu items.Parental ControlChannel LockSet PasswordA password prompt appears. Enter the default password "0000". Press the [ ] key to interrupt the password prompt.
Parental Control	Set a value for the protection of minors. TV content harmful to minors is secured with a password (only if supported by the TV channel).
Channel Lock	Lock individual TV channels. The channels are secured by entering a password. A close symbol indicates that the channel is locked.
Set Password	Here you can set a new password. Please make a good note of the new password. The default password is: 0000
Hotel	Hotel Mode: Various hotel mode settings can be made here.Hotel Mode: Set the hotel mode "On" or "Off". A password prompt appears.Key Lock: Set the close control lock on the unit "On" or "Off".Menu Lock: Set the menu lock "On" or "Off". If the menu lock is activated, a password prompt appears when the [ ] key is pressed.Scan Lock: Set the search lock "On" or "Off". If the search lock is set to "On", the menu item "Automatic search" is locked.Input Lock: Set the menu item Lock Source "On" or "Off" to lock desired input sources. The current input source cannot be locked.Default Source: Select an input source with which the unit is to start.Channel Type: Select the channel type. Only active if ATV, DVB-T, DVB-C or DVB-S is selected as the default source and there are channels in the channel list.Default Channel: Select the channel with which the unit is to start. Only active if ATV, DVB-T, DVB-C orDVB-S is selected as the default source and there are channels in the channel list.Max Volume:Set the maximum volume level that the user can set.Default Volume:Set the volume at which the unit is to start.Import:Import the exported hotel mode settings and channel list.Export:Export the hotel mode settings and the channel list.Language:Set the default menu language.Aspect Ratio:Set the default aspect ratio.Restore:Resets the hotel mode to the default setting.

EPG

1. Press the [EPG] button to open or close the EPG menu.
2. Use the following buttons to operate the EPG menu.

EPG	Open / close EPG menu.
	In the Navigate menu.
Red button	Programme a USB recording.
Yellow button	Displays the programmed recordings.
Blue button	Set up a reminder for a programme.

USB RECORDING PROGRAMMING

1. Insert an empty USB stick or a hard disk (max. 1 TB) into the USB socket of the unit. Please note that the USB mass storage device must be formatted FAT32.
2. Press the [MENU] key and navigate to "Function".
3. Press the [ ] key and select the menu item "PVR option".
4. Press the [OK] button to open the menu.
5. Under the menu item "Select Disk", select the USB memory on which the recordings are to be saved.
6. Then go to "Format Disk" so that the USB memory is converted to the correct format. Note:

- Formatting deletes all data from the USB memory.

1. Now the USB memory is ready for recording.

Start recording

There are two ways to start a recording.

Instant recording:

Press the [] key on the remote control and the recording starts.

Press the [] key to stop recording.

EPG recording

Press the [EPG] key to programme a recording. Press the [red] button to programme the recording.

SMART TV

In Smart TV mode, various Internet-based content and apps are available to you.

1. Press the [SMART] button to switch to the Smart TV Home page.
2. In the Smart TV area there are various settings and categories:

Home	Certified Fresh Movies: Displays currently popular films.Functional Zone: The following functions are available:Source: Displays the input sources. Can also be displayed via the [] key.Media: Opens the media menu for USB playback.Picture / Music / VideoRecently: Displays the most recently opened apps.My Apps: Displays the installed apps.Eshare: Set up your smartphone to operate the TV set. Download the "Eshare" app on your Android or Apple smartphone and scan the QR code on the TV screen to connect the devices. Please note that the devices must be on the same network.Charts: Displays the most popular apps.Important:Use the Appstore in the "Charts" section to download the apps. Here you will find apps optimised for the TV set.
Video	Displays various film-based content.
Kids	Displays various child-based content.
Music	Displays various music-based content.
Sports	Displays various sports-based content.
Education	Displays various education-based content.

SMART TV SETTINGS

In the "Smart TV settings menu" you can adjust and save various device-related settings to suit your needs.

1. Navigate with the keys [▲, ▼, ◀, ▶] to the "cogwheel" symbol in the top line on the screen.
2. Now press the [OK] key to open the Smart TV menu.
3. The following settings are available in the menu.

General Settings
Network & Internet	Wi-Fi: Activate "On" or deactivate "Off" the WLAN function.Available networks: Displays available Wi-Fi networks.Other options:Add new network: Manually add a new network.Scanning always available: Set whether apps and Google services should search for networks even when the WLAN is deactivated.EthernetProxy settings: Set up the proxy settings Manually.Recommended for experienced users only.IP settings: Correct the IP settings Manually.Recommended for experienced users only.
Accounts & Sign In	Check your accounts or log in to apps.
Apps	In this menu you can view and manage all installed apps and set permissions.
Device Preferences	In this menu you can make general settings for the Android operating system.Info: In this menu you will find information such as device name, status, version, etc.System update: In this menu you can determine whether updates are to be carried out automatically or check whether an update is available.Date & time: Set the following items:Automatic date & time: Set whether the time is to be updated via the "Network" or via the "TV Information". Set the option to "Off" to set the time and date manually.Set time zone: Set the time zone based on the installation location.Use 24-hour format: Set whether the time is to be displayed in 24-hour format "On" or in 12-hour format "Off".Language: Set the menu language. Available are: English, German, Spanish, French, Dutch, etc.Keyboard: Here you can set various settings for the menu keyboard that appears.Sound: Set the system sounds "On" or "Off".Storage: In this menu you can see the existing and available memory and manage it (delete apps).Google Assistant: In this menu you can set the Google Assistant.Reset: Reset the unit to the factory settings. All settings are deleted. The unit restarts and is then in the initial installation.
Remote & Accessories (Bluetooth Menu)	In this menu you can pair an external Bluetooth device (e.g. Bluetooth speaker) with the TV set in order to transmit the TV sound to another device.As soon as you open the menu and the device is not yet connected to a Bluetooth device, the Bluetooth search begins automatically.The found Bluetooth devices are displayed. Select the desired device and press the [ ] button.If the unit is connected to a Bluetooth device, "Paired/Connected" is displayed under the Bluetooth device.Click on the paired device to manage it (change name / unpair).The following options are available under the Add Accessories menu item:Bluetooth: Set the Bluetooth function "On" or "Off".Bluetooth and speaker output together: Set whether TV and Bluetooth sound should be output simultaneously.On: TV and Bluetooth sound are output.Off: Bluetooth sound is output. TV speakers are muted.

MIRROR SMARTPHONE

To mirror a smartphone on the TV set, please proceed as follows.

1. Press the
2. Navigate to "Features" and select "My Apps".
3. The following apps are available:

IMirror

IMirror is an app for mirroring Apple smartphones and tablets on the TV set.1. Start the app on the TV set and start the "Airplay" function on your Apple smartphone / tablet.2. Search for the TV set on the smartphone and select it.3. The devices are then connected and the smartphone display is shown on the TV set.Note:·The mobile device must be in the same network as the TV set.

Wi-Fi Display Sink

Wi-Fi Display Sink is an app to mirror Android smartphones and tablets to the TV set.1. Start the app on the TV set and start the "Smart View" function on your Android smartphone / tablet.2. Search for the TV set on the smartphone and select it.3. The devices are then connected and the smartphone display is shown on the TV set.Note:·The devices do not have to be in the same network if WLAN is directly supported by your Android device.

Formatting FAT / FAT32 and NTSF (NTSF not for recording)

MEDIA	FORMAT	CODEC		Note
		VIDEO	AUDIO
Movie	avi	MJPEG	MP3, WMA, AAC, PCM	Max. Resolution: 1280x720 Max. Frame rate: 60fps Max. Data rate: 20Mbps
		Xvid, MPEG-4, H-265, WMV9/VC-1		Max. Resolution: 1920x1080 Max. Frame rate: 60fps Max. Data rate: 150Mbps
	.mp4 MEPG	MPEG-2, MPEG-4, H265, Xvid, MJPEG	MP3, AAC, PCM
	.ts .trp	MPEG-1, MPEG-2, H.265, VC-1	MP1, MP2, MP3, AAC
	.mpg .mpeg	MPEG-1, MPEG-2	MP1, MP2, MP3, AAC, PCM
	.mov	MPEG-4, H.265, MJPEG	AAC, PCM
	.dat	MPEG-1	MP2, MPEG
	.vob	MPEG-2	MP1, MP2, MP3, PCM
	.rm .rmvb	RV30, RV40	AAC, COOK	Max. Resolution: 1920x1080
Picture	jpg			Max. Resolution: 13986x4000
	.jpeg
	bmp			Max. Resolution: 3648x2736 Pixel depth: 8 / 24 / 32 Bit
	png			Max. Resolution: 3648x2736
Music	MP3	MP3
	AAC	MPEG2 AAC (LC) MPEG4 AAC LC
	WMA	WMAV7 / V8 / V9

Errors and technical modifications excepted.

SIMPLE TROUBLESHOOTING

If the screen fails or there is a sharp drop in performance, check the TV using the following instructions: Also check connected devices to find the source of the fault. If the screen still does not work as expected, contact customer support.

No power

• Check that the mains adapter or the car adapter is connected to the TV set.
• Check that the toggle switch is in the on position.

No picture or no sound

• Check whether the mains adapter or the car adapter is connected to the TV set.
• Check the picture and sound settings.
• Check whether the antenna / cable system / satellite antenna is connected correctly.
• Change to another programme.
• Check that the connected devices (e.g. receiver) are connected correctly.

Poor picture quality

• Check that the antenna cable is connected correctly.
• Check the manual TV tuning of the TV channel.
• Change the picture settings: Brightness, colour, sharpness, contrast and hue. Make sure that the TV is not located near other electrical appliances that could cause radio frequency interference.

No colour

• Adjust the colour settings.
• Check that the selected programme is broadcast in colour.
  • Make sure that the channel is tuned correctly.

The TV does not respond to the remote control

• Make sure there are no obstacles between the remote control and the TV.
- Make sure the remote control is within reach.
- Make sure that the batteries in the remote control are not dead.

No Internet content will be played back

• Check in the network settings whether the TV set is connected to your router.
• Check the settings of your router.

This TV is intended for household use and is classified as harmless with regard to electromagnetic waves. Therefore, you can use the unit in any location, including residential areas.

DATA SHEET LEDX22I+ / LEDX24I+
Device type		LEDX22I+	LEDX24I+
Manufacturer		Reflexion
Energy efficiency class (Default SD)		F
Power consumption "On" (Default SD)		19W	20W
Power consumption "Off" / Standby		0,3W / 0,5W
Power consumption "networked standby		0,5W
Type of electric display		LCD /LED (Class1)
Aspect ratio		16:9
Screen resolution (pixels)		1920 x 1080
Screen diagonal (cm / inch)		55cm / 22 Inch	60cm / 24 Inch
Visible screen area		12,5dm2	15,6dm2
Refresh rate / response time		60Hz / 5ms	60Hz / 5ms
Type of power supply	Input voltage	AC: 100-240V~50/60Hz
	Output voltage	DC: 12V 4A
Input voltage unit		12V 4A / 24V 2A
Average annual consumption (kWh/1000h)		19kWh/1000h	20kWh/1000h
Contrast		4000:1
Brightness (cd/m2)		200 cd/m2
Colours		16,7M Colours
Viewing angle		V: 178° / H: 178°
TV function	TV Standard	BG, DK, I, L/L
	Channels (ATV / DVB-T/C/S)	100 / 1000 / 5000
	Teletext (ATV / DTV)	1000 / 1000
Connections	DC 12V / 24V	1
	RJ45	1
	AV OUT (VIDEO / L / R)	1
	HDMI	2 (HDMI 1 is ARC compatible)
	DVB-S2	1
	DVB-T2 / C	1
	COAXIAL OUT	1
	CI+ SLOT	1
	MINI AV IN	1
	HEADPHONES (3,5mm)	1
	USB (5V / 500mA)	2
Bluetooth frequencyWI-FI frequency		Bluetooth: V4.2 2400~2483.5 MHzWI-FI: 802.11b/g/n 2.4~2.5 GHz
OSD language		English / German / French etc.
Android version		Version 9.0
AUDIO output		2x 5 Watt
Weight (unit without foot)		2,25 Kg	2,95 Kg
Weight complete		3,70 Kg	4,40 Kg
MAXIMUM power consumption		30W	32W
Peak luminance ratio in %		<80%
Mercury content in mg / lead contained		0,0mg / No
VESA		100 x 100mm
Dimensions only unit without base: (W/H/D) in mm		490 x 292 x 48	541 x 324 x 48
Dimensions with foot: (W/H/D) in mm (optionally available)		490 x 313 x 125	541 x 346 x 125

Design and specifications are subject to change without notice.

INFORMATION ON STORAGE AND OPERATION

Humidity Storage and Operation	< 80%
Storage temperature	-10°C to +60°C
Use temperature	0°C to 40°C

SIMPLIFIED EU DECLARATION OF CONFORMITY

UltraMedia GmbH & Co. Handels KG hereby declares that the LEDX22i+ and LEDX24i+ comply with the CE and UKCA Directives of the EU and the United Kingdom (2014/53/EU).

The full text of the EU and UKCA Declaration of Conformity can be obtained from the following web address.

We hope you enjoy using the appliance.

Your UltraMedia Team

DISPOSAL INSTRUCTIONS

This symbol on the product or in the instructions means that the appliance, electrical and electronic equipment and batteries must be disposed of separately from your household waste at the end of their working life. There are separate collection systems for recycling in the EU. For more information, please contact your local authority or your dealer.

BATTERY DISPOSAL INSTRUCTIONS

BATTERIES AND RECHARGEABLE BATTERIES MUST NOT BE DISPOSED OF WITH HOUSEHOLD WASTE! NON-PROFESSIONAL DISPOSAL OF BATTERIES AND ACCUMULATORS CAUSES ENVIRONMENTAL POLLUTION / DAMAGE.

EVERY CONSUMER IS LEGALLY OBLIGED TO DISPOSE OF BATTERIES AND ACCUMULATORS AT THE END OF THEIR LIFE CYCLE AT SUITABLE COLLECTION POINTS, FOR EXAMPLE, IN HIS OR HER MUNICIPALITY/BOROUGH OR AT RETAIL OUTLETS.

DROP-OFF AT COLLECTION POINTS IS FREE OF CHARGE. BY HANDING IN BATTERIES AND ACCUMULATORS AT COLLECTION POINTS, THEY ARE RECYCLED AND THUS DISPOSED OF IN AN ENVIRONMENTALLY FRIENDLY WAY.

DISPOSING OF BATTERIES AND ACCUMULATORS IN HOUSEHOLD WASTE DOES NOT ENSURE ENVIRONMENTALLY FRIENDLY DISPOSAL AND MAY CAUSE DAMAGE TO THE ENVIRONMENT.

BATTERIES AND RECHARGEABLE BATTERIES MUST BE REMOVED FROM THE APPLIANCE BEFORE DISPOSAL. PLEASE RETURN ONLY IN DISCHARGED CONDITION!

*) MARKED WITH:

CD = CADMIUM,

HG = MERCURY,

ENERGY LABEL

ENERG

Reflexion

LEDX24i+

A

B

C

D

E

F

G

20 kWh/1000h

2019/2013

WARRANTY

Dear Customer,

Thank you for choosing one of our products. Our products undergo precise quality control in the course of production. If one of our devices gives you cause for complaint, or you have questions about one of our devices, please call our customer support.

We give a 36 month warranty on TV and SAT devices, and a 24 month warranty on portable DVD and audio devices from the date of purchase. Outside of the warranty, we offer you a paid repair based on a cost estimate. Please contact our customer support before submitting.

The warranty relates to material and production defects. Your device will be repaired or replaced during the warranty period. Unfortunately, UltraMedia cannot reimburse the purchase price. Damage caused by improper use, the use of third-party accessories, falls, dust, water damage and signs of wear (e.g. scratches, optical wear and tear) caused by the customer or external influences are excluded from the guarantee.

In order to assert the warranty claims, send the device with all accessories, a copy of the invoice and the description of the fault to the address given below. Devices that do not have a proof of purchase cannot be guaranteed. Please do not forget to include your full address and a telephone number / email address for any queries.

Shipping to us takes place at your own expense. Unpaid parcels cannot be accepted and are returned to the sender.

Please pack the device securely for transport. UltraMedia assumes no liability for damage in transit that occurs on the way to us. After receiving your submission, we will process your device as soon as possible and send it back to you.

Before sending your device in, please contact our customer support or your specialist dealer, as many problems can also be solved over the phone.
