| Product Type | Fridge-freezer combination |
| Model | KGK 2646 |
| Brand | Nabo |
| Total Net Capacity | 246 L |
| Fridge Capacity | 174 L |
| Freezer Capacity | 72 L |
| Energy Class | A+ |
| Noise Level | 42 dB |

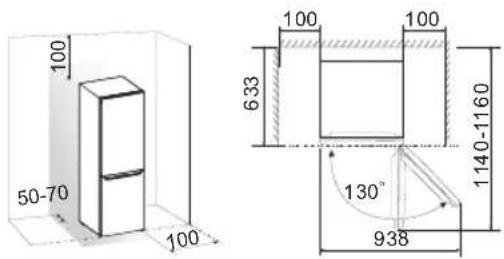

| Dimensions (H x W x D) | 1770 x 595 x 650 mm |
| Weight | 62 kg |
| Power Supply | 220-240 V, 50 Hz |
| Annual Energy Consumption | 257 kWh |
| Defrost Type | Automatic (fridge), manual (freezer) |
| Climate Class | N-ST |
| Temperature Control | Mechanical thermostat |
| Lighting | LED |

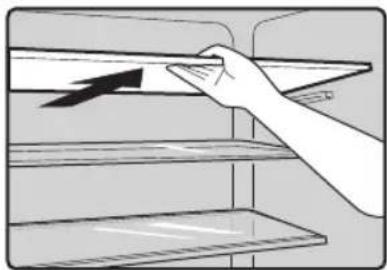

| Shelves | 3 adjustable glass shelves |
| Drawers | 1 vegetable drawer, 1 freezer drawer |
| Door Reversibility | Yes, reversible |
| Freezer Star Rating | 4 stars |
| Cooling System | Static (fan-assisted optional) |
| Condenser Type | External (rear) |
| Warranty | 1 year |
| Cleaning | Wipe with mild detergent, dry thoroughly |
| Safety | Do not use electrical appliances inside food compartments |
Frequently Asked Questions - KGK 2646 Nabo
What is the ideal temperature setting for the fridge?
The recommended temperature is between 0°C and 4°C for the fridge compartment and -18°C for the freezer. Adjust the thermostat dial accordingly.
How do I defrost the freezer?
The fridge auto-defrosts but the freezer requires manual defrosting. When frost exceeds 3 mm, unplug the appliance, remove food, and let the ice melt. Do not use sharp objects to remove ice.
Why is my fridge making unusual noises?
Normal sounds include gurgling (refrigerant), clicking (thermostat), and humming (compressor). Ensure it is level and not touching walls. If loud or persistent, contact support.
Can I reverse the door opening direction?

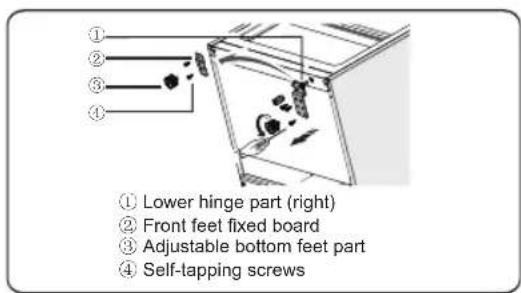

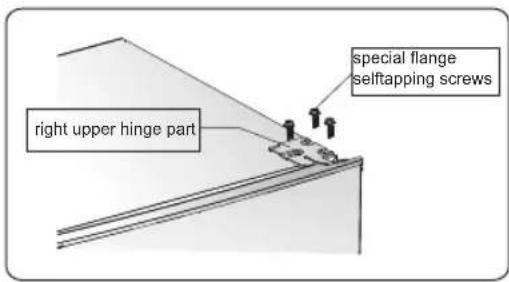

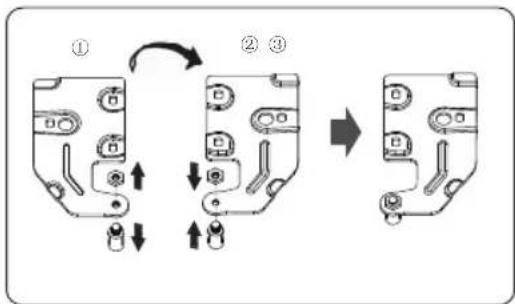

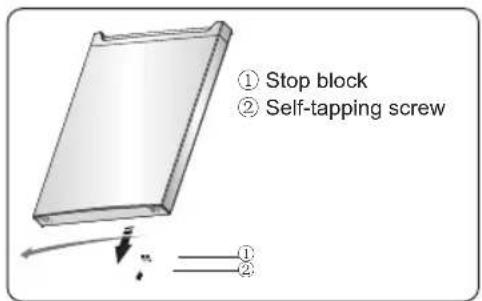

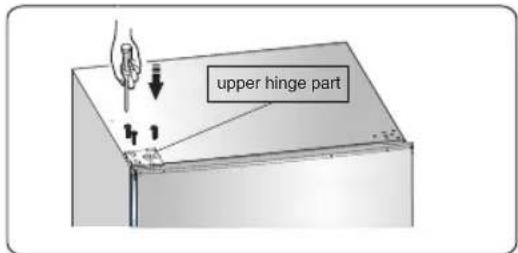

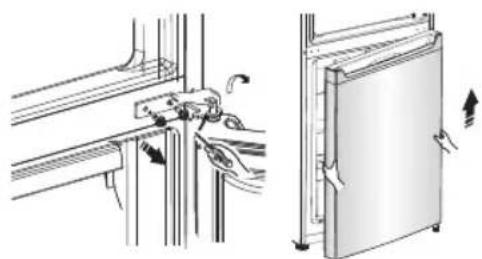

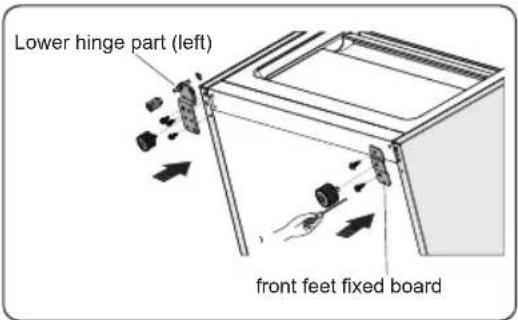

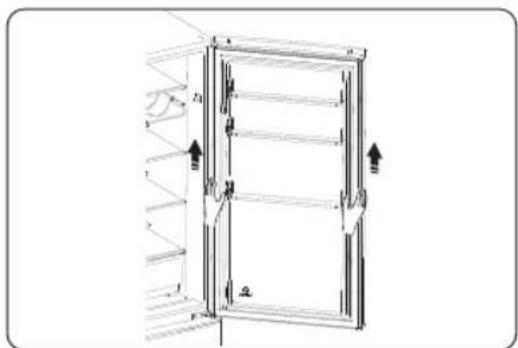

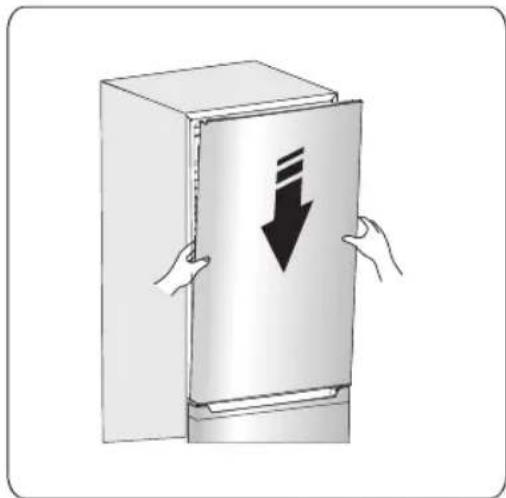

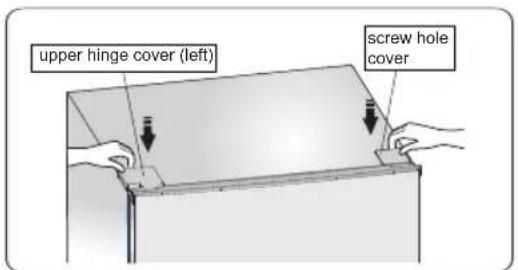

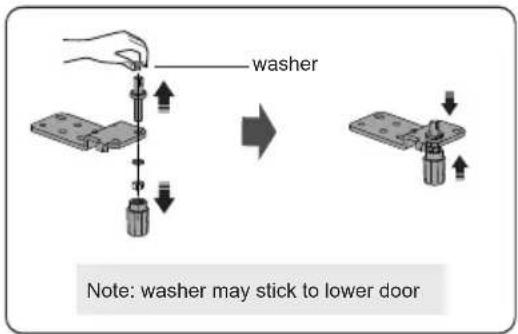

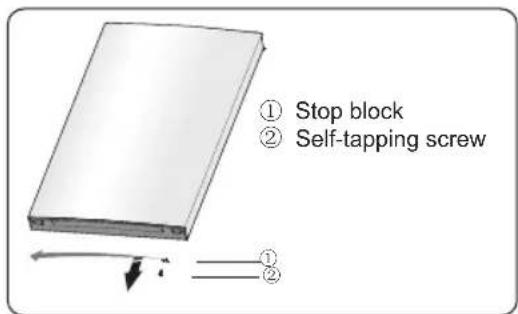

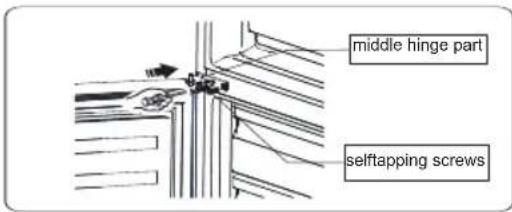

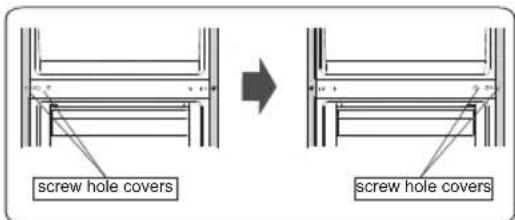

Yes, the door is reversible. Follow the instructions in the manual: remove hinge covers, unscrew hinges, reposition them on the opposite side, and reattach the door. Tools required: screwdriver and spanner.
How do I clean the appliance?
Unplug the refrigerator. Remove all shelves and drawers. Wipe interior and exterior with a soft cloth dipped in warm water with mild detergent. Rinse and dry thoroughly. Do not use abrasive cleaners.
What should I do if the fridge is not cooling?
Check if it is plugged in and the thermostat is on. Ensure the door seals are clean and closing properly. Allow 24 hours for temperature to stabilize after loading. If still not cooling, call a technician.
Is the freezer suitable for long-term storage?
Yes, the 4-star freezer can store frozen food for up to 3 months. For best quality, keep temperature at -18°C and avoid overloading.
How can I change the interior light bulb?
The fridge uses an LED light which is not user-replaceable. If it fails, contact a qualified technician for replacement.
What is the energy consumption?
The annual energy consumption is 257 kWh based on standard test conditions. Actual usage may vary depending on usage and environment.
Where can I find spare parts?

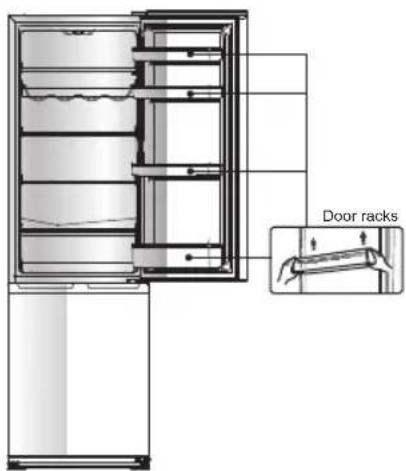

Spare parts are available through Nabo authorized service centers. Refer to the manual for part numbers or contact customer support. Some parts like shelves and door bins are sold separately.
