Product Type	Refrigerator-Freezer Combination
Model	KGR 2421
Brand	Nabo
Climate Class	N / ST (16°C to 38°C)
Power Supply	220-230 V, 50 Hz
Fuse Rating	10 A
Refrigerant	R600a (Isobutane)
Blowing Agent	C-Pentane (Flammable)
Defrost (Refrigerator)	Automatic
Defrost (Freezer)	Manual (min. twice a year)
Temperature Control	Thermostat knob (0 = Off, 1 = Warmest, 7 = Coldest)
Interior Light	15 W, E14 bulb
Shelves (Refrigerator)	Adjustable height shelves + glass shelf
Shelves (Freezer)	Wire shelf
Fruit & Vegetable Drawer	Yes (1)
Door Trays	Adjustable height
Egg Tray	Yes
Ice Cube Tray	Yes
Condenser	Rear (visible)
Compressor	Yes (rear)
Thaw Water Tray	On top of compressor
Leveling Feet	Front adjustable
Min. Distance from Heat Sources	30 mm (electric/gas), 300 mm (oil/coal), 50 mm (built-in)
Top Clearance Required	At least 10 cm
Corner Clearance	Required for freezer door opening

Frequently Asked Questions - KGR 2421 Nabo

How do I adjust the temperature in the refrigerator?

Turn the thermostat knob (located inside the refrigerator) to a number between 1 (warmest) and 7 (coldest). 0 turns off the compressor but does not disconnect power. The actual temperature depends on ambient conditions and food load.

How often should I defrost the freezer?

Defrost the freezer at least twice a year, or when the ice layer exceeds 5 mm. Turn off the appliance, remove food, leave the door open until ice melts, then clean and dry thoroughly before restarting.

What should I do if water appears on the floor under the appliance?

Check if the thaw water collection tray has slipped off the compressor. If so, reposition the tray on top of the compressor. Also ensure the thaw water channel is not blocked.

Why is my refrigerator making loud noises?

Ensure the appliance is level and not touching walls or furniture. Check that bottles or dishes inside are not rattling. Normal sounds include murmuring from refrigerant flow and clicking when the compressor starts.

How do I change the interior light bulb?

Unplug the appliance. Use a flat screwdriver to press the light lid retainer and pull the lid off. Replace the bulb with a 15 W E14 type. Snap the lid back on and plug in.

Can I store hot food directly in the refrigerator?

No, allow food to cool to room temperature before placing it in the refrigerator or freezer to avoid raising the internal temperature and overworking the compressor.

What is the recommended storage time for frozen food?

Fish and sausages: max 6 months. Cheese, poultry, pork, lamb: max 8 months. Beef, fruits, vegetables: max 12 months. Always check manufacturer's dates.

Why is there condensation on the top of the appliance?

If ambient humidity exceeds 70%, condensation may form on the top. Ventilate the room and reduce humidity sources. This is normal and not a malfunction.

What should I do if the appliance is not cooling?

Check that the power cord is plugged in and the socket is working. Ensure the thermostat is not set to 0. Verify that the doors close properly and the condenser is clean. If the problem persists, contact service.

How should I clean the refrigerator?

Unplug the appliance. Use warm soapy water or dishwashing detergent. Do not use abrasive cleaners, acid, alcohol, or benzene. Clean the condenser and rear area with a soft brush or vacuum at least once a year.

USER MANUAL KGR 2421 Nabo

Instructions for use

DE

Illustration of a hand holding a dropper over a small object on a surface (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Some provisions in this user manual are unified for refrigerating products of different types (for a refrigerator, refrigerator-freezer or freezer). CAREFULLY READ THE INSTRUCTION MANUAL.

The Manufacturer shall not be held liable for damage arising from the failure to observe the instructions contained in this manual.

Keep this manual for future reference, or to pass it over to the next user.

General information:

The appliance is a two-compartment refrigerator-freezer combination. The refrigerator compartment is intended for short-term storage of fresh foodstuffs; the freezer compartment is intended for freezing and long-term storage of foodstuffs.

This appliance is intended to be used in household and similar applications.

CE conformity. This appliance complies with the requirements stipulated in the guidelines of the council for the harmonization of the legal provisions of the member states on electromagnetic compatibility RL 2014/30 / EU and on the use of electrical equipment within certain voltage limits RL 2014/35 / EU.

This appliance is marked with the CE mark and has a declaration of conformity for inspection by the responsible market surveillance authorities

GUIDELINES CONCERNING THE SAFETY OF USE

General safety requirements:

• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING: Do not damage the appliance refrigeration system.
• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• WARNING: Disposal of the appliance should be according to national rules.

• The appliance should be used only for freezing and storing foodstuffs.

• This appliance is not designed for the storage of explosive substances such as aerosol cans with a flammable propellant.

• It is prohibited to store petrol and other flammable liquids near the appliance.

WARNING: Do not damage the appliance refrigeration system. It contains the refrigerant gas R600a. If the refrigeration system is damaged:

• Do not use any open flame.
• Avoid sparks-do not turn on any electrical appliances or lighting fixtures.
• Immediately ventilate the room: air the room in which the appliance is placed for a few minutes (the size of the room for a product containing isobuthane / R600a must be at least 4 m ^3 ) to avoid damage to the cooling system.

C-Pentane is used as blowing agent in the insulation foam and it is a flammable gas.

Children and vulnerable people safety:

• Do not allow children to play with the appliance or to plug it in or unplug from the electricity supply socket. Do not allow children to play with the packaging material from the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• Cleaning and user maintenance shall not be made by children without supervision.

Requirements for the connection to the mains:

- The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. The earthed electrical socket by which the appliance is connected to the mains should be in an accessible place. It is a legal requirement that the appliance is properly earthed. The manufacturer will not be held liable for any damage or injury which may result from the failure to fulfil this requirement.

• To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.
• It is forbidden to readjust or modify any parts of the unit. It is crucial not to damage the capillary tube visible in the compressor recess. The tube may not be bent, straightened or wound. If the capillary tube is damaged by the user the guarantee will be void.
• Do not use adapters, multiple sockets and two-wire extension leads. If it is necessary to use the extension lead, it must be equipped with a protection ring and a single socket and must have a VDE/GS safety certificate. If an extension lead is used (with a protection ring and safety certificate), its socket must be located at a safe distance, away from the sinks, and must not be in a place where it could be flooded by water or waste water.
• Make sure that the plug of the electrical cord is not squeezed by the back wall of the appliance or otherwise damaged. A damaged plug can be the cause of a fire!

Do not try repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person whit a cable of same type.

Requirements for safe use:

• If the appliance is unplugged (for cleaning, moving to another place, etc.), it may be repeatedly switched ON AFTER 15 MIN.
• Pull the plug out from the mains socket before each maintenance activity. Do not pull on the cord, but hold the body of the plug instead.
  – It is forbidden to use a technically damaged appliance.
• Do not place any switched-on electrical devices (such as microwave ovens, hair dryers, irons, electric kettles or other electrical devices) on top of the appliance because this may cause ignition of plastic parts.
• Do not place any dishes with liquids on top of the appliance and do not keep flowers in vases or other liquid-filled vessels on the appliance.
• Do not allow children to enter or climb the appliance to prevent that children are sealed in the appliance or children are injured by the falling appliance.
• Do not place heavy objects on the top of the appliance considering.
• Do not use water spray and steam to clean the appliance.
• Do not remove or touch items from the freezer compartment if your hands are wet or damp.

The appliance should be transported in the vertical position; do not tilt any more than 30^ . The manufacturer will not be responsible for any damage of the appliance that results from non-compliance with the instructions for transportation.

The manufacturer guarantees reliable operation of the refrigerator when the relative air humidity not greater than 70 per cent and the ambient temperature is: +16 TO +32 DEGREES CELSIUS - Climate class N;

+16 TO +38 DEGREES CELSIUS - Climate class ST.

INSTALLATION AND OPERATING CONDITIONS

Positioning:

- This appliance can be installed in a dry, well ventilated indoor where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance.

Do not install this appliance in areas that are too humid or too colds, such as the construction appendices, garages or wine cellars. Place the appliance away from heat sources such as kitchen stove/oven, radiators, or direct sunlight. The appliance must not touch any pipes for heating, gas or water supply, or any other electrical devices.

Minimum distances from the heat sources:

• from the electric gas and other ovens - 30 mm,
• from oil or coal fired ovens - 300 mm,
• from built-in ovens - 50 mm

If there is no possibility of ensuring the above-mentioned distances, provide an appropriate insulation board.

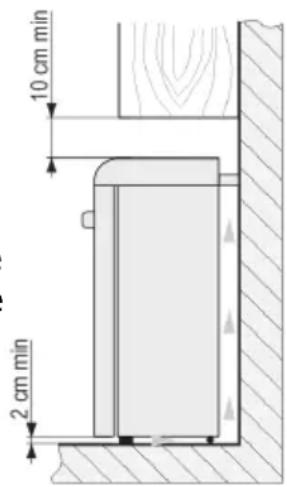

- Do not cover the ventilation holes at the top of the appliances – it must be a good air circulation around the appliance. There should be a gap of at least 10 cm between the top of the appliance body and any furniture that may be above it (see

fig.). If this requirement is not followed, the appliance consumes more electrical energy and its compressor may overheat.

• The appliance must stand on a level surface and must not touch the wall. If necessary, regulate the height of the appliance by adjusting the levelling feet: by turning them clockwise – the front of the appliance rises, by turning them counter clockwise – it comes down. If the appliance is tilted slightly backward – the doors will close by themselves.

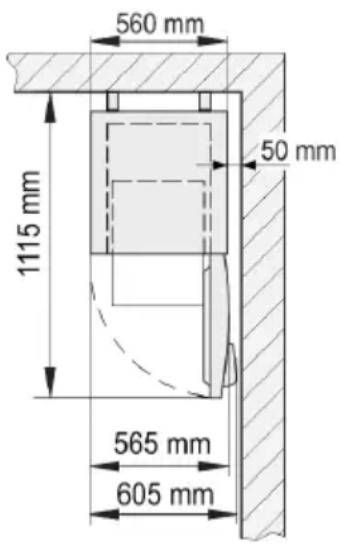

• ◀ If the appliance is placed in a corner, a gap must be left between the appliance body and the wall so that the freezer compartment door can be opened enough to pull out the frozen product drawer (see picture).

Installation before using the appliance for the first time:

It is recommended to prepare the appliance for operation with a helper.

- Remove package. Lift the appliance away from foamed polystyrene base. Tear off adhesive tapes. When placing, moving, lifting the appliance, do not hold the door handles, do not pull the condenser at the rear part of the refrigerator and do not touch the compressor unit.

- Remove all red-coloured parts from the shelves. Tear away the adhesive tapes from the door trays – they are intended only for the transport of the appliance.

The appliance should not be connected to the mains until all packing and transport materials aren't removed.

- Take two supports 1 from the bag and insert them into the guides 2 at the top back part of the appliance (see picture).

First use:

- When the unit is first switched on, a slight 'new' smell may be noticed. However, this will disappear once the cooling process has begun.

- Once the unit has been positioned, wait for about 30 minutes before it is connected to the mains.

If the appliance has been tilted more than 30^ during transport, allow it to stand in an upright position for at least 4 hours before it is connected to the mains. If this is not done, the appliance compressor may fail.

- When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least 2 hours.

Connection to the mains:

- This appliance should be connected to 220-230V 50Hz supply socket. The socket must be fitted properly, and must be supplied with an earthling conduit and a 10 A fuse. It is a legal requirement that the appliance is properly earthed. The manufacturer will not be held liable for any damage or injury which may result from the failure to fulfil this requirement.

DESCRIPTION OF THE APPLIANCE, BASIC PARTS

A - Freezer compartment

B – Refrigerator compartment

1

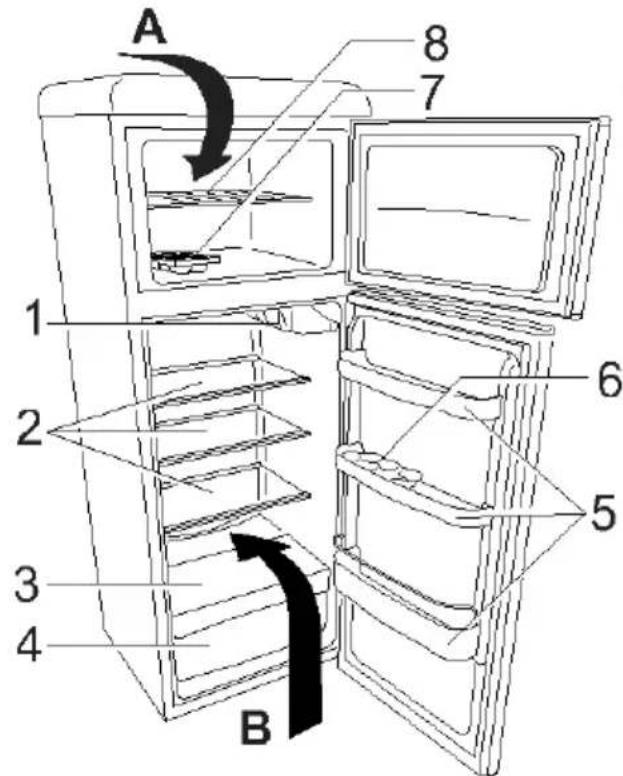

1	Thermostat knob	6	Egg tray
2	Adjustable height shelves	7	Ice cube tray
3	Glass shelf	8	Wire shelf

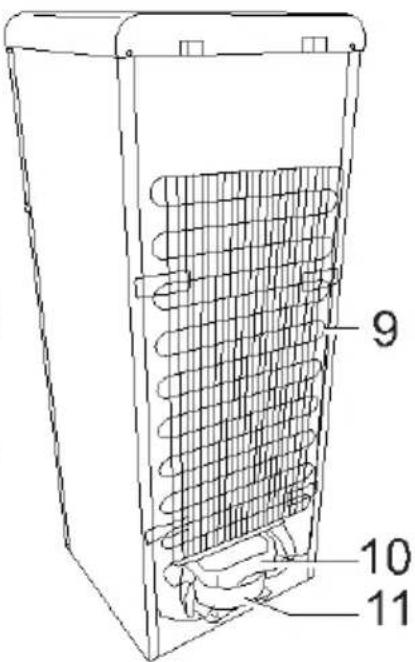

4	Fruit and vegetable box	9	Condenser
5	Adjustable height door trays	10	Thaw water drip tray

11 Compressor

NOTE. The technical data of the appliance can be found on the rating label attached to the inside wall of the appliance. For more information about the appliance, scan the QR code on the enclosed energy label and / or visit the official website of the product database: https://eprel.ec.europa.eu

TEMPERATURE REGULATION

The temperature in the refrigerator compartment is controlled using the thermostat knob 1 (fig. 1) by turning it to one side or the other. The temperature indication in digits is shown beside the thermostat knob.

The numbers "0, 2, 3, 4, 5, 6, 7" do not mean a specific temperature.

The temperature is regulated on the scale of seven digits:

0 = Compressor is switched off. WARNING! Electric current is not switched off.

1 = highest temperature (lowest cooling)

7 = lowest temperature (highest cooling)

The temperature in the refrigerator compartment may vary depending on ambient temperature, the amount of foodstuffs, the temperature of the foodstuffs, and how often the appliance doors are opened and closed.

If the room is cool, the appliance cools less. The temperature in the appliance may therefore rise. Use the thermostat wheel to set a lower temperature.

USING THE REFRIGERATOR-FREEZER EFFICIENTLY

Storage zones in the refrigerator compartment:

Due to the natural circulation of the air in the appliance, there are different temperature zones in the refrigerator chamber. The most appropriate compartments of the appliance where specific types of food are to be stored, taking into account different temperature distribution in different compartments in the appliance, are as follows:

1) Upper area of the refrigerator compartment & door - temperature zone: Store tropical fruit, cans, drinks, eggs, sauces, pickles, butter, jam.
2) Middle area of the refrigerator compartment -cool zone: Store cheese, milk, dairy food, deli food, yoghurt.
3) Lower area of the refrigerator compartment- coldest zone: Store cold cuts, desserts, meat and fish, cheesecake, fresh pasta, sour cream, pesto/salsa, home-cooked food, pastry cream, pudding and cream cheese.
4) Fruit & vegetable drawer at the bottom of the refrigerator compartment: Store vegetables and fruits (excluding tropical fruits).

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Freezing of foodstuffs * * * The thermostat knob should be set to 7. Fresh foodstuffs prepared for freezing and cooled to room temperature should be placed in one layer at the bottom of the freezer compartment. After 24 hours, move the frozen foodstuffs onto the wire shelf 8 (see illustration 1). When the products are frozen, the thermostat wheel should be set at its earlier position.

• DO NOT EXCEED THE MAXIMUM AMOUNT OF FROZEN FOOD INDICATED IN THE RATING LABEL.
• Leave not less than 3 cm gap between a top of frozen products and a bottom of drawer, which is over them.
• Do not refreeze partly thawed products.
• Do not place unwrapped foodstuffs in the freezer sections.
• Fresh food for freezing should not touch already frozen foodstuffs.

• Do not freeze foodstuffs that are warmer than the room temperature.

• WARNING! Do not freeze liquid foodstuffs in glass vessels or bottles.

• Do not consume ice made in the freezer compartment straight away.
• Products will freeze more quickly if they are divided up and packed in small portions.
• Strictly observe the frozen foodstuffs validity dates indicated by the manufacturer on the product packaging.
• WE RECOMMEND THAT FROZEN FISH AND SAUSAGE SHOULD BE STORED IN THE FREEZER COMPARTMENT NOT LONGER THAN 6 MONTHS; CHEESE, POULTRY, PORK, LAMB – NOT MORE THAN 8 MONTHS; BEEF, FRUIT AND VEGETABLES – NOT LONGER THAN 12 MONTHS.

CAUTION! In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then refrozen (after cooling).

DEFROSTING, CLEANING AND CARE

THE REFRIGERATOR COMPARTMENT defrosts automatically. Drops of ice that form on the back wall of the refrigerator compartment thaw during the time the compressor is not working and the thaw water runs down the thaw water runoff channel to the tray on top of the compressor (Fig. 1), where it evaporates.

FREEZER COMPARTMENT should be thawed not less than twice a year or when a layer of ice thicker than 5 mm forms in it. Do the actions below in the order they are listed:

WARNING! Turn the appliance off and pull the plug out of the electrical socket.

• Remove foodstuffs from freezer compartment.
• Leave door of appliance open. When the ice melts, clean and wipe dry the surfaces and fixtures of the refrigerator and freezer compartments.
• Close the appliance door. Plug in and turn on the appliance.

REGULARLY CLEAN THE APPLIANCE!

Note: before cleaning the cooling device and its rear compartment part, the device must be disconnected from the mains by unplugging.

• Protect the appliance inner surfaces and plastic parts from fats, acids and sauces. In case of accidental spills – immediately clean with warm soapy water or dishwashing detergent. Wipe dry.
• Clean the appliance inner surfaces with warm soapy water. Dishwashing detergent may also be used. Wipe dry. Regularly wash the trays and other accessories.
• Regularly clean the hermetic gaskets of the doors. Wipe dry.

Illustration of a hand using a tool to apply a screwdriver to a surface (no text or symbols present)

• REGULARLY CLEAN THE THAW WATER CHANNEL SPACE WITH A SPECIAL CLEANER FOR THAT PURPOSE (see picture).
• At least once a year clean dust away from the back part of the appliance body and the compressor. A soft brush, electrostatic cloth or vacuum cleaner may be used for cleaning.
• DO NOT use detergents containing abrasive particles, acid, alcohol or benzene for cleaning the appliance inner and outer surfaces. DO NOT use for cleaning cloths or sponges that have coarse surfaces intended for scrubbing.

CHANGING THE INTERIOR LIGHT BULB

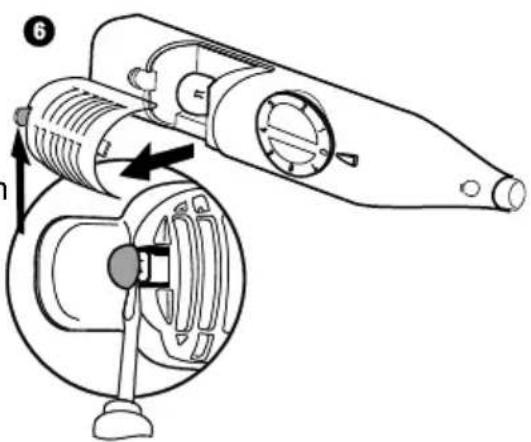

When changing the interior light bulb (fig. 6), do the actions below in the order they are listed:

1. Unplug the appliance from the mains by pulling the plug out of the electricity supply socket.

2. Push the interior light bulb lid 4 retainer 5 with a flat screwdriver and with your other hand pull it toward yourself.

3. If the bulb does not light up, replace it with another 15 W bulb of the same type with an E14 lamp holder.

4. When you have changed the light bulb, replace the lid 4 and push — the lid will snap into position.

5. Plug the appliance into the electricity supply socket.

OPERATION PROBLEMS AND THEIR SOLUTIONS

- The appliance is plugged in to the mains but it does not work and. Check that your house electricity supply installations are in order. Check that the plug is correctly inserted into the electricity supply socket.

- The noise has become louder. Check that the appliance is standing stable on a level place. To make it level, regulate the front feet. Check if the appliance is not touching any furniture and that no part of the refrigeration system at the back part of the appliance body is touching the wall. Pull the appliance away from any furniture or walls. Check that the cause of increased noise isn't due to bottles, cans or dishes in the appliance that might be touching each other.

- Water has appeared at the bottom of the refrigerator compartment. Check whether a thaw water channel space isn't blocked. Clean the thaw water channel space with a cleaner intended for that purpose.

- Water has appeared on the tempered glass shelves. Food items or dishes in the refrigerator compartment are touching the back wall of the compartment. Do not let food items or dishes touch the back wall.

- Moisture dripping from under the glass shelves. If you placed many containers with liquids on the shelf, moisture can condense and drip onto the shelf below. Move some containers with liquids onto other shelves.

- Water has appeared under the appliance. The thaw water collection tray has slipped off the compressor. Place the tray on top of the compressor.

- When the appliance door is opened, the rubber sealing gasket pulls out. The gasket is smeared with sticky foodstuffs (fat, syrup). Clean the sealing gasket and the groove for it with warm water containing soap or dishwashing detergent and wipe dry. Put the rubber sealing gasket back into the place.

- High temperature in appliance, the compressor operation pauses are short. Ascertain whether the appliance doors are shutting tightly, whether the door wasn't kept open longer than necessary when taking out or putting in foodstuffs or whether a large amount of warm food was placed in the appliance.

- The top of the appliance has condensation on it. The ambient relative air humidity is above 70 %. Ventilate the room where the appliance stands and if possible, remove the cause of the humidity.

Remarks on the appliance operating noise. As the appliance

operates and goes through the freezing cycle, various noises will be emitted.

This is normal and is not a sign of any malfunction.

- As the refrigerant circulates around the refrigeration system, it causes sounds like murmuring, bubbling, or rustling. Louder sounds like popping or clicking may be heard for a short time as the refrigerator's compressor switches on.

WARRANTY SERVICE

IF YOUR APPLIANCE IS NOT WORKING PROPERLY, ASCERTAIN WHETHER YOU CAN REMEDY THE CAUSE OF THE FAULTY FUNCTIONING OF THE APPLIANCE YOURSELF. If you cannot solve the problem yourself, contact the nearest refrigerator service representative by telephone or in writing. When making contact, necessarily indicate the refrigerator model and number. You will find this data on the product label, which is glued to the left wall of the refrigerator compartment near the fruit and vegetable trays.

ENVIRONMENTAL PROTECTION INFORMATION

Important Note:

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local authority, your household waste disposal service or the retailer where you purchased the product.

If you decided to scrap the appliance, make it impossible to use in order to prevent possible misadventure. Pull out the electric plug from the electricity supply socket and then cut off the cord. Tear off the gasket. Break the door lock if any.

Do not dismantle the appliance yourself. Pass it on to recycling companies.

Our packaging are made of environmentally friendly materials, which can be reused:

• The external packaging is made of cardboard/foil
• The FCKW free shape of foamed polystyrene (PS)
  • Polyethylene (PE) foils and bags

The refrigerants and foaming agents, which are 100% free of FCKW and FKW have been used for manufacturing our product. Therefore we are helping to protect the ozone layer and prevent the increase of greenhouse effects. Also, the innovative technology and environmentally friendly insulation help in reducing energy consumption.

N00FRNA

2021-02-19
