Product Type	Refrigerator (Cabinet)
Brand	Nabo
Model	FK 2665
Climate Class	N (16-32°C), ST (16-38°C), T (16-43°C)
Refrigerant	R600a (Isobutane)
Insulation Blowing Agent	C-Pentane
Energy Label	See QR code on appliance or visit eprel.ec.europa.eu
Number of Shelves	2 adjustable glass shelves
Fruit & Vegetable Drawer	1 drawer at bottom
Interior Light	LED (replaceable by service representative)
Temperature Control	Thermostat knob with 7 positions (0 = off, 7 = coldest)
Defrost Type	Automatic in refrigerator compartment
Door Reversibility	Yes (can be changed to opposite side)
Adjustable Feet	Yes (levelling feet)
Casters	Yes (for easy movement)
Noise Level	Normal operational sounds (murmuring, bubbling, clicking)
Power Supply	220-240 V, 50 Hz (earthed socket required)
Refrigerator Capacity	Not specified (estimated ~200-300 L)
Thaw Water Collection	Tray on top of compressor
Cleaning Recommendation	Use warm water and neutral soap; avoid abrasives
Safety Features	Earthed connection, child safety (8+ years), ventilation warnings
CE Marking	Yes (complies with EU directives)
Transport Position	Vertical; tilt max 30°

Frequently Asked Questions - FK 2665 Nabo

How do I adjust the temperature inside the refrigerator?

Turn the thermostat knob (located inside the refrigerator) to a number between 1 and 7. 1 is the warmest, 7 is the coldest. The temperature may vary depending on room temperature and how often the door is opened.

Why is water pooling at the bottom of the refrigerator?

This usually means the thaw water drain channel is blocked. Clean it using a special cleaner or a pipe cleaner. Also ensure the thaw water tray on top of the compressor is properly positioned.

How do I defrost the freezer compartment?

This model is a refrigerator only, not a freezer. The refrigerator compartment defrosts automatically. Ice melts during compressor off cycles and water evaporates.

How often should I clean the refrigerator?

Clean the interior with warm soapy water regularly. At least once a year, vacuum dust from the back (condenser and compressor). Clean door gaskets and the thaw water channel regularly.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the detailed instructions in the manual (fig. 6). You will need two spanners (No. 8 and No. 10) and a screwdriver. Always disconnect power first.

The refrigerator is making unusual noises. Is this normal?

Some noises are normal: murmuring (refrigerant flow), clicking (compressor start/stop), or popping. If the noise is louder than usual, check that the appliance is level, not touching walls or furniture, and that bottles inside are not touching each other.

Why is there condensation on the top of the appliance?

Condensation can occur when the ambient relative humidity is above 70%. Ventilate the room and if possible, reduce the humidity source.

Can I store hot food in the refrigerator?

No, allow hot food to cool to room temperature before placing it in the refrigerator. Placing warm food raises the internal temperature and forces the compressor to work harder.

What should I do if the interior light stops working?

The LED light must be replaced by a qualified service representative. Do not attempt to replace it yourself. Contact the manufacturer or authorized service.

Is it safe to use an extension cord with this refrigerator?

No, do not use extension cords, adapters, or multiple sockets. Plug the refrigerator directly into a properly earthed wall socket to avoid fire or electric shock.

USER MANUAL FK 2665 Nabo

GB Instructions for use

1

4

5

6

DE

Illustration of a hand holding a dropper over a small object, with arrows indicating direction (no text or symbols)

Some provisions in this user manual are unified for refrigerating products of different types (for a refrigerator, refrigerator-freezer or freezer). CAREFULLY READ THE INSTRUCTION MANUAL.

The Manufacturer shall not be held liable for damage arising from the failure to observe the instructions contained in this manual.

Keep this manual for future reference, or to pass it over to the next user.

General information:

The appliance is a refrigerator made as a cabinet and designed for a short-term storage of chilled products. This appliance is intended for domestic or similar applications, such as: in shops, offices and other similar working environments; in agricultural areas; by customers in hotels, motels etc. and similar establishments; in bed-and breakfast type environments.

The manufacturer guarantees reliable operation of the refrigerator when the relative air humidity not greater than 70 per cent and the ambient temperature is:

+16 TO +32 DEGREES CELSIUS (Climate class N);

+16 TO +38 DEGREES CELSIUS (Climate class ST);

+16 TO +43 DEGREES CELSIUS (Climate class T).

CE conformity. This appliance complies with the requirements stipulated in the guidelines of the council for the harmonization of the legal provisions of the member states on electromagnetic compatibility RL 2014/30 / EU and on the use of electrical equipment within certain voltage limits RL 2014/35 / EU.

This appliance is marked with the CE mark and has a declaration of conformity for inspection by the responsible market surveillance authorities

GUIDELINES CONCERNING THE SAFETY OF USE

• WARNING: Do not cover the ventilation holes at the top and on the sides of the appliance.
• WARNING: Do not use any mechanical means or electrical devices to hasten the thawing process when cleaning the freezer compartment.
• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

• The appliance should be used only for freezing and storing foodstuffs.

• This appliance is not designed for the storage of explosive substances such as aerosol cans with a flammable propellant.

• It is prohibited to store petrol and other flammable liquids near the appliance.

WARNING: Do not damage the appliance refrigeration system. It contains the refrigerant gas R600a. If the refrigeration system is damaged:

• Do not use any open flame.
• Avoid sparks-do not turn on any electrical appliances or lighting fixtures.
• Immediately ventilate the room: air the room in which the appliance is placed for a few minutes (the size of the room for a product containing isobuthane / R600a must be at least 4 m ^3 ) to avoid damage to the cooling system.

C-Pentane is used as blowing agent in the insulation foam and it is a flammable gas.

• This appliance is not designed for the storage of explosive substances such as aerosol cans with a flammable propellant.
• It is prohibited to store petrol and other flammable liquids near the appliance.
• The appliance should be used only for storing foodstuffs

Children and vulnerable people safety:

• Do not allow children to play with the appliance or to plug it in or unplug from the electricity supply socket. Do not allow children to play with the packaging material from the appliance. Cleaning and user maintenance shall not be made by children without supervision
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

Requirements for the connection to the mains:

- The appliance should only be connected to an earthed socket installed in accordance with the regulations. This product complies with all binding CE labelling directives. The earthed electrical socket by which the appliance is connected to the mains should be in an accessible place. It is a legal requirement that the appliance is properly earthed. The manufacturer will not be held liable for any damage or injury which may result from the failure to fulfil this requirement.

• The frequency and power of the electricity supply must conform to the general data parameters of the appliance as it is shown in the product label.
• WARNING: If the supply cord is damaged: to avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.
• DO NOT USE extension cords or connectors (adapters), or hubs.
• When positioning the appliance, be careful that the electrical cord isn't squeezed in order to avoid its damage. Do not store heavy objects such as cooling devices, furniture or other devices next the appliance in such a way that they could squeeze and damage the electrical cord. This can cause a short circuit and a fire.
• Make sure that the plug of the electrical cord is not squeezed by the back wall of the appliance or otherwise damaged. A damaged plug can be the cause of a fire!
• CAUTION! If the installed interior lighting diode (LED) lamp for the cooling device is not functioning, contact the maintenance and repair representative for replacements. LAMPS CAN BE REPLACED ONLY BY THE MAINTENANCE AND REPAIR REPRESENTATIVE.

Requirements for safe use:

• Once the appliance is unpacked, make sure that it is complete, that the body and the electrical cord aren't damaged. It is forbidden to use a technically damaged appliance.
• If the appliance is unplugged (for cleaning, moving to another place, etc.), IT MAY BE REPEATEDLY SWITCHED ON AFTER 15 MIN.
• Pull the plug out from the mains socket before each maintenance activity. Do not pull on the cord, but hold the body of the plug instead.
• Do not place any switched-on electrical devices on top of the appliance because this may cause ignition of plastic parts.
• Do not place heavy objects on the top of the appliance considering.
• Do not place any dishes with liquids on top of the appliance and do not keep flowers in vases or other liquid-filled vessels on the appliance.
• Do not climb on or sit on the appliance, do not lean on or hang on the appliance doors and do not allow children to do this.
• Do not use water spray and steam to clean the appliance.

Do not try repair the appliance on your own. If the appliance is out of order and it is not possible to repair it by means of given recommendations, unplug it, open the doors and call the service expert. Only a service representative can remedy all technical or construction faults.

The appliance should be transported in the vertical position; do not tilt any more than 30°. The manufacturer will not be responsible for any damage of the appliance that results from non-compliance with the instructions for transportation.

INSTALLATION AND OPERATING CONDITIONS

Position:

- This appliance can be installed in a dry, well ventilated indoor where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance.

WARNING! The appliance should not be operated in an unheated room or porch. Place the appliance away from heat sources such as kitchen stove/oven, radiators, or direct sunlight.

The rear wall of the refrigerator, in particular, the condenser and other elements of the cooling system must not contact other elements, which may damage them, (e.g. central heating pipes and the water supply pipes).

Minimum distances from the heat sources:

• from the electric gas and other ovens - 30 mm,
• from oil or coal fired ovens - 300 mm,
• from built-in ovens - 50 mm

If there is no possibility of ensuring the above-mentioned distances, provide an appropriate insulation board.

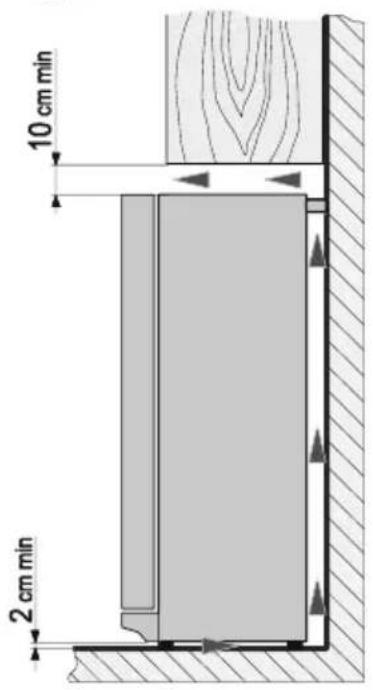

• Do not cover the ventilation holes at the top of the appliances— it must be a good air circulation around the appliance. There should be a gap of at least 10 cm between the top of the appliance body and any furniture that may be above it. If this requirement is not followed, the appliance consumes more electrical energy and its compressor may overheat (see fig. 4, page 2).

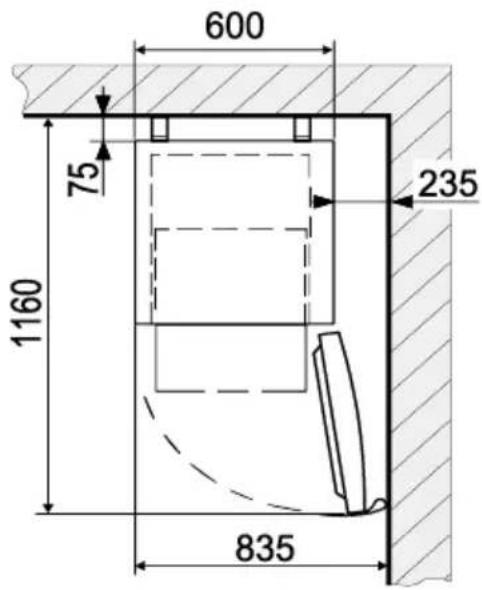

• If the appliance is placed in a corner, a gap must be left between the appliance body and the wall (see fig. 5, page 2).
• The appliance must stand on a level surface and must not touch the wall. If necessary, regulate the height of the appliance by adjusting the levelling feet: by turning them clockwise – the front of the appliance rises, by turning them counter clockwise – it comes down. If the appliance is tilted slightly backward – the doors will close by themselves.

Preparing for operation:

• It is recommended to prepare the appliance for operation with a helper.
• Remove package. Remove the separate polystyrene part (transport protection) between the rear of the device and condenser – metal grid (if available). Lift the appliance away from foamed polystyrene base. When placing, moving, lifting the appliance, do not hold the door handles, do not pull the condenser at the rear part of the refrigerator and do not touch the compressor unit.
• When positioning the appliance in chosen location, it will move more easily into position if you lift the front a little and incline it backward, allowing it to roll on its casters.

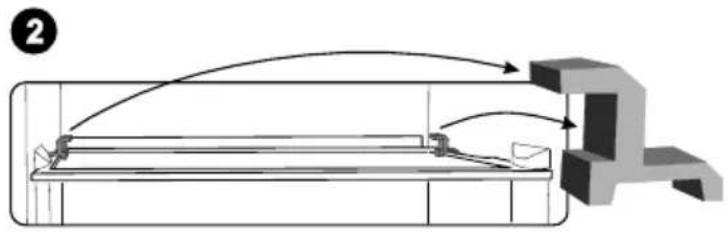

• Remove all red-coloured parts from the shelves (see fig. 2, page 1). Tear away the adhesive tapes.

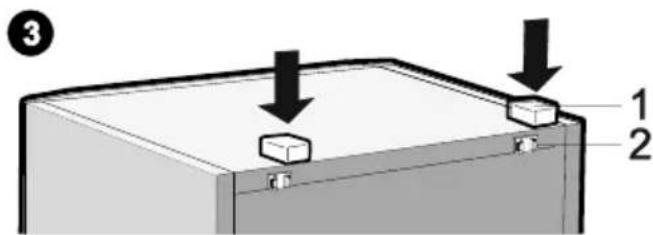

• Take two supports 1 from the bag (see fig. 3, page 1) and insert them into the guides 2 at the top back part of the appliance.

The appliance should not be connected to the mains until all packing and transport materials aren't removed. Suitably dispose the packaging material.

First use:

• Before using the appliance for the first time, the interior and all internal accessories should be washed with lukewarm water and some neutral soap to remove the typical smell of a brandnew
• Once the unit has been positioned, wait for about 30 minutes before it is connected to the mains.

If the unit has been tilted more than 30^ during transport: Wait at least 4 hours before connecting the appliance to the power supply. If this is not done, the appliance compressor may fail.

- When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least 2 hours.

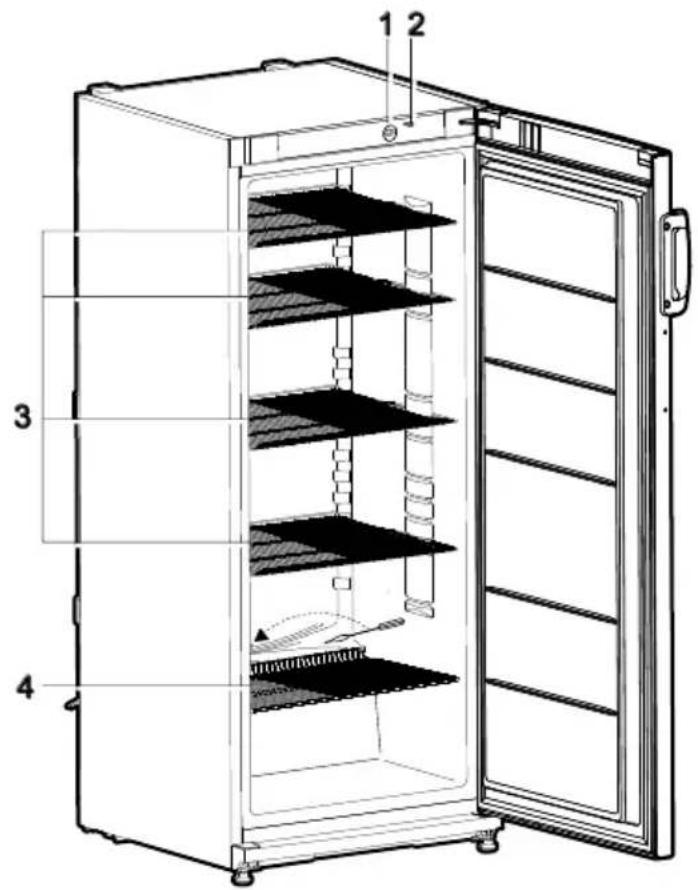

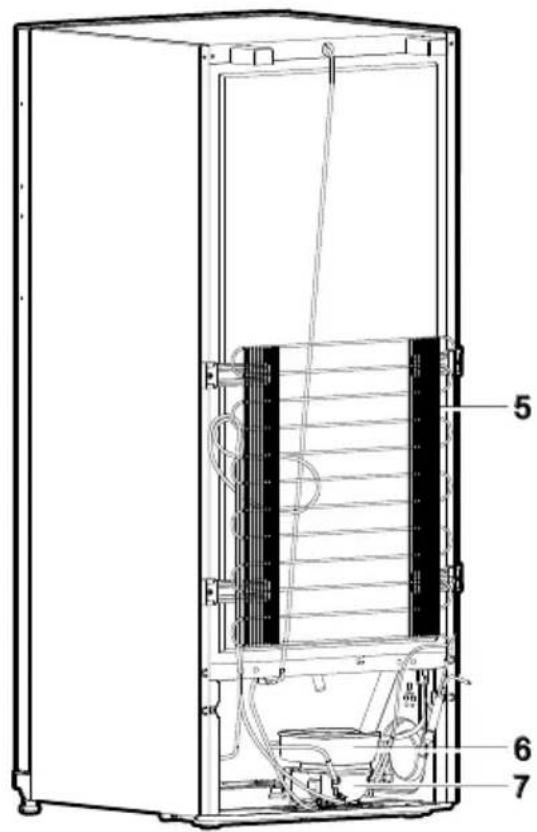

DESCRIPTION OF THE APPLIANCE, BASIC PARTS

See fig. 1, page 1

1	Thermostat knob	5	Condenser
2	On/ off switch for interior light	6	Thaw water drip tray
3-4	Shelves	7	Compressor

NOTE. The technical data of the appliance can be found on the rating label attached to the inside wall of the appliance. For more information about the appliance, scan the QR code on the enclosed energy label and / or visit the official website of the product database: https://eprel.ec.europa.eu

TEMPERATURE REGULATION

The temperature in the refrigerator compartment is controlled using the thermostat knob 1 (fig. 1) by turning it to one side or the other. The temperature indication in digits is shown beside the thermostat knob.

The temperature is regulated on the scale seven digits. The numbers "0, 1, 2, 3, 4, 5, 6, 7" do not mean a specific temperature.

0 = Compressor is switched off. WARNING! Electric current is not switched off.

1 = highest temperature (lowest cooling)

7 = lowest temperature (highest cooling)

THE TEMPERATURE IN THE REFRIGERATOR COMPARTMENT MAY VARY DEPENDING ON AMBIENT TEMPERATURE, THE AMOUNT OF FOODSTUFFS, THE TEMPERATURE OF THE FOODSTUFFS, AND HOW OFTEN THE APPLIANCE DOOR IS OPENED AND CLOSED.

If the room is cool, the appliance cools less. The temperature in the appliance may therefore rise. Use the thermostat wheel to set a lower temperature.

INSTRUCTIONS FOR FOOD STORAGE

Due to the natural circulation of the air in the appliance, there are different temperature zones in the refrigerator chamber. The most appropriate compartments of the appliance where specific types of food are to be stored, taking into account different temperature distribution in different compartments in the appliance, are as follows:

1) Upper area of the refrigerator compartment - temperature zone: Store tropical fruit, cans, drinks, eggs, sauces, pickles, butter, jam.
2) Middle area of the refrigerator compartment - cool zone: Store cheese, milk, dairy food, deli food, yoghurt. ↓

3) Lower area of the refrigerator compartment - coldest zone: Store cold cuts, desserts, meat and fish, cheesecake, fresh pasta, sour cream, pesto/salsa, home-cooked food, pastry cream, pudding and cream cheese.
4) Fruit & vegetable drawer at the bottom of the refrigerator compartment: Store vegetables and fruits (excluding tropical fruits).

To avoid contamination of food, please respect the following instructions:

• Prolonged opening of the door can significantly increase the temperature in the compartments of the appliance: only open the door for the time required to place / remove food.
• Regularly clean surfaces that may come into contact with food and accessible drainage systems.
• Store fresh meat and fish in suitable containers in the refrigerator so that they do not come into contact with or drip on other food.
• Do not put unpackaged food in the refrigerator.
• If the appliance is left empty for a long time, switch it off, defrost, clean, dry and leave the door open to prevent mold from forming inside the appliance.
• Strictly adhere to the expiration date for foods as stated by the manufacturer on the product packaging.

DEFROSTING, CLEANING AND CARE

THE REFRIGERATOR COMPARTMENT DEFROSTS AUTOMATICALLY. Drops of ice that form on the back wall of the refrigeration compartment thaw during the time the compressor is not working and the thaw water runs down the thaw water runoff channel to the tray on top of the compressor, where it evaporates.

REGULARLY CLEAN THE APPLIANCE.

Remember that before cleaning the appliance body you must disconnect the appliance from the electrical energy supply socket by pulling the plug out of the electricity outlet.

- Clean the appliance inner surfaces with warm soapy water. Dishwashing detergent may also be used. Wipe dry inner and outer surfaces.

Illustration of a hand holding a dropper over a small object, with arrows indicating direction (no text or symbols)

• Regularly clean the hermetic gaskets of the doors. Wipe dry.
• At least once a year clean dust away from the back part of the appliance body and the compressor. A soft brush, electrostatic cloth or vacuum cleaner may be used for cleaning.
• ◀REGULARLY CLEAN THE THAW WATER CHANNEL SPACE WITH A SPECIAL CLEANER FOR THAT PURPOSE.
• DO NOT use detergents containing abrasive particles, acid, alcohol or benzene for cleaning the appliance inner and outer surfaces. DO NOT use for cleaning cloths or sponges that have coarse surfaces intended for scrubbing.

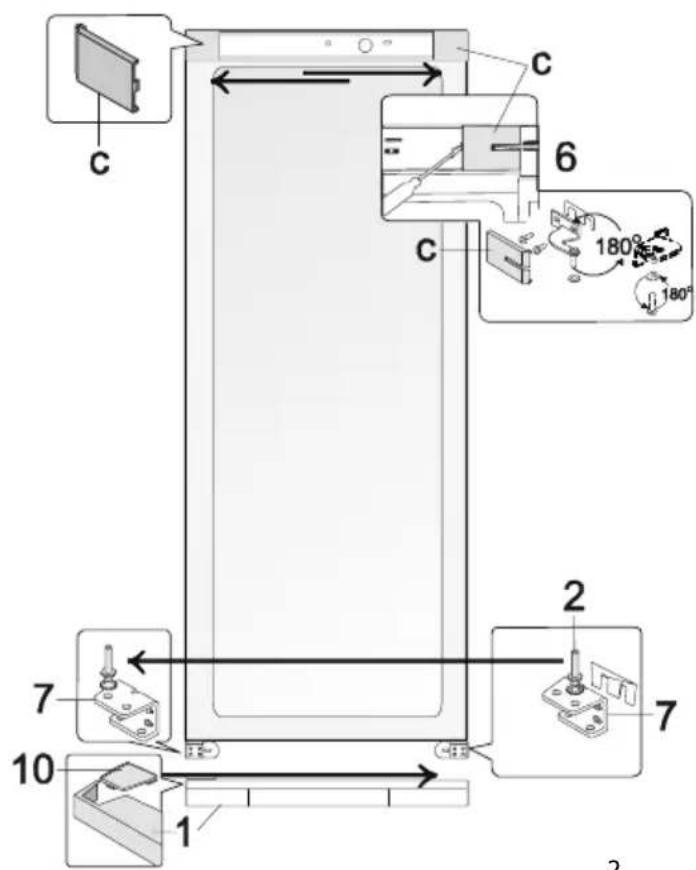

CHANGING THE OPENING DIRECTION OF THE DOORS

See fig. 6, page 2

It is recommended that changing the opening direction of the doors should be done with a helper. You will need two spanners No. 8 and No. 10 and a head screwdriver.

When changing the opening direction of the doors, YOU CAN NOT lay the refrigerator horizontally!

Before you start, please note the following:

• Always ensure that the correct number of washers is used on all hinge bolts and screws.
• So that the doors can close tightly against the frame, take the utmost care that they are properly aligned during reassembly.

Warning: Always disconnect the unit from the mains before any maintenance or repair work is carried out.

1. Open the refrigerator door. Remove the four covers C from the housing and inside of the door. ↓

2. Replace the covers and their extensions, turned through 180^ , on the opposite side.

3. U nscrew the hinge bolt on the inside of the door in the area C/6.

4. Caution: Support the door.

1. Take off the refrigerator door. Take out the fi xing screws and remove the upper bracket 6. Note the small plastic plate underneath the bracket.

2. Turn the bracket 6 including the small plastic plate through 180° and replace it on the other side of the refrigerator, using the two screw holes adjacent to each other.

3. Remove the lower panel 1. Unscrew the hinge bolt 2, together with the washers, from the bracket 7, and fit it into the corresponding opening on the opposite side of the bracket 7.

4. Place the refrigerator door onto the hinge bolt 2 on holding bracket 7.

9. Caution: Support the door.

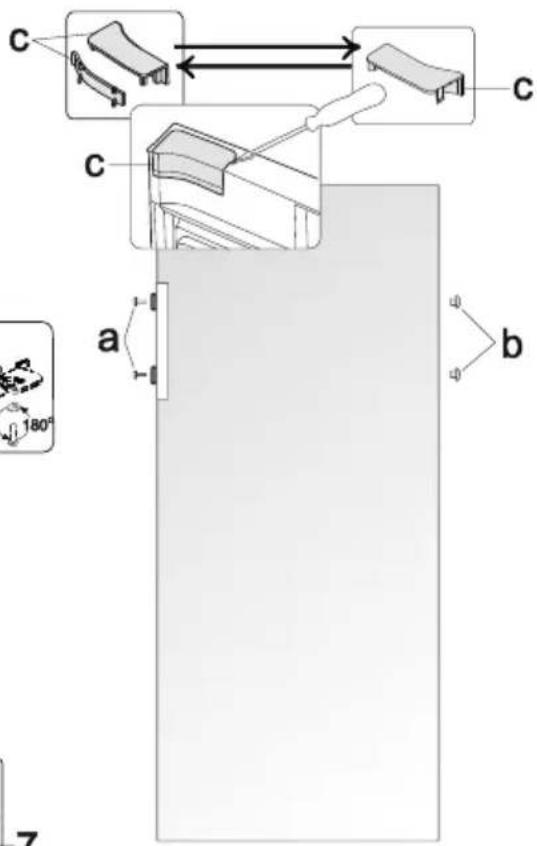

1. Re-insert the hinge bolt of the bracket 6 into the refrigerator door.
2. Fit the four covers C over the bracket and the openings. Take out the cover 10 from the lower panel 1 and replace it on the opposite side. Replace the panel 1 on the appliance.
3. Remove the screw covering caps a and the sealing plugs b.
4. Take out the screws holding the door handle. Fit the handle on the opposite side, using the fi xing screws to secure it. Push the sealing plugs (provided) into the now empty openings in the door and replace the covering caps on the screw heads.
5. Remove the cover 10 from the lower cover 1 and insert it into the guides on the other side of the lower cover (symmetrical to the previous position). Insert the left and right legs of the lower cover 1 into the holes (see figure) and slide until the cover locks in place.

Wait for about 30 minutes before it is connected to the mains. If the unit has been tilted to more than 30^ , wait for about 4 hours before re-connecting it to the mains.

OPERATION PROBLEMS AND THEIR SOLUTIONS

• The appliance is plugged in to the mains but it does not work. Check that your house electricity supply installations are in order. Check that the plug is correctly inserted into the electricity supply socket.
• The noise has become louder. Check that the appliance is standing stable, on a level place. To make it level, regulate the front feet. Check if the appliance is not touching any furniture, and that no part of the refrigeration system at the back part of the appliance body is touching the wall. Pull the appliance away from any furniture or walls. Check that the cause of increased noise isn't due to bottles, cans or dishes in the appliance that might be touching each other.
• Water has appeared at the bottom of the refrigerator compartment. Check whether a thaw water channel space isn't blocked. Clean the thaw water channel space with a cleaner intended for that purpose.
• Water has appeared under the appliance. The thaw water collection tray has slipped off the compressor. Place the tray on top of the compressor.
• When the appliance door is opened, the rubber sealing gasket pulls out. The gasket is smeared with sticky foodstuffs (fat, syrup). Clean the sealing gasket and the groove for it with warm water containing soap or dishwashing detergent and wipe dry. Put the rubber sealing gasket back into the place.
• High temperature in appliance, the compressor operation pauses are short. Ascertain whether the appliance door is shutting tightly, whether the door wasn't kept open longer than necessary when taking out or putting in foodstuffs, or whether a large amount of warm food was placed in the appliance.
• The top of the appliance has condensation on it. The ambient relative air humidity is above 70 %. Ventilate the room where the appliance stands, and if possible, remove the cause of the humidity.

Remarks on the appliance operating noise. As the appliance operates and goes through the freezing cycle, various noises will be emitted. This is normal and is not a sign of any malfunction. As the refrigerant circulates around the refrigeration system, it causes sounds like murmuring, bubbling, or rustling. Louder sounds like popping or clicking may be heard for a short time as the refrigerator's compressor switches on.

ENVIRONMENTAL PROTECTION INFORMATION

Important Note:

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local authority, your household waste disposal service or the retailer where you purchased the product.

If you decided to scrap the appliance, make it impossible to use in order to prevent possible misadventure. Pull out the electric plug from the electricity supply socket and then cut off the cord. Tear off the gasket. Break the door lock if any.

Do not dismantle the appliance yourself. Pass it on to recycling companies.

Our packaging are made of environmentally friendly materials, which can be reused:

• The external packaging is made of cardboard/foil
• The FCKW free shape of foamed polystyrene (PS)
  • Polyethylene (PE) foils and bags

The refrigerants and foaming agents, which are 100% free of FCKW and FKW have been used for manufacturing our product. Therefore we are helping to protect the ozone layer and prevent the increase of greenhouse effects. Also, the innovative technology and environmentally friendly insulation help in reducing energy consumption.

N00CCNA-2

2022-02-08
