| Product Type | 55-inch LED TV |
| Brand | Nabo |
| Model | 55 UA7520 |
| Screen Size | 55 inches (139.7 cm) |
| Resolution | 3840 x 2160 (4K UHD) |
| Display Technology | LED-backlit LCD |
| Refresh Rate | 60 Hz |
| Smart TV Platform | Built-in (Android TV or similar) |
| Connectivity | HDMI (x3), USB (x2), Ethernet, Wi-Fi, Bluetooth |
| Audio Output | 2 x 10W speakers |
| Power Consumption | ~130 W (typical) |
| Standby Power | < 0.5 W |
| Weight (with stand) | ~15 kg |
| Weight (without stand) | ~14 kg |
| Dimensions (with stand) | 1230 x 770 x 250 mm |
| Dimensions (without stand) | 1230 x 710 x 80 mm |
| VESA Mount Pattern | 300 x 300 mm |
| Input Voltage | AC 100-240V, 50/60Hz |
| Remote Control | Included (batteries required) |
| Maintenance | Clean with a soft, dry cloth; avoid liquids |
| Safety | Keep away from heat sources and moisture; ensure proper ventilation |
| Spare Parts | Remote control, stand, power cord available through Nabo service centers |
| Repairability | Modular design; authorized service recommended for internal repairs |
| Warranty | 2 years (varies by region) |
Frequently Asked Questions - 55 UA7520 Nabo
How do I connect external devices to the Nabo 55 UA7520?
Use the HDMI ports for devices like game consoles or streaming boxes, and USB ports for media playback. Refer to the input labels on the back of the TV.
What is the screen resolution of the Nabo 55 UA7520?
The TV features 4K UHD resolution (3840 x 2160 pixels) for sharp and detailed images.
Can I mount this TV on a wall?
Yes, the TV is VESA compatible with a 300 x 300 mm pattern. Use a suitable wall mount bracket.

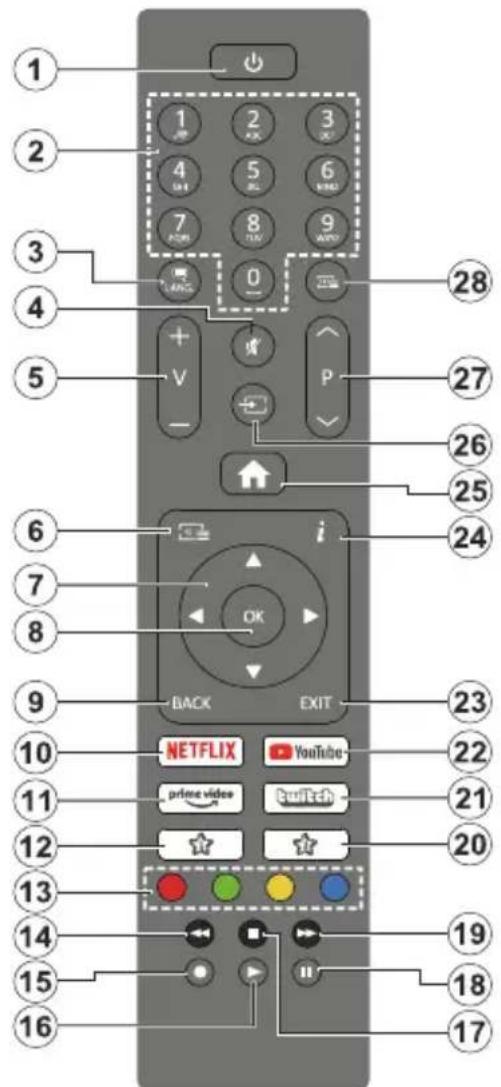

How do I access the smart TV features?
Press the Home button on the remote to open the smart platform interface. You can download apps and stream content.
What should I do if the TV doesn't turn on?

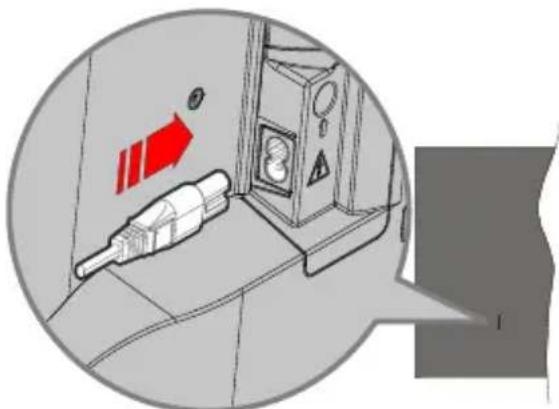

Check that the power cord is securely connected and the outlet is working. Try pressing the power button on the TV itself. If still off, contact support.
How do I clean the TV screen safely?
Use a soft, dry microfiber cloth to gently wipe the screen. Do not apply liquid directly; dampen the cloth slightly if needed.
Does the TV support Bluetooth headphones?
Yes, the Nabo 55 UA7520 has Bluetooth capability. Pair your headphones in the Bluetooth settings menu.
What is the power consumption of the Nabo 55 UA7520?
Typical power consumption is around 130 watts during use, and less than 0.5 watts in standby mode.
Can I use voice control with this TV?
If the TV runs Android TV, you can use Google Assistant via the remote or a compatible smart speaker.
Where can I find spare parts or accessories?
Contact Nabo customer service or visit authorized service centers for remote controls, stands, and power cords.
