Product Type	Wall-Mount Control Panel for BluOS Systems
Model	CP100
Brand	Bluesound Professional
Power Source	Power over Ethernet (PoE) IEEE 802.3af (up to 15.4 W, minimum 44 V DC)
Network Connection	Ethernet (10/100 Mbps) via LAN port
Controls	5 Preset buttons, Volume +/-, Play/Pause, LED indicator
Presets	5 programmable presets for radio stations, music streams, or playlists
Volume Control	Simultaneous volume adjustment of all grouped BluOS players
Playback Control	Play/Pause of grouped BluOS players
Primary/Secondary Volume	Supports primary and secondary volume control with multiple CP100 units
Configuration	Via BluOS Integration Utility App (Windows/macOS)
Firmware Upgrade	Check for upgrades via BluOS Integration Utility App
Keypad Lock	Yes, with temporary unlock (hold Play/Pause 30 sec)
Factory Reset	Hold Play/Pause during power-up until LED blinks red
LED Indicators	Red (booting/no network), Blue (connected normal)
Mounting	In-wall low voltage box (not supplied), bracket included
Operating Temperature	0°C to 35°C (32°F to 95°F)
Cleaning	Dry cloth only; no liquid cleaners
Safety Certifications	FCC Part 15 Class B, IC RSS, CE
Dimensions (Approx.)	Standard single-gang wall plate size (approx. 4.5 x 2.75 x 1.5 in)
Weight (Approx.)	0.3 lb (0.14 kg)

Frequently Asked Questions - CP100 Bluesound

How do I power the CP100?

The CP100 is powered via Power over Ethernet (PoE) using an IEEE 802.3af compliant Ethernet switch or injector. Connect an Ethernet cable from the PoE source to the LAN port on the CP100.

How do I set up the CP100 for the first time?

Install the bracket in an in-wall low voltage box, attach the CP100, and connect Ethernet with PoE. Download the BluOS Integration Utility App from bluesoundprofessional.com, launch it, and assign BluOS players to the CP100 via the app.

How many presets does the CP100 have and how do I use them?

The CP100 has 5 preset buttons (1-5). You can assign favorite radio stations, playlists, or music streams to each preset through the BluOS app. Pressing a preset triggers playback on all grouped BluOS players.

How do I factory reset the CP100?

Disconnect the Ethernet cable, then reconnect it. When the LED turns red, press and hold the Play/Pause (▶II) button. The LED will turn green, then red again. Hold until the LED blinks red (about 30 seconds), then release. The unit resets when the LED turns solid blue.

Can I lock the keypad to prevent accidental presses?

Yes, enable Keypad Lock in the BluOS Integration Utility App by checking the box and uploading. When locked, pressing any button causes the keypads to blink three times. To temporarily unlock, hold Play/Pause until all preset buttons flash once; keypads relock after 30 seconds of inactivity.

How do I control volume for multiple zones with the CP100?

You can set up Primary/Secondary Volume Control if you have more than one CP100. In the BluOS Integration Utility, assign the same group of players to both CP100s, then set one CP100 to control 'All' players (primary) and the other to control a specific secondary player.

What does the LED indicator mean?

The LED shows red when the CP100 is booting up or has no network connection, and blue when it is powered and connected to the network.

Can I use the CP100 with any BluOS player?

Yes, the CP100 works with any BluOS-enabled player on the same network. You assign which player(s) each CP100 controls via the BluOS Integration Utility App.

How do I update the firmware on the CP100?

In the BluOS Integration Utility App, select the CP100 and click Check for Upgrade. If a new firmware is available, follow the prompts to install it. Ensure the unit remains powered and connected during the upgrade.

What is the recommended placement and ventilation for the CP100?

Mount the CP100 in a standard in-wall electrical box. Ensure at least 10 cm (4 in) clearance around the unit for ventilation. Do not install near heat sources or in direct sunlight.

USER MANUAL CP100 Bluesound

CP100 Wallmount Control Panel Quick Setup Guide

WHAT'S IN THE BOX

IMPORTANT

• Download the latest CP100 Owner's manual from the Manuals/Downloads tab of www.bluesoundprofessional.com/product/CP100
• Visit support.bluesound.com for further information and assistance about getting the most out of your CP100.

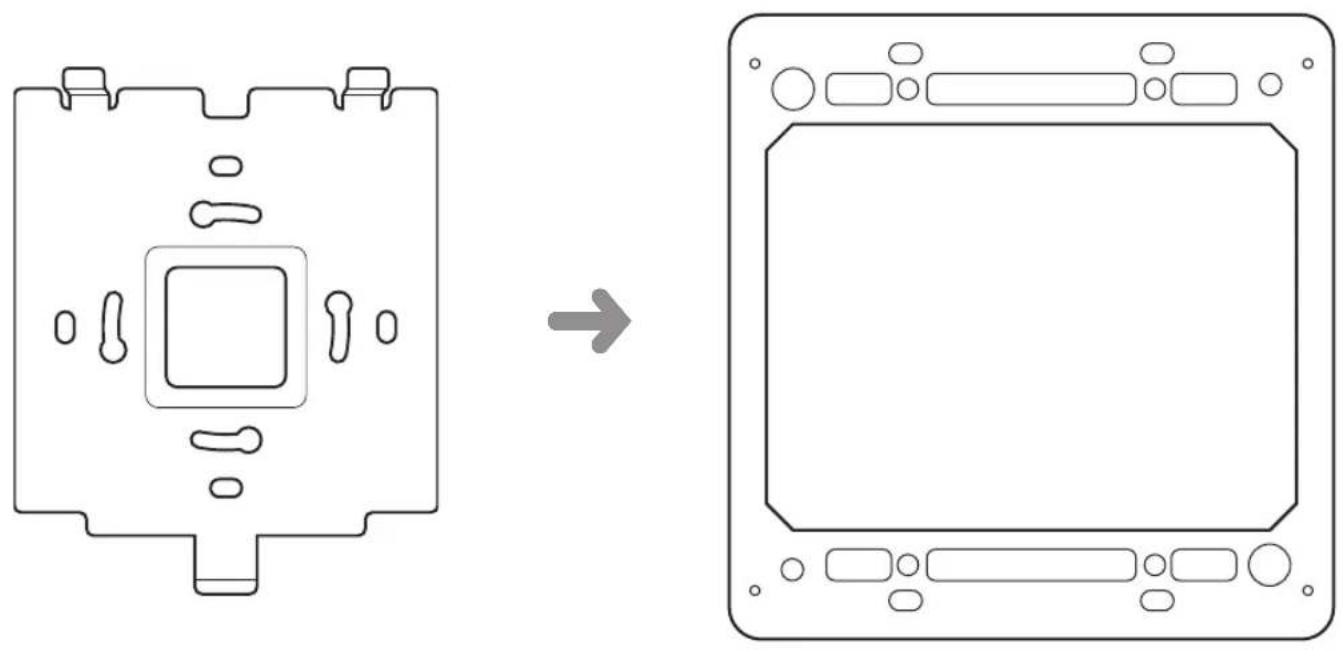

Diagram showing a device component before and after transformation, with no visible text or symbols.

Use compatible screws to install bracket to an in-wall low voltage box (not supplied).

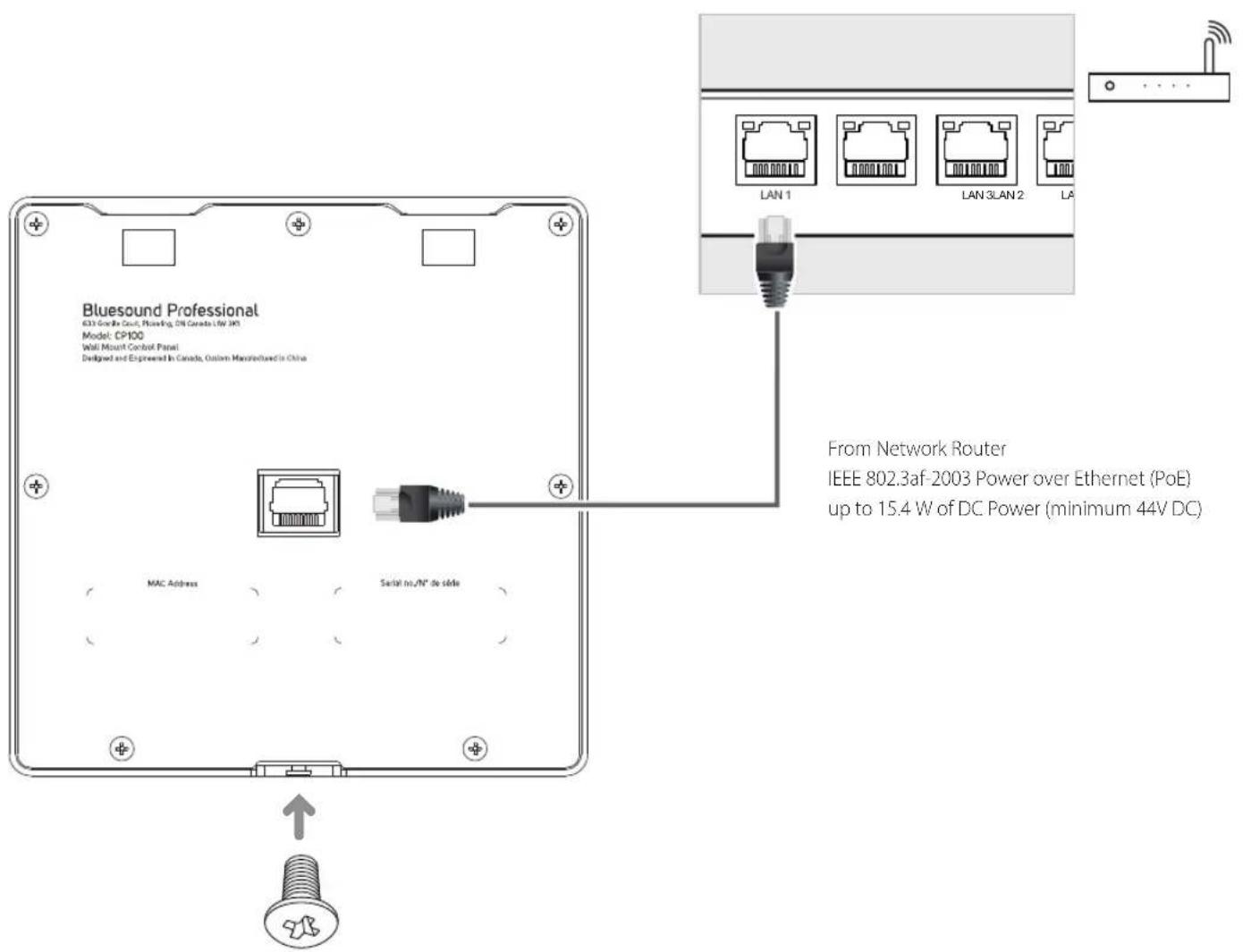

CONNECT AND POWER UP

Slot-in Control Panel to the bracket, secure with screw and connect Ethernet cable (not supplied).

BluOS INTEGRATION UTILITY APP

1 BluOS Integration Utility App for Windows or macOS is available for download from www.bluesoundprofessional.com/downloads
2 Scroll to the bottom of the page to download corresponding App.
3 Launch BluOS Integration Utility App.
4 Refer to CP100 owner's manual on how to configure the Control Panel.

CP100

Wallmount

Control Panel

Owner's Manual

• Read instructions - All the safety and operating instructions should be read before the product is operated.
• Retain instructions - The safety and operating instructions should be retained for future reference.
• Heed Warnings - At warnings on the product and in the operating instructions should be adhered to.
• Follow Instructions - All operating and use instructions should be followed.
• Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a dry cloth for cleaning.
• Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards.
• Water and Moisture - Do not use this product near water-for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.
• Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.
• Cart product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
• Ventilation - Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
• Power Sources - This product should be operated only from the type of power source indicated on the marking label and connected to a MAINS socket outlet with a protective earthing connection. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
• Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
• Mains Plug - Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
• Outdoor Antenna Grounding - If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
• Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power line surges.
• Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
  • Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
• Flame Sources - No naked flame sources, such as lighted candles, should be placed on the product.
• Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
• Headphones - Excessive sound pressure form earphones and headphones can cause hearing loss.

- Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power-supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the product.
• If the product has been exposed to rain or water.
• If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
• if the product has been dropped or damaged in any way.
• When the product exhibits a distinct change in performance—this indicates a need for service.

- Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

- Battery Disposal - When disposing of used batteries, please comply with governmental regulations or environmental public instruction's rules that apply in your country or area.

- Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

- Wall or Ceiling Mounting - The product should be mounted to a wall or ceiling only, as recommended by the manufacturer.

WARNING

THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED "DANCEROUS VOLTAGE" WITHIN THE PRODUCT'S ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS

THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

CAUTION REGARDING PLACEMENT

To maintain proper ventilation, be sure to leave a space around the unit (from the largest outer dimensions including projections) than is equal to, or greater than shown below.

Left and Right Panels: 10 cm

Rear Panel: 10 cm

Top Panel: 10 cm

Do not install near any heat sources such as radiators, heat registers, sloves, or other apparatus (including amplifiers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

The apparatus should only be used in moderate climates.

FCC STATEMENT

This equipment has been tested and found to comply with the limits for Class B, digital device, pursuant to Part '5 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for help.

CAUTION

• Changes or modifications to this equipment not expressly approved by Bluescund Professional for compliance could void the user's authority to operate this equipment.
• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1 this device may not cause harmful interference, and
2 this device must accept any interference received, including interference that may cause undesired operation.
- This device contains licence exempt, transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(e). Operation is subject to the following two conditions:

1 This device may not cause interference.

2 This device must accept any interference, including interference that may cause undesired operation of the device.

• To prevent electric shock, match wide blade of plug to wide slot, fully insert.
- Marking and rating plate can be found at the bottom enclosure of the apparatus.
- To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.
- Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.
- Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
- Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
• Operating temperature: 0-35 degrees Celsius

RESPONSIBLE PARTY

Lenbrook International

633 Granite Court

Pickering, ON LW 3K1

Canada

Tel: [phone]

MPE REMINDER

To satisfy FCC/IC RF exposure requirements, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation. To ensure compliance, operations at closer than this distance is not recommended.

IF IN DOUBT CONSULT A COMPETENT ELECTRICIAN.

This product is manufactured to comply with the radio interference requirements of EEC DIRECTIVE 2004/108/EC.

NOTES ON ENVIRONMENTAL PROTECTION

At the end of its useful life, this product must not be disposed of with regular household waste but must be returned to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user's manual and packaging point this cut.

The materials can be reused in accordance with their markings. Through re-use, recycling of raw materials, or other forms of recycling of old products, you are making an important contribution to the protection of our environment.

Your local administrative office can advise you of the responsible waste disposal point.

INFORMATION ABOUT COLLECTION AND DISPOSAL OF WASTE BATTERIES (DIRECTIVE 2006/66/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL OF EUROPEAN UNION) (FOR EUROPEAN CUSTOMERS ONLY)

Pb

Batteries boaring any of these symbols indicate that they should be treated as "separate collection" and not as municipal waste. It is encouraged that necessary measures are implemented to maximize the separate collection of waste batteries and to minimize the disposal of batteries as mixed municipal waste.

Hg

End-users are exhorted not to dispose waste batteries as unsorted municipal waste. In order to achieve a high level of recycling waste batteries, discard waste batteries separately and properly through an accessible collection point in your vicinity. For more information

about collection and recycling of waste batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

By ensuring compliance and conformance to proper disposal of waste batteries, potential hazardous effects or human health is prevented and the negative impact of batteries and waste batteries on the environment is minimized, thus contributing to the protection, preservation and quality improvement of the environment.

WHAT'S IN THE BOX

Packed with your CP100 you will find

• Bracket
• One screw to secure and fix CP100 with the bracket
• Quick Setup Guide

QUICK START

Refer to the supplied CP100 Quick Setup Guide for basic instructions in setting up your new Bluesound Professional CP100.

FACTORY RESET

CP100 can be factory reset or restored to factory default settings using the following method.

1 Disconnect from CP100 LAN port the Ethernet cable that is connected to an Ethernet broadband router with Power over Ethernet (PoE).
2 Reconnect Ethernet cable to CP100 LAN port and when LED indicator turns red, press and hold ▶II (PLAY/PAUSE). Do not release hold of ▶II (PLAY/PAUSE) – LED indicator turns green and then back to red.
3 After about 30 seconds of holding down ▶II (PLAY/PAUSE), LED indicator blinks red.
4 Release ▶II (PLAY/PAUSE) as soon as LED indicator blinks red.
5 Factory reset is completed once LED indicator turns solid blue.

IMPORTANT NOTES

Releasing ▶ II (PLAY/PAUSE) at any time before LED indicator starts flashing red will cancel the factory reset and leave the CP100 at Upgrade Mode. Just start again the procedure for Factory Reset.

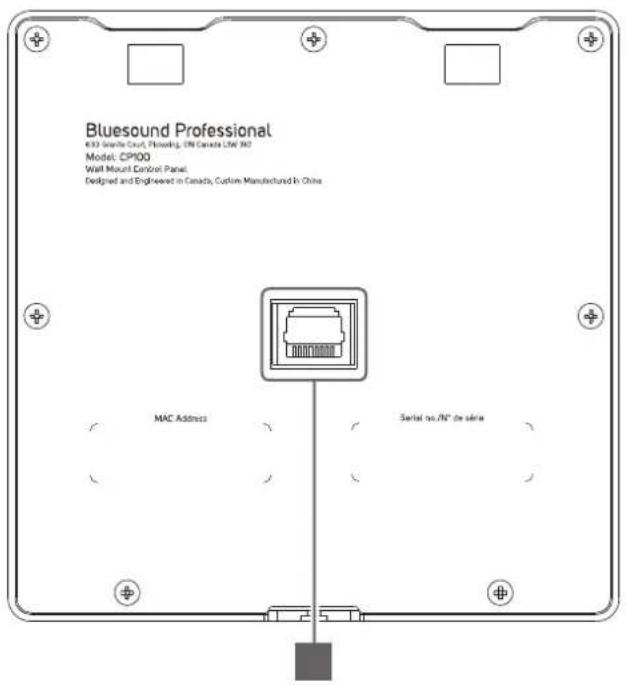

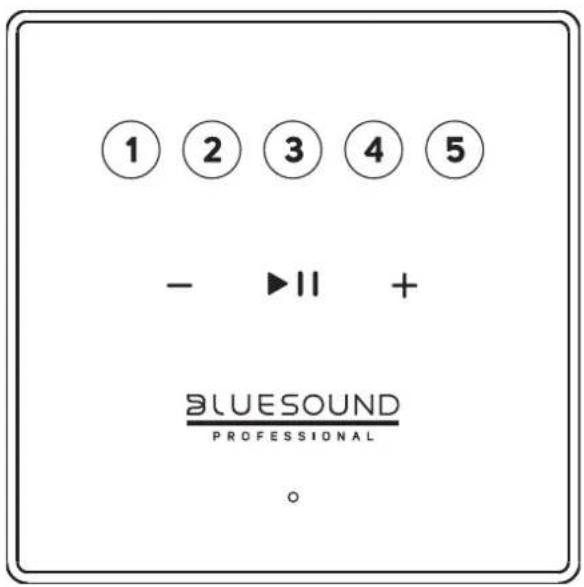

1 LAN PORT

- Using a standard straight-through Ethernet cable (not supplied), connect one end of the Ethernet cable to the LAN port of your Ethernet broadband router with Power over Ethernet (PoE) and the other end to CP100's LAN port. It is understood that the Ethernet cable from the router to CP100 will run through the in-wall low voltage box where the CP100 bracket is installed.

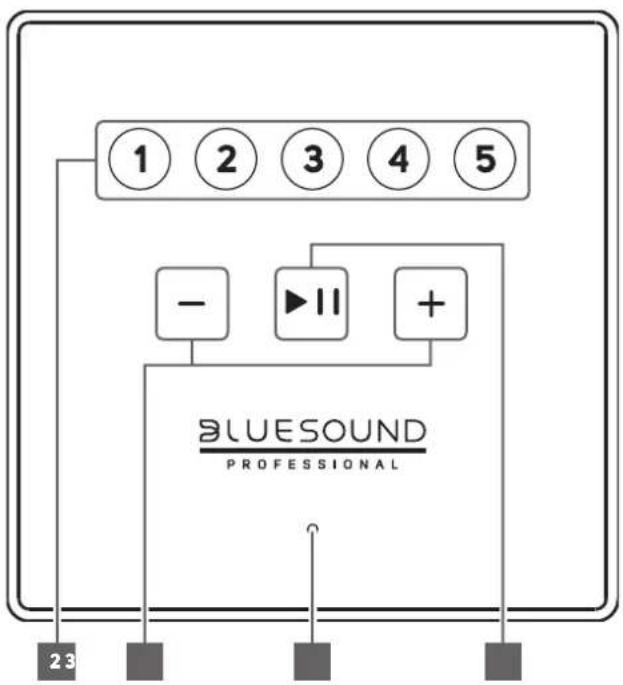

2 PRESET1-5

• Select any of the 5 Preset numbers to immediately recall and playback your favorite radio stations, music streams or playlists saved on the Preset selected.
• Ensure that you have created Presets in the BluOS device(s) integrated in your CP100 setup.
• When a Preset is selected, for example Preset 2, the BluOS devices integrated in your CP100 setup will simultaneously playpack their respective Preset 2s.

3 + / - (VOLUME)

- Press “+” or “-” to simultaneously increase or decrease the volume level of the BluOS devices integrated in your CP100 setup.

4 LED INDICATOR

• This indicator will light up red when CP100 is booting up or has no network connection.
• When CP100 is powered up and has established network connection, this indicator will illuminate blue.

5 ▶ II (PLAY/PAUSE)

- Press "▶II" to play or pause playback of the BluOS devices integrated in your CP100 setup.

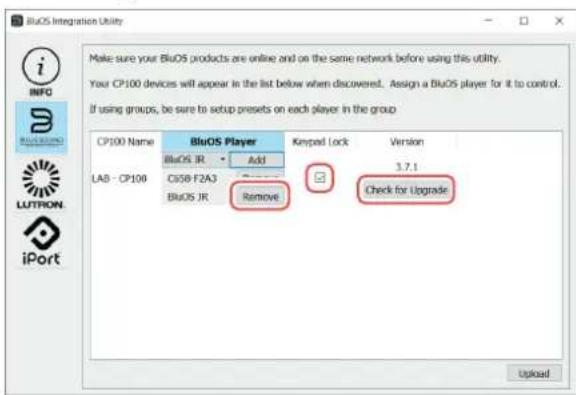

SETUP

Setup your CP100 via the BluOS Integration Utility App, which can be downloaded from www.bluesoundprofessional.com/product/CP100. Windows or macOS versions of the BluOS Integration Utility App are available. Launch the BluOS Integration Utility App.

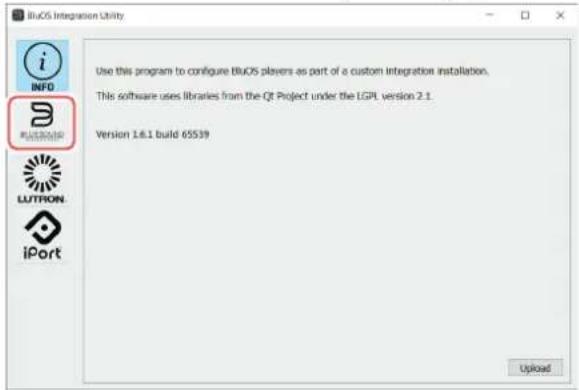

1 Select Bluesound icon from the BluOS Integration Utility app.

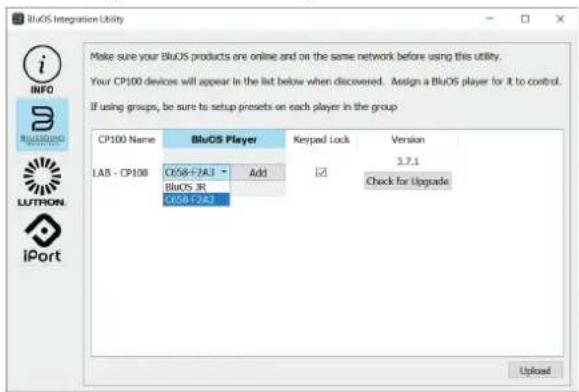

2 BluOS products that are online and on the same network as your CP100 will appear under "BluOS Player" column.

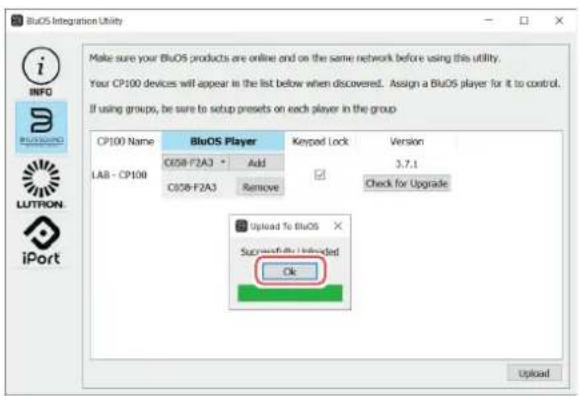

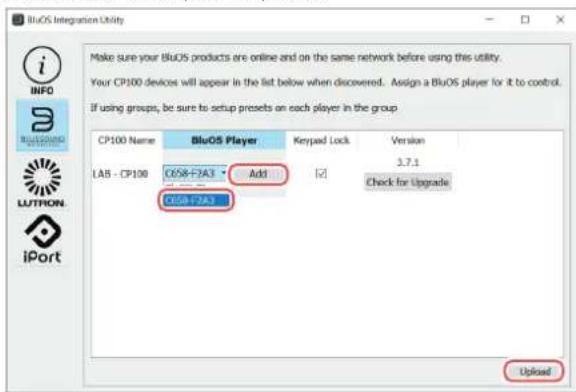

3 Use the drop down tab to select and "Add" a BluOS Player, "Upload" and then "OK" to complete the process.

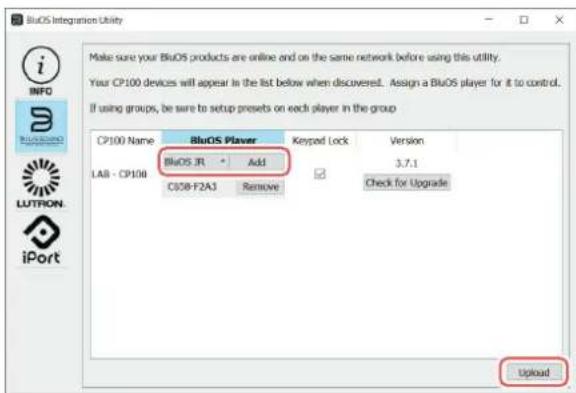

4 Repeat the same process to add more BluOS Player discovered in the same network.

5 The following features can also be configured via the BluOS Integration Utility App.

• Remove: If you would like to remove a BluOS Player from the CP100 setup, select "Remove", then "Upload" and "OK".
• Keypad Lock: Select the checkbox for "Keypad Lock" to lock (check mark) or unlock (no check mark) the CP100 Control Panel, then "Upload" and "OK". With the keypads locked, the keypads will blink three times whenever any of the keypads are pressed.
• Temporarily unlock keypads via Control Panel: Press and hold "▶II" of the CP100 Control Panel until all Preset 1 – 5 keypads flash once. All keypads in the Control Panel are now operational. The keypads will lock-up again after 30 seconds of non-user interface activity.
• Check for Upgrade: Select "Check for Upgrade" to check if any firmware upgrade is available.

CP100 PRIMARY/SECONDARY VOLUME CONTROL

• Primary and secondary volume control is available when more than one CP100 is in use.
  • The players you want to control must already be in groups.
• Operation of primary and secondary volume control requires the players to be in temporary groups. Fixed groups are not supported since they do not show primary/secondary player control in dropdown menu.
• This feature requires version 1.6.1 or later of the BluOS Integration Utility app.

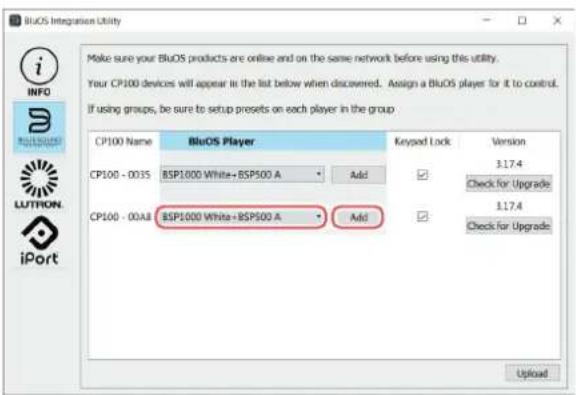

EXAMPLE USING A BSP1000 WHITE, AND BSP500 A

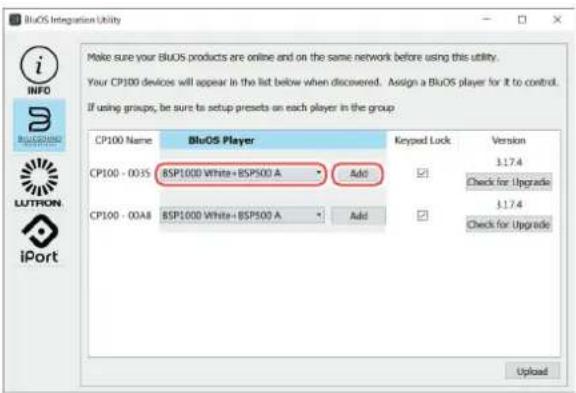

• Select a group of players for CP100 #1. (Players must be in a temporary group, fixed groups are not supported.)
• Click 'Add'.

• Select the same group of players for CP100 #2. (Players must be in a temporary group, fixed groups are not supported.)
• Click 'Add'.

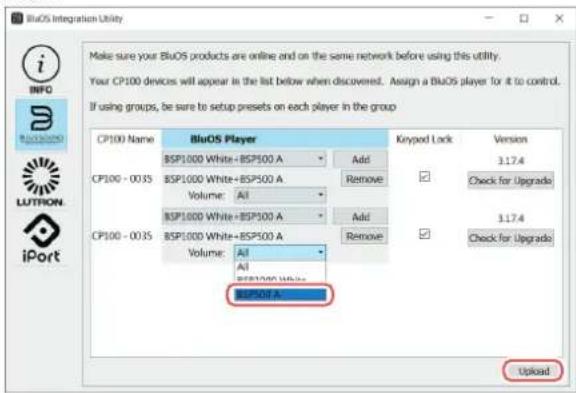

TO CONTROL PRIMARY/SECONDARY PLAYERS

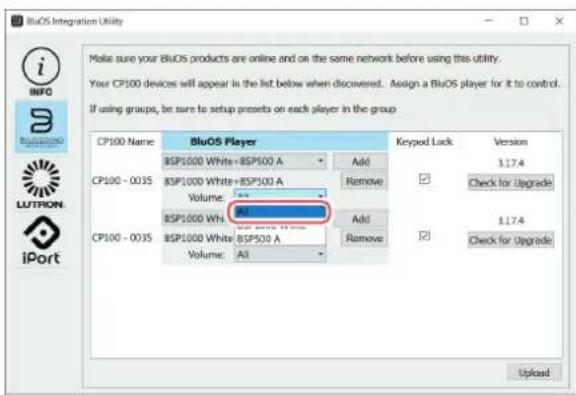

- Click the "Volume" dropdown for CP100 #1 and select "All"

- Click the 'Volume' dropdown for CP100 #2 and select a secondary player.

- When configuration choices are complete click "Upload" and then "OK" to complete the process.

TO RESTORE ORIGINAL SETUP

• Collapse group
• Reassign CP100's to individual players. The players may not go automatically to previous setup.

BLUESOUND

PROFESSIONAL

www.bluesoundprofessional.com

©2023 BLUESOUND INTERNATIONAL

A DIVISION OF LENBROOK INDUSTRIES LIMITED

All rights reserved. Bluesound International, Bluesound Professional, Bluesound, the sligued wordmark and "B" logolytic and other Bluesound product names and leglins are trademarks or registered trademarks of Bluesound International, a division of Lenbrook Industries Limited.

No part of this publication may be reproduced, stored or transmitted in any form without the written permission of Bluescound International.

While every offer has been made to ensure the contents are accurate at the time of publication, features and specifications may be subject to change without prior notice.
