CeraGlide T22014 - Steam cleaner Tower - Free user manual and instructions

Product Type	Garment Steamer
Brand	Tower
Model	CeraGlide T22014 (T22014RGB / T22014BLU)
Power Consumption	1000 W
Voltage	220-240 V ~50/60 Hz
Water Tank Capacity	Approx. 200 ml
Heating Time	Approx. 1-2 minutes
Steam Control	Manual trigger
Attachments	Brush attachment
Indicator	Red power-on indicator
Safety Features	Do not immerse, use on stable surface, keep away from children
Usage	Household use only
Warranty	1 year (extendable to 3 years with registration)
Maintenance	Descaling with vinegar solution recommended
Cleaning	Wipe exterior with damp cloth; do not use abrasives
Storage	Store upright in cool, dry place
Dimensions (approx)	27 x 12 x 9 cm
Weight (approx)	0.8 kg
Cord Length	Approx. 1.8 m

Frequently Asked Questions - CeraGlide T22014 Tower

How do I fill the water tank?

Unplug the steamer. Press the tank release button to detach the water tank. Remove the pressure cap at the back, fill with fresh water up to the Max fill line, then replace the cap and slot the tank back until it clicks.

Why is the unit making a loud noise?

The water tank may be running low or there is limescale build-up. Refill the tank or descale the unit as per the cleaning instructions.

Why is there no steam coming out?

This may be due to an airlock if the unit hasn't been used for a while. Press and hold the steam trigger for about 1 minute to push water through the pipe. Also ensure the unit is fully heated and the water tank is not empty.

How do I descale the steamer?

Fill the tank with a mixture of equal parts water and vinegar (white wine vinegar, cider vinegar, or lemon juice). Let it heat up and stand for 30-40 minutes, then empty and rinse thoroughly with water.

Can I use the steamer on all fabrics?

The steamer is suitable for most fabrics. For optimum results, keep a distance of at least 5 cm between the nozzle and the fabric.

What does the flashing red light mean?

The red power indicator flashes while the unit is heating up. It goes out once the water reaches the correct temperature, indicating the steamer is ready for use.

Can I use the steamer without water?

No, operating the steamer without water can damage the unit. Always ensure the water tank is filled before use.

How do I attach the brush accessory?

Line up the hole at the bottom of the brush with the tab under the steam nozzle and push until it locks. Then push the top part of the brush back until it slots into the main body.

What should I do if the unit leaks water?

The unit may not have heated up fully. Allow it to heat until the indicator light goes out before pressing the steam trigger.

How long is the warranty?

The steamer comes with a 1-year guarantee from the date of purchase, extendable to 3 years if you register online at www.towerhousewares.co.uk within 28 days.

USER MANUAL CeraGlide T22014 Tower

SAFETY AND INSTRUCTION MANUAL

PLEASE READ CAREFULLY

*Subject to registering your Extended Guarantee online at www.towerhousewares.co.uk.

Towerbrand

GREAT BRITISH DESIGN, INNOVATION AND EXCELLENCE SINCE 1912

Since the turn of the 20th century, Tower has been designing, developing and manufacturing housewares and small appliances used by millions of households throughout the UK and beyond. During the 1960s, the rise in popularity of pressure cooking saw Tower become the UK's largest producer of pressure cookers, right through into the late 1980s. In recent years the Tower brand has been reborn with an exciting and varied range of housewares and electrical appliances that have quickly reinstated the brand's richly deserved status as a household name.

TOWER

Visit

www.towerhousewares.co.uk

for more fantastic products.

©

1 - Specifications:

This box contains: Instruction Manual Garment Steamer Brush Attachment

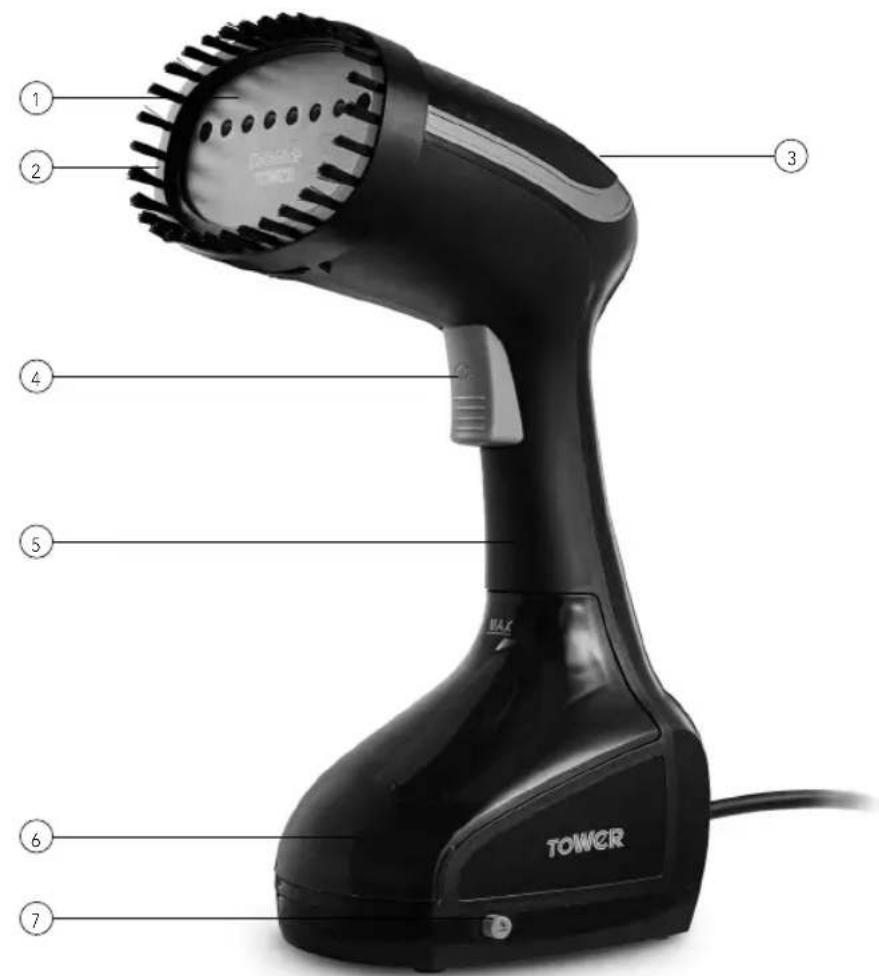

Structure of your appliance:

1. Nozzle panel
2. Brush
3. Power Indicator

4. Switch

5. Handle

6. Tank
7. Water tank release button

2 - Technical Data:

Description: Garment Steamer

Model: T22014RGB/T22014BLU

Input: 220-240V \~50/60Hz

Power Consumption: 1000W

Documentation

We declare that this product conforms to the following product legislation in accordance with the following directive(s):

2014/30/EU Electromagnetic Compatibility Directive.

2014/35/EU Low Voltage Directive.

2011/65/EU Restriction of Hazardous Substances Directive.

2009/125/EC Eco-Design of Energy Related Products.

RK Wholesale LTD Quality Assurance, United Kingdom.

3 - Important Safety Information:

Please read these notes carefully BEFORE using your Tower appliance

• Check that the voltage of the main circuit corresponds with the rating of the appliance before operating.
• Please ensure that the appliance is used on a stable, level, and heat resistant surface.
  • DO NOT immerse cords, plugs or any part of the appliance in water or any other liquid.
  • DO NOT leave the appliance unattended while it is operating.
• Close supervision is necessary when any appliance is used by or near children or pets.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children should not play with the appliance.
• Cleaning and user maintenance should not be made by children without supervision.
- Switch off at the wall socket then remove the plug from the socket when not in use or before cleaning.
- If the supply cord or appliance is damaged, stop using the appliance immediately and seek advice from the manufacturer or its service agent or a similarly qualified person.
- DO NOT let the cord hang over the edge of a table or counter or let it come into contact with any hot surfaces.
- The use of accessory attachments is not recommended by the appliance manufacturer, apart from those supplied with this product. DO NOT use extension cords with the appliance.

• DO NOT pull the plug out by the cord as this may damage the plug and/or the cable.
• DO NOT use this product for anything other than its intended use.
  • This appliance is for household use only.
  • DO NOT carry the appliance by the power cord.
  • DO NOT use the appliance outdoors.
• The temperature of accessible surfaces may be high when the appliance is operating.
• DO NOT let the cord touch any hot surfaces, such as stovetops, etc.

• NOTE: The steam head gets extremely hot during operation. NEVER touch the steam head when the unit is turned on.

• The manufacturer does not accept responsibility for any damage or injury caused by improper or incorrect use.

• In the unlikely event the appliance develops a fault, stop using it immediately and seek advice from the Customer Support Team: [phone]

4 - Before First Use

1. Remove your appliance from the packaging and carefully check the contents against the parts list.
2. Check that there is no damage to the cord or any visible damage to the body.
3. Dispose of the packaging in a responsible manner.
4. Remove any stickers or labels from the appliance
5. Stand the steamer upright and straighten the cord.
6. Before first use, turn the steamer on for a few minutes. This will help remove any impurities and odours resulting from the manufacturing process. Once the steamer has been purified, test it on an old piece of fabric to ensure the plate and water tank are clean of any residue.
7. To avoid a circuit overload, do not use the steamer with an extension socket.

5 - Using Your Appliance

Filling the tank with water:

CAUTION! Before filling the tank with water make sure the appliance is unplugged.

1. To use the unit, start by filling up the water tank located at the bottom.

2. To fill up the water tank, first press the tank release button on the side of the unit to detach it from the main body of the steamer.

3. Once the water tank has been detached from the steamer, remove the pressure cap from the filling hole at the back of the water tank. To do this, insert a finger or fingernail into the small space at the top of the water tank cover and pull it firmly away from the main body of the unit. Once the water tank cover has been removed, fill the tank with fresh water. To ensure optimum performance, be careful not to fill the tank above the Max fill line.

Note: It is not necessary to undo the screws at the back of the water tank to fill it. DO NOT loosen any screws or attempt to disassemble the water tank.

1. When the tank has been filled with water, replace the pressure cap and slot the tank back into the main body of the unit until it clicks into place.

2. The steamer is now ready for normal use.

Note: When the water tank is empty or there is a build-up of limescale inside, the unit's operation will become noisier than usual and steam will stop emitting from the steam nozzle. When this occurs, re-fill the water tank or de-scale the unit as detailed in the 'Cleaning and Care' section of this instruction manual.

To start using the garment steamer:

1. Fill the tank with water, as detailed above.
2. Once the tank has been filled and replaced into the main body of the steamer, plug the unit into an active mains socket. The red light-up indicator at the top of the steamer will begin to flash to indicate the unit is powered up and the heat-up process has begun.
3. When the water inside the unit reaches the correct temperature, the red light-up indicator will go out. The steamer is now ready for use.
4. When the steamer is ready, press the trigger at the front of the unit to begin releasing steam. The motor unit will vibrate slightly and steam will start emitting from the front nozzle.

Note: For optimum results, keep a distance of at least 5cm between the steamer and the garment or fabric.

1. The unit will now operate continuously until the trigger is released or the unit is unplugged from the mains.

The Brush Attachment:

1. This appliance is complete with a brush attachment, ideal for use with suits and other similar garments.
2. To attach the brush to the main unit, line up the hole at the bottom of the attachment with the small tab underneath the steam nozzle and push it in until it locks into place.
3. Once the underside of the brush is firmly secured into place, push the top part of the attachment up and back until it slots into place on the main body of the unit.
4. The brush attachment is now ready for normal use.

Note: Ensure the attachment is firmly secured before attempting to use it.

6 - Troubleshooting

Problem Solution

No operation.	·Ensure the appliance is plugged into the mains and that the socket switch is in the ON position.·Ensure the water tank has been filled.·If using the unit for the first time or after a long period, press the steam trigger for approximately 1 minute before using the unit. This helps push the water through the steam pipe.·Check that the fuse is not damaged. Replace the fuse if necessary.
The unit is vibrating and making a loud noise.	·The water tank is running low. Refill the water tank as detailed in the ‘Filling the Water Tank’ section.·There may be limescale in the water tank. De-scale the unit as instructed in the ‘Cleaning and Care’ section of this instruction manual.
There is a strange smell emitting from the unit on first use.	·This is normal. The smell derives from oils used during the manufacturing process, and will fade away after a few uses.
The unit is leaking.	·The unit has not heated up sufficiently yet. Allow the unit to heat up fully before attempting to use.
White flakes are coming out of the steam holes during operation.	·There is limescale in the water tank. De-scale the unit as instructed in the ‘Cleaning and Care’ section of this instruction manual.
The unit is in operation but there is no steam.	·If the unit has not been used for a while, an airlock may have formed. Press the steam trigger for approximately 1 minute before using the unit. This helps push the water through the steam pipe.·There may be limescale in the water tank. De-scale the unit as instructed in the ‘Cleaning and Care’ section of this instruction manual.·The unit has not heated up sufficiently yet. Allow the unit to heat up fully before attempting to use.

©

Removing Limescale Build-up:

If using a cleaning solution make sure to follow the instructions.

Natural Cleaning Method for Limescale Removal:

• Fill the unit with equal parts water and vinegar (white wine vinegar, cider vinegar or lemon juice work particularly well). Allow the unit to heat up (pay attention that the contents do not boil over) and let it stand for 30-40 minutes.
• When finished empty the unit and rinse it with water.
• The unit should now be free from limescale and ready to be used again.

Clean the appliance regularly. This appliance contains no user serviceable parts and requires little maintenance. Leave any servicing or repair to qualified personnel.

• To clean, wipe the exterior with a slightly dampened soft cloth or sponge and dry with a cloth or paper towel.
• Do not use strong cleaners or abrasives that may scratch the surface, and never spray cleaners directly onto the unit.

Note: Empty the water tank after each use or when the unit will not be used for prolonged periods of time.

IMPORTANT!

Do not use the appliance if the surface is wet or damp. ALWAYS make sure the steam outlet holes are dry before storing the appliance.

Store the appliance upright in a cool, dry place, out of the reach of children.

WARNING:

Do not immerse any electrical part of the appliance in water such as motor units or plugs.

Please see cleaning section for further instructions.

©

10 - Warranty

As a thank you for purchasing one of our fantastic products, we are offering you an extra 2 years peace of mind in addition to your 1 year guarantee.

To receive your extra 2 year guarantee, register your appliance online within 28 days of purchase by visiting www.towerhousewares.co.uk

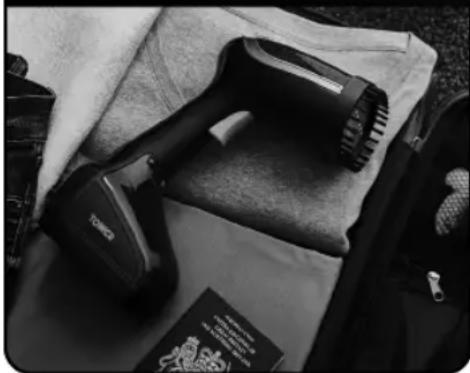

Black-and-white photo of a handheld device placed on a blanket with a small label (no visible text or symbols)

This product is guaranteed for 12 months from the date of original purchase. If any defect arises due to faulty materials of workmanship, the faulty products must be returned to the place of purchase. Refund or replacement is at the discretion of the retailer.

The Following Conditions Apply:

• The product must be returned to the retailer with proof of purchase or a receipt.
• The product must be installed and used in accordance with the instructions contained in this instruction guide.
• It must be used only for domestic purposes.
• It does not cover wear and tear, cosmetic damage, misuse or consumable parts.
• Tower has limited liability for incidental or consequential loss or damage.
  This guarantee is valid in the UK and Eire only.

The standard one year guarantee is only extended to the maximum available for each particular product upon registration of the product within 28 days of purchase. If you do not register the product with us within the 28 day period, your product is guaranteed for 1 year only.

To validate your extended warranty, please visit www.towerhousewares.co.uk and register with us online.

Please note that length of extended warranty offered is dependent on product type and that each qualifying product needs to be registered individually in order to extend its warranty past the standard 1 year.

Extended warranty is only valid with proof of purchase or receipt.

©

Notes

TOWER®

over 100 YEARS of quality

thank you!

We hope you enjoy your appliance for many years. As a thank you for purchasing one of our fantastic products, we are offering you an extra 2 years peace of mind.

*To receive your extra 2 years guarantee, register your appliance online within 28 days of purchase by visiting:

www.towerhousewares.co.uk

Should you have a problem with your appliance, or need any spare parts, please call our Customer Support Team:

[phone]

Your warranty becomes void should you decide to use non Tower spare parts. Spare parts can be purchased from www.towerhousewares.co.uk

3*

YEAR GUARANTEE

0220.V3
