U 8A - Subwoofer Helix - Free user manual and instructions
Find the device manual for free U 8A Helix in PDF.
| Product Type | Ultra-compact 8" active subwoofer |
| Brand | Helix |
| Model | U 8A |
| Woofer Diameter | 8" / 200 mm |
| Power Output RMS / Max | 180 / 360 Watts |
| Frequency Response | 45 - 150 Hz |
| Lowpass Filter | 50 - 150 Hz adjustable, 24 dB/Oct slope |
| Subsonic Filter | 16 Hz / 12 dB/Oct |
| Phase Adjustment | 0° / 180° switchable + 0-180° continuous shift |
| Input Sensitivity (Highlevel) | 1.2 - 20 Volts |
| Input Sensitivity (Line/RCA) | 0.3 - 4 Volts |
| Input Impedance (RCA) | 10 kOhms |
| Input Impedance (Highlevel) | 33 Ohms |
| Signal-to-Noise Ratio | >92 dB (A-weighted) |
| Distortion (THD) | < 0.4% |
| Operating Voltage | 10.5 - 16 Volts |
| Fuse Rating | 25 Ampere (Maxi-fuse APX) |
| Dimensions (H x W x D) | 78 x 245 x 345 mm / 3.07 x 9.65 x 13.58" |
| Housing Material | Diecast aluminum |
| Included Accessories | Mounting brackets, cable remote control, connection cables |
| Protection Features | Overheating, over/undervoltage, short-circuit protection (Protect LED) |
| Auto Remote Function | Automatic turn-on via high-level input (switchable on/off) |
| Inputs | 2 x RCA/Cinch, 2 x Highlevel speaker, 1 x Remote In, 1 x Remote Control |
| Recommended Wire Gauge (Power) | 4 mm² / AWG 12 (short runs) or 6 mm² / AWG 10 (longer runs) |
Frequently Asked Questions - U 8A Helix
User questions about U 8A Helix
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Subwoofer in PDF format for free! Find your manual U 8A - Helix and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. U 8A by Helix.
USER MANUAL U 8A Helix
Ultrakompakter 200 / 250 mm Aktiv-Subwoofer
Ultra-compact 8 / 10" active subwoofer
① Power & Protect LEDs
line
| Phase | Value | | --------- | ----- | | 0° | 0 | | 180° | 0 |⑥ Input Level
Kanal L = Links vorne
Congratulations on your purchase of this innovative and high-qual ity HELIX product.
The active subwoofer was developed according to the latest technical findings and is characterized by excellent workmanship and convincing sound.
Thanks to more than 30 years of experience in research and development of audio products this active subwoofer generation sets new standards.
We wish you many hours of enjoyment with your new HELIX active subwoofer.
Yours,
AUDIOTEC FISCHER Team
General instructions
General installation instructions for HELIX components
To prevent damage to the unit and possible injury, read this manual carefully and follow all installation instructions. This product has been checked for proper function prior to shipping and is guaranteed against manufacturing defects.
Before starting your installation, disconnect the battery's negative terminal to prevent damage to the unit, fire and / or risk of injury. For a proper performance and to ensure full warranty coverage, we strongly recommend to get this product installed by an authorized HELIX dealer.
- Check that the space between the active subwoofer and other parts, such as the car seat etc., is sufficient.
- Take care that the mounting surface is flat and free from all obstructions.
- Ensure that the active subwoofer is correctly connected (phase), i.e. plus to plus and minus to minus.
- For safety reasons, the U 8A / U 10A must be professionally installed. Therefore, use the four mounting brackets which are included in delivery. These are attached to the bottom of the active subwoofer with two short screws which

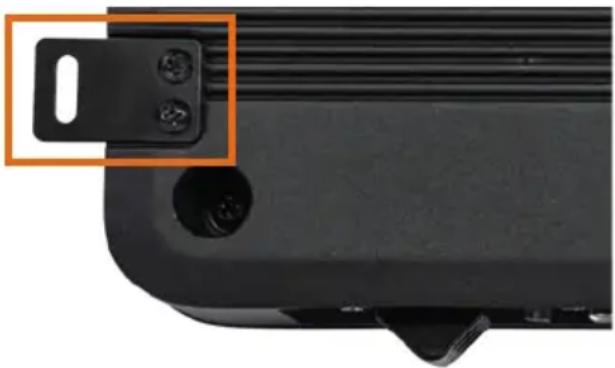

are included in delivery, too (see following picture).
-
Do not mount the active subwoofer where water may splash on it or close to heat-radiating parts and electronic controls of the vehicle.
-
The quality of the installation has a significant effect on the overall performance of the active subwoofer. Treat each installation step with a high degree of attention.
General instructions
General instructions for connecting HELIX activesubwoofers
The active subwoofer may only be installed in vehicles which have a 12 Volts negative terminal connected to the chassis ground. Any other system could cause damage to the HELIX U 8A / U 10A and the electrical system of the vehicle.
The positive cable from the battery for the complete system should be provided with a main fuse at a distance of max. 30 cm from the battery. The value of the fuse is calculated from the maximum total current input of the car audio system.
Use only suitable cables with sufficient cable cross-section for the connection of the active subwoofer. The fuse may only be replaced by an identically rated fuse (25 A) to avoid damage of the active subwoofer. Higher values can lead to dangerous consequential damage!
We recommend that you perform a short function test at low volume to ensure that the active subwoofer is functioning correctly before final installation.
Prior to installation, plan the wire routing to avoid any possible damage to the wire harness. All cabling should be protected against possible crushing or pinching hazards. Also avoid routing cables close to potential noise sources such as electric motors, high power accessories and other vehicle harnesses.
Attention: Ensure that the active subwoofer is correctly connected (phase), i.e. plus to plus and minus to minus.

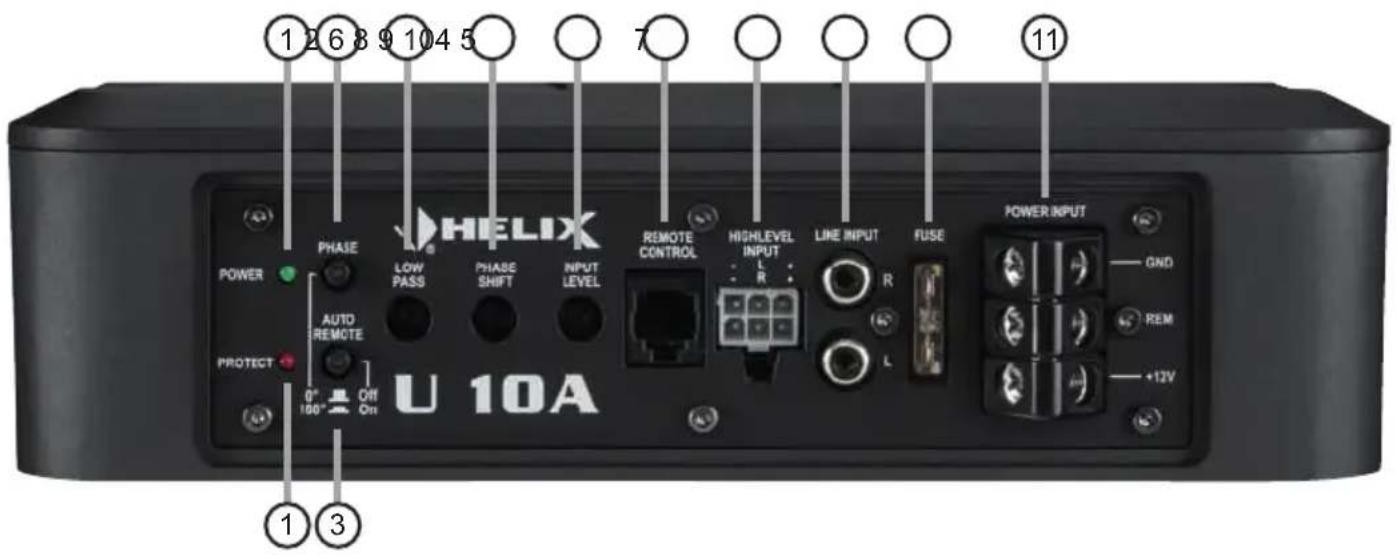

Connectors and control units

① Power & Protect LEDs
These LEDs indicate the operating mode of the active subwoofer.
② Phase
This switch allows to switch the phase between 0^ and 180^ .
③ Auto Remote
This switch allows to activate / deactivate the automatic turn-on feature via the highlevel inputs of the active subwoofer.
④ Lowpass
Control for adjusting the lowpass filter from 50 Hz to 150 Hz.
⑤ Phase Shift
Control for continuous fine tuning of the phase from 0° to 180°.
⑥ Input Level
Control for adjusting the input sensitivity of the lowlevel Line and Highlevel Inputs.
⑦ Remote Control
Input for connecting the included cable remote control for volume adjustment.
⑧ Highlevel Input
Highlevel speaker inputs for connecting a factory radio or an aftermarket radio without lowlevel line outputs.
⑨ Line Input
RCA inputs for connecting lowlevel line signals.
⑩ Fuse
Input fuse - 1 x 25 Ampere.
11 Power Input
Connector for the power supply and the remotecable.
Initial start-up and functions
① Power & Protect LEDs
The Power & Protect LEDs indicate the operating mode of the active subwoofer. If the Power LED lights green, the active subwoofer is switched on and ready for operation.
If the Protect LED lights up red a malfunction has occurred. A malfunction may have different causes as the HELIX U 8A/U 10A is equipped with different protection circuits. These protections shut off the active subwoofer in case of overheating, over- and undervoltage and false connection. Please check for connecting failures such as short-circuits, wrong connections, wrong adjustments and over temperature. If the active subwoofer does not turn on it is defective and has to be send to your local authorized dealer for repair service. A detailed description of the malfunction and the purchase receipt has to be attached.
② Phase
This switch is used to toggle the phase between 0^ and 180^ . This allows to match the phase of the active subwoofer with the other speakers thus avoiding any cancellations in the frequency response due to phase shifts. If the changeover does not lead to the desired result, a ne tuning can be done with control 5 (Phase Shift).
③ Auto Remote
The U 8A / U 10A will be turned on automatically if the Highlevel Input is used or if a signal is applied to the remote input (REM) terminal of the Power Input. The Auto Remote switch allows to activate / deactivate the automatic turn-on feature of the Highlevel Input. The feature should be deactivated (Auto Remote = Off) if there are e.g. disturbing noises while switching on /off the active subwoofer.
Note: If the automatic turn-on function is deactivated it is mandatory to use the remote input to power up the active subwoofer! The highlevel signal will be ignored in this case.

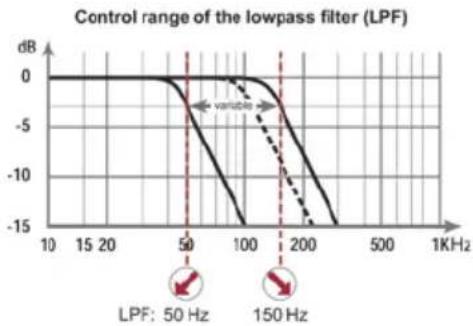

④ Lowpass
This control is used to adjust the crossover frequency of the lowpass lter from 50 Hz to 150 Hz. As a reasonable initial value for adapting the active subwoofer to the other loudspeaker systems, we recommend a setting of 100 Hz (center position of the control).

line
| Frequency | LPF: 50 Hz (dB) | LPF: 150 Hz (dB) | | --------- | --------------- | ---------------- | | 50 | 0 | -5 | | 100 | -5 | -10 | | 200 | -15 | -15 |⑤ Phase Shift

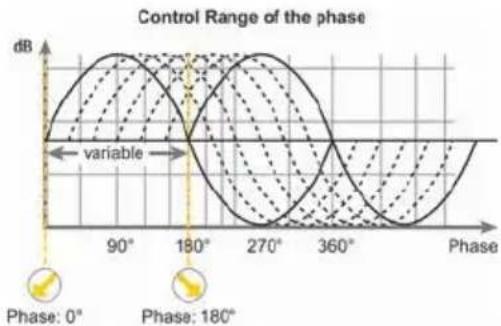

This control is used to one tune the phase from 0^ to 180^ if the phase adjustment with the Phase switch (see item 2) did not lead to the desired result.
Note: Always use the Phase switch first to adjust the phase.

line
| Phase | Value | | ----------- | ----- | | 0° | 0 | | 180° | 0 |⑥ Input Level
This control is used to adapt the input sensitivity to the output voltage of the connected signal source. The control range of the RCA / Line Input (lowlevel) is 0.3 - 4 Volts and 1.2 - 20 Volts for the Highlevel Input.
⑦ Remote Control
This input is used to connect the included cable remote control. The remote control allows you to control the volume of the active subwoofer.
⑧ Highlevel Input
2-channel highlevel loudspeaker input to connect the active subwoofer directly to the loudspeaker outputs of OEM / aftermarket radios that do not have any lowlevel line outputs.
If this input is used the remote input (REM) of the Power Input does not need to be connected as the active subwoofer will automatically turn on once a loudspeaker signal is applied.
Attention: Solely use the connection cable with the 6-pole connector and ying leads which is included in delivery!
Important: It is strictly forbidden to use the High-level Input and lowlevel Line Input at the same time. This may cause severe damage to the lowlevel line outputs of your car radio.
⑨ Line Input
2-channel lowlevel line input to connect signal sources such as head units / radios / DSPs.
Important: It is strictly forbidden to use the High-level Input and lowlevel Line Input at the same time. This may cause severe damage to the lowlevel line outputs of your head unit / car radio.
⑩ Fuse
The input fuse is connected in parallel and provide protection against an internal fault of the device, therefore the system must be additionally protected by a further main fuse located close to the battery (max. distance from battery: 30 cm / 12"). The HELIX U 8A / U 10A is equipped with a 25 Ampere fuse.
⑪ Power Input
This input is used for connecting the active subwoofer to the power supply of the vehicle and for the remote input.
+12 V: The +12 V supply cable must be connected to the positive terminal of the battery. The positive wire from the battery to the power terminal of the active subwoofer needs to have an inline fuse at a distance of less than 12 inches (30 cm) from the battery. The value of the fuse is calculated from the maximum total current draw of the whole car audio system. If your power wires are short (less than 1 m / 40") then a wire gauge of 4 mm² / AWG 12 will be sufficient. In all other cases we recommend a cross section 6 mm² / AWG 10!
GND: The ground cable (same gauge as the +12 V wire) should be connected to a common ground reference point (this is located where the negative terminal of the battery is grounded to the metal body of the vehicle), or to a prepared metal location on the vehicle chassis, i.e. an area which has been cleaned of all paint residues.
REM: The remote lead should be connected to the remote output / automatic antenna (aerial positive) output of the head unit / car radio. This is only activated if the head unit is switched on. Thus the active subwoofer is switched on and off together with the head unit / car radio. This input needn't to be assigned if the Highlevel Input is used.

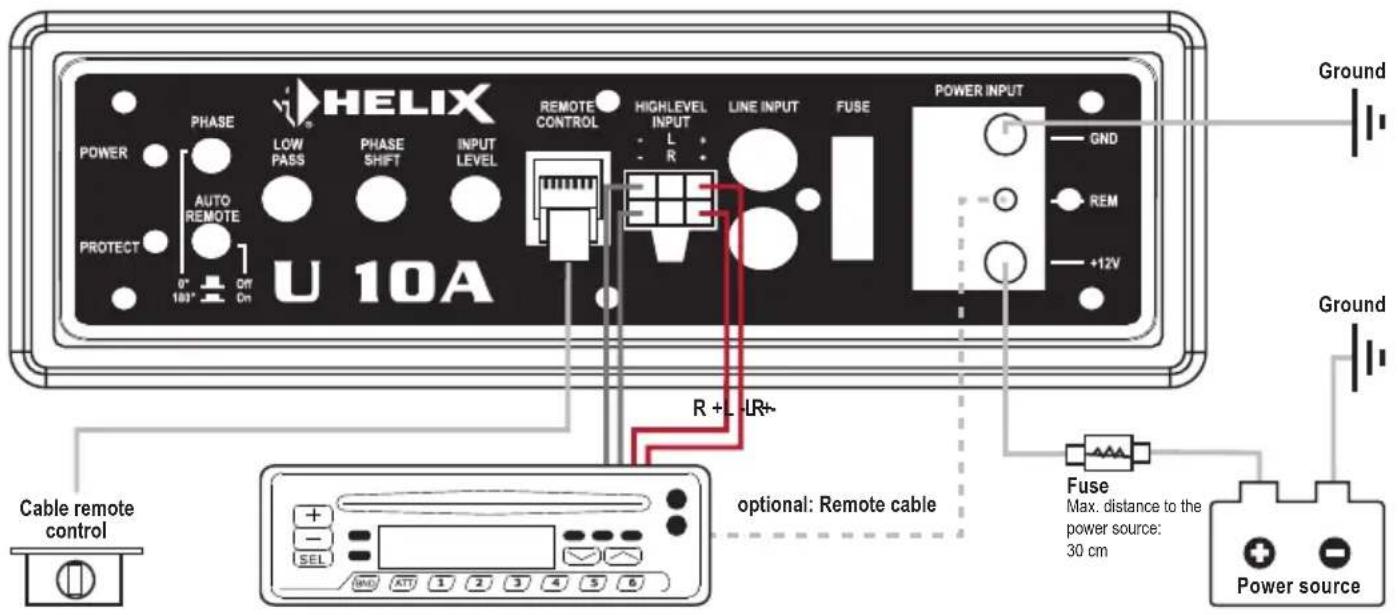

Option 1: Connecting the active subwoofer when using the highlevel inputs

Note: If the highlevel inputs are used as signal inputs, the remote input does not need to be connected as the active subwoofer will automatically turn on once a loudspeaker signal is applied. To do this, set the Auto Remote switch to "On" position. If there are any disturbing noises while switching on and off the active subwoofer, please use the remote input and set the Auto Remote switch to "Off" position.

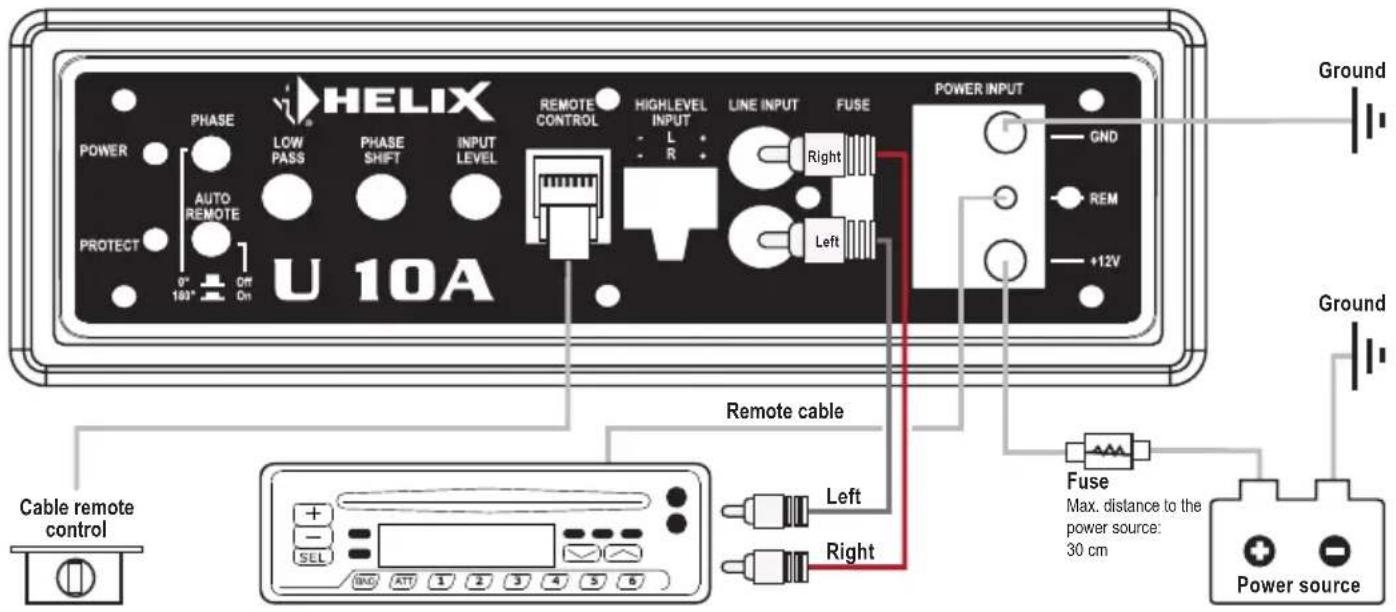

Option 2: Connecting the active subwoofer when using the RCA / Cinch inputs

Note: If the RCA / Cinch inputs are used as signal inputs, the remote input has to be used.
Connection of HELIX U 8A / U 10A to the head unit / car radio:
Caution: Carrying out the following steps will require special tools and technical knowledge. In order to avoid connection mistakes and / or damage, ask your dealer for assistance if you have any questions and follow all instructions in this manual (see page 11 et sqq.). It is recommended that this unit will be installed by an authorized HELIX dealer.
1. Connecting the highlevel speaker inputs
The highlevel loudspeaker inputs L and R can be connected directly to the loudspeaker outputs of an OEM or aftermarket radio using appropriate cables (loudspeaker cables with 1 mm^2 / AWG 18 max. ).
Actually it is not mandatory to use both highlevel speaker inputs. However, we recommend the following channel assignment:
Channel L = Front left
Channel R = Front right
Make sure that the polarity is correct. If one connection has reversed polarity it may affect the performance of the active subwoofer and the sound reproduction may be completely suppressed.
When using this input, the remote input (REM) does not need to be connected as the active subwoofer will automatically turn on once a loudspeaker signal is applied.
Important: It is strictly forbidden to use the HighlevelInput and lowlevel Line Input at the same time. This may cause severe damage to the lowlevel line outputs of your car radio.
2. Connecting the lowlevel line inputs
Use the correct cable (RCA / Cinch cable) to connect these inputs to the lowlevel line outputs of your car radio. It is not mandatory to use both lowlevel line inputs. However, we recommend to use both inputs.
The automatic turn-on circuit does not work when using the lowlevel line inputs. In this case the remote input (REM) has to be connected to activate the HELIX U 8A / U 10A.
3. Adjustment of the input sensitivity
Attention: It is mandatory to properly adapt the input sensitivity of the U 8A / U 10A to the signal source in order to avoid damage to the active subwoofer.
If you want to change the input sensitivity use the Input Level control (see page 14, item 6). The setting of the control affects both the low-level line inputs (LineInput) and the highlevel speaker inputs (Highlevel Input)!
4. Connection to power supply
Make sure to disconnect the battery before installing the HELIX U 8A / U 10A!
Connect the +12 V power cable to the positive terminal of the battery. The positive wire from the battery to the power terminal of the active subwoofer needs to have an inline fuse at a distance of less than 12 inches (30 cm) from the battery.
The value of the fuse is calculated from the maximum total current draw of the whole car audio system (U 8A / U 10A = max. 25 A RMS at 12 V power supply). If your power wires are short (less than 1 m / 40") then a wire gauge of 4 mm ^2 / AWG 12 will be sufficient. In all other cases we recommend a gauge of 6 mm ^2 / AWG 10!
The ground cable (same gauge as the +12 V wire) should be connected to a common ground reference point (this is located where the negative terminal of the battery is grounded to the metal body of the vehicle), or to a prepared metal location on the vehicle chassis, i.e. an area which has been cleaned of all paint residues.
5. Connecting the remote input
The remote input (REM) has to be connected to the radio remote output if the active subwoofers lowlevel line inputs are used as signal inputs. We do not recommend controlling the remote input via the ignition switch to avoid pop noise during turn on/off.
If the Highlevel Input is used this input does not need to be connected as long as the car radio has BTL output stages.
Installation
6. Configuration of the remote input
The U 8A / U 10A will be turned on automatically if the highlevel inputs are used or if a signal is applied to the remote input terminal. The Auto Remote switch (see page 14, item 3; Auto Remote) allows to deactivate the automatic turn-on feature of the highlevel inputs. The feature should be deactivated if there are e.g. disturbing noises while switching on / off the active subwoofer.
Note: If the automatic turn-on function is deactivated it is mandatory to use the remote input terminal to power up the active subwoofer! The highlevel signal will be ignored in this case. To deactivate the automatic turn-on feature you have to change the position of the Auto Remote switch to "Off".
Technical Data
| U 8A U 10A | ||
| Power RMS / max. 180 / 360 Watts 180 / 360 Watts | ||
| Woofer diameter 8" / 200 mm 10" / 250 mm | ||
| Inputs 2 x RCA / Cinch | 2 x Highlevel speaker input1 x Remote In1 x Remote control input | 2 x RCA / Cinch2 x Highlevel speaker input1 x Remote In1 x Remote control input |
| Input sensitivity Highlevel 1.2 - 20 VoltsRCA / Cinch 0.3 - 4 Volts | Highlevel 1.2 - 20 VoltsRCA / Cinch 0.3 - 4 Volts | |
| Input impedance RCA / Cinch 10 kOhms 10 kOhms | ||
| Input impedance highlevel 33 Ohms 33 Ohms | ||
| Frequency response | 45 - 150 Hz | 40 - 150 Hz |
| Lowpass | 50 - 150 Hz adjustable | 50 - 150 Hz adjustable |
| Subsonic | 16 Hz / 12 dB/Oct. | 16 Hz / 12 dB/Oct. |
| Phase switch | 0° / 180° switchable | 0° / 180° switchable |
| Phase shift | 0 - 180° adjustable 0 - 180° adjustable | |
| Slope lowpass | 24 dB/Oct. | 24 dB/Oct. |
| Signal-to-noise ratio | >92 dB (A-weighted) | >92 dB (A-weighted) |
| Distortion (THD) | < 0.4 % | < 0.4 % |
| Operating voltage | 10.5 - 16 Volts | 10.5 - 16 Volts |
| Fuse | 25 A Maxi-fuse (APX) | 25 A Maxi-fuse (APX) |
| Additional features | Diecast aluminum housing, cable remote control for volume adjustment, Auto Remote switch | Diecast aluminum housing, cable remote control for volume adjustment, Auto Remote switch |
| Dimensions (H x W x D) | 78 x 245 x 345 mm /3.07 x 9.65 x 13.58" | 78 x 245 x 345 mm /3.07 x 9.65 x 13.58" |
Warranty Disclaimer
The limited warranty comply with legal regulations. Failures or damages caused by overload or improper use are not covered by the warranty. Please return the defective product only with a valid proof of purchase and a detailed malfunction description. Technical specifications are subject to change!
Errors are reserved! For damages on the vehicle and the device, caused by handling errors of the device, we can't assume liability. These devices are certified for the use in vehicles within the European Community (EC).
AUDIOTEC
FISCHER
