Product Type	Riflescope
Magnification	2.9x - 20x
Objective Lens Diameter	50 mm
Tube Diameter	30 mm (1.18 inches)
Reticle	Illuminated mil-dot or custom (varies by version)
Eye Relief	3.5 - 4.0 inches (89 - 102 mm)
Field of View at 100 yards	12.3 ft at 2.9x, 1.8 ft at 20x
Click Value	0.1 mil per click
Elevation Adjustment Range	100 MOA (29 mil)
Windage Adjustment Range	100 MOA (29 mil)
Parallax Setting	Adjustable side focus from 50 yards to infinity
Weight	Approximately 31 oz (880 g)
Length	14.5 inches (368 mm)
Power Supply	One CR2032 battery for illuminated reticle
Battery Life	Up to 100 hours at medium brightness
Waterproof/Fogproof	Yes, nitrogen filled, IPX7 rated
Operating Temperature	-20°F to +130°F (-29°C to +55°C)
Material	7075-T6 aluminum housing
Finish	Matte black anodized
Mounting	Compatible with 30 mm rings
Warranty	Limited lifetime warranty by Steiner

Frequently Asked Questions - M7Xi 2.9-20x50 Steiner

How do I mount the Steiner M7Xi 2.9-20x50 on my rifle?

Use high-quality 30 mm rings that match the scope's tube diameter. Ensure the rings are properly torqued per manufacturer specs. Level the reticle using a bubble level before final tightening.

What battery does the illuminated reticle use and how long does it last?

It uses a CR2032 battery. Battery life is up to 100 hours at medium brightness. Replace the battery if the reticle dims.

How do I zero the scope?

Set the scope to the desired magnification. Fire a group at a target 100 yards away. Adjust elevation and windage turrets 0.1 mil per click to shift the point of impact. Re-zero the turrets after adjustment.

Can I use this scope for long-range shooting?

Yes, the 2.9-20x magnification and mil-based adjustments make it suitable for long-range precision shooting up to 1000 yards or more.

How do I clean the lenses?

Use a lens brush to remove dust, then apply lens cleaning solution with a microfiber cloth. Avoid excessive pressure to prevent scratches.

What should I do if the reticle stops illuminating?

First, check the battery. If it's dead, replace it with a fresh CR2032. If the problem persists, contact Steiner support for warranty service.

Is the scope waterproof?

Yes, the M7Xi is nitrogen filled and rated IPX7, meaning it can withstand immersion in 1 meter of water for 30 minutes.

What is the parallax adjustment range?

The side focus parallax adjustment works from 50 yards to infinity, allowing precise focus at various distances.

How do I adjust the illumination brightness?

The brightness control is located on the illumination turret. Turn it to adjust from off to 10 brightness levels. Use the lowest setting that is visible.

Does the scope come with a warranty?

Yes, the Steiner M7Xi is covered by a limited lifetime warranty that covers defects in materials and workmanship. Register your product online for service.

USER MANUAL M7Xi 2.9-20x50 Steiner

Abb. 3

Defense: www.steiner-defense.com

TECHNISCHE DATEN

12 13

CONTENTS

Introduction 14

Safety instructions 15

Description and controls 16

Mounting 18

Operation 18

Care and maintenance....20

Disposal 21

Service and repair 21

Accessories....21

Technical data 22

Riflescope dimensions 24

INTRODUCTION

STEINER is one of the largest manufacturers of high-quality optics in the world. STEINER products meet the highest standards in precision and technology. The riflescopes were developed in cooperation with international weapons experts for the particularly strict requirements of military missions all around the globe. They have been tested in harshest operating conditions by special forces in the field and proven highly successful in combat. The riflescopes from STEINER set new standards in terms of performance, quality, and reliability. They are perfectly suitable both for military missions and official operational purposes.

The latest generation of STEINER riflescopes are available with Intelligent Firing Solution (IFS). The IFS provides all relevant data in real time at any given time. The integrated ballistics calculator with environmental sensor system (temperature, atmospheric pressure, inclination, wind drift) determines the projectile's point of impact. The display provides information about leveling and the current turret setting in the field of view.

The display can be customized to user needs. All the displayed information can be easily added, moved or deactivated if needed with a smart phone or mobile app. To do so, the riflescopes with IFS are equipped with a Bluetooth interface.

The scope includes the protective lens covers and an Allen wrench.

This user manual contains all the information you need for the use and care of the riflescopes.

Any references in the text to figures and item numbers in the images are indicated in parentheses. Example: (3/4) means fig. 3, item 4.

The definitions "on the right" and "on the left" in the text are always related to the direction of fire.

The appearance of the riflescopes may differ from the illustrations in the present user manual depending on the model in use.

Important instructions concerning safe handling of the riflescope are emphasized by the warning signs CAUTION, IMPORTANT, or NOTE.

⚠️ CAUTION: Observe these notes to avoid a hazardous situation for the shooter.

⚠️ IMPORTANT: Observe these notes to avoid any damage to the riflescope.

SAFETY INSTRUCTIONS

⚠️ CAUTION: To avoid eye injury, do not look directly at the sun or bright light sources through the riflescope.

IMPORTANT: The riflescope may only be repaired by the manufacturer.

DESCRIPTION AND CONTROLS

The diopter adjustment ring (1/1 or 2/1) is used to adjust the individual reticle focus.

The magnification adjustment ring (1/2 or 2/2) is used to magnify the target.

The reticle illumination enhances the visibility of the reticle in adverse light conditions. The intensity of the illumination is adjusted with the adjustment ring (1/3 or 2/3). The adjustment ring for the illumination has 11 levels. Between each level, there is an "OFF" position, where the illumination is switched off. Levels 1 to 4 are intended for the use with attachments (e.g. image intensifiers). Levels 5 and 6 are suitable for application without attachments during the night. Levels 7 to 11 have been planned for use during daylight. In positions "0", the illumination is completely switched off. A 3-volt lithium battery (refer to technical data) is required for the illumination. The battery is located underneath the reticle illumination adjustment ring.

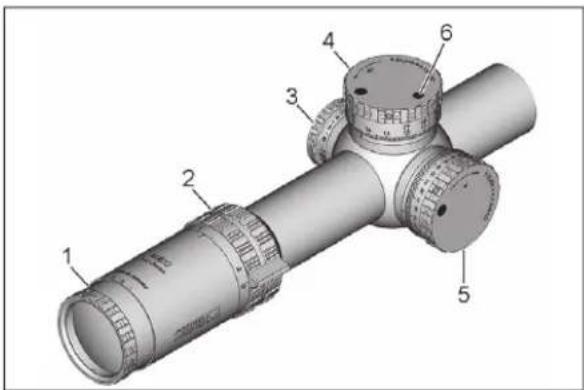

Illustration 1 Riflescope of the series M8Xi

1 Diopter adjustment ring
2 Magnification adjustment ring
3 Reticle illumination adjustment ring
4 Adjustment scale ring for elevation
5 Adjustment scale ring for windage
6 Second rotation indicator

On the M7Xi riflescopes, the adjustment ring (2/7) is used to correct the parallax. The M8Xi riflescopes are adjusted to be parallax free at 100 m.

The adjustment scale rings for elevation and windage (1/4 and 1/5 or 2/4 and 2/5) are calibrated such that one click represents 0.1 mrad (= 1 cm over 100 m). 270 clicks (M7Xi/M8Xi)) are available for elevation adjustment, and 60 clicks both to the right and to the left for windage adjustment. The adjustment can be felt and heard with audible clicks. Mechanical stops at both ends of the adjustment range serve as reference points.

A pin coming out of the housing after the first full turn of the adjustment scale ring for elevation (1/4 or 2/4) serves as Second rotation indicator (1/6 or 2/6). In this way, a perceptible control of the elevation adjustment is possible.

Illustration 2 Riflescope of the series M7Xi

1 Diopter adjustment ring
2 Magnification adjustment ring
3 Reticle illumination adjustment ring
4 Adjustment scale ring for elevation
5 Adjustment scale ring for windage
6 Second rotation indicator
7 Adjustment ring for parallax and focus

MOUNTING

Mounting the riflescope on the weapon requires 34-mm rings. High-quality, rugged rings and bases made from steel are recommended. For shots aimed at very distant targets, where the entire elevation adjustment range (26 mrad or 27 mrad) must be used, mounting with a forward tilt of 45 MOA (13.1 mrad) is recommended. Observe the manufacturer's mounting instructions.

MOUNTING AND ZEROING IN

This riflescope is shipped from the factory with the optical center (knob at '0' position) set below center. Without tapered bases the initial sight-in will likely produce an initial point of impact considerably high. For best results, Steiner recommends a 40 MOA canted base.

Instructions for mounting & zeroing M7Xi and M8Xi

Mount 0 MOA on the weapon, rail inclined 30 MOA:

• Mount the riflescope (check the torque of the mount manufacturer)
  • Zero in at 100 m (0 at approx. 48 clicks)
• Set the turrets mechanically to -0 (see page 8, point 2 (5/1 and 5/2)).
  • The scope is then ready for use

Instructions for mounting & zeroing M7Xi IFS (see IFS manual for illustrations)

Mount 0 MOA on the weapon, rail inclined 30 MOA

• Mount IFS (check torque of mount manufacturer)
  • Zero in at 100 m (0 at approx. 48 clicks)
• Set the turrets mechanically to 0 (see page 8, point 2 (5/1 and 5/2)).
• Insert battery
• Switch on IFS
• Briefly press the on/off button to electronically confirm the zero position of the turrets.
• Then program ammunition data (muzzle velocity, ballistics data, etc.) via the Steiner IFS App.

• The IFS is now ready for use

OPERATION

Adjusting image sharpness and magnification

CAUTION: Do not point riflescope at the sun or at bright light sources.

1. Point riflescope toward the sky or at a bright wall and look through it. If the reticle appears sharp and black, no further adjustment is required.
2. If necessary, turn diopter adjustment ring until the reticle appears sharp and black.
3. Adjust the desired size in the first image plane of the reticle with the magnification adjustment ring.

Adjusting windage and elevation deviation - adjustment of zero position

The zero position and the elevation and windage adjustment can be customized.

1. Sight-in the riflescope at the desired distance (e.g. 100 m).
2. Release the two adjustment screws (3/1 and 3/2) on the adjustment scale ring for elevation half a turn with the included Allen wrench.

The scale ring can now be turned without click stops.

IMPORTANT: Do not release the adjustment screws any further. Otherwise, the turret may be accidentally removed.

1. Turn scale ring to "0".

2. Tighten the adjustment screws.

3. Release the two adjustment screws (3/3 and 3/4) on the adjustment scale ring for windage half a turn with the included Allen wrench. The scale ring can now be turned without click stops.

Illustration 3

IMPORTANT: Do not release the adjustment screws any further. Otherwise, the turret may be accidentally removed.

1. Turn scale ring to "0".
2. Tighten the adjustment screws.

Adjusting reticle illumination

1. Adjust the desired illumination level with the reticle illumination adjustment ring.
2. Turn the adjustment ring to the position (4/1) between the adjusted and the next value to switch the reticle illumination off.

Illustration 4

Adjusting parallax and focus

1. Turn adjustment ring (5/2) until the number that approximately matches the distance to the target is aligned with the reference mark (5/1). If the distance is not known, turn adjustment ring until the target appears sharp.

Illustration 5

NOTE: The value adjusted on the scale of the adjustment ring does not match the actual distance. These values are approximate values, that may vary depending on the eye.

The riflescope is adjusted to be parallax-free if you can move the eye to the sides, up and/or down, without any movement of the reticle in relation to the target.

ACCESSORIES

Only use original STEINER accessories. STEINER offers a wide selection of accessories. Riflescopes with 50-mm and 56-mm objective lenses are suitable for the attachment of anti-reflective devices, sun shields, filters, and other accessories.

Replacing battery of the reticle illumination

1. Unscrew cap (6/1).
2. Take battery out and replace with new battery (refer to technical data).
3. Screw cap (6/1) on.

Illustration 6

CARE AND MAINTENANCE

Except for external care and replacement of the batteries, the riflescope is maintenance-free.

IMPORTANT The lenses of the riflescope may be damaged if they are cleaned improperly.

Hold riflescope such that any loose dirt particles can fall off the lenses.

Carefully brush away with a soft brush any dirt particles adhering to the lenses and, while doing so, blow the detached dirt particles away from the lenses.

In the event of heavy soiling, spray clear water or a lens cleaner onto the lenses and remove dirt with lens cleaning wipes.

DISPOSAL

The riflescope contains electrical and/or electronic components and must not be disposed of along with other household waste. Observe the national regulations.

SERVICE AND REPAIR

IMPORTANT: The riflescope may only be repaired by the manufacturer.

STEINER Optik GmbH

Defense: www.steiner-defense.com

TECHNICAL DATA

M7XI	4-28x56 mm	M7XI4-28x56 mm IFS
Magnification min./max.	4-28x 4-28x
Objective lens dimensions	56 mm 56 mm
Magnification change	7x 7x
Exit pupil	9.2–2.0 mm 9.2–2.0 mm
Interpupillary distance	87 mm–82 mm 87 mm–82 mm
Field of view over 100 m	9.0–1.42 m 9.0–1.42 m
Twilight factor	14.92–39.6 14.92–39.6
Battery	CR2032 CR2032; AA 1.5 V
Diopter compensation	+2 to -2 diopters +2 to -2 diopters
Tube diameter	34 mm 34 mm
Adjustment of the focal plane	first image plane first image plane
Reticle	MSR 2 / TReMoR 3/ G2B	MSR 2 / TReMoR 3/ G2B
Illumination	11 illumination levels(7 night & 4 day)	11 illumination levels(7 night & 4 day)
Water tight to a depth of	up to 20 m up to 20 m
Shock resistant	up to 900 G up to 900 G
100 % non-fogging	yes(nitrogen filling)	yes(nitrogen filling)
Operating temperature	-46 °C to +63 °C	-32 °C to +49 °C
Storage temperature	-46 °C to +63 °C	-40 °C to +49 °C
Weight	950 g	1150 g
Length (at 0 diopters)	≤ 387 mm	≤ 393 mm
Elevation adjustment increment	1 cm (0.10 mrad)	1 cm (0.10 mrad)
Elevation adjustment range for 100 m	270 cm	270 cm
Windage adjustment increments	1 cm (0.10 mrad)	1 cm (0.10 mrad)
Windage adjustment range for 100 m	+/- 60 cm	+/- 60 cm
Parallax compensation (focus)	50 m to infinity	50 m to infinity
Battery for IFS	-	Energizer Ultimate Lithium AA (operation time: 8 h at 20 °C)

	M8XI1-8x24 mm
Magnification min./max.	1-8x
Objective lens dimensions	24 mm
Magnification change	8x
Exit pupil	9.2–3.1mm
Interpupillary distance	87 mm–82 mm
Field of view over 100 m	34.2–4.8 m
Twilight factor	5.14–13.86
Battery	CR2032
Diopter compensation	+2 to -2 diopters
Tube diameter 34 mm
Adjustment of the focal plane	second image plane
Reticle DMR8i
Illumination	11 illumination levels(7 night & 4 day)
Water tight to a depth of	up to 20 m
Shock resistant	up to 900 G
100 % non-fogging	yes(nitrogen filling)
Operating temperature	-46 °C to +63 °C
Storage temperature	-46 °C to +63°C
Weight	650 g
Length (at 0 diopters)	≤ 271 mm
Elevation adjustment increment	1 cm (0.10 mrad)
Elevation adjustment range for 100 m	260 cm
Windage adjustment increments	1 cm (0.10 mrad)
Windage adjustment range for 100 m	+/- 60 cm
Parallax compensation (focus)	fixed for 100 m
Battery for IFS	-

RIFLESCOPE DIMENSIONS

M7Xi	4-28x56 mm	M7Xi4-28x56 mmIFS
	mm mm
A Optimum interpupillary distance high-low	87-82 87-82
B Diameter Objective lens end 62 62
C Free objective lens diameter 56 56
D Diameter Ocular lens end 45 45
E Dimension of riflescope 387 393
F Dimension of riflescope 129 129
G Dimension of riflescope 46 45
H Dimension of riflescope 65 65
I Dimension of riflescope 102 109
J Dimension of riflescope 154 154

M8XI	1-8x24 mm
	mm
A Optimum interpupillary distance high-low	87-82
B Diameter Objective lens end 34
C Free objective lens diameter 24
D Diameter Ocular lens end 45
E Dimension of riflescope 260
F Dimension of riflescope 51
G Dimension of riflescope 65
H Dimension of riflescope 102

24 25
