USER MANUAL RC16 iOptron

Black mechanical frame with multiple circular components and mounting holes (no text or symbols visible)

Photron™ Carbon Truss Tube Ritchey-Chrétien Telescopes

INSTRUCTION MANUAL

WARNING!

NEVER USE A TELESCOPE TO LOOK AT THE SUN! Looking at or near the Sun will cause instant and irreversible damage to your eye. Children should always have adult supervision while observing

iOptron® Photron™ truss tube RC telescopes feature low thermal expansion quartz primary and secondary mirrors with highly reflective dielectric coatings maximizing the light getting to your eyepiece or imagine device. The RC optical design delivers coma, spherical and chromatic aberration free results, perfect for color and monochrome imaging. A fixed position primary mirror eliminates image shift that occurs when focusing from other telescope designs. With 1/12th wave or better primary mirror our RC scopes deliver images and views that are out of this world.

Each Photron truss tube instrument comes equipped with a dual-speed linear bearing Crayford focuser that can facilitate our optional ASCOM compliant electronic focus control. Three focuser extension rings are provided for a "flex-free" solid extension as a means to take up any unneeded back focus. Its backbone, made up of strong, light, carbon fiber truss supports hold the optics firmly in place while keeping weight to a minimum. It's open air design results in rapid cooling, reducing the "wait time" before use. Photron™ by iOptron®, RC truss tube telescopes are sure to meet or exceed even the most discriminating imager or observers expectations.

These instructions will help you set up and properly use and care for your telescope. Please read them over thoroughly before getting started.

Parts List

Optical tube assembly with dual-speed focuser

1X 2" focus extension ring

2X 1" focus extension rings

1X cooling fan battery holder

Getting Started

Your telescope comes fully assembled from the factory. The optics have been installed and collimated, so you should not have to make any adjustments to them. Keep the dust covers on the telescope when it is not in use.

Mounting the Telescope

The iOptron Truss Tube RC has two preinstalled Losmandy dovetail rails for mounting the scope quickly and directly onto an altazimuth or equatorial mount.

Selecting an Eyepiece

All RC scopes can accept 2" or 1.25" eyepieces, via a 2" to 1.25" adapter.

Always begin viewing with the lowest power eyepiece. (Note: a 20 mm focal length eyepiece is lower power than a 10 mm one.) A formula can be used to determine the power of each eyepiece: Telescope focal length divided by eyepiece focal length equals magnification. For example, a RC10 has 2032mm in focal length, the magnification with a 20mm lens is:

$$ 2 0 3 2 \mathrm{mm} \div 2 0 \mathrm{mm} = 1 0 1. 6 \mathrm{X} $$

Focusing Telescope

All iOptron RC Truss Tube telescopes come with a 3" dual-speed Crayford focuser with a linear bearing and a stabilizing track. It has an oversized housing and a larger 3.3" drawtube that terminates in a 2" accessory collar. Each focuser is equipped with both

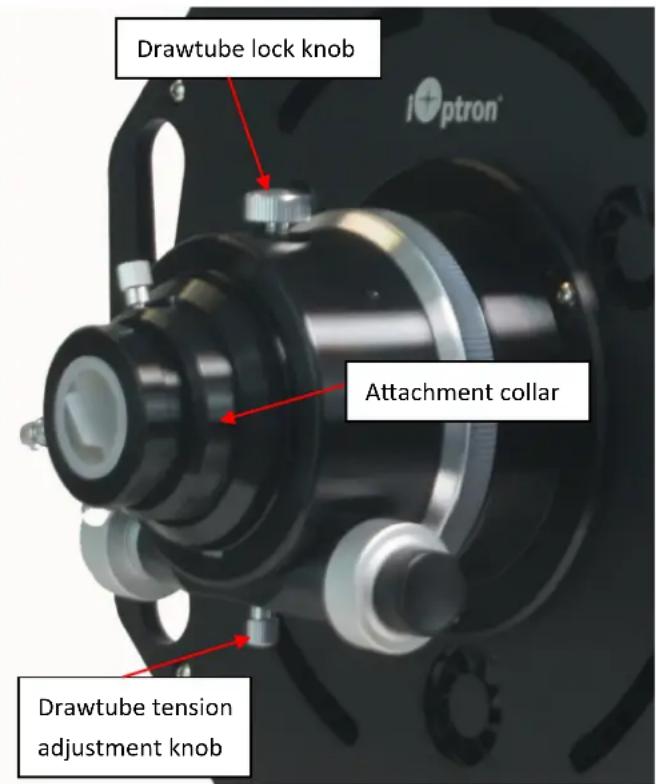

a tension adjustment knob for the drawtube and a drawtube locking knob. We recommend keeping the tension adjustment knob fairly tight at all times as this will minimize drawtube flexure and slippage.

Point the telescope so the front end is aimed in the general direction of an object you wish to view. Release drawtube lock knob so the drawtube can be moved while turning the focus knobs. Select a proper diagonal and eyepiece if you are doing visual observation. Adjust the drawtube tension adjustment knob for a proper tension during adjust the focus knob. Look through the eyepiece while turn the coarse focus knob to move the drawtube outward until you see the image. Turn the fine focus knob until the image becomes sharp. Go a little bit beyond sharp focus until the image just starts to blur again. Then reverse the rotation of the knob just to make sure you've hit the exact focus point. You will have to readjust the focus when aiming at subjects of varying distances, or after changing eyepieces.

If the focuser drawtube is fully extended and you are still unable to achieve focus, you will need to install one or more extension rings (see next section).

Practice this during daytime by aiming the main telescope tube at a land-based target at least 12 miles away.

The focuser can be rotated to a desired angle prior to final focusing for astrophotographic framing by slightly loosening the focuser attachment collar (turning it counterclockwise), then rotating the focuser to the desired position, then retightening the collar.

Use of Optional Accessories

Your telescope does not come with eyepieces and diagonal so as to offer the greatest flexibility in configuring it to your needs.

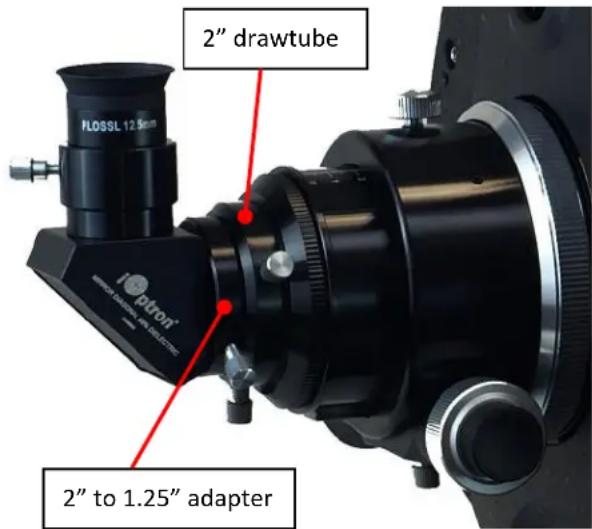

The 2" compression ring accessory holder accepts 2" eyepieces, star diagonals, camera adapters, etc. There are several accessories that come with the RC OTA. One is a 1.25" compression ring adapter that slips into the 2" holder (installed). This lets you use optional 1.25" accessories (eyepiece, star diagonal, camera adapter, terrestrial image erecting diagonal, CCD/CMOS camera, etc.)

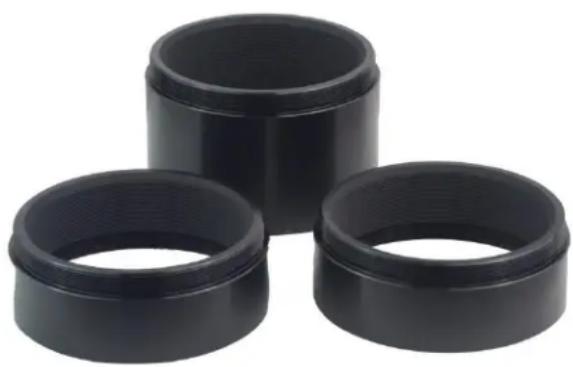

Also included with the telescope are three threaded-on extension rings: one 2" long and two 1" long.

Three black plastic cylindrical components arranged in a triangular formation (no text or symbols visible)

These extension rings are provided to allow multiple visual or photographic accessories to reach focus, depending on their backfocus requirements. They are designed for installation individually or in combination

between the optical tube and the focuser to take up unneeded backfocus.

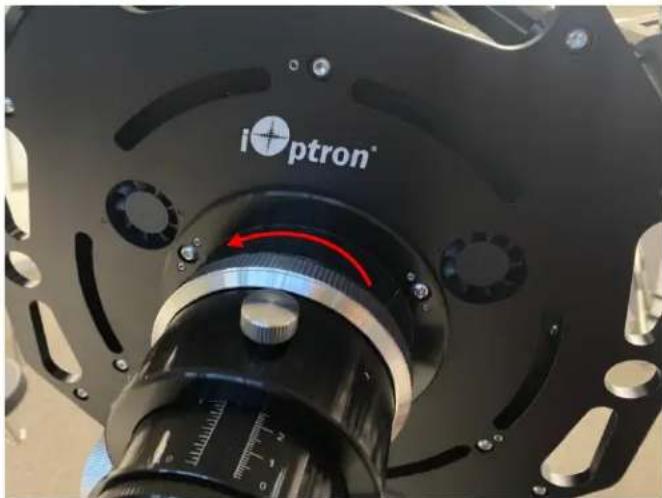

If the focuser drawtube is fully extended and you are still unable to achieve focus you will need to install one or more extension rings.

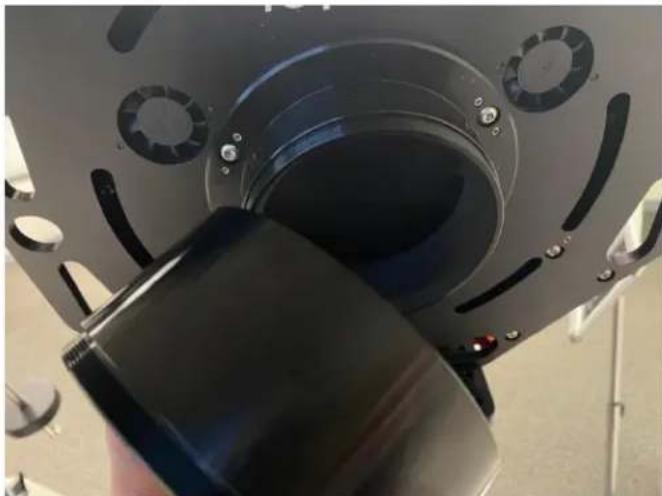

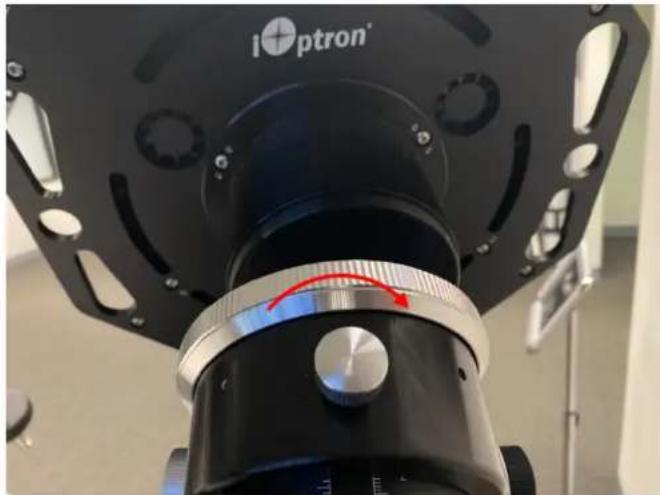

(1) First remove the focuser from the optical tube by rotating the focuser attachment collar counterclockwise.

Close-up of a black ioplton® optical lens assembly with a red arrow indicating rotation (no text or symbols on the component itself)

(2) Install one extension ring, here is a 2" long one. Thread it onto the telescope firmly. You may add more than one rings depends on your equipment.

Close-up of a mechanical device with circular components and a black cylindrical component (no visible text or symbols)

(3) Once you have threaded on the desired number of extension rings onto the male threads on the telescope tube, re-attach the focuser by aligning the silver attachment collar over the exposed

extension ring threads and tighten by carefully turning clockwise.

Close-up of a black optical instrument with a red arrow indicating rotation, mounted on a black base (no visible text or symbols)

Be careful not to cross-thread any of the focuser components when and if changing them in the dark.

It may be useful to experiment with different combinations during the day before heading out into the field. Choose a target over half a mile away to ensure you are simulating infinity focus. The goal is to reach focus with as little extension of the focuser drawtube as possible, to avoid drawtube flexure. Depending on what equipment you use to observe or image with, such as focal reducer or flattener, filter wheel, or off-axis guider, you may need to add one or more of the included extension rings.

Cooling the Telescope

Before observing or photographing with your RC, you should let it equilibrate to the outdoor temperature for an hour or more. This will reduce thermal air currents inside the telescope that could soften or blur your images, whether you're doing visual observing or astrophotography. A RC truss is equipped with three small DC cooling fans on its rear cell to help accelerate the cool-down time.

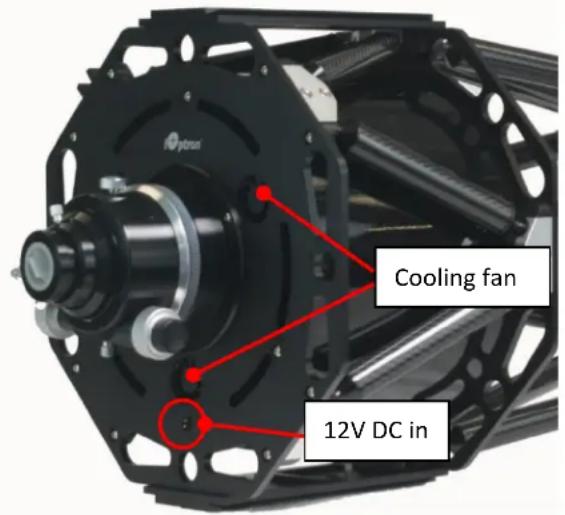

The fans pull outside air in through the rear cell and blow it onto the back of the primary mirror and out the front of the telescope. It's best to point the telescope upward when the fans are on to allow the heat to more efficiently escape. The fans require a 12V power supply; a battery holder using 8 AA batteries is included. The fans can also be powered by other 12V DC power supply, such as an iOptron PowerBank (#8449). The DC plug is 5mm/2.1mm, center positive. You may turn them off while actively observing or imaging to avoid any effect on the view from vibration or blowing air.

Collimating the Ritchey-Chrétien

The optics in your new Ritchey-Chrétien optical tube have been aligned and collimated at the factory. However, rough handling during transit may cause them to be knocked out of collimation and periodic re-adjustments are required. A Cheshire eyepiece is needed to check and adjust collimation. The rough adjustments of primary and secondary mirrors can be done indoors while a more rigorous start test needs to be performed in the field.

Collimation Check

Get the telescope ready for collimation check in three steps.

- Remove any extension rings and attach the

focuser directly to the optical tube.

• Set up the telescope in a well-lit room with the telescope oriented horizontally, and point it at a white or light colored wall.
• Insert the Cheshire eyepiece into the focuser via the included adapter and tighten the thumbscrew. Make sure a bright source of light such as a ceiling light or flashlight is aimed at the 45° reflecting surface of the Cheshire.

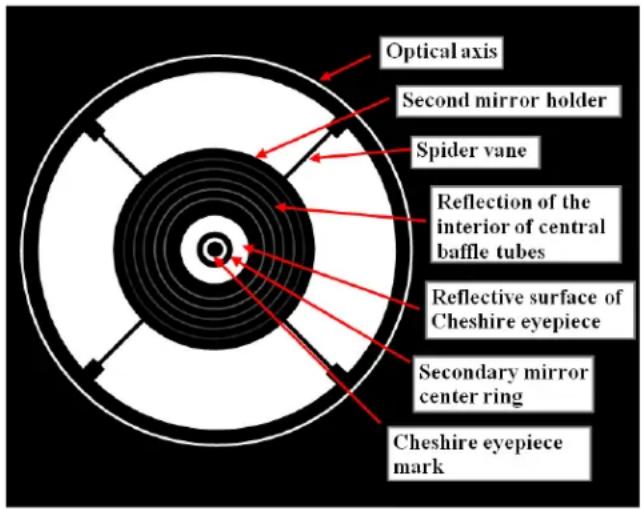

Look through the Cheshire eyepiece, as shown in the schematic below, a small black dot and a dark ring within a larger bright circle can be seen. The dot is the hole of the Cheshire eyepiece. The dark ring is the center mark on the secondary mirror. And the bright circle is the reflective 45-degree surface of the Cheshire. The larger black circle outside that are the secondary mirror and its holder.

If the scope is in good collimation, the black dot will be dead center in the dark ring, which will in turn be centered in the bright circle. If that's the case, no further adjustments to the secondary mirror will be necessary. The optical axis is denoted by a thin white circle on the outer edge. If this outline is a perfect circle of uniform thickness, no further adjustments to the primary mirror is needed.

Secondary Mirror Adjustment

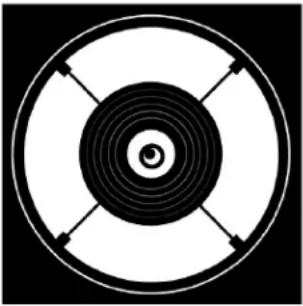

If the view looks something like the following figure

with the dot of the collimation eyepiece NOT centered in the secondary center ring, the secondary mirror needs be adjusted.

Abstract circular pattern with concentric rings and radial segments, no text or symbols present

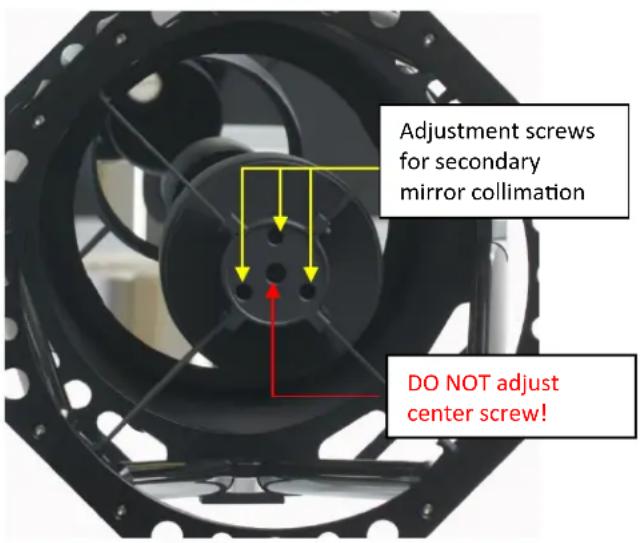

There are three collimation set-screws at the front of the secondary mirror holder. This will adjust the tilt of the secondary, changing the relative position of the secondary center ring when peering through the collimation eyepiece.

NOTE: DO NOT adjust the center screw! Only adjust the three screws around the perimeter of the holder! Adjusting the center screw can cause the secondary mirror to fall off and will not be covered under warranty.

A 4mm hex key is needed to perform collimation on the secondary mirror. When one of these screws is adjusted counter-adjustments need to be made to the other two. In other words, if one screw is loosened the other two need to be tightened, and vice versa. At the end of the process all three collimation screws should be reasonably tight so the secondary mirror won't shift while the scope is in use.

Always start by loosening one screw. Adjust the screws only very slightly—by no more than 1/8 turn at a time, and one screw at a time before checking the view through the Cheshire again to see how things changed. Only tiny adjustments should be required to achieve collimation. This will also aid in the prevention of accidentally putting the telescope grossly out of collimation. With each tiny tweak of a screw, make a mental note of which way and how far the center dot moved, as that will inform which screw to turn next and by how much. Experiment with different combinations of loosening / tightening the three screws one by one until the collimation eyepiece's black dot is centered in the dark ring of the secondary mirror. The correct alignment of the secondary mirror is critical in determining if the optical axis requires alignment. Be sure the secondary mirror is properly aligned before proceeding to the next step.

Optical Axis (Primary Mirror) Adjustment

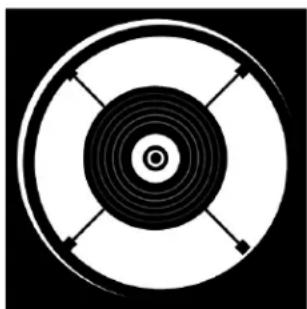

After done secondary mirror adjustment, if the optical axis, which is denoted by a thin outline of light (white) around the perimeter of the view through the collimating eyepiece, is not a perfect circle of uniform thickness, that means the optical axis (primary mirror) needs adjustment. 4mm and a 2.5mm hex key are required.

Abstract black-and-white concentric circle pattern with radial lines, no text or symbols present

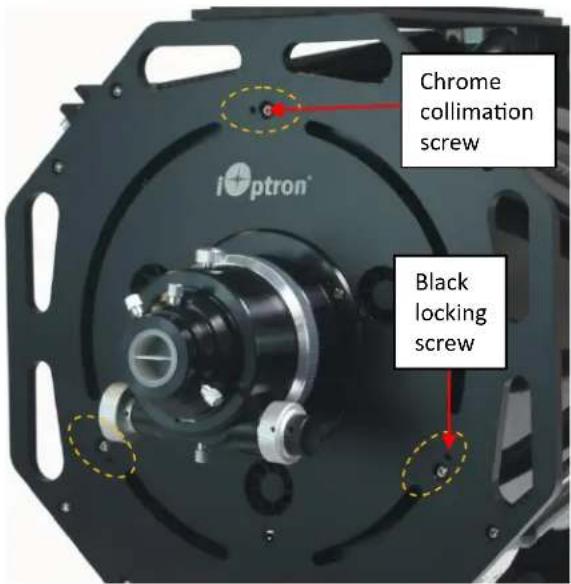

There are total three pairs of screws on the rear cell of the optical tube where the focuser attaches. Each pair consists of a small black screw and a larger chrome screw.

The small black screws are merely locking screws, which should be loosened before adjusting the mirror's tilt. The larger chrome screws are spring-loaded collimation screws that actually adjust the tilt of the primary mirror. Turn these collimation screws only a fraction of a turn at a time, for example, 1/8 turn. Turn one and check the view through the Cheshire to see if it improved the white optical axis ring. Keep tweaking the collimation screws, each time checking the optical axis ring, until it is concentric and uniform in width. Then tighten the three lock setscrews to fix the mirror in that position.

After adjusting the optical axis, re-check the collimation of the secondary mirror and make any necessary adjustments, then recheck the optical axis collimation. Generally, optical axis collimation will not need to be performed very often.

Star Testing

A star test can be used to further improve and confirm the collimation accuracy of the telescope. It needs to be performed in the night sky using a real star. Get the telescope ready for the star test.

• Remove the Cheshire eyepiece.
• Install all extension rings between the telescope's rear cell and the focuser.
• Insert an eyepiece directly into the focuser

drawtube by using the 1.25" ring adapter. The eyepiece should provide moderate to high magnification.

• DO NOT use a star diagonal.

An ideal target is a star close to the zenith (straight overhead) rather than at the horizon to minimize atmospheric distortions. Using Polaris as your target star can be helpful as minimal drift adjustments will be required. Center the star in the field of view. Slowly de-focus the image with the focusing knob until you can see a series of concentric diffraction rings form around the dark disk in the center. That dark disk is the shadow of the secondary mirror.

Concentric circular lines forming a spiral pattern with a central black dot (no text or symbols)

Concentric circles diagram with a central black dot, no text or symbols present

In a well collimated telescope, the diffraction rings should appear round and concentric, with the dark disk exactly in the center. If the dark central disk is off center, the scope is out of collimation. Adjust the collimation of the secondary mirror and, only if necessary, the primary mirror while monitoring the defocused star until the dark central disk is exactly centered in the diffraction rings. The adjustment procedure on the telescope mirrors is the same as described in Part 'Secondary Mirror Adjustment' and 'Optical Axis (Primary Mirror) Adjustment'.

NOTE: It is important when checking or adjusting the collimation using a star, that the star be positioned in the center of the eyepiece's field of view. If it isn't, the optics will always appear out of collimation, even though they may be perfectly aligned! It is critical to keep the star centered, so over time you may need to make slight corrections to the telescope's position.

Specifications:

Photron 10" f/8 Truss Tube Ritchey-Chrétien Telescope
Aperture	254mm (10")
Focal length	2032mm
Focal ratio	f/8
Tube construction	carbon tubular construction
Optics type	Ritchey-Chretien Cassegrain with two hyperbolic mirrors
Mirror substrate and coating	Quartz with enhanced aluminum mirror, 96% reflectivity, SiO2 overcoated
Secondary mirror size	105mm
Central obstruction diameter	110mm
Focuser	3" dual-speed (10:1) linear bearing Crayford, with 2" and 1.25" collars
Focuser load capacity	11 lbs. (5 kg)
Connector thread focuser	M117 x 1 mm
Drawtube travel:	50mm
Backfocus distance	239.8mm from rear support plate
Focuser extension sleeves	2 x 25 mm; 1 x 50 mm
Dovetail bar	Losmandy-style
Mounting bar	Losmandy-style
Finderscope base	Yes (Vixen-type)
Finderscope	None
Cooling fans	Three fans, built into real cell; 12V DC powered
Tube length	650mm
Tube diameter	394mm
Weight	34 lbs
Warranty	One year
Photron 12" f/8 Truss Tube Ritchey-Chrétien Telescope
Aperture	304mm (12")
Focal length	2432mm
Focal ratio	f/8
Tube construction	carbon tubular construction
Optics type	Ritchey-Chretien Cassegrain with two hyperbolic mirrors
Mirror substrate and coating	Quartz with enhanced aluminum mirror, 96% reflectivity, SiO2 overcoated
Secondary mirror size	140mm
Central obstruction diameter	150mm
Focuser	3" dual-speed (10:1) linear bearing Crayford, with 2" and 1.25" collars
Focuser load capacity	11 lbs. (5 kg)
Connector thread focuser	M117 x 1 mm
Drawtube travel:	50mm
Backfocus distance	284.1mm from rear support plate
Focuser extension sleeves	2 x 25 mm; 1 x 50 mm
Dovetail bar	Losmandy-style
Mounting bar	Losmandy-style
Finderscope base	Yes (Vixen-type)
Finderscope	None
Cooling fans	Three fans, built into real cell; 12V DC powered
Tube length	850mm
Tube diameter	450mm
Weight	53 lbs
Warranty	One year
Photron 14" f/8 Truss Tube Ritchey-Chrétien Telescope
Aperture	355mm (14")
Focal length	2848mm
Focal ratio	f/8
Tube construction	carbon tubular construction
Optics type	Ritchey-Chretien Cassegrain with two hyperbolic mirrors
Mirror substrate and coating	Quartz with enhanced aluminum mirror, 96% reflectivity, SiO2 overcoated
Secondary mirror size	150mm
Central obstruction diameter	166mm
Focuser	3" dual-speed (10:1) linear bearing Crayford, with 2" and 1.25" collars
Focuser load capacity	11 lbs. (5 kg)
Connector thread focuser	M117 x 1 mm
Drawtube travel:	50mm
Backfocus distance	290.2mm from rear support plate
Focuser extension sleeves	2 x 25 mm; 1 x 50 mm
Dovetail bar	Losmandy-style
Mounting bar	Losmandy-style
Finderscope base	Yes (Vixen-type)
Finderscope	None
Cooling fans	Three fans, built into real cell; 12V DC powered
Tube length	960mm
Tube diameter	533mm
Weight	66 lbs
Warranty	One year
Photron 16" f/8 Truss Tube Ritchey-Chrétien Telescope
Aperture	406mm (16")
Focal length	3248mm
Focal ratio	f/8
Tube construction	carbon tubular construction
Optics type	Ritchey-Chretien Cassegrain with two hyperbolic mirrors
Mirror substrate and coating	Quartz with enhanced aluminum mirror, 96% reflectivity, SiO2 overcoated
Secondary mirror size	170mm
Central obstruction diameter	189mm
Focuser	3" dual-speed (10:1) linear bearing Crayford, with 2" and 1.25" collars
Focuser load capacity	11 lbs. (5 kg)
Connector thread focuser	M117 x 1 mm
Drawtube travel:	50mm
Backfocus distance	310.9mm from rear support plate
Focuser extension sleeves	2 x 25 mm; 1 x 50 mm
Dovetail bar	Losmandy-style
Mounting bar	Losmandy-style
Finderscope base	Yes (Vixen-type)
Finderscope	None
Cooling fans	Three fans, built into real cell; 12V DC powered
Tube length	1114mm
Tube diameter	564mm
Weight	93 lbs
Warranty	One year

Revised December 2024
