IPC324ER3-DVPF28(36) - Camera UniView - Free user manual and instructions
Find the device manual for free IPC324ER3-DVPF28(36) UniView in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | IP Camera |
| Model | IPC324ER3-DVPF28(36) |
| Brand | UniView |
| Resolution | 4MP (2560x1440) |
| Lens | 2.8mm or 3.6mm fixed |
| IR Distance | 30m |
| Day/Night | ICR auto switch |
| Power Supply | PoE (802.3af) or 12V DC |
| Power Consumption | < 12W |
| Dimensions | 70 x 70 x 180 mm |
| Weight | 0.5 kg |
| Ingress Protection | IP66 |
| Operating Temperature | -30°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Video Compression | H.265+/H.265/H.264 |
| Network Interface | 1x RJ45 10/100Mbps |

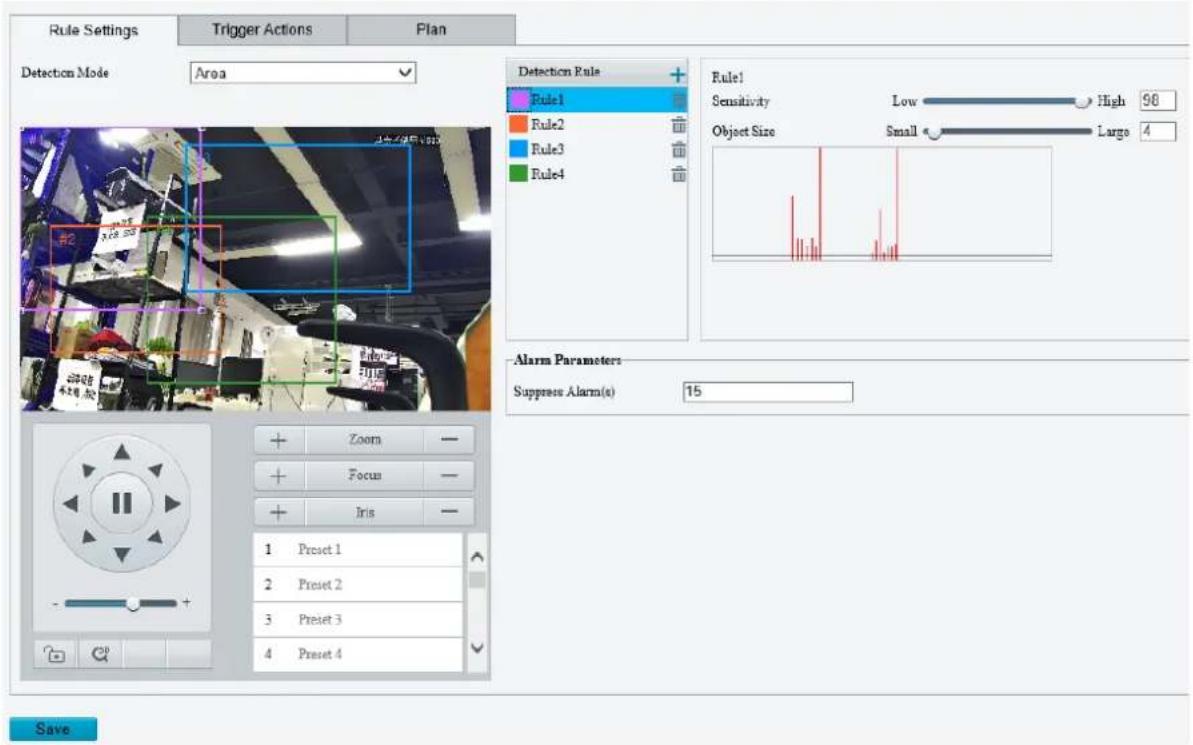

| Motion Detection | Supported |
| ONVIF | ONVIF Profile S/G |
| Maintenance | Clean lens with soft, dry cloth. Avoid solvents. |
| Safety | Use only certified power adapter. Follow installation instructions. |
| Spare Parts | Contact UniView support for replacement parts. |
| Repairability | Repairs should be carried out by qualified personnel. |
Frequently Asked Questions - IPC324ER3-DVPF28(36) UniView
How to reset the camera to factory defaults?
Press and hold the reset button (located near the network port) for 10 seconds until the status LED blinks rapidly. The camera will reboot with default settings.
Can I use this camera without a PoE switch?
Yes, you can power the camera using a 12V DC power adapter. Ensure the adapter is certified and meets the power requirements (12V DC, 1A).
What is the maximum supported microSD card size?
The camera supports microSD cards up to 256GB (Class 10 or higher) for local recording.
How do I access the camera remotely?

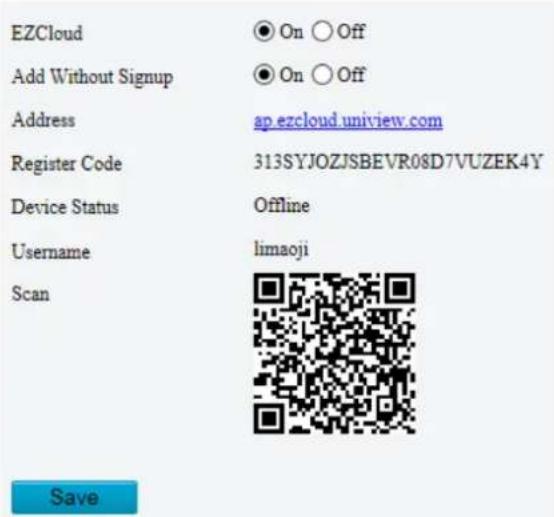

Set up port forwarding on your router for ports 80 (HTTP) and 554 (RTSP). Alternatively, use UniView's cloud service or a P2P connection via the mobile app (UniView View).
The camera night vision is not working. What should I check?
Ensure the IR LEDs are enabled in the camera settings. Check that the day/night mode is set to 'Auto' or 'Night'. Also verify that there is no obstruction covering the IR LEDs.
Can I mount the camera outdoors?
Yes, the camera has an IP66 weatherproof rating, making it suitable for outdoor use. Ensure all cable connections are properly sealed to prevent water ingress.
How to update the camera firmware?
Download the latest firmware from the UniView support website. Log in to the camera web interface, go to 'Maintenance' > 'Upgrade', and upload the firmware file. Do not power off during the update.

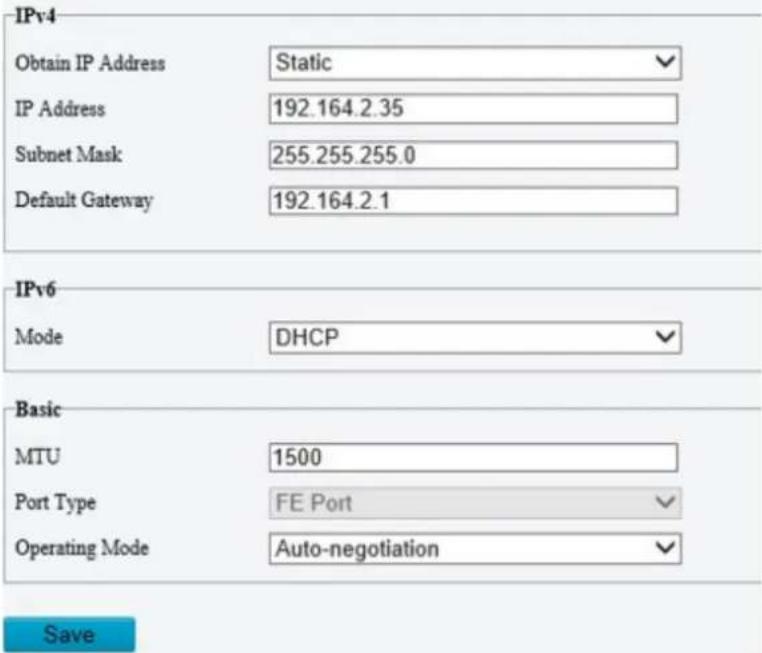

What network settings are required for first-time setup?
By default, the camera uses DHCP to obtain an IP address. Check your router's DHCP client list to find the camera's IP. Alternatively, use the UniView Tool software to discover the camera on the network.
Is the camera compatible with third-party NVRs?
Yes, the camera supports ONVIF Profile S/G, which allows integration with most ONVIF-compliant NVRs from brands like Hikvision, Dahua, etc.
How do I clean the camera lens?
Use a soft, dry microfiber cloth to gently wipe the lens. For stubborn dirt, slightly dampen the cloth with water. Avoid using alcohol or abrasive cleaners as they may damage the lens coating.
