Product Type	Centrifugal Juicer
Model	OS-112
Brand	Orava
Power Consumption	600 W
Supply Voltage	220-240 V~ 50/60 Hz
Motor Speed	17,000 - 19,000 rpm
Continuous Operation Time	60 seconds (then 2 minutes rest)
Noise Level	75 dB(A)
Protection Class	II (Double insulation)
Dimensions (W x D x H)	27 x 21 x 33 cm (without containers)
Weight	2.8 kg
Material	ABS plastic, stainless steel sieve
Power Cord Length	Approximately 1 m
Speed Settings	2 speeds (1: low, 2: high) + Pulse mode
Safety Lock	Yes – safety locking mechanism on cover
Dishwasher Safe Parts	Yes – all detachable parts except motor unit
Included Accessories	Pressure roller, pulp container, juice container, measuring cup
Intended Use	Soft fruits and vegetables only
Warranty	2 years (standard)

Frequently Asked Questions - OS-112 Orava

How do I assemble the juicer before use?

Ensure the appliance is unplugged and the switch is off. Place the motor unit on a flat surface. Attach the sieve holder onto the motor unit, then the pulp container under the waste edge. Insert the centrifugal sieve into the holder, ensuring it rotates freely. Place the cover and lock it using the safety locking mechanism on both sides. Finally, place the pressure roller in the feeding tube and a juice container under the drain.

What is the maximum continuous operating time?

The recommended maximum continuous operation is 60 seconds. After that, let the motor rest for at least 2 minutes. For hard foods or large amounts, stop after 20-30 seconds and rest for 1-2 minutes to prevent overheating.

Can I process frozen fruits or hard vegetables?

No. The juicer is designed for soft fruits and vegetables only. Do not process frozen foods, ice, or very hard items like sugarcane. Hard foods may damage the sieve or motor.

How do I clean the juicer after use?

Unplug the appliance and let it cool. Disassemble the parts. The motor unit must only be wiped with a damp cloth – never immerse in water. All other parts (sieve, cover, containers) can be washed in warm soapy water or in the dishwasher. Use a brush to clean the sharp protrusions of the sieve. Dry thoroughly before reassembly.

What should I do if the juicer vibrates excessively during operation?

Excessive vibration may indicate improper assembly or an unbalanced load. Turn off the unit, unplug it, and check that the centrifugal sieve is correctly seated on the shaft and rotates freely. Ensure the cover is properly locked. Also, do not overload the feeding tube – cut fruits into smaller pieces if needed.

Is the juicer safe to use with children around?

The appliance contains sharp rotating parts. Always keep children away from the juicer during use. Do not leave the appliance unattended. The safety lock prevents operation if the cover is not properly closed. Children under 8 years should not clean or maintain the appliance.

Can I use the juicer with an extension cord?

If necessary, use an extension cord rated for at least 600 W and ensure the total power of connected devices does not exceed its capacity. The extension cord must be plugged directly into a wall socket, not daisy-chained. Always use a grounded (3-pin) extension cord.

What does Pulse mode do?

The Pulse mode (switch position 'P') provides short bursts of maximum speed for quick juicing or to dislodge stuck food. Hold the switch in the 'P' position – it returns to 'Off' when released. Use it sparingly to avoid overheating.

How do I store the juicer properly?

After cleaning and drying, store the appliance in a dry, clean place out of reach of children. Do not wrap the power cord tightly around the unit – coil it loosely. Keep the motor unit upright. Ensure all parts are completely dry before storage to prevent mold.

What should I do if the power cord is damaged?

If the power cord or plug is damaged, discontinue use immediately. The cord must be replaced by the manufacturer, its service center, or a similarly qualified person to avoid electric shock. Do not attempt to repair it yourself.

USER MANUAL OS-112 Orava

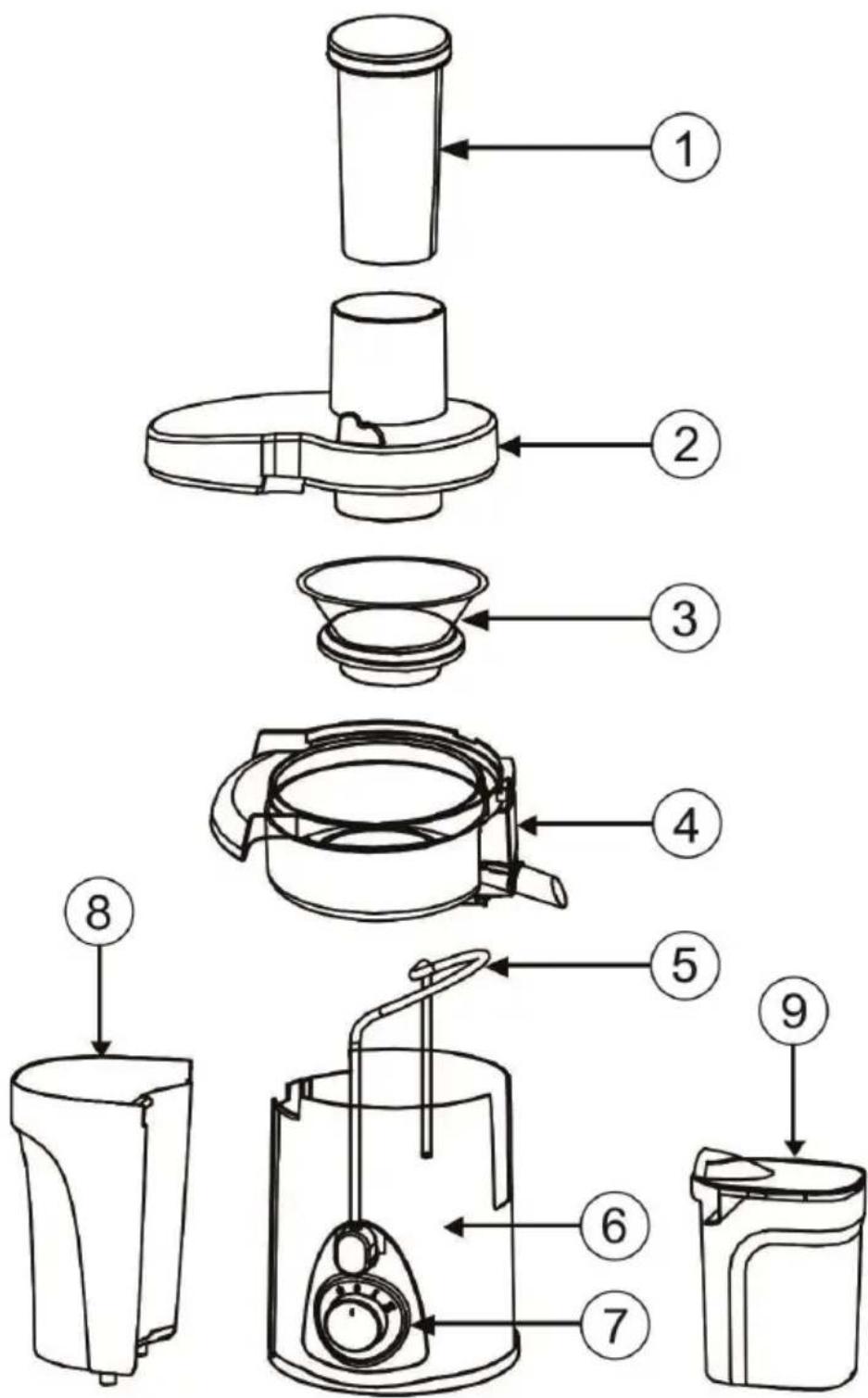

Exterior view of a modern black and silver juice brush unit with control knobs (no visible text or symbols)

CE

Read this manual carefully before using the device and keep it for future reference.

Intended use of the device

The equipment is intended exclusively for the extraction of soft fruit and vegetable juice, to the extent determined by the technical and operational parameters and functions of the equipment, the safety and user instructions and the external effects of the operating environment. ORAVA electrical appliances are manufactured according to state-of-the-art knowledge and recognized safety regulations. Nevertheless, improper or improper use or improper use may result in injury or endangerment to the life of the user or a third party, or to a third party. damage to equipment and other property.

1. GENERAL SAFETY INSTRUCTIONS AND WARNINGS

• This document contains important safety instructions and warnings for safe, correct and economical operation of the electrical equipment. Its compliance helps the user avoid risks, increase reliability and product life.
• In this document, the general term product is used in text parts such as: electrical equipment - any device used for the production, conversion, transmission, distribution or use of electricity.

• From the point of view of the purpose of using electricity, the concept of electrical equipment in the strict sense of the word will include the following categories:

• household electric appliances,

• information and communication equipment,
• consumer electronics,
• lighting equipment,
• electrical and electronic tools.
• toys and equipment for sporting and recreational purposes,
• medical devices (aids),
• monitoring and control devices,
• vending machines.

1.1 General safety instructions

- Before operating the unit, we recommend that you carefully read the instruction manual and operate the equipment in accordance with the instructions!

- The safety instructions and warnings in this manual do not cover all the possible conditions and situations that may arise when using the device. The user must understand that a factor that cannot be incorporated into any of the products is personal responsibility and caution. These factors must therefore be ensured by users serving this device.

- Failure to follow the safety instructions and warnings is forbidden by the manufacturer for any damage to health or property!

- Keep the instruction manual as close to the device as possible throughout its service life. Always keep the instruction manual together with the appliance for future use and use by new users.

• Use the appliance only for the intended purpose and in the manner specified by the manufacturer.
• The appliance is intended for home and similar indoor use without special focus.
• This appliance is intended, in addition to domestic use, for the following uses:

- in shops, offices and other similar work environments;

• in economic buildings;
• in hotels, motels and other residential environments;

• in bed and breakfast establishments.

• It is not a professional device for commercial use.

• Do not change the technical parameters and features of the device by unauthorized modification or modification of any part of the device.
• The manufacturer is not responsible for damages caused during transportation, misuse, damage or destruction of the equipment due to adverse weather conditions.

1.2 Safety of the operating environment

• Do not use the device in an industrial environment or outside environment!

• Do not expose the appliance to:

• sources of excessive heat or open flame,

• dripping or splashing water,
• vibration and excessive mechanical stress,
• insects, animals and plants,

• aggressive and chemical substances.

• The operating environment of the device must always be in accordance with the basic characteristics set out.

• Features of the operating environment:

• Ambient temperature: +5 ÷ +40 °C

• Humidity: 5 ÷ 85%
• Altitude: ≤ 2 000 m
• Occurrence of water: intermittent condensation of water or occurrence of water vapor
• Occurrence of foreign bodies: quantity and type of dust are insignificant

• Protection degree: min. IP20 (device protected from touching dangerous parts by hand and non-waterproof)

• This degree of protection is not indicated on the product and on the technical parameters in the operating instructions.

• If the protection class of the product is different from IPX0, this information is then displayed on the label of the appliance or in the technical data of the operating instructions.
• Other characteristics of the domestic operating environment (mechanical stress - vibrations and vibrations, occurrence of plant, animals, weather effects ...) are negligible in terms of effect on the correct and safe use of electrical equipment.

1.3 Electrical safety

• Before connecting the appliance to the power supply for the first time, make sure that the voltage on the appliance label corresponds to that of the household electrical outlet.
• The electric appliance is designed to power from 1 / N / PE \~ 230 V 50 Hz.
• The electrical safety of the appliance is guaranteed only if it is properly connected to the mains.
• Electrical protection class I equipment is equipped with a protection against electric shock by means of protective earthing of inanimate parts, which can become dangerous when the device is malfunctioning. Always connect such devices to properly installed mains sockets that are equipped with earthing conductors and have a properly grounded earthing conductor.

All electrical equipment is equipped with a three-wire power supply.

- Class II electrical equipment is protected against electric shock by double insulation or by enhanced insulation of hazardous live electrical parts. Device of protection class II it must not be equipped with means to connect protective earthing.

All electrical equipment is equipped with two-wire power supply.

• Class III electrical equipment is a device that is powered by a small safe voltage source (battery or accumulator) and does not present any danger to the user from electrical shock.
• In order to provide increased safety against the risk of electric shock due to the use of electrical appliances by laypersons, it is recommended to install the power supply circuit for sockets with a rated current not exceeding 20 A RCD with a rated operating current not exceeding 30 mA.

To ensure the safety and correctness of the electrical installation, consult a qualified electrician.

- Only use a power cord with a plug (mains lead) supplied with the device and compatible with a wall socket. Using another cable may result in fire or electric shock.

- Always connect an electrical appliance to an easily accessible mains socket. In the event of an operating fault, the appliance must be switched off as soon as possible and disconnected from mains supply.

- The power cord and mains plug must always be easily accessible for safe disconnection of the electrical appliance from the power supply.

- Do not pull off the power cord by pulling the cable. Disconnect the power cord by pulling the plug behind the power cord plug.

- If you use an extension cord, make sure that the total rated power of all devices connected to the extension cord does not exceed the max. current load on the extension cable.

- If you need to use an extension cord or power supply block, make sure that the extension cord or power pack is plugged into a power socket, and not to another extension cord or power supply. The extension power cord or power supply block must be designed for grounded electrical plugs and connected to a properly grounded electrical socket.

- The power plug of the appliance must be compatible with the mains socket. Never use any adapters or modify the socket in any other way. Do not use inappropriate or damaged drawers!

• To avoid electrical shock, plug the power cables into properly grounded electrical sockets. If the device is equipped with a 3-pole plug, do not use adapters that do not have a grounding element or remove the grounding element from the plug or adapter.
• Do not bend, crush or otherwise expose the power cord of the appliance to mechanical stress or external heat sources. Damage to the power cord may result in electric shock.
• When the power cord is damaged, disconnect the appliance from the mains and do not use it again.
• If the power cord is damaged, it must be replaced by the manufacturer, its service department or a similarly qualified person to avoid the risk of electric shock.
• Regularly check and maintain the electrical appliance as well as the power cord and power socket. Disconnect the power plug regularly and clean it if necessary. Pollution by dust or other substances may cause disruption of the insulating state and consequently fire.
• Do not expose the appliance to water or moisture. The ingress of water into the appliance increases the risk of electric shock.

If the power cord is wet or the water has penetrated the water, disconnect it immediately from the mains. If the appliance is plugged into a mains socket and if possible, turn off the power circuit before attempting

unplug the power. If you are pulling wet wires from a live power source, be very careful.

- If the electrical equipment is installed (connecting) the protective covers are dismantled, the electrical parts must not be accessible to the user when the installation is finished.

1.4 Safety of persons

• This appliance is intended for use and operation by persons without electrotechnical qualification - lay people, according to the instructions specified by the manufacturer.
• Device operation includes activities such as switching on and off, user manipulation and setting of operating parameters, visual or auditory inspection of the equipment, and user cleaning and maintenance.
• This appliance can be used by children under the age of 8 and persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge when supervised or instructed to use the appliance safely and understand the dangers involved.
  • Children may not play with the appliance.
• Cleaning and maintenance for users may not be performed by children unattended.
• Always keep the appliance out of reach of children during use and operation. Be sure to download the appliance even for a freely accessible power cord.
• Always be careful when operating the electric appliance! Do not use an electric appliance if you are overly tired, under the influence of medication or narcotic drugs that reduce attention and focus.
• Inattention during operation may result in serious injury.

1.5 Cleaning, maintenance and repairs

• Observe the normal user cleaning and maintenance of the appliance in the recommended way. Do not use solvents or harsh cleaners for cleaning. Pollution and visible stains from finger contact, respectively. The hands can be cleaned using detergent detergents specially designed to clean household appliances.
• If you do not use the appliance, clean it or disconnect the appliance from the power supply when the appliance is faulty.
• Electrical appliances that are cleaned after use and are not intended to be completely or partly immersed in water or other liquid, protect against the effects of dripping and / or splashing water and before immersion.
• Electric household appliances, like all other technical devices, are subject to the surrounding environment and natural wear. Since the legal framework of regular maintenance is not laid down for lay-in electrical household appliances, the manufacturer recommends that the user have the appliance checked and cleaned at least once a year by a specialist workshop.
• By doing so, it is possible to achieve safety, operational reliability and increased service life.

• Do not disassemble the electric appliance! The appliance works with a dangerous voltage. For this reason, always switch off the appliance and disconnect it from the mains supply during user maintenance. In the event of a fault, please have the repair serviced by an authorized service center.
  • Before calling a service:

• Turn the appliance off and on to make sure the fault reappears.

• If the malfunction of the appliance still persists after these operations, call the nearest specialist service center.

• Never repair the electric appliance yourself!

• Unauthorized, unqualified and improper use of an electric appliance may result in electric shock or other serious injury.
• Only carry out the warranty or post-warranty repair of an electrical appliance to an authorized qualified person (*).

2. Special safety instructions.

Read carefully!

The electrical equipment shall be designed and manufactured in such a way as to allow safe operation and use by persons without professional qualifications. Despite all the precautions taken by the manufacturer for safe use and operation, there are certain residual risks and potential hazards associated with them. The following symbols and their meanings have been used on the device and in the accompanying documentation to indicate potential hazards:

This symbol alerts users that the device is operating with hazardous electrical voltages. Do not remove protective covers on the device. Failure to follow the safety instructions while using and operating the equipment may result in:

Risk of electric shock! Risk of serious injury or death!

This symbol alerts users that if the safety instructions for using and operating the equipment are not followed, there is a risk of: Risk of serious injury or death! Risk of equipment damage or other property damage!

This symbol alerts users that if the safety instructions for using and operating the equipment are not followed, there is a risk of: Risk of cutting or rubbing fingers!

This symbol indicates that the product is made with double insulation between hazardous live parts (parts with dangerous voltage from the mains) and parts that are accessible in normal use. Use only identical spare parts for repairs.

Transportation/Transfer

• During transport and use eg. Take care when moving the truck to prevent the machine from toppling over.
• Only transport/carry the equipment after thoroughly inspecting the area and routes, which must be clear of obstructions.
• Carry the device firmly with both hands on the bottom edge of the base or solid body parts.
• When carrying, ensure that your hands and equipment are not damp or slippery.
• To maintain safety (taking into account the dimensions and weight of the device), only competent and physically fit persons should carry the device.
• Never carry the machine while it is in operation. Do not carry the device while it is connected to a power outlet.

Warning!

- Some surfaces may heat up while the unit is operating. Do not touch heated surfaces!

Risk of serious injury! Risk of equipment damage!

Unpack/Packaging

- Unpack the device and accessories before use and dispose of all parts of the packaging materials and labels. Store packaging materials in a safe place, especially out of the reach of children and incapacitated persons, or dispose of them safely. Risk of serious injury!

Risk of suffocation!

Inspection/Commissioning

• The appliance is intended for food preparation. Therefore, thoroughly clean all parts before commissioning as described in the “Commissioning” section. „Cleaning and maintenance“.
• Never clean the device (its drive unit with electrical parts and controls) and the power cord with plug in a way (under running water) that could cause liquid to flow into the device.
• Clean these parts only with a damp cloth and wipe them dry or allow them to dry.
• Only clean the unit when it is turned off and unplugged.
• We recommend that you perform initial and subsequent periodic inspections of the equipment.
• Never use the appliance if it is incomplete, damaged or any part of it has been damaged during transport or use.
  Do not use non-original and incomplete parts of the device and its accessories.
  Risk of serious injury!
  Risk of electric shock!

Location/Installation

• Only place the appliance on flat, firm and stable bases - on kitchen desks and furniture parts suitable for placing kitchen appliances.
• Always make sure that the area where you want to place the machine has sufficient space, mechanical strength, and adequate lighting.

Warning!

Do not expose the device to:

• direct sunlight, heat-producing sources and equipment,
• vibration and mechanical stresses,
• excessive dust,
• water and excessive moisture,
• insect,
• aggressive external environment. Do not use or place the device:
• for unstable tables or furniture parts,
• on uneven and dirty surfaces,
• on the tight edge of tables or parts of furniture,
• in the vicinity of containers containing water or other liquids.
• Do not partially cover the device. Do not place any objects on the device. Do not insert or allow foreign bodies to enter the openings of the machine's covers.
• Do not block the air vents of the covers. Air ventilation ensures reliable and safe operation of the device. Risk of electric shock!

Risk of fire!

Warning!

• Place the device in a place where children cannot reach freely.
• Keep children away from the device. The device may topple over and cause serious injury to children.
• Mechanical damage (rupture or breakage of parts and covers) of the device can cause serious injury.

Risk of serious injury!

There is a risk of damage to the equipment or other property damage!

- Do not place or use this product near containers containing water. If the device falls into the water, do not remove it! Unplug the power cord from the wall outlet before removing the machine from the water. In such cases, take the equipment to a professional service center to check that it is safe and functioning properly.

Risk of electric shock!

Risk of electric short circuit!

Operation/Supervision

Note!

• This equipment should only be used with original parts and accessories.
• Before using the machine, always make sure that the machine is complete, correctly assembled, and none of its parts are damaged. Do not use incomplete, improperly assembled, or damaged equipment.
• Always turn off the machine and unplug the power cord from the wall outlet before changing accessories or accessible parts, before installing or removing them, and before cleaning and maintenance.

Risk of serious injury!

• Always keep the unit under supervision during use and operation!

- This equipment is not intended to be operated by a programmer, external timer or remote control because there is a risk of fire if the equipment is covered or improperly positioned.

• Always unplug the appliance when it is left unattended.

- Make sure that the controller (main switch) is in the "0" (off) position each time the machine is connected to the mains.

- Do not turn the machine on or off by plugging in or unplugging the power cord.

- Always connect the machine to the wall outlet (wall socket) in normal use, and then turn on the power switch.

- After use, turn off the machine with the power switch, and then unplug the power cord.

- Do not use the machine if the power switch does not work.

- The equipment is under dangerous voltage when the AC power is connected. Risk of serious injury!

- The machine contains sharp-edged rotating parts - a rotating sieve (thread).

Warning!

• Never push your fingers into the filler hole or use any objects (eg fork, spoon, knife, etc.) to handle the fruit and vegetables in the juicer's filler neck. For this purpose, use only the specified accessories of the device - pressure roller.
• In the case of necessary manipulation in the working area (cleaning of rotating parts from trapped food) always, but only when the machine is switched off, disconnected from the power supply and the rotating parts have stopped completely, use exclusively designated accessories of the machine or suitable object, eg. plastic knife, plastic bag/spatula. Do not use metal objects!

Warning!

- After the unit has been switched off, the drive of the rotating parts is still running for some time. Always wait until the rotating parts have come to a complete stop before handling the machine or the working area of the container.

Risk of serious injury!

Risk of cutting fingers!

- Be careful not to get your hair, loose decorative chains or loose clothing in contact with the rotating parts while using or operating the machine.

Risk of serious injury!

• Do not bundle the power cord. The power cord must remain accessible for safe disconnection from the power supply.
• Do not let the power cord hang freely and do not allow it to be freely accessible and reachable by children.
• Never leave the machine unsupervised and do not use it with an open power cord. Children could pull the device off the power cord.
• Do not store the device with the power cord wrapped around its body. Fold the power cord loosely in the way it was put together in the original packaging from the manufacturer.
• Never overload the device beyond the limits specified in the technical data!
• Do not turn on the machine until the food container is filled with enough food.
• Do not exceed the maximum content / volume of processed food indicated on the containers or recommended in the food processing information in this manual.
• Do not process frozen foods.
• Always divide the unit's operating mode (continuous operation / activity and break time) into the recommended work intervals and follow these instructions.
• If you notice any abnormal effects (vibrations, sounds, smells, smoke, etc.) while using the device, turn off the device immediately and unplug it. Have the device checked by a specialist garage. Risk of serious injury!
  There is a risk of damage to the equipment or other property damage!
• Only install and remove the device and its parts when the device is turned off and unplugged.
  Risk of serious injury!
• Always clean the equipment and accessories immediately after use and remove any residues from the food being processed.
• Store the unit upright - especially its drive unit.
• If any safety part (mechanical, electrical/electronic) is part of the unit, never put it out of operation! Do not use the appliance if the safety part/component is damaged or inoperative!
• Do not use safety parts/components for switching on or off. turn off the device.
• Do not use the appliance if the rotary screen is damaged.
• The operating time of the unit is 60 seconds. After this time, stop the operation for at least 2 minutes. If you are using the juicer for juicing hard foods or large doses, we recommend that you stop the operation after 20 to 30 seconds and restart the juicer after 1 to 2 minutes.
• Never underestimate possible dangers and be careful !!!

Description of parts

1 Pressure roller
2 Feeding tube with juicer cover
3 Centrifugal sieve with metal blades
4 Sieve holder with drain
5 Safety locking mechanism
6 Base with motor unit
7 P/0/1/2 switch (Pulse mode/Off/On)
8 Fruit pulp container
9 Container with measuring cup

Preparation before use

Do not connect the device to the mains during preparation.

Unpack the device and remove all packaging material. To remove any dirt that may have formed during the packaging process, clean the inside, knives (filter basket disc) and cover with a dry, lint-free cloth. When cleaning the inside, be careful not to injure yourself on the sharp knives of the sieve. (See „Cleaning and Maintenance“ in this manual).

Rinse the accessories in lukewarm water. Do not immerse the housing of the motor in water! Clean the surface with a cloth dampened in water. Dry all parts thoroughly.

Assembly of accessories and mounting on the motor unit

Before assembling the device, disconnect the device from the mains and set the power switch (7) to the off position.

1 Place the motor unit (6) on a flat and stable surface (table).
2 Place the sieve holder (4) on the motor unit (6) so that the drain fits into the hole in the motor unit.
3 Place the pulp container (8) under the waste edge on the base (6) so that it is firmly seated on the motor unit.
4 Insert the centrifugal sieve (3) with the sieve holder into the base (6) so that it slides into place. Before switching on, make sure that the sieve is correctly fitted (the rotating part must be mounted on the base shaft and make sure that it rotates freely).

Watch out for sharp parts of the sieve!

5 Put the cover (2) on the assembled device.
6 Press the safety locking mechanism (5) on both sides onto the cover (2) and the lower part against the body of the motor unit.
7 Use only the pressure roller (1) in the feeding tube
8 Place a juice container (9) under the drain.

Advice:

For easy handling, you can place a microtene bag in the pulp container, which you can then throw away in the waste or otherwise dispose of its contents.

Operation

Juicing

1 Place the assembled appliance on a flat and firm surface (table, sink) and place a cup or juice jug under the drain.
2 Connect the appliance to the mains.
3 Put the whole fruit (or cut the fruit into smaller pieces). Insert the fruit inside the feeding tube and press it lightly on the bottom with the pressure roller.
4 Set the switch (7) to position 1 (lower speed) or 2 (higher speed) or P (pulse mode) to activate the device.
5 Continue loading the fruit and push it to the bottom using the pressure roller (1).

Notifications!

• Never press the fruit / vegetables with your fingers. Risk of injury!
• Excessive filling will not speed up the juicing process. The device may overheat.
• Do not use the device continuously for a long time (max. approx. 60 seconds of continuous motor operation). It can overheat.
• If longer operation is required, stop using the device, always let the engine cool down for approx. 15 - 20 minutes and then continue working.

Equipment cleaning and maintenance

• Before each cleaning, first unplug the appliance and let it cool down.
• Use only a slightly damp cloth to clean the device itself.
• Do not use any solvents or harsh cleaners.

• Wash the parts in warm water with detergent, wipe them and dry them carefully. Do not leave parts wet.
  Do not use solvents or harsh cleaners to clean any elements.

• Wash the accessories immediately after use to prevent fruit and vegetable residues from drying out.

• You can wash parts of the appliance that stand out in the dishwasher in the dishwasher.
• We recommend cleaning the centrifugal metal sieve with sharp protrusions with a brush.

Warning!

Never immerse the motor unit of the device in water or any other liquid!

Wipe the motor unit and power cord with a dry cloth. The engine is lubricated with durable Vaseline. Does not require lubrication.

Technical specifications

Power supply: 220 - 240 V\~ 50/60 Hz

Power consumption: 600 W

Protection class: II (protection against electric shock is provided by double insulation)

Speed: 17 000 - 19 000/rpm

Dimensions (WxDxH): 27 x 21 x 33 cm (without containers)

Continuous operation time (KB): 60 sec.

Weight: 2,8 kg

Noise: 75 dB (A)

The declared noise emission value of this appliance is 75 dB (A), which represents the sound power level A with respect to the reference sound power of 1 pW.

We reserve the right to make changes!

Producer:

ORAVA retail 1, a.s.

Seberíniho 2

821 03 Bratislava

Slovenská republika

Importer:

ORAVA retail 1, a.s. Seberíniho 2

821 03 Bratislava

Slovenská republika

ORAVA distribution CZ, s.r.o. Ostravská 494

739 25 Sviadnov

Česká republika

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING

Dispose of used packaging material at a municipal waste disposal site.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

This symbol on the products or in the accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper disposal, recovery and recycling, please return these products to designated collection points. Alternatively, in some countries of the European Union or other European countries, you may return your products to your local retailer when purchasing an equivalent new product. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment natural resources and help prevent potential negative effects on environment and human health, which could be the consequences of improper disposal waste. Contact your local authority or nearest office for more detailscollection point. Improper disposal of this type of waste may result in penalties in accordance with national regulations.

For business entities in the countries of the European Union

If you wish to discard electrical and electronic equipment, please request the necessary information from your seller or supplier.

Disposal in other countries outside the European Union

This symbol is valid in the European Union. If you wish to discard this product, please request obtain the necessary information on the correct method of disposal from the local authorities or from the your supplier.

This product meets all the essential requirements of the EU directives that apply to it.
