CFT23PW00A2 - Fan COMFEE - Free user manual and instructions

Product Type	Table Fan
Brand	COMFEE
Model	CFT23PW00A2
Voltage	220-240 V~
Frequency	50 Hz
Power	25 W
Maximum Airflow	17,50 m³/min
Input Power	20,5 W
Service Value	0,85 (m³/min)/W
Sound Level	53,06 dB(A)
Maximum Air Speed	2,17 m/s
Seasonal Energy Consumption	6,56 kWh/an
Horizontal Oscillation	Yes (oscillation button)
Tilt Adjustment	Manual
Usage	Indoor Only
Maintenance	Clean with soft cloth and mild soap
Safety	Do not immerse, do not insert objects into the grille
Spare Parts	Contact the manufacturer or retailer

Frequently Asked Questions - CFT23PW00A2 COMFEE

How to assemble the fan?

Assemble the rear grille onto the motor, attach the blades, then the front grille. Tighten the screw and nut into the screw holes. Ensure the blades rotate freely.

How to clean the fan?

Unplug the fan. Clean the grilles and housing with a soft cloth dampened with mild soap. Do not immerse in water. Do not use solvents.

The fan is making noise, what to do?

Check that the blades are not touching the grille. Ensure the fan is on a stable surface. If noise persists, contact a qualified technician.

Can I use the fan outdoors?

No, this fan is designed for indoor and domestic use only. Do not use it in a window or outdoors.

How to adjust the oscillation?

Press the oscillation button to activate horizontal movement. For a fixed position, pull the button to deactivate oscillation.

What to do if the cord is damaged?

A damaged power cord must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid any hazard.

The fan does not turn on, what to check?

Check that the plug is properly inserted and that the socket works. Ensure the fan is powered on. If the problem persists, consult a technician.

Can I remove the grille to clean the blades?

No, the rotor guard should not be removed to clean the blades. Use a soft cloth to clean the outside of the grilles.

What is the warranty?

The warranty is generally that of the retailer. Keep your proof of purchase. For repairs, contact an authorized service center.

Where to find spare parts?

Contact the manufacturer COMFEE or your retailer for replacement parts. Do not attempt to repair yourself.

USER MANUAL CFT23PW00A2 COMFEE

Line drawing of a standard electric fan with mesh grille and base (no text or symbols)

CONTENT

IMPORTANT SAFEGUARDS 1

PARTS AND FEATURES 4

TECHNICAL DATE OF THE PRODUCT 5

OPERATING INSTRUCTIONS 7

CLEANING AND MAINTENANCE 8

TROUBLESHOOTING 9

IMPORTANT SAFEGUARDS

CAUTION

Read Rules for Safe Operation and Instructions Carefully.

WARNING

- If the supply cord is damaged, it must be replaced by manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

- To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- When the appliance is not in use and before cleaning, unplug the appliance from the outlet.

IMPORTANT SAFEGUARDS

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. The packaging material is recyclable. Dispose of the packaging in an environmentally friendly manner and make it available for the recyclable material collection-service.

• Keep electrical appliances out of reach from Children or infirm persons. Do not let them use the appliances without supervision.
• Indoor and household use only.

• When the fan was assembled, the rotor blade guard shall not be taken off anymore.

• Prior cleaning unplug the fan.

• The rotor guard shall not be dissembled/opened to clean the rotor blades.
• Wipe the fan enclosure and rotor blade guard with a slightly damp cloth.

IMPORTANT SAFEGUARDS

Rules For Safe Operation

• Never insert fingers, pencils, or any other object through the grille when fan is running.
• Disconnect fan when moving from one location to another.
• Be sure fan is on a stable surface when operating to avoid overturning.
• DO NOT use fan in window, rain may create electrical hazard.
• Indoor use only.

PARTS AND COMPONENTS

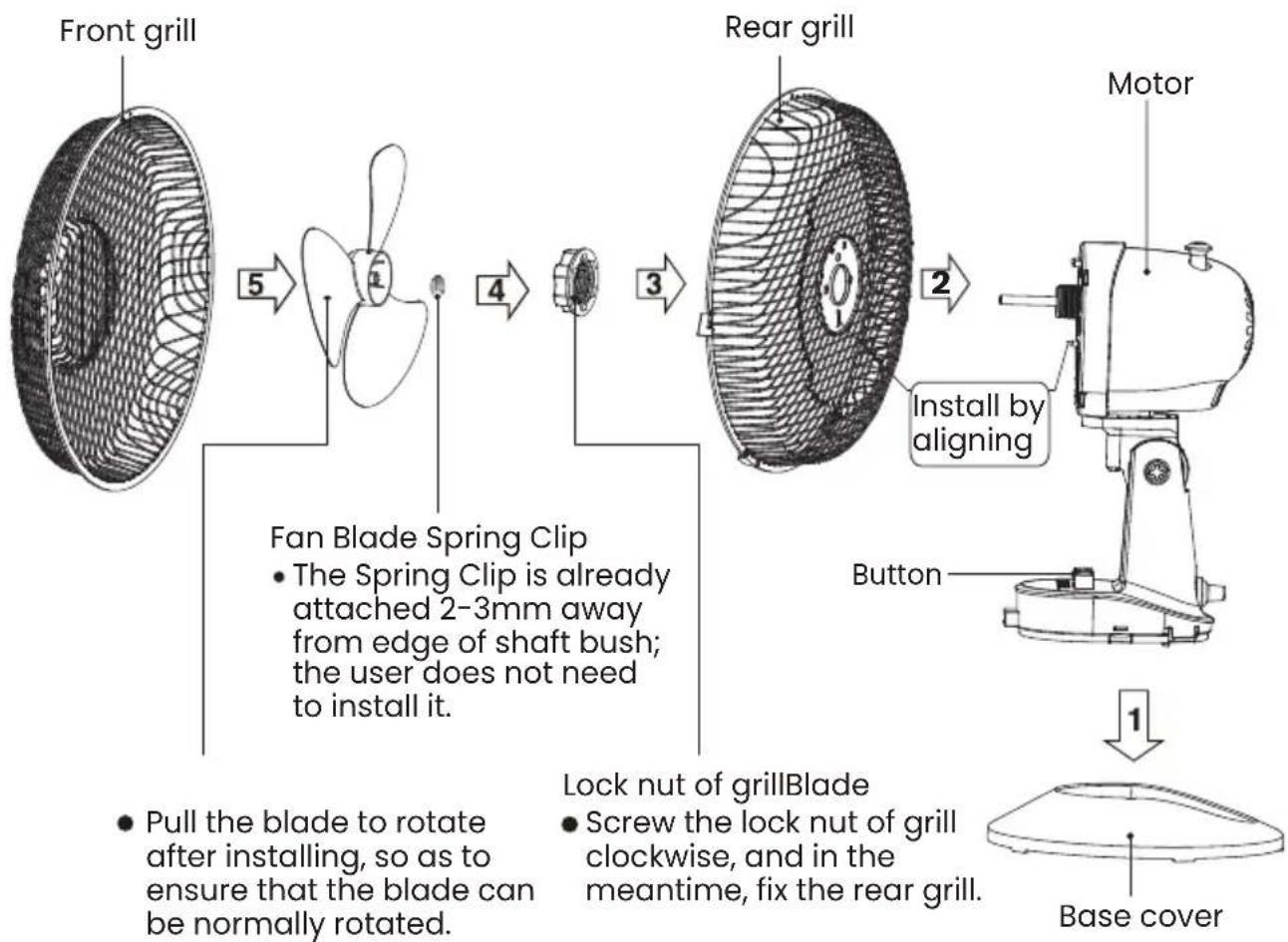

Name Of Components

PARTS AND COMPONENTS

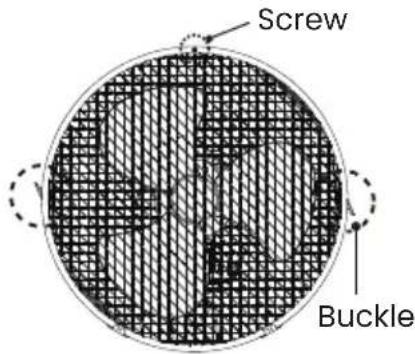

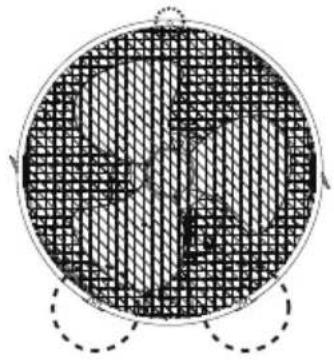

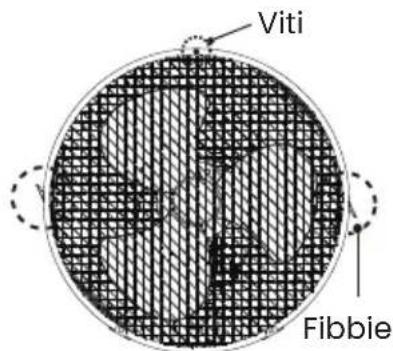

Front and Rear Guard Installation

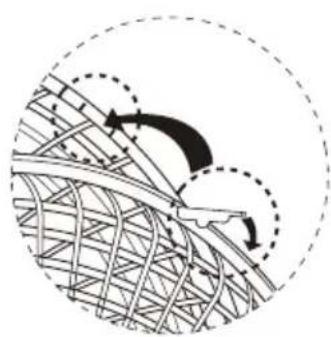

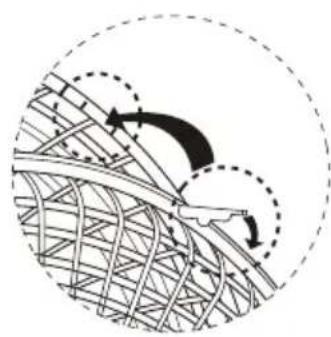

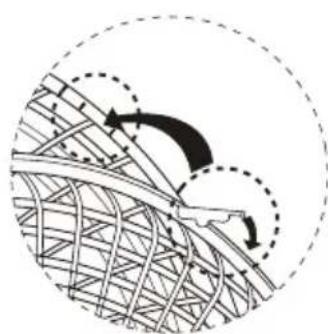

1. Align Screw Holes on the outer ring of both the Front and Rear Guards, with the Positioning Clip aligned as illustrated.

2. Press down all the Buckles to fasten the Front Guard with the Rear Guard. At the Screw Holes, tighten the separated screw and nut.

Circular diagram with grid pattern and two dashed lines at bottom, no text or symbols present

Diagram of a curved trajectory over a grid-patterned structure, enclosed in a dashed circular boundary (no text or symbols)

TECHNICAL DATE OF THE PRODUCT

Product Model	Voltage	Frequency	Power
CFT23PW00A2	220-240V~	50Hz	25W

PARTS AND COMPONENTS

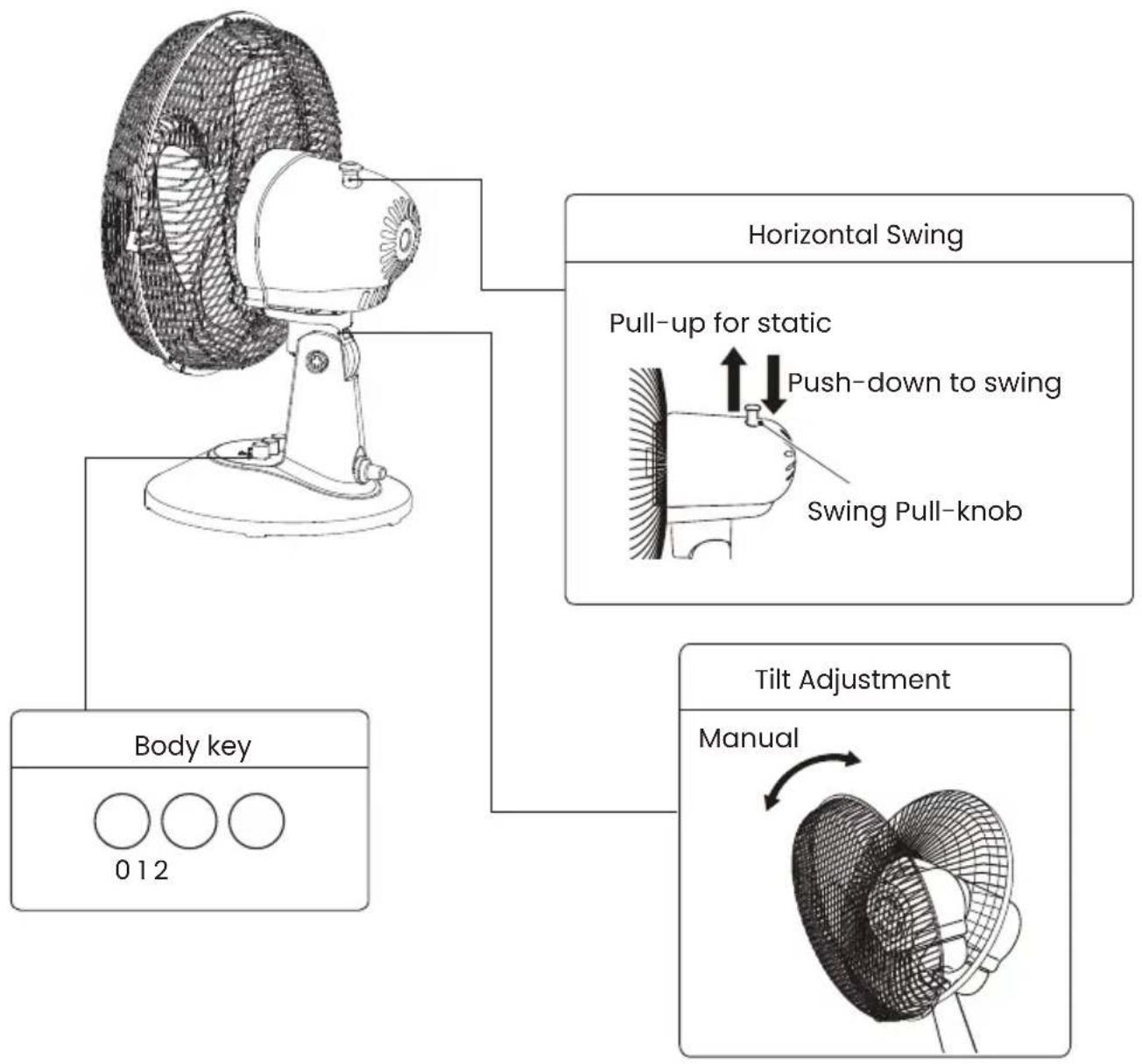

Instructions For Operation Of Body

CLEANING AND MAINTENANCE

• Be sure to unplug from the electrical supply source before cleaning.
• Plastic parts should be cleaned with a soft cloth moisten with mild soap. Thoroughly remove soap film with dry cloth.

TROUBLESHOOTING

Maintenance Instruction

The fan requires little maintenance. Do not try to fix it by yourself. Refer it to qualified service personnel if service is needed.

• Before cleaning and assembling, fan must be unplugged.
• To ensure adequate air circulation to the motor, keep vents at the rear of the motor free of dust. Do not disassemble the fan to remove dust.
• Please wipe the exterior parts with a soft cloth soaking a mild detergent.
• Do not use any abrasive detergent or solvents to avoid scratching the surface.
  Do not use any of the following as a cleaner: gasoline, thinner.
• Do not allow water or any other liquid into the motor housing or interior parts.

Line drawing of a standard electric fan with mesh grille and base (no text or symbols)

INDICE

IMPORTANTI ISTRUZIONI DI SICUREZZA 1

PARTI E COMPONENTI 4

DATI TECNICI DEL PRODOTTO 5

ISTRUZIONI PER L'USO 7

Circular diagram with grid pattern and two dashed outlines, no visible text or symbols

Diagram of a curved structure with directional arrows, enclosed in a dashed circular boundary (no text or symbols)

DATI TECNICI DEL PRODOTTO

Line drawing of a standard electric fan with mesh grille and base (no text or symbols)

INHALTSVERZEICHNIS

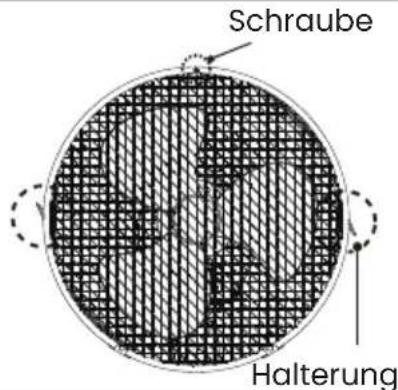

Circular diagram with grid pattern and two dashed circles, no text or symbols present

Diagram of a curved trajectory over a grid-like structure, enclosed in a dashed circular boundary (no text or symbols)

Line drawing of a standard electric fan with mesh grille and base (no text or symbols)

SOMMAIRE

CONSIGNES DE SÉCURITÉ IMPORTANTES 1

PIECES ET COMPOSANTS 4

DONNEES TECHNIQUES DU PRODUIT 5

INSTRUCTIONS D'UTILISATION 7

NETTOYAGE ET ENTRETIEN 8

DÉPANNAGE 9

CONSIGNES DE SÉCURITÉ IMPORTANTES

Précaution

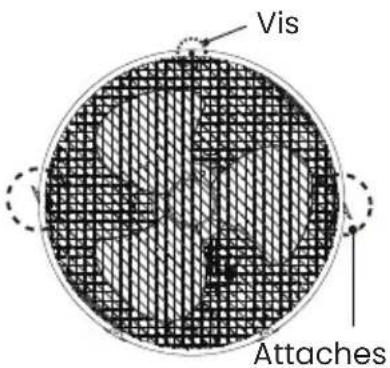

Circular diagram with grid pattern and two dashed curved lines at bottom (no text or symbols)

Diagram of a structural framework with curved arrows indicating motion or force direction (no text or symbols)

DONNEES TECHNIQUES DU PRODUIT
