Product Type	USB-C Power Adapter / Phone Charger
Model	PA0258
Brand	LogiLink
Dimensions	9.1 × 5.0 × 2.8 cm (3.58 × 1.97 × 1.10 in)
Weight	58 g (2.05 oz)
Input	230 V AC, 50/60 Hz, 1 A
Output	5 V ⎓ 3 A (15 W), 9 V ⎓ 2 A (18 W), 12 V ⎓ 1.5 A (18 W) – Total max 18 W
Charging Standard	USB Power Delivery (PD) 18 W
Efficiency Level	VI
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity	25% to 90% (non-condensing)
Storage Humidity	10% to 90% (non-condensing)
Safety Features	Overvoltage, overcurrent, and short-circuit protection
Compatibility	Most USB-C devices including smartphones and tablets
Key Features	Compact and lightweight design, fast charging up to 18 W
Maintenance & Cleaning	Wipe with a dry cloth; keep away from moisture and heat sources
Package Contents	1x USB-C 18W PD Power Adapter, 1x User Manual

Frequently Asked Questions - PA0258 LOGILINK

What devices are compatible with the LogiLink PA0258 charger?

The LogiLink PA0258 is compatible with most USB-C devices such as smartphones (including iPhone 8 and later, Samsung Galaxy, Google Pixel), tablets, and other gadgets that support USB-C charging up to 18 W.

Does the PA0258 support fast charging?

Yes, it supports USB Power Delivery (PD) fast charging at up to 18 W, which can charge compatible devices significantly faster than standard 5 W chargers.

What are the output specifications of the PA0258?

The charger offers three output modes: 5 V ⎓ 3 A (15 W), 9 V ⎓ 2 A (18 W), and 12 V ⎓ 1.5 A (18 W). The maximum total output is 18 W.

Is the PA0258 safe to use?

Yes, it features built-in protection against overvoltage, overcurrent, and short circuits, ensuring safe charging for your devices.

What is the input voltage for the PA0258?

The input is 230 V AC at 50/60 Hz with a current rating of 1 A.

How should I clean and maintain the charger?

Unplug the charger before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquids or cleaners, and avoid exposing it to moisture or high temperatures.

What is the size and weight of the PA0258?

The adapter measures 9.1 x 5.0 x 2.8 cm (3.58 x 1.97 x 1.10 in) and weighs only 58 g (2.05 oz), making it very portable.

Can I use the PA0258 with non-USB-C devices?

The PA0258 has a fixed USB-C output port. To charge devices with a different connector (e.g., micro-USB or Lightning), you will need a compatible USB-C to that connector cable.

Does the charger come with a cable?

No, the package includes only the power adapter and user manual. A USB-C to USB-C (or other) cable must be purchased separately if not already owned.

What is the operating temperature range?

The charger can operate in temperatures from 0°C to 40°C (32°F to 104°F) and can be stored in temperatures from -40°C to 85°C (-40°F to 185°F).

USER MANUAL PA0258 LOGILINK

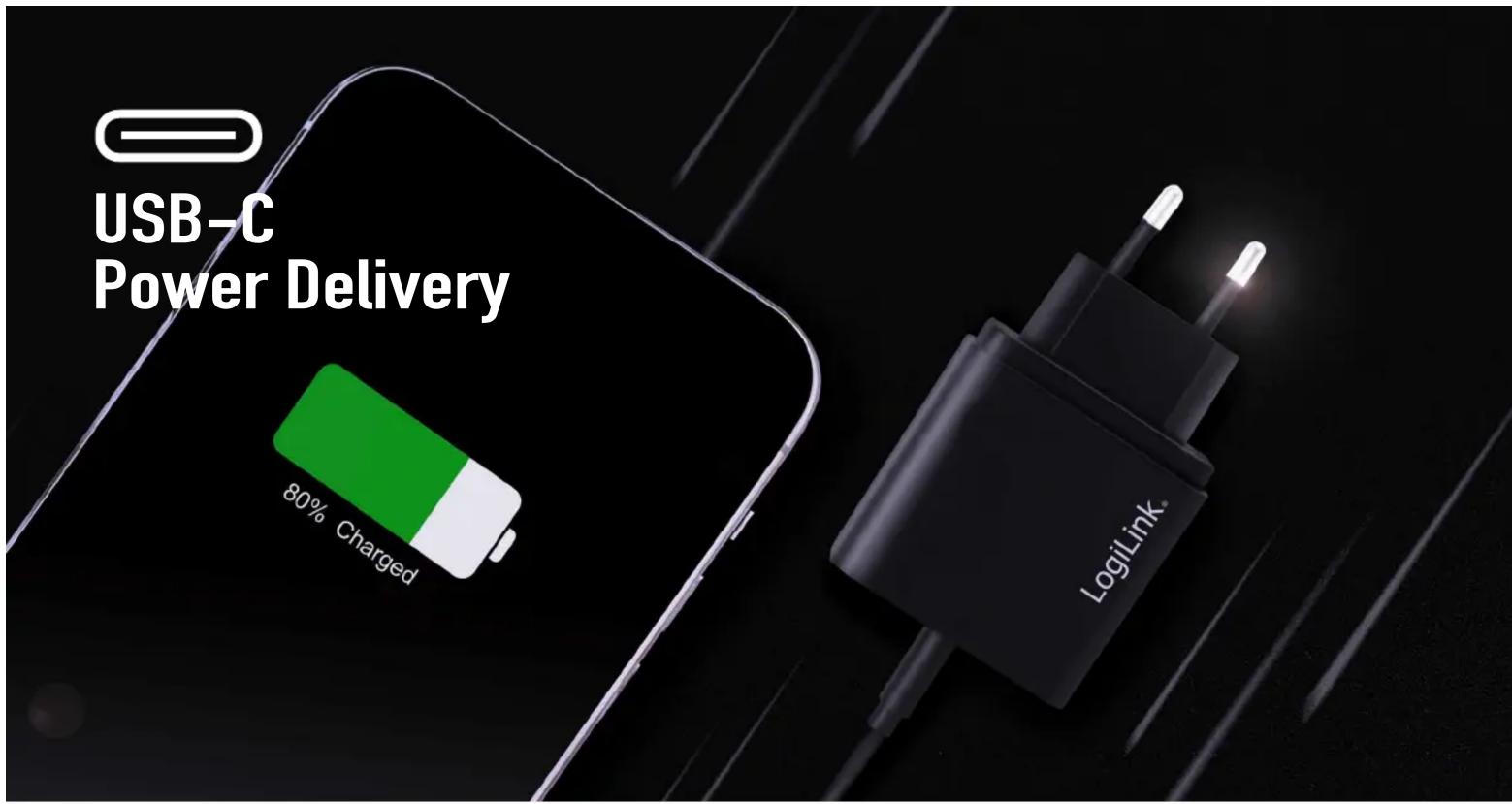

Black LogiLink portable charging device with two leads (no visible text or symbols on body)

LogiLink®

USB-C™ 18 W PD Power Adapter

Art. No.: PA0258

Rapidly charge your devices with 18 W USB-C Power Delivery; it is compact and lightweight for easy portability and storage. Keep your devices charged at home, in the office, or on-the-go.

18 W output for a variety of devices from tablets to smartphones; it powers your devices at incredible speeds.

Extremely safe-comes with overvoltage, overcurrent and short-circuit protection.

Compact size makes it lightweight and easily fits into your laptop bag or backpack. The perfect mobile accessory for traveling.

Wide compatible with most USB-C devices such as smartphones, tablets and much more.

Illustration of a hand holding a black LogiLink device (no text or symbols on the device itself)

Specification:

Input	230 V AC 50/60 Hz 1 A
Output	5 V/3 A (15 W), 9 V/2 A (18 W), 12 V/1.5 A (18 W)Max. total output: 18 W
Efficiency Level VI
Operating Temperature	0–40 °C
Storage Temperature	-40–85 °C
Relative Humidity	25–90% (non-condensing)
Storage Humidity	10–90% (non-condensing)
Dimensions	9.1x5x2.8 cm
Weight 58 g

Package Content:

» 1x USB-C 18W PD Power Adapter
» 1x User Manual

Package Information:

» Packing Dimension: 75x155x30 mm
» Packing Weight: 0.83 kg
» Carton Dimension: 335x315x167 mm
» Carton Q'ty: 40 pcs
» Carton Weight: 3.82 kg
