Type	Fridge with freezer compartment
Brand	Kunft
Model	KC8030 SL
Energy Class	A+
Total Net Capacity	200 L
Fridge Capacity	180 L
Freezer Capacity	20 L
Dimensions (H x W x D)	140 x 55 x 60 cm
Weight	35 kg
Climate Class	N-ST
Noise Level	40 dB
Defrosting	Frost-free (auto defrost)
Temperature Control	Mechanical thermostat
Reversible Door	Yes
Number of Shelves	3 glass shelves
Color	Silver
Voltage	220-240 V
Frequency	50 Hz
Power Consumption	0.5 kWh/24h
Refrigerant	R600a

Frequently Asked Questions - KC8030 SL Kunft

How do I set the temperature on my Kunft KC8030 SL fridge?

Adjust the thermostat dial inside the fridge compartment. Turn clockwise for colder, counterclockwise for warmer. Recommended setting is midway (3-4).

Why is my fridge not cooling properly?

Check if the thermostat is set correctly, ensure the door is closing fully, and verify that the condenser coils at the back are clean. Also avoid overloading.

How often should I defrost the freezer?

The KC8030 SL has a manual defrost freezer. Defrost when ice layer reaches 5 mm thick, typically every few months. Unplug the appliance and leave the door open.

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the manual for step-by-step instructions. You will need a screwdriver and possibly an assistant.

What does the 'Eco' mode do?

Some models have an Eco mode that optimizes energy consumption by adjusting cooling cycles. Check your control panel if available.

How do I clean the interior?

Unplug the fridge, remove all food, and wipe with a mild detergent and warm water. Dry thoroughly before turning on. Avoid abrasive cleaners.

Why is there water pooling inside the fridge?

Water can accumulate if the drainage hole is blocked. Clean the drain with a pipe cleaner or cotton swab. Ensure the fridge is level.

What should I do if the appliance is noisy?

Noise may come from the compressor or fans. Ensure the fridge is on a stable, level surface. If noise persists, contact customer support.

How much energy does this fridge consume?

The estimated energy consumption is 0.5 kWh per 24 hours, making it an energy-efficient model. Actual consumption depends on usage.

What are the dimensions of the KC8030 SL?

The dimensions are approximately 140 cm in height, 55 cm in width, and 60 cm in depth. Ensure adequate clearance for ventilation.

USER MANUAL KC8030 SL Kunft

Line drawing of a kitchen refrigerator with a small refrigerator beside it (no text or symbols)

refrigerator freezer

kunft.®

refrigerator freezer

KC8030 SL

EN

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS....4

1.1. Power Supply....6
1.2. Power Cord and Other Cables......6
1.3. Humidity and Water 6
1.4. Cleaning....6
1.5. General Precautions ...... 7

1. OPERATING INSTRUCTIONS....18

2.1. Product Description.... 18
2.2. Product usage....18
2.3. Maintenance 26
2.4. Troubleshooting 28

1. POST-SALE SERVICE....30

2. ENVIRONMENTAL PROTECTION .... 30

2

3

kunft®

1. SAFETY INSTRUCTIONS

	WARNING
	Risk of Electric ShockDo Not Open
Warning: to avoid the risk of electric shock, do not remove the cover.The interior does not contain any parts that can be repaired by the user.Ask for assistance from the Customer Support Service.

Important Warnings

Before using your appliance read these instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance should not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope,

refrigerator freezer

KC8030 SL

EN

any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to the Customer Support Service for assistance.

This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

kunft®

Children shall not play with the appliance.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case, please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Customer Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main

refrigerator freezer

KC8030 SL

EN

power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product, use a dry soft cloth only.

1.5. General Precautions

• Please follow the instructions in the user manual which will help you to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.
• To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features.
• Make sure these instructions they remain with the appliance if it is moved or sold, so that everyone using it through its life will

kunft.®

be properly informed on appliance use and safety.

- For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

• Children aged from 3 to 8 years are allowed to load and unload this appliance.
• Children should be supervised to ensure that they do not play with the appliance.
- Keep all packaging away from children. There is risk of suffocation.
- If you are disposing of the appliance, remove the plug from the socket, cut the power cord (as close to the appliance as possible) and remove the door to prevent children from accidentally suffering an electric shock or closing themselves inside the appliance.
- This appliance features magnetic door seals. When disposing of an older appliance with a spring lock (latch) on the door or lid, first ensure that the spring lock is rendered unusable, as it may otherwise cause children to become trapped inside.

General safety

⚠ WARNING! Keep the ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction.

refrigerator freezer

KC8030 SL

EN

⚠ WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
⚠ WARNING! Do not damage the refrigerant circuit.
⚠ WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.
⚠ WARNING! Do not touch the light bulb if it has been on for a long period of time because it could be very hot. ^1
⚠ WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.
⚠ WARNING! Do not place multiple portable socket (outlets or portable power suppliers) at the rear of the appliance.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The appliance's refrigerant circuit contains refrigerant isobutane (R-600a) a natural gas with a very low level of environmental impact, which is nevertheless flammable.
• During transportation and installation of the appliance, make sure that none of the

kunft.®

components of the refrigerant circuit become damaged.

• Avoid open flames and sources of ignition.
• Thoroughly ventilate the room in which the appliance is situated.
• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.
• This appliance is intended to be used in household and similar applications such as
• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

⚠ WARNING! Any electrical components (plug, power cord, compressor, etc.) must be replaced by a Customer Support Service agent or qualified service personnel.

⚠ WARNING! The light bulb supplied with this appliance is a “specific bulb” used only with the appliance supplied. This “specific bulb” cannot be used for domestic lighting ^1 .

refrigerator freezer

KC8030 SL

EN

Electrical safety

• The power cord must not be stretched.
• Make sure that the power plug is not pressed or damaged by the back of the appliance. A pressed or damaged power plug may overheat and cause a fire.
• Make sure that you can access the power plug of the appliance.
• Do not pull the power cord.
• If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
• You must not operate the appliance without the lamp ^1 .
• This appliance is heavy. Care should be taken when moving it.
• Do not remove nor touch items from the freezer compartment with damp/wet hand as this could cause skin abrasions or frost/freezer burns.
• Avoid prolonged exposure of the appliance to direct sunlight.
• The refrigerator only works with a 220-240 V / 50 Hz single-phase AC power supply. If there are such large voltage fluctuations in the user's district that the supply voltage exceeds the above values, for safety rea-

kunft®

sons, interrupt -installation of an automatic regulator of AC power supply greater than 350 W in the refrigerator. The refrigerator must be connected to a specific outlet and not a common outlet shared with other appliances. The plug of the same must match the socket with a ground wire.

Daily use

• Do not expose the appliance's plastic parts to direct heat.
• Do not place food products directly against the rear wall.
• Frozen food must not be refrozen once it has been thawed out ^2 .
• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions ^3 .
• Appliance's manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. ^2
• Do not consume ice cream or ice cubes directly from the freezer as they may cause burns to the mouth and lips. ^2

refrigerator freezer

KC8030 SL

EN

• Do not remove or touch items from the freezer compartment with damp/wet hands, as this may cause skin abrasions or ice/freezer burns.
• Never use the base, drawers, doors etc. to stand up or as supports.
• Ice lollies can cause frost burns if consumed straight from the appliance. ^2
• To avoid contamination of food, please respect the following instructions.
• Opening the door for long periods can cause a significant increase in the temperature of the appliance's compartments.
• Regularly clean surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
• One-, two- and three-star compartments (if they are presented in the appliance) are not suitable to freeze fresh food.

kunft®

- If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mount developing within the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the power plug from the power socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. ^2
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance. ^2

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

- Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages Immediately report possible damage to Worten. In that case retain packing.

refrigerator freezer

KC8030 SL

EN

• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation, follow the instructions relevant to installation.
• Wherever possible, the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure the power plug is accessible after the appliance has been installed.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by the Customer Support Service or competent person.
• This product must be serviced by the Customer Support Service, and only genuine spare parts must be used.

Energy saving

• Don't put hot food in the appliance;
• Don't pack food close together as this prevents air circulating;
• Make sure food don't touch the back of the compartment(s);

kunft.®

• If electricity goes off, don't open the door(s);
• Don't open the door(s) frequently;
• Don't keep the door(s) open for too long time;
• Don't set the thermostat on exceeding cold temperatures;
• All accessories, such as drawers, shelves and door racks, should be kept there for lower energy consumption.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger.

The materials used on this appliance marked by the symbol ↗ are recyclable.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment.

refrigerator freezer

KC8030 SL

EN

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging materials

The packaging materials with the symbol are recyclable.

Dispose of the packaging in a suitable collection containers to recycle it.

Disposal of the appliance

1. Disconnect the power plug from the power socket.
2. Cut off the power cord and discard it.

⚠ WARNING! During use, service and disposal of the appliance, please pay attention to the existence of a symbol (⚠ located on rear of the appliance (rear panel or compressor), in yellow or orange.

It is a risk of fire warning symbol, meaning there are flammable materials in refrigerant pipes and compressor.

Please place the appliance far away from fire sources during use, service and disposal.

kunft®

2. OPERATING INSTRUCTIONS

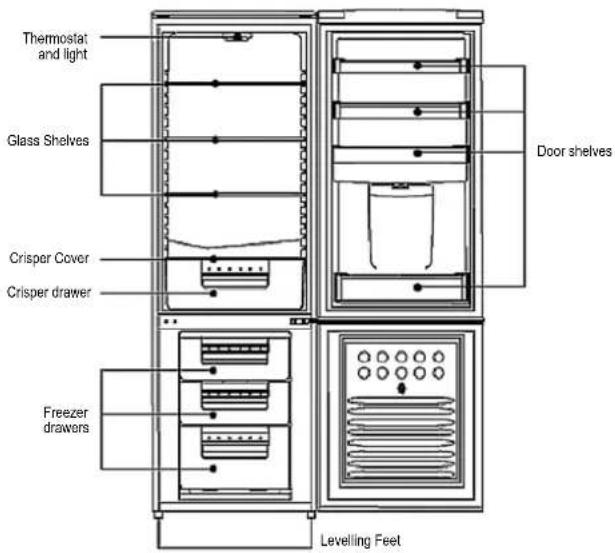

2.1. Product Description

Note: The above picture is for reference only. The real appliance may look different.

2.2. Product usage

Installation

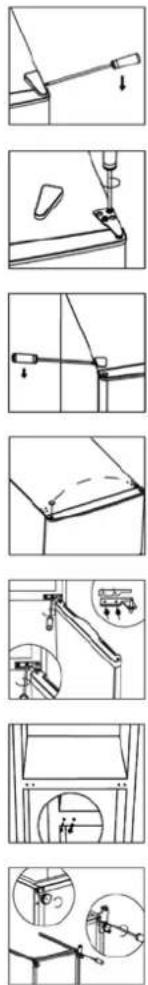

Reversing the doors

Required tools: Philips screwdriver, flat head screwdriver, hexagonal spanner.

• Ensure the unit is unplugged and empty.
• To remove the doors it is necessary to first tilt the unit backwards. You should rest the unit on something solid so that it will not slip while the doors are reversed.
• All removed parts must be saved for reinstallation.
• Do not lay the unit flat as this may damage the coolant system.
• Two people are required for handling the unit during assembly.

refrigerator freezer

KC8030 SL

EN

1. Carefully remove the top hinge cover with a flat screwdriver.

1. Unscrew the top hinge with a Philips screwdriver.

2. Remove the hole cover with a flat screwdriver.

3. Move the core cover from the left side to the right side, and then lift the upper door and place it on a padded surface to prevent it from scratching.

4. Unscrew the middle hinge and then lift the bottom door and place it on a soft pad to avoid scratching.

5. Move two middle hole covers from left to right.

6. Lie down the rear of the cabinet on a soft pad, and unscrew the bottom hinge and levelling foot.

7. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

kunft®

1. Install the hinge on the left side and foot base on the right side. Then screw both levelling feet back in place using their original parts.
2. Move two middle hole covers from left to right.
3. Stand the unit upright and place the door on the bottom hinge. Make sure that the bottom hinge core is inserted in the door hole. Then move the hinge hole cover of the bottom door from the left side to the right side.
4. Install the middle hinge.
5. Install the upper door with the upper hinge.
6. Clap in the hinge cover and hole cover on the top of the unit.
7. Check whether the door gasket is deformed. If yes, detach the fridge and the freezer door gaskets and then attach them after rotating.

Installing the door's external handle (if present)

refrigerator freezer

KC8030 SL

EN

Space Requirement

- Allow enough space for the door to open.

Levelling the refrigerator

The refrigerator can be levelled by adjusting both levelling feet on the front of the unit.

If the refrigerator is not level, the doors and magnetic seal alignments will not be covered properly.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance: for refrigerating appliances with climate class:

-extendedtemperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10°C to 32°C; (SN)
-temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 32°C; (N)
-subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 38°C; (ST)
- tropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 43°C; (T)

Location

The appliance should be installed far away from sources of heat such as radiators, boilers, direct sunlight, etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the mini-

kunft®

mum distance between the top of the cabinet and the wall unit must be at least 50 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate levelling is ensured by one or more adjustable feet at the base of the cabinet.

This refrigerating appliance is not intended to be used as a built-in appliance.

Warning! It must be possible to disconnect the appliance from the ver supply; the plug must be easily accessible after installation.

Electrical connection

Before plugging in the appliance, ensure that the voltage and frequency shown on the rating plate match your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, earth the appliance separately, in compliance with current regulations, consulting a qualified electrician.

The manufacturer will not be held liable if the above safety precautions are not observed.

This appliance complies with E.E.C. Directives.

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Temperature Setting

• Plug in your appliance. The internal temperature is controlled by a thermostat. There are 8 settings, ranging from 1, which is the warmest setting, to 7, which is the coldest. In setting 0, switches off. When set to max, the compressor will not stop
• The appliance may not operate at the correct temperature if it is in a particularly hot environment or if you open the door often.

Place different foods in different compartments according to be table below

Refrigerator

compartments Type of food

Fridge door or racks • Foods with natural preservatives, such as jams, juices, drinks, condiments. • Do not store perishable foods.

refrigerator freezer

KC8030 SL

EN

Crisper drawer • Fruits, herbs and vegetables should be placed separately in the crisper drawer.

• Do not store bananas, onions, potatoes, garlic in the refrigerator

Fridge shelf – middle • Dairy products, eggs

Fridge shelf – top • Foods that do not need cooking, such as ready-to-eat foods, deli meats, leftovers.
Freezer drawer(s) / shelf	• Foods for long-term storage.• Bottom drawer/shelf for raw meat, poultry, fish.• Middle drawer/shelf for frozen vegetables, chips• Top drawer/shelf for ice cream, frozen fruit, frozen baked goods

Temperature setting recommendation

Environmental Temperature	Freezer compartment Fridge compartment
Warm 29^ - 38^	/
		Set to 2~4
Normal 21^ - 28^	/
		Set to 4
Cold 16^ - 20^	/
		Set to 4~6

• The information above contains recommended temperature settings.

Impact on Food Storage

• Under the recommended settings, the optimal fridge storage time is no more than 3 days.
• Under the recommended settings, the optimal freezer storage time is no more than 1 month.
• The optimal storage time may decrease under other settings.

kunft®

refrigerator freezer

KC8030 SL

EN

Freezing fresh food

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
• Place the fresh food to be frozen in the freezer compartment.
• The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
• The freezing process lasts 24 hours. No further food should be frozen during this period.

Storing frozen food

When first starting-up or after a period out of use, let the appliance run for at least 2 hours on the higher settings before placing food in the compartment.

Important! In the event of accidental defrosting, for example in the event that the power has been off for longer than indicated in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (once cooked).

Thawing

Deep-frozen or frozen food, prior to being consumed, can be thawed in the fridge compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked frozen, directly from the freezer. In this case, cooking will take longer.

Door open alarm

If miss to close fridge door for 60s, the LED light will flash 3 times and then fight for 5s, repeating this cycle until the door is closed. Ice-cube tray

This appliance may be equipped with one or more ice-cube trays to produce ice.

accessories

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Positioning the door racks

To permit storage of food packages of various sizes, the door racks can be placed at different heights. To make these adjustments proceed as follows: gradually pull the door rack in the direction of the arrows until it comes free, then reposition as required.

Helpful hints and tips

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

• The maximum quantity of food which can be frozen in 24 h is shown on the rating plate;
• The freezing process takes 24 hours. No further food to be frozen should be added during this period;
• Only freeze top quality, fresh and thoroughly cleaned foodstuffs;
• Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible to subsequently thaw only the amount required;
• Wrap up the food in aluminium foil or polyethylene and make sure the packages are airtight;
• Do not allow fresh, unfrozen food to touch already frozen food, thus avoiding a rise in temperature of the latter;
• Lean foods store better and longer than fatty ones; salt reduces the storage life of food;
• Ice cubes, if consumed immediately after removal from the freezer compartment, can cause freeze burn;
• It is advisable to write the freezing date on each individual pack to enable you to keep tabs of the storage time.

Hints for storage of frozen food

To get the best performance from this appliance, you should:

• Make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
• Be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;
• Not open the door frequently or leave it open longer than absolutely necessary. Once defrosted, food deteriorates rapidly and cannot be refrozen.
• Do not exceed the storage period indicated by the food manufacture.

Hints for fresh food refrigeration

To obtain the best performance:

• Do not store warm food or evaporating liquids in the refrigerator
  • Cover or wrap the food, particularly if it has a strong flavour
• Wrap all types of foodstuff in polyethylene bags and place on the glass shelves above the vegetable drawer.

- For safety, store in this way only one or two days at the most.

kunft®

• Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.
• Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polyethylene bags to exclude as much air as possible.
• Milk bottle: these should have a cap and should be stored in the door racks.
• Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.

2.3. Maintenance

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Caution! The appliance may not be connected to the power supply during cleaning. Danger of electrical shock! Before cleaning, switch the appliance off and remove the plug from the power supply, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapours can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

Important! Ethereal oils and organic solvents can attack plastic parts, e.g., lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

Clean the drain hole

To avoid defrosted water overflowing into the fridge, periodically clean the drain hole at the back of the fridge compartment. Use a cleaner to clean the hole as depicted on the right.

- Do not allow such substances to come into contact the appliance parts.

• Do not use any abrasive cleaners.
• Remove the food from the freezer. Store them in a cool place, well covered.
• Switch the appliance off and remove the plug from the power supply, or switch off or turn out the circuit breaker or fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.
  • After everything is dry place appliance back into service.

refrigerator freezer

KC8030 SL

EN

Defrosting the freezer

The freezer compartment will become progressively covered with frost. This should be removed. Never use sharp metal tools to scrape off frost from the evaporator as this can damage it.

If the ice becomes very thick on the inner liner, then complete defrosting must be carried out as follows:

• Pull out the plug from the socket;
• Remove all stored food, wrap it in several layers of newspaper and put it in a cool place;
• Keep the door open, and place a basin underneath the appliance to collect defrosted water;
• When defrosting is completed, dry the inside of the freezer thoroughly
• Insert the plug back into the power socket to run the appliance again.

Replacing the light

- The appliance has an internal LED light. Warning! The LED light must not be replaced by the user! If the LED light is damaged, please contact Customer Service for assistance.

Water Dispenser

Before using the water dispenser for the first time, remove and clean the water tank located inside the refrigeration compartment.

1. Remove the water tank. Detach the top cover and wash and clean both the tank and the cover.

1. After cleaning, place the water tank, cover and the tank's rack back into position as outlined below.

Pure mechanical assembly diagrams without any text, numbers, or symbols

1. Clean the dispenser pad outside the refrigerator door.

kunft®

refrigerator freezer

KC8030 SL

EN

Filling up the water tank

1. Lift the small lid on the top of the tank rack.
2. Fill the water tank with drinkable water up to the 2.5 L line.
3. Close the lid. Ensure it is firmly shut.

Dispensing water

Push the dispenser pad gently with a glass or container. To stop the flow, pull the glass away from the pad.

2.4. Troubleshooting

⚠ Caution! Before troubleshooting, disconnect the power supply. Only the Customer Support Service or a competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem Possible cause Solution

Appliance does not work	Power plug is not plugged in or is loose.	Insert power plug.
	Fuse has blown or is defective.	Check fuse, replace if necessary.
	Socket is defective.	Power plug malfunctions are to be corrected by the Customer Support Service.
Appliance freezes or cools too much	Temperature is set too cold or the appliance runs on SUPER mode.	Turn the temperature regulator to a warmer setting temporarily.
The food is not frozen enough.	Temperature is not properly adjusted.	Refer to the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Refer to the Installation section.

Heavy build-up of frost on the door seal.	Door seal is not air tight.	Carefully warm the leaking sections of the door seal with a hair dryer (on a cool setting). At the same time, shape the warmed door seal by hand such that it sits correctly.
Unusual noises	Appliance is not levelled.	Re-adjust the feet.
	Appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
Water on the floor	Water drain hole is blocked.	Refer to the Cleaning and Care section.
Side panel is hot	Condenser is inside the panel.	It's normal.

If the malfunction shows again, contact the Customer Support Service. These data are necessary to help you quickly and correctly. Write the necessary data here, refer to the rating plate.

kunft®

frigorífico combi

KC8030 SL

ES

3. POST-SALE SERVICE

KUNFT has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Customer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

Spare parts availability

Functional and aesthetic replacement parts are available to professional repairers and end consumers for a minimum period of 10 years from the date of placing the last unit on the market.

4. ENVIRONMENTAL PROTECTION

In order to protect the environment, we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic.

The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

To find out more about your product, consult the online EPREL database. As defined in Commission Delegated Regulation (EU) 2019/2016, all information relating to this refrigeration appliance is available on the EPREL Base (European Product Database for energy labeling). This database enables you to consult the information and technical documentation of your refrigeration appliance. You can access the EPREL Database by scanning the QR code on the energy label of your appliance or by going directly to www.ec.europa.eu and searching the reference of your refrigeration appliance.

Estimado cliente:

Diagram showing two mechanical assembly steps: one with a vertical component and upward arrow, the other with a rectangular block and an arrow (no text or symbols)

Pure mechanical assembly diagrams showing four sequential steps of a bracket or bracket assembly (no text or symbols)

Technical line drawing showing two mechanical assembly steps with arrows indicating direction (no text or symbols)

refrigerator freezer

is perfectly enough

KC8030 SL

Imported, produced and distributed by:
