302370 - Wi-Fi Antenna Aplic - Free user manual and instructions

Product Type	Wi-Fi Antenna
Brand	Aplic
Model	302370
Frequency Band	2.4 GHz / 5 GHz
Gain	5 dBi
Connector Type	RP-SMA Male
Polarization	Linear Vertical
Impedance	50 Ohms
Dimensions (approx.)	200 mm x 15 mm (length x diameter)
Weight	50 g
Power Supply	Passive (no external power required)
Operating Temperature	-20°C to 60°C
Main Functions	Enhances Wi-Fi signal reception and transmission
Compatibility	Routers, access points, and devices with RP-SMA port
Mounting	Magnetic base or adhesive pad
Maintenance & Cleaning	Wipe with a soft dry cloth; avoid liquids
Safety Precautions	Keep away from water and moisture; do not disassemble
Spare Parts & Repairability	No user-serviceable parts; consult professional for repairs
Package Contents	1x antenna, 1x mounting kit, 1x manual

Frequently Asked Questions - 302370 Aplic

How do I install the Aplic 302370 Wi-Fi antenna?

Screw the antenna onto the RP-SMA connector of your router or device. Ensure it is hand-tight. For best performance, position the antenna vertically.

Is this antenna compatible with all routers?

It fits devices with an RP-SMA male connector. Many routers have this port, but check your device's specifications. It works with 2.4 GHz and 5 GHz bands.

Does the antenna require external power?

No, it is a passive antenna and does not need any power source. It simply connects to your router's antenna port.

What is the gain of this antenna?

The antenna has a gain of 5 dBi, which can improve signal range and strength compared to standard omni-directional antennas.

Can I use this antenna outdoors?

The antenna is designed for indoor use. If used outdoors, it must be protected from direct exposure to rain and moisture.

Will this antenna work with my Wi-Fi extender?

Yes, if the extender has a removable antenna with an RP-SMA connector. It is compatible with most devices that support external antennas.

How should I clean the antenna?

Use a soft, dry cloth to gently wipe the antenna. Do not use water, solvents, or abrasive cleaners.

Is there a warranty for this product?

Warranty details are typically provided by the retailer. Contact Aplic or your point of purchase for specific warranty information.

Can I replace the antenna cable?

The antenna has a fixed cable; it is not user-replaceable. If damaged, the entire antenna may need replacement.

How do I know if the antenna is working?

After installation, check your device's Wi-Fi signal strength indicator. An improvement in signal bars or range indicates proper operation.

USER MANUAL 302370 Aplic

Blue abstract logo shape resembling a stylized letter 'Q' or droplet (no text or symbols)

Table of contents

1. Deutsch .... 3
2. English 8

Thank you for having chosen this aplic product and for placing your trust in our company. Please read this manual carefully before installation to ensure your long-term enjoyment of this product. For future reference, please keep this manual.

1 Scope of supply

• USB 3.0 Wi-Fi adapter
• Driver CD
• User manual

2 Technical specifications

Connection USB 3.0
Bit rate	IEEE 802.11 b/g/n/h/a/ac: up to 867Mbit/s* * Transmission rate varies depending on the distance and external interferences
Chipset Mediatek MT7612	UN
Radio spectrum 2.4 GHz / 5 GHz
Features WPS PBC - Push Button Configuration

3 Installing driver

Insert the driver CD into the drive and then insert the Wi-Fi adapter into a free USB 2.0 port (or higher) on your computer.

Access the contents of the driver CD and navigate to the "Drivers" subfolder and then to "Windows". Now run the Setup.exe.

Setup

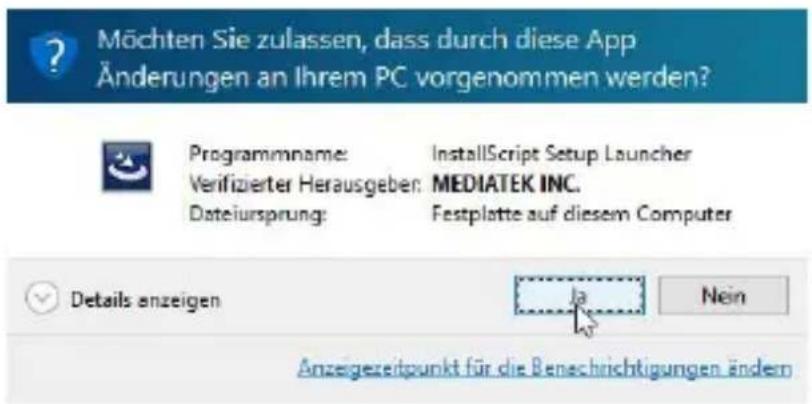

Please accept the confirmation prompt that follows by clicking "Yes".

This starts the installation wizard. You need to agree to the terms of license agreement to start the installation. Then press the "Next" button.

In the next window you are asked if you want to install the "WLAN Utility" software as well. Windows already provides all the basic functions and there is no need to install the additional software.

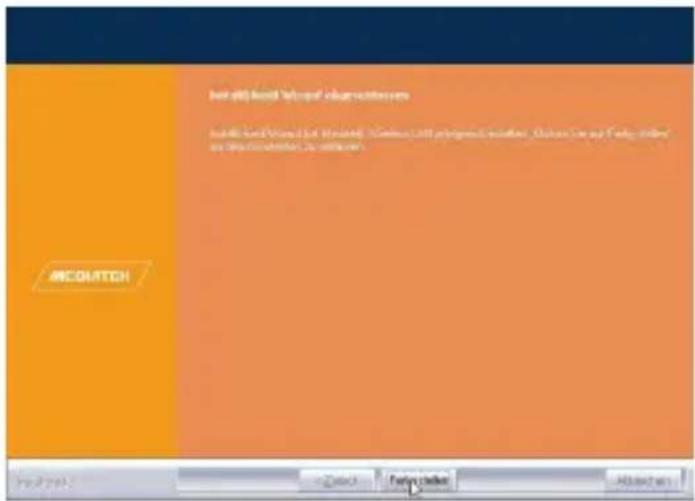

Click "Next" and then "Install" in the following installing window. The installation starts.

Click "Finish" after installation is completed. The Wi-Fi adapter is now ready to be used.

Note: With the help of the practical WPS button (WiFi Protected Setup) it is easy to integrate the adapter with just one click into your wireless network. A secure connection will be installed automatically without any manual network key configuration. This function will only work with an installed software.

4 Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

5 Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 302370/20170703SZ145 conforms to the principle requirements and other relevant stipulations of Directive 1999/5/EG. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
