Product Type	Fiber Optic Fusion Splicer
Brand	JILONG
Model	280T
Dimensions (HxWxD)	143 x 136 x 155 mm (including rubber bumper)
Weight	1.6 kg (without battery) / 1.9 kg (with battery)
Power Supply	AC 100-240V, DC 9-14V
Battery Capacity	6800 mAh (300 splice & heat cycles per charge)
Display	4.3-inch capacitive touch screen
Splice Time (Quick Mode)	8 seconds
Heating Time (Quick Mode)	18 seconds
Typical Splice Loss (SM)	0.02 dB
Return Loss	>60 dB
Electrode Life	5000 arcs (replaceable, tool-less)
Fiber Types	SM (G.652/G.657), MM (G.651), DS (G.653), NZDS (G.655)
Fiber Diameter	Cladding: 80-150 μm, Coating: 100-1000 μm
Cleave Length	8-16 mm
Splice Modes	Up to 128 modes
Heat Programs	Up to 32 modes
Storage	10,000 splice records, 2,000 result images
Operating Temperature	-20°C to 50°C
Relative Humidity	0-95%
Warranty	3 years (extended)
Main Features	Core alignment, tool-less electrode replacement, 3-in-1 fiber holder, touch screen, high capacity battery, ruggedized design

Frequently Asked Questions - 280T JILONG

How do I replace the electrodes on the JILONG 280T?

The JILONG 280T features tool-less electrode replacement. Simply unscrew the old electrodes by hand and screw in the new ones gently. No tools required.

What is the battery life for the 280T fusion splicer?

The 280T is equipped with a 6800mAh battery capable of 300 splice and shrink cycles per charge under typical conditions.

What fiber types are compatible with the 280T?

It supports SM (G.652/G.657), MM (G.651), DS (G.653), and NZDS (G.655) fibers. It also handles fiber diameters from 0.25 mm to 3.0 mm and rubber-insulated cables.

How do I clean the V-grooves on the 280T?

Use the provided fiber cleaning wipes or isopropyl alcohol to gently clean the V-grooves. Avoid using abrasive materials to prevent damage.

What is the splice loss specification for SM fibers?

Typical splice loss for SM fibers (identical) is 0.02 dB as per ITU-T and IEC standards.

Can I use the 280T in extreme weather conditions?

Yes, it is designed for rugged use and operates at temperatures from -20°C to 50°C, with 0-95% relative humidity, and wind up to 15 m/s at altitudes up to 5000m.

How do I update the software on the 280T?

Software updates can be performed via the USB 2.0 terminal. Refer to the official website for firmware files and instructions.

What is included in the box?

The package includes the fusion splicer, high precision fiber cleaver KL-23F, work table carry case, battery pack 6800mAh BTR-68S, power charger, cooling tray, fiber cleaning wipes, alcohol bottle, fiber stripper, flat cable stripper, and a set of splicing protector sleeves.

How do I perform a tool-less electrode replacement?

To replace the electrodes, simply unscrew the worn electrodes by hand and screw in the new ones finger-tight. No tools are necessary.

What is the warranty period for the JILONG 280T?

The 280T comes with a 3-year extended warranty upon registration. Check the official website for details.

USER MANUAL 280T JILONG

Automatic welding heating

Blue square icon with a white gear and circular symbol (no text or numbers)

Functional all-rounder

Blue square icon with white crossed wrench and screwdriver symbol (no text)

Tool-less electrodes replacement

Blue square icon with a white battery symbol and lightning bolt inside (no text or numbers)

6800mAh High capacity battery

Blue square icon with a white abstract graphic resembling a stylized hand or tool (no text or symbols)

Fiber core visible

Blue square icon with a white hand cursor clicking a tablet screen (no text or symbols)

Touch display

Feature Description

4 Motor mainline fusion splicer
Fiber core alignment, Fiber core visible
Auto splice & auto heat function
Fully ruggedized for shock, dust, and moisture
3-Year extended warranty

4.3-Inch capacitive touch screen
Electrode life around 5000 times(Replaceable)
Tool-less electrodes replacement
6800mAh High capacity battery with 300 splices&shrinks per charge

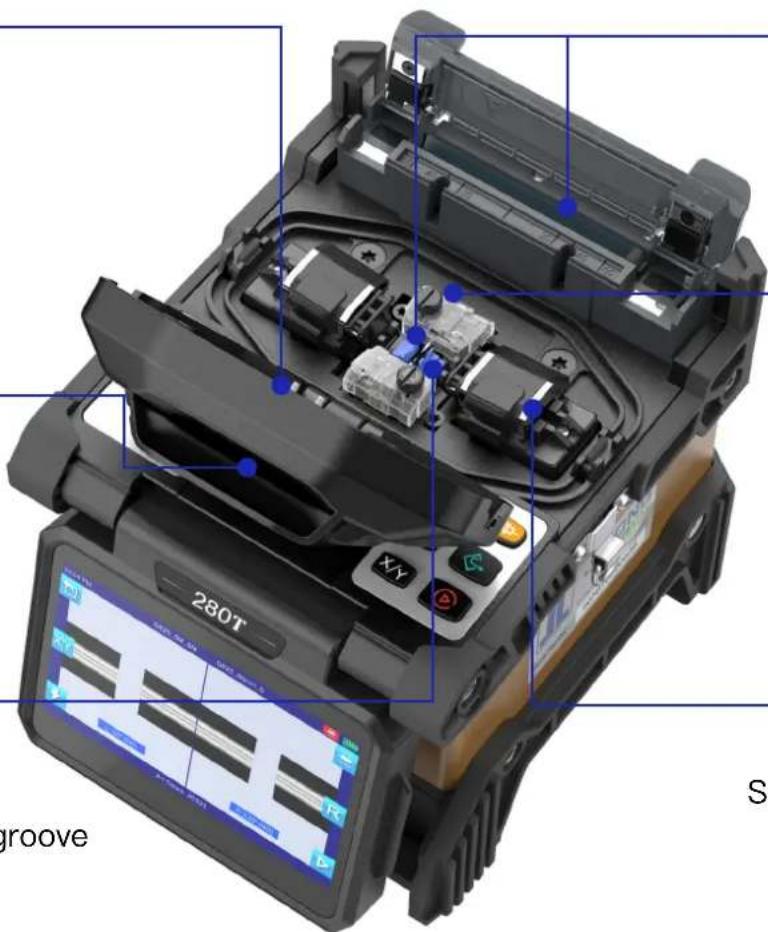

Main Features

Durable ceramic fiber pressure heads

Fast-splicing 8s Fast-heating 18s

Non-reflective design for faster response and easy maintenance

The electrodes can be replaced by screwing it gently without tools

Special designed V-groove

Special 3-in-1 fiber holder

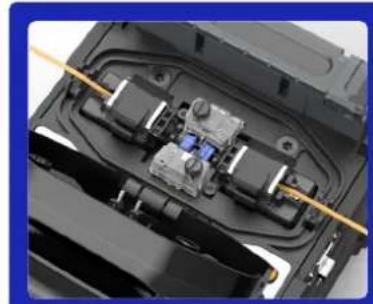

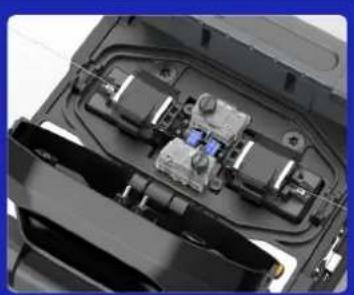

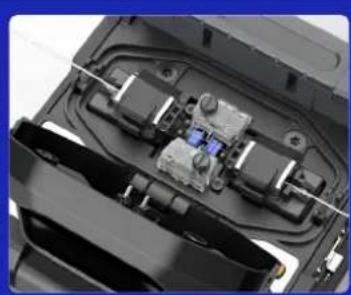

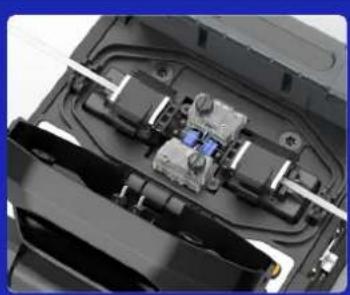

3-IN-1 Fiber Holder

Fiber holder suitable for Bare Fiber/ 3.0mm, Jump Fiber/Pigtail and Fiber/Rubber-insulated fiber cable

Close-up of an electronic device showing internal components and wiring (no visible text or symbols)

Interior view of a device showing internal components and wiring (no visible text or symbols)

Interior view of a device showing internal components and wiring (no visible text or symbols)

Interior view of a device showing internal components and wiring (no visible text or symbols)

Real core alignment

Fast-splicing 8s Fast-heating 18s

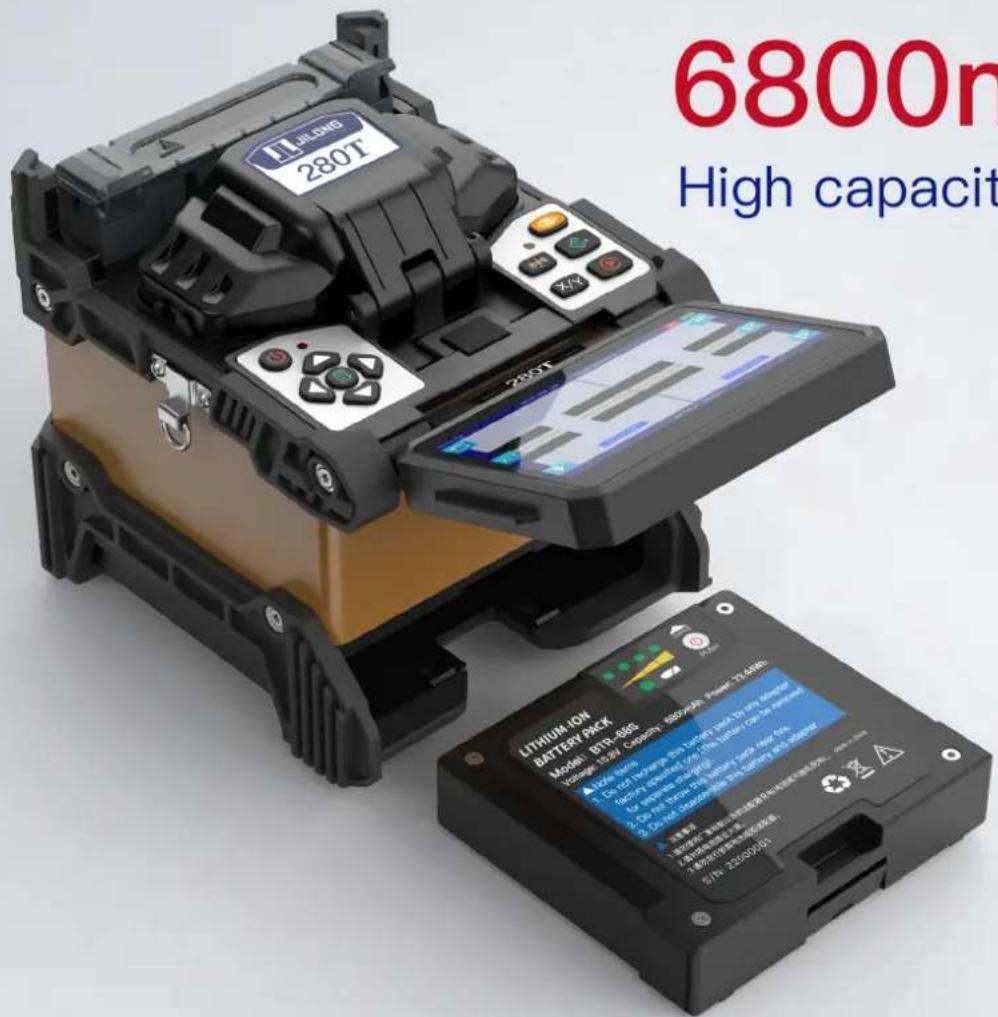

6800mAh

High capacity Li-battery

6800mAh capacity battery

300 splices& shrinks per charge

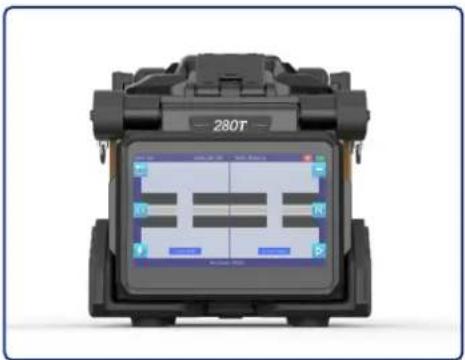

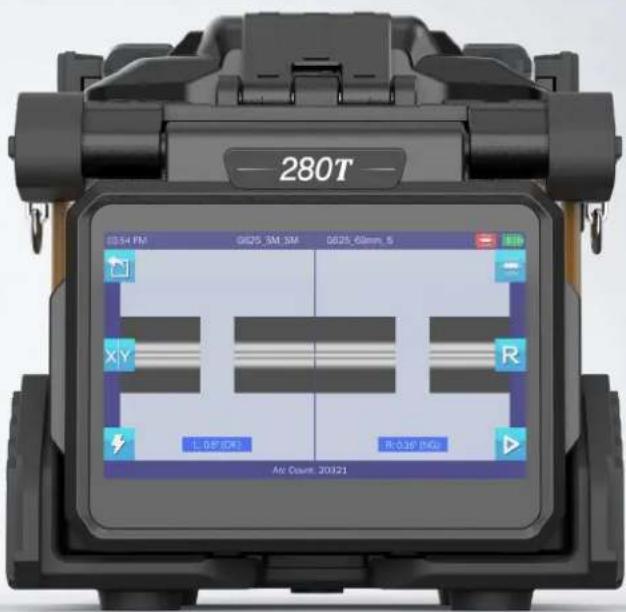

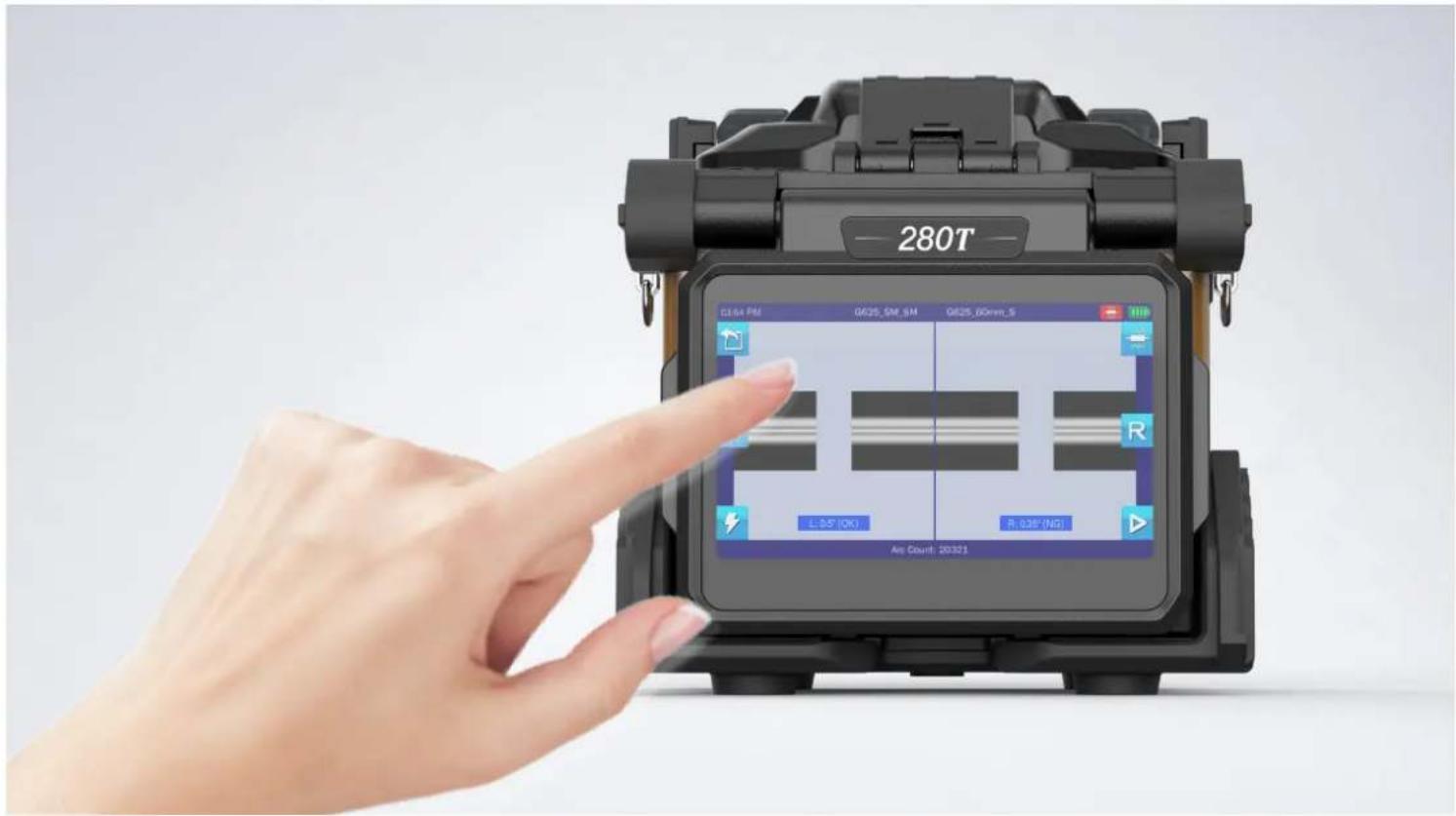

4.3-Inch capacitive touch screen

Newly upgraded touch screen, easy to operate, and more user-friendly UI interface.

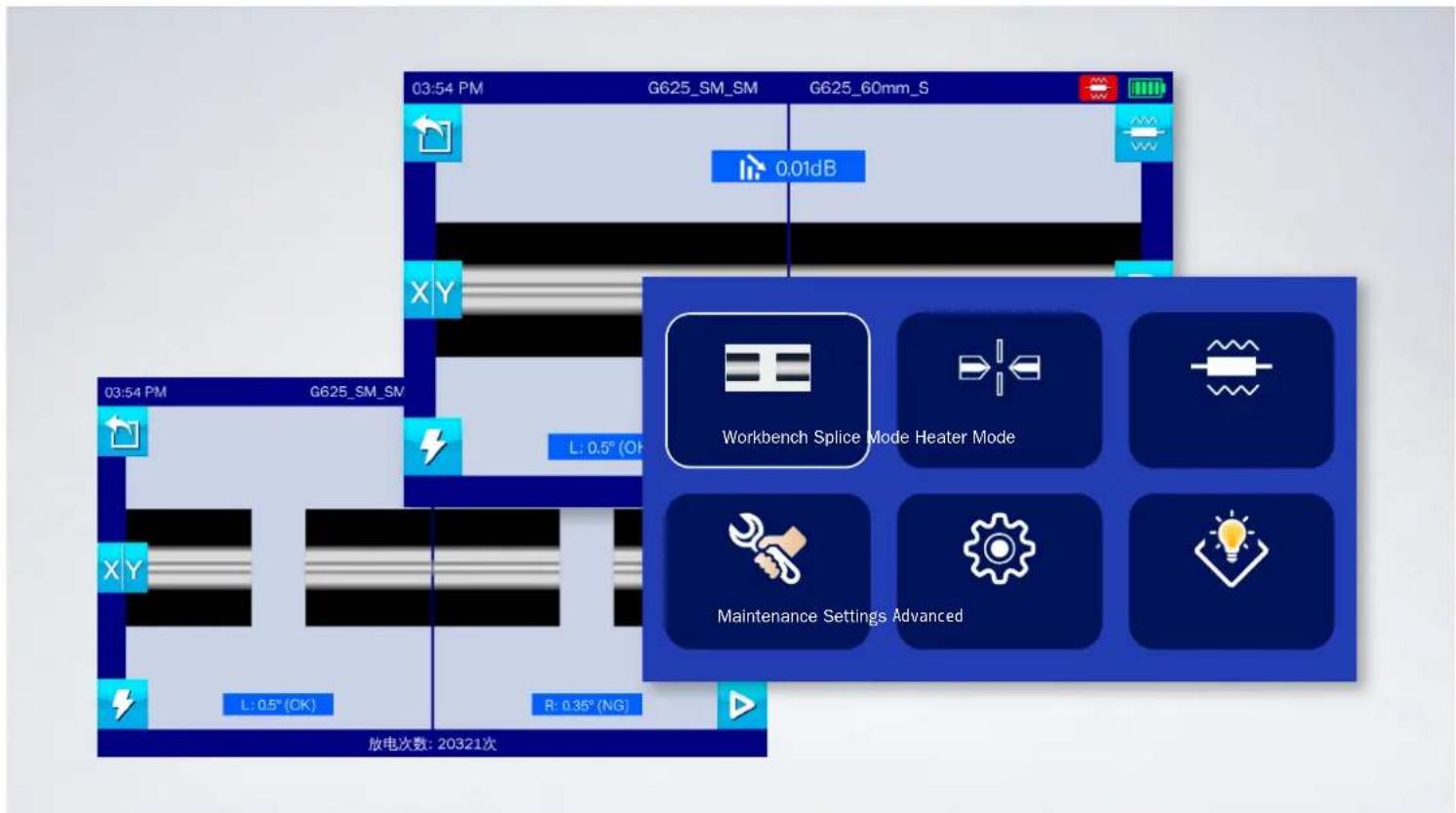

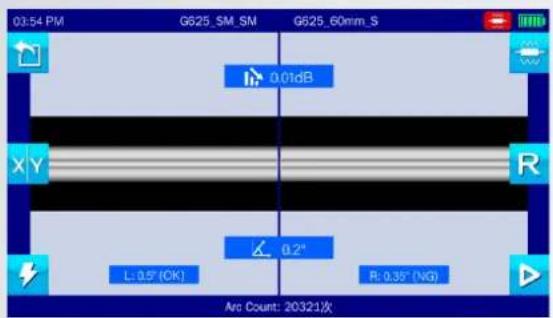

New UI interface design

Upgrated interface and more user-friendly interaction

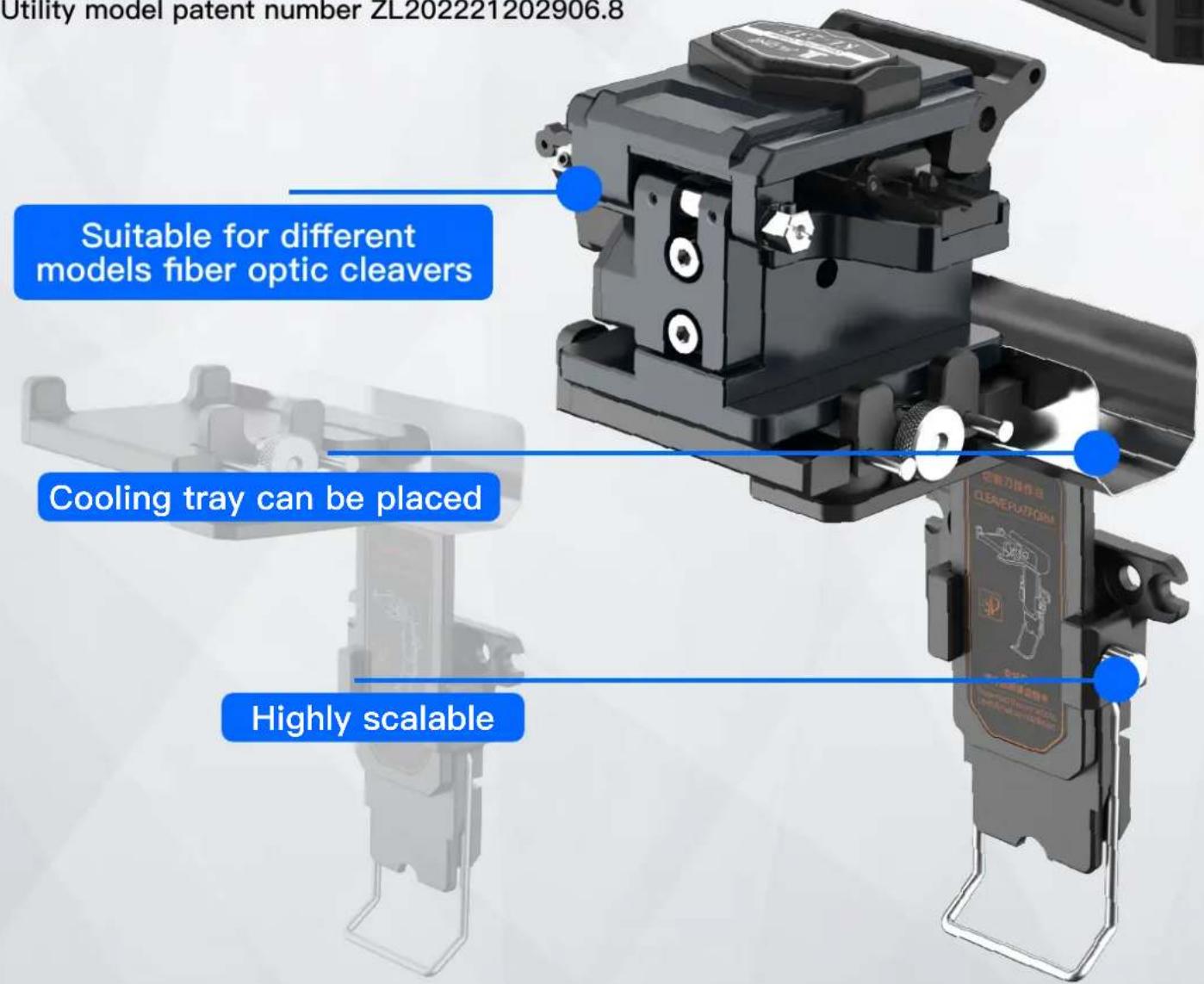

High Expansibility fiber optic cleaver operating platform design

Support the placement of cleaver operating platform, do cleaving and splicing work in one step (The console needs to be bought separately)

Invention patent application number 202210544729.X Utility model patent number ZL202221202906.8

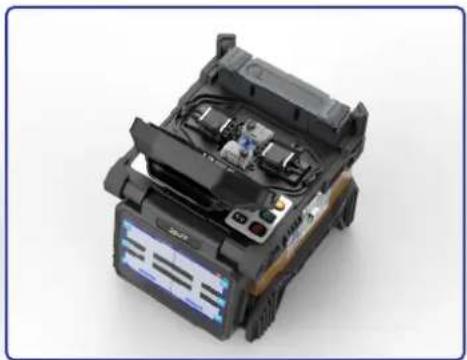

Installation instructions of fiber optic operating platform

Diagram of a mechanical device with red outline and blue circular component, no visible text or symbols

First fix the clip on the back of the fusion splicer, and then clip the base vertically downward into the clip.

Technical line drawing of a mechanical device with no visible text or symbols

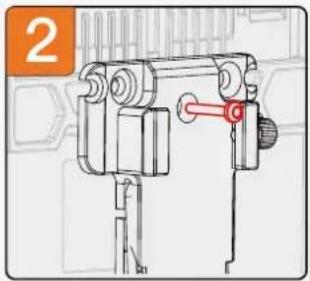

Finally, insert the screw into the middle hole on the upper part of the base and tighten it. The base installation is completed.

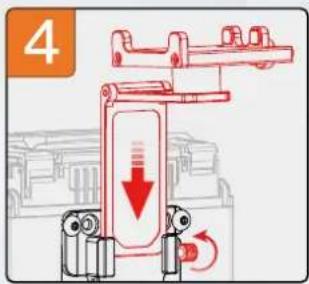

Rotate the support plate to the horizontal position.

Insert the support plate into the fixing plate and tighten the fixing screws.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

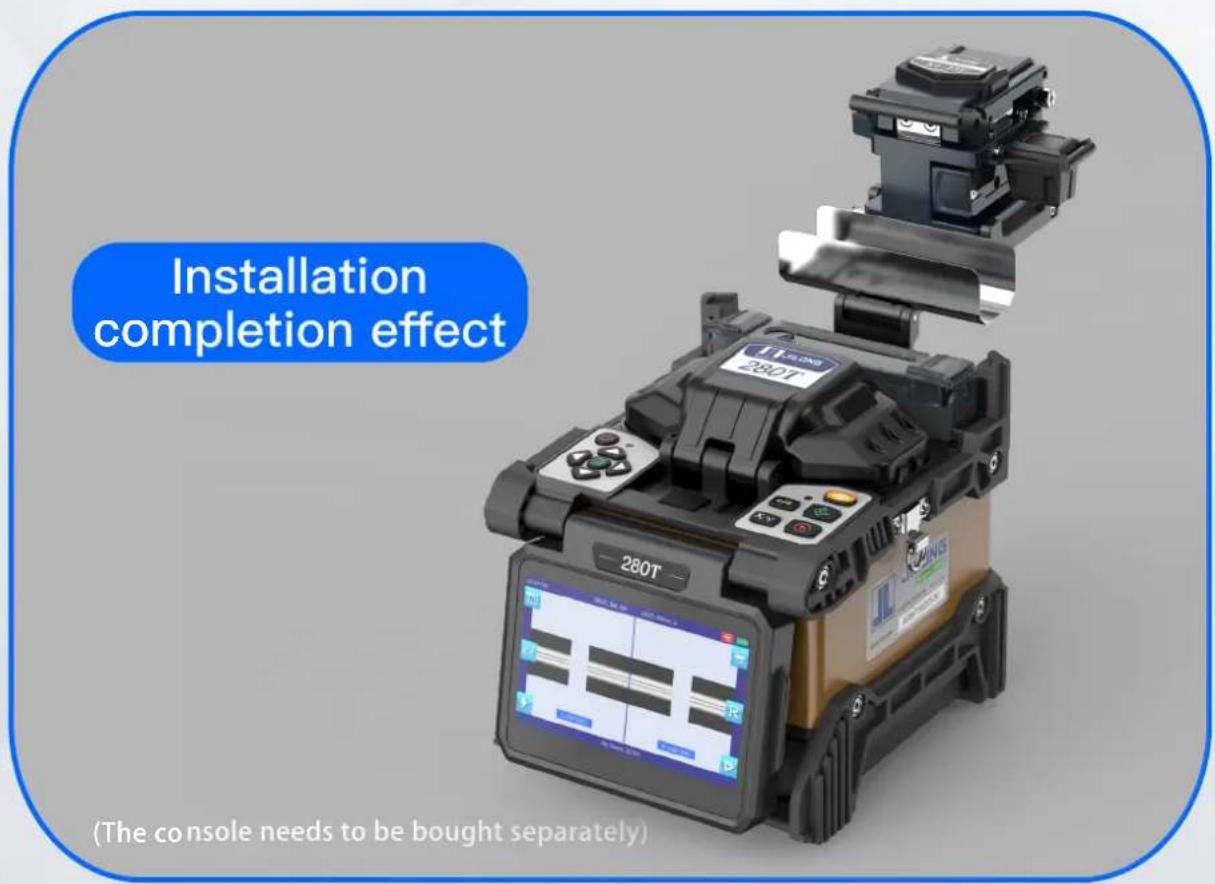

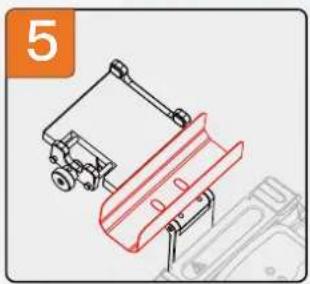

Place the cooling tray in the corresponding position of the support plate, and the installation is completed.

Mechanical assembly diagram showing a motor with red-handled lever mechanism (no text or symbols)

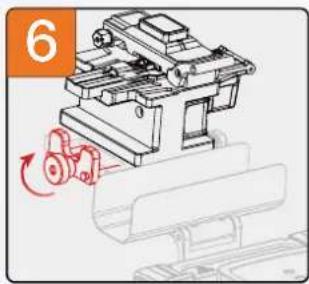

After placing the fiber cleaver on the operating platform, adjust the depth of the screw so that the rubber pad fits the cleaver completely.

Splice Method	Core Alignment
Applicable Fibers	SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber/Cable	0.25~3.0 mm / Rubber-insulated fiber cable
Fiber Holder	Replaceable universal fiber holder
Fiber Diameter	Cladding:80-150μm, Coating: 100-1000μm
Fiber Cleave Length	8~16 mm
Splice Mode	Max 128 modes
Typical Splice Loss	SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB ★1
Return Loss	>>60dB
Splicing Time	SM Quick mode: 8 sec/ SM Average: 15 sec
Estimated Splice Loss	Available
Heating Time	Quick mode 18 sec.(SM G652 250μm 40mm Sleeve) adjustable★2
Protection Sleeve Length	20mm,30mm,40mm,50mm,60mm
Heat Programs	Max 32 modes
Battery Capacity	6800mAh Battery Capacity, Typical 300 Cycles (Splice&Heat) per Charge ★3
Electrode Life	5000 arcs, can be extended by using an electrode grinder★4
Auto-start	Splice / Heating
Automatic Fiber Identification	/
Automatic ARC Identification	Automatic arc calibration by air pressure and temperature
Results Storage	The last 10,000 splice records and 2,000 result images
Tension Test	1.96~2.25N
Operating Condition	Altitude: 0~5000m, 0~95% relative humidity, -20~50°C, Max Wind 15m/s
Storage Condition	0~95% relative humidity, -20~60°C
Display	4.3-Inch capacitive touch screen
Fiber Magnification	X, Y, XY, X/Y : 320X Magnification
Power Supply	AC Input 100-240V, DC Input 9-14V
Terminal	USB2.0
Weight	1.6kg without battery / 1.9kg with battery
Size	143H x 136W x 155D mm (including rubber bumper)

★① With identical fibres(in room temperature). Measured by cut-back method relevant to ITU-T and IEC standards.
★② 0.25mm fiber, may vary depending on the battery status and operating environment.
★③ Splice & Heat cycles based on 40mm shrink tube
★④ Electrode life may vary depending on the operating environment.

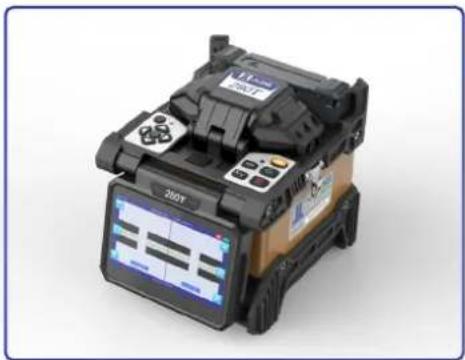

Front view of a black 280° optical fiber optic device with display screen (no visible text or symbols)

Close-up of a fiber optic transducer device with visible control panel and display screen (no readable text or symbols)

Close-up of a black industrial optical device with visible internal components and display screen (no text or symbols)

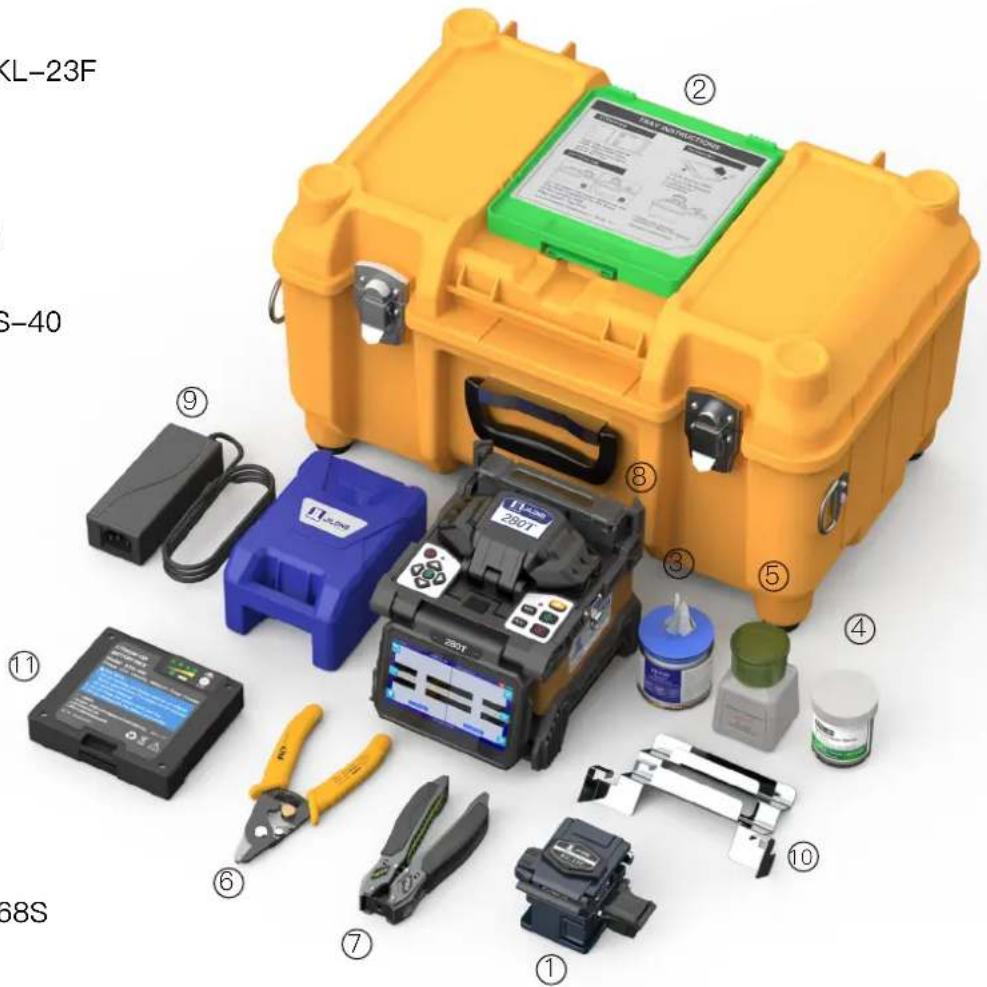

Packing List

① High Precision Fiber Cleaver KL-23F
② Work Table Carry Case
③ Fiber Cleaning Wipes (FOCW)
④ Splicing protector sleeves FPS-40
⑤ Alcohol bottle
⑥ Fiber Stripper
⑦ Flat Cable Stripper FTS-01
⑧ Fusion splicer
⑨ Power charger
⑩ Cooling Tray
⑪ Battery Pack 6800mAh BTR-68S
