MBN10 - Oven DCG - Free user manual and instructions

Product Type	Electric Oven
Brand	DCG
Model	MBN10
Capacity	10 Liters
Power Consumption	650 W
Voltage	220-240 V
Frequency	50/60 Hz
Control Type	Mechanical Knobs (Timer, Temperature, Selector)
Timer	Mechanical Timer with Auto Shut-off and Bell
Cooking Functions	Bake, Grill (Top Heating Element)
Accessories Included	Bake Pan, Bake Rack
Indicator Light	Power Light (On when timer is active)
Preheat Required	Recommended 10 minutes
Ventilation Clearance	At least 4 inches (10 cm) on all sides
Safety Features	Auto Shut-off, Do Not Immerse, Heat Resistant Surface Required
Cleaning	Unplug, allow to cool, wipe with damp cloth, mild soap if needed, no abrasives
Usage	Household Use Only
First Use Note	May emit light smoke for about 5 minutes (normal)
Grill Cooking	Door at open point, selector to Grill, timer set
Material	Metal construction with heat-resistant handle
Dimensions (Estimated)	Approx. 35 x 30 x 25 cm (based on typical 10L ovens)
Weight (Estimated)	Approx. 3.5 kg (based on typical 10L ovens)

Frequently Asked Questions - MBN10 DCG

How do I preheat the DCG MBN10 oven?

Turn the selector to the desired cooking function and the temperature knob to the desired temperature. Then turn the timer dial to about 10 minutes. The power light will illuminate. After 10 minutes, the oven is preheated. You can then place your food inside and adjust the timer as needed.

What should I do if the oven emits smoke during first use?

It is normal for the oven to emit a small amount of smoke during the first use due to manufacturing residues. The smoke will disappear after about 5 minutes. Ensure proper ventilation and do not cover the oven.

How do I clean the DCG MBN10 oven?

Unplug the appliance and allow it to cool completely. Wipe all surfaces with a clean, damp cloth. For stubborn stains, use mild soap. Do not immerse in water, use abrasive cleaners, or sharp utensils.

Can I use metal utensils or foil in the oven?

Oversized metal utensils should not be inserted. Do not cover the crumb tray or any part of the oven with metal foil as it may cause overheating. Use only metal or glass containers recommended by the manufacturer.

What is the maximum capacity of the DCG MBN10 oven?

The oven has a capacity of 10 liters. Do not place oversized food items that might touch the heating elements or impede air circulation.

How do I use the grill function?

For grilling, leave the oven door at the open point (partially open). Turn the selector to the GRILL setting (top heating tube). Set the timer to your desired grill time. The power light will turn on. When grilling is done, turn the timer back to OFF.

Why does the timer not turn off after cooking?

The timer will automatically shut off and ring a bell when the set time expires. If you finish cooking earlier, manually turn the timer dial back to OFF. Ensure the timer is turned clockwise to set; turning counterclockwise may not activate correctly.

Can I use the oven on a wooden counter?

The oven should not be placed directly on an untreated wooden surface. Use a heat-resistant surface. The feet may leave marks; remove them with a damp cloth if needed.

What is the power requirement for the DCG MBN10 oven?

The oven operates at 220-240 volts, 50/60 Hz, with a power consumption of 650 watts. Make sure your electrical outlet matches these specifications.

Is the DCG MBN10 oven safe for children?

Close supervision is necessary when the appliance is used near children. The oven becomes very hot during use. Keep children away from hot surfaces and the appliance while in operation.

USER MANUAL MBN10 DCG

Black DCG portable toaster oven with open lid and control knobs (no visible text or symbols)

FORNO 10LT

10LT ELECTRIC OVEN

MANUALE D'USO

USER MANUAL

PER LA VOSTRA SICUREZZA

E PER UN CORRETTO USO DELL'APPARECCHIO

LEGGERE ATTENTAMENTE E CONSERVARE

QUESTO MANUALE

FOR YOUR SAFETY PLEASE READ CAREFULLY AND KEEP THIS INSTRUCTION OF USE

IMPORTANT SAFEGUARDS

When using electrical appliances, basic precautions should always be followed, which include the following:

1. Read all instructions.
2. Do not touch hot surfaces.
3. Close supervision is necessary when any appliance is used by or near children.
4. To protect against electric shock, do not immerse cord, plug, or any parts of the appliance in water or other liquids.
5. Do not let cord hang over edge of table or counter, or touch hot surfaces.
6. Do not operate appliance with damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service center for examination, repair, or adjustment.
7. Do not place appliance on or near a hot gas or electric burner, or in a heated oven or in a microwave oven.
8. When operating the oven keep at least four inches of space on all sides of the oven to allow for adequate air circulation.
9. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning.
10. To disconnect, turn the control to OFF, before removing the plug. Always hold the plug, but never pull the cord.
11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
12. Do not cover CRUMB TRAY or any part of the oven with metal foil. This may cause overheating of the oven.
13. Use extreme caution when removing tray or disposing of hot grease or other hot liquids.
14. Do not clean the appliance with metal scouring pads.
15. Never leave the appliance unattended while broiling or toasting.
16. Oversized foods or metal utensils must not be inserted into the appliance as they may create a fire or risk of electric shock.
17. Do not place any item onto the oven or cover the oven with inflammable material during operation as it may cause fire.
18. Extreme caution should be exercised when using containers constructed of anything other than metal or glass.

19. Do not place any of the following materials in the oven: cardboard, plastic, paper, or anything similar.

20. Do not store any materials, other than manufacturer recommended accessories, in this oven when not in use.

21. Always wear protective, insulated oven gloves when inserting or removing items from the hot oven.
22. Do not use appliance for other than its intended use.
23. This appliance is for HOUSEHOLD USE only.

220-240V\~ 50/60HZ 650W

ACCESSORIES:

*BAKE PAN

*BAKE RACK

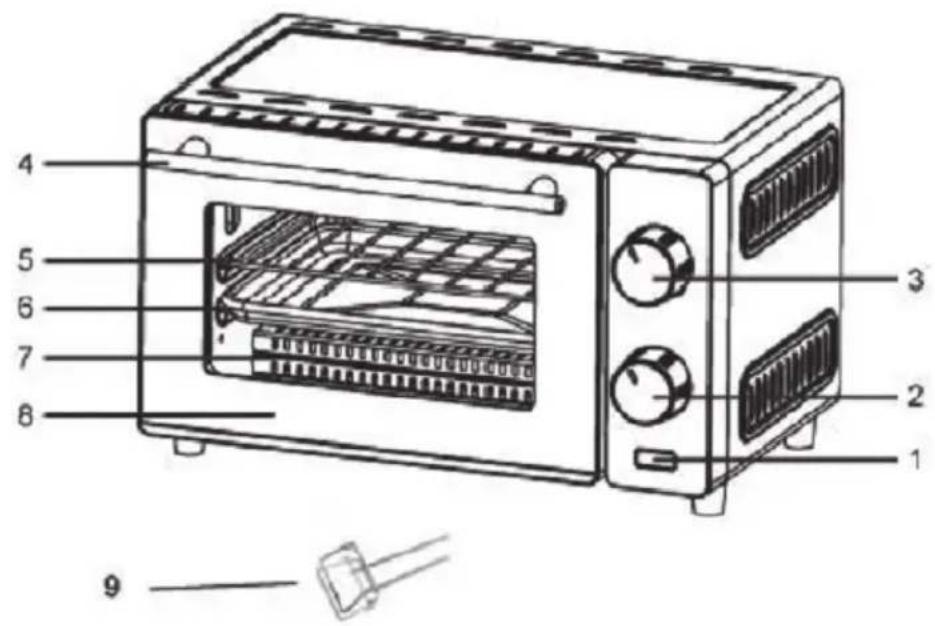

1. Indicator
2. Timer knobs
3. Temperature knob
4. Handle
5. Baking ray
6. Baking rack
7. Heating element
8. Front panel
9. Tray handle

BEFORE USE

• Ensure that there is enough ventilation around the oven.
• Ensure that the oven is completely dry before use.
• The oven should not be placed on untreated wooden surface. Place the oven on a heat resistant surface.
• The feet of the oven can leave some marks on the table, if this happens, remove the marks with a damp cloth.

OVEN USE

• Turn the selector dial to the desired position.
• Turn the timer dial clockwise to the desired cooking time.
• The power light will light up after timer is turned on, and will go out when the timer is turned to OFF.
• When the cooking time is over, the timer will auto shut off and the bell will ring.
• If the cooking is finished earlier than the set cooking time, please turn back the timer to OFF to turn off the oven.
• In the first use of this oven, there might be some light smoke coming out from the oven, this is normal. After 5 minutes the smoke will disappear.
• In order to get better cooking performance, it is recommended to pre-heat the oven about 10 minutes.

GRILL COOKING

• Leave the door at the open point.
• Turn the selector to GRILL setting (top heating tube).
• Turn the timer to the desired grill time.
• When the grill cooking is done, turn back the timer to OFF to turn off the oven.

AFTER USE

• Turn back the timer to OFF.
• Turn the selector to OFF.
• Unplug the appliance from the outlet.
• Wait until the oven is completely cool before any cleaning or maintenance.

MAINTENANCE AND CLEANING

• Unplug the appliance and allow it to cool before cleaning.
• Do not immerse the appliance in water. All surfaces can be cleaned with a clean damp cloth.
• If stains still appear, it is recommended to use soap.
• Do not use abrasive cleaners or sharp utensils to clean the appliance.
• Clean the interior chamber with a clean damp cloth.

Due to the constant development of product functions and designs, we reserve the right to make changes to the product without prior notice.
