Product Type	Motherboard
Brand	Biostar
Model	A10N-9630E
Form Factor	Mini-ITX
Processor	Integrated AMD A10-9630E APU
Chipset	AMD A68H
Memory Support	2 x DDR3-2133 DIMM slots, up to 16GB
Storage Interfaces	4 x SATA III 6Gb/s
USB Ports	4 x USB 3.0, 4 x USB 2.0
Graphics	Integrated Radeon R5 Graphics
Audio	Realtek ALC887 8-Channel HD Audio
LAN	Realtek GbE LAN
Expansion Slots	1 x PCIe 3.0 x16, 1 x Mini-PCIe
Dimensions	17.0 x 17.0 cm (Mini-ITX)
Weight	Approx. 0.5 kg
Power Supply	24-pin ATX, 4-pin CPU power
Main Features	Dual monitor support, USB 3.0, Solid capacitors
Care and Cleaning	Use a soft dry cloth; avoid liquids and harsh chemicals
Safety	Overcurrent protection, surge protection
Spare Parts and Repairability	Replaceable CMOS battery; CPU fan replacement possible
General Information	RoHS compliant, 3-year warranty

Frequently Asked Questions - A10N-9630E BIOSTAR

What type of RAM does the Biostar A10N-9630E support?

The motherboard supports DDR3-2133 memory in two slots, up to 16GB total.

Does the BIOSTAR A10N-9630E have integrated graphics?

Yes, it features integrated AMD Radeon R5 Graphics.

What is the form factor of the A10N-9630E?

It is a Mini-ITX motherboard (17 x 17 cm).

How many SATA ports does the A10N-9630E have?

It has 4 SATA III ports for storage devices.

Can I use a discrete graphics card with this motherboard?

Yes, it has one PCIe 3.0 x16 slot for a dedicated graphics card.

What type of CPU does the A10N-9630E use?

It has an integrated AMD A10-9630E APU, so no separate CPU is needed.

How do I update the BIOS on the Biostar A10N-9630E?

Download the latest BIOS from Biostar's website and use the BIOS update utility or a USB flash drive.

Does this motherboard support USB 3.0?

Yes, it includes 4 USB 3.0 ports on the back panel.

What is the maximum RAM capacity for the A10N-9630E?

The maximum memory is 16GB using two 8GB DDR3 modules.

Is the Biostar A10N-9630E suitable for a home server?

Yes, its low power consumption and Mini-ITX size make it ideal for a compact home server.

USER MANUAL A10N-9630E BIOSTAR

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the contents here and specially disclaims any implied warranties of merchantability or fitness for any purpose. Further the vendor reserves the right to revise this publication and to make changes to the contents here without obligation to notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first obtaining the vendor's approval in writing.

The content of this user's manual is subject to be changed without notice and we will not be responsible for any mistakes found in this user's manual. All the brand and product names are trademarks of their respective companies.

Short Declaration of conformity We declare this product is complying with the laws in force and meeting all the essential requirements as specified by the directives 2004/108/CE, 2006/95/CE and 1999/05/CE whenever these laws may be applied

Table Of Contents

FCC Information and Copyright 1

Chapter 1: Introduction....3

1.1 Before You Start 3
1.2 Package Checklist....3
1.3 Specifications....4
1.4 Rear Panel Connectors....5
1.5 Motherboard Layout 6

Chapter 2: Hardware installation....7

2.1 Connect Cooling Fans 7
2.2 Install System Memory 7
2.3 Expansion Slots 9
2.4 Jumper & Switch Setting 10
2.5 Headers & Connectors.... 11

Chapter 3: UEFI BIOS & Software....14

3.1 UEFI BIOS Setup 14

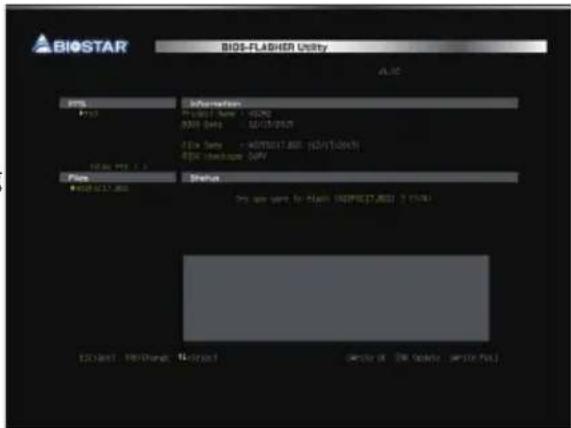

3.2 BIOS Update....14
3.3 Software....18

Chapter 4: Useful help....19

4.1 Driver Installation 19
4.2 AMI BIOS Beep Code 20
4.3 Troubleshooting....20

APPENDIX I: Specifications in Other Languages 22

Arabic....22
German 23
Russian....24
Spanish 25
Thai 26

Chapter 1: Introduction

1.1 Before You Start

Thank you for choosing our product. Before you start installing the motherboard, please make sure you follow the instructions below:

• Prepare a dry and stable working environment with sufficient lighting.
  • Always disconnect the computer from power outlet before operation.
• Before you take the motherboard out from anti-static bag, ground yourself properly by touching any safely grounded appliance, or use grounded wrist strap to remove the static charge.
• Avoid touching the components on motherboard or the rear side of the board unless necessary. Hold the board on the edge, do not try to bend or flex the board.
• Do not leave any unfastened small parts inside the case after installation. Loose parts will cause short circuits which may damage the equipment.
• Keep the computer from dangerous area, such as heat source, humid air and water.
• The operating temperatures of the computer should be 0 to 45 degrees Celsius.
  • To avoid injury, be careful of:
  Sharp pins on headers and connectors Rough edges and sharp corners on the chassis Damage to wires that could cause a short circuit

1.2 Package Checklist

• Serial ATA Cable x2
  • Rear I/O Panel for ATX Case x1
• Quick Installation Guide x1
  • Fully Setup Driver DVD x1

Note

» The package contents may be different due to the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.

1.3 Specifications

Specifications
CPU Support	A10N-9830E : AMD® FX-9830P (Quad core 3.0GHz up to 3.7GHz)A10N-9630E : AMD® A10-9630P (Quad core 2.6GHz up to 3.3GHz)
Memory	Supports Dual Channel DDR4 2133/ 24002 x DDR4 DIMM Memory Slot, Max. Supports up to 32 GB MemoryEach DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8/ 16 GB DDR4 module* Please refer to www.biostar.com.tw for Memory support list.
Storage	2x SATA III Connector (6Gb/s)1x M.2 (M Key) Socket:Supports PCI-E 3.0 x2 (16Gb/s) - NVMe/ AHCI SSD & SATA III (6.0Gb/s) SSD* When PCIE-M2_1 slot is occupied, the SATA2 connector will be disabled.
LAN	Realtek RTL 8111H10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Audio Codec	ALC8877.1 Channels, High Definition Audio
USB	4x USB 3.2(Gen1) port (2 on rear I/Os and 2 via internal headers)4x USB 2.0 port (2 on rear I/Os and 2 via internal headers)
Expansion Slots 1x PCIe	3.0 x16 Slot (x4)
Rear I/Os	1x PS/2 Mouse1x PS/2 Keyboard1x VGA Port1x HDMI Port1x LAN port2x USB 3.2(Gen1) Port2x USB 2.0 Port3x Audio Jack
Internal I/Os	2x SATA III 6.0Gb/s Connector1x USB 2.0 Header (each header supports 2 USB 2.0 ports)1x USB 3.2(Gen1) Header (each header supports 2 USB 3.2(Gen1) ports)1x 4-Pin Power Connector1x 24-Pin Power Connector1x CPU Fan Connector1x System Fan Connector1x Front Panel Header1x Front Audio Header1x Clear CMOS Header1x Serial Port Header
Form Factor Mini-ITX Form Factor, 170 mm x 170 mm
OS Support	Windows 7(32/64bit)/ 10(64bit)Biostar reserves the right to add or remove support for any OS with or without notice.

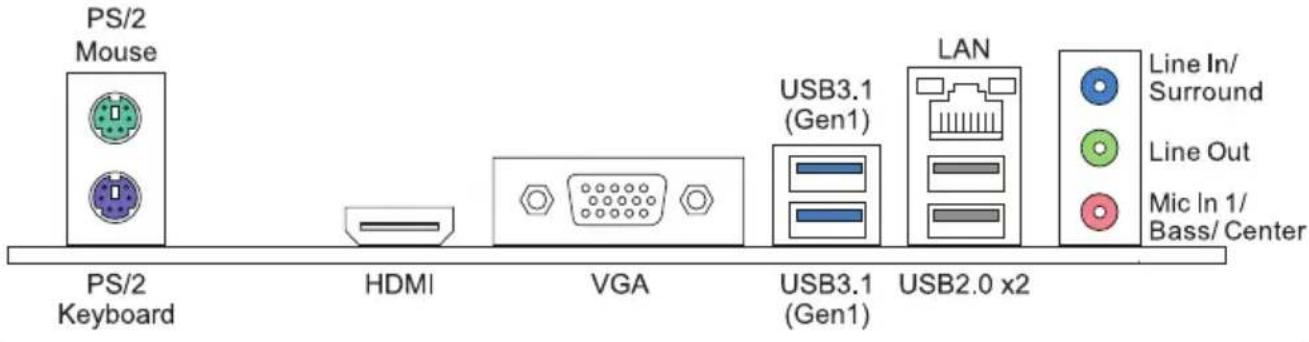

1.4 Rear Panel Connectors

Note

» HDMI / VGA output require an AMD family processor with intedrated graphics.
» Since the audio chip supports High Definition Audio Specification, the function of each audio jack can be defined by software. The input / output function of each audio jack listed above represents the default setting. However, when connecting external microphone to the audio port, please use the Line In (Blue) and Mic In (Pink) audio jack.
» Maximum resolution
HDMI: 4096 x 2160 @24Hz, compliant with HDMI 1.4
VGA: 1920 x 1200 @60Hz
» When using the front HD audio jack and plug in the headset, the rear sound will be automatically Disabled.

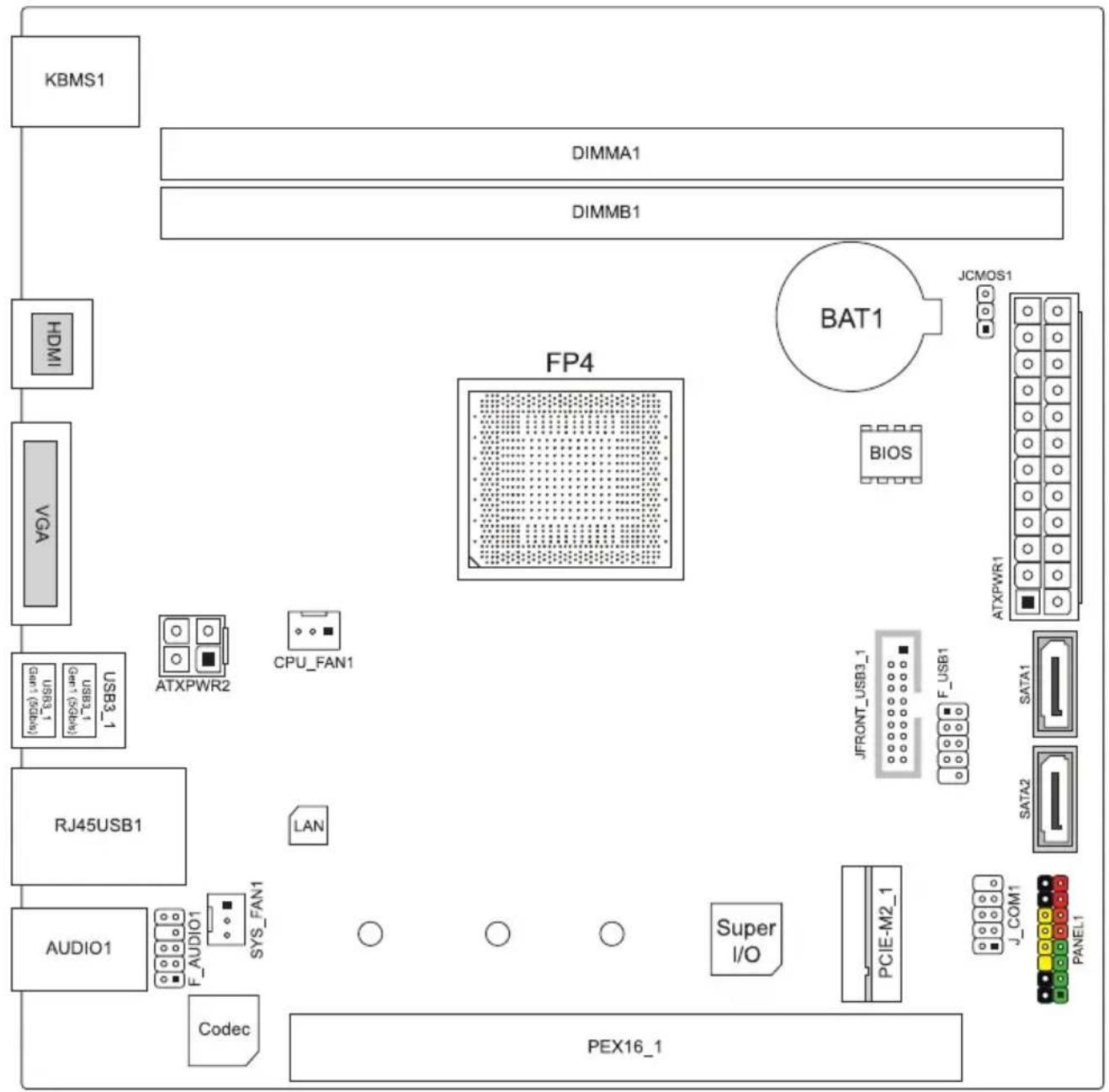

1.5 Motherboard Layout

Note

» ■ represents the 1st pin.

Chapter 2: Hardware installation

2.1 Connect Cooling Fans

These fan headers support cooling-fans built in the computer. The fan cable and connector may be different according to the fan manufacturer.

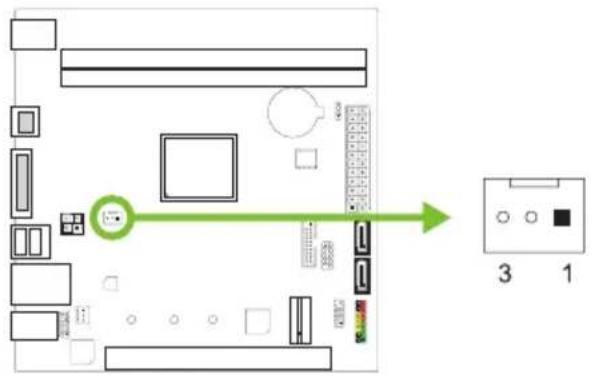

CPU_FAN1: CPU Fan Header

Pin Assignment

1 Ground

2 Linear FAN Control

3 FAN RPM rate sense

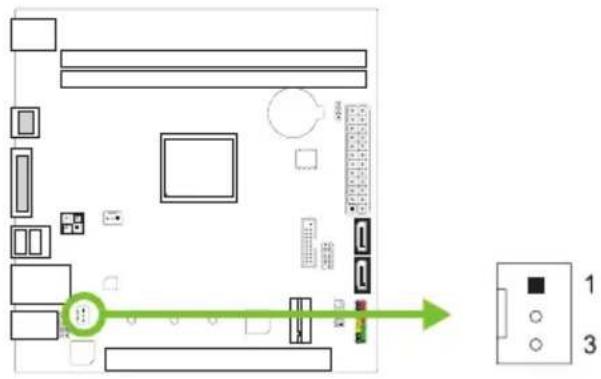

SYS_FAN1: System Fan Header

Pin Assignment

1 Ground

2 +12V

3 FAN RPM rate sense

Note

» CPU_FAN1, SYS_FAN1 support 3-pin head connectors. When connecting with wires onto connectors, please note that the red wire is the positive and should be connected to pin#2, and the black wire is Ground and should be connected to pin#1(GND).

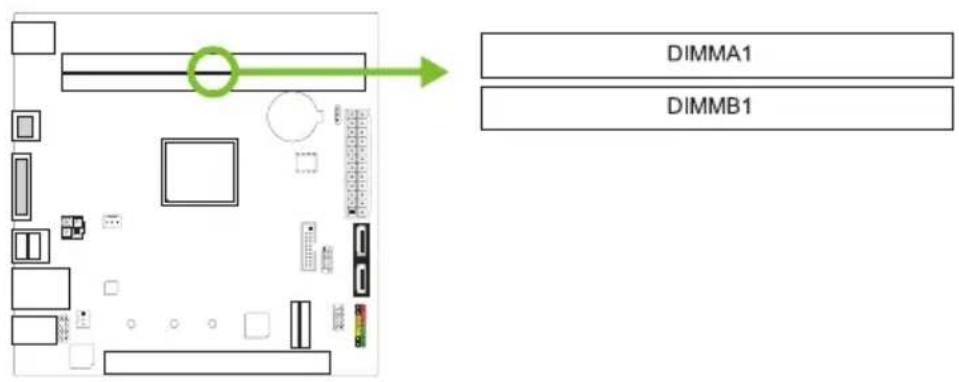

2.2 Install System Memory

DDR4 Modules

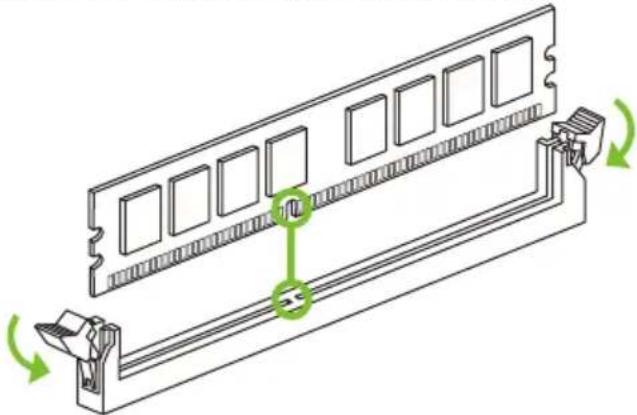

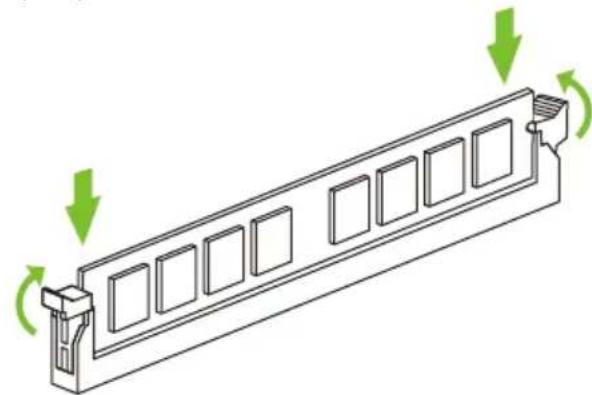

Step 1: Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the slot such that the notch on the DIMM matches the break on the slot.

Technical line drawing of a RAM module with directional arrows indicating rotation (no text or symbols)

Step 2: Insert the DIMM vertically and firmly into the slot until the retaining clips snap back in place and the DIMM is properly seated.

Technical line drawing of a mechanical component with green directional arrows indicating motion (no text or symbols)

Note

» If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.

Memory Capacity

DIMM Socket Location DDR4 Module Total Memory Size
DIMMA1 512MB/1GB/2GB/4GB/8GB/16GB	Max is 32GB.
DIMMB1 512MB/1GB/2GB/4GB/8GB/16GB

Dual Channel Memory Installation

Please refer to the following requirements to activate Dual Channel function: Install memory module of the same density in pairs, shown in the table.

Dual Channel Status DIMMA1 DIMMB1
Disabled O X
Disabled X O
Enabled O O

(O means memory installed, X means memory not installed.)

Note

» When installing more than one memory module, we recommend to use the same brand and capacity memory on this motherboard.

2.3 Expansion Slots

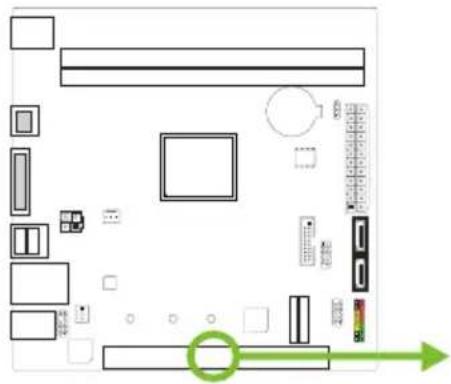

PEX16\_1: PCI-Express Gen3 x16 Slot (x4 lanes)

• PCI-Express 3.0 compliant.

- Theoretical maximum bandwidth using two slots simultaneously is 4GB/s for each slot, a total of 8GB/s.

Top-down schematic of a computer motherboard layout with components and connectors (no text or labels)

PEX16_1

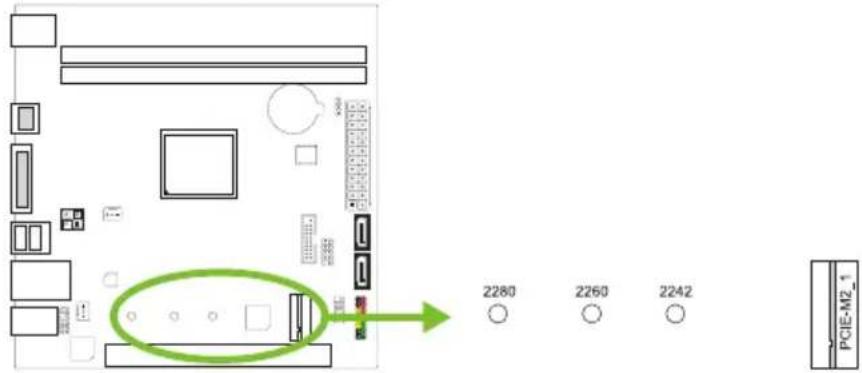

PCIE-M2\_1: M.2 (M Key) Slot

- The M.2 slot supports M.2 Type 2242/2260/2280 SSD module. When installing M.2 SSD module, please place the screw and hex pillar to correct position.

- The M.2 slot supports M.2 SATA III (6.0 Gb/s) module and M.2 PCI Express module up to Gen3 x2 (16Gb/s) - NVMe/ AHCI SSD.

Note

» When PCIE-M2_1 slot is occupied, the SATA2 connector will be disabled.

Install an Expansion Card

You can install your expansion card by following steps:

• Read the related expansion card's instruction document before install the expansion card into the computer.
• Remove your computer's chassis cover, screws and slot bracket from the computer.
• Place a card in the expansion slot and press down on the card until it is completely seated in the slot.
• Secure the card's metal bracket to the chassis back panel with a screw. (This step is only for installing a VGA card.).
• Replace your computer's chassis cover.
  • Power on the computer, if necessary, change BIOS settings for the expansion card.
  • Install related driver for the expansion card.

Note

» Please be note that you will need to use M2 type screwdriver if you want to install or uninstall the screw. It is recommended not to use a screwdriver that does not meet the specifications, otherwise the screw may be damaged.

2.4 Jumper & Switch Setting

The illustration shows how to set up jumpers. When the jumper cap is placed on pins, the jumper is "close", if not, that means the jumper is "open".

Pin opened Pin closed Pin 1-2 closed

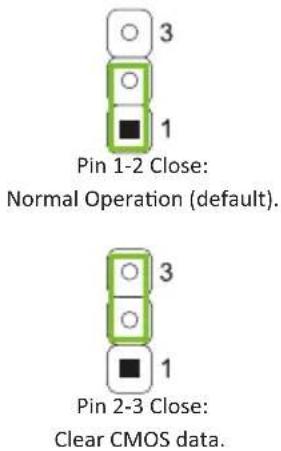

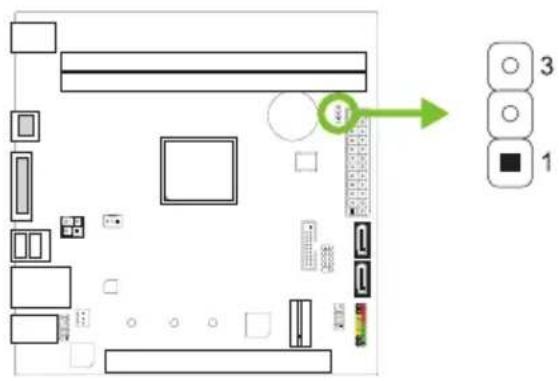

JCMOS1: Clear CMOS Jumper

The jumper allows users to restore the BIOS safe setting and the CMOS data. Please carefully follow the procedures to avoid damaging the motherboard.

Clear CMOS Procedures:

1. Remove AC power line.
2. Set the jumper to "Pin 2-3 close".
3. Wait for five seconds.
4. Set the jumper to "Pin 1-2 close".
5. Power on the AC.
6. Load Optimal Defaults and save settings in CMOS.

2.5 Headers & Connectors

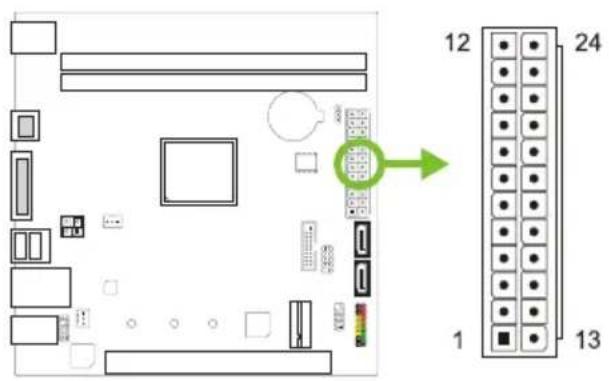

ATXPWR1: ATX Power Source Connector

For better compatibility, we recommend to use a standard ATX 24-pin power supply for this connector. Make sure to find the correct orientation before plugging the connector.

Pin Assignment Pin Assignment
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 Ground 3 Ground
16 PS_ON 4 +5V
17 Ground 5 Ground
18 Ground 6 +5V
19 Ground 7 Ground
20 NC 8 PW_OK
21 +5V 9 Standby Voltage+5V
22 +5V 10 +12V
23 +5V 11 +12V
24 Ground 12 +3.3V

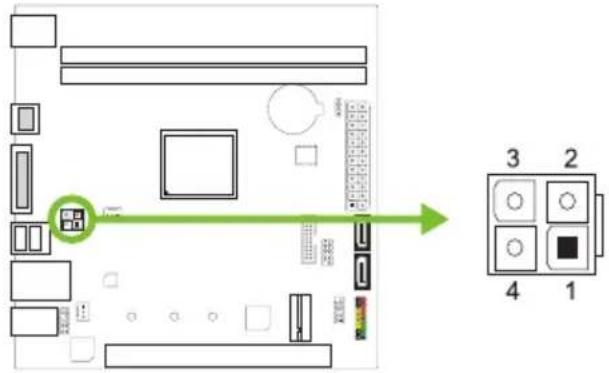

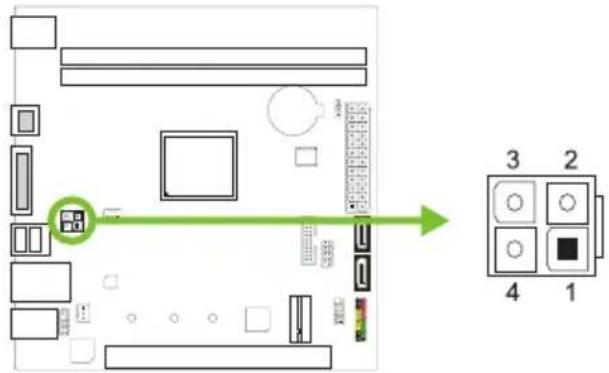

ATXPWR2: ATX Power Source Connector

This connector will provide +12V to CPU power circuit.

Pin Assignment

1 +12V

2 +12V

3 Ground

4 Ground

Note

» Before you power on the system, please make sure that both ATXPWR1 and ATXPWR2 connectors have been plugged-in.

» Insufficient power supplied to the system may result in instability or the peripherals not functioning properly. Use of a PSU with a higher power output is recommended when configuring a system with more power-consuming devices.

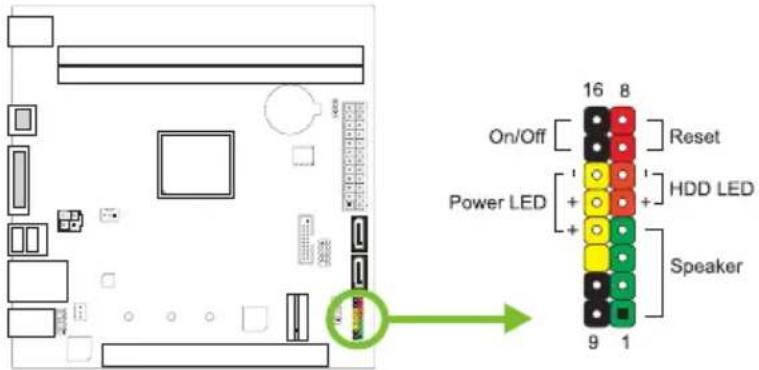

PANEL1: Front Panel Header

This 16-pin header includes Power-on, Reset, HDD LED, Power LED, and speaker connection.

Pin	Assignment Function	Ction Pin Assignment Function	Function
1 +5V		Speaker ConnectorLED (+)	9 N/A		N/A
2 N/A 10 N/A
3 N/A 11 N/A N/A
4 Speaker 12 Power					Power LED5 HDD LED (+)
		Hard drive LEDower LED (-)	13 Power LED (+)
6 H	DD LED (-) 14 Power
7 Ground		Reset buttonGround	15 Power button		Power-on button
8 Reset control 16 G

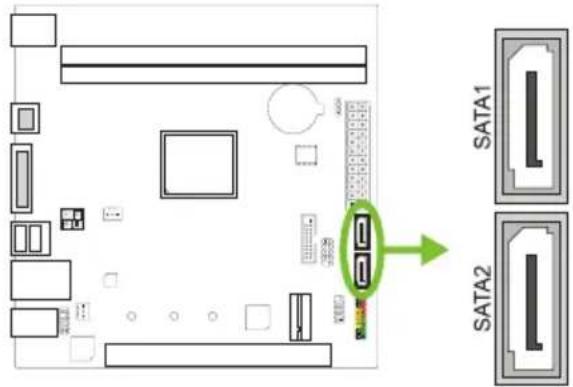

SATA1/ SATA2: Serial ATA 6.0 Gb/s Connectors

These connectors connect to SATA hard disk drives via SATA cables.

Pin	Assignment
1	Ground
2	TX+
3	TX-
4	Ground
5	RX-
6	RX+
7	Ground

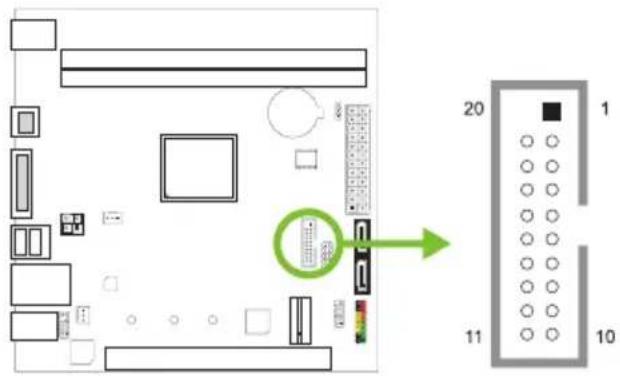

JFRONT\_USB3\_1: Header for USB 3.2(Gen1) Ports at Front Panel

This header allows user to add additional USB ports on the PC front panel, and also can be connected with a wide range of external peripherals.

Pin	Assignment	Pin	Assignment
1	VBUS0	11	D2+
2	SSRX1-	12	D2-
3	SSRX1+	13	Ground
4	Ground	14	SSTX2+
5	SSTX1-	15	SSTX2-
6	SSTX1+	16	Ground
7	Ground	17	SSRX2+
8	D1-	18	SSRX2-
9	D1+	19	VBUS1
10 ID	20 Key

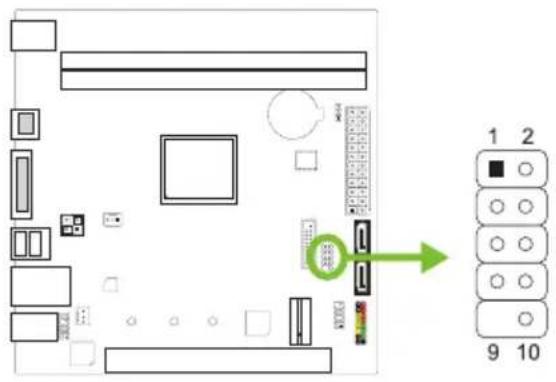

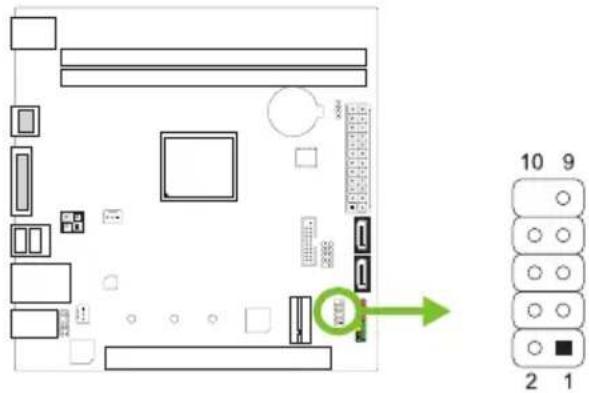

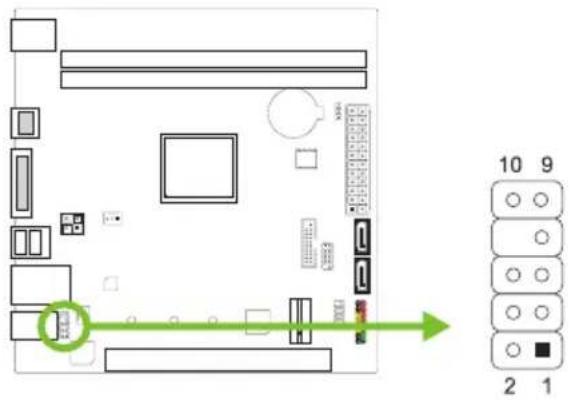

F\_USB1: Header for USB 2.0 Ports at Front Panel

This header allows user to add additional USB ports on the PC front panel, and also can be connected with a wide range of external peripherals.

Pin Assignment

1 +5V (fused)

2 +5V (fused)

3 USB-

4 USB-

5 USB+

6 USB+

7 Ground

8 Ground

9 Key

10 NC

F\_AUDIO1: Front Panel Audio Header

This header allows user to connect the chassis-mount front panel audio I/O which supports HD and AC'97 audio standards.

HD Audio AC'97
Pin Assignment Pin		Assignment
1 Mic Left in 1 Mic In
2 Ground 2 Ground
3 Mic Right in 3 Mic Power
4 GPIO 4 Audio Power
5 Right line in 5 RT Line Out
6 Jack Sense 6 RT Line Out
7 Front Sense 7 Reserved
8 Key 8 Key
9 Left line in 9 LFT Line Out
10 Jack Sense 10 LFT Line Out

Note

» It is recommended that you connect a high-definition front panel audio module to this connector to avail of the motherboard's high definition audio capability.
» Please try to disable the "Front Panel Jack Detection" if you want to use an AC'97 front audio output cable. The function can be found via O.S. Audio Utility.

J\_COM1: Serial Port Connector

The motherboard has a serial port header for connecting RS-232 Port.

Pin Assignment

1 Carrier detect

2 Received data

3 Transmitted data

4 Data terminal ready

5 Signal ground

6 Data set ready

7 Request to send

8 Clear to send

9 Ring indicator

10 Key

Chapter 3: UEFI BIOS & Software

3.1 UEFI BIOS Setup

• The BIOS Setup program can be used to view and change the BIOS settings for the computer. The BIOS Setup program is accessed by pressing the key after the Power-On Self-Test (POST) memory test begins and before the operating system boot begins.
• For further information of setting up the UEFI BIOS, please refer to the UEFI BIOS Manual on our website.

3.2 BIOS Update

The BIOS can be updated using either of the following utilities:

• BIOSTAR BIO-Flasher: Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM.
• BIOSTAR BIOS Update Utility: It enables automated updating while in the Windows environment. Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM, or from the file location on the Web.

BIOSTAR BIO-Flasher

Note

» This utility only allows storage device with FAT32/16 format and single partition.
» Shutting down or resetting the system while updating the BIOS will lead to system boot failure.

Updating BIOS with BIOSTAR BIO-Flasher

1. Go to the website to download the latest BIOS file for the motherboard.
2. Then, copy and save the BIOS file into a USB flash (pen) drive.(Only supported FAT/FAT32 format)
3. Insert the USB pen drive that contains the BIOS file to the USB port.

4. Power on or reset the computer and then press during the POST process.

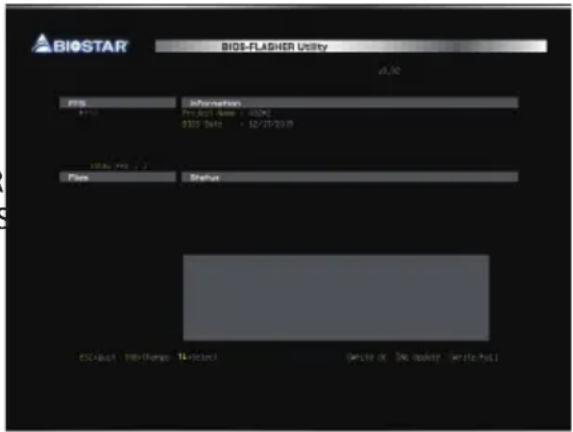

5. After entering the POST screen, the BIO-FLASHER utility pops out. Choose to search for the BIOS file.

1. Select the proper BIOS file, and a message asking if you are sure to flash the BIOS file. Click "Yes" to start updating BIOS.

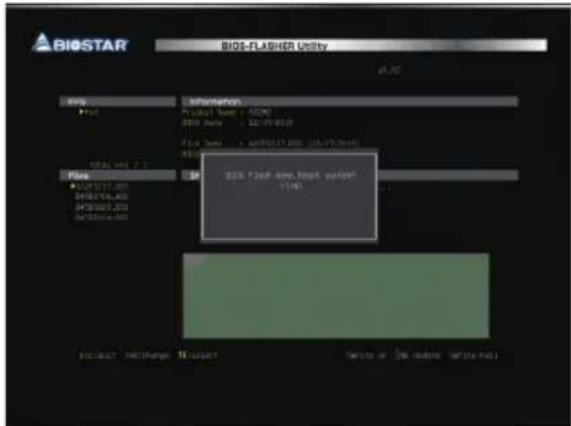

1. A dialog pops out after BIOS flash is completed, asking you to restart the system. Press the key to restart system.

1. While the system boots up and the full screen logo shows up, press key to enter BIOS setup.

After entering the BIOS setup, please go to the , using the function to load Optimized Defaults, and select to restart the computer. Then the BIOS Update is completed.

BIOS Update Utility (through the Internet)

1. Installing BIOS Update Utility from the DVD Driver.

2. Please make sure the system is connected to the internet before using this function.

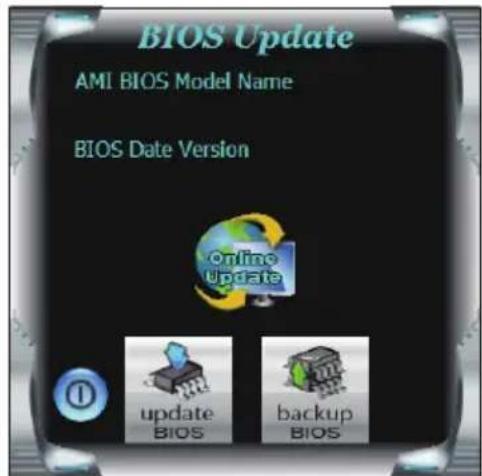

3. Launch BIOS Update Utility and click the "Online Update" button on the main screen.

1. An open dialog will show up to request your agreement to start the BIOS update. Click "Yes" to start the online update procedure.

1. If there is a new BIOS version, the utility will ask you to download it. Click "Yes" to proceed.

2. After the download is completed, you will be asked to program (update) the BIOS or not. Click "Yes" to proceed.

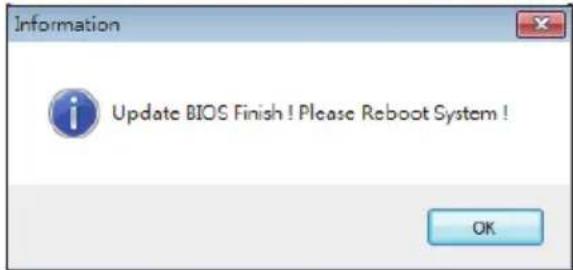

3. After the updating process is finished, you will be asked you to reboot the system. Click "OK" to reboot.

1. While the system boots up and the full screen logo shows up, press key to enter BIOS setup.

After entering the BIOS setup, please go to the , using the function to load Optimized Defaults, and select and to restart the computer. Then, the BIOS Update is completed.

BIOS Update Utility (through a BIOS file)

1. Installing BIOS Update Utility from the DVD Driver.

2. Download the proper BIOS from http://www.biostar.com.tw/

3. Launch BIOS Update Utility and click the "Update BIOS" button on the main screen.

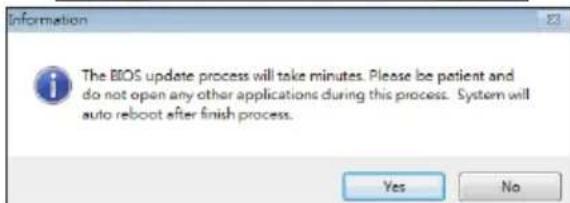

4. A warning message will show up to request your agreement to start the BIOS update. Click "OK" to start the update procedure.

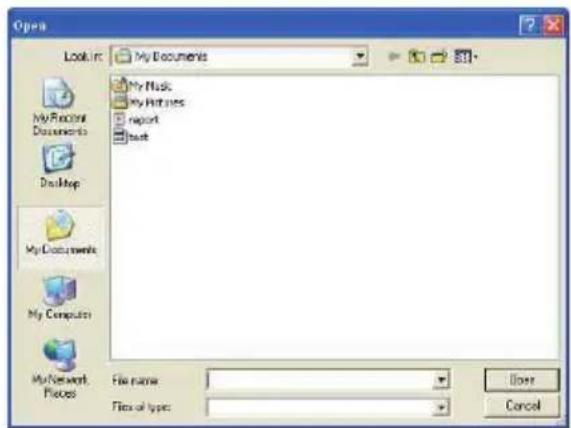

1. Choose the location for your BIOS file in the system. Please select the proper BIOS file, and then click on "Open". It will take several minutes, please be patient.

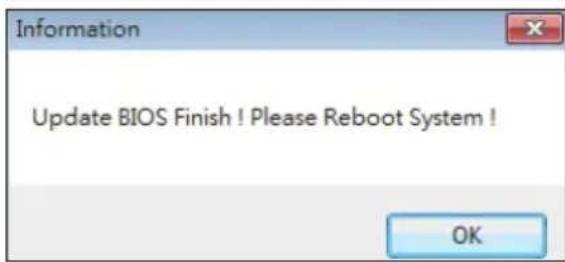

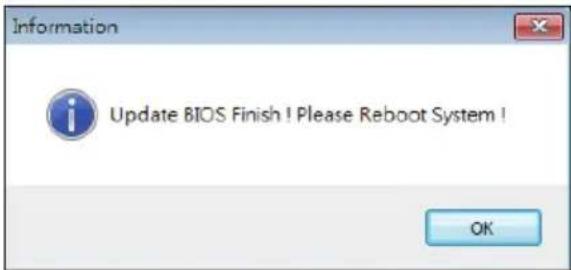

2. After the BIOS Update process is finished, click on "OK" to reboot the system.

3. While the system boots up and the full screen logo shows up, press key to enter BIOS setup.

After entering the BIOS setup, please go to the , using the function to load Optimized Defaults, and select to restart the computer. Then, the BIOS Update is completed.

Backup BIOS

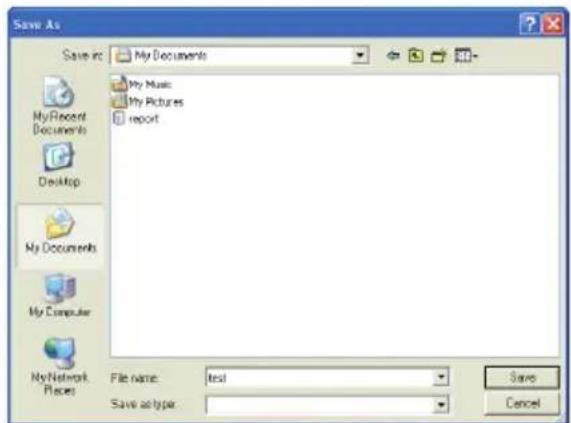

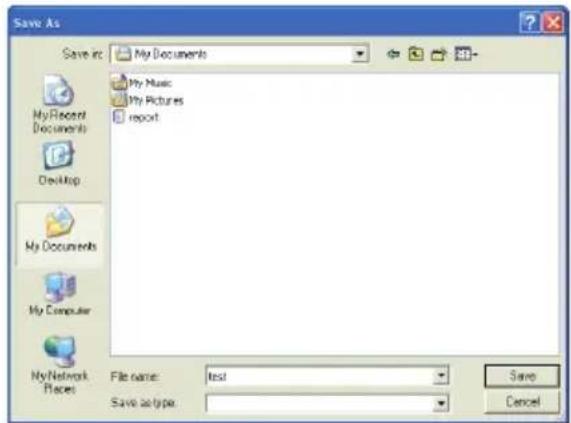

Click the Backup BIOS button on the main screen for the backup of BIOS, and select a proper location for your backup BIOS file in the system, and click "Save".

3.3 Software

Installing Software

1. Insert the Setup DVD to the optical drive. The driver installation program would appear if the Auto-run function has been enabled.
2. Select Software Installation, and then click on the respective software title.
3. Follow the on-screen instructions to complete the installation.

Launching Software

After the installation process is completed, you will see the software icon showing on the desktop. Double-click the icon to launch it.

Note

» All the information and content about following software are subject to be changed without notice. For better performance, the software is being continuously updated.
» The information and pictures described below are for your reference only. The actual information and settings on board may be slightly different from this manual.

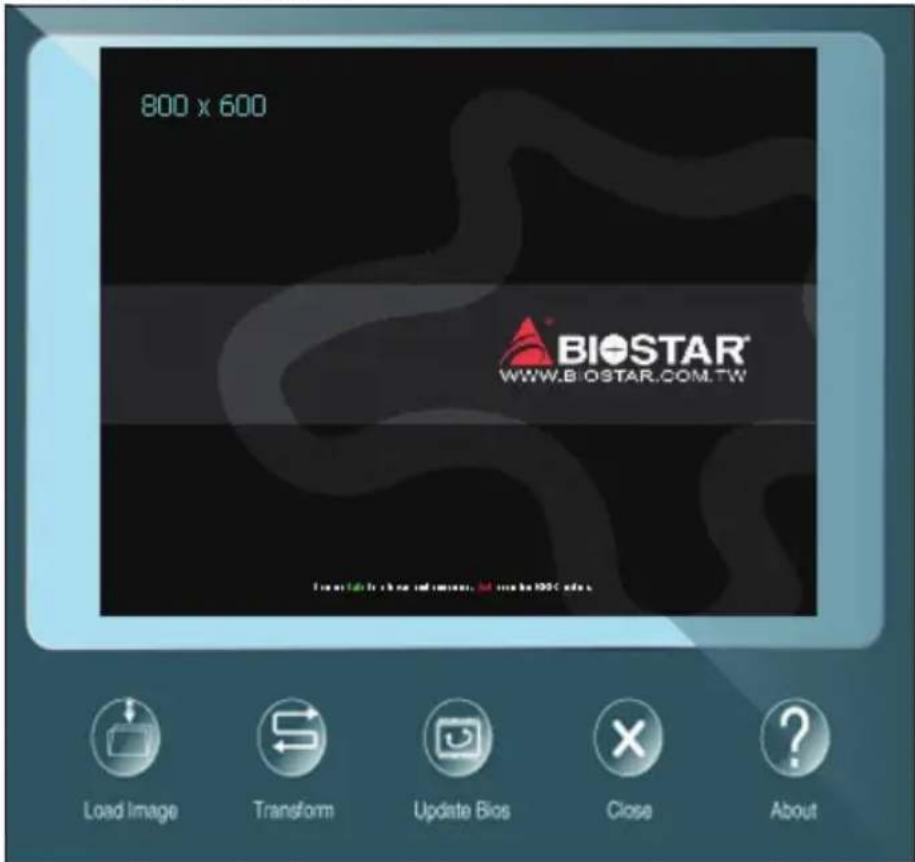

BIOScreen Utility

This utility allows you to personalize your boot logo easily. You can choose BMP as your boot logo so as to customize your computer.

Please follow the step-by-step instructions below to update boot logo:

• Load Image: Choose the picture as the boot logo.
• Transform: Transform the picture for BIOS and preview the result.
• Update Bios: Write the picture to BIOS Memory to complete the update.

Chapter 4: Useful help

4.1 Driver Installation

After you installed your operating system, please insert the Fully Setup Driver DVD into your optical drive and install the driver for better system performance.

You will see the following window after you insert the DVD

The setup guide will auto detect your motherboard and operating system.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will list the compatible driver for your motherboard and operating system. Click on each device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide will list the software available for your system, click on each software title to launch the installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver DVD. Click on the Manual icon to browse for available manual.

Note

» If this window didn't show up after you insert the Driver DVD, please use file browser to locate and execute the file SETUP.EXE under your optical drive.
» You will need Acrobat Reader to open the manual file. Please download the latest version of Acrobat Reader software from http://get.adobe.com/reader/
» The motherboard used in the illustrations may not resemble the actual board. these illustrations are for reference only.

4.2 AMI BIOS Beep Code

Boot Block Beep Codes

Number of Beeps Description

Continuing Memory sizing error or Memory module not found

POST BIOS Beep Codes

Number of Beeps Description
1 Success booting.
8 Display memory error	(system video adapter)

4.3 Troubleshooting

Probable Solution
1. There is no power in the system. Power LED does not shine; the fan of the power supply does not work2. Indicator light on keyboard does not shine.	1. Make sure power cable is securely plugged in.2. Replace cable.3. Contact technical support.
System is inoperative. Keyboard lights are on, power indicator lights are lit, and hard drives are running.	Using even pressure on both ends of the DIMM, press down firmly until the module snaps into place.
System does not boot from a hard disk drive, but can be booted from optical drive.	1. Check cable running from disk to disk controller board. Make sure both ends are securely plugged in; check the drive type in the standard CMOS setup.2. Backing up the hard drive is extremely important. All hard disks are capable of breaking down at any time.
System only boots from an optical drive. Hard disks can be read, applications can be used, but system fails to boot from a hard disk.	1. Back up data and applications files.2. Reformat the hard drive. Re-install applications and data using backup disks.
Screen message shows “Invalid Configuration” or “CMOS Failure.”	Review system’s equipment. Make sure correct information is in setup.
System cannot boot after user installs a second hard drive.	1. Set master/slave jumpers correctly.2. Run SETUP program and select correct drive types. Call the drive manufacturers for compatibility with other drives.

CPU Overheated

If the system shutdown automatically after power on system for seconds, that means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdown automatically to avoid a damage of the CPU, and the system may not power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.
2. CPU fan is rotated normally.
3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protection function.

1. Remove the power cord from power supply for seconds.
2. Wait for seconds.
3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data. (See "Close CMOS Header: JCMOS1" section)
2. Wait for seconds.
3. Power on the system again.

APPENDIX I: Specifications in Other Languages

Arabic

针	定义
1	接地
2+12V
3FAN RPM rate sense

注意

Technical line drawing of a computer RAM module with mounting bracket and green directional arrows indicating rotation (no text or symbols)

Isometric line drawing of a rectangular electronic component with multiple slots and green directional arrows indicating motion (no text or symbols)

注意

双通道状态 DIMMA1 DIMMB1
Disabled O X
Disabled X O
Enabled O O

Pure electrical circuit lines without any symbols

PEX16_1

PCIE-M2\_1: M.2 (M Key) 插槽

针定义针定义
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15接地3接地
16 PS_ON 4 +5V
17接地5接地
18接地6 +5V
19接地7接地
20 NC 8 PW_OK
21 +5V 9唤醒电压	+5V
22 +5V 10 +12V
23 +5V 11 +12V
24接地12 +3.3V

ATXPWR2: ATX电源接口

此接口给CPU电路提供+12V电压。

针定义功能针定义功能
1+5V		扬声器接口	9N/A	N/A
2N/A 10 N/A
3N/A 11 N/A N/A
4扬声器12 Power LED(+)				电源指示灯5 HDD LED(+)
		硬盘指示灯LED(-)	13Power LED(+)
6H	DD LED(-) 14 Power
7接地		重启按钮	15电源按钮	开机按钮
8 Reset control 16接地

SATA1/2: 串行ATA 6.0 Gb/s 接口

针定义		针	定义
1 VBUS0		11	D2+
2 SSRX1-		12	D2-
3SSRX1+		13	接地
4接地		14	SSTX2+
5 SSTX1-		15	SSTX2-
6 SSTX1+		16	接地
7接地		17	SSRX2+
8 D1-		18	SSRX2-
9 D1+		19	VBUS1
10	ID		20	Key

针	定义
1 +5V (fused)
2 +5V (fused)
3USB-
4 USB-
5 USB+
6 USB+
7接地
8	接地
9 Key
10 NC

F\_AUDIO1: 前置面板音频接头

HD Audio AC' 97
针定义针定义
1 Mic Left in 1 Mic In
2接地2接地
3Mic Right in 3Mic Power
4 GPIO 4 Audio Power
5 Right line in 5 RT Line Out
6 Jack Sense 6 RT Line Out
7Front Sense 7Reserved
8 Key 8 Key
9 Left line in 9 LFT Line Out
10 Jack Sense 10 LFT Line Out

注意

针	定义
1	Carrier detect
2	Received data
3	Transmitted data
4	Data terminal ready
5	Signal ground
6	Data set ready
7	Request to send
8	Clear to send
9	Ring indicator
10	key

第三章: UEFI BIOS和软件

3.1 UEFI BIOS设置

3.3 软件

安装软件
