302777 - Uncategorized Arendo - Free user manual and instructions

Product Type	Bike Mount Protective Cover
Brand	Arendo
Model	302777
Compatible Smartphone	Apple iPhone 6 / iPhone 7
Maximum Handlebar Diameter	31.8 mm
Material	Plastic, Rubber inlay
Key Features	Shock resistant, Splash waterproof, 360° rotatable ball joint, Notch for camera, Smartphone remains operable, Quick locks
Installation	Attach to handlebar using screws and rubber inlay; secure with quick locks
Safety Instructions	Do not service yourself; keep away from water, rain, snow, high humidity; avoid extreme temperatures and vibrations
Cleaning	Wipe with a dry cloth; do not use harsh chemicals
Disposal	Follow WEEE directive 2012/19/EU; dispose separately from household waste
Certification	CE, WEEE Reg. No: DE 94495668
Included Accessories	Bike mount, Lanyard, User manual

Frequently Asked Questions - 302777 Arendo

How do I install the Arendo 302777 bike mount on my handlebar?

Remove the two screws to disassemble the mount. Position the plastic pieces on top and bottom of the handlebar, using the rubber inlay for grip. Insert screws through the holes and tighten securely.

Is the Arendo 302777 protective cover waterproof?

The cover is splash waterproof and shock resistant, but not fully submersible. Avoid prolonged exposure to heavy rain or submersion.

Can I use this mount with other smartphones besides iPhone 6/7?

The mount is specifically designed for Apple iPhone 6 and iPhone 7. Other phones may not fit securely due to size differences.

How do I adjust the viewing angle of my smartphone?

Rotate the fastening ring counterclockwise to loosen the ball joint, then adjust the angle. Tighten the ring clockwise to lock the position.

Does the protective cover allow access to the camera?

Yes, there is a notch for the camera so you can take photos or use the camera while the phone is in the cover.

What is the maximum handlebar diameter for this mount?

The mount fits handlebars with a maximum diameter of 31.8 mm.

Can I use the phone while it is in the mount?

Yes, the smartphone remains operable with the cover closed. You can access the screen and buttons.

How do I clean the Arendo 302777 product?

Clean with a soft, dry cloth. Do not use abrasive cleaners or solvents.

What should I do if the mount becomes loose during riding?

Stop immediately and retighten the screws. Ensure the rubber inlay is properly placed to prevent slipping.

Is the Arendo 302777 environmentally friendly?

Yes, it complies with the WEEE directive 2012/19/EU. Dispose of it separately from household waste at designated recycling centers.

USER MANUAL 302777 Arendo

Diagram of a smartphone case with an open lid and internal casing, showing two arrows indicating movement (no text or symbols present)

Mechanical component diagram showing a rotating knob with directional arrows (no text or symbols)

Technical line drawing of a mechanical component with two arrows indicating assembly or connection (no text or symbols present)

Thank you for having chosen this Arendo product and for placing your trust in our company. Please read this manual carefully before use to ensure your long-term enjoyment of this product. For future reference, please keep this manual.

1 Scope of delivery

• iPhone 6/7 protective cover
• Bike mount
• Lanyard
• User manual

2 Technical specifications

Max. diameter of handlebar 31,8 mm
Suitable smartphone Apple iPhone 6/7
Features • Shock resistant/splash waterproof• 360° rotatable ball joint• Notch for the camera• Smartphone remains operable

Diagram of a device casing with an open lid and internal compartments, showing a black arrow indicating direction (no text or symbols present)

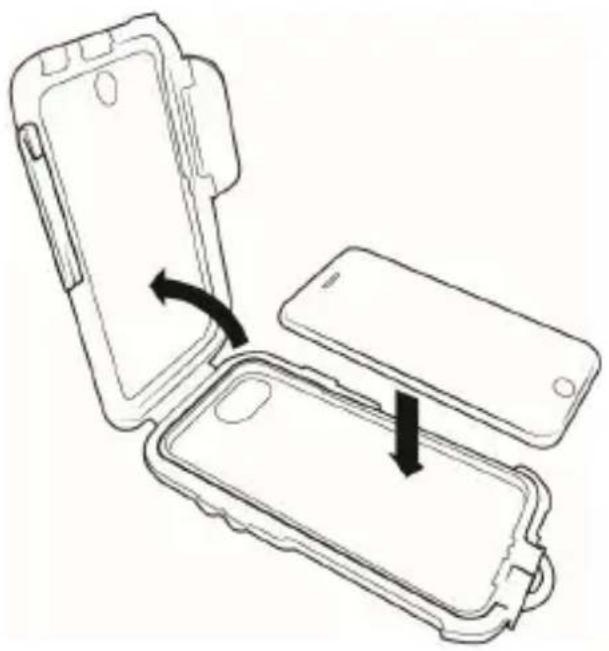

Remove the protective cover from its packing and open the two quick locks on the left and right side.

Flip the cover upwards and remove the placeholder and the printed insert on the inside of the display cover. Now insert your smartphone into the tray and close the cover.

3 Installation

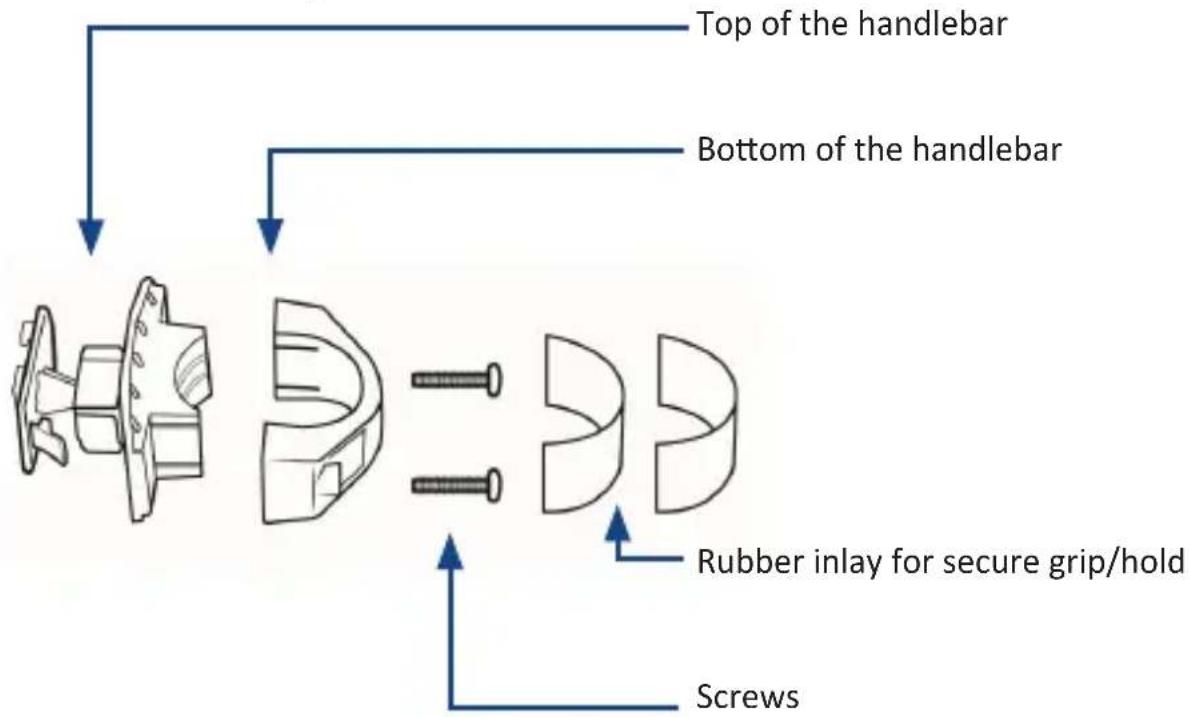

Remove the two screws as are illustrated in the following figure, to disassemble the mount into its components.

Position the two plastic pieces at the top and the bottom of the handlebar. For this purpose, please apply the attached rubber inlay to prevent the mounting from slipping after installation. Lead the screws from above through the holes provided and tighten the screws.

Mechanical component diagram showing a rotating mechanism with arrows indicating motion (no text or symbols)

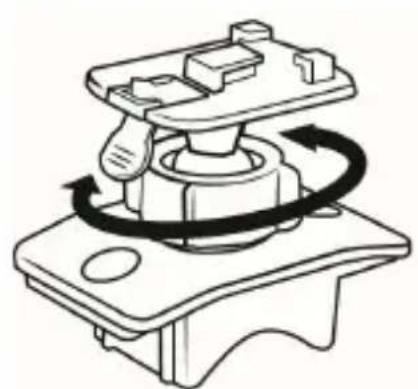

To adjust the angle and position of the smart phone, a rotable ball joint is integrated. Rotate the fastening ring (shown in the upper picture) counterclockwise to align the ball joint in conformity with your requirements. After that turn the ring into the opposite direction and tighten it, so that the rotatable ball joint can no longer be moved.

Technical line drawing of a mechanical component with two connected parts (no text or symbols)

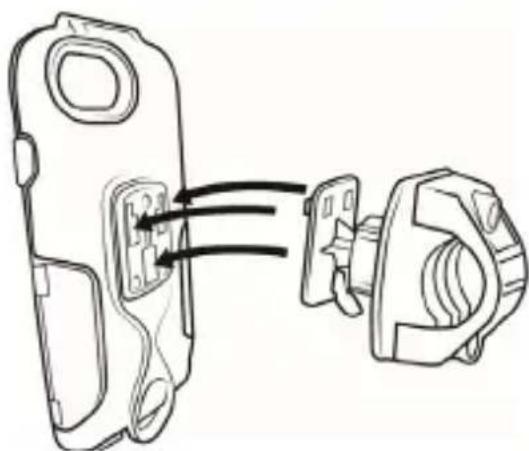

You can attach the protection cover to the bike mount now as shown. Press the lever to release the cover.

4 Safets instructions and disclaimer

Do not attempt to service this product by yourself as opening or removing covers may result in fire, electric shock or equipment damage. The product is only disconnected from the voltage system when the plug has been removed from the socket. Please avoid any contact to the electric current. Disregard of this warning could lead to contact with the operating voltage, or could generate a short circuit. Pull out the plug before a lightning storm or if you do not regularly use the product to prevent a short-circuit. This device is only licensed for indoor use and dry areas. Please protect it from water, rain, snow or high humidity and keep it away from high temperatures and direct sunlight. Do not expose this product to extreme and sudden changes of temperature or heavy vibrations; this may lead to damage to the electronic part of this unit. Check the product for signs of damage before putting it in operation.

In case the device is damaged, it should not be used. Please contact our customer support. Please observe the relevant national provisions and legal restrictions. Do not use the device for anything other than intended and as described in the manual. Any attempt of repairs or alterations by someone other than the original supplier will invalidate the guarantee and result in refusal of warranty claims. The machine may only be used by persons who are familiar with the operating manual and the applicable regulations concerning working safety and accident prevention. This device is not intended to be used by persons (including children) with limited physical, sensory or mental aptitude or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions as to how the device is used properly. The technical specifications of this product may change without prior notice.

5 Disposal Instructions

The European Directive (WEEE) requires that old electrical and electronic appliances shall be disposed of separately from normal household garbage for optimal recycling. The component parts must be separated, collected and sent for recycling or disposal in an environment-friendly manner. Otherwise, toxic and dangerous substances could cause enduring damage to the environment by an incorrect disposal. As a consumer you are legally obligated (Electrical and Electronic Equipment Act-ElektroG) to return end-of-life electrical and electronic equipment to their manufacturer, point of sale, public collection points or importer of charge. The relevant local laws apply here. The symbol on the product, in the instructions or on its packing points out these regulations. The reuse or recycling of materials and old units makes an important contribution towards protecting the environment.

WEEE guideline 2012/19/EU WEEE register number: DE 94495668

WD Plus GmbH, herewith declares that this product 302777/20170303TW002 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover

Notes
