Product Type	Voltage Regulator / Stabilizer
Brand	CSL
Model	303156
Input Voltage Range	140–260 V AC
Output Voltage	220 V ±10%
Power Rating	1000 VA / 800 W
Frequency	50/60 Hz (auto-sensing)
Protection Features	Overload, short-circuit, over-voltage, under-voltage, surge
Cooling	Natural convection (no fan)
Display	LED indicators: Normal, Low, High, Fault
Operating Temperature	0 °C to 40 °C
Dimensions (W x D x H)	200 x 150 x 100 mm
Weight	2 kg
Power Cord Length	1.5 m
Certifications	CE, RoHS
Installation	Desk or wall-mount (bracket included)
Warranty	1 year
Maintenance	Wipe with dry cloth; avoid moisture and dust
Spare Parts	Fuses and internal components; replacement by qualified technician
Energy Efficiency	> 95% at nominal load

Frequently Asked Questions - 303156 CSL

What is the input voltage range of the CSL 303156?

The input voltage range is 140–260 V AC, which covers most household voltage fluctuations.

How do I know if the regulator is working properly?

The front panel has three LED indicators: Normal (green), Low (yellow), and High (red). A steady green light indicates proper regulation.

Can I use this regulator for sensitive electronics like computers or TVs?

Yes, it provides stable 220 V output with ±10% accuracy, suitable for computers, TVs, audio systems, and other sensitive devices.

What happens if the load exceeds the rated power?

The regulator has overload protection. If the load exceeds 1000 VA, it will automatically shut off to prevent damage. Reduce the load and reset by powering off and on.

Is the regulator noisy during operation?

No, it uses natural convection cooling (no fan), so it operates silently. A slight hum from the transformer is normal.

How should I install the CSL 303156?

Place it on a flat, dry surface or mount it on the wall using the included brackets. Ensure adequate ventilation around the unit. Plug the device into the regulator output socket.

What is the warranty period?

The CSL 303156 comes with a 1-year warranty against manufacturing defects. Keep your purchase receipt for service.

How do I clean the regulator?

Unplug the unit and wipe the exterior with a soft, dry cloth. Do not use any liquids or abrasive cleaners. Avoid cleaning internal parts.

Can I repair the regulator myself if it fails?

No, opening the unit can expose you to dangerous voltages. Contact a qualified technician or CSL support for repairs. Only replace external fuses if specified.

Is the CSL 303156 energy efficient?

Yes, it operates with an efficiency greater than 95% at nominal load, meaning minimal energy is wasted as heat.

USER MANUAL 303156 CSL

GAMEPAD for "SWITCH"

Thank you for having chosen this CSL product and for placing your trust in our company. Please read this manual carefully before installation to ensure your long-term enjoyment of this product. For future reference, please keep this manual.

1 Scope of delivery

• Wireless Gamepad
• USB type C cable
• User manual

2 Technical specifications

Connection Bluetooth
Buttons • 12 buttons	• 2 analogue sticks• Control pad• Turbo button
Battery capacity 500mAh, 3.7V (rechargeable)
Features • Dual vibration function• Approx. 10m range
Compatibility Nintendo Switch

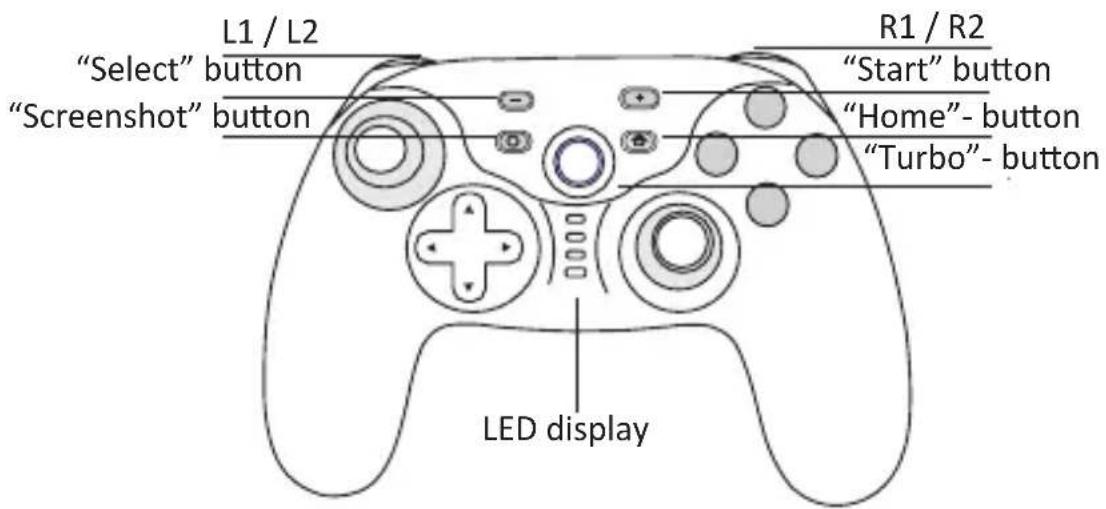

3 Product details

4 Dual vibration function

The gamepad has two strong vibration motors. Due to the effect of vibration, is the control represented very realistically.

Note: Please bear in mind that the vibration only works if the game or programme is supporting this function and corresponding function has been activated in the gaming options.

5 Establishing a connection

To connect the gamepad to the switch console for the first time, please follow the instructions: Go to the “Controller” menu in the home menu and select “change grip/order”. Then press the home button for 5 seconds. The LEDs 1-4 on the controller will flash. If connection has been successfully established, only one LED will light up according to the controller number. In order to wake up the controller from sleep/standby mode, briefly press the home button. The LEDs 1-4 will flash.

6 Low battery level

If the battery level of the controller is less than 3,4V, the channel LED will blink. Then the controller must be charged with the supplied charging cable.

7 Switching off the controller

Status Operation
If the controller is connected to the console for the first time	If the connection has not yet finished, it will switch off itself after 60 seconds.
The controller is connected	Press the home button for 5 seconds to turn off the controller
The controller is connected After 5 minutes of controller inactivity, it will switch off itself

8 Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures.

Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

Nintendo and Switch are registered trademark or a trademark of Nintendo Inc. in Japan and / or other countries. This product is not designed, manufactured, approved, sponsored or endorsed by Nintendo. All trademarks belong to their respective owners.

9 Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

10 Instructions on the disposal of batteries

With regard to the sale of batteries or the supply of devices containing batteries, the supplier is obliged to draw the customer's attention to the following: As the end user, the customer has a statutory obligation to return used batteries. He can return old batteries stocked or previously stocked by the supplier in the form of new batteries to the supplier's despatch warehouse (despatch address) free of charge. The symbols shown on the batteries have the following meanings: Pb = battery contains more than 0.004 percent by mass of lead, Cd = battery contains more than 0.002 percent by mass of cadmium, Hg = battery contains more than 0.0005 percent by mass of quicksilver.

The symbol of the rubbish bin with a cross through it indicates that the battery may not be put in household waste.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 303156/20171205SZ212 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
