MR-075 - Kettle Maestro - Free user manual and instructions

Product Type	Electric Kettle
Brand	Maestro
Model	MR-075
Dimensions (Approx.)	22 cm x 15 cm x 22 cm (Height x Width x Depth)
Weight	0.8 kg
Power Input	1500 W
Voltage	220-240 V, 50/60 Hz
Capacity	1.7 L
Material	Stainless Steel Body with Plastic Components
Color	Silver/Black (Stainless Steel Finish)
Heating Element	Concealed, Stainless Steel
Boiling Time (Full Capacity)	Approximately 4-6 minutes
Auto Shut-Off	Yes
Boil-Dry Protection	Yes
Cordless	Yes, with 360° Swivel Base
Lid Type	Flip-top with One-Button Opening
Handle	Ergonomic and Cool-Touch
Water Level Indicator	Yes, Visually Marked
Filter	Removable Limescale Filter
Care and Maintenance	Descaling with Vinegar or Citric Acid; Wipe Exterior with Damp Cloth
Safety Features	Boil-Dry Protection, Auto Shut-Off, Cool-Touch Handle
Spare Parts Available	Lid, Base, Filter, Handle (Contact Manufacturer)
Warranty	1 Year (Standard)
Certifications	CE, RoHS

Frequently Asked Questions - MR-075 Maestro

How do I descale my Maestro MR-075 kettle?

Use a mixture of white vinegar and water (1:2 ratio) or citric acid solution. Boil the mixture, let it sit for 30 minutes, then rinse thoroughly. Repeat if necessary. Always unplug the kettle before cleaning.

What is the capacity of the MR-075?

The kettle has a capacity of 1.7 liters, suitable for boiling water for multiple cups of tea or coffee.

Why does my kettle turn off before boiling?

This may be due to limescale buildup on the heating element. Descale the kettle. Also, ensure the lid is properly closed and the kettle is sitting correctly on the base.

Can I boil less than the minimum water level?

No, always fill at least to the minimum mark to avoid triggering boil-dry protection and damaging the heating element.

How long does it take to boil a full kettle?

For 1.7 liters, it takes approximately 4 to 6 minutes, depending on the starting water temperature.

Is the kettle cordless?

Yes, it has a 360° swivel base, allowing you to lift the kettle and pour easily without being tethered by a cord.

What voltage does the MR-075 use?

It operates on 220-240V, 50/60Hz. Do not use with a different voltage without a suitable converter.

How do I clean the exterior of the kettle?

Wipe with a soft damp cloth and mild detergent. Do not immerse in water. For stainless steel parts, use a suitable stainless steel cleaner.

Where can I purchase spare parts?

Contact Maestro customer service or visit their official website for spare parts like the lid, base, and filter.

What is the warranty period?

The Maestro MR-075 comes with a standard 1-year warranty against manufacturing defects. Keep your purchase receipt for claim.

USER MANUAL MR-075 Maestro

White and black ceramic kettle with a wooden handle, no visible text or symbols on the device itself.

Модель/Model: MR-075

Dear customer, we thank you for purchase of goods

Functionality, design and conformity to the quality standards guarantee to you reliability and convenience in use of this device. Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use of subsequent owners.

The kettle is designed only for warming and boiling water for home use.

Under condition of observance of user regulations and a special-purpose designation, a parts of appliance do not contain unhealthy substances.

Technical specifications

Model: MR-075

Capacity: 2,0L

Electrical supply:

Alternating current- AC;

Rated voltage 220-240V;

Rated frequency 50Hz;

Power consumption 1500W

Protective class I

Protection class IPX0

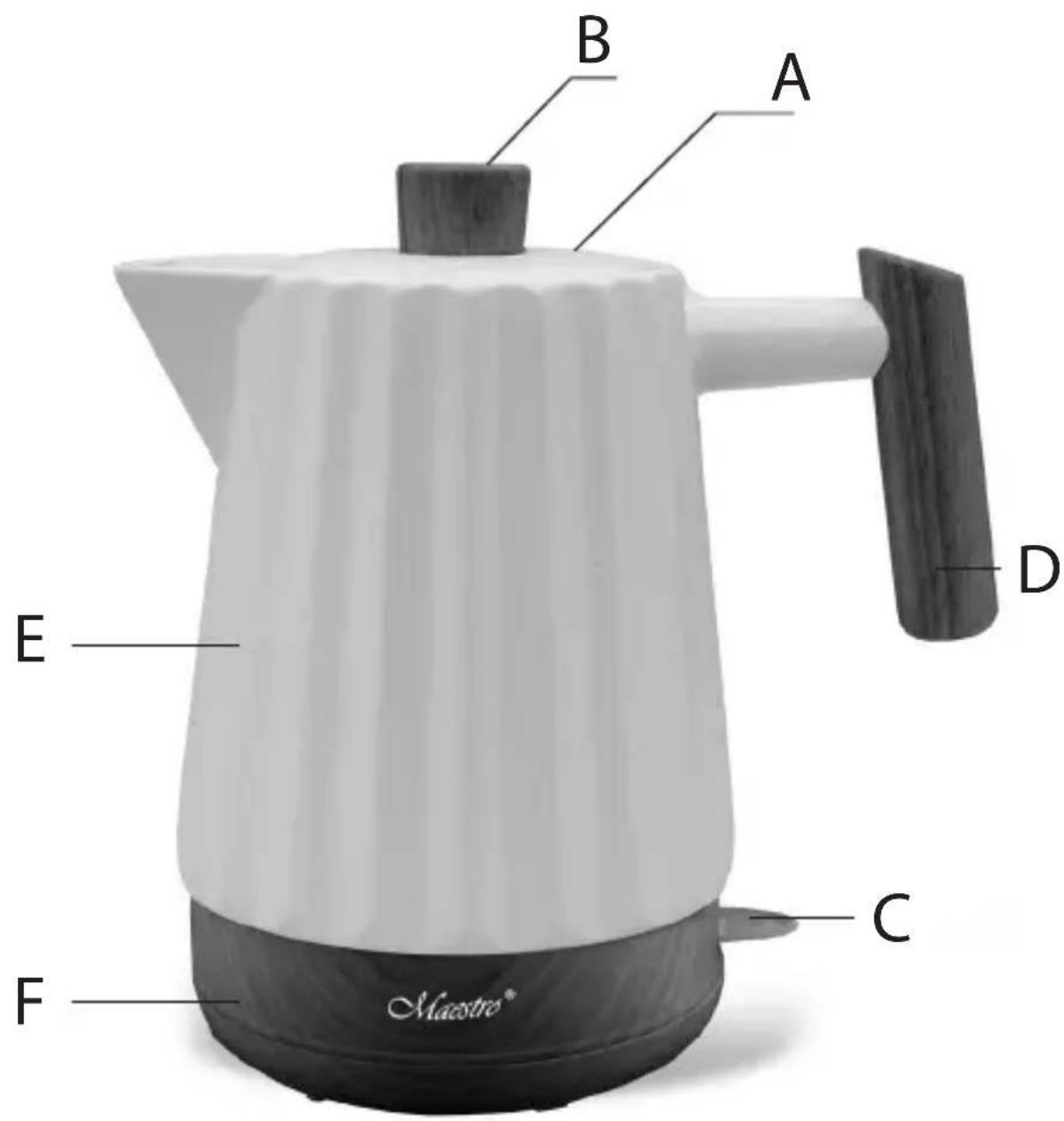

Description of the appliance

Picture1 (page 2)

A- Cover;
B- Handle for cover opening;
C- Switch button with indicator light;
Position «0» - OFF
Position «I» - ON
D- Handle;
E- Kettle case;
F- Base.

Safety instructions

When using your appliance, basic safety precautions should always be followed,

including the following:

SPECIAL INSTRUCTIONS

ATTENTION!

• Do not allow the ingress of water and moisture on the support and internal electric parts of the device located outside the container for water.
• Always remove the kettle from the support to fill it with water or to clean.
• Do not touch the water in the kettle when it is on the support.

Failure to observe these rules may result in electric shock!

Only plug the appliance into an outlet with an earthed (ground) contact.

• DO NOT let children or untrained persons use the appliance without supervision.
• DO NOT leave the appliance unnecessarily plugged in.

Disconnect the plug from the mains when the appliance is not being used.

- DO NOT use the power cord or the appliance in order to pull the plug out of the socket.

- DO NOT leave the appliance exposed to the weather (rain, sun, etc.).

- DO NOT leave the appliance without supervision when it is connected to the power supply.

- Close supervision is necessary when the appliance is used near children.

- Always use the appliance on a dry, level surface.

- Do not put on and take off the kettle from the support when it is switched on. First, turn it off with a switch.

- Always unplug from the plug socket when not in use and before cleaning.

- Do not operate the appliance if damaged, after an appliance malfunctions or it has been damaged in any manner, return to at authorized service engineer for repair.

- In the interest of safety, regular periodic close checks should be carried out on the supply cord to ensure no damage is evident. Should there be any signs that the cord is damaged in the slightest degree, the entire appliance should be returned be authorized service engineer.

- Do not let the cord hang over the edge of a table or counter or touch hot surfaces. Allow unit to cool before storage.

- Do not touch any hot surfaces, do not store or cover the appliance until it has full cooled down.

- Do not use harsh abrasives, caustic cleaners or oven cleaners when cleaning this appliance.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or

lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.
• Do not leave the kettle switched on if the temperature in the room may fall below zero. When the temperature is below zero, the thermostat of the device may spontaneously turn on and switch on the device.

ATTENTION!

• The surface of the device becomes very hot during operation.
  Be careful because you may burn yourself greatly by touching the surfaces of the cover, case, water of vapor.
• Do not open the cover of the kettle during boiling.
• Do not lift the kettle by its cover.
• Take and lift the kettle only keeping it for the handle, touch only the buttons of the device.
• Do not fill the kettle with the water level higher than the mark «MAX».
• Place the kettle only on a dry, stable, even, slip-resistant surface.
• Lift the kettle full with hot water with special care!

In case of failure to observe the above mentioned rules there arises the danger of burning!

- To avoid possible damages by vapor turn the kettle nose away from walls and furniture when it is boiling. Use the support to save the sensitive cover of furniture from damages.

• Do not place the kettle and its support on heating devices.
• Do not close the opening for the exit of vapor near the switch.
• Do not use the kettle without a cover.

- Do not switch the kettle on without water or when the water level is below the mark «MIN». If the kettle is empty or there is not enough water in it, it is automatically turned off by safety device. In such case, disconnect the device from the mains, let it cool down and then fill it with water again and turn it on; the kettle will begin to boil water and after the end of this process it will turn off in the regular regime.

- THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY. DO NOT USE THE APPLIANCE FOR ANYTHING OTHER THAN INTENDED USE.

Purchase industrial devices for commercial use.

Actions in extreme situations:

- If a device tumbled into water, immediately, unplug the device, not touching to the device or water.

- In case of appearance from appliance of smoke, sparkling, strong smell of a burn isolation, immediately stop use the device, unplug the device, appeal to the nearest service center.

Operation

Before the first use:

• Remove packing and advertising materials and stickers.
• Inspect the kettle and make sure that there are no damages to the kettle, power line cord, plug and support.
• Unwind the power line cord completely.
• Place the support on a dry, even, stable surface.

CAUTION! Is required on surfaces where heat may cause a problem – an insulated heat pad is recommended.

• Connect the plug to the mains.
• Remove the kettle from the support.
• Open the cover, fill the kettle with cold water up to the mark

«MAX» (the water level scale with «MIN» and «MAX» marks is inside). Close the cover.

• Place the kettle on the support.
• Turn the switch (C/ Fig.1) to the position «I». The indicator will light signaling that the device has turned on, and the kettle shall begin warming the water.
• When the water begins to boil, the switch will be turned to the position «O» (off), the light will fade and the kettle will be automatically turned off.
• You must pour out the first portion of water and repeat the boiling procedure again.
• Now the kettle is ready for use.

ATTENTION! Do not fill the kettle with cold water until cools down; let it get cool before filling with cold water.

Failure to observe this rule may result in the damage to the ceramic case.

Further boil water as specified above.

The level of water in the kettle must be somewhere between the marks «MIN» and «MAX».

The process of warming the water can be interrupted at any moment by pressing on the switch.

ATTENTION! If your kettle switches off before the water begins to boil, you should clean it of scale (see cleaning and maintenance). The kettle can continue operation if its cover is open.

Cleaning and maintenance

Regular cleaning improves the performance of the device.

The quantity and the speed of forming the scale, and consequently, the necessity of cleaning depend on the water hardness in your region and the intensity of the device usage. All over fur of scale in

your kettle is not allowed!

It is recommended to clean the kettle at least 2 times a year but however until the appearance of all over scale.

ATTENTION!

• Never clean a kettle connected to mains.
• Before cleaning, disconnect the kettle and let it cool down.
• Do not use abrasive and aggressive detergents.
• Never submerge the kettle, its support, power line cord and plug in water or other liquids.

Cleaning the kettle from scale

Clean the kettle from scale with special agents sold in the open market. Cleaning from scale can be also performed by the methods described below:

METHOD 1

- Fill the kettle to maximal level with a mixture consisting of 1 part of usual vinegar and 2 parts of water. Switch on the kettle and let is boil and automatically switch off.

- Let the mixture settle during 10-12 hours and pour it out.

- Fill the kettle with fresh water up to maximal level and boil it again. Pour out this water too to remove the smell of vinegar.

-Wash the internal part of the device with clean water, wipe it and dry the kettle.

METHOD 2

- Fill the kettle with the above mentioned mixture of water and vinegar and boil it 2 or 3 times running. Rinse it with water and rub it dry.

- For usual cleaning wipe the kettle case from the inside and outside

with a soft wet sponge or cloth. Soapy water can be used.

• Rinse the kettle and wipe it dry.
• Let the device get fully dry before using.
• Any other kinds of maintenance should be performed by qualified personnel in a servicing center.

Storage

• Switch off the kettle and let it completely cool before storage.
• Wipe and dry the kettle before storage.
• Do not wind the power line cord around the kettle until it is completely cooled down.
• Store the kettle in a cool, dry and clean place beyond the assess of children and people with limited physical and mental abilities.

Environmental protection

Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old appliances. Please dispose your old appliances using appropriate collection systems.

Subject to technical modifications!

Current electric alternativ;

Frecventa nominala: 50 Hz;

Certificated in Ukraine

Made in P.R.C. for Maestro

Apollo Corporation Limited ADD: Room 801-2, 8/F.,

Easey Commercial Building, 253-261 Hennessy Road, Wanchai, Hong Kong,
