Product Type	Freezer with convertible cooling mode (fridge/freezer)
Brand	Hanseatic
Model	HGS18560CNFCI
Dimensions (H x W x D)	1850 x 595 x 644 mm
Weight (unloaded)	83 kg
Power Supply	220-240 V ~ 50 Hz, 1.4 A
Rated Power	120 W
Refrigerant	R600a (isobutane), 50 g
Climate Class	SN-N-ST-T (10 °C to 43 °C)
Freezer Temperature Range	-16 °C to -24 °C
Fridge Temperature Range (if switched)	+2 °C to +8 °C
Interior Light	LED, maintenance-free (not user replaceable)
Door Alarm	Audible alarm if door open > 2 min
Defrost System	Automatic defrost (frost-free)
Ice Maker	Included ice cube maker
Number of Drawers	3 small, 1 large "Huge Zone", 1 2-star drawer
Number of Glass Shelves	2 adjustable + 1 cover shelf
Door Shelves	2

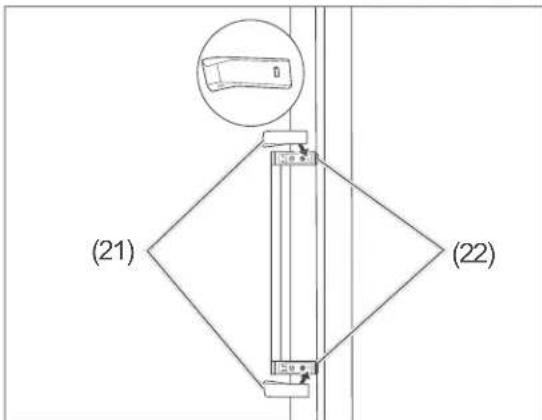

Door Handle	Included, attachable with decorative covers
Protection Class	I (requires earthed socket)
Spare Parts Availability	Min. 7 years after last model placement; door seals 10 years
Included Accessories	Ice cube maker, door handle assembly kit

Frequently Asked Questions - HGS18560CNFCI Hanseatic

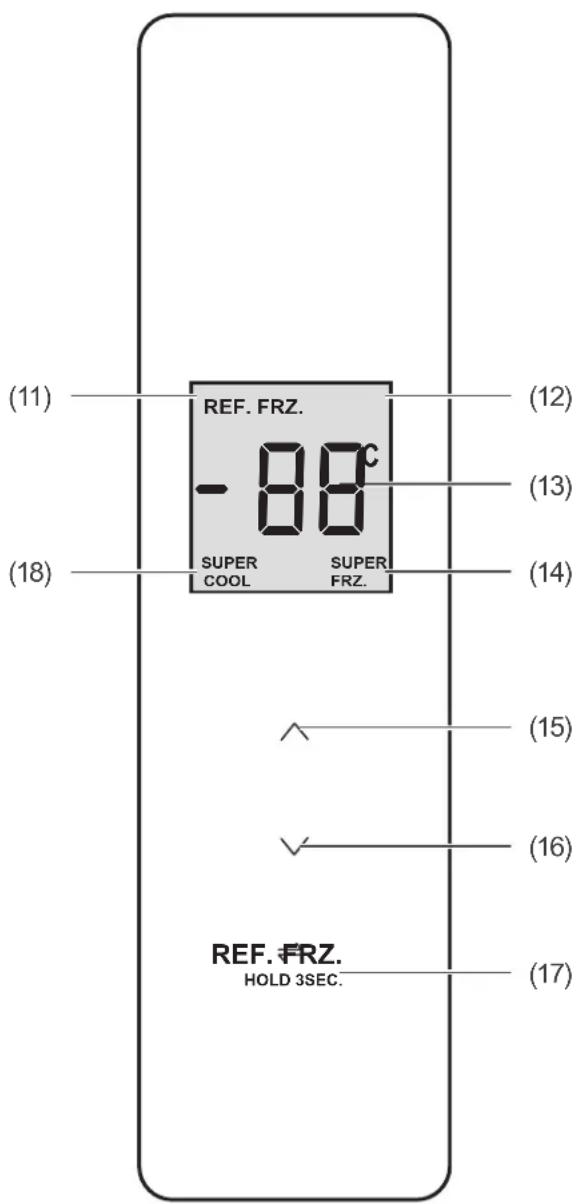

How do I switch the appliance from freezer mode to refrigerator mode?

Press and hold the cooling/freezing mode switch (17) for approx. 3 seconds to toggle between modes. The indicator light will show the active mode: cooling mode indicator (11) for fridge, freezing mode indicator (12) for freezer.

How to set the temperature in freezer mode?

Press the temperature up-button (15) or down-button (16) until the desired temperature appears on the display (-16 °C to -24 °C). For optimal freezing, set to -18 °C.

What is the super freezing function and how do I activate it?

Super freezing rapidly cools the freezer to -24 °C. Activate by pressing the temperature down-button repeatedly until 'SUPER FRZ.' appears. It deactivates automatically after 24 hours.

What should I do if the door alarm sounds?

The door alarm sounds if the door is left open for more than 2 minutes. Close the door firmly. To stop the beep, press any button on the control panel.

How do I clean the freezer interior?

First, unplug the appliance. Remove frozen food and store it cool. Remove drawers and shelves, wash with lukewarm soapy water, dry thoroughly. Wipe interior with warm water and a few drops of vinegar to prevent mold. Dry completely before reassembling.

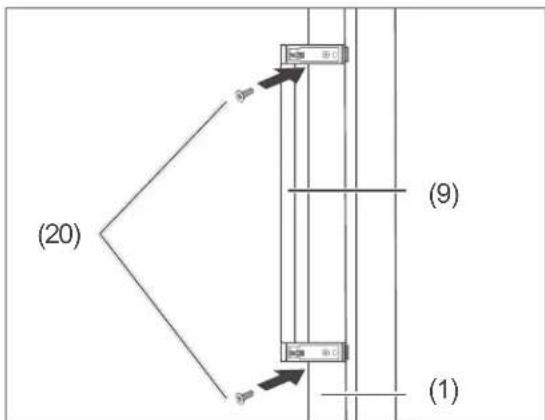

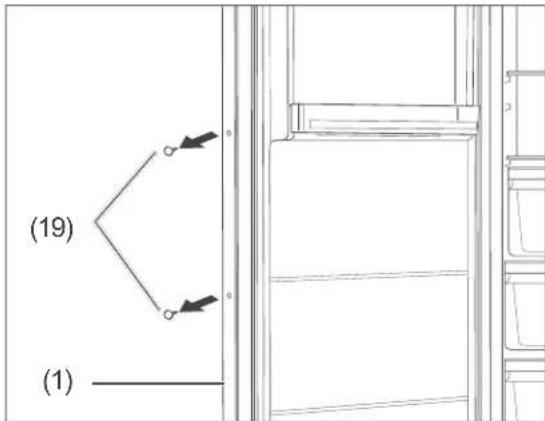

How to install the door handle?

Lift out the blind plugs from the side of the door, then screw the handle onto the door using the provided screws. Slide the decorative cover over the handle hinges.

What does the error code 'E2' or 'E5' mean?

Error codes indicate a damaged temperature sensor. Contact customer service for assistance. Do not attempt to repair yourself.

Can I use this appliance in an unheated garage in winter?

The appliance is designed for ambient temperatures from +10 °C to +43 °C (climate class SN-N-ST-T). If the temperature drops below +10 °C, the appliance may not operate properly and the internal temperature could rise, risking food spoilage. It is not recommended for unheated spaces.

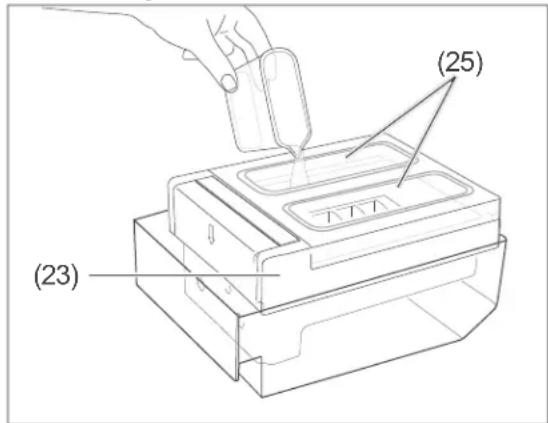

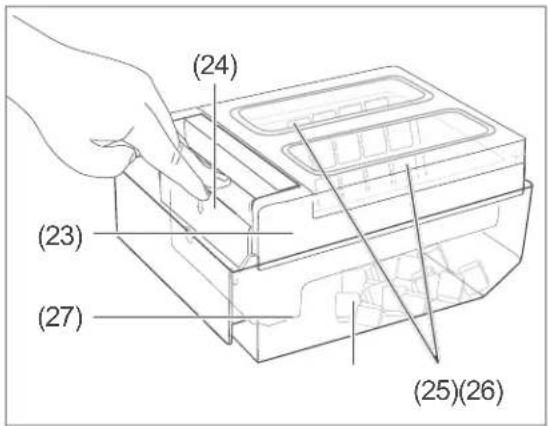

How to make ice cubes?

Fill the ice cube maker moulds up to 3/4 full with potable water, place horizontally in a freezer drawer. To dispense, push the button down firmly; ice cubes will fall into the storage container. Remove the maker to access cubes.

What is the storage time during a power failure?

The maximum storage time is indicated on the type plate. Keep the door closed; a full freezer will keep food frozen longer. Once power returns, check food quality. Thawed food should be consumed immediately.

USER MANUAL HGS18560CNFCI Hanseatic

Simple line drawing of a door with a handle and a rectangular opening (no text or symbols)

Gebrauchsanleitung

Gefrierschrank

(optional: Kühlschrank)

Inhaltsverzeichnis

Line drawing of a refrigerator with open door and side compartments (no text or symbols)

Simple line drawing of a door handle with two triangular blades and a small key, no text or symbols present.

Simple line drawing of a rectangular frame with a central square and side supports, labeled 'D' at the bottom (no text or symbols within the frame)

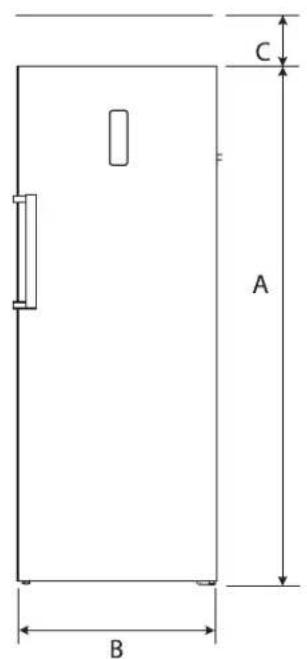

A: 1850 mm B: 595 mm

C: 100 mm D: 644 mm

E: 1057 mm F: 50 mm

G: 100 mm H: 135°

l: 1017 mm

Simple line drawing of a door with a handle and a rectangular opening (no text or symbols)

User manual

Table of contents

Please read through the safety instructions and user manual carefully before using the appliance. This is the only way you'll the functions safely and reliably.

Be sure to also observe the national regulations in your country, which are valid in addition to the regulations specified in this user manual.

Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the product.

You can find more information on setting up the appliance and starting it up for the first time from page EN-11.

Explanation of terms and symbols,

definitions EN-3

Explanation of terms EN-3

Explanation of symbols ..... EN-3

Definitions EN-3

Safety EN-4

Intended use EN-4

Safety notices ....EN-4

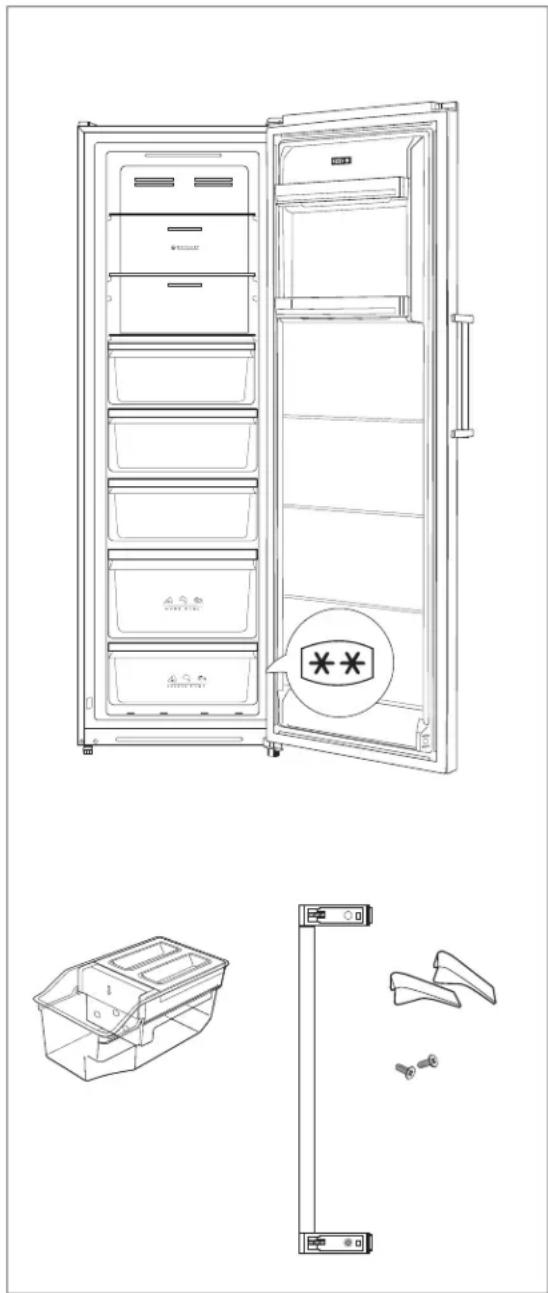

Delivery....EN-10

Package contents EN-10

Checking the delivery ..... EN-10

Start-up....EN-11

Before starting to use the appliance . . . EN-11

Unpacking and setup ..... EN-11

Cleaning before use ..... EN-14

Attaching the door handle ..... EN-14

Electrical connections ..... EN-15

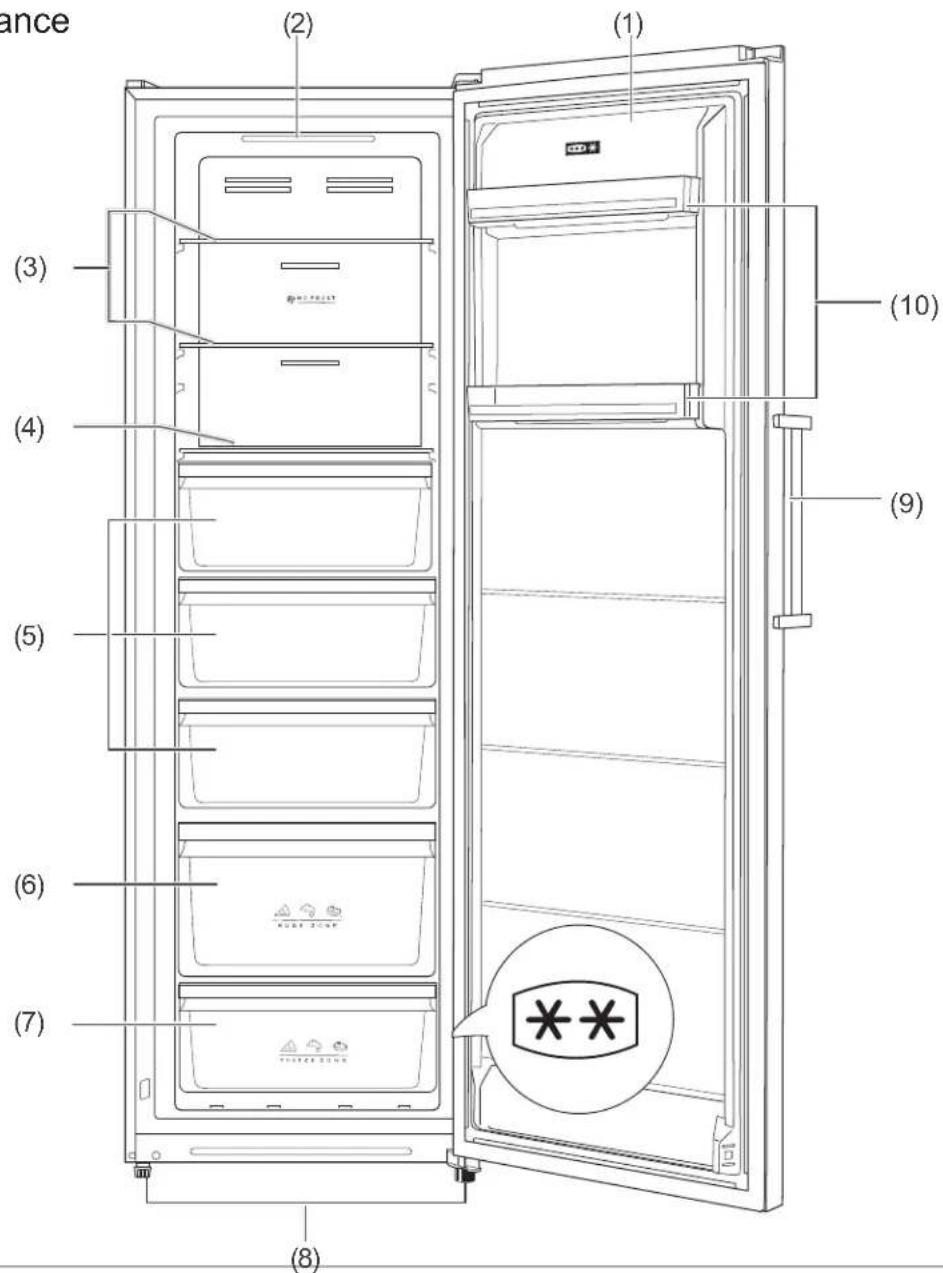

Appliance parts and control elements ... EN-16

Operation EN-18

Before getting started ..... EN-18

Switching the appliance on and off . . . . EN-18

Configuring operating mode ..... EN-18

Setting the temperature ..... EN-18

Activating/deactivating quick refrigerating/quick freezing ..... EN-19

Door alarm EN-19

The glass shelves ..... EN-20

The drawers....EN-20

Freezing foods, storing frozen foods .... EN-21

Freezing food EN-22

Storing frozen food. . . . . . . . . . . . . . . EN-23

Defrosting food ..... EN-23

Ice cube maker EN-23

Care and maintenance ..... EN-25

Checking and cleaning door seals. . . . . EN-25

Cleaning the exterior ..... EN-25

Cleaning the reverse side ..... EN-25

Cleaning the interior ..... EN-26

Interior light EN-26

Troubleshooting table ..... EN-27

Service EN-28

Advice, complaints and orders ..... EN-28

Repairs and spare parts ..... EN-28

Waste prevention, free return and

disposal......EN-29

Waste prevention EN-29

Free return of old electrical appliances....EN-29

Disposal EN-29

Packaging EN-30

Appendix....EN-31

Product fiche concerning Regulation (EU) no. 2019/2016 ..... EN-31 Technical specifications ..... EN-31

Explanation of terms and symbols, definitions

Explanation of terms

The following signal terms can be found in this user manual.

WARNING

This signal term indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION

This signal term indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE

This signal term warns against possible damage to property.

Explanation of symbols

The following symbols can be found in this user manual:

This symbol refers to useful additional information.

Caution: Fire hazard/flammable materials!

"4 star" symbol: Freezer at -18^ or colder

“2 star” symbol: Temperatures of -12 ^ to -18 ^ . Not suitable for the freezing of fresh food.

Definitions

“Food” refers to foods, ingredients and drinks including wine and other things mainly intended for consumption, which require refrigeration at certain temperatures.

"Food to be frozen" means fresh, room-temperature food to be frozen throughout as quickly as possible – for best results "flash-frozen".

"Deep-frozen food" means food which has already been frozen and for which the cool chain should not be broken.

Safety

Intendeduse

The purpose of this appliance is to

– store ordinary commercially available deep-frozen food,

– freeze fresh food from room temperature,

- make ice cubes.

This appliance is designed for use at ambient temperatures of +10 °C to +43 °C.

The appliance is designed for use in private households and is not designed for commercial use or multiple use (e.g.: use by several parties in a block of flats).

The appliance is not suitable for storing blood reserves, medical products, laboratory samples, etc.

This cooling appliance is not designed for use as a built-in appliance.

The interior light must be used only to illuminate the interior of the appliance. It is not suitable for lighting a room.

Persons who are unable to operate the appliance safely due to their physical, sensory or mental abilities or lack of knowledge must be supervised during use.

Do not make any technical changes to the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Use the appliance only as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The manufacturer accepts no liability for damage caused by improper use.

Safety notices

In this chapter you will find general safety notices that you must always observe for your own protection and that of third parties. Please also observe the warning notices in the individual chapters.

Risks to children and certain groups of individuals

WARNING

Risk of suffocation for children!

Children can become entangled in the packaging fi lm or swallow small parts and suffocate.

■ Do not allow children to play with the packaging fi lm.
■ Prevent children from pulling small parts off the appliance or putting them in their mouths.
■ When disposing of the appliance, ensure that children cannot suffocate inside the appliance (e.g. do not remove the fridge and freezer drawers, unscrew the appliance door/cover).

CAUTION

Risk of injury!

Children and certain groups of people have a higher risk of being injured when handling the appliance.

■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

■ Children from 3 to 8 years are allowed to load and unload refrigerating appliances.
■ Children shall not play with the appliance.
■ Cleaning and user maintenance shall not be made by children without supervision.

Risks in handling household electrical appliances

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Only use the appliance indoors. Do not use in wet rooms or in the rain.
■ Do not operate or continue to use the appliance, if it
– shows visible signs of damage, e.g. the supply cord is defective,
- starts smoking or there is a smell of burning,
- makes unfamiliar noises.

In such cases, remove the mains plug from the socket or unscrew/isolate the fuse and contact our Service Department (see "Service" on page EN-28).

■ The appliance corresponds to protection class I and may be connected only to a socket with a protective conductor that has been properly installed. When connecting the appliance, make sure that the voltage is correct. More detailed information about this can be found on the nameplate.

■ To disconnect this appliance from the power supply, pull the mains plug out of the socket. The appliance must,

therefore, be connected to an easily accessible socket so that it can be quickly disconnected from the power supply in the event of malfunction.

■ Since all poles of the appliance cannot be disconnected from the mains via an accessible disconnecting device, an all-pole disconnecting device in accordance with overvoltage category III must be connected within the house installation with at least 3 mm contact clearance; consult a qualified professional if necessary (see “Service” on page EN-28).

■ When positioning the appliance, ensure the supply cord is not trapped or damaged. Do not kink the supply cord or lay it over sharp edges.

■ Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

- Keep the supply cord away from naked flames and hot surfaces.

■ Always pull on the mains plug and not the mains cable.

■ Never touch the mains plug with wet hands.

■ Never immerse the mains cable or plug in water or any other liquids.

■ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

■ Independent or improper repairs made to the appliance may cause damage to property and personal injury; any liability and warranty claims will be forfeited. Never try to repair the appliance yourself.

■ Inspections and repairs to the appliance may only be carried out by

authorised specialists. Please contact our Service Department if necessary (see "Service" on page EN-28).

■ Only parts corresponding to the original appliance specifications may be used for repairs.
In the event of a fault, as well as before extensive cleaning, pull out the mains plug or isolate/unscrew the fuse.
■ Do not put any objects in or through the housing openings, and also ensure that children cannot insert any objects into them.
- Do not remove the cover from the interior lighting. Do not attempt to replace the interior light. Please contact our Service Department if necessary (see “Service” on page EN-28).
- Check the appliance regularly for damage.

Fire hazard!

Improper handling of the appliance can lead to fire and damage to property.

■ Do not connect to a timer or a separate remote-controlled system for distance monitoring and control.
- Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Risks associated with using refrigerants

WARNING

Risk of fire and explosion!

Your appliance's refrigeration circuit contains the environmentally friendly, but fl ammable and – as a mixture of air and gas – explosive refrigerant R600a (isobutane).

■ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
■ Mechanical intervention in the refrigeration system must only be carried out by authorised specialists.
■ Do not damage the refrigerant circuit, e.g. by puncturing the refrigerant channels of the condensate evaporator with sharp objects, bending the piping, or cutting open the insulation.
■ Ensure that none of the cooling fi ns or tubes on a cooling appliance are damaged prior to the point of proper disposal.
■ To prevent the formation of a fl am- mable gas-air mixture in the event of a leakage in the refrigeration circuit, the installation space must have a minimum size of 1 m ^3 per 8 g of re- frigerant in compliance with the EN 378 standard. The amount of refrigerant contained in your appliance can be found on the type plate.
■ To avoid the formation of sparks, do not pull out the mains plug in the event of a gas leak.
■ Dispose of old electrical appliances at an authorised collection or return point.
■ Only use original accessories.

Health hazard!

Spurting refrigerant can damage the eyes.

■ If refrigerant comes into contact with the eyes or mucous membranes, immediately flush eyes with clean water and seek medical attention.

High concentrations of refrigerant vapour can cause dizziness, headaches, nausea or asphyxiation.

■ Do not inhale refrigerant vapour.
■ Immediately air the room if refrigerant leaks.

Risks associated with chemical substances

CAUTION

Risk of explosion!

Improper handling of chemical substances can lead to explosions.

■ Do not store explosive substances such as aerosol cans with a fl ammable propellant in this appliance, as they can form ignitable gas-air mixtures.
■ Never use defrosting sprays to defrost. They can generate explosive gases.

Risk of fire and health hazard!

The thermal insulation and the interior are scratch and heat-sensitive and can melt or catch fire.

Plastics such as those used in thermal insulation can release toxic fumes if they melt or catch fire.

■ Do not use any electric heating equipment, knives or devices with an open flame such as candles.

■ Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Keep the appliance away from open flames and hot surfaces.

Risks in handling freezers

CAUTION

Health hazard!

Contaminated food can cause health problems.

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
  ■ Clean regularly surfaces that can come in contact with food and accessible drainage systems.
  ■ Store raw meat and fi sh in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

The appliance may not operate properly if the ambient temperature exceeds or falls below the specified temperature range for a prolonged period. This can then lead to an increase in temperature inside the appliance.

■ Always ensure the prescribed ambient temperature is maintained (see "Intended use" on page EN-4).

Incorrect handling, insufficient cooling or overlapping items can spoil the stored food. This could lead to a risk of food poisoning when consumed!

• In particular, pack raw meat and fi sh carefully to ensure that adjacent food cannot be contaminated by salmonella or similar bacteria.
  ■ Abide by the storage times recommended by food manufacturers.
  ■ Pay attention to the star classifi cations in the freezer and the resulting storage periods for freezer products.
  ■ One-, two- and three-star compartments are not suitable for the freezing of fresh food.
  ■ Note that the shelf life of the frozen food may be shortened due to a rise in the temperature inside the appliance (from defrosting, cleaning or power failure).
  If there is a power failure, the frozen food may remain sufficiently cold for some time (see “Storage time in the event of a power failure” on the type plate of the appliance). In case of prolonged power failure or malfunction of the appliance, remove the stored frozen food from the appliance and store it in a sufficiently cool place or in another cooling appliance.
  ■ After a malfunction, check whether the stored food is still edible. Consume thawed and defrosted foods immediately, do not refreeze.
  ■ Only use potable water to make ice cubes.

Risk of injury from frozen goods! Improper handling of the appliance may result in injury. There is a risk of burns caused by low temperatures.

■ The food and the inside walls of the freezer have a very low temperature. Never touch them with wet hands. This can cause injury to the skin. Skin damage can occur even with dry skin.
- Let ice cubes or ice lollies thaw a little before eating, do not put into your mouth straight from the freezer.

! NOTICE

Risk of damage to property!

If the cooling appliance has been transported vertically, lubricant from the compressor may get into the cooling circuit.

■ If possible, transport the appliance only in a horizontal position.
- Keep the appliance in a horizontal position for two hours before turning it on. The lubricant will flow back into the compressor during this time.

Risk of damage to property!

Improper handling of the appliance can lead to property damage.

■ Place the appliance only on a level and firm surface that can support the weight of the appliance when it is filled.

■ Do not use sharp or pointed objects to unpack it.
■ When cleaning, please note:

• Never use harsh, granular, soda, acid, solvent-based or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.
• Door seals and plastic parts are sensitive to oil and grease. Remove contaminants as quickly as possible.
  – Use only soft cloths for cleaning.

Delivery

Line drawing of an open refrigerator with internal compartments and a close-up of its interior compartment (no text or symbols)

You will find the type plate inside your appliance.

Package contents

1× Freezer

Freezer

2× Door shelf

2× Glass shelf

1× Glass shelf as a cover for the upper freezer drawer

3× Small freezer drawer

1× Large freezer drawer

1× 2-star drawer

1× Ice cube maker

Door handle and assembly parts (screws and decorative covers)

Checking the delivery

1. Move the appliance to a suitable place and unpack it (see "Start-up" on page EN-11).
2. Remove all parts of the packaging, plastic profiles, tape and foam padding.
3. Check that the delivery is complete.
4. Check whether the appliance was damaged during transit.
5. If the delivery is incomplete or the appliance has been damaged during transport, please contact our Service Department (see page EN-28).

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Never use a damaged appliance.

Start-up

Before starting to use the appliance

- Read chapter "Safety" from page EN-4 and all the safety notices.

Unpacking and setup

WARNING

Risk of suffocation!

Children can become entangled in the packaging fi lm or swallow small parts and suffocate.

■ Do not allow children to play with the packaging fi lm.
■ Prevent children from taking small parts out of the accessory bag and putting them in their mouths.

CAUTION

Risk of injury!

Improper handling of the appliance may result in injury.

■ The appliance is heavy and bulky. Ask another person to help with moving and installation.
■ Do not pull or lift the appliance by its doors or door handles.
■ Bases, drawers, doors, etc. must not be used as steps or for support purposes.

Dangers from the refrigerant!

Improper use of the appliance may lead to injury or damage to health.

■ Do not damage the refrigeration circuit, e.g. by puncturing the refrigerant channels of the condensate evaporator with sharp objects, bending the piping, or cutting open the insulation.

■ Refrigerant is fl ammable when spurting out and can damage the eyes. In this case, rinse your eyes in clean water and seek medical assistance immediately.

NOTICE

Risk of damage!

Improper handling of the appliance may result in damage.

■ If possible, do not tilt the cooling appliance horizontally.
■ Do not use sharp or pointed objects to unpack it.
■ When unpacking the appliance, never damage the insulation material on the back of the appliance.

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. This can then lead to an increase in temperature inside the appliance.

■ Always ensure the prescribed ambient temperature is maintained (see "Intended use" on page EN-4).

1. Unpack the appliance and remove all packaging, plastic moulding, adhesive strips, protective film and foam padding from the inside, outside and back of the appliance.

2. Place the appliance on as flat and as firm a base as possible. Observe the specified minimum distances (see "Space required according to the appliance dimensions" on page EN-12).

- Suitable locations are dry, well-ventilated areas that are as cool as possible.

Space required according to the appliance dimensions

Simple line drawing of a rectangular frame with a central square and side tabs, labeled 'D' at both ends (no text or symbols within the frame)

A: 1850 ~mm B: 595 ~mm

C: 100 mm D: 644 mm

E: 1057 mm F: 50 mm

G: 100 mm H: 135°

l: 1017 mm

- Unsuitable locations are ones with direct sunlight or which are directly next to an oven, hob or radiator.

1. If underfloor heating is installed at the setup location, place the cooling appliance on an insulation plate made from solid material. Make sure that the ambient temperatures match the climate category of the appliance (see "Intended use" on page EN-4).

2. Check the position of the appliance with a spirit level.
        direction LR
        A --> C["Downward Arrow"]
        B --> D["Upward Arrow"]
    end
    subgraph Bottom
        direction LR
        C --> D
    end
    style Top Loop fill:#f9f,stroke:#333
    style Bottom Loop fill:#bbf,stroke:#333

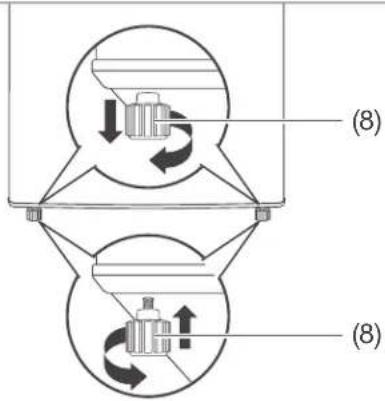

1. Level out any unevenness on the ground using both of the front screw feet (8).

2. Tilt the appliance backwards slightly and screw/unscrew the screw feet (8).

3. Repeat the adjustment until the appliance is upright and secure. The appliance should not wobble when opening the appliance door (1).

About climate categories

- Always ensure the prescribed ambient temperature is maintained (see "Intended use" on page EN-4).

Climate category means that the appliance is intended for operation at the specified ambient temperature.

Zone designation Code Definition
extended temperate zone	SN	This cooling appliance is designed for use at ambient temperatures of +10 °C to +32 °C.
temperate zone	N	This cooling appliance is designed for use at ambient temperatures of +16 °C to +32 °C.
subtropical zone	ST	This cooling appliance is designed for use at ambient temperatures of +16 °C to +38 °C.
tropical zone	T	This cooling appliance is designed for use at ambient temperatures of +16 °C to +43 °C.

If the room temperature drops significantly below this, the appliance will not switch on as often. This indicates that an unwelcome increase in temperature may occur.

Cleaning before use

- In order to remove the odour which is present in all new appliances, wipe down the interior prior to first use with a solution made of 100 ml vinegar and 200 ml water. Then wipe it out with clean water and dry all of the parts off afterwards.

Attaching the door handle

Attach the door handle (9) before starting to use the appliance.

1. Lift out both blind plugs (19) from the side of the appliance door (1).

1. Screw the door handle (9) to the appliance door (1) using the screws provided (20)

1. Slide the decorative cover (21) over the handle hinges (22).

Electrical connections

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Do not operate or continue to operate the appliance if it

– shows visible signs of damage, e.g. the mains cable is defective,
- starts smoking or there is a smell of burning,
- makes unfamiliar noises.

In such cases, remove the mains plug from the socket or unscrew/isolate the fuse and contact our Service Department (see page EN-28).

■ Do not connect to a timer or a separate remote-controlled system for distance monitoring and control.
■ Since all poles of the appliance cannot be disconnected from the mains via an accessible disconnecting device, an all-pole disconnecting device in accordance with overvoltage category III must be connected within the house installation with at least 3 mm contact clearance; consult a qualified professional if necessary (see “Service” on page EN-28).
- Do not kink or pinch the supply cord or lay it over sharp edges. This can result in a break in the cable.

CAUTION

Fire hazard!

Improper handling of the appliance can lead to fire and property damage.

■ Connect the appliance only to a properly installed and earthed electric socket. Do not connect to a multi-socket extension cable or a multi-socket plug.

NOTICE

Risk of damage to property!

If the cooling appliance has been transported horizontally, lubricant from the compressor may get into the cooling circuit.

■ If possible, do not tilt the cooling appliance horizontally.

- Allow the appliance to stand upright for approx. 2 hours after transport and before connecting. This allows the lubricant enough time to flow back into the compressor.

- Insert the mains plug into an easily accessible and properly installed socket (220–240 V\~ / 50 Hz).

You will find all important information about operation from page EN-18.

Appliance parts and control elements

Appliance

(4) Glass shelf above shallow drawers

(5) Small freezer drawers

(6) "Huge Zone" drawer

(7) "Freeze Zone" drawer (2-star drawer)

(8) Screw feet

(9) Door handle

(10) Door shelves

Control panel

(11) Cooling mode indicator
(12) Freezing mode indicator
(13) Temperature display
(14) Indicator „Super freezing mode active“
(15) Temperature up-button

(16) Temperature down-button
(17) Cooling/freezing mode switch
(18) Indicator „Super cooling mode active“

Operation

Before getting started

• Read chapter "Safety" from page EN-4.
• Set up and connect the appliance as described in chapter "Start-up" from page EN-11.

Switching the appliance on and off

! NOTICE

Risk of damage!

If the cooling appliance has been transported horizontally, lubricant from the compressor may get into the cooling circuit.

■ Allow the appliance to stand upright for approx. 2 hours after transport and before connecting.

Switching on

The appliance is switched on as soon as the mains plug is plugged in.

The compressor starts to work, the refrigerant flows through the pipes and a quiet humming sound can be heard.

The symbols on the control panel illuminate for 3 seconds.

If the appliance makes unusual noises, check that it is on a solid base and remove any objects that are on top of the appliance.

Switching off

- To switch the appliance off, pull the mains plug out of the socket.

If the appliance is switched off, leave the appliance door (1) open slightly to avoid mould formation.

Switching on for the first time

The standard temperature setting for when the appliance is first switched on in freezing mode is -18^ .

All indicators on the control panel will also illuminate for a couple of seconds.

Configuring operating mode

You can operate the appliance in cooling mode and freezing mode.

• To change to cooling mode, press and hold the cooling/freezing mode switch (17) for approx. 3 seconds.
  The cooling mode indicator (11) lights up on the control panel.
• To change to freezing mode, press and hold the cooling/freezing mode switch (17) for approx. 3 seconds.
  The freezing mode indicator (12) lights up on the control panel.

Setting the temperature

CAUTION

Health hazard!

The appliance may not operate properly if exposed to low ambient temperatures for extended periods of time. The temperature may increase in the fridge which may cause the foods stored within to spoil more quickly.

■ Always ensure the prescribed ambient temperature is maintained (see "Intended use" on page EN-4).

If you set a lower temperature, you will require greater cooling power. This increases energy consumption.

Setting the temperature

You can choose temperatures from +2 °C to +8 °C in refrigerator mode and from -16 °C to -24 °C in freezer mode.

- Press the temperature up-button (15) or the temperature down-button (16) until the desired temperature lights up on the temperature display (13). The temperature is increased or reduced by 1 or 2 °C each time you press the button.

In refrigerator mode:

The ideal fridge temperature is +4 °C.

In freezer mode:

The ideal fridge temperature is -18^ .

Activating/deactivating quick refrigerating/quick freezing

When using the appliance in cooling mode, you can activate the super cooling mode for quick cooling. In freezing mode, you can activate the super freezing mode for quick freezing.

The super cooling mode rapidly cools the fridge to +2 °C.

The super freezing mode rapidly cools the freezer to -24^ .

Activating quick refrigerating

1. Activate the cooling mode (see "Configuring operating mode" on page EN-18).
2. Press the temperature down-button (16) repeatedly, until the temperature display (13) shows "SUPER COOL".

Activating quick freezing

1. Activate the freezing mode (see "Configuring operating mode" on page EN-18).
2. Press the temperature down-button (16) repeatedly, until the temperature display (13) shows "SUPER FRZ.".

Deactivating quick refrigerating/quick freezing

Quick refrigerating is automatically deactivated 6 hours after the temperature reaching +2 °C. Quick freezing is automatically deactivated after 24 hours.

To deactivate manually:

- Press the temperature up-button (15) or the temperature down-button (16) to set a desired temperature, thereby leaving the super cooling mode and the super freezing mode respectively.

Door alarm

The energy consumption and the temperature inside the appliance can increase if the appliance door (1) is opened often or for long periods of time.

A beep will sound if the appliance door (1) is left open for longer than 2 minutes.

• Close the appliance door (1).
• Briefly press any button on the control panel to turn off the beep.

The glass shelves

The glass shelves (3) can be removed and rearranged if necessary.

You will achieve the most efficient use of energy for your appliance if you combine the drawers, glass shelves and door shelves as shown in the figure on page EN-16.

1. To remove the glass shelves (3), lift them slightly at the front and then pull them out of the guide rail.
2. Place the glass shelves (3) back into the desired positions.

The drawers

If there is not enough space in the small freezer drawers (5) or in the "Huge Zone" freezer drawer (6), you can remove the small freezer drawers (5).

Freezing foods, storing frozen foods

WARNING

Risk of explosion!

Improper handling of the appliance may lead to an explosion.

■ Do not store explosive substances such as aerosol cans with a fl ammable propellant in this appliance, as they can form ignitable gas-air mixtures.

CAUTION

Health hazard!

Incorrect handling, insufficient cooling or overlapping items can spoil the stored food. This could lead to a risk of food poisoning when consumed.

■ Opening the door for long periods can cause a signifi cant increase of the temperature in the compartments of the appliance.
In particular, pack raw meat and fi sh carefully to ensure that adjacent food cannot be contaminated by salmonella or similar bacteria.
■ Store raw meat and fi sh in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
■ Abide by the storage times recommended by food manufacturers.
■ Note that the shelf life of the frozen food may be shortened due to a rise in the temperature inside the appliance (from defrosting, cleaning or power failure).
■ If there is a power failure, the frozen food may remain sufficiently cold for some time. In case of prolonged power failure or malfunction of the appliance, remove the stored frozen food

from the appliance and store it in a suffi ciently cool place or in another cooling appliance. The maximum storage time in the event of a fault is shown on the appliance's type plate.

■ After a malfunction, check whether the stored food is still edible. Consume thawed and defrosted foods immediately, do not refreeze.
- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Risk of injury!

Improper handling of the appliance may result in injury. Risk of burns caused by low temperatures.

■ The food and the inside walls of the freezer have a very low temperature. Never touch them with wet hands. This can cause injury to the skin. Skin damage can occur even with dry skin.
■ Let ice cubes or ice lollies thaw a little before eating, do not put into your mouth straight from the freezer.

- Follow the instructions in this chapter to store your food for the longest possible time in the best possible way.

Freezing food

Freezing means reducing the core temperature of fresh, room-temperature food to frozen as quickly as possible – for best results "flash-frozen". If not cooled quickly enough, the food will be "killed by frost", i.e. the structure will be destroyed. A constant storage temperature of -18 ^ is needed to maintain the food's consistency, taste and nutritional value.

Freezing food has a positive effect on its shelf life. This will also help you avoid food waste.

- Set the temperature in the freezer to -18^ and fill it in such a way that the temperature conditions inside are optimally utilised, guaranteeing optimal food storage: Place food to be frozen in the freezer.

Preparing the food

• Only freeze high quality food.
• Freeze fresh and prepared food dry and unseasoned. Unsalted foods are more durable.
• Allow prepared food to cool before freezing. This not only saves power, but also prevents excessive frost formation in the freezer.
• Carbonated drinks are not suitable for freezing because the carbon dioxide escapes during freezing.

Suitable packaging

Packaging is important when freezing. This will protect against oxidation, penetration by microbes, transfer of odours and flavourings and drying out (freezer burn).

• Only use packaging material that is strong, impermeable to air and liquid, not too stiff and labelled. It should be designated as suitable for freezer use.
• Use plastic clips, rubber bands or adhesive tapes to seal.

Portions

• Use flat portions as much as possible; these freeze through to the core faster.
• Expel the air from the freezer bag as this causes the contents to dry out and takes up space.
• Fill liquid containers no more 34 full, because liquids expand when frozen.
• Do not store glass or metal containers containing liquids such as water, lemonade, beer, etc. Water expands when frozen and may burst the container.

Only high percentage alcohol (from 40 % volume) should be frozen; make sure that it is tightly sealed.

- Label the frozen food by type, quantity, amount and expiry date. Use waterproof marker pens or adhesive labels wherever possible.

How to pack the freezer properly

Freeze smaller quantities

Once the freezer temperature is -18^ , you can freeze fresh, room-temperature foods.

Freezing capacity

You can find information concerning the freezing capacity of your appliance on the type plate of your appliance.

- Adhere to the maximum freezing capacity wherever possible.

Up to the maximum indicated freezing capacity:

If you adhere to the maximum freezing capacity, the goods will freeze the quickest. The temperature in the freezer briefly rises after placing fresh goods inside. After another 12 hours, the goods are frozen to the core.

Above the maximum indicated freezing capacity:

If you want to freeze more food in one go as an exception, freezing will take longer. Keep fresh goods out of contact with existing frozen foods, as the frozen foods could start to defrost. If contact with stored food can not be avoided, we recommend that you create a cold reserve in the freezer before freezing the fresh goods.

Storing frozen food

The deep-freeze chain must not be broken between the manufacturer and your freezer. The temperature of the frozen food must always be at least -18^ .

Therefore,

• do not buy any goods that

– are in frosty, over-icy chests.
- are stacked above the stipulated high-load marker.
– partially clumped (particularly easy to identify with berries and vegetables).
– have snow and juice traces.

• Transport frozen foods in special styrofoam boxes or insulated bags.
• Observe the storage conditions and times on the packaging.

Defrosting food

- Observe the following basic rules when defrosting food:

• To defrost food, remove it from the freezer and let it defrost at room temperature or in the refrigerator.
  – Always defrost meat, poultry and fish in the refrigerator. Make sure that the frozen food is not immersed in its own thawing liquid.
• To defrost food quickly, use the defrost function on your microwave, for example. Observe the manufacturer's instruc-

tions and note that bacteria and germs can form in this way.

- If you only want to defrost part of a pack, remove the portion you need and immediately close the rest of the pack. In this way, you will avoid "freezer burn" and will reduce ice formation on the remaining foods.

Cook or use thawed foods as soon as possible. Dispose of the defrosting liquid.

Ice cube maker

CAUTION

Health hazard!

Consuming ice cubes which have been prepared using impure or standing water can damage health. Incorrect handling can lead to risks of causing food poisoning.

■ Use only potable water to make ice cubes.

Preparing ice cubes

1. Fill the ice cube moulds (25) of the supplied ice cube maker (23) up to 34 full with fresh drinking water.
2. Place the ice cube maker (23) horizontally in one of the freezer drawers.

Dispensing ice cubes

1. To remove the ice cubes, push the button (24) down with force. This will turn over and also slightly twist the ice cube moulds (25) and the ice cubes will fall into the storage container (26).
2. Take the ice cube maker (23) off the housing (27) in order to remove the ice cubes from the storage container (26).

Care and maintenance

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Before cleaning, unplug the mains plug from the socket or isolate/un-screw the fuse.
■ When pulling the mains plug out of the socket, always take hold of the mains plug itself and never pull the mains cable.

CAUTION

Risk of injury!

Danger to children and people with impaired physical, sensory or mental abilities!

■ Cleaning and user maintenance shall not be made by children without supervision.

NOTICE

Risk of damage!

The surfaces and appliance parts can be damaged through improper handling.

■ Never use harsh, granular, soda, acid, solvent-based or abrasive cleaners. These attack the plastic surfaces. All-purpose cleaners with a neutral pH are recommended.
■ Door seals and plastic parts are sensitive to oil and grease. Remove contaminants as quickly as possible.
■ Only use soft cloths.

Checking and cleaning door seals

The door seals must be checked regularly so that no air can enter the appliance.

1. To test them, clamp a thin piece of paper in various places between the door seal and frame of the appliance. The paper should be difficult to pull through at all points.
2. If the seal is not uniform everywhere: Warm the seal in the appropriate places in front of you with a hair dryer and pull it out with your fingers.
3. Only clean dirty seals with clean water.

Cleaning the exterior

- Use only light pH-neutral soapy water.

Cleaning the reverse side

Remove dust and clean the back of the appliance and the compressor once or twice a year.

- Carefully brush the reverse side of the appliance and the compressor with a soft brush.

Cleaning the interior

The appliance does not need to be defrosted, as it is equipped with an automatic defrost function. Frost and ice are automatically defrosted and the thaw water is collected in a thaw water container on the reverse side of the appliance. The thaw water evaporates as a result of the heat generated by the motor.

1. Pull the mains plug out of the socket.
2. Remove frozen food from inside the appliance.
3. Ensure that your food is kept cool enough. If you are unable to store it in another freezer in the meantime, wrap it up in a thick layer of newspaper and store it in a cool room or in an insulated bag during cleaning.
4. To clean inside, remove the small freezer drawers (5), the glass shelves (4) and (3) and the door shelves (10).
5. To remove the glass shelves (4) and (3), lift them slightly at the front and then pull them out of the guide rail.
6. To remove the door shelves (10), simply pull them upwards out of the holders.
7. Pull the "Huge Zone" drawer (6) as far out of the holder as possible.
8. Clean all of the parts in lukewarm soapy water. Then dry everything thoroughly.
9. Wipe down the inside with warm water and washing-up liquid.
10. When wiping clean, add a few drops of vinegar to the water to prevent mould from forming.
11. Wipe the interior dry.
12. Clean the door seals with clean water only; they are sensitive to oil and fat.
13. Replace the glass shelves (4) and (3), the small freezer drawers (5) and the door shelves (10).

14. Return the food to the appliance.

15. Insert the mains plug back in the socket and activate Quick freezing as described in section "Activating/deactivating quick refrigerating/quick freezing" on page EN-19.

16. As soon as a temperature of -18 ^ has been reached, switch the interior temperature back to the previous values as described in section “Configuring operating mode” on page EN-18.

Interior light

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Do not remove the cover from the interior lighting.

■ Do not attempt to replace the interior light.

Maintenance-free LEDs are used as lights. If the interior light does not work, please contact our Service Department (see page EN-28).

Troubleshooting table

Malfunctions can occur in all electrical appliances. This does not necessarily mean there is a defect in the appliance. For this reason, please check the tables to see if you can correct the malfunction.

WARNING

Risk of electric shock in case of improper repair!

- Never attempt to repair the appliance yourself. This may put your own and future users’ lives at risk. Only authorised specialists are allowed to carry out this repair work.

Problem Possible cause Solutions, tips, explanations
Compressor off, interior light off.	No electricity to socket. Check the socket with another appliance.
	Mains plug is loose. Check the tightness of the mains plug.
Compressor off, interior light on.	Desired temperature has been reached.	Further cooling not required. When the inside temperature rises, the compressor automatically switches on.
Appliance cools too quickly.	Temperature has been set too low.	Select a higher setting (see “Setting the temperature” on page EN-18).
The appliance doesn’t cool sufficiently.	Temperature has been set too high.	Select a lower setting (see “Setting the temperature” on page EN-18).
	Door not tightly closed or door seal is not completely tight.	See “Checking and cleaning the door seals” on page EN-25.
	The appliance is near a heat source.	Place insulation plate between the appliances or change location.
	Food has been stored warm.	Only store cooled foods.
	Ambient temperature too low or too high.	Adjust the ambient temperature to the climate category (see “Intended use” on page EN-4).
	Compressor seems defective.	Activate quick refrigerating or quick freezing. If the compressor isn’t switching on, please contact our Service Department (see page EN-28).
Appliance is making a noise.	Operating noises are functional and are not a sign of malfunction.	Humming: Refrigeration unit is running.
		Flowing noise: Refrigerant is flowing through the pipes.
		Clicking: Compressor is switching on or off.
	Disturbing noises. Check that it is stable.
The control panel shows an error code, such as E2, E5, etc.	Damaged temperature sensor.	Contact our Service (see page EN-28).

Service

Please note!

You are responsible for the condition of the appliance and its proper use in the household. If you call out for customer service due to an operating error, you will incur charges, even during the guarantee/warranty period. Damage resulting from non-compliance with this manual unfortunately cannot be recognised.

In order for us to help you quickly, please tell us:

Name of appliance Colour Model Order number
hanseatic Fridge-freezer Stainless steel HGS18560CNFCI 91708401

Advice, complaints and orders

Please contact your mail order company's customer service centre if

– the delivery is incomplete,
– the appliance is damaged during transport,
–you have questions about your appliance,
- a malfunction cannot be rectified using the troubleshooting table,
–you would like to order further accessories.

You can find the contact details of your product advisor online on the service pages of your mail order company. The various sections of product advice are listed here.

Please have your appliance invoice ready.

For more information, visit www.hanseatic.de

Repairs and spare parts

You can prevent waste by having your defective appliances repaired. Please contact our Customer Service department.

Please have your appliance invoice ready (date of purchase and item no.).

Spare parts are available for a minimum period of seven years after the final version of the model has been placed on the market. Door seals are available for a period of ten years.

Customers in Germany

Place an order at https://reparaturauftrag.operatec.eu by E-mail: [e-mail] Phone [phone]

Customers in Austria

Please contact your mail order company's customer service centre or product advice centre.

Waste prevention, free return and disposal

Waste prevention

According to the provisions of Directive 2008/98/EC, waste prevention measures always take priority over waste management.

For electrical and electronic devices, waste prevention measures include extending the lifespan of defective devices through repair and reselling used working appliances instead of disposing of them.

Please help us reduce waste and contact our customer service if your product is faulty.

More information can be found in the brochure "Waste Prevention Programme – of the German Government with the Involvement of the Federal States".

Free return of old electrical appliances

Upon purchasing a new electrical appliance of the same type with essentially the same function, consumers may return an old electrical appliance to a distributor obliged to take back old appliances, at no extra cost for the consumers. This option also exists for deliveries made to a private household. For distance selling, the option of having old electrical equipment collected for free applies only in the case of purchase of new electrical equipment with heat exchangers (e.g. refrigerators, dehumidifiers), screens and display devices with a screen surface > 100 cm ^2 , and large devices with at least one of its external dimensions measuring more than 50 cm.

In addition, consumers may return up to three old electrical appliances of the same type to a distributor's collection point for free, without having to purchase a new electrical appliance. In this case, however, the old appliances' external dimensions may not exceed 25 cm.

Disposal

Disposing of old electrical devices in an environmentally friendly manner

Electrical appliances contain harmful substances as well as valuable resources.

Every consumer is therefore re-ry law to dispose of old electrical ap- at an authorised collection or return they will thus be made available for mentally-sound, resource-saving re-

You can dispose of old electrical appliances free of charge at your local recycling centre.

Please contact your dealer directly for more information about this topic.

Don't forget to erase data!

If necessary, each consumer is responsible for erasing personal data from electrical and electronic equipment.

Batteries and rechargeable batteries, lamps and bulbs

If necessary, old single-use and rechargeable batteries that are not encased by an old electrical appliance, as well as lamps/bulbs that can be removed from an old electrical appliance without being destroyed, must be removed and disposed of separately before you return the appliance.

This symbol means that batteries and rechargeable batteries must not be disposed of with other household waste.

Consumers are required by law to bring all batteries and rechargeable batteries, regardless of whether they contain harmful substances*) or not, to a collection point oper-

ated by their communal authority or borough or to a retailer, so that they can be disposed of in an environmentally friendly manner and so that valuable resources (e.g. cobalt, nickel or copper) can be recovered.

Batteries and rechargeable batteries can be returned free of charge.

Some of the possible contents (e.g. mercury, cadmium and lead) are toxic and, if improperly disposed of, can have adverse effects on the environment. Heavy metals, for instance, can have detrimental health effects on humans, animals and plants and accumulate in the environment and food chain, and then enter the body indirectly through the consumption of food.

There is a high risk of fire with old lithium batteries. Special care must therefore be taken to properly dispose of old lithium batteries and rechargeable batteries. Improper disposal can also lead to internal and external short circuits due to thermal effects (heat) or mechanical damage. A short circuit can lead to a fire or an explosion and have serious consequences for people and the environment. It is therefore important to tape off the poles of lithium batteries and rechargeable batteries before disposing of them to prevent an external short circuit.

Before disposing of the appliance, batteries and rechargeable batteries which are not permanently built into the appliance must be removed and disposed of separately.

Please only dispose of batteries and rechargeable batteries in a discharged state!

If possible, use rechargeable batteries in place of disposable batteries.

*) labelled with:

Cd = Cadmium

Hg = Mercury

Pb = Lead

Packaging

Our packaging is made of environmentally friendly, recyclable materials:

– Outer packaging made of cardboard
- Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of polyethylene (PE)
– Tension bands made of polypropylene (PP)
- Saving energy also protects against excessive global warming. Your new appliance uses little energy due to its environmentally friendly insulation and technology.

If you have sufficient space, we recommend keeping the packaging, at least during the warranty

period. If the appliance needs to be sent out for repairs, only the original packaging will provide sufficient protection.

If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.

Appendix

Product fiche concerning Regulation (EU) no. 2019/2016

The product fiche for your device is available to you online.

Visit https://eprel.ec.europa.eu and enter the model identifier of your device to access the product fiche.

The model identifier for your device can be found under Technical specifications.

Technicalspecifications

Item number	91708401
Name of appliance	Freezer
Model identifier	HGS18560CNFCI
Device measurements (Height × Width × Depth)	1850 mm × 595 mm × 644 mm
Unloaded weight	83 kg
Refrigerant	R600a
Filling capacity refrigerant	50 g
Foaming agent	cyclopentane
Rated power	120 W
Supply voltage / frequency / rated current	220 - 240 V ~ / 50 Hz / 1,4 A
Protection class	1
Climate class: SN-N-ST-T. This appliance is intended to be used at an ambient temperature between + 10 °C and + 43 °C.

This product contains a light source of energy efficiency class F.
