USER MANUAL W60R COLBOR

Line drawing of a COLBOR camera with lens and cylindrical base (no text or symbols)

W60R Video Light User Manual

Thank you for choosing COLBOR product. Please read this manual carefully before use and follow all instructions mentioned herein.

Caring For Your COLBOR Product

• Keep corrosive chemicals, liquids and heat source away from the product to prevent mechanics damage.
  • The product is not waterproof.
• Do not leave the product unattended while in use. Keep out of reach of children.
• Do not handle with wet hands. Do not touch the hot COB surface.
• Please do not block the ventilation and do not look at the light directly when it is on.
• Do not attempt to disassemble or modify the product. Doing so voids warranty.
• Please have the product checked or repaired by authorized technicians if any malfunctions happened.
• Disconnect from the power supply when it is not in use.
• Do not cover, inverted COB and radiator for high temperature, do not cover, inverted, do not touch the lamp holder and radiator vent with your hands when the product in use.
• Do not use any power adapter of other products to avoid the lamp malfunction.
• Malfunction may be caused by dropping, impact of external force.
• Failure to follow all the instructions may result in mechanics damage.
• Our company reserves the right of final interpretation of the product.
• Product design and specifications are subject to change without prior notice.

Note:

• Please use the included power adapter to avoid damage.
• When powering via the COLBOR POWER GRIP, use the D-Tap to DC cable to connect the D-Tap port on the battery and the DC port on the light. Please do not use the Type-C port on the battery for powering.

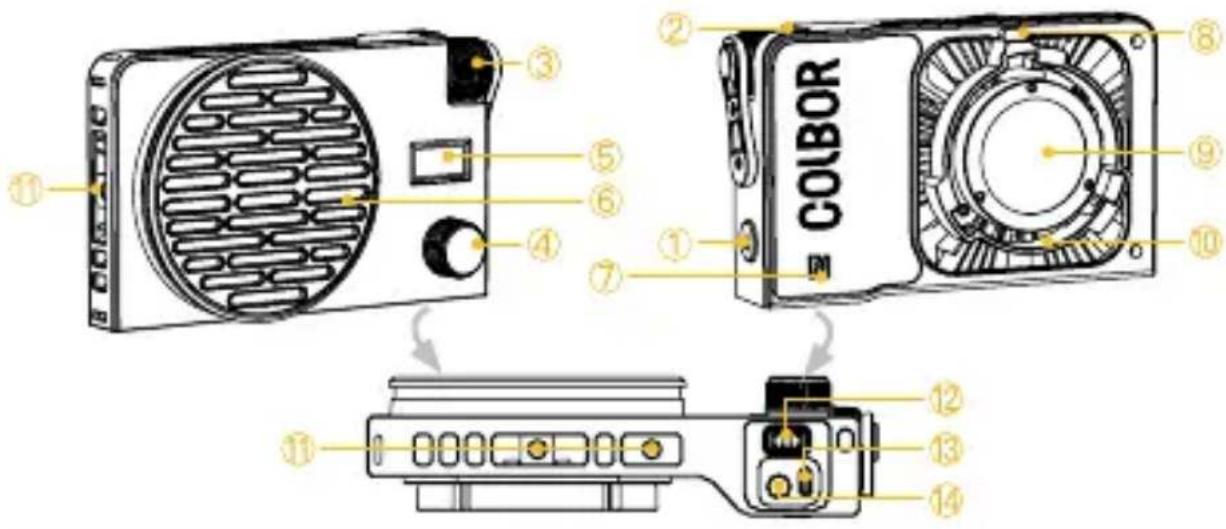

Product Instructions

① Power Button
② Wireless Control Setting Button
③ Wheel
④ Knob
⑤ OLED Screen
⑥ Air Inlet
⑦ NFC Detection Area

⑧ COLBOR Mount Lock
⑨ COB Lamp Beads
⑩ COLBOR Mount
⑪ 1/4' Hole Screw
⑫ Battery Contacts
⑬ Type-C Port
⑭ DC Port

Light Installation

1. Removal of COB protection cover

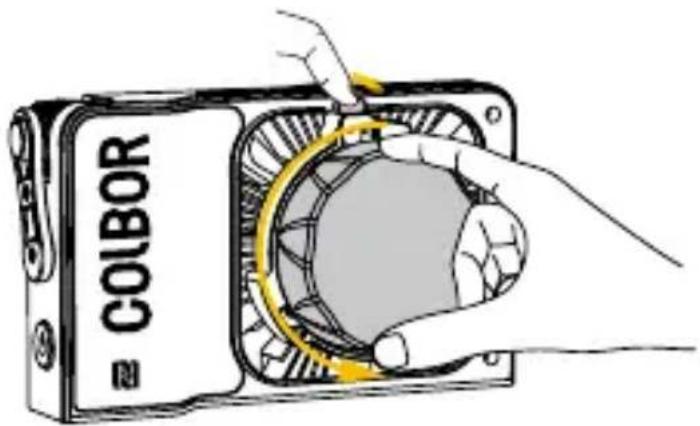

Hold the COB cover with the COLBOR Mount tenon and rotate it as the direction of the arrow.

Note: Be sure to remove cob protective cover and cob protective film before use.

2. Installation and removal of reflector

Installation of reflector: Align the reflector with the groove around the lamp head and clip it in, turn the reflector as the direction of the arrow, and the reflector installation will be completed after the top rod rebounds.

Removal of reflector: Follow the instructions of "Removal of COB protection cover".

Illustration of a handheld digital camera with a yellow lens, no text or symbols present

3. Power Connection

(1) Power with power adapter

Connect the power adapter, align the DC power jack of the lamp body, and then power on through the cable after stable.

Do not suspend the power adapter in the air. Use wire rings to hang it on the lamp stand.

Line drawing of a Colombian camera with lens and base mount (no text or symbols)

(2) Power with COLBOR Power Grip

Secure the battery handle with the light body's 1/4" screw hole at the top and connect via the D-Tap to DC cable for powering.

Line drawing of a Colombian camera with lens and cylindrical base (no text or symbols)

Operation Instructions

1. Power On/Off

Power On: Connect to the power source then long press the power button. Power Off: Long-press the power button to turn off.

2. CCT/HSI Mode Switching

Long press the knob to switch the menu between CCT/HSI.

3. Brightness Adjustment

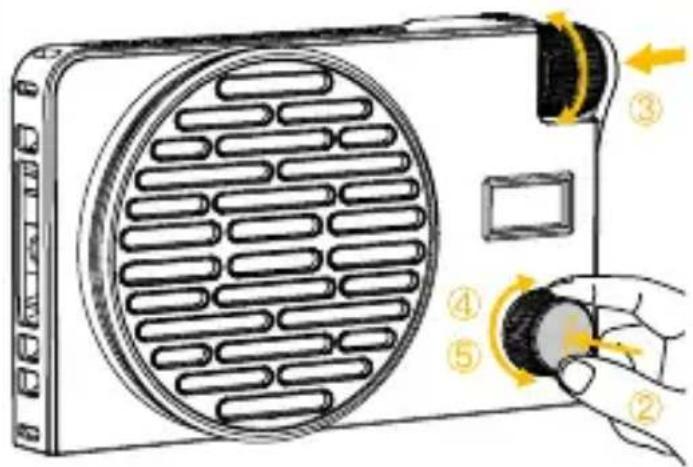

Roll the wheel for adjustment. Short press the wheel side to select preset brightness (0%, 25%, 50%, 75%, 100%).

4. Color Temperature Adjustment

Switch to CCT Mode, rotate the knob for color temperature adjustment. Short press the knob to select the preset color temperature (2700K, 3200K, 4300K, 5600K, 6500K).

5. HUE/SAT Adjustment

Switch to HSI Mode, short press the knob to select HUE/SAT options, rotate it for adjustment.

CCT Mode

Brightness CCT

HSI Mode

HUE SAT Brightness

6. EFF Control/Fan Mode Control

Connect to the APP for Fan settings and EFF settings.

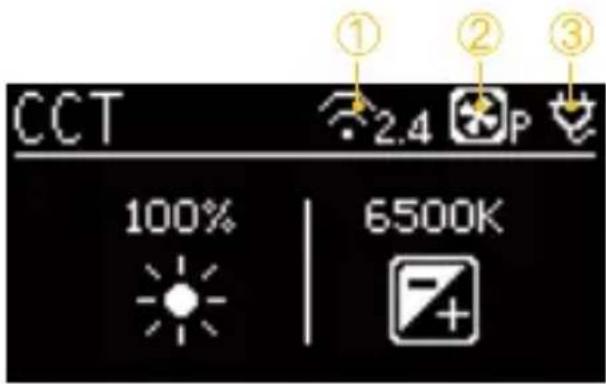

7. Status Icon Description

1 APP Connection Status Icon
	2.4GHz Control Mode, available for controlling via CTRL1 remote.
	APP Control Mode, available for controlling via COLBOR Studio APP.
2 Fan Status Icon
	Smart Mode. The product will adjust the fan speed according to the internal detected temperature to ensure that it is in optimal working condition.
	Performance Mode. Fan runs at the highest speed to ensure heat dissipation.
	Quiet Mode. The fan keeps running at low speed for minimum noise, and overheating protection will be activated if the product temperature is higher than the alarm value.
3 Power Status Icon
	DC Powering.
4 Error Icon
	NTC error, COB temperature sensor error, please contact the after service.
	Fan error, please contact the after service.

Wireless Connection

Short press the remote control button to switch between 2.4GHz (CTRL1 remote) and APP (COLBOR Studio APP) control modes, then long-press the button to start pairing.

Illustration of a portable radio with a speaker grille and antenna (no text or symbols)

1. APP Connection & Operation

Scan or search in the app store to download the COLBOR STUDIO for further functions.

(1) APP Connection

① Short press the Wireless Control Setting Button to switch to APP Connection Mode (Shows the Icon 📤APP) and long press to start pairing, once the icon flashes, the light is in connection mode.

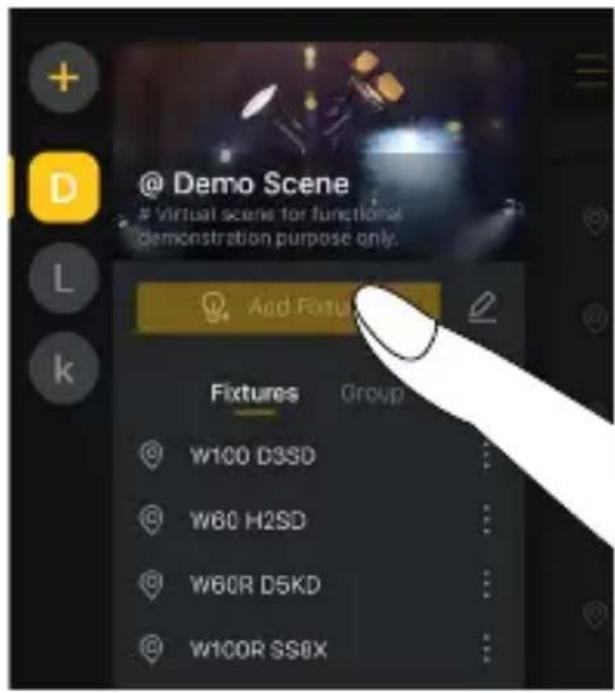

② Open the COLBOR STUDIO APP and click "Add Fixtures", and find the W light to confirm adding it.

(2) NFC Connection

Tag your phone's NFC sensing area close to the light's NFC logo. A prompt will automatically appear on your phone to open the APP. Click the prompt to open the APP.

Illustration of a hand holding a smartphone next to a circular mechanical component with no visible text or symbols.

* If the app has not been installed, a prompt to install will appear. Click the prompt to enter the app download page on the official site or the APP store.

* Devices before IOS13 (iPhone XS/iPhone XR) are not available for this function.

* If the light has never connected to a device via NFC, please enable the Bluetooth connection option and activate the light's NFC function first:

① Connect the light via the APP connection method (refer to the APP connection operation).
② Click on the “Edit Icon” of the light, then click “Activate NFC.” Tag your phone’s NFC area close to the light’s NFC logo to activate NFC. When reconnecting the light, tag your phone’s NFC sensing area close to the light’s NFC logo area to complete the pairing.

* A light is allowed to be controlled by multiple phones simultaneously. For the real-time parameters, please refer to the phone which last controlled the light and the light.

(3) APP User Manual

Click to open the page to check for more information.

Graphic: https://www.colborlight.com/pages/cb-studio-help-center

Video: https://youtu.be/SYEqPTvuy3M

2. Remote Connection

① Short press the Wireless Control Setting Button to switch to 2.4G Connection Mode (Shows the Icon 2.4G ) and long press to start pairing, once the icon flashes, the light is in connection mode.
② Short press the CTRL1 dial, then long press for 3–4 seconds to pair the remote control with the light.

Specifications

CRI/TLCI	97/99
SSI	D32:88 D56:71
TM-30-18	Rf:94/Rg:101
Color Temperature Range	2700K-6500K(±150K)
Beam Angle	≈∠ 120°
Illumination	See the Form 1 Below
COB Output Power	C/W:60W R/G/B:30W
Power	60W(Max)
Light Working Voltage	DC 20V=3.25A
Cooling Mode	Smart/Quite/Performance
Connector	DC/Type-C
Body Material	PC+ABS
Light Dimension	157*43*93mm
Light Weight	345g
Operating Temperature	-10~40°C

Packing List

Pure electrical circuit lines without any symbols

Simple line drawing of a coiled tube with a bulb and connector (no text or symbols)

W60R Video Light x1 Plum Tail Cable x1 Power Adapter (with Wire Lanyard) x1

Reflector x1 Warranty Cover x1 Dome x1

Power adapters may vary according to sales region.

Form 1

Illumination

CCT		1m 3m 5m
2700K	Light Base	1440	179	86
	Reflector	2610	293	135
3200K	Light Base	1570	198	94
	Reflector	2880	324	149
4300K	Light Base	1760	244	108
	Reflector	3300	373	171
5600K	Light Base	1880	245	116
	Reflector	3520	398	182
6500K	Light Base	1930	255	119
	Reflector	3600	407	187
R	Light Base	324	47	27
	Reflector	535	65	34
G	Light Base	897	115	60
	Reflector	1440	168	81
B	Light Base	283	40	24
	Reflector	486	59	31

The data is given from testing in a laboratory.
