Product Type	Twin Bunk Bed
Brand	Dorel
Model	DL7891
Recommended Age	6 years to young teenagers
Maximum Users (Upper Bunk)	1 person
Mattress Size (Upper & Lower)	74"-75" long x 37.5"-38.5" wide, max 6" thickness
Mattress Type	Coil spring only
Guardrails	2 long guardrails, 2 short guardrails
Ladder	Included
Assembly Required	Yes, 2 adults, approx. 45 minutes
Tools Included	Allen key
Tools Required (Not Included)	Phillips screwdriver, rubber mallet (recommended)
Material	Wood (solid and composite)
Warranty	1 year limited
Care Instructions	Dust with soft dry cloth; avoid chemical cleaners and wax
Weight Capacity (Upper Bunk)	Approximately 200 lbs (typical for twin bunk beds)
Overall Dimensions (Assembled)	Approx. 78" L x 40" W x 60" H (estimated)
Convertible to Two Separate Beds	Yes
Safety Features	Guardrails, ladder, warning labels, safety instructions
Customer Service	1-800-295-1980; [e-mail]

Frequently Asked Questions - DL7891 Dorel

What are the dimensions of the Dorel DL7891 bunk bed?

The overall dimensions are approximately 78 inches long, 40 inches wide, and 60 inches high. However, exact dimensions may vary; refer to the manual for precise measurements.

What size mattress fits the DL7891 bunk bed?

The bed requires a twin (single) mattress that is 74 to 75 inches long and 37.5 to 38.5 inches wide, with a maximum thickness of 6 inches. Only coil spring mattresses are permitted.

Can I use a memory foam mattress on this bunk bed?

No, only coil spring mattresses are allowed. Using other types may cause injury or instability.

Is the DL7891 safe for young children?

The upper bunk is not safe for children under 6 years old. Always use guardrails and the ladder, and do not allow horseplay or jumping.

How do I assemble the bunk bed?

Assembly requires two adults and takes about 45 minutes. Follow the step-by-step instructions in the manual, using the included Allen key and a Phillips screwdriver (not included).

Can the bunk bed be separated into two twin beds?

Yes, the bed can be converted into two separate twin beds. Remove the ladder and guardrails, then unstack the top bunk from the bottom bunk with assistance.

What is the weight limit for the upper bunk?

The manual does not specify a precise weight limit, but typical twin bunk beds support up to 200 lbs on the upper bunk. Ensure the mattress and occupants stay within safe limits.

What is the warranty on the DL7891?

Dorel offers a 1-year limited warranty against defects in material and workmanship from the date of original purchase. It covers replacement of defective parts but not assembly labor.

What should I do if parts are missing or damaged?

Do not return the product to the store. Contact Dorel customer service at 1-800-295-1980 or [e-mail]. They will replace missing or defective parts free of charge.

How should I clean and maintain the bunk bed?

Dust regularly with a soft, dry cloth. Avoid chemical cleaners, wax, solvents, alcohol, and nail polish removers. Periodically check and tighten bolts or screws.

USER MANUAL DL7891 Dorel

Customer satisfaction is important to us at Dorel Asia. Our agents are available Monday to Friday 8am to 5pm (EST) to answer any question you may have. For faster service, always have the model number ready when calling our toll free number 1-800-295-1980 or emailing us at [e-mail].

For more great furniture ideas, check out our website at www.dorelliving.com You can also keep up to date on all the latest trends by liking our Facebook page.

Isometric line drawing of a multi-level metal shelving unit (no text or symbols)

ATTENTION

USE THIS MANUAL TO ASSEMBLE THE TWIN BUNK BED

Date of Purchase: ____ / ____ / ____ Lot Number:

(taken from carton)

DO NOT RETURN PRODUCT TO THE STORE. If a part is missing or damaged, contact our customer service department. We will replace the part FREE of charge.

NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

CUSTOMER SERVICE

If you are missing parts or have any questions about this product, contact our customer service representative first!

CALL 1-800-295-1980

You can also order parts by writing to the address listed below. Please include the product model number, color and a detailed description of the part.

Customer Service Department No. 413

12345 Albert-Hudon Boulevard, Suite 100

Montreal, Quebec

Canada, H1G 3L1

E-MAIL: [e-mail]

WARNING

* STRANGULATION HAZARD - NEVER ATTACH OR HANG ITEMS TO ANY PART BUNK BED THAT ARE NOT DESIGNED FOR USE WITH THE BED; FOR EXAMPLE, BUT NOT LIMITED TO HOOKS, BELTS AND JUMP ROPES.
* FOLLOW THE INFORMATION ON THE WARNINGS APPEARING ON THE UPPER BUNK END STRUCTURE AND ON THE CARTON. DO NOT REMOVE WARNING LABEL FROM BED.
* THE MATTRESS PLATFORM IS DESIGNED TO SUPPORT A MATTRESS WITHOUT THE NEED FOR A POSTURE BOARD OR BOX SPRING.
* ALWAYS USE THE RECOMMENDED SIZE MATTRESS OR MATTRESS SUPPORT, OR BOTH, TO HELP PREVENT THE LIKELIHOOD OF ENTRAPMENT OR FALLS.
* USE ONLY COIL SPRING MATTRESSES ON BOTH THE UPPER AND LOWER BUNKS. FAILURE TO DO SO CAN RESULT IN INJURY.
* USE ONLY MATTRESSES WHICH ARE 74"-75" LONG AND 37 1/2" - 38 1/2" WIDE ON UPPER AND ON LOWER BUNKS. ENSURE THICKNESS OF MATTRESS DOES NOT EXCEED 6". SURFACE OF MATTRESS MUST BE AT LEAST 5" (127MM) BELOW THE UPPER EDGE OF GUARDRAILS.
* DO NOT ALLOW CHILDREN UNDER 6 YEARS OF AGE TO USE THE UPPER BUNK.
* ALWAYS USE GUARDRAILS ON BOTH LONG SIDES OF THE UPPER BUNK. IF THE BUNK BEDWILL BE PLACED NEXT TO THE WALL, THE GUARDRAIL THAT RUNS THE FULL LENGTH OF THE BED SHOULD BE PLACED AGAINST THE WALL TO PREVENT ENTRAPMENT BETWEEN THE BED AND WALL (APPLICABLE FOR BUNK BEDS WITH FULL LENGTH GUARDRAILS ON ONE SIDE).
* PERIODICALLY CHECK AND ENSURE THAT THE GUARDRAIL, LADDER AND OTHER COMPONENTS ARE IN THEIR PROPER POSITION, FREE FROM DAMAGE, AND THAT ALL CONNECTORS ARE TIGHT.
* DO NOT ALLOW HORSEPLAY ON OR UNDER THE BED AND PROHIBIT JUMPING ON THE BED.
* DO NOT USE SUBSTITUTE PARTS. CONTACT CUSTOMER SERVICE FOR REPLACEMENT PARTS.
* USE OF A NIGHT LIGHT MAY PROVIDE ADDED SAFETY PRECAUTION FOR A CHILD USING THE UPPER BUNK.
* THE USE OF WATER OR SLEEP FLOTATION MATTRESSES IS PROHIBITED.
* ALWAYS USE THE LADDER FOR ENTERING AND LEAVING THE UPPER BUNK.
* PROHIBIT MORE THAN ONE PERSON ON UPPER BUNK.
* KEEP THESE INSTRUCTIONS FOR FUTURE USE.

NOTES

* READ EACH STEP CAREFULLY BEFORE STARTING. IT IS VERY IMPORTANT THAT EACH STEP OF INSTRUCTION IS PERFORMED IN THE CORRECT ORDER. IF THESE STEPS ARE NOT FOLLOWED IN SEQUENCE, ASSEMBLY DIFFICULTIES WILL OCCUR AND CAN RESULT IN INJURY.
* CAUTION: ADULT ASSEMBLY REQUIRED
* MAKE SURE ALL PARTS ARE INCLUDED. WORK IN SPACIOUS AREA, PREFERABLY ON A SMOOTH SOFT SURFACE.
* ASSEMBLY WILL REQUIRE TWO PEOPLE.
* MOST BOARD PARTS ARE LABELED OR STAMPED ON THE RAW EDGE.
* PHILLIPS SCREWDRIVER (NOT INCLUDED) IS REQUIRED.
* A RUBBER MALLET (NOT INCLUDED) IS RECOMMENDED TO FACILITATE ASSEMBLY.
* BED IS DESIGNED FOR CHILDREN RANGING FROM 6 YEARS OF AGE TO YOUNG TEENAGERS.
* CAUTION: ADULT ASSEMBLY REQUIRED. ASSEMBLY WILL REQUIRE 2 PEOPLE. ESTIMATED ASSEMBLY TIME 45 MINUTES.

CARE AND CLEANING

Dust regularly with a soft, dry cloth. We do not recommend the use of chemical cleaners or wax on our lacquered furniture as it may damage the finish. Keep solvents, alcohol, nail polish and polish removers away from your hardwood furniture surfaces.

MAINTENANCE

Check bolts/screws periodically and tighten them if necessary.

LIMITED WARRANTY

DOREL warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation of proof of purchase. This is solely limited to the repair or replacement of defective furniture components and no assembly labor is included. This warranty does not apply to any product which has been improperly assembled, subjected to misuse or abuse or which has been altered or repaired in any way. This warranty gives you specific legal rights and you may also have other rights which vary from State to State

WARNING: Should this product become damaged, and/or components are broken or missing, DO NOT USE.

TWIN BUNK BED

DL7891-1

HARDWARE LIST

1	Φ 1/4" x 100mm	2	Φ 6.5mm x 48mm
JOINT CONNECTOR (4mm HEX HEAD)16 PCS		WOOD JOINT CONNECTOR (4mm HEX HEAD)10 PCS
3	Φ 6.5mm x 100mm	4	Φ 4mm x 35mm
WOOD JOINT CONNECTOR (4mm HEX HEAD)24 PCS		FLAT HEAD SCREW24 PCS
5	Φ 10mm x 100mm	6	Φ 4mm x 30mm
METAL DOWEL4 PCS		FLAT HEAD SCREW6 PCS
7	Φ 10mm x 50mm	8
WOOD DOWEL62 PCS		ALLEN KEY1 PC
9	10 11
Φ 11.8mm x 15mm		Φ 1/4" x 32mm	Φ 9mm x 17mm
BARREL NUT16 PCS		JOINT CONNECTOR (4mm HEX HEAD)2 PCS	HEX CAP2 PCS

TWIN BUNK BED DL7891-1

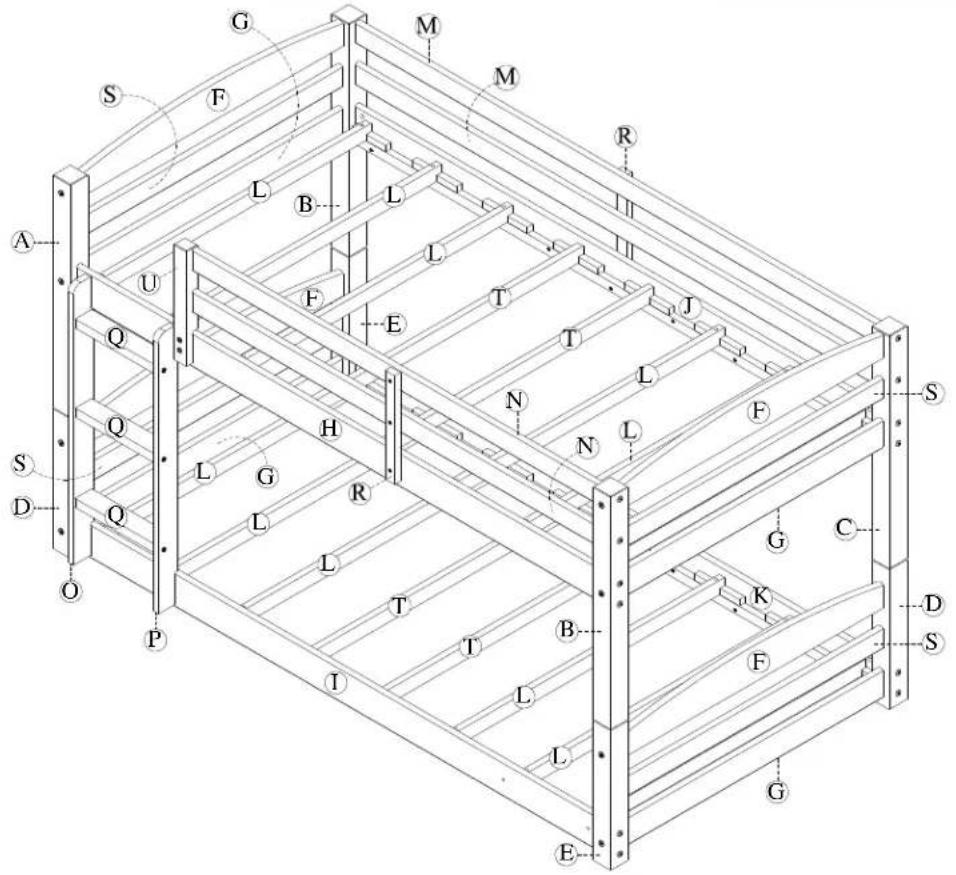

PARTS LIST

A B C
TOP POST1 PC	TOP POST2 PCS	TOP POST1 PC
D E F[YSHT]
BOTTOM POST2 PCS	BOTTOM POST2 PCS	HEADBOARD TOP CROSS4 PCS

TWIN BUNK BED DL7891-1

PARTS LIST

GHI
HEADBOARD BOTTOM CROSS4 PCS	TOP FRONT SIDE RAIL1 PC	BOTTOM FRONT SIDE RAIL1 PC
BACK SIDE RAIL1 PC	BOTTOM BACK SIDE RAIL1 PC	SLAT WITHOUT WOOD DOWEL12 PCS
LONG GUARDRAIL2 PCS	SHORT GUARDRAIL2 PCS	LEFT LADDER END1 PC
RIGHT LADDER END1 PC	LADDER STEP3 PCS	GUARDRAIL LEG2 PCS
HEADBOARD CENTER CROSS4 PCS	SLAT WITH WOOD DOWEL4 PCS	GUARDRAIL POST1 PC

TWIN BUNK BED DL7891-1

STEP 1

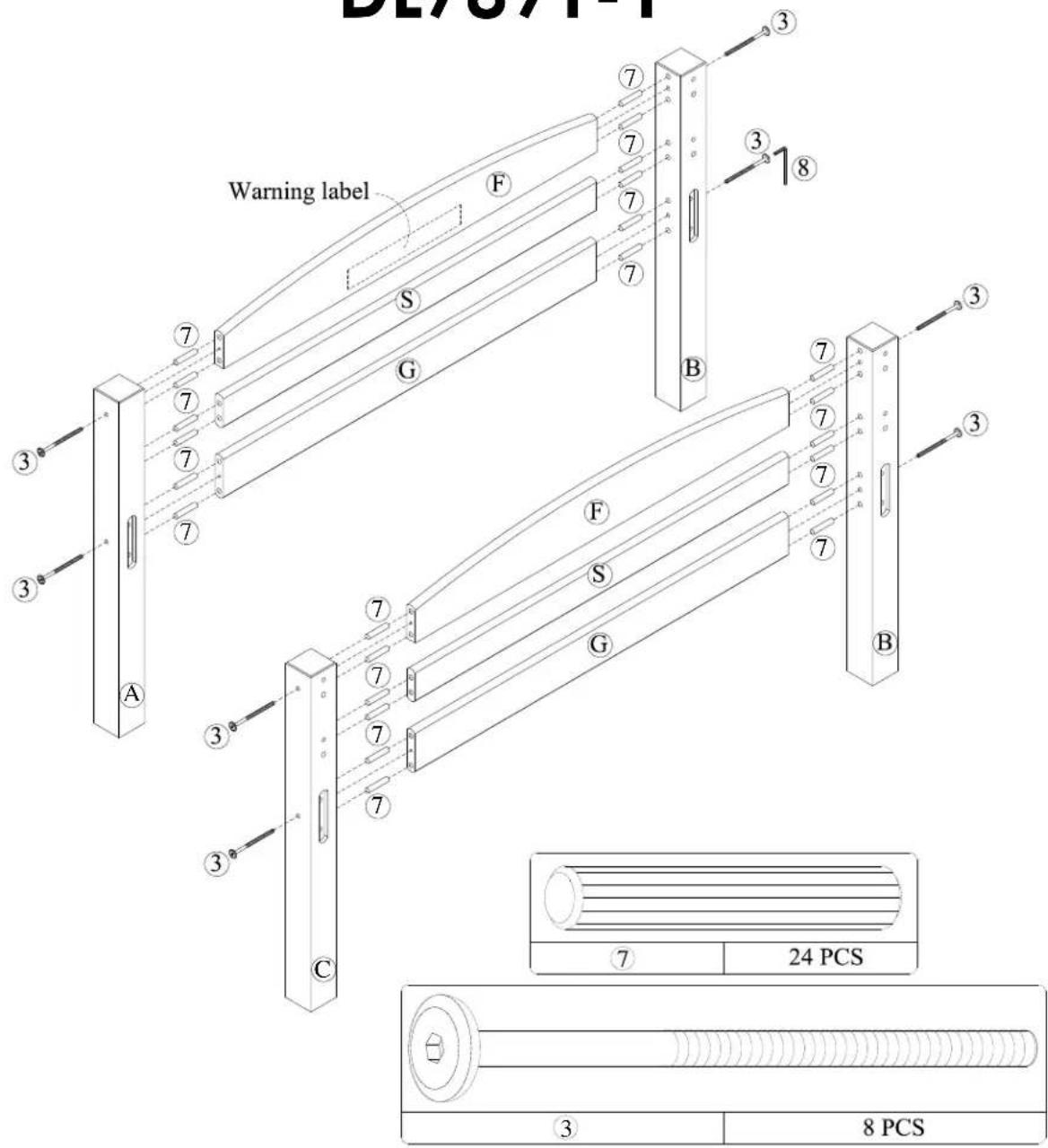

Insert wood dowels (7) into the ends of headboard top cross (F), headboard bottom cross (G) and headboard center cross (S). Attach them to top posts (A & B) using wood joint connectors (3) as shown. Tighten the wood joint connectors (3) with the Allen key (8).

NOTES: Headboard top crosses (F, G & S) may require that they be pulled closer together or further apart in order to allow wood dowels (7) to align with holes in top posts (A & B).

Repeat this previous step to assemble the other headboard using posts (B & C).

NOTE: Be sure to use headboard top cross (F) with warning label attached to it is between top posts (A) and (B). See the above illustration for label orientation.

TWIN BUNK BED

DL7891-1

STEP 2

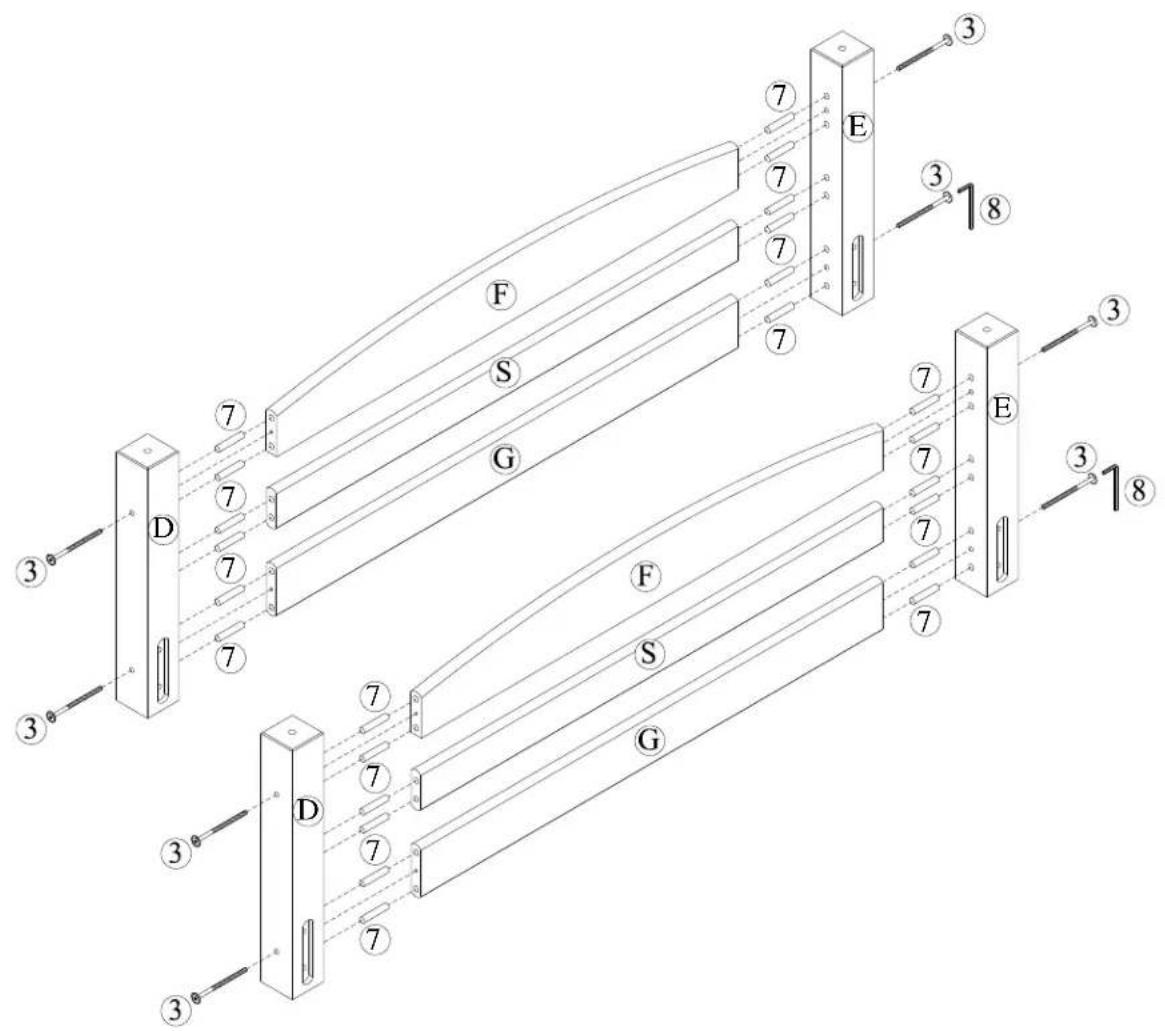

Insert wood dowels (7) into the ends of headboard top cross (F), headboard bottom cross (G) and headboard center cross (S) and attach them to bottom posts (D) & (E) using wood joint connectors (3) as shown. Tighten the wood joint connectors (3) with the Allen key (8).

TWIN BUNK BED DL7891-1

STEP 3

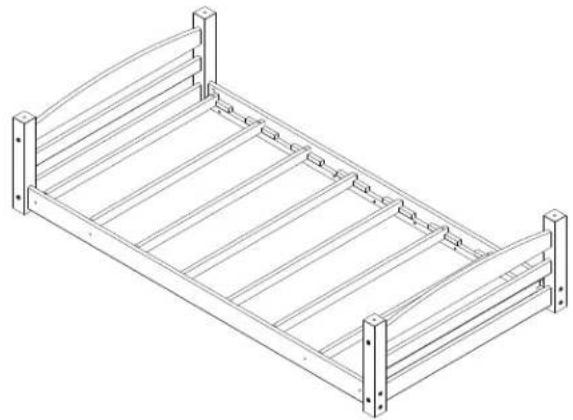

Attach the two headboards with bottom posts (D & E) to bottom front side rail (I) and bottom back side rail (K) using joint connectors (1) and barrel nuts (9) as shown. Tighten the joint connectors (1) with the Allen key (8).

Note: This is the lower bunk.

TWIN BUNK BED DL7891-1

STEP 4

Insert wood dowels (7) into each end of the long guardrails (M).

Attach two long guardrails (M) and two top side rails (H & J) to top posts (A & B) and (C & B) as shown.

Fasten top side rails (H & J) with joint connectors (1) and barrel nuts (9). Fasten long guardrails (M) with wood joint connectors (3).

Tighten the joint connectors (1) and wood joint connectors (3) with the Allen key (8).

TWIN BUNK BED DL7891-1

STEP 5

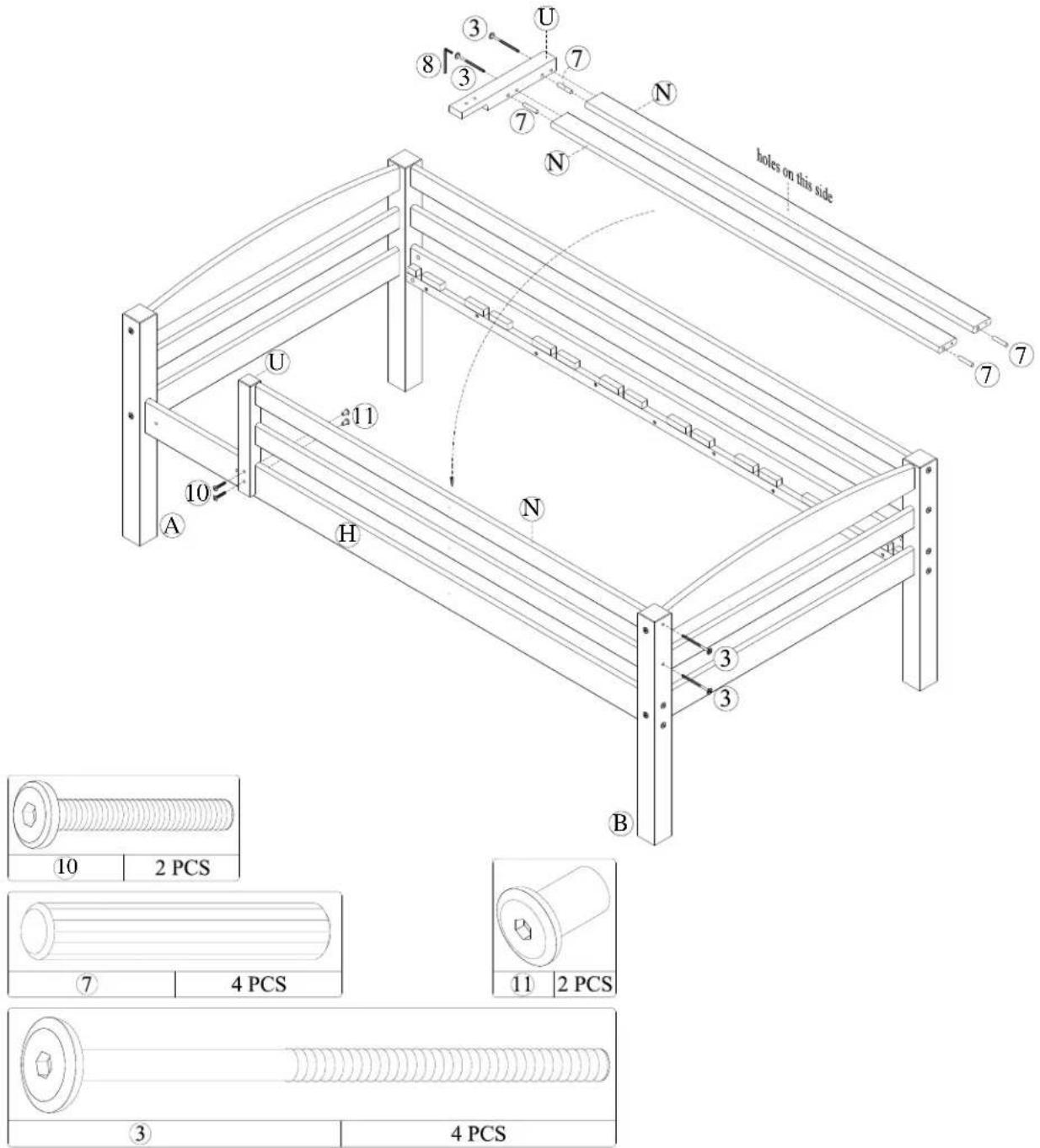

Insert wood dowels (7) into short guardrails (N). Attach short guardrails (N) to guardrail post (U) with wood joint connectors (3) as shown.

Fasten the short guardrails (N) to top post (B) with wood joint connectors (3). Fasten the guardrail post (U) to top front side rail (H) with joint connectors (10) and hex cap (11) as shown.

TWIN BUNK BED DL7891-1

STEP 6

Attach the guardrail leg (R) to the short guardrails (N) and top front side rail (H) with flat head screws (6). Attach the other guardrail leg (R) (on the other side of the bed) to long guardrails (M) and top back side rail (J) with flat head screws (6) as shown. Use a Phillips head screwdriver (not included) to tighten the flat head screws.

TWIN BUNK BED DL7891-1

STEP 7

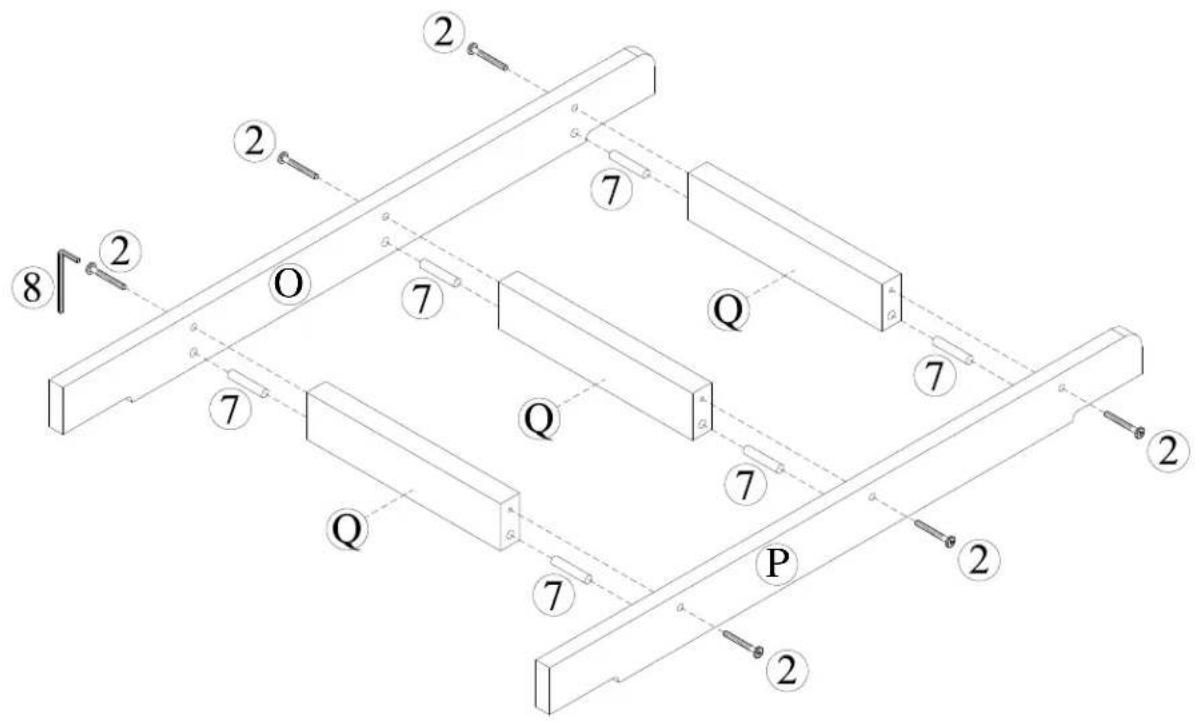

Insert wood dowels (7) into the end of the ladder steps (Q). Attach left ladder end (O) and right ladder end (P) to ladder steps (Q) with wood joint connectors (2). Tighten the wood joint connectors (2) with the Allen key (8).

TWIN BUNK BED

DL7891-1

STEP 8

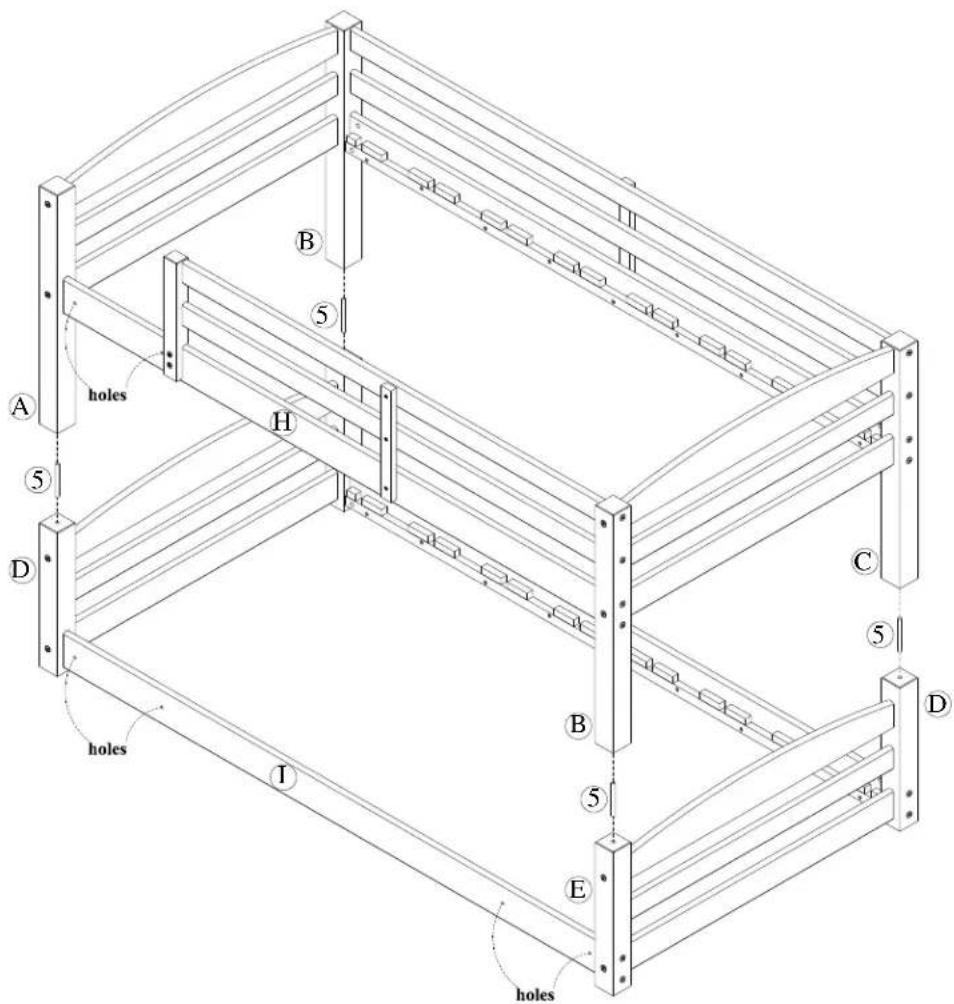

insert the metal dowels (5) into the holes in the bottom posts (D and E). Stack the top bunk onto the bottom bunk with the help of another person.

TWIN BUNK BED

DL7891-1

STEP 9

Attach the ladder to the top front side rail (H) and bottom front side rail (I) with wood joint connectors (2) as shown. Use Allen key (8) to tighten the joint connectors.

TWIN BUNK BED DL7891-1

STEP 10

Insert two slats with wood dowel (T) into the center slots of the top side rails (H &J) of the upper bunk as shown.

Attach slats without wood dowel (L) onto top side rails (H &J) of the upper bunk with flat head screws (4) as shown. Use Phillips screwdriver (not included) to tighten flat head screws (4).

Repeat this process for the bottom bunk.

TWIN BUNK BED DL7891-1

Isometric line drawing of a multi-level metal shelving unit (no text or symbols)

the first twin bed

Line drawing of a simple wooden bed frame with vertical supports and horizontal ribs (no text or symbols)

the second twin bed

Line drawing of a wooden bed rack with vertical supports and horizontal ribs (no text or symbols)

To convert your bunk bed into two separate beds, remove the ladder and all the guardrails. With the help of another person, unstack the top bunk from the lower bunk.

TWIN BUNK BED DL7891-1

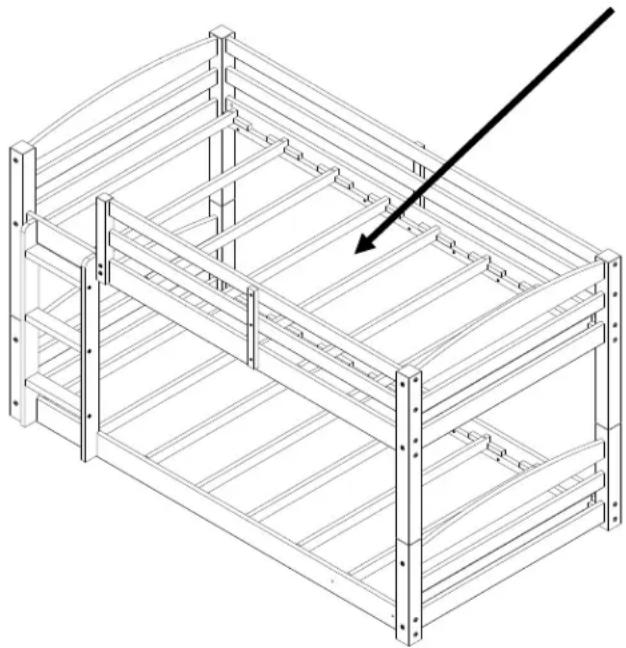

CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.

DO NOT ALLOW HORSEPLAY ON OR UNDER THE BED AND PROHIBIT JUMPING ON THE BED.

DO NOT ALLOW CHILDREN UNDER 6 YEARS OF AGE TO USE THE UPPER BUNK. BED IS DESIGNED FOR CHILDREN RANGING FROM 6 YEARS OF AGE TO YOUNG TEENAGERS.

Isometric line drawing of a multi-level metal shelving unit with no text or symbols

USE ONLY COIL SPRING MATTRESSES ON BOTH THE UPPER AND LOWER BUNKS. FAILURE TO DO SO CAN RESULT IN INJURY.

USE ONLY MATTRESSES WHICH ARE 74"-75" LONG AND 37 1/2" - 38 1/2" WIDE ON UPPER AND ON LOWER BUNKS. ENSURE THICKNESS OF MATTRESS DOES NOT EXCEED 6".

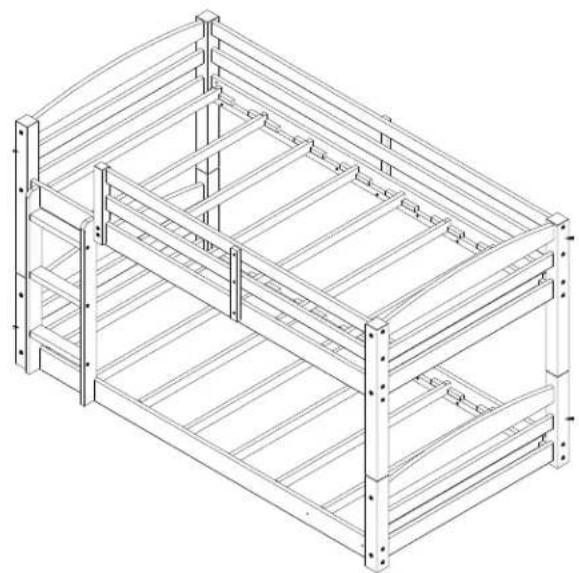

That's it! You've finished assembling your twin bunk bed.

DO NOT RETURN PRODUCT TO THE STORE.

If a part is missing or damaged, contact our customer service department. We will replace the part FREE of charge.

Tel #: [phone]

PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE

PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S).

Customer Service Phone Number 1-800-295-1980

Email: [e-mail]

Customer Service Fax Number 514-353-7819

Request Date:

Name:

Shipping Address:

Street & Number:

City & State:

Zip Code:

Day Time Phone Number: (including area code)

Date & Place of Purchase:

Part(s) description and quantity: (Please be sure to list model number or SKN nur
