Product Type	2-Way Component Speaker System
Brand	Hifonics
Model	Titan TS5.2C
Components	Midrange Woofer, Tweeter, Crossover
Speaker Size	5.25 inches
Tweeter Level Adjustment	3-way slide switch: +3dB, 0dB, -3dB
Crossover Type	Passive, with tweeter level switch
Tweeter Mounting Options	Flush mount with standard housing or angle mount with built-on housing
Crossover Mounting	Via mounting holes on each corner
Input Connection	Speaker-level inputs from amplifier (using supplied cables)
Woofer Connection	To crossover terminals labeled "WOOFER" using supplied jack cables
Tweeter Connection	To crossover terminals labeled "TWEETER"
Amplifier Recommendation	External car audio amplifier required
Installation Considerations	Check clearance behind mounting surface; mirror left and right speaker positions
Maintenance	Clean with a dry, soft cloth; avoid moisture and abrasive cleaners
Safety	Disconnect vehicle battery before installation to prevent electrical shock
Spare Parts Availability	Contact Hifonics or authorized dealer for replacement parts
Warranty	Standard manufacturer warranty; refer to included documentation

Frequently Asked Questions - Titan TS5.2C Hifonics

How to install the tweeter?

The tweeter can be installed using either the flush mount with standard housing or the angle mount with built-on housing. Ensure the mounting location has proper clearance behind the panel.

What is the purpose of the tweeter level switch?

The 3-way slide switch adjusts the tweeter output level to match the vehicle's acoustics. Positions: +3dB (high), 0dB (mid), and -3dB (low). Locate the switch under the acrylic cover of the crossover.

How to connect the midrange woofer to the crossover?

Connect the positive and negative terminals of the midrange woofer to the corresponding 'WOOFER' terminals on the crossover using the supplied cables with red (positive) and black (negative) jacks.

How to connect the tweeter to the crossover?

Connect the positive and negative terminals of the tweeter to the corresponding 'TWEETER' terminals on the crossover.

How to connect the crossover to the amplifier?

Connect the amplifier speaker outputs (positive and negative) to the 'INPUT' terminals on the crossover. Use the supplied speaker cables without jacks for this connection.

What is the recommended mounting location for the speakers?

Choose locations with minimal obstacles between the speakers and your ears. Mount left and right speakers at the same height and directly across from each other. Check behind the panel for clearance from window tracks, wire harnesses, etc.

How to mount the crossover?

Use the mounting holes on each corner of the crossover. Secure it with appropriate screws based on the mounting surface material.

What is the impedance of the speakers?

While not explicitly stated, typical Hifonics component speakers are 4 ohms. Verify with the product specifications or contact support.

Can I use these speakers without an external amplifier?

No, these speakers require an external car audio amplifier. The crossover is designed to receive speaker-level inputs from an amplifier, not a head unit directly.

How to adjust the tweeter level for best sound?

Start with the switch at 0dB. Listen to a familiar track and adjust to +3dB for brighter sound or -3dB for softer treble. The switch is located under the acrylic cover on the crossover.

USER MANUAL Titan TS5.2C Hifonics

LOUDSPEAKERS

TS5.2C

TS6.2C

DEUTSCH

INSTALLATION DER LAUTSPRECHER

The first step of installing a speaker system is a well-thought-out planning. Choose a suitable location for your speaker components carefully. Please observe the following suggestions to ensure proper results and best performance:

1. Choose a location which offers none or just a minimum of obstacles between the components and your ears. Please observe at thereto, the positions of the driver's seat, the headrests and other constructions of the inside of vehicle interior.
2. Mount the left and right speakers in the same array on each side, which means that they are installed at the same height and directly across from each other. Do not install one speaker higher, lower, further forward or further back from the opposite speaker.
3. Always check what's behind the chosen mounting locations to ensure that there is proper clearance for the back of the speaker components and avoid obstructions such as window tracks, wire harnesses, gas tank etc.
4. The best performance will be achieved, when the speakers are securely mounted to a designated speaker opening in a door panel or a rear speaker shelf. There should be no gaps between the speaker basket and the mounting surface.

TWEETER MOUNTING

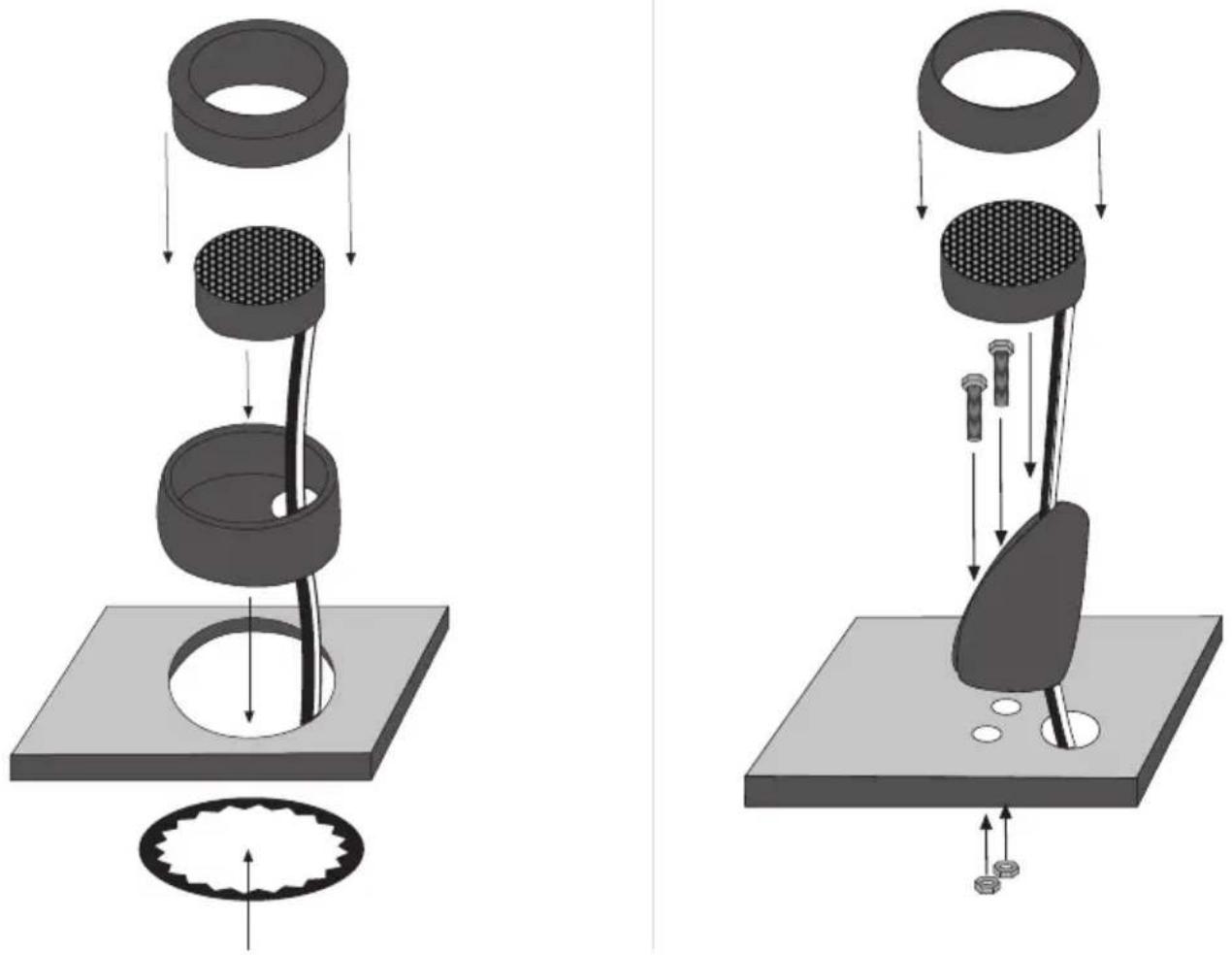

A.) Flush mount with standard housing B.) Angle mount with built-on housing

ENGLISH

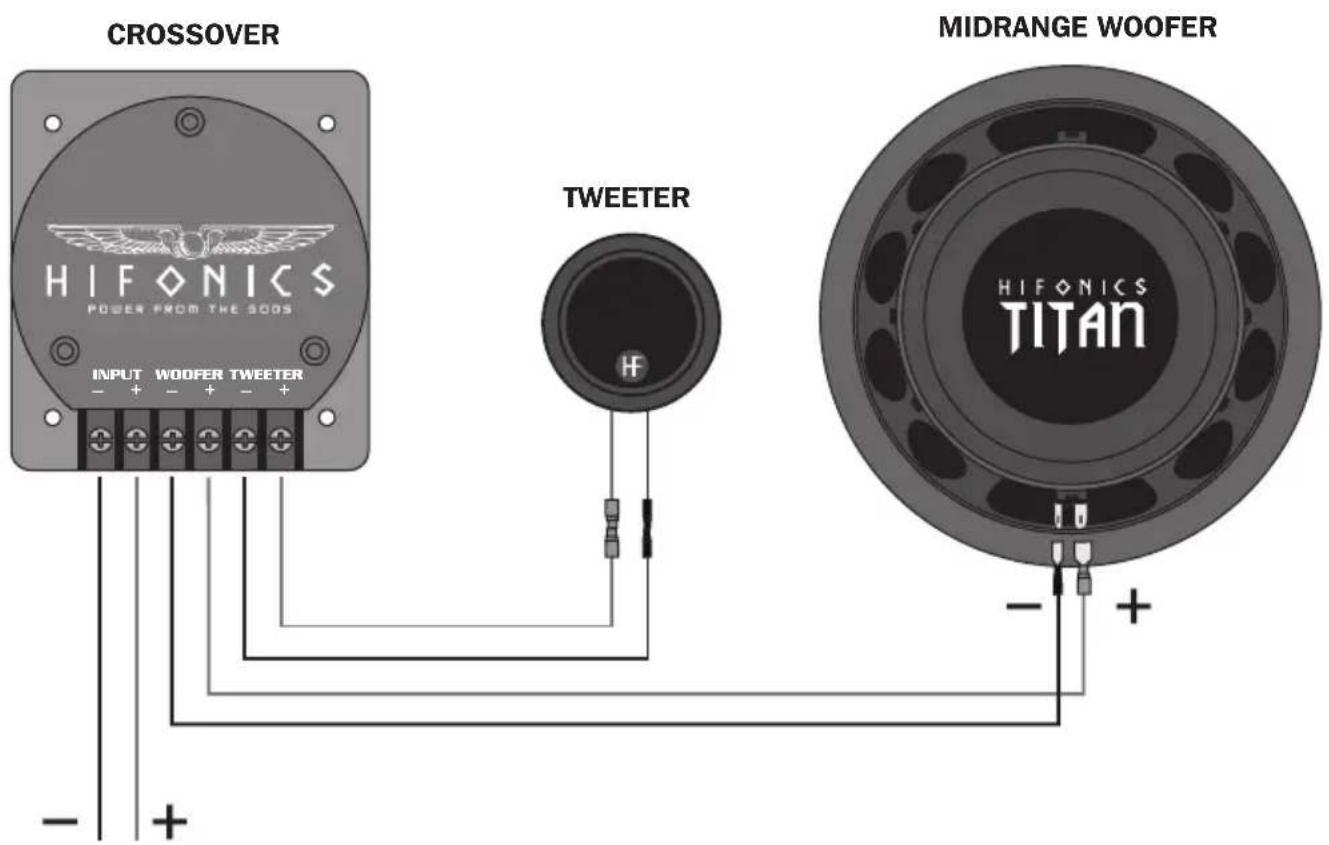

MIDRANGE WOOFER INTERCONNECTION

• Connect the positive terminals (" + ") and the negative terminals (" - ") of the midrange woofers with the according terminals "WOOFER" of the crossover.
• Use for the interconnection the supplied cables with jacks (red and black).

TWEETER INTERCONNECTION

- Connect the positive connectors (+") and the negative connectors (−") of the tweeters with the according terminals "TWEETER" of the crossover.

CROSSOVER INTERCONNECTION

• Connect the positive terminals (+") and the negative terminals (−") of the amplifier speaker outputs with the according terminals "INPUT" of the crossover.
• Use for this the supplied speaker cables without jacks.

Repeat all three steps for the channel pair on the opposite side of the vehicle.

TO THE SPEAKER OUTPUTS OF THE AMPLIFIER

TWEETER LEVEL ADJUSTMENT OF THE CROSSOVER

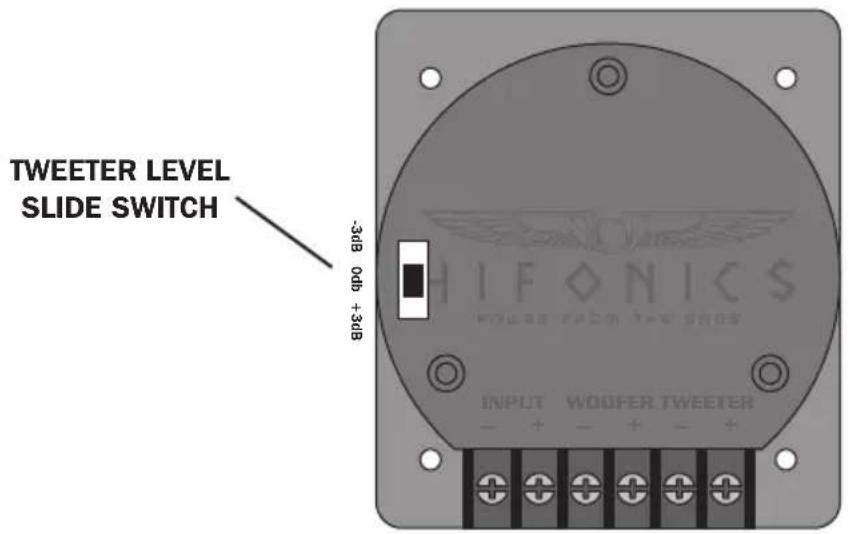

The TITAN TS crossovers offer the opportunity to match the tweeter level of the loudspeaker system with the characteristics of the interior environment and the complete soundsystem. You find the slide switch beneath the acrylic cover on the left center.

- To adjust the tweeter level set the 3-way slide switch to the following positions: "+ 3dB" (high level), "0dB" (mid level) and "-3dB" (low level)

INSTALLATION OF THE CROSSOVER

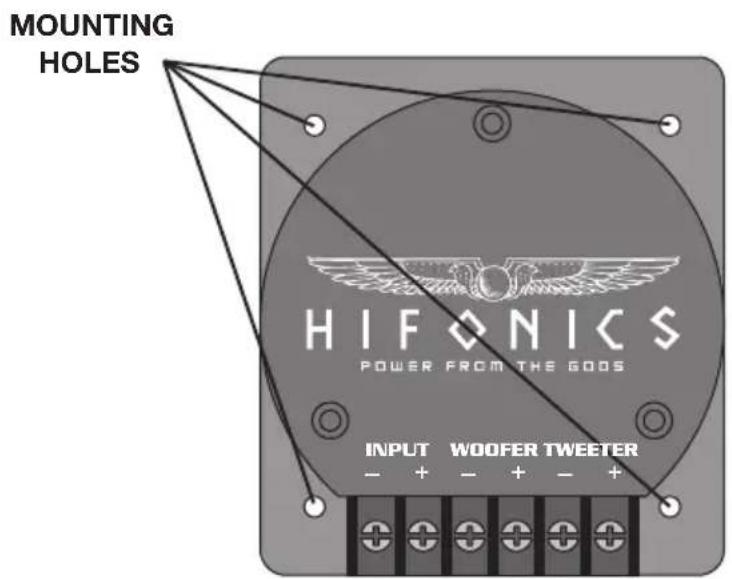

Under specific circumstances it will be necessary to mount the crossover to the vehicle. To use the designated mounting holes, which you find on each corner of the crossover. Use appropriate screws, depending on the surface, where the housing will be installed on.
