Product Type	Smart Oven & Air Fryer
Brand	PowerXL
Model	SmartSynx TO68D5-0SPTV (also TO68D5-0SP, TO68D5-2SPTV)
Power Supply	120V ~60 Hz, 1750W
Exterior Dimensions	17.72 x 15.94 x 13.86 inches (450 x 405 x 352 mm)
Interior Dimensions	14.17 x 13.18 x 7.87 inches (360 x 335 x 200 mm)
Temperature Range	85°F – 450°F
Cooking Functions	Air Fry, Roast, Broil, Bake, Pizza, Grill, Toast, Reheat, Keep Warm, Dehydrate, Rotisserie, Slow Cook
Dual-Zone Cooking	Yes, with removable divider for two independent cooking zones
SmartSynx Feature	Synchronizes cooking end times for both zones when using compatible functions
Shake Indicator	Audible alert halfway through Air Fry cycle to remind you to shake food
Control Type	Digital control panel with dual knobs and touch buttons
Display	LED display showing temperature, time, and cooking status
Fan Speed Settings	High, Low, Off
Preheating	Included for Roast, Broil, Bake, Pizza, Grill, Rotisserie functions
Automatic Shut-Off	Yes, when cooking time ends; also safety shut-off
Cool-Down Fan	Runs for 30 seconds after cooking completes
Included Accessories	Drip Tray, Divider, Baking Pan (2), Large Oven Rack, Crisper Tray (2), Large Baking Pan, Grill Plate, Large Crisper Tray, Rotisserie Set, Rotisserie Fetch Tool
Cleaning & Maintenance	Wipe exterior with damp cloth; accessories are dishwasher safe (hand wash recommended); clean after each use
Safety Features	Overheat protection, automatic shut-off, cool-down fan, short power cord to prevent tripping
Country of Origin	Made in China
Approximate Weight	Approx. 22 lbs (10 kg)

Frequently Asked Questions - SmartSynx TO68D5-0SPTV PowerXL

How do I use the dual-zone cooking mode?

To use dual-zone cooking, insert the Drip Tray and the Divider into the appliance. Select accessories for each zone. Turn the left Control Knob to set the function, temperature, and time for the left zone, then do the same with the right knob for the right zone. Press the Start/Pause button above each zone to begin cooking. The SmartSynx feature can synchronize end times if desired.

What is the SmartSynx feature and how do I use it?

SmartSynx allows two cooking zones with different cooking times to finish simultaneously. Set up both zones but do not add food to the shorter-time zone yet. Press the Synx button before starting. The longer-time zone starts first, and when the timers align, the appliance beeps and you can add food to the second zone.

How do I set the Shake Indicator?

The Shake Indicator is available for the Air Fry function. After setting the cooking parameters for a zone, press the Shake Indicator button; the indicator will illuminate. When halfway through cooking, the appliance beeps five times and the display blinks, reminding you to shake the food.

Can I use the rotisserie function? How do I set it up?

Yes, the Rotisserie function is available. Remove the Divider. Slide the Rotisserie Shaft through the food, attach Forks, and tighten. Insert the right side into the rotisserie connection, then lower the left side. Use the Rotisserie Fetch Tool to remove it after cooking. Always use oven mitts.

What is the temperature range and what functions are available?

The temperature range is 85°F to 450°F. Available functions include Air Fry, Roast, Broil, Bake, Pizza, Grill, Toast, Reheat, Keep Warm, Dehydrate, Rotisserie, and Slow Cook. Each function has a default temperature and time that can be adjusted.

How do I clean the appliance?

Unplug and let cool for at least 30 minutes. Wipe the exterior and interior with a warm, moist cloth and mild detergent. Do not use abrasive cleaners. Accessories can be washed in the dishwasher, but hand washing is recommended. Ensure all parts are dry before storing.

Why is the appliance not heating?

Check that the appliance is plugged into a dedicated 120V outlet. Ensure the power cord is not damaged. If the appliance still does not work, it may need servicing. Error codes such as Er1 or Er2 indicate sensor faults and require contacting an authorized service center.

Can I use this appliance to deep fry?

No, this appliance is not intended for deep frying. Never pour oil into the appliance or accessories. It uses hot air to cook food, similar to an air fryer, not immersion in oil.

How do I insert the divider?

Slide the Divider onto the rail inside the appliance with the indentation facing upward. Push it all the way in until it is secure. The Divider must be inserted for dual-zone cooking; remove it for single-zone cooking.

What does the error code Er1 mean?

Er1 indicates a sensor open circuit fault. If this appears, unplug the appliance and contact an authorized service center. Do not attempt to repair it yourself.

USER MANUAL SmartSynx TO68D5-0SPTV PowerXL

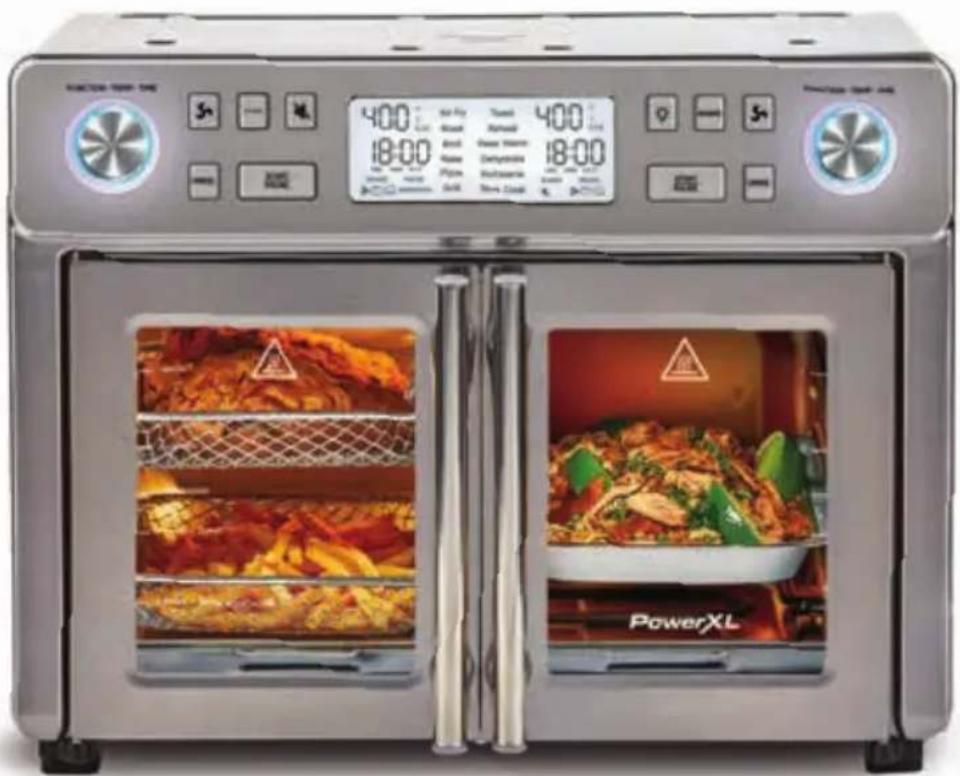

SmartSynx™ Duplex Oven/ Horno dúplex

OWNER'S MANUAL MANUAL DE USO Y CUIDADO

Modern kitchen electric oven with digital display and two side dishes of food, no visible text or symbols on the main objects.

PowerXL™

MODELS/MODELOS: TO68D5-0SP, TO68D5-0SPTV, TO68D5-2SPTV

Table of Contents

IMPORTANT SAFEGUARDS			3
Quick Start Guide
Parts & Accessories			10
Using the Control Panel 16
Cooking Functions			18
Instructions for Use			20
Cooking Charts			23
Care & Cleaning
Troubleshooting			26

Appliance Specifications

Model Numbers	T068D5-0SP, T068D5-0SPTV, T068D5-2SPTV
Supply Power	120V ~60 Hz
Rated Power	1750W
Exterior Dimensions	17.72 x 15.94 x 13.86 inches (450 x 405 x 352 mm)
Internal Dimensions	14.17 x 13.18 x 7.87 inches (360 x 335 x 200 mm)
Temperature Range	85° F–450° F

WARNING

PREVENT INJURIES!

CAREFULLY READ ALL INSTRUCTIONS BEFORE USE!

When using electrical appliances, basic safety precautions should be followed, including the following:

• READ ALL INSTRUCTIONS.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse the cord, plug, or the main body of the appliance or expose the electrical components to water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug the appliance from the electrical outlet when not in use and before cleaning. Allow to cool before handling, putting on or taking off parts, cleaning, or storing.
• Do not operate any appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. Return the appliance to an authorized service facility for examination, repair, or adjustment.
• The use of accessory attachments not recommended for use in this manual may cause injuries.
• Do not use outdoors.
• Do not let the power cord hang over the edge of a table or counter or touch hot surfaces.
• Do not place on or near a hot gas or electric burner or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids, removing accessories, or disposing of hot grease.

• Always make sure the plug is attached to the appliance first. Then, plug the cord into a wall outlet. To disconnect, turn any control to "off" and then remove the plug from the outlet.
• Do not use this appliance for anything other than its intended use.
• A short power-supply cord is used to reduce the risk resulting from the cord being grabbed by children or becoming entangled in or tripping over a longer cord.
• Extension cords are available and may be used if care is exercised in their use.
• The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance.
• WARNING: Spilled food can cause serious burns. Keep the appliance and the power cord away from children. Never drape the cord over the edge of the counter and never use an outlet below the counter.
• The power cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

• A fire may occur if this appliance is covered by or touching flammable material, including curtains, draperies, walls, and the like, when in operation. Do not store anything on top of the appliance when in operation.

• Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating risks of electric shock.

• Extreme caution should be exercised when using containers constructed from materials other than metal or glass.
• Do not store any materials other than accessories included in this manual in this appliance when not in use.
• Do not place your appliance on a cooktop, even if the cooktop is cool, because you could accidentally turn the cooktop on, causing a fire, damaging the appliance, your cooktop, and your home.
• This appliance is intended for countertop use only.
• Do not place or use this appliance near water.
• When cooking, do not place the appliance against a wall or within 6 inches of other appliances. Do not place anything on top of the appliance. Always operate the appliance on a horizontal surface that is level, stable, and noncombustible.
• Before using your appliance on any countertop surface or other fragile surface, such as a glass tabletop, check with your countertop manufacturer or installer for recommendations about using appliances on your surfaces. Some manufacturers and installers may recommend protecting your surface by placing a hot pad or trivet under the appliance for heat protection. Your manufacturer or installer may recommend that hot pans, pots, or electrical appliances should not be used directly on top of the countertop. If you are unsure, place a trivet or hot pad under the appliance before using it.
• Plug the power cord into a 120V outlet with no other appliances on the same outlet. Plugging other appliances into the outlet will cause the circuit to overload.
• Never tug the plug forcefully from the wall outlet.

- Do not plug in the power cord or operate the appliance controls with wet hands.

- Never plug the appliance into an electrical outlet below the surface where the appliance is placed.

- Never operate the appliance unattended.

- Should the appliance emit black smoke, unplug immediately and wait for the smoking to stop before handling the appliance. Allow the appliance to cool and wipe excess oil and grease from the appliance.

- Avoid touching moving parts.

- When in operation, hot air and steam are released through the air vents. Keep your hands and face at a safe distance from the air vents. Do not cover the air vents while the appliance is operating. Doing so will prevent even cooking and may overheat or damage the appliance.

- While cooking, the internal temperature of the appliance reaches several hundred degrees Fahrenheit. To avoid personal injury, never place your hands inside the appliance unless it is thoroughly cooled.

- The appliance's outer surfaces and accessories may become hot during use. Wear oven mitts when handling the appliance during and after use, and to protect against hot steam and air released when opening the appliance.

- Do not overfill the appliance.

- Do not place any of the following materials in the appliance: paper, cardboard, plastic.

- Oversized foods or metal utensils must not be inserted in the appliance because they may create a fire or risk of electric shock. Do not cover the Drip Tray or any part of the appliance with metal foil. This will cause the appliance to overheat.

- Never pour oil into the appliance or accessories. Fire and personal injury could result. This appliance is not intended for deep-frying foods.

- Do not expose the appliance to corrosive chemicals or vapors.

- This appliance is for home use only. If the appliance is used improperly or for professional or semi-professional purposes or if it is not used according to the instructions in the user manual, the guarantee becomes invalid and Empower Brands, LLC will not be held liable for damages.

- Never connect this appliance to an external timer switch or separate remote-control system.

- Never operate the appliance with the doors open. Do not leave the doors open for an extended period.

- Always ensure that nothing is protruding out of the appliance before closing the doors.

- Always close the doors gently; never slam the doors closed. Always use the handle when opening and closing the doors.

- The appliance must be operated with the Drip Tray in place, and the Drip Tray must be cleaned if it becomes more than half full.

- Never put accessories directly on the top of the lower heating elements.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Extension Cord

1. A short power supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

2. Extension cords are available and may be used if care is exercised in their use.

3. If an extension cord is used:

a. The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance;

b. If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord.

c. The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

Electric Power

This appliance should be operated on a dedicated electrical outlet. If the electrical outlet is overloaded with other appliances, your new appliance may not operate properly.

Automatic Shut-Off

The appliance has a built-in shut-off device that will automatically shut off the appliance when the cooking time has completed. You can manually switch off the appliance by pressing the Cancel Button. The fan will continue running for 30 seconds to cool down the appliance.

Electromagnetic Fields

This appliance complies with all standards regarding electromagnetic fields. If handled properly and according to the instructions in the user manual, the appliance is safe to use based on scientific evidence available today.

SAVE THESE INSTRUCTIONS - FOR HOUSEHOLD USE ONLY

Note: If the power cord is damaged, it must be replaced by qualified personnel or an authorized service center.

QUICK START GUIDE

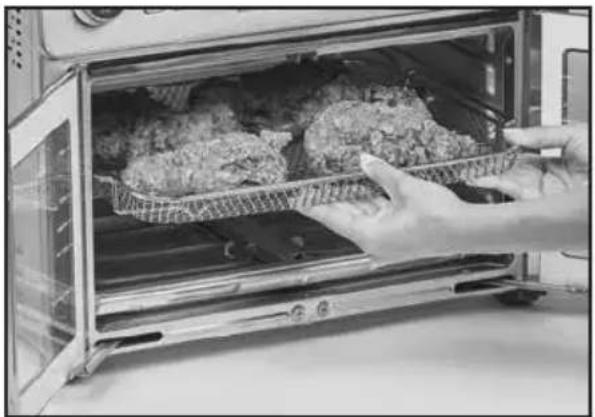

Single-Zone Cooking

Person opening a stainless steel oven with metal grilles, no visible text or symbols

Step 1

Insert the Drip Tray inside the appliance (below the heating elements). Do not insert the Divider.

Person placing a food item into a microwave oven with a tray of stuffed meat inside (no visible text or symbols)

Step 2

Select accessories appropriate for your recipe. Add food to the accessories. Insert your chosen accessory inside the appliance.

Step 3

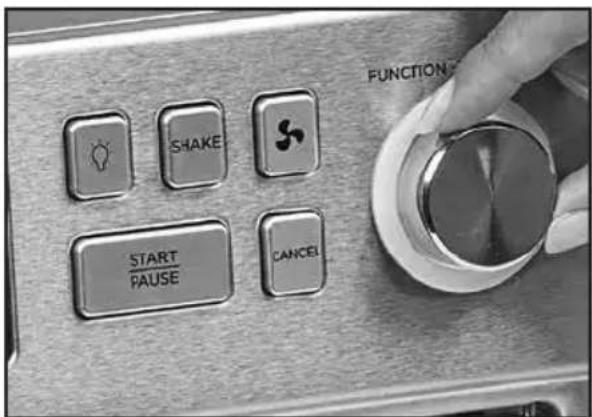

Turn either Control Knob to select the cooking function. Press and turn the Control Knob to adjust the cooking time and temperature.

Step 4

Press the Start/Pause Button to begin the cooking cycle.

Person holding a food tray inside an open oven with stuffed meat on the stove (no visible text or symbols)

Step 5

When the cooking time has completed, cooking will stop and the fan will continue to run for 30 seconds to cool down the appliance. The accessories will be hot; use oven mitts to remove your food.

QUICK START GUIDE

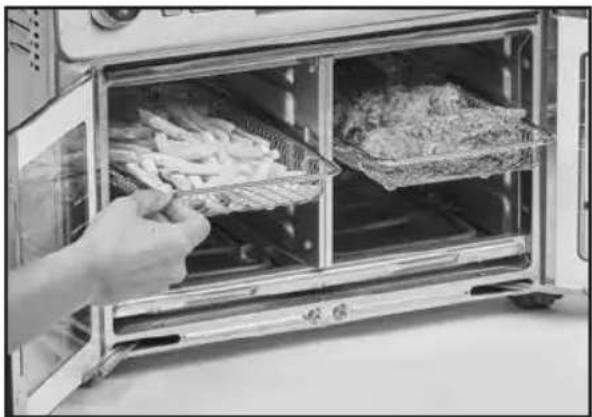

Dual-Zone Cooking

Interior view of a stainless steel oven with open doors and metal grilles, no visible text or symbols

Step 1

Insert the Drip Tray inside the appliance (below the heating elements). Insert the Divider.

Interior view of a microwave oven with open doors and food being placed inside (no visible text or symbols)

Step 2

Select accessories appropriate for your recipe. Add food to the accessories. Insert your chosen accessories inside the appliance.

Step 3

Turn the left Control Knob to select the left cooking zone's cooking function. Press and turn the Control Knob to adjust the cooking time and temperature.

Step 4

Turn the right Control Knob to select the right cooking zone's cooking function. Press and turn the Control Knob to adjust the function's cooking time and temperature.

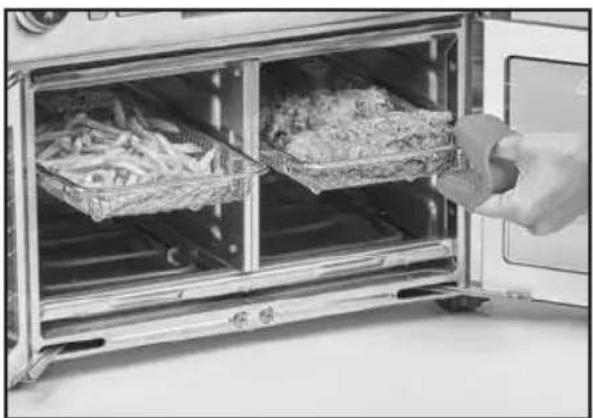

Step 5

Press the Start/Pause Button above a cooking zone to begin the cooking cycle in that cooking zone.

Interior view of a microwave oven with two trays filled with fish and food, being handled by a hand (no text or symbols visible)

Step 6

When the cooking time has completed, cooking will stop and the fan will continue to run for 30 seconds to cool down the appliance. The accessories will be hot; use oven mitts to remove your food.

Parts & Accessories

Exterior view of a modern office building (no signage)

Drip Tray Divider

Metallic plastic tray component with ribbed structure (no text or symbols visible)

Metal tray with horizontal ridges, no visible text or symbols

Baking Pan*

Simple line drawing of a rectangular grid or plate with horizontal lines, no text or symbols present.

Large Oven Rack*

Simple wire mesh tray with no text or symbols

Crisper Tray

Black rectangular baking tray with horizontal ridges and small holes (no text or symbols)

Large Baking Pan*

Black plastic object with ribbed surface, no visible text or symbols

Plain rectangular object with a textured surface, no visible text or symbols

Large Crisper Tray*

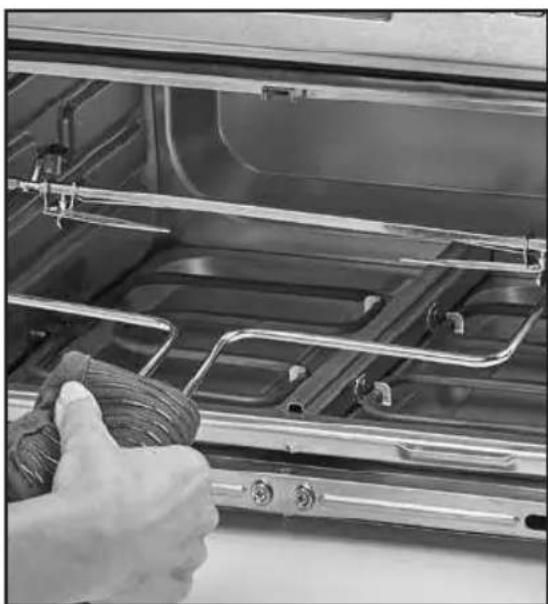

Rotisserie SetGrill Plate*

Rotisserie Fetch Tool

Accessory T068D5-0SP T068D5-0SPTV T068D5-2SPTV
Drip Tray 111
Divider 111
Baking Pan 2 2 3
Large Oven Rack 112
Crisper Tray 2 2 2
Large Baking Pan	112
Grill Plate	012
Large Crisper Tray	012
Rotisserie Set	111
Rotisserie Fetch Tool	111

* Some accessories may be sold separately.

Parts & Accessories

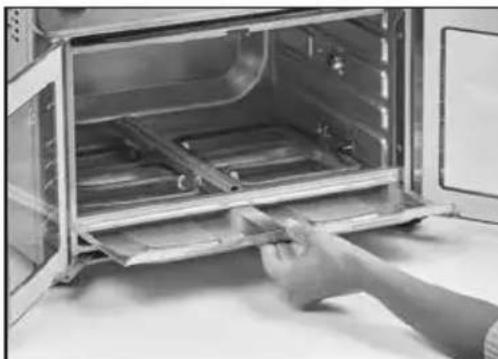

Using the Drip Tray

• Slide the Drip Tray into the bottom of the inside of the appliance (below the heating elements; see Fig. A).
• Never operate the appliance without the Drip Tray in place.
• If the Drip Tray becomes more than half full, pause the cooking process and clean the Drip Tray before continuing.
• To remove, use oven mitts to pull the Drip Tray straight out of the appliance.

Using the Divider

• To insert the Divider into the appliance, slide the Divider onto the rail inside the appliance (see Figs. B). Ensure that the indentation in the Divider is facing upward. Push the Divider all the way into the appliance.
• The Divider must be inserted into the appliance to use the dual-zone cooking mode. Remove the Divider to use the appliance's single-zone cooking mode.
• To remove, use oven mitts to pull the Divider straight out of the appliance.

Person using a tool to clean or install a stainless steel oven (no visible text or symbols)

Fig. A

Interior view of a microwave oven with open door and tray, showing interior shelves and a hand adjusting the tray (no text or symbols visible)

Fig. B

Parts & Accessories

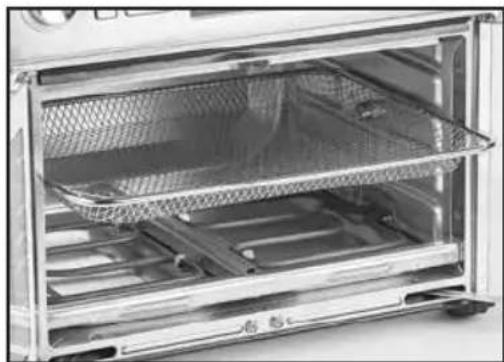

Using the Crisper Tray, Oven Rack, Baking Pan, and Grill Plate

• The Divider must be in place when using the smaller Crisper Tray, Baking Pan, and Grill Plate accessories.
• The Divider must not be in place when using the larger Oven Rack and Baking Pan accessories.
• Select a shelf for your chosen accessory and cooking mode. You can use the markings on the appliance's doors to help you select the ideal shelf position.
• Slide your chosen accessory into a shelf inside the appliance (see Figs. C-D).
• To remove, use oven mitts to pull the accessory straight out of the appliance.
• When cooking food that drips, the Baking Pan can be placed below the Crisper Tray or Oven Rack to prevent food from dripping onto the lower heating elements.

Interior view of a modern microwave oven with open doors and grilles (no visible text or symbols)

Fig. C

Interior view of a stainless steel oven with mesh grating and side-mounted appliances (no visible text or symbols)

Fig. D

Parts & Accessories

Accessory Recommendations for Each Function
Function Name	Crisper Tray Oven	Rack Baking Pan	Grill Plate Rotisserie Set
Air Fry √√
Roast √
Broil √
Bake √√
Pizza √
Grill √
Toast		√
Reheat	√	√	√
Keep Warm	√	√	√
Dehydrate	√	√
Rotisserie					√
Slow Cook		√

Parts & Accessories

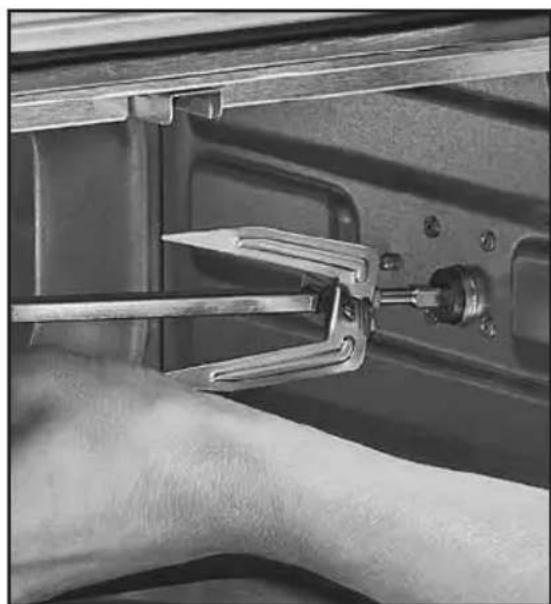

Using the Rotisserie Set

1. If the Divider is inside the appliance, remove the Divider. Do not use the Divider when using the Rotisserie Set.
2. Carefully slide the Rotisserie Shaft through the center of the food lengthwise.
3. Slide the Forks onto each side of the Spit and secure them in place by tightening the two Set Screws. To support the food on the Rotisserie Spit better, insert the Rotisserie Forks into the food at different angles (see Fig. E).
4. Hold the assembled Rotisserie Spit at a slight angle with the left side higher than the right side and insert the right side of the Spit into the Rotisserie connection inside the appliance (see Fig. F).
5. With the right side securely in place, lower the left side of the Spit into the Rotisserie connection on the left side of the appliance (see Fig. G).

Mechanical component with a rectangular block and metal bracket, no visible text or symbols

Fig. E Fig. F

Close-up of a hand using a tool to adjust or install a mechanical component, no visible text or symbols

Parts & Accessories

Removing the Rotisserie Spit

1. Use the Rotisserie Fetch Tool to hook the bottom of the left and right sides of the Rotisserie Spit (see Fig. H).
2. Pull the Rotisserie Spit away from the left rotisserie connection point and then lift the Spit upward to remove and disconnect the Spit from both connection points.
3. Carefully pull the Rotisserie Spit out of the appliance.

Close-up of a hand using a tool to adjust or install a mechanical component, no visible text or symbols

Fig. G

Close-up of a hand adjusting metal pipes inside an oven (no visible text or symbols)

Fig. H

Using the Control Panel

    subgraph Temperature
        O["SYNX"] --> P["CANCEL"]
        Q["START PAUSE"] --> R["CANCEL"]
    end

    subgraph Time
        S["AirFry Toastbox"] --> T["8:00"]
        U["Broil Keep Warm"] --> V["Bake Dehydrate"]
        W["Pizza Rotisserie"] --> X["Grill Slow Cook"]
        Y["SHAKS"] --> Z["SHAKS"]
        AA["SHAKS"] --> AB["SHAKS"]
    end

    subgraph Delay
        AC["AirFry Toastbox"] --> AD["8:00"]
        AE["Broil Keep Warm"] --> AF["Bake Dehydrate"]
        AG["Pizza Rotisserie"] --> AH["Grill Slow Cook"]
        AI["SHAKS"] --> AJ["SHAKS"]
        AK["SHAKS"] --> AL["SHAKS"]
    end

    subgraph Time Control
        AM["AirFry Toastbox"] --> AN["8:00"]
        AO["Broil Keep Warm"] --> AP["Bake Dehydrate"]
        AQ["Pizza Rotisserie"] --> AR["Grill Slow Cook"]
        AS["SHAKS"] --> AT["SHAKS"]
        AU["SHAKS"] --> AV["SHAKS"]
    end

    subgraph Duration
        AW["AirFry Toastbox"] --> AX["8:00"]
        AY["Broil Keep Warm"] --> AZ["Bake Dehydrate"]
        BA["Pizza Rotisserie"] --> BB["Grill Slow Cook"]
        BC["SHAKS"] --> BD["SHAKS"]
        BE["SHAKS"] --> BF["SHAKS"]
    end

    subgraph Time Control
        BG["AirFry Toastbox"] --> BH["8:00"]
        BI["Broil Keep Warm"] --> BJ["Bake Dehydrate"]
        BK["Pizza Rotisserie"] --> BL["Grill Slow Cook"]
        BM["SHAKS"] --> BN["SHAKS"]
        BO["SHAKS"] --> BP["SHAKS"]
    end

    subgraph Duration
        BQ["AirFry Toastbox"] --> BR["8:00"]
        BS["Broil Keep Warm"] --> BT["Bake Dehydrate"]
        BU["Pizza Rotisserie"] --> BV["Grill Slow Cook"]
        BW["SHAKS"] --> BX["SHAKS"]
        BY["SHAKS"] --> BZ["SHAKS"]
    end

    subgraph Time Control
        CA["AirFry Toastbox"] --> CB["8:00"]
        DC["Broil Keep Warm"] --> DD["Bake Dehydrate"]
        DE["Pizza Rotisserie"] --> FD["Grill Slow Cook"]
        DG["SHAKS"] --> DH["SHAKS"]
        DI["SHAKS"] --> DJ["SHAKS"]
    end

    subgraph Duration
        EQ["AirFry Toastbox"] --> AR["8:00"]
        AS["Broil Keep Warm"] --> AT["Bake Dehydrate"]
        AU["Pizza Rotisserie"] --> AV["Grill Slow Cook"]
        AW["SHAKS"] --> AX["SHAKS"]
        AY["SHAKS"] --> AZ["SHAKS"]
    end

    subgraph Time Control
        BA["AirFry Toastbox"] --> BB["8:00"]
        BC["Broil Keep Warm"] --> BC["Bake Dehydrate"]
        BD["Pizza Rotisserie"] --> BE["Pizza Rotisserie"]
        BF["SHAKS"] --> BG["SHAKS"]
        BH["SHAKS"] --> BH2["SHAKS"]
    end

    subgraph Duration
        BI["AirFry Toastbox"] --> BJ["8:00"]
        BK["Broil Keep Warm"] --> BK["Bake Dehydrate"]
        BL["Pizza Rotisserie"] --> BL["Pizza Rotisserie"]
        BM["SHAKS"] --> BN["Pizza Rotisserie"]
        BO["SHAKS"] --> BN2["Pizza Rotisserie"]
        BX["SHAKS"] --> BX2["Pizza Rotisserie"]
        BY["SHAKS"] --> BY2["Pizza Rotisserie"]
        AZ["SHAKS"] --> AZ2["Pizza Rotisserie"]
        DA["SHAKS"] --> DA2["Pizza Rotisserie"]
    end

    subgraph Time Control
        AE["AirFry Toastbox"] --> AF["Broil Keep Warm"] --> AG["Bake Dehydrate"] --> AH["Pizza Rotisserie"] --> AI["ShakS"]
        AJ["Broil Keep Warm"] --> AK["Bake Dehydrate"] --> AL["Pizza Rotisserie"] --> AM["ShakS"]
        AN["Puces Roises"] --> AO["Puces Roises"]
    end

    subgraph Duration
        AP["AirFry Toastbox"] --> AQ["Broil Keep Warm"] --> AR["Bake Dehydrate"] --> AS["Pizza Rotisserie"] --> AT["Puces Roises"]
        AU["Broil Keep Warm"] --> AU["Puces Roises"] --> AV["Puces Roises"]
        AW["ShakS"] --> AX["Puces Roises"]
        AY["Buick's Choice"] --> AZ["Puces Roises"]

A. Control Knobs: Press once and turn to adjust the cooking temperature. Press again and turn to adjust the cooking time. See the "General Operating Instructions" section for detailed instructions.

B. Cancel Buttons: Press to cancel an active cooking process.

C. Start/Pause Buttons: Press to start or pause the cooking process.

D. Fan Buttons: Press to set the appliance's fan setting to High, Low, or Off.

E. Synx Button: Press to use the appliance's SmartSynx feature. See the "Using the Synx Button" section for detailed instructions.

F. Mute Button: Press to mute the sounds produced when operating the appliance, such as when pressing buttons and when the cooking cycle is complete. When the appliance is muted, press to unmute the appliance.

G. Light Button: Press to turn the light inside the appliance on or off.

H. Shake Indicator Button: Press to use the appliance's shake indicator feature. See the "Using the Shake Indicator" for detailed instructions.

I. Display

Using the Control Panel

J. Temperature Displays

K. Cooking Time Displays

L. Shake Indicator Displays

M. Fan Displays

N. Heating Element Displays

1. SmartSynx Display

P. Pause Display

Q. Cooking Function Display

R. Mute Display

NOTE: When the Divider is removed from the appliance and the appliance is operating in single-zone cooking mode, the displays relating to the appliance's dual-zone operation on the right side of the Control Panel are hidden.

Cooking Functions

Cooking Function Information
Function Name	Default Cooking Temperature (Temperature Range)	Default Cooking Time (Time Range)	Default Fan Speed	Active Heating Elements	Preheating Included in Cooking Time
Air Fry 400° F	(180° F-450° F)	20 minutes (1-60 minutes)	High Upper No
Roast 350° F	(180° F-450° F)	35 minutes (1 minute-4 hours)	Low Upper & Lower Yes
Broil 450° F	(400° F-450° F)	10 minutes (1-20 minutes)	High Upper Yes
Bake 350° F	(180° F-450° F)	25 minutes (1 minute-4 hours)	Low Upper & Lower Yes
Pizza 400° F	(180° F-450° F)	18 minutes (1-60 minutes)	Off Upper & Lower Yes
Grill 450° F	(250° F-450° F)	15 minutes (1-45 minutes)	Off Upper & Lower Yes

Cooking Functions

Cooking Function Information
Function Name	Default Cooking Temperature (Temperature Range)	Default Cooking Time (Time Range)	Default Fan Speed	Active Heating Elements	Preheating Included in Cooking Time
Toast (Light-Dark)	4 slices	(1-6 slices)*	Off Upper & Lower No
Reheat 280°F	(180°F-450°F)	20 minutes (1 minute-2 hours)	Low Upper & Lower No
Keep Warm 160°F	(160°F-250°F)	1 hour (1 minute-4 hours)	Off Upper & Lower No
Dehydrate 120°F	(85°F-175°F)	6 hours (30 minutes-72 hours)	Low Upper No
Rotisserie 375°F	(180°F-450°F)	40 minutes (1 minute-4 hours)	High Upper Yes
Slow Cook 225°F	(225°F-275°F)	4 hours (30 minutes-10 hours)	Low Upper & Lower No

NOTE: When using the Toast function, the temperature setting is replaced by a Darkness setting. Use this setting to adjust the desired darkness of your toast. The time setting is replaced by a number of slices setting. Use this setting to adjust the number of slices of bread you are toasting.

* When cooking in dual-zone cooking mode, the default slice setting for the Toast function is 2 slices, and the slice range is 1–2 slices.

Before First Use

1. Unpack all parts from the box and remove any clear or blue protective film on the components. Check all packaging material thoroughly for accessories.
2. Remove and save all literature.
3. Wash all removable accessories (see the "Care & Cleaning" section).
4. Select a location to place the appliance. The location should allow enough space for air flow (at least 6 inches of free space on the top, back, and sides of the appliance). The surface on which the appliance is placed should be horizontal, stable, and heat resistant.

General Operating Instructions

Dual-Zone Cooking

1. Insert the Drip Tray inside the appliance (see the "Using the Drip Tray" section). Insert the Divider (see the "Using the Divider" section).
2. Select accessories appropriate for your recipe. Add food to the accessories. Insert your chosen accessory inside the appliance (see the "Using the Crisper Tray, Oven Rack, and Baking Pan" section).
3. Turn the left Control Knob to select the left cooking zone's cooking function. A bracket will mark the left side of the selected function on the Control Panel. Press the Control Knob to confirm the setting. Turn to adjust the temperature and press to confirm. Turn to adjust the time and press to confirm.
4. Turn the right Control Knob to select the right cooking zone's cooking function. A bracket will mark the right side of the selected function on the Control Panel. Press the Control Knob to confirm the setting. Turn to adjust the temperature and press to confirm. Turn to adjust the time and press to confirm.
5. Optional: Set the Shake Indicator and SmartSynx feature (see the "Using the Shake Indicator" and "Using the Synx Buttons" sections).
6. Press the Start/Pause Button above a cooking zone to begin the cooking cycle in that cooking zone.
7. When the cooking time has completed, cooking will stop and the fan will continue to run for 30 seconds to cool down the appliance.

Single-Zone Cooking

1. Insert the Drip Tray inside the appliance (see the "Using the Drip Tray" section). Do not insert the Divider.
2. Select accessories appropriate for your recipe. Add food to the accessories. Insert your chosen accessory inside the appliance (see the "Using the Crisper Tray, Oven Rack, and Baking Pan" and "Using the Rotisserie Set" sections).
3. Use the left or right Control Knob to select a cooking function. A bracket will mark the selected function on the Control Panel. Press the Control Knob to confirm the setting. Turn to adjust the temperature and press to confirm. Turn to adjust the time and press to confirm.
4. Optional: Set the Shake Indicator (see the "Using the Shake Indicator" section).
5. Press the Start/Pause Button to begin the cooking cycle.
6. When the cooking time has completed, cooking will stop and the fan will continue to run for 30 seconds to cool down the appliance.

NOTE: You can press the Start/Pause Button at any time during the cooking process to pause the cooking process. When you press the Start/Pause Button again, the programmed cooking cycle will resume.

Using the Shake Indicator

The Shake Indicator lets you know when the cooking time has reached its halfway point, which is an ideal time to shake certain foods (see the "Shaking Food" section). The Shake Indicator is only available when using the Air Fry function.

1. Set the cooking function, temperature, and time for one cooking zone. If you want to use the Shake Indicator with the food in the first cooking zone, press the Shake Indicator Button. The Shake Indicator Display on the Control Panel will illuminate.
2. When using the dual-zone cooking mode: Set the cooking function, temperature, and time for the second cooking zone. If you want to use the Shake Indicator with the food in the second cooking zone, press the Shake Indicator Button.
3. Press the Start/Pause Button to begin the cooking cycle. If the Shake Indicator has been set for a cooking zone, the appliance will beep five times and the Shake Indicator Display on the Control Panel will blink when the cooking zone's timer is halfway through the total cooking time. You can open the doors and shake food as needed.
4. Close the doors. Press the Start/Pause Button to resume the cooking cycle.

Instructions for Use

Shaking Food

To ensure even cooking while air frying, you can shake food during the cooking process. Using the Shake Indicator can help remind you to shake food halfway through the cooking process.

1. Press the Start/Pause Button to pause the cooking process.
2. Use oven mitts to remove the accessories and food. Place the accessories and food on a heat-resistant surface.
3. Shake the ingredients in the accessories.
4. Return the accessories to the appliance. Close the doors. Press the Start/Pause Button to resume the cooking process.

CAUTION: The accessories will be hot. Always use oven mitts to handle hot accessories.

Using the Synx Button

When cooking food with different cooking times in dual-zone cooking mode, the SmartSynx feature lets you finish cooking food in the two cooking zones simultaneously. The SmartSynx feature is only available when using the Air Fry, Roast, Broil, Bake, Pizza, or Grill functions.

1. Add food to the cooking zone with the longer cooking time. Do not add food to the cooking zone with the shorter cooking time yet.
2. Set the cooking function, temperature, and time for each cooking zone. Before pressing the Start/Pause Button to begin the cooking cycle, press the Synx Button. The SmartSynx Display on the Control Panel will illuminate.
3. Press the Start/Pause Button. The cooking process will begin in the cooking zone with the longer cooking time. The Control Panel will display "HOLD" over the cooking zone with the shorter cooking time.
4. When the cooking timers of both cooking zones synchronize, the appliance will beep six times. Open the doors and add food to the second cooking zone (if food had not already been added for the Air Fry function).
5. Close the doors. Both cooking zones' timers will count down simultaneously.

Cooking Charts

General Cooking Guidelines
Food Size T	Temperature	Cooking	Time	Preheat	Shake/Flip	Spray with Oil
Frozen Foods
French fries 400°F 18	minutes √
Sweet potato fries 400°F 22 minutes √
Chicken nuggets 400°F 14 minutes √
Chicken
Breaded cutlets	6 oz	400°F	10 minutes	√	√	√
Wings		400°F 25 minutes	√	√
Chicken breast	6 oz	400°F	8 minutes	√
Beef
Burgers	6 oz	400°F	10 minutes	√	√
Hot dogs	8 pieces	375°F	5 minutes	√	√
NY strip steaks	8 oz	400°F	12 minutes	√	√
Meatballs, 1 inch	1.5 lb	375°F	10 minutes	√	√
Pork
Pork chops		400°F 12 minutes	√	√
Sausages		350°F	15 minutes	√	√
Fish
Salmon filet	6 oz	390°F	12 minutes	√
Shrimp (16-20 size)	12 oz	390°F	10 minutes	√	√

Cooking Charts

General Cooking Guidelines
Food Size T	Temperature	ure Cooking	Time	Preheat	$shake/Flip	Spray with Oil
Vegetables
Asparagus 1 lb 380° F	8 minutes	√√
Broccoli 8 oz 380° F	8 minutes	√
Corn on the cob	2 pieces	380° F 8 minutes	√
Prepared Food
Hard-boiled eggs, shell on		250° F 18 minutes
Cake		320° F	20 minutes
Grilled cheese sandwich	1 piece 375° F	6 minutes	√√

Cleaning the Appliance

Recommendation: Clean the appliance after each use.

1. Unplug the appliance and let cool for at least 30 minutes before cleaning.
2. Wipe the outside of the appliance with a warm, moist cloth and a mild detergent.
3. Gently scrub both sides of the doors with a warm, moist cloth and soapy water.
4. Clean the appliance interior with only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth. Do not scrub the heating elements.
5. Rinse the inside of the appliance with a clean, moist cloth.

Cleaning the Accessories

Recommendation: Clean any accessories that were used during the cooking process after each use.

1. Let the accessories cool for at least 30 minutes before cleaning.
2. To remove food stuck on accessories easily, soak the accessories in warm, soapy water before cleaning.
3. The accessories are dishwasher safe, but hand-washing with warm water, a mild detergent, and a sponge or soft cloth is recommended.

Storage

1. Unplug the appliance and let cool for at least 30 minutes before storing.
2. Clean the appliance (see the "Cleaning the Appliance" section). Ensure all the components are dry before storing.
3. Store in a clean, dry place.

Maintenance

Any other maintenance must be performed by an authorized service technician. Contact an authorized service center.

Troubleshooting

Troubleshooting
Problem Possible Cause Solution
The appliance does not work.	The appliance is not plugged in or the appliance is plugged into an outlet that is shared with other devices.	Plug the power cord into a dedicated electrical outlet.
Food has not cooked completely.	The accessories are overloaded. Use smaller batches to help ensure even cooking.
	The cooking temperature is set too low.	Raise the cooking temperature and continue cooking.
Food is not cooked evenly.	Some foods need to be shaken during the cooking process.	See the “Shaking Foods” section.
	Foods of different sizes are being cooked together.	Cook similarly sized foods together.
Smoke is coming from the appliance.	Too much oil is being used. Use less oil when cooking food in this appliance.
	Accessories have excess residue from previous cooking.	Clean the appliance and its accessories after each use.
	Food is dripping on the bottom heating elements.	Place the Baking Pan at a level below the food (do not place the Baking Pan or any other accessory directly on the heating elements).

Error Codes

If any of the error codes in the chart below appear on the Control Panel, contact an authorized service center.

Error Code Meaning Solution
Er1 Sensor open circuit fault.	Contact authorized service center.
Er2 Sensor short circuit fault.	Contact authorized service center.
Er3 DC fan open fault.	Contact authorized service center.
Er4 DC fan short fault.	Contact authorized service center.

Tabla De Contenido

Person opening a microwave oven with open door and tray, no visible text or symbols

Paso 1

Person placing a tray of food items into an open oven (no visible text or symbols)

Paso 2

Person holding a plastic grater inside an open oven with food being handled (no visible text or symbols)

Paso 5

Interior view of a stainless steel oven with open doors and metal grilles, no visible text or symbols

Paso 1

Interior view of a microwave oven with open doors showing food being placed into a tray (no visible text or labels)

Paso 2

Interior view of a microwave oven with two trays filled with fish and food, being handled by a hand (no text or symbols visible)

Paso 6

Exterior view of a dark rectangular plastic tray with two side compartments (no text or symbols)

Metallic plastic housing component with ribbed internal structure (no text or symbols visible)

Exterior view of a rectangular baking tray with horizontal ridges (no text or symbols)

Bandeja para hornear*

Simple line drawing of a rectangular grid pattern with no text or symbols

Parrilla del horno grande*

Simple wire mesh rectangular tray with no text or symbols

Bandeja para freír

Black rectangular baking tray with horizontal ridges (no text or symbols)

Bandeja para hornear grande*

Black plastic object with ribbed side and flat top (no text or symbols visible)

a la parrilla*

Plain rectangular cushion or cushion with textured surface, no visible text or symbols

Person using a tool to clean or install an open oven (no visible text or symbols)

Fig. A

Interior view of an oven with open door and tray, showing metal grating and a hand adjusting the interior (no text or symbols visible)

Fig. B

Interior view of a stainless steel oven with two compartments filled with food containers (no visible text or symbols)

Fig. C

Interior view of a modern stainless steel oven with mesh grating and side-mounted dish (no visible text or symbols)

Fig. D

Piezas y Accesorios

Close-up of a metallic object with textured surface and metal bracket, possibly a mechanical or industrial component (no visible text or symbols)

Fig. E Fig. F

Close-up of a hand using a tool to adjust or install a mechanical component, no visible text or symbols

Piezas y Accesorios

Close-up of a hand using a tool to adjust or install a mechanical component (no visible text or symbols)

Fig. G

Close-up of a hand using a tool to adjust or install a metal tray inside an oven (no visible text or symbols)

Fig. H

Empower Brands, LLC, Middleton, WI 53562. 04/2024

Made in China.

Fabricado en China.

T22-9003640-B

30703 E/S
