ARL 8GF2 - Fridge IGNIS - Free user manual and instructions

Product Type	Fridge (Refrigerator)
Brand	IGNIS
Model	ARL 8GF2
Control Panel	LED indicators, On/Stand-by button, temperature setting button
Light Source	LED, energy efficiency class G or F (depending on model)
Temperature Zones	Temperate zone, Cool zone, Coolest area
Freezer Compartment	With ice tray, defrosting required
Fast Cool Function	Available (press button to activate)
Door Alarm	Activates if door left open for prolonged period
Temperature Alarm	Audible signal, press button to silence
Antibacterial Anti-odour Filter	Available on select models
Stop Frost Accessory	Available on select models
Defrost Drain	Clean regularly to prevent water buildup
Installation	Wait 2 hours before connecting; allow 4-6 hours for temperature stabilization
Power Supply	Standard household electrical system (check rating plate)
Energy Efficiency Class	Refer to energy label
Spare Parts	Available via docs.whirlpool.eu, parts-selfservice.whirlpool.com, or after-sales service
Recommended Temperature Setting	Medium
Capacity for Fresh Food	Refer to rating plate for freezing capacity
Disposal	Remove doors before disposal to prevent trapping

Frequently Asked Questions - ARL 8GF2 IGNIS

How long should I wait after installing the fridge before turning it on?

Wait at least two hours after installation before connecting the appliance to the power supply.

What should I do if the control panel is off and the appliance doesn't work?

Check for power outage, ensure the plug is properly inserted, and check household protection devices. If in standby, press the button briefly to reactivate.

How do I set the temperature?

Press the temperature button to cycle through settings: High (less cold), Medium-high, Medium, Medium-low, Low (colder), and Fast cool. The recommended setting is Medium.

Why is the inside light flashing?

The flashing light indicates the door alarm is active, triggered if the refrigerator door remains open for a prolonged period. Close the door to stop the alarm.

How do I defrost the freezer?

Unplug the appliance, remove drawers, and leave the door open to allow frost to melt. Place an absorbent cloth at the bottom to catch water, wring it out regularly. Clean and dry thoroughly before turning back on.

What should I do if there is water on the bottom of the refrigerator?

The defrost water drain may be blocked. Clean the drain as described in the Cleaning and Maintenance section.

How do I make ice cubes?

Fill the ice tray 2/3 full with water and place it in the freezer compartment. Do not use sharp objects to remove ice.

Where can I find spare parts for my fridge?

Visit docs.whirlpool.eu or parts-selfservice.whirlpool.com or contact the After-sales Service with the model code from the rating plate.

What does the temperature alarm sound mean?

The audible alarm indicates a temperature issue. Press the button to switch off the acoustic alarm. If it persists, contact Technical Assistance.

Can I store all types of food in the same zone?

No. Use the Temperate zone for tropical fruit, cans, etc.; the Cool zone for cheese, milk, yoghurt; and the Coolest area for cold cuts, desserts, meat, and fish.

USER MANUAL ARL 8GF2 IGNIS

THANK YOU FOR BUYING OUR PRODUCT.

Before using the appliance carefully read the Safety Instruction.

FIRST TIME USE

Wait at least two hours, after the installation, before connecting the appliance to the power supply. Connect the appliance to the power supply it starts the operation automatically. The ideal storage temperatures for the food are preset in the factory.

After turning the appliance on, you must wait for 4-6 hours for the correct storage temperature to be reached for a normally filled appliance. Position the antibacterial anti-odour filter in the fan as demonstrated in the filter packaging (if available). If the audible signal sounds, it means that the temperature alarm has intervened: press the button to switch off the acoustic alarms.

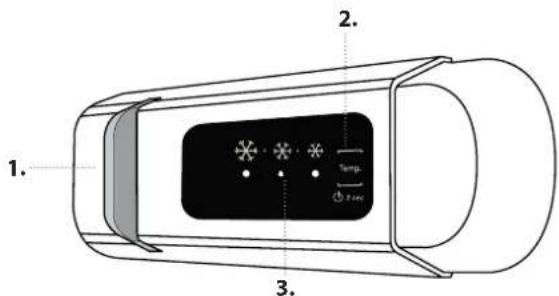

CONTROL PANEL

1. LED Light
2. On/Stand-by
3. Freezer and refrigerator compartment temperature button

ON/STAND-BY

Press the button for 3 seconds to turn the appliance off. In Stand-by mode the light in the refrigerator compartment does not turn on. Press the button again briefly to reactivate the appliance.

Note: this does not disconnect the appliance from the power supply.

FREEZER AND REFRIGERATOR COMPARTMENT TEMPERATURE

The three LED indicators indicate the refrigerator compartment set temperature. It is possible to set a different temperature of the appliance with the button.

Recommended setting: MEDIUM

The following adjustments are possible:

LEDs lit Set temperature

Pure diagram of six horizontal black bands with white rectangular cutouts, no text or symbols present

High (less cold)

Medium-high

Medium

Medium-low

Low (colder)

Fast cool

To avoid food waste, please refer to the recommended setting and storage times found in the online user manual.

HOW TO STORE FRESH FOOD AND BEVERAGES

Illustration of an open refrigerator with doors open and shelves inside (no text or symbols visible)

Legend

TEMPERATE ZONE

Suggested for storage of tropical fruit, cans, drink, eggs, sauces, pickles, butter, jam

COOL ZONE

Suggested for storage of cheese, milk, daily food, delicatessen, yoghurt

COOLEST AREA

Suggested for storage of cold cuts, desserts, meat and fish

REFRIGERATOR COMPARTMENT

Light system (depending on model)

	This product contains a light source of energy efficiency class G		This product contains 4 lateral light sources of energy efficiency class F
	This product contains a light source of energy efficiency class G		This product contains 4 lateral light sources of energy efficiency class F and a top light source of energy class G
			This product contains a top light source of energy efficiency class G

FREEZER COMPARTMENT

Freezing fresh food

1. It is advisable to set the temperature colder or turn on the Fast Freeze/Fast Cool* at least four hours before removing the food from the freezer compartment, to prolong the preservation of the food during the defrosting phase.
2. To defrost, unplug the appliance and remove the drawers. Leave the door open to allow the frost to melt. To prevent the water from escaping during the defrost, it is advised that you place an absorbent cloth on the bottom of the freezer compartment and wring it out regularly.

3. Clean the inside of the freezer compartment and dry it carefully.

4. Turn the appliance back on and put the food back inside. To remove the frost on the STOP FROST* accessory, follow the CLEANING.

Ice cubes\*

Fill 2/3 of the ice tray with water and put it back in the freezer compartment. Do not, under any circumstances, use sharp or pointed objects to remove the ice.

The quantity of fresh food that can be frozen in a specific time period is indicated on the rating plate.

Load limits are determined by baskets, flaps, drawers, shelves etc. Make sure that these components can still close easily after loading.

GENERAL INFORMATION

The drawers, baskets and shelves should be kept in their current position unless otherwise specified in this quick guide. The light system inside the refrigerator compartment uses LED lights, allowing for better lighting than with traditional light bulbs, as well as for very low energy consumption.

Doors and lids of the refrigeration appliance should be removed before disposal in the landfill, to avoid children or animals getting trapped inside.

TROUBLESHOOTING

What to do if... Possible reasons Solutions

The control panel is switched off, the appliance does not work.	There may be an appliance power supply problem.	Check that:there is not a power outage;the plug is properly inserted in the socket and any bipolar power switch is in the correct position (this enables the power supply to the appliance);the household electrical system protection devices are efficient;the power cable is not damaged.
	The appliance could be in On/stand by mode.	Turn the appliance on by briefly pressing the button (see On/Stand-by function).
The inside light does not work.	The light may need to be replace.Malfunction of a technical component.	Disconnect the appliance from the power supply and contact the Technical Assistance Service if you need a replacement.
The inside light flashes. Door alarm active.	It is activated when the refrigerator compartment door remains open for a prolonged period of time.	To stop the alarm, close the refrigerator door.On reopening the door, check the light works.
The temperature inside the compartments is not low enough.	There could be various causes (see "Solutions").	Check that:the door closes properly;the appliance is not installed near a heat source;the set temperature is adequate;the circulation of air through the vents at the bottom of the appliance is not obstructed (see installation section).
There is water on the bottom of the refrigerator compartment.	The defrost water drain is blocked.	Clean the defrosting water drain (see section "Cleaning and Maintenance").
Excessive amount of frost in the freezer compartment.	The door to the freezer compartment is not closed properly.	Check that there is nothing preventing the door from closing properly.Defrost the freezer compartment.Make sure the appliance has been correctly installed.
The front edge of the appliance that the door gaskets seal against is hot.	This is not a defect. It prevents condensation from forming.	No solution is necessary.
One or more green symbols are flashing continuously and it is not possible to change the temperature set.	Malfunction alarm.The alarm indicates a fault in a technical component.	Contact Technical Assistance Service.
The temperature of the refrigerator compartment is too cold.	The set temperature is too cold.A large amount of fresh food may have been placed in the freezer compartment.	Try to set a less cold temperature.If fresh food has been placed in the freezer compartment, wait until it has fully frozen.Turn off the fan (if present) following the procedure described in the paragraph "FAN".

* Available only on certain models
Note: If the chiller declaration is present in the rating plate (see image below), the declaration applies only to standard EN 62552:2013 valid until February 28th, 2021.

Policies, standard documentation, ordering of spare parts and additional product information can be found by:

• Visiting our website docs.whirlpool.eu and parts-selfservice.whirlpool.com
• Using QR Code
  • Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate. The model information can be retrieved using the QR-Code indicated on the energy label. The label also includes the model identifier that can be used to consult the https://eprel.ec.europa.eu database portal.
