Heart Mini DMWH100H - Waffle Maker Dash - Free user manual and instructions

Product Type	Mini Heart-Shaped Waffle Maker
Model Number	Heart Mini DMWH100H (DMW001H)
Brand	Dash
Power Rating	350W
Voltage / Frequency	120V ~ 60Hz
Cooking Surface	Non-stick, heart-shaped
Indicator Light	Yes, illuminates until preheated, then turns off
Cover Handle	Yes, for safe lifting
Non-slip Feet	Yes
Dimensions (Approx.)	5.5 x 5.5 x 3.5 inches
Weight (Approx.)	1.3 lbs
Cord Length	Short (approx. 2.5 ft)
Recipe Guide Included	Yes, with 20+ recipes
Cleaning Method	Wipe with damp, soapy cloth; do not immerse in water
Dishwasher Safe	No
Material	Plastic body, non-stick coating
Safety Features	Polarized plug, automatic temperature regulation
Warranty	1-Year Limited Warranty
Customer Support	1-800-898-6970 or [e-mail]
Usage	Indoor household use only

Frequently Asked Questions - Heart Mini DMWH100H Dash

Why does the indicator light keep turning on and off during cooking?

This is normal. The heating element cycles on and off to maintain the optimal cooking temperature. The light will turn on when heating and off when the temperature is reached.

How do I know when the Mini Waffle Maker is preheated and ready to use?

When the indicator light turns off, the cooking surface has reached the ideal temperature. You can then pour batter and start cooking.

Is there an on/off switch? How do I turn it off?

No, there is no on/off button. To turn on, plug the cord into an outlet. To turn off, simply unplug the appliance.

The cover gets very hot during use. Is that normal?

Yes, the cover becomes hot. Always use the cover handle to lift and lower it, and lift from the side to avoid burns.

Food is sticking to the cooking surface. What should I do?

This is usually due to residue buildup. Allow the appliance to cool, then apply a little cooking oil and let it sit for 5-10 minutes. Scrub gently with a soft sponge or brush, then wipe clean with a damp soapy cloth.

The indicator light won't turn on and the surface is not heating. What could be wrong?

First, ensure the power cord is securely plugged into a working outlet. Check if there is a power failure. If the outlet is functional, contact customer support.

Can I use metal utensils on the cooking surface?

No, metal utensils will damage the non-stick coating. Use heat-resistant nylon or silicone utensils instead.

How should I clean the Mini Waffle Maker?

Unplug and let it cool completely. Wipe the cooking surface and cover with a damp, soapy cloth. Rinse the cloth and wipe again. Dry thoroughly before storing. Never use abrasive cleaners or immerse in water.

Is the Mini Waffle Maker dishwasher safe?

No, it is not dishwasher safe. Cleaning should be done by hand as described in the manual.

What is the warranty period and how do I claim it?

The product comes with a 1-year limited warranty. To claim, contact customer support at 1-800-898-6970 or [e-mail] with proof of purchase. They will assist with troubleshooting or a return authorization.

USER MANUAL Heart Mini DMWH100H Dash

recipes inside!

DMW001H

HEART

MINI WAFFLE MAKER

Instruction Manual | Recipe Guide

HEART MINI

WAFFLE MAKER

Important Safeguards....4-7

Parts & Features....9

Using Your Mini Waffle Maker....10-13

Cleaning & Maintenance....14

Troubleshooting....16-17

Recipes....19-28

Customer Support....30

Warranty....31

IMPORTANT SAFEGUARDS IMPORTANT SAFEGUARDS

IMPORTANT SAFEGUARDS: PLEASE READ AND SAVE THIS INSTRUCTION AND CARE MANUAL.

When using electrical appliances, basic safety precautions should always be followed, including:

• Read all instructions before use.
• Remove all bags and packaging from appliance before use.
• Never leave appliance unattended when in use.
  • Make sure the appliance is cleaned thoroughly before using.
• Do not use appliance for other than intended use. For household use only. Do not use outdoors.
• Only use the appliance on a stable, dry surface.
• Do not place appliance on or near a hot gas burner, hot electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.

• This appliance can be used by persons with reduced physical, sensory, or mental capabilities or lack of experience of knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• This appliance is not a toy. Do not let children use this appliance. Close supervision is necessary when any kitchen appliance is used by or near children.

• Do not use metal utensils on the Cooking Surface as this will damage the nonstick surface.
• Warning: Hot surfaces! Never touch the Cooking Surface or Cover while appliance is in use. Always lift and lower the Cover by the Cover Handle.
  • DO NOT lift the Cover so that your arm is over the Cooking Surface as it is hot and may cause injury. Lift from the side.
• DO NOT use the Mini Waffle Maker near water or other liquids, with wet hands, or while standing on a wet surface.
  • To prevent the risk of fire, electric shock, or personal injury, do not put cord, plug, or appliance in or near water or other liquids. The Mini Waffle Maker is NOT dishwasher safe.

• Do not let the cord touch hot surfaces or hang over the edge of tables or counters.

• Refrain from using attachments that are not recommended by the appliance manufacturer, as this may result in fire, electric shock, or personal injury.

• Unplug the appliance and allow to cool prior to moving, cleaning, storage, and when not in use. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
• Never use abrasive cleaning agents to clean your appliance as this may damage the Mini Waffle Maker and its nonstick Cooking Surface.
• Do not operate this appliance with a damaged cord, damaged plug, after the appliance malfunctions, is dropped, or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
• For maintenance other than cleaning, please contact StoreBound directly at 1-800-898-6970 Monday - Friday or by email at [e-mail].
• StoreBound shall not accept liability for damages caused by improper use of the appliance.
• Improper use of the appliance can result

in property damage or even in personal injury.

• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not completely fit in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
• A short power supply cord is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. An extension cord may be used if care is exercised in its use. If an extension cord is used, the marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance. If the appliance is of the grounded type, the extension cord should be a grounding 3-wire cord. The extension cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally. the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

IMPORTANT SAFEGUARDS: PLEASE READ AND SAVE THIS INSTRUCTION AND CARE MANUAL.

GARANTIES IMPORTANTES

GARANTIES IMPORTANTES: VEUILLEZ LIRE ET CONSERVER CE MODE D'EMPLOI ET D'ENTRETIEN

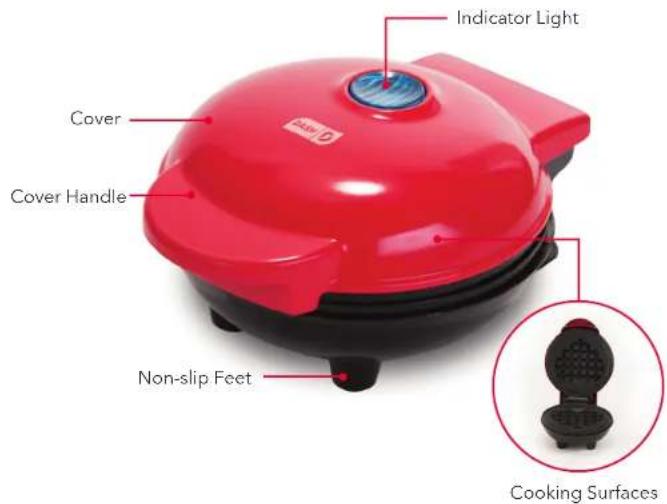

PARTS & FEATURES

USING YOUR MINI MAKER WAFFLE USING YOUR MINI MAKER WAFFLE

BEFORE FIRST USE

Remove all packaging material and thoroughly clean your Mini Maker Waffle.

Never touch the Cooking Surface or Cover while appliance is in use.

DO NOT lift the Cover so that your arm is over the Cooking Surface as it is hot and may cause injury.

Always lift and lower the Cover by the Cover Handle. Lift from the side.

1 Place the appliance on a stable and dry surface. Plug the cord into a power outlet. The Indicator Light (photo A) will illuminate, signaling that the Mini Maker Waffle is heating up.

2 Once the Cooking Surface reaches the optimal cooking temperature, the Indicator Light will automatically shut off. Now, you're ready to get cooking (photo B)!

USING YOUR MINI MAKER WAFFLE USING YOUR MINI MAKER WAFFLE

3 Carefully lift the Cover by the Cover Handle and spray both Cooking Surfaces with a small amount of non-aerosol cooking oil (photo C).

4 Place or pour batter onto the Cooking Surface (photo D) and close the Cover.

Aerosol cooking sprays often contain additives that can cause nonstick surfaces to become sticky and hard to clean over time. To ensure the longevity of your product, use a spray bottle and a neutral oil (vegetable, canola, etc.) to lubricate cooking surfaces.

5 Once waffle is cooked to your preference, carefully remove it from the Cooking Surface with a heat-resistant nylon or silicone cooking utensil (photo E).

6 When you have finished cooking, unplug your Mini Maker Waffle and allow it to cool before moving or cleaning (photo F).

NOTE: Do not use metal utensils to remove or place food on the Cooking Surface as this will damage the non-stick surface.

CLEANING & MAINTENANCE

Always allow the appliance to cool completely before moving, cleaning, or storing. Do not submerge appliance in water or any other liquids. Never use abrasive cleaning agents to clean your appliance as this may damage the Mini Waffle Maker.

In order to keep your Mini Waffle Maker in pristine working order, thoroughly clean the appliance after each use. This will prevent the build-up of food or oil.

• Unplug Mini Waffle Maker and allow it to cool completely.
• Using a damp, soapy cloth, wipe down the Cooking Surface and Cover. Thoroughly rinse the cloth and wipe again.
  • Thoroughly dry Mini Waffle Maker before storing.
• If there is food burned onto the Cooking Surface, pour on a little cooking oil and let sit for 5 to 10 minutes. Scrub the Cooking Surface with a sponge or soft bristled brush to dislodge food. Use a damp, soapy cloth to wipe down the Cooking Surface. Thoroughly rinse the cloth and wipe again. If any food remains, pour on cooking oil and let sit for a few hours, then scrub and wipe clean.
• Never use abrasive cleaning agents to clean your appliance as this may damage the Mini Waffle Maker and its nonstick Cooking Surface.

TROUBLESHOOTING TROUBLESHOOTING

While Dash products are durable, you may encounter one or more of the problems listed below. If the issue is either not solved by the solutions recommended below or not included on this page, please contact our Customer Support Team at 1-800-898-6970 or [e-mail].

ISSUE SOLUTION
The light on the Mini Maker Waffle keeps shutting off.	This is normal. During the cooking process, the heating element will automatically turn on and off to regulate the temperature and ensure that the Cooking Surface does not get too hot or cold. When this occurs, the Indicator Light turns on and off.
How do I know when the Mini Maker Waffle is heated and ready to use?	When the Waffle Maker reaches the optimal temperature, the Indicator Light shuts off and that means you're ready to get cooking!
There is no On/Off Button.How do I turn the Mini Maker Waffle off and on?	To turn on, simply plug in the power cord.When you're done cooking, turn off the Mini Maker Waffle by unplugging it.

ISSUE SOLUTION
When using my Mini Maker Waffle, the Cover gets very hot. Is this normal?	Yes, this is completely normal. When using your Waffle Maker, always lift and lower the Cover by the Cover Handle. To prevent personal injury, DO NOT lift the Cover so that your arm is over the Cooking Surface as it is hot and may cause injury. Lift from the side.
After using my Mini Maker Waffle a few times, food is starting to stick to the surface. What is happening?	There is probably a build-up of burnt food residue on the Cooking Surface. This is normal, especially when cooking with sugar. Allow the appliance to cool fully, pour on a little cooking oil and let sit for 5-10 minutes. Scrub Surface with a sponge or soft bristled brush to dislodge food. Use a damp, soapy cloth to wipe down the Cooking Surface. Rinse the cloth and wipe again. If food remains, pour on cooking oil and let sit for a few hours, then scrub and wipe clean.
The Indicator Light will not turn on and the Cooking Surface is failing to heat.	1. Ensure that the power cord is plugged into the power outlet.2. Check to make sure the power outlet is operating correctly.3. Determine if a power failure has occurred in your home, apartment or building.

RECIPE GUIDE

Follow us!

@bydash | recipes, videos, & inspiration

@unprocessyourfood | veg & vegan-friendly meals

CLASSIC WAFFLES

Yield: 12 waffles

Ingredients:

1 cup flour
1 tbsp sugar
2 tsp baking powder
1/4 tsp salt
1 egg
1 cup milk
2 tbsp melted butter or vegetable oil

Directions:

1. In a medium bowl, sift the flour, sugar, baking powder, and salt. Whisk the egg, milk, and melted butter in a separate bowl. Add the wet ingredients to the dry and mix until just incorporated.
2. Grease the Mini Waffle Maker with butter or coat with a light coat of cooking spray. Pour 2 tbsp of the batter into the Mini Waffle Maker and cook until golden brown. Repeat with the remaining batter.
3. Serve with a drizzle of maple syrup and fresh berries.

PIZZA CHAFFLE

Yield: 4 waffles Yield: 6 waffles

Ingredients:

1 large egg

1/2 cup riced cauliflower

½ cup shredded mozzarella cheese

½ tsp dried oregano

y₈ tsp garlic powder

½ cup shredded Parmesan cheese

4 tbsp pizza sauce

4 tbsp shredded mozzarella

(for pizza topping)

Directions:

1. In a mini food processor, pulse the egg, cauliflower, mozzarella, oregano, and garlic powder until the mixture is very finely chopped.
2. Spread 1 tbsp of the Parmesan cheese on the bottom of the Dash Mini Waffle Maker. Add 2 tbsp of the cauliflower mixture, spreading it evenly. Sprinkle 1 tbsp more of the Parmesan cheese on top of the cauliflower mixture.
3. Cook the chaffle until well-browned and crisp, 6 mins. Set chaffle aside to cool. Repeat 3 more times making 4 chaffles.
4. Top each chaffle with 2 tbsp of the pizza sauce. Sprinkle on 1 tbsp mozzarella. Place the chaffles under the broiler until the cheese melts, 1-2 mins. Watch carefully so they don't burn and serve immediately.

PALEO

WAFFLES

Ingredients:

2 large eggs

½ banana, mashed

3/4 tsp maple syrup

½ tsp vanilla extract

1/2 tsp baking powder

1/4 cup almond flour

1 ½ tbsp coconut flour

Pinch of salt

Directions:

1. Mix together eggs, banana, vanilla extract and maple syrup in a small bowl.
2. Whisk together dry ingredients in a separate bowl. Add the wet ingredients to the dry and mix until just incorporated.
3. Add 2 tbsp of batter to your Mini Waffle Maker and cook until golden brown on both sides.

RED VELVET

WAFFLES

Yield: 30 waffles

Ingredients:

2 cups all-purpose flour

1/4 cup white granulated sugar

1/4 cup cocoa powder

1 tsp baking powder

½ tsp baking soda

½ tsp cinnamon

1 tsp salt

1 ¾ cups buttermilk

2 large eggs

1/4 cup unsalted butter

2 tsp vanilla extract

1 tbsp red food coloring

1/2 tsp vanilla extract

Cream Cheese Icing

2 tbsp butter, melted

2 tbsp cream cheese, softened

½ cup powdered sugar

1/4 tsp vanilla extract

2-3 tbsp milk

Directions:

1. In a small pan over low heat, melt butter. Shut off heat so butter is not hot when added to the mix.
2. Mix together the dry ingredients and set aside.
3. Beat eggs in a bowl. Slowly stir in buttermilk, butter, vanilla and food coloring.
4. Mix dry ingredients into wet in three rounds. Fully incorporate all dry ingredients before adding the next round.
5. Add 2 tbsp of batter to your Mini Waffle Maker and cook until golden brown on both sides.

WAFFLE POPS

Yield: 12 waffles

Ingredients:

1 cup all-purpose flour
1 tbsp sugar
2 tsp baking powder
1/4 tsp salt
1 large egg
1 cup milk
2 tbsp softened unsalted butter

For Waffle Pop Coating

1 cup vanilla frosting

3/4 cup cereal of your choice

½ cup rainbow sprinkles

1/4 cup water

Toppings

Chocolate sauce

Mini marshmallows

Directions:

1. Mix together flour, sugar, baking powder and salt in a medium bowl.
2. Whisk together milk, egg and melted butter in a separate bowl. Add the wet ingredients to the dry and mix until just incorporated.
3. Add 2 tbsp of batter to your Mini Waffle Maker and cook until golden brown on both sides.
4. Vertically insert ice pop stick through each waffle while warm.

For Waffle Pop Coating

1. Mix together frosting, cereal, water and sprinkles in a medium bowl.
2. Once each waffle is attached to a ice pop stick, hold the edge of each stick furthest from the waffle and dip waffle into coating bowl.
3. Use the ice pop stick to twirl each waffle while pulling away from the coating mixture bowl.
4. Top with chocolate sauce drizzle and mini marshmallows, if desired.

MORE RECIPE IDEAS

RECIPE IDEA	INGREDIENTS	COOKING TIME
Protein Waffle	Classic Waffle Recipe (pg 20)1 scoop protein powder	4-6 min
Cornbread Waffle	1/4 cup cornbread batter	6-8 min
Mashed Potato Bite	3 tbsp mashed potatoes	5 min
Smore Biscuit	1 refrigerated biscuit dough, sliced lengthwise2 squares milk chocolate5 mini marshmallows	5-7 min
Grilled Cheese	2 slices white or wheat bread, buttered2 slices American Cheese	5 min
Chocolate Chip Cookie	2 tbsp cookie dough	5-7 min
Waffle Omelette	1 egg beaten2 tbsp chopped veggies1 tbsp grated Swiss cheese	5 min

CUSTOMER SUPPORT

WARRANTY

Dash values quality and workmanship and stands behind this product with our Feel Good Guarantee ^™ . To learn more about our commitment to quality, visit bydash.com/feelgood.

We're here to help! Our customer support teams in the US and Canada are at your service Monday - Friday. Contact us at 1 [phone] or [e-mail].

bydash.com/help

STOREBOUND, LLC - 1 YEAR LIMITED WARRANTY

Your StoreBound product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of the original purchase when utilized for normal and intended household use. Should any defect covered by the terms of the limited warranty be discovered within one (1) year, StoreBound, LLC will repair or replace the defective part. To process a warranty claim, contact Customer Support at 1-800-898-6970 for further assistance and instruction. A Customer Support agent will assist you by troubleshooting minor problems. If troubleshooting fails to fix the problem, a return authorization will be issued. Proof of purchase indicating the date and place of purchase is required and should accompany the return. You must also include your full name, shipping address, and telephone number. We are unable to ship returns to a PO box. StoreBound will not be responsible for delays or unprocessed claims resulting from a purchaser's failure to provide any or all of the necessary information. Freight costs must be prepaid by the purchaser.

Send all inquiries to [e-mail].

There are no express warranties except as listed above.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CUSTOMER. STOREBOUND SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES OR FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT EXCEPT TO THE EXTENT REQUIRED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts. Therefore, the above exclusions or limitations may not apply to you. This warranty gives you specific legal rights and you may also have other rights, which vary from state to state.

REPAIRS

DANGERI Risk of electric shock! The Dash Heart Mini Waffle Maker is an electrical appliance. Do not attempt to repair the appliance yourself under any circumstances. Contact Customer Support regarding repairs to the appliance.

TECHNICAL SPECIFICATIONS

Voltage 120V - 60Hz

Power Rating 350W

Stock#: DMW001H_202010714_V5

This product has passed food safety testing in accordance with FDA guidelines.
