USER MANUAL AdderView CATx Adder
AdderView CATx features - front and rear 5
What's in the box 6
What you may additionally need....6
Installation
Mounting 7
Connections 8
Local user....9
Remote user (via X100/X200 extender) 10
Global user (IP network port) 11
Computer system (via CAM)....12
Modem/ISDN port 13
Power in connection....14
Power control port 15
Cascading multiple units 16

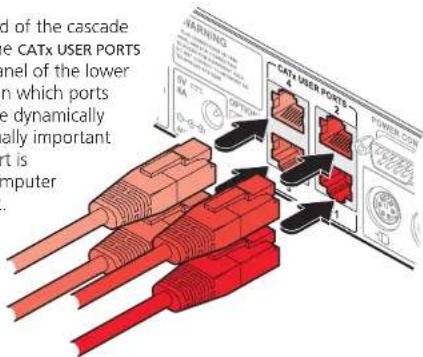

How cascade connections operate....17

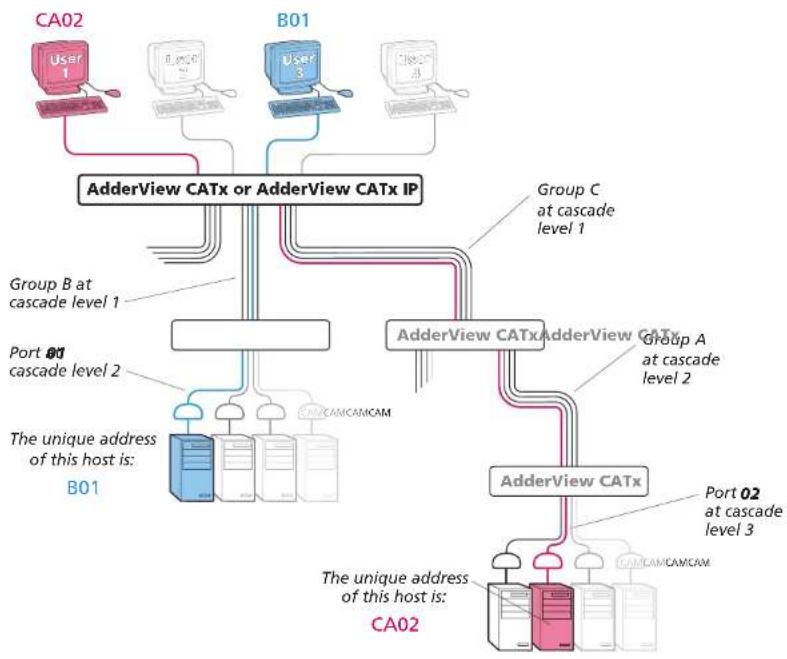

Addressing computers in a cascade 18
Connecting AdderView CATx units in cascade....19
Using cascaded computers....20
Testing specific links to cascaded computers....20
Multiple video head connections ....21
Remote switching control 22
Configuration
Overall initial configuration 23
Configuration menus 24
Configuration menus layout....25
General security and configuration steps....25
Registering users (edit user list)......26
Registering computers (edit computer list) 27
Video compensation....28
Computer video compensation....29
Remote user video compensation ....30
Remote user skew adjustment....31
Autoscanning....33
Saving and restoring configuration settings 34
What to do if the ADMIN password has been forgotten...36
Hot plugging and mouse restoration....37
Initial IP configuration ....38
IP configuration by global user 39

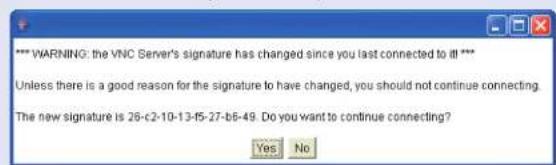

Encryption settings....40
Networking issues....41
Positioning AdderView CATx IP in the network .....41

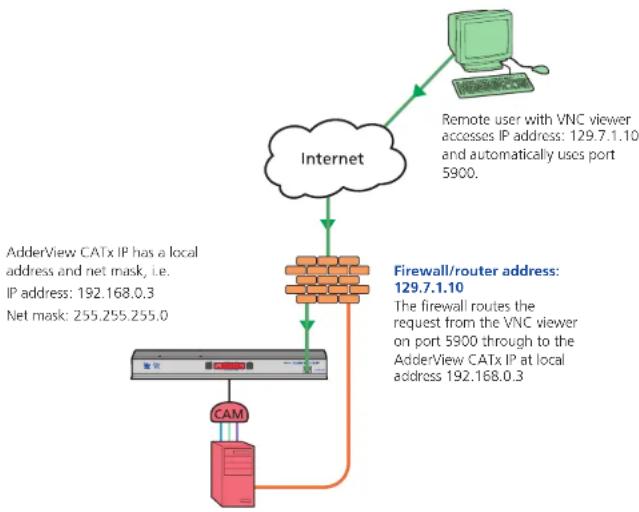

Placing AdderView CATx IP behind a router or firewall 42
Placing AdderView CATx IP alongside the firewall.....44
Power switching configuration 45
The KVMADMIN utility....46

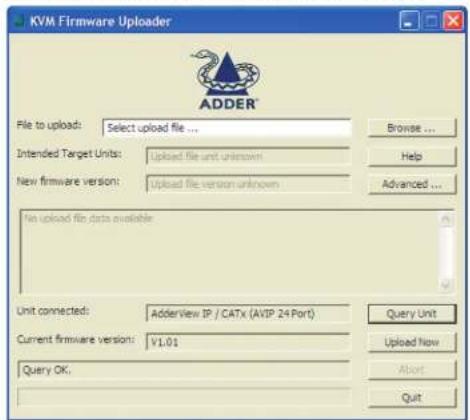

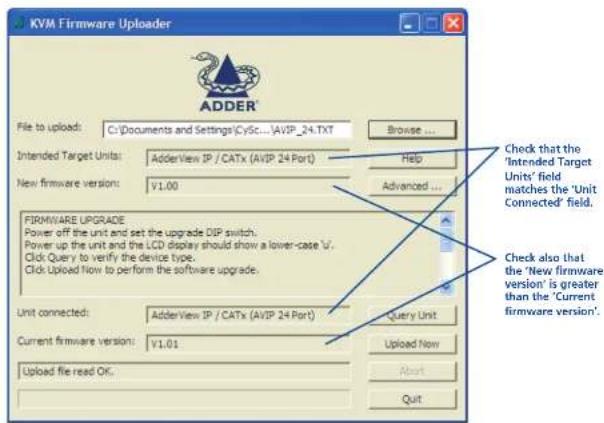

Performing upgrades 47
Upgrading AdderView CATx models and CAMs......47

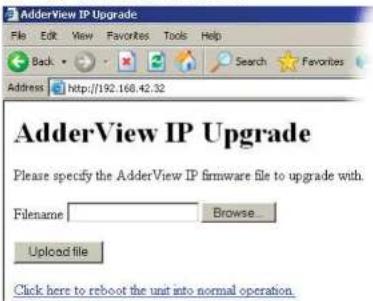

Upgrading AdderView CATx IP models....49
Operation
The front panel controls 50
AdderView CATx models 50
AdderView CATx IP models 50
Accessing the AdderView CATx....50
Local and remote user access....51
Selecting a computer....51
Logging in and out 54
Selecting cascaded computers ....54
The confirmation box 54
The reminder banner....55
Routing status....55
Power switching (via configuration menu)....56
User preferences and functions 56
Global user access....57
Global user access via VNC viewer 58
Global user access via web browser....59
Using the viewer window 60
The menu bar 60
When using the viewer window 60
Mouse pointers....61
Configure....61
Auto calibrate 62
Re-synchronise mouse 62
Access mode - shared/private 62
Power switching (via viewer)....62
Controls....63
Access via dial up (modem or ISDN) link....66
If you need to enter a port number....66
Viewer encryption settings....67
Supported web browsers....67
Further information
Getting assistance....68
Troubleshooting....68
Appendix 1 - Configuration menus ....69
Functions 70
User Preferences 71
Global Preferences....72
Setup Options 74
Advanced Options 76
Configure IP port 78
Unit Configuration....79
Network Configuration 80
Modem Configuration....81
Reset Configuration....82
Clearing IP access control 82
Appendix 2 - Configuration pages via viewer ....83
User accounts 84

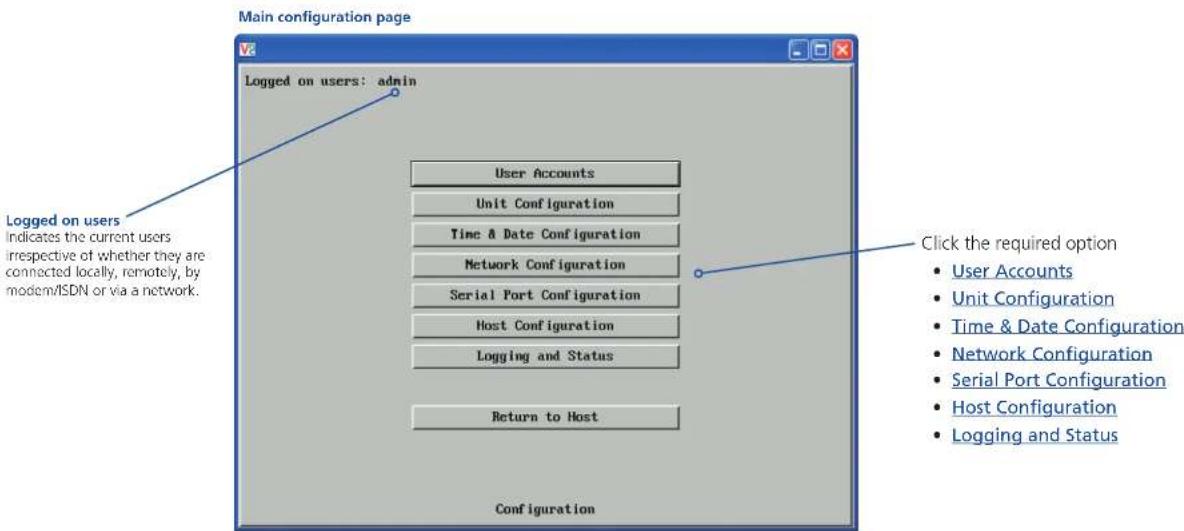

Unit configuration 85
Advanced unit configuration 86

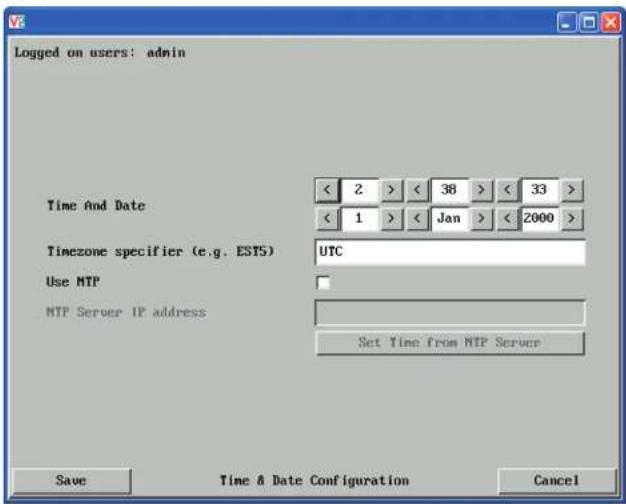

Time & date configuration....87
Network configuration....88
Setting IP access control....89
Serial port configuration....90
Host configuration....91
Adder Port Direct....92
Logging and status 93
Appendix 3 - VNC viewer connection options....94
Colour/Encoding 94

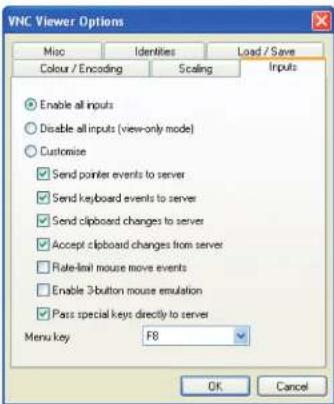

Inputs 95
Scaling 96
Misc....96
Identities....97
Load / Save 97
Appendix 4 - VNC viewer window options....98
Appendix 5 - Browser viewer options....99
Encoding and colour level....99
Inputs 99
Security 99
Misc....99
Appendix 6 – Addresses, masks and ports ....100
IP addresses 100
Net masks 100

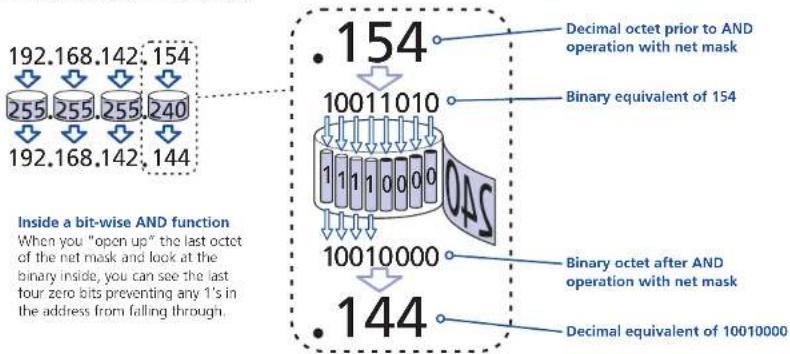

Net masks - the binary explanation .....101
Calculating the mask for IP access control....102
Ports....103
Security issues with ports....103

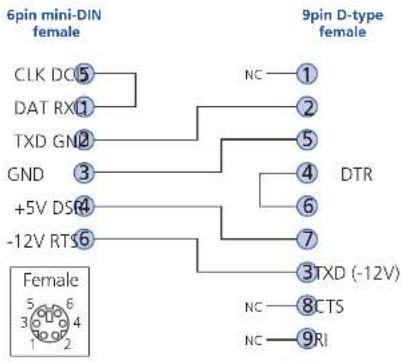

Appendix 7 – Cable and connector specifications....104
RS232 serial mouse to PS/2 converter cable 104
RS232 serial flash upgrade cable....104
AdderView CATx to power switch cable 104
Power switch to power switch daisy chain cable....104
Multi-head synchronisation cable 105
Appendix 8 – Hotkey sequence codes....106
Permissible key presses....106
Creating macro sequences ....106
Appendix 9 – Supported video modes ...... 107
End user licence agreement....108
Index
Introduction
Thank you for choosing the AdderView CATx series from Adder Technology. Each of the four models have been designed to take full advantage of CATx structured cabling (where x means category 5, 5e or 6) to provide high quality linking plus ultimate flexibility for installers and operators alike.
At its heart the AdderView CATx is a tried and trusted digital KVM + audio switch with 16 or 24 ports. In its simplest form, the AdderView CATx allows up to four users to maintain full control over multiple host systems.
This description, however, is far from sufficient to tell you that those four users can easily be situated up to 300m (980 feet) from the unit, using Adder X100 or X200 extenders. It also does not tell you that, thanks to our unique Adder CAM (Computer Access Module) technology, the host systems can themselves be up to 50m (160 feet) from the unit. In both cases CATx structured cabling provides neat, easy-to-manage and cost effective linking. The 16- or 24- ports of the standard units are by no means the limit. By cascading one or more AdderView CATx units you can easily control up to 512 host computers.
The AdderView CATx IP variants introduce true global control for the multiple host systems. Up to four global users can share access to a computer from anywhere via an IP network/internet connection using a Real VNC client application. A modem/ISDN port provides an alternative backup connection should the network link suffer a failure. Optional power switch control allows you to remotely perform a hard reset on any host system, no matter how badly it has locked up. Finally, to ensure that only authorised operators are given such power, the AdderView CATx IP units feature enterprise grade security.


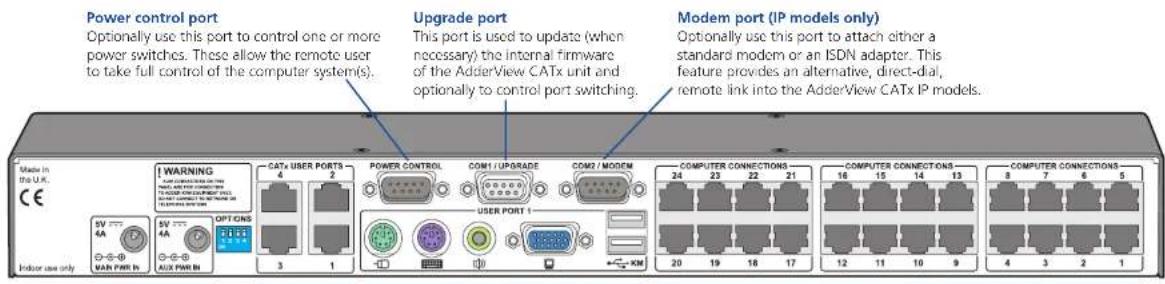

AdderView CATx features - front and rear
The AdderView CATx units pack a great deal of functionality into a compact space. All models occupy a single 1U rack space and provide most of their connectors at the rear face. The smart front face features the IP network port and the operation indicators.

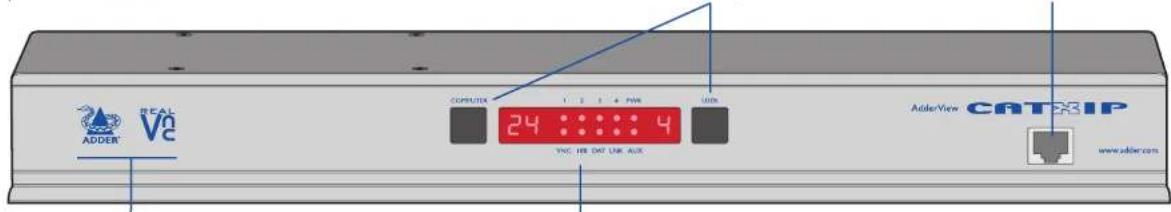

Front panel buttons
The COMPUTER and USER buttons allow the local user to select the required combination. Adjacent numeric displays show the current selection. Keyboard, mouse and menu-based switching techniques are also available.
IP network port (CATx IP only)
The port by which global users are linked to the AdderView CATx unit. This intelligent Ethernet port can automatically sense whether it is attached to a 10Mb or 100Mb network.
Created through partnership
The AdderView CATx IP model is the result of a creative partnership between two companies that are leaders in their respective markets: Adder Technology Limited are renowned worldwide for their professional KVM switching hardware.
RealVNC are creators of remote control software for a wide variety of computer systems. Speed, simplicity and security are their particular strengths.
Indicators

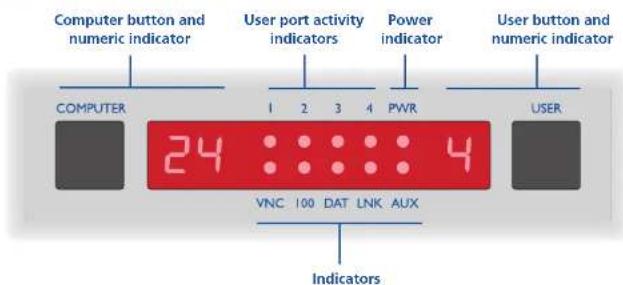

The front panel indicators clearly show key aspects of operation (CATx and CATx IP models differ):
• VNC Indicates that a global user is connected and active.
• 100 Indicates the Ethernet network speed (10/100Mbs).
• DAT Network activity indication.
- LNK Network link present.
• PWR Power input indicator.
• AUX Auxiliary power input indicator.
• 1-4 Indicates activity on the four user ports. Note: The VNC, 100, DAT & INK indicators are present on AdderView CATx IP models only.
On non-IP models each user port has an upper (mouse activity) and lower (keyboard activity) indicator.
Dual power inputs The primary and optional auxiliary power supplies connect here.
Remote user ports

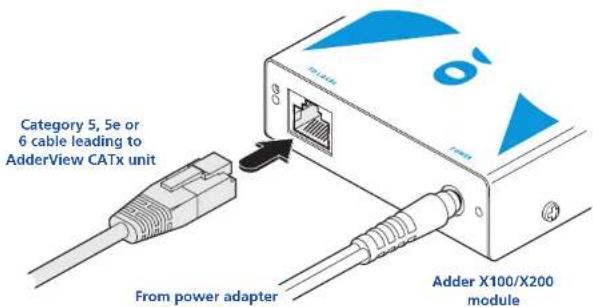

Up to four remote users can be connected, using optional Adder X100/X200 extenders and standard category 5, 5e or 6 cabling, a maximum distance of 300m (1000ft) from the AdderView CATx unit. CATx IP models provide two remote user ports.
Local user port
Connect a keyboard and mouse (either PS/2-style or USB), plus a video monitor and optional speakers to these connectors. These allow you to perform the initial configuration of the AdderView CATx. Additionally, you can use these to locally control the connected computer(s).
Computer ports

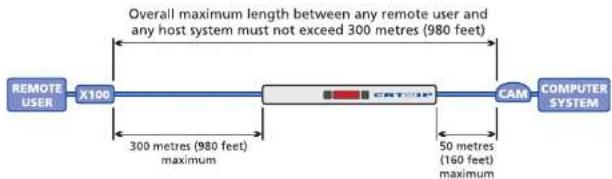

Each computer connects to one of these ports via standard category 5, 5e or 6 cabling. At the other end of the cabling a CAM (Computer Access Module) is used to provide the necessary keyboard, video, mouse and optional speaker connections.
What's in the box

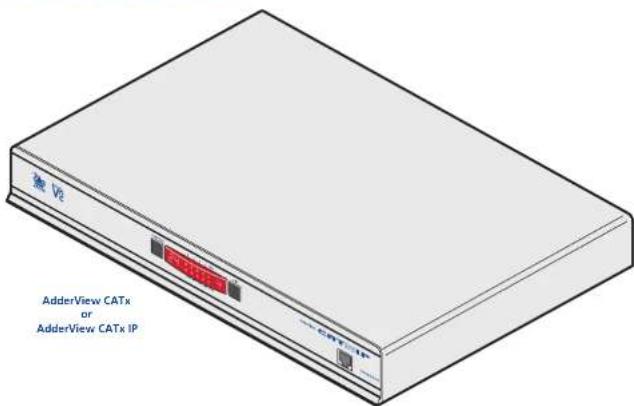

AdderView CATx
AVX4015 - 16 computer connections, 1 local console connection, 4 remote user connections
AVX4024 - 24 computer connections, 1 local console connection, 4 remote user connections
AdderView CATx IP
AVX4015IP - 15 computer connections, 1 local console connection, 1 IP connection, 2 remote user connections
AVX4024IP - 24 computer connections, 1 local console connection, 1 IP connection, 2 remote user connections
What you may additionally need
One required per connected computer. There are two different formats, depending on the required computer connections:
PS/2-style
Connectors Analog video, PS/2-style keyboard and PS/2-style mouse.
Part number: CAT8-PS2
PS/2-style with audio
Connectors Analog video, PS12-style keyboard, PS12-style mouse and 3.5mm audio jack.
Part number: CATX-PS2A
USB
Connectors: Analog video and USB keyboard/mouse. Part number: CATX-USB
USB with audio
Connectors Analog video, USB keyboard/mouse and 3.5mm audio jack.
Part number: CATX-USA
Sun with audio
Connectors Analog video, Sun keyboard/mouse and 3.5mm audio jack.
Part number: CATX-SUKA
Adder X100/X200 extenders
One extender required per remote user. X200 units are similar to X100 except that they can accommodate a second link to another switch or computer. X200 units also have USB connections rather than PS/2-style keyboard and mouse ports. Three different variants are available for each X100 or X200 unit. ASR variants have audio and video skew circuitry to overcome extreme video degradation problems. AR variants lack the skew circuitry and R variants do not have skew circuitry or audio. Each module is supplied with its own power adapter and country-specific power lead.
Adder X100/R
Connectors: Analog video PS12 style keyboard and PS12 style mouse Part number. X100R
Adder X100A/R
Connectors: Analog video, PS/2-style keyboard, PS/2-style mouse and 3.5mm audio jack Part number: X100/VR
Adder X100AS/R
Connectors: Analog video PS/2-style keyboard, PS/2-style mouse and 3.5mm audio jack; Includes additional skew compensation features. Part number: X100AS/R
Adder X200/R
Connectors: Analog video, USB keyboard and USB mouse. Part number: X200R
Adder X200A/R
Connectors: Analog video,
USB keyboard,
USB mouse and
3. Screen audio pack.
Part number: X200A/R
Adder X200AS/R
Connectors: Analog video, USB keyboard, USB mouse and 3.5mm audio jack; includes additional skew compensation features. Part number: X200ASM
Installation
Mounting
The AdderView CATx units offer two main mounting methods:
• Supplied four self-adhesive rubber feet
• Supplied rack brackets
Connections

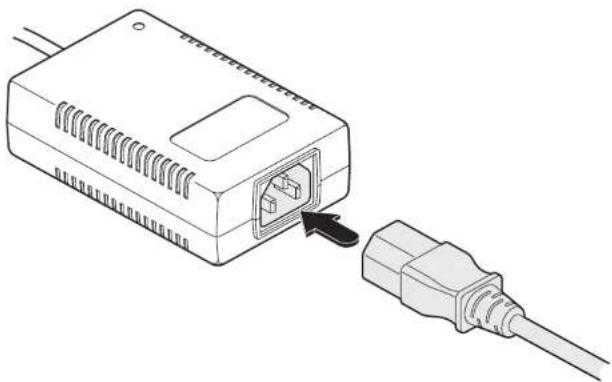

Note: Both the AdderView CATx and its power supply generate heat when in operation and will become warm to the touch. Do not enclose them or place them in locations where air cannot circulate to cool the equipment. Do not operate the equipment in ambient temperatures exceeding 40 degrees Centigrade. Do not place the products in contact with equipment whose surface temperature exceeds 40 degrees Centigrade.
Rack brackets
The two supplied brackets (plus four screws), allow the AdderView CATx unit to be secured within a standard 1U rack slot.
Connections
The AdderView CATx and CATx IP units provide a great deal of flexibility in their configurations. This chapter details the various connections that can be made to achieve the required installation.
Connections do not need to be carried out in the order given within this guide, however, where possible connect the power in as a final step.
Local user

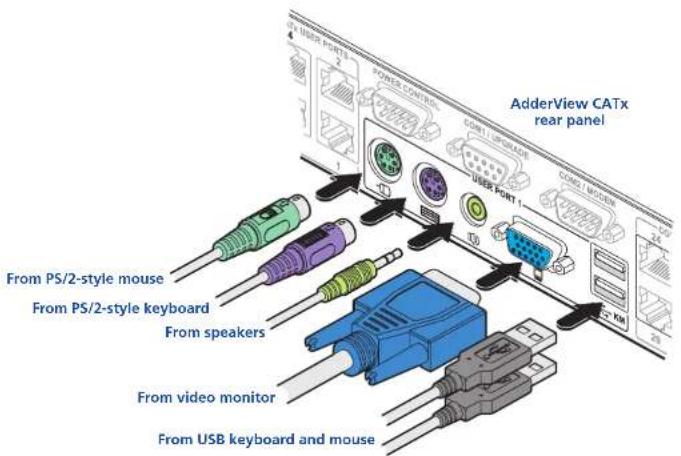

A locally connected video monitor, keyboard (and mouse) are required during the initial configuration. These are also useful during normal use to allow quick local control of any connected computer systems. The AdderView CATx unit can directly support either PS/2 or USB style keyboards and mice. An audio port is also provided for locally connected speakers, if required.
To connect the local user port
1 Position a suitable video monitor, keyboard, mouse (and speakers, if required) in the vicinity of the AdderView CATx unit such that their cables will easily reach.
2 Attach the video monitor, keyboard, mouse (and speaker) connectors to the sockets, collectively labelled as USER PORT 1, at the rear of the AdderView CATx unit.
Note: The keyboard and mouse can be either PSI/2-style or USB respectively, as required. The two different connection types can even be mixed. Recognition of the type used is automatic and requires no extra settings to be made.
Remote user (via X100/X200 extender)
Up to four users can be placed a maximum of 300 metres (980 feet) from the AdderView CATx unit. Remote users are connected via an Adder X100 or X200 extender module and suitable category 5, 5e or 6 cabling (with no crossover). The AdderView CATx IP models provide two remote user ports.
Cable lengths for remote user locations
The maximum length of cable between a remote user and the AdderView CATx unit can be up to 300 metres (980 feet). However, bear in mind that the overall distance between any remote user and any computer system must not exceed 300 metres (980 feet).
E["Overall maximum length between any remote user and any host system must not exceed 300 metres (980 feet)"]
In situations where any computer system will be placed a significant distance from the AdderView CATx unit, ensure that the distance to any remote user is similarly less than 300 metres (980 feet).
To connect a remote user
1 Place an Adder X100 or X200 extender unit adjacent to the remote user location.
2 Attach the video monitor, keyboard, mouse, power adapter (and speaker) connectors to the sockets of the Adder X100 or X200 module.
3 Lay a suitable length of category 5, 5e or 6 cabling between the Adder X100/X200 module and the AdderView CATx unit. Please refer to the section Cable lengths for remote user locations opposite.
4 Attach the connector of the cable run to the socket of the Adder X100/X200.
5 At the other end of the cable run, attach the cable connector to one of the sockets labelled CATx USER PORTS on the rear panel of the AdderView CATx unit.
6 Where necessary, use the in-built video compensation feature of the Adder X100/X200 module to eliminate any effects caused by the cable run. However, ensure that the links between the computers and the AdderView CATx have been compensated first. See remote user video compensation for details.
Global user (IP network port)
The AdderView CATx IP models provide an autosensing Ethernet IP port that can operate at 10 or 100Mbps, according to the network speed. The AdderView CATx IP models are designed to reside quite easily at any part of your network:
• They can be placed within the local network, behind any firewall/router connections to the Internet, or
- They can be placed externally to the local network, on a separate sub-network or with an open Internet connection.
Wherever in the network an AdderView CATx IP is situated, you will need to determine certain configuration issues such as address allocation and/or firewall adjustment to allow correct operation. Please refer to Networking issues within the Configuration chapter for more details.

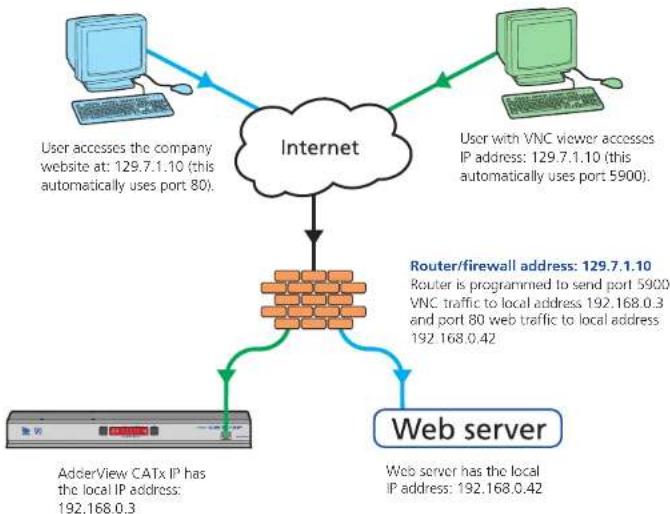

IMPORTANT: When an AdderView CATx IP is accessible from the public Internet or dial up connection, you must ensure that sufficient security measures are employed.
To connect the Global user (IP network) port
1 Depending upon where in the network the AdderView CATx IP is being connected, run a category 5, 5e or 6 link cable from the appropriate hub or router to the AdderView CATx IP unit.
2 Connect the plug of the link cable into the IP port on the front panel of the AdderView CATx IP unit.
3 Configure the network settings as appropriate to the position of the AdderView CATx IP within the network - see Networking issues for details.
Computer system (via CAM)
Each computer system is connected to the AdderView CATx unit via a Computer Access Module (CAM) and standard category 5, 5e or 6 cabling. CAMs are available in various formats to suit differing computer system types and their particular connector styles.
To connect a computer system
1 Ensure that power is disconnected from the AdderView CATx unit and the system to be connected.
(Note: If it is not possible to switch off devices prior to connection, then a 'Hot plug' procedure is available – see the Hot plugging and mouse restoration section for more details).
2 Locate the required CAM (there are five types available) and attach its video, keyboard and mouse (PS/2-style, USB or Sun) and optional audio connectors to the relevant sockets on the computer system.
3 Lay a suitable length of category 5, 5e or 6 cabling between the computer system and the AdderView CATx unit. The maximum length of the cable can be up to 50 metres (160 feet), however, bear in mind that the overall distance between any remote user and any computer must not exceed 300 metres (980 feet).
4 Attach the connector of the cable run to the socket of the CAM.
Green indicator - power present Yellow indicator - signal activity
Note: CAMs derive power from the computer system via either the PS12-style keyboard connector, USB or SUN connector.
5 At the other end of the cable run, attach the cable connector to one of the sockets labelled COMPUTER CONNECTIONS on the rear panel of the AdderView CATx unit.
Note: Each CAM is specifically shaped so that it can be secured using a cable tie around its middle. In this way, two CAMs can also be neatly joined together, back-to-back.
6 Where necessary use the in-built video compensation feature of the AdderView CATx unit to eliminate any effects caused by the cable run. See Computer video compensation for details.
Modem/ISDN port
The AdderView CATx IP models provide a serial port to allow you to connect either a modem or ISDN terminal adapter. This can be used as a primary, secondary or backup access port for global users, as best suits your overall configuration. IMPORTANT: When the AdderView CATx IP is accessible from the public Internet or dial up connection, you must ensure that sufficient security measures are employed.
Note: On non-IP models, the COM2/MODEM port is reserved for the support of future features.
To connect a modem or ISDN adapter
1 If possible, disconnect power from the AdderView CATx IP and the modem or ISDN adapter.
2 Connect a suitable serial modem (non-crossover) cable to the serial port on the modem/ISDN adapter.
3 Connect the other end of the serial cable to the port labelled COM2 at the rear of the AdderView CATx IP.
Note: The default serial port speed is 115200 and a standard Hayes-compatible auto-answer string is sent during startup. The default startup string is 'ATZ50=1'. Both the serial port speed and startup string settings can easily be altered during configuration - see Initial IP configuration for more details. The other serial settings are fixed at: No parity, 8 bit word and 1 stop bit.
Power in connection
The AdderView CATx unit is supplied with a single 30W power adapter which is sufficient to supply any configuration of the unit. The AdderView CATx IP unit has two power input sockets to allow an auxiliary (redundant) power adapter to be connected. There is no on/off switch on the unit, so operation begins as soon as a power adapter is connected.
Note: AdderView CATx units require a heavy duty power adapter at either or both power input connectors. Use only the adapter supplied with the unit or available under Adder part number: PSU-IEC-5V6A. Do not use the standard 10W adapters that are supplied with other Adder products, such as the X100.
To connect the power supply
1 Attach the output lead from the power adapter to the MAIN PWR IN socket on the rear panel of the AdderView CATx.
output lead from power adapter
2 Connect the IEC connector of the supplied country-specific power lead to the socket of the power adapter.
4 Repeat steps 1 to 3 for the auxiliary power adapter (using the AUX PWR IN socket), if a backup supply is required.
Note: Both the AdderView CATx and its power supply generate heat when in operation and will become warm to the touch. Do not enclose them or place them locations where air cannot circulate to cool the equipment. Do not operate the equipment in ambient temperatures exceeding 40 degrees Centigrade. Do not place the products in contact with equipment whose surface temperature exceeds 40 degrees Centigrade. Using two power supplies will ensure that each power supply takes less load and run at a correspondingly cooler temperature.
Power control port
The AdderView CATx IP models provide a serial port for connection to one or more optional power control units. This allows you to control the mains power being supplied to the connected computer(s) so that an authorised user can, if necessary, perform a complete remote cold reboot on a failed system.
The control connector of the first power switch is attached, via serial cable, to the rear panel of the AdderView CATx IP. Any additional power switches are then attached via a 'daisy-chain' arrangement to the first power switch. Each power switch box is then given a unique address and access to each power port (8 ports on each power switch box) is gained using a combination of the switch box address and the port number.
The power ports are connected to the power inputs of each computer system and the power switch box(es) are then connected to a mains power supply. IMPORTANT: Power switching devices have a maximum current rating. It is essential to ensure that the total current drawn by the equipment connected to the power switching device does not exceed the current rating of the power switching device. You must also ensure that the current drawn from any mains socket does not exceed the current rating of the mains socket.
Setting up, configuring and using power switching requires three main steps:
- Connect and address the switch boxes
- Configure the power strings
- Operate power switching via configuration menu or via viewer
To connect and address the switch boxes
Note: The AdderView CATx IP unit can be powered on during this procedure, however, the switch boxes should be switched off.
1 Mount up to four switch boxes in positions where they are close to the computer systems that they will control and not too distant from the AdderView CATx IP unit (preferably within 2.5 metres).
2 Use a serial cable with an RJ9 and a 9-pin D-type connector (see Appendix 7 for specification). Attach the RJ9 plug to the socket marked IN on the first switch box. Attach the other end to the socket marked POWER CONTROL on the AdderView CATx IP.
3 For each of the remaining switch boxes (if used), use a serial cable with RJ9 connectors at both ends (see Appendix 7 for specification). Attach one end to the socket marked out of the previous box and the other end to the socket marked IN of the next box.
4 Set the addressing switches on each switch box using the two micro switches marked 'Slct' on the front panel. The box connected directly to the AdderView CATx IP is Box 1 and so on, down the daisy-chain line to Box 4 at the end.
5 Attach IEC to IEC power leads between each port and the power input socket of each computer system that requires power switching. Carefully note to which power ports, on which boxes, each computer system systems have multiple power inputs, then e separate ports, which can be on the same,
| Box | Switch 1 | Switch 2 |
| 1 | Off | Off |
| 2 | On | Off |
| 3 | Off | On |
| 4 | On | On |
Off = switch upwards On = switch downwards Switch 1 is on the left side
6 Connect each box to a suitable mains power input. Now proceed to the configuration stage covered in the Power switching configuration section within the Configuration chapter.
Cascading multiple units
The AdderView CATx (IP) units support up to sixteen or twenty four directly connected computer systems, however, this is by no means the limit. Thanks to an intelligent communication system, called Adder Port Direct, many more computer systems can be controlled by connecting other AdderView CATx units. The combination of units can be arranged up to three levels deep forming a tree, or cascade arrangement, with computer systems situated at any level within that cascade tree.
The maximum number of computer systems that can be controlled within a cascade installation depends upon the AdderView CATx unit placed at the top level. If the top level unit is a non-IP version, a maximum of 512 computer systems can be controlled. However, if the top level unit is an AdderView CATx IP, the maximum number of computers drops to 128. This is due to the extra burden placed on the unit's memory of administering global (IP) users.
The cascade tree
The diagram shows how multiple AdderView CATx units can be cascaded up to three levels. Computer systems can be connected at any level. Up to four users (local, remote or global) can simultaneously access computer systems situated around the cascade tree.
See also
• How cascade connections operate
- Addressing computers in a cascade
- Connecting AdderView CATx units in cascade
- Testing specific links to cascaded computers
How cascade connections operate
The method for cascading AdderView CATx units is straightforward and requires no hardware settings or lengthy configuration process. This is due to the Adder Port Direct communication system that allows them to locate each other and share information.
The method of linking AdderView CATx units is the same regardless of the cascade level, or number of devices attached. Put simply:
- A single cascade link is made by connecting a COMPUTER CONNECTIONS socket of one unit to a CATx USER PORTS socket of the unit below it.
Such a single link would allow just one user from the higher AdderView CATx unit to access any of the computer systems attached to the lower one. However, a single link can cause a bottleneck for multi-user systems so you are strongly recommended to use a minimum of two or three links. Ideally quad links should be used wherever possible as these allow four users to simultaneously access computer systems situated anywhere within the cascade tree.
When cascade links are made between units, each AdderView CATx will automatically recognise the links and treat them accordingly. The connections within dual, triple or quad cascade links will then be allocated to users according to their general availability in that group, not as specific individual lines. The diagram here summarises the groups into which the ports are arranged
When connecting links, ensure that you use the lowest numbered ports in each group. For example, to create a triple cascade link in group A, use ports 1, 2 and 3; for a double cascade link in group B, use ports 5 and 6, etc. Unused ports in a group can be utilised to connect directly to normal computers. The Adder Port Direct system will automatically distinguish between the different types of connections.
The central purpose of the link group system is that each user can use a unique address to locate a particular computer. However, as with the Internet, the route to get there could be slightly different each time. This avoids any route blocking that could easily be caused by other users occupying any specific link lines.
Note: Single, dual, triple and quad link groups may be mixed on one unit providing the differing link groups lie within the appropriate group boundaries shown opposite - see Tips for successful cascading for more details.
Port groups for cascade links
(sixteen port models use groups A to D only)
See also
- Addressing computers in a cascade
- Connecting AdderView CATx units in cascade
• Testing specific links to cascaded computers
Addressing computers in a cascade
The addressing format used by the AdderView CATx units incorporates the various group letters along with a final specific port number to which a required computer is attached. In the diagram given here, a portion of the previous cascade diagram indicates how the routes to particular computers are formed and addressed.
Each cascade level requires a group letter followed by a two figure final port number, hence the computer marked in red requires a longer address it is at cascade level 3, compared to the blue computer at level 2 with its shorter unique address. A computer connected directly to the AdderView CATx at the top level would simply have a two digit port number.
The group at level 2 is lettered 'A' because it is connected to ports 1, 2, 3 and 4 on the AdderView CATx. If it was connected to ports 5, 6, 7 and 8, then the group letter would be 'B' and the overall address for the red computer would be CB02.
The first time that you make a connection between two AdderView CATx units, the master unit will detect this and ask (via the on screen menu) if you want to automatically add computers. If you choose 'Yes' then the ports on the cascade will be automatically added to the on screen menu.
See also
- Connecting AdderView CATx units in cascade
- Testing specific links to cascaded computers
Connecting AdderView CATx units in cascade
Please consider the following when making cascade connections between AdderView CATx units.
Tips for successful cascading
• The maximum number of levels for a cascade is three.
- The maximum number of computer systems that can be controlled within a cascade installation depends upon the AdderView CATx unit placed at the top level. If the top level unit is a non-IP version, a maximum of 512 computer systems can be controlled. However, if the top level unit is an AdderView CATx IP, the maximum number of computers drops to 128. This is due to the extra burden placed on the unit's memory of administering global (IP) users.
- The number of links between units determines the number of users that can simultaneously access the computers situated further down the tree. Link groups of one and two links should be discouraged.
- Ensure that cascade links (within a group) between units are approximately the same length.
- Triple and quad link groups may be mixed on one unit providing the links lie within the appropriate port boundaries designated in the Group numbering diagram.
- AdderView CATx IP models should only be used at the top level of the cascade tree because they have only two CATx USER PORTS sockets.
- For each cascade link, use a standard category 5, 5e or 6 twisted-pair cable, terminated at each end with an RJ45 connector. There must be no crossover connections within the cable, i.e. do not use patch cables. The cascade link cables can be up to 50m (160 feet) in length. However, remember that the overall length between any remote user (via an X100 extender) and any computer (via a CAM) must not exceed 300m (980 feet) - that figure includes the cascade link cables. Ensure that each of the links within a cascade group all conform to the same length.
- The procedure given opposite may be carried out in any order but for clarity the instruction will begin at the higher level AdderView CATx unit (here called the upper unit), i.e. the one that is being fed into by a unit at the cascade level below (here called the lower unit). The procedure remains the same regardless of exactly which cascade levels are being connected. The basic rule is that each link is made by connecting a COMPUTER CONNECTIONS port of the upper switch to a CATx USER PORTS of the lower switch.
See also
- Testing specific links to cascaded computers
To connect units in cascade
1 Ensure that power is disconnected from the AdderView CATx and all other units to be connected.
2 Connect one end of each cascade link cable to an appropriate COMPUTER CONNECTIONS port on the rear panel of the upper unit. Refer to the Group numbering diagram for the correct link group boundaries.
3 Connect the other end of the cascade link cable to one of the CATx USER PORTS sockets on the rear panel of the lower unit. Due to the way in which ports within a link group are dynamically allocated, it is not usually important exactly which user port is connected to each computer port of the upper unit.
4 Repeat steps 2 and 3 for each of the links within the group, adhering to the Group numbering diagram for the correct link group boundaries on the COMPUTER CONNECTIONS ports of the upper switch.
Once the AdderView CATx units and computers have been connected, you can edit their names to make it much easier to locate them. See the To create/edit computer names section in the Configuration chapter for more details.
Using cascaded computers
In use, cascaded computers can be accessed using exactly the same methods as for those connected directly to the AdderView CATx. However, by far the easiest way is to use the on screen menu. This is because it displays the computer names and does not require any knowledge of port addresses, some of which (as discussed above) can be up to six characters long. See the Selecting cascaded computers section in the Operation chapter for more details.
Testing specific links to cascaded computers
As mentioned previously, the best and most efficient way to access cascaded computers is by using the on screen menu and via non-specific routes through the link groups. However, during configuration or troubleshooting, it may be useful to test specific routes to computers in order to verify the various strands of each link group. By using specific port addresses for each unit, rather than link group numbers, you can precisely navigate a route through any part of the system.
To test a specific link
1 Simultaneously press and hold 📊d . AR
Note: and are the standard hotkeys and can be altered to avoid clashes with other devices or software. If you change the hotkeys, remember to use the new ones in place of and when following these instructions.
2 While still holding and, in sequence, press and release the full address of the required computer – remember to use specific port numbers, not link group addresses, e.g. 061802, not BE02.
3 When the last digit has been entered, release all keys.
Multiple video head connections
Two or more AdderView CATx units can be connected together so that they operate in a synchronised manner. Synchronised operation is useful for applications that require multiple video signals to be switched together. This type of operation is usually required where each computer is fitted with multiple video cards or video cards with multiple video heads. Whenever a AdderView CATx channel is switched, it sends an RS232 command out on its serial interface (marked COM1/UPGRADE on the rear panel). An AdderView CATx will switch its channel if it receives the same command on its serial interface. Consequently, by linking the serial interfaces, a master unit may be made to automatically switch one or more slave units as shown in the diagram. It should be noted that the synchronisation cable deliberately does not have the transmit pin of the Slave End connector linked to the receive pin of the Master End connector. To do so would cause the Slave unit to be able to switch the Master unit. This would setup an endless cyclical switching sequence that would prevent the AdderView CATx devices from operating correctly. For more details about the serial synchronisation cables, see Appendix 7.
note right of A: The local user ports can also be used to view multiple video head installations.
Notes:
It is recommended that the second CAM in each pair is a USB-type and that it is plugged to a vacant USB port on the host computer to derive its power.
Pairs of CAMs can be strapped back-to-back with cable ties to create a tidy installation.
Computers fitted with dual video heads.
Remote switching control
The port switching functions of the AdderView CATx and AdderView CATx IP units can be remotely controlled by an RS232 link to the serial communication port on the rear panel, labelled as COM1/Upgrade.
The sending device must use the following RS232 communication settings:
Baud rate: 19200 bps
Data bits: 8
Parity: None
Stop bits: 1
No handshaking is implemented, however, valid command characters will be echoed back to the sending device.
The value of the byte received via the serial link determines which of the four user ports should be linked through to the 24 host computer ports. Each user port can be individually switched to required ports. The table given here summarises the valid control codes:
Host computer port/channel
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | (24eo off)0 | ||
| User 1 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 1A | 1B | 1C | 1D | 1E | 1F | 60 | 61 | 62 | 63 | 64 | 65 | 66 | 67 | 71 |
| User 2 | 20 | 21 | 22 | 23 | 24 | 25 | 26 | 27 | 28 | 29 | 2A | 2B | 2C | 2D | 2E | 2F | 68 | 69 | 6A | 6B | 6C | 6D | 6E | 6F | 72 |
| User 3 | 30 | 31 | 32 | 33 | 34 | 35 | 36 | 37 | 38 | 39 | 3A | 3B | 3C | 3D | 3E | 3F | 80 | 81 | 82 | 83 | 84 | 85 | 86 | 87 | 73 |
| User 4 | 40 | 41 | 42 | 43 | 44 | 45 | 46 | 47 | 48 | 49 | 4A | 4B | 4C | 4D | 4E | 4F | 88 | 89 | 8A | 8B | 8C | 8D | 8E | 8F | 74 |
Configuration
Almost all configuration and operational aspects of the AdderView CATx units are controlled via on-screen menu displays.
Overall initial configuration
When setting up a new installation, the following stages are recommended:
1 Enable the general 'Security' option.
With security disabled (default setting), all users attached to the AdderView CATx have full and unrestricted access to all computers and all AdderView CATx settings. In larger installations, you are strongly recommended to enable security and set up individual user accounts with access privileges.
2 Create an ADMIN (administration) password.
All AdderView CATx units have a fixed user account that cannot be deleted, named ADMIN. This user account is the only one that is able to make important system changes. If you intend to use security, then it is important to allocate a password to the ADMIN account.
3 Create user accounts and allocate access rights.
Use the ADMIN account to add user profiles, passwords and access rights for each of the system users.
4 Provide names for computers.
When numerous computers are attached, you are strongly advised to provide names for each, to assist with recognition.
5 Compensate video signals to account for link cable lengths
The long cable links that are possible between the AdderView CATx unit and the computers and also to the remote users can affect the quality of the video images displayed. Use the in-built compensation features to eliminate any potential video image degradation.
6 Configure the required 'Setup Options' and 'Global Preferences'
Use the ADMIN account to determine key AdderView CATx settings and timing characteristics.
7 Configure the IP settings
AdderView CATx IP models only. IP models possess a further collection of IP-related configuration options and encryption features that protect the installation from unauthorised global users - ensure that the IP security features are enabled before connecting the AdderView CATx IP unit to the network. The IP settings use the standard ADMIN password.
Configuration menus
The configuration menus allow you to determine many aspects of the AdderView CATx capabilities. From here you can:
• Create individual user accounts and determine access rights,
- Provide names for all connected computers to allow quick recognition,
- Set individual and global settings for users,
• Run various functions, such as mouse restore operation,
- Save and load AdderView CATx configuration settings, and more.
To access the configuration menu (local and remote users)
1 If the main menu is not already displayed, press and hold ceng ngh then press using a keyboard attached to a AdderView CATx user port. The main menu will be displayed:
2 Press ☐ To display the Configuration Menu:
3 Use the 📁 and keys to highlight an option, then press to select.
Hotkeys
Note: and are the standard hotkeys and can be altered to avoid clashes with other devices or software. If you change the hotkeys, remember to use the new ones in place of on and when following the instructions in this guide.
Security
Note: If the security option has been enabled, you will be asked for a valid user name and password before the main menu can be displayed.
IMPORTANT: When supplied, AdderView CATx units have their security features disabled, which means that any attached users have access to all connected computers and all AdderView CATx settings. You are strongly recommended to enable the 'Security' feature and set an access password for the ADMIN account.
To access the configuration menu (global users)
Once the IP settings have been made (and the AdderView CATx IP unit is network connected), global users can access the configuration menu using a different method.
1 Use either the VNC viewer or a standard web browser to make remote contact with the AdderView CATx IP – see Global user access for more details.
2 If the username entry is not blanked out, enter 'admin' or another login username. Then enter the admin password (if no password is set, then just press ⌘Once logged in, the AdderView CATx IP will show the video output from the host system (if one is connected), or otherwise a 'No Signal' message.
3 Click the 'Controls' button and select the 'KVM Switch menu' option. All options appropriate to the entered username will be displayed.
Configuration menus layout
The menu options are arranged as shown here:
For a description of each option within the Configuration menus, see Appendix 1 for more details.
General security and configuration steps
To enable general security
1 Display the Configuration menu.
2 Highlight 'Setup Options' and press
3 Highlight 'Security' and press to select 'ENABLED'.
4 Now create a new password for the ADMIN user account.
To set an ADMIN password
1 Display the Configuration menu.
2 Highlight 'Edit User List' and press
3 Highlight 'ADMIN' and press Press again to accept the name 'ADMIN' without change.
4 Enter an appropriate password for the ADMIN user account with regard to the following:
• The password can be up to 12 characters long.
- The password can use letters, numerals and/or certain punctuation marks.
- The password is not case sensitive.
5 Press The 'Edit Access Rights' menu will be displayed. However, as the ADMIN account always has access to all computers, press again to save the new password.
What to do if the ADMIN password has been forgotten.
To change the hotkeys
AdderView CATx units use [and] as their standard hotkeys. These can be changed if they clash with other software or hardware within the installation.
1 Display the Configuration menu.
2 Highlight 'Setup Options' and press
3 Highlight 'Hotkeys' and press to select the required hotkey combination. The options are: CRTL+ALT, CTRL+SHIFT, ALT+SHIFT, ALT GR, LEFT ALT+RIGHT ALT, LEFT CTRL+LEFT ALT, RIGHT CTRL+RIGHT ALT or DISABLED.
4 Press 📄 to return to the 'Configuration Menu'.
Registering users (edit user list)
To create/edit user accounts
1 Display the Configuration menu. Note: You must be logged-in as the ADMIN user.
2 Highlight 'Edit User List' and press
3 Either:
- Create a new account - Press enter a new user name and press, or
- Edit an existing account - Highlight the required user name and press Edit the name, if appropriate, and/or press
4 Enter or edit the password with regard to the following:
- The password can be up to 12 characters long.
- The password can use letters, numerals and/or certain punctuation marks.
- The password field can remain blank to allow open access to this account.
5 Press 📁 to display the 'Edit Access Rights' menu.
Here you can determine which of the connected computers can be accessed by the selected user account. Only computers that show the '+' marker to the right of the menu box will be accessible to the user account.
Note: The Adder Port Direct feature (which allows interconnected switching units to talk to one another) ensures that users without access rights to particular computers cannot move sideways to those computers via other computers.
Note: Access rights for user accounts to particular computers can also be controlled from the 'Edit Computer List' menu.
6 Select and deselect computers as follows:
- Individual computer - Highlight a computer name, then press apply, or remove, a '+' marker.
- Access to all computers – Press
- Access to no computers – Press F2
7 When all settings have been made, press to save and exit. Press to return to the 'Configuration Menu'.
Registering computers (edit computer list)
To create/edit computer entries
1 Display the Configuration menu. Note: You must be logged-in as the ADMIN user.
2 Highlight 'Edit Computer List' and press
| ADDERVIEW CATx | |
| Edit: Computer List | |
| Computer 1 | 01 |
| Computer 2 | 02 |
| Computer 3 | 03 |
| Computer 4 | 04 |
| Computer 5 | 05 |
| Computer 6 | 06 |
| Computer 7 | 20 |
| Computer 8 | 414203 |
| Ins-Add | Del-Delete |
| F1-Clone | Enter-Edit |
| ↑↓-Select | F3-Find |
| Esc Quit | |
3 Either:
- Create a new computer entry – Press and enter a new name, or
- Edit an existing computer entry – Highlight a computer name and press 📄. Press 📄Backspace) to delete existing characters and enter the required new name (up to 16 characters).
4 Press and the cursor will move to the computer port column on the right side. Change or enter the port address of the computer as required. See the Addressing computers in a cascade section for more details.
5 When the port address is complete, press The 'Edit access rights' menu will be displayed.
Here you can determine which users should have access to the created/ edited computer. Only users that show a '+' marker to the right of the menu box will be granted access to the computer.
Note: The Adder Port Direct feature (which allows interconnected switching units to talk to one another) ensures that users without access rights to particular computers cannot move sideways to those computers via other computers.
Note: Access rights for particular user accounts to computers can also be controlled from the 'Edit User List' menu
6 Select and deselect users as follows:
- Individual user - Highlight a user name, then press to apply, or remove, the '+' marker.
- Allow access for all users – Press F1
- Allow no user access (except ADMIN) – Press
6 When all settings have been made, press to save and exit. Press to return to the 'Configuration Menu'.
Tips when creating/editing computer entries
- Avoid creating two names for the same computer port.
- When cascading to other units, do not apply individual names to any ports that are forming a link group to another switch (i.e. ports 1, 2, 3 & 4 when they form link group 41).
Video compensation
The AdderView CATx units allow computer systems to be placed up to 50m (160 feet) away and remote users to be extended by a maximum of 300m (980 feet). Such long cable lengths can affect video signals, especially when higher screen resolutions are used. In order to eliminate any video signal degradation, all AdderView CATx units and accompanying Adder X100 and X200 extenders provide effective software-based video compensation features.
Two main types of video compensation are provided within the AdderView CATx installation, these are:
- Computer video compensation - operates on video signals between each computer system and the AdderView CATx unit. See Computer video compensation.
- Remote user video compensation - operates on video signals between each remote user(s) and the AdderView CATx unit. See Remote user video compensation for details.
Note: For installations where both computers and remote users require video compensation, always ensure that the computers are compensated first.
- A third type of video compensation is provided by Adder X100AS/R and Adder X200AS/R extender modules only. This type of compensation is called Skew adjustment and combats the effect of uneven twisted pairs within link cables.
See Remote user skew adjustment for details.
It is important to note that, providing the cabling arrangements do not change, the various video compensations need to be applied only once to each computer or remote user link. During operation, control of video compensation is fully automatic. Please take into account the following when configuring links:
- The AdderView CATx stores a video compensation setting for each computer which defines the level of compensation that is applied whenever the computer is selected. This "computer video compensation" setting is to correct for any video clarity loss due to the CATx cable between the AdderView CATx unit and the computer's CAM.
- CATx cables below 10m give very little loss and so it is not normally necessary to be concerned about setting any computer video compensation if short CATx cables are being used between the AdderView CATx and the CAM for each computer.
- "Computer video compensation" may be setup by typing in the cable distance in the OSD or, if very fine video adjustment is desired, by observing the video picture on the local (user 1) port whilst making adjustments.
- If a cascade of switches is being used, computer video compensation only needs to be applied at the master AdderView CATx.
- "Remote user video compensation" compensates for any CATx cable losses introduced by the cable between the X100/X200 and the AdderView CATx. The required video compensation setting does not vary as any "computer video compensation" is automatically added as different computers are selected. This only needs to be setup once during installation.
Computer video compensation
The video compensation for connected computers is achieved using the main menu. Although the compensation can be applied from any local, remote or global user port, it is best achieved using the local user port because this provides the most direct view of the computer output. The compensation is achieved simply by registering the link cable length, however, different cables can vary in their characteristics so it is often useful to 'fine tune' the compensation by eye.
Note: CATx cables below 10m give very little loss and so it is not normally necessary to be concerned about setting any computer video compensation if short CATx cables are being used between the AdderView CATx and the CAM for each computer.
To apply computer video compensation
1 Place a computer (connected via its CAM and category 5, 5e or 6 cable) into the highest resolution video mode at which it will be used.
2 If possible, use a monitor and keyboard connected to the AdderView CATx local user port.
3 Display the AdderView CATx main menu and use it to select the appropriate computer.
Note: You must highlight the computer name and press to select it.
4 Display the AdderView CATx main menu again.
5 Press F2 to access the compensation feature:
6 Use ▶ and ▶ to increase or decrease the stated cable length, as required. Note: As you adjust the Length value, check the video image for signs of under- or over-compensation, especially to the right hand side of any hard vertical edges of images.
7 When the correct compensation has been applied, press ▶do quit the screen and save the settings.
Remote user video compensation
Video compensation for each remote user is provided by their Adder X100 or X200 modules, not by the AdderView CATx unit itself. Using the Adder X100/X200 controls you can adjust the picture sharpness and brightness to improve the remote picture quality.
Note: Accurate remote user compensation relies upon visual feedback from the screen image. It is therefore vital to ensure that the video images being sent out from the AdderView CATx are as 'true' as possible. Ensure, using the local user port, that the video images received from the computers are correctly compensated BEFORE attempting to adjust the remote user(s).
Video compensation is best carried out when viewing high contrast images with vertical edges, such as black lines on a white background. When doing so, if you notice that the screen image is 'fuzzy' or 'dark' then the image controls may not be able to solve this condition.
Note: If the high contrast images exhibit shadows with separate colours, then there may be a skew problem which requires a different image adjustment (provided only by Adder X100ASiR and X200ASiR modules) - see the Remote user skew adjustment section for details.
To display a suitable high contrast image
The best way to clearly view the effect of sharpness and brightness adjustments is to display a high contrast image, with vertical edges, on the screen.
- Open a word processor, type the capital letter 'H', or 'M' and increase the point size to 72 or higher. For best results, the background should be white and the character should be black.
- A BLACK shadow on the right of the character indicates UNDER compensation.
- A WHITE shadow on the right of the character indicates OVER compensation.
Note: The Word processor method is accurate and quick. However, for the very finest video compensation, use the latest Adder "skew" test pattern program which shows both the skew pattern and a section of mixed size Hs (black on white and white on black).
If the image controls cannot provide a crisp image
If, after adjusting the image controls, one or more screen images remain fuzzy or have coloured shadows you may need to use the Skew adjustment feature. Please see Remote user skew adjustment for details (Adder X100AS/R or X200AS/R modules only).
To apply remote user video compensation
1 Ensure that the video image from the computer to be used has been correctly compensated. See Computer video compensation for details.
2 On the remote user keyboard (connected to an Adder X100/X200 extender), simultaneously, press the hotkeys (by default, and) along with to enter configuration mode.
The three keyboard indicators ('Num Lock', 'Caps Lock' and 'Scroll Lock') will now begin to flash in sequence. The speed of the sequence indicates the level of the sharpness adjustment currently applied: the slower the rate, the lower the level of sharpness being applied.
3 While viewing the displayed screen image, use the following keys to adjust the controls:
Sharpness: ↑ ↓ for fine adjustment, ☐ for coarse adjustment.
There are 255 sharpness levels (one coarse step jumps 10 levels). To autoset sharpness: Press F 2 to make the module calculate and apply an automatic compensation level - you can use this as a starting point for your fine tuning. Note: if the monitor goes blank and switches off (due to oversetting the sharpness adjustment) press the Home key to restore.
Brightness: ☐ for adjustment. There are 255 brightness levels.
4 When no shadows are visible and the displayed images have crisp edges, press 10 exit configuration mode and permanently save all settings. The new compensation settings will be stored, even when power is removed or if a complete reset is initiated. These settings should not require further changes unless the cabling arrangements are altered.
Remote user skew adjustment
The category 5, 5e and 6 cabling supported by the AdderView CATx consists of four pairs of wires per cable. Three of these pairs are used to convey red, green and blue video signals to the remote video monitor. Due to the slight difference in
twist rate between these three pairs, the red, green and blue video signals may not arrive at precisely the same time. This is visible as separate colour shadows on high contrast screen images and is particularly apparent when using higher screen resolutions and some types of category 5e cables.
To alleviate this situation, the Adder X100AS/R and X200AS/R modules provide internal skew adjustment that can help to rectify the situation. The skew adjustment works by delaying or advancing the timing of any of the red, green or blue colour signals so that they are all delivered to the monitor at precisely the same time. For best results, the "skew" program downloadable from www.adder.com is the most accurate way of setting skew as the red, green and blue lines are rendered exactly on the screen as single pixel wide lines. The skew.bmp test pattern can also be used but it is less accurate. Alternatively, you can create your own skew pattern using a standard image creation package, as detailed opposite.
To use skew adjustment
1 Display a skew pattern on the appropriate computer. You can either use the free pattern available from www.adder.com or create your own:
To obtain and run the free Adder test pattern generator
1 Visit www.adder.com
2. Click the PRODUCTS heading and then choose Management Software.
3 From the list of software utilities, choose the ADDER Test Pattern Generator option.
4 Click the Downloads tab and choose the ADDER Test Pattern Generator option to download the utility.
5 Unzip the downloaded file and run the TESTpatterns.exe file.
6 Click the SKEW option.
Creating a skew test pattern
i Run any image creation/editing application, such as the Paint program supplied with Windows.
ii Using the image application create three stacked horizontal rectangles (one red, one green and one blue) that fill the width of the screen.
iii Draw a vertical black line down across the coloured bars and then repeat this vertical line at intervals along the width of the coloured bars. These lines create breaks across the colours and give you more opportunities to view the horizontal position of each colour relative to the others.
The three keyboard indicators ('Num Lock', 'Caps Lock' and 'Scroll Lock') will now begin to flash in sequence.

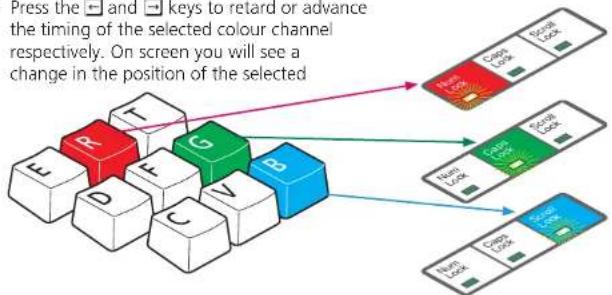

3 As appropriate, press either the R, G or B keyboard keys to select the appropriate colour channel. Corresponding keyboard indicators will flash rapidly to show which channel is
currently selected for adjustment: Num Lock for Red, Caps Lock for Green and Scroll Lock for Blue.
4 Press the ☑ and ☑ keys to retard or advance the timing of the selected colour channel respectively. On screen you will see a change in the position of the selected
colour crosses (or colour bars) in relation to the other two.
5 When the selected colour crosses (or colour bars) are correctly positioned, press to exit that colour channel. The keyboard indicators will return to
flashing in sequence.
6 If required, repeat steps 3 to 5 to select and adjust any colour channel until the vertical lines of the red, green and blue crosses are all aligned.
7 When all colours are correctly aligned on all video channels, press to exit configuration mode and permanently save all settings.
Note: Once you have made the skew adjustments, it may be necessary to re-adjust the image controls to attain optimum screen images.
Autoscanning
The AdderView CATx provides an autoscan mode that switches between the connected computers in sequence. This mode is useful to allow users and administrators to sample activity among the connected machines. Three scanning modes are provided:
- Scan list – Only computers declared within an autoscan list will be viewed. Computers connected to cascaded switches can be included in the autoscan list.
- Active PCs – Only computer ports where an active computer is detected will be viewed. This mode avoids blank screens from being displayed and helps to prevent the viewing monitor from entering a power-down state on every scan cycle. Computers connected to cascaded switches will not be viewed in this mode.
- All PCs – This mode visits, in turn, each computer that is connected directly to the AdderView CATx. This mode should be used with care due to the reasons given in the warning below. Computers connected to cascaded switches will not be viewed in this mode.
The scanning mode is a global setting and hence will be the one viewed by any user who selects _ch_ on their keyboard. Note, however, that users will only see the scanned computers to which they have access rights. Hence, if two users (with various access rights) simultaneously view an autoscan, they will see differing results depending upon their respective permissions.
WARNING: Many monitors are fitted with automatic power saving relays that switch off after a few seconds when connected to an inactive computer. If you are using such a monitor, do not set the AdderView CATx to the scan 'ALL PCs' mode. Continual switching on and off of the monitor's relay will eventually damage the monitor. If using such a monitor in conjunction with the 'Scan List' option, ensure that all selected computers are active.
There are up to three steps that need to be configured to use autoscanning →
- Select the autoscan mode: Scan List, Active PCs or All PCs.
- Select the autoscan period. This is the time that is spent viewing each computer. This step also enables and disables the autoscan feature.
- Define the autoscan list. This step is only required when the Scan List option is selected and allows you to select which computers will be scanned.
To select an autoscan mode
1 Display the Configuration menu. Note: You must be logged-in as the ADMIN user.
2 Highlight 'Global Preferences' and press
3 Highlight 'Autoscan Mode' and press [and] the required option is displayed: SCAN LIST, ACTIVE PCs or ALL PCs.
To select an autoscan period
1 Display the Configuration menu. Note: You must be logged-in as the ADMIN user.
2 Highlight 'Global Preferences' and press
3 Highlight 'Autoscan Period' and press [and] the required time to view each computer is displayed, ranging from 2 seconds to 5 minutes.
To define an autoscan list
Note: This stage is required only when the 'Scan List' autoscan mode is selected.
1 Display the Configuration menu. Note: You must be logged-in as the ADMIN user.
2 Highlight 'Edit Autoscan List' and press, A list of all connected computers will be displayed. Only computers that show a '+' marker to the right of the menu box will be autoscanned.
3 Select and deselect computers to scan as follows:
- Individual computer - Highlight a computer name, then press apply, or remove, the '+' marker.
- Mark all computers for scanning – Press
- Unmark all computers – Press F2
4 When all settings have been made, press to save and exit. Press to return to the 'Configuration Menu'.
To view autoscan
- At one of the user ports, press Ctrl Alt A
Note: and are the standard hotkeys and can be altered to avoid clashes with other devices or software. If you change the hotkeys, remember to use the new ones in place of and when following these instructions.
Saving and restoring configuration settings
The AdderView CATx can store up to 512 computer names and 16 sets of user access rights (AdderView CATx IP models support a maximum of 128 computers). Particularly in cascaded configurations, manually re-entering all computer names, port numbers and access rights can be a lengthy process. Therefore, the AdderView CATx provides a method to save and, if required, restore configuration settings using one of its serial ports. Further to this, the saved file can be opened and edited within a text editor or spreadsheet and then restored back to the AdderView CATx – a useful way to make multiple setup changes.
Note: You must be logged-in as the ADMIN user for this procedure.
Preparations for configuration save/load

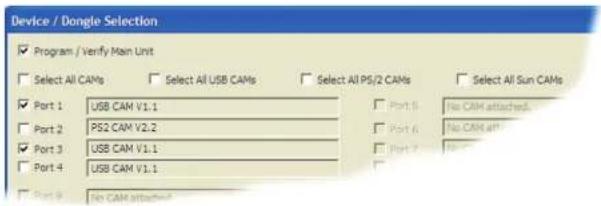

- Download the Adder Data Transfer utility - contact Adder Technical Support for details.
- Connect the serial port on the rear panel of the AdderView CATx, labelled COM1/UPGRADE, to a serial port on your computer using the supplied serial flash upgrade cable. See Appendix 7 for pin-out specifications.
To transfer configuration settings
1 Run the Adder Data Transfer utility on the computer that is connected to the AdderView CATx's serial port. The utility has a single window:
2 Click the Configuration button and ensure that the appropriate serial port of the computer is selected.
3 Click the Browse... button to locate or create a text file that will either provide or receive the AdderView CATx data.
4 Choose the direction of data flow:
- Click the Unit to File button to download the existing AdderView CATx configuration to the selected text file, or
- Click the File to Unit button to upload the contents of the file to the AdderView CATx unit.
A pop-up dialog box will request you to set-up the unit to either send or receive RS232 data.
5 Using the local port of the AdderView CATx unit, display the Configuration menu. Note: You must be logged-in as the ADMIN user.
6 Select the 'Functions' option.
7 Select either 'Send Data to RS232 port' (if you chose the Unit to File button) or 'Read Data from RS232 port' (if you chose the File to Unit button).
8 On the computer, click the OK button of the pop-up dialog box to begin downloading or uploading. The process will end automatically when all data have been transferred.
Note: For AdderView CATx IP models, the usernames and passwords are not retrieved by the Adder Data Transfer utility due to security reasons.
continued
To edit the configuration settings
The saved text file can be opened using either a basic text editor or a spreadsheet program. The format of a typical file is shown opposite.
Each entry within the Users section relates to a corresponding entry within the Passwords section and also a column within each row of the Computers section.
Hints for editing
- To grant a user access to a computer, enter the value '1' in the column of the Computers section that relates to the position of the user's name entry, e.g. third name down in the User section = third column along after the computer's port address (in the Computers section).
- To deny a user access to a computer, remove the value '1' from the column of the Computers section that relates to the position of the user's name entry.
- The ADMIN user will always be granted access to all computers regardless of the values entered.
![Computers. [Main ] 00000001 ,1 ,1,1 , . . . . . . . . . Computer name Computer port number User access rights Admin, Roger and Pete are permitted to access this computer - where there is not a '1', the corresponding user is not permitted to access this computer.](/content/2026/05/901929/images/cdcd15d2c3d0c78eb53766f523340f6e2b1a6f7377b5b5e6260b1a27f8770459.jpg)
What to do if the ADMIN password has been forgotten
If the ADMIN password becomes mislaid or forgotten, you will not be able to assess the AdlerView CATx to add or edit users and computer names.
This situation may be resolved by performing a complete reset to return the AdderView CATx or CATx IP to its factory default state.
IMPORTANT: A complete reset erases all the user names and computer names that you have setup.
Slightly different procedures are used to reset the AdderView CATx and the AdderView CATx IP, as detailed here.
To reset AdderView CATx models
1 Remove all power inputs from the AdderView CATx unit.
2 Move switch 3 on the rear panel down to the ON position.
3 Press and hold the front panel USER and COMPUTER buttons while you re-apply power. On the local user port, a screen menu will indicate that the unit has been reset and will prompt you to power down and return the switch to its normal position.
4 As directed, remove power and move switch 3 up to its OFF position.
5 Power up and configure the unit in the normal manner.
To reset the AdderView CATx IP models
1 Remove all power inputs from the AdderView CATx IP unit.
2 Move switch 2 on the rear panel down to the ON position.
3 Re-apply power to the unit. On the local user port, a screen menu will provide two options.
4 Using the local keyboard or mouse, select the 'Reset Configuration' option. A warning screen will be displayed, select the RESET option and press. The unit will reset and then prompt you to work through the initial IP configuration screens.
5 After you have completed the initial IP configuration, remove power and move switch 2 up to its OFF position.
Hot plugging and mouse restoration
It is strongly recommended that you switch off a computer before attempting to connect it to the AdderView CATx. However, if this is not possible then you need to 'hot plug' the computer while it is still running. There is not normally a danger of damage to the computer, however, when mouse communications are interrupted, often they fail to re-initialise when reconnected. The AdderView CATx provides a feature to reinstate mouse communications once the necessary connections have been made.
There are two main types of data formats used by current PC mice, these are the older 'PS/2' or 'standard mouse' format and the more recent 'IntelliMouse' ^a format introduced by Microsoft. These use slightly different data arrangements and it is important to know which type was being used before you hot-plugged the computer to the AdderView CATx. The previous setting depends both on the type of mouse and the type of driver, as various combinations of PS/2 and IntelliMouse are possible. Using the incorrect restore function may produce unpredictable results and require the computer to be re-booted.
Which restore setting do I use?
The general rule is that unless both the mouse and the driver are both IntelliMouse compatible then you need to restore the mouse as 'PS/2'. An IntelliMouse can operate in either mode, whereas a PS/2 mouse cannot.
Recognising an IntelliMouse-style mouse
The IntelliMouse format was introduced to support, among other features, the scroll wheel function. If the mouse has a scroll wheel, then it is likely to support the IntelliMouse format. If it is a Microsoft-branded mouse, then it will usually state that it is an IntelliMouse on its underside label.
Recognising an IntelliMouse driver
Before hot plugging to the AdderView CATx (or afterwards using only keyboard control), access the Windows Control Panel of the computer and select either the Mouse option (on Windows NT, 2000 and XP) or the System option (on Windows 95, 98, ME). Look for the name of the driver, which will usually include the words PS/2 or IntelliMouse.
To restore mouse operation when hot plugging:
1 Using a suitable CAM (Computer Access Module) and category 5, 5e or 6 link cabling, carefully make the connections between the keyboard, monitor, mouse (and audio) sockets of the computer and the required AdderView CATx port.
2 Select the port of the newly connected computer and then display the Configuration menu.
3 Highlight 'Functions' and press
4 As appropriate, highlight one of the following options:
- Restore Standard Mouse – if PS/2 mode is required, or
- Restore IntelliMouse – if IntelliMouse mode is required.
Then press .
5 Move the mouse a short distance and check for appropriate on-screen cursor movement. If the mouse cursor darts erratically around the screen, then cease moving the mouse. This is an indication that the chosen restore function is incorrect. Try again using the other restore function.
Note: The restore functions predict the likely mouse resolution settings but may not restore the exact speed or sensitivity settings that were originally set.
Initial IP configuration
IP models of the AdderView CATx family possess a further collection of configuration options related specifically to IP networking. It is important that the options are correctly set up for your installation BEFORE being connected to an open IP network.
To configure IP-specific settings
1 From a local user port (for security reasons, the IP configuration option cannot be accessed from remote user ports), log on as 'admin' user.
2 Press ☐☐ ☐☐ ☐ (hotkeys can be changed).
3 Press F1 to select 'More menus'.
4 Select 'Functions' and then select 'Configure IP port'.
- If the unit has been reset, it will display the first of five screens, as shown opposite
- If the unit has been previously IP-configured it will display the IP Configuration menu, as shown below ↓

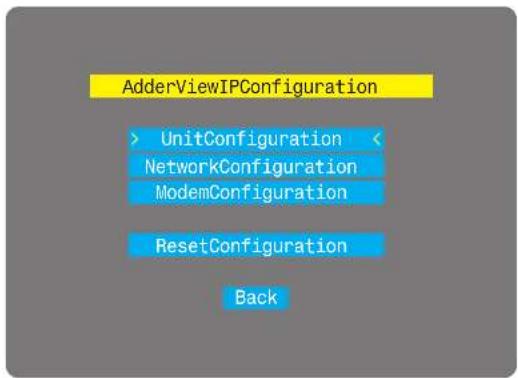

See Configure IP port for details.
Note: Screen 5 of 5 is displayed while the secure keys are being generated.
To use the initial IP-configuration sequence
Set the options in each screen and then select Next to proceed.
Admin password
Enter a password of at least six characters that has a mix of letters and numerals. The background colour provides an indication of password suitability and is initially red to indicate that the password is not sufficient. When a password with reasonable strength has been entered it will change to green.
Time and Date
Set these correctly as all entries in the activity log are time stamped using them.
Encryption
See Encryption settings for a description of the issues and the settings.
Use DHCP/IP address/Net Mask/Gateway
You need to either set the DHCP option to 'Yes' or manually enter a valid IP address, Net mask and Gateway. See Networking issues for more details.
VNC and HTTP ports
These should remain set to 5900 and 80, respectively, unless they clash with an existing setup within the network. See Networking issues for more details.
Modem/ISDN port details
The default items here are perfectly adequate for the majority of modem and ISDN terminal adapter installations.
The Server IP and Client IP addresses are used to form an isolated two-device PPP network connection via the dial up link. Their settings are not related to any other 'real' network settings within the AdderView CATx IP unit.
Secure keys generation
With every mouse move and keypress, the single dash will move across the screen (unless the same key is pressed repeatedly). Periodically, a new star character will be added to the bar as the random data are accepted as part of the new encryption key. When the bar is full, the final encryption keys for your AdderView CATx IP will be created – this process takes roughly 30 to 40 seconds. Once the secure keys have been calculated the AdderView CATx IP will show the IP configuration menu.
IP configuration by global user
Once the basic IP-related features have been configured using the AdderView CATx IP configuration menus, further changes can be made by authorised global users via the VNC interface. There are two main ways to use the VNC interface to access the AdderView CATx IP unit:
- The VNC viewer – a small application supplied on the CD-ROM or downloadable from the Adder and RealVNC websites or even downloadable from the AdderView CATx IP itself.
or - A standard browser that supports Java – When a web browser makes contact, the AdderView CATx IP provides the option to download a Java application to it. This allows a viewer window to be opened and operation to commence just as it would with the VNC viewer application.
To configure IP details from a global user location
1 Use either the VNC viewer or a standard web browser to make remote contact with the AdderView CATx IP – see Global user connections for more details.
2 If the username entry is not blanked out, enter 'admin'. Then enter the admin password (if no password is set, then just press). Once logged in, the AdderView CATx IP will show the video output from the host system (if one is connected), or otherwise a 'No Signal' message.
3 Click the Configure button in the top right hand corner of the window to display the main configuration page ↓
User Accounts
Allows you to create and manage up to sixteen separate user accounts, each with separate access permissions.
Unit Configuration
Allows you to alter both basic and fundamental settings within the AdderView CATx IP.
Time & Date Configuration
Allows you to configure all aspects relating to time keeping within the AdderView CATx IP unit.
Network Configuration
Here you can alter any of the existing network settings plus you can take advantage of the IP access control feature that lets you to specifically include or exclude certain addresses or networks.
Serial Port Configuration
Lets you setup or alter the details concerning the modem and power control serial ports.
Host Configuration
Allows you to configure user access, hot key switching and power control codes for up to 128 host systems that may be connected to the AdderView CATx IP via other cascaded units.
Logging and Status
Provides various details about the user activity on the AdderView CATx IP.
For more information about each page, please see Appendix 2 - Configuration pages via viewer in the 'Further information' chapter.
Shaded items signify options that are not available via the standard configuration menus.
Encryption settings
The AdderView CATx IP offers a great deal of flexibility in its configuration and this extends equally to its encryption settings that are used to prevent unauthorised interception of signals. Due to the variety of situations in which the AdderView CATx IP might be used and the range of viewer applications that need to view it, a number of settings are available. The encryption settings to use depend upon how the potential global users will operate.
Important factors to consider when setting these options might be:
- Do all global user connections and operations require encryption?
- Will some global users be using older VNC viewer versions?
AdderView CATx IP encryption settings
The AdderView CATx IP configuration menu offers three encryption settings:
- Always on - This setting will force all viewers to use encryption. Note: This setting will preclude any VNC viewer versions that do not support encryption.
- Prefer off - This setting does not enforce encryption unless a viewer specifically requests it. If a viewer has its 'Let server choose' setting, then an un-encrypted link will be set up.
- Prefer on - This setting generally enforces encryption unless an earlier viewer version is unable to support it, in which case the link will be unencrypted. If a viewer has its 'Let server choose' setting, then the link will be encrypted.
Viewer encryption settings
The web browser viewers and VNC viewers (of level 4.0b5S or higher) offer four encryption settings:
- Always on - This setting will ensure that the link is encrypted, regardless of the AdderView CATx IP encryption setting.
- Let server choose - This setting will follow the configuration of the AdderView CATx IP. If the AdderView CATx IP has 'Always on' or 'Prefer on' set, then the link will be encrypted. If the 'Prefer off' setting is selected at the AdderView CATx IP, then the link will not be encrypted.
- Prefer off - This setting will configure an un-encrypted link if the AdderView CATx IP will allow it, otherwise it will be encrypted.
- Prefer on - If the AdderView CATx IP allows it, this setting will configure an encrypted link, otherwise it will be un-encrypted.
Networking issues
Thanks to its robust security the AdderView CATx IP offers you great flexibility in how it integrates into an existing network structure. The AdderView CATx IP is designed to reside either on an internal network, behind a firewall/router or alternatively with its own direct Internet connection.
Positioning AdderView CATx IP in the network
Every network setup is different and great care needs to be taken when introducing a powerful device such as the AdderView CATx IP into an existing configuration. A common cause of potential problems can be in clashes with firewall configurations. For this reason the AdderView CATx IP is designed to be intelligent, flexible and secure. With the minimum of effort it can reside either behind the firewall or alongside with its own separate Internet connection.
IMPORTANT: When the AdderView CATx IP is accessible from the public Internet or dial up connection, you must ensure that sufficient security measures are employed.
Placing AdderView CATx IP behind a router or firewall
A possible point of contention between the AdderView CATx IP and a firewall can occasionally arise over the use of IP ports. Every port through the firewall represents a potential point of attack from outside and so it is advisable to minimise the number of open ports. The AdderView CATx IP usually uses two separate port numbers, however, these are easily changeable and can even be combined into a single port.
IMPORTANT: The correct configuration of routers and firewalls requires advanced networking skills and intimate knowledge of the particular network. Adder Technology cannot provide specific advice on how to configure your network devices and strongly recommend that such tasks are carried out by a qualified professional.
Port settings
As standard, the AdderView CATx IP uses two ports to support its two types of viewer:
- Port 80 for users making contact with a web browser, and
- Port 5900 for those using the VNC viewer.
When these port numbers are used, VNC viewers and web browsers will locate the AdderView CATx IP correctly using only its network address. The firewall/router must be informed to transfer any traffic requesting these port numbers through to the AdderView CATx IP.
When a web server is also on the local network
Port 80 is the standard port used by web (HTTP) servers. If the AdderView CATx IP is situated within a local network that also includes a web server or any other device serving port 80 then, if you want to use the web browser interface from outside the local network environment, the HTTP port number of the AdderView CATx IP may need to be changed.
When you change the HTTP port to anything other than 80, then each remote browser user will need to specify the port address as well as the IP address. For instance, if you set the HTTP port to '8000' and the IP address is '192.168.47.10' then browser users will need to enter:
http://192.168.47.10:8000
(Note the single colon that separates the IP address and the port number). The firewall/router would also need to be informed to transfer all traffic to the new port number through to the AdderView CATx IP.
If you need to change the VNC port number
If you change the VNC port to anything other than 5900, then each VNC viewer user will need to specify the port address as well as the IP address. For instance, if you set the VNC port to '11590' and the IP address is '192.168.47.10' then VNC viewer users will need to enter:
192.168.47.10::11590
(Note the double colons that separate the IP address and port number).
The firewall/router would also need to be informed to transfer all traffic to the new port number through to the AdderView CATx IP.
Addressing
When the AdderView CATx IP is situated within the local network, you will need to give it an appropriate local IP address, IP network mask and default gateway. This is achieved most easily using the DHCP server option which will apply these details automatically. If a DHCP server is not available on the network, then these details need to be applied manually in accordance with the network administrator.
The firewall/router must then be informed to route incoming requests to port 5900 or port 80 (if available) through to the local address being used by the AdderView CATx IP.
To discover a DHCP-allocated IP address
Once a DHCP server has allocated an IP address, you will need to know it in order to access the AdderView CATx IP via a network connection. To discover the allocated IP address:
1 In network section of either the standard configuration menus or the configuration pages via viewer, set the 'Use DHCP' option to 'Yes' and select 'Save'. Once the page is saved, the AdderView CATx IP will contact the DHCP server and obtain a new address.
2 Re-enter the same 'Network configuration' screen where the new IP address and network mask should be displayed.
DNS addressing
As with any other network device, you can arrange for your AdderView CATx IP to be accessible using a name, rather than an IP address. This can be achieved in two main ways:
- For small networks that do not have a DNS (Domain Name System) server, edit the 'hosts' files on the appropriate remote systems. Using the hosts file, you can manually link the AdderView CATx IP address to the required name.
- For larger networks, declare the IP address and required name to the DNS server of your local network.
The actual steps required to achieve either of these options are beyond the scope of this document.
Placing AdderView CATx IP alongside the firewall
AdderView CATx IP is built from the ground-up to be secure. It employs a sophisticated 128bit public/private key system that has been rigorously analysed and found to be highly secure (a security white paper is available upon request from Adder Technology Ltd). Therefore, you can position the AdderView CATx IP alongside the firewall and control hosts that are also IP connected within the local network.
IMPORTANT: If you make the AdderView CATx IP accessible from the public Internet or from a modem, care should be taken to ensure that the maximum security available is activated. You are strongly advised to enable encryption and use a strong password. Security may be further improved by restricting client IP addresses, using a non-standard port number for access or limiting remote access to dial up connections only.
Ensuring sufficient security
The security capabilities offered by the AdderView CATx IP are only truly effective when they are correctly used. An open or weak password or unencrypted link can cause security loopholes and opportunities for potential intruders. For network links in general and direct Internet connections in particular, you should carefully consider and implement the following:
- Ensure that encryption is enabled.
By standard configuration menu or by configuration page via viewer. - Ensure that you have selected secure passwords with at least 8 characters and a mixture of upper and lower case and numeric characters. By configuration page via viewer.
- Reserve the admin password for administration use only and use a non-admin user profile for day-to-day access.
- Use the latest Secure VNC viewer (this has more in-built security than is available with the Java viewer). To download the viewer.
• Use non-standard port numbers. - Restrict the range of IP addresses that are allowed to access the AdderView CATx IP to only those that you will need to use. To restrict IP access.
- Do NOT Force VNC protocol 3.3. Configuration page via viewer
- Add a further level of inherent security by restricting access only via modem or ISDN dialup.
- Ensure that the computer accessing the AdderView CATx IP is clean of viruses and spyware and has up-to-date firewall and anti-virus software loaded that is appropriately configured.
- Avoid accessing the AdderView CATx IP from public computers.
Security can be further improved by using the following suggestions:
- Place the AdderView CATx IP behind a firewall and use the port numbers to route the VNC network traffic to an internal IP address.
- Review the activity log from time to time to check for unauthorised use.
- Lock your server consoles after they have been used.
A security white paper that gives further details is available upon request from Adder Technology Limited.
Ports
In this configuration there should be no constraints on the port numbers because the AdderView CATx IP will probably be the only device at that IP address. Therefore, maintain the HTTP port as 80 and the VNC port as 5900.
Addressing
When the AdderView CATx IP is situated alongside the firewall, it will require a public static IP address (i.e. one provided by your Internet service provider). More addressing information:
Discover DHCP-allocated addresses
DNS addressing
Power switching configuration
Power switch configuration comprises two main steps:
- Configure the POWER CONTROL serial port to the same speed as used by the power switch box(es), either via configuration menu or via configuration page.
- Configure power ON and OFF strings for each relevant host computer. For each power port there needs to be a valid 'Power ON string' and similarly an appropriate 'Power OFF string'. In each case, the strings are a short sequence of characters that combine a port address and a power on or off value.
If a particular computer has more than one power input (and thus requires an equivalent number of power ports to control them), collections of strings can be combined to switch all of the required ports together as a group.
To configure the power sequences for each host computer
1 Using VNC viewer or a browser, log on as the 'admin' user.
2 Click the 'Configure' button in the top right corner.
3 Click the 'Host configuration' option.
4 Click a host entry to display a Host configuration dialog:
5 If necessary, configure other parameters (Name, Users, Hot Keys - MORE).
6 Enter the Power control sequences in the Power On and Power Off fields ⇒
7 Click OK to close the dialog and then click the Save button in the main Host Configuration window to store the details.
Power control sequences
Note: The settings given below are an example. Actual power switches may require different settings. Please refer to your power switch documentation for details about codes required by other power switches.
The structure of each power sequence (OFF and ON) is as follows:
$$ P x y = z \backslash 0 D $$
Where:
x is the switch box number,
y is the power port number,
z is '0' for OFF or '1' for ON, and
0D represents Enter (or Carriage return).
Example 1
To switch ON port 5 of switch box 2, the code would be as follows:
• Power sequence: P25=1\0D
Example 2
To switch OFF port 8 of switch box 3, the code would be as follows:
• Power sequence: P38=0\0D
For details about operating this feature, see Power switching (via configuration menu) or Power switching (via viewer) within the Operation chapter.
To control two or more ports simultaneously
You can control up to four power ports using a single sequence. This is done using the same command structure as shown above, plus a delay command, for each port. Immediately following a port command, insert the characters
^* before the next port command, and so on up to four ports. For instance, to switch on ports 1 and 2 in the first power switch, the command line would be:
P11=1\0D*P12=1\0D
The KVMADMIN utility
Particularly useful for complex AdderView CATx IP configurations and the control of remote installations, KVMADMIN is a powerful administration tool. KVMADMIN is based upon the successful VNC viewer and uses the same security system. Rather than a graphical interface such as the standard viewer, KVMADMIN uses command line control to provide the following administration facilities:
- Discover and adjust the AdderView CATx IP configuration, including host systems,
- Save and restore the AdderView CATx IP configuration,
- Set user names and passwords,
- Download the event log,
- Set custom video modes.
The use of KVMADMIN is strictly limited to the 'admin' user and for security purposes it is not possible to retrieve user names or passwords from the AdderView CATx IP.
To use KVMADMIN you require the IP address and admin password of the AdderView CATx IP unit. The command line is as follows:
kvmadmin
where
- -setconfig
- -getconfig
- -setusers
- -getlog
- -gethosts
- -sethosts
- -setmodes
For instance, the command line:
kvmadmin -getconfig kvm1.cfg 192.168.2.1
... downloads the current configuration from the AdderView CATx IP unit at the given address and stores it in the local file kvm1.cfg.
Whereas the command line:
kvmadmin -setusers users.csv 192.168.2.1
... configures the usernames and passwords for the same unit from the local file users.csv.
For more information about KVMADMIN, please refer to the user notes supplied with the utility.
Performing upgrades
The AdderView CATx and CATx IP units are fully reconfigurable via flash upgrades, as are the individual Computer Access Modules that are used to link all host computers. The AdderView CATx IP models operate in a slightly different manner to the non-IP models and so are upgraded differently:
- AdderView CATx models and Computer Access Modules require a Windows-based computer system to be linked via the COM1/UPGRADE port.
- AdderView CATx IP models are upgraded via IP link and require a network-connected Windows-based computer system.
Upgrading AdderView CATx models and CAMs
The KVM Firmware Uploader utility is available from the Adder Technology website (www.adder.com) and allows you to check the current revision of the AdderView CATx unit firmware as well as every Computer Access Module connected to it.
Items required to use the upgrade utility
- Supplied serial upgrade cable (see Appendix 7 for pin-out specifications).
- A Windows-based upgrade computer with an RS232 serial port.
- The latest version of the KVM Firmware Uploader and firmware files for the AdderView CATx - available from the Technical Support > Firmware Updates section of the Adder Technology website (www. adder.com).
To use the KVM Firmware Uploader utility
1 - Obtain and run the KVM Firmware Uploader.
Download the latest AdderView CATx KVM Firmware Uploader from the Adder Technology website and install it on a Windows-based upgrade computer that will be connected to the AdderView CATx unit. The files are supplied as a compressed ZIP file. Decompress the ZIP file with an appropriate tool such as WinZip (www.winzip.com) and copy all contained files to the same folder on the upgrade computer.
2 - Power off the AdderView CATx and select flash upgrade mode
Remove the power supply plug(s) from the rear panel of the AdderView CATx and move option switch 1 on the back of the AdderView CATx to the ON position (down).
3 - Connect the upgrade computer to the AdderView CATx
Connect the upgrade computer to the COM1/UPGRADE port on the rear panel of the AdderView CATx unit using the supplied upgrade cable. You do not need to set the serial baud rate and protocol because the upgrade program will do this automatically.
4 - Power on the AdderView CATx
Attach the power adapter to the AdderView CATx. The USER display should now show which indicates that the AdderView CATx is ready to be upgraded.
5 - Run the KVM Firmware Uploader utility
From that folder, select the KVMUploader icon to run the upgrade utility. The KVM Firmware Uploader dialog will be displayed:
6 - Query the AdderView CATx unit
Click the Query Unit button to confirm that communication is possible with the AdderView CATx and to establish the firmware details of the main unit and all connected CAMs.
Note: The computer to which each CAM is connected must be powered before the respective CAM can be accessed.
Note: AdderView CATx units in lower levels of cascade links (and their respective CAMs) cannot be queried or upgraded while remaining in the cascade arrangement.
If the application cannot contact the AdderView CATx, re-check the connection cable and click the Advanced... button to check that the correct serial port is being used. Change the serial port within the Advanced section, if necessary.
The results of the unit query will be displayed in the Device/Dongle Selection dialog:
The type and firmware revision of each discovered CAM will be displayed alongside the port number to which it is connected.
7 - Select the items to be upgraded
Using the Device/Dongle Selection dialog you can determine which items should receive a firmware upgrade:
- Use the Program / Verify Main Unit option to include or exclude the AdderView CATx unit itself.
- Use the Select All CAMs option to upgrade every discovered CAM.
- Use the Select All USB / PS2 / Sun CAMs options to upgrade only CAMs of a certain type.
- Use the individual port options to select particular CAM devices to upgrade.
When the required options have been selected, click OK.
Note: Approximate upgrade times are: AdderView CATx unit = 4½ minutes; each selected CAM = 20 seconds.
8 - Select the upgrade file to be used
From the main KVM Firmware Uploader dialog, click the Browse... button and select the upgrade file that is appropriate to your AdderView CATx unit: AdderView CATx 16 port: AD_CAT16.TXT
AdderView CATx IP 16 port: AD_IP16.TXT
AdderView CATx 24 port: AD_CAT24.TXT
AdderView CATx IP 24 port: AD_IP24.TXT
The upgrade file details will be displayed within the dialog.
IMPORTANT: Check that the 'Intended Target Units' field matches the 'Unit Connected' field. If these fields do not match then you may have an incorrect upgrade file, check with Adder Technology Ltd before proceeding. Check also that the 'New firmware version' is greater than the 'Current firmware version'.
9 - Commence the upgrade
To begin the upgrade process, click the Upload Now button. The progress will be shown within the dialog. Should you decide not to continue with the upload at any stage, click the Abort button; response to this is usually immediate, however, during an erase command, the upload will not be aborted until the erase is complete (this may take a few seconds).
10 - Change option switch 1 to the OFF position and cycle the power
Click switch 1 on the rear of the AdderView CATx to the OFF position and disconnect the power. When the power is re-applied the AdderView CATx will operate using the new firmware.
Issues to consider when performing flash upgrades
The upgrade program rewrites the AdderView CATx firmware code. If the upgrade process is interrupted then the AdderView CATx will have invalid code and will not be able to operate. It is therefore good practice to ensure that the upgrade process is always fully completed. A partial or failed upgrade may be rectified by performing another upgrade. If the upgrade process is interrupted accidentally then you should immediately repeat the upgrade process without moving switch 1 from the upgrade (ON) position. Switch 1 forces the AdderView CATx into flash upgrade mode and prevents the upgraded code from being run. Running faulty or partially upgraded code may have unpredictable results and may damage your AdderView CATx or computing equipment.
WARNING: Running faulty or partially upgraded code may have unpredictable results and may damage your AdderView CATx or computing equipment.
Upgrading AdderView CATx IP models
The AdderView CATx IP models are upgraded via global connection (through the IP network port). Upgrades are digitally signed by Adder using a secure key. This prevents unauthorised or altered firmware images being downloaded into the AdderView CATx IP.
To upgrade AdderView CATx IP models
1 Download the latest firmware revision for the AdderView CATx IP from the Adder website and decompress the download file. View the decompressed files and make a note of the name and location of the .bin file that was part of the download file collection.
2 Make a global connection to the AdderView CATx IP unit and login as the admin user.
2 Once logged in, click the Configure button in the top right corner of the window.
3 Click the Unit Configuration button.
4 Click the Advanced Unit Configuration button.
5 Click the Upgrade Firmware button. The following dialog will be displayed:
6 Click OK. The AdderView CATx IP is now ready to accept the upgrade files. Open your browser and log into the AdderView CATx IP using the IP address that was confirmed in the dialog. Once connected, the AdderView CATx IP will offer the following screen:
7 Click the Browse button and locate the .bin upgrade file that you downloaded earlier. The AdderView CATx IP will show the following screen:
8 Select which portion of the AdderView CATx IP that you wish to upgrade. Tick both options to upgrade the complete unit. When ready, click the Perform upgrade button.
The upgrade will take place and its progress will be shown on screen.
Operation
The front panel controls
AdderView CATx models
AdderView CATx IP models
• VNC Indicates that a global user is connected and active.
• 100 Indicates the Ethernet network speed (10/100Mbs).
• DAT Network activity indication.
• LNK Network link present
- AUX Auxiliary power input indicator.
COMPUTER button and numeric indicator
These items allow you to select any one of the AdderView CATx computer ports. As you press the COMPUTER button, the adjacent number will increment to the next available computer channel. The computer port selected will then be connected to the current user port.
USER button and numeric indicator
These items allow you to select any one of the AdderView CATx user ports. As you press the USER button, the adjacent number will increment to the next available user port. At the same time, as each user port number is displayed, the computer channel that is currently associated with that port will be indicated by the COMPUTER indicator.
Accessing the AdderView CATx
The AdderView CATx and CATx IP offer three main ways to gain access:
- Local user access,
- Remote user access via an X100/X200 extender, or
• Global user access via IP network link or direct dial up.
Local and remote user access
Local users (directly connected) and remote users (via an Adder X100/X200 extender) gain access to the AdderView CATx unit in exactly the same way. Global users, linking via a special viewer, are handled in a different manner.
To gain access as a local or remote user:
1 From a local or remote keyboard, press any key to display the login prompt:
If the above login prompt is not displayed, you are either already logged in to the AdderView CATx unit, or the security features have not been implemented. In such cases see 'To view this menu at any time' below.
2 Enter your username and password. Providing you have the correct permissions, the screen will display the main menu, showing you a list of computers for which you have permission to access:
To view this menu at any time: Press and hold the hotkeys (usually 📊d ), 📄 then press 📋nd finally release all three keys.
Note: The and keys when pressed in combination are called 'hotkeys' and they signal to the AdderView CATx that you wish to control it, rather than the host computer. However, if these particular hotkeys clash with another device or program, then your administrator may change them to a different combination. If the Cm combination fails to work, then please contact your system administrator for details.
Selecting a computer
There are four main ways for local and remote users to select a specific computer channel:
- Using the front panel controls (discussed below) – this is a straightforward method, if the AdderView CATx is nearby.
- Using hotkeys – this is a good method if you continually access a small number of computers.
- Using the on-screen menu – this is the best method when there are many connected computers.
- Using mouse buttons – this is a good method for cycling between a small number of computers.
For all methods (if the confirmation box option is enabled), when the required port is selected, a pop up message will be displayed to confirm the computer name or number, and its status. Alternatively, an error message explaining why a connection is not possible (press ☐b cancel the latter type of message).
To avoid the 'hall of mirrors' effect
IMPORTANT: Never configure a system so that your viewer is viewing itself. When controlling a host computer via the local user port or a remote user port, if the host computer is networked it is possible to make the VNC viewer or a browser to create a link back to itself via the global (IP) capabilities of the unit. This will set up a 'hall of mirrors' effect, where the computer is viewing itself into infinity.
While technically possible, the AdderView CATx IP unit is not designed to withstand this treatment and could sustain damage.
To select a computer using the front panel controls
Note: It is possible for the front panel controls to be limited to selecting only the on screen menu or a blank screen. If this is the case please use a different switching method or contact your system administrator for details.
1 Press the USER button until the adjacent numeric indicator displays the port number to which you are connected.
2 Press the COMPUTER button until the adjacent numeric indicator shows the required computer channel number.
Note: If security has been enabled then only computer channels to which the current user port has permission will be displayed.
As well as the 16 (or 24) standard computer ports, there are also two additional special ports that appear after the last port, either 16 or 24:
This port provides no video signal so that a connected power saving monitor will be prompted to enter into its power saving mode.
- This port connects the current user port to the on-screen menu.
To select a computer using hotkeys
1 Simultaneously press and hold
Note: The and keys when pressed in combination are called 'hotkeys' and they signal to the AdderView CATx that you wish to control it, rather than the computer. However, if these particular hotkeys clash with another device or program, then your administrator may change them to a different combination. If the combination fails to work, then please contact the system administrator for details.
2 While still holding and, press the first numeral of the required port address, then:
- If the port address is a single character, release all of the keys.
- If the port address is two or more characters, release the first numeral key and press the second – repeat this procedure until all of the port address numerals have been entered, then release card . All
Note: The numbers on your keyboard's numeric keypad are not valid, use only the numeral keys above the QWERTY section.
Note: If your user port does not have authorisation to view the selected port then an 'Insufficient user rights' messages will be displayed.
Standard hotkeys
The range of hotkey combinations are as follows:
Note: If your hotkeys have been changed, substitute them for card in the examples given here.
Ctrl Alt Selects port 1
CH All Selects port 2
Note: When entering multiple digit addresses as
above or for even longer cascaded computers, keep and pressed down until all other numbers have been entered.
To select a computer using the on-screen menu
1 Select the on-screen menu in one of three ways:
- By simultaneously pressing and then releasing Can Alt M
- By pressing the middle and right buttons of a three button mouse, or Note: The mouse switching option is usable only if the 'Mouse Switching' option is enabled. See Global preferences for more details.
- By selecting port using the front panel buttons (see previous).
At this point, depending on the security settings and the current log in situation, one of two things will be displayed, either the login screen, or the Selection menu:
The login screen - here you enter a valid User Name and Password - see Logging in and out for more details. When you do so, the AdderView CATx selection menu will be displayed:
The Selection Menu – here you can select computers by name.
2 Use the Band Keys (or the scroll wheel of an IntelliMouse) to highlight the required computer name. Alternatively (for large configurations), press to perform an alphabetical search for a particular port name.
Note: If security has been enabled then only computers to which the current user port has permission will be displayed.
3 Select the highlighted port in one of three ways:
- Shared use - press 📄 - This standard method allows other users to view the same computer port. Control of the port is given to one user at a time, on a first-come, first-served basis and is relinquished after a certain period of inactivity.
- Exclusive use - press Sign This mode prevents any other user from viewing or controlling the computer port until you either select another computer or log off. This mode should be used with care – it can also be blocked as an option by the administrator.
- Video Only - press Ctrl – This mode displays the video picture of the port, but prevents keyboard or mouse activity from controlling the computer.
To select a computer using mouse buttons
Note: This procedure works only with three-button or IntelliMouse devices and only if the 'Mouse Switching' option has been enabled by your administrator.
1 Hold down the middle button (or scroll wheel) of the mouse.
2 Click the left mouse button to select the next computer port. When the correct port is reached, release the middle button.
Note: If security has been enabled then only computers to which you have permission will be displayed.
To select a computer using mouse buttons – Advanced method
1 Select the on-screen menu by pressing the middle and right buttons of a three button mouse.
2 Use the scroll wheel to highlight the required computer port.
3 Then, select either:
- Shared Use - press the left mouse button - This standard method allows other users to view the same computer port. Control of the port is given to one user at a time, on a first-come, first-served basis and is relinquished after a certain period of inactivity.
- Exclusive Use - press and the left mouse button – This mode prevents any other user from viewing or controlling the computer port until you either select another computer or log off. This mode should be used with care – it can also be blocked as an option by the administrator.
- Video Only - press and the left mouse button – This mode displays the video picture of the port, but prevents keyboard or mouse activity from controlling the computer.
- Escape without selecting a port – press the right mouse button.
Logging in and out
The AdderView CATx features a straightforward security system that helps to prevent unauthorised access to some, or all connected computers.
If the security option has been selected by your administrator then you will be asked to enter a User Name and Password when you first access a user port. When you have finished using the computer, it is then good practice to logout, forcing any other users to authenticate themselves prior to use.
Note: If the security option has not been enabled then no login is required.
To log in to the AdderView CATx
1 If it is not already displayed, move the mouse or press any key to display the log in screen.
2 Enter your designated User Name and press
3 Enter your designated Password and press 📄. If both entries are correct then the selected port will be displayed.
Note: If either the User Name or Password are incorrect, the entries will be cleared to allow another attempt.
To log out from the AdderView CATx
Either:
- Press Ctrl and at any time to log out.
or
1 Select the on-screen menu in one of three ways:
- By simultaneously pressing and then releasing
Note: The and holidays may have been changed. If the combination fails to work, then please contact the system administrator for details.
- By pressing the middle and right buttons of a three button mouse, or
- By selecting port using the front panel buttons
2 Press F4. You will be logged out and the login window will be re-displayed.
Selecting cascaded computers
The AdderView CATx is not limited to sharing just sixteen or twenty four computers. By joining numerous AdderView CATx products together in a tree-like or cascade arrangement, it is possible for each user port to view many more computers. Although you can use exactly the same selection methods to choose any computer, you are strongly recommended to use the on screen menu method for the following reasons:
- The on screen menu – this method displays the names of each computer in alphabetical order and also allows you to search for them by name, press ☐ – a useful feature in a long list. This really is the best way to access a large number of computers.
- The mouse method – this method is fine for small numbers of computers but can take too long to reach the required computer in an extensive configuration.
- The hotkey method – depending on their position within the connection structure, each computer can have an address up to six digits long which can be difficult to remember and laborious to type.
The confirmation box
The AdderView CATx provides the option of a confirmation box that is displayed on screen for three seconds after a computer is selected. The confirmation box indicates the current user port and your user name, the selected computer and the connection status. You can enable or disable the confirmation box, as required.
To enable/disable the confirmation box
1 Select the on-screen menu in one of three ways:
- By simultaneously pressing and then releasing Ctrl At M
- By pressing the middle and right buttons of a three button mouse, or
- By selecting port using the front panel buttons
If you are not already logged in (see left), do so now.
2 Press to select 'More menus'.
3 Highlight the 'User Preferences' option and press to select.
4 Highlight the 'Confirmation Box' option and press to-select 'ENABLED' or 'DISABLED', as required.
5 Press ☑ to save the settings. Press ☑ twice more to return to the computer port and view your changes.
The reminder banner
As many computer screen layouts can appear very similar, the AdderView CATx provides a reminder banner option that indicates which computer port you are currently viewing. The banner is usually displayed at the top of the screen, using blue lettering and transparent background. You can:
- Move the banner
- Change the banner colours, and/or
- Disable the banner
To move the reminder banner
1 While viewing a computer port, press and hold and . All Note: The and holidays may have been changed. If the combination fails to work, then please contact the system administrator for details.
2 Press the ↓, and keys to move the banner to the required position.
To change banner colours or disable the banner
1 Select the on-screen menu in one of three ways:
- By simultaneously pressing and then releasing Ctrl Alt M
- By pressing the middle and right buttons of a three button mouse, or
- By selecting port using the front panel buttons
If you are not already logged in, do so now.
2 Press F1 to select 'More menus'.
3 Highlight the 'User Preferences' option and press to select.
4 Select the required option:
- To disable the banner – highlight 'Reminder Banner' and press Space until 'DISABLED' is shown.
- To change colours – highlight 'Reminder Colour' and press [on the desired colour combination is displayed.
5 Press ☐ to save the settings. Press ☐ twice more to return to the computer port and view your changes.
Routing status
On occasions it may be useful to know which computers are being accessed, in which modes and by whom. The most common reason for this would be if you were denied access to a computer port and needed to find out if another user has selected 'Exclusive' access. For this purpose the AdderView CATx provides the very handy Routing status feature which provides an 'at a glance' view of all current user connections.
To use the Routing status feature
1 Select the on-screen menu in one of three ways:
- By simultaneously pressing and then releasing Ctrl Alt M
Note: The and hockays may have been changed. If the combination fails to work, then please contact the system administrator for details. - By pressing the middle and right buttons of a three button mouse, or
- By selecting port using the front panel buttons
if you are not already logged in, do so now.
2 Press ☐ to select 'More menus'
3 Use ↓ or your mouse scroll wheel to highlight the 'Routing status' option.
4 Press ☐ for the left mouse button to select. The Routing status screen will be displayed:
Here you can instantly see which computer ports are being accessed and by whom. The screen will be displayed for ten seconds.
Power switching (via configuration menu)
When used in conjunction with optional power switch boxes, the AdderView CATx allows you complete remote control over the connected computers. The primary function of the power switching option is to remotely power down and reset computers that are failing to respond.
To switch a computer on or off
1 Select the on-screen menu in one of three ways:
- By simultaneously pressing and then releasing Ctrl Alt M
Note: The and hockays may have been changed. If the combination fails to work, then please contact the system administrator for details.
- By pressing the middle and right buttons of a three button mouse, or
- By selecting port using the front panel buttons
If you are not already logged in, do so now.
2 Switch to the computer port that needs to be switched on or off.
Note: If the computer is still responding, try to shut it down normally before attempting a power switch operation.
3 Display again the on screen menu and press 📄 to select 'More menus'.
4 The 'Functions' option should be highlighted, press
5 Highlight 'Power Control' and press
6 Highlight either 'Switch Computer ON' or 'Switch Computer OFF' as necessary and press. A warning message with two options will be displayed:
7 Press ☐ to confirm or ☑ confirm and exit. The latter option clears the menu so that, if required, you can be ready to enter any escape sequences that are needed by the computer (to access its BIOS setup area), during the bootup sequence.
User preferences and functions
In addition to customising the reminder banner as described earlier, you can also:
- Change the colour of the on screen menu,
- Select the screen saver style,
- Restore mouse operation, or
• Perform power control functions.
All of these options are discussed within Appendix 1.
Global user access
Global users access the AdderView CATx IP using a viewer and a link. There are two types of viewer and two types of link, which can be used in any combination.
Global user access via VNC viewer
The VNC viewer is a compact application that runs on your IP-connected 'global' system and allows you to view and use the AdderView CATx and its host computer(s). VNC viewer is readily available from a number of different sources:
• from the AdderView CATx installation CD
• from the AdderView CATx itself
• from the RealVNC website
To access via the VNC viewer
1 Locate and select the VNC viewer icon →
• If you are using a dial up link.
A connection details dialog will be displayed:
![VNC Viewer : Connection Details Server: 182.169.31 Encryption: Let Server Choose (Default)O About... Options OK Cancel Enter the AdderView CATx address here and click OK If required, select the encryption mode - MORE [+] Options button Provides a range of viewer and connection settings - MORE [+]](/content/2026/05/901929/images/8ca11f1c627feb6ffb339c6271c492af62557066eb7d8611a0a58f3905b73480.jpg)
2 In the 'Server:' entry, type the address of the AdderView CATx as follows:
v.w.x.y
where v.w.x.y is the IP network address, for example 192.168.0.3
• If you have been asked to also enter a port number.
3 Click the OK button. Depending on the options selected, you may need to confirm certain items. A connection attempt will be made and if successful, an authentication dialog will be displayed:
4 Enter your username and password. The viewer window should now open and show the current host computer. Note: If the Username entry is blanked out then only admin user account is currently defined and only a password is required.
Downloading VNC viewer from the AdderView CATx IP
The AdderView CATx has the ability to distribute its own VNC viewer application.
To download the VNC viewer
1 Open your Web browser.
2 Enter the network address where the AdderView CATx is situated (in the form: http://192.168.0.3) and make the link.
3 In the opening AdderView CATx screen, click the link that offers to download the secure VNC viewer 'from the unit'.
4 Save the download file (vncviewer.exe) to your system.
5 Select and run the downloaded file and then connect to the AdderView CATx using the VNC viewer application.
IMPORTANT: During login, if you see a warning message similar to the one shown here, then stop and do not proceed.
This message is displayed if an AdderView CATx IP unit, that your viewer has previously visited, has had a change of security keys. This is not uncommon if a unit is reset for some reason. However, it could also mean that your trusted unit is being spoofed and you may not be connecting to the system that you think you are.
Do not click the Yes button until you have checked with your administrator that the trusted AdderView CATx IP unit has been recently reset for some reason.
Global user access via web browser
You can use a standard Web browser (supported versions) to gain access to the AdderView CATx IP and its host computer(s). As soon as you make contact with the AdderView CATx IP it will begin downloading a small Java application to your browser, which will be used only for the duration of your connection.
To access via your web browser
1 Launch your standard Web browser as usual.
• If you are using a dial up link.
2 In the Address section, type the address of the AdderView CATx IP as follows:
http://v.w.x.y
where v.w.x.y is the IP network address, for example 192.168.0.3
• If you have been asked to also enter a port number.
3 Press A connection attempt will be made.
4 In the browser window, select the 'Connect using built-in Java VNC viewer' option to download a small application that will temporarily empower your browser (on slow connections the application download can take several tens of seconds to complete). Once complete, a connection details dialog will be displayed:
The previously entered AdderView CATx IP address will be shown here
If required, select the encryption mode - MORE [+]
Options button
Provides a range of viewer and connection settings - MORE [+]
5 Make any necessary option/encryption changes and click the OK button to proceed. Depending on the options selected, you may need to confirm certain items.
6 A second connection attempt will be made and if successful, an authentication dialog will be displayed:
7 Enter your username and password. The viewer window should now open and show the current host computer. Note: If the Username entry is blanked out then only admin user account is currently defined and only a password is required.
IMPORTANT: During login, if you see a warning message similar to the one shown here, then stop and do not proceed.
This message is displayed if an AdderView CATx IP unit, that your viewer has previously visited, has had a change of security keys. This is not uncommon if a unit is reset for some reason. However, it could also mean that your trusted unit is being spoofed and you may not be connecting to the system that you think you are.
Do not click the Yes button until you have checked with your administrator that the trusted AdderView CATx IP unit has been recently reset for some reason.
Using the viewer window
The viewer window gives you the ability to view and control the AdderView CATx IP and its host computer(s). Its operation is almost identical regardless of whether you used the VNC viewer or your Web browser to display it.
The menu bar
The viewer window presents a menu bar similar to that shown below. Certain items within the toolbar are displayed depending upon your access permissions and/or the AdderView CATx IP configuration.
When using the viewer window
What is the best screen resolution to use?
The best resolution for your computer is one that is larger than the screen of the host computer that you are viewing. This will allow you to see everything without scrolling around. Alternatively, the VNC viewer can be set to scale the image to fit your screen, but remember that some pixel dithering effect will be seen when scaling is used.
How do I navigate around a larger screen?
If the screen that you are viewing has a larger resolution than your viewing window you will need to scroll around to see all items. The viewer window allows you to 'bump scroll' (only in full screen mode). This means that when your mouse cursor bumps against the edge of the screen, the screen image will scroll across automatically.
How do I escape from full screen mode?
Press the F8 button. This button is changeable but is most often set to F8.
Why is the button flashing red?
This happens when a new host screen is viewed (that has not been viewed before). Click the button to perform an auto calibration for the screen and the mouse. See Auto calibrate for important information about this feature.
How do I change between host computers?
The best way to change between host computers is to click the 'Hosts' button and then select the required computer by name. See Host selection.
How do I remove traces of moved items from the screen?
When you move an item or window across the screen, sometimes it can leave unsightly trails. These are called artifacts and can be particularly prevalent when the connection speed is low. To remove artifacts, click the 'Controls' button and select the 'Refresh screen' option. See Controls.
How do I make the most of a slow connection?
The VNC viewer is slightly better suited to slower connections than the browser viewer because it offers more options. Click the Options button of the VNC viewer when entering the AdderView CATx IP address during log on.
Adjust the Threshold setting
Ensure that the video Threshold setting is set higher than the automatic setting suggests. Tweak this setting manually to ensure the best setting.
Fewer colours
Select the Low (64 colours) mode. The Very low option offers hardly any improvement and looks a lot worse.
Rate limit mouse events
When selected, this mode greatly reduces the mouse movement data that are sent to the host computer. When you move the local mouse, the remote cursor will catch up roughly once per second.
Mouse pointers
Both viewers provide a double mouse cursor to help overcome any delays caused by slow connections. When you move your mouse you will see two mouse cursors, a local one that responds immediately to your movements and a second, slower moving, cursor that represents the current mouse position at the host.
Host selection
The Hosts button on the menu bar provides the quickest and most efficient way to switch between host computers. This is because the button is close at hand, but also because the screen calibration details for each host are reused when this method of switching is used. The alternative is to use hotkey combinations or the AdderView CATx IP on-screen menu.
Note: The Hosts button is displayed only when the switching details for two or more computers have been declared within the configuration section by the admin user.
To select a host
1 Click the Hosts button to display a list of computers.
2 Click the required computer name to view and control it.
See Appendix 2 - Host configuration for details about programming new hosts into the AdderView CATx IP ('admin' user status required).
Configure
This option is displayed only when you are logged on as the 'admin' user. When selected it provides access to a wide range of AdderView CATx IP settings.
See Appendix 2 - Configuration pages via viewer for more details.
Auto calibrate
When you visit a host computer for the very first time, your viewer needs to determine the optimum video and mouse settings for that particular computer. The button will remind you to click it by flashing red when a new computer screen is encountered. Performing this step is important because it can help to decrease unnecessary video information being sent across the link, thus improving overall performance.
Once this has been done, providing you use the 'Hosts' button to switch between host computers, the video settings for each machine will be re-used.
Note: When performing an auto calibration, ensure that the screen image is static (no moving images) and also try to remove any on-screen displays generated by KVM switches (such as host names or menus). This is because they can affect the calibration process and result in a lower overall performance level. For mouse calibration, ensure that there are no application windows located around the upper left corner of the screen. This is because as the mouse calibration takes place, the cursor may change (to match the application as it skims across the window) and this may confuse the calculation. Also ensure that the host computer does not have the mouse cursor trails option enabled.
To auto calibrate the screen and/or mouse
1 Use the Hosts button to select the required computer.
2 Click the button to display the Calibrate options dialog:

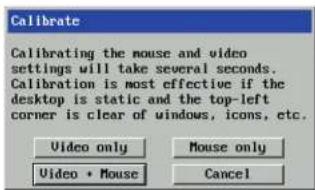

3 Click the required action.
A progress indicator will be displayed while the necessary calculations are made.
Upon completion an information dialog will explain the results:
Re-synchronise mouse
If you find that your local mouse pointer and that of the host are not correctly synchronised, use this feature to re-align their movements. This operation is also selectable from the Controls menu.
To re-synchronise the mouse
1 Use the Hosts button to select the required computer.
2 Click the button and then click OK in the subsequent pop-up message. Note: If you find that this doesn't work, you may need to perform a mouse calibration again.
Access mode - shared/private
Up to five users can be simultaneously logged-on (four global users plus one local or remote user) and during normal operation, all are able to see the same view of the currently selected host. If you need to perform a sensitive task that should not be viewed by other users, you can change the access mode to Private. This action blanks the viewer window for all other logged on users.
Note: For the courtesy of other users, this mode should be used sparingly. The admin user has the ability to overrule the private setting.
To change the access mode
1 Click one of the arrow buttons adjacent to the Shared/Private indicator.
Power switching (via viewer)
When configured (and where you have access rights) this option allows you to control the mains power input to the currently selected host computer.
Note: This option is generally used to power cycle remote systems that have failed to respond. Before switching a system off, ensure that all attempts have first been made to power it down through normal means.
To switch a system on or off
1 Use the Hosts button to select the required computer.
2 Click the Power button and then select the Switch on or Switch off option, as appropriate.
Controls
When clicked, this button reveals a menu of options concerned with keyboard, video and mouse operation.
Single Mouse Mode
This mode is for fast network connections where the cursor response is sufficient to provide instant visual feedback on the remote screen. When enabled, the cursor is 'captured' within the viewer window until you use the 'escape' hot keys.
To quit from single mouse mode, press F8 and then P. Alternatively, enable and use the mouse button escape sequences - see Advanced unit configuration for details.
The single mouse mode does not require calibration.
Resync Mouse
This option has the same effect as the 📄 button on the menu bar and re-synchronises the local and remote mouse pointers.
Refresh Screen
This option refreshes the whole screen image to remove any artifacts from moved screen items. This is useful when using very low refresh rates on slow speed communication links.
Mouse Control
This option displays a mouse control dialog and is useful when the remote cursor is failing to respond correctly to your mouse movements, even after using the Resync mouse option.
The mouse control dialog allows you to control the remote mouse cursor using a selection of buttons that you click with your local mouse.
Keyboard Control
This option displays a keyboard control dialog and is useful for sending keyboard combinations (to the host) that are needed regularly or that are trapped by the AdderView CATx IP.
When entering codes:
- means press down the key that follows
- means release the key that follows
- means press down and release the key that follows
* means wait 250ms (note: if a number immediately follows the asterisk, then the delay will equal the number, in milliseconds)
It is automatically assumed that all keys specified will be released at the end, so there is need to specify -Ctrl or -Alt if these keys are to be released together.
See Appendix 8 for a list of key sequence codes that can be used.
Examples:
'Ctrl + Alt 12' would be expressed as: +Ctrl+ Alt+1-1+2
+N means press the 'N' key
+Scroll means press the Scroll lock key
+Space means press the space key
Video Settings
see next page
Info
When selected, this option displays an information dialog showing the current logged on users, the current host, its video mode and its mouse motion details.
KVM switch menu
This option displays the AdderView CATx main menu and provides access to the same options presented to local and remote users. The only option that cannot be accessed is Configure IP port. For details of the other options available, please refer to Appendix 1 - Configuration menus.
Video Settings
This dialog provides access to all of the key video settings that determine image quality and link performance.
Threshold
The threshold is effectively a noise filter that differentiates between valid video signals and background noise or interference. This has the effect of reducing unnecessary video signals between the AdderView CATx and the remote system, thus improving performance.
Phase
The phase setting adjusts the alignment of the host video output and the remote system video display to achieve the sharpest image.
Horizontal Position
Determines the horizontal position of the host screen image within the viewer window.
Vertical Position
Determines the vertical position of the host screen image within the viewer window.
| Video Settings | ||||
| Video mode: vesa 1024 x 768 @ 60Hz | ||||
| Threshold | 2 | Auto | ||
| Phase | 0 | Auto | ||
| Horizontal Position | 0 | Auto | ||
| Vertical Position | 0 | Auto | ||
| Brightness | Contrast | |||
| Red | 247 | 113 | ||
| Green | 139 | 185 | Auto | |
| Blue | 136 | 161 | ||
| Display Activity 100.00% | ||||
| Save | Calibrate All | Cancel | ||
Brightness & Contrast
The red, green and blue constituents of the brightness and contrast can be set individually. Alternatively, use the Auto button on the right side to automatically optimise these for the current host and connection speed.
Calibrate All
Click to determine the optimum settings for all aspects of video the video connection from the host system.
Display activity
Indicates the level of video activity currently in progress.
Using automatic configurations
- Every setting can be individually subjected to an automatic configuration (click the appropriate 'Auto' button) or can also be manually adjusted.
- Use the 'Calibrate All' button to automatically determine the optimum settings for all items.
Note: Before using the 'Calibrate All' option, if possible, remove on-screen display (OSD) elements generated by the AdderView CATx IP or any other connected KVM switches (such as a host name label or menu). These OSD elements use different video rates to those of the host system(s) and can affect the setting of the automatic threshold value. AdderView CATx IP uses an improved calculation procedure to filter out the effect of these elements. However, best results are obtained when the screen contains only host system information.
Note: To maximise performance, the threshold level is automatically increased by 50% when a slow link is detected.
Note: When the AdderView CATx IP is used with one or more other switches, the threshold needs to be higher than 32 due to the significant amounts of 'noise' that these switches introduce. The AdderView CATx IP configuration should detect such noise and adjust the threshold accordingly.
Setting the Threshold manually
Occasionally it can be useful to manually adjust the Threshold setting, in order to achieve a setting that best suits your particular requirements.
1 Use the 'Calibrate All' function to ensure that all other settings are optimised.
2 Click the Threshold left arrow button to decrement the setting by one and observe the 'Display Activity' indicator.
3 Repeat step 2 until the Display Activity indicator suddenly rises to a much higher level (i.e. 50% ). This will mean that you have reached the noise boundary. At this point, increment the Threshold value by 2 or 3 points to achieve an optimum setting.
Access via dial up (modem or ISDN) link
When you gain access via modem or ISDN link, the AdderView CATx IP uses standard network protocols to create a private two-device network. This approach ensures consistency and allows you to use exactly the same VNC viewer or browser to view the host computers. This is achieved using PPP (Point to Point Protocol) and means that you need to use a dial-up networking method to initiate the connection. Such software is standard with operating systems such as Windows, Linux and Mac OS.
To initiate a dial up link
1 Using a system that has a modem or ISDN adapter installed, locate the dial-up networking option on your system. Please refer to your system documentation for more information.
2 Using the dial-up networking option, enter the telephone/ISDN number where the AdderView CATx IP can be contacted.
3 Initiate the call and when the link is made, continue with either the standard VNC viewer or browser connection.
Note: For the viewer network connection address, you must use the IP address that the admin user has set as the Server address (or PPP server IP address) within the Modem configuration screen.
If you need to enter a port number
Usually, when you make a network connection to the AdderView CATx IP (either using the VNC viewer or a Web browser) you simply enter the IP address, i.e. 192.168.0.3. However, if a special configuration is necessary, then you may be asked to specify a port number as well as the IP address.
What is a port?
To enter a port number in a Web browser
1 Enter the required IP address in the usual Address box, i.e. http://192.168.0.3
2 At the end of the IP address, add a single colon (:) and then enter the port number (in this example, the required port number is 8000), i.e. http://192.168.0.3:8000
3 Continue with the standard Web browser instructions.
To enter a port number in VNC viewer
1 Enter the required IP address in the usual 'Server' box, i.e. http://192.168.0.3
2 At the end of the IP address, add two colons (::) and then enter the port number (in this example, the required port number is 8000), i.e. http://192.168.0.3::8000
3 Continue with the standard VNC viewer instructions.
Viewer encryption settings
The web browser viewers and VNC viewers (of level 4.0b5S or higher) offer four encryption options. The resulting actions of certain options depend upon how the AdderView CATx IP to which you are connecting is configured:
- Always on - This setting will ensure that the link is encrypted, regardless of the AdderView CATx IP encryption setting.
- Let server choose - This setting will follow the configuration of the AdderView CATx IP. If the AdderView CATx IP has a preference to encrypt the link, then it will be so, otherwise the link will not be encrypted.
- Prefer off - This setting will configure an un-encrypted link if the AdderView CATx IP will allow it, otherwise it will be encrypted.
- Prefer on - If the AdderView CATx IP allows it, this setting will configure an encrypted link, otherwise it will be un-encrypted.
Whenever encryption does take place, the viewer will first need to create the necessary secure key before the connection process can continue.
Supported web browsers
The following web browsers have been tested and found to work correctly with AdderView CATx.
Windows
- Internet Explorer 5.50 and above, with Microsoft [Java] Virtual Machine (release 5.50). with Java Runtime Environment 1.3 or above.
Linux
- Netscape 4.61 and above, with Java Runtime Environment 1.1 or above.
- Opera, with Java Runtime Environment 1.1 or above.
Further information
This chapter contains a variety of information, including the following:
• Getting assistance - see below
- Troubleshooting - see right
- Appendices
- Appendix 1 - Configuration menus
- Appendix 2 - Configuration pages via viewer
- Appendix 3 - VNC viewer connection options
- Appendix 4 - VNC viewer window options
- Appendix 5 - Browser viewer options
- Appendix 6 - Addresses, masks and ports
- Appendix 7 - Cable specifications
- Appendix 8 - Hotkey sequence codes
- Appendix 9 - Supported video modes
• End user licence agreement
Getting assistance
If you are still experiencing problems after checking the information contained within this guide, then please refer to the Support section of our website:
www.adder.com
Troubleshooting
Global network users are unable to contact the AdderView CATx IP
- Check that the correct address is being used by the remote users.
- Check the network settings. Check that the users network address has not been excluded in the IP access control section.
- If the AdderView CATx IP is situated behind a firewall, check that the relevant ports are being allowed through the firewall and are being correctly routed.
- Check the front panel indicators, the LNK indicator should be on. If the network link is a 100Mbps connection, the 100 indicator should also be on.
The remote cursor is not correctly responding to my mouse movements
- Recalibrate the mouse. When doing so, ensure that the host system does not have mouse cursor trails enabled and that the top left corner of the screen is clear of application windows.
When logging on using VNC viewer, I cannot enter a username
- Either, the VNC viewer is an old version (download a new one) or only the admin user has been configured on the AdderView CATx IP.
Appendix 1 - Configuration menus
The AdderView CATx configuration menus allow a range of settings to be made both to the installation as a whole and to parts of the system accessed by each user.
To access the configuration menus
1 Select the on-screen main menu in one of three ways:
- By simultaneously pressing and then releasing
- By pressing the middle and right buttons of a three button mouse, or
- By selecting COMPUTER using the front panel buttons.
If you are not already logged in, do so now. What to do if the ADMIN password has been forgotten.
2 Press F1 to select 'More menus'.
3 Use the following keys:
and to highlight required options.
Space to change option values.
to quit and save the changes.
The full set of options are only available to the Admin user. All other users will see a subset of these.
The following items and menus are available in the Configuration menu:
- Functions
- Routing status
- User Preferences
• Global Preferences
- Setup Options
- Edit Computer List
- Edit User List
• Edit Autoscan List
• Advanced Options (F1-More menus)
Additionally, a further important menu is located as an option within the Functions menu of AdderView CATx IP models:
- Configure IP port
Functions
The Functions menu contains a collection of procedures that affect various aspects of AdderView CATx operation. Only the Admin user is granted access to all functions, other users are offered only the following options:
- Restore Standard Mouse,
- Restore Intellimouse,
• Power control - only computers to which a user has access rights can be switched.
To get here
1 From a local, remote or global keyboard, log on as a standard (limited options) or 'admin' user.
2 Press Ctrl Alt M (hotkeys can change).
3 Press F1 to select 'More menus'.
4 Select 'Functions'.
Restore Standard Mouse
This option is used to resume standard mouse operation if it has ceased to operate, for instance, if it has been connected without rebooting the AdderView CATx. See Hot plugging and mouse restoration for more details.
This option is used to resume Microsoft Intellmouse operation if it has ceased to operate, for instance, if it has been connected without rebooting the AdderView CATx. See Hot plugging and mouse restoration for more details.
Clear UTP Extender Password
Available only at the local console connection, this option places any X100 or X200 extender that is locked in password mode into configuration mode. The extended user can then clear or re-enter the password, as required.
Reset to Factory Defaults
Returns all key settings within the AdderView CATx to their original states.
WARNING: This function will clear all computer and user lists that are stored within the AdderView CATx.
When this option is selected, you must press to confirm the action. The internal data will be rewritten and a completion message displayed after a short period.
ADDERVIEWCATxIP
Functions
RestoreStandardMouse
RestoreIntellimouse
PowerControl
ClearUTPExtenderPassword
ResettoFactoryDefaults
SendDatatoRS232port
ReadDatafromRS232port
Configure/Pport
Enter-RunFunction
+Up-DownEsc-Quit
Power Control
The options within this section are usable only when the AdderView CATx is used in conjunction with one or more external power switch units. For more details see: power switching connections, configuration, operation (via menu) or operation (via viewer)
Switch Computer ON
Select this option to power on one or more computers.
Switch Computer OFF
Select this option to power off one or more computers.
Edit Power ON String
Select this option to alter the special codes that are sent from the AdderView CATx to the connected power switch(es) in order to switch computers on.
Edit Power OFF String
Select this option to alter the special codes that are sent from the AdderView CATx to the connected power switch(es) in order to switch computers off.
Send Data to RS232 port
This option is used to save AdderView CATx configuration information to a specially connected computer. A temporary link must be made using the COM1/UPGRADE port at the rear of the AdderView CATx and the computer must run a custom routine available from Adder Technology Limited. The resulting download file can be optionally edited (using a text editor or spreadsheet) and/or reloaded into the AdderView CATx. This option is especially useful in complex cascade arrangements where many computers are attached. See Saving and restoring configuration settings for more details.
Read Data from RS232 port
This option is used to reload configuration information into the AdderView CATx from a specially connected computer. See above for more details.
Configure IP port
AdderView CATx IP models only. Displays a sub menu containing options related specifically to IP network and modem/ISDN port features. See Configure IP port for details.
User Preferences
The User Preferences are system operating parameters that are independently selectable for each user and affect only their screen.
To get here
1 From a local, remote or global keyboard, log on as a standard or 'admin' user.
2 Press Ctrl Alt M (hotkeys can change).
3 Press F1 to select 'More menus'.
4 Select 'User Preferences'.
ADDERVIEWCATxIP
OSDColour.SCHEME1
ReminderBanner:ENABLED
ReminderColour: BLUE/TRANS ScreenSavertype: MOVINGDOT ConfirmationBox: ENABLED
Space Toggle +Up-DownEsc-Quit
OSD Colour
Settings: SCHEME 1, SCHEME 2, SCHEME 3
As you toggle between these options you will see the colour of the menu change to show the selected scheme. The menu schemes have been specially chosen to provide a high contrast with the colours that you would normally see on a computer screen.
Reminder Banner
Settings: ENABLED, DISABLED
When the reminder banner is enabled, the name of the currently selected computer will appear in a small reminder banner. This is normally located at the top of the screen in a central position but may be moved as required (see To move the reminder banner).
Reminder Colour
Settings: BLUE/TRANS, PINK/TRANS, BLUE/WHITE, WHITE/RED
You may select the colour of the reminder banner. The BLUE/TRANS and PINK/TRANS select blue or pink text with a transparent background. The BLUE/WHITE and WHITE/RED settings select blue and white text on solid white and red backgrounds.
Screen Saver Type
Settings: BLANK, MOVING DOT
You may select the type of screen saver. If you select BLANK then the screen will blank completely. If you select MOVING DOT then a moving dot will be displayed on a blank background. The dot regularly changes colour and bounces off the sides of the screen in a zigzag pattern.
Confirmation Box
Settings: DISABLED, ENABLED
When enabled, a confirmation box is displayed on screen for three seconds after a computer is selected. The confirmation box indicates the current user port and user name, the selected computer and the connection status.
Global Preferences
Global preferences are available only to the Admin user and allow settings to be made that affect all users attached to the AdderView CATx.
To get here
1 From a local, remote or global keyboard, log on as 'admin' user.
2. Press CM All M (hotkeys can change).
3 Press F1 to select 'More menus'.
4 Select 'Global Preferences'.
| ADDERVIEWCATxIP | |
| GlobalPreferences | |
| MouseSwitching:ENABLED | |
| ScreenSaver:DISABLED | |
| AutoscanMode:SCANLIST | |
| Autoscan Period : | 5 SECONDS |
| OSD Dwell Time : | 2 SECONDS |
| User Timeout : | 2 SECONDS |
| RS232MouseType:INTELLIMSE | |
| MouseType:LOGITECH | |
| Space-Toggle | |
| ↑-Up | ↓-Down Esc-Quit |
Mouse Switching
Settings: ENABLED, DISABLED
The computer channel can be switched using a three button mouse or IntelliMouse. Pressing the central button or wheel button together with the left hand mouse button will cause the AdderView CATx to switch to the next available computer. When mouse switching is enabled the central mouse button or wheel mouse button is allocated to control the AdderView CATx and is not therefore available for use by computer applications. If you want to use the central mouse button within your applications you will need to disable mouse switching. The rotation action of an IntelliMouse wheel is not affected and is always available to the computer application.
Screen Saver
Settings: DISABLED; 2, 5, 7, 10, 15, 20 & 30 MINUTES
To avoid burning out the phosphor on CRT monitor screens, the AdderView CATx can be set to blank the screen after no keyboard or mouse activity has been detected for a selected timeout period. If preferred, the user can blank the screen manually by selecting channel '0' using the keyboard hotkeys or by pressing ESC from the login screen.
Autoscan Mode
Settings: SCAN LIST, ACTIVE PCs, ALL PCs
The AdderView CATx supports an autoscan mode that automatically scans between the connected computers in sequence. There are three autoscan modes. In the first mode the AdderView CATx will scan all the named computers that are defined in the autoscan list (SCAN LIST). The computers defined in the scan list may be connected to cascaded AdderView CATx units. If you wish to scan the ports on the current AdderView CATx then you may select ALL the available computers or just the available computers that are currently powered on (the ACTIVE computers). Scanning just the active computers avoids blank screens from being displayed and stops the monitor from going into a power down state on every scan cycle.
WARNING - Many modern monitors are fitted with automatic power save relays and will switch off after a few seconds if connected to an inactive PC. If you are using such a monitor you must not set the AdderView CATx to scan ALL ports. Constant switching on and off of your monitor's relay will eventually damage your monitor. If you are using the SCAN LIST option then you should ensure that all the computers are active if you are using one of these monitors.
If you choose to use the SCAN LIST option then you may define the computers to be scanned in the following manner.
To define the autoscan list
Note: Ensure that you are logged in as the ADMIN user.
1 From the main on-screen menu press F1 for MORE MENUS.
2 Select EDIT AUTOSCAN LIST from the menu. A list of defined computers will appear. Computers affixed with a '-' will be autoscanned during the autoscan cycle. To add/remove a computer to/from the autoscan list, move the selection bar over the computer name and press SPACE BAR. To add all named computers press F1. To remove all named computers press F2.
3 When all the computers that you wish to scan are affixed with a '+', press RETURN or ENTER to save the selections. The selected computers will be autoscanned in alphabetical order when you activate autoscan mode (when the SCAN LIST option is selected).
Autoscan Period
Settings: DISABLED; 2, 5, 7, 15, 30 SECONDS, 1, 5 MINUTES
The autoscan time defines the length of time that the AdderView CATx will display video (and play audio) from an autoscanned computer before changing to the next computer. If the DISABLED setting is chosen then no autoscan functions will be available.
continued
Global Preferences (continued)
OSD Dwell Time
Settings: 1, 2, 3, 5, 10 SECONDS
After a successful computer channel change the AdderView CATx will display a confirmation message for a few seconds. The length of time that this confirmation message dwells on the screen may be changed.
User Timeout
Settings: 1, 2, 5, 10, 30 SECONDS, 1, 5, 10 MINUTES
When two users are connected to the same computer only one can have access at any one time. When no keyboard or mouse data has been received from the active user port for the user timeout period, the AdderView CATx will allow other users to access the computer. The new port then becomes the active port until it too times out. To avoid confusion between users it is desirable to set the timeout period to be sufficiently long so that user's work is not needlessly interrupted by other users and sufficiently short to ensure good overall system efficiency. The user timeout value also controls the timeout between the local port and remote (extended) user port 1.
RS232 Mouse Type
Settings: INTELLIMOUSE, 2 BUTTON, 3 BUTTON
This setting controls the type of RS232 mouse that the AdderView CATx reports to computers. All the necessary conversions are dealt with automatically by the AdderView CATx. The IntelliMouse setting sends four byte mouse reports to the computers and is therefore very slightly more sluggish than the others that send three byte mouse reports. RS232 mice are almost always more sluggish than PS/2 types because the data rate is much slower.
Mouse Type
Settings: LOGITECH, MICROSOFT
This setting determines how the mouse type is reported to each connected PC. Some Logitech mouse drivers are unable to handle the more advanced features of Microsoft Intellmouse Explorer type mice, so the LOGITECH setting here reports a more basic mouse type.
Setup Options
Setup options are available only to the Admin user and consist of key settings that are normally made only during the initial installation stage.
To get here
1 From a local, remote or global keyboard, log on as 'admin' user.
2 Press Ctrl All M (hotkeys can change).
3 Press F1 to select 'More menus'.
4 Select 'Setup Options'.
ADDERVIEWCATxIP
SetupOptions
Security: ENABLED
Language:ENGLISH
Hotkeys: CTRL+ALT
KeypadControls: ENABLED
| ExclusiveUse: | ALLOWED |
| AutomaticLogout: | DISABLED |
| Audio: | ENABLED |
| AddComputers: | AUTO |
Space-Toagle
- Up-DownEsc-Quit
Security
Settings: DISABLED, ENABLED
With security disabled there is no requirement for users to log-in to the system. All users have full access to all the connected computers and full administration rights. With security enabled, users are required to log-in to the AdderView CATx. Each user is allocated access rights to computers by the system administrator and they are only able to see the computers that they have access to on their on-screen menu.
Language
Settings: ENGLISH, FRENCH, GERMAN, SWEDISH
This option specifies the language that is used for the on-screen menu and the keyboard layout that is assumed for the keyboard. When the French option is selected the keyboard is assumed to have an AZERTY format. When the English, German and Swedish options are selected the keyboard is assumed to have a QWERTY format. The new language settings are enabled when you quit from the SETUP OPTIONS menu. The language option only affects the way that the AdderView CATx interprets the keyboard keys, it does not affect the way that the computers interpret the keyboard. It is advisable to avoid setting a language that you do not understand as all the menus will change to use the new language and you may have difficulty reselecting your original language.
Hotkeys
Settings: CRTL+ALT, CTRL+SHIFT, ALT+SHIFT, ALT GR, L+R ALT, L CTRL+ALT, R CTRL+ALT, DISABLED
The keyboard hotkeys are special combinations of keys that, when used together with certain keyboard "command keys", perform special AdderView CATx functions. For example, pressing the hotkeys together with the "M" key will cause the on-screen menu to be displayed on your monitor. Other hotkey combinations allow you to query which computer you are connected to and to move the on-screen menu around the screen. You can also use the hotkeys together with the port number to select a particular connected computer.
Keypad Controls
Settings: ENABLED, DISABLED
The key controls on the front of the AdderView CATx may be disabled so that it is only possible to select the special channels "o" (on-screen menu) and "0" (no computer channels selected).
Exclusive Use
Settings: ALLOWED, DISABLED
In normal operation, the AdderView CATx will allow two or more users to share access to a computer. In this mode, the computer's video picture will be displayed on all the users' monitors but only one user may have active control of the computer's keyboard and mouse at any one time. The AdderView CATx detects an active user by checking for keyboard and mouse data.
A user becomes inactive if no keyboard or mouse data has been received by the AdderView CATx for a specified timeout period. Whilst one user is active all the other users that are connected to the same computer will see a "video only" message displayed on their screen. There may be situations where particular users wish to control and view a computer in private with exclusive use. The AdderView CATx has the facility to allow users to select exclusive use of computers, however, this facility should be used with care.
Users that have selected exclusive access are never timed out by the AdderView CATx and so all other users are effectively "locked out" until the exclusive user switches to another computer or logs out. This could potentially be very irritating if a user has selected exclusive use and has then left their desk without logging out. This would prevent other users from working on the computer until they came back. Consequently the system administrator can disable all exclusive use so that all connections are shared.
continued
Setup Options (continued)
Automatic Logout
Settings: DISABLED, ENABLED
The AdderView CATx enables you to restrict access to your computers on a login basis. If a user forgets to logout when they have finished accessing the AdderView CATx then the user console may unintentionally be left with full access to all the computers. The AdderView CATx can be set to automatically logout unattended user consoles when the screen saver kicks in. This reduces the risk of security problems by preventing user consoles remaining in a permanent "logged-in" state when there is no keyboard or mouse activity. The automatic logout feature is only enabled when the screen saver feature is active (i.e. not disabled).
Audio
Settings: ENABLED, DISABLED
Allows you to enable and disable the audio capabilities of the AdderView CATx unit.
Add Computers
Settings: AUTO, MANUAL
Each time the master switch within a KVM cascade is power cycled, it checks for newly added computers. This option allows you to determine whether such new computers are automatically added to the computer list or whether you would prefer to update the list manually.
Advanced Options
Advanced options are available only to the Admin user and consist of settings that are related to specialist areas such as power control and DDC.
To get here
1 From a local, remote or global keyboard, log on as 'admin' user.
2. Press CM All M (hotkeys can change).
3 Press F1 to select 'More menus'.
4 Select 'Advanced Options'.
DDC Options
The options within this section are related to the Display Data Channel features supported by the AdderView CATx. DDC is an industry standard format that allows computer systems to be informed of the capabilities of the video monitor connected to them.
DDC Source
Determines which user port monitor should be interrogated to discover its capabilities. AUTO begins with the local user port and if it fails, it uses a set of default values. The LOCAL setting forces the unit to interrogate only the local monitor and DEFAULT uses only the pre-programmed settings.
DDC Refresh
Settings: AT START, DISABLED
AT START sets the AdderView CATx to read DDC information from the selected source at power up. When DISABLED, no new DDC data is sought and existing information is used. When viewing this menu, press F8 to discover DDC information from the chosen source immediately.
Power Control
The options within this section are concerned with the operation of the POWER CONTROL port when used to command optional system power control units.
Baud Rate
Settings: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Configures the communication speed of the POWER CONTROL port and must match the speed used by the connected power switch(es). Note: The PSU-8MASTER and PSU-8SLAVE power switches supplied by Adder require a setting of 9600.
Format
Settings: NONE.8.1, ODD.8.1, EVEN.8.1, NONE.8.2, NONE.7.2, ODD.7.2, EVEN.7.2
Configures the data format used by the serial port and must match the format used by the connected power switch(es). The NONE/ODD/EVEN portion relates to the parity checking; the 7/8 value is the size of the data byte and the 1/2 value determines the stop bit(s) used after each data byte.
continued
USB Country Code
Some computers query the keyboard to find out its country code and key layout. These computers use this information to configure the way that they interpret the data coming from the keyboard and so it is important for the correct country information to be supplied. Not all keyboards report country information and two different styles of keyboard may be connected to the AdderView CATx.
Country Code
Settings: AUTO, MANUAL, DISABLED
In AUTO mode the AdderView CATx will attempt to query the keyboard attached to the local port to ascertain a country code. If a country code is not found then the AdderView CATx will use the current value of the Default Country option. In MANUAL mode, the connected local keyboard is not queried for country information and instead the Default Country value is reported to all computers that request country information. In DISABLED mode, no country information is supplied to computers requesting country information.
Default Country
The codes that may be used within this option are as follows:
Country Code Country Code
Arabic 01 Persian (Farsi) 20
Belgian 02 Poland 21
Canadian-Bilingual 03 Portugese 22
| Canadian-French 04 | Russian 23 | |
| Czech Republic | 05 | Slovakian 24 |
| Danish | 06 | Spanish 25 |
| Finnish | 07 | Swedish 26 |
| French | 08 | Swiss/French 27 |
| German | 09 | Swiss/German 28 |
| Greek | 10 | Switzerland 29 |
| Hebrew | 11 | Taiwan 30 |
| Hungary | 12 | Turkish-Q 31 |
| International (ISO) | 13 | UK 32 |
| Italian | 14 | US 33 |
| Japan (Katakana) | 15 | Yugoslavia 34 |
| Korean | 16 | Turkish-F 35 |
| Latin American | 17 | Reserved 36-255 |
| Netherlands | 18 | Not supported 00 |
| Norwegian | 19 |
Setup Options 2
Force Mode
Settings: DISABLED, ENABLED
Available only on non-IP CATx units. Force Mode allows an ADMIN user on port 1 to select which computers the other user ports should be switched to. When enabled, the ADMIN user (on port 1) can press the TAB key to show what user 2 is currently viewing. The ADMIN user can then select an alternative computer for user 2. Once set, the ADMIN user can press the TAB key again to move to the next user port and so on.
Alternatively, the ADMIN user (on port 1) can press CTRL and either 1, 2, 3 or 4 to show the current video display on any port.
To end Force mode, the ADMIN user can, either:
- Press the ESC key
- Press TAB until user 1 is shown
- Press CTRL +1
Configure IP port
Available only on AdderView CATx IP models, the IP port configuration menu allows you to determine settings that relate directly to the global (IP) user aspects of the unit:
- Unit Configuration
IP admin password, encryption settings, etc.
• Network Configuration
IP address, net mask, VNC port, etc.
• Modem Configuration
Baud rate, initialisation string, etc.
- Reset Configuration
Completely resets the IP portion of the AdderView CATx IP unit.
To get here
1 From a local or remote (not accessible from a global keyboard), log on as the 'admin' user.
2 Press Ctrl Alt M (hotkeys can change).
3 Press ☐ to select 'More menus'.
4 Select 'Functions'.
5 Select 'Configure IP port'.
Unit Configuration
This page provides access to a selection of both basic and fundamental settings for the AdderView CATx IP.
Keybd Layout
Use the arrow buttons to match the keyboard layout expected by the host system.
Admin Passwd
Enter the password that will be used to gain administrator access to the AdderView CATx IP. There can only be one admin user and only that user is given access to the configuration menus. The admin password background will be red until a reasonably secure password has been entered, although this is only advisory as any password or no password may be entered.
Unit Name
The name entered here will be displayed on the local menus and the remote VNC/browser windows.
Time and Date
Use the left and right arrow keys to select the correct time and date. The time entry uses the 24 hour clock notation. The internal real time clock will continue to run for roughly one week without power to the unit, after that it will be lost and require resetting. Use the up and down arrow keys to move between each of the sections within the time and date entries.
Encryption
Three options are available: Always on, prefer off, prefer on. The one to choose depends on the specific details of your installation - see Encryption settings for details. The use of encryption imposes a slight performance overhead of roughly 10% but is highly secure against third party intrusion.
To get here
1 From a local or remote (not accessible from a global keyboard), log on as the 'admin' user.
2 Press Ctrl Alt M (hotkeys can change).
3 Press F1 to select 'More menus'.
4 Select 'Functions'
5 Select 'Configure IP port'.
6 Select 'Unit Configuration'.
Network Configuration
This page allows you to configure the various aspects of the IP port and its relationship with the local network.
MAC Address
Media Access Control address – this is the unique and unchangeable code that was hard coded within your AdderView CATx IP unit when it was built. It consists of six 2-digit hexadecimal (base 16) numbers separated by colons. A section of the MAC address identifies the manufacturer, while the remainder is effectively the unique electronic serial number of your particular unit.
Use DHCP
DHCP is an acronym for 'Dynamic Host Configuration Protocol'. Its function is particularly useful when connecting to medium size or larger networks, such as the Internet. When this option is selected, your AdderView CATx IP will attempt to locate a DHCP server on the network. If such a server is located, it will supply three things to the AdderView CATx IP: an IP address, an IP network mask (also known as a Subnet mask) and a Gateway address. These are not usually granted permanently, but on a 'lease' basis for a fixed amount of time or for as long as the AdderView CATx IP remains connected and switched on. Discover allocations.
IP Address
This is the identity of the AdderView CATx IP within a network. The IP address can be thought of as the telephone number of the AdderView CATx IP. Unlike the MAC address, the IP address can be altered to suit the network to which it is connected. It can either be entered manually or configured automatically using the DHCP option. When the DHCP option is enabled, this entry is unavailable. See IP addresses.
Net Mask
Also often called the 'subnet-mask', this value is used alongside the IP address to help define a smaller collection (or subnet) of devices on a network. In this way a distinction is made between locally connected devices and ones that are reachable elsewhere, such as on the wider Internet. This process helps to reduce overall traffic on the network and hence speed up connections in general. See Net masks.
Gateway
This is the address of the device that links the local network (to which the AdderView CATx IP is connected) to another network such as the Internet. Usually this is a network switch or router and it will be used whenever a device to be contacted lies outside the local network.
bar
AdderViewIPNetworkConfig | Category | Value | |---|---| | MACAddress | 00:0F:58:00:00:04 | | UseDHCP | No | | IPAddress | 192.168.42.154 | | NetMask255.255.255.0 | | | Gateway | | | VNCPort | 5900 | | HTTPPort | 80 | | >ClearIPAccessControl | < | CancelSaveVNC Port
This is the logical link through which communications with a remote VNC viewer will be channelled (see What is a port?). The default setting is 5900 which is a widely recognised port number for use by VNC software. However, in certain circumstances it may be advantageous to alter this number - see Security issues with ports for more details.
Note: The VNC port and HTTP port can be set to the same port number in order to simplify router and firewall configuration. If this is done then the AdderView CATx IP will "listen" for both types of traffic on the single port.
HTTP Port
This is the logical link through which communications with a remote web browser will be channelled. The default setting of 80 is an established standard for web (HTTP - HyperText Transfer Protocol) traffic though this can be changed to suit your local network requirements.
Clear IP Access Control
This option removes all entries from the IP access control feature within the AdderView CATx IP. The IP access control feature (configurable by a global admin user) allows certain network address ranges to be denied access to the AdderView CATx IP. If set incorrectly, it is possible to exclude all network users and so this option provides an emergency recovery point.
Modem Configuration
This page allows you to configure the COM1 serial port located at the rear of the AdderView CATx IP.
Server IP / Client IP
When a user dials into the AdderView CATx IP via a modem or ISDN adapter, the AdderView CATx IP sets up a temporary two-device network using PPP (Point to Point Protocol). For this purpose, both devices must have 'dummy' IP addresses so that they can communicate correctly. These two addresses can be almost anything expressed in the quad octet format (i.e. 192.168.3.1.). However, it is advisable not to make them the same as the real IP addresses used by either the remote system or the AdderView CATx.
Baud Rate
This option configures the speed of the serial connection between the AdderView CATx IP and a connected modem or ISDN terminal adapter. The default setting is 115200. The other communication settings are fixed as: No parity, 8 bit word, 1 stop bit.
Init String
The codes entered here are used to prepare the connected modem or ISDN terminal adapter for use with the AdderView CATx IP. The default code is a Hayes-compatible string to configure auto answer mode and would be understood by the vast majority of modem/ISDN devices. The code is sent when the AdderView CATx IP is first switched on or whenever the Initialize button is clicked.
Initialize Port
When selected, this option sends the characters entered in the 'Init string' field to the connected modem or ISDN terminal adapter.
Restore Defaults
When selected, this option resets the 'Baud rate' and 'Init string' values to their original default settings.
To get here
1 From a local or remote (not accessible from a global keyboard), log on as the 'admin' user.
2 Press Ctrl Alt M (hotkeys can change).
3 Press F1 to select 'More menus'.
4 Select 'Functions'.
5 Select 'Configure IP port'.
6 Select 'Modem Configuration'.
Reset Configuration
This option allows you to completely reset the IP portion of the AdderView CATx IP unit.
WARNING: This process will remove all network and modem/ISDN settings and return the unit to use its original state. A complete reconfiguration will be required before the IP features of the unit can be used.
To reset the AdderView CATx IP configuration
1 From a local or remote (not accessible from a global keyboard), log on as the 'admin' user.
2 Press Ctrl Alt M (hotkeys can change).
3 Press F1 to select 'More menus'.
4 Select 'Functions'
5 Select 'Configure IP port'
6 Select 'Reset Configuration'.
7 Highlight the 'RESET' option and press
8 Access the 'Configure IP Port' option to view the initial IP configuration screens. See Initial IP configuration for details.
Clearing IP access control
This option removes all entries from the IP access control feature within the AdderView CATx IP.
What is IP access control?
The IP access control feature (configurable by a remote admin user) allows certain network address ranges to be denied access to the AdderView CATx IP. If set incorrectly, it is possible to exclude all network users and so this option provides an emergency recovery point.
To clear IP access control
1 From a local or remote (not accessible from a global keyboard), log on as the 'admin' user.
2 Press Ctrl Alt M (hotkeys can change).
3 Press ☐ to select 'More menus'.
4 Select 'Functions'.
5 Select 'Configure IP port'.
6 Select 'Network Configuration'.

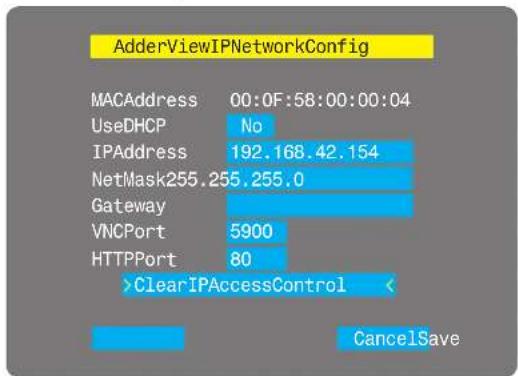

bar
AdderViewIPNetworkConfig | Category | Value | |---|---| | MACAddress | 00:0F:58:00:00:04 | | UseDHCP | No | | IPAddress | 192.168.42.154 | | NetMask255.255.255.0 | | | Gateway | | | VNCPort | 5900 | | HTTPPort | 80 | | >ClearIPAccessControl | < | CancelSave7 Highlight the 'Clear IP Access Control' option and press
Appendix 2 - Configuration pages via viewer
This section covers the configuration pages that are available to global admin users, using either the VNC viewer or the browser methods of access.
To access the remote configuration pages
1 Make a global connection to the AdderView CATx IP unit and login as the admin user.
2 Once logged in, click the Configure button in the top right corner of the window.
User accounts
This page allows you to manage up to sixteen separate accounts.
The first of the sixteen accounts is the admin account and is the only account with access rights to the configuration menus. The user name and access rights are fixed for the admin account, the only change possible for this account is the password.
There are fifteen user account positions.
To create a new account
1 Enter the required User Name to activate that position (the Password and access tick box positions will become editable).
2 Optionally enter a password for the user account.
3 Tick/untick the Local, Modem, Remote and Power options that are appropriate to the user.
4 Click the Save button to register your changes.
To get here
1 Using VNC viewer or a browser, log on as the 'admin' user.
2 Click the 'Configure' button in the top right corner.
3 Click the 'User Accounts' option.
User Name
All user names must consist of lower case characters or numbers only. No symbols or upper case characters are permissible. The user name can be between 1 and 16 characters in length.
Password
Passwords are case sensitive and can include certain keyboard symbols. The password can be between 1 and 16 characters in length. It is important to note, however, that the password background remains shaded in amber while the AdderView CATx IP considers your entered password to be too easy to guess. A suitable password is best constructed using a mixture of more than 6 letters, numbers and punctuation characters.
Local
When ticked, the selected user can gain access using the local KVM console directly connected to the AdderView CATx IP unit.
Modem
When ticked, the selected user can gain access via a modem or ISDN link (requires external modem/ISDN equipment to be connected to the AdderView CATx IP unit).
Remote
When ticked, the selected user can gain access via an IP network link, such as a local intranet or the wider Internet (depending on how the AdderView CATx IP is connected).
Power
When ticked, the selected user will be permitted to control the power input to host systems (requires optional power control switch unit(s) to be fitted).
Unit configuration
This page provides access to a selection of both basic and advanced settings for the AdderView CATx IP. Many of the settings displayed here are also accessible through the on-screen menu.
Hardware Version
Indicates the version of the electronic circuitry within the AdderView CATx IP unit.
Firmware Version
Indicates the version of the hardwired software within the AdderView CATx IP flash memory. This may be updated using the flash upgrade procedure.
Host Keyboard Layout
Use the arrow buttons to match the keyboard layout expected by the host system.
Admin Password
Enter the password that will be used to gain administrator access to the AdderView CATx IP. There can only be one admin user and only that user is given access to the configuration menus.
To get here
1 Using VNC viewer or a browser, log on as the 'admin' user.
2 Click the 'Configure' button in the top right corner.
3 Click the 'Unit configuration' option.
Unit Name
The name entered here will be displayed on the local menus and the remote VNC viewer/browser windows.
Encryption
Three options are available: Always on, prefer off, prefer on. The one to choose depends on the specific details of your installation - see Encryption settings for details. The use of encryption imposes a slight performance overhead of roughly 10% but is highly secure against third party intrusion.
Advanced Unit Configuration
Advanced unit configuration
Click this button to display advanced options that do not normally require alteration.
To get here
1 Using VNC viewer or a browser, log on as the 'admin' user.
2 Click the 'Configure' button in the top right corner.
3 Click the 'Unit configuration' option.
4 Click the 'Advanced unit configuration' option.
Force VNC Protocol 3.3
IMPORTANT: The use of this option is not recommended. Protocol 3.3 is a legacy version that does not offer any encryption.
Idle Timeout
Determines the period of inactivity on a global connection before the user is logged out. The idle timeout period can be set to any time span, expressed in minutes. Note: The Screensaver option serves a similar purpose for local connections.
Protocol Timeout
Sets the time period by which responses should have been received to outgoing data packets. If the stated period is exceeded, then a connection is considered lost and terminated.
Mouse Latency Allowance
This option is used during calibration to account for latency delays (caused as signals pass through a device) introduced by some KVM switches from alternative manufacturers.
During calibration, the AdderView CATx waits for 40ms after each mouse movement before sampling the next. If a KVM device adds a significant delay to the flow of data, the calibration process can be lengthened or may fail entirely. The value entered here is added to (or subtracted from) the default 40ms sampling time.
Note: You can enter negative values (down to -40) in order to speed up the calibration process when using fast KVM switches. Use this option with caution as it can adversely affect the calibration process.
Mouse Rate
Defines the rate at which mouse movement data are transmitted to the system. The default option is 20ms, which equates to 50 mouse events per second. This default rate can prove too fast when passed through certain connected KVM switches from alternative manufacturers. In such cases, data are discarded causing the local and remote mouse pointers to drift apart. If this effect is encountered, increase the mouse rate to around 30ms (data are then sent at a slower rate of 33 times per second).
Background Refresh Rate
Use the arrow keys to alter the refresh rate for screen images via remote links. This allows you to tailor the screen refresh to suit the network or modem connection speeds. The options are: Slow, Medium, Fast or Disabled. When the disabled option is selected, the remote users will need to manually refresh the screen.
Note: When a low connection speed is detected, the background refresh is automatically disabled, regardless of the settings of this option.
Single Mouse Mode Mouse Switch
Allows you to select the mouse button combination that can be used to exit from single mouse mode (when active).
Behaviour for admin connections when limit reached
Determines what should occur when four global connections already exist and a fifth, administrator connection attempt is made. Options are: Replace oldest connection, Replace newest connection and Don't replace. Only non-administrator connections can be terminated in this way.
Use VESA GTF
When ticked, the VESA Generalized Timing Formula will be used to help determine the correct input video resolution and timing details. See Appendix 9 for a list of all supported video modes.
Upgrade firmware
Places the unit into upgrade mode. See Upgrading AdderView CATx IP models.
Time & date configuration
This page allows you to configure all aspects relating to time and date within the AdderView CATx IP unit.
Time and Date
Use the arrow buttons to set the correct current time.
Use NTP
When this option is selected, the AdderView CATx will synchronise its internal clocks using information from the (Network Time Protocol) server listed in the NTP Server IP address field.
NTP Server IP address
Optionally enter the IP address for a known Network Time Protocol server.
Set Time from NTP Server
Click to immediately use the time and date information from the listed NTP server.
Timezone specifier
Optionally enter a recognised timezone specifier related to the current position of the AdderView CATx IP unit. When an NTP server is used, the specifier will be used to provide the correct real time.
The timezone specifier takes the following form:
std offset dst [offset], start[/time], end[/time]
The std and offset specify the standard time zone, such as GMT and 0, or CET and -1, or EST and 5, respectively.
The dst string and [offset] specify the name and offset for the corresponding Daylight Saving Time zone; if the offset is omitted, it defaults to one hour ahead of standard time.
The remainder of the specification describes when Daylight Saving Time is in effect. The start field is when Daylight Saving Time goes into effect and the end field is when the change is made back to standard time. The most common format used for the daylight saving time is: Mm.w.d
Where: m specifies the month and must be between 1 and 12. The day d must be between 0 (Sunday) and 6. The week w must be between 1 and 5; week 1 is the first week in which day d occurs, and week 5 specifies the last d day in the month.
The time fields specify when, in the local time currently in effect, the change to the other time occurs. If omitted, the default is 02:00:00.
Typical examples are:
UK: GMT0BST,M3.5.0/1,M10.5.0/2
Central Europe: CET-1CEST,M3.5.0/2,M10.5.0/3
US Eastern: EST5EDT,M3.2.0/2,M11.1.0/2
US Pacific: PST5PDT,M3.2.0/2,M11.1.0/2
For further details
- For details of timezone specifier formats, please refer to: http://www.gnu.org/software/libc/manual/html_node/TZ-Variable.html
- For details of the Network Time Protocol (main RFC number: 1305; the SNTP subset used as the basis for the AdderView CATx IP: 4330) http://www.ietf.org/rfc.html
Network configuration
This page allows you to configure the various aspects of the IP port and its relationship with the local network.
MAC address
Media Access Control address – this is the unique and unchangeable code that was hard coded within your AdderView CATx IP unit when it was built. It consists of six 2-digit hexadecimal (base 16) numbers separated by colons. A section of the MAC address identifies the manufacturer, while the remainder is effectively the unique electronic serial number of your particular unit.
Use DHCP
DHCP is an acronym for 'Dynamic Host Configuration Protocol'. Its function is particularly useful when connecting to medium size or larger networks, such as the Internet. When this option is selected, your AdderView CATx IP will attempt to locate a DHCP server on the network. If such a server is located, it will supply three things to the AdderView CATx IP: an IP address, an IP network mask (also known as a Subnet mask) and a Gateway address. These are not usually granted permanently, but on a 'lease' basis for a fixed amount of time or for as long as the AdderView CATx IP remains connected and switched on. Discover allocations.
To get here
1 Using VNC viewer or a browser, log on as the 'admin' user.
2 Click the 'Configure' button in the top right corner.
3 Click the 'Network configuration' option.
IP Address
This is the identity of the AdderView CATx IP within a network. The IP address can be thought of as the telephone number of the AdderView CATx IP. Unlike the MAC address, the IP address can be altered to suit the network to which it is connected. It can either be entered manually or configured automatically using the DHCP option. When the DHCP option is enabled, this entry is greyed out.
IP Network Mask
Also often called the subnet-mask, this value is used alongside the IP address to help define a smaller collection (or subnet) of devices on a network. In this way a distinction is made between locally connected devices and ones that are reachable elsewhere, such as on the wider Internet. This process helps to reduce overall traffic on the network and hence speed up connections in general.
IP Gateway
This is the address of the device that links the local network (to which the AdderView CATx IP is connected) to another network such as the wider Internet. Usually the actual gateway is a network switch or router and it will be used whenever a required address lies outside the current network.
VNC Port
This is the logical link through which communications with a remote VNC viewer will be channelled (see What is a port?). The default setting is 5900 which is a widely recognised port number for use by VNC software. However, in certain circumstances it may be advantageous to alter this number - see 'Security issues with ports' for more details.
HTTP Port
This is the logical link through which communications with a remote web browser will be channelled (see What is a port?). The default setting of 80 is an established standard for web (HTTP - HyperText Transfer Protocol) traffic though this can be changed to suit your local network requirements.
IP Access Control
This section allows you to optionally specify ranges of addresses which will or won't be granted access to the AdderView CATx IP. If this option is left unchanged, then the default entry of '+0.0.0.0/0.0.0.0' ensures that access from all IP addresses will be permitted. See Setting IP access control for details.
Setting IP access control
The golden rule with this feature is 'Include before you exclude' or to put it another way 'Arrange allowed addresses in the list before the denied addresses'.
This is because the positions of entries in the list are vitally important. Once a range of addresses is denied access, it is not possible to make exceptions for particular addresses within that range. For instance, if the range of addresses from A to F are denied access first, then the address C could not be granted access lower down the list. Address C needs to be placed in the list before the denied range.
IMPORTANT: This feature should be configured with extreme caution as it is possible to deny access to everyone. If such an error occurs, see Clearing IP access control for details about how to regain access.
In the list, access control addresses prefixed by '+' are allow entries while those prefixed by '-' are deny entries.
To get here
1 Using VNC viewer or a browser, log on as the 'admin' user.
2 Click the 'Configure' button in the top right corner.
3 Click the 'Network configuration' option.
To define a new IP access control entry
1 Click the Add button to display a popup dialog:
Network/Address
Enter the network address that is to be allowed or denied access. If a range of addresses is being specified then specify any one of the addresses within the range and use the Mask entry to indicate the size of the range.
Mask
Enter an IP network mask that indicates the range of addresses that are to be allowed or denied access. For instance, if only a single specified IP address were to be required, the mask entry would be 255.255.255.255 in order to specify a single location. See Calculating the mask for IP access control for details.
Access
Use the arrow buttons to select either 'Allow' or 'Deny' as appropriate.
2 Enter the base network address, the mask and select the appropriate access setting.
3 Click the OK button.
To reorder access control entries
IMPORTANT: When reordering, ensure that any specific allowed addresses are listed higher in the list than any denied addresses. Take care not to invoke any deny access settings that would exclude valid users.
1 In the access control list, click on the entry to be moved.
2 Click the Up or Down buttons as appropriate.
To edit/remove access control entries
1 In the access control list, click on the appropriate entry.
2 Click either the Edit or Remove button as appropriate.
Serial port configuration
This page provides all access to settings concerned with the two serial ports (modem and power control) that are situated at the rear of the AdderView CATx IP unit.
To get here
1 Using VNC viewer or a browser, log on as the 'admin' user.
2 Click the 'Configure' button in the top right corner.
3 Click the 'Serial port configuration' option.
Modem port
PPP Server IP Address / PPP Client IP Address
When a user dials into the AdderView CATx IP via a modem or ISDN adapter, the AdderView CATx IP sets up a temporary two-device network using PPP (Point to Point Protocol). For this purpose, both devices must have 'dummy' IP addresses so that they can communicate correctly. These two addresses can be almost anything expressed in the quad octet format (i.e. 192.168.3.1.). However, it is advisable not to make them the same as the real IP addresses used by either the remote system or the AdderView CATx IP.
Baud Rate
This option configures the speed of the serial connection between the AdderView CATx IP and a connected modem or ISDN terminal adapter. The default setting is 115200. The other communication settings are fixed as: No parity, 8 bit word, 1 stop bit.
Initialization Sequence
The codes entered here are used to prepare the connected modem or ISDN terminal adapter for use with the AdderView CATx IP. The default code is a Hayes-compatible string to configure auto answer mode and would be understood by the vast majority of modem/ISDN devices. The code is sent when the AdderView CATx IP is first switched on or whenever the Initialize button is clicked.
Initialise
When clicked, this option sends the characters entered in the Initialization sequence field to the connected modem or ISDN terminal adapter.
Restore Defaults
When clicked, this option resets the Baud rate and Initialization sequence values to their original default settings.
Power control port
Baud Rate
This option configures the speed of the serial connection between the AdderView CATx IP and a connected power control unit. The default setting is 9600 as used by the majority of power units. The other communication settings are fixed as: No parity, 8 bit word, 1 stop bit.
Host configuration
This page provides the opportunity to configure various details for each of the host systems that may be connected to the AdderView CATx IP. There are 128 entries, each of which can be configured with a name, the permitted users, the hot key combinations required to switch to it and, if required, appropriate power control commands.
Add entry for unrecognised host
When selected, any systems visited that are not specified in the Hosts list, will be added to the list. Use with care when visiting complex cascaded systems.
Erase Host Configuration
Removes all hosts from the list.
To get here
1 Using VNC viewer or a browser, log on as the 'admin' user
2 Click the 'Configure' button in the top right corner.
3 Click the 'Host configuration' option.
To create a new host entry
1 Click one of the host entries to reveal a Host configuration dialog.
Name
Enter the name that will be displayed in the viewer window when you click the Host button.
Users
Select the users that will be permitted to connect to this host. Either enter * to allow all users or a list of users separated by commas (e.g. admin, nigel, andy, steve).
KVM Port
Declare the Adder Port Direct address that will link with the required host system. See Adder Port Direct for details.
A list of valid hotkey codes are given in Appendix 8.
Power On
Enter the code required to make an attached power control unit apply power to the selected host. See Power switching configuration for details.
Power Off
Enter the code required to make an attached power control unit remove power from the selected host. See Power switching configuration for details.
2 Enter the required information in each field.
3 Click the OK button.
Adder Port Direct
Adder Port Direct is totally transparent communication system that allows supporting devices to communicate with each other. Using the keyboard connections that link each device, Adder Port Direct allows:
- A controlling device to provide address details of the required port, the user's name and access rights, mouse calibration and video mode information.
- A controlled device to confirm the address and other details of the current port.
Such communication simplifies both the configuration and selection of systems, especially within a complex cascade structure. Adder Port Direct also allows the AdderView CATx Hosts option to directly control the connected switching devices (such as other AdderView CATx units in cascade) and then apply the appropriate video capture and mouse scaling settings. Adder Port Direct provides excellent security control to prevent users from accessing systems for which they do not access rights ('sideways movement') because each unit is fully informed of each user's precise access rights.
Port/host addressing using Adder Port Direct
When adding new computers to the Hosts list, the option 'Add entry for unrecognised host' is provided to automatically add new entries if a port is visited that does not already have a matching host entry. This is a useful option for simple configurations, but should be used with care when complex cascades of units are being used as it may lead to more host entries being added than are strictly necessary.
Additionally, you can specify the port number of the required system using the same format as if controlling the KVM switch directly.
Examples
16 selects port 16 and is equivalent to the hotkey sequence +CTRL+ALT+1+6
A.05 selects port 5 on AdderView CATx unit that is cascaded through port group A (see cascade port numbering).
Logging and status
This screen provides various details about the user activity on the AdderView CATx IP unit.
To copy and paste the log
You can copy the information listed within the log and paste it into another application.
1 While viewing the log screen, press Ctrl and C, to copy the data into the clipboard.
2 In a text application (i.e. Word, WordPad, Notepad) press Ctrl and V, or right mouse click and 'Paste'.
Syslog Server IP Address
Logging information can optionally be sent, as it occurs, to a separate system using the standard Syslog protocol. Enter the IP address of a suitable system in the field provided.
For further details
• For details of the Syslog protocol (RFC number: 3164)
http://www.ietf.org/rfc.html
To get here
1 Using VNC viewer or a browser, log on as the 'admin' user.
2 Click the 'Configure' button in the top right corner.
3 Click the 'Logging and status' option.
Appendix 3 - VNC viewer connection options
When you are connecting to the AdderView CATx IP using the VNC viewer, a number of options are available.
Click here to access the options
There are six tabbed pages of options:
- Colour/Encoding
- Inputs
- Scaling
- Misc
- Identities
- Load/Save
IMPORTANT: If you make any changes to the options given here and wish to retain them for successive connection sessions, you must save the changes. To do this, change to the 'Load/Save' tab and click the 'Save' button within the 'Default' section.
Colour/Encoding
Auto select
When ticked, this option will examine the speed of your connection to the AdderView CATx IP and apply the most suitable encoding method. This option is suggested for the majority of installations.
Preferred encoding
There are three manually selectable encoding methods which are accessible when the Auto select option is unticked.
- ZRLE – This is a highly compressed method that is best suited to slow modem connections.
- Hextile – This method offers better performance than the ZRLE when used over a high speed network because there is no need for the AdderView CATx IP to spend time highly compressing the data.
- Raw – This is a primitive, uncompressed method that is mainly used for technical support issues. You are recommended not to use this method.
Colour level
This section allows you to select the most appropriate colour level for the speed of the connection to the AdderView CATx IP. Where the connection speed is slow or inconsistent there will be a necessary compromise between screen response and colour depth.
- Full – This mode is suitable only for fast network connections and will pass on the maximum colour depth being used by the host system.
- Medium (256 colours) – This mode reduces the host system output to a 256 colour mode and is more suitable for ISDN and fast modem connections.
- Low (64 colours) – This mode is suitable for slower modem connections and reduces the host system output to 64 colours.
- Very low (8 colours) – This mode provides very rudimentary picture quality and hardly any speed advantage over the 64 colour setting. You are recommended not to use this mode.
Inputs
Enable all inputs
When selected, allows keyboard, mouse and clipboard data to be transferred between server and viewer systems.
Disable all inputs (view-only mode)
When selected, prevents control data being passed between server and viewer. Viewer can display the server output, but cannot control it.
Customise
Allows you to select which data can be transferred between server and viewer.
Send pointer events to server
When un-ticked, the VNC viewer will not send mouse movement or click data to the AdderView CATx IP or host system.
Send keyboard events to server
When un-ticked, the VNC viewer will not send keyboard information to the AdderView CATx IP or host system.
Send clipboard changes to server
This feature is restricted to software server versions of VNC and has no effect on AdderView CATx IP installations.
Accept clipboard changes from server
This feature is restricted to software server versions of VNC and has no effect on AdderView CATx IP installations, except for retrieving the activity log as described in the logging and status section.
Rate-limit mouse move events
When ticked, this feature reduces the mouse movement information that is sent to the AdderView CATx IP and host system. This is useful for slow connections and you will notice that the remote cursor will catch up with the local cursor roughly once every second.
Enable 3-button mouse emulation
This feature allows you to use a 2-button mouse to emulate the middle button of a 3-button mouse. When enabled, press the left and right mouse buttons simultaneously to create a middle button action. You are advised to generally use a 3-button mouse.
Pass special keys directly to server
When ticked, 'special' keys (the Windows key, the Print Screen key, Alt+Tab, Alt+Escape and Ctrl+Escape) are passed directly to the AdderView CATx IP rather than being interpreted locally.
Menu key
This feature allows you to select which function key is used to display the VNC viewer options menu. The menu key is only way to exit from the full screen viewer mode.
IMPORTANT: If you make any changes to the options given here and wish to retain them for successive connection sessions, you must save the changes. To do this, change to the 'Load/Save' tab and click the 'Save' button within the 'Default' section.
Scaling
No Scaling
No attempt is made to make the screen image fit the viewer window. You may need to scroll horizontally and/or vertically to view all parts of the screen image.
Scale to Window Size
Adjusts the server screen image to suit the size of the viewer window.
Custom Size
Adjusts the server screen image according to the Width and Height settings in the adjacent fields. A drop box to the right of the fields allows you to define the image size by percentage or by pixels, as required.
Preserve Aspect Ratio
When ticked, maintains a consistent ratio between the horizontal and vertical dimensions of the screen image.
Misc
Shared connection (do not disconnect other viewers)
This option does not apply to AdderView CATx IP connections.
Full screen mode
When ticked, the VNC viewer will launch in full screen mode. Use the menu key (usually F8) to exit from full screen mode.
Render cursor locally
This option does not currently apply to AdderView CATx IP connections.
Allow dynamic desktop resizing
When ticked, the viewer window will be automatically resized whenever the host system's screen resolution is altered.
![VNC Viewer Options Colour / Encoding Scaling Inputs Misc Identities Load / Save Shared connection [do not disconnect other viewers] Full-screen mode Render cursor locally Allow dynamic desktop resizing Only use protocol version 3.3 Beep when requested to by the server Offer to automatically reconnect Try Single Sign-On if server allows it OK Cancel](/content/2026/05/901929/images/df5cfff2245b75dc01e65af3f21d53a2b4246d31b4a94df68764ff6c0853befa.jpg)
Only use protocol version 3.3
This option does not apply to AdderView CATx IP connections.
Beep when requested to by the server
When ticked, your local system will beep in response to any error beeps emitted by the AdderView CATx IP.
Offer to automatically reconnect
When ticked, the viewer will offer to restore a lost connection with the server.
Try Single Sign-On if server allows it
This option does not apply to AdderView CATx IP connections.
IMPORTANT: If you make any changes to the options given here and wish to retain them for successive connection sessions, you must save the changes. To do this, change to the 'Load/Save' tab and click the 'Save' button within the 'Default' section.
Identities
This feature helps your VNC viewer to confirm that a revisited AdderView CATx IP is genuine and not another device masquerading as an AdderView CATx IP. The list given will retain the identities of all visited units (that have full security enabled).
When you first make a secure connection to the AdderView CATx IP, the security information for that AdderView CATx IP unit is cached within this Identities tab (i.e. the "identity" is known). The next time that you connect to the AdderView CATx IP, its identity is checked against the stored version. If a mismatch is found between the current and the stored identities then a warning will be issued to you
If an existing AdderView CATx IP is fully reconfigured then it will need to issued with a new identity. In this case the previous identity, listed in this tab, should be removed so that a new identity can be created on the next connection.
Load / Save
Configuration File - Reload
Allows you to load a configuration file saved from this, or another viewer.
Configuration File - Save
Allows you to save the current settings so that they can be copied from one viewer to another.
Configuration File - Save As...
Allows you to save the current settings under a new name so that they can be copied from one viewer to another.
Defaults - Reload
When clicked, all connection options are returned to the default settings that are currently saved.
Defaults - Save
When clicked, saves the current connection options as the default set that will be used in all subsequent VNC connections.
Appendix 4 - VNC viewer window options
Click the VNC icon in the top left corner of the viewer window (or press F8) to display the window options:
Appendix 5 - Browser viewer options
When you are connecting to the AdderView CATx IP using a Web browser, a number of options are available.
Click here to access the options
There are four options pages:
Encoding and colour level
Auto select
When ticked, this option will examine the speed of your connection to the AdderView CATx IP and apply the most suitable encoding method. This option is suggested for the majority of installations.
Preferred encoding
There are three manually selectable encoding methods which are accessible when the Auto select option is unticked.
- ZRLE – This is a highly compressed method that is best suited to slow modem connections.
- Hextile – This method offers better performance than the ZRLE when used over a high speed network because there is no need for the AdderView CATx to spend time highly compressing the data.
- Raw – This is a primitive, uncompressed method that is mainly used for technical support issues. You are recommended not to use this method.
Colour level
The colour level is fixed at Medium (256 colours) for almost all browsers.
Inputs
View only (ignore mouse & keyboard)
When ticked, the viewer will not send keyboard or mouse information to the AdderView CATx IP or host computer.
Accept clipboard from server
This feature is restricted to software server versions of VNC and has no effect on AdderView CATx IP installations.
Send clipboard to server
This feature is restricted to software server versions of VNC and has no effect on AdderView CATx IP installations.
Security
512 bits (low security)
Selects the lowest level of encoding for communications between the browser and the AdderView CATx IP.
1024 bits (medium security)
Selects the middle level of encoding for communications between the browser and the AdderView CATx IP.
2048 bits (high security)
Selects the highest level of encoding for communications between the browser and the AdderView CATx IP.
Misc
Shared (don't disconnect other viewers)
This feature is restricted to software server versions of VNC and has no effect on AdderView CATx IP installations.
Render cursor locally
This feature is restricted to software server versions of VNC and has no effect on AdderView CATx IP installations.
Fast CopyRect
This feature is restricted to software server versions of VNC and has no effect on AdderView CATx IP installations.
Appendix 6 – Addresses, masks and ports
IP address, network masks and ports are all closely linked in the quest for one device to find another across disparate network links.
IP addresses
As a rough analogy, consider how you use the telephone system. The phone number for Adder Technology in the UK is 0044 (0)1954 780044. This number consists of three distinct parts:
• 0044 connects from another country to the UK
• (0)1954 selects the main telephone exchange in the Bar Hill area of Cambridgeshire, and
• 780044 is the unique code for Adder Technology within Bar Hill.
The important parts of the whole number depend on where you are. If you were based in the same local area as Adder Technology, there would be no point in dialling out of the UK, or even out of the area. The only part of the whole number that you are interested in is the final part: 780044.
In a similar way to the various parts of the telephone number, the four sections (or Octets) of every IP address have different meanings or "weights". Consider the following typical IP address:
192.168.142.154
192 is the most global part of the number (akin to the 0044 of the phone number) and 154 is the most local (similar to the 780044 unique local code of the phone number).
When two network devices communicate with each other, they always "dial the whole number" regardless of their respective locations in a network. However, they still need to know whether the other device is local to them or not, and this is where the net mask comes into play.
Net masks
The net mask (or sub-net mask) informs a device as to its own position within a network. From this it can determine whether any other device is within the same local network or is situated further afield.
Taking the telephone number analogy given in the IP address section, in order to use the telephone system efficiently, it is vital for you to know your location relative to the person you are calling. In this way you avoid dialling unnecessary numbers.
When one network device needs to talk to another, the first thing that it will do is a quick calculation using its own IP address, the other device's IP address and its own net mask. Suppose a device with address 192.168.142.154 and net mask 255.255.255.0 needed to communicate with a device at address 192.168.142.22. The sending device would perform several calculations:
1 The net mask is used to determine the local and global parts of the sender's IP address. Where there is 255 in the mask, the corresponding address slips through, where there is a 0, it is blocked.
2 Where the net mask was 0, the corresponding part of the result is also zero - this section is now known to be the local part of the IP address.
3 The same process is carried out for the destination address, again using the sender's net mask. Now the local parts of both addresses have been equalised to zero, because their values are not important in determining whether they are both in the same local network.
4 The results of the two net mask operations are now compared, if they match, the destination is local. If not, then the sender will still use the same full destination IP address but will also flag the message to go via the local network gateway and out into the wider world.
The reason for doing this? It makes the network, as a whole, much more efficient. If every message for every recipient was shoved straight out onto the Internet, the whole thing would grind to a halt within seconds. Net masks keep local traffic just that - local.
Want to know more?
Net masks - the binary explanation
To really understand the operation of a net mask it is necessary to delve deeper into the life blood of computers – binary; this is native digital, where everything is either a 1 (one) or 0 (zero), on or off, yes or no.
The net mask operation described on the previous page is known as a 'bit-wise AND function'. The example of 255.255.255.0 is handy because the last octet is completely zero and is "clean" for illustrative purposes. However, actual net mask calculations are carried out, not on whole decimal numbers, but bit by bit on binary numbers, hence the term 'bit-wise'. In a real local network, a net mask might be 255.255.255.240. Such an example would no longer be quite so clear, until you look at the net mask in its binary form:
11111111.11111111.11111111.11110000
In this case, the four zeroes at the end of the net mask indicate that the local part of the address is formed by only the last four bits. If you use the diagram from the previous example and insert the new net mask, it will have the following effect on the final result:
Thus, when 154 is bit-wise ANDed with 240, the result is 144. Likewise, any local address from 192.168.142.144 through to 192.168.142.159 would produce exactly the same result when combined with this net mask, hence they would all be local addresses. However, any difference in the upper three octets or the upper four bits of the last octet would slip through the mask and the address would be flagged as not being local.
Calculating the mask for IP access control
The IP access control function uses a standard IP address and a net mask notation to specify both single locations and ranges of addresses. In order to use this function correctly, you need to calculate the mask so that it accurately encompasses the required address(es).
Single locations
Some of the simplest addresses to allow or deny are single locations. In this case you enter the required IP address into the 'Network/Address' field and simply enter the 'Mask' as 255.255.255.255 (255 used throughout the mask means that every bit of the address will be compared and so there can only be one unique address to match the one stated in the 'Network/Address' field).
All locations
The other easy setting to make is ALL addresses, using the mask 0.0.0.0 As standard, the IP access control section includes the entry: +0.0.0.0/0.0.0.0 The purpose of this entry is to include all IP addresses. It is possible to similarly exclude all addresses, however, take great care not to do this as you instantly render all network access void. There is a recovery procedure should this occur.
Address ranges
Although you can define ranges of addresses, due to the way that the mask operates, there are certain restrictions on the particular ranges that can be set. For any given address you can encompass neighbouring addresses in blocks of either 2, 4, 8, 16, 32, 64, 128, etc. and these must fall on particular boundaries. For instance, if you wanted to define the local address range:
192.168.142.67 to 192.168.142.93
The closest single block to cover the range would be the 32 addresses from: 192.168.142.64 to 192.168.142.95.
The mask needed to accomplish this would be: 255.255.255.224
When you look at the mask in binary, the picture becomes a little clearer. The above mask has the form: 11111111.11111111.11111111.1100000 Ignoring the initial three octets, the final six zeroes of the mask would ensure that the 32 addresses from .64 (01000000) to .95 (01011111) would all be treated in the same manner. See Net masks - the binary explanation for details.
When defining a mask, the important rule to remember is:
There must be no 'ones' to the right of a 'zero'.
For instance, (ignoring the first three octets) you could not use a mask that had 11100110 because this would affect intermittent addresses within a range in an impractical manner. The same rule applies across the octets. For example, if you have zeroes in the third octet, then all of the fourth octet must be zeroes.
The permissible mask values (for all octets) are as follows:
Mask octet Binary Number of addresses encompassed
| 255 | 11111111 | 1 address |
| 254 | 11111110 | 2 addresses |
| 252 | 11111100 | 4 addresses |
| 248 | 11111000 | 8 addresses |
| 240 | 11110000 | 16 addresses |
| 224 | 11100000 | 32 addresses |
| 192 | 11000000 | 64 addresses |
| 128 | 10000000 | 128 addresses |
| 0 | 00000000 | 256 addresses |
If the access control range that you need to define is not possible using one address and one mask, then you could break it down into two or more entries. Each of these entries could then use smaller ranges (of differing sizes) that, when combined with the other entries, cover the range that you require. For instance, to accurately encompass the range in the earlier example: 192.168.142.67 to 192.168.142.93
You would need to define the following six address and mask combinations in the IP access control section:
Network/address entry Mask entry
| 192.168.142.67 | 255.255.255.255 | defines 1 address (.67) |
| 192.168.142.68 | 255.255.255.252 | defines 4 addresses (.68 to .7 |
| 192.168.142.72 | 255.255.255.248 | defines 8 addresses (.72 to .7 |
| 192.168.142.80 | 255.255.255.248 | defines 8 addresses (.80 to .8 |
| 192.168.142.88 | 255.255.255.252 | defines 4 addresses (.88 to .9 |
| 192.168.142.93 | 255.255.255.255 | defines 1 address (.93) |
Ports
If you accept the analogy of IP addresses being rather like telephone numbers, then think of ports as extension numbers. In a company of any size, you generally wouldn't expect the accounts department to share the same telephone with the technical department. Although their calls may all be related to the same company, they concern very different aspects of that company.
It is the same with IP network connections. Although you have only one network link into your computer and only one IP address (phone number), you are probably performing many different tasks through that one link, often at the same time. Thus, when you browse the web your outgoing requests and the incoming information are all channelled through port 80. When you send an email, it travels through port 25 and when you transfer files you are, without knowing it, using port 20.
At the "border crossing" between the wider Internet and every local network attached to it, there is a router that is usually combined with a firewall. One of its main tasks is to direct incoming traffic to the correct place within its local network. A key piece of information to help it do this is the port number:
Security issues with ports
The settings of port numbers become important when the AdderView CATx IP is situated behind a network firewall. In order for a remote VNC viewer or web browser to make contact with your AdderView CATx IP, it is necessary for the firewall to allow communication through a particular numbered port to occur. One specific function of firewalls is to restrict access to ports in order to prevent malicious attackers using them as a route into your network. Every new port that is opened offers a new possibility for hackers and so the number of accessible ports is purposefully kept to a minimum. In such cases, it may be advantageous to change one or both AdderView CATx IP ports to use the same number. The other alternative is to place the AdderView CATx IP unit outside the firewall and take full advantage of its secure operation features – see Networking issues for details.
IMPORTANT: The correct configuration of routers and firewalls requires advanced networking skills and intimate knowledge of the particular network. Adder Technology cannot provide specific advice on how to configure your network devices and strongly recommend that such tasks are carried out by a qualified professional.
Appendix 7 - Cable and connector specifications
RS232 serial mouse to PS/2 converter cable
RS232 serial flash upgrade cable
9pin D-type female 9pin D-type male
AdderView CATx to power switch cable
Power switch to power switch daisy chain cable
Multi-head synchronisation cable
Appendix 8 – Hotkey sequence codes
These codes are used when defining hotkey switching sequences (macros) for host computers and allow you to include almost any of the special keys on the keyboard.
Permissible key presses
Main control keys (see 'Using abbreviations')
Backspace | Tab | Return | Enter | Ctrl | Alt | Win | Shift | LShift | RShift
LCtrl | RCtrl | LAlt | AltGr | RAlt | LWin | RWin | Menu | Escape | Space
CapsLock | NumLock | PrintScreen | Scrolllock
Math operand keys (see 'Using abbreviations')
Add (Plus) | Subtract (Minus) | Multiply
Central control keys (see 'Using abbreviations')
Insert | Delete | Home | End | PageUp | PageDown
Up | Down | Left | Right | Print | Pause
Keypad keys (see 'Using abbreviations')
KP_Insert | KP_Delete | KP_Home | KP_End | KP_PageUp
KP_PageDown | KP_Up | KP_Down | KP_Left | KP_Right | KP_Enter
KP_Add | KP_Subtract | KP_Divide | KP_Multiply
KP_0 to KP_9
Function keys
F1 | F2 | F3 | F4 | F5 | F6 | F7 | F8 | F9 | F10 | F11 | F12
ASCII characters
All characters can be entered using their ASCII codes, from 32 to 126 (i.e. A,B,C,
... 1,2,3 etc.) with the exception of the special characters '+', '-', '+-' and '*'
which have special meanings, as explained below.
Codes with special meanings
+ means press down the key that follows
– means release the key that follows
+— means press down and release the key that follows
* means wait 250ms (note: if a number immediately follows the asterisk, then the delay will equal the number, in milliseconds)
Note: Hotkey sequences are not case sensitive.
Creating macro sequences
Hot key macro sequences can be up to 256 characters long. All keys are assumed to be released at the end of a line, however, you can also determine that a key is pressed and released within a sequence. Any of the following three examples will send a command that emulates and a press and release of the Scroll Lock key:
+SCROLL-SCROLL
+-SCROLL
+SCROLL-
Example:
+-SCROLL+-SCROLL+1+ENTER
Press and release scroll twice, press 1 then enter then release all keys (equivalent definition is +SCROLL-SCROLL+SCROLL-SCROLL+1+ENTER-1-ENTER)
Using abbreviations
To reduce the length of the key definitions, any unique abbreviation for a key can be used. For example: "scroll", "scr" and even "sc" all provide an identifiable match for "ScrollLock" whereas "en" could not be used because it might mean "Enter" or "End" ("ent" would be suitable for "Enter").
Note: Hotkey sequences and abbreviations are not case sensitive.
For information about where to enter these codes, please see the sections Host configuration or Keyboard control.
Appendix 9 – Supported video modes
The following video modes are supported and can be automatically configured by the AdderView CATx units. If a recognised video mode cannot be found, the AdderView CATx will gradually change some of the key parameters to discover whether a video lock can be achieved. Support for VESA GTF (Generalized Timing Formula) is available and can be enabled via the Advanced Unit Configuration screen.
The half width video modes capture every other pixel. These are not generally recommended for normal use but may be used for emergency access to high resolution, high frequency system screens. Half width screens can be expanded to normal width using the scaling features of the viewer.
| vesa 720 x 400 @ 85Hz | vesa 720 x 400 @ 70Hz* |
| vesa 640 x 480 @ 60Hz | sun 1152 x 900 @ 66Hz |
| vesa 640 x 480 @ 72Hz | sun 1152 x 900 @ 76Hz |
| vesa 640 x 480 @ 75Hz | sun 1280 x 1024 @ 67Hz |
| vesa 640 x 480 @ 85Hz | apple 640 x 480 @ 67Hz |
| vesa 800 x 600 @ 56Hz | apple 832 x 624 @ 75Hz |
| vesa 800 x 600 @ 60Hz | apple 1152 x 870 @ 75Hz |
| vesa 800 x 600 @ 72Hz | 1900 x 1200 @ 60Hz** |
Vesa 800 x 600 @ 75Hz
vesa 800 x 600 @ 85Hz
vesa 1024 x 768 @ 60Hz
vesa 1024 x 768 @ 70Hz
vesa 1024 x 768 @ 75Hz
vesa 1024 x 768 @ 85Hz
vesa 1152 x 864 @ 75Hz
vesa 1280 x 960 @ 60Hz
vesa 1280 x 1024 @ 60Hz
vesa 1280 x 1024 @ 75Hz
vesa 1600 x 1200 @ 60Hz
vesa 1600 x 1200 @ 65Hz half-width
vesa 1600 x 1200 @ 70Hz half-width
vesa 1600 x 1200 @ 75Hz half-width
vesa 1600 x 1200 @ 85Hz half-width
General Public License (Linux)
The AdderView CATx runs an embedded version of the Linux operating system, licensed under the GNU General Public License. To obtain the source code for the open-source components of the system visit:
http://www.realvnc.com/products/AdderLinkIP/gpl.html
* Not actually a VESA mode but a common DOS/BIOS mode
** May also work on some systems when the operating temperature of the AdderView CATx is controlled.
End user licence agreement
PLEASE READ THIS AGREEMENT CAREFULLY. THIS AGREEMENT CONCERNS ENHANCED VNC VIEWER SOFTWARE ("the SOFTWARE") FOR USE WITH THE AdderView CATx PRODUCT ("the PRODUCT"). THE SOFTWARE IS PROVIDED TO ENABLE YOU TO OPERATE THE PRODUCT. BY USING ALL OR ANY PORTION OF THE SOFTWARE YOU ACCEPT ALL THE TERMS AND CONDITIONS OF THIS AGREEMENT. IF YOU DO NOT ACCEPT ALL THE TERMS AND CONDITIONS OF THIS AGREEMENT THEN DO NOT USE THE SOFTWARE. BY USING ANY UPDATED VERSION OF THE SOFTWARE WHICH MAY BE MADE AVAILABLE, YOU ACCEPT THAT THE TERMS OF THIS AGREEMENT APPLY TO SUCH UPDATED SOFTWARE.
1. Intellectual Property Rights
The Software and its structure and algorithms are protected by copyright and other intellectual property laws, and all intellectual property rights in them belong to RealVNC Limited ("RealVNC"), a United Kingdom Limited Company, or are licensed to it. You may not reproduce, publish, transmit, modify, create derivative works from, publicly display the Software or part thereof. Copying or storing or using the Software other than as permitted in Clause 2 is expressly prohibited unless you obtain prior written permission from RealVNC.
2. Permitted and Prohibited Uses
2.1 During the term of this Agreement and as long as you comply with the terms of this agreement, you may use the Software only with the Product for your personal use or for the internal use of your business. You may make as many copies of the Software as you require for your own internal business purposes only and for archival purposes. You are expressly prohibited from distributing the Software in any format, in whole or in part, for sale, or for commercial use or for any unlawful purpose.
2.2 You may not rent, lease or otherwise transfer the Software or allow it to be copied. Unless permitted by law, you may not reverse engineer, decompile or disassemble the Software.
3. Warranty
REALVNC DOES NOT WARRANT ANY RESULTS OBTAINED USING THE SOFTWARE. TO THE EXTENT PERMITTED BY LAW, REALVNC DISCLAIMS ALL OTHER WARRANTIES ON THE SOFTWARE, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY, NON-INFRINGEMENT OF THIRD PARTY RIGHTS AND FITNESS FOR PARTICULAR PURPOSE.
4. Limitation on Liability
UNDER NO CIRCUMSTANCES SHALL REALVNC BE LIABLE FOR ANY CONSEQUENTIAL INDIRECT OR INCIDENTAL DAMAGES WHATSOEVER INCLUDING LOST PROFITS OR SAVINGS ARISING OUT OF THE USE OF THE SOFTWARE, THE SERVICE OR THE INFORMATION, RELIANCE ON THE DATA PRODUCED OR INABILITY TO USE THE SOFTWARE, THE SERVICE OR THE INFORMATION EVEN IF REALVNC HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES AND COUNTRIES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU. NOTHING IN THIS AGREEMENT LIMITS LIABILITY FOR DEATH OR PERSONAL INJURY ARISING FROM A PARTY'S NEGLIGENCE OR FROM FRAUDULENT MISREPRESENTATION ON THE PART OF A PARTY
5. Export Control
The United States and other countries control the export of Software and information. You are responsible for compliance with the laws of your local jurisdiction regarding the import, export or re-export of the Software, and agree to comply with such restrictions and not to export or re-export the Software where this is prohibited. By downloading the Software, you are agreeing that you are not a person or entity to which such export is prohibited.
6. Term and Termination
This licence shall continue in force unless and until it is terminated by RealVNC by e-mail notice to you, if it reasonably believes that you have breached a material term of this Agreement
In the case above, you must delete and destroy all copies of the Software in your possession and control and overwrite any electronic memory or storage locations containing the Software.
7. General Terms
7.1 The construction, validity and performance of this Agreement shall be governed in all respects by English law, and the Parties agree to submit to the exclusive jurisdiction of the English courts.
7.2 If any provision of this agreement is found to be invalid by any court having competent jurisdiction, the invalidity of such provision shall not affect the validity of the remaining provisions of this agreement, which shall remain in full force and effect.
7.3 No waiver of any term of this agreement shall be deemed a further or continuing waiver of such term or any other term.
7.4 This agreement constitutes the entire agreement between you and RealVNC.
www.adder.com
Documentation by:
www.ctxd.com
© 2021 Adder Technology Limited
All trademarks are acknowledged.
Part No. MAN-AVX4016-AVX4024-ADDER • Release 1.3
Index
A
Access
local and remote users 51
via dial up link 66
Access control
configuration 89
mask calculation 102
Access mode
shared & private 62
Account
creation for users 84
Address
explanation 100
Addressing
cascaded computers 18
DNS 43
network issues 42
power switch boxes 15
ADMIN
forgotten password 36
password 25
Admin password
initial setup 38
local setting 79
Advanced options 76
Advanced unit configuration
86
Artifacts
on screen 60
Auto calibrate 62
Autoscanning 33
Auto select 94,99
B
Baud rate 76
local setting 81
remote setting 90
Binary
net masks 101
Brackets
fitting 7
Browser
connection 59
viewer options 99
C
Cable lengths
to computers 12
to remote users 10
Cable specifications 104
Calibrate
mouse 62
screen 62
Calibrate all
video settings 65
CAM
connection 12
Cascade
groups 17
Cascade connections
addressing 18
how they work 17
introduction 16
testing 20
tips for success 19
Cascaded computers
selecting 54
Clear IP access control 82
local setting 80
Client IP
local setting 81
Colour level 94
COM1
baud rate 90
connection 13
COM2
baud rate 90
Compensation
for computer links 28
for remote user links 30
Computer
connection 12
name editing 27
ports 5
registering 27
selecting 51
Computer Access Module
connection 12
Configuration 23
initial IP 39
menus 24,69
overall steps 23
pages 83
saving and restoring 34
Configuration settings
saving and restoring 34
Configure IP port 78
Confirmation box 54
Connections 8
Computer Access Module 12
computer system 12
global user 11
host computer 9
ISDN 13
keyboard 9
local user 9
modem 13
multiple video head 21
network port 11
power control 15
power supply 14
remote user 10
Connector specifications 104
Control menus
for remote connection 60
Controls
viewer options 63
Control strings
power switching 45
D
Daisy chain cable 104
Data Transfer utility 34
Date
local setting 79
DDC
options 76,77
DHCP
discovering allocations 43
during initial setup 38
local setting 80
remote setting 88
Dial up
connection 66
DNS addressing 43
E
Encryption key 38
Encryption settings 40
viewer 67
End user licence 109
Extender
remote user 10
F
Firewall 42
Firmware
current version 85
upgrade 47
Force encryption 79
Format
power control port 76
Front panel
controls 50
controls and indicators 50
Full screen mode
escape from (F8) 60
Functions 70,76,78
G
Gateway
local setting 80
remote setting 88
Global preferences 72,76
Global user
access 57
connection 11
H
Hextile 94,99
Host computer
connecting 9
connection 12
power switching setup 45
Host configuration 91
Hosts
changing between 60,61
configuration 91
Host selection 61
Hotkeys
changing 25
codes and macros 106
selecting computers 52
sequences 92
Hot plugging 37
HTTP port
initial setup 38
local setting 80
remote setting 88
when altered 42
|
Identities
VNC Viewer 97
Indicators 5,50
Initial configuration 23
Initialise button 90
itialize port
local setting 81
Init string
local setting 81
IntelliMouse 37
IP access control 88,89
calculating mask 102
clearing 82
IP address
explanation 100
local setting 80
remote setting 88
IP gateway 88
IP network mask 88
IP network port 5
connecting 11
IP port
connection 11
initial configuration 38
IP port configuration
configuration via viewer 39
ISDN
connecting 13
dial up link 66
K
Keyboard codes
sending 64
Keyboard layout
local setting 79
remote setting 85
KVMADMIN utility 46
L
Local connection 51
Local network
connection 41
Local user
connection 9
port 5
Logging 93
Logging in and out
section 54
Log on 58
M
MAC address 80,87,88
Mask
explanation 100
for IP access control 102
Menu bar
viewer window 60
Menu key
changing 95
Modem
connecting 13
dial up link 66
port 5
Modem configuration 81
Mounting 7
Mouse
calibration 62
control 63
pointers 61
restoration 37
resync 62,63
Multiple video head
connections 21
N
Net mask 80
explanation 100
Network configuration 80,88
Networking issues 41
Network port
connection 11
0
Octets
ip address 100
Operation 50
P
Parts
supplied and extra 6
Password
admin 25
admin - setting 79
forgotten 36
initial setup 38
remote logon 58
setting for users 84
Port number
entering 66
Power control 5
connection 15
options 76
Power strings
for switching 45
Power supply
connecting 14
part number 6
Power switching
addressing 15
configuration 45
connection 15
control sequences 45
on & off select 62
user permissions 84
via viewer 62
PPP IP address 90
Preferred encoding 94
Private
access mode 62
R
Raw 94,99
RealVNC 5
Refresh screen 63
Reminder banner 55
Remote configuration
advanced unit configuration
86
host configuration 91
logging and status 93
network configuration 88
serial port configuration 90
setting IP access control 89
unit configuration 85
user accounts 84
Remote user
cable lengths 10
connection 10
ports 5
Reset configuration 82
Restore Defaults
local setting 81
Restoring
configuration settings 34
Resync mouse 63
RJ9 connector 15
Router 42
Routing status 55
S
Safety information 108
Saving
configuration settings 34
Scaling
VNC Viewer 96
Screen
best resolution 60
calibration 62
navigation 60
refresh 63
Screensaver
local setting 79
Security
enabling 25
ensuring 44
general steps 25
Selecting
cascaded computers 54
computers 51
with front panel 51
with hotkeys 52
with mouse buttons 53
with on-screen menu 53
Serial port
configuration 90
modem connection 13
Server
configuration 91
Server IP
local setting 81
Setup options 70,74
Shared
access mode 62
Single mouse mode 61,63
Skew adjustment 31
Slow connections
optimising for 60
Supplied items 6
Syslog 93
T
Testing
links to cascaded computers
20
Threshold
adjustment 65
Time
local setting 79
Time & date configuration 87
Troubleshooting 68
U
Unit Configuration 79,85
Unit name
local setting 79
remote setting 85
Upgrade
firmware 47
Use DHCP
local setting 80
User accounts 84
User list
editing 26
Username
remote logon 58
User preferences 71,74
v
Video compensation 28
Video modes 107
Video settings 64
Viewer window 60
VNC port
initial setup 38
local setting 80
remote setting 88
when altered 42
VNC viewer
connection 58
connection options 94
download 58
window options 98
W
Warranty 108
Web browser
connection 59
viewer options 99
X
X100 extender 10
X200 extender 10
Z
ZRLE 94,99
- Installation
- Configuration
- Operation
- Further information
- Index
- Introduction
- AdderView CATx features - front and rear
- Front panel buttons
- IP network port (CATx IP only)
- Created through partnership
- Indicators
- Remote user ports
- Local user port
- Computer ports
- Mounting
- Connections
- Rack brackets
- Local user
- To connect the local user port
- Remote user (via X100/X200 extender)
- Cable lengths for remote user locations
- To connect a remote user
- Global user (IP network port)
- To connect the Global user (IP network) port
- Computer system (via CAM)
- To connect a computer system
- Modem/ISDN port
- To connect a modem or ISDN adapter
- Power in connection
- To connect the power supply
- Power control port
- To connect and address the switch boxes
- Cascading multiple units
- The cascade tree
- See also
- How cascade connections operate
- Addressing computers in a cascade
- Connecting AdderView CATx units in cascade
- Tips for successful cascading
- To connect units in cascade
- Using cascaded computers
- Testing specific links to cascaded computers
- To test a specific link
- Multiple video head connections
- Remote switching control
- Overall initial configuration
- Configuration menus
- To access the configuration menu (local and remote users)
- Hotkeys
- Security
- To access the configuration menu (global users)
- Configuration menus layout
- General security and configuration steps
- To enable general security
- To set an ADMIN password
- To change the hotkeys
- Registering users (edit user list)
- To create/edit user accounts
- Registering computers (edit computer list)
- To create/edit computer entries
- Tips when creating/editing computer entries
- Video compensation
- Computer video compensation
- To apply computer video compensation
- Remote user video compensation
- To display a suitable high contrast image
- If the image controls cannot provide a crisp image
- To apply remote user video compensation
- Remote user skew adjustment
- To use skew adjustment
- To obtain and run the free Adder test pattern generator
- Creating a skew test pattern
- Autoscanning
- To select an autoscan mode
- To select an autoscan period
- To define an autoscan list
- To view autoscan
- Saving and restoring configuration settings
- Preparations for configuration save/load
- To transfer configuration settings
- To edit the configuration settings
- Hints for editing
- What to do if the ADMIN password has been forgotten
- To reset AdderView CATx models
- To reset the AdderView CATx IP models
- Hot plugging and mouse restoration
- Which restore setting do I use?
- Recognising an IntelliMouse-style mouse
- Recognising an IntelliMouse driver
- To restore mouse operation when hot plugging:
- Initial IP configuration
- To configure IP-specific settings
- To use the initial IP-configuration sequence
- Admin password
- Time and Date
- Encryption
- Use DHCP/IP address/Net Mask/Gateway
- VNC and HTTP ports
- Modem/ISDN port details
- Secure keys generation
- IP configuration by global user
- To configure IP details from a global user location
- User Accounts
- Unit Configuration
- Time & Date Configuration
- Network Configuration
- Serial Port Configuration
- Host Configuration
- Logging and Status
- Encryption settings
- AdderView CATx IP encryption settings
- Viewer encryption settings
- Networking issues
- Positioning AdderView CATx IP in the network
- Placing AdderView CATx IP behind a router or firewall
- Port settings
- When a web server is also on the local network
- http://192.168.47.10:8000
- If you need to change the VNC port number
- 192.168.47.10::11590
- Addressing
- To discover a DHCP-allocated IP address
- DNS addressing
- Placing AdderView CATx IP alongside the firewall
- Ensuring sufficient security
- Ports
- Power switching configuration
- To configure the power sequences for each host computer
- Power control sequences
- To control two or more ports simultaneously
- The KVMADMIN utility
- Performing upgrades
- Upgrading AdderView CATx models and CAMs
- Items required to use the upgrade utility
- To use the KVM Firmware Uploader utility
- - Obtain and run the KVM Firmware Uploader.
- - Power off the AdderView CATx and select flash upgrade mode
- - Connect the upgrade computer to the AdderView CATx
- - Power on the AdderView CATx
- - Run the KVM Firmware Uploader utility
- - Query the AdderView CATx unit
- - Select the items to be upgraded
- - Select the upgrade file to be used
- - Commence the upgrade
- - Change option switch 1 to the OFF position and cycle the power
- Issues to consider when performing flash upgrades
- Upgrading AdderView CATx IP models
- To upgrade AdderView CATx IP models
- The front panel controls
- COMPUTER button and numeric indicator
- USER button and numeric indicator
- Accessing the AdderView CATx
- Local and remote user access
- To gain access as a local or remote user:
- Selecting a computer
- To avoid the 'hall of mirrors' effect
- To select a computer using the front panel controls
- To select a computer using hotkeys
- Standard hotkeys
- To select a computer using the on-screen menu
- To select a computer using mouse buttons
- To select a computer using mouse buttons – Advanced method
- Logging in and out
- To log in to the AdderView CATx
- To log out from the AdderView CATx
- Selecting cascaded computers
- The confirmation box
- To enable/disable the confirmation box
- The reminder banner
- To move the reminder banner
- To change banner colours or disable the banner
- Routing status
- To use the Routing status feature
- Power switching (via configuration menu)
- To switch a computer on or off
- User preferences and functions
- Global user access
- Global user access via VNC viewer
- To access via the VNC viewer
- v.w.x.y
- Downloading VNC viewer from the AdderView CATx IP
- To download the VNC viewer
- Global user access via web browser
- To access via your web browser
- http://v.w.x.y
- Options button
- Using the viewer window
- The menu bar
- When using the viewer window
- What is the best screen resolution to use?
- How do I navigate around a larger screen?
- How do I escape from full screen mode?
- Why is the button flashing red?
- How do I change between host computers?
- How do I remove traces of moved items from the screen?
- How do I make the most of a slow connection?
- Adjust the Threshold setting
- Fewer colours
- Rate limit mouse events
- Mouse pointers
- Host selection
- To select a host
- Configure
- Auto calibrate
- To auto calibrate the screen and/or mouse
- Re-synchronise mouse
- To re-synchronise the mouse
- Access mode - shared/private
- To change the access mode
- Power switching (via viewer)
- To switch a system on or off
- Controls
- Single Mouse Mode
- Resync Mouse
- Refresh Screen
- Mouse Control
- Keyboard Control
- When entering codes:
- Video Settings
- Info
- KVM switch menu
- Threshold
- Phase
- Horizontal Position
- Vertical Position
- Brightness & Contrast
- Calibrate All
- Display activity
- Using automatic configurations
- Setting the Threshold manually
- Access via dial up (modem or ISDN) link
- To initiate a dial up link
- If you need to enter a port number
- What is a port?
- To enter a port number in a Web browser
- To enter a port number in VNC viewer
- Supported web browsers
- Windows
- Linux
- Getting assistance
- Troubleshooting
- Global network users are unable to contact the AdderView CATx IP
- The remote cursor is not correctly responding to my mouse movements
- When logging on using VNC viewer, I cannot enter a username
- Appendix 1 - Configuration menus
- To access the configuration menus
- Functions
- To get here
- Restore Standard Mouse
- Clear UTP Extender Password
- Reset to Factory Defaults
- ADDERVIEWCATxIP
- Power Control
- Switch Computer ON
- Switch Computer OFF
- Edit Power ON String
- Edit Power OFF String
- Send Data to RS232 port
- Read Data from RS232 port
- Configure IP port
- User Preferences
- OSDColour.SCHEME1
- OSD Colour
- Reminder Banner
- Reminder Colour
- Screen Saver Type
- Confirmation Box
- Global Preferences
- Mouse Switching
- Screen Saver
- Autoscan Mode
- To define the autoscan list
- Autoscan Period
- Global Preferences (continued)
- OSD Dwell Time
- User Timeout
- RS232 Mouse Type
- Mouse Type
- Setup Options
- Language
- Keypad Controls
- Exclusive Use
- Setup Options (continued)
- Automatic Logout
- Audio
- Add Computers
- Advanced Options
- DDC Options
- DDC Source
- DDC Refresh
- Baud Rate
- Format
- USB Country Code
- Country Code
- Default Country
- Setup Options 2
- Force Mode
- Keybd Layout
- Admin Passwd
- Unit Name
- MAC Address
- Use DHCP
- IP Address
- Net Mask
- Gateway
- VNC Port
- HTTP Port
- Clear IP Access Control
- Modem Configuration
- Server IP / Client IP
- Init String
- Initialize Port
- Restore Defaults
- Reset Configuration
- To reset the AdderView CATx IP configuration
- Clearing IP access control
- What is IP access control?
- To clear IP access control
- Appendix 2 - Configuration pages via viewer
- To access the remote configuration pages
- To create a new account
- User Name
- Password
- Local
- Modem
- Remote
- Power
- Hardware Version
- Firmware Version
- Host Keyboard Layout
- Advanced Unit Configuration
- Force VNC Protocol 3.3
- Idle Timeout
- Protocol Timeout
- Mouse Latency Allowance
- Mouse Rate
- Background Refresh Rate
- Single Mouse Mode Mouse Switch
- Behaviour for admin connections when limit reached
- Use VESA GTF
- Upgrade firmware
- Use NTP
- NTP Server IP address
- Set Time from NTP Server
- Timezone specifier
- For further details
- IP Network Mask
- IP Gateway
- IP Access Control
- Setting IP access control
- To define a new IP access control entry
- Network/Address
- Mask
- Access
- To reorder access control entries
- To edit/remove access control entries
- Modem port
- PPP Server IP Address / PPP Client IP Address
- Initialization Sequence
- Initialise
- Add entry for unrecognised host
- Erase Host Configuration
- To create a new host entry
- Adder Port Direct
- Port/host addressing using Adder Port Direct
- Examples
- To copy and paste the log
- Syslog Server IP Address
- Appendix 3 - VNC viewer connection options
- Colour/Encoding
- Auto select
- Preferred encoding
- Colour level
- Inputs
- Enable all inputs
- Disable all inputs (view-only mode)
- Customise
- Send pointer events to server
- Send keyboard events to server
- Send clipboard changes to server
- Accept clipboard changes from server
- Rate-limit mouse move events
- Enable 3-button mouse emulation
- Pass special keys directly to server
- Menu key
- Scaling
- No Scaling
- Scale to Window Size
- Custom Size
- Preserve Aspect Ratio
- Misc
- Shared connection (do not disconnect other viewers)
- Full screen mode
- Render cursor locally
- Allow dynamic desktop resizing
- Only use protocol version 3.3
- Beep when requested to by the server
- Offer to automatically reconnect
- Try Single Sign-On if server allows it
- Identities
- Load / Save
- Configuration File - Reload
- Configuration File - Save
- Configuration File - Save As...
- Defaults - Reload
- Defaults - Save
- Appendix 4 - VNC viewer window options
- Appendix 5 - Browser viewer options
- Encoding and colour level
- View only (ignore mouse & keyboard)
- Accept clipboard from server
- Send clipboard to server
- bits (low security)
- bits (medium security)
- bits (high security)
- Shared (don't disconnect other viewers)
- Fast CopyRect
- Appendix 6 – Addresses, masks and ports
- IP addresses
- 192.168.142.154
- Net masks
- Net masks - the binary explanation
- 11111111.11111111.11111111.11110000
- Calculating the mask for IP access control
- Single locations
- All locations
- Address ranges
- Security issues with ports
- Appendix 7 - Cable and connector specifications
- Appendix 8 – Hotkey sequence codes
- Permissible key presses
- ASCII characters
- Codes with special meanings
- Creating macro sequences
- Using abbreviations
- Appendix 9 – Supported video modes
- General Public License (Linux)
- End user licence agreement
- Intellectual Property Rights
- Permitted and Prohibited Uses
- Warranty
- Limitation on Liability
- Export Control
- Term and Termination
- General Terms
- A
- B
- C
- D
- E
- F
- G
- H
- |
- K
- L
- M
- N
- 0
- P
- R
- S
- T
- U
- v
- W
- X
- Z
Brand : Adder
Model : AdderView CATx
Category : Network switch
