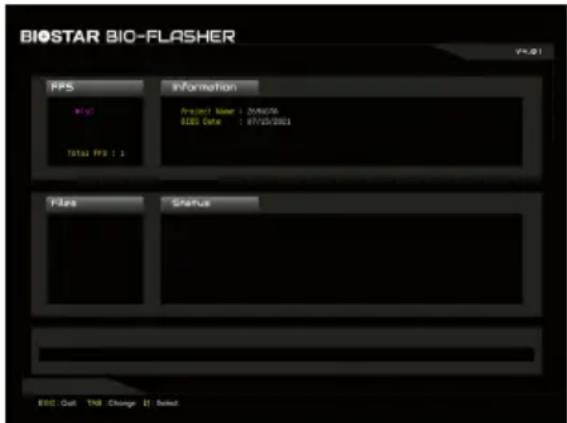

Yes, the motherboard features a SMART BIOS update button. Insert a USB drive with the renamed BIOS file (AX67AA5T.ROM) into the SMART BIOS USB port, connect power, and press the button for 3-5 seconds until the LED stops flashing.

How do I set up RAID on this motherboard?

The motherboard supports RAID 0, 1, 10 via the AMD X670 chipset. Connect your SATA or M.2 drives, enter the UEFI BIOS, and configure RAID in the chipset settings. You may need to install the RAID driver during OS installation.

What should I do if the computer overheats and shuts down?

This indicates CPU protection. Check that the cooler is properly mounted and the fan spins. Clear CMOS by removing power for a few seconds, or use the clear CMOS jumper. Ensure adequate airflow in the case.

How do I control the RGB lighting?

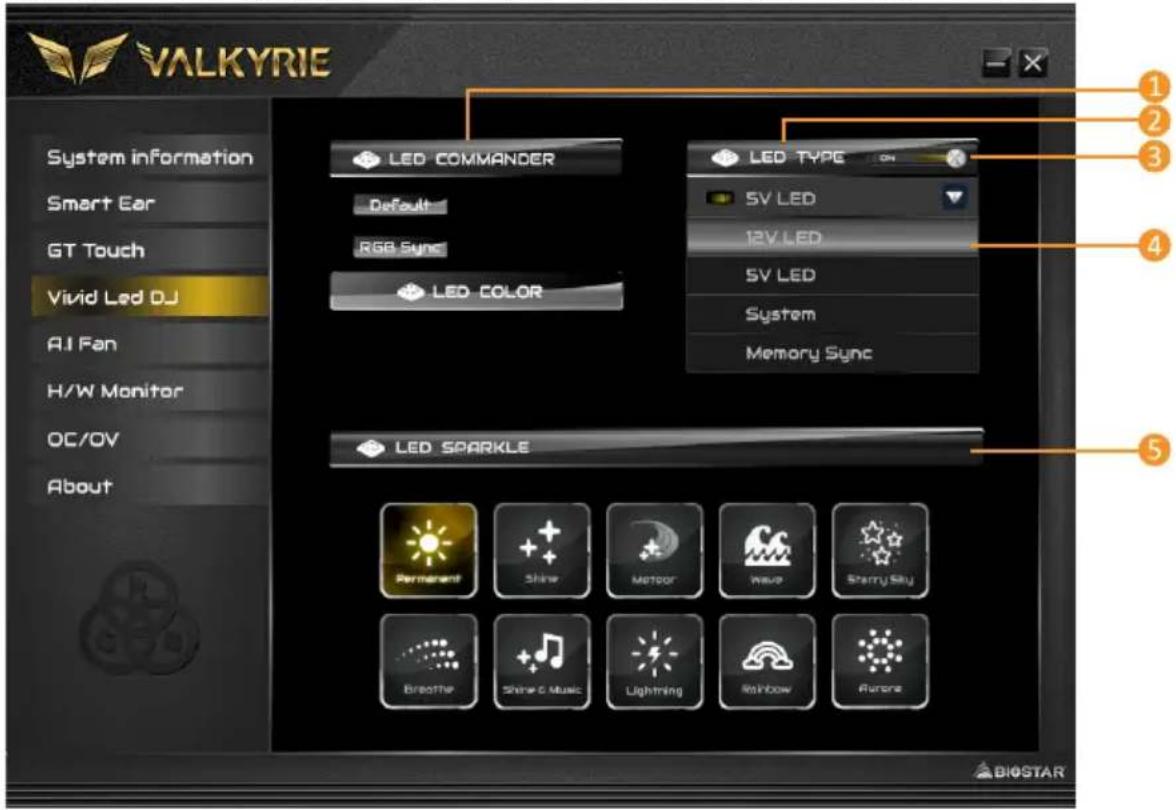

Use the Vivid LED DJ utility included in the VALKYRIE AURORA software. You can adjust colors, patterns, and sync with music. The board has 5V and 12V RGB headers for additional strips.

What is the maximum resolution supported by the HDMI and DisplayPort?

HDMI 2.1 supports 8K@60Hz. DisplayPort 1.4 supports 5120x3200@60Hz. Ensure your CPU has integrated graphics (e.g., Ryzen 7000 G-series) to use these ports.

How can I troubleshoot if the system doesn't boot?

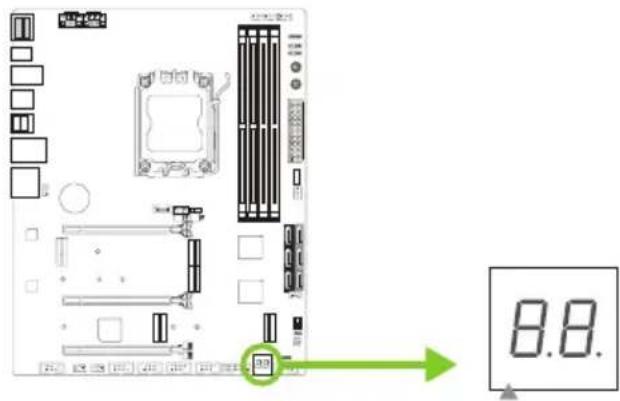

Check the POST code indicator on the board. Refer to the manual for code meanings. Common steps: reseat RAM, clear CMOS, ensure all power connectors are plugged, and try booting with minimal hardware (CPU, one stick of RAM, and graphics if needed).

Does the motherboard support Windows 11?

Yes, it officially supports Windows 11 (64-bit) and Windows 10 (64-bit). For Windows 11, ensure TPM 2.0 is enabled in the BIOS (it is enabled by default).

USER MANUAL X670E VALKYRIE BIOSTAR

FCC Information and Copyright

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in a particular installation.

The vendor makes no representations or warranties with respect to the contents here and specially disclaims any implied warranties of merchantability or fitness for any purpose. Further the vendor reserves the right to revise this publication and to make changes to the contents here without obligation to notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first obtaining the vendor's approval in writing.

The content of this user's manual is subject to be changed without notice and we will not be responsible for any mistakes found in this user's manual. All the brand and product names are trademarks of their respective companies.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Avoidance of electrostatic operation rules

Electrostatic discharge can seriously damage your device, Take special care when handling motherboards and other system devices, Avoid unnecessary contact with system parts on the motherboard, Keep working in an antistatic environment, Avoid electrostatic discharge that may damage the motherboard, When inserting or removing devices in your chassis. Make sure the power is off. The manufacturer is not responsible for any damage to the motherboard caused by failure to comply with this operating rule or failure to comply with safety regulations.

Warning

Motherboards are easily damaged by electrostatic discharge. Please follow the operating rules.

Table Of Contents

Chapter 1: Introduction......4

1.1 Before You Start 4
1.2 Package Checklist....4
1.3 Specifications....5
1.4 Rear Panel Connectors....7
1.5 Motherboard Layout 8

Chapter 2: Hardware installation....9

2.1 Install Central Processing Unit (CPU) 9
2.2 Install a Heatsink.... 10
2.3 Connect Cooling Fans 12
2.4 Install System Memory 13
2.5 Expansion Slots 15
2.6 Jumper & Switch Setting.... 17
2.7 Headers & Connectors.... 19
2.8 Buttons, Indicators & LEDs.... 25

Chapter 3: UEFI BIOS & Software.... 26

3.1 UEFI BIOS Setup 26
3.2 BIOS Update.... 26
3.3 Motherboard SMART BIOS Update.... 26
3.4 Software.... 31

Chapter 4: Useful help.... 42

4.1 Driver Installation 42
4.2 AMI BIOS Beep Code.... 43
4.3 AMI BIOS post code 43
4.4 Troubleshooting.... 45
4.5 RAID Functions.... 46

APPENDIX: Specifications in Other Languages 48

Arabic....48
German....50
Spanish 52
Thai 54
Japan....56

Chapter 1: Introduction

1.1 Before You Start

Thank you for choosing our product. Before you start installing the motherboard, please make sure you follow the instructions below:

• Prepare a dry and stable working environment with sufficient lighting.
• Always disconnect the computer from power outlet before operation.
- Before you take the motherboard out from anti-static bag, ground yourself properly by touching any safely grounded appliance, or use grounded wrist strap to remove the static charge.

- Avoid touching the components on motherboard or the rear side of the board unless necessary. Hold the board on the edge, do not try to bend or flex the board.

- Do not leave any unfastened small parts inside the case after installation. Loose parts will cause short circuits which may damage the equipment.

- Keep the computer from dangerous area, such as heat source, humid air and water.

- The operating temperatures of the computer should be 0 to 45 degrees Celsius.

- To avoid injury, be careful of: Sharp pins on headers and connectors Rough edges and sharp corners on the chassis Damage to wires that could cause a short circuit

1.2 Package Checklist

• Serial ATA Cable x4
• User's Manual x1
  • Fully Setup Driver DVD x1
  • Smart Connector x1

Note

» The package contents may be different due to the sales region or models in which it was sold. For more information about the standard package in your region, please contact your dealer or sales representative.

1.3 Specifications

Specifications
CPU Support	Socket AM5 support AMD® RyzenTM 7000 / 8000 series ProcessorsSupport for future AMD Ryzen processors with BIOS update* Please refer to www.biostar.com.tw for CPU support list.
Chipset AMD® X670
Memory	AMD Ryzen 7000 / 8000 series Processors:Supports Dual Channel DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 48004 x DDR5 DIMM Memory Slot, Max. Supports up to 192 GB MemoryEach DIMM supports non-ECC 8/ 16/ 24/ 32/ 48 GB DDR5 module* Please refer to www.biostar.com.tw for Memory support list.
Storage	-- Total support 4 x M.2 Socket and 6 x SATA (6Gb/s) portsAMD Ryzen 7000 / 8000 Series Processors1x M.2 (Key M) Socket (M2M_CPU_1):Supports M.2 Type 2280 SSD moduleSupports PCIe 5.0 x4 (128Gb/s)/ 4.0 x4 (64Gb/s) - NVMe/ AHCI SSD1x M.2 (Key M) Socket (M2M_CPU_2):Support M.2 Type 2260/ 2280/ 22110 SSD moduleSupport PCIe 5.0 x 4 (128Gb/s) / 4.0 x 4 (64Gb/s) - NVMe / AHCI SSDAMD X670 Chipset1x M.2 (Key M) Socket (M2M_SB_1):Support M.2 Type 2260/ 2280 SSD moduleSupport PCIe 4.0 x 4 (64Gb/s) - NVMe / AHCI SSD1x M.2 (Key M2) Socket (M2M_SB_2):Support M.2 Type 2280 SSD moduleSupport PCIe 4.0 x 4 (64Gb/s) - NVMe / AHCI SSD6x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10* Specifications vary by CPU types.
LAN	Intel i225V (2.5G)10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability
Audio Codec	ALC12207.1 Channels, High Definition Audio, Hi-Fi
USB	2x USB 3.2 Gen2x2 Type-C port (1 on rear I/Os and 1 via internal headers)11x USB 3.2 Gen2 port (9 on rear I/Os and 2 via internal headers)4x USB 2.0 port (4 via internal headers)
Expansion Slots	AMD Ryzen 7000 / 8000 Series Processors1 x PCIe 5.0 x16 Slot (x16 or x8/x8 mode)1 x PCIe 5.0 x16 Slot (x8 mode)AMD X670 Chipset1 x PCIe 4.0 x16 Slot (x4 mode)* Specifications vary by CPU types.

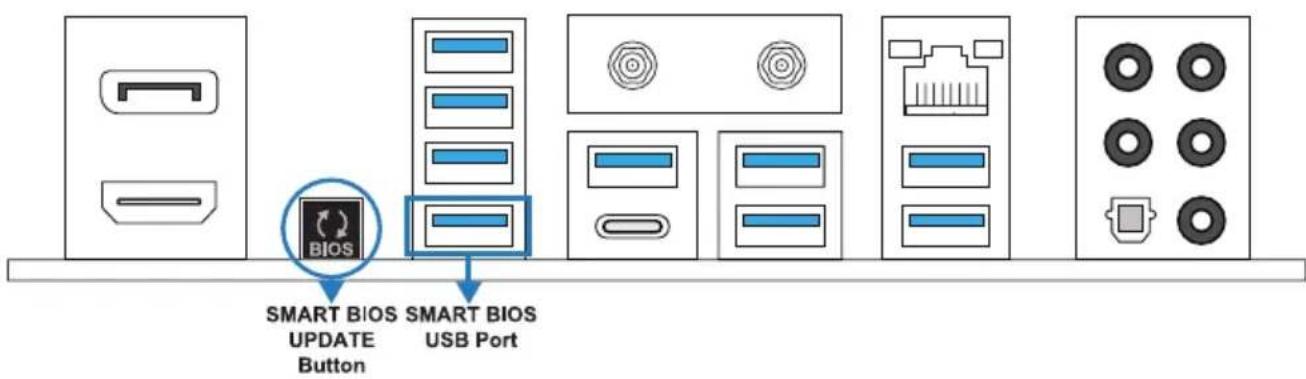

Rear I/Os	2x WiFi Antenna Port1x SMART BIOS update Button1x HDMI Port (HDMI2.1)1x DP Port (DP1.4)1x USB 3.2 (Gen2x2) Type-C Port9x USB 3.2 (Gen2) Type-A Port1x 2.5G LAN port5x Audio Jack1x SPDIF_Out

» Continued on Next Page

Specifications
Internal I/Os	6x SATA III Connector (6Gb/s)1x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module2x USB 2.0 Header (each header supports 2 USB 2.0 ports)1x USB 3.2 (Gen2) Header (each header supports 2 USB 3.2 (Gen2) ports)1x USB 3.2 (Gen2x2) Type-C Port (each header supports 1 USB 3.2 (Gen2x2) port)2x 8-Pin Power Connector1x 24-Pin Power Connector1x CPU Fan Connector1x CPU water cooling connector (CPU_OPT)4x System Fan Connector1x Front Panel Header1x Front Audio Header1x Internal Stereo Speaker Header1x Clear CMOS Switch Button1x Power Switch Button1x Reset Switch Button1x COM Port Header1x TPM Header1x Thunderbolt Header2x LED Header (5V)1x LED Header (12V)1x IO LED Header1x SB LED Header* M.2 (E Key) Wi-Fi card is not provided
Form Factor ATX Form Factor, 305 mm x 244 mm
OS Support	Windows 10(64bit) / Windows 11(64bit)Biostar reserves the right to add or remove support for any OS with or without notice.

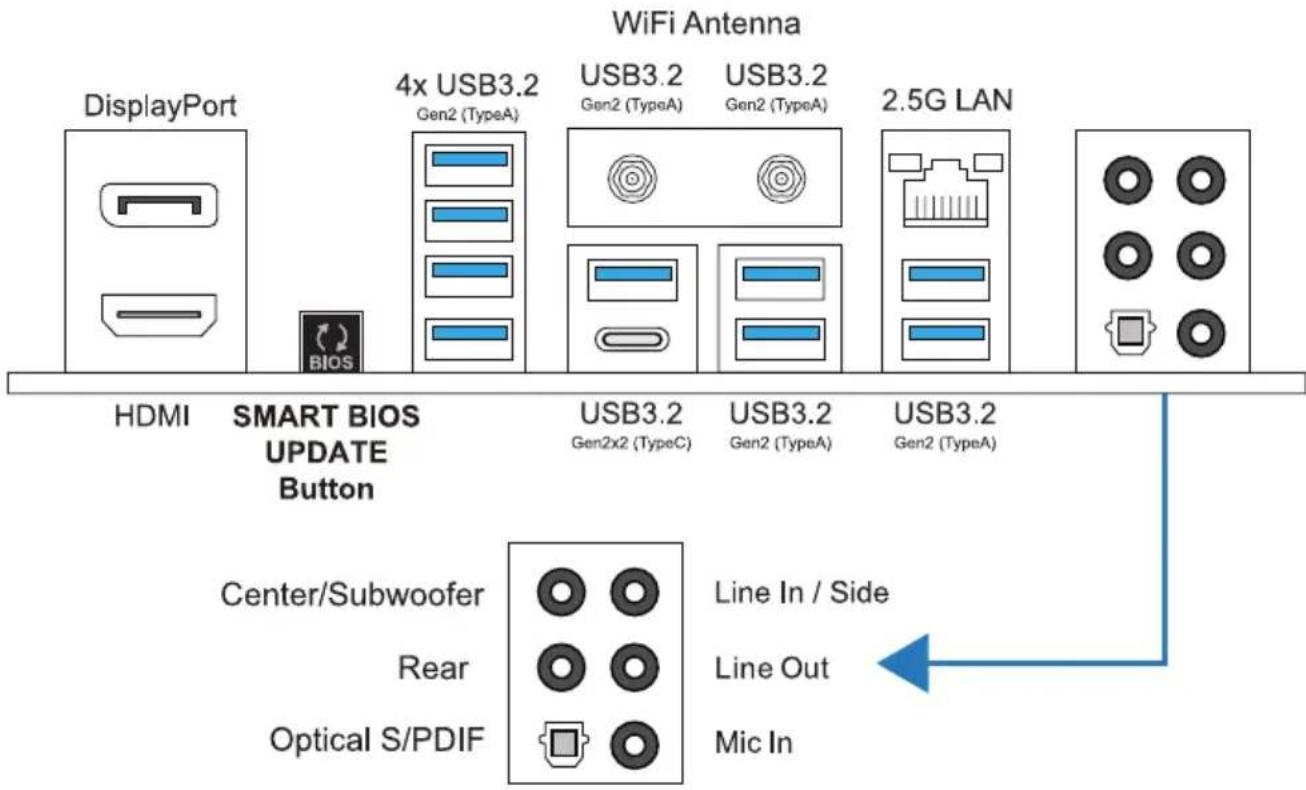

1.4 Rear Panel Connectors

Note

» Maximum resolution
HDMI 2.1 FRL mode: 8K@60Hz, compliant with HDMI 2.0; 4K@60Hz, compliant with HDMI 1.4. DP: 5120x3200@60Hz, compliant with DP 1.4; 4096x2160@60Hz, compliant with DP 1.2
» When using the front HD audio jack and plug in the headset, the rear sound will be automatically Disabled.
» The WiFi antenna port allows you to connect to the E Key module and use the WiFi & Bluetooth function.

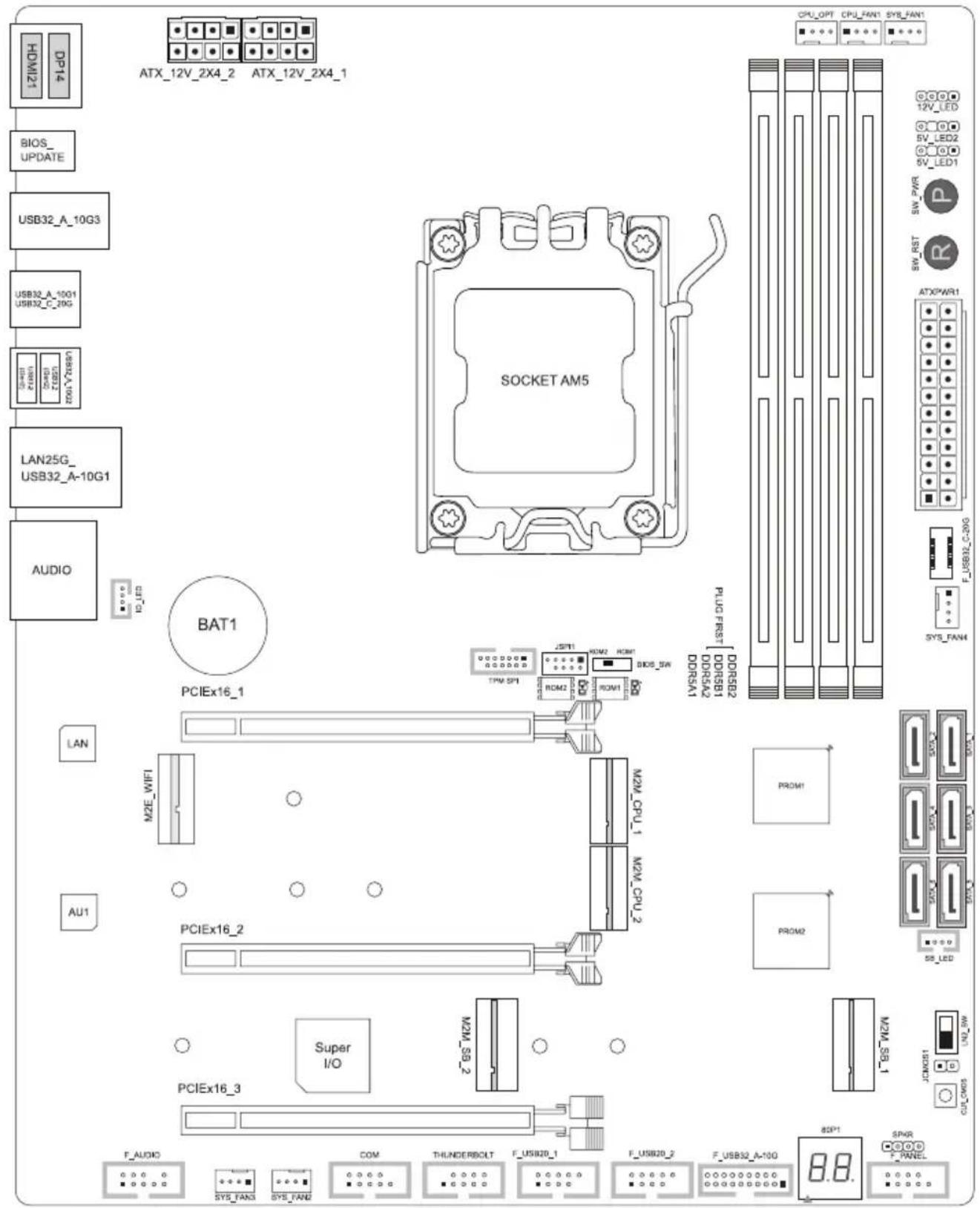

1.5 Motherboard Layout

» ■ represents the 1st pin.

Chapter 2: Hardware installation

2.1 Install Central Processing Unit (CPU)

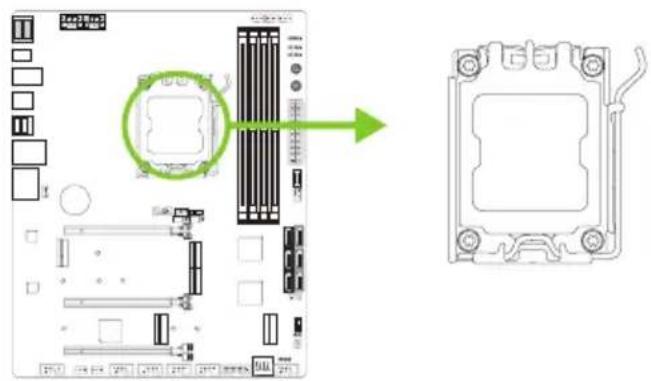

Step 1: Locate the CPU socket on the motherboard

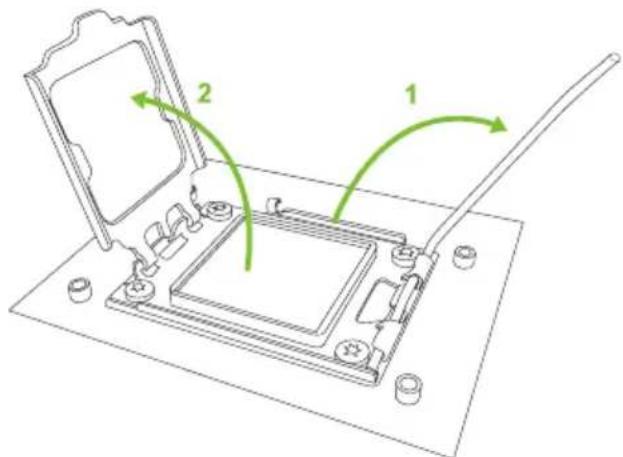

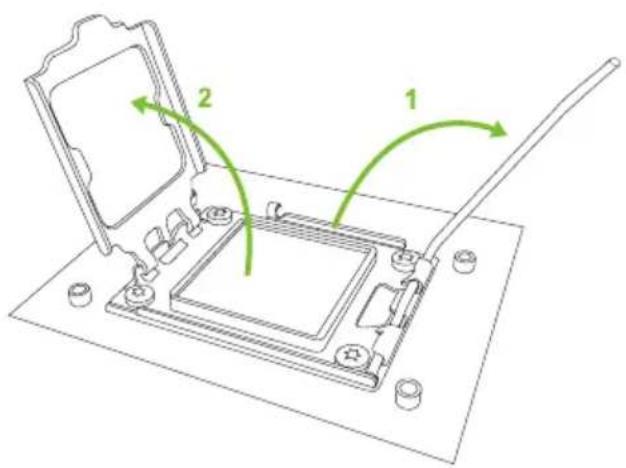

Step 2: Open Lever and then load plate using finger tab.

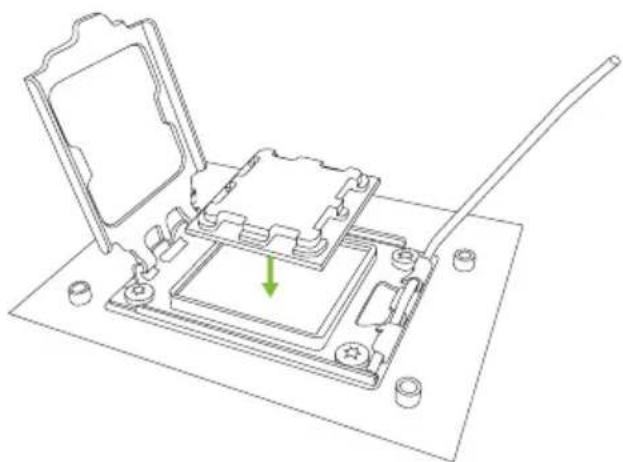

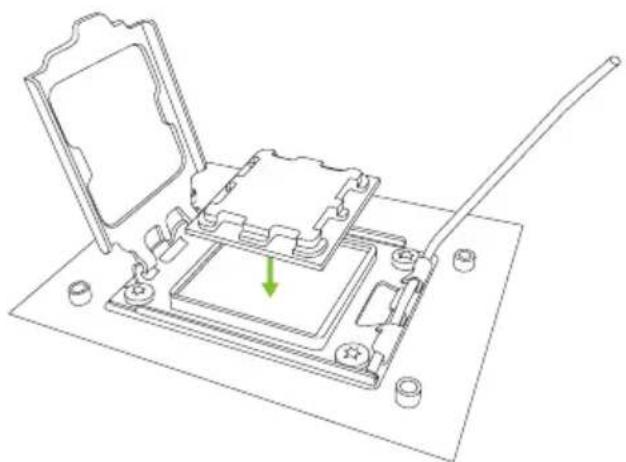

Step 3: Align and seat processor package on socket.

Technical line drawing of a mechanical assembly with a green arrow indicating a component (no text or symbols present)

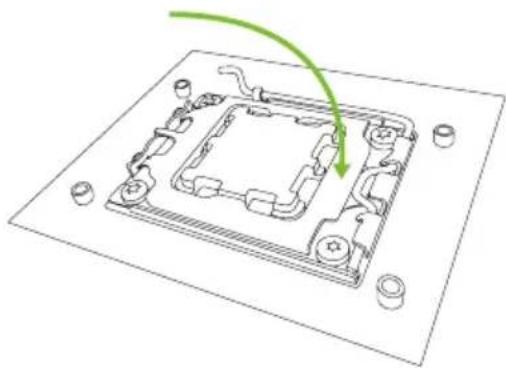

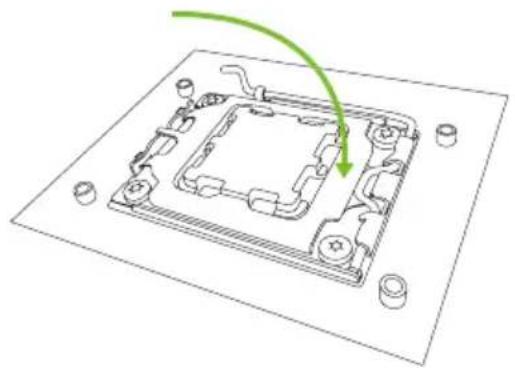

Step 4: Rotate lever and press lever finger, then locked the position.

Technical line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

Note

» Ensure that you install the correct CPU designed for AM5 socket.

2.2 Install a Heatsink

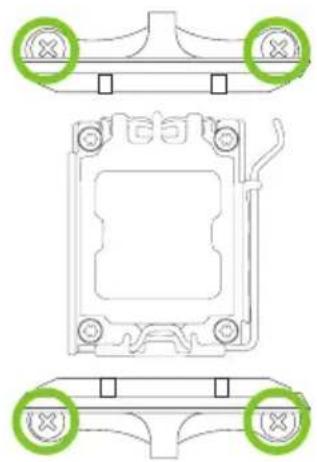

Step 1: Place the heatsink and fan assembly onto the retention frame. Match the heatsink clip with the socket mounting-lug. Hook the spring clip to the mounting-lug.

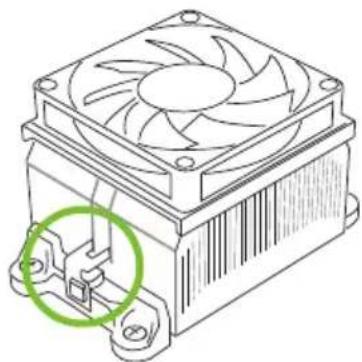

Technical line drawing of a CPU fan with heatsink and cooling element (no text or symbols)

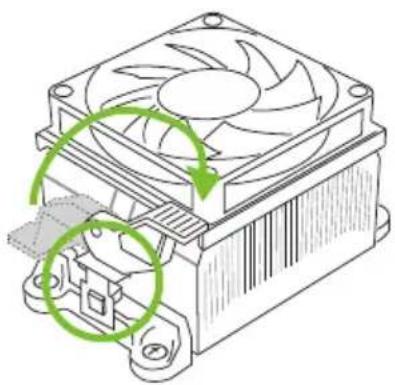

Step 2: On the other side, push the retention clip straight down to lock into the plastic lug on the retention frame, and then press down the locker until it stops.

Technical line drawing of a computer cooling fan with green arrows indicating rotation or adjustment (no text or symbols)

Step 1: Remove the heatsink and fan assembly bracket on the motherboard and keep the cooler backplane under the motherboard.

Technical line drawing of a mechanical component with three views (top, front, side) and green circular markers on top and sides (no text or symbols)

Step 2: Place the heatsink and fan assembly on top of the installed CPU and make sure that the fan cable is closest to the CPU fan connector. Please refer diagram to the following screw into the screw hole in the order shown.

Note

» Do not forget to connect the CPU fan connector.
» For proper installation, please kindly refer to the installation manual of your CPU heatsink.

2.3 Connect Cooling Fans

These fan headers support cooling-fans built in the computer. The fan cable and connector may be different according to the fan manufacturer.

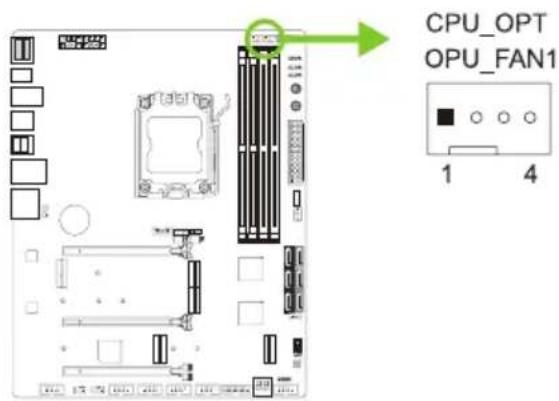

CPU_FAN1/ CPU_OPT: CPU Fan Header

PWM Mode DC Mode
Pin Assignment Pin Assignment
1 Ground 1 Ground
2 +12V 2 Voltage Control
3 Sense 3 Sense
4 Speed Control Signal 4 NC

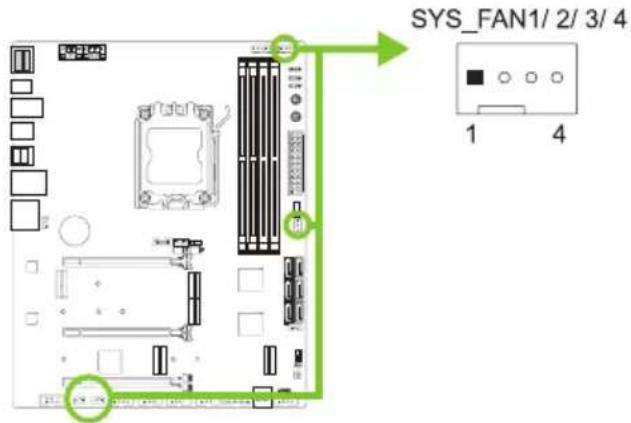

SYS_FAN1/ SYS_FAN2/ SYS_FAN3/ SYS_FAN4: System Fan Header

PWM Mode DC Mode
Pin Assignment Pin Assignment
1 Ground 1 Ground
2 +12V 2 Voltage Control
3 Sense 3 Sense
4 Speed Control Signal 4 NC

Note

» CPU_FAN1, CPU_OPT, SYS_FAN1/2/3/4 support 4-pin and 3-pin head connectors. When connecting with wires onto connectors, please note that the red wire is the positive and should be connected to pin#2, and the black wire is Ground and should be connected to pin#1(GND).
» CPU Fan Header (CPU_OPT): Support water cooling fan and CPU fan.

2.4 Install System Memory

DDR5 Modules

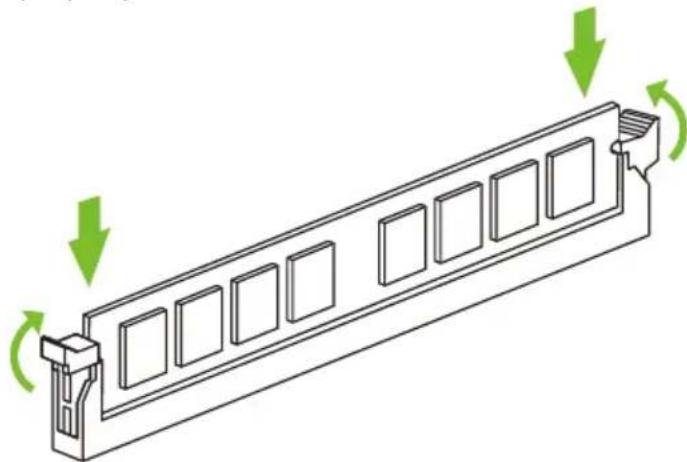

Step 1: Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the slot such that the notch on the DIMM matches the break on the slot.

Technical line drawing of a computer RAM module with no text or symbols

Step 2: Insert the DIMM vertically and firmly into the slot until the retaining clips snap back in place and the DIMM is properly seated.

Technical line drawing of a mechanical component with green directional arrows indicating motion or force (no text or symbols)

Note

» If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.

Memory Capacity

DIMM Socket Location DDR5 Module Total Memory Size
DDR5_A1 8GB/16GB/24GB/32GB/48GB	Max is 192GB.
DDR5_A2 8GB/16GB/24GB/32GB/48GB
DDR5_B1 8GB/16GB/24GB/32GB/48GB
DDR5_B2 8GB/16GB/24GB/32GB/48GB

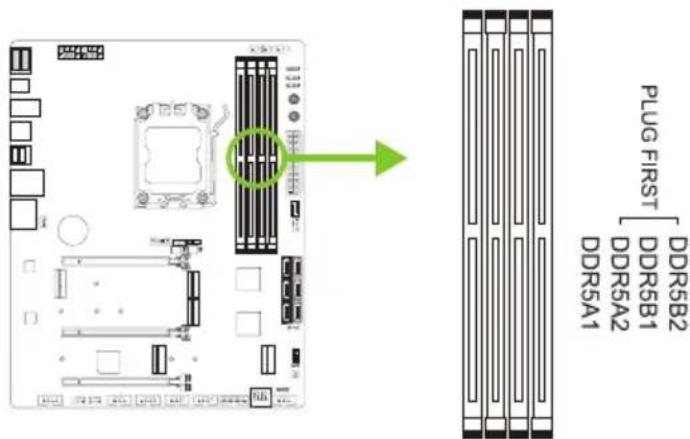

Dual Channel Memory Installation

Please refer to the following requirements to activate Dual Channel function: Install memory module of the same density in pairs, shown in the table.

Dual Channel Status DDR5_A1 DDR5_A2 DDR5_B1 DDR5_B2
Enabled X O X O
Enabled O O O O

(O means memory installed, X means memory not installed.)

Note

» When installing more than one memory module, we recommend to use the same brand and capacity memory on this motherboard.
» When installing a single memory, we recommend that you install it in the DDR5_B2.

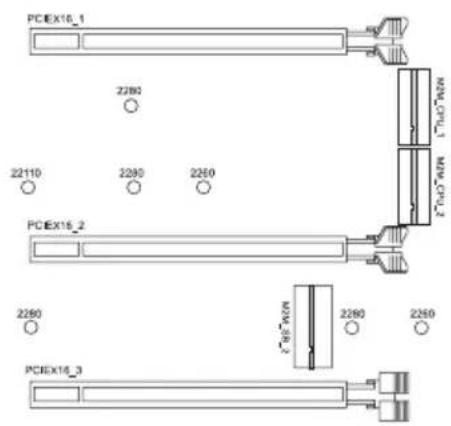

2.5 Expansion Slots

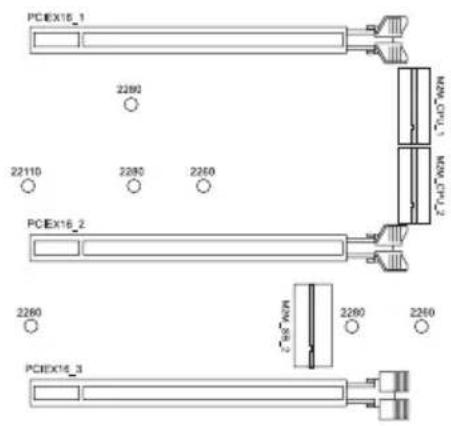

PCIEX16\_1: PCI-Express Gen5 x16 Slots (x16 or x8 mode)

• PCI-Express 5.0 compliant.
- The maximum bandwidth of the PCIe slot is 128GB/s in total.

PCIEX16\_2: PCI-Express Gen5 x16 Slots (x8 mode)

• PCI-Express 5.0 compliant.
- The maximum bandwidth of the PCIe slot is 64GB/s in total.

PCIEX16\_3 : PCI-Express Gen4 x16 Slots (x4 mode)

• PCI-Express 4.0 compliant.
- The maximum bandwidth of the PCIe slot is 16GB/s in total.

M2M\_CPU\_1: M.2 (M Key) Socket

• Supports M.2 Type 2280 SSD module
• Supports PCIe 5.0x 4 (128Gb/s) - NVMe/ AHCI SSD

M2M\_CPU\_2: M.2 (M Key) Socket

• Supports M.2 Type 2260/ 2280/ 22110 SSD module
• Supports PCIe 5.0x 4 (128Gb/s) - NVMe/ AHCI SSD

M2M \_SB\_1: M.2 (M Key) Socket

• Supports M.2 Type 2260/2280 SSD module
• Supports PCIe 4.0x 4 (64Gb/s) - NVMe/ AHCI SSD

M2M \_SB\_2: M.2 (M Key) Socket

• Supports M.2 Type 2280 SSD module
• Supports PCIe 4.0x 4 (64Gb/s) - NVMe/ AHCI SSD

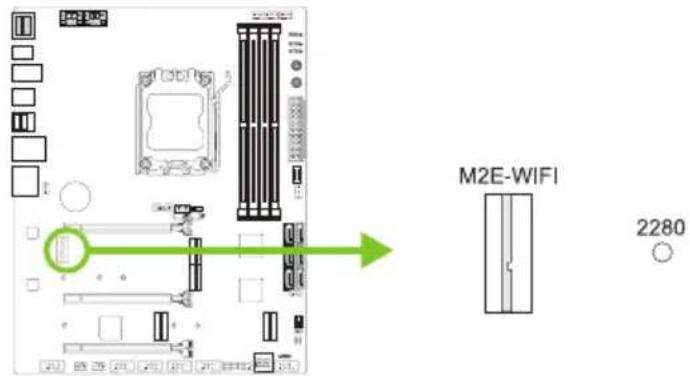

M2E-WIFI: M.2 (E Key) Socket (M.2 (E Key) Wi-Fi card is not provided)

• Support M.2 (E Key) socket module.
• Supports WiFi/ Bluetooth module.

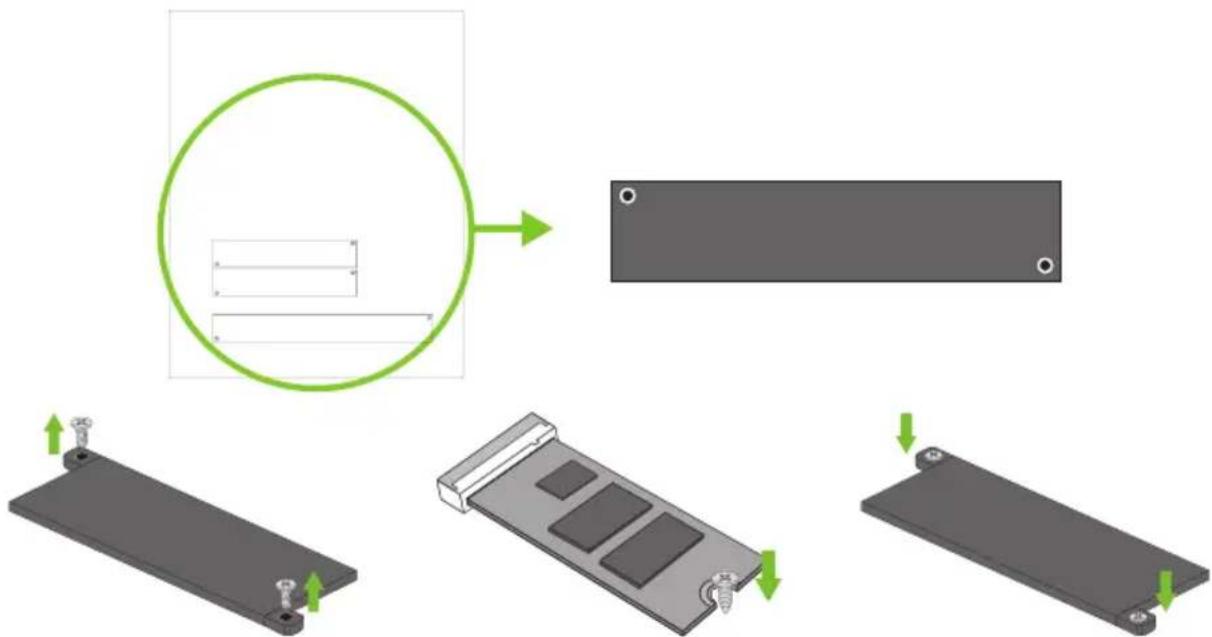

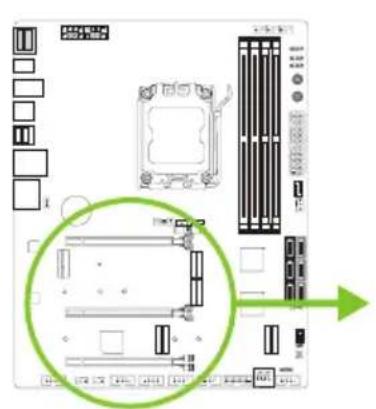

Install M.2 COOLING Heatsink

Steps of Removing the M.2 COOLING Heatsink:

Step 1:

Before installing the M.2 SSD card, remove the two screws on the heat sink, and then remove the heat sink.

Step 2:

Insert M.2 SSD card onto the M.2 slot and screw it onto the motherboard.

Step 3:

After installing the M.2 SSD card, place the M.2 COOLING Heatsink over the M.2 slot and fasten the screws to fix the heatsink onto the motherboard.

Note

» Please follow the installation instructions of M.2 COOLING Heatsink and remove the M.2 COOLING Heatsink to install the M.2 SSD card onto your motherboard.

2.6 Jumper & Switch Setting

The illustration shows how to set up jumpers. When the jumper cap is placed on pins, the jumper is “close”, if not, that means the jumper is “open”.

Pin opened Pin closed Pin 1-2 closed

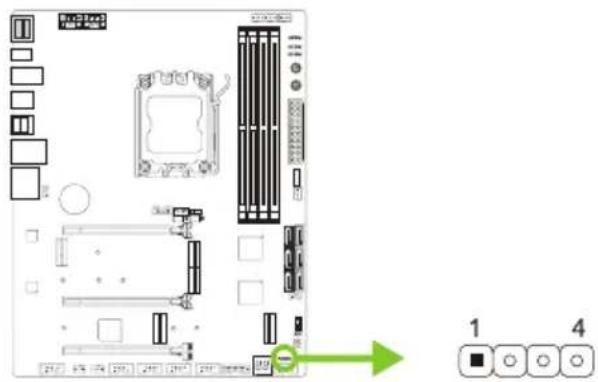

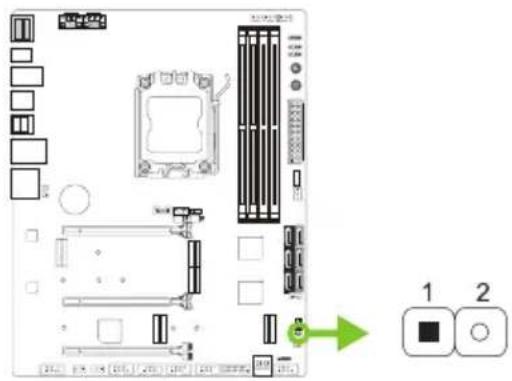

JCMOS1: Clear CMOS Jumper

The jumper allows users to restore the BIOS safe setting and the CMOS data. Please carefully follow the procedures to avoid damaging the motherboard.

Pin 1-2 Open: Normal Operation (default).

Pin 1-2 Short: Clear CMOS data.

Clear CMOS Procedures:

1. Remove AC power line.
2. Set the jumper to "Pin 1-2 short", you can use a metal object like a screwdriver to touch the two pins.
3. Wait for five seconds.
4. After clearing the CMOS values, be sure the jumper is "Pin 1-2 open".
5. Power on the AC.
6. Load Optimal Defaults and save settings in CMOS.

SW\_BIOS

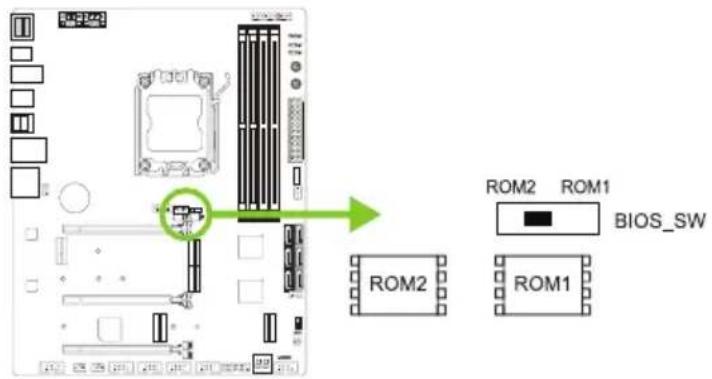

The Dual BIOS Switch allows you to choose one of the BIOS ROMs (ROM1/ ROM2) for boot up.

Main BIOS (ROM1) Enabled

The LED indicator (ROM1_LED) will light and the Main BIOS is enabled.

Backup BIOS (ROM2) Enabled

The LED indicator (ROM2_LED) will light and the Backup BIOS is enabled.

Note

» Do not use this switch when your system is power-on.
» Before flashing BIOS ROMs, please make sure this switch is set to the BIOS ROM which you want to update.

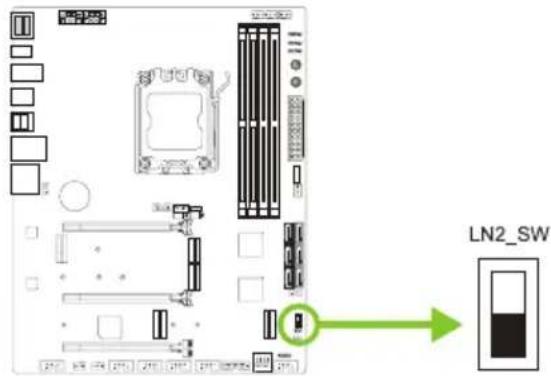

LN2\_SW

When the LN2 mode is ON, the CPU will run at its lowest frequency (e.g., 500MHz) to avoid unexpected system shutdown.

OFF

ON

Note

» If you want to work with the LN2 mode, please be note and try to adjust the LN2 switch from OFF to ON after going to Windows operating system.
» We are not responsible for the damages or risks caused by overclocking.

2.7 Headers & Connectors

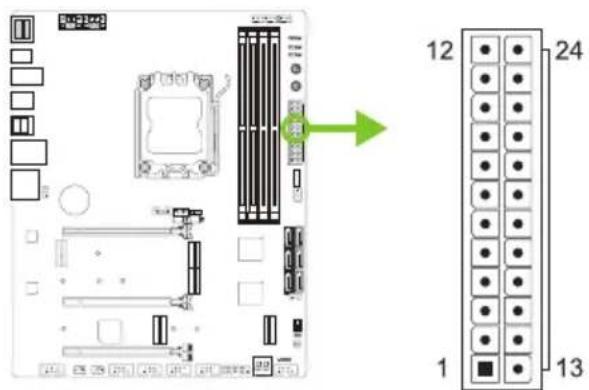

ATXPWR1: ATX Power Source Connector

For better compatibility, we recommend to use a standard ATX 24-pin power supply for this connector. Make sure to find the correct orientation before plugging the connector.

Pin	Assignment	Pin A	Assignment
13	+3.3V 1 +3.3V
14	-12V 2 +3.3V
15	Ground 3 Ground
16	PS_ON 4 +5V
17	Ground 5 Ground
18	Ground 6 +5V
19	Ground 7 Ground
20	NC 8 PW_OK
21	+5V 9 Standby Voltage+5V
22	+5V 10 +12V
23	+5V 11 +12V
24	Ground 12 +3.3V

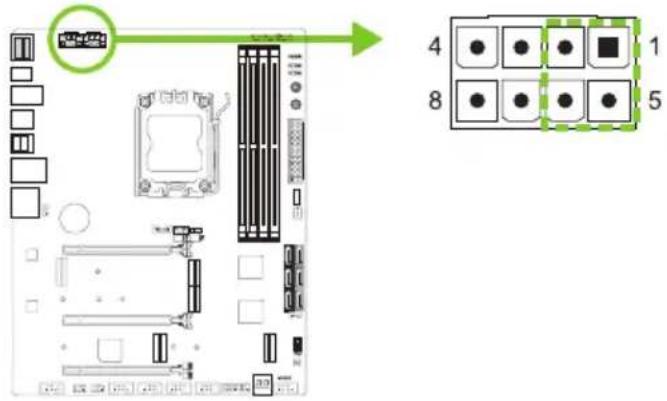

ATX\_12V\_2X4\_1/2: ATX Power Source Connector

The connector provides +12V to the CPU power circuit. If the CPU power plug is 4-pin, please plug it into Pin 1-2-5-6 of ATXPWR2.

Pin Assignment

1 +12V

2 +12V

3 +12V

4 +12V

5 Ground

6 Ground

7 Ground

8 Ground

Note

» Before you power on the system, please make sure that both ATX_12V_2X4_1/ATX_12V_2X4_2 connectors have been plugged-in.
» Insufficient power supplied to the system may result in instability or the peripherals not functioning properly. Use of a PSU with a higher power output is recommended when configuring a system with more power-consuming devices.

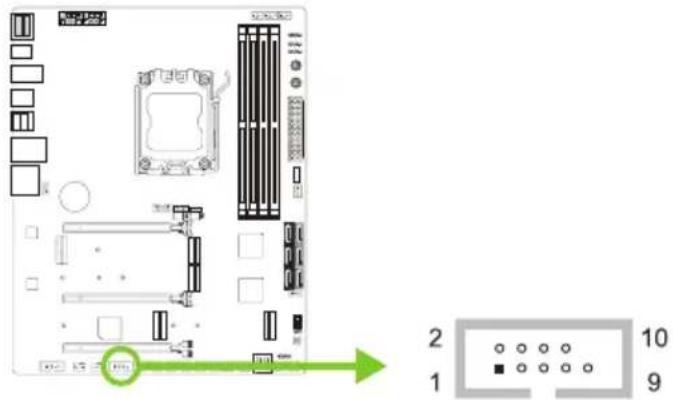

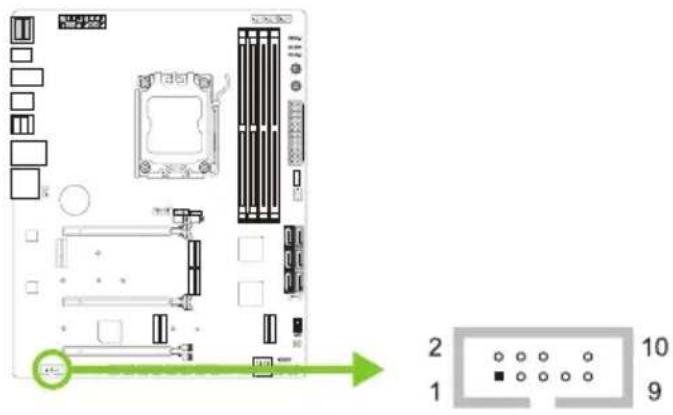

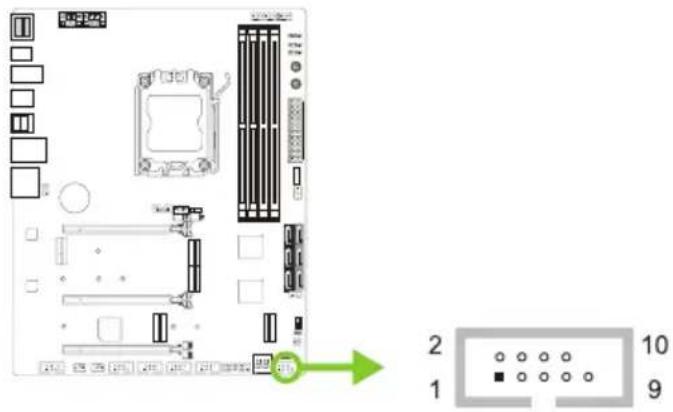

F\_PANEL: Front Panel Header

This 10-pin header includes Power-on, Reset, HDD LED, Power LED connection.

Pin	Assignment Function Pin	Assignment Function
1 HDD LED(+)	HDD	2 Power LED (+)	PowerLED
3 HDD LED(-) 4 PowEDED (-)
5 Ground	Reset	6 Power Button	Power-OnButton
7 Reset Control 8 Ground
9 NC NC 10 Key Key

SPKR: Chassis Speaker Header

Please connect the chassis speaker to this header.

Pin	Assignment
1 +5V
2 N/A
3 N/A
4 Speaker

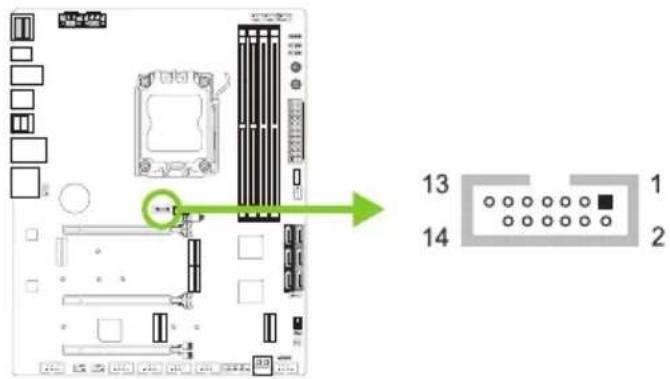

TPM\_SPI: Trusted Platform Module Header

This header allows you to store cryptographic keys that protect information.

Pin	Assignment	Pin	Assignment
1	+1.8V	2	SPI_PIRQ
3	TPM_RST#	4	TPM_CS
5	N/A	6	N/A
7	+1.8V	8	GND
9	N/A 10 SPI_CLK
11	SPI_MISO 12	SPI_MOSI
13	N/A 14 KEY

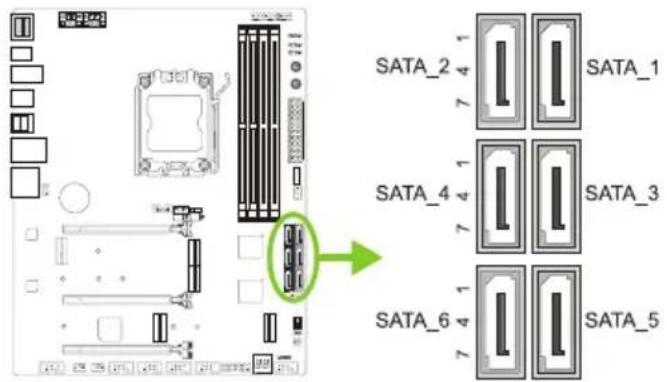

SATA\_1/ SATA\_2/ SATA\_3/ SATA\_4/ SATA\_5/ SATA\_6: Serial ATA 6.0 Gb/s Connectors

These connectors connect to SATA hard disk drives via SATA cables.

Pin Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

7 Ground

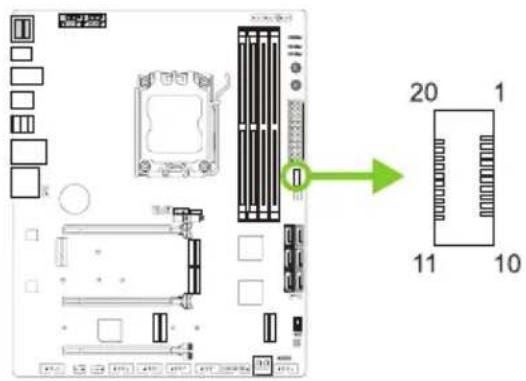

F\_USB32\_C-20G: Header for USB 3.2 (Gen2x2) Ports at Front Panel

This USB type-C header allows user to add additional USB ports on the PC front panel, and also can be connected with a wide range of external peripherals.

Pin	Assignment Pin	Assignment
1 VBUS 11 VBUS
2 SSTX1+ 12 SSTX2+
3 SSTX1- 13 SSTX2-
4 Ground 14 Ground
5 SSRX1+ 15 SSRX2+
6 SSRX1- 16	SSRX2-
7 VBUS 17 Ground
8 CC1 18	D-
9 SBU1 19	D+
10 SBU2	20 CC2

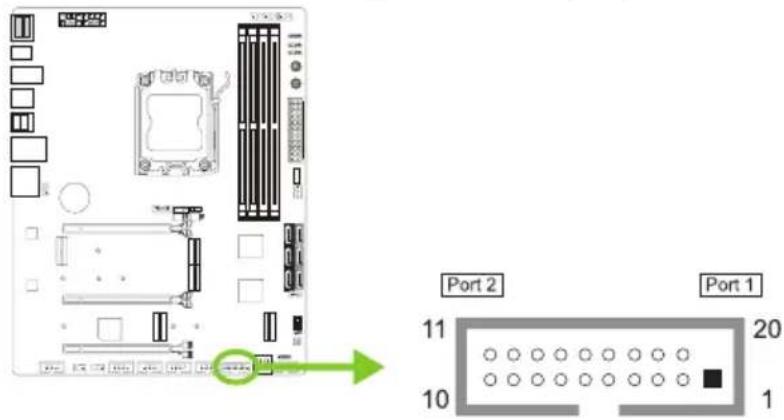

F\_USB32\_A-10G: Header for USB 3.2 (Gen2) Ports at Front Panel

This header allows user to add additional USB ports on the PC front panel, and also can be connected with a wide range of external peripherals.

Pin Assignment Pin		Assignment
1 VBUS0 11 D2+
2 SSRX1- 12		D2-
3 SSRX1+ 13 Ground
4 Ground 14 SSTX2-
5 SSTX1- 15 SSTX2-
6 SSTX1+ 16 Ground
7 Ground 17 SSRX2-
8 D1- 18		SSRX2-
9 D1+ 19		VBUS1
10 ID		20 Key

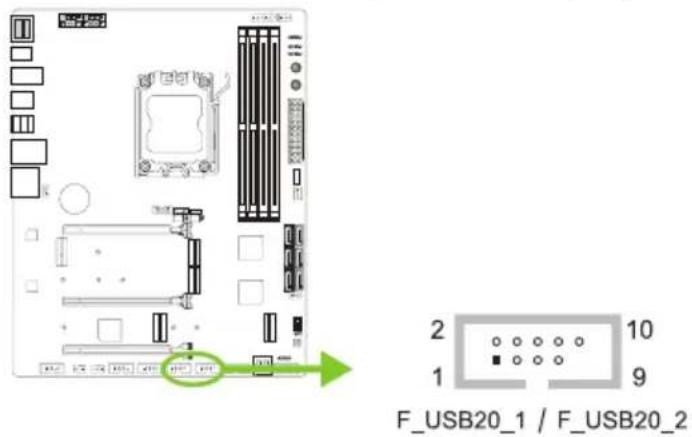

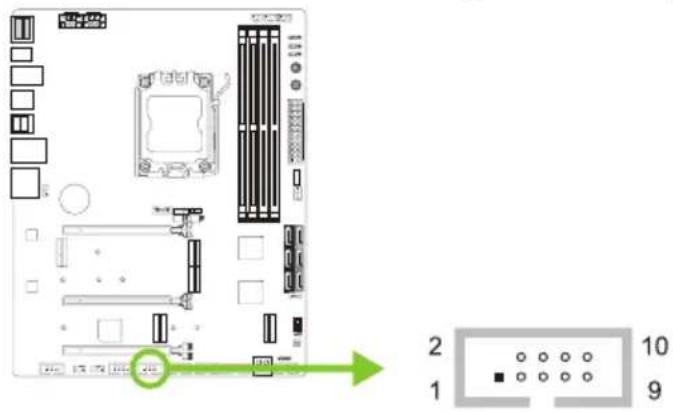

F\_USB20\_1/ F\_USB20\_2: Header for USB 2.0 Ports at Front Panel

This header allows user to add additional USB ports on the PC front panel, and also can be connected with a wide range of external peripherals.

Pin Assignment

1 +5V (fused)

2 +5V (fused)

3 USB-

4 USB-

5 USB+

6 USB+

7 Ground

8 Ground

9 Key

10 NC

THUNDERBOLT: Thunderbolt Header

This header allows user to add additional Thunderbolt ports on the PC front panel, and also can be connected with a wide range of external peripherals.

Pin Assignment

1 Force Power

2 Key

3 CIO Plug Event

4 SMB_DATA_MAIN

5 SLP_S3_N

6 SMB_CLK_MAIN

7 SLP_S5_N

8 3V3_AIC_PD_INT#

9 GND

10 GND

F\_AUDIO: Front Panel Audio Header

This header allows user to connect the chassis-mount front panel audio I/O which supports HD.

HD Audio

Pin Assignment

1 Mic Left in

2 Ground

3 Mic Right in

4 GPIO

5 Right line in

6 Jack Sense

7 Front Sense

8 Key

9 Left line in

10 Jack Sense

Note

» When using the front HD audio jack and plug in the headset, the rear sound will be automatically Disabled.
» It is recommended that you connect a high-definition front panel audio module to this connector to avail of the motherboard's high definition audio capability.

COM: Serial Port Connector

The motherboard has a serial port header for connecting RS-232 Port.

Pin Assignment

1 Carrier detect

2 Received data

3 Transmitted data

4 Data terminal ready

5 Signal ground

6 Data set ready

7 Request to send

8 Clear to send

9 Ring indicator

10 Key

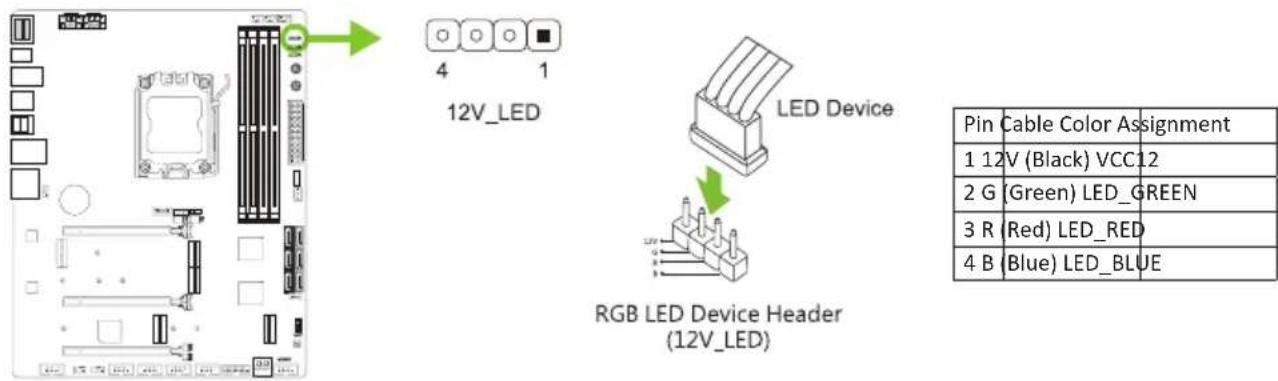

12V\_LED: RGB LED Device (5050 SMD) Header

This header providers 12V power and RGB control pins for RGB LED Device (5050 SMD).

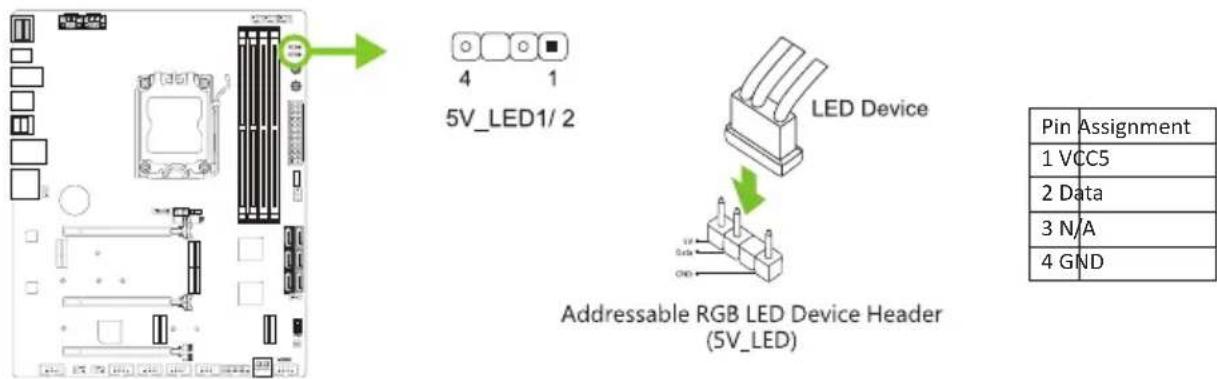

5V\_LED1/ 5V\_LED2: Addressable RGB LED Device (WS2818B) Header

This header providers 5V power and Data control pins for ARGB LED Device (WS2818B).

Note

» Ensure proper pin connecting to your LED device, wrong connection may damage your LED device or motherboard.
» The 12V_LED connector supports to 5050 RGB LED strips with the maximum power rating of 3A (12V).
» The 5V_LED connector supports up to 300 LEDs WS2818B individually Addressable RGB LED strips with the maximum power rating of 3A (5V).
» Please use the Vivid LED DJ software to control the LEDs. For detailed software setting information, refer to chapter 3.3.

2.8 Buttons, Indicators & LEDs

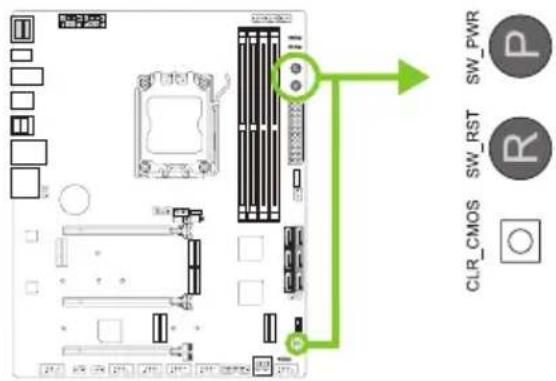

On-Board Buttons

Indicators

SW\_PWR:

Touch this button to turn-on/off the system.

SW\_RST:

Touch this button to reboot the system.

CLR CMOS:

Press the button 1\~2 Seconds to load the BIOS defaults.

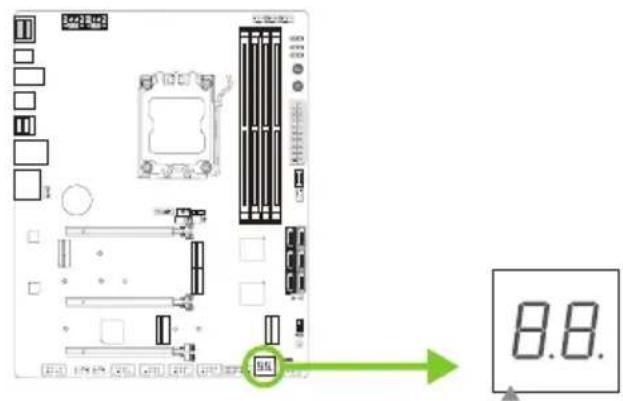

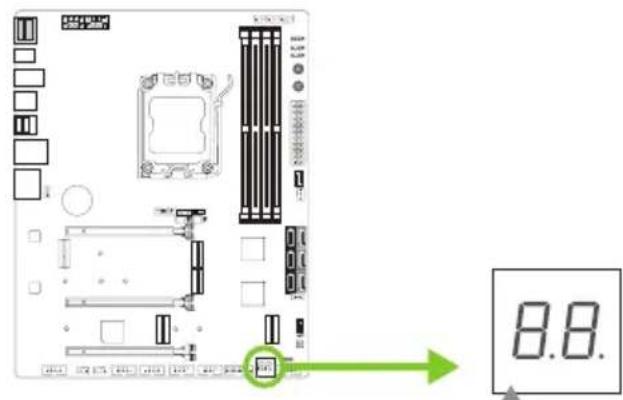

BIOS POST Code Indicator:

The indicator will show POST code while booting. Please refer to Chapter 4.3 for all the BIOS POST codes.

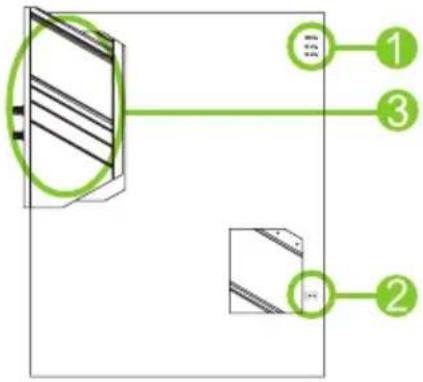

LEDs

Below LEDs are controlled by VALKYRIE AURORA Utility program. Please refer to Chapter 3.3 for more detail software setting.

1. RGB LED Header (5V/ 12V)
2. SB LED Header
3. ARMOR GEAR LED

Chapter 3: UEFI BIOS & Software

3.1 UEFI BIOS Setup

• The BIOS Setup program can be used to view and change the BIOS settings for the computer. The BIOS Setup program is accessed by pressing the key after the Power-On Self-Test (POST) memory test begins and before the operating system boot begins.
• For further information of setting up the UEFI BIOS, please refer to the UEFI BIOS Manual on our website.

3.2 BIOS Update

The BIOS can be updated using either of the following utilities:

• BIOSTAR BIO-Flasher: Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM.
• BIOSTAR BIOS Update Utility: It enables automated updating while in the Windows environment. Using this utility, the BIOS can be updated from a file on a hard disk, a USB drive (a flash drive or a USB hard drive), or a CD-ROM, or from the file location on the Web.

3.3 Motherboard SMART BIOS Update

• Upload the newly update of BIOS into USB drive, change the file name to : AX67AA5T. ROM (type each letter as exactly). For example: X67AE525.BST to AX67AA5T.ROM
• Connect the power into ATX 24PIN at motherboard, turn on AC power (only turn on Power supply unit, no need for power on)
• Insert USB Drive with the file name: AX67AA5T.ROM into programmer(hardware)
• Press SMART BIOS Update button for 3\~5 seconds, LED will start flickering, when LED light is off, then the burning is completed.

BIOSTAR BIO-Flasher

Note

» This utility only allows storage device with FAT32/16 format and single partition.
» Shutting down or resetting the system while updating the BIOS will lead to system boot failure.

Updating BIOS with BIOSTAR BIOS Flasher

1. Go to the website to download the latest BIOS file for the motherboard.
2. Then, copy and save the BIOS file into a USB flash (pen) drive.(Only supported FAT/FAT32 format)
3. Insert the USB pen drive that contains the BIOS file to the USB port.

4. Power on or reset the computer and then press during the POST process.

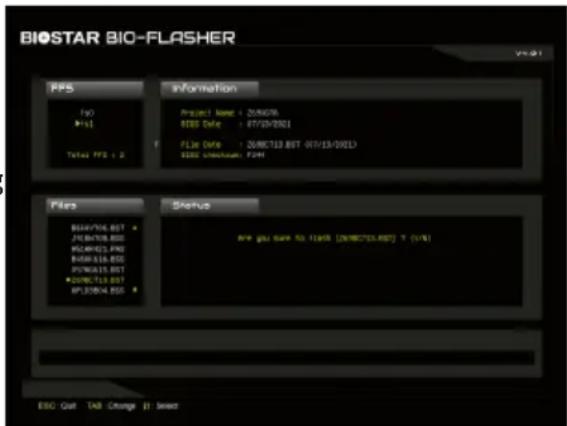

5. After entering the POST screen, the BIOS-FLASHER utility pops out. Choose to search for the BIOS file.

6. Select the proper BIOS file, and a message asking if you are sure to flash the BIOS file. Click "Yes" to start updating BIOS.

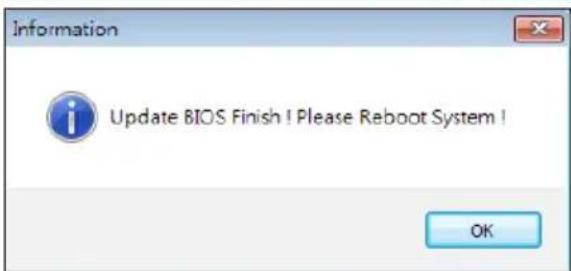

7. A dialog pops out after BIOS flash is completed, asking you to restart the system. Press the key to restart system.

1. While the system boots up and the full screen logo shows up, press key to enter BIOS setup.

After entering the BIOS setup, please go to the , using the function to load Optimized Defaults, and select to restart the computer. Then the BIOS Update is completed.

BIOS Update Utility (through the Internet)

1. Installing BIOS Update Utility from the DVD Driver.

2. Please make sure the system is connected to the internet before using this function.

3. Launch BIOS Update Utility and click the "Online Update" button on the main screen.

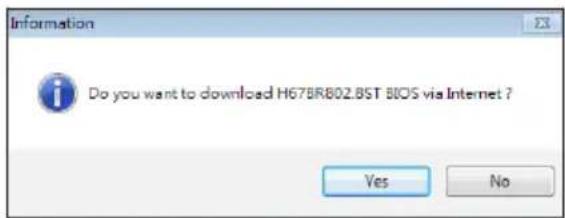

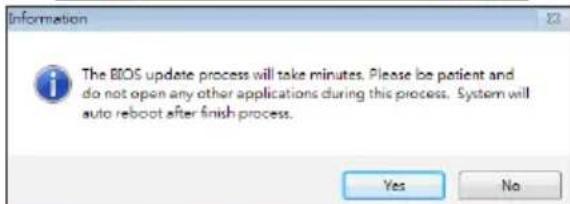

4. An open dialog will show up to request your agreement to start the BIOS update. Click "Yes" to start the online update procedure.

5. If there is a new BIOS version, the utility will ask you to download it. Click "Yes" to proceed.

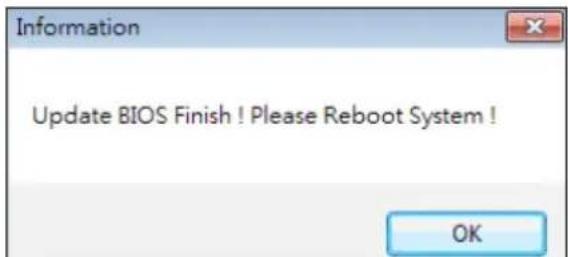

6. After the download is completed, you will be asked to program (update) the BIOS or not. Click "Yes" to proceed.

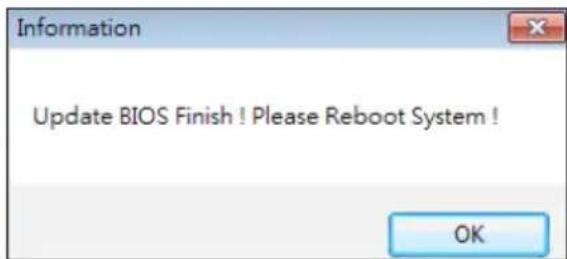

7. After the updating process is finished, you will be asked you to reboot the system. Click "OK" to reboot.

8. While the system boots up and the full screen logo shows up, press key to enter BIOS setup.

After entering the BIOS setup, please go to the , using the function to load Optimized Defaults, and select and to restart the computer. Then, the BIOS Update is completed.

BIOS Update Utility (through a BIOS file)

1. Installing BIOS Update Utility from the DVD Driver.

2. Download the proper BIOS from http://www.biostar.com.tw/

3. Launch BIOS Update Utility and click the "Update BIOS" button on the main screen.

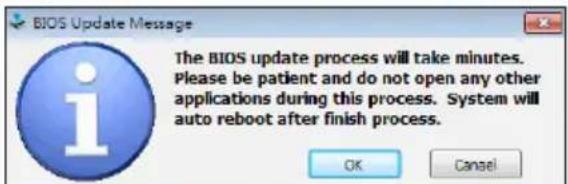

1. A warning message will show up to request your agreement to start the BIOS update. Click "OK" to start the update procedure.

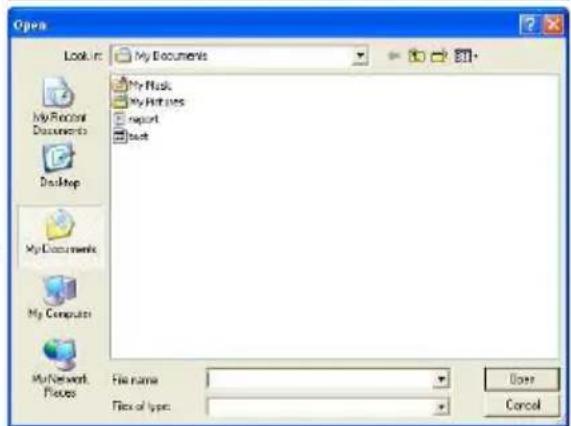

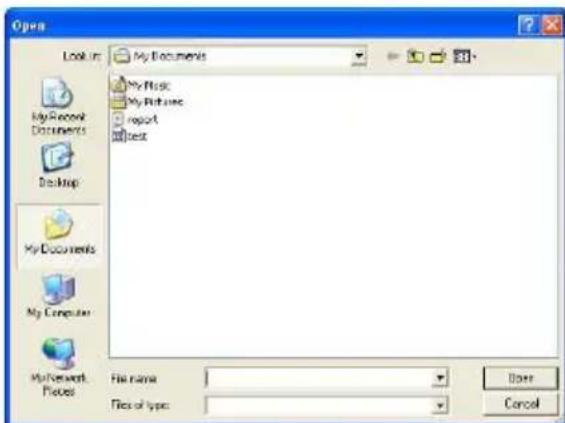

1. Choose the location for your BIOS file in the system. Please select the proper BIOS file, and then click on "Open". It will take several minutes, please be patient.

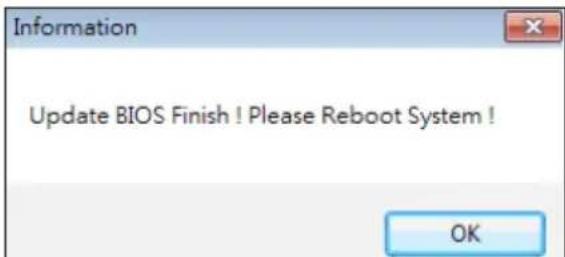

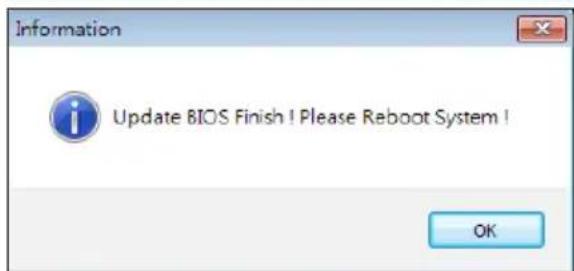

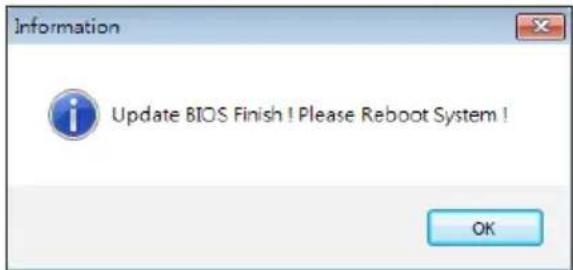

1. After the BIOS Update process is finished, click on "OK" to reboot the system.

1. While the system boots up and the full screen logo shows up, press key to enter BIOS setup.

After entering the BIOS setup, please go to the , using the function to load Optimized Defaults, and select to restart the computer. Then, the BIOS Update is completed.

Backup BIOS

Click the Backup BIOS button on the main screen for the backup of BIOS, and select a proper location for your backup BIOS file in the system, and click "Save".

3.4 Software

Installing Software

1. Insert the Setup DVD to the optical drive. The driver installation program would appear if the Auto-run function has been enabled.
2. Select Software Installation, and then click on the respective software title.
3. Follow the on-screen instructions to complete the installation.

Launching Software

After the installation process is completed, you will see the software icon showing on the desktop. Double-click the icon to launch it.

Note

» All the information and content about following software are subject to be changed without notice. For better performance, the software is being continuously updated.
» The information and pictures described below are for your reference only. The actual information and settings on board may be slightly different from this manual.

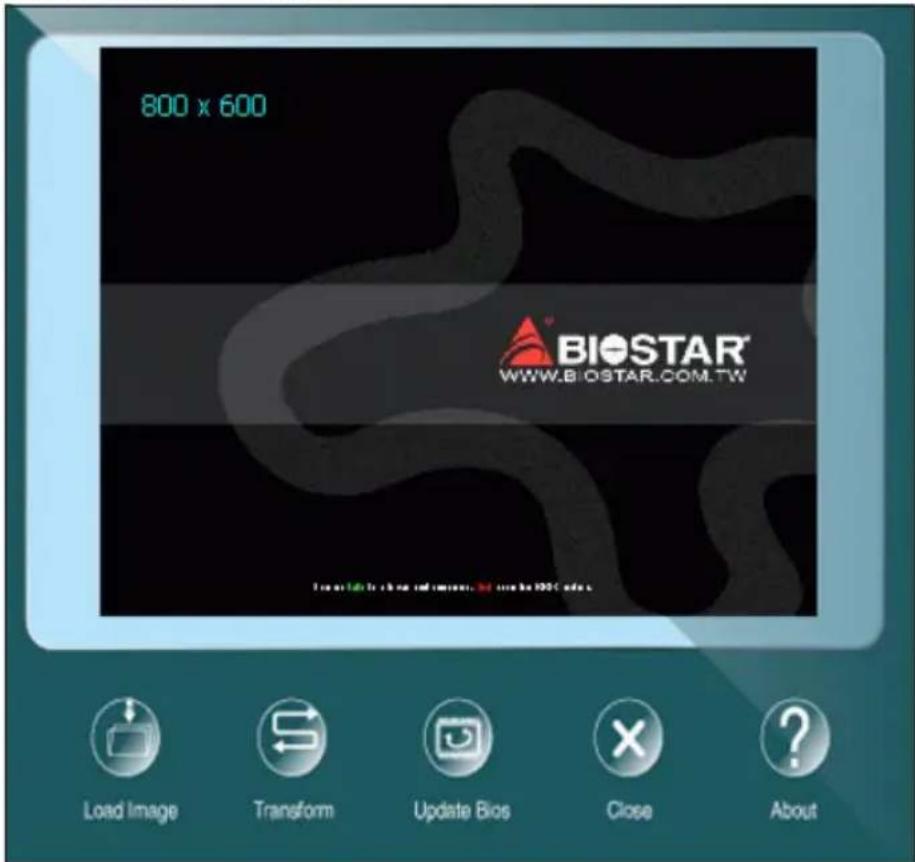

BIOScreen Utility

This utility allows you to personalize your boot logo easily. You can choose BMP as your boot logo so as to customize your computer.

Please follow the step-by-step instructions below to update boot logo:

• Load Image: Choose the picture as the boot logo.
• Transform: Transform the picture for BIOS and preview the result.
• Update Bios: Write the picture to BIOS Memory to complete the update.

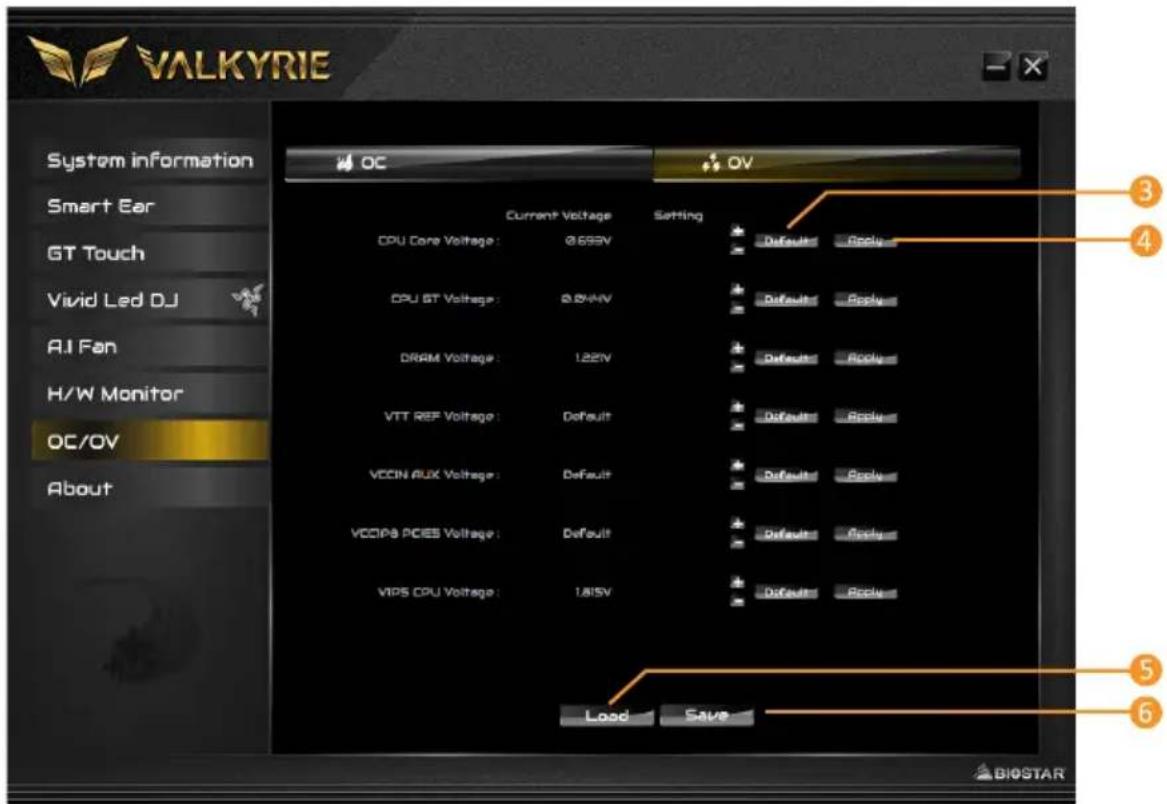

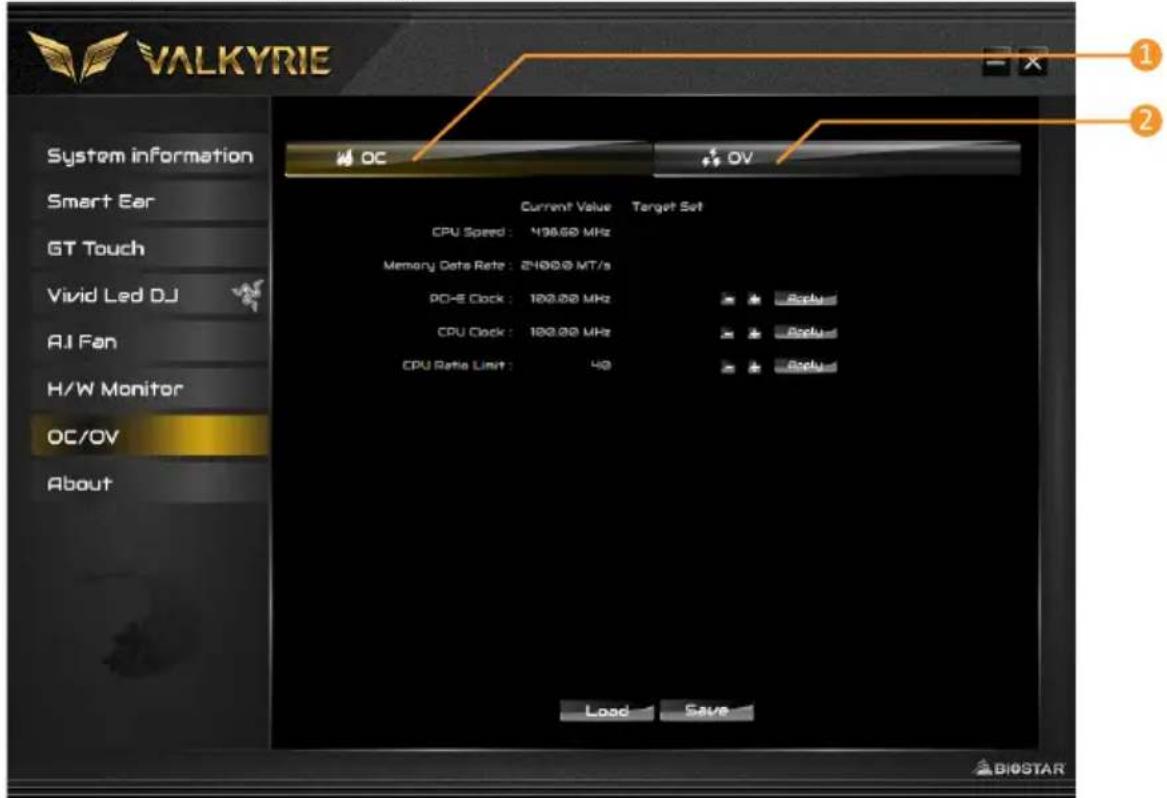

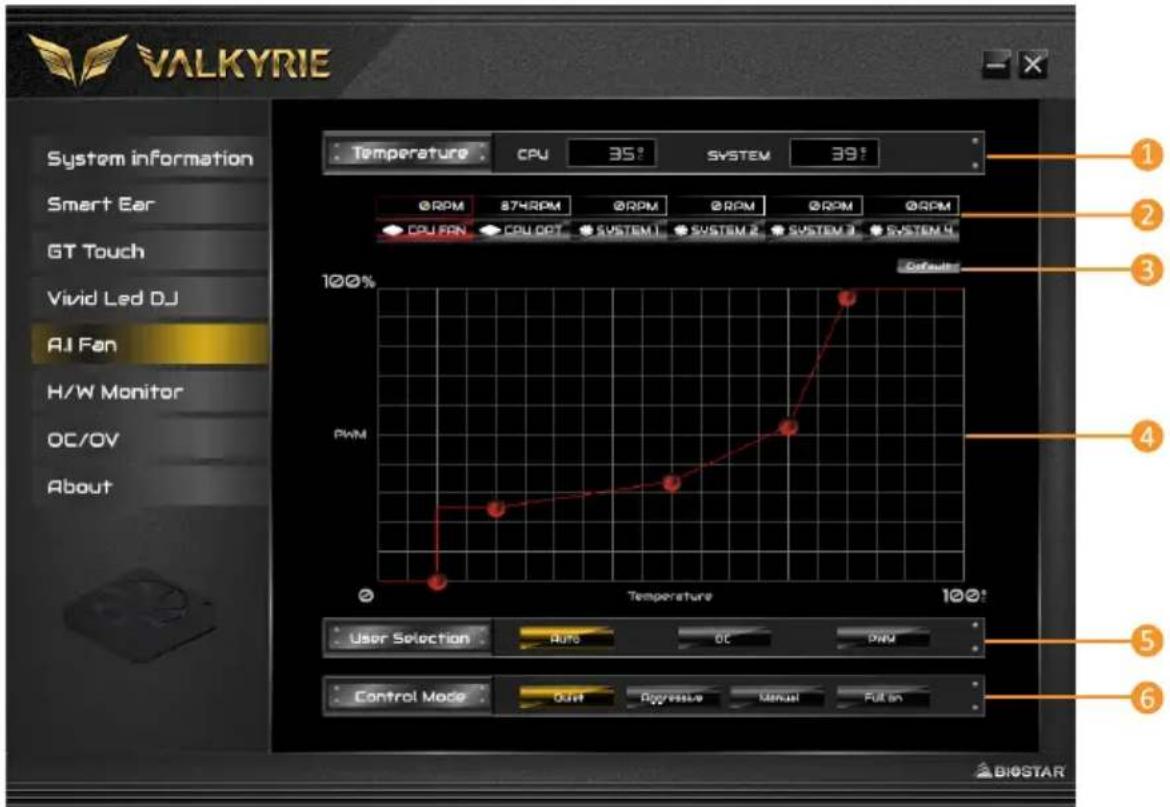

VALKYRIE AURORA Utility

RACING GT EVO is an easy-to-use program that integrates several BIOSTAR utilities and allows users to configure these utilities simultaneously and seamlessly.

Note

» Menu contents of VALKYRIE AURORA Utility will be different slightly, depending on different motherboard of users' computers.
» When the software is installed or removed, restart your computer.

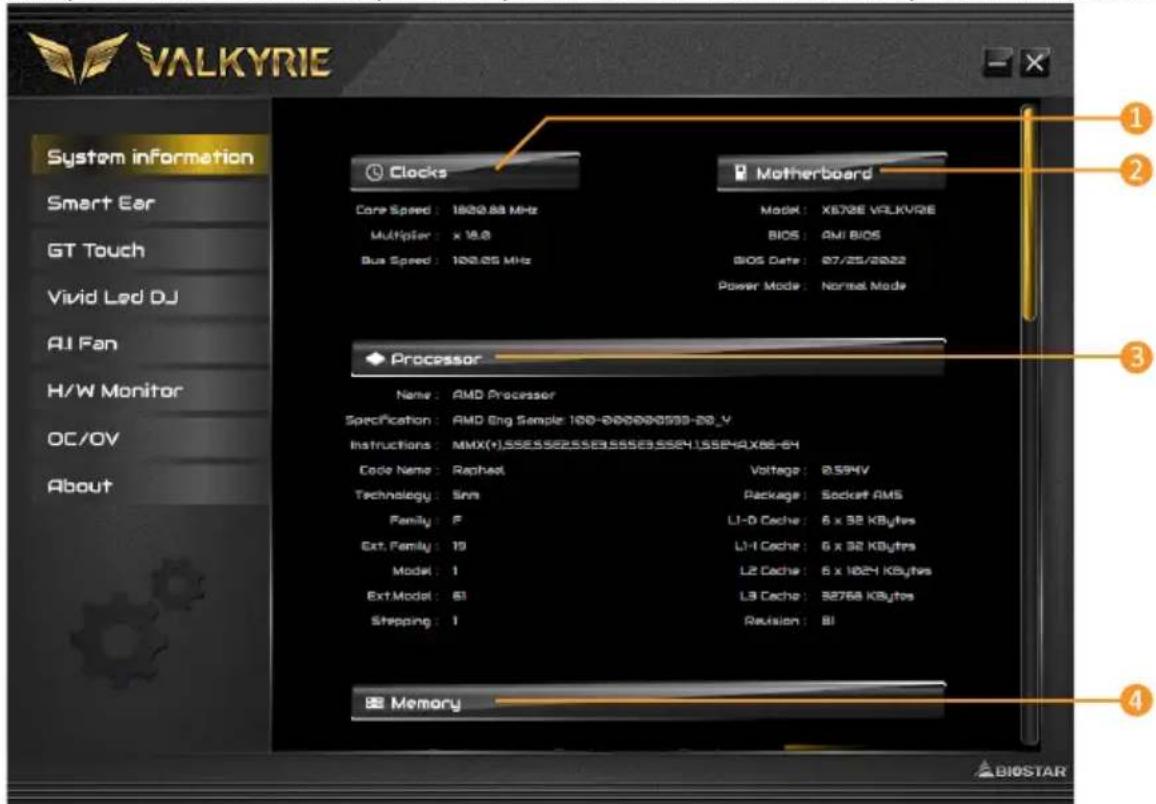

System Information

This System Information tab provides you an overview of the basic system information.

1. Clocks: Shows core speed, multiplier and bus speed.
2. Motherboard: Shows motherboard information.
3. Processor: Shows CPU information.
4. Memory: Shows memory information.
   » Click on different memory slot buttons to get the memory information.

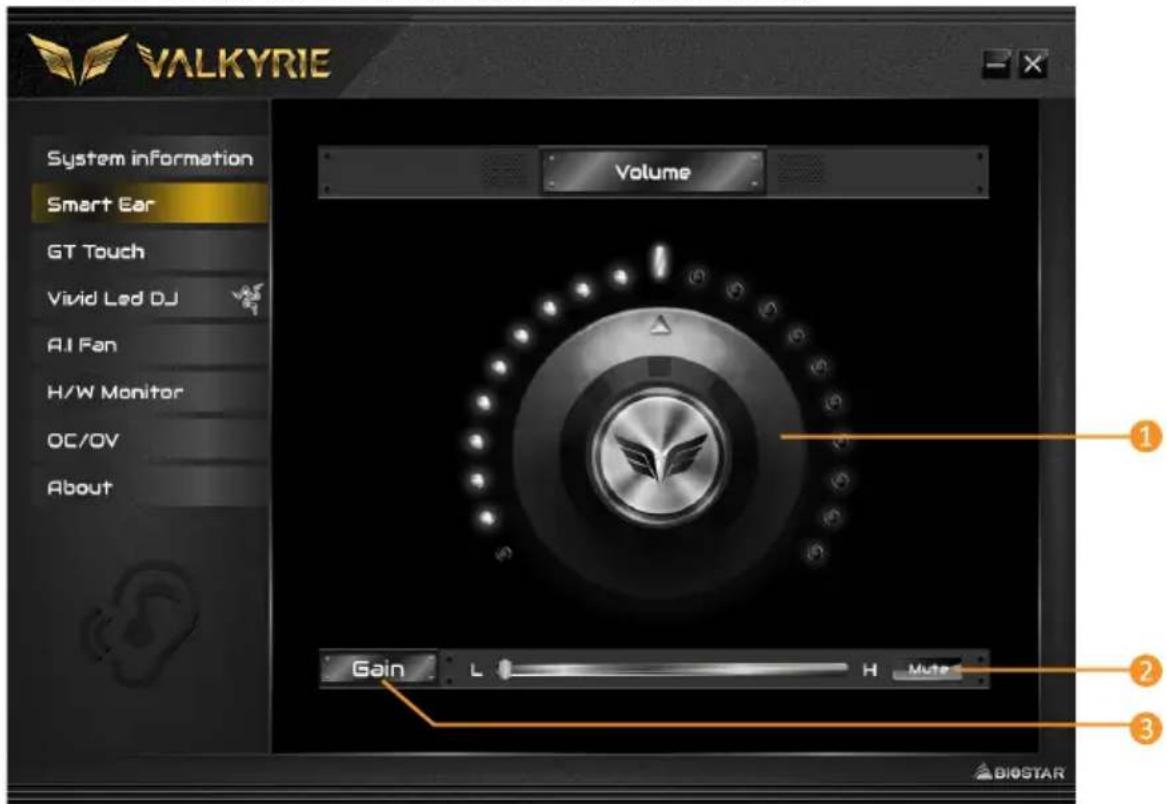

SmartEAR

Smart EAR allows you to control system volume and adjust impedance setting (Low/High Gain) to optimize your headphone performance. You can easily enjoy high-quality and awesome sound.

Requirements:

1. A chassis with front audio output jacks
2. An earphone or a headphone
3. Windows 11 (64bit)/ 10 (64bit) operation system

Installation Guide:

1. Make sure the front audio cable of the chassis connected to the front audio header of the motherboard properly.
2. Install the VALKYRIE AURORA Utility program from the driver DVD.
3. Connect the earphone or headphone to the front audio jack of the chassis or audio lineout port of rear I/Os.

» If you want to use an AC'97 front audio output cable, please disable the "Front Panel Jack Detection" setting. This setting can be found via O.S. Audio Utility.

1. Volume Control Knob: The volume can be finely adjusted by turning the knob either clockwise or anti-clockwise to increase or decrease system volume accordingly.
2. Mute: To disable system sound.
3. High/Low Gain Switch: Keep the gain switch to low for low impedance headphone and set to high for high impedance headphone.

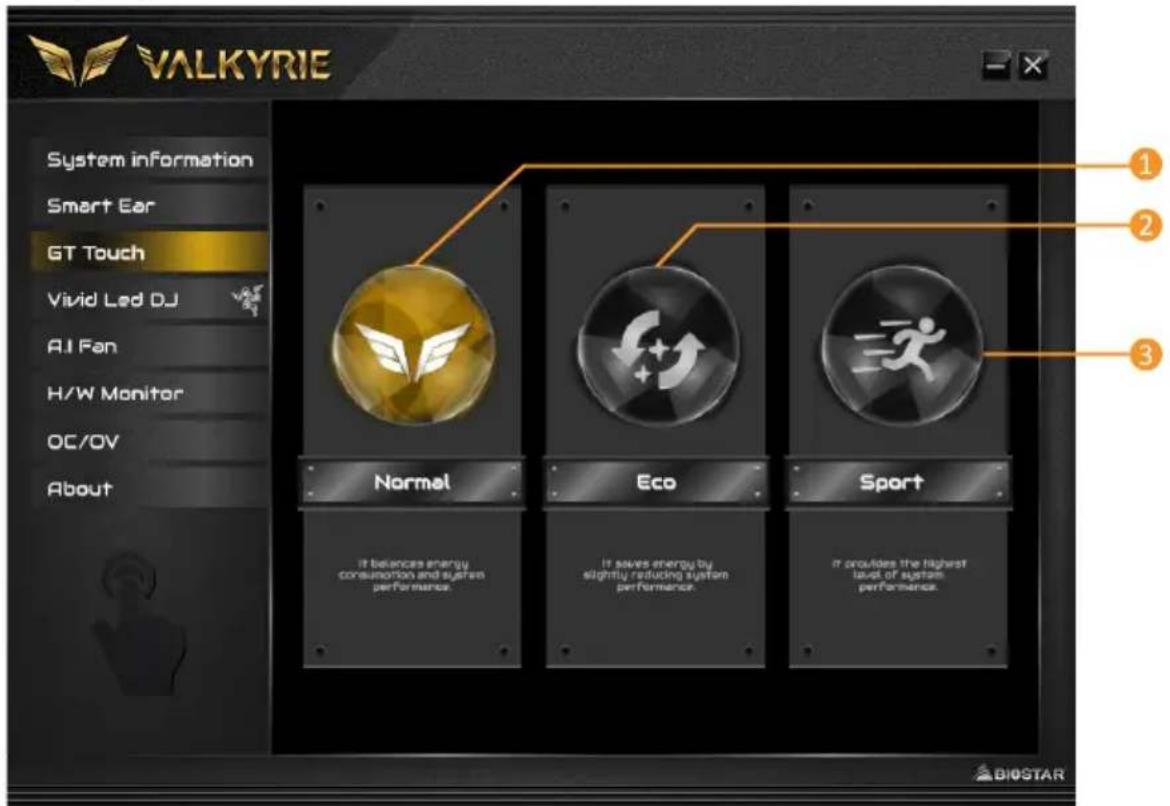

GT Touch

GT Touch allows you to adjust Normal, ECO and Sport mode when running VALKYRIE AURORA Utility program in Windows environment.

1. Normal Mode: It balances energy consumption and system performance.
2. ECO Mode: It saves energy by slightly reducing system performance.
3. Sport Mode: It provides the highest level of system performance.

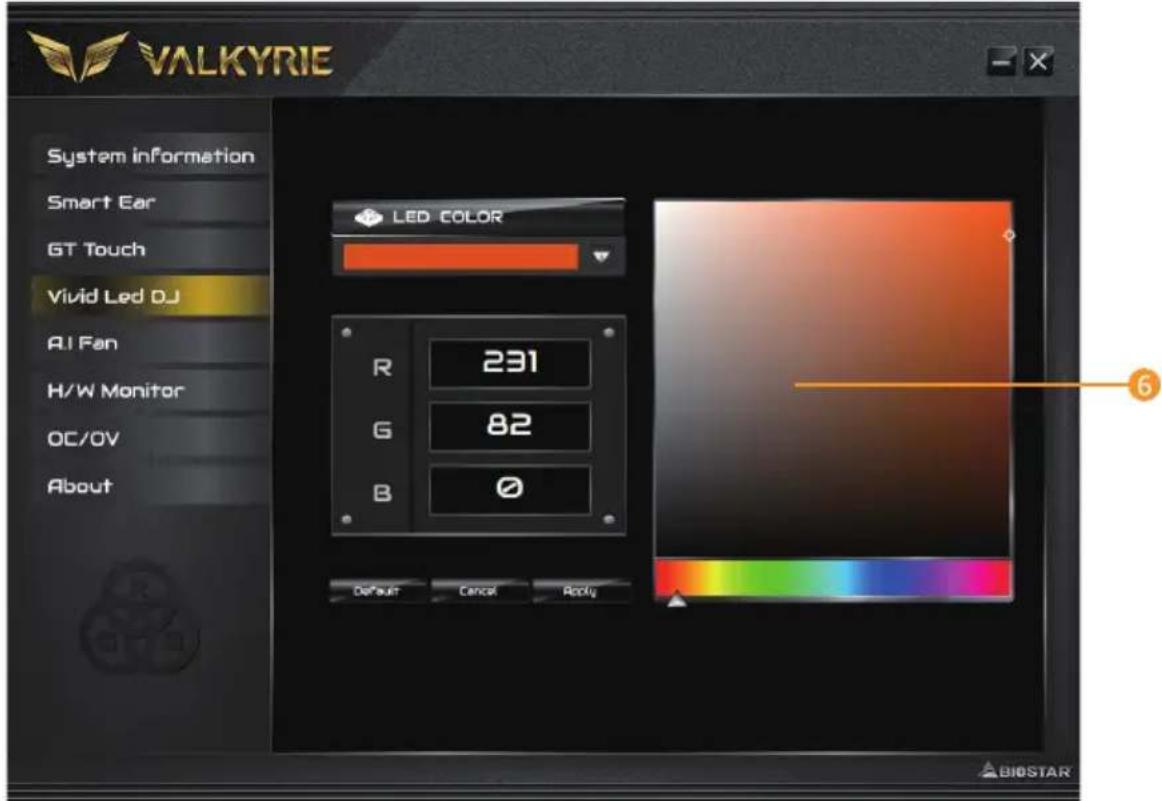

Vivid LED DJ

Vivid LED DJ can adjust your color scheme of ARMOR GEAR, RGB LED Device.

1. LED COMMANDER: Allows you to select the LED mode.
2. Default: Default LED illuminations. (Blue light)
3. RGB Sync : Allows you to synchronize the LED Type item settings.
4. LED Type: Select the LED lighting blocks.
   • System : System LED illuminations. (Racing ARMOR)
   • 12V LED : The 12V LED illumination. (12V_LED Device)
5. 5V LED: The 5V LED illumination. (5V_LED Device)
   • Memory Sync : The RGB Audio LED illumination. (Memory LED)
6. ON/OFF: To enable or disable VIVID LED function.
7. Auto: LEDs will Automatically change the Color Palette and LED Brightness.

» If you select Auto mode, the Color Pallette and LED Brightness Bar will disabled.

1. LED SPARKLE: Allows to you choose sparkle of the LEDs.

• Permanent: LEDs are constantly lit.
• Shine: LEDs flash at a specific frequency.
- Breath: LEDs gradually flash on and off.
- Shine & Music: LEDs will flash according the music played on your system.

» Please make sure your speaker or earphone is properly connected to audio jack before using VALKYRIE AURORA Utility program.

• Meteor: LEDs slide at a specific frequency.
  • Wave: LEDs are presented in a water wave rhythm.
  • Starry sky: LEDs flicker at a specific rhythm.
  • Lightning: LEDs flash and slide at a specific frequency.
• Rainbow: LEDs lights to dazzling colorful rhythm.
• Aurora: LEDs shows soft light and flickers lightly.

Note

» With VIVID LED DJ users can control the four LED light zones independently with different flashing modes (LED SPARKLE).

Vivid LED DJ

Vivid LED DJ can adjust your color scheme of ARMOR GEAR, RGB LED Device.

1. Color Palette: Allows to you choose specific color of the LEDs.

A.I Fan

A.I FAN utility smartly allows PC users to have more customizability of fan operating modes and automatically detects different temperatures to make fan operating at defined speed for optimal cooling performance.

1. Temperature: Shows the current CPU and system temperature.
2. CPU FAN/ CPU OPT RPM & SYSTEM1/2/3/4 RPM: Click button to set the status value of CPU and system fan.

» Display items, please focus on the actual motherboard.

1. Default: Restore defaults your changes value of a single item.

2. PWM/ Temperature Panel: According to the fan PWM value corresponding to CPU and system temperature to adjust the fan speed.
   » Allows you to adjust according to your preferences.

3. User Selection: Sets the fan property controls the actual selection operation.

• Auto: Allows you to adjust the Automatic detection Mode.
• DC: Allows you to adjust the Direct Current (DC) Mode.
- PWM: Allows you to adjust the Pulse Width Modulation (PWM) Mode.

1. Control Mode: Allows you to control mode of the fans.

2. Quiet: Enable Quiet mode.

3. Aggressive: Enable Aggressive mode.
4. Manual: Enable Manual mode.
   • Full on: Enable Full On mode.

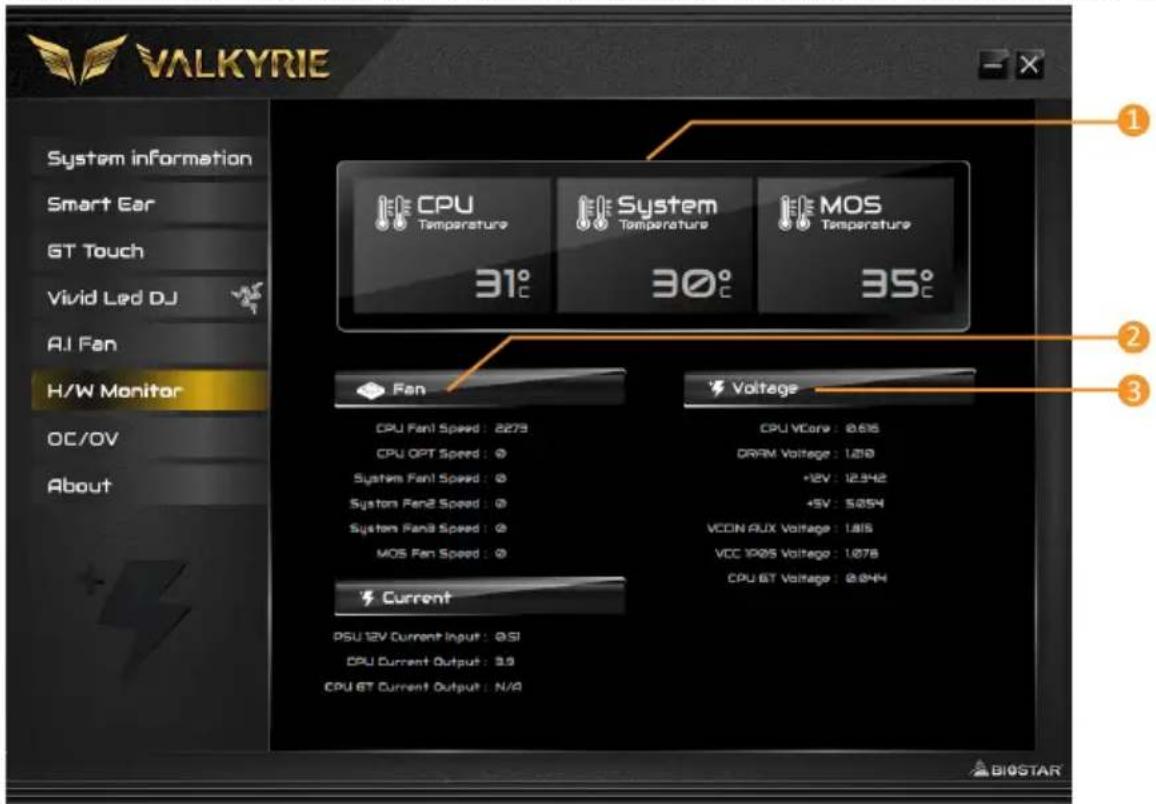

H/W Monitor

The HW Monitor tab allows you to monitor hardware voltage, fan speed, and temperature.

1. CPU Temperature/ System Temperature: Shows the current CPU and system temperature.
2. Fan: Shows the current fans' speed.
3. Voltage: Shows the current voltages of CPU and memory.

oc/ov

The OC/OV tab allows you to save or load the OC/OV setting profiles, change system frequency and voltage settings.

1. OC: Allows you to adjust overclocking profile values.
2. OV: Allows you to adjust voltage profile values.

1. Default: Restore defaults your changes.

2. Apply: Apply your changes.

3. Load: Load the profile values from the file.

4. Save: Store the profile values for future use.

Note

» Not all types of CPU perform above overclock setting ideally; the difference will be based on the selected CPU model.
» Overclock is an optional process, but not a “must-do” process; it is not recommended for inexperienced users. Therefore, we will not be responsible for any hardware damage which may be caused by overclocking. We also would not guarantee any overclocking performance.

About

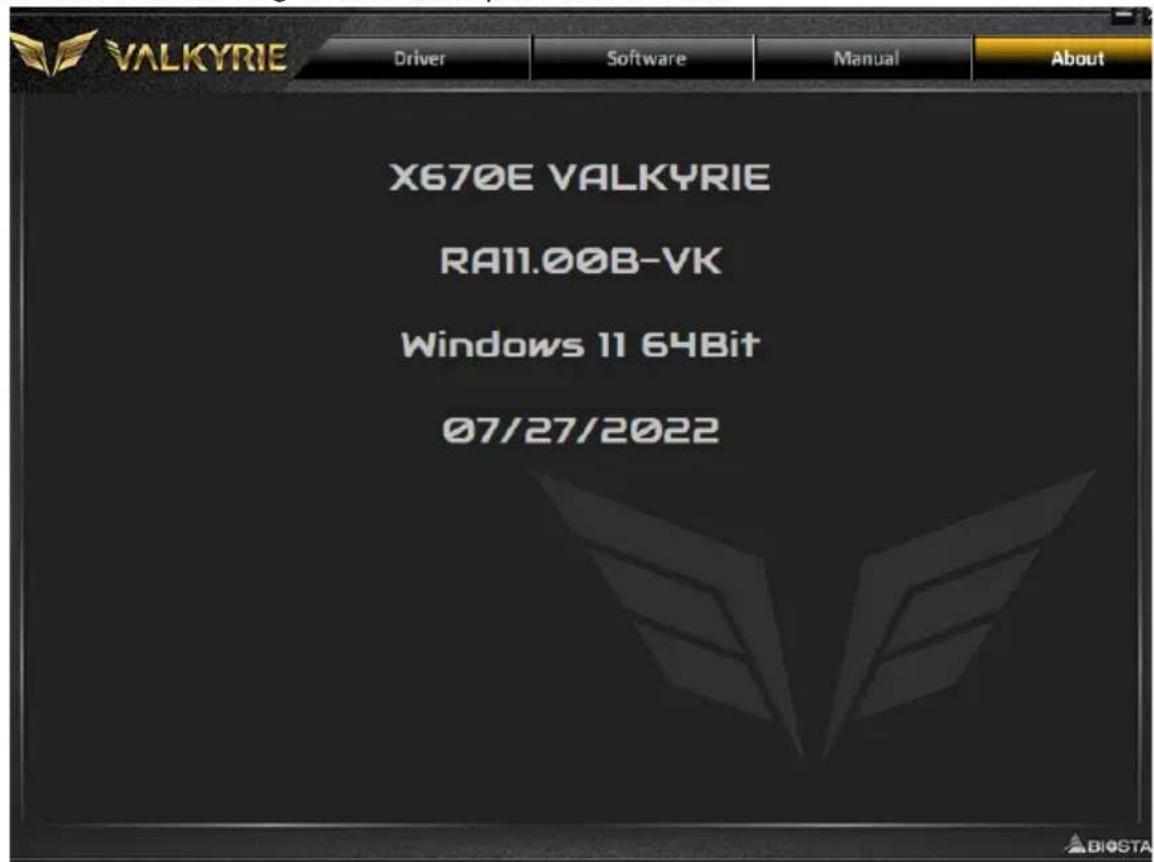

The About menu to display the VALKYRIE AURORA Utility version information.

Chapter 4: Useful help

4.1 Driver Installation

After you installed your operating system, please insert the Fully Setup Driver DVD into your optical drive and install the driver for better system performance.

You will see the following window after you insert the DVD

The setup guide will auto detect your motherboard and operating system.

A. Driver Installation

To install the driver, please click on the Driver icon. The setup guide will list the compatible driver for your motherboard and operating system. Click on each device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. The setup guide will list the software available for your system, click on each software title to launch the installation program.

C. Manual

Aside from the paperback manual, we also provide manual in the Driver DVD. Click on the Manual icon to browse for available manual.

Note

» If this window didn't show up after you insert the Driver DVD, please use file browser to locate and execute the file SETUP.EXE under your optical drive.
» You will need Acrobat Reader to open the manual file. Please download the latest version of Acrobat Reader software from http://get.adobe.com/reader/
» The motherboard used in the illustrations may not resemble the actual board. these illustrations are for reference only.

4.2 AMI BIOS Beep Code

Boot Block Beep Codes

Number of Beeps Description

Continuing Memory sizing error or Memory module not found

POST BIOS Beep Codes

Number of Beeps Description
1 Success booting.
8 Display memory error (system video adapter)

4.3 AMI BIOS post code

Code Description
10 PEI Core is started
11 Pre-memory CPU initialization is started
15 Pre-memory North Bridge initialization is started
19 Pre-memory South Bridge initialization is started
2B Memory initialization. Serial Presence Detect (SPD) data reading
2C Memory initialization. Memory presence detection
2D Memory initialization. Programming memory timing information
2E Memory initialization. Configuring memory
2F Memory initialization (other).
31 Memory Installed
32 CPU post-memory initialization is started
33 CPU post-memory initialization. Cache initialization
34 CPU post-memory initialization. Application Processor(s) (AP) initialization
35 CPU post-memory initialization. Boot Strap Processor (BSP) selection
36 CPU post-memory initialization. System Management Mode (SMM) initialization
37 Post-Memory North Bridge initialization is started
3B Post-Memory North Bridge initialization (North Bridge module specific)
4F DXE IPL is started
60 DXE Core is started
F0 Recovery condition triggered by firmware (Auto recovery)
F1 Recovery condition triggered by user (Forced recovery)
F2 Recovery process started
F3 Recovery firmware image is found
F4 Recovery firmware image is loaded
E0 S3 Resume is stared (S3 Resume PPI is called by the DXE IPL)
E1 S3 Boot Script execution
E2 Video repost
E3 OS S3 wake vector call
60 DXE Core is started
61 NVRAM initialization
62 Installation of the South Bridge Runtime Services
63 CPU DXE initialization is started
68 PCI host bridge initialization
69 North Bridge DXE initialization is started
6A North Bridge DXE SMM initialization is started
Code	Description
70	South Bridge DXE initialization is started
71	South Bridge DXE SMM initialization is started
72	South Bridge devices initialization
78	South Bridge DXE Initialization (South Bridge module specific)
79	ACPI module initialization
90	Boot Device Selection (BDS) phase is started
91	Driver connecting is started
92	PCI Bus initialization is started
93	PCI Bus Hot Plug Controller Initialization
94	PCI Bus Enumeration
95	PCI Bus Request Resources
96	PCI Bus Assign Resources
97	Console Output devices connect
98	Console input devices connect
99	Super IO Initialization
9A	USB initialization is started
9B	USB Reset
9C	USB Detect
9D	USB Enable
A0	IDE initialization is started
A1	IDE Reset
A2	IDE Detect
A3	IDE Enable
A4	SCSI initialization is started
A5	SCSI Reset
A6	SCSI Detect
A7	SCSI Enable
A8	Setup Verifying Password
A9	Start of Setup
AB	Setup Input Wait
AD	Ready To Boot event
AE	Legacy Boot event
AF	Exit Boot Services event
B0	Runtime Set Virtual Address MAP Begin
B1	Runtime Set Virtual Address MAP End
B2	Legacy Option ROM Initialization
B3	System Reset
B4	USB hot plug
B5	PCI bus hot plug
B6	Clean-up of NVRAM
B7	Configuration Reset (reset of NVRAM settings)

4.4 Troubleshooting

CPU Overheated

If the system shutdown automatically after power on system for seconds, that means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdown automatically to avoid a damage of the CPU, and the system may not power on again.

In this case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.
2. CPU fan is rotated normally.
3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protection function.

1. Remove the power cord from power supply for seconds.
2. Wait for seconds.
3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data. (See "Close CMOS Header: JCMOS1" section)
2. Wait for seconds.
3. Power on the system again.

4.5 RAID Functions

RAID Definitions

In a RAID 0 system data are split up in blocks that get written across all the drives in the array. By using multiple disks (at least 2) at the same time, this offers superior I/O performance. This performance can be enhanced further by using multiple controllers, ideally one controller per disk.

Features and Benefits

• Drives: Minimum 2, and maximum is up to 6 or 8. Depending on the platform.
• Uses: Intended for non-critical data requiring high data throughput, or any environment that does not require fault tolerance.
• Benefits: provides increased data throughput, especially for large files. No capacity loss penalty for parity.
• Drawbacks: Does not deliver any fault tolerance. If any drive in the array fails, all data is lost.
• Fault Tolerance: No.
  • Total Capacity: (Minimal. HDD Capacity) x (Connected HDDs Amount)

Data are stored twice by writing them to both the data disk (or set of data disks) and a mirror disk (or set of disks). If a disk fails, the controller uses either the data drive or the mirror drive for data recovery and continues operation. You need at least 2 disks for a RAID 1 array.

Features and Benefits

• Drives: Minimum 2, and maximum is 2.
• Uses: RAID 1 is ideal for small databases or any other application that requires fault tolerance and minimal capacity.
• Benefits: Provides 100% data redundancy. Should one drive fail, the controller switches to the other drive.
• Drawbacks: Requires 2 drives for the storage space of one drive. Performance is impaired during drive rebuilds.
• Fault Tolerance: Yes.

RAID 10 (1+0)

RAID 10 combines the advantages (and disadvantages) of RAID 0 and RAID 1 in one single system. It provides security by mirroring all data on a secondary set of disks (disk 3 and 4 in the drawing below) while using striping across each set of disks to speed up data transfers.

Features and Benefits

• Drives: Minimum 4, and maximum is 6 or 8, depending on the platform.
• Benefits: Optimizes for both fault tolerance and performance, allowing for automatic redundancy. May be simultaneously used with other RAID levels in an array, and allows for spare disks.
• Drawbacks: Requires twice the available disk space for data redundancy, the same as RAID level 1.
• Fault Tolerance: Yes.

APPENDIX: Specifications in Other Languages

Arabic

المواصفات
.RyzenTM series 7000 / 8000 AMD® معالجات5	Ice دو مف بس AM5
.BIOS المستقبية صع تديدث	Ice معالجاتRyzenTM AMD®
.CPU قائمة دعم المعالج	www.biostar.com.tw
	*
AMD® X670	مجموعة الشرanges
AMD Ryzen 7000 / 8000 Series Processors:DDR5-4800 /5000(OC)/5200(OC)/5400(OC)/5600(OC)/5800(OC) /6000+(OC). دي. ار.	4x DDR5
ITDM فتحات الذاكرة المزدوجة DDR5	DIMM
4x DDR5	DIMM
48/32/24/16/8 ECC و Un-bufferedECC	DIMM
IE UN-bufferedECC	DIMM
IE Un-bufferedECC	DIMM
IE Un-bufferedECC	DIMM
IE Un-bufferedECC	DIMM
IE Un-bufferedECC	DIMM
IE Un-bufferedECC	DIMM
IE Un-bufferedECC	DIMM
IE Un-bufferedECC	DIMM
IE Un-bufferedECC	DIMM
IE Un-bufferedEcc	DIMM
IE Un-bufferedEcc	DIMM
IE Un-bufferedEcc	DIMM
IE Un-bufferedEcc	DIMM
IE Un-bufferedEcc	DIMM
IE Un-bufferedEcc	DIMM
IE Un-bufferedEcc	DIMM
IE Un-bufferedEcc	DIMM
IE Un-bufferedEcc	DIMM

» Continued on Next Page

Technical line drawing of a mechanical assembly with a green arrow indicating a component (no text or symbols present)

Technical line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

Примечание

Technical line drawing of a CPU fan with heatsink and cooling element (no text or symbols)

Technical line drawing of a CPU fan with green arrows indicating rotation or adjustment (no text or symbols)

Technical line drawing of a mechanical component with three views (top, front, side), no text or symbols present.

PWM Mode DC Mode
Pin	Assignment Pin Assignment
1 Ground	1 Ground
2 +1	2V 2 Voltage Control
3 Sense	3 Sense
4Speed	Control Signal 4NC

PWM Mode DC Mode
Pin Assignment Pin Assignment
1 Ground 1 Ground
2 +12V 2 Voltage Control
3 Sense 3 Sense
4Speed Control Signal 4NC

Примечание

Technical line drawing of a RAM module with green directional arrows indicating rotation or movement (no text or symbols)

Isometric line drawing of a mechanical component with green directional arrows indicating motion (no text or symbols)

Примечание

Computer motherboard diagram showing CPU socket, RAM slots, and drive bays with a green arrow indicating a component (no text or symbols present)

PCIEX16\_1: слот PCI-Express Gen5 x16 (x16 или x8 режиме)

3D diagram of a rectangular plate with two small bolts and green arrows indicating upward motion (no text or symbols)

War 1:

3D diagram of a rectangular electronic component with internal compartments and a green arrow indicating rotation (no text or symbols)

War 2:

3D rendering of a rectangular electronic component with two mounting holes and two green arrows indicating downward force (no text or symbols)

War 3:

Pin	Assignment Pin	Assignment
13	+3.3V 1 +3.3V
14	-12V 2 +3.3V
15	Ground 3 Ground
16	PS_ON 4+5V
17	Ground 5 Ground
18	Ground 6 +5V
19	Ground 7Ground
20	NC 8PW_OK
21	+5V 9Standby Voltage	-5V
22	+5V 10 +12V
23	+5V 11 +12V
24	Ground 12 +3.3V

Pin Assignment

1 +12V

2 +12V

3 +12V

4+12V

5 Ground

6 Ground

7Ground

8Ground

Примечание

Pin	Assignment Function Pin	Assignment Function
1 HDD LED(+)	HDDLED (-)	2 Power LED (+)	Power LED
3 HDD LED(-) 4PowerLED
5 Ground	Reset Button	6 Power Button	Power-On Button
7Reset Control 8G
9NC NC 10 Key Key

Pin	Assignment
1 +5V
2 N/A
3 N/A
4Speaker

Pin	Assignment	Pin	Assignment
1	+1.8V 2 SPI_PIRQ
3	TPM_RST#	4	TPM_CS
5	N/A	6	N/A
7	+1.8V 8 GND
9	N/A 10 SPI_CLK
11 SPI_MISO 12 SPI_MOSI
13 N/A 14 KEY

SATA\_1/ SATA\_2/ SATA\_3/ SATA\_4/ SATA\_5/ SATA\_6: разъемыSerial ATA 6,0 Гбит/с

Pin	Assignment
1	Ground
2	TX+
3	TX-
4	Ground
5	RX-
6	RX+
7	Ground

Pin A	Assignment Pin	Assignment
1 VBUS 11 VBUS
2 SSTX1+ 12 SSTX2+
3 SSTX1- 13 SSTX2-
4Ground 14 Ground
5 SSRX1+ 15 SSRX2+
6 SSRX1- 16	SSRX2-
7VBUS 17 Ground
8CC1 18 D-
9SBU1 19 D+
10 SBU2	20 CC2

Pin Assignment

1 Force Power

2 Key

3 CIO Plug Event

4SMB_DATA_MAIN

5 SLP_S3_N

6 SMB_CLK_MAIN

7SLP_S5_N

83V3_AIC_PD_INT#

9GND

10 GND

HD Audio

Pin Назначение

1 Mic Left in

2 Ground

3 Mic Right in

4GPIO

5 Right line in

6 Jack Sense

7Front Sense

8Key

9Left line in

10 Jack Sense

Примечание

Pin Assignment

1 Carrier detect

2 Received data

3 Transmitted data

4Data terminal ready

5 Signal ground

6 Data set ready

7Request to send

8Clear to send

9Ring indicator

10 Key

Индикаторы

SW\_PWR(Питание):

Утилита BIOS Update (через Интернет)

VALKYRIE AURORA Utility

단계2: Open Lever and then load plate using finger tab.

단계3: Align and seat processor package on socket.

Technical line drawing of a mechanical assembly with a green arrow indicating a specific component (no text or symbols present)

단계4: Rotate lever and press lever finger, then locked the position.

Technical line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

주의

» Ensure that you install the correct CPU designed for AM5 socket.

2.2 CPU 콜러 설치

<타입A>

Technical line drawing of a computer cooling fan with a highlighted internal component (no text or symbols)

Technical line drawing of a computer cooling fan with green circular annotations indicating rotation or adjustment (no text or symbols present)

<타입B>

Technical line drawing of a mechanical component with three views (top, front, side), no text or symbols present.

주의

Technical line drawing of a RAM module with green directional arrows indicating rotation or movement (no text or symbols)

Technical line drawing of a mechanical component with green directional arrows indicating motion or force (no text or symbols)

주의

DIMM소켓 위치 DDR5 모듈 총 메모리 크기
DDR5_A1 8GB/16GB/24GB/32GB/48GB	최대 192GB.
DDR5_A2 8GB/16GB/24GB/32GB/48GB
DDR5_B1 8GB/16GB/24GB/32GB/48GB
DDR5_B2 8GB/16GB/24GB/32GB/48GB

듀얼 채널 메모리 설치

3D diagram of a rectangular plate with two small protrusions and green arrows indicating upward motion (no text or symbols)

3D diagram of a rectangular device with internal compartments and a green arrow indicating rotation (no text or symbols)

3D rendering of a rectangular electronic component with two mounting holes and two green arrows indicating downward force (no text or symbols)

1단계:

Pin opened Pin closed Pin 1-2 closed

JCMOS1: CMOS 클리어 점퍼

핀	배열
1 +5V
2 N/A
3 N/A
4 Speaker

핀 배열 핀 배열
1 +1.8V 2 SPI_PI RQ
3 TPM_RST# 4 TPM_CS
5 N/A 6 N/A
7+1.8V 8 GND
9 N/A 10 SPI_CLK
11 SPI_MISO 12 SPI_MOSI
13 N/A 14 KEY

SATA\_1/ SATA\_2/ SATA\_3/ SATA\_4/ SATA\_5/ SATA\_6: 시리얼 ATA 커넥터

핀	배열
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
7Ground

핀 배열 핀 배열
1 VBUS 11 VBUS
2 SSTX1+ 12 SSTX2+
3 SSTX1- 13 SSTX2-
4 Ground 14 Ground
5 SSRX1+ 15 SSRX2+
6 SSRX1- 16 SSRX2-
7VBUJS 17 Ground
8 CC1 18 D-
9 SBU1 19 D+
10 SBU2	20 CC2

핀	배열
1 Force Power
2 Key
3 CIO Plug Event
4 SMB_DATA_MAIN
5 SLP_S3_N
6 SMB_CLK_MAIN
7SLP_S5_N
8 3V3_AIC_PD_INT#
9	접지
10 접지

HD Audio
핀	배열
1 Mc Left in
2 Ground
3 Mc Right in
4 GPIO
5 Right line in
6 Jack Sense
7Front Sense
8 Key
9 Left line in
10 Jack Sense

주의

핀	케이블 색상 배열
1	12V (Black) VCC12
2	G (Green) LED_GREEN
3	R (Red) LED_RED
4	B (Blue) LED_BLUE

5V\_LED1/ 5V\_LED2: Addressable RGB LED 장치 (WS2818B) 헤더

인디케이터

SW\_PWR (전원):

바이오스의 백업

3.4 소프트웨어

소프트웨어의 설치

VALKYRIE AURORA Utility

Technical line drawing of a mechanical assembly with a green arrow indicating a specific component (no text or symbols present)

步驟4: 扭動拉桿並完全閉合鎖住。

Technical line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

注意

» 請安裝正確CPU在AM5插座。

2.2 散热片

<類型A>

Line drawing of a computer cooling fan with a highlighted internal component (no text or symbols)

Technical line drawing of a computer cooling fan with green circular annotations indicating rotation or adjustment (no text or symbols present)

<類型B>

Technical line drawing of a mechanical component with three views (top, front, side), no text or symbols present.

注意

Technical line drawing of a RAM module with green directional arrows indicating rotation or movement (no text or symbols)

Isometric line drawing of a mechanical component with green directional arrows indicating motion (no text or symbols)

注意

雙通道狀態 DDR5_A1 DDR5_A2 DDR5_B1 DDR5_B2
Enabled X O X O
Enabled O O O O

PCIEX16\_1: PCI-Express Gen5 x16 插槽(x16或x8模式)

3D diagram of a rectangular plate with two mounting holes and green directional arrows indicating upward movement (no text or symbols)

3D diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D diagram of a rectangular plate with two mounting holes and two green arrows indicating downward forces (no text or symbols)

步驟1：

針腳 1-2 打開: 一般操作(預設)

針腳 1-2 短路: 清空CMOS數據

清空CMOS數據過程:

針定義針定義
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15接地3接地
16 PS_ON 4 +5V
17接地5接地
18接地6 +5V
19接地7接地
20 NC 8 PW_OK
21 +5V 9 噪醒電壓	+5V
22 +5V 10 +12V
23 +5V 11 +12V
24接地12 +3.3V

ATX\_12V\_2X4\_1/2: ATX電源插槽

針定義針定義
1+1.8V 2 SPI_PIRQ
3 TPM_RST# 4 TPM_CS
5 N/A 6 N/A
7+1.8V 8 GND
9 N/A 10 SPI_CLK
11	SPI_MISO	12	SPI_MOSI
13	N/A 14 KEY

針定義針定義
1 VBUS 11 VBUS
2 SSTX1+ 12 SSTX2+
3 SSTX1- 13 SSTX2-
4接地 14接地
5 SSRX1+ 15 SSRX2+
6 SSRX1- 16 SSRX2-
7VBUS 17接地
8 CC1 18 D-
9 SBU1 19 D+
10 SBU2 20 CC2

針	定義
1 Force Power
2 Key
3 CIO Plug Event
4 SMB_DATA_MAIN
5 SLP_S3_N
6 SMB_CLK_MAIN
7SLP_S5_N
8 3V3_AIC_PD_INT#
9	接地
10 接地

F\_AUDIO: 前置面板音效接頭

HD Audio
針	定義
1 Mic Left in
2	接地
3 Mic Right in
4 GPIO
5 Right line in
6 Jack Sense
7Front Sense
8 Key
9 Left line in
10 Jack Sense

注意

電源開關(SW_PWR)：

輕觸此按鈕以開啓或關閉系統。

重新啟動(SW_RST):

輕觸此按鈕以重啓系統。

清除CMOS(CLR_CMOS):

3.4 軟體

安裝軟體

請參照以下步驟來更新開機畫面：

VALYRIE AURORA Utility
