USER MANUAL NMS-500 Planet

Networking & Communication

Quick User Guide

NMS-1000V

NMS-500

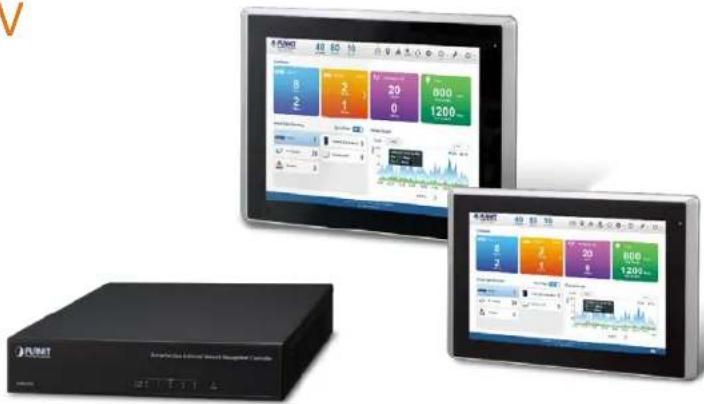

Two electronic devices displaying a 6.5MΩ power management interface with color-coded UI panels and numerical displays.

Sections

Planet NMS-500 - Sections - 1

PLANET

Networking & Communication

a) Overview.... 3\~5

b) Application.... 6\~7

c) Before First Login.... 8\~17

d) Setup Wizard.... 18\~22

e) Main UI Introduction.... 23\~25

f) Dashboard Introduction.... 26\~30

g) Footer Introduction.... 31\~32

h) System Menu - Domain.... 33\~38

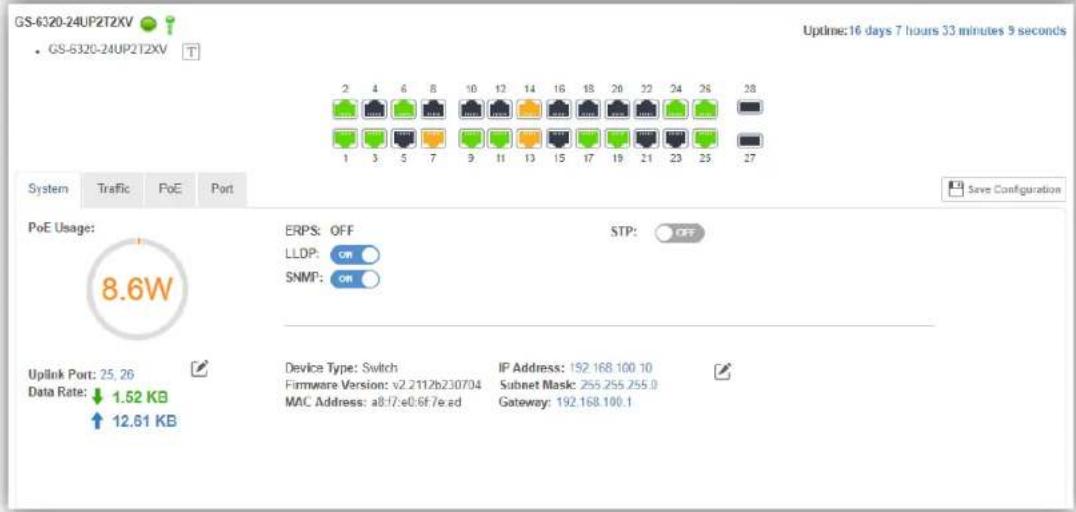

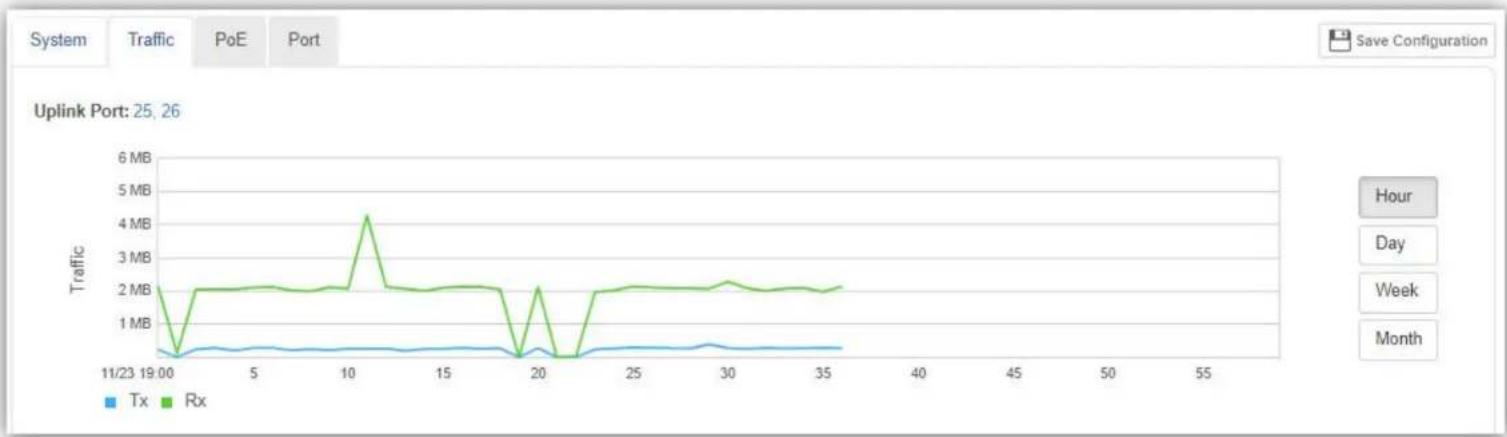

i) Device Information.... 39\~48

j) System Menu - AP Control.... 49\~66

k) System Menu - Refresh.... 67\~68

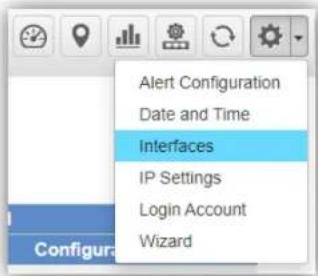

I) System Menu - System Configuration.... 69\~76

m) System Menu - Network Services 77\~88

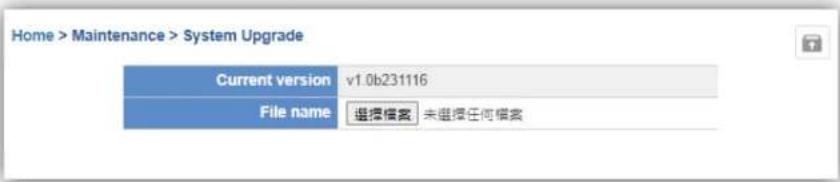

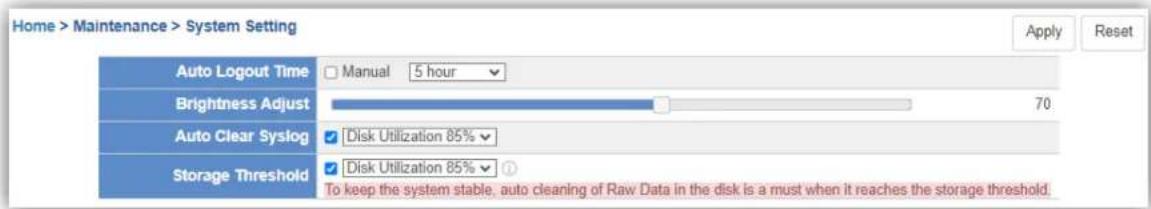

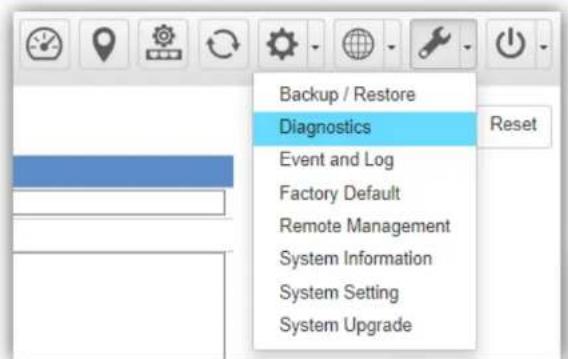

n) System Menu - Maintenance.... 89\~100

o) System Menu - Exit.... 101\~103

p) HDMI Output.... 104\~105

q) Appendix.... 106\~108

Planet NMS-500 - Sections - 2

PLANET

Networking & Communication

OVERVIEW

Overview

Planet NMS-500 - Overview - 1

PLANET

Networking & Communication

Main Features:

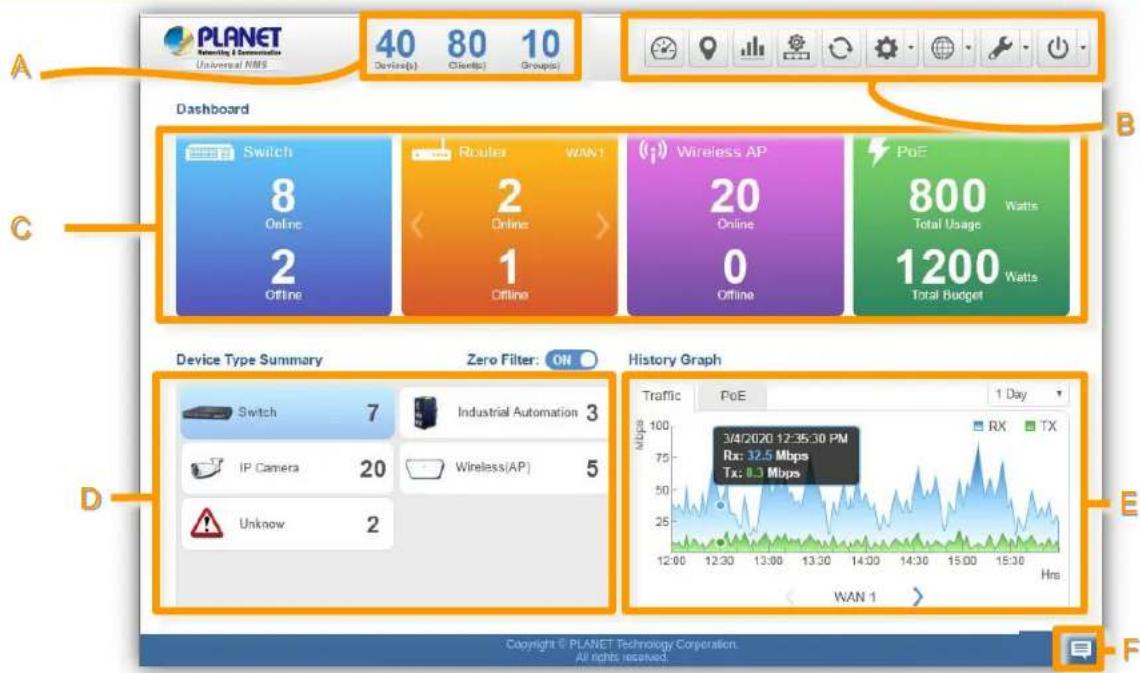

DashboardProviding the at-a-glance view of system, device summary, traffic, PoE network status
Wizard SetupEasy to use step-by-step guidance

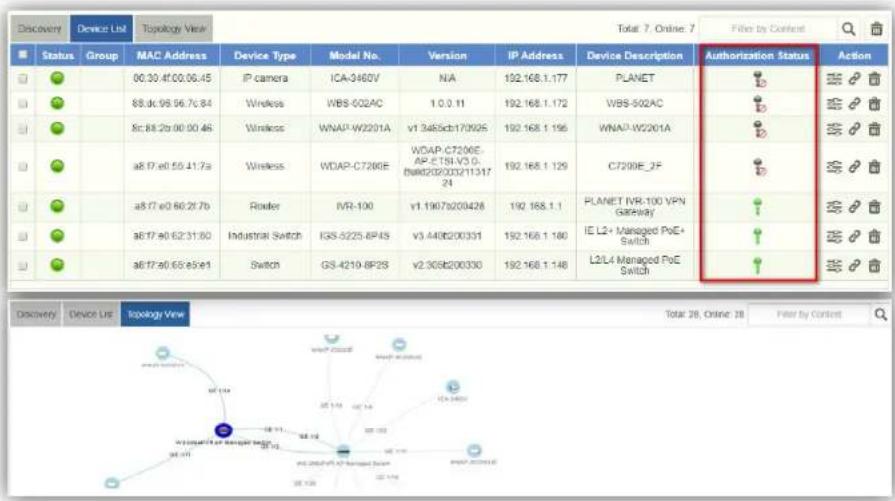

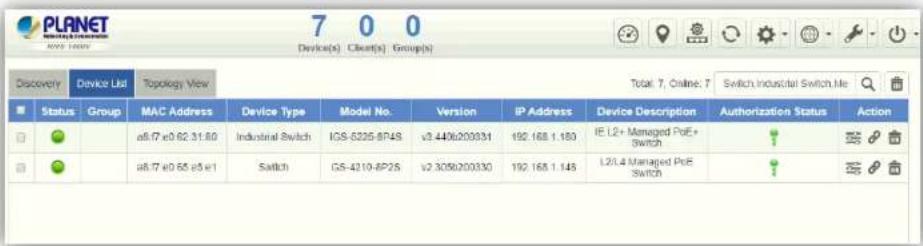

Node DiscoveryTo detect PLANET managed devices available and allow AP grouping to accelerate AP management
Topology ViewerA topology of network devices compliant with SNMP, ONVIF, Smart Discovery and LLTD Protocol
Event ReportsThe status of a network can be reported via network alarm and system log
Alarm SystemPopup alerts and email alerts for the administrator via the SMTP server
Batch ProvisioningEnabling multiple APs to be configured and upgraded at one time by using the designated profile

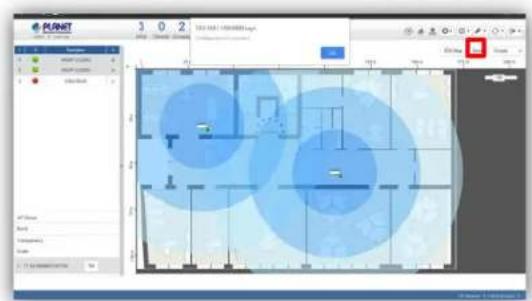

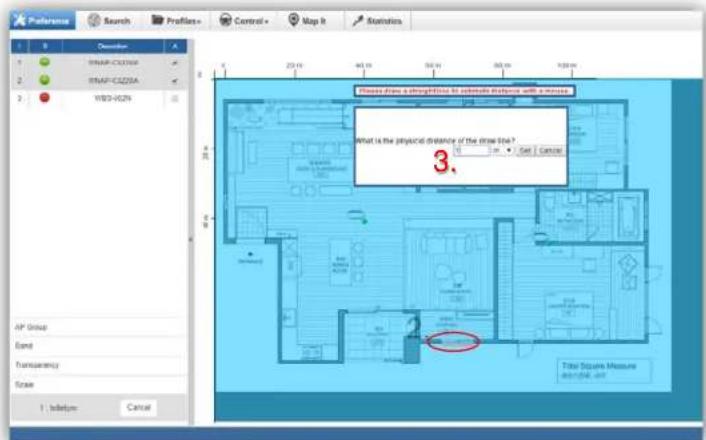

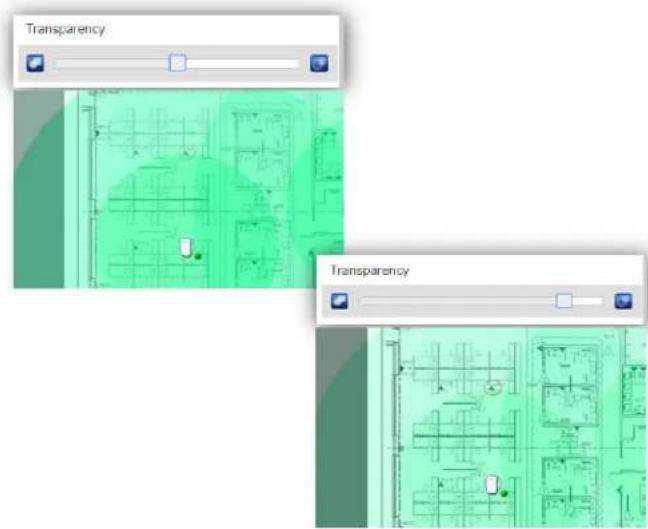

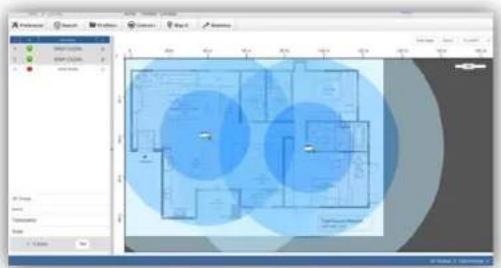

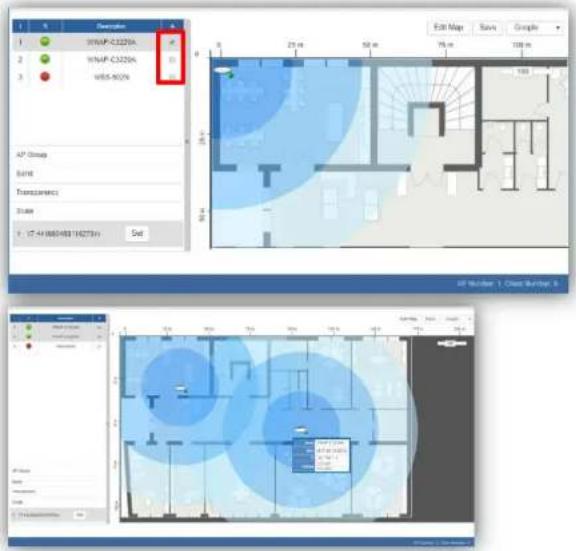

Coverage Heat MapReal-time signal coverage of APs on the user-defined floor map to optimize Wi-Fi field deployment
Customized ProfileAllowing the creation and maintenance of multiple wireless profiles
Auto ProvisioningMulti-AP provisioning with one click
Cluster ManagementSimplifying high-density AP management
Zone PlanOptimizing AP deployment with actual signal coverage

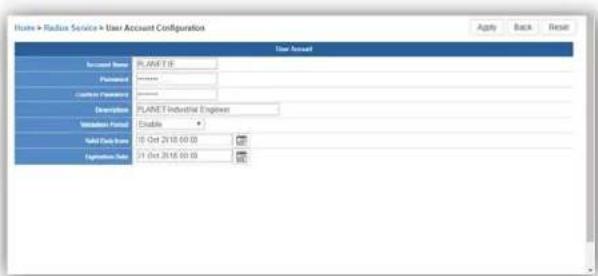

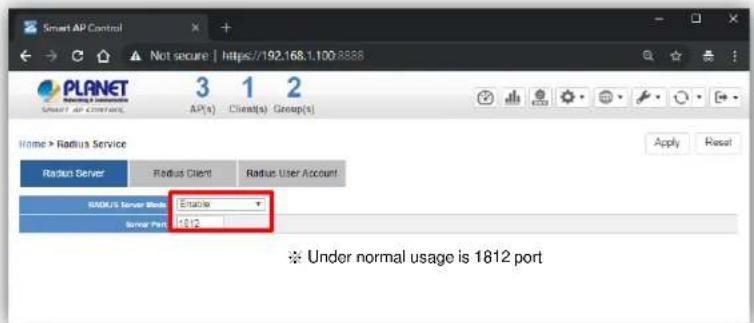

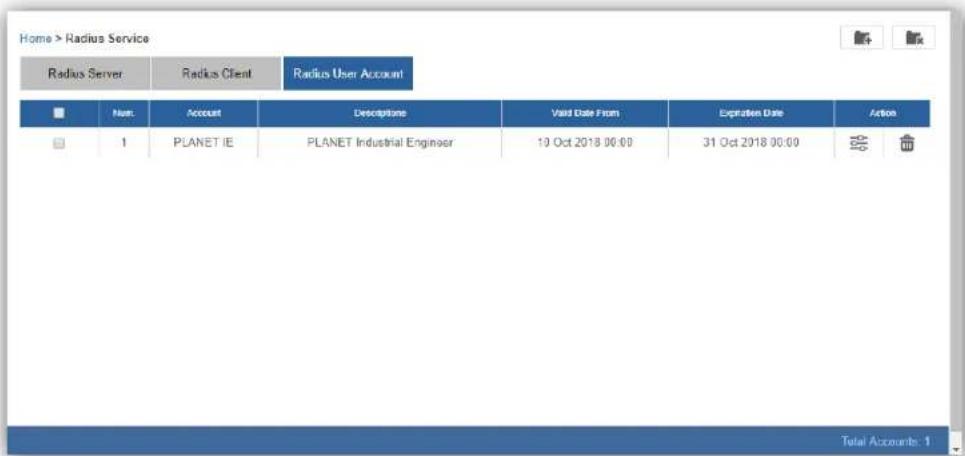

AuthenticationBuilt-in RADIUS server seamlessly integrated into the enterprise network
User ControlAllowing on-demand account creation and user-defined access policy
ScalabilityFree system upgrade and AP firmware bulk upgrade capability

Overview

Planet NMS-500 - Overview - 1

PLANET

Networking & Communication

Network Management Characteristics

● Built-in DHCP server

● Built-in RADIUS server

- SSL secure access

- Web-based GUI management interface

● SNMP v1, v2c, and v3 management

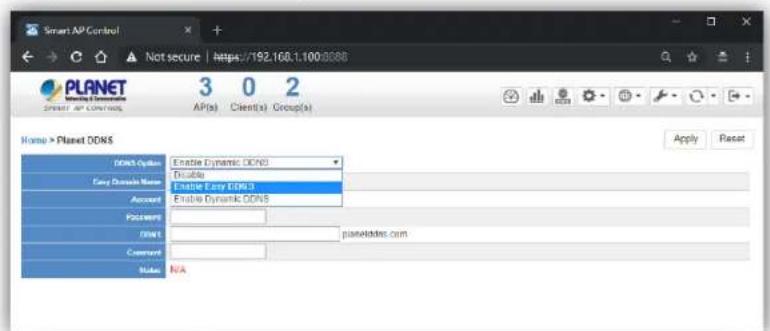

● Supports PLANET DDNS/Easy DDNS

Industrial-grade Physical Hardware (NMS-1000V)

● 2 10/100/1000BASE-T Gigabit Ethernet RJ45 ports

● 2 USB 3.0 ports for configuration backup and restoration

• 1 audio line out (reserve)

- 1 HDMI interface

● 2 DB-9 COM1,COM2 (reserved)

● 1 3-pin DC power input terminal

● 1 2-pin connector for power on/off button (reserve)

● VESA (100 x 100) panel mount

Industrial-grade Physical Hardware (NMS-500)

● 5 10/100/1000BASE-T Gigabit Ethernet RJ45 ports

● 1 2 USB 3.0 port for configuration backup and restoration

● 1 RS232-to-RJ45 console port (115200, 8, N, 1)

● Dimensions: 430 x 200 x 44 mm (W x D x H)

- Weight: 3kg

● Power: AC 100\~240V, 50/60Hz to DC12V 5A max. adapter

Physical Specifications (NMS-1000V)

Storage 2.5" 32G SATA3 HDD
Touch LCD SizeNMS-1000V-12: 12.1" TFT-LCDNMS-1000V-10: 10.1" TFT-LCD
Touch TypeResistive Touch Window Projected Capacitive Touch
Display ResolutionNMS-1000V-12: 1024 x 768NMS-1000V-10: 1280 x 800
Display Luminance (cd/m2)NMS-1000V-12: 500NMS-1000V-10: 350
Display Viewing Angle (H°/V°)NMS-1000V-12: 160(H)/140(V)NMS-1000V-10: 160(H)/160(V)
Display ContrastNMS-1000V-12: 700:1NMS-1000V-10: 800:1
Display Backlight Lifetime (hrs.)NMS-1000V-12: 30,000 hrs.NMS-1000V-10: 40,000 hrs.
Light Transmission (%)Resistive Touch Window: over 80% Projected Capacitive Touch: over 90%
Dimensions (W x D x H)NMS-1000V-12: 319 x 51.7 x 245 mmNMS-1000V-10: 285 x 49 x 189 mm
WeightNMS-1000V-12: 2.9 kgNMS-1000V-10: 2 kg
EnclosureAluminum Die-casting Chassis
Power RequirementsDC IN 9~36V 60W adapter 12V 5A with terminal block AC 100~240V, 2.0A, 60~50Hz.

Planet NMS-500 - Industrial-grade Physical Hardware (NMS-500) - 1

PLANET

Networking & Communication

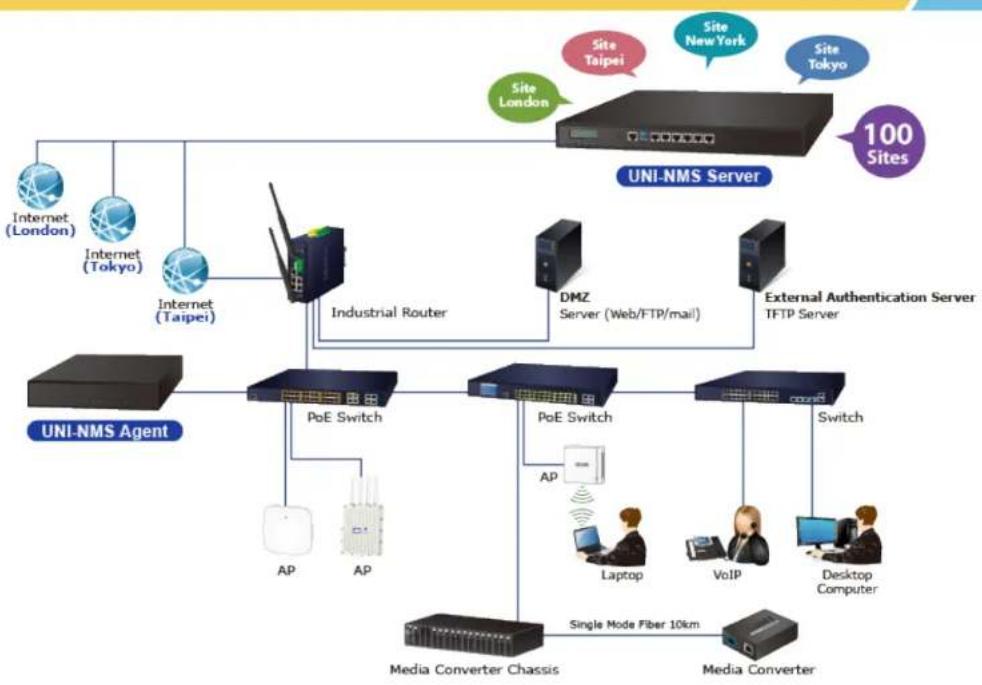

APPLICATIONS

Applications

Planet NMS-500 - Applications - 1

BEFORE FIRST LOGIN

Front & Rear Panels (NMS-1000V)

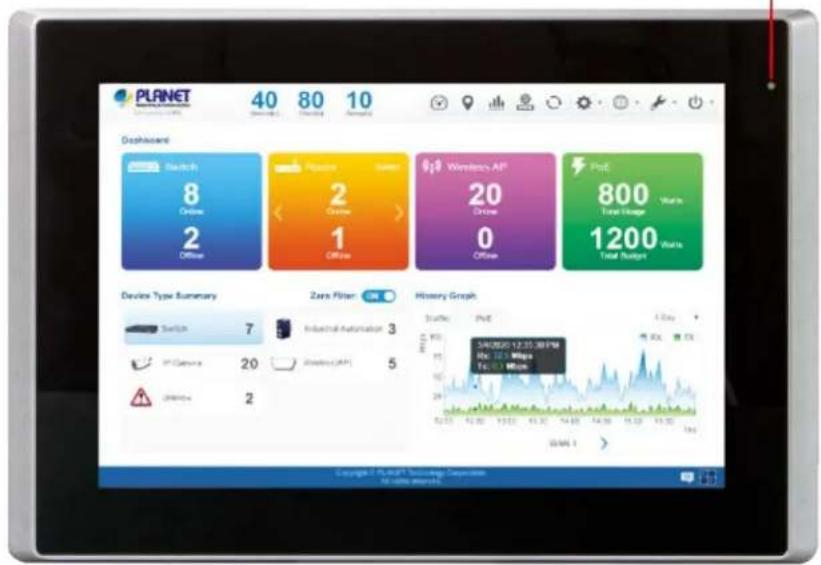

Front Panel

Power LED (Green)

PLANET 40 80 10 Dioshaard Switch: 8 Online: 2 Radio: 2 < Online > Wireless AP: 20 Drive: 0 PstE: 800 Total Image: 1200 Watts Device Type Summary Switch: 7 IP Camera: 20 Zero Filter: 5 Industrial Automation: 3 Wireless (API): 5 History Graph Traffic: PstE SPN0020-12.25.89PM AH: 22.5 Mbps Tc: 1.5 MHz ©2017

Front & Rear Panels

Planet NMS-500 - Front &amp; Rear Panels - 1

PLANET

Networking & Communication

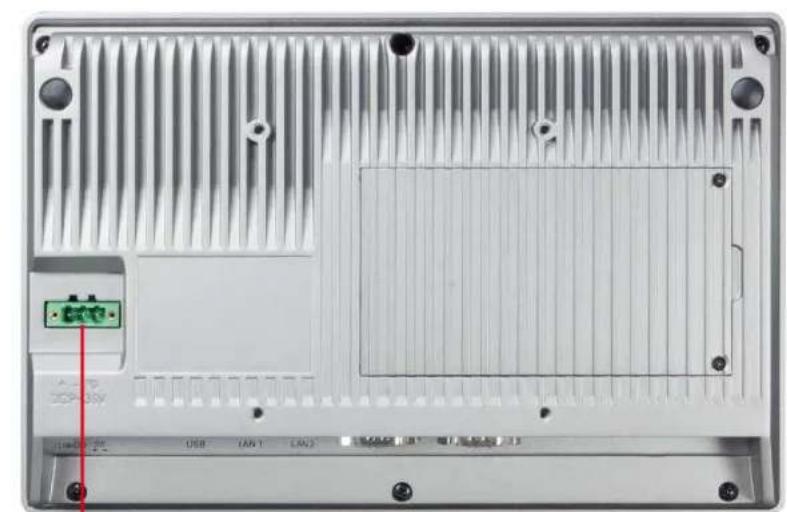

Back Panel

Planet NMS-500 - Front &amp; Rear Panels - 2

natural_image Back view of an electronic device showing a ventilation grille, internal panel, and external wiring (no text or symbols visible)

Planet NMS-500 - Front &amp; Rear Panels - 3

*Just connect NMS-1000V DC IN to turn on system.

Front & Rear Panels

Planet NMS-500 - Front &amp; Rear Panels - 1

PLANET

Networking & Communication

Bottom Panel

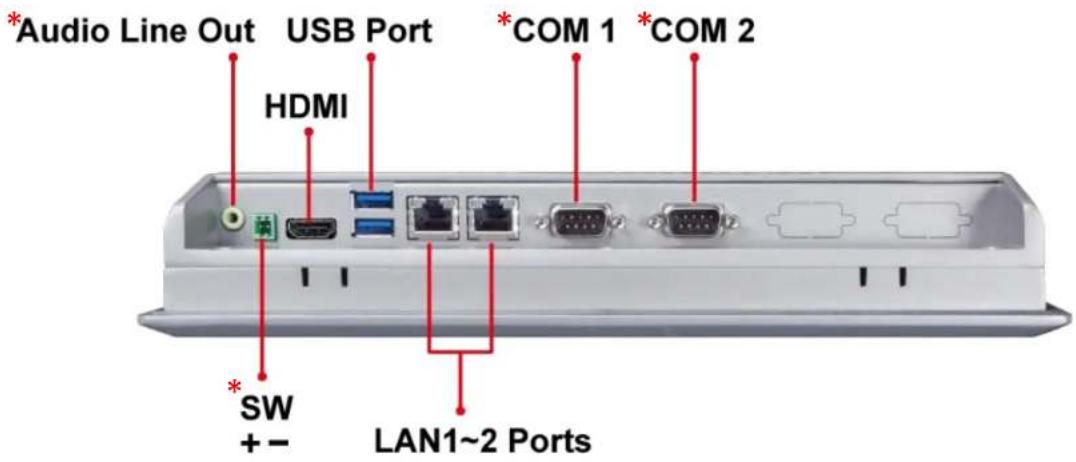

*Audio Line Out USB Port HDMI *COM 1 *COM 2 SW + - LAN1~2 Ports

*.Function reserved

Front & Rear Panels (NMS-500)

Planet NMS-500 - Front &amp; Rear Panels (NMS-500) - 1

PLANET

Networking & Communication

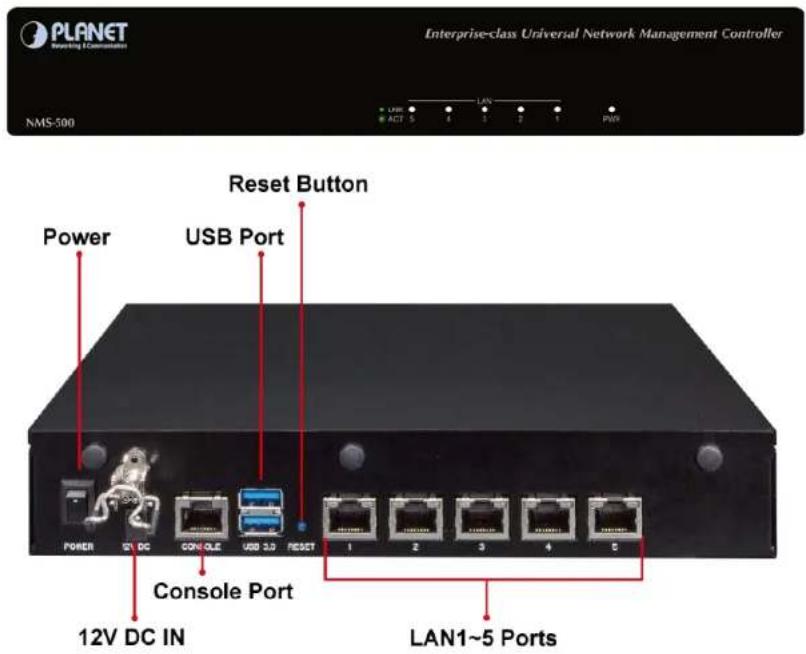

PLANET Reasuring Communications Enterprise-class Universal Network Management Controller NMS-500 Power Reset Button USB Port POWER 5V DC Console Port 12V DC IN LAN1~5 Ports Reset Button 1 2 3 4 5

Device Setting

Planet NMS-500 - Device Setting - 1

PLANET

Networking & Communication

NMS-1000V (NMS-500)
Planet NMS-500 - Device Setting - 2

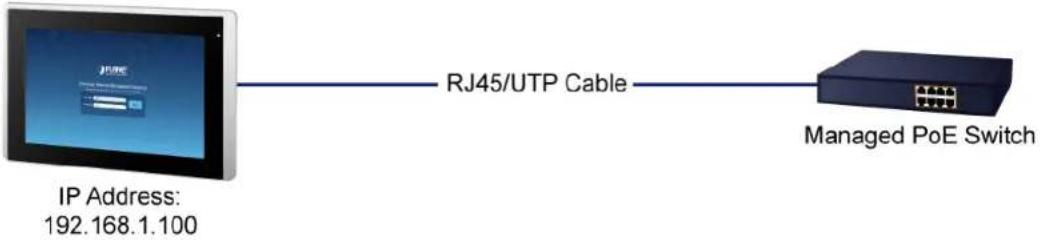


Switch: Log in to the Switch's Web User Interface and refer to the picture below to enable the SNMP and LLDP function as shown in Figures 1 and 2.

AP: Log in to the AP's Web User Interface and refer to Figure 3 below to configure the AP to "Managed AP". Then, click "Apply Change". To support SNMP AP, enable the SNMP function.

IP Cam: The ONVIF function is enabled by default.

Device Setting

Planet NMS-500 - Device Setting - 1

PLANET

Networking & Communication

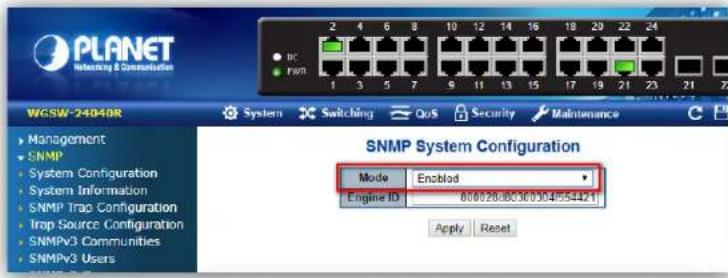

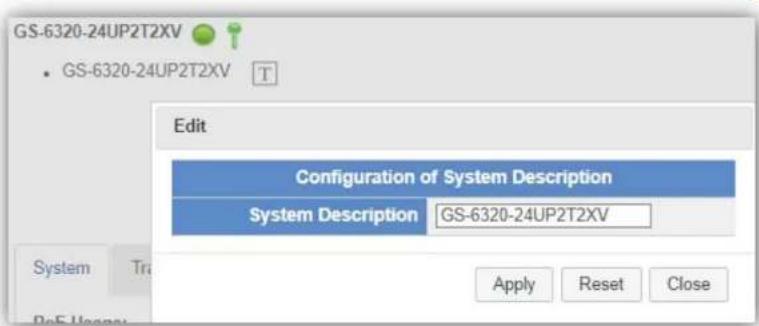

PLANET Networking & Destination WGSW-24040R Management SNMP System Configuration System Information SNMP Trap Configuration Trap Source Configuration SNMPv3 Communities SNMPv3 Users SNMP System Configuration Mode Enzblad Engine ID 800026880300304955421 Apply Reset

(Figure 1)

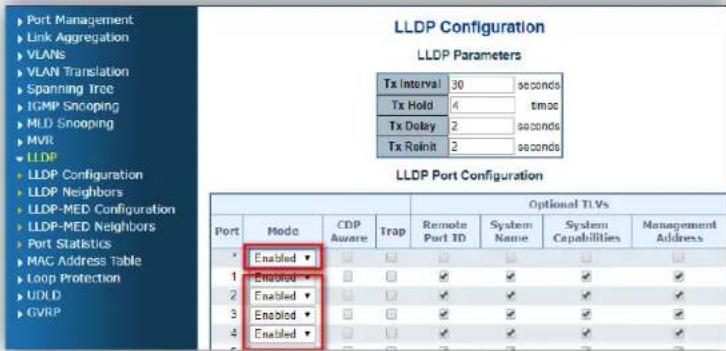

Port Management Link Aggregation VLANS VLAN Translation Spanning Tree IGMP Snooping MLD Snooping MVR LLDP LLDP Configuration LLDP Neighbors LLDP-MED Configuration LLDP-MED Neighbors Port Statistics MAC Address Table Loop Protection UDLD GVRP LLDP Configuration LLDP Parameters Tx Interval 30 seconds Tx Hold 4 times Tx Delay 2 seconds Tx Rollit 2 seconds LLDP Port Configuration Optional TLVs Port Mode CDP Trap Remote System System Management Aware Name Name Capabilities Address Enabled ▼ □ □ □ □ □ □ Enabled ▼ □ □ ✓ ✓ ✓ ✓ ✓ Enabled ▼ □ □ ✓ ✓ ✓ ✓ ✓ Enabled ▼ □ □ ✓ ✓ ✓ ✓ ✓ Enabled ▼ □ □ ✓ ✓ ✓ ✓ ✓

(Figure 2)

Device Setting

Planet NMS-500 - Device Setting - 1

PLANET

Networking & Communication

Setup Menu:

Operation Mode
Setup Wizard
WLAN1 (5 GHz)
WLAN2 (2.4 GHz)
TCP / IP Settings
Management
Logout

Operation Mode

AP Operation mode configuration is used to configure the managed AP administrative mode.

Standalone AP

In Mode Standalone AP, the AP acts as an individual AP in the network, and you manage it by using the Administrator Web User Interface (UI), or SNMP.

Managed AP

In Mode Managed AP, the AP is part of the PLANET Wireless AP controller System, and you manage it by using the WAPC Wireless Switch.

AP Controller IP Address 0.0.0.0

(Figure 3)

Logging in NMS

Planet NMS-500 - Logging in NMS - 1

PLANET

Networking & Communication

Username: admin
◆ Password: admin

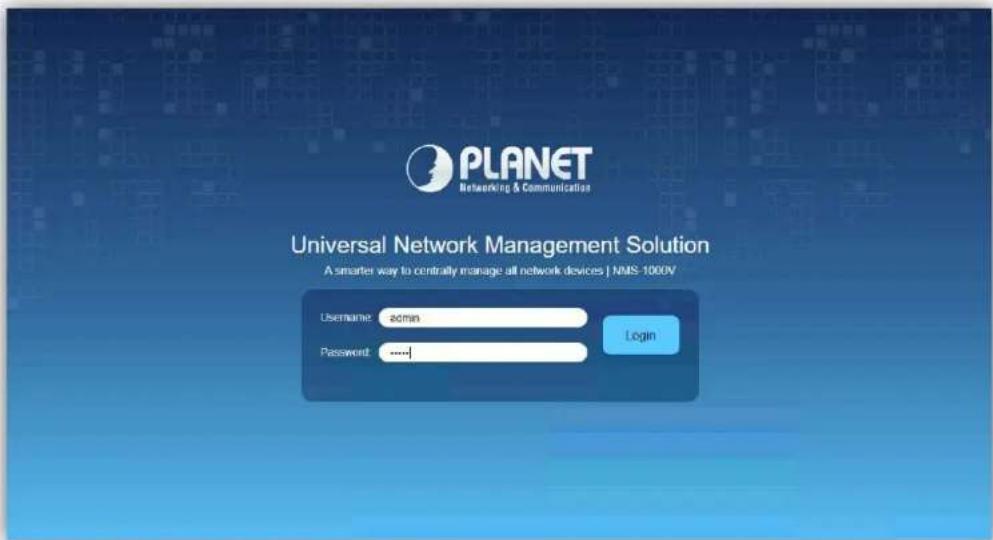

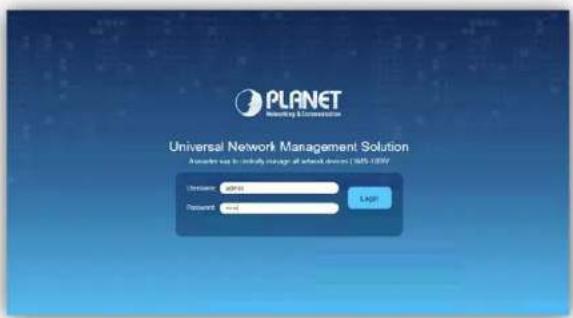

PLANET Networking & Communication Universal Network Management Solution A smarter way to centrally manage all network devices | NMS 1000V Username: admin Password: ****_ Login

e.g. By NMS-1000V

Remote Logging in NMS

Planet NMS-500 - Remote Logging in NMS - 1

PLANET

Networking & Communication

Open Chrome/Firefox to log in the NMS.(Default IP: https://192.168.1.100:8888)
Please use Chrome/Firefox to get fully supported. (UI Resolution 1280 x 768)

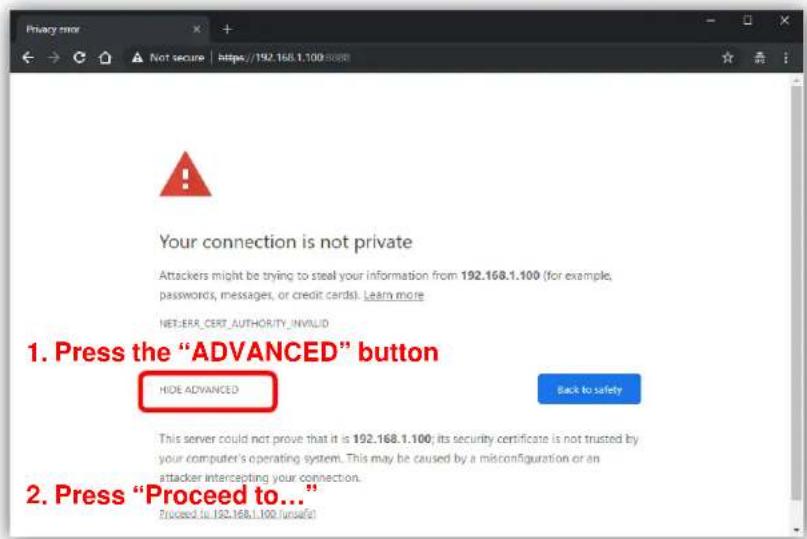

Your connection is not private Attackers might be trying to steal your information from 192.168.1.100 (for example, passwords, messages, or credit cards). Learn more NET_ERR_CERT_AUTHORITY_INVALID 1. Press the "ADVANCED" button HIDE ADVANCED Back to safety This server could not prove that it is 192.168.1.100; its security certificate is not trusted by your computer's operating system. This may be caused by a misconfiguration or an attacker intercepting your connection. 2. Press "Proceed to..." Proceed to: 192.168.1.100 / runself!

Planet NMS-500 - Remote Logging in NMS - 3

PLANET

Networking & Communication

SETUP WIZARD

Account Modification

Planet NMS-500 - Account Modification - 1

PLANET

Networking & Communication

Steps to modifying account:

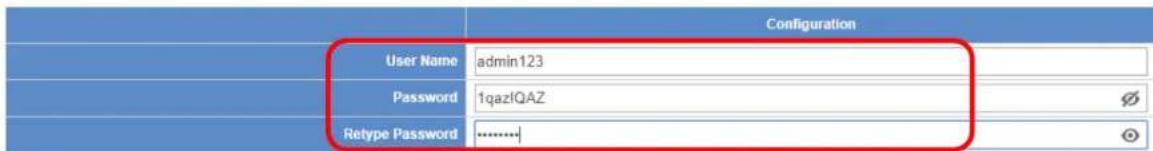

  1. Please key in a new account, except using "admin"
  2. New Password must include at least 1*[a\~z], 1*[A\~Z], 1*[0\~9], 1*[\~, !, @, ..., w/o "?"] and must contain at least 8 characters.

Account Modification
Configuration User Name admin123 Password 1qazlQAZ Retype Password ............

*Please key in a new account, except using "admin" New Password must be included at least 1*[a\~z], 1*[A\~Z], 1*[0\~9], 1[\~, !, @, ..., w/o \~?]

Next

IP Configuration Setting

Planet NMS-500 - IP Configuration Setting - 1

PLANET

Networking & Communication

  1. Select "Static IP" or "DHCP Client" for IP configuration setting.
  2. IP status is shown in real time.

*If you want to use the SMTP Alarm function, you must at least enter one DNS server.

IP Configuration Setting

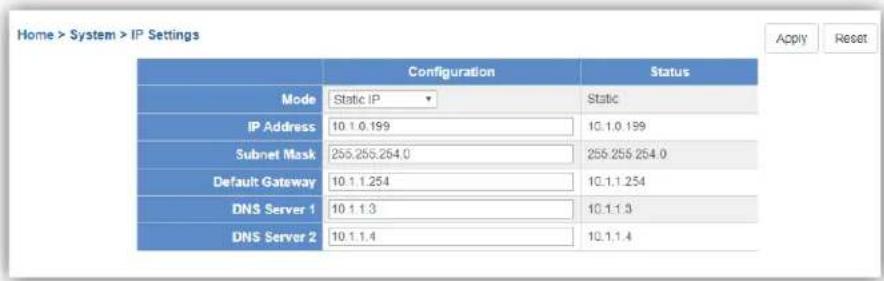

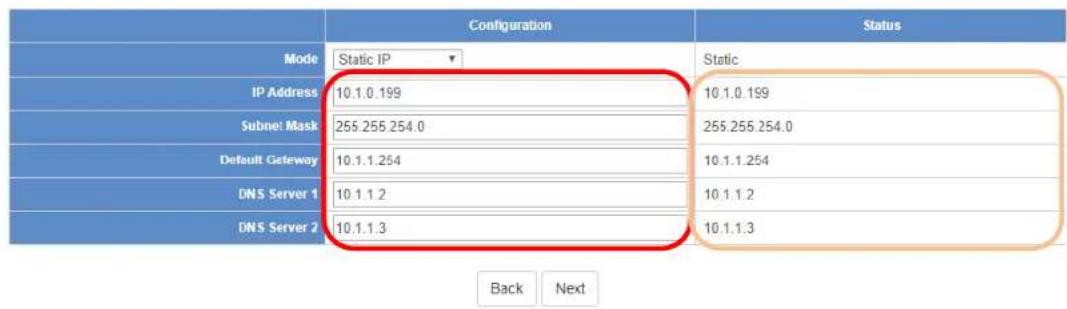

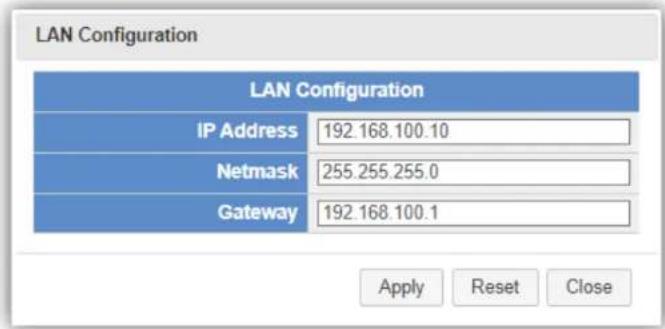

Configuration Static IP IP Address 10.1.0.199 Subnet Mask 255.255.254.0 Default Getaway 10.1.1.254 DNS Server 1 10.1.1.2 DNS Server 2 10.1.1.3 Static 10.1.0.199 255.255.254.0 10.1.1.254 10.1.1.2 10.1.1.3 Back Next

SNMP Preference Setting

Planet NMS-500 - SNMP Preference Setting - 1

PLANET

Networking & Communication

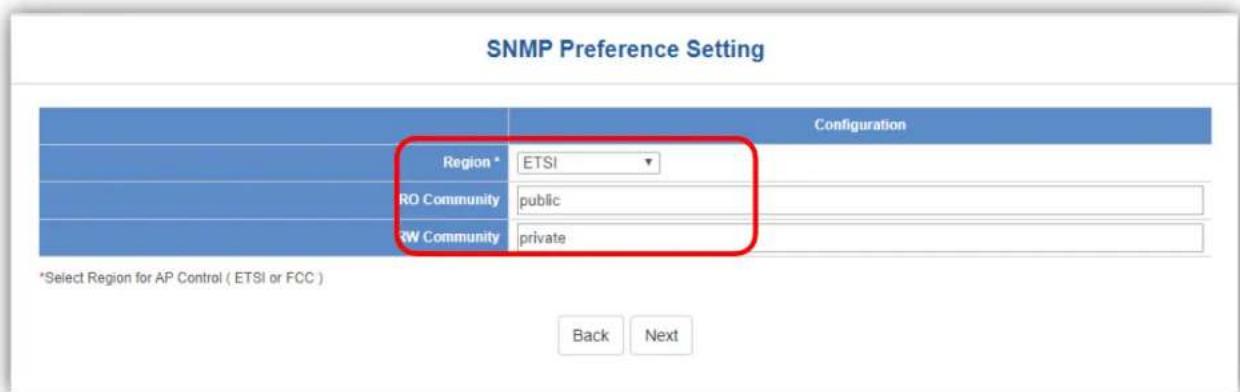

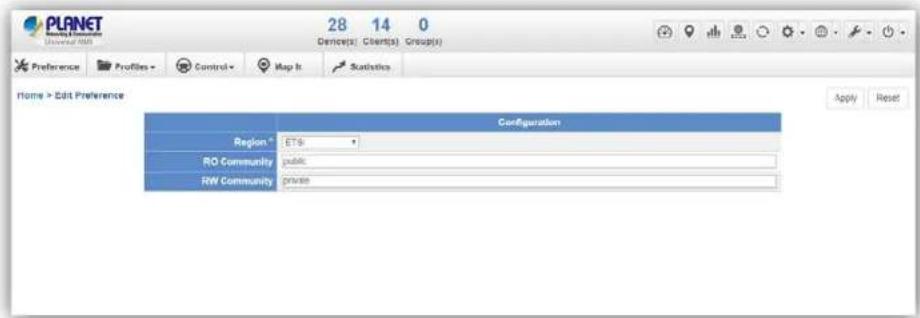

  1. Select Region for AP Control (ETSI or FCC).

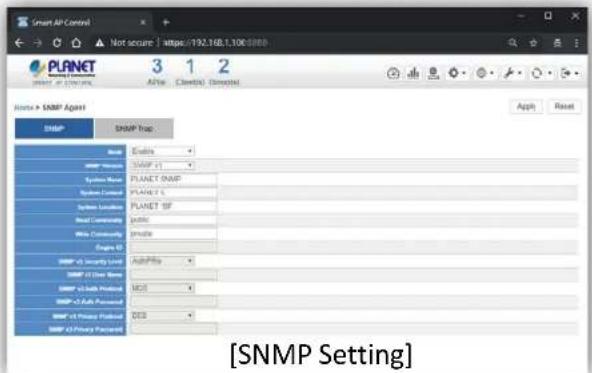

  2. And enter the RO/RW Community for device's SNMP.

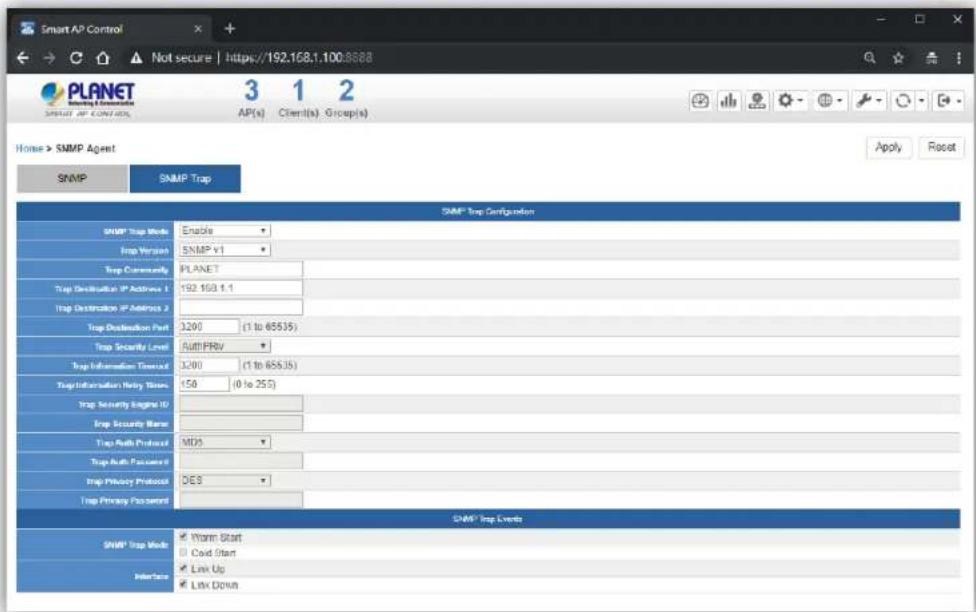

SNMP Preference Setting Configuration Region * ETSI RO Community public RW Community private *Select Region for AP Control ( ETSI or FCC ) Back Next

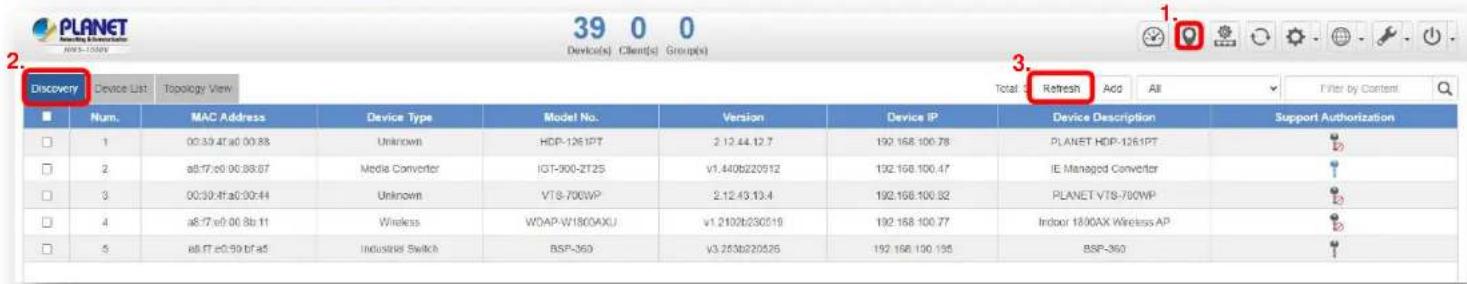

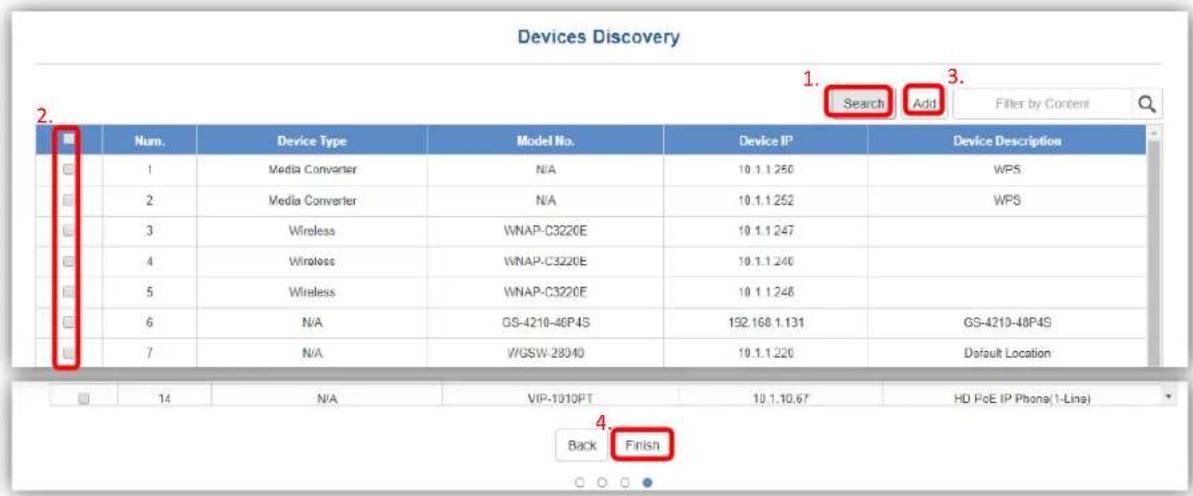

Devices Discovery

Planet NMS-500 - Devices Discovery - 1

PLANET

Networking & Communication

  1. Press the Search button to discover PLANET devices.
  2. Give a check to a box and press the "Add" button to add a device to the NMS system.
  3. Press the Finish button to leave the Wizard mode and finish the start-up setting.

Devices Discovery 1. Search Add Filter by Content 2. Num. Device Type Model No. Device IP Device Description 1 Media Converter N/A 10.1.1.250 WPS 2 Media Converter N/A 10.1.1.252 WPS 3 Wireless WNAP-C3220E 10.1.1.247 4 Wireless WNAP-C3220E 10.1.1.246 5 Wireless WNAP-C3220E 10.1.1.248 6 N/A GS-4210-48P4S 192.168.1.131 GS-4210-48P4S 7 N/A WGSW-28040 10.1.1.226 Default Location 14 N/A VIP-1010PT 10.1.10.67 HD PoE IP Phone(1-Line) Back Finish

MAIN UI INTRODUCTION

Home Page - Dashboard UI Structure
Planet NMS-500 - MAIN UI INTRODUCTION - 1

PLANET

Networking & Communication

PLANET NOMING & COMMUNICUM Universal NMS 40 80 10 Device(s) Client(s) Group(s) A Dashboard Switch 8 Online 2 Offline Router WAN1 2 Online 1 Offline Wireless AP 20 Online 0 Offline PoE 800 Watts Total Usage 1200 Watts Total Budget B C Device Type Summary Zero Filter: ON History Graph Switch 7 Industrial Automation 3 IP Camera 20 Wireless(AP) 5 Unknown 2 Traffic PoE 1 Day 3/4/2020 12:35:30 PM Rx: 32.5 Mbps Tx: 0.3 Mbps 12:00 12:30 13:00 13:30 14:00 14:30 15:00 15:30 Hrs WAN 1 Copyright © PLANET Technology Corporation. All rights reserved. D F

Main Dashboard - Description

Planet NMS-500 - Main Dashboard - Description - 1

PLANET

Networking & Communication

ItemDescription Remarks
ADevice Status Summary1. Roughly shows the system status:Current devices online (total online), clients (total active clients), device groups (total groups)2. Click the PLANET Logo to connect to PLANET Web site.
BSystem MenuFrom left to right:1. Dashboard: Provides the whole system view and wireless network status2. Domain: Discovery / Device List / Topology View / Event / syslog page3. Advanced Graph: future feature4. AP Control: 1. Preference, 2. Profiles, 3. Control, 4. Map It and 5. Statistics5. Refresh6. System Configuration: Alert configuration, Date and Time, Interface, IP, Account, Wizard setting7. Network Services: 1. Planet DDNS, 2. DHCP Server, 3. SMPT, 4. SNMP Agent, and 5. RADIUS Service,8. Maintenance: System upgrade, backup and restoration, factory default, system setting.9. Exit: Click to opt for the logout, reboot or shutting down of the system
CLocal Site Information1. Switch status, 2. Router status, 3. Access Point status and 4. Total PoE status,*Click Device type button to filter each type of device via device list.
DDevice Type SummaryShow the real-time total quantity of devices under different types
EHistory GraphShow the history graph of WAN traffic / total PoE usage and budget
FPopup Alert Message WindowOpen to show the system event instantly

DASHBOARD INTRODUCTION

Dashboard - Local Site Information

Planet NMS-500 - Dashboard - Local Site Information - 1

PLANET

Networking & Communication

Local Site Information: In this area, you can view 1. Switch, 2. Router, 3. Access Point online/off status and 4. Total PoE usage and budget status.
Click the Router “>” button to see the WAN real-time traffic throughput of Mbps, Kbps... Click the Router “<” button to go back to status.

Dashboard
Switch 2 Online 0 Offline

Router 1 Online 0 Offline

(1) Wireless AP 3 Online 0 Offline

PoE 14 Watt Total Usage 360 Watt Total Budget

Switch 2 Online 0 Offline

Router 13 KBytes Upload 132 KBytes Download

Wireless AP 3 Online 0 Offline

PoE 12 Watt Total Usage 360 Watt Total Budget

Dashboard (Home)

Planet NMS-500 - Dashboard (Home) - 1

PLANET

Networking & Communication

Click the Device type button to filter each type device via device list.

Dashboard

Switch 2 Online 0 Create

Router 1 Online 0 Offa

(1) Wireless AP 3 Online 0 Online

PoE 14 Wall Total Usage 360 Wall Total Budget

PLANET Device(s) Client(s) Group(s) Discovery Device List Topology View Total: 7, Online: 7 Switch Industrial Switch Me Status Group MAC Address Device Type Model No. Version IP Address Device Description Authorization Status Action a6.77 e0 62.31.80 Industrial Switch ICS-5225-BP48 v3.4406200331 192.168.1.180 IE L2+ Managed PoE+ Switch a6.77 e0 65 a5 e1 Switch ICS-4210-BP25 v2.3050200330 192.168.1.145 L2L4 Managed PoE switch

Switch: Click the "Switch Button" to filter the type of Switch, Industrial Switch, and Media Converter.
Router: Click the "Router Button" to filter the type of Router.

Wireless AP: Click the "Wireless AP Button" to filter the type of Wireless (AP).

Dashboard - Device Type Summary

Planet NMS-500 - Dashboard - Device Type Summary - 1

PLANET

Networking & Communication

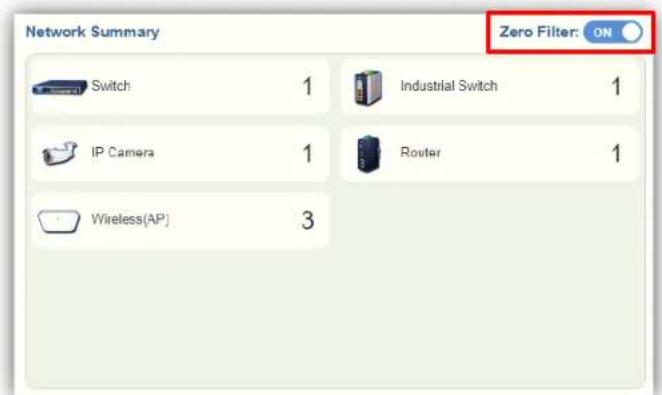

Device Type Summary : Show the real-time total quantity of devices under different types.
Open the "Zero Filter Button" to filter the 0 quantity of devices type not shown. If this function is closed, you can see all types that NMS can manage.
Click the Device type button to filter each type of device via device list.

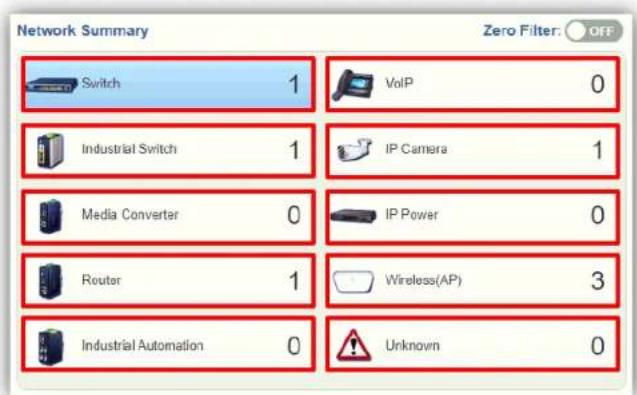

Network Summary Zero Filter: ON Switch 1 Industrial Switch 1 IP Camera 1 Router 1 Wireless(AP) 3

Network Summary Zero Filter: OFF Switch 1 VolP 0 Industrial Switch 1 IP Camera 1 Media Converter 0 IP Power 0 Router 1 Wireless(AP) 3 Industrial Automation 0 Unknown 0

Dashboard - History Graph

Planet NMS-500 - Dashboard - History Graph - 1

PLANET

Networking & Communication

History Graph: Show the history graph of WAN traffic / total PoE usage and budget.

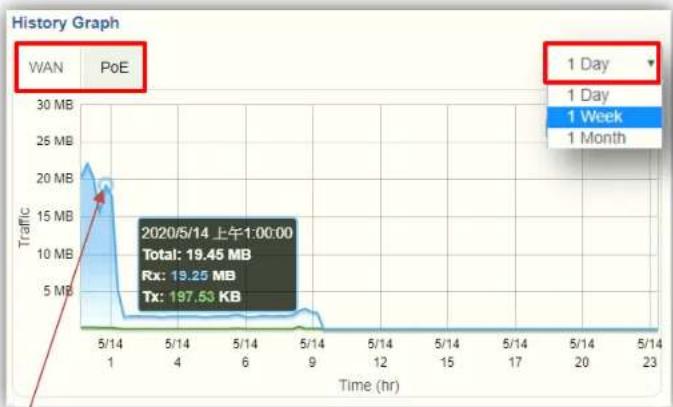

Press the "WAN" or "PoE" sheet button to change the type of history graph. Press the "Interval Button" to change the interval for day, week, or month. Then you can see the WAN traffic / total PoE usage and budget.

Planet NMS-500 - Dashboard - History Graph - 2

line | Time (hr) | Traffic (MB) | | --------- | ------------ | | 2020/5/14 上午1:00:00 | 19.45 | | Total | 19.25 | | Rx | 197.53 |

Planet NMS-500 - Dashboard - History Graph - 3

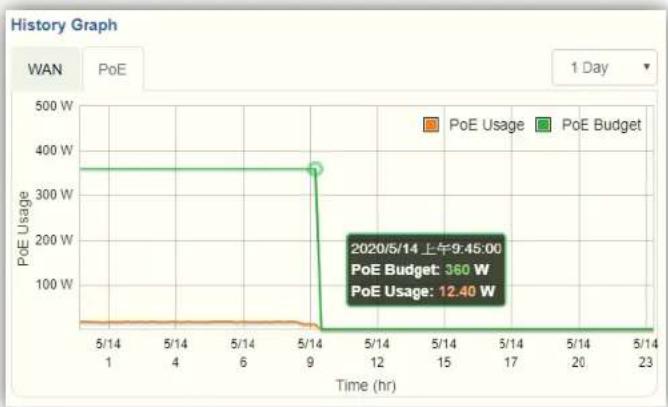

line History Graph | Time (hr) | PoE Usage (W) | PoE Budget (W) | |---|---|---| | 5/14 | ~20 | 360 | | 9 | ~20 | 360 | | 23 | ~20 | 12.40 | Time axis: 5/14 to 5/14 Year-axis: WAN to 1 Day

*Moving finger or mouse cursor on graph can let you see the detailed information.

Planet NMS-500 - Dashboard - History Graph - 4

PLANET

Networking & Communication

Planet NMS-500 - Footer - Popup Alert Message - 1

PLANET

Networking & Communication

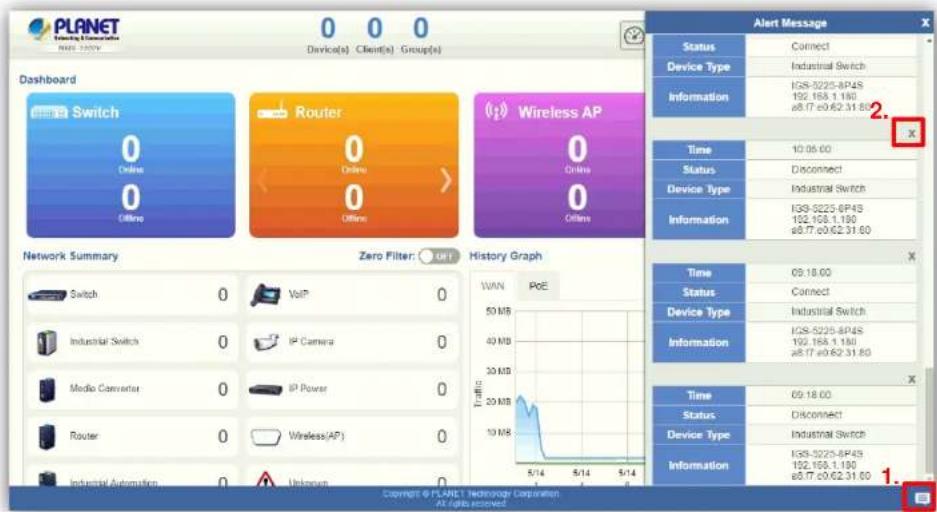

Popup Alert Message : Click the "Message" icon (No. 1) to show the last 30 system events in popup window.
The last event will be shown on the top page; press the "X" icon (No. 2) to close each message.

PLANET Switch Device(s) Client(s) Group(s) 0 0 0 Device(s) Client(s) Group(s) Dashboard Switch 0 Online 0 Offshore Router 0 Online 0 Offshore Wireless AP 0 Online 0 Offshore Network Summary Zero Filter: GET History Graph Switch VoIP 0 Industrial Switch IP Camera 0 Media Converter IP Power 0 Router Wireless(AP) 0 Industrial Automation Unknown 0 WAN POE 50 MB 40 MB 30 MB 20 MB 10 MB 5/14 5/14 5/14 5/14 Traffic 5/14 5/14 5/14 5/14 Alert Message Status Connect Device Type Industrial Switch Information IGS-5225-8P4S 192.168.1.180 e8.17.e0.62.31.80 Time 10:06:00 Status Disconnect Device Type Industrial Switch Information IGS-5225-8P4S 192.168.1.180 e8.17.e0.62.31.80 Time 09:18:00 Status Connect Device Type Industrial Switch Information IGS-5225-8P4S 192.168.1.180 e8.17.e0.62.31.80 Time 09:18:00 Status Disconnect Device Type Industrial Switch Information IGS-5225-8P4S 192.168.1.180 e8.17.e0.62.31.80 Copyright © PLANET Technologies Corporation At night approved

SYSTEM MENU - DOMAIN

Discovery

Press the "Domain" icon (No. 1), and then press Discovery (No. 2) and Search (No. 3) to find the managed APs and continue other settings.

PLANET Discovery Device List Topology View 39 0 0 Device(s) Client(s) Group(s) Total Refresh Add All Filter by Content Num. MAC Address Device Type Model No. Version Device IP Device Description Support Authorization 1 00:39:47:e0:00:88 Unknown HDP-1261PT 2:12:44:12.7 192.168.100.78 PLANET HDP-1261PT 2 a8:17:e0:06:88:67 Media Converter IGT-300-2T25 v1.440b220912 192.168.100.47 IE Managed Converter 3 00:39:47:e0:30:44 Unknown VTS-700WP 2:12:43:13.4 192.168.100.82 PLANET VTS-700WP 4 a8:17:e0:06:8b:11 Wireless WOAP-W180AXU v1.210b230519 192.168.100.77 Indoor 18/0AX Wireless AP 5 a8:17:e0:59:bf:a5 Industrial Switch BSP-360 v3.253b220526 192.168.100.195 SSP-360

Support Authorization: If the devices support MQTT protocol, the status will show "Blue Key".

Key Status Supported Not supported Managed by the other NMS

Adding Devices to List

Planet NMS-500 - Adding Devices to List - 1

PLANET

Networking & Communication

- Select devices (No. 1) by checking the boxes, and then press the "Apply" icon (No. 2) to add devices to management list.

Num.MAC AddressDevice TypeModel No.VersionDevice IPDevice DescriptionSupport Authorization
100 30.4f a0 00.88UnknownHOP-1261PT2.12.44.12.7192.168.100.78PLANET HOP-1261PT
2a0.17.e0 00.98.d7Media ConverterIOT-900-2T2Sv1.440b220912192.168.100.47IE Managed Converter
300 30.4f a0 00.44UnknownVTS-700WP2.12.43.13.4192.168.100.82PLANET VTS-700WP
4a0.17.e0 00.8b 11WirelessWDAP-v1300AXUv1.2102b230519192.168.100.77Indoor 1800AX Wireless AP
5a0.17.e0.90 bf.a5Industrial SwitchBSP-360v3.253b226526192.168.100.195BSP-360

Manual Add Devices to List

Planet NMS-500 - Manual Add Devices to List - 1

PLANET

Networking & Communication

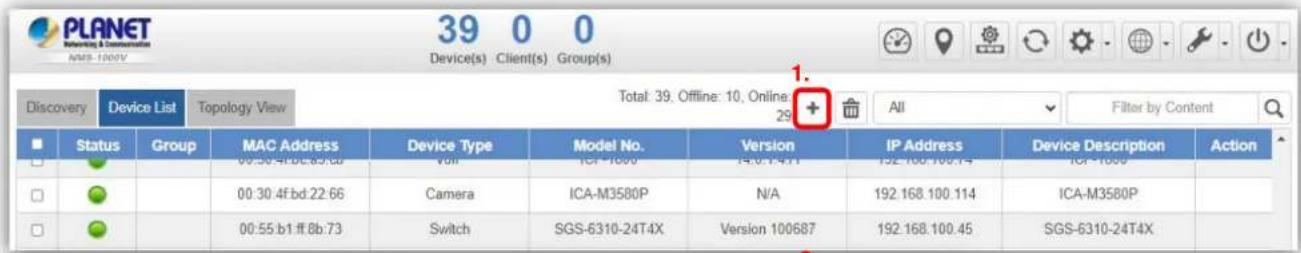

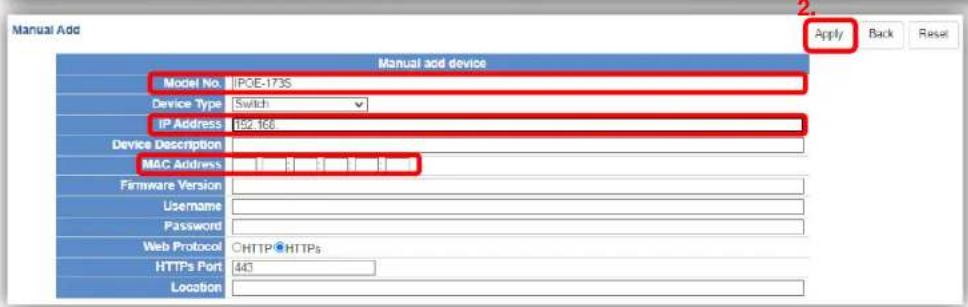

Press (No. 1) “+” button to manual add device and enter the devices info., then press the “Apply” icon (No. 2) to add devices to management list. If the PLANET devices is in different sub-net or VLAN, it still works.

PLANET Reversing & Communication NMF-1000V Device(s) Client(s) Group(s) Discovery Device List Topology View Total: 39. Offline: 10. Online: 29 All Filter by Content Status Group MAC Address Device Type Model No. Version IP Address Device Description Action 00:30.4f:8c:85/68 Volt ICI-1000 ICI-1000 00:30.4f:bd:22:66 Camera ICA-M3580P N/A 192.168.100.114 ICA-M3580P 00:55.b1.f:8b:73 Switch SGS-6310-24T4X Version 100687 192.168.100.45 SGS-6310-24T4X

Manual Add Model No. IPCE-173S Device Type Switch IP Address 182.406 Device Description MAC Address Firmware Version Username Password Web Protocol CHTTP●HTTPS HTTPS Port 443 Location Apply Back Reset

Required fields: Include
Model No., IP Address, MAC Address
Suggested input fields:
Firmware Version

Device List and Topology View

Planet NMS-500 - Device List and Topology View - 1

PLANET

Networking & Communication

  • Press "Device List" to see the device status.
    Press "Topology View" to see the domain network topology after one minute.

※If you do not see the topology, please check devices to enable SNMP and LLDP function.

Discovery Device List Topology View Total: 7 Online: 7 Filing by Content Status Group MAC Address Device Type Model No. Version IP Address Device Description Authorization Status Action 00:30:4500:06:45 IP camera ICA-3460V N/A 192.168.1.177 PLANET 88:dc:95:56:7c:84 Wireless WBS-502AC 10.0.11 192.168.1.172 WBS-502AC 8c:88:2b:00:00:46 Wireless WMAP-W2201A v1.3485cb170925 192.168.1.196 WMAP-W2201A a6:77:e0:55:41:7a Wireless WDAP-C7206E-AP-CTSI-V3G-BMM202/2032/11317 24 192.168.1.129 C7206E_2F a5:77:e0:60:2f:7b Router IVR-100 v1.19079/200428 192.168.1.1 PLANET IVR-100 VPN Gateway a6:77:e0:62:31:80 Industrial Switch IGS-5225-BP4S v3.4405/200331 192.168.1.180 IE L2+ Managed PoE+ Switch a6:77:e0:65:e5:e1 Switch GS-4210-BP2S v2.305b/200330 192.168.1.148 L2/L4 Managed PoE Switch Discovery Device Use Topology View Total: 28 Online: 28 Filter by Content

Authorization Status: If the devices support MQTT protocol and are managed currently with NMS, the authorization status will show "Green Key".

Key Status
Managed
Not supported
Managed Fall
Managed by the other NMS

Device Identification

Planet NMS-500 - Device Identification - 1

PLANET

Networking & Communication

Press the "Identification" icon to modify the device description, type, and devices' detailed information.

StatusGroupMAC AddressDevice TypeModel No.VersionIP AddressDevice DescriptionAction
00:30:41:bc:56:58VoIPICF-180014.0.1.4.r1192.168.100.74ICF-1800
00:30:41:bd:22:55CameraICA-M3580PN/A192.168.100.114ICA-M3580P
00:55:b1:f7:8b:73SwitchSGS-6310-24T4XVersion 100687192.168.100.45SGS-6310-24T4X
64:9d:99:11:58:34SwitchSGS-5240-24T4X1.2.0192.168.100.45SGS-5240-24T4X

Home > Site > Management > Identification Application Back Reset Identification Device Description ICF-1800 Device Type VoIP Username Password Web Protocol HTTP HTTPS HTTPS Port 443 Location Diagnostic Device Function

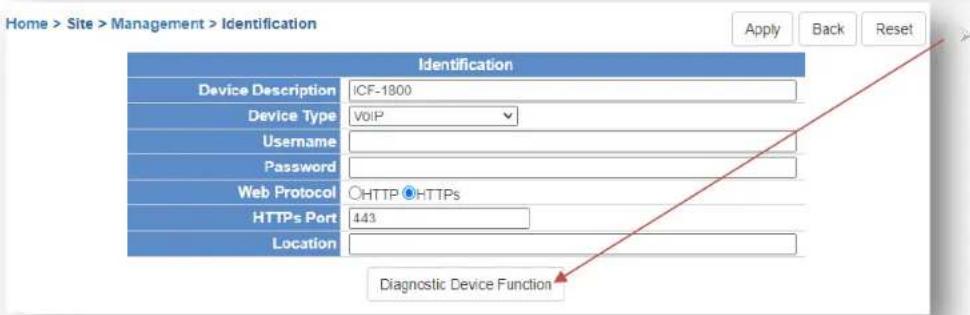

Diagnostic Device Function Button: If the devices support SNMP protocol and cannot respond to the broadcast requirement, press this button to change the NMS function by unicast.

Remarks: Executing this function will

increase the CPU loading of NMS.

Device Information

Device Information

Planet NMS-500 - Device Information - 1

PLANET

Networking & Communication

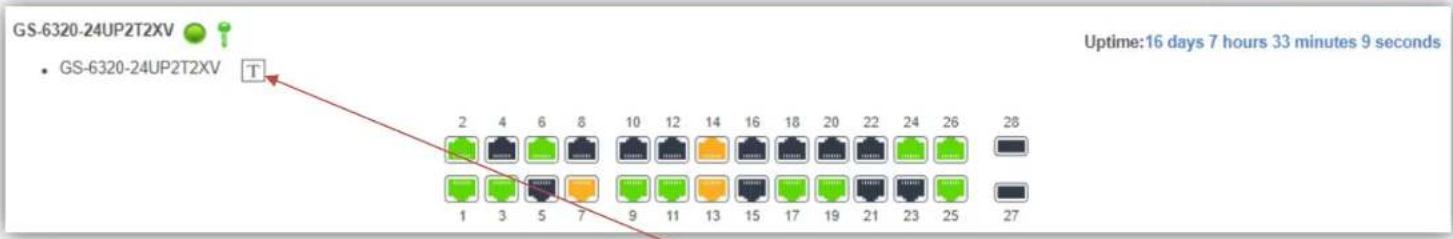

Press the "Device Information" icon to use the virtual panel function of the switch.

a8.17 e0.61 7eadSwitchGS-6320-24UP2T2XVv2.2112b230704192.168.100.10GS-6320-24UP2T2X(v2)
a8.17 e0.74.44.91Industrial SwitchIGS-5225-BP2S2Xv3.4406230619192.168.203.12IGS-5225-BP2S2X
a8.17 e0.58.00.23Industrial SwitchIGS-5325-BUP2S2Xv2.2112b230807192.168.201.33IGS-5325-BUP2S2X(v2)

GS-6320-24UP2T2XV • GS-6320-24UP2T2XV Uptime: 16 days 7 hours 33 minutes 9 seconds System Traffic PoE Port PoE Usage: 8.6W ERPS: OFF STP: LLDP: ON SNMP: ON Device Type: Switch Firmware Version: v2.2112b230704 MAC Address: a8:f7:e0.6f.7e.ad IP Address: 152.168.100.10 Subnet Mask: 255.255.255.0 Gateway: 192.168.100.1 Uplink Port: 25, 26 Data Rate: ↓ 1.52 KB ↑ 12.61 KB

Virtual panel function : On this page, can monitor and control the switch.

Device Information - Virtual Panel

Planet NMS-500 - Device Information - Virtual Panel - 1

PLANET

Networking & Communication

GS-6320-24UP2T2XV • GS-6320-24UP2T2XV T Uptime:16 days 7 hours 33 minutes 9 seconds 2 4 6 8 10 12 14 16 18 20 22 24 26 28 1 3 5 7 9 11 13 15 17 19 21 23 25 27

GS-6320-24UP2T2XV • GS-6320-24UP2T2XV Edit Configuration of System Description System Description GS-6320-24UP2T2XV Apply Reset Close

Edit: Configure the Switch System Name in SNMP.

System ContactDefault Contact
System NameGS-6320-24UP2T2XV
System LocationDefault Location

Device Information - System

Planet NMS-500 - Device Information - System - 1

PLANET

Networking & Communication

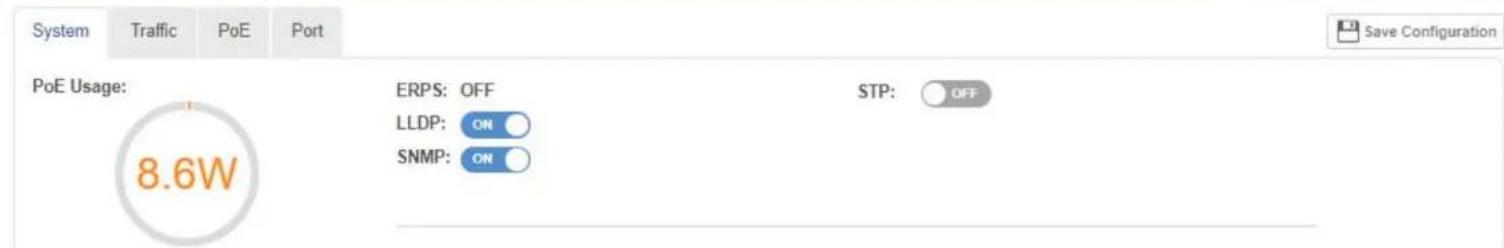

System Traffic PoE Port PoE Usage: 8.6W ERPS: OFF LLDP: ON SNMP: ON STP: OFF Save Configuration

PoE Usage: Show total PoE usage power
ERPS: Show ERPS Ring status.
LLDP: On/Off LLDP function
SNMP: On/Off SNMP function
STP: On/Off STP function
Save Configuration: After configuring the switch, press the button to finish the save configuration.

Planet NMS-500 - Device Information - System - 3

Device Information - System

Planet NMS-500 - Device Information - System - 1

PLANET

Networking & Communication

Planet NMS-500 - Device Information - System - 2

bar Uplink Port: 25, 26 Data Rate: ↓ 1.52 KB ↑ 12.61 KB

Device Type: Switch Firmware Version: v2.2112b230704 MAC Address: a8:f7:e0:6f:7e:ad

IP Address: 192.168.100.10 Subnet Mask: 255.255.255.0 Gateway: 192.168.100.1

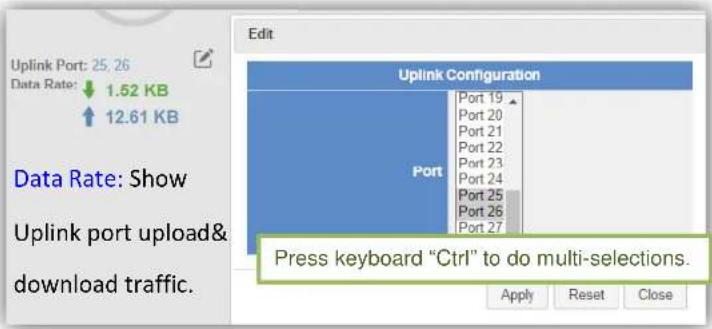

Uplink Port: To configure the Uplink Port by edit icon.

LAN Configuration: To configure LAN IP, subnet mask, and default gateway by edit icon.

Uplink Port: 25, 26 Data Rate: 1.52 KB ↑ 12.61 KB Data Rate: Show Uplink port upload& download traffic. Edit Uplink Configuration Port Port 19 Port 20 Port 21 Port 22 Port 23 Port 24 Port 25 Port 26 Port 27 Press keyboard "Ctrl" to do multi-selections. Apply Reset Close

LAN Configuration LAN Configuration IP Address 192.168.100.10 Netmask 255.255.255.0 Gateway 192.168.100.1 Apply Reset Close

Device Information - Traffic

Planet NMS-500 - Device Information - Traffic - 1

PLANET

Networking & Communication

Traffic: On this page, you can see the traffic history graph of TX/RX on uplink port by selecting hour, day, week or month.

Planet NMS-500 - Device Information - Traffic - 2

line | Hour | Tx Traffic | Rx Traffic | |------|------------|------------| | 11 | ~0.5 | ~2.2 | | 19 | ~0.5 | ~0.5 | | 20 | ~0.5 | ~4.3 | | 21 | ~0.5 | ~0.5 | | 22 | ~0.5 | ~0.5 | | 23 | ~0.5 | ~2.0 | | 24 | ~0.5 | ~2.0 | | 25 | ~0.5 | ~2.0 | | 26 | ~0.5 | ~2.0 | | 30 | ~0.5 | ~2.2 | | 35 | ~0.5 | ~2.0 |

Device Information - PoE

Planet NMS-500 - Device Information - PoE - 1

PLANET

Networking & Communication

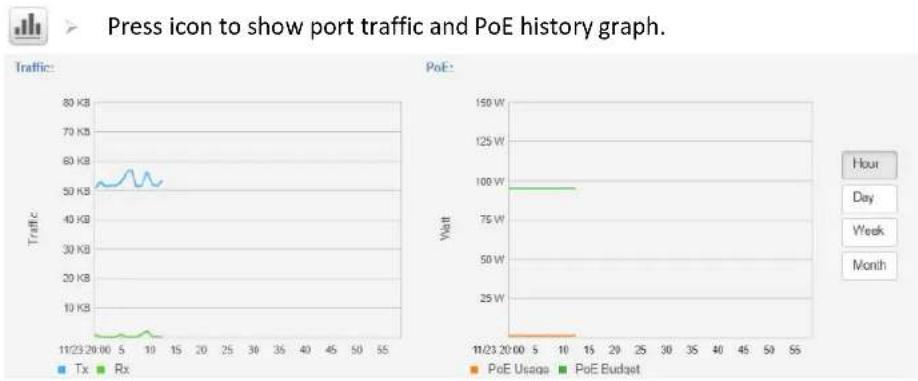

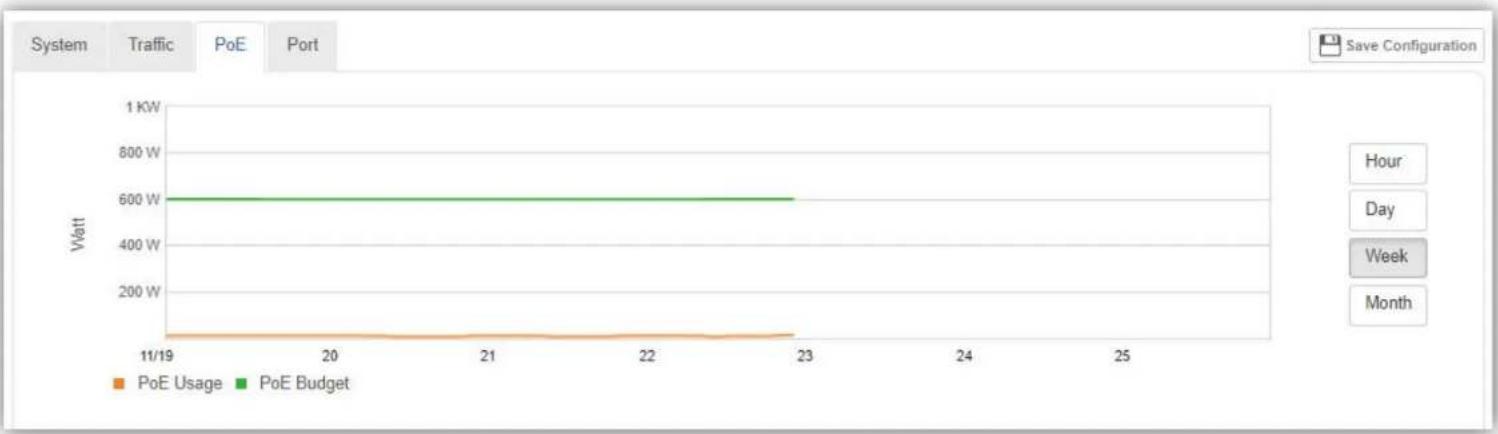

PoE: On this page, you can see the total PoE history graph of PoE usage/PoE Budget by selecting hour, day, week or month.

Planet NMS-500 - Device Information - PoE - 2

line | Hour | Day | Week | Port | |------|-----|------|------| | 11/19 | 0 | 0 | 0 | | 20 | 0 | 0 | 0 | | 21 | 0 | 0 | 0 | | 22 | 0 | 0 | 0 | | 23 | 0 | 0 | 0 | | 24 | 0 | 0 | 0 | | 25 | 0 | 0 | 0 |

Device Information - Port

Planet NMS-500 - Device Information - Port - 1

PLANET

Networking & Communication

Port: On this page, you can manage each port on the switch.

System Transport Port ON Port 1: SGS-6310-24T4X T VLAN:1 Mode: Access Speed:1G PVID:1 Traffic: ↓ 0 B ↑ 4.64 KB PoE: 0W/95W (0%) PD Alive Check: Disable Port 2: WGS-5225- 8T2SV_Flat T VLAN:1 Mode: Access Speed:1G PVID:1 Traffic: ↓ 0 B ↑ 4.64 KB PoE: 0W/95W (0%) PD Alive Check: Disable Port 3: WGS-5225- 8P2SV_Flat T VLAN:1 Mode: Access Speed:1G PVID:1 Traffic: ↓ 102 B ↑ 4.75 KB PoE: 0W/95W (0%) PD Alive Check: Disable Port 4: T VLAN:204 Mode: Access Speed:UNDEFINED PVID:204 Traffic: ↓ 0 B ↑ 0 B PoE: 0W/95W (0%) PD Alive Check: Disable Port 5: T VLAN:1 Mode: Access Speed:UNDEFINED PVID:1 Traffic: ↓ 0 B ↑ 0 B PoE: 0W/95W (0%) PD Alive Check: Disable Port 6: IGT-900-2T2S T VLAN:1 Mode: Access Speed:1G PVID:1 Traffic: ↓ 0 B ↑ 4.64 KB PoE: 0W/95W (0%) PD Alive Check: Disable Port 7: A10 T VLAN:1 Mode: Access Speed:100M PVID:1 Traffic: ↓ 0 B ↑ 4.64 KB PoE: 1.3W/95W (1%) PD Alive Check: Disable Save Configuration

Device Information - Port

Planet NMS-500 - Device Information - Port - 1

PLANET

Networking & Communication

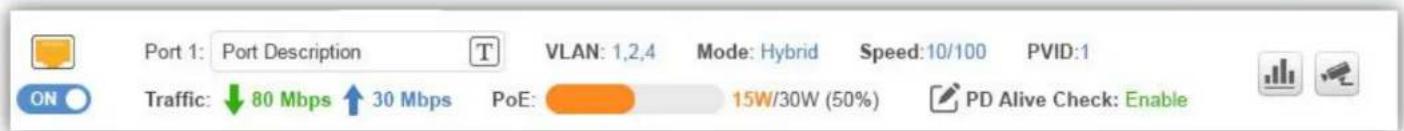

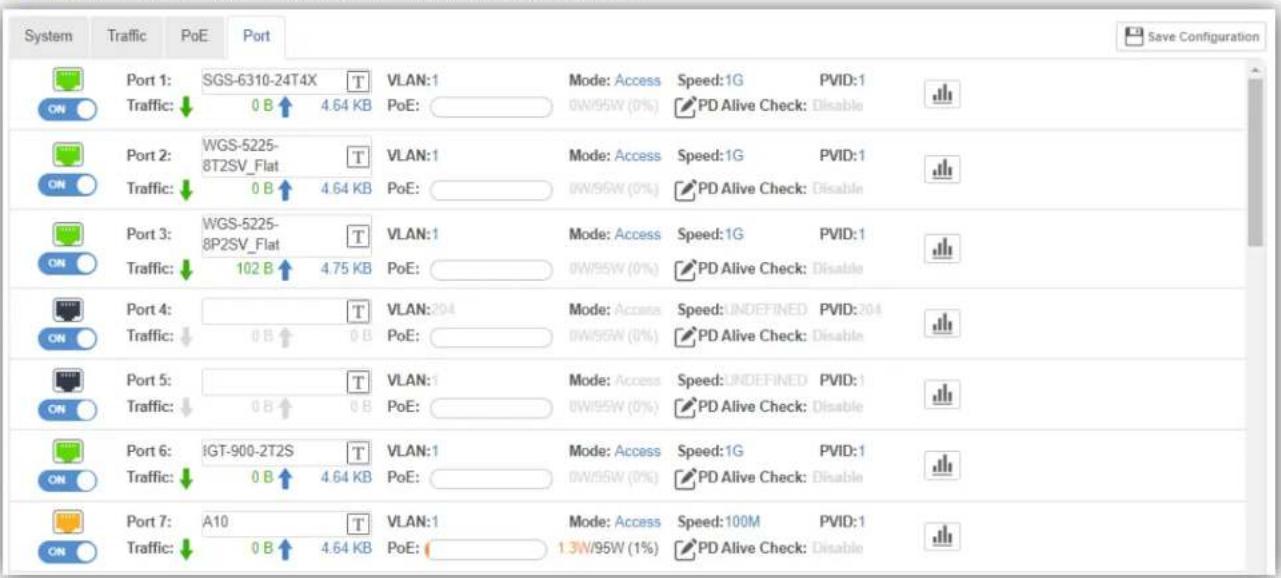

Port 1: Port Description VLAN: 1,2,4 Mode: Hybrid Speed:10/100 PVID:1 Traffic: ↓ 80 Mbps ↑ 30 Mbps PoE: 15W/30W (50%) PD Alive Check: Enable

Planet NMS-500 - Device Information - Port - 3

Shows per port connection status, port disable, or PoE in use.
Press the On/Off button to enable/disable port.

Planet NMS-500 - Device Information - Port - 4

Disconnected

Planet NMS-500 - Device Information - Port - 5

Connected

Planet NMS-500 - Device Information - Port - 6

PoE in use

Planet NMS-500 - Device Information - Port - 7

Port function disabled

Port 1: Port Description Traffic: ↓ 80 Mbps ↑ 30 Mbps Pc

Port description edit by "T" icon.
Port download & upload traffic.

VLAN: 1,2,4 Mode: Hybrid Speed:10/100 PVID:1

Shows Port VLAN, Mode, Link Speed and PVID info.

Device Information - Port

Planet NMS-500 - Device Information - Port - 1

PLANET

Networking & Communication

Port 1: Port Description VLAN: 1,2,4 Mode: Hybrid Speed:10/100 PVID:1 Traffic: ↓ 80 Mbps ↑ 30 Mbps PoE: 15W/30W (50%) PD Alive Check: Enable

Planet NMS-500 - Device Information - Port - 3

Shows Port PoE usage, budget or health (%)

Planet NMS-500 - Device Information - Port - 4

Shows Port PD alive check status.

Planet NMS-500 - Device Information - Port - 5

line | Time | Traffic (KB) | VoE (W) | | ---------- | ------------ | ------- | | 11/23/29 | ~50 | ~100 | | 1/20:00 | ~50 | ~100 | | 5 | ~50 | ~100 | | 10 | ~50 | ~100 | | 15 | ~50 | ~100 | | 20 | ~50 | ~100 | | 25 | ~50 | ~100 | | 30 | ~50 | ~100 | | 35 | ~50 | ~100 | | 40 | ~50 | ~100 | | 45 | ~50 | ~100 | | 50 | ~50 | ~100 | | 55 | ~50 | ~100 |

Get IP camera snapshot via switch ONVIF function.

SYSTEM MENU - AP CONTROL

AP Control UI – Structure & Description

Planet NMS-500 - AP Control UI – Structure &amp; Description - 1

PLANET

Networking & Communication

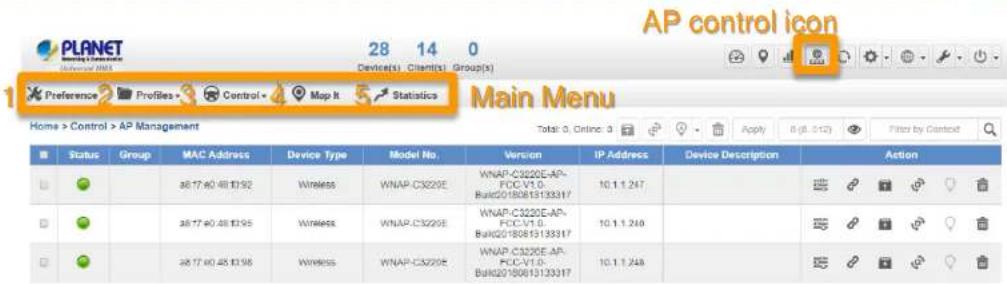

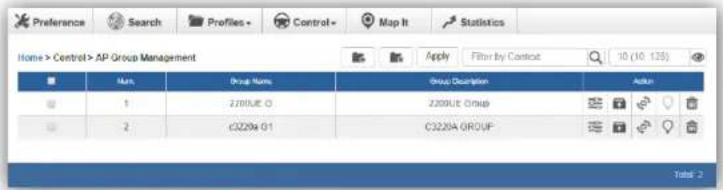

AP control icon Device(s) Client(s) Group(s) Preference Profiles Control Map R Statistics Home > Control > AP Management Total: 0, Online: 0 Apply 0 (8.512) Filters by Contact Status Group MAC Address Device Type Model No. Version IP Address Device Description Action 36.17.40.48.13.92 Wireless WNAP-C3220E WNAP-C3220E-AP- FCC-V1.0-Bulk20180613133317 10.1.1.247 36.17.40.48.13.95 Wireless WNAP-C3220E WNAP-C3220E-AP- FCC-V1.0-Bulk20180613133317 10.1.1.248 36.17.40.48.13.96 Wireless WNAP-C3220E WNAP-C3220E-AP- FCC-V1.0-Bulk20180613133317 10.1.1.248

ItemDescriptionRemarks
1PreferenceEdit region, RO community, RW community

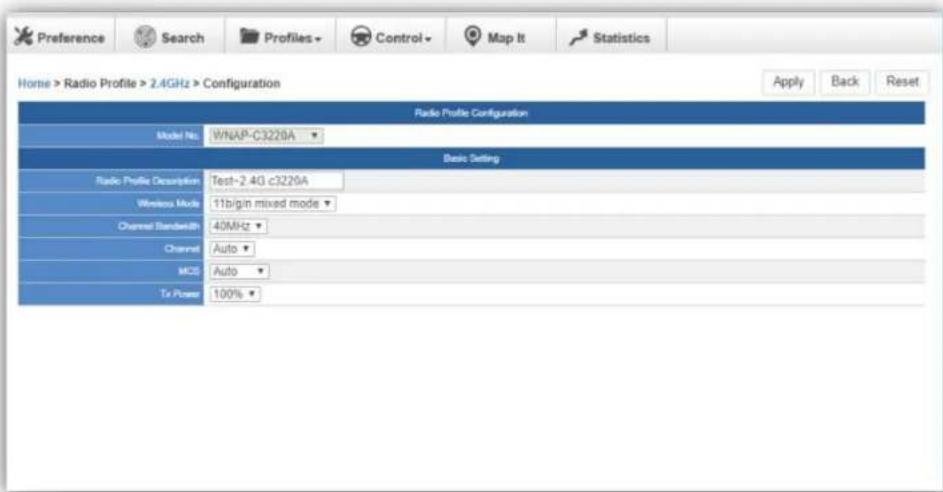

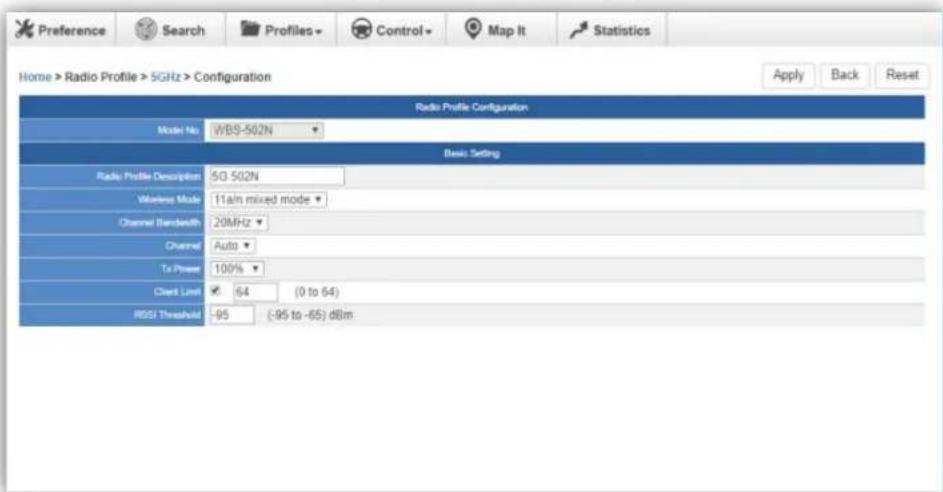

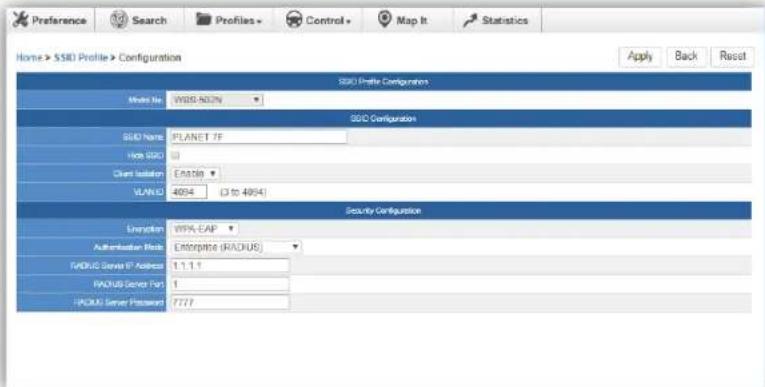

2ProfilesSet up SSID, Radio ( 2.4G, 5G ) Profiles

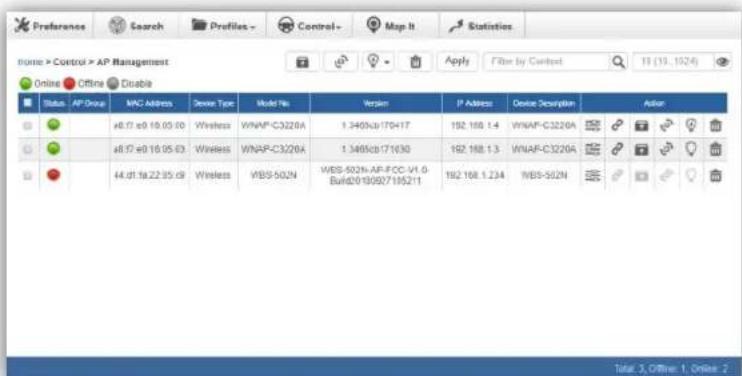

3ControlAP and AP group management

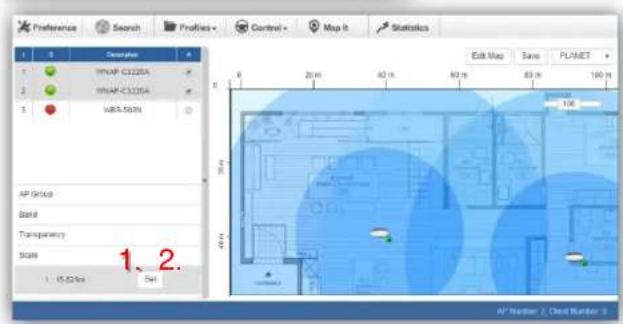

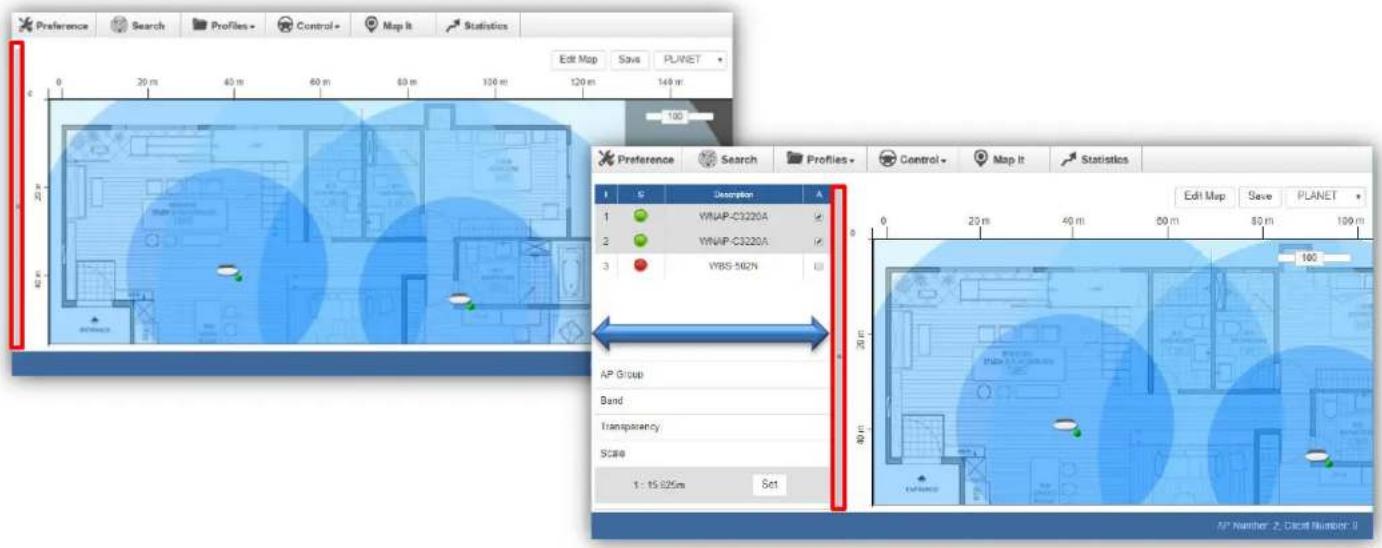

4Map ItEdit the map of AP location and coverage

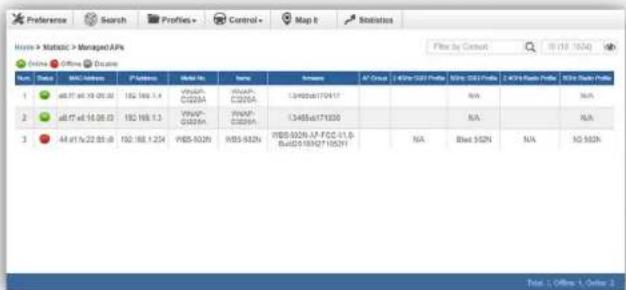

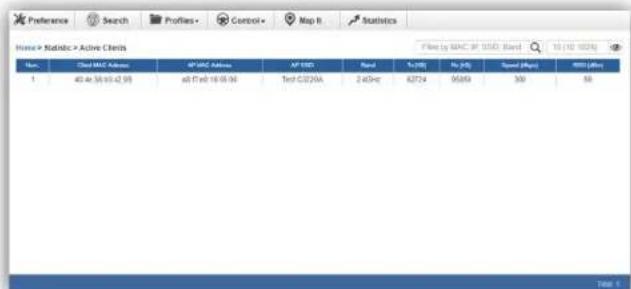

5StatisticsShow the statuses of managed APs and active clients

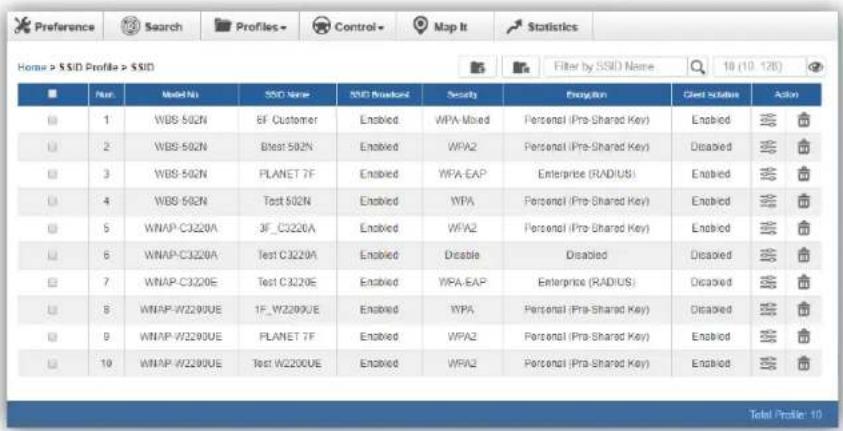

Planet NMS-500 - Main Menu – Preference - 1

PLANET

Networking & Communication

PLANET 28 14 0 Device(s) Client(s) Group(s) Preference Profiles Control Map It Statistics Home > Edit Preference Configuration Region * ETS RO Community public RW Community private Apply Reset

[Preference]

Preference: On this page, you can choose the device region of FCC or ETSI.
Then edit SNMP RO community and RW community for public or private use. (Set up for all devices, not only for APs)
Select Apply or Reset.
Noted: Device of FCC and device of ETIS cannot be shown at the same time.

Planet NMS-500 - Main Menu – Profiles - 1

PLANET

Networking & Communication

Planet NMS-500 - Main Menu – Profiles - 2

Profiles: On this page, you can create the SSID and 2.4GHz/5GHz profiles for further AP provisioning.
SSID Profiles: Click the "Add new profile" button to add a new SSID profile.
Radio Profiles: Click the "Add new profile" button to add a new 2.4GHz radio profile or 5GHz radio profile.
You can create up to 32 profiles for each type of profiles (SSID, 2.4G radio, 5G radio).

Planet NMS-500 - Main Menu – Profiles - 1

PLANET

Networking & Communication

Preference Search Profiles Control Map It Statistics Home > SSDI Profile > Configuration Apply Back Reset SSCI Profile Configurations Mode No: WBS-NCZN SSCI Configuration SSCI Name: PLANET 7F Type: SSO Client Isolation: EN1286 VLANID: 4094 (3 to 4094) Security Configuration Relation: WPK-EAP Authentication Mode: Enterprise (RADIUS) RADIUS Server IP Address: 1.1.1.1 RADIUS Server Port: 1 RADIUS Server Password: 7777

[SSID Profile Configuration]

On the SSID profile configuration page, enter the value that you preferred and then click "Apply" to save the profile.
Add new profile: Click it to add a new profile.
Delete selected item: Click it to delete the selected profile.
Edit: Click it to edit the profile.
Delete: Click it to delete the single profile.

Filter: You can filter the search result by entering the keywords in the field next to the magnifier icon. The keywords include: SSID Name

Planet NMS-500 - Main Menu – 3/Profiles - 1

PLANET

Networking & Communication

Home > Radio Profile > 2.4GHz > Configuration Radio Profile Configuration Model No: WNAP-C3220A Basic Setting Radio Profile Description Test-2.4G c3220A Wireless Mode 11b/g/n mixed mode Channel Bandwidth 40MHz Channel Auto MOS Auto Tx Power 100%

[2.4GHz Radio Profile Configuration]

On the Radio profile configuration page, enter the value that you preferred and then click "Apply" to save the profile.
Apply: Click this button to save the settings.
Back: Click this button to return to the previous page.
Reset: Click this button to reset all fields to default value.

Planet NMS-500 - Main Menu – 3/Profiles - 1

PLANET

Networking & Communication

Home > Radio Profile > 5GHz > Configuration Radio Profile Configuration Model No: WBS-502N Basic Setting Radio Profile Description: 5G 502N Wireless Mode: 11am mixed mode Channel Bandwidth: 20MHz Channel: Auto To Power: 100% Client Link: 64 (0 to 64) RDSI Threshold: -95 (-95 to -65) dBm

[5GHz Radio Profile Configuration]

Remarks:

  1. Strongly suggest you to keep the values as default except the fields like Channel, Network Mode, Channel Bandwidth, Tx Power, IAPP, and Tx/Rx to prevent any unexpected error or impact on the performance.
  2. WMM Capable is not allowed to be disabled.

Planet NMS-500 - Main Menu – Control - 1

PLANET

Networking & Communication

Preference Search Profiles - Control- Map It Statistics home > Control > AP Management Apply Filter by Contel 11 (13, 1024) Online Offline Disable Status AP Group MAC Address Device Type Model No. Version IP Address Device Description Admin a8.07 e9 16.05.00 Wireless WNAS®C3226A 1.3405cb/170417 192.168.1.4 WNAS®C3226A a8.07 e9 16.05.03 Wireless WNAS®C3226A 1.3405cb/171030 192.168.1.3 WNAS®C3226A a8.07 e9 16.05.03 Wireless WNAS®C3226A 1.3405cb/171030 192.168.1.3 WNAS®C3226A a8.07 e9 16.05.03 Wireless WAS-502N AP-FCC-V1.0-Build20150927195211 192.168.1.234 WAS-502N Total: 3, Offins: 1, Online: 2

[Control - AP Management]

Control: On this page, the system allows you to control the AP or AP group with specific actions.
AP Management: Go to this page to control single AP or multiple APs.
AP Group Management: Go to this page to create multiple APs as a group or control AP group.
Filter: You can filter the AP list by entering the keyword in the field next to the magnifier icon. The keyword should be in any context that belongs to the fields like AP Group, MAC Address, Model, Version, IP Address, and Name.
Apply: Click this button to apply the setting. The profile setting will not take effect until you click the "Apply" button on the Control's main page.

Planet NMS-500 - Main Menu – Control - 1

PLANET

Networking & Communication

Status:

Connection status: online, offline, Wi-Fi disabled

In progress: action in progress

√ Finished/Successful: action finished and successful.

✗ Failed: action failed.

Action:

Setting: edit setting and allocate profile to AP

Link: link to the AP's web page

Firmware Update: Upgrade AP's firmware

Reboot: Reboot the AP

Delete: Delete the AP from the control list

LED Control: Control the AP's LED. Mouse-click in a sequential order: LED blink-> LED off-> LED on

Remarks:

To configure multiple APs at one time, select multiple APs and then choose one of the action icons on the top of the page. The "Link" action is not allowed for multiple APs.

Planet NMS-500 - Main Menu – Control - 1

PLANET

Networking & Communication

Preference Search Profiles Control Map It Statistics Home > Control > AP Management > AP Configuration Apply Back Reset AP Hierarchy Model No. WMAP-C3220A Class MPO add17.60-16.95.00 Device Control WMAP-C3220A System Lrms 8 Day 3 Hour 44 minute 50 second ACUP Mode Static Static Device IP 162.168.1.4 Device Size 265.265.265.0 Device Diameter 162.168.1.1 Device size Disable Enable IP17.00.0 IPAP Frame Disable Enable C: 42 Frame No Frame 3. SF_C3220A Test C3220A Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Disable Delete

[AP Configuration]

Procedure of configuring AP's setting:

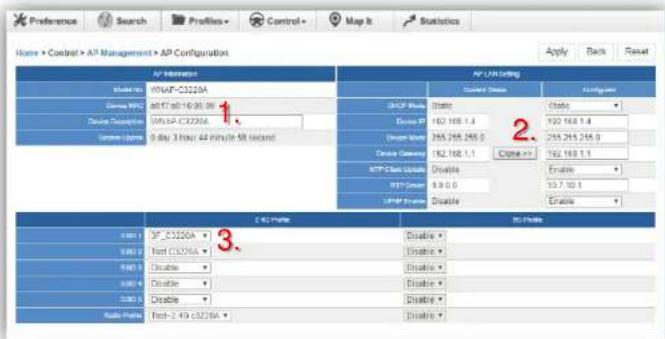

  1. Edit the basic AP Information.
  2. Click the "Clone >>" button if you want to use the same IP configuration as the previous LAN settings. Otherwise, please enter the preferred LAN setting.
  3. If there are already profiles created, you can designate the SSID profile and Radio profile to this AP. You can do this step later once AP's basic setting is done

On the AP Group Configuration page, you can create an AP group with the same model of AP.
Save: Click this button to save the group/setting.
Back: Click this button to return to the previous page.
Reset: Click this button to reset all fields to default value.
Remarks: The system allows to create up to 32 AP groups.

Planet NMS-500 - Main Menu – Control - 1

PLANET

Networking & Communication

Preference Search Profiles+ Control+ Map It Statistics Home > Control > AP Group Management Apply Filter by Cartout 10 (10, 125) Main Group Name Group Description Action 1 2780UE O 2780UE Group 2 C3229A G1 C3229A GROUP Table 2

[3/Control - AP Group Management]

On the AP Group Management page, you can create AP group and control one or more AP groups.
Add new group: Click it to add an AP group.
Delete selected item: Click it to delete the selected AP group.
Apply: Click this button to apply the setting. The profile setting will not take effect to a group until you click the "Apply" button.

Remarks:

To do profile provisioning to multiple AP groups at one time, select multiple AP groups, and then click the "Apply" button.

The "Link" action is not allowed for multiple APs or AP group.

Planet NMS-500 - Main Menu – Control - 1

PLANET

Networking & Communication

Name > Control > AP Management Online Options Enable Value AF Group MAC Control Mode Version IP Address Name Apply Filter by Control 3. Ceiling-mount_1 ab7 0:00:01:00 WDAP-W7203AC tfp-170406 192.168.0.119 WAF_11ac_AP Ceiling-mount_1 ab7 0:00:05:00 WNAP-W2031A 1.345bc+170407 192.168.0.101 WNAP-W2031A Ceiling-mount_1 ab7 0:00:05:00 WDAP-W7203AC tfp-170406 192.168.0.105 WAF_11ac_AP Ceiling-mount_1 ab7 0:00:05:00 WNAP-C3220A 1.345bc+170408 192.168.0.102 WNAP-C3220A Ceiling-mount_1 ab7 0:00:05:00 WNAP-C3220A 1.345bc+170408 192.168.0.103 WNAP-C3220A

Procedure of profile provisioning to AP groups:

  1. Select the AP group.
  2. Click the "Apply" button.

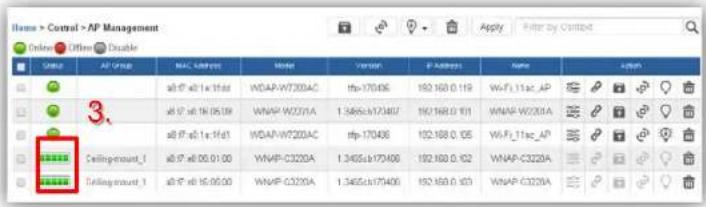

  3. Go to "3/Control->AP Management" to check whether the status is becoming "In progress". Wait until the status comes "Online".

Action:

Setting: Edit setting and allocate profile to group
Firmware Update: Upgrade AP group's firmware
Reboot: Reboot the AP group
Delete: Delete the AP group from the control list

LED Control: Control the AP group's LED.

Mouse-click in a sequential order:

LED blink-> LED off-> LED on

Planet NMS-500 - Main Menu – Map It - 1

PLANET

Networking & Communication

Screenshot of a software interface displaying a floor plan with blue circular annotations and tool panels.

[Map It]

Map It: On this page, the system allows you to upload your floor map to the system and you can add managed APs to the actual position against the floor map. This is convenient to user to view and adjust the actual deployment by reference to its real transmission power and channel allocation.
The system allows user to upload up to 10 floor maps.

A system message will prompt to remind you to edit map first if there is no other map available in the system. Click "OK" to continue.

192.168.1.100:8888 says Please edit map first OK

On the Edit Map page, click "Choose File" and enter the map's description. Then click "Apply" to upload the map.

File Edit View Help File Name: 100000.1000.jpg Export Path: Export Date: 2015-07-23 Export Value: 10000.0000.jpg

Planet NMS-500 - Main Menu – Map It - 1

PLANET

Networking & Communication

After finishing map uploading, you can click the sidebar at the left-side of the window to expand the AP list.

Preference Search Profiles+ Control+ Map It Statistics Edit Map Save PLANET 0 20 m 40 m 60 m 80 m 100 m 120 m 140 m 100 1 S Description A 1 YWAP-C3220A 2 YWAP-C3220A 3 YBS-502N 0 20 m 40 m 60 m 80 m 100 m 100 AP Group Band Transparency Scale 1: 15.025m Set Edit Map Save PLANET AP Number 2 - Cdcnt Number 0

Planet NMS-500 - Main Menu – Map It - 1

PLANET

Networking & Communication

Setting Scale: 1. Click "Scale" to start to reset the map scale.

Scale 1 : 10 m Set

Preference Search Profiles Control Map It Statistics 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 AP Group Build Transparency Signs: 1. 2. Edit Map: Save PL/BET

Press the "Set" button to draw a line on the map. Fill its physical distance in the blank and press "Set" or "Cancel". For example, in the graph below, set the door width to 0.8 m.

Preference Search Profiles+ Control Map It Statistics B C D E F G H I J K L M N O P Q R S T U V W X Y Z 30.00 40.00 50.00 60.00 70.00 80.00 90.00 100.00 110.00 120.00 130.00 140.00 150.00 160.00 170.00 180.00 190.00 200.00 210.00 220.00 230.00 240.00 250.00 260.00 270.00 280.00 290.00 300.00 310.00 320.00 330.00 340.00 350.00 360.00 370.00 380.00 390.00 400.00 410.00 420.00 430.00 440.00 450.00 460.00 470.00 480.00 490.00 500.00 510.00 520.00 530.00 540.00 550.00 560.00 570.00 580.00 590.00 600.00 610.00 620.00 630.00 640.00 650.00 660.00 670.00 680.00 690.00 700.00 710.00 720.00 730.00 740.00 750.00 760.00 770.00 780.00 790.00 800.00 810.00 820.00 830.00 840.00 850.00 860.00 870.00 880.0Please draw a schematic to substitute functionality with a minimum. What is the physical distance of the draw file? 1: 1: 1: 1: 1: 1: 1: 1: 1: 1: 1: 1: 1: 1: 1: 1: 1: 1: 1: 1: 1: 1: 1: 1: 1: 1: 1: 1: 1: 1: 1: 1: 1: 1: 3. Total Square Measure: #1/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/2/

Planet NMS-500 - Main Menu – Map It - 1

PLANET

Networking & Communication

Drag and drop the AP onto the map or select multiple APs by clicking the checkbox.

Description WRNAP-C-2220A WRNAP-C-2220A WBS-902% AP (Grid) Burst Transparence Snake 1. IT-44/86/483/16278h Set Exit Map Runx Google 0 25 m 50 m 75 m 100 m 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 107 107 107 107 107 107 107 107 107 107 107 107 107 107 107 107 107 107 107 107 107 107 107 107 107 108

Once the allocation is done, click "Save" to save the setting.

PLANET 3 0 2 100% 100% 100% 100% Status: OK Cancel Help Help Status: OK Cancel Help Status: OK Cancel Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: Help Status: help Status: help Status: help Status: help Status: help Status: help Status: help Status: help Status: help Status: help Status: help Status: help Status: help Status: help Status: help Status: help Status: help Status: help Status: help Status: help Status: help Status: help Status: help Status: help Status: help Status: help Status: help Status: help Status: help Status: help Status: help Status: help Status: help Status: help Units help Units help Units help Units help Units help Units help Units help Units help Units help Units help Units help Units help Units help Units help Units help Units help Units help Units help Units help Units help Units help Units help Units help Units help Units help Units help Units help Units help Units help Units help Units help Units help Units help Units help units

To upload more maps or edit current map, click the "Edit Map" button to re-enter the Edit Map page.

Planet NMS-500 - Main Menu – Map It - 1

PLANET

Networking & Communication

The lower-left side area provides map control options.
AP Group: To filter the managed APs shown on the map, the selected AP group is displayed.

AP Group W7200AC_1F

Band: Select "2.4GHz" to show APs with 2.4GHz frequency or select "5GHz" to show APs with 5GHz frequency.

Band 2.4GHz 5GHz 100 0

Band 2.4GHz 5GHz 0 100

Transparency: Slide the bar to adjust the transparency of the map.

Transparency Transparency

Planet NMS-500 - Main Menu – Statistics - 1

Preference Search Profiles+ Control+ Map It Statistics Home > Static > Manage0APs Online Offshore Browse Main Sub MAC Location P Location Model No. Name: In millions AT Group 82% SDI Profile 50% SDI Profile 40% Radio Profile 60% Radio Profile 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

[Statistics – Managed APs]

Managed APs: On this page, you can observe the current configuration of all managed APs.
Filter: You can filter the AP list by entering the keyword in the field next to the magnifier icon. The keyword should be in any context that belongs to the fields of this page.

Preference Search Profiles Control Map II Statistics Home > Statistic > Active Clients File by MAC 31.1023: Book 10 (10) 1023 Num. Class MAC Address APWAC Address AP WDC Band N=195 No (4) Speed (MHz) 800 (MHz) 1 40.46.36.65.42.95 40.47.40.16.05.56 Test C3220A 2.40Hz 42724 95858 300 58 Total: 5

[Statistics – Active Clients]

Active Clients: On this page, you can observe the statuses of all associated clients including traffic statistics, transmission speed and RSSI signal strength.
Filter: You can filter the search result by entering the keywords in the field next to the magnifier icon. The keywords include MAC Address, IP Address, SSID and Band.

SYSTEM MENU - REFRESH

System Menu – Refresh

Planet NMS-500 - System Menu – Refresh - 1

PLANET

Networking & Communication

Apply Reset

[System Menu – Refresh]

Refresh: The page content will be updated every 1 minute automatically by default. If you require the system to update immediately, you may click "Manually" to refresh the page content.

[System Menu – System Configuration]

Alert Configuration: On this page, you can configure the system event notice enable or disable by Popup Alert Message and SMTP function.
After configuration is done, click "Apply" to apply the setting.

Home > Alert Configuration
ENABLEALET_MESSAGESMTP
System Start✕✕✕
System Shutdown✕✕✕
System Reload✕✕✕
System Firmware Upgrade Successful✕✕✕
System Firmware Upgrade Fail✕✕✕
Management Add Device✕✕✕
Management Delete Device✕✕✕
Management Device Connect✕✕✕
Management Device Disconnect✕✕✕
Management Device Set Profile✕✕✕
Management Device Profiles Setting Cons✕✕✕
Management Device Profiles Setting Failed✕✕✕
Web Login✕✕✕

[Alert Configuration]

System Menu – System Configuration

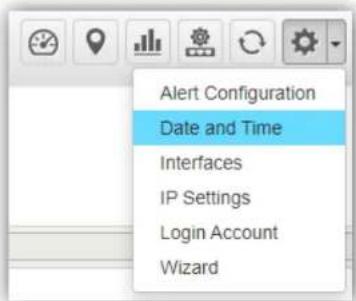

Alert Configuration Date and Time Interfaces IP Settings Login Account Wizard

[System Menu – System Configuration]

Date and Time: On this page, you can configure the Date and Time by NTP server or manual setting.
After configuration is done, click "Apply" to apply the setting.

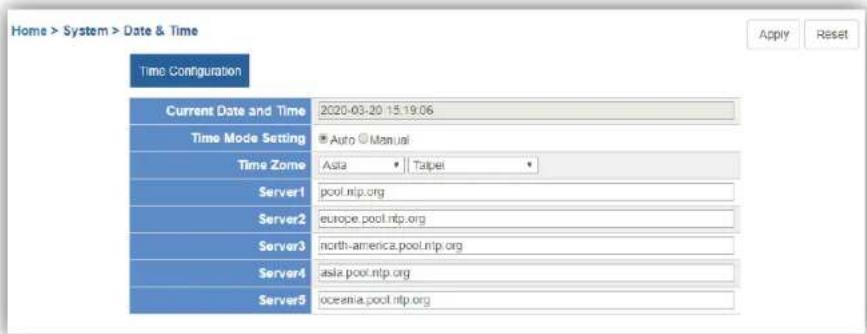

Home > System > Date & Time Time Configuration Current Date and Time 2020-03-20 15:19:06 Time Mode Setting *Auto © Manual Time Zone Asia Taipei Server1 pool.ntp.org Server2 europe.pool.ntp.org Server3 north-america.pool.ntp.org Server4 asla.pool.ntp.org Server5 oceania.pool.ntp.org Apply Reset

[Date and Time configuration]

System Menu – System Configuration

Alert Configuration Date and Time Interfaces IP Settings Login Account Wizard

[System Menu – System Configuration]

Interface: On the PORT page, you can see each Port status and you can configure the speed for down, auto, 10/100 Mbps HDX/FDX, and 1GMbps FDX on the Port Statistics page.
Click "Apply" to apply the setting.

Port Configuration Port Statistics
PortPort DescriptionLinkSpeed
CurrentConfiguration
1DownAuto▼
21Gbps FDXAuto▼

[Port Settings]

System Menu – System Configuration

Port Configuration

Port Statistics

PortPacketsBytesErrorsDrops
ReceivedTransmittedReceivedTransmittedReceivedTransmittedReceivedTransmitted
100000000
247883516969622315674646123195042036652010

[Port Statistics information]

System Menu – System Configuration

Alert Configuration Date and Time Interfaces IP Settings Login Account Wizard

[System Menu – System Configuration]

IP Settings: On this page, you can configure the static ID of SAPC or choose it as DHCP client.
After configuration is done, click "Apply" to apply the setting. The window will prompt you to change network setting that will cause the system to restart.

Home > System > IP Settings Apply Reset Configuration Status Mode Static IP Static IP Address 10.1.0.199 10.1.0.199 Subnet Mask 255.255.254.0 255.255.254.0 Default Gateway 10.1.1.254 10.1.1.254 DNS Server 1 10.1.1.3 10.1.1.3 DNS Server 2 10.1.1.4 10.1.1.4

[IP Settings]

System Menu – System Configuration

Alert Configuration Date and Time Interfaces IP Settings Login Account Wizard

[System Menu – System Configuration]

Login Account: On this page, you can modify the login user name and password.
Enter the new user name and new password directly in the corresponding fields, and then click "Apply" to apply the setting. The login window will be prompted to ask you to enter the new account to re-log in the system.

Home > System > Edit User Configuration User Name admin123 Password Retype Password *Please let us a new account, except using "admin" New Password must be imulated at least "I=[-I] [+] (I-[I] [+] -I] (I-[I] -I] (I-[I] -I] (I-[I] -I] (I-[I] -I] (I-[I] -I] (I-[I] -I] (I-[I] -I] (I-[I] -I] (I-[I] -I] (I-[I] -I] (I-[I] -I] (I-[I] -I] (I-[I] -I] Apply Reset *Please let us a new account, except using "admin" New Password must be imulated at least "I=[-I] [+] (I-[I] [+] -I] (I-[I] -I] (I-[I] -I] (I-[I] -I] (I-[I] -I] (I-[I] -I] (I-[I] -I] (I-[I] -I] (I-[II] -I] (I-[II] -I] (I-[II] -I] (I-[II] -I] (I-[II] -I] (I-[II] -I] (I-[II] -I] (I-[II] -I] (I-[II] -I] (I-[II] -I] (I-[II] -I] (I-[II] -I) (I-[II] -I) (I-[II] -I) (I-[II] -I) (I-[II] -I) (I-[II] -I) (I-[II] -I) (I-[II] -I) (I-[II] -I) (I-[II] -I) (I-[II] -II) (I-[II] -II) (I-[II] -II) (I-[II] -II) (I-[II] -II) (I-[II] -II) (I-[II] -II) (I-[II] -II) (I-[II] -II) (I-[II] -II) (I-[II] -II) (I-[II] -II) (I-[II] -II) (I[II])

[Login Account]

*Please key in a new account, except using "admin"
New Password must include at least 1*[a\~z], 1*[A\~Z], 1*[0\~9], 1*[\~, !, @, ...] and must contain at least 8 characters.

System Menu – System Configuration

Alert Configuration Date and Time Interfaces IP Settings Login Account Wizard

[System Menu – System Configuration]

Wizard: Select Wizard for setup wizard again.

SYSTEM MENU - NETWORK SERVICES

System Menu – Network Services

DDNS DHCP SMTP SNMP RADIUS

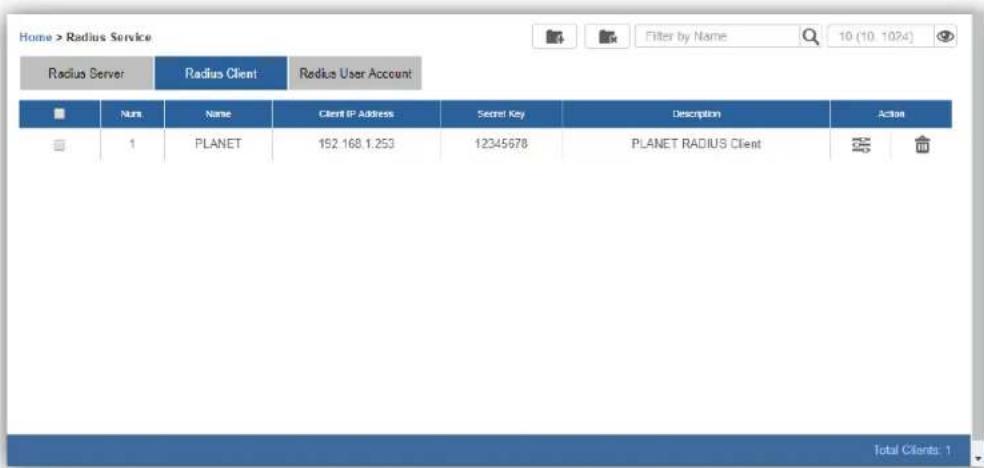

[System Menu - DDNS]

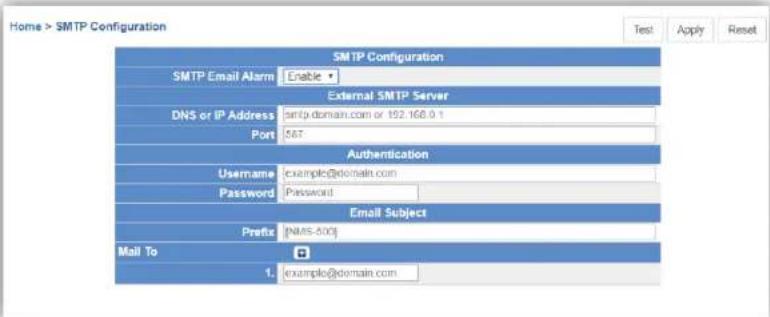

Network Services: On this page, you can set up DDNS, DHCP, SMTP, SNMP, and RADIUS of the system.
DDNS: Click "DDNS" to use PLANET Easy DDNS services or Dynamic DDNS. (Supports PLANET DDNS/Easy DDNS) https://www.planetddns.com/
Click "Apply" to apply the setting.

Smart AP Control Not secure | https://192.168.1.100/3088 PLANET SPRING AP CONTROL 3 0 2 AP(s) Client(s) Group(s) Name > Planet DDNS Enable Dynamic DDNS Enable Enable Easy DDNS Enable Dynamic DDNS Accessories DNS planeidder.com Comment Status N/A Apply Reset

[DDNS Setting]

System Menu – Network Services

DDNS DHCP SMTP SNMP RADIUS Total: 28, Online:

Network Services: On this page, you can set up DDNS, DHCP, SMTP, SNMP, and RADIUS of the system.

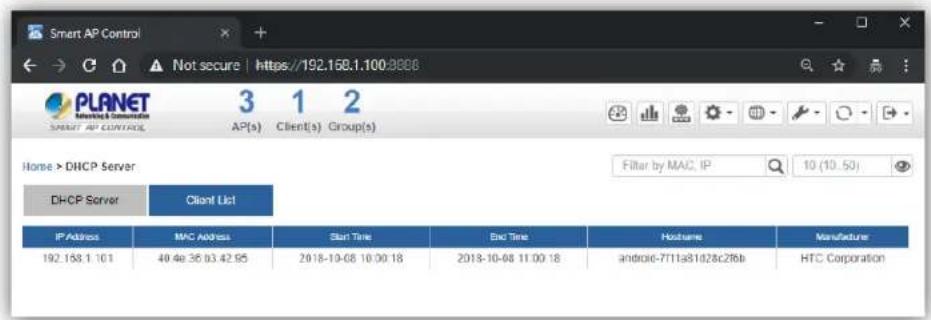

DHCP: On the DHCP Server page, choose "Enable" to use DHCP server service. On Client list page, you can see the Client detailed information.
Click "Apply" to apply the setting.

System Menu – Network Services

Smart AP Control Not secure | https://192.158.1.100:8806 PLANET Smart AP CONTROL 3 1 2 AP(s) Client(s) Group(s) Home > DHCP Server Filter by MAC, IP 10 (10.50) DHCP Server Client List IP Address MMC Address Start Time Excl Time Hostane Manufacture 192.158.1.101 40 4e 35 b3 42 95 2018-10-08 10:00:18 2018-10-08 11:00:18 android-7T11a81d28c2f6b HTC Corporation

[Client List Information]

System Menu – Network Services

DDNS DHCP SMTP SNMP RADIUS

[System Menu - SMTP]

Network Services: On this page, you can set up DDNS, DHCP, SMTP, SNMP, and RADIUS of the system.
SMTP: On the SMTP page, choose "Enable" to use SMTP service.
Click "Apply" to apply the setting.

Home > SMTP Configuration Test Apply Reset SMTP Configuration SMTP Email Alarm Enable External SMTP Server DNS or IP Address smtg.domain.com or 192.168.0.1 Port 567 Authentication Username example@domain.com Password Password Email Subject Prefix [NMS-400] Mail To 1. example@domain.com

[SMTP Setting]

System Menu – Network Services

DDNS DHCP SMTP SNMP RADIUS

[System Menu - SNMP]

Network Services: On this page, you can set up DDNS, DHCP, SMTP, SNMP, and RADIUS of the system.
SNMP: On the SNMP Agent page, choose "Enable" to use SNMP v1, v2c, v3 service. On the SNMP Trap page, you can set up the SNMP Trap Configuration.
Click "Apply" to apply the setting.

Smart AP Control Not secure | https://192.168.1.100-5000 PLANET 3 1 2 After Cleavage Dimensional Items > SNMP Export SNMP SNMP Trap None Enable SNMP Options SNMP Name PLANT SNMP SNMP Color PLANT SP System Location PLANT SF Base Command USB Mobile Origin ID AutoPhoto SNMP < Auto Tools SNMP < Auto Protocol USB SNMP < Auto Protocol SNMP < Primary Protocol DES SNMP < Primary Protocol [SNMP Setting]

System Menu – Network Services

Smart AP Control 3 1 2 AP(s) Client(s) Group(s) Home > SNMP Agent SNMP SNMP Trap SNMP Trap Configuration SNMP Trap Mode Enable Trap Version SNMP v1 Trap Community PLANET Trap Destination IP Address 1 192.163.1.1 Trap Destination IP Address 2 Trap Destination Port 3200 (1 to 65535) Trap Security Level AntiPRV Trap Information Tower 3200 (1 to 65535) Trap Information Entry Times 150 (0 to 255) Trap Security Engine ID Trap Security Name Trap Path Protocol MD5 Trap Path Protocol DES Trap Privacy Protocol Trap Privacy Protocol SNMP Trap Events SNMP Trap Mode Warm Start Cold Start Link Up Link Down Interface

[SNMP Trap Configuration]

System Menu – Network Services

DDNS DHCP SMTP SNMP RADIUS

[System Menu - RADIUS]

Network Services: On this page, you can set up DDNS, DHCP, SMTP, SNMP, and RADIUS of the system.
RADIUS: On the RADIUS page, choose "Enable" to use RADIUS service. On RADIUS Client page and RADIUS User Account page, you can see the detailed information of them.
Click "Apply" to apply the setting.

Smart AP Control Not secure | https://192.168.1.100.8888 PLANET 3 1 2 AP(s) Client(s) Group(s) Name > Radius Service Radius Server Radius Client Radius User Account RADIUS Server Base Enable Sensor Port 1812 ※ Under normal usage is 1812 port

[RADIUS Setting]

System Menu – Network Services

Planet NMS-500 - System Menu – Network Services - 1

PLANET

Networking & Communication

Add User Service Add User Add User Account Add User Account Add User Account Add User Account Add User Account Add User Account Add User Account Add User Account Add User Account Add User Account Add User Account Add User Account Add User Account Add User Account Add User Account Add User Account Add User Account Add User Account Add User Account Add User Account Add User Account Add User Account Add User Account Add User Account Add User Account Add User Accounts

[System Menu – RADIUS Client]

Home > Radius Service > Client Configuration RADIUS Client Information Name: PLANET Client ID Address: 182 HD 1.293 Named Second Page: C314478 Description: PLANET RADIUS Client Apply Back Reset

[RADIUS Client Setting]

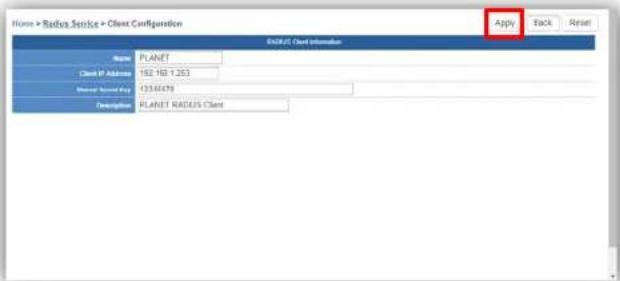

Add Radius Client Configuration: On this page, you can set up Name, Client IP, Shared Secret Key, and Description of the system.
Click "Apply" to apply the setting.
AP RADIUS Setup: You should go to AP's Web UI to RADIUS page to set up Radius Server IP, Password and Server Port (1812), and enable the function.

System Menu – Network Services

Home > Radius Service Radius Server Radius Client Radius User Account ■ Null Name Client IP Address Secret Key Description Action □ 1 PLANET 192.168.1.253 12345678 PLANET RADIUS Client Total Clients: 1

[RADIUS Client Setting Finished]

System Menu – Network Services

Access - Facebook Server File Edit View Insert Tools Help Share Edit View Insert Tools Help Share Edit View Insert Tools Help Share Edit View Insert Tools Help Share Edit View Insert Tools Help Share Edit View Insert Tools Help Share Edit View Insert Tools Help Share Edit View Insert Tools Help Share Edit View Insert Tools Help Share Edit View Insert Tools Help Share Edit View Insert Tools Help Share Edit View Insert Tools Help Share Edit View Insert Tools Help Share Edit View Insert Tools Help Share Edit View Insert Tools Help Share Edit Review Share Edit Review Share Edit Review Share Edit Review Share Edit Review Share Edit Review Share Edit Review Share Edit Review Share Edit Review Share Edit Review Share Edit Review Share Edit Review Share Edit Review Share Edit Review Share Edit Review Share Edit Review Share Edit Review Share Edit Review Share Edit Review Share Edit Review Share Edit Review Share Edit Review Share Edit Review Share Edit Review Share Edit Review Share Edit View

[System Menu - RADIUS]

Add RADIUS User Account: On this page, you can set up Account Name, Password, Description, and Validation Period information of the system.
Click "Apply" to apply the setting.

Users > Radius Service > User Account Configuration Apply Back Reset User Account Account Name: PLANET 16 Product: ****** Custom Transfers: ****** Description: PLANET Industrial Engineer Translation Panel: Enable Solid Field Data: Oct 2018 00:00 Registration Date: Oct 2018 00:00

[RADIUS User Account Setting]

System Menu – Network Services

Planet NMS-500 - System Menu – Network Services - 1

PLANET

Networking & Communication

Home > Radius Service Radius Server Radius Client Radius User Account ■ Name Account Descriptions Valid Date From Expectation Date Action □ 1 PLANET/IE PLANET Industrial Engineer 10 Oct 2018 00:00 31 Oct 2018 00:00 Total Accounts: 1

[RADIUS User Account Setting Finished]

[System Menu – Maintenance]

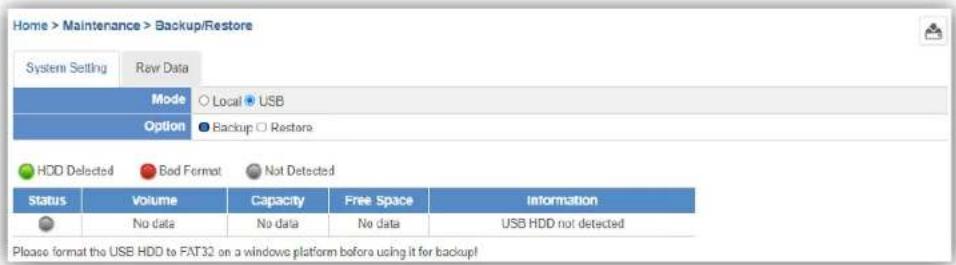

Backup/Restore: On this page, you can back up and restore the system profiles with the system file (*.tar.gz.enc).

Click "backup" to start backing up the system profiles file in HDD or USB.

Planet NMS-500 - System Menu – Network Services - 3

Use the "Choose File" button to choose the right system profiles file and click "restore" to start restoring the system.

Please use the system default file name to restore system, or it may fail.

Home > Maintenance > Backup/Restore System Setting Raw Data Mode Local USB Option Backup Restora HDD Detected Bad Format Not Detected Status Volume Capacity Free Space Information No data No data No data USB HDD not detected Please format the USB HDD to FAT32 on a windows platform before using it for backup!

[System Setting]

System Menu – Maintenance

Backup / Restore Diagnostics

[System Menu – Maintenance]

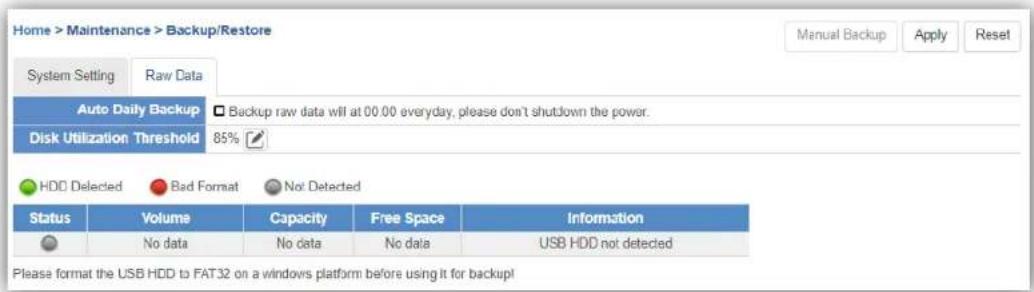

Backup/Restore: On this page, you can back up the raw data file.

Auto Daily Backup: Enable to backup raw data everyday in USB.

Disk Utilization Threshold: Hyperlink to configure the Storage Threshold page.

Manual Backup: Click button to back up raw data immediately in USB.

※ Installation of USB storage is required.

Home > Maintenance > Backup/Restore System Setting Raw Data Auto Daily Backup □ Backup raw data will at 00.00 everyday, please don't shutdown the power. Disk Utilization Threshold 85% HDD Detected Bad Format Not Detected Status Volume Capacity Free Space Information No data No data No data USB HDD not detected Please format the USB HDD to FAT32 on a windows platform before using it for backup!

[Raw Data]

System Menu – Maintenance

Backup / Restore Diagnostics Event and Log Factory Default Remote Management System Information System Setting System Upgrade

[System Menu - Maintenance]

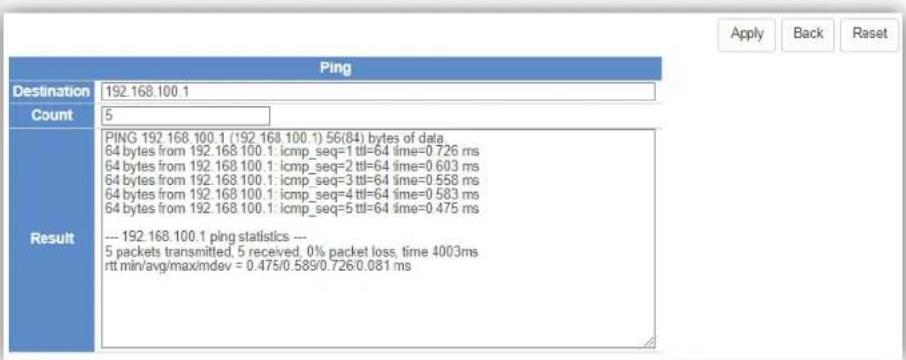

Diagnostics: On this page, you can use ping tool to ping the other devices.

Ping Destination 192 168.100.1 Count 5 Result PING 192.168.100.1 ('192.168.100.1) 56(84) bytes of data. 64 bytes from 192.168.100.1: icmp_seq=1 ttl=64 time=0.726 ms 64 bytes from 192.168.100.1: icmp_seq=2 ttl=64 time=0.603 ms 64 bytes from 192.168.100.1: icmp_seq=3 ttl=64 time=0.558 ms 64 bytes from 192.168.100.1: icmp_seq=4 ttl=64 time=0.583 ms 64 bytes from 192.168.100.1: icmp_seq=5 ttl=64 time=0.475 ms --- 192.168.100.1 ping statistics --- 5 packets transmitted, 5 received, 0% packet loss, time 4003ms rtt min/avg/max/mdev = 0.475/0.589/0.726/0.081 ms Apply Back Raset

System Menu – Maintenance

Planet NMS-500 - System Menu – Maintenance - 1

PLANET

Networking & Communication

Backup / Restore Diagnostics Event and Log Factory Default Remote Management System Information System Setting System Upgrade

[System Menu - Maintenance]

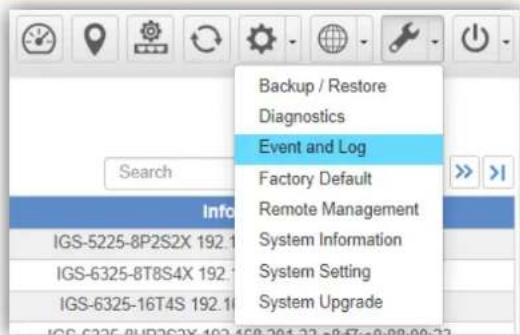

Event and Log: Click "System Setting" to adjust the Brightness of touch screen. (Only for NMS-1000V)
Search Field: To choose the information you want by entering the key word.

Search

Planet NMS-500 - System Menu – Maintenance - 3

System Event

Planet NMS-500 - System Event - 1

PLANET

Networking & Communication

Press the "Event" icon (No. 1) to see the full system event by day.
Press the “<<“& “>>” icon (No. 2) to select daily report.

Home > Maintenance > Event and Log

IDTypeTimeSourceStatusDevice TypeInformation
1System17:31:15192 168.100.5ConnectIndustrial SwitchIGS-6325-8T8S4X 192.168.201.31 a8f7:e0:61:d9.9f
2System17:31:15192 168.100.5ConnectIndustrial SwitchIGS-6325-8UP2S2X 192.168.201.33a8f7:e0:68:00:23
3System17:31:15192 168.100.5ConnectIndustrial SwitchIGS-5225-8P2S2X 192.168.203.12 a8f7:e0:74:44.91
4System17:31:15192 168.100.5ConnectIndustrial SwitchIGS-6325-16T4S 192.168.201.32 a8f7:e0:6a:6b:71
5System17:31:15192 168.100.5DisconnectIP Power ManagementEPD-150EVR-US 192.168.100.83 4c:13:65:04:eb:93
6System17:31:15192 168.100.5DisconnectSwitchM4250-9G1F-PoE 192.168.100.19494 18:65:65 a0:a0
7System17:31:15192 168.100.5DisconnectIP Power ManagementIPM-8221 192 168.100.84 00:50:56:c2:00:08
8System17:31:15192 168.100.5DisconnectIndustrial SwitchIGS-5225-4P2S 192.168.201.37 a8f7:e0:61:b6:c8
9System17:31:15192 168.100.5DisconnectIndustrial SwitchIGS-5225-4T2S(v2) 192.168.201.36 a8f7:e0:2f:10:4e
10System17:31:15192 168.100.5DisconnectIndustrial SwitchWGS-5225-8T2SV 192.168.202.41 a8f7:e0:5b:4d 8c
11System17:31:04192 168.100.5DisconnectIndustrial SwitchIGS-5225-8P2S2X 192.168.203.12 a8f7:e0:74:44.91
12System17:31:04192 168.100.5DisconnectIndustrial SwitchIGS-6325-8T8S4X 192.168.201.31 a8f7:e0:61:d9.9f
13System17:31:04192 168.100.5DisconnectIndustrial SwitchIGS-6325-16T4S 192.168.201.32 a8f7:e0:6a:6b:71

Syslog Server

Planet NMS-500 - Syslog Server - 1

PLANET

Networking & Communication

Press the "Syslog" icon (No. 1) to see the full syslog by day (Open the devices remote syslog function.).
Press the “<<“& “>>” icon (No. 2) to select daily report.
- Press the "Drop-down" menu (No. 3) to select severity and device ID.

Planet NMS-500 - Syslog Server - 2

Click button to clear all syslog in NMS immediately.

IDSeverityTimeSourceInformation
1Informational17:34:50192.168.100.1(VR-300)Nov 23 17:31:14 VR-300 : 08[NET] received packet from 10.1.16.2[500] to 10.1.22.150[500] (92 bytes)
2Informational17:34:50192.168.100.1(VR-300)Nov 23 17:31:14 VR-300 : 08[ENC] parsed INFORMATIONAL_V1 request 4196056392 [ HASH N(DPD)]
3Informational17:34:50192.168.100.1(VR-300)Nov 23 17:31:14 VR-300 : 08[ENC] generating INFORMATIONAL_V1 request 4149599448 [ HASH N(DPD_ACK)]
4Informational17:34:50192.168.100.1(VR-300)Nov 23 17:31:14 VR-300 : 08[NET] sending packet from 10.1.22.150[500] to 10.1.16.2[500] (92 bytes)
5Informational17:34:20192.168.100.1(VR-300)Nov 23 17:30:44 VR-300 : 07[NET] received packet from 10.1.16.2[500] to 10.1.22.150[500] (92 bytes)
6Informational17:34:20192.168.100.1(VR-300)Nov 23 17:30:44 VR-300 : 07[ENC] parsed INFORMATIONAL_V1 request 3082799402 [ HASH N(DPD)]
7Informational17:34:20192.168.100.1(VR-300)Nov 23 17:30:44 VR-300 : 07[ENC] generating INFORMATIONAL_V1 request 3668298006 [ HASH N(DPD_ACK)]
8Informational17:34:20192.168.100.1(VR-300)Nov 23 17:30:44 VR-300 : 07[NET] sending packet from 10.1.22.150[500] to 10.1.16.2[500] (92 bytes)
9Informational17:33:50192.168.100.1(VR-300)Nov 23 17:30:14 VR-300 : 06[NET] received packet from 10.1.16.2[500] to 10.1.22.150[500] (92 bytes)

System Menu – Maintenance

Planet NMS-500 - System Menu – Maintenance - 1

PLANET

Networking & Communication

Backup / Restore Diagnostics Event and Log Factory Default

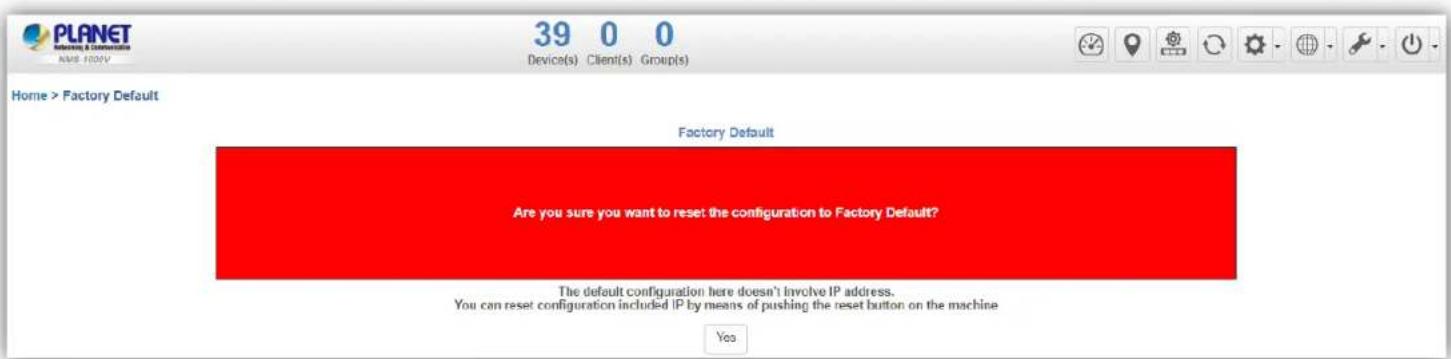

Factory Default: Click "Factory Default" to reset the system to factory default. Once clicked, the warning window will prompt you to reset system to default.

[System Menu - Maintenance]
PLANET Networking & Communication NMB FLOWV 39 0 0 Device(s) Client(s) Group(s) Home > Factory Default Factory Default Are you sure you want to reset the configuration to Factory Default? The default configuration here doesn't involve IP address. You can reset configuration included IP by means of pushing the reset button on the machine Yes

[Factory Default Warning]

System Menu – Maintenance

Planet NMS-500 - System Menu – Maintenance - 1

PLANET

Networking & Communication

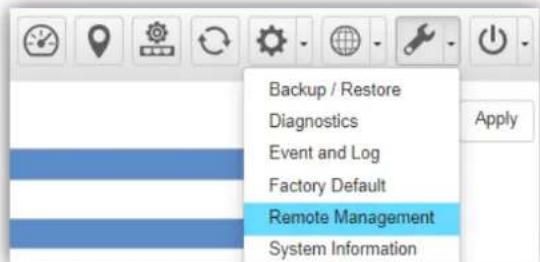

Backup / Restore Diagnostics Event and Log Factory Default Remote Management System Information

[System Menu - Maintenance]

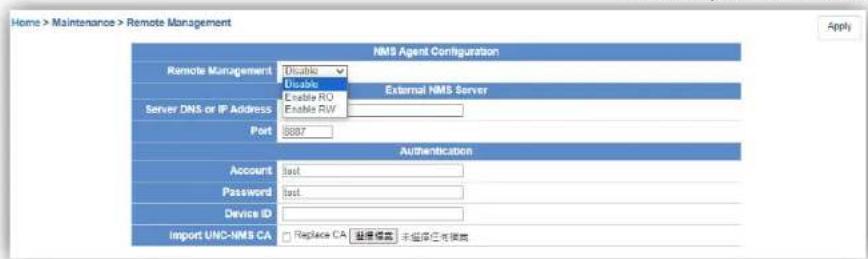

Remote Management: On this page, you can set the profile for UNC-NMS to manage the NMS-500/NMS-1000V.
Remote Management drop-down menu: To select the permissions of UNC-NMS to monitor or control NMS-500/NMS-1000V.
Server DNS or IP Address: Enter the UNC-NMS DNS or IP address.
Port: Enter the UNC-NMS control port (default is 8887).
Import UNC-NMS CA: To import the UNC-NMS CA file into NMS-500/NMS-1000V. (Account/Password/Device ID will be automatically taken out)

Home > Maintenance > Remote Management NMS Agent Configuration Remote Management Disable Disable External NMS Server Server DNS or IP Address Enable RD Enable RW Port 8887 Authentication Account test Password test Device ID Import UNC-NMS CA Replace CA 重置隔离 未连接任何隔离 Apply

[Remote Management]

System Menu – Maintenance

Backup / Restore Diagnostics Event and Log Factory Default Remote Management System Information System Setting System Upgrade

[System Menu – Maintenance]

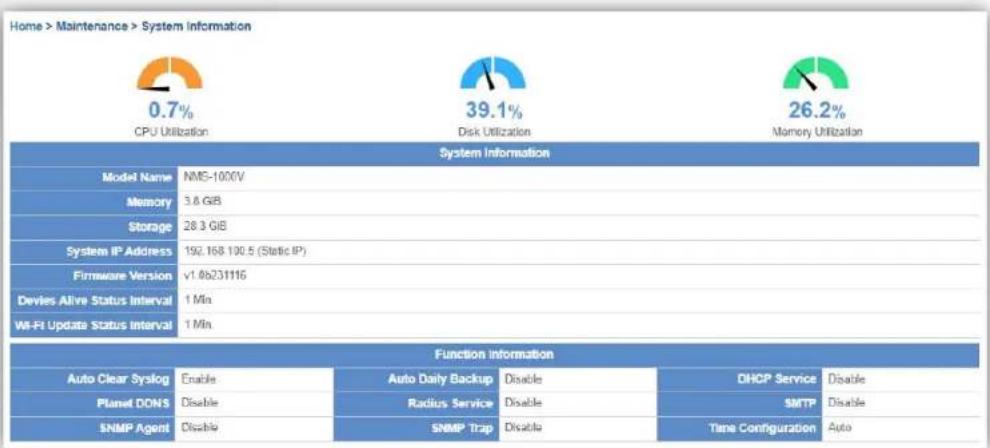

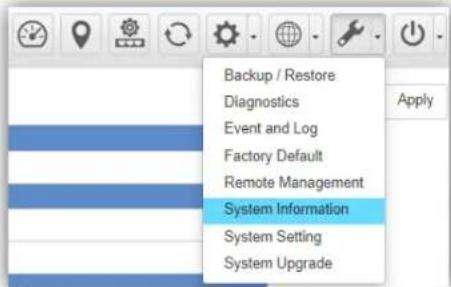

System Information: On this page, you can overview the NMS system information, just like the CPU/Disk/Memory Utilization, FW version, etc.

Planet NMS-500 - System Menu – Maintenance - 2

other Home > Maintenance > System Information | Category | CPU Utilization (%) | Disk Utilization (%) | Memory Utilization (%) | | :--- | :--- | :--- | :--- | | Model Name | NMS-1000V | | | | Memory | 3.8 GIB | | | | Storage | 28.3 GIB | | | | System IP Address | 192.168 100.5 (Static IP) | | | | Firmware Version | v1.0b231116 | | | | Devies Alive Status Interval | 1 Min | | | | Wi-Fi Update Status Interval | 1 Min | | | Function Information | Category | Auto Clear Syslog Enable | Auto Daily Backup Disable | DHCP Service Disable | Planet DONS Disable | Radius Service Disable | SMTP Disable | SNMP Agent Disable | SNMP Trap Disable | Time Configuration Auto | This table also includes a percentage value above the chart.

System Menu – Maintenance

Backup / Restore Diagnostics Event and Log Factory Default Remote Management System Information System Setting System Upgrade

[System Menu – Maintenance]

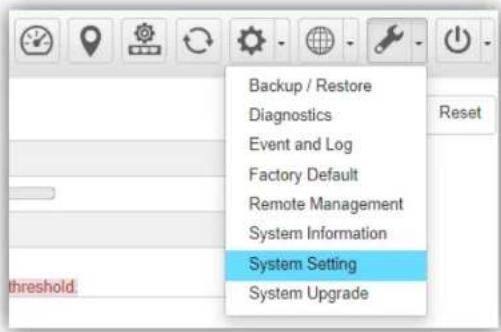

System Setting: Click "System Setting" to adjust the Brightness of touch screen. (Only for NMS-1000V)
Auto Logout Time: Set auto logout time when idle NMS Web.
Auto Clear Syslog: Default enable auto clear Syslog when disk utilization reaches 85% storage threshold.

Storage Threshold: Default enable auto clear Raw data when disk utilization reaches 85% storage threshold.

Home > Maintenance > System Setting Apply Reset Auto Logout Time Manual 5 hour Brightness Adjust 70 Auto Clear Syslog Disk Utilization 85% Storage Threshold Disk Utilization 85% ① To keep the system stable, auto cleaning of Raw Data in the disk is a must when it reaches the storage threshold.

System Menu – Maintenance

Planet NMS-500 - System Menu – Maintenance - 1

PLANET

Networking & Communication

Backup / Restore Diagnostics Event and Log Factory Default Remote Management System Information System Setting System Upgrade

[System Menu - Maintenance]

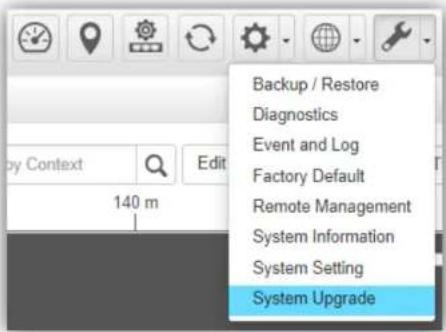

System Upgrade: On this page, you can upgrade the system to the latest version with new patch.
Click "Choose File" to designate the system patch file for upgrade. Then, click the upgrade icon at the upper-right corner to start the system upgrade.
Please regularly check PLANET official website for the system upgrade file.
*Only by remote login be used for the NMS-1000V to do firmware upgrade.

Home > Maintenance > System Upgrade Current version v1.0b231116 File name 退报档案 未選擇任何檔案

[System Upgrade]

SYSTEM MENU - EXIT

System Menu – Exit

Logout Reboot Shutdown

[System Menu - Logout]

Exit: On this page, you can log out, reboot, or shut down the system.
Logout: Click "Logout" to log out the system.
Once clicked, the login window will prompt you to re-log in the system.

PLANET Universal Network Management Solution Login via to study manage all network access (MS) 100% Username: www PLANET Password: www PLANET LIGHT

[Login Window]

System Menu – Exit

Planet NMS-500 - System Menu – Exit - 1

PLANET

Networking & Communication

Logout Reboot Shutdown Apply 8 (8:512) Fakes By Context

[System Menu - Reboot]

Logout: On this page, you can log out, reboot, or shut down the system.

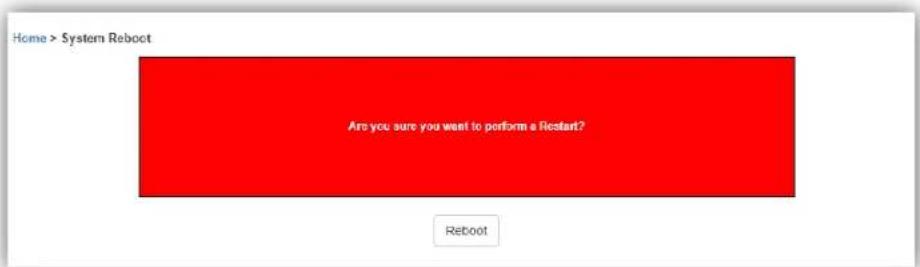

Reboot: Click "Reboot" to restart the system.
Shutdown: Click "Shutdown" to close the system and shut down the MV.
Once clicked, the warning window will prompt you to reboot or shut down the system.

Home > System Reboot Are you sure you want to perform a Restart? Reboot

[Reboot Warning]

HDMI OUTPUT

HDMI Output

Planet NMS-500 - HDMI Output - 1

PLANET

Networking & Communication

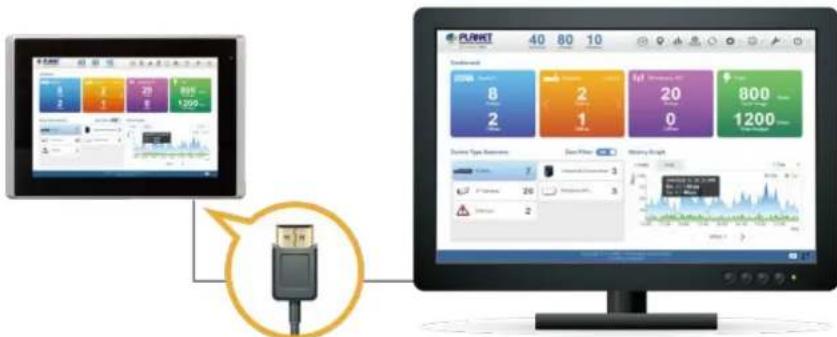

HDMI Output: NMS-1000V-12 and NMS-1000V-10 support HDMI Output function.

※ Please follow the steps below to make sure this function works correctly.

1 · Open NMS-1000 to log in page.

2 · Make sure the TV or Screen supports resolutions of 1024 x 768 for best optimization.

3 · Connect NMS-1000V and TV or Screen with HDMI cable.

Screenshot of a digital network interface showing USB port connected to a monitor displaying app metrics and charts.

Planet NMS-500 - HDMI Output - 3

PLANET

Networking & Communication

APPENDIX

Appendix – MQTT Devices Support List

Please click

Planet NMS-500 - Appendix – MQTT Devices Support List - 1

PLANET CloudViewer

Planet NMS-500 - PLANET CloudViewer - 1

PLANET

Envoicing & Communication

PLANET Website

Support list

Supported Devices

Switch / Industrial Switch / Router / AP

PhotoModelDescriptionVersionRelease DateDownload
Switch
Planet NMS-500 - PLANET CloudViewer - 2GS-4210-24T2S24-Port Layer 2 Managed Gigabit Ethernet Switch W/2 SFP Interfacesv2.305b2011302020-11-30
Planet NMS-500 - PLANET CloudViewer - 3GS-4210-16T2S16-Port Layer 2 Managed Gigabit Ethernet Switch W/2 SFP Interfacesv2.305b2009042020-09-04
Planet NMS-500 - PLANET CloudViewer - 4GS-4210-8P2S8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Switchv2.305b2009042020-09-04

Appendix – Console

Planet NMS-500 - Appendix – Console - 1

PLANET

Networking & Communication

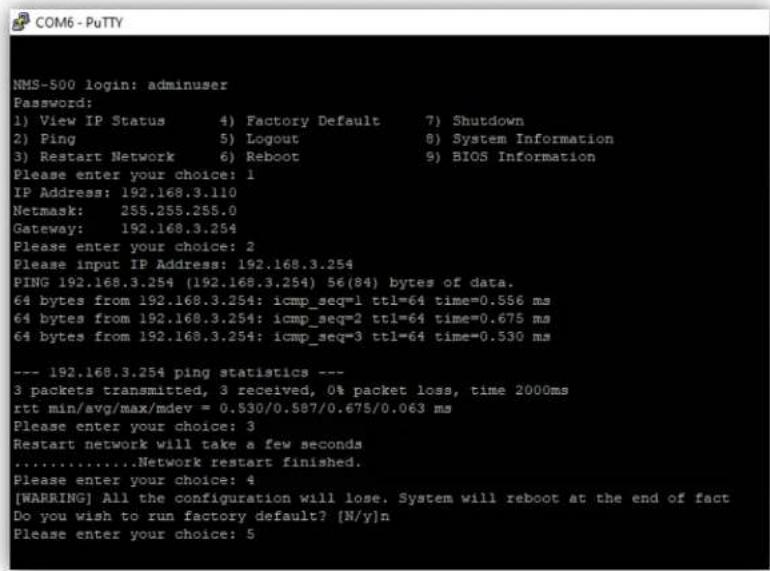

When the "UNI-NMS login" appears, please enter user login account "adminuser", and password "adminuser".

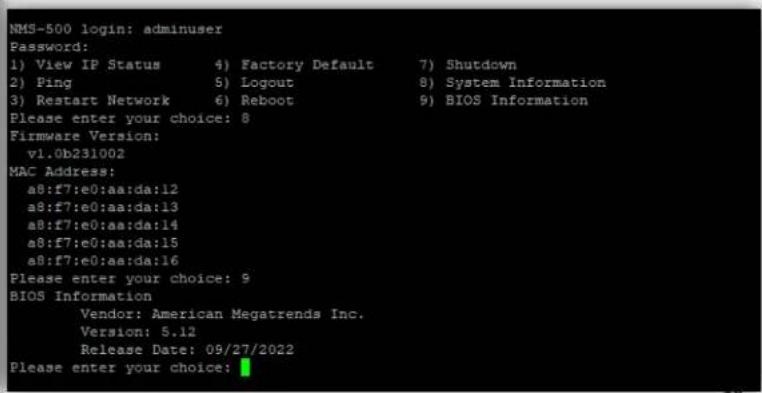

NMS-500 login: adminuser Password: 1) View IP Status 4) Factory Default 7) Shutdown 2) Ping 5) Logout 8) System Information 3) Restart Network 6) Reboot 9) BIOS Information Please enter your choice: 1 IP Address: 192.168.3.110 Netmask: 255.255.255.0 Gateway: 192.168.3.254 Please enter your choice: 2 Please input IP Address: 192.168.3.254 PING 192.168.3.254 (192.168.3.254) 56(84) bytes of data. 64 bytes from 192.168.3.254: icmp_seq=1 ttl=64 time=0.556 ms 64 bytes from 192.168.3.254: icmp_seq=2 ttl=64 time=0.675 ms 64 bytes from 192.168.3.254: icmp_seq=3 ttl=64 time=0.530 ms --- 192.168.3.254 ping statistics --- 3 packets transmitted, 3 received, 0% packet loss, time 2000ms rtt min/avg/max/mdev = 0.530/0.587/0.675/0.063 ms Please enter your choice: 3 Restart network will take a few seconds .......Network restart finished. Please enter your choice: 4 [WABRING] All the configuration will lose. System will reboot at the end of fact Do you wish to run factory default? [N/y]n Please enter your choice: 5

Serial line COM6 Speed 115200 Connection type: Raw Telnet Rlogin SSH Serial

NMS-500 login: adminuser Password: 1) View IP Status 4) Factory Default 7) Shutdown 2) Ping 5) Logout 8) System Information 3) Restart Network 6) Reboot 9) BIOS Information Please enter your choice: 8 Firmware Version: v1.0b231002 MAC Address: a8:f7:e0:aa:da:12 a8:f7:e0:aa:da:13 a8:f7:e0:aa:da:14 a8:f7:e0:aa:da:15 a8:f7:e0:aa:da:16 Please enter your choice: 9 BIOS Information Vendor: American Megatrends Inc. Version: 5.12 Release Date: 09/27/2022 Please enter your choice:

www.planet.com.tw

Planet NMS-500 - Appendix – Console - 6

PLANET

Networking & Communication

THANK YOU

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Planet

Model : NMS-500

Category : Network Management Software
