DEDW6015INFI - Dishwasher DELONGHI - Free user manual and instructions

Product Type	Built-in Dishwasher
Brand	DeLonghi
Model	DEDW6015INFI
Width	60 cm
Height	82 - 87 cm (adjustable)
Depth	55 cm
Energy Efficiency Class	A+
Capacity	13 place settings
Noise Level	47 dB(A)
Number of Programs	5 (including Eco, Intensive, Normal, Delicate, Rapid)
Drying System	Condensation Drying
Water Consumption per Cycle	12 L
Energy Consumption per Cycle	0.92 kWh
Delay Timer	Yes (1-24 hours)
Child Lock	Yes
Anti-Flood Protection	Yes
Adjustable Upper Basket	Yes
Cutlery Basket	Yes, with handle
Remaining Time Display	Yes
Salt and Rinse Aid Indicators	Yes
Power Supply	230 V / 50 Hz
Weight (Net)	45 kg

Frequently Asked Questions - DEDW6015INFI DELONGHI

What is the energy efficiency class of the DeLonghi DEDW6015INFI dishwasher?

The energy efficiency class is A+, providing efficient energy consumption.

How many place settings does this dishwasher hold?

It can accommodate up to 13 place settings, ideal for a medium-sized household.

What are the dimensions of the DEDW6015INFI?

The dishwasher has a width of 60 cm, an adjustable height from 82 to 87 cm, and a depth of 55 cm.

Does it have a delay start function?

Yes, it features a delay timer that can be set from 1 to 24 hours to suit your schedule.

What washing programs are available?

There are 5 programs: Eco, Intensive, Normal, Delicate, and Rapid, allowing you to choose the best cycle for your load.

How noisy is this dishwasher during operation?

The noise level is 47 dB(A), which is relatively quiet and suitable for open-plan living.

Is there a child lock feature?

Yes, the dishwasher is equipped with a child lock to prevent accidental operation by children.

What type of drying system does it use?

It uses condensation drying, which is energy-efficient and gentle on dishes.

Does it require specific installation?

As a built-in model, it is designed to be installed under a countertop with appropriate plumbing and electrical connections. Refer to the manual for detailed installation instructions.

How do I clean the filters?

Regularly clean the filters under running water. Remove the lower basket, turn the filter assembly counterclockwise, and rinse. For detailed steps, see the maintenance section of the manual.

USER MANUAL DEDW6015INFI DELONGHI

Elba Appliances Australia

Suite 1, 1107 Botany Road

Mascot NSW 2020

Phone [phone]

www.delonghicooklingappliances.com.au

Head Office

Fisher & Paykel Appliances Italy S.p.A.

Via Fabbian Matteo, 7

31030 Borso del Grappa (TV) ITALY

Model

DEDW601SINF

is a registered Trademark

of De'Longhi Australia Pty Ltd.

ABN 49 104 012 857

© 2020 DeLonghi Australia Pty Ltd.

USER GUIDE

Please read this user guide carefully and retain for future reference.

Contents

Warranty Information

Parts and Features 03

De'Longhi Safety Precautions....04

Dishwasher Safety Precautions 05

Installation Safety Precautions 07

Installation 08

- Cabinet Preparation

- Aesthetic Fascia Panel Dimensions

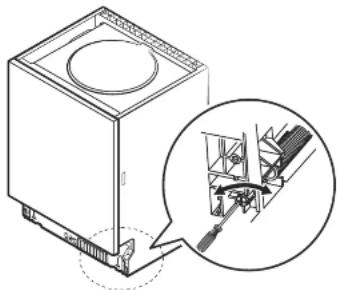

- Tension Adjustment of the Door

- Positioning the Appliance

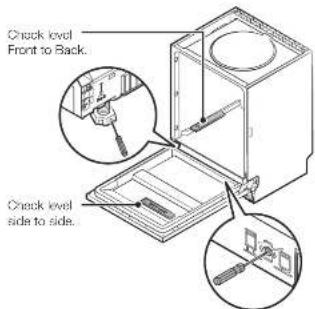

- Levelling

- Securing the Dishwasher

- Drain Hose Connection

- Cold Water Connection

- About the Safety Inlet Hose with Aqua Stop

- How to disconnect the Safety Inlet Hose with Aqua Stop

Using your Dishwasher 13

- Quick start guide

- Before Starting the Dishwasher

- Prior to using for the first time

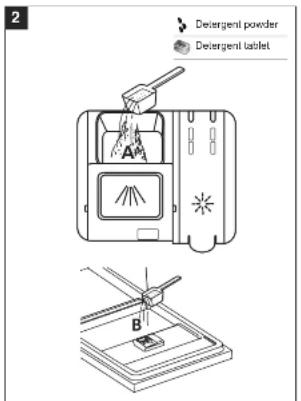

- Rinse aid & detergent

- Loading the Dishwasher Baskets

- Starting a Washing Program

- Control Panel

- Turning on the Appliance

- Change the Program

- Forget to add a Dish?

- At the end of the Wash Cycle

Care and Cleaning. 25

- Filtering System

- Filter Assembly

- Cleaning the Filter

- Caring for the Dishwasher

- Protect against Freezing

- Cleaning the Spray Arms

- How to keep your Dishwasher in shape

Troubleshooting 28

Error Codes 29

Help us Help You.... 30

Warranty Information....31

The De'Longhi Dishwasher is warranted against faults

resulting from manufacturing or material defects. The

warranty period for normal domestic installation and use is two years from the date of purchase. In non-domestic use

De'Longhi limits the voluntary warranty to 6 months.

De'Longhi undertakes to repair or replace the Dishwasher

at our discretion if the product is found to be defective due

to a manufacturing fault during the warranty period.

This warranty excludes any damage caused by misuse,

neglect, shipping accident, or incorrect installation. Normal wear and tear is also not covered. The

warranty claim is void if no fault is found with the product

or if work is carried out by anyone other than an authorised

De'Longhi Service Agent.

In Australia, this warranty is additional to the conditions

and guarantees which are mandatory as implied under the

Trade Practices Act 1974 and State and Territory legislation

origination

How to contact us about a warranty claim

Talk to a De'Longhi representative for further warranty

or product information, please call the number in your

country.

Australia

www.delonghicookingappliances.com.au

Phone: [phone]

NOTE: Warranty is determined by unit serial number and date of purchase.

Help us Help You

Parts and Features

Read this guide carefully; it is intended to help you operate and maintain your new Dishwasher properly.

Keep it handy to answer your questions. If you don't understand something or you need more assistance, please call the De'Longhi Helpline.

To help us provide prompt answers to your queries, please record your Dishwasher model and serial numbers. You'll find them on a plate located on the rear outside wall of the Dishwasher.

Dishwasher details

Date of Purchase

Model Number

Serial Number

Before you call for service

Check the Troubleshooting Section on page 28. It lists causes of minor operating problems that you can correct yourself.

STAPLE OR AFFIX PURCHASE RECEIPT HERE

Components:

1. Top Spray Arm 8. Cup Shelf
2. Cutlery Rack 9. Upper Innowash Spray Arm
3. Upper Basket 10. Lower Spray Arm
4. Inner Pipe 11. Filter Assembly
5. Lower Basket 12. Safety Inlet Hose with Aqua Stop
6. Dispenser 13. Drain Pipe
7. Touch Control Panel 14. Adjuster

360° Water Spray System

The breakthrough innovative spray arm uses two separate rotating axes to maximise water spray to all corners of the dishwasher, ensuring every item receives an exceptional clean.

Dimensions:

Height (H): 815 mm

Width (W): 598 mm

Depth (D1): 550 mm (with the door closed)

Depth (D2): 1150 mm (with the door opened 90°)

Voltage connected load: see rating label

Water pressure: 0.04-1.0 MPa

Power supply: see rating label

Capacity: 15 place settings

De'Longhi's Safety Precautions

Troubleshooting

De'Longhi prides itself on its innovative range of the highest quality consumer products.

De'Longhi ensures all of its products are 100% safe through quality design and manufacture. All products meet or exceed stringent laboratory-tested safety requirements.

It is necessary for anyone using an electrical appliance to be safety conscious. The following precautions are essential for the safe use of an electrical appliance. Carefully read all of the instructions provided with your appliance:

• Always turn the power off at the power outlet before you insert or remove a plug. Remove by grasping the plug, do not pull on the cord. • Always use your appliance from a power outlet of the voltage (A.C. only) marked on the appliance.
• Do not use an appliance for any purpose other than its intended use.
• Do not attempt to repair an electrical appliance. Return a damaged or malfunctioning appliance to a qualified service centre for adjustment or repair if required.
• The appliance must be positioned so the AC plug is accessible.

• The appliance is designed exclusively for household use. All other uses are strictly forbidden. - The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. - If the power cable is damaged, it must be replaced by the manufacturer, an authorised service centre or a qualified electrician in order to eliminate all risk. - The appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments. - farm houses - by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

Unsatisfactory washing result	Problem Possible Causes Solution
	The dishes are not clean	The dishes were not locked apparently.	See notes in * Loading the Dishwasher Baskets *.
		The program was not powerful enough.	Select a more intensive program.See 'Wash Cycle Tape'.
		Not enough detergent was dispensed.	Use more detergent, or change your detergent.
		Items are blocking the oath of spray arms.	Rearrange the items so that the spray can rotate freely.
		The filter combination in the base of wash cabinet is not clean or is not correctly filled.This may cause the spray arm jobs to go blocked.	Clean and/or fill the filter combination conceptly.Clean the spray arm jobs. See "Cleaning the Spray Arms".
	Cloudiness on glassware	Combination of soft water and too much detergent.	Use less detergent if you have soft water and select a shorter cycle to wash the glassware and in gel from clean.
	Black or gray marks on dishes	Aluminum utensils have rubbed against dishes.	Use a mild orange cleaner to eliminate those marks.
	Detergent left in dispenser cup	Dishes blocking detergent cup.	Robard the dishes properly.
Unsatisfactory drying results	The dishes are not drying	Improper loading.	Load the dishwasher as suggested in the directions.
		Too little rinse-ad	Increases the amount of rinse-ad refill the rinse-ack dispenser.
		Dishes are removed too soon	Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can escape. Begin unloading the dishwasher only once the dishes are barely warm to the much. Empty the raw basket lift. This prevents water from dropping off dishes in the upper basket.
		Wrong program has been selected	In a short program the washing temperature is lower.This also owns cleaning performance. Choose a program with a long washing lima.
		Use of cutlery with a low-quality cooling	Water drainage is more difficult with these items.Cutlery or dishes of this eye are not suitable for washing in the dishwasher.

ERROR CODES

When some malfunctions occur, the appliance will display error codes to warn you:

Codes Meanings Possible Causes

E1 Longer inlet time. Faucets is not opened, or water intake is restricted, or water pressure is too low.
E3 Not reaching temperature.		Malfunction of the heating element.
F4 Overflow.		Some element of dishwasher leaks.
E8 Failure of orientation of distributary valve.		Open circuit or break of distributary valve.
FD	Communication failure between main PCB & display PCB	Open circuit or break wiring for the communication.
EC	Washing control system fail PCB or motor fail

WARNING!

- If overflow occurs, turn off the main water supply before calling service.

- If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

Troubleshooting

Dishwasher Safety Precautions

Before Calling for Service, review the following troubleshooting tips.

Technical problems	Problem Possible Causes Solution
	Dishwasher doesn't start	Fuse blown, or the circuit breaker tripped	Heptose fuse or reset circuit breaker. Remove any other acoliances sharing the same circuit with the dishwasher
		Power supply is not turned on	Make sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly plugged into the wall socket.
		Error code:F1.Water pressure is low	Check that the water supply is connected properly and the water is turned on.
		Door of dishwasher not properly closed.	Make sure to close the door properly and latch it.
	Water not pumped from dishwasher	Kink in drain hose	Check drain hose.
		Filter clogged	Check and empty the filter.(see section liked " Craming The Filler")
		Kitchen sink clogged	Check the kitchen sink to make sure it is draining well.If the problem is the kitchen sink not draining, you may need a plumber rather than a sensiform for dishwashers.
General problems	Suds in the tub	Improper detergent	Use only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suos evaporates. Add 3.75 litres of cold water to the bottom tub of the dishwasher. Close and latch the dishwasher, then select any cycle. Dishwasher will drain out the water at the first step. Open the door after the draining has stopped and check suds have disappeared. Repeat if necessary.
		Spilled rinse-aid	Always wipe up rinse-aid spills immediately.
	Stained tub inferior	Detergent with colourant was used	Make sure that the detergent is the one without colourant.
	White film on inside surface	Hard water minerals	To clean the interior, use a clamp sponge with dishwasher detergent and wear rubber gloves.Never use any other cleaner than dishwasher detergent, it may cause foaming or suds.
	There are rust stains on cutlery	The affected items are not corrosion resistant.	Items should be corrosion resistant.
Noise	Knocking noise in the dishwasher	A spray arm is knocking against an item in a basket	Interrupt the program, and rearrange the items which are obstructing the spray arm.
	Rattling noise in the dishwasher	Items of crookery are loose in the dishwasher	Interrupt the program, and rearrange the items of crookery.
	Knocking noise in the water pipes	This may be caused by on-site installation or the cross-section of the piping.	This has no influence on the dishwasher function.It in doubt, contact a suitably qualified plumber.

IMPORTANT SAFETY INSTRUCTIONS - READ ALL INSTRUCTIONS BEFORE USING, AND SAVE FOR FUTURE REFERENCE.

Your safety and the safety of others is very important. Safety messages are displayed in this manual and on your appliance.

Read and obey these safety messages as they will alert you to potential hazards and tell you how to reduce the chance of injury.

Safety Alert Symbol

This symbol alerts you to potential hazards.

DANGER

WARNING

CAUTION

Danger

Danger indicates a high level of risk to yourself and others. Ensure that care is taken to avoid severe injury or even death.

Warning

Warning indicates a moderate level of risk to yourself, others and the product. Ensure that care is taken to avoid extensive product damage or serious injury.

Caution

Caution indicates a level of risk to yourself, others and the product. Ensure care is taken to avoid moderate product damage or injuries.

Dishwasher Safety Precautions

Care and Cleaning

Before the appliance is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the appliance, follow basic precaution, including the following:

! DANGER !

Grounding Instructions

• This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of an electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.
• Improper connection of the equipment-grounding conductor can result in the risk of an electric shock.
• Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance; if it does not fit the outlet, have a proper outlet installed by a qualified electrician.

WARNING

• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• Do not touch the heating element during or immediately after use. (This instruction is only applicable to machines with a visible heating element.)
• Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, as there is a risk of water squirting out.
• Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.
• When loading items to be washed:
• Locate sharp items so that they are not likely to damage the door seal.
• Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

- Check that the detergent compartment is empty after completion of the wash cycle.

WARNING

• When using your dishwasher, you should prevent plastic items from coming into contact with the heating element (This instruction is only applicable to machines with a visual heating element).
• Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.
• Use only detergent and rinse additives designed for an automatic dishwasher.
• Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of the reach of children.
• Keep children away from detergent and rinse aid, keep children away from the open door of the dishwasher, there could still be some detergent left inside.
• This appliance is not intended for use by persons including children with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.
• The door should not be left open, since this could increase the risk of tripping.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard
• Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.
• Please dispose of packing materials properly. • Use the dishwasher only for its intended function.
• During installation, the power supply must not be excessively or dangerously bent or flattened.
• Do not tamper with controls.
• The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused.
• The maximum number of place settings to be washed is 15.
• The maximum permissible inlet water pressure is 1Mpa. • The minimum permissible inlet water pressure is 0.04Mpa.

How to keep your Dishwasher in shape

• After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.
• Before cleaning or performing maintenance, always remove the electrical plug from the socket.
• To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. • To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little vinegar, or a cleaning product made specifically for dishwashers.

When not in Use for a long time

It is recommended that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.

Moving the Appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

Care and Cleaning

Installation Safety Precautions

Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth. After cleaning, make sure to dry it thoroughly.

For the exterior, use a good appliance polish wax. Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Cleaning the Door

To clean the edge around the door, you should use only a soft warm, damp cloth.

To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

WARNING!

• Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
• Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

Protect against Freezing

Please take frost protection measures on the dishwasher in winter. After washing cycles, please operate as follows:

1. Turn off the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve (Use a pan to catch the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

NOTE: If your dishwasher cannot work because of the ice, please contact an authorised service person.

Cleaning the Spray Arms

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.

To remove the upper Innowash spray arm, hold the nut and rotate the spray arm clockwise to remove it.

To remove the lower spray arm, pull out the spray arm upward.

Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

Electrical Connection

• This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three prong wall outlets to minimise the possibility of electrical shock.
• DO NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE EARTHING CONNECTION FROM THE POWER CORD SUPPLIED. FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED.
• Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.
• Ensure the voltage and frequency of the power being used corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptor or the like as they could cause overheating and burns.
• The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury.
• The appliance should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating label on the appliance. This provides the best performance and also prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the receplacle. Repair or ruplex immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that snows cracks or abrasion damage along its length or at either end. When moving the appliances, be careful not to damage the power cord.

Extension Cord

- WARNING: DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.

Grounding Instructions

- This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local standards and requirements.

WARNING

• Improper connection of the equipment earthing conductor can result in the risk of an electric shock.
• Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly earthed.
• Do not modify the plug provided with the appliance. If the plug does not fit properly to the outlet, please have a qualified electrician install a proper outlet.

Installation

Care and Cleaning

Cabinet Preparation

• Choose a place near the sink to facilitate the installation of inlet and drain hoses.
• Cabinet dimensions less than 5mm between the top of dishwasher and cabinet and the outer door aligned to cabinet.

- Minimum space between the door and adjacent cabinet when the door is opened is 50mm.

Aesthetic Fascia Panel Dimensions and installation

- The aesthetic fascia panel should be processed according to the diagram below.

Front View

Side View

Filtering System

The filter prevents larger remnants of food or other objects from getting inside the pump.

The residue may block the filter; in this case, it must be removed.

The filter system consists of a coarse filter, a flat (main filter), and a microfilter (fine filter).

① MAIN FILTER: Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down the drain. ② COARSE FILTER: Larger items, such as pieces of bones or glass, that could clog the drain are trapped in the coarse filter. To remove an item caught in this filter, gently squeeze the tabs on the top of this filter and lift it out. ③ FINE FILTER: This filter holds soil and food residues in the sump area and prevents it from being redeposited on the dishes during a cycle.

Filter Assembly

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water.

To remove the filter device, pull the cup handle in the upward direction.

WARNING!

• The dishwasher must never be used without the filters.
• Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

STEP 1: Turn the filter in an anti-clockwise direction.

STEP 2: Lift the filter assembly up.

NOTES:

• When following this procedure from step 1 to step 2, the filter system will be removed; when following it from Step 2 to Step 1, the filter system will be installed.
• Inspect the filters for blocking after every time the dishwasher has been used.
• By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water.
• The entire filler assembly should be cleaned once a week.

Cleaning the Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures above and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.

WARNING!

- When cleaning the filters, do not knock on them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased.

Using Your Dishwasher

Installation

TURNING ON THE APPLIANCE

Starting a wash cycle:

1. Draw out the lower and upper basket, load the dishes and push them back. It is recommended to load the lower basket first, then the upper one (see the section entitled "Loading the Dishwasher").
2. Add the detergent or tablet
3. Insert the plug into the socket. The power supply is 220-240 VAC / 50 Hz, the specification of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
4. Open the door, press the power button.
5. Press the program button '<' or '>' to select your desired program, when the program is selected, the corresponding icon will light up. Then close the door, the program will begin its cycle.

CHANGE THE PROGRAM

A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "Adding Detergent").

1. Open the door a little to stop the dishwasher, after the spray arm stops working, you can open the door completely.
2. Press Program button for more than three seconds, the appliance will be in stand by mode.
3. You can change the program to the desired cycle setting.

FORGET TO ADD A DISH?

A forgotten dish can be added at any time before the detergent dispenser opens.

1. Open the door a little to stop the washing.
2. After the spray arms stop working, you can open the door completely.
3. Load the forgotten dishes.
4. Close the door.
5. The dishwasher will start running again after 10 seconds.

WARNING! It is dangerous to open the door when washing, because the hot water may scald you.

AT THE END OF THE WASH CYCLE

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the Power switch button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

Switch off the Dishwasher

The program light is on but is not blinking, only in this case the program has ended. 1. Switch off the dishwasher by pressing Power button. 2. Turn off the water tap!

Open the door carefully

Hot dishes are sensitive to knocks. The dishes should be allowed to cool down around 15 minutes before removing from the appliance.

Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. Dishes will be cooler and the drying will be improved.

Unloading the Dishwasher

It is normal that the dishwasher is wet inside.

Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.

WARNING! Items will be hot! To prevent damage, do not take glass and cutlery out of the dishwasher for around 15 minutes after the program has ended.

- Install the hook on the aesthetic fascia panel and put the hook into the slot of the outer door of dishwasher (see below).

- After positioning of the panel, fix the panel onto the outer door by screws and bolts (See following diagrams).

Fit the four long screws

Tension adjustment of the door

• The door springs are set at the factory to the proper tension for the outer door. If an aesthetic fascia panel is installed, you will have to adjust the door spring tension. Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable (see below).
• Door spring tension is correct when the door remains horizontal in the fully opened position, yet rises to a close with the slight lift of a finger.

Installation

Using Your Dishwasher

Positioning the Appliance

- Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

WARNING! Where the dishwasher has ventilation openings in the base, these openings must not be obstructed by a carpet.

Levelling

- Dishwasher must be level for proper dish rack operation and wash performance.

• Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level.
• Level the dishwasher by adjusting the three levelling legs individually.
• When level the dishwasher, please pay attention not to let the dishwasher tip over. NOTE: The maximum adjustment height of the feet is 50 mm.

- Fit the condensation strip under the work surface of the cabinet. Ensure that the strip is flush with the edge of the work surface.

Securing the Dishwasher

The dishwasher must be secured in place using either of the following methods:

• Normal work surface - Put the installation hook into the slot of the side panel and secure it to the work surface with the wood screws (A).
• Marble or granite work top - Fix through the side with the screws (B).

CONTROL PANEL

① Power button: To turn on/off the appliance. ② Program: Press the '<' or '>' button to select a program and the corresponding indicator will be lit. ③ Delay -/+ : Press the '+' button to add the delay time or press the '-' button to decrease the delay time. Maximum delay time is 24 hours. ④ Function: Press the button to select a function, corresponding indicator will be lit. ⑤ Alt button: Press the button to select either upper basket or lower basket loaded and the response indicator will be lit. ⑥ Program Indicator: Auto: For lightly, normally or heavily soiled crockery with or without dried-on food. Hygiene: With the Sanitize option selected, the water temperature is increased to 70 °C for high temperature sanitization. Heavy: For normally soiled loads, such as pots, plates, glasses and lightly soiled pans. ECO: This is the standard program, it is suitable to clean normally soiled tableware and it is the most efficient program. Glass: For lightly soiled crockery and glass. 90min: For normally soiled loads that need quick wash. Party: For lightly soiled loads, such as glasses, crystal and fine china. Self-Cleaning: The program provides an effective cleaning of the dishwasher itself.

⑦ Warning Indicator: Rinse Aid - If the indicator is lit, it means the dishwasher is low on rinse aid and requires a refill. Water Faucet - If the indicator is lit, it means the water faucet is closed. ⑧ Screen: Displays remaining time, delay time, error codes, etc. ⑨ Function Indicator: Extra Cleaning - Hotter rinse cycle and an additional cold rinse to wash very dirty, hard to clean dishes. (It can only be used with Hygiene, Normal, ECO, Glass, 60min) Extra Drying - Hotter rinse cycle to dry dishes more thoroughly. (It can only be used with Hygiene, Normal, ECO, Glass, 90min) Express - Hotter wash cycle and reduced washing and drying time to reduce the overall program time by 20min. (It can only be used with Hygiene, Normal, ECO, Glass, 90min). Energy Save - Shorter and cooler washing cycle to save on energy consumption. (It can only be used with Normal, ECO, Glass, 90min). ⑩ Alt Indicator: Upper - When you select Upper, only the upper rack nozzle is activated. The lower nozzle will not operate. Lower - When you select Lower, only the lower rack nozzle is activated. The upper nozzle will not operate.

Using Your Dishwasher

Installation

STARTING A WASHING PROGRAM

Wash Cycle Table

NOTE: Star ★ means the need to fill rinse aid into the Rinse Aid Dispenser.

Program	Cycle Selection Information	Description of Cycle	Detergent pre/main	Running time(min)	Energy (Kwh)	Water (L)	Rinse Aid
Auto	Auto sensing wash, lightly or heavily soiled crockery, with or with out dried-on food.	Pre-wash(45°C)Allowash (45-55°C) Rinse Rinse (65°C) Drying	5/28.75g 1/2 piece	150	0.9-1.3	11~15	★
Hygiene	With the Sanilise option selected, the water temperature is increased to 70°C for high temperature sanitisation.	Wash (70°C) Rinse Rinse Rinse(70°C) Drying	33.75g/1 piece	175	1.5	13.5	★
Heavy	For heavily soiled loads, such as pots, plates, glasses and lightly soiled pans.	Pre-wash(45°C) Wash (50°C) Rinse Rinse (65°C) Drying	5/28.75g 1/2 piece	185	1.1	13.5	★
ECO	For normally soiled loads, such as pots, plates, glasses and lightly soiled pans. Standard daily cycle.	Pre-wash Wash (45°C) Rinse(45°C) Drying	5/28.75g 1/2 piece	195	0.841	11.8	★
Glass	For lightly soiled crockery and glass.	Pre-wash Wash (40°C) Rinse Rinse(60°C) Drying	5/28.75g 1/2 piece	130	0.75	13	★
90 mins	For lightly soiled plates & pans that need a quick wash.	Wash(65°C) Rinse Rinse (65°C) Drying	33.75g/1 piece	90 12.61.15			★
Party	For lightly soiled loads, such as glasses, crystal and line Chine.	Wash (45°C) Rinse (45°C)		20	0.34	7.5
Self Clean	This program provides an effective cleaning of the dishwasher itself.	Wash (70°C) Rinse Rinse(70°C)	30g/1 piece	90	1.2	11	★

NOTE: If you notice any detergent residue on your dishes after the wash cycle is complete, reduce the amount of detergent for the next wash.

NOTE:

* AS/NZS 2007.1: This program is the test cycle.

The information for comparability test in accordance with AS/NZS 2007.1, as follows:

• Capacity: 15 setting - Position Upper basket: Lower Position - Program: ECO • Detergent (Pre/Main): 5g / 28.75g - Rinse aid setting: 6 - Open the door slightly 100mm to assist in drying of the dishes after every wash

Drain Hose Connection

- Insert the drain hose into a drain pipe with a minimum diameter of 40mm (B), or let it run into the sink (A), making sure to avoid bending or crimping it. The top of the hose must be at a height less than 1000mm. The free end of the hose must not be immersed in water to avoid back flow.

Syphon Connection

- Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm.

How to Drain Excess Water from Hoses

- If the sink is more than 1000mm higher than the floor, the excess water in the hose cannot be drained directly into the sink. It will be necessary to drain excess water from the hose into a bowl or suitable container that is hot outside and lower than the sink.

Water Outlet

- Connect the water drain hose. The drain hose must be correctly filled to avoid water leaks. Ensure that, the water drain hose is not kinked or squashed.

Extension Hose

• If you need a drain hose extension, make sure to use a similar drain hose.
• It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

Installation

Using Your Dishwasher

Cold Water Connection

How to Connect the Safety Inlet Hose with Aqua Stop. The appliance must be connected to the water mains using new hose-sets. The old hose-sets should not be reused. Water pressure must be between 0.04 MPa and 1 MPa. If the pressure is below the minimum, consult our Service Department for advice. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet getting blocked and damaging the appliance. 1. Pull the Safety Inlet Hose with Aqua Stop completely out from the storage compartment located at the rear of the dishwasher. 2. Connect the Safety Inlet Hose with Aqua Stop to a threaded 3/4 inch connector and make sure that it is fastened tightly in place. 3. Turn water fully on before starting the dishwasher.

About the Safety Inlet Hose with Aqua Stop

The Safety Inlet Hose with Aqua Stop consists of double walls. The hose's system guarantees intervention by blocking the flow of water in case of the inlet hose breaking and when the air space between the inlet hose itself and the outer corrugated hose is full of water.

WARNING! In order to avoid water staying in the inlet hose, please close the hydrant after using.

WARNING! A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged.

How to disconnect the Safety Inlet Hose with Aqua Stop

1. Turn off the water.
2. Release the water pressure by depressing the pressure release button. This relieves water pressure and protects you, and the room, from severe splashing.
3. Unscrew the Safety Inlet Hose with Aqua Stop from the faucet.

Cutlery Basket

Cutlery should be placed in the cutlery rack separately from each other in the appropriate positions. Make sure the utensils do not nest together, this may cause bad performance.

For a top quality clean, place the silverware in the basket making sure that:

• They do not nest together. • Silverware is placed with the handle face up. • Long utensils in the middle.

1	Soup spoons
2	Forks
3	Knives
4	Teaspoons
5	Dessert spoons

Damage to glassware and other dishes

Possible Causes

• Type of glass or manufacturing process. Chemical composition of detergent. Water temperature and duration of dishwasher program.

Suggested remedy:

• Use glassware or porcelain dishes that have been marked dishwasher-proof by the manufacturer.
• Use a mild detergent that is described as kind to dishes. If necessary, seek further information from detergent manufacturers.
• Select a program with as low a temperature as possible. To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after the program has ended.

Using Your Dishwasher

Using Your Dishwasher

Loading the Lower Basket

We suggest that you place large items and the most difficult to clean items into the lower basket, such as pots, pans, lids, serving dishes, and bowls, as shown in the figure below.

It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

The maximum diameter advised for plates in front of the detergent dispenser is 19 cm, in order not to hamper the opening of it.

IN

Dessert dishes

Dinner plates

Soup plates

Folding the spikes in the Lower Basket

For better stacking of pots and pans, the spikes can be folded down as shown below.

QUICK START GUIDE

For detailed operating method read the corresponding content on the instruction manual.

Using Your Dishwasher

Using Your Dishwasher

BEFORE STARTING THE DISHWASHER

The following things should be checked before starting the dishwasher: 1. That the dishwasher is level and fixed properly. 2. That the inlet valve is open. 3. There is no leakage at the connections of the conducts. 4. The wires are tightly connected. 5. The power is switched on. 6. The inlet and drain hoses are not knotted or kinked. 7. All packing & print materials should be taken out of the dishwasher.

PRIOR TO USING FOR THE FIRST TIME

Before using your dishwasher for the first time:

Fill the Rinse Aid Dispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is approximately 110mL.

Function of the Rinse Aid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

WARNING!

Only use branded rinse aid for dishwashers. Never fill the rinse aid dispenser with any other substances (e.g., dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to refill the rinse aid dispenser

If there is no rinse-aid warning light on the control panel, you can judge the amount of rinse-aid by the colour of the optical level indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1/4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full 3/4 Full 1/2 Full - 1/4 Full (Should refill to eliminate spotting) Empty

Loading the Upper Basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty).

Position the dishes and cookware so that they do not get moved by the spray of water.

IN

Saucers

Glasses

Please be reminded that:

• Pots, serving bowls, etc. must always be placed top down.
• Deep pots should be slanted to allow water to flow out. • The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.

Adjusting the Upper Basket

The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper/lower basket. The height of the upper basket can be adjusted by lifting the handle on either side of the basket, see pictures below:

Lower position

Upper position Adjustment Handle

Folding back the cup shelves

For reduced loads or better stacking, the additional cup shelves can be folded down if not required as shown below.

Using Your Dishwasher

Using Your Dishwasher

LOADING THE DISHWASHER BASKET

Recommendation

• Consider buying utensils which are identified as dishwasher-proof.
• Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers.
• For particular items, select a program with as low a temperature as possible.
• To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended.

Suitability of use in the dishwasher

NOT SUITABLE FOR USE

• Cutlery with wooden, horn, china, or mother-of-pearl handles
• Plastic items that are not heat resistant
• Older cutlery with glued parts that are not temperature resistant
• Bonded cutlery items or dishes
• Pewter or copper items
• Crystal glass • Steel items subject to rusting
• Wooden platters
• Items made from synthetic fibres

LIMITED SUITABILITY

• Some types of glasses can become dull after a large number of washes • Silver and aluminum parts have a tendency to discolour during washing
• Glazed patterns may fade if machine washed frequently

Attention before or after loading the dishwasher baskets.

For best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and cutlery baskets may vary from your model.

Scrape off any large food particles. Soften remnants of burnt food in pans.

It is not necessary to rinse the dishes under running water. Place objects in the dishwasher in the following way:

1. Items such as cups, glasses, pots/pans, etc. are faced downwards.
2. Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3. All utensils are stacked securely and cannot tip over.
4. All utensils are placed in the way that the spray arms can rotate freely during washing.

NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the baskets.

• Load hollow items such as cups, glasses, pans etc. with the opening facing downwards so that water cannot collect in the container or a deep base.
• Dishes and items of cutlery must not lie inside one another, or cover each other. • To avoid damage to glasses, they must not touch.
• Load large items which are most difficult to clean into the lower basket.
• The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups.
• Long bladed knives stored in an upright position are a potential hazard!
• Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
• Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.
• Note: Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

How to fill the Rinse Aid Dispenser

1. Remove the rinse aid reservoir cap by lifting up the handle.
2. Pour the rinse aid into the dispenser, being careful not to overfill.
3. Close the cap once the reservoir is full.

Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills with a damp cloth. Don't forget to replace the cap before you close the dishwasher door.

ATTENTION! Clean up any rinse aid spilt during filling with an absorbent cloth to avoid excess foaming during the next wash.

1 2

3

Adjusting the rinse aid setting

To achieve better drying performance with limited rinse aid, the dishwasher is designed to allow the user to adjust the consumption.

To adjust, follow the steps below:

1. Power on the dishwasher by plugging it in:
2. Within 60 seconds after step 1, press the Start/Pause button for more than 5 seconds, and then press the Delay button to enter the set mode. The rinse aid indicator will blink.
3. Press the Start/Pause button to select the desired setting according to your usage habits. The setting will change in the following sequence: D1 -> D2 -> D3 -> D4 -> D5 -> and back to D1. The dispenser drops the most rinse aid at level D5 and the least at D1. The factory setting is D3.
4. Wait 5 seconds or press the power button to exit the set mode. The new rinse aid setting will now be set.

Selector Position	Amount of Rinse Aid (ml)
D1	1.2
D2	2.4
D3	3.6
D4	4.8
D5	6.0

Using Your Dishwasher

Using Your Dishwasher

Detergents

Detergents have chemical ingredients that are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

There are 3 sorts of detergents:

1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine

Normally now pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 g/dl. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature.

Concentrated Detergent

Based on their chemical composition, detergents can be split in two basic types:

- Conventional, alkaline detergents with caustic components

- Low alkaline concentrated detergents with natural enzymes

The use of "normal" washing programs in combination with concentrated detergents reduces pollution and is good for your dishes; these wash programs are specifically matched to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason, "normal" wash programs in which concentrated detergents are used can achieve the same results that can otherwise only be achieved using "intensive" programs.

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason, some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore, please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than conventional dishwashers. Generally, only one tablespoon of detergent is needed for a normal wash load.

More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

Adding Detergent to Dishwasher

• If the lid is closed: press/slide release button. The lid will spring open. Always add the detergent just before starting each wash cycle.
• Only use branded detergent aid for dishwasher.

Adding Detergent to Dishwasher

Add detergent or tablet into the larger cavity (A) for the main wash cycle. For better cleaning results, especially if you have very dirty items, pour a small amount of detergent onto the door (B). The additional detergent will activate during the pre-wash phase.

WARNING! Dishwasher detergent is poisonous! Take care to keep it out of reach of children.

Proper Use of Detergent

• Only use detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.
• Don't put powdered detergent into the dispenser until you're ready to wash dishes.
• Please observe the manufacturers dosing and storage recommendations as stated on the detergent packaging.
• If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

NOTE: See information about the amount of detergent for the single programs on 'Wash Cycle Table'. Please be aware, that according to the level soiling and the specific hardness of water differences are possible.

Close the Detergent compartment

If your dishes are only moderately dirty. You may be able to use less detergent. - Slide the compartment lid by sliding it to the front and then pressing down. - If you are using detergent in tablet form, read the manufacturer recommendations on the packaging in order to determine where the tablets should be placed inside the dishwasher (eg. in the cutlery basket, detergent compartment etc;) Make sure the lid on the detergent compartment is closed, even if you are using a tablet.

3
