DDW45S16 - Dishwasher DELONGHI - Free user manual and instructions
Find the device manual for free DDW45S16 DELONGHI in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Freestanding Dishwasher |
| Brand | DeLonghi |
| Model | DDW45S16 |
| Width | 45 cm |
| Height | 85 cm |
| Depth | 60 cm |
| Weight | 45 kg |
| Capacity | 16 Place Settings |
| Energy Class | A+ |
| Noise Level | 49 dB(A) |
| Power Supply | 220-240 V / 50 Hz |
| Power Consumption | 1900 W |
| Water Consumption per Cycle | 10 L |
| Programs | 6 (Intensive, Eco, Glass, Rapid 30', Normal, Soak) |
| Drying System | Condensation Drying |
| Control Type | Electronic Buttons with LED Display |
| Child Lock | Yes |
| Anti-Flood Protection | Water Stop System |
| Filter Type | Self-Cleaning Fine Filter |
| Spare Parts Available | Filters, Spray Arms, Racks, Salt Lid |
| Maintenance | Clean filters weekly, descale every 3 months |
Frequently Asked Questions - DDW45S16 DELONGHI

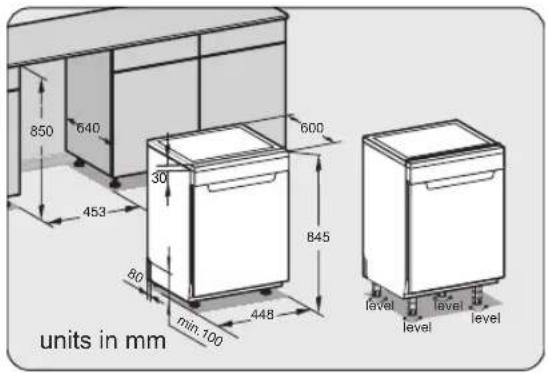

How do I install the dishwasher?

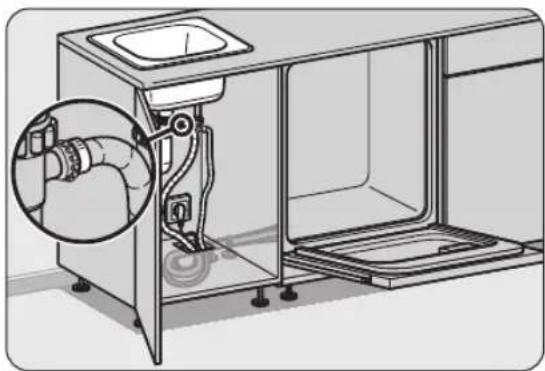

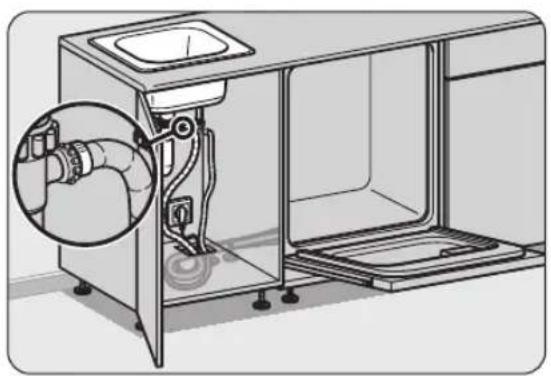

Ensure the appliance is level using the adjustable feet. Connect the water inlet hose to a cold water supply (max 60°C) and the drain hose to the siphon or sink outlet. Plug into a grounded outlet (220-240V). Refer to the manual for detailed instructions.
What should I do if the dishwasher doesn't start?
Check that the door is properly closed and latched. Ensure the power cord is plugged in and the circuit breaker is on. Verify that the water supply is open. If the problem persists, the electronic board may need inspection.
How to clean the filters?
Turn off the appliance and remove the lower rack. Unscrew the cylinder filter and fine filter. Rinse under running water using a soft brush. Reassemble and ensure they are locked in place. Do this weekly to maintain performance.
What detergent should I use?
Use a dishwasher detergent in tablet, powder, or gel form. For better results, choose a product with rinse aid and salt built-in if your water is soft. Always follow the dosage instructions on the detergent package.
Why are dishes not drying properly?
Ensure the rinse aid dispenser is filled. Select a program with a drying phase (e.g., Intensive or Eco). Avoid overloading the dishwasher. Check that the heating element is functioning and the door seal is clean.

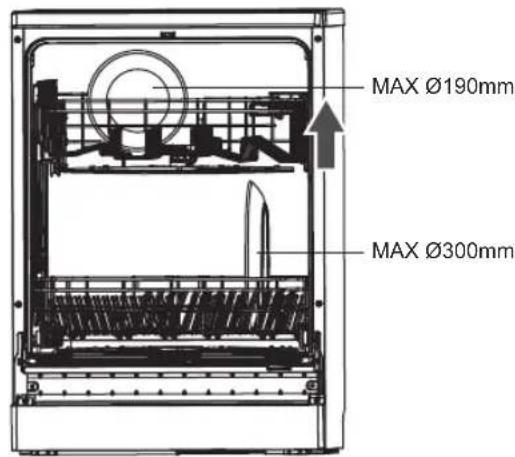

How to load the dishwasher efficiently?
Place cutlery in the basket pointing down. Load plates and bowls facing the center. Angle larger items on the lower rack and cups/glasses on the upper rack. Do not block the spray arms. Ensure small items are secured to avoid falling.
What does error code E1 mean?
Error code E1 indicates a water supply issue. Check that the water tap is fully open and the inlet hose is not kinked. Clean the inlet filter. If the error persists, the water inlet valve may be faulty.
How to use salt and rinse aid?
Open the salt reservoir cap and fill with dishwasher salt (do not use table salt). Adjust the water hardness setting according to your local water. For rinse aid, fill the dispenser to the max level. The indicator light will show when refilling is needed.
Can I wash delicate glassware?
Yes, use the Glass program which operates at a lower temperature (40°C) and gentle spray. Place glasses securely in the upper rack. Avoid overcrowding. For valuable crystal, hand washing is recommended to prevent cloudiness.
Where can I find spare parts?
Authorized DeLonghi service centers offer genuine spare parts like filters, spray arms, and door seals. You can also order online through the DeLonghi website or reputable appliance parts retailers. Always quote the model number DDW45S16.
