Product Type	Active studio monitor
Brand	RCF
Model	TT 25-SMA
Dimensions (W x H x D)	400 x 600 x 350 mm (approx.)
Weight	15 kg (approx.)
Amplifier Power	200 W (RMS)
Frequency Response	50 Hz - 20 kHz
Woofer Size	8 inches
Tweeter Size	1 inch compression driver
Inputs	XLR, TRS, RCA
Input Impedance	10 kohm balanced
Maximum SPL	110 dB
Crossover Frequency	2 kHz
Enclosure Type	Bass-reflex (ported)
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	250 W max
Standby Power	<0.5 W
Finish	Black vinyl wrap
Included Accessories	Power cord, user manual
Warranty	2 years
Recommended Use	Studio monitoring, nearfield

Frequently Asked Questions - TT 25-SMA RCF

How do I connect my TT 25-SMA to an audio interface?

Use a balanced XLR or TRS cable from the interface output to the monitor input. Ensure the monitor is powered off during connection.

What is the optimal placement for the TT 25-SMA?

Place the monitors at ear level, forming an equilateral triangle with your listening position. Keep them away from walls to avoid bass buildup.

Can I use the TT 25-SMA as a PA speaker?

It is designed for studio monitoring, not live PA. It may not provide sufficient output or coverage for larger spaces.

How do I clean the TT 25-SMA?

Unplug the monitor. Use a soft, dry cloth to wipe the exterior. Do not use water, solvents, or abrasive cleaners.

Why is there a humming noise from the monitor?

Hum may be caused by a ground loop. Try isolating the audio cable or using a ground loop isolator. Check connections for damage.

What is the maximum input level for the TT 25-SMA?

The input can handle up to +20 dBu before clipping. Avoid overdriving the input to prevent distortion.

Is the TT 25-SMA magnetically shielded?

Yes, the monitor is designed with magnetic shielding to minimize interference with nearby CRT screens or sensitive equipment.

How do I mount the TT 25-SMA on a stand?

The monitor has a standard 35mm pole mount socket on the bottom. Attach to a compatible speaker stand securely.

What replacement parts are available for the TT 25-SMA?

Contact RCF support for spare drivers, amplifier modules, and power supplies. Use only original parts for repairs.

Can I use the TT 25-SMA in a surround sound setup?

Yes, multiple units can be used for multi-channel setups. Ensure consistent model and placement for balanced sound.

USER MANUAL TT 25-SMA RCF

1. All the precautions, in particular the safety ones, must be read with special attention, as they provide important information.

2. POWER SUPPLY FROM MAINS

a. The mains voltage is sufficiently high to involve a risk of electrocution; install and connect this product before plugging it in.
b. Before powering up, make sure that all the connections have been made correctly and the voltage of your mains corresponds to the voltage shown on the rating plate on the unit, if not, please contact your RCF dealer.
c. The metallic parts of the unit are earthed through the power cable. An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing connection.
d. Protect the power cable from damage; make sure it is positioned in a way that it cannot be stepped on or crushed by objects.
e. To prevent the risk of electric shock, never open this product: there are no parts inside that the user needs to access.
f. "POWER ON" switch is a disconnecting device from AC main power and must be easily accessible after the installation and during the using of equipment.

1. Make sure that no objects or liquids can get into this product, as this may cause a short circuit.

This apparatus shall not be exposed to dripping or splashing. No objects filled with liquid, such as vases, shall be placed on this apparatus. No naked sources (such as lighted candles) should be placed on this apparatus.

1. Never attempt to carry out any operations, modifications or repairs that are not expressly described in this manual.

Contact your authorized service centre or qualified personnel should any of the following occur:

• The product does not function (or functions in an anomalous way).
• The power cable has been damaged.
• Objects or liquids have got in the unit.

• The product has been subject to a heavy impact.

• If this product is not used for a long period, disconnect the power cable.

• If this product begins emitting any strange odours or smoke, switch it off immediately and disconnect the power cable.

• Do not connect this product to any equipment or accessories not foreseen.

For suspended installation, only use the dedicated anchoring points and do not try to hang this product by using elements that are unsuitable or not specific for this purpose. Also check the suitability of the support surface to which the product is anchored (wall, ceiling, structure, etc.), and the components used for attachment (screw anchors, screws, brackets not supplied by RCF etc.), which must guarantee the security of the system / installation over time, also considering, for example, the mechanical vibrations normally generated by transducers.

To prevent the risk of falling equipment, do not stack multiple units of this product unless this possibility is specified in the user manual.

1. RCF S.p.A. strongly recommends this product is only installed by professional qualified installers (or specialised firms) who can ensure correct installation and certify it according to the regulations in force.

The entire audio system must comply with the current standards and regulations regarding electrical systems.

1. Supports and trolleys

The equipment should be only used on trolleys or supports, where necessary, that are

IMPORTANT

recommended by the manufacturer. The equipment / support / trolley assembly must be moved with extreme caution. Sudden stops, excessive pushing force and uneven floors may cause the assembly to overturn.

1. There are numerous mechanical and electrical factors to be considered when installing a professional audio system (in addition to those which are strictly acoustic, such as sound pressure, angles of coverage, frequency response, etc.).

2. Hearing loss

Exposure to high sound levels can cause permanent hearing loss. The acoustic pressure level that leads to hearing loss is different from person to person and depends on the duration of exposure. To prevent potentially dangerous exposure to high levels of acoustic pressure, anyone who is exposed to these levels should use adequate protection devices. When a transducer capable of producing high sound levels is being used, it is therefore necessary to wear ear plugs or protective earphones. See the manual technical specifications to know the maximum sound pressure level.

IMPORTANT NOTES

To prevent the occurrence of noise on line signal cables, use screened cables only and avoid putting them close to:

• Equipment that produces high-intensity electromagnetic fields.
• Power cables.
• Loudspeaker lines.

IMPORTANT NOTES

OPERATING PRECAUTIONS

OPERATING PRECAUTIONS

• Place this product far from any heat sources and always ensure an adequate air circulation around it.
• Do not overload this product for a long time.
• Never force the control elements (keys, knobs,etc.).
• Do not use solvents, alcohol, benzene or other volatile substances for cleaning the external parts of this product.

IMPORTANT NOTES

Before connecting and using this product, please read this instruction manual carefully and keep it on hand for future reference. The manual is to be considered an integral part of this product and must accompany it when it changes ownership as a reference for correct installation and use as well as for the safety precautions. RCF S.p.A. will not assume any responsibility for the incorrect installation and / or use of this product.

WARNING: to prevent the risk of fire or electric shock, never expose this product to rain or humidity.

IMPORTANT NOTES

WARNING

PRODUCT INFORMATIONS

TT+ HIGH DEFINITION TOURING AND THEATRE

RCF TT+ represents another prominent chapter in the long history of RCF Sound Systems.

Whether a speaker system is designed for live sound or large concert situations as well as permanent installed theatre sound applications, the paying customer now expects a level of audio fidelity and intelligibility of such a standard unsurpassed by previous generations.

This requirement has fostered the need for Audio Professionals to be able to offer a range of speaker systems combined with dedicated Processing and Amplification Technologies that are superior in Acoustic Performance and Control Technology.

RCF TT+ offers ready to use solutions and tools in true active high definition speaker systems.

INNOVATION INTEGRATION INTENSITY

Innovation. Our research and engineering faculty can today offer innovative projects with finite control of each detail, from the loudspeaker voice coil wire to the highly efficient extended dynamic amplifier topology. There are many different ingredients that go into creating quality products and systems. These include computer aided simulation software to assist the understanding of transducer behaviour and amplifier operation and the relationship of dynamics and transient response. RCF utilise over thirty state of the art software packages to identify magnetic circuits, voice coil dynamics, suspension linearity, horn dispersion simulation, crossover filters, amplifier thermal behaviour etc.

Integration. RCF is one of only a few loudspeaker manufacturers worldwide who have the ability to completely design and manufactures transducers, speaker systems and amplification and control electronics. Our 50 plus years heritage in Audio combined with our state of the art research and development and manufacturing processes allows us to seamlessly integrate all the ingredients to design and build TT+.

Intensity. The design philosophy for the new TT+ series is based upon offering the sound engineer solutions and tools that are ready to use. Key factors are the ability to sustain very high power with highly efficient sound pressure levels. Intense sound levels are created with extremely high definition and extended dynamic range. Modern construction materials result in mechanical weight ratios that are light for practical flying and portability.

TT25-SMA, PRECISION STAGE MONITOR

The TT25-SMA is a full range, high power, precision stage monitor that sets a new standard in the touring and theatre sound reinforcement.

The coaxial transducer has been specifically designed for the application. The woofer provides large excursion and very light weight. The voice coil is a new 3.5" design, best compromise between power handling and low mass.

The compression driver features a new pure titanium dome.

The input section provides:

• In/Out XLR connectors.
• System sensitivity control.
• Side to side coupling correction switch.
• 4 status LEDs.

TT25-SMA is a 2-way active system featuring:

• 15" neo woofer, 86 mm voice coil in a bass reflex configuration.
• 1,5" exit, 64 mm voice coil neo compression driver.
• 60° x 60° conical, constant directivity horn.

The TT25-SMA amplifier section features:

• 750 watt switching power supply module.
• 500 watt low frequency digital amplifier module.
• 250 watt high frequency digital amplifier module.
• extra capacitor bus able to sustain the voltage for 100 ms burst signals.

TT+ HIGH DEFINITION

TOURING AND THEATRE

INNOVATION

INTEGRATION

INTENSITY

TT25-SMA,

PRECISION

STAGE MONITOR

The total available power supply power is 750 watts and can be distributed to the 2 final amplifier sections. Each amplifier section has a very high maximum output power capability in order to provide, when necessary, maximum output bursts in a specific frequency range.

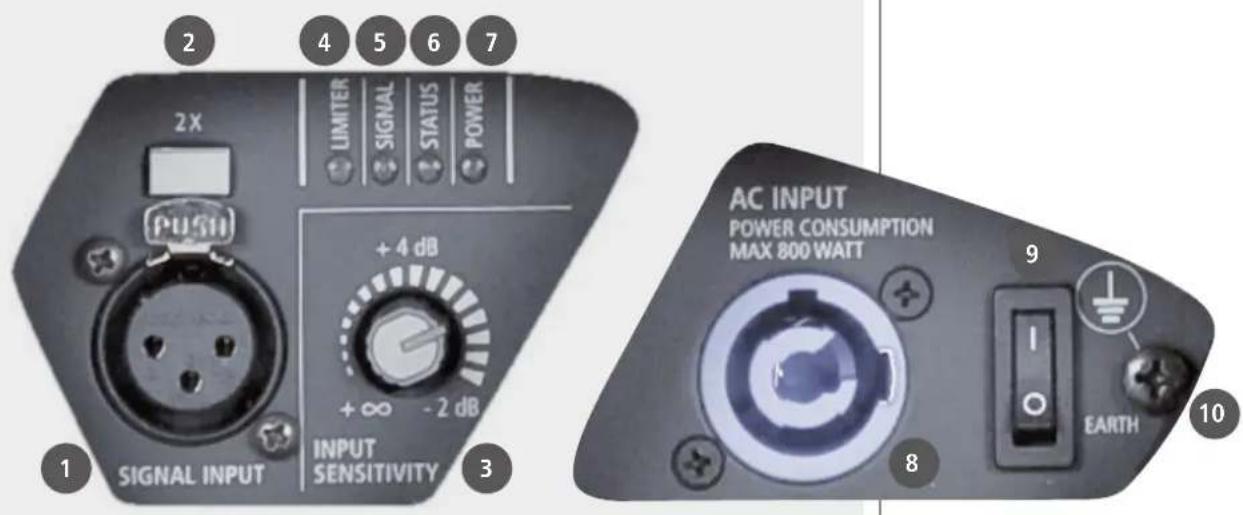

SIDE PANELS

1 MAIN XLR INPUT (BAL/UNBAL). The system accept female XLR input connectors and line-level signals from a mixing console or other signal source.
2IDE COUPLING. The system provides linear equalisation in case of a single speaker in floor monitoring position. In case of coupled application (2 speakers side by side) this switch equalise the curve response reducing the low-mid and low frequency range. This switch can be used even for a single speaker when a very high intelligibility is required from the monitor.
3 INPUT SENSITIVITY. Controls the overall signal level at the input to the power amplifier. The control ranges from +∞ (maximum attenuation) to the -2 dBu sensitivity (maximum input gain). The centre detent is +4 dBu (nominal level required to drive the amplifier at maximum power).
4 MIT INDICATOR. The amplifier has a built in limiter circuit to prevent clipping of the amplifiers or overdriving the transducers. When the soft clipping circuit is active the LED blinks orange. It is okay if the limit LED blinks occasionally. If the LED blinks frequently or lights continuously, turn down the signal level. The amplifier has a built in RMS limiter. If the RMS limiter is active the LED lights red. The RMS limiter has the purpose to prevent damages the transducers. The speaker shall never be used with the limit indicator red, continuous operation with the RMS protection active can cause damages to the speaker.
5 SIGNAL INDICATOR. The signal indicator lights green if there is signal present on the main XLR input.
6ATUS INDICATOR. The status indicator lights orange if the main amplifier or power supply is in faulty condition. If the status indicator lights orange, switch off the amplifier and call the closest RCF SERVICE CENTRE.
7 POWER INDICATOR. Power on indicator. When the power cord is connected and the power switch is turned on this indicator lights green.

8AC POWERCON RECEPTACLE. RCF TT+ series uses a POWERCON locking 3-pole AC mains. Always use the specific power cord provided in the package.
9 POWER MAIN SWITCH. The power switch turns the AC power ON and OFF. Make sure that the sensitivity is set to + when you turn on the speaker.
10 GROUND.

11NK XLR OUTPUT. The output XLR male connector provides a loop trough for speakers daisy chaining.
12C POWERCON LINK RECEPTACLE. Use this receptacle to link one or more units. Always make sure that the maximum current requirement does not exceed the maximum admitted POWERCON current. In case of doubt call the closest RCF SERVICE CENTRE.
13 GROUND.

The XLR connectors use the following AES standard:

$$ \text { PIN } 1 = \text { GROUND (SHIELD) } $$

$$ \text { PIN } 2 = \text { HOT } (+) $$

$$ \text { PIN 3 } = \text { COLD } (-) $$

At this point you can connect the power supply cable and the signal cable, but before turning on the speaker make sure that the volume control is at the minimum level (even on the mixer output). It is important that the mixer is already ON before turning on the speaker. This will avoid damage to the speakers and noisy "bumps" due to turning on parts on the audio chain. It is a good practice to always turn on speakers at last and turn them off immediately after the show.

Now you can turn ON the speaker and adjust the volume control to a proper level.

WARNING: Always make sure that the maximum current requirement does not exceed the maximum admitted POWERCON current. In case of doubt call the closest RCF SERVICE CENTRE.

TT25-SMA

• 230 VOLT, 50 Hz SETUP: FUSE VALUE T 3.15 A H 250 V
• 115 VOLT, 60 Hz SETUP: FUSE VALUE T 6.3 A H 250 V

CONNECTIONS

(RESERVED TO THE RCF

SERVICE CENTRE)

Operating frequency range

Max SPL

Coverage

Crossover

TRANSDUCERS

Low frequency

High Frequency

AMPLIFIERS

Total power supply power

Low section

High section

CONNECTIONS

Signal Input/Output

Power Input/Output

CONTROLS

INPUTS

Signal Input/Output

Power Input/Output

RDNet Input/Output

PHISICAL SPECIFICATIONS

Dimensions (w, h, d)

Net weight

50 - 20.000 Hz

131 dB

60° Conical

pəʊt Hz

15" mid-bass, neo, 86 mm voice coil

1.5" compression driver, neo, 64 mm voice coil

750 Watt

500 Watt

250 Watt

XLR male/female

Powercon male/female

Side coupling switch

Volume Control

2 way equalisation, crossover filtering

Fast limiter

RMS limiter

330 mm x 580 mm x 432 mm

(12,99" x 22,83" x 17,00")

20 Kg (44 lbs)
