| Brand | Socket Mobile |
| Model | CHS 7Qi |
| Product Type | Wireless Bluetooth Barcode Scanner |
| Scan Type | 2D Imager |
| Supported Codes | 1D and 2D barcodes (UPC, EAN, Code 128, QR, Data Matrix, etc.) |
| Connectivity | Bluetooth v5.0 |
| Range | Up to 10 meters (30 feet) |
| Battery | Rechargeable Li-Ion, 1800 mAh |
| Battery Life | Up to 12 hours continuous scanning |
| Charging Time | Approximately 2 hours |
| Dimensions | 130 x 60 x 25 mm (5.1 x 2.4 x 1.0 in) |
| Weight | 150 g (5.3 oz) |
| Material | ABS plastic with rubber grip |
| Drop Rating | 1.5 m (5 ft) to concrete |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Ingress Protection | IP54 (dust and splash resistant) |
| Indicators | LED and audible beep |
| Memory | Up to 5000 barcodes offline storage |
| Compatibility | iOS, Android, Windows, Mac |
| Warranty | 1 year limited |
| Included Accessories | USB charging cable, quick start guide |
Frequently Asked Questions - CHS 7Qi Socket Mobile
How do I charge the Socket Mobile CHS 7Qi?
Connect the included USB cable to the scanner and a USB power source. The LED indicates charging status. Full charge takes about 2 hours.

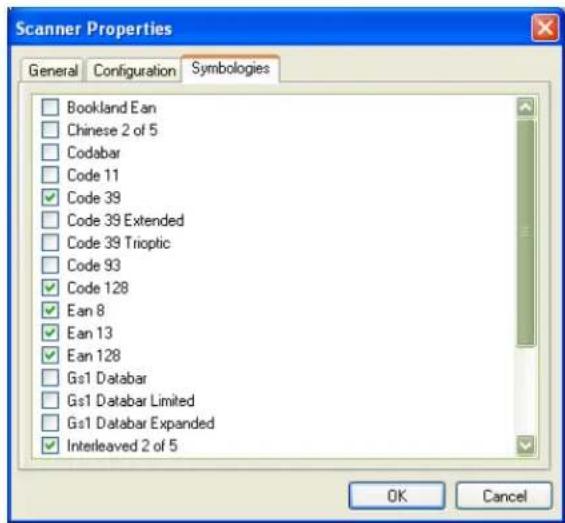

What barcodes can the CHS 7Qi read?
It reads all standard 1D barcodes (UPC, EAN, Code 128, etc.) and 2D barcodes (QR, Data Matrix, PDF417, etc.).

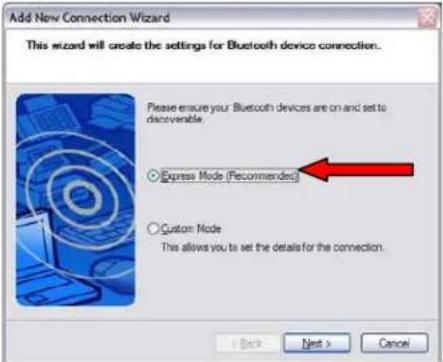

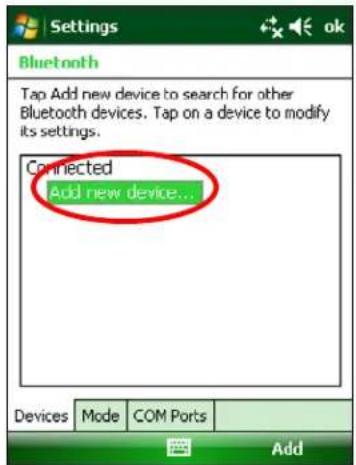

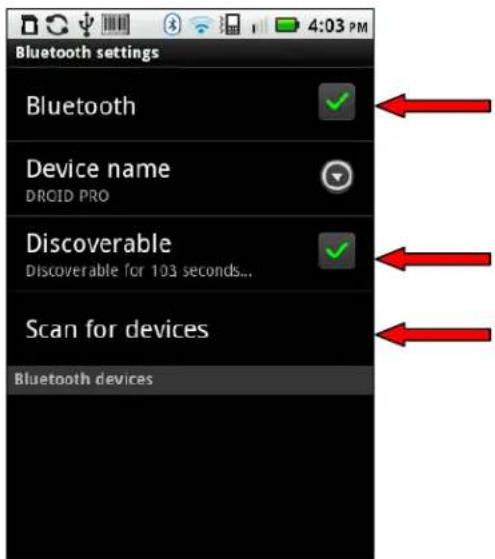

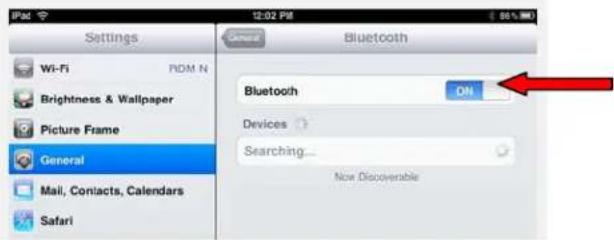

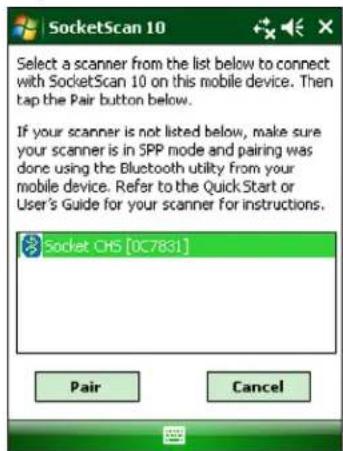

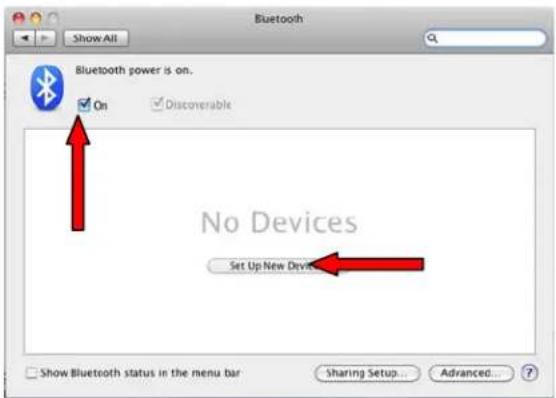

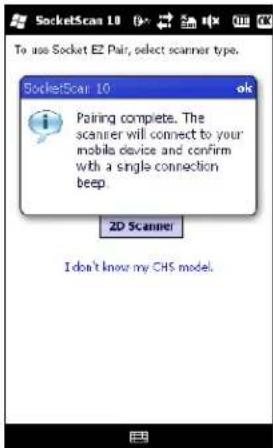

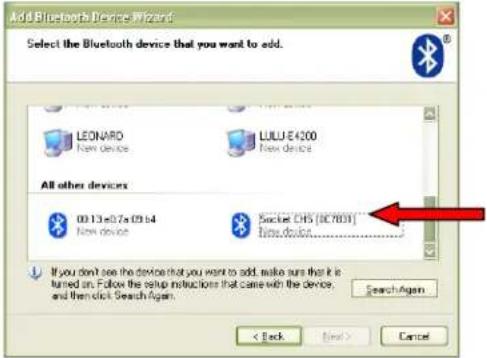

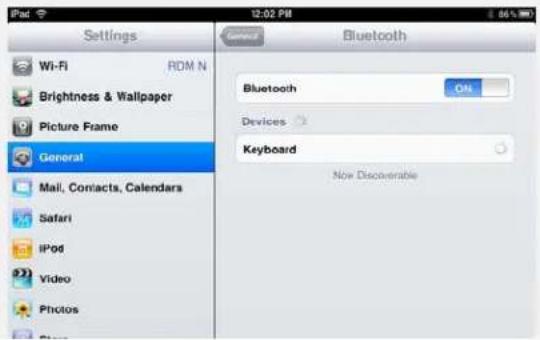

How do I connect the scanner to my device via Bluetooth?
Turn on the scanner, enable Bluetooth on your device, and pair with 'CHS 7Qi'. No PIN required. For specific instructions, refer to the manual.
What is the scanning range of the CHS 7Qi?
The scanner can read barcodes up to 10 meters (30 feet) away from a 100% UPC label, but range varies with barcode size and quality.
Is the CHS 7Qi water or dust resistant?
Yes, it has an IP54 rating, meaning it is protected against dust ingress and splashing water.
How long does the battery last on a full charge?
The battery lasts up to 12 hours of continuous scanning, or standby for several days.
Can I use the scanner without Bluetooth?
No, the CHS 7Qi is designed for wireless Bluetooth connectivity only. It does not have a wired USB connection for data transfer.
How do I clean the scanner?
Use a soft, dry cloth to clean the exterior. Do not use harsh chemicals or submerge in water. Clean the scan window gently with a lens cloth.
What should I do if the scanner stops scanning?
Check battery level, ensure Bluetooth connection is active, and verify the barcode is not damaged. Reset by turning off/on. If issue persists, contact support.
Is the CHS 7Qi compatible with my smartphone?
It works with iOS (iPhone) and Android devices via Bluetooth HID or SPP mode. Also compatible with Windows and Mac computers.
