Product type	Portable Radio
Brand	BLOW
Model	RA6
Dimensions (approx.)	200 x 120 x 70 mm
Weight (approx.)	0.5 kg
Power supply	4 x AA batteries (not included) or DC 6V adapter
Frequency bands	AM (520-1710 kHz), FM (87.5-108 MHz)
Tuning type	Analog dial
Speaker	Built-in, 8Ω 1W
Headphone jack	3.5 mm stereo
Antenna	Telescopic rod for FM; built-in ferrite for AM
Controls	Volume, tuning, band selector, on/off
Care and cleaning	Wipe with a soft, dry cloth; avoid liquids
Safety warnings	Do not expose to rain or moisture; keep away from heat sources
Spare parts availability	Contact BLOW customer support
Repairability	Not user-serviceable; refer to authorized service center
General information	Designed for indoor/outdoor use; compact and lightweight

Frequently Asked Questions - RA6 BLOW

How do I switch between AM and FM?

Use the band selector switch on the top of the radio. Slide it to AM or FM position.

Why is there no sound?

Check if the radio is turned on, volume is up, and batteries are installed correctly or AC adapter is plugged in. Also ensure headphones are not plugged in (they mute the speaker).

How can I improve FM reception?

Extend the telescopic antenna fully and reposition the radio. Avoid metal objects nearby. For AM, rotate the whole radio to align the internal ferrite antenna.

What batteries does the RA6 use?

It requires 4 x AA batteries (not included). Use alkaline or rechargeable Ni-MH batteries.

Can I use an AC adapter?

Yes, a DC 6V adapter with a center-positive plug (2.1mm) can be used. The adapter is not included.

How do I clean the radio?

Wipe the exterior with a soft, dry cloth. Do not use any liquids or cleaning agents.

What should I do if the radio gets wet?

Immediately remove batteries and dry the radio thoroughly. Do not use until completely dry. If damage occurs, contact support.

Is there a headphone jack?

Yes, a 3.5 mm stereo headphone jack is located on the side. Plugging in headphones disables the speaker.

Can I use rechargeable batteries?

Yes, rechargeable Ni-MH AA batteries work fine. Note that the radio does not have a built-in charger; batteries must be charged externally.

Where can I find the user manual?

The manual is available for free download on notice-facile.com in PDF format.

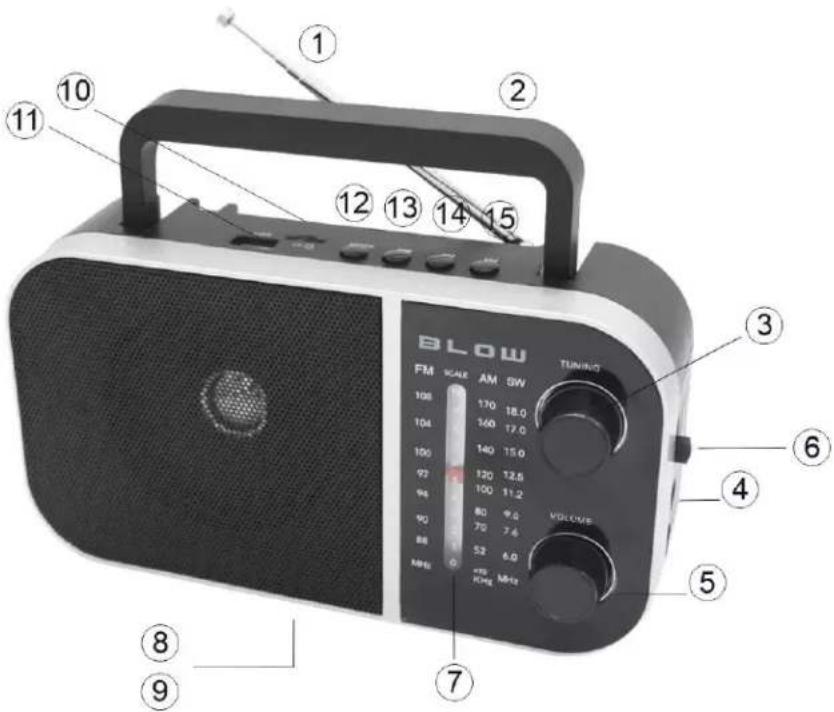

USER MANUAL RA6 BLOW

1. Antenna
2. Handle
3. Radio tuning control
4. Headphone Jack
5. Volume control
6. Radio band sector
7. Frequency scale
8. Battery cover
9. AC socket
10. Memory SD card slot
11. USB port
12. Mode
13. Preview
14. Play/pause
15. Forward

USER MANUAL

Battery Supply

Open the battery compartment and insert as indicated in the compartment three Batteries, type R20.

The battery supply is switched off when the set is connected to the mains. To change over to battery supply, pull out the plug from the MAINS socket.

Mains Supply

Connect the mains lead to the wall socket. The mains Supply is switched on.

To disconnect the set from the mains completely, withdraw the mains plug from the wall socket.

Radio

1. Select the wave band using RADIO BAND SELECTOR.
2. Adjust the sound with the controls VOLUME.
3. You may connect stereo headphones with 3.5mm, plug to socket PHONES. The loudspeakers are then muted.
4. Switch Bluetooth, USB, memory card playback mode with the MODE button.
5. Tune to a radio station using TUNING knob.

To improve reception:

- For FM, pull out the telescopic aerial. To improve FM Reception incline and turn the aerial, reduce its length if the FM-signal is too strong (very close to a transmitter).

- For AM, the set is provided with a built-in aerial, so there is no need to use the telescopic aerial. Turn the set to find the best position.

SPECIFICATIONS

AM/FM (AM 530-1600kHz, FM 87-5 - 108 MHz)

Speaker: 3,5 inches, 8 ohm dynamic speaker

Power Output: 0.8W

Socket AUX 3.5mm

Memory Card SD slot

USB port

Telescopic antenna

Power supply DC 3V (2xR20)

AC 230V \~ 50Hz

Dimensions: 210 x 73 x 110 mm

PRECAUTIONS:

1. For AC operation, make sure the voltage is compatible. Always use the provided AC power cord; never use other AC power cord.

For DC operation, simply insert three "UM-2 / C" batteries for unit operation.

1. Always disconnect the AC power cord from the AC power source when it is not in use or when DC power is operating.

2. Do not leave the batteries in the compartment for a long time. Remove the batteries to avoid leakage and damage.

3. Do not expose the unit to extreme temperature nor high humidity to ensure normal functioning for a long lifetime.

For instances, never place the unit in bathing areas nor around stoves and radiators.

1. If you find the unit is not working properly, please take it to your nearest services centre. Do not attempt to repair by yourself.

WARNING :

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet, refer to service agent or qualified engineer only.

Manufactured in P.R.C. for:

PROLECH Sp. z o.o.

Stary Puznów 58B, 08-400 Garwolin, Poland www.blow.com.pl

Service:

BLOW Service

Stary Puznów 58B, 08-400 Garwolin, Poland www.blow.com.pl

Electrical equipment marked with the bin icon cannot be disposed of along with ordinary municipal waste. Such equipment should be collected and recycled.

DEKLARACJA ZGODNOŚCI / DECLARATION OF CONFORMITY

Producent: PROLECH SP. Z O.O., STARY PUZNÓW 58 B, 08-400 GARWOLIN, POLSKA

The company Prolech Sp. z o.o. Stary Puznów 58B, 08-400 Garwolin, Poland hereby declares that the product: FM Radio Bluetooth, brand: BLOW, product code: 77-535 #, model: RA6 is compliant with directives 2014/53/EU, 2011/65/EU, (EU)2015/863.

The full text of the declaration of conformity is available at the following internet address: www.prolech.com.pl
