Type	Harmonic Fuzz Pedal
Brand	Walrus Audio
Model	Silt
Power Requirements	9V - 12V DC, center negative, 300mA minimum
Bypass Type	True Bypass (Relay Bypass)
Input Impedance	~1M Ohms
Dimensions	Height: 2.25" (57.15mm), Width: 3.62" (91.94mm), Depth: 4.79" (121.66mm)
Weight	Not specified (typical pedal weight ~1 lb)
Tube Type	12AU7 (ECC82) pre-amp tube
Controls	Volume, Tone, Gain, Contour (3-way toggle: highpass/flat/lowpass)
Harmonic Switch	Activates frequency doubler for octave-like sounds
Power Tip	Running at 12V provides extra gain boost
Power Supply Recommendation	Isolated power supply recommended; daisy chains not recommended
Warranty	Limited lifetime warranty
Support Email	[e-mail]
Tube Replacement	JJ 12AU7 (ECC82) recommended
Chain Placement	Works well anywhere in chain; not required to be first
Country of Origin	Not specified

Frequently Asked Questions - Silt Walrus Audio

What power supply should I use for the Silt pedal?

Use a 9V to 12V DC center-negative power supply with at least 300mA. An isolated power supply is recommended; daisy chains are not recommended. Running at 12V provides extra gain.

How do I replace the tube in the Silt?

Remove the backplate (4 screws), gently pull the tube PCB straight up, then remove the tube from the socket. Insert a new JJ 12AU7 (ECC82) tube, ensuring all pins align. Reconnect the tube PCB to the main PCB, aligning the 10 pins (8 long, 2 short).

What does the Harmonic switch do?

The Harmonic switch activates a frequency doubler before the drive section, adding crispy, octave-like overtones to your signal. It works especially well with the guitar tone knob rolled off.

What is the Contour switch?

The Contour toggle selects between highpass (up), flat (middle), and lowpass (down) EQ curves in the pre-tube stage. It helps shape the tonal character for different pickups.

Does the Silt have true bypass?

Yes, the Silt uses relay-based true bypass, ensuring your clean signal remains unaffected when the pedal is off.

Can I use the Silt with other pedals?

Yes, the Silt plays well with other pedals and does not need to be placed first in your chain like some vintage fuzz pedals.

What is the warranty on the Walrus Audio Silt?

The Silt comes with a limited lifetime warranty. For warranty claims, contact [e-mail].

What are the dimensions of the Silt pedal?

The pedal measures 2.25 inches (57.15mm) in height, 3.62 inches (91.94mm) in width, and 4.79 inches (121.66mm) in depth.

Can I run the Silt at 12V?

Yes, the Silt accepts 9V to 12V DC. Running at 12V provides an extra gain boost for more aggressive tones.

How do I clean and maintain the Silt?

Use a dry cloth to clean the enclosure. Avoid solvents. If the tube fails, replace it with a JJ 12AU7 (ECC82) following the tube replacement guide. For other issues, contact support.

USER MANUAL Silt Walrus Audio

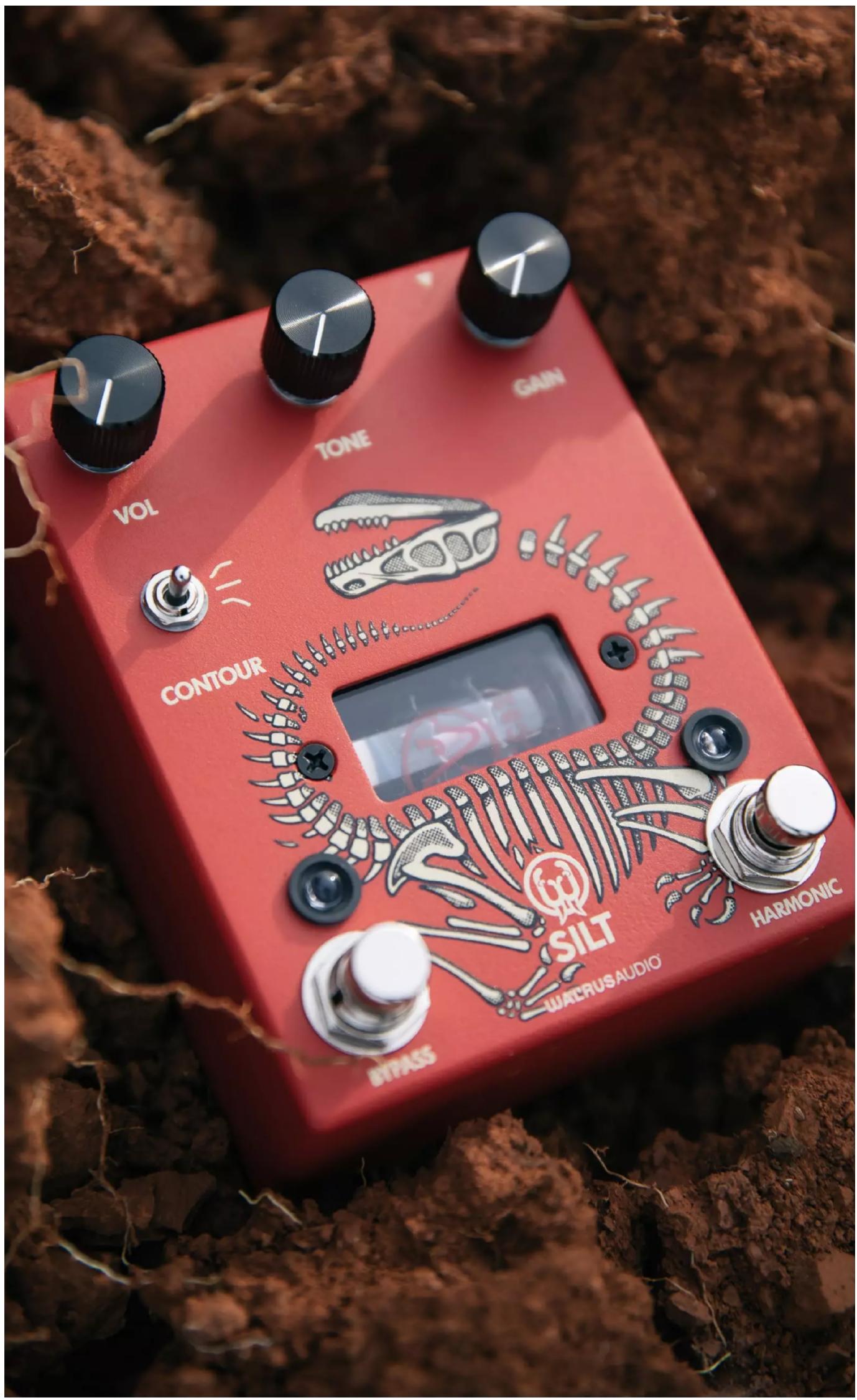

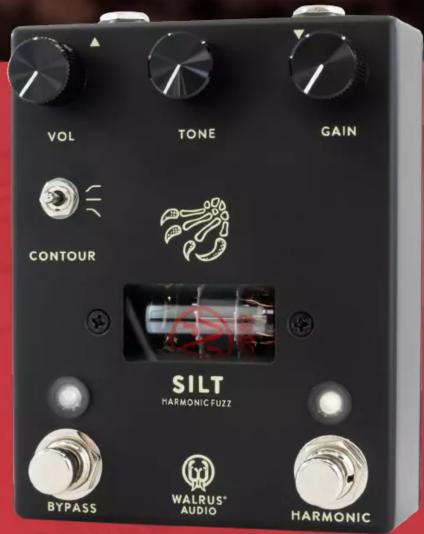

SILT

HARMONIC FUZZ

The Walrus Audio Silt Harmonic Fuzz is a collaborative project with tube expert Jim Hagerman of Hagerman Amplification. Wielding an internal pre-amp tube, the Silt is a two-in-one fuzz that creates massively rich fuzz tones perfect for chords and rhythmic parts or with the press of a switch, adds uniquely harmonic overtones to the signal before hitting the tube. Crafted specifically for those seeking a harmonically rich fuzz experience, the Silt boasts an analog circuit with the distinctive warmth of a 12AU7 tube as its drive section, letting you explore a unique and wild sonic landscape.

POWER INFO

9V - 12V DC, Center Neg. 300mA min.*

Tip: Running the pedal at 12v will give you an extra gain boost, letting you push the primal boundaries of fuzz to deliver the searing tones you've been searching for.

Silt plays well with other pedals and does not need to be placed first in your chain like some vintage pedals.

*The use of an isolated power supply is recommended for powering all Walrus Audio Pedals. Daisy chain power supplies are not recommended.

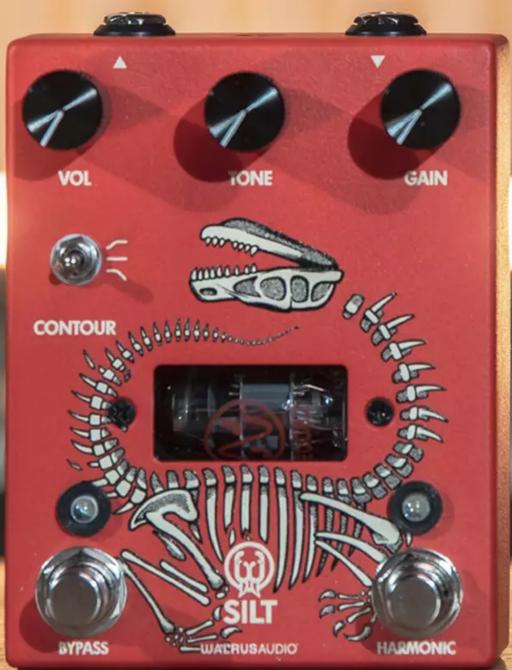

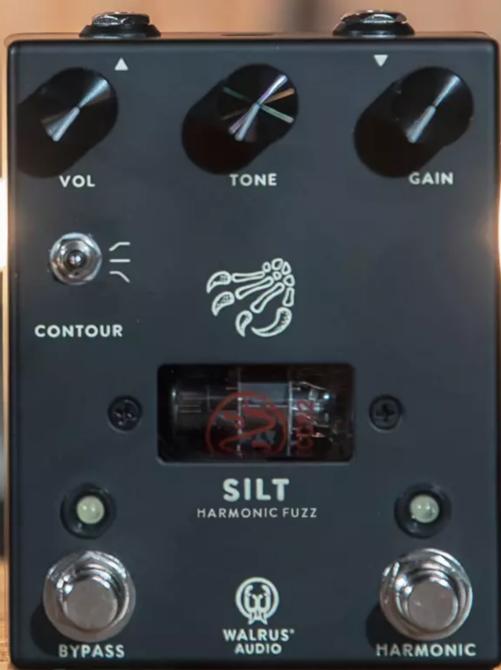

CONTROLS

VOLUME

The “Vol” knob sets the overall output volume of the pedal.

TONE

Sculpt your output tone with a lowpass/highpass tilt tone control. Clockwise will cut the lows and boost the highs, and counter-clock-wise will cut the highs and boost the lows.

GAIN

Control the input gain into the fuzz circuit, from subtle, distortion-like crunch to full-throttle fuzz.

Close-up of a black cylindrical object with a white line on top, against a red background (no text or symbols visible)

CONTOUR

Toggle between highpass (up), flat (middle), and lowpass (down) curves in the pre-tube EQ stage, like uncovering layers of sonic strata. Especially helpful when switching between different styles of pickups.

CONTOUR

Close-up of a red audio jack with metallic components and a 'HARMONIC' label (no other text or symbols visible)

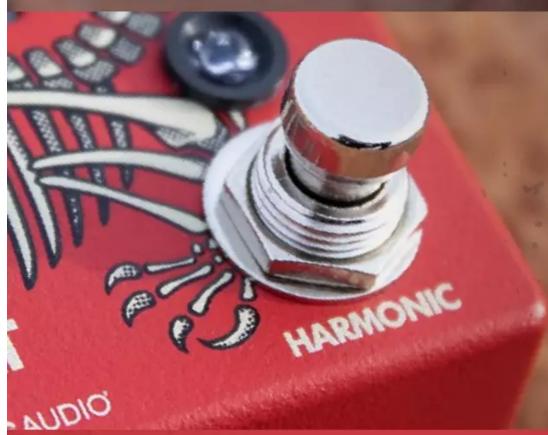

HARMONIC SWITCH

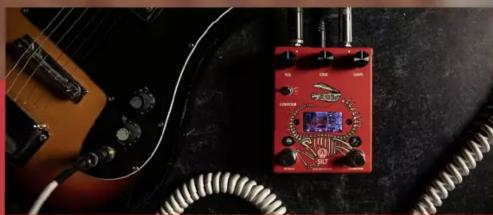

Harmonic Mode activates a frequency doubler before the drive section of the pedal. This produces crispy, octave-like sounds, lending a unique edge to your lead tones. Try this with your guitar tone knob rolled off.

Close-up of an electric guitar with attached red electronic device and coiled wires (no visible text or symbols)

TUBE MAINTENANCE

Should the tube in your Silt ever fail, follow these steps to replace it. We recommend using a JJ 12AU7 (ECC82) tube.

Red electronic circuit board with various components and wiring, placed on a textured surface (no visible text or symbols)

Close-up of a hand holding an electronic circuit board with visible components and wiring (no readable text or symbols)

Close-up of hands assembling a transparent plastic mechanical component with visible internal structure (no text or symbols)

Close-up of hands assembling a small electronic component with visible pins and wiring (no text or symbols)

Red and blue object on a white surface, no visible text or symbols

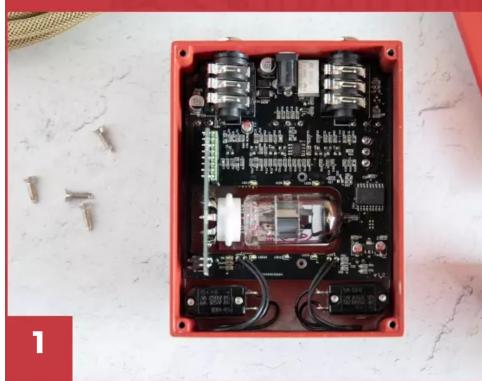

1. Take out the four screws to remove the backplate.

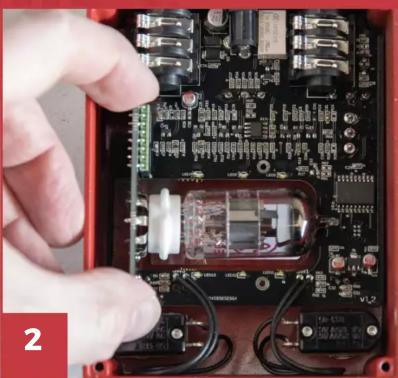

2. Grab both ends of the tube's PCB and gently pull straight up.

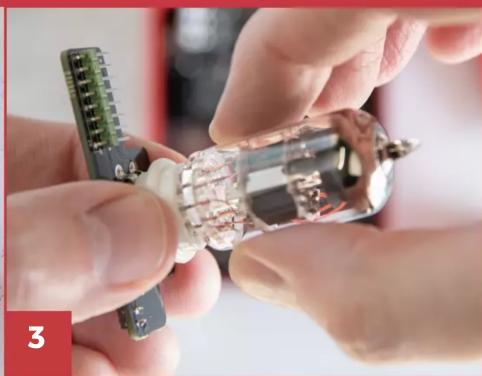

3. Gently pull the tube out of the socket.

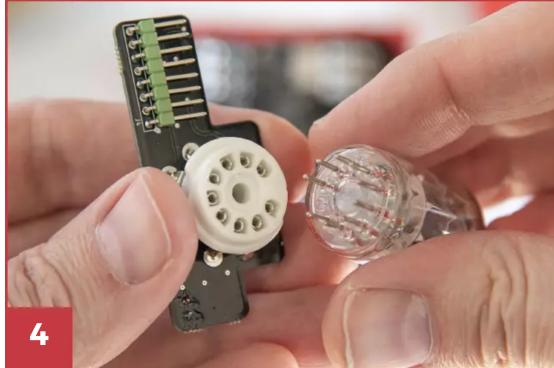

4. Put the new tube into the tube socket making sure all pins are aligned.

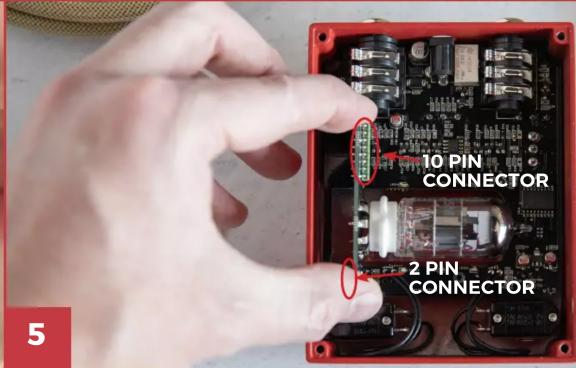

5. Connect the tube PCB back to the Silt's main PCB ensuring that all 10 pins are lined up. (8 pins on the longer side, 2 pins on the shorter side.)

SPECS

Input Impedance - \~1M Ohms

Power Requirements - 9v-12v, center negative. 300mA Minimum

Bypass Options: True Bypass (Relay Bypass)

Height: 2.25" (57.15mm)

Width: 3.62" (91.94mm)

Depth: 4.79" (121.66mm)

Got questions or need a repair? Email [e-mail] to talk with a real live human about your Walrus gear!

This product comes with a limited lifetime warranty.
