HURVBTR36RD - Vibrating platform Hurtle - Free user manual and instructions

Product Type	Vibrating Platform
Brand	Hurtle
Model	HURVBTR36RD
Dimensions (L x W x H)	26.77" x 14.96" x 4.72"
Weight	Approximately 35 lbs (estimated)
Power Supply	120V AC, 60Hz
Power Consumption	300 Watts
Motor Speed	3300+ RPM
Speed Levels	40 levels
Programs	4 (P1 Manual, P2 Quick Climb, P3 Gentle Climb, P4 Interval)
Maximum Session Time	20 minutes
Maximum User Weight	265 lbs
Construction Material	Engineered ABS
Surface	Anti-slip rubber grip pad
Display	Digital LCD (time, speed, calories)
Controls	Touch button on panel and remote control
Remote Control	Yes, battery operated (2 x AAA, included)
Handle	Yes, retractable carrying handle with wheels
Resistance Bands	2 detachable bands included
Motion Technology	Next Generation Dynamic Oscillating Motion
Maintenance	Wipe with a soft, damp cloth; do not use abrasive solvents; keep dry
Safety	Auto-off after session; do not use in wet conditions; keep away from children
What's in the Box	Vibration machine, remote control (with batteries), power cord, resistance bands, user manual

Frequently Asked Questions - HURVBTR36RD Hurtle

How do I set up the Hurtle vibrating platform?

To set up, unfold the handle from underneath the platform, tilt the unit to roll it on its wheels to your desired location. Place on a level surface with at least 3 feet clearance on each side. Plug the power cord into a wall outlet. Insert 2 AAA batteries into the remote control.

What are the safety precautions I should follow?

Read all instructions before use. Do not use if you have certain medical conditions (e.g., epilepsy, heart disease, pregnancy) without consulting a doctor. Keep children and pets away. Do not exceed the maximum weight of 265 lbs. Use only one person at a time. Do not kneel or jump on the platform.

How do I use the different workout programs?

Press the 'On/Off' button to start in Manual mode (P1). Press 'Program' to cycle through P2 (quick climb), P3 (gentle climb), and P4 (interval training). Each program runs for 10 minutes. In manual mode you can adjust time (1-20 min) and speed (1-40).

Can I clean the platform with water?

No, do not spray water or immerse the unit. Use a soft, damp cloth to wipe surfaces. Avoid abrasive solvents. Keep the unit dry and store in a dry location.

What is the maximum weight limit?

The maximum user weight capacity is 265 lbs (120 kg). Exceeding this may cause damage or injury.

How do I attach the resistance bands?

Locate the two metal connectors on the underside of the platform near the control panel. Rotate them outward so they extend. Then use the clasp on each resistance band to attach them to these connectors.

Does the remote control require batteries?

Yes, the remote control requires 2 AAA batteries, which are included. Replace them with new ones of the same type when needed.

How long can I use the platform in one session?

The maximum session time is 20 minutes. It is recommended not to exceed 4 sessions per day. Do not remain in the same position for more than 10 minutes to avoid muscle cramps.

What should I do if I feel discomfort during use?

Stop using immediately and consult a doctor if you experience any pain or discomfort. Drink plenty of water before and after use.

How should I store the platform when not in use?

Store in a dry location away from direct sunlight, heat, and flames. Keep out of reach of pets and children. It is recommended to store in the original packaging.

USER MANUAL HURVBTR36RD Hurtle

Woman performing a squat exercise on a red and black weightlifting reformer machine, with a sofa in the background (no visible text or symbols)

HURTLE

Standing Vibration Fitness Machine

Vibrating Platform Exercise & Workout Trainer

with Handle and Caster Wheels

USER MANUAL

Woman performing a weightlifting exercise using a red Hurtle board, arms raised, on a wooden floor (no text or symbols visible)

Before using this unit for the first time, please read through all sections of this User Manual carefully, paying special attention to the Safely Instructions.

*Please retain this manual for future reference.

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS 1

PART NAMES 3

CONTROL PANEL AND REMOTE CONTROL 4

OPERATION 4

SETUP 6

WORKOUT RECOMMENDATIONS 7

CLEANING AND MAINTENANCE 8

FEATURES AND TECHNICAL SPECS 9

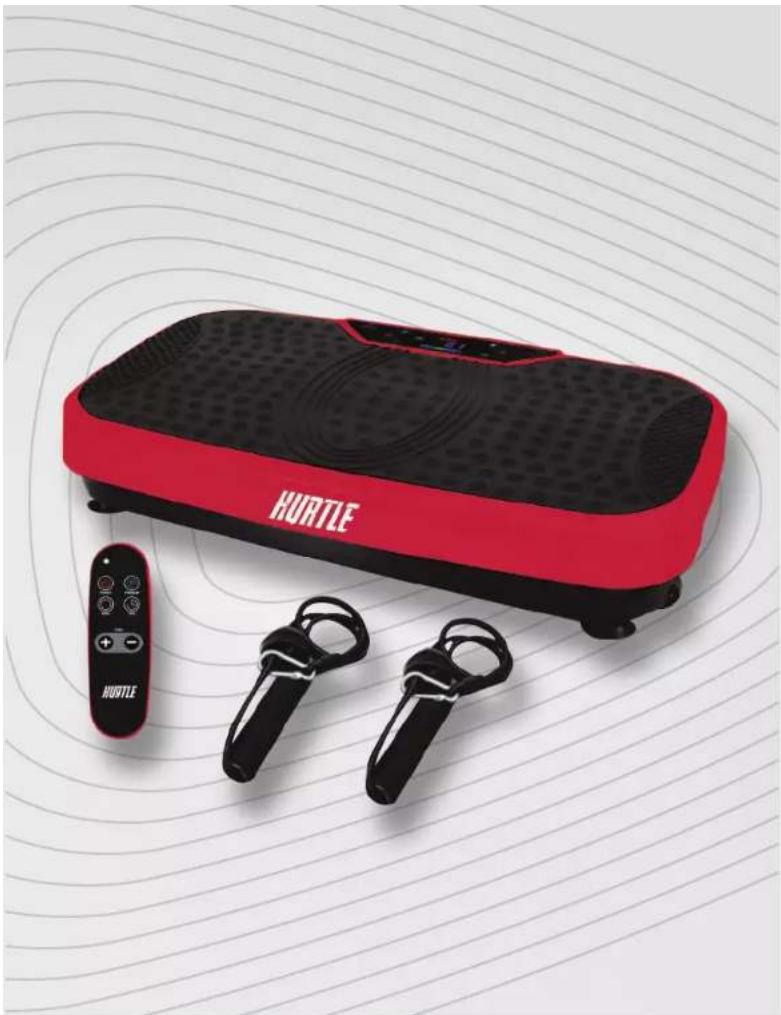

Product photo of a Hurtle standing platform with two controllers and a black-and-white display, set against a grid background (no text or symbols on main components)

IMPORTANT SAFETY PRECAUTIONS

Read all instructions before using the unit. When using an electric apparatus, basic precautions should always be followed, including the following:

DANGER: To reduce the risk of electric shock

• Always remove the power plug from the electrical outlet immediately after use.
• Always remove the power plug from the electrical outlet before cleaning.

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons

• To reduce the risk of short-circuit and fire, always insert the power plug completely into the outlet.
• Before turning ON the unit, check to make sure that electrical current in your power outlet matches the voltage indicated on the unit's power adapter.

1. Before Use

• Do not operate this unit during thunderstorms and lightning strikes.

• If you have experienced previous illness, or are concerned about your current level, please consult your doctor before using this unit. Persons with the following conditions should check with a doctor before using this unit:

• Epilepsy
  • Severe diabetes
  • Heart and vascular diseases

• Skin disease
  • Asthma or other respiratory disorders
  • Hypertension
  • Spinal disc herniation or other spinal abnormalities

• Knee or hip implants
  • Pacemaker
  • Bone fractures or joint problems
  • Recently inserted IUD or metal pins
  • Blood clots
  • Tumors

• Recent infections
  • Pregnancy
  • Women during their menstrual cycle

• Severe migraines
  • Patients recovering from surgery
• Close supervision is necessary when the unit is used by, on, or near children.
• This unit is NOT intended for use by persons with reduced physical, sensory, or mental capacities, invalids, or disabled persons, unless supervised closely by a person responsible for their safety

IMPORTANT SAFETY PRECAUTIONS

• Do not allow pets to use this unit.
• Do not load heavy objects onto the unit.
• Only operate this unit according to its intended usage, as described in this manual.
• Use caution when moving the unit from one location to another. Dragging it over certain surfaces, such as wood or tile, may result in damage.
• Do not work out on the unit within 30 minutes before and after meals.
• Do not operate this unit for any purposes other than exercise. your fingers into any opening on the platform.
• Drink plenty of water both before and after use.
• Do not wrap the power cord around the unit's footplate.
• Do not drop or insert any object into any opening on the unit.
• Do not strike the unit, especially with any hard objects.
• Keep children and pets away from the unit at all times.

2. During Use

This unit was built to be used by ONE person at a time. Injury or damage may result if two or more people step on the plate at the same time.

• Do not jog or hop up and down on the footplate.
• Do not kneel on the footplate. Vibration is not intended to the knees.

• Always balance your weight on the foolplate. Do not load all of your body weight on one side or the other.
- Do not touch or operate this unit with wet or humid hands. Electric shock or malfunction may result.
- Be careful with the remote control. Damage may result if it falls onto the ground or the footplate.
- Stop using the unit if you experience any discomfort. Consult a doctor immediately.
- Do not strike or apply excessive force on the unit. Injury and I or malfunction may result.
- While working out on the unit, do not remain in the same pose for over 10 minutes. Muscle cramping may result.
- Do not work out on this unit more than four times a day.

3. After Use

• After each session, turn off the power and disconnect the power plug from the wall outlet. (Running electricity may cause fire or electric shock).
- Remember to drink plenty of water both before and after use.
- If the unit needs cleaning, use only a dry cloth to do so. Keep any moisture away from the unit.

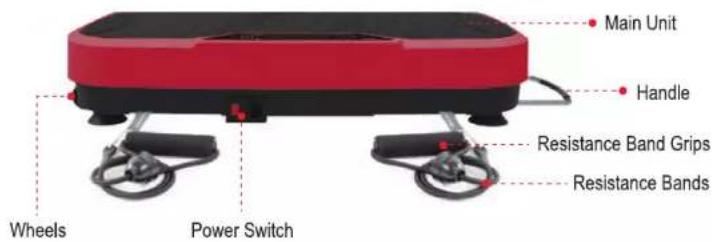

PART NAMES

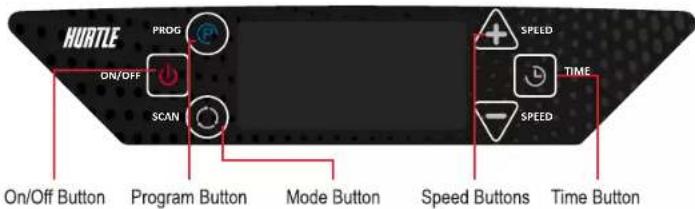

CONTROL PANEL AND REMOTE CONTROL

OPERATION

1. Insert the Fitness Machine's power plug into a standard electrical outlet.
2. Flip the power switch to the "ON" position. The unit will enter "Standby" mode, indicated by a couple of beeps and four horizontal dashes on the control panel.

Steps below can be conducted using either the keys on the control panel or on the remote control:

1. Press ⏻ to begin operation. Vibrating action begins in Manual mode P1, initially set at Speed 1, running for 10 minutes.

a. In Manual Mode (P1), the timer can be set between 1 and 20 minutes. Press 🔒 to add time in increments of 1 minute.
b. In Manual Mode (P1), vibration speed can be adjusted in increments between 1 and 40 using + or -
4. To use one of the automatic programs, press Ⓞ. Each press cycles through one of the Program Modes: P2, P3, and P4 are pre-set programs. Each auto program is 10 minutes long, and features vibration speeds that vary in intensity through out. (Returning to P1 will return you to Manual Mode.)

AUTOMATIC PROGRAMS

Note: Program 1 (P1) is considered "manual mode." It will start at speed level1 and will run for 10 minutes. Follow instructions to manually adjust the speed and duration settings for P1.

Program 2 (P2):

Quick climb and cool down. P2 will start at speed 2 and increase 5 speed levels per minute until it reaches speed 30. In the final 3 minutes, speed will be gradually reduced.

Progmm 3 (P3):

Gentle climb. P3 will start at speed 4 and will gently raise to a maximum speed of 36.

Progmm 4 (P4):

Interval training. P4 will follow a slow/fast pattern, switching each minute, with a maximum speed of 30.

Note: While any Automatic mode is in operation, massage speed and time selections are disabled.

1. During any massage program, press Ⓞ to scroll through display of calories burned, vibration speed, and time elapsed.
2. To end your massage at any point, press

SETUP

1. Locate the handle underneath one edge of the platform. Tilt this entire platform upward to form a 45^ angle with the floor beneath. With the weight of the platform now on its wheels, pull to draw the handle out to its full length. Grasp the handle to move the entire unit to your desired placement location.
2. Set the platform onto a smooth, level surface. To prevent possible injury, leave atleast 3 feet of space on either side.
3. Unwind the power cord and insert the plug into an electrical outlet.

4. Insert 2 AAA batteries into the battery compartment of the remote control.

5. Batteries should be recycled or disposed of as per state and local guidelines.

6. Install only new batteries of the same type in your product.
7. Failure to insert batteries in the correct polarity, as indicated in the battery compartment, may shorten the life of the batteries or cause batteries to leak.
8. Do not mix Alkaline, Standard (Carbon-Zinc) or Rechargeable (Nickel
   • Cadmium) or (Nickel Metal Hydride) batteries.

9. Do not dispose of batteries in fire.

10. To attach the optional resistance bands, locate the two metal connectors on the underside of the unit, one on either side of the control panel. Rotate these connectors until they extend outward, becoming visible even after you set the platform back down onto the floor.

11. Use the clasp at one end of each resistance band to attach them to the metal connectors on either side of platform's control panel.

WORKOUT RECOMMENDATIONS

STANDING POSITION (5 minutes)

Stand on the platform with your feet shoulder-width apart, gripping the handles securely with both hands. This position works muscles in the back, waist, glutes, chest, and stomach.

STANDING POSITION (2 minutes)

Stand on the platform with your feet a bit wider apart than shoulder -width. Bend your knees to lower height about 6 inches. This position works muscles in the glules, thighs, and along the vertebrae.

TIP TOE POSITION (2 minutes)

Stand on the platform with your feet a bit wider apart than shoulder -width. Bend your knees to lower your body height about 6 inches. Lift your heels off of the platform, shifting your weight onto your toes. This position works muscles in the feel, glutes, thighs, and along the vertebrae.

STARTING BLOCK POSITION (2 minutes)

Lower your self onto the floor next to the unit, and place your palms onto the platform. Lean your upper body forward, keeping both legs slightly bent, your front leg at a sharper angle than your back leg. This position works muscles in the shoulders, back, and arms.

CENTRAL PIVOTING POSITION (2 minutes)

The HURVBTR36 uses a central pivoting system, meaning that the further away you are from the center, the higher the intensity. Change your stance to vary workout intensity

RESISTANCE BAND WORKOUT

Pair an upper-body workout with any usage position! Simply attach hooks at the front end of the unifs platform.

CLEANING AND MAINTENANCE

DANGER

To reduce the risk of electric shock:

Avoid spraying water on the unit. Avoid immersing the unit or any of its parts in water or any other type of liquid.

1. Wipe all surfaces of the unit with a soft, damp cloth on a regular basis to remove excessive accumulation of dust, dirt, sweat, and other substances, especially alter each workout.

Do not treat with abrasive solvents.

1. When this unit is not being used, store it in a dry location.

Do not store near intense heat or an open flame

1. Do not leave the unit under direct sunlight lor prolonged periods of time.

2. Keep the unit out of the reach of pets and young children.

3. We recommend placing the unit back into its original packaging for storage.

FEATURES AND TECHNICAL SPECS

Features:

• Revolutionary Design for Fitness that's Fun
• Vibration Assisted Exercise for Full Body Training
• Excellent Toning for Abs, Thighs & Buttocks
• 3 Presets Program for Maximum Workout
- Next Generation Dynamic Oscillating Motion Technology
• High-Powered Vibrations do the Hard Work

• Accelerated Fat Burning & Weight Loss
• Incorporates Upper Body, Lower Body & Core Workouts
• Lab Tested to Improve Muscle Strength, Flexibility & Circulation
- Detachable Handheld Resistance Bands for More Versatile Routines
- Reduce Appearance of Cellulite, Improves Metabolic Rates
• Simple Operation: Stand On & Power On
- Ideal for All Body Types & Age Groups
• (40) Level Adjustable Speeds
• Digital Touch Button Controls
• Rubber Grip 'Anti-Slip' Surface Pad
- Compact and Portable with Carrying Handle and Wheels
• Perfect for Sports Training, Weight Loss, Burning Fat
- Includes Remote Control

What's in the Box:

• Vibration Machine
• Remote Control, (2) 'AAA' Included
- Power Cord
- User Manual
• (2) Resistance Band

Technical Specs:

• High Power Output: 300 Watt
• RPM (Revolutions Per Minute): 3300+ RPM
• Construction Material: Engineered ABS
• Maximum Session Time Setting: 20 Minutes
• Maximum Load Capacity: 265 lbs.
- Battery Operated Remote Control, Requires (2) x 'AAA' Batteries, Included
• Power Cord Length: 1.8m
• Power Output: 120V

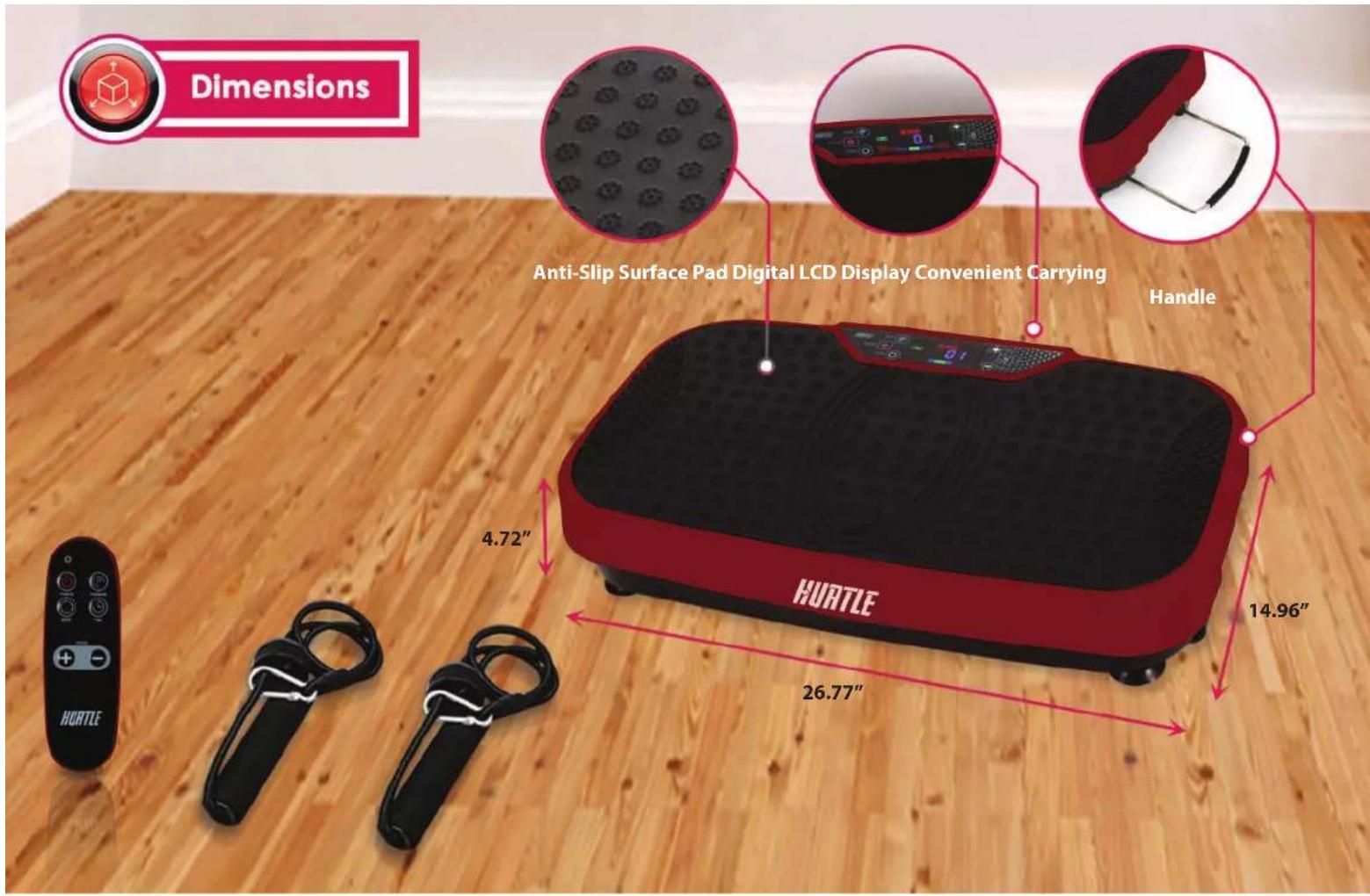

- Dimensions (L x W x H):26.77" x 14.96" x 4.72"-inches

TOTAL BODY WORKOUT

Burning 4000 Calories

Swimming 30 Mins

Jogging 1 Hour

Cycling 1 Hour

Yoga 30 Mins

200 Sit-ups

Woman in pink athletic wear posing on a red HURTLE weight scale in a gym, with a window view of water and no visible text or symbols.

HURTLE

Questions? Issues?

We are here to help!

Phone:[phone]

Email: [e-mail]
