Product Type	Air fryer with dual baskets
Model	AF-127454.2
Brand	Emerio
Power Consumption	1700 W
Voltage / Frequency	220–240 V ~ 50/60 Hz
Temperature Range	80 °C – 200 °C
Timer Range	1 – 60 minutes
Basket Capacity (Basket 1 / Basket 2)	500 g / 300 g (for French fries)
Preset Cooking Programs	8 menus: frozen French fries, cake, steak, drumsticks, chicken wings, shrimp, roast sausage, egg tart
Display	Dual temperature/timer display with icons
Control Method	Touch buttons: menu, temperature, timer, start/pause, basket selection
Independent Basket Operation	Yes, each basket can be set separately
Power Failure Memory	Yes, retains settings for up to 30 minutes after power loss
Housing Material	Plastic with metal heating element
Basket & Fry Grill Material	Non-stick coated metal with silicone feet on grill
Dishwasher Safe Parts	Frying grills
Cleaning	Wipe exterior with damp cloth; clean baskets and grills in hot soapy water; use brush for heating element
Safety Features	Auto shut-off, overheat protection, cool-touch handle, caution for hot surfaces
Spare Parts Availability	Available at https://spareparts.emerio.eu
Dimensions (Approximate)	30 x 35 x 30 cm
Weight (Approximate)	5 kg

Frequently Asked Questions - AF-127454.2 Emerio

Can I use oil in this air fryer?

No, do not fill the basket with oil or any other liquid. The air fryer uses hot air to cook food. For crispier results, you may lightly spray food with oil before cooking.

How do I preheat the Emerio AF-127454.2?

To preheat, set the desired temperature and let the appliance run empty for about 4 minutes. You can also add 3 extra minutes to the cooking time if starting from cold.

Why is my food not cooked evenly?

Different types of food may need to be shaken halfway through cooking. Pull out the basket, shake or turn the ingredients, then slide it back. Also, avoid overfilling the basket.

Can I cook different foods in each basket at the same time?

Yes, each basket can be set independently with its own temperature and time. Press the corresponding basket button, set the menu or values, then start. Both baskets will cook simultaneously, and the one with shorter time will finish first.

What should I do if white smoke comes out of the appliance?

White smoke may occur when frying greasy ingredients. Keep the temperature below 180°C. Also, ensure the basket is clean from previous use. If dark smoke appears, unplug immediately and check for burnt food.

How do I clean the heating element?

After the appliance cools down, remove the basket and use a cleaning brush to gently remove any food residues from the heating element visible inside the housing. Do not immerse the appliance in water.

Are the baskets and grills dishwasher safe?

The frying grills are dishwasher safe. The baskets should be washed by hand in hot soapy water with a non-abrasive sponge. Dry thoroughly before reuse.

What does error code E1 or E2 mean?

E1 indicates the NTC (temperature sensor) is open, and E2 indicates a short circuit. These errors require professional repair. Contact customer service or an authorized service center.

Can I bake a cake in this air fryer?

Yes, use the ‘Cake’ preset menu. Place the batter in a baking tin or oven dish that fits inside the basket. Ensure the dish is heat-resistant and not too large.

Where can I find spare parts for my Emerio air fryer?

Spare parts are available at https://spareparts.emerio.eu. You can order parts like baskets, grills, or other components.

USER MANUAL AF-127454.2 Emerio

Black and white photo of a modern air fryer with two side bays filled with fried food, displayed at 200°C (no text or symbols visible on the main image).

Abstract black spiral logo design on white background (no text or symbols)

Smart Fryer

(EN)
(EE)
(LV)
(LT)

CE

Content – Sisukord – Saturs – Turinys

Instruction manual – English....- 2 -

Kasutusjuhend – Estonian....- 8 -

Instrukciju rokasgrāmata – Latvian....- 14 -

Instrukciju vadovas – Lithuanian ...... - 20 -

Instruction manual – English

SAFETY INSTRUCTIONS

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

4. Keep the appliance and its cord out of reach of children less than 8 years.

5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

6. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph "cleaning and maintenance" of the manual.

7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

8. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environment; bed and breakfast type environments.

9. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

10. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

11. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

12. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

13. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

14. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

15. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

16. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

17. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

18. Never leave the appliance unattended during use.

19. This appliance is not designed for commercial use.

20. Do not use the appliance for other than intended use.

21. Do not wind the cord around the appliance and do not bend it.

22. Place the appliance on a stable, level surface from which it cannot fall off.

23. Please prevent the product to be exposed to excessive dirt and humidity.

24. Clean the product itself with a slightly damp cloth.

25. Do not operate the machine without supervision, if you should leave the workplace, always switch the machine off or remove the plug from socket (pull the plug itself, not the lead).

26. Do not place the appliance against a wall or against another appliance. Leave at least 10cm free space on the back and sides and above the appliance.

27. During hot air frying, hot steam is released through the air outlet openings. Keep your hands and face at a safe distance from the steam and from the air outlet openings. Also be careful of hot steam and air when you remove the basket from the appliance.

28. Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you remove the basket from the appliance.

29. Make sure before each use of the appliance that the heating element and surroundings are clean and clear from any food remainders in order to ensure a flawless function.

1. Caution, hot surface.

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. Hot air comes out of the air vent at the back side of the appliance. Be sure to keep sufficient distance to materials, like glass, that are sensitive to heat.

2. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

3. Always remove baking paper from the basket after use and before/ during preheating without food.

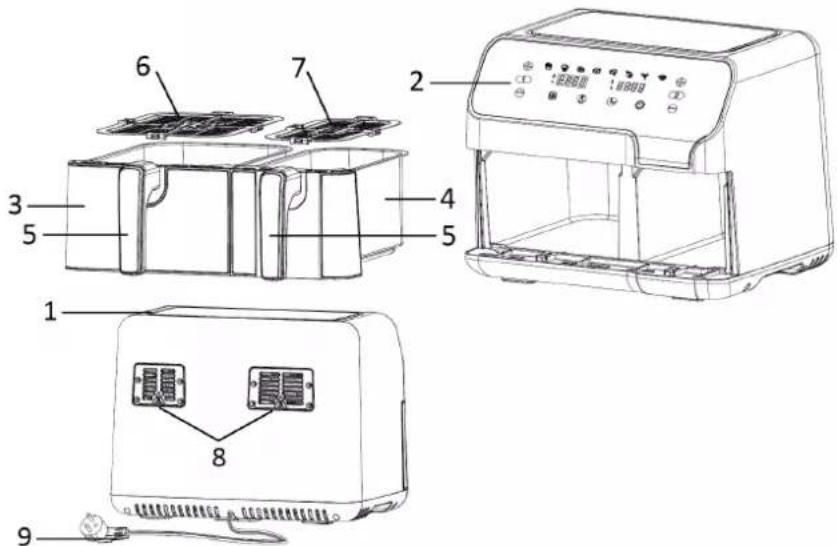

PARTS DESCRIPTION

1. Air inlet
2. Control panel and display
3. Basket 1
4. Basket 2
5. Basket handle
6. Frying grill for basket 1
7. Frying grill for basket 2
8. Air outlet
9. Power cord

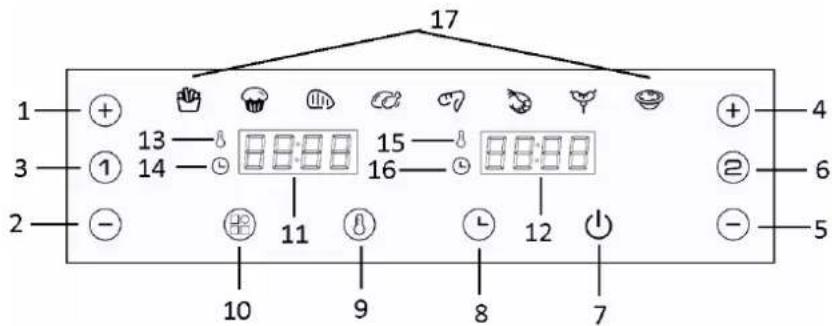

Control panel and display

1. Temperature/ timer increase button for basket 1 (+)
2. Temperature/ timer decrease button for basket 1 (-)
3. Button 1 for basket 1
4. Temperature/ timer increase button for basket 2 (+)
5. Temperature/ timer decrease button for basket 2 (-)
6. Button 2 for basket 2
7. Start/ pause /standby button
8. Timer button
9. Temperature button
10. Menu button
11. Temperature/ timer display for basket 1
12. Temperature/ timer display for basket 2
13. Temperature icon for basket 1
14. Timer icon for basket 1
15. Temperature icon for basket 2
16. Timer icon for basket 2
17. Menu icons

Menu

Menu		Reference weight		Default temperature	Default time	Shake
	Frozen French fries	Big	500g	200°C	25min	1-2
		Small	300g
	Cake	Big	300g	150°C	25min
		Small	150g
	Steak	Big	170g	200°C	15min	1-2
		Small	85g
	Drumsticks	Big	800g	200°C	30min	1-2
		Small	300g
	Chicken wings	Big	500g	190°C	22min	1-2
		Small	300g
	Shrimp	Big	350g	190°C	12min	1-2
		Small	175g
	Roast sausage	Big	240g	160°C	15min	1-2
		Small	130g
	Egg tart	Big	290g	170°C	20min
		Small	150g

BEFORE USE

First read all instructions before use and retain the manual for later reference. Only plug this appliance into an earthed socket. Before first use, remove the packing materials. Clean the baskets and frying grills. (See “cleaning and maintenance”) Wipe inside and outside of the appliance with a soft cloth. Make sure that the electrical parts remain dry. This appliance heats food at all directions and most of the ingredients do not need any oil.

Operate the appliance before first use for approximately 10 minutes in order to burn off production residues. Make sure there is good ventilation. The appliance may emit some smoke and a characteristic smell when you switch it on for the first time. This is normal and will stop soon.

Note: Always use the frying grill with the silicone feet attached. They will help to stabilize the frying grill in the basket during cooking.

USE

1. Place the appliance on a dry, stable and heat-resistant surface.
2. Since the appliance becomes hot during use, make sure that it is not too close to other objects.
3. Pull out the basket from the appliance by the basket handle. Put the frying grill into the basket.
4. Place the ingredients into the basket. Slide the basket into the appliance. Make sure they are placed correctly and closed completely. Caution: Do not fill the basket with oil or any other liquid. Do not touch the basket during use or after use in short time as it gets very hot. Only hold the basket by the handle.

5. Connect the power plug to a suitable outlet. The machine is now standby. Press the button " ", button 1 and button 2 will display in the control panel.

6. Press the button 1 to activate basket 1, then press the menu button “☐” to directly choose one of the cooking functions: frozen fresh fries, cake, steak, durmsticks, chicken wings, shrimp, roast sausage and egg tart. If you wish to adjust the temperature a little, you can press the button “☐”, and then button “+” or “-” for basket 1 to adjust temperature (5 degrees / press, 80°C-200°C); if you wish to adjust the time, you

can press the button “+”, and then button “+” or “-” for basket 1 to adjust the time (1 minutes / press, 1-60 minutes). You can also long press “+” or “-” for rapid adjustment.

1. Press the button 2 to activate basket 2, then press the menu button “☐” to directly choose the cooking functions among frozen frech fries, cake, steak, durmsticks, chicken wings, shrimp, roast sausage and egg

tart. If you wish to adjust the temperature a little, you can press the button “☐”, and then button “+” or “-” for basket 2 to adjust temperature (5 degrees / press, 80°C-200°C); if you wish to adjust the time, you

can press the button “+”, and then button “+” or “-” for basket 2 to adjust the time (1 minutes / press, 1-60 minutes). You can also long press “+” or “-” for rapid adjustment.

1. Press the button "☐"; the appliance (both baskets) will start working. The basket with less working time will finish first.

2. When the cooking process is finished, the appliance will stop working and you will hear a beep sound. During operation, you can press the button "⏻" to pause the programs for both baskets, and press it again to continue the programs.

If you need to pause one of them, press the basket number 1 or 2 firstly, and then press the button "💡" once, basket 1 or 2 will stop working; press the button again to continue the program.

If no following operation within 3 mins, the paused side will go to standby mode. Press its corresponding basket number to activate it.

Long press the button "⏻" will cancel the setting.

1. Pull out the basket from the appliance by the basket handle. Check if the ingredients are ready. If not, simply slide the basket back into the appliance. Select the menu to set the temperature and the timer to a few extra minutes. Then press the button "☐" to run the appliance again. NOTE: You can also pull out the basket to check and shake the ingredients during cooking process.

2. To remove ingredients (e.g. beef, chicken, meat) with original oil and will have excess oil collected on the bottom of the basket during frying, please use tongs to pick ingredients one by one;

To remove ingredients (e.g. chips, vegetable) with no excess oil collected on the bottom of the basket during frying, please pull out the basket, and pour ingredients to tableware.

Note: The basket and the ingredients are hot after frying. Depending on the type of the ingredients in the appliance, steam may escape from the basket.

1. After the cooking is done, the appliance is instantly ready for preparing another batch of ingredients if needed.

Note:

1. Basket 1 and basket 2 can be used separately. According to the ingredients, you can only choose one basket to do your cooking.

2. After basket 1 is started, if you have other ingredients to cook, you can use basket 2. Set the menu or temperature/timer for basket 2, then press the button "💡". The basket 2 will start working.

3. When cooking in both zones, more cooking time will be needed.

4. Power off memory: If the appliance is being used with an accidental power off, the appliance will return to the state before the power failure as long as the power is reapplied within 30min.

FRYING TIPS

1. The optimal amount for crispy fries is 500 grams for basket 1 and 300 grams for basket 2.

2. Add 3 more minutes to the preparation time when the appliance is cold, or you can also let the appliance preheat approx. 4 minutes without any ingredients inside.

3. Some ingredients require shaking halfway through the reparation time. To shake or turn over the ingredients, pull the basket out of the appliance by the handle and shake it or turn over the ingredients by fork (or tongs). Then slide the basket back into the appliance.

4. You can also use the fryer to reheat ingredients. To reheat ingredients, set the temperature to 150^ C for up to 10 minutes.

5. Products with crust of dry breadcrumbs will get crispier by spraying them with a little vegetable oil.

6. Place a baking tin or an oven dish in the appliance if you want to bake a cake or quiche or other fragile ingredients.

7. Do not prepare extremely greasy ingredients such as sausages in the appliance.

CAUTION:

1. Do not immerse the housing in water or rinse it under the tap.
2. Avoid any liquid entering the appliance to prevent from electric shock or short circuit.
3. Keep all ingredients in the basket to prevent any contact with heating elements.
4. Do not cover the air inlet and the outlet when the appliance is working. Leave at least 10cm free space around and above the appliance.
5. Filling the basket with oil may cause a fire hazard!
6. Do not touch the inside of the appliance when it is in operation.
7. Be careful of the hot steam and air when you remove the basket from the appliance.
8. During operation, hot steam is released through the air outlet. Keep your hands and face at a safe distance from the steam and the air outlet.
9. Immediately turn off and unplug the appliance if you see any dark smoke coming out of the appliance, which means the food is overcooked or the appliance broke down.

CLEANING AND MAINTENANCE

1. Before handling or cleaning the appliance, let it cool down for approximately 30 minutes. Clean the appliance on all the inside and outside regularly.
2. Clean the outside and inside of the appliance with a damp cloth and dry with a soft, clean cloth.
3. Never use abrasive cleaners or sponges.
4. Remove the basket to let the appliance cool down more quickly. Clean the baskets and frying grills in hot water with a washing liquid and a non-abrasive sponge. Dry well before use.
5. Clean the heating element inside of the housing (You can see it after pull out the basket) with a cleaning brush to remove any food residues.

Note: Frying grills are dishwasher safe.

TROUBLE SHOOTING

Problem	Possible cause	Solution
The appliance does not work.	The appliance is not plugged in.	Put the mains plug in an earthed wall socket.
	You have not pressed the button “to turn on the machine.	Press the button to turn on the appliance.
The ingredients are not fried completely.	The amount of the food in the basket is too large.	Put smaller batches of ingredients in the basket. Smaller batches are fired more evenly.
	The temperature is too low or the time is not enough.	Adjust the temperature to the required temperature or cook extra time.
The ingredients are fried unevenly.	Different types of food may need to be shaken halfway during cooking.	Shake food halfway during the cooking time.
Fried snacks are not crispy	You used a type of snacks which shall be cooked in a traditional deep fryer.	Use oven snacks or lightly brush some oil onto the snacks for a crispier result.
White smoke comes out from the appliance.	You are preparing greasy ingredients.	Pay attention that the temperature is well-controlled to be under 180°C, when you fry greasy ingredients in the air fryer.
	The basket still contains grease residues from the previous use.	Clean the basket properly after each use.
Fresh fries are fried unevenly.	Haven’t used the right potato type.	Use fresh potatoes and make sure that they stay firm during frying
	Haven’t rinsed the potato sticks properly before frying.	Rinse the potato sticks properly to remove starch from the outside of the sticks.
Fresh fries are not crispy	The crispness of the fries depends on the amount of oil and water in the fries	Make sure the potato sticks have been dried properly before adding the oil.
		Cut the potato sticks smaller for a crispier result
		Add slightly more oil for a crispier result
E1	The NTC is opened.	Contact a professional for repairing
E2	The NTC is short circuit.	Contact a professional for repairing

TECHNICAL DATA

Operating voltage: 220-240V\~ 50-60Hz

Power: 1700W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer.

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used

device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.

Emerio B.V.

Oudeweg 115

2031 CC Haarlem

The Netherlands

Customer service:

T: [phone]

www.emerio.eu/service

Kundeninformation:

T: [phone]

www.emerio.eu/service

Klantenservice:

T: [phone]

www.emerio.eu/service

Looking for spare parts? Have a look at https://spareparts.emerio.eu

Looking for spare parts? Have a look at https://spareparts.emerio.eu

Looking for spare parts? Have a look at https://spareparts.emerio.eu

Looking for spare parts? Have a look at https://spareparts.emerio.eu
