Product Type	Oil-filled radiator (Oil heater)
Model	MR950-9
Brand	Maestro
Power Supply	220-240 V ~ 50 Hz
Power Consumption	2000 W (max)
Power Settings	3 modes: 800 W / 1200 W / 2000 W
Protection Class	I
IP Rating	IPX0
Thermostat Control	Adjustable thermostat knob
Heating Elements	Oil-filled sealed sections
Safety Features	Overheat protection, thermal cut-off, tip-over safety switch (if equipped)
Mobility	4 castor wheels
Handle	Top handle for carrying
Cord Storage	Built-in cord wrap
Recommended Room Size	Up to 25-30 m² (depending on insulation)
Noise Level	Virtually silent during operation
Cleaning	Wipe with damp cloth; do not use abrasive cleaners
Maintenance	No user-serviceable parts; contact service center for repairs
Certification	CE, UKCA (as per manual)
Manufacturer	Apollo Corporation Ltd., Hong Kong

Frequently Asked Questions - MR950-9 Maestro

Why does my new oil heater emit a smell when first used?

It is normal for new oil heaters to emit a slight odor during initial use. This is caused by dust or lubricants inside the unit heating up. The smell should disappear after a few minutes of operation. Ensure the room is well ventilated.

How do I select the right power setting?

The heater has three power modes: I (800 W), II (1200 W), and III (2000 W). For energy savings, use the lower settings in smaller rooms. The thermostat helps maintain the desired temperature.

Can I use an extension cord with this heater?

It is strongly advised not to use extension cords as they may overheat and cause a fire risk. Plug the heater directly into a wall outlet. If an extension is unavoidable, use a heavy-duty cord rated for at least 2000 W.

How do I clean the oil heater?

First, unplug the heater and let it cool completely. Wipe the exterior with a damp cloth and then dry thoroughly. Do not use abrasive cleaners or immerse the unit in water. Never allow moisture on electrical parts.

Is it safe to leave the heater unattended?

No, never leave the heater operating unattended. Always switch off and unplug when leaving the room or going to sleep. Keep away from curtains, furniture, and flammable materials.

What should I do if the heater tips over?

If the heater falls, immediately unplug it from the mains. Inspect for damage, especially the oil seals and power cord. If you suspect any leakage or damage, do not use and contact a service center.

How long does the heater take to cool down after use?

Oil heaters retain heat for a long time. After switching off, allow at least 10-15 minutes for cooling before moving or storing. Use the handle for safe transportation.

Can the heater be placed in a bathroom?

No, the heater must not be used near baths, showers, or swimming pools. It is rated IPX0 (no moisture protection). Keep away from water to avoid electric shock.

What is the minimum clearance required from furniture?

The heater should be placed at least 90 cm (3 feet) away from furniture, curtains, beds, and other combustible items to prevent fire hazards.

How do I store the heater when not in use?

Allow the heater to cool completely. Wrap the cord around the built-in cord storage. Store in a dry, dust-free place, preferably in its original packaging. Do not expose to weather or direct sunlight.

USER MANUAL MR950-9 Maestro

Owners manual. Oil Heater

White portable oil heater with multiple cooling fans and wheels (no visible text or symbols)

091

Certificated in Ukraine

Pictures/ Paveikslai/ Rysunki/ Figuri/ Рисунки/ Малюнки

EN Description of the appliance....4
DE Gerät....9
PL Konstrukcja urządzenia....14
RO Structura produsului....19
RU Устройство прибора....24
UA Склад приладу....29

Dear customer, we thank you for purchase of goods!

Functionality, design and conformity to the quality standards guarantee to you reliability and convenience in use of this device. Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use of subsequent owners. The appliance is designed only for heating air in home use or similar places. Under condition of observance of user regulations and a special purpose designation, a parts of appliance do not contain unhealthy substances.

TECHNICAL SPECIFICATIONS

Model: MR 950-9

Electrical supply:

Alternating current- AC;

Rated voltage 220-240V;

Rated frequency 50Hz;

Power consumption:

2000 W

Protective class I

Protection class IPX0

DESCRIPTION OF THE APPLIANCE

Picture1| page 2

1. Thermostat control knob
2. Power control unit (3 modes)
3. Rope storage shed
4. Heater sections
5. Moving rollers

Safety instructions

When using your appliance, basic safety precautions should always be followed, including the following:

SPECIAL INSTRUCTIONS

WARNING!

• Do not use the appliance in the vicinity of showers, bath tubs, wash basins, swimming pools, etc.
• Do not allow water and moisture on the electrical parts of the device.
• Never immerse the appliance, cable or plug in any liquid.
• Never touch the appliance with wet or damp hands.

Failure to observe these rules may result in electric shock!

- It is prohibited to use the device in rooms with flammable, highly explosive vapors in the air or near explosive and flammable objects and liquids and powders e.g. FUEL, OIL, GAS, EXPLOSIVES, COAL OR SUGAR POWDERS etc.)

ATTENTION! do not cover, If covered, there is the risk of overheating!

• DO NOT leave the appliance without supervision when it is connected to the power supply.
• DO NOT let children or untrained persons use the appliance without supervision. Close supervision is necessary when the appliance is used near children or pets.
• DO NOT leave the appliance unnecessarily plugged in. Disconnect the plug from the mains when the appliance is not being used.
• Do not using the heater with a programmer, timer or any other device that switches the heater on automatically. The use of such devices is dangerous and can cause a fire risk.
• Always unplug the heater when not in use. Do not pull the cord to unplug the heater.
• Use of low-quality electric extension pieces or adapters of mains plug may cause damage of the electric device and fire.

EN

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- Do not leave the appliance exposed to the weather (rain, sun, etc.).

- If your appliance is brought from a cold place to a warm place, do not switch the appliance on for 2 hours, to avoid breakage due to condensation on the inside of the appliance.

- Do not operate the appliance if damaged, after an appliance malfunctions or it has been damaged in any manner, return to at authorized service engineer for repair.

- In the interest of safety, regular periodic close checks should be carried out on the supply cord to ensure no damage is evident. Should there be any signs that the cord is damaged it must be replaced with original one.

- Never move or pick up the heater when it is turned on. Do not drop the appliance.

ATTENTION! After it was turned off, allow the unit to cool down 5-10 minutes before storage. In case of failure to observe the above mentioned rules there arises the danger of burning!

ATTENTION!

Do not dry clothes or other objects on the device in order to avoid fire, if there is an oil leakage, please, do not use the device. If it is necessary to open the body frame for repair, this should be done only by qualified personnel of a specialized workshop.

- The heater uses a special oil with high thermal conductivity.

-THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY. Do not use it in industrial or commercial areas (e.g. construction sides, stores etc.), places with high dusty or humidity in the air.

DO NOT USE THE APPLIANCE FOR ANYTHING OTHER THAN INTENDED USE.

Purchase industrial devices for commercial use.

Actions in extreme situations

- If a device tumbled into water, immediately, unplug the device, not touching to the device or water. - In case of appearance from appliance of smoke, sparkling, strong smell of a burn isolation, immediately stop use the device, unplug the device, appeal to the nearest service center.

Operation

Before the first use

Before you use it for the first time, remove the packing materials, unwind the power cord completely. Make sure that all parts of the device are not damaged.

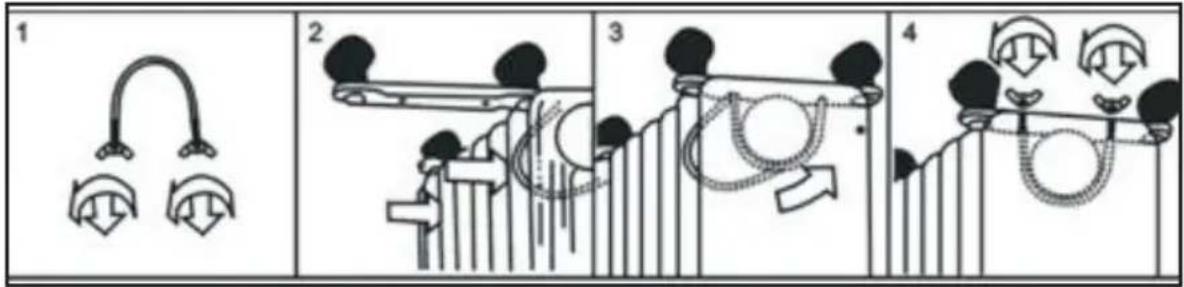

• Turn around the oil radiator
• Place the wheel bar on the outer sections.
• Fasten the wheels to the radiator using the washers and tighten the screw (Fig.2)
• Return the device to a vertical position.

The heater should not be closer than 90 cm from furniture, curtains and other interior items.

Before connection the plug to the mains make sure that the device switch is set into «O»- «OFF» position.

ATTENTION!

When switched on for the first time a slight odor might be emitted for a few minutes. This is harmless and occurs with most heaters when any slight traces of dust or lubricants that may have collected in the factory are heated away.

Thermostat (1/ Fig.1) allows you to adjust and maintain the room temperature

“-”(thin end of mark) the minimum room air temperature

“+” (thick end of mark) the maximum room air temperature

Select the desired power mode (2/Fig1):

I - the first power level 800 W

II - the second power level 1200 W

III – the third power level 2000 W

If You do not use the device, return all switches to the « 0" position and disconnect the device from the mains.

EN

ATTENTION!

After switching off, the oil radiator cools down for a long time. Move the device only after it has cooled completely. Use the handle for safety and convenience.

Cleaning and maintenance

ATTENTION!

• Never clean appliance connected to the mains.
• Before cleaning, disconnect the heater and let it cool down.
• Do not use abrasive and aggressive detergents.
• Never submerge the heater, power line cord and plug in water or other liquids. Do not allow water and moisture on the electrical parts of the device

Wipe the radiator sections with a wet cloth, then with a dry one, and let the radiator to dry completely. -There are no parts inside the machine that require your attention or servicing. Do not try to open the outer case. By doing so you could damage the motor and heating element and invalidate the warranty. Any other maintenance should be performed by qualified personnel in the service center.

Environmental protection

Old appliances contain valuable materials that can be recycled.

Please arrange for the proper recycling of old appliances. Please dispose your old appliances using appropriate collection systems.

Subject to technical modifications!

Current electric alternativ;

Frecventa nominala: 50 Hz;

STRUCTURA PRODUSULUI

Figura 1 (pagină2)

RO

Made in P.R.C. for Maestro

Apollo Corporation Limited: Room 803, 8/F., Podium Plaza, 5 Hanoi Road, TST., Kln., Hong Kong
