WA8014-340-A - Washing machine Exquisit - Free user manual and instructions

Product Type	Freestanding Washing Machine
Brand	Exquisit
Model	WA8014-340-A
Rated Capacity	8 kg
Maximum Spin Speed	1400 rpm
Energy Consumption (Eco 40-60, full load)	200 kWh per year (approx.)
Water Consumption (Eco 40-60, full load)	69 L per cycle
Programmes	Cotton, Eco 40-60, 20°C, Delicates, Drum Cleaning, Spin, Rinse & Spin, Hygiene, Bed Linen, Intensive, Sport, Shirts, Wool, Quick, Mix, Prewash
Additional Functions	Start Time Delay (3-24h), Child Lock, Temperature Selection, Spin Speed Selection, Acoustic Signal On/Off
Dimensions (H x W x D)	85 cm x 60 cm x 45 cm (approx.)
Net Weight	65 kg (approx.)
Power Supply	220-240 V ~ 50 Hz, 10 A
Water Connection	Cold water only, 3/4" threaded hose
Drain Hose	Max. height 100 cm, included holder
Noise Level (Wash/Spin)	62 dB / 76 dB (approx.)
Energy Efficiency Class	C (EU 2019/2014, estimated)
Safety Features	Automatic door lock, child lock, overflow protection, emergency door opening
Spare Parts Availability	Motor, pump, shock absorbers, drum bearings, heating element, door seal, circuit boards, hoses, etc.
Warranty	24 months (private use), 12 months (commercial use)
Maintenance Intervals	Clean lint filter every 10 washes, clean inlet filter and drum seal every 6 months

Frequently Asked Questions - WA8014-340-A Exquisit

How do I install the washing machine?

Remove transport bolts before use. Place the machine on a solid, level floor. Connect the water inlet hose to a cold water tap (3/4"). Position the drain hose at a height between 80-100 cm. Plug into a grounded outlet. Level the appliance using the adjustable feet and tighten lock nuts.

What do I do if the machine does not start?

Check if the machine is plugged in, switched on, and the door is closed. Ensure the water tap is open. Verify that the Start/Pause button is pressed. If a start delay is set, it will begin later. If still not starting, refer to error codes in the manual.

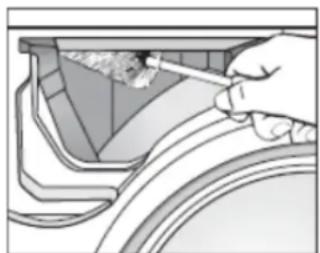

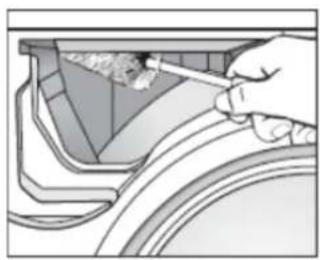

How do I clean the drum and prevent odors?

Run the Drum Cleaning programme regularly. Use a descaling agent in the main detergent compartment. Do not add extra detergent. Also wipe the door seal after each wash and leave the door ajar to dry.

Why is the door not opening after a wash?

The door lock remains active for 2-3 minutes after the programme ends. Wait for the lock indicator to go out. If it still won’t open, perform an emergency opening: unplug, drain water via pump filter, and pull the emergency release ring (C).

What do error codes E1, E2, etc. mean?

E1: Water inlet problem – check tap, filters, hose. E2: Drain issue – clean pump filter and hose. E3: Door lock fault – remove obstructions. E4: Overflow – call service. E5-E10: Electrical or motor faults – unplug and contact After Sales Service.

Can I wash delicate fabrics in this machine?

Yes, select the Delicates programme (max 40°C, gentle spin) or Wool programme (cold/30°C). Always check garment care labels and place small items in a laundry bag.

How do I use the start time delay?

Select a programme, press the Start time delay button (4), adjust from 3 to 24 hours using the same button or rotary selector (varies by model). Then press Start/Pause. The machine will finish at the set time. Note: do not use liquid detergent with delay.

What is the child lock and how to activate it?

Child lock prevents accidental changes during a cycle. Activate by pressing Temp (2) and Spin (3) simultaneously for 3 seconds while the programme is running. The indicator (e) lights up. Deactivate in the same way.

How do I clean the lint filter (drain pump filter)?

Unplug the machine. Open the flap (6) at bottom right. Pull out the drain hose and let water run into a container. Unscrew the filter anticlockwise, remove debris, rinse, and replace securely. Repeat every 10 washes.

What should I do if the machine vibrates excessively?

Ensure all transport bolts are removed. Place the machine on a firm, level floor. Adjust the feet for stability (no wobble). Check that the load is balanced (mix large and small items). If vibration persists, reduce spin speed.

USER MANUAL WA8014-340-A Exquisit

It is essential to read the instruction manual carefully before operating the appliance. The instruction manual contains important safety information for the operation and maintenance of the appliance. Proper operation makes a major contribution to efficient energy use and minimises the energy consumption of the appliance.

Improper use of the appliance can be dangerous, particularly for children.

Keep the instruction manual for future reference and pass it on to any subsequent owners.

The manufacturer is working constantly on the further development of all types and models. We therefore reserve the right to make changes in form, equipment and technology.

CE Conformity

At the time of its placement on the market, this appliance conforms to the requirements laid down in the Council directives on the approximation of the laws of the Member States relating to electromagnetic compatibility, Directive 2014/30/EU, and relating to the making available on the market of electrical operating equipment designed for use within certain voltage limits, Directive 2014/35/EU.

This appliance bears the CE mark and has a declaration of conformity that can be examined by the responsible market supervisory authorities.

Gerät kennenlernen

Lieferumfang

Bedienblende

Getting to know your appliance

Scope of supply

1	Water inlet hose
1	Instruction Manual
4	Caps
1	Holder for the drain hose
1	Spanner

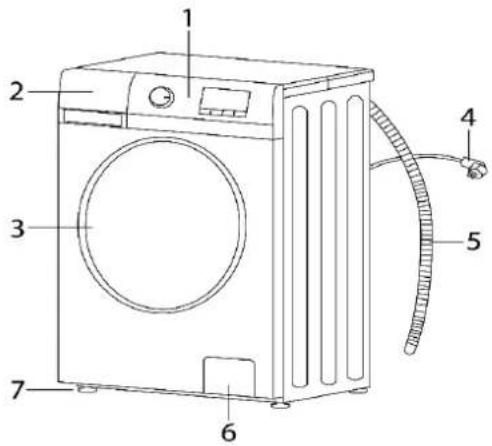

Appliance description

1 Control panel
2 Detergent chamber
3 Drum door
4 Mains power cable
5 Drain hose
6 Drain pump strainer
7 Adjustable feet

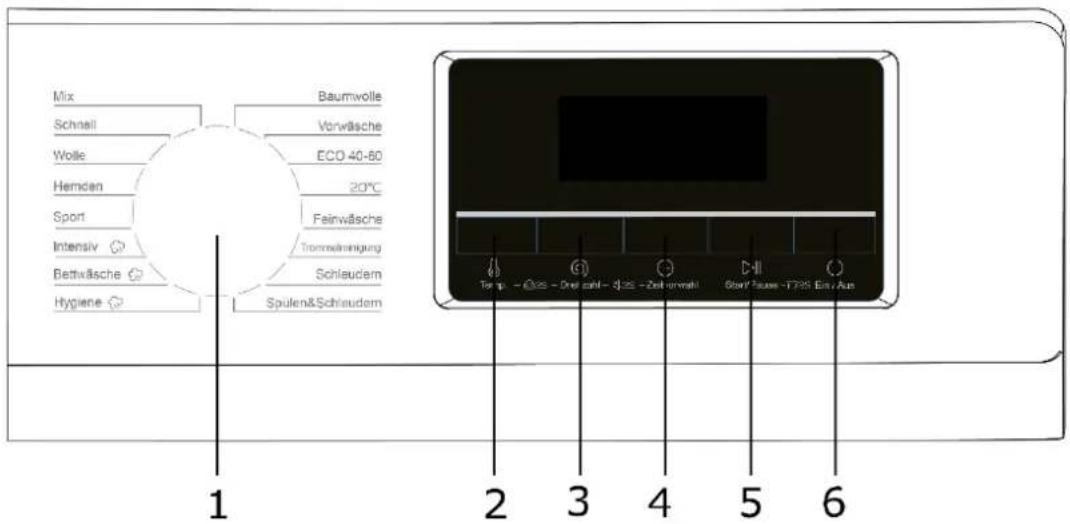

Control panel

1 Rotary selector /programme selection
2 Temperature
3 Slingshots
4 Start time delay
5 Start/Pause
6 ON/OFF

a) Display Display of information regarding the selected programme, wash time and other functions such as temp; spin; start time
b) Door lock is deactivated. The appliance door can be opened.
c) Door lock active (if a washing programme has started, the appliance door cannot be opened) The appliance door can be opened again after finishing a washing programme.
d) Display Acoustic signal
e) Steam function is active. This function is not selectable.

Door lock active (if a washing programme has started, the appliance door cannot be opened) The appliance door can be opened again after finishing a washing programme.

Inhalt

1 Sicherheit 8

10.1 Intended use....30
10.2 Improper use 31
10.3 Safety for specific groups of people . 31
10.4 Residual risks 31
10.5 Safety and warnings 31
10.6 General safety instructions.... 32

11 Setting up and connecting.... 33

11.1 Align the appliance 34
11.2 Water inlet and outlet 34

12 Putting into operation.... 36
13 Washing programmes 38
13.1 Programme selection 38

13.2 Washing symbols.... 41
13.3 Saving energy and water 43
13.4 Stain treatment tips 43

14 Cleaning and Maintenance 45
15 Troubleshooting...... 47
16 Spare parts/After Sales Service.... 49
17 Warranty terms.... 50
18 Disposal 51

1 Sicherheit

Four dental implant variants with different screw designs (no text or symbols visible)

Two mechanical assembly diagrams showing a lever mechanism (no text or symbols)

Two mechanical assembly diagrams showing pipe fittings and a valve mechanism (no text or symbols)

Diagram of a washing machine connected to a 30cm pipe, showing wiring and components (no text or symbols)

Diagram of a washing machine connected to a 90cm pipe with a 60cm outlet (no text or symbols present)

Um Wasseraustritt zu vermeiden:

Wasserhärte

Diagram of a printer or printer with an arrow indicating left motion (no text or symbols present)

Illustration of a hand using a tool to clean or store contents inside a container (no text or symbols visible)

All safety instructions in this instruction manual are marked with a warning symbol. They draw your attention to potential hazards. Be sure to read and observe this information.

Explanation of the safety instructions

DANGER

Indicates a hazardous situation which, if not avoided, will lead to very serious injuries or even death!

WARNING

Indicates a hazardous situation which, if not avoided, can lead to very serious injuries or even death!

CAUTION

Indicates a hazardous situation which, if not avoided, can lead to minor or moderate injuries!

ATTENTION

Indicates a situation which, if not avoided, will lead to material damage.

ELECTRIC SHOCK HAZARD!

RISK OF SCALDING!

FIRE HAZARD!

➢ Information and instructions to be observed.

- Indicates a list

√ Indicates inspection steps in sequence

1. Indicates work steps in sequence

→ Describes the response of the appliance to the work step

10.1 Intended use

• The appliance is intended for household use.
• The appliance is suitable for washing textiles. Every other form of use is not considered an intended use.
• Do not operate the appliance other than as described in this instruction manual otherwise as this would lead to the voiding of warranty claims in the event of faults.
• The appliance is not intended for outdoor use.
• The intended use also implies compliance with the cleaning and maintenance conditions prescribed by the manufacturer. For safety reasons, modifications or alterations to the appliance are not permitted.

10.2 Improper use

The following activities are considered improper use and are therefore prohibited:

• The appliance is not suitable for commercial use.
• Do not connect the appliance to the mains power supply using multiple socket strips.
• Do not route the mains power cable or hoses under voltage.
• Do not kink the mains power cable.
• Set up the appliance so that the mains plug is accessible at all times.
• Do not pull the mains plug out of the plug socket at the cable.
• Never pour solvents into the appliance.
• Do not place flammable products or objects that are wetted with flammable products in or near the appliance.

10.3 Safety for specific groups of people

DANGER

RISK OF SUFFOCATION!

Packaging materials (e.g. plastic film, polystyrene) can be dangerous for children. Keep packaging materials out of the reach of children.

WARNING

RISK OF POISONING!

Detergent is corrosive! Keep children away.

10.4 Residual risks

DANGER

ELECTRIC SHOCK HAZARD!

• Never hold the mains plug of the mains cable with damp or wet hands when plugging in or unplugging the appliance.
• In an emergency, pull the mains plug out of the plug socket immediately.
• Remove the mains plug from the plug socket before starting cleaning or service work.
• A damaged power supply cable must be replaced by the supplier, dealer or After Sales Service without delay. If cable or mains plug are damaged, do not use the appliance any longer.
• Do not carry out any work on the appliance other than the cleaning and service work described in this instruction manual.

10.5 Safety and warnings

DANGER

ELECTRIC SHOCK HAZARD!

• Never hold the plug of the mains cable with damp or wet hands when plugging in or unplugging the appliance.
• Install and connect the appliance only in accordance with the description in the instruction manual.

• In an emergency, pull the plug out of the plug socket immediately.

• Do not pull the mains plug out of the plug socket at the cable.

• Remove the plug from the plug socket before starting cleaning or service work.
• A damaged mains power cable must be replaced by our After Sales Service without delay.
• If the cable or plug is damaged, do not use the appliance any more.
• Do not carry out any work on the appliance other than the cleaning and service work described in this instruction manual.
• Do not operate any electrical appliances inside the store room that have not been approved by the manufacturer.

10.6 General safety instructions

• Remove the mains plug from the plug socket or switch off the power supply before starting cleaning or service work.
• A damaged power supply cable must be replaced by the supplier, dealer or After Sales Service without delay. If cable or plug are damaged, do not use the appliance any longer.
• Do not carry out any work on the appliance other than the cleaning and service work described in this instruction manual.
• Never leave the appliance switched on unnecessarily.
• Close the water tap when the appliance is not in use.
• Clean the outside of the appliance with a damp cloth, do not use abrasive cleaners.
• The appliance door is equipped with an automatic locking system. The appliance door can only be opened approx. 2-3 minutes after the end of the washing process.
• Never open the door by force or when there is still water in the appliance.
• If necessary, the mains cable can be replaced by the customer service.
• Do not reach into the rotating drum. Risk of injury!

ATTENTION

APPLIANCE DAMAGE

Do not climb on the appliance.

11 Setting up and connecting

Unpacking the appliance

The packaging materials must be undamaged. Inspect the appliance for transport damage. On no account should a damaged appliance be connected to the mains power supply. In case of damage, contact the supplier.

WARNING

RISK OF SUFFOCATION!

Packaging materials (e.g. plastic film, polystyrene) can be dangerous for children. Keep packaging materials out of the reach of children!

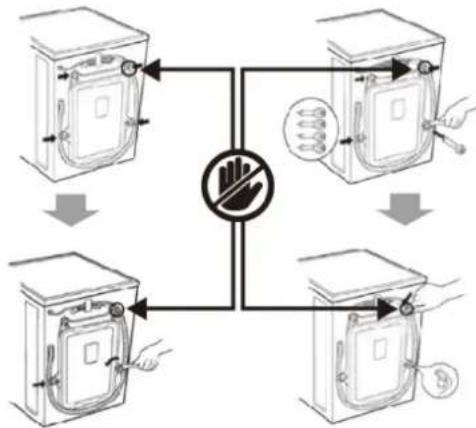

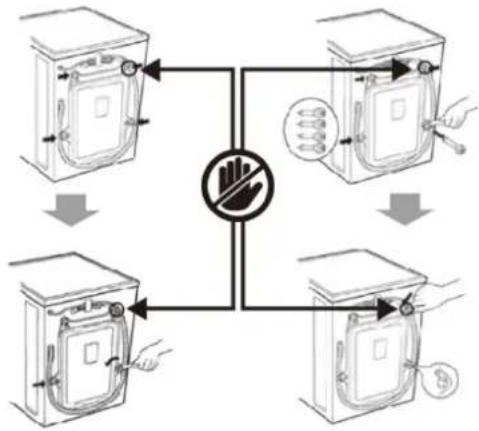

Removing transport protection

The appliance and some of the interior parts are secured for transport. Remove all adhesive tapes and transport bolts.

ATTENTION

APPLIANCE DAMAGE!

There is a risk that the appliance will fall off the base during spinning. When setting up on an existing plinth (concrete plinth or brick plinth), secure the appliance with clamping straps.

1. Loosen the four transport screws with the spanner.
   Do not dismantle the fixed device of the drain pipe (see fig.).
2. Turn the transport screw slightly and pull out completely using the transport bolts (rubber/plastic guide).
3. Close the screw holes with the caps provided.

Four dental implant variants with black and white caps and screws, arranged in a row (no text or symbols visible)

➢ Transport screws that are not removed cause violent vibrations and noise.
Keep the transport screws for further transport of the unit.

Location of the unit

1. Place the appliance on a horizontal, solid floor.

2. The appliance must be aligned horizontally. Placing the appliance on an unsuitable floor could cause strong vibrations, considerable noise and a malfunction.

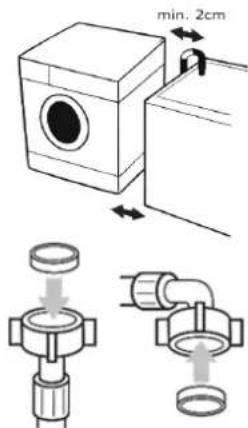

3. Leave sufficient free space:

→ -right and left 2 cm

→ -rear 10 cm

The appliance must not wobble.
All adjustable feet must have firm contact with the floor.
Do not place pieces of wood or similar underneath.

11.1 Align the appliance

It is important to align the appliance, otherwise it will vibrate during spinning and the bearings may wear out prematurely. If the floor is slightly uneven, level the appliance with the front feet.

Adjust the feet so that the appliance is balanced and stable on the floor.

1. Loosen the lock nut (A) of the first stand with the supplied assembly spanner.
2. Height adjustment
3. Check the horizontal position.
4. Adjust the second stand (B).
5. Tighten the lock nuts (A) with the assembly spanner.

11.2 Water inlet and outlet

Connect the water inlet hose to the back of the appliance.

Water inlet: Cold water only

Faucet: 34 " hose screw connection

There are two seals in the connections of both pipe ends to prevent water from escaping.

Connection diagram - cold water connection

The connection to the water tap is made with the hose supplied by the manufacturer. Connect the bent end to the back of the unit and the straight part to the water tap.

Technical illustration of three mechanical assembly components labeled A, B, and C (no text or symbols present)

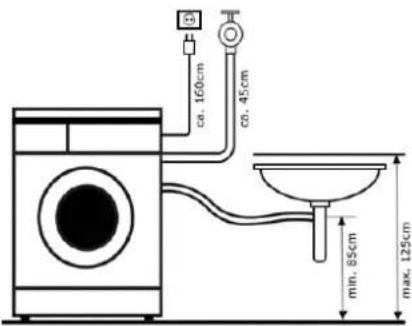

Use of a manifold

Place the drain hose in position with the elbow. Mount the manifold approx. 80 - 100 cm above the floor.

Ensure that the hose cannot fall on the floor and that the escaping water drains off safely.

Diagram of a washing machine connected to a 30cm pipe, showing wiring and component layout (no text or symbols)

To prevent water leakage:

Fit both union nuts with a seal each and tighten well.

(Seal may already be fitted, please check)

Water drain

Secure the water drainage hose with a lifting rope (not included in the scope of delivery) if this is e.g. directed into a washbasin.

If the appliance is connected to a built-in pump-out system, check that the latter is equipped with a vent hole to avoid simultaneous water inflow and pump-out (siphon effect).

Simple line drawing of a mechanical clamp or bracket attached to a sheet of paper (no text or symbols)

Electrical connection

• Have all electrical connections made by a specialist and in compliance with the manufacturer's instructions and local safety regulations.
• For information on voltage, power consumption and fuse protection, see technical data.
• Connection may only be made via a properly installed and earthed protective contact socket.

- Earthing is required by law.

- The manufacturer declines all responsibility for any damage to persons, pets or property resulting from failure to comply with the above instructions.

- Do not use multiple socket strips or power extension cables.

- Access to the mains plug must be guaranteed at all times after installation or it must be possible to achieve mains disconnection via a two-pole switch.

- Do not operate the appliance if it has been damaged during transport. In this case, notify the customer service.

- Have the mains cable replaced only by the customer service.

- Use the appliance only in the household and for the specified purpose.

- Switch on the appliance by inserting the mains plug into the socket.

12 Putting into operation

First wash

To remove the factory dirt and grease residues from the drum and to avoid soiling the textiles, start a wash cycle with a little detergent, without textiles.

Prepare textiles

• Close zips, press studs and hooks so that they do not get caught in other textiles.
• Remove needles, buckles and other hard objects so that they do not scratch the interior of the unit.
• Empty your pockets. Roll down cuffs and turn synthetic fabrics inside out to avoid linting.
• Tie down ribbons and sashes so they don't get tangled.
• Pre-treat stains.
• Separate heavily soiled textiles from lightly soiled ones.
• Separate dark and light colours as well as colour-fast and non-colour-fast textiles.

Door lock

The appliance is equipped with an automatic door lock

After the programme start, the door lock is automatically active and the indicator DOOR LOCK ACTIVATED (c) lights up.

The door is locked.

The door is always locked during a running programme. It is not possible to open the door while the operation indicator DOOR LOCK ACTIVATED (C) is lit. Opening the door by force can seriously damage the appliance.

Emergency opening of the appliance door

In the event that the door can no longer be opened in the normal way, e.g. due to a power failure or other special circumstances, it is possible to open the door in an emergency.

1. Never open the door in an emergency when the appliance is operating normally.

2. To open the door in an emergency, make sure that the drum is not rotating, the water inside the drum has cooled down (< 40 °C) and the water level is below the laundry load. If the water level is above the laundry load, it is necessary to drain water; e.g. by slowly unscrewing the drain pump strainer.

3. Open the cover (A) of the drain pump strainer (B) and pull the ring(C) for emergency opening of the door slightly downwards (see fig. below) until you hear a soft noise (= unlocking of the door).

It is not possible to open the door while the door lock is activated. Never open the door with force. Opening the door by force can seriously damage the appliance. RISK OF DAMAGE!
Any damage to the appliance or door caused by forcible opening of the door is not covered by the guarantee or warranty!

Load washing drum

Place textiles loosely in the appliance to achieve the best possible cleaning result.

Load the appliance correctly and select the appropriate setting for the amount of laundry.

Overloading and a setting for the laundry quantity that is too low can:

• reduce the washing result,
• promote the formation of creases,

• produce an excessive amount of lint.

• Mix large and small textiles in each load. Distribute everything evenly to maintain balance in the appliance. An uneven load may cause the appliance to vibrate when spinning.

• Shorten the washing time, use a setting for a small amount of laundry. For a load with only a few small textiles, a shorter washing time is sufficient.
• Never put textiles in an appliance that has been splashed with petrol. Wait until the flammable solvents have evaporated, otherwise this may damage the appliance.

Detergent compartment

Use the three detergent compartments as follows:

1 Detergent for main wash cycle
2 Detergent for prewash
3 Fabric softener

It is important to use the right amount of detergent depending on

the type of laundry. The amount of detergent depends on the following factors:

Water Hardness

What is the PH value of the water in your region (possibly ask the waterworks)?

Pollution level

For heavily soiled textiles, use more detergent.

Laundry quantity

The smaller the amount of washing, the smaller the amount of detergent should be.

Do not use detergents that contain chlorine and sulphur.
➢ Follow the dosage recommendation on the detergent pack.
▶ Overdosage leads to extreme foaming.
▶ Underdosing can lead to grey textiles.
- Add liquid softener to the softener compartment.
Do not exceed the maximum level line. Overfilling can cause the fabric softener to be dispensed too early and stains to appear on the garments.
Do not open the detergent compartment while the water is running in.

13 Washing programmes

Programme name	Max. Load (kg)	Total Time (min)	Max. T (°C)	Total Energy Consumption (kwh)	Total Water Consumption (kwh)	Residual Moisture (%)
Cotton 8 76 95 1.61 69						72
Prewash	6108951	88072
ECO 40-60	8206400	802 60	53.9
20°C	4	50	20	0.12	42	82
Delicates	4	43	40	0.49	58	79
Drum cleaning	0	83	95	1.5	60	/
Spin	8	11	/	0.05	0	73
Rinse & Spin	8	17	/	0.06	18	73
Hygiene	4	92	60	0.82	69	74
Bed linen	6	65	600.848	72
Intensive	812840	0.84	4973
Sport	3	35	35	0.46	46	76
Shirts	3	45	40	0.48	46	76
Wool	2	44	20	0.11	58	78
Quick	2	18	30	0.47	36	90
Mix	4	45	400.550	75
** These values are approximate and may differ from actual use**

Consumption Data
Programme	Nominal capacity	Max temperature textiles (°C)	Spinspeed	Programme duration H:Min	Residual moisture %
"eco 40-60 °C"	8	36	1400	03:38	53.9
	4	28	1400	02:48	53.9
	2	25	1400	02:48	53.9

13.1 Programme selection

Select the appropriate programme according to the type, quantity and degree of soiling of the laundry to be washed:

Temperature	Pollution level
90°C	Heavily soiled boiled laundry white, cotton or linen (e.g. cloths, bed linen, aprons)
60°C	Moderately soiled coloureds, synthetics (e.g. pyjamas) Lightly soiled boiled laundry (e.g. underwear)
40 °C, 30 °C, Cold	Lightly to normally soiled coloureds, synthetics, wool.It is recommended to wash wool cold or at 30 °C.

Start washing programme

1. Place textiles in the drum.
2. Close the door.
3. Switch on the appliance with the ON/OFF - button (6).
4. Add detergent to the main wash and prewash compartments.
   (Only add detergent for prewash if a prewash is also selected).
5. Select the washing programme with the programme selector (1)
6. Change the temperature (2) of the washing programme if necessary
7. Change the spin speed (3) if it can be changed.
8. Press Start/Pause (5).

→ The current programme status lights up and indicates washing, rinsing or spinning.

→ When the washing programme has finished, a beep sounds and after approx. 2 minutes the appliance door opens.

i

➢ Turn on the water connection before starting the appliance.
➢ While the washing programme is active, there is no possibility to select an additional function
➢ Spin speed and temperature selection are limited in some wash programmes.
At the end of a wash programme, always switch off the appliance with the On/Off - button to delete all settings.
Do not overload the appliance see programme table "Max. load"
After starting a wash programme, the appliance determines the weight of the laundry in the washing drum. Water consumption and washing time depend on this. Depending on the temperature, types of laundry and water pressure, the
If there is no key input during programme selection, the appliance switches off automatically and the displays go out.

Acoustic signals

Activate/deactivate acoustic signals

Press and hold the button (2 & 3) simultaneously for 3 seconds to activate / deactivate the acoustic signal.

Prewash

For particularly heavily soiled textiles with strong stains (blood, protein stains, etc.), select prewash before the wash programme.

1. Switch on the appliance (6)
2. Turn programme selection (1) to prewash.
3. Fill detergent chamber (2)
4. Press Start/Pause (5).
   → Prewash starts.
   → After the prewash cycle, select a wash programme and fill detergent compartment I with detergent.
5. Start the washing programme with Start/Pause (5).

i

You can select the "Prewash" function with all programmes except "Drum cleaning, Spin, Short and Rinse + Spin".

Start time delay

Select this function to start the washing programme at a later time.

Activate

1. Select the wash programme (1).
2. Press the "Start time delay" key (4), adjustable from 3-24 hrs
3. Press the "Start/Pause" key (5).
4. Washing programme with start time delay is activated.

Deactivate

To cancel the start time delay function, press the On / Off button (6).

When the start time delay is activated, the drum can be accessed during the phase before the start of the wash cycle.
The start time delay must be longer than the washing programme duration because the set start time delay defines the end of the washing programme.
➢ Do not use liquid detergents when the start time delay is activated.
The start time delay is not selectable for all programmes.

Child lock

Set child lock to prevent children from using the appliance or reprogramming settings.

Activate

1. When the appliance has started a washing programme, press the "Temp" button (2) and the "Spin" button (3) for at least 3 sec.
   → The indicator (e) lights up, child lock is active.
   → All control buttons (except the ON/OFF -BUTTON) and the programme selector settings are locked.

Deactivate

The appliance must be switched on.

1. Press the button Temp. (2) and Spin (3) for 3 sec.
   → The child lock indicator (e) goes out
   → All control buttons are active again.

Drum cleaning

Drum cleaning is a special wash cycle for cleaning the inside of the machine. This wash cycle uses a higher water level and spin speed. Carry out this wash cycle regularly.

1. Start wash cycle.
2. Empty the drum.
3. Open the detergent compartment and add descaler in the main detergent compartment I.
4. Switch on the appliance with the On / Off button (6).
5. Select the programme Drum cleaning.
6. Press the Start/Pause button (5) and start the programme.

Do not add extra detergent to the detergent drawer. This could cause the unit to overflow.

Additional functions

FUNCTION "TEMP." = Selection of the washing temperature

FUNCTION "SPEED" = Selection of the spin speed

FUNCTION "TIME PRESET" = Start time preset

FUNCTION "CHILD PROTECTION" =Button lock (ON / OFF)

FUNCTION "ACOUSTIC SIGNAL" = ACOUSTIC SIGNAL (ON / OFF)

1) Press the corresponding button(s) to select or change an additional function.
2) Press the corresponding button(s) once or repeatedly (depending on the selected function) until the desired function or combination12 lights up by illuminating the corresponding indicator(s).

If the set washing programme cannot be combined with the desired function(s), these functions cannot be selected or the corresponding displays flash for 3 seconds and the display switches off. (depending on the unit model).

13.2 Washing symbols

The textile care symbols commonly used in Europe today were introduced by the International Organisation for Textile Care Marks GINETEXH (Groupement International d'Etiquetage pour l'Entretien des Textiles) based in Paris in 1975. They are laid down in an ISO standard (ISO 3758) from 1991 and the Euro standard EN 23758 from 1994. This standard is binding for all European countries (EU) and also applies in Switzerland and Israel.

Wash

	Machine wash. The digit indicates the highest possible washing temperature.
	Machine wash. The bar under the container means gentle spin.
	Machine wash. Interrupted bar (sometimes also double bar): Particularly gentle washing - delicate wash cycle or wool wash cycle only (at 30 degrees, other temperatures accordingly).
	Hand wash. (cold or lukewarm, max. 40 °C, better 30 °C)
	Cold wash(No symbol according to ISO 3758; however, it is often used)
	Do not wash (this usually means: clean) - sometimes the St. Andrew's cross is replaced by an x or xx.
	No hand wash
	Do not wring, this symbol is not common in Europe, but is mainly used in Japan.

Bleaching

Bleaching with chlorine is no longer common. If bleaching is explicitly prohibited, however, stain salts and bleaching stain removers should also be used with caution.

Bleaching allowed

Chlorine bleach possible

Chlorine bleaching not possible (Bleaching with chlorine is no longer common)

Iron

Iron hot - maximum temperature: 200°C

Iron warm - maximum temperature: 150°C

Iron lukewarm - maximum temperature: 110°C

Do not iron

Dry cleaning

Gentle cleaning (two bars: extremely gentle cleaning)

Cleaning with all commonly used solvents (obsolete, no longer permitted)

Cleaning with hydrocarbon solvent

Cleaning with perchloroethylene

Professional wet cleaning

No dry cleaning

Dry textiles

Drum drying possible

Drum drying at high temperatures

Drum drying at low temperature

Do not tumble dry

13.3 Saving energy and water

• Observance of the following instructions has a positive influence on energy and water consumption and the service life of the appliance. Customer service calls can also be avoided.
• Observe the loading instructions (see programme).
• Remove foreign material before loading, e.g. Empty pockets, as these can make cleaning more difficult and (partially) clog filters. Foreign bodies can enter the water-bearing system, especially if filters are not inserted correctly or if the system is operated without filters. Improper use can lead to customer service work that is subject to a charge.
• Select a suitable programme depending on the clothes and soiling. Observe information on energy and water consumption, duration and temperatures.
• Correctly dose the detergent and check the water softener setting.
• Follow the cleaning and care instructions. (see chapter 6 "Cleaning and maintenance")
• The most efficient programme in terms of energy and water consumption is usually the one with a longer run time and lower temperature.

13.4 Stain treatment tips

• Stained, heavily soiled or oily textiles may need to be pre-treated or soaked.
- Soaking helps remove protein-based stains such as blood, milk or grass.
- Pre-treatment helps to loosen soiling before washing.
- Use warm water to soak or pre-treat textiles with stains. Hot water can fix stains.
- Most stains are easier to remove when they are still fresh.
- Before stain treatment, clarify what kind of stain it is, how old the stain is, what kind of fabric it is and whether this fabric is colourfast. (Check the care label)

• Washing and drying can fix certain stains.
• Start with cold or warm water.
• If bleach is recommended, use an agent that does not affect the fabric.
• Place the affected area with the stain facing downwards on a paper towel or white cloth.
• Apply stain remover to the stain from behind. In this way, the stain is pressed out of the fabric instead of through it.

Stain type	Treatment method
Blood	Rinse immediately in COLD water. If the stain remains stubborn, soak in cold water with bile soap.
Chewing gum	Let the chewing gum harden with ice in a plastic bag. Scrape off as much as possible and dab with benzine.
Cocoa, chocolate	Dab with COLD water and soak with bile soap. If the stain remains stubborn, rub in some detergent and rinse in cold water.
Coffee	Wipe quickly and rinse in COLD water. Rub in a little detergent and wash at the maximum temperature allowed for the fabric.
Cream/Milk	Wipe quickly and rinse in COLD water. Rub in a little detergent and wash at the maximum temperature allowed for the fabric.
Ice cream	If the stain is still visible, dab with benzine.
Deodorant	Rub the affected area with vinegar and then rinse in COLD water. Dab with benzine. Treat stiff areas with bile soap.
egg	Soak with COLD bile soap, rinse and wash normally.
Fabric softener	Rub affected area with a bar of soap and wash normally.
Fruit stains	Treat as soon as possible by dabbing with COLD water. Rub a little detergent into the stain and wash normally.
Grass	Dab the spot with benzine. Rub in bile soap and wash normally.
Grease and oil	Place the affected area with the stain facing downwards on an absorbent cloth and treat from the reverse side. Dab with benzine or dry cleaning agent. Wash normally.
Iron or rust	Apply lemon juice and salt and place in the sun. Wash normally.
Lipstick	Dab with methylated spirits and wash normally. Wash out in WARM water with detergent. Moisten the spot with lemon juice, let it dry in the sun and wash it normally. If the stain remains stubborn and the fabric allows it, use bleach.
Mud	Brush off dried mud. Rinse in cold water. If the stain remains stubborn, rub in some detergent and wash normally.
Oil paints	Scrape off fresh paint, dab with a non-flammable dry cleaning agent and wash normally.
Watercolours	Treat garment while still damp, rinse in WARM water and wash normally.
Burn marks	Dampen cloth with hydrogen peroxide, place on affected area and iron hot over it.

14 Cleaning and Maintenance

DANGER

ELECTRIC SHOCK HAZARD!

• Remove the mains plug from the plug socket before starting cleaning or service work.
• Do not place heavy objects or heat sources on the top plate of the appliance to avoid deformation of the top plate.
• Wash the outside of the housing with a soft cloth and a little detergent. Do not use petrol or other organic solvents for cleaning so as not to damage the surface.
• Porthole gets very hot at high washing temperature. Keep babies and children in general away from the appliance.
• Do not use the appliance near flammable or explosive gases.
• Have a damaged mains cable replaced by the manufacturer or an approved technical service centre.

Clean housing

Proper care of the appliance can increase its lifespan.

1. Clean the housing with a soft cloth and, if necessary, with a little mild detergent solution and then rub dry.
2. Wipe away excess water immediately.

Clean drum

If rust appears inside the drum due to metal parts, remove it immediately with chlorine-free cleaning agents.

Clean the door sealing ring

After washing, check the door seal ring and remove paper and foreign objects if necessary.

Clean detergent compartments

After a certain time, detergent and fabric softener leave residues in the detergent compartments.

1. Pull out the detergent compartment.
2. Lose weight. To do this, press the latch of the insert downwards, see arrow.
3. Push up and remove the inset.
4. Clean all chambers of the detergent compartment under running water.
5. Detergent can also accumulate in the rear opening of the detergent compartment. Clean off detergent residues with a brush as needed.
6. Replace the insert for detergent compartments.
7. Insert the detergent compartment into the appliance and close it.

Illustration of a hand using a tool to clean or store contents inside a vehicle (no text or symbols visible)

Clean water inlet strainer and water outlet valves

After a certain time, detergents and fabric softeners leave residues. The following cleaning is therefore recommended every six months/year.

1. Pull out the mains plug.
2. Remove the inlet hose from the water tap.

3. Clean the water inlet strainer under running water.

4. Reconnect the strainer.

5. Unscrew the water inlet from the back of the unit.

6. Remove the filter net from the water valve.

7. Clean the sieve under running water.

8. Replace the sieve.

9. Screw the water inlet back in.

10. Open the water supply and make sure that the connection is tight.

A	Water inlet hose
B	Water inlet valve
C	Universal pliers
D	Water inlet filter
E	Toothbrush

Clean the lint filter

The lint filter is used to catch foreign objects such as threads, coins, needles, buttons, etc. If you do not clean the lint filter in time (every 10 washes), a drainage problem could occur.

1. Pull out the mains plug.
2. Open the flap (6) at the bottom right of the front of the unit.
3. Pull out the drain hose and let the water drain into a container provided.
4. Unscrew the lint filter counterclockwise.
5. Remove all foreign bodies from the strainer.
6. After cleaning, insert the lint filter and turn it clockwise. The lint filter must be tightly closed.
7. Close the flap (6) again.

The lint filter must be tightly closed. There must be no water leakage.

15 Troubleshooting

Problem	Cause/Remedy
You can't open the door.	A washing programme is running.Clothes are caught between the door and the door seal.
Appliance does not start.	Is there a power failure?Is the mains cable correctly plugged into a socket?Is the machine switched on?Is the Start/Pause button pressed?Is a start time delay programmed?
Textiles are not spun at all or not spun sufficiently.	A programme without spinning or with reduced spinning speed is programmed.The spin safety device has detected poor distribution of textiles in the drum: Re-load textiles and programme a new spin cycle.
Appliance vibrates and is too loud.	Is the drain hose placed higher than 1 m above the floor?Have the transport locks been removed?
Appliance does not pump out the water.	Has a flush stop been programmed?Is the drain hose frozen or blocked by dirt?Is the drain hose kinked or deformed?Is the end of the drain hose immersed in water?Is there excessive dirt in the lint filter?
Drum is blocked.	Check if a piece of laundry is trapped.

Error message	Possible cause	Actions
E 1Problems with the Water inlet	The water tap is closed.The water pressure is too low.The water inlet hose is frozen.The filters are clogged.	Open the water tap.Wait for some time.Open the water inlet hose.Remove the filters and clean them.
E 2Problems with the Water drain	The START / PAUSE button is pressed. The appliance is in pause mode.The water drainage hose is placed too high.The water drain hose is clogged.The water discharge is clogged.The drain pump strainer is blocked.	Press the START / PAUSE button again to interrupt the set programme.The max. installation height is 100 cm.Dismantle and clean the water drain hoseDismantle and clean the drain pump strainer.
E 3Problems with the door lock	·The door is not closed properly. ·Textiles have got stuck between the door and the seal. ·The door lock is defective.	·Remove the textiles. ·Contact After Sales Service. ·Contact After Sales Service.
E 4	Water has overflowed	Switch off the appliance, turn off the water tap and pull the mains plug out of the socket. Contact After Sales Service.
E 5	Electric motor is defective.	Switch off the appliance, turn off the water tap and pull the mains plug out of the socket. Contact After Sales Service.
E 6	The heating element of the appliance is defective.	Switch off the appliance, turn off the water tap and pull the mains plug out of the socket. Contact After Sales Service.
E 7	The temperature sensor is defective.	Switch off the appliance, turn off the water tap and pull the mains plug out of the socket. Contact After Sales Service.
E 8	Mismatching software / hardware on the motherboard and frequency inverter board	Switch off the appliance, turn off the water tap and pull the mains plug out of the socket. Contact After Sales Service.
E 9	Communication error	Switch off the appliance, turn off the water tap and pull the mains plug out of the socket. Contact After Sales Service.
E 10	Error of the inverter	Switch off the appliance, turn off the water tap and pull the mains plug out of the socket. Contact After Sales Service.
E P	The washing programme in progress does not correspond to the washing programme set with the rotary switch.	Switch off the appliance, turn off the water tap and pull the mains plug out of the socket. Contact After Sales Service.

16 Spare parts/After Sales Service

The following spare parts are available from After Sales Service (depending on the appliance):

• Motor and motor carbons; power transmission between motor and drum; pumps; shock absorbers and springs; wash drum, bearing cross with ball bearings (individually or as a repair kit); radiators and heating elements, including heat pumps (individually or as a repair kit); piping and associated equipment, including all hoses, valves, filters and aquastops (individually or as a repair kit); circuit boards electronic displays; pressure switches; thermostats and sensors software and firmware, including reset software.
• (Door, door hinge and door seals, other seals, door lock assembly and plastic accessories such as detergent dispenser
• Door seals are available 10 years after the last appliance of a model has been placed on the market.

To access the product database for:

• Repair orders
• Data sheet
• Instruction Manual

Scan the service QR code from the enclosed service card or from the type plate on the appliance.

Service card

Type plate

For more information about service, see enclosed service card

Customer service address:

EGS GmbH

Dieselstraße 1

33397 Rietberg / GERMANY

A visit by an After Sales Service technician is not free of charge even during the warranty period in the event of incorrect operation or one of the faults described above.
Have repairs to electrical appliances carried out only by a qualified electrician. An incorrectly performed repair can pose dangers for the user and lead to a voiding of warranty claims.

17 Warranty terms

As the buyer of an Exquisit appliance, you are entitled to the statutory warranty under the purchase contract with your dealer. In addition, we grant you a warranty on the following terms:

Warranty period

The warranty period is 24 months from the date of purchase (proof of purchase must be presented). During the first 6 months, After Sales Service will fix defects in the appliance free of charge. on condition that the appliance is accessible for repairs without any great effort. During the following 18 months, the buyer is obliged to prove that the defect already existed at the time of delivery.

In the case of commercial use (e.g. in hotels, canteens) or joint use by several households, the warranty period is 12 months from the date of purchase (proof of purchase must be presented). During the first 6 months, After Sales Service will fix defects in the appliance free of charge. on condition that the appliance is accessible for repairs without any great effort. During the following 6 months, the buyer is obliged to prove that the defect already existed at the time of delivery.

The claim under warranty does not prolong the warranty period for either the appliance or for newly installed parts.

Scope of the defect remedy

Within the periods indicated, we will remedy all defects in the appliance that are demonstrably attributable to poor workmanship or material flaws. Replaced parts become our property.

The warranty does not cover:

Normal wear and tear, intentional or negligent damage, damage caused by non-compliance with the operating instructions, improper set-up or installation or by connection to incorrect mains voltage, damage due to chemical or electrothermal effects or due to other abnormal environmental conditions, glass, paint or enamel damage and possible colour differences as well as defective bulbs.

Defects in the appliance resulting from transport damage are also not covered. We will also not provide any services if - without our special, written approval - work has been carried out on the Exquisit appliance by unauthorised persons or if parts of foreign origin have been used. sThis restriction does not apply to defect-free work carried out by a qualified specialist with our original parts to adapt the appliance to the technical protection regulations of another EU country.

Scope

Our warranty applies to appliances purchased and in operation in the Federal Republic of Germany or Austria.

In the case of complaints about defective appliances, the sender's and recipient's addresses must be in the Federal Republic of Germany or Austria.

For appliances purchased and operated in other European countries, the warranty conditions of the seller apply.

For repairs outside the warranty period:

If an appliance is repaired, the repair invoices are payable immediately without deduction.

If an appliance is inspected or a started repair is not completed, flat-rate travelling expenses and labour costs will be invoiced.

Advice from our After Sales Service centre is free of charge (see chapter "After Sales Service").

Disposal of packaging materials

Sort packaging materials before disposal. Paper and cardboard with the waste paper and plastic film in the recycled materials bin.

Disposing of old appliances (EN)

Old appliances must not be disposed of with household waste

The symbol of the crossed-out wheeled bin on the product or its packaging means that the appliance must not be disposed of with household waste but requires separate disposal. You can return the old appliance free of charge to a suitable municipal collection point for old electrical and electronic equipment, e.g. a recycling centre.

You can obtain the addresses from your city administration or local government.

Alternatively, you can return old electrical appliances with an edge length of up to 25 cm free of charge to retailers with a sales area for electrical and electronic equipment of at least 400 m ^2 or food retailers with a total sales area of at least 800 m ^2 who offer electrical and electronic equipment at least several times a year.

Larger old appliances can be returned free of charge to an appropriate retailer when purchasing a new appliance of the same type that performs essentially the same functions as the new appliance. Please contact your dealer regarding the modalities of returning an old appliance when delivering the new appliance.

If possible, please remove all batteries as well as all lamps that can be removed without destruction before disposing of the product.

Please note that you are responsible for deleting personal data from the appliance to be disposed of.

Children can often not recognise the hazards associated with household appliances. Ensure the necessary supervision and do not let children play with the appliance.

Disposing of old appliances

The symbol of the crossed-out wheeled bin on the product or its packaging means that the appliance must not be disposed of with household waste but requires separate disposal. You can return the old appliance free of charge to a suitable municipal collection point for old electrical and electronic equipment, e.g. a recycling centre. You can obtain the addresses from your city administration or local government.

Alternatively, you can return old electrical appliances free of charge when you buy a new appliance of the same type and with the same function from an offline retailer. Please contact your dealer regarding the modalities of returning an old appliance when delivering the new appliance.

If possible, please remove all batteries as well as all lamps that can be removed without destruction before disposing of the product.

Please note that you are responsible for deleting personal data from the appliance to be disposed of.

The appliance may contain substances that can endanger the environment and human health if disposed of incorrectly. Material recycling helps to reduce waste and conserve resources. By collecting old appliances separately and recycling them, you help prevent negative impacts on the environment and human health.

exquisit

GGV HANDELSGES. MBH & CO. KG

AUGUST-THYSSEN-STR. 8

D-41564 KAARST

GERMANY

WA8014-340-A_BDA_DE-EN_E1-0-Rev-2023-10.docx
